A Unified Nonlinear Elastic Model for Rock Material

1
School of Water Resources and Hydropower Engineering, Wuhan University, Wuhan 430072, China
2
Changjiang River Scientific Research Institute, Wuhan 430010, China
3
School of Resources and Safety Engineering, Central South University, Changsha 410083, China
4
College of Civil Engineering, Hefei University of Technology, Hefei 230009, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(24), 12725; https://doi.org/10.3390/app122412725
Submission received: 25 November 2022 / Revised: 7 December 2022 / Accepted: 10 December 2022 / Published: 12 December 2022

Abstract

:
Under conditions of low or medium stress, rocks that are in the compression state exhibit perceivable nonlinear elastic characteristics. After a comprehensive review of the existing nonlinear elastic models of rocks and joints, we proposed a new unified nonlinear elastic model. This new model contains two parameters with clear definitions, namely, the initial elastic modulus Eni and the modulus change rate m. This model covers a variety of existing models, including the simple exponential model, BB model and two-part Hooke’s model, etc. Based on the RMT experimental system, a large number of uniaxial compression tests for dolomite, granite, limestone and sandstone were performed, and their nonlinear deformation stress‒strain curves were obtained and fit with the unified nonlinear elastic model. The results show that the rocks have obvious nonlinear elastic characteristics in their initial compression stage, and that the unified nonlinear elastic model is able to describe these phenomena rather well. In addition, an empirical formula for predicting the uniaxial compressive strength of the rock was constructed, corresponding to the unified nonlinear elastic model.

1. Introduction

Engineering rock masses are discontinuous and often heterogeneous and anisotropic. Jointed rock masses are the basic units that are used to study the properties of engineering rock masses, and their deformation characteristics under different stress conditions are crucial to the performance of geotechnical engineering structures. Since a large number of projects are located in the shallow layer of Earth, which experiences low crustal stress, it is of great significance to study the deformation characteristics of jointed rock masses under conditions of low and medium stress smaller than 10 MPa and 20 MPa, respectively [1]. Under such circumstances, both intact rocks and joints (as two components of the jointed rock mass) will undergo nonlinear elastic deformation.
Many scholars have performed extensive research on the nonlinear deformation of joints and different models have been proposed. Shehata [2] first used semilogarithmic functions in order to describe the normal deformation characteristics of joints. Goodman [3] used the hyperbolic model in order to describe the relationship between normal stress and the normal closure of joints. On this basis, Bandis and Barton [4,5] proposed a relatively simple model by introducing two parameters: initial joint stiffness and maximum closure. Malama and Kulatilake [6] proposed a simple exponential model and a modified exponential model. Swan and Sun [7,8] proposed a power function model based on Hertzian contact theory. Other scholars [9,10,11] have also developed and improved the above models and the nonlinear elastic deformation of joints has had a great influence on their shear strength [12,13]. Since it is difficult to directly measure the deformation of joints, it is indirectly evaluated by subtracting the deformation of the intact rock specimen from the jointed rock mass. However, during such an operation the nonlinear elastic deformation property of the intact rock is unconcernedly ignored (although not always).
The nonlinear elastic deformation in the initial compaction stage of the intact rock was customarily considered to be caused by sampling disturbance [14]. Without considering the initial compaction stage, hyperbolic [15], logarithmic [16], double exponential [17] and exponential [18] stress–strain models for different rock types have been proposed. However, there is a significant difference in the nonlinear part of stress–strain relationships between the observed and estimated values [19]. The widely used stress–strain curves for intact rocks with cracks [20] and weak rocks [21] have validated that the nonlinear elastic deformation in the initial compaction stage is remarkable. It has been shown that the porosity of the rock and the fractures in the rock can not only reduce its strength and elastic modulus [22,23], but also cause its nonlinear characteristics [24]. Jiang [25] and Zhang [26] proposed different improved models in order to describe the rock compression stage based on the Duncan model. Wang [27] introduced a compression factor in order to characterize the change in porosity and established a nonlinear damage constitutive model reflecting the rock compression stage. Based on particle contact theory, Ma [28] established a constitutive model by using spring elements and G-W contact elements in order to express the linear and nonlinear deformation of contacts between adjacent particles, respectively. Liu [29,30] used engineering strains and natural strains based on Hooke’s law to describe the deformation of the rock matrix and the porosity and fractures respectively, and proposed the two-part Hooke’s model. This model was used to quantitatively calculate the crack closure stress of the rock [31,32] and was introduced into the statistical damage constitutive model of the rock [33,34]. Using numerical computation and the distinct element method, it was proven that the porosity of the rock or the microfractures that are present in the rock can bring about nonlinear elastic deformation in the initial compaction stage of middle to hard rock [35]. However, this still needs to be verified using appropriate mathematical models and experiments.
In this paper, the ability of existing nonlinear elastic models for rocks and/or joints was discussed and analyzed. Then, a unified nonlinear elastic model was proposed. Based on a large number of experiments investigating the mechanics of intact rocks, the nonlinear elastic deformation of middle to hard rocks was analyzed. Afterwards, comparisons were made between the parameters of the unified nonlinear elastic model and the experimental data. In this manner, the validity of our model was justified.

2. Common Nonlinear Elastic Models

2.1. Nonlinear Elastic Models of Joints

Goodmam [3] proposed a hyperbolic function in order to describe the deformation of joints based on their initial normal stress and maximum allowable closure.
σ n = d n / d max d n σ 0 + σ 0
Here, dmax is the maximum allowable closure, σ0 is the initial normal stress, σn is the normal stress and dn is the normal closure.
Bandis and Barton [4,5] conducted a large number of experiments on joints with different weathering degrees and types of rocks. By introducing the initial stiffness Kni as an important parameter for joints, the classical BB model was established based on the Goodman’s hyperbolic model. The formula of the BB model is as follows:
d n = σ n / K n i + σ n / d max
The above equation can be rewritten as
σ n = K n i d max d max / d n 1
Malama and Kulatilake [6] proposed a simple exponential model with reference to the BB model. The formula of this simple exponential model is as follows:
d n = d max 1 exp σ n K n i d max
The above equation can be rewritten as
σ n = K n i d max ln 1 1 d n / d max
Malama and Kulatilake [6] found that under medium stress, the normal closure calculated by the hyperbolic model was slower than that calculated using the experimental results, whereas the simple exponential model was faster. By introducing the half value σ1/2 as a new parameter, which is the stress when the joint closure reached half of the maximum allowable closure, the modified exponential model was proposed. The modified exponential model excludes initial joint stiffness Kni in its formula, which is an important parameter [10], and its physical meaning is not clear.
The formula of the modified exponential model is as follows:
d n = d max 1 exp σ n σ 1 / 2 n ln 2

2.2. Nonlinear Elastic Models of Joints

The typical stress‒strain curve of the rock specimen under uniaxial stress is shown in Figure 1, which can be divided into four stages: (1) the compression of pores and fractures (section OA); (2) elastic deformation and the stable development of microfractures (section AC), where point B is the elastic limit; (3) the unstable developmental stage of the fractures (section CD); and (4) the stage after rock rupture (after point D). As shown in Figure 1, the deformation rate slows down with increasing stress in the compression stage (section OA), which is because the elastic modulus increases with decreasing rock specimen length. In order to distinguish between the nonlinear elastic and linear elastic deformation of the rock in Figure 1, a straight line (OB’ parallel to AB) through the coordinate origin was drawn, and the difference between the curve OAB and the straight line OB’ was the curve OA’, as shown in Figure 2. The straight line OB’ and the curve OA’ represent the linear elastic and the nonlinear elastic deformation of the rock, respectively.
As shown in Figure 2, both linear elastic deformation and nonlinear elastic deformation will occur when the strain is below point A. Nonlinear elastic deformation will terminate after reaching its maximum allowable deformation when the strain reaches point A, and only linear elastic deformation will occur when the strain exceeds it. The stress corresponding to point A is called the closing stress of the initial microcrack, which is also one of the important parameters of the rock.
Since a rock is not an ideal linear elastic material and is a heterogeneous material composed of solid skeletons with pores and fractures filling the space between them, Liu [29,30] divided the rock into hard and soft parts, which have linear elastic and nonlinear elastic deformation characteristics, respectively. The two-part Hooke’s model [29,30] formula is as follows:
ε = γ e σ E e + γ t 1 exp σ E t
where Ee and Et are the elastic modulus of the hard and soft parts, respectively, and γe and γt are the proportions of the hard and soft parts of the rock, respectively. This model can be used for composite materials [36], such as material combined with coal and rock [37].
If the deformation of the soft part to its initial length is εt, the nonlinear elastic deformation of the soft part in the two-part Hooke’s model can be expressed as
σ = E t ln 1 1 ε t

3. A New Unified Nonlinear Elastic Model

This section presents a new unified nonlinear elastic model for rock material based on Hooke’s law. Hooke’s law can be used to describe the linear relationship between the strain and stress of linear elastic material under compression. When the compression direction is positive, Hooke’s law is expressed as
σ = E ε
d σ = E d ε
ε = L L 0 L 0
d ε = d L L 0
where E, ε and L are the elastic modulus, strain and length of the material under stress σ, respectively, and L0 is the initial length of the material.
The elastic modulus of the linear elastic material remains unchanged during deformation, as shown in Figure 3a. The Eni parameter is introduced, which represents the initial elastic modulus of the material, and we have the following:
E = E n i
Substituting Equations (12) and (13) into (10) yields the following:
d σ = E d L L 0 = E n i d L L 0
If the elastic modulus of the material is not a fixed value, but is related to the material length during deformation, its stress‒strain curve is nonlinear, as shown in Figure 3b.
The elastic modulus during deformation follows the following formula:
E = E n i L 0 L m         m 0
where m is a constant.
The nonlinear elastic curve has obvious differences compared to the linear elastic curve. In the nonlinear elastic curve, the closer to the maximum strain, the faster the curve rises, and more stress is required for further deformation of the material. As shown by Equation (15), the elastic modulus of the material decreases with increasing length during the deformation process.
Substituting Equations (12) and (15) into (10) yields the following:
d σ = E n i L 0 m 1 d L L m
The length L of the material under stress σ can be obtained by integrating Equation (16). The m value is a special case when it is equal to 1, and the derivation method is different from that when it is not equal to 1.
When m is equal to 1
L = L 0 exp σ E n
When m is not equal to 1
L = L 0 σ m 1 E n i + 1 1 1 m
After substituting Equations (17) and (18) into (11) and simplifying the formula, we have the following:
When m is equal to 1
σ = E n i ln 1 1 ε
When m is not equal to 1
σ = E n i 1 ε 1 m 1 m 1
The new unified nonlinear elastic model is composed of Equations (19) and (20). Special forms of the formula exist when m is equal to 0, 1 and 2.
When m is equal to 0, the unified nonlinear elastic model can be simplified into a linear elastic model:
σ = E n i ε
When m is equal to 1, the unified nonlinear elastic model is Equation (19), it is the same as Equation (8) of the two-part Hooke’s model, and it is the same as Equation (5) of the simple exponential model under the following conditions:
E n i = K n i d max ε = d n / d max
When m is equal to 2, Equation (20) can be simplified as
σ = E n i 1 1 / ε 1
It is the same as Equation (3) of the BB model when Equation (22) is established.
Note that the stress displacement coordinate system is often used for the nonlinear deformation of joints, and if it is changed to the stress–strain coordinate system that is the same as the rock, Equation (22) will be established.
In addition, when the unified nonlinear elastic model is used for the rock, its strain is the deformation divided by the allowable nonlinear deformation, that is, the two coordinate systems in Figure 2 and Figure 3b are different. Because the allowable nonlinear deformation of the rocks in the initial compaction stage in Figure 3b is generally less than 0.5%, the differences between the elastic modulus values calculated by the two coordinate systems are also less than 0.5%.
In general, the unified nonlinear elastic model has two key parameters, Eni and m, where Eni is the initial elastic modulus and m represents its change rate, and both have reasonable physical significance. The unified nonlinear elastic model can include the existing main nonlinear elastic models of the rocks and joints and can also express some new models.

4. The Characteristics of the New Model

4.1. Sensitivity Analysis of the Parameters

The new unified nonlinear elastic model has two parameters: Eni and m. The influence of the Eni values was studied by fixing the m value to 1.0. The stress‒strain curves of the new model when Eni is equal to 1 MPa, 5 MPa, 10 MPa, 15 MPa and 20 MPa are listed in Figure 4. All the curves rise linearly when the strain is less than 0.4, and nonlinearity gradually appears when the strain is greater than 0.4. The higher the Eni values are, the higher the position of the curves, and the distance between adjacent curves is equal when the strain is the same. The slope of the curve for the unified nonlinear elastic model in its initial stage is determined by the Eni value.
The influence of the m value was studied by fixing the Eni value to 10. The stress‒strain curves of the new model when the m value is equal to 0, 0.5, 1.0, 1.5 and 2.0 are listed in Figure 5. All the curves are coincident when the strain is less than 0.4, and differences appear quickly when the strain is greater than 0.4. The curvature of the curves for the unified nonlinear elastic model in its middle–late stages is determined by the m value.
Compared with Figure 4 and Figure 5, the mechanisms of influence for the two parameters of the unified nonlinear elastic model on the stress‒strain curves are different since they represent different physical properties of the nonlinear elastic deformation of the rock. The initial stage of the curve for the unified nonlinear elastic model is determined by the Eni value, and its middle–late stages are determined by the m value. The unified nonlinear elastic model uses the above two parameters to jointly adjust and control in order to achieve accurate descriptions of the nonlinear elasticity of rock.
In fact, the nonlinear deformation of the rock or joint is not obvious when the deformation is small. During the closure of the rock pores and fractures or the joint, the anti-deformation ability increases as the rock matrix gradually contacts, and then the nonlinear elastic characteristic gradually becomes obvious. The new unified nonlinear elastic model can accurately describe these properties.

4.2. Approximating to a Single Stress‒Strain Curve

The initial compression stage of a rock specimen represented by the single stress‒strain curve was calculated using the method shown in Figure 1. For different ranges of stress‒strain curves with strain from 0 to 0.5, 0.6, 0.7, 0.8, 0.9 and 1.0, the unified nonlinear elastic model was used to fit them using the least square algorithm method. The values of Eni and m for the unified nonlinear elastic model are obtained, and the correlation coefficient R2 values were recorded. The horizontal axis in Figure 6 represents the different ranges of the stress‒strain curve, with the Eni, the m values and the R2 values located on different vertical axes. The red line represents the R2 values, and its fluctuation range is very small. All the R2 values are greater than 0.98, which showed a good relevant fit for the different ranges. The values of Eni decrease with a larger range, whereas the m value increases with it. These trends become obvious when the strain is greater than 0.7 and very obvious when it is greater than 0.95. There is a negative correlation between the Eni values and the m values.
The different curves of the unified nonlinear elastic model with the Eni values and m values, which were both obtained after fitting different curve ranges, are listed in Figure 7. As the fitting curve range increases, the calculated curve gradually approaches the target curve. The red line was calculated using the parameters after fitting the curve from 0 to 1.0, and is the curve of best fit.

5. Experimental Validation of the New Model

5.1. Experimental Methods

The fitting effect of the unified nonlinear elastic model and whether it could express the nonlinear elastic deformation of different rock types required verification by indoor experiments. Four different types of middle to hard rocks were selected for uniaxial compression testing with the rock mechanics test system. The four types of rock were dolomite, granite, limestone and sandstone. Cylindrical samples were prepared according to the suggested methods proposed by the International Society of Rock Mechanics and Rock Engineering (IRSM) [38]. The samples were 50 mm in diameter and 100 mm in length. The appearance of the samples was checked to ensure that they had no foliation, joints or big fractures and that, to some extent, they were intact rock specimens. The differences between the four rock types were directly attributed to the mineral components, porosity and microfractures. The samples of the four rock types have the same brittle failure characteristics.
The tests were performed with a loading speed of 0.05 m/s in the axial direction and with no confining pressure. The displacement sensors were installed at the end and side surface of the rock specimens in order to measure their deformation, and their precision was not higher than 0.01 mm. The rock mechanics test system and the rock specimens are shown in Figure 8 and Figure 9, respectively. During the experiments, the uniaxial stress‒strain curves were recorded as listed in Figure 10. According to the values of the uniaxial compressive strength, the stress‒strain curves of the ten rock specimens from every rock type were selected for analysis.

5.2. Experimental and Fitting Results

Based on the stress‒strain curves under uniaxial compression, the uniaxial compressive strength was obtained, and the stress‒strain curves of all the rock specimens in the initial compression stage were calculated using the method shown in Figure 1. The unified nonlinear elastic model was used to fit the curves using the least square algorithm method. The Eni and m values that were obtained by fitting the curves and the coefficients of correlation R2 values are listed in Table 1. This new model shows a better goodness of fit and a higher accuracy of fit since all the R2 values of the specimens exceed 0.97. The UCS values, the Eni values and the m values of each rock specimen were different. The Eni values increased as the UCS value increased for each rock type, whereas the m values changed slightly.
The nonlinear elastic deformation of the rocks in the initial compression stage exists objectively, and their regularity can be followed as well. The unified nonlinear elastic model is suitable for describing the nonlinear elastic deformation behavior of intact rocks at the initial compression stage.

5.3. The m Value Range of the Rock Material

The range of variation in the m values for the different rock types was 0~2, as listed in Table 1. Based on the unified nonlinear elastic model, the experimental curves for the different rock types were fitted using the least square algorithm method when the m values were increased from 0.1 to 2.0 with a gradient of 0.1 and when the Eni values were not fixed. The scatter plots of the coefficients of correlation R2 values and the m values are listed in Figure 11, and the scatter plots of the Eni and m values are listed in Figure 12. All the curves in Figure 11a–d are parabolic in their shape; that is, the R2 values near the extreme point are high and the R2 values far from the extreme point are low, which conforms to the local optimal feature of the least squares algorithm method. It is clear that the parameters fit to the unified nonlinear elastic model were optimal and unique. The highest points of the different curves in each picture are close, and the two side curves decrease rapidly in Figure 11a–d, indicating that the appropriate m values are in a small range and the R2 values decrease rapidly when they are greater than this range.
The m values of different rock types were counted under the following three conditions: maximum R2, an R2 greater than 0.95 and an R2 greater than 0.8. The maximum and minimum values of m were used to describe its range in each condition, and the results are listed in Table 2. The ranges of the m values were 0.65~1.05, 0.28~1.26 and 0.00~1.52 in the above three conditions for the R2 values, the differences were small and the upper and lower limits were close. The fitting degree will be poor when the m values are greater than 1.52, and the unified nonlinear elastic model will not be applicable. The nonlinear elastic deformation characteristics of each rock type were different and are easy to ignore since their differences are small. In previous studies, there was no model or method that could accurately describe these behaviors, whereas the unified nonlinear elastic model can distinguish and accurately describe them.
In addition, the m value corresponding to the simple exponential model was 1, and that corresponding to the BB model was 2, so the former can be used to describe the nonlinear elastic deformation of some rocks, whereas the latter has poor applicability.

5.4. The Range of Eni Values for the Rock Material

The scatter plots of the Eni and m values are listed in Figure 12. All the curves in Figure 12a–d show a downwards trend, indicating that the Eni values are negatively correlated with the m values, which follows the same rule of fit for a single curve shown in Figure 6. The Eni values increase as the serial numbers of the different rocks increases, and the position of the curve is also higher. The linear relationship of all the curves was good when the m values were less than 1.2, and the curves gradually approach each other with decreasing rates when the m values were greater than 1.2, as shown in Figure 12a–d. The scatter points hardly overlap with one another, that is, the Eni values have good independence and non-repeatability. The Eni values depend on the basic properties of the rocks, such as the m values, and the basic attributes are natural. It is not feasible to obtain the Eni values of all rocks by using the same m value, which is why the unified nonlinear elastic model contains both Eni and m values.
The range of Eni values for the different rock types were determined and are listed in Table 3. The range of Eni values of different rock types is slightly different, and dolomite and granite have larger ranges than limestone and sandstone. In general, the maximum Eni values for all the rock types were less than 21 MPa.

6. Application of the New Model

According to the data in Table 1, the uniaxial compressive strength (UCS) values and the initial elastic modulus Eni values for the different rocks were counted, and the scatter diagrams are shown in Figure 13a–d. The results of the linear fitting of the data are also shown in these diagrams. The coefficients of correlation R2 values for the four rock types are greater than 0.90, indicating that the UCS values and the Eni values have a good linear relationship [39]. The slope and intercept of different linear fittings and the R2 values are listed in Table 4. Granite and limestone have the highest R2 values, followed by dolomite and sandstone. The slopes of the linear formula for the different rocks were close, whereas the intercepts were different. When marble was added as another rock type, the scatter plots of the UCS and Eni values for the five rock types were determined and are listed in Figure 14. The results of the linear fitting of the data are also shown in Figure 14. In order to ascertain whether the experimental values were, in fact, unique to the present model, the 95% prediction band for the present model was determined and is represented by the red band. Almost all the experimental data fall within the 95% prediction band of the present model, which means that the UCS values can be predicted by the Eni values. The linear fitting formula is listed below:
U C S = 0.927 E n i + 11.26

7. Summary and Conclusions

In this paper, the initial elastic modulus Eni and modulus change rate m are introduced in order to establish a new unified nonlinear elastic model for the nonlinear elastic deformation of intact rocks. Based on the RMT experimental system, a large number of uniaxial compression tests for dolomite, granite, limestone and sandstone were performed, and their nonlinear deformation stress‒strain curves were employed to fit the unified nonlinear elastic model. The main outcomes are summarized as follows:
(1) The nonlinear elastic characteristic is obvious in the initial compression stage of the intact rock, which is mainly attributable to the porosity and/or microfractures present depending on the different rock types.
(2) In the unified nonlinear elastic model, the physical meanings of two key parameters, namely, the Eni representing the initial elastic modulus and the m representing its change rate, were clearly defined. Eni determines the slope in the initial stage of deformation, and m determines the degree of nonlinearity in the middle and later stages. The unified nonlinear elastic model not only covers the existing nonlinear elastic models, such as the simple exponential model (m = 1) and the BB model (m = 2) of the joint and the two-part Hooke’s model (m = 1) of the rock, but is also able to provide some new models.
(3) The unified nonlinear elastic model was able to describe the nonlinear deformation elastic characteristics of the intact rocks in their initial compression stage rather well. This was justified as the data fit with the experimental results.
(4) The Eni values have a good linear correlation with the uniaxial compressive strength (UCS) values of the intact rocks. Based on this observation, a new empirical formula for the prediction of the UCS value using the Eni value was proposed.
(5) The unified nonlinear elastic model can also be employed to describe the nonlinear elastic deformation behavior of the jointed rock mass, but the range of the m values may be different from that of the intact rocks, which needs further investigation. For example, we could divide the jointed rock into two distinct portions (intact rock and joints) and analyze their deformation individually. Afterwards, they could be combined according to the principles of “strain superimposition” [40] or “energy equivalence” [41].

Author Contributions

Conceptualization, C.C. and S.C.; methodology, C.C.; software, H.L.; validation, Y.Z., H.L. and Y.W.; formal analysis, H.L.; investigation, Y.W.; data curation, Y.Z.; writing—original draft preparation, C.C.; writing—review and editing, S.C.; funding acquisition, C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China under Grant 42277186 and 51927815.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, F.; He, C.; Deng, J. Concept of high geostress and its qualitative and quantitative Definitions. Rock Soil Mech. 2015, 36, 971–980. [Google Scholar] [CrossRef]
  2. Shehata, W.M. Geohydrology of Mount Vemon Canyon Area. Ph.D. Thesis, Colorado School of Mines, Golden, CO, USA, 1971. [Google Scholar]
  3. Goodman, R.E. Methods of Geological Engineering in Discontinuous Rocks; West Group: New York, NY, USA, 1976; pp. 472–490. [Google Scholar]
  4. Bandis, S.C.; Lumsden, A.C.; Barton, N.R. Fundamentals of rock joint deformation. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1983, 20, 249–268. [Google Scholar] [CrossRef]
  5. Barton, N.R.; Bandis, S.C.; Bakhtar, K. Strength deformation and conductivity coupling of rock joints. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1985, 22, 121–140. [Google Scholar] [CrossRef]
  6. Malama, B.; Kulatilake, P.H.S.W. Models for normal fracture deformation under compressive loading. Int. J. Rock Mech. Ming Sci. 2003, 40, 893–901. [Google Scholar] [CrossRef]
  7. Swan, G. Determination of stiffness and other joint properties from roughness measurement. Rock Mech. Rock Eng. 1983, 16, 19–38. [Google Scholar] [CrossRef]
  8. Sun, Z.; Gerrard, C.; Stephansson, O. Rock joint compliance tests for compression and shear loads. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1985, 22, 197–213. [Google Scholar] [CrossRef]
  9. Xia, C.; Yue, Z.; Tham, L.G.; Lee, C.; Sun, Z. Quantifying topography and closure deformation of rock joints. Int. J. Rock Mech. Min. Sci. 2003, 40, 197–220. [Google Scholar] [CrossRef]
  10. Yu, J.; Zhao, X.; Zhao, W.; Li, X.; Guan, Y. Improved nonlinear elastic constitutive model for normal deformation of rock fractures. Chin. J. Geotech. Eng. 2008, 30, 1316–1321. [Google Scholar] [CrossRef]
  11. Rong, G.; Huang, K.; Zhou, C.; Wang, X.; Peng, J. A new constitutive law for the nonlinear normal deformation of rock joints under normal load. Sci. China Technol. Sci. 2012, 42, 402–414. [Google Scholar] [CrossRef]
  12. Zhao, Y.; Zhang, L.; Wang, W.; Liu, Q.; Tang, L.; Cheng, G. Experimental Study on Shear Behavior and a Revised Shear Strength Model for Infilled Rock Joints. Int. J. Geomech. 2020, 20, 04020141. [Google Scholar] [CrossRef]
  13. Xie, S.; Lin, H.; Chen, Y. New constitutive model based on disturbed state concept for shear deformation of rock joints. Arch. Civ. Mech. Eng. 2022, 23, 26. [Google Scholar] [CrossRef]
  14. Martin, C.D. The Strength of Massive Lac du Bonnet Granite Around Underground Openings. Ph.D. Thesis, University of Manitoba, Winnipeg, MB, Canada, 1993. [Google Scholar]
  15. Duncan, J.M.; Chang, C.Y. Non-linear analysis of stress and strain in soils. J. Soil Mech. Found. Div. 1970, 96, 1629–1653. [Google Scholar] [CrossRef]
  16. Puzrin, A.M.; Burland, J.B. A logarithmic stress–strain function for rocks and soils. Geotechnique 1996, 46, 157–164. [Google Scholar] [CrossRef]
  17. Shibuya, S. A non-linear stress–stiffness model for geomaterials at small to intermediate strains. Geotech. Geol. Eng. 2002, 20, 333–369. [Google Scholar] [CrossRef]
  18. Palchik, V. Simple stress–strain model of very strong limestones and dolomites for engineering practice. Geomech. Geophys. Geo-Energy Geo-Resour. 2019, 5, 345–356. [Google Scholar] [CrossRef]
  19. Davarpanah, M.; Somodi, G.; Kovács, L.; Vásárhelyi, B. Experimental determination of the mechanical properties and deformation constants of mórágy granitic rock formation (hungary). Geotech. Geol. Eng. 2020, 38, 3215–3229. [Google Scholar] [CrossRef] [Green Version]
  20. Cai MK, P.K.; Kaiser, P.K.; Tasaka, Y.; Maejima, T.; Morioka, H.; Minami, M. Generalized crack initiation and crack damage stress thresholds of brittle rock masses near underground excavations. Int. J. Rock Mech. Min. Sci. 2004, 41, 833–847. [Google Scholar] [CrossRef]
  21. Corkum, A.G.; Martin, C.D. The mechanical behaviour of weak mudstone (Opalinus Clay) at low stresses. Int. J. Rock Mech. Min. Sci. 2007, 44, 196–209. [Google Scholar] [CrossRef]
  22. Yang, H.; Lin, H.; Chen, Y.; Wang, Y.; Zhao, Y.; Yong, W.; Gao, F. Influence of wing crack propagation on the failure process and strength of fractured specimens. Bull. Eng. Geol. Environ. 2022, 81, 71. [Google Scholar] [CrossRef]
  23. Zhang, X.; Lin, H.; Wang, Y.; Zhao, Y. Creep damage model of rock mass under multi-level creep load based on spatio-temporal evolution of deformation modulus. Arch. Civ. Mech. Eng. 2021, 21, 71. [Google Scholar] [CrossRef]
  24. Zhu, Z.; Tian, H.; Wang, R.; Jiang, G.; Dou, B.; Mei, G. Statistical thermal damage constitutive model of rocks based on Weibull distribution. Arab. J. Geosci. 2021, 14, 495. [Google Scholar] [CrossRef]
  25. Jiang, Y.; Xian, X.; Su, J. Research on distortion of singlerock and constitutive relation. Rock Soil Mech. 2005, 26, 941–945. [Google Scholar] [CrossRef]
  26. Zhang, W.; Chen, C.; Yu, M. Study of mechanical properties and constitutive relation of weathered sandstone. Rock Soil Mech. 2009, 30, 33–36. [Google Scholar] [CrossRef]
  27. Wang, Q.; Zhu, W.; Xu, T.; Liu, H.; Jia, J. Numerical analysis on nonlinear deformation behavior of rock considering compaction of pores. Sci. Sin. Technol. 2018, 48, 565–574. [Google Scholar] [CrossRef] [Green Version]
  28. Ma, Q.; Qin, Y.; Zhou, T.; Yang, X. Constitutive model of rock compaction stage based on contact theory. J. Cent. South Univ. (Sci. Technol.) 2019, 50, 1941–1948. [Google Scholar] [CrossRef]
  29. Liu, H.; Rutqvist, J.; Berryman, J.C. On the relationship between stress and elastic strain for porous and fractured rock. Int. J. Rock Mech. Min. Sci. 2009, 46, 289–296. [Google Scholar] [CrossRef] [Green Version]
  30. Zhao, Y.; Liu, H. An elastic strain-stress relationship for porous rock under anisotropic stress conditions. Rock Mech. Rock Eng. 2012, 45, 389–399. [Google Scholar] [CrossRef]
  31. Peng, J.; Rong, G.; Zhou, C.; Wei, J.; Li, X. A study of crack closure effect of rocks and its quantitative model. Rock Soil Mech. 2016, 37, 126–132. [Google Scholar] [CrossRef]
  32. Zhang, C.; Cao, W.; Xu, Z.; He, M. Initial macro-deformation simulation and determination method of micro-crack closure stress for rock. Rock Soil Mech. 2018, 39, 1281–1288+1301. [Google Scholar] [CrossRef]
  33. Liu, S.; Wang, D.; Yin, G.; Wei, J.; Li, X. A double hook-statistical damage constitutive model of coal under temperature impact. J. Min. Saf. Eng. 2019, 36, 1025–1033. [Google Scholar] [CrossRef]
  34. Cao, W.; Tan, X.; Zhang, C.; He, M. A constitutive model to simulate the full deformation and failure process for rocks considering initial compression and residual strength behaviors. Can. Geotech. J. 2019, 56, 649–661. [Google Scholar] [CrossRef]
  35. Zhao, X. Microstructure and Time Dependent Fracture of Hard Brittle Rock Based on Distinct Element. Ph.D. Thesis, Wuhan University, Wuhan, China, 2022. [Google Scholar]
  36. Del Greco, O.; Ferrero, A.M.; Oggeri, C. Experimental and analytical interpretation of the behaviour of laboratory tests on composite specimens. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1993, 30, 1539–1543. [Google Scholar] [CrossRef]
  37. Zuo, J.; Chen, Y.; Sun, Y.; Jiang, G.; Wang, J. Investigation on whole failure nonlinear model for deep coal-rock combined bodies. J. Min. Sci. Technol. 2017, 2, 17–24. [Google Scholar] [CrossRef]
  38. Bieniawski, Z.T.; Bernede, M.J. Suggested methods for determining the uniaxial compressive strength and deformability of rock materials: Part 1. Suggested method for determining deformability of rock materials in uniaxial compression. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1979, 16, 138–140. [Google Scholar] [CrossRef]
  39. Ocak, I. Estimating the modulus of elasticity of the rock material from compressive strength and unit weight. J. -South Afr. Inst. Min. Metall. 2008, 108, 621–626. [Google Scholar] [CrossRef]
  40. Morland, L.W. Continuum model of regularly jointed mediums. J. Geophys. Res. 1974, 79, 357–362. [Google Scholar] [CrossRef]
  41. Salamon, M.D.G. Elastic moduli of a stratified rock mass. Int. J. Rock Mech. Min. Sci. Geomech. Abstr. 1968, 5, 519–527. [Google Scholar] [CrossRef]

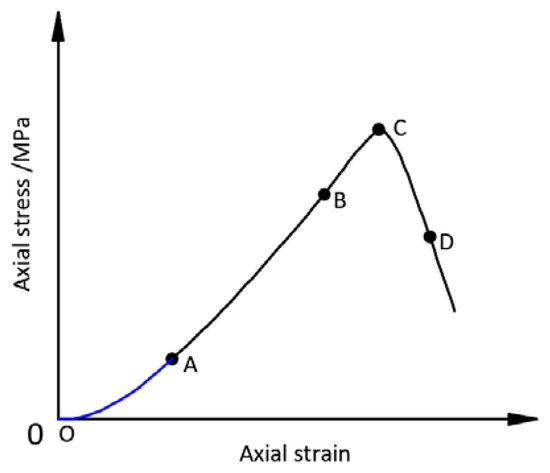

Figure 1. The stress‒strain curve of a uniaxial compression test adapted from Corkum. Adapted from [21].
Figure 1. The stress‒strain curve of a uniaxial compression test adapted from Corkum. Adapted from [21].
Applsci 12 12725 g001

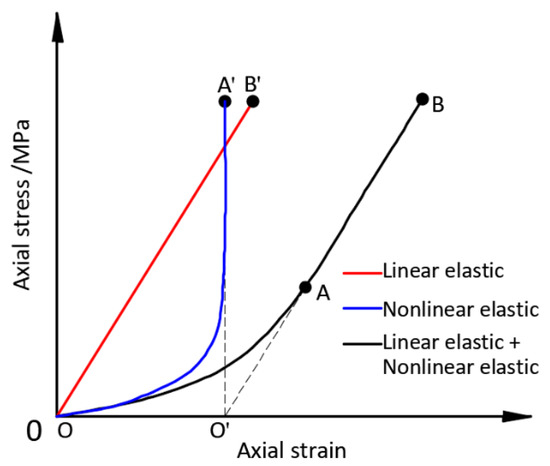

Figure 2. Linear and nonlinear elastic deformation of rock adapted from Liu. Adapted from [30].
Figure 2. Linear and nonlinear elastic deformation of rock adapted from Liu. Adapted from [30].
Applsci 12 12725 g002

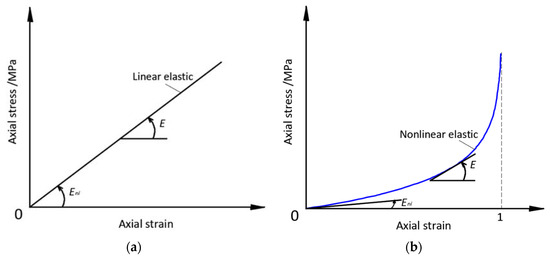

Figure 3. Linear and nonlinear elastic curves (a-Linear elastic; b-Nonlinear elastic).
Figure 3. Linear and nonlinear elastic curves (a-Linear elastic; b-Nonlinear elastic).
Applsci 12 12725 g003

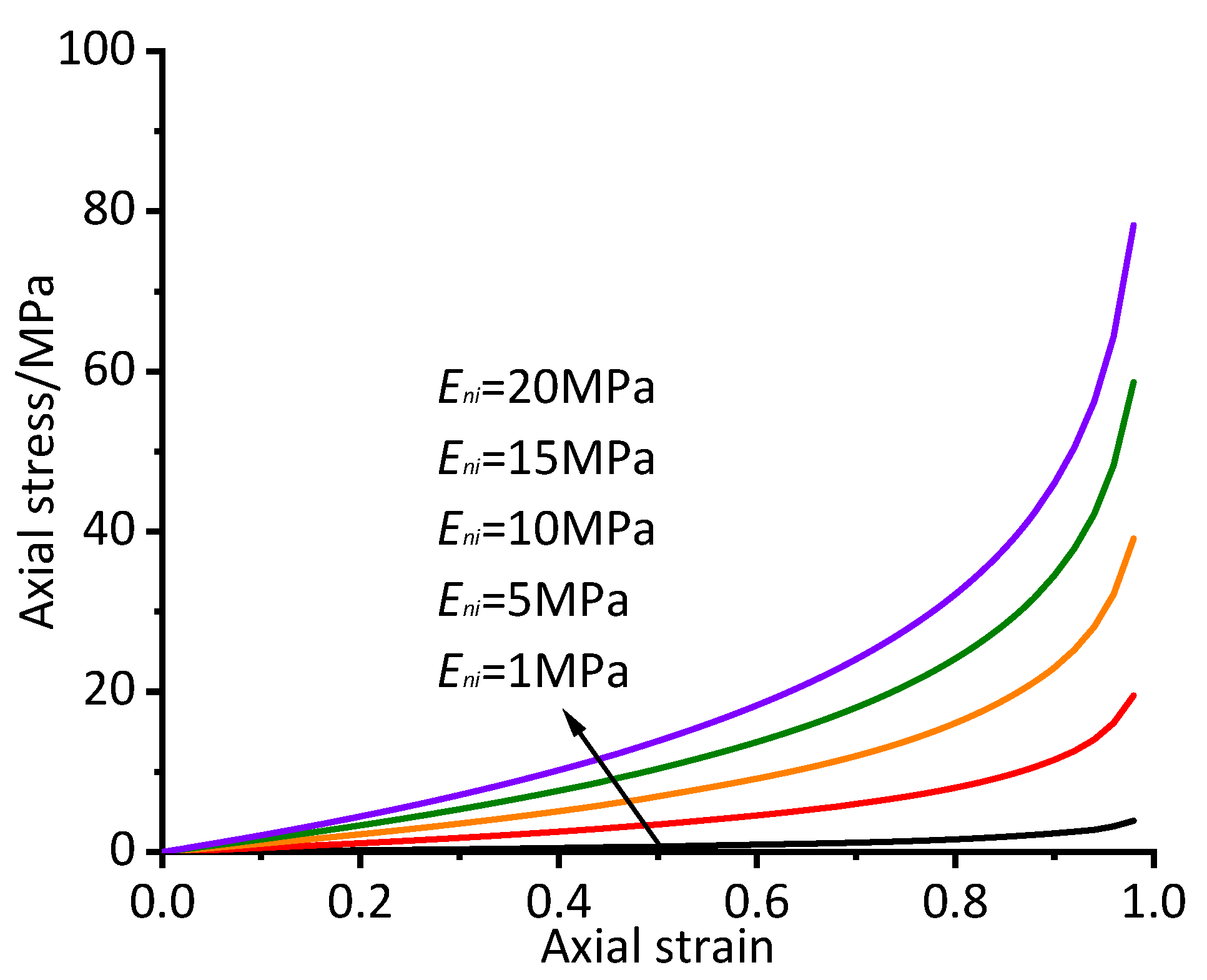

Figure 4. Stress‒strain curves for different Eni values (m = 1.0).
Figure 4. Stress‒strain curves for different Eni values (m = 1.0).
Applsci 12 12725 g004

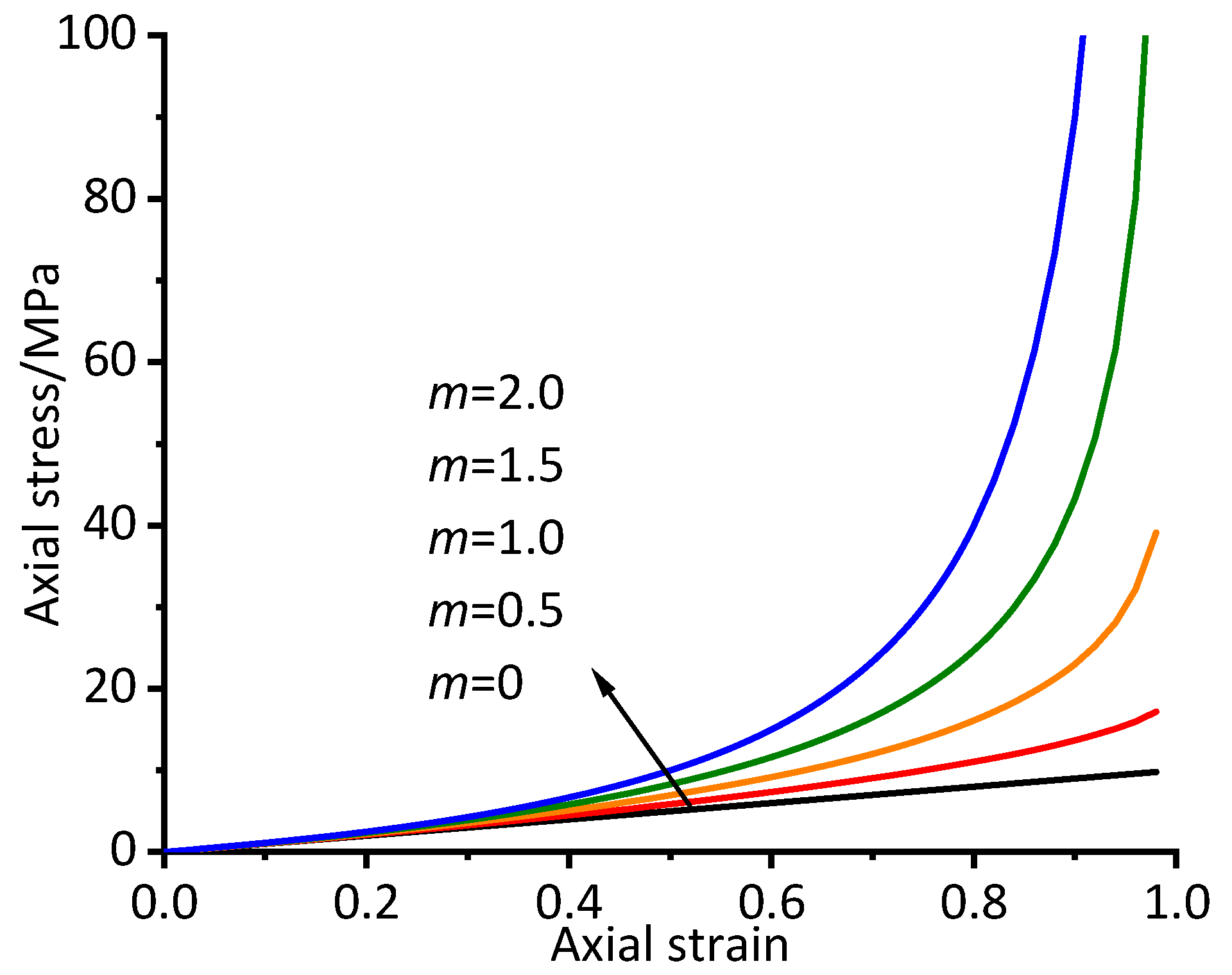

Figure 5. Stress‒strain curves for different m values (Eni = 10 MPa).
Figure 5. Stress‒strain curves for different m values (Eni = 10 MPa).
Applsci 12 12725 g005

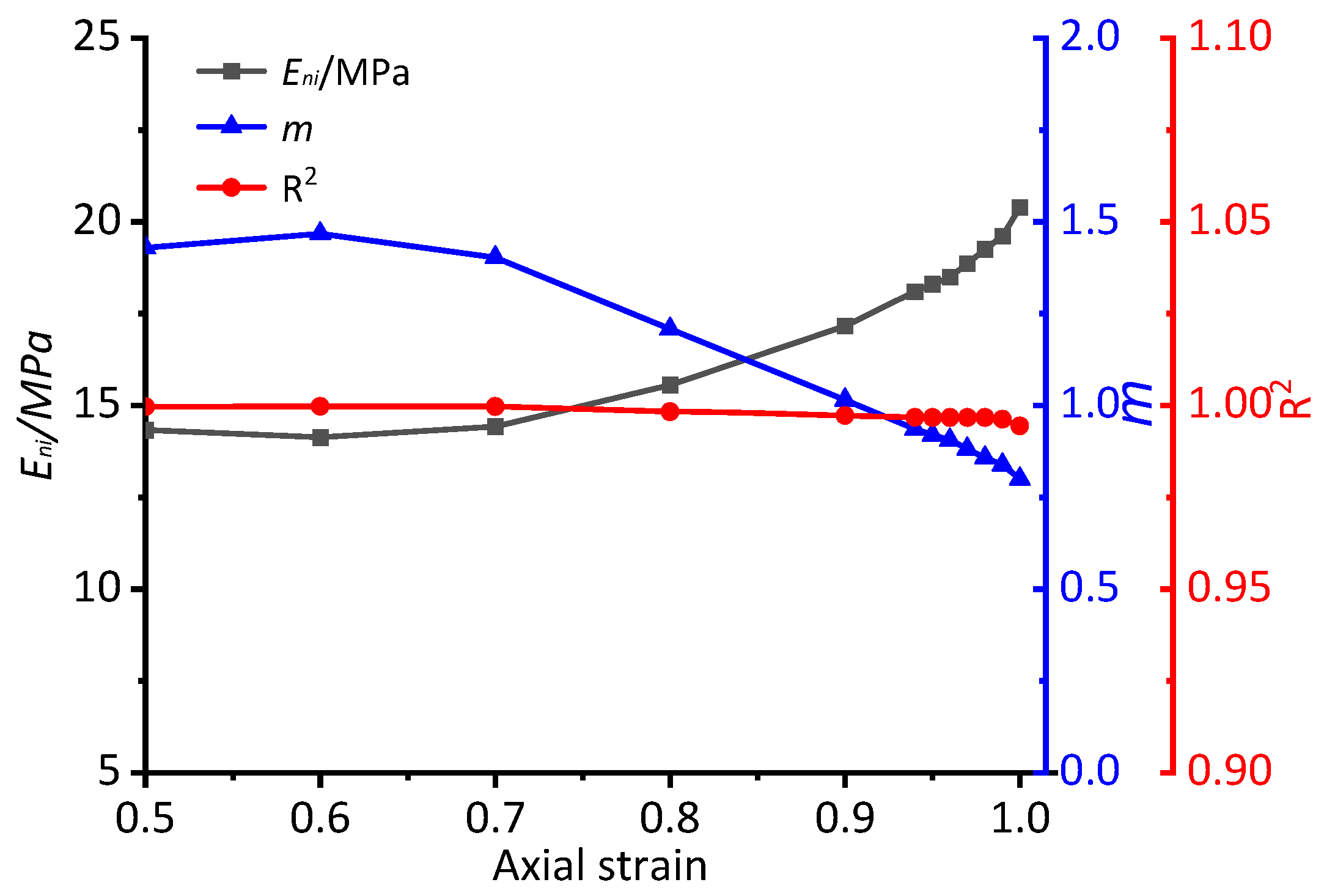

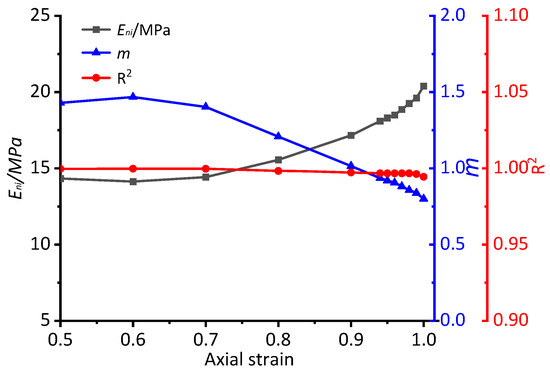

Figure 6. Fitting results of different strain ranges.
Figure 6. Fitting results of different strain ranges.
Applsci 12 12725 g006

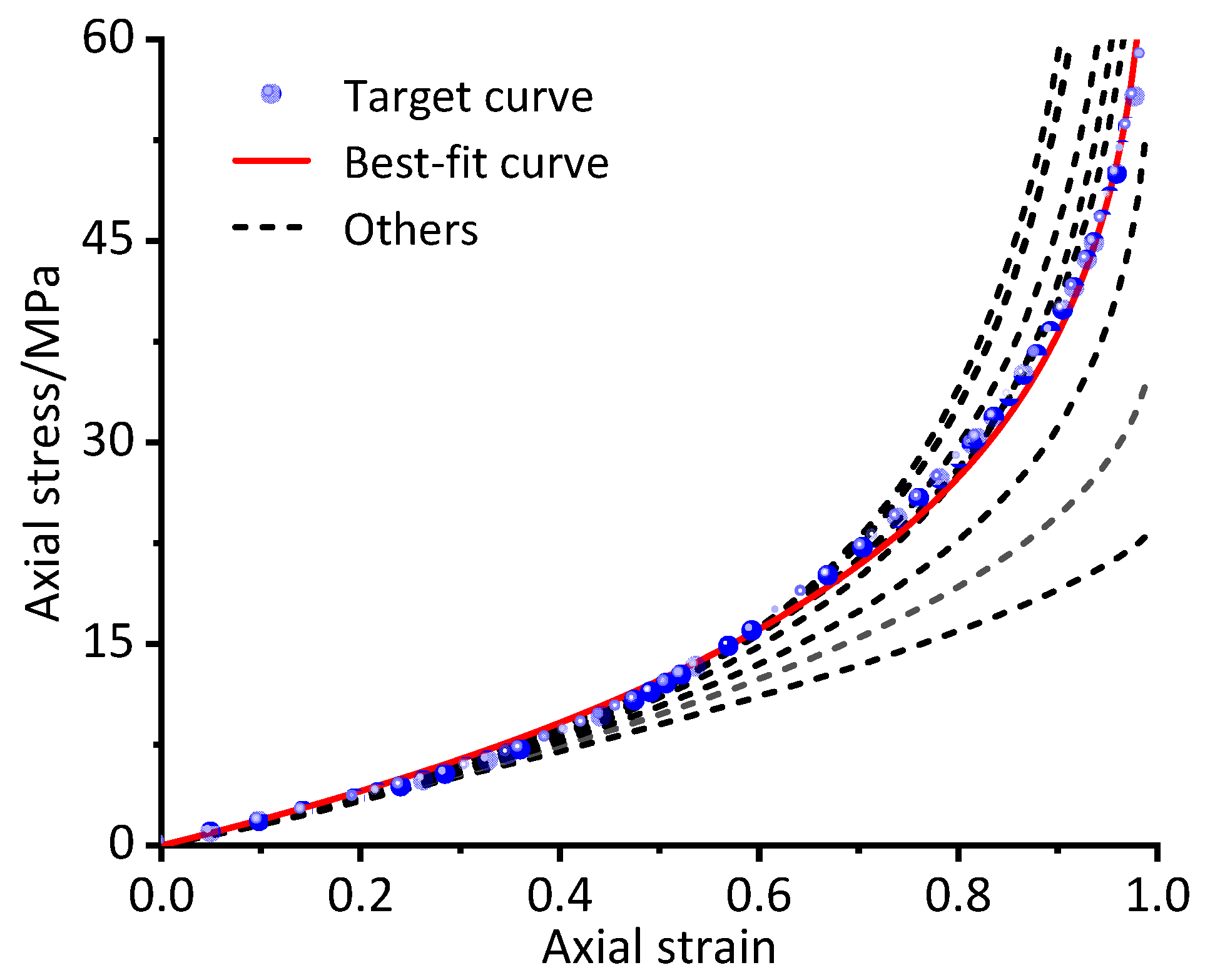

Figure 7. Approximating to a single stress‒strain curve.
Figure 7. Approximating to a single stress‒strain curve.
Applsci 12 12725 g007

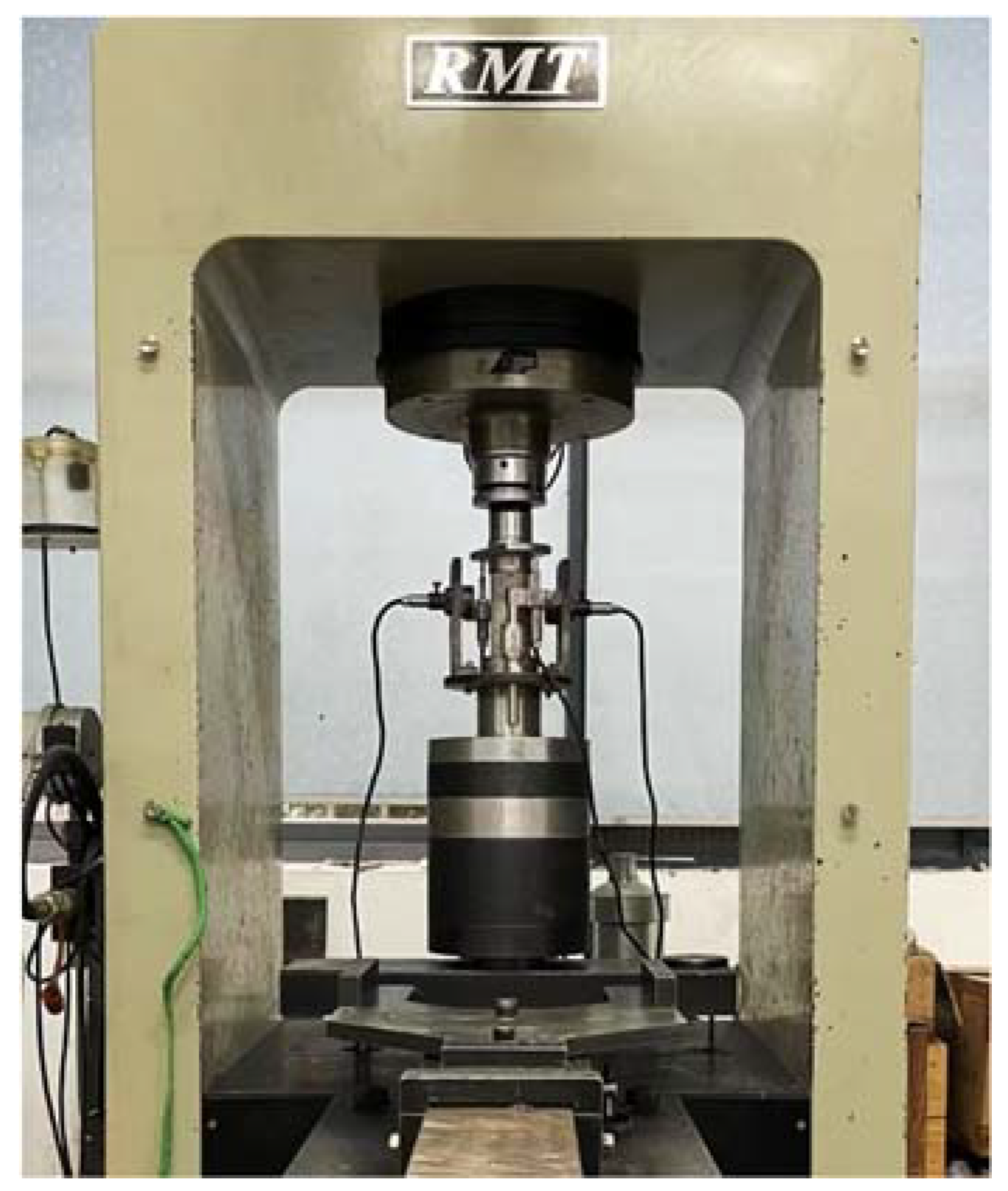

Figure 8. Rock mechanics test system (RMT).
Figure 8. Rock mechanics test system (RMT).
Applsci 12 12725 g008

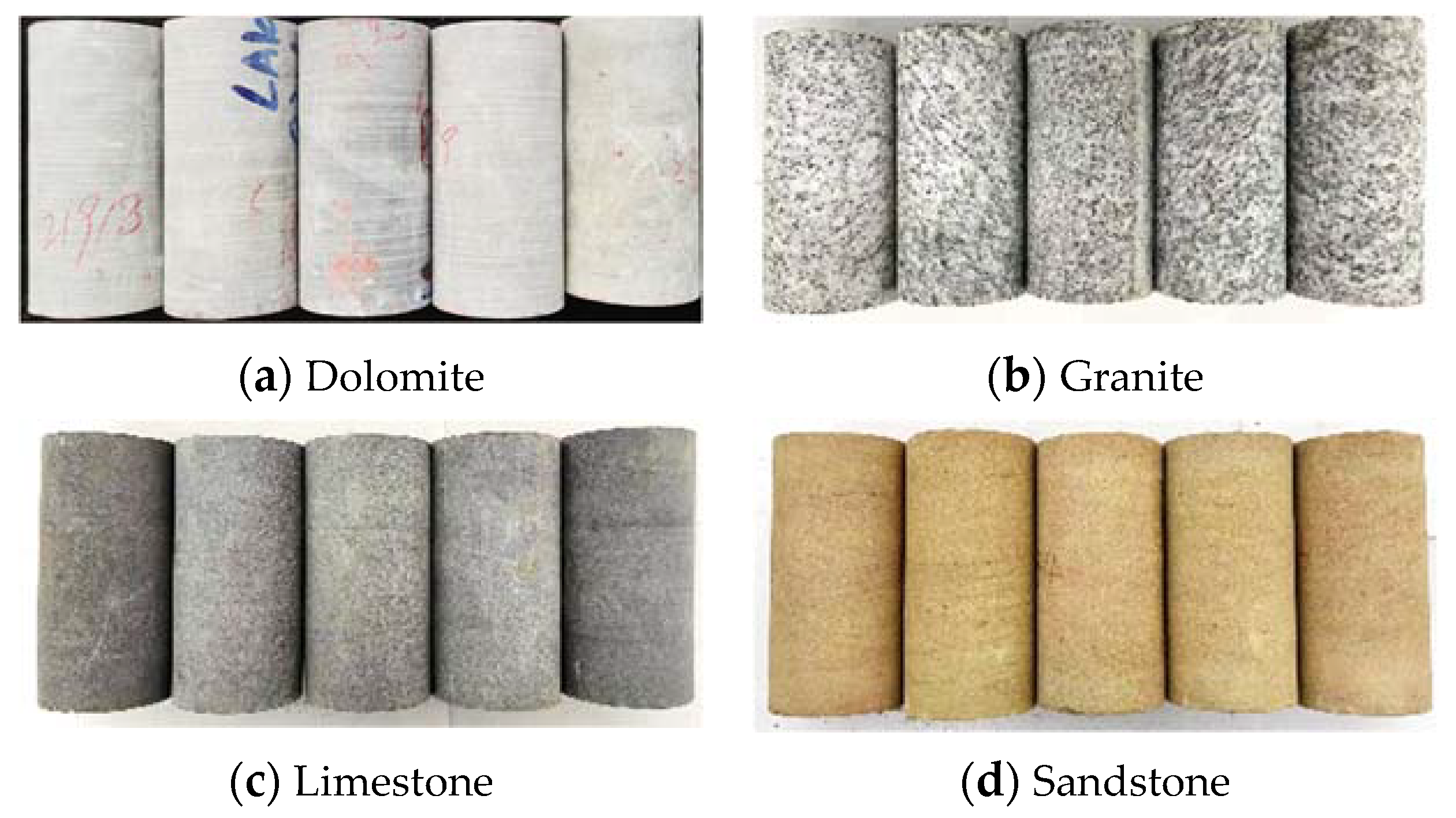

Figure 9. Different rock specimens.
Figure 9. Different rock specimens.
Applsci 12 12725 g009

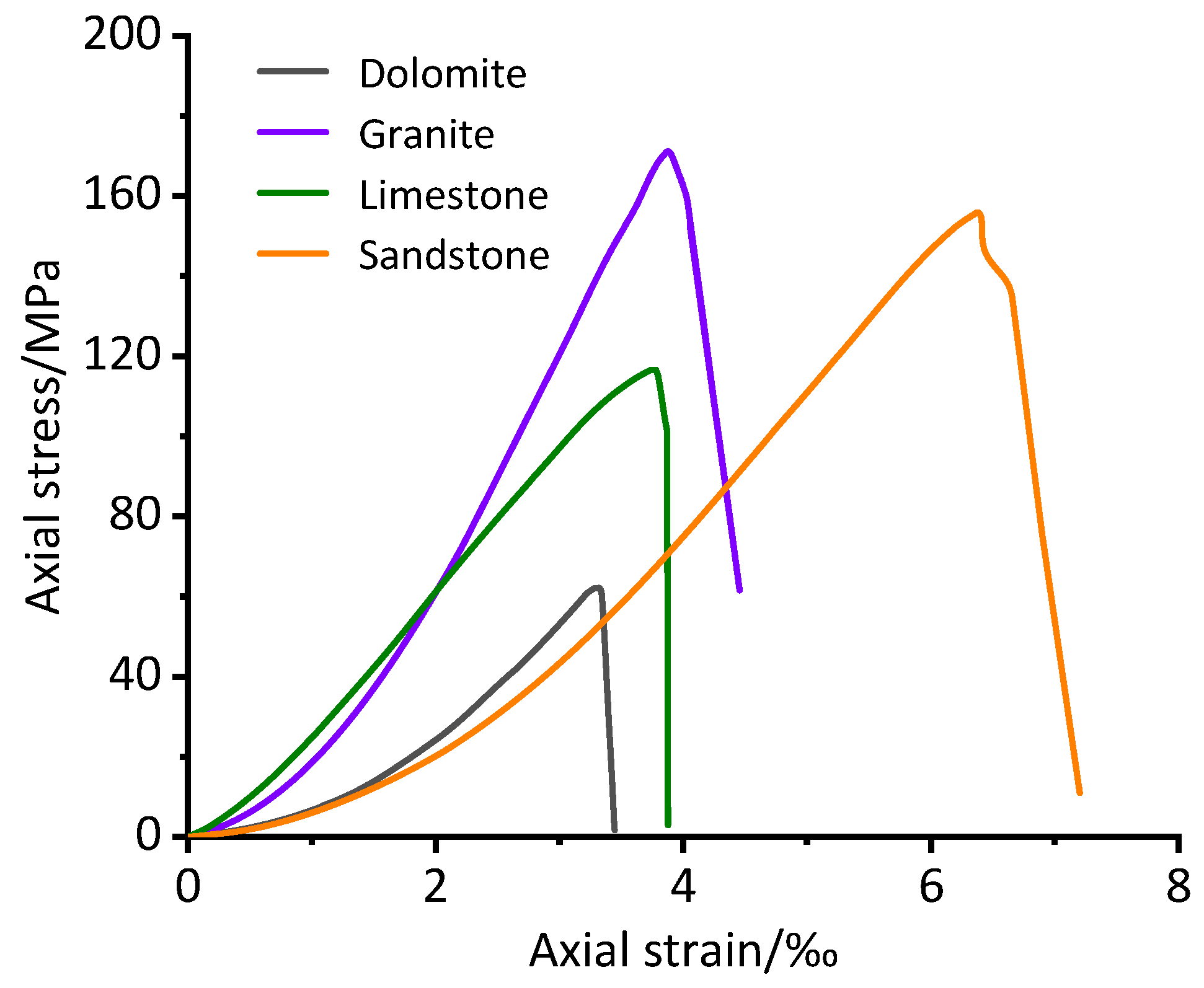

Figure 10. Typical stress‒strain curves.
Figure 10. Typical stress‒strain curves.
Applsci 12 12725 g010

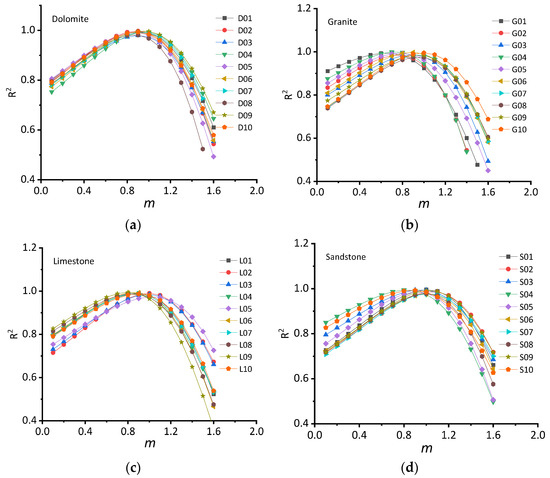

Figure 11. The R2 values with different m values for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Figure 11. The R2 values with different m values for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Applsci 12 12725 g011

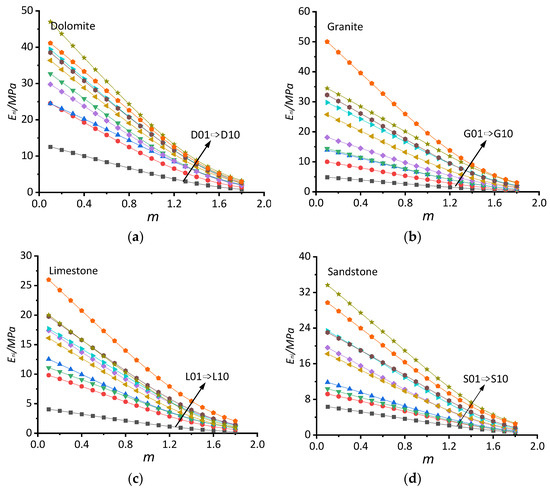

Figure 12. The Eni values with different m values for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Figure 12. The Eni values with different m values for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Applsci 12 12725 g012

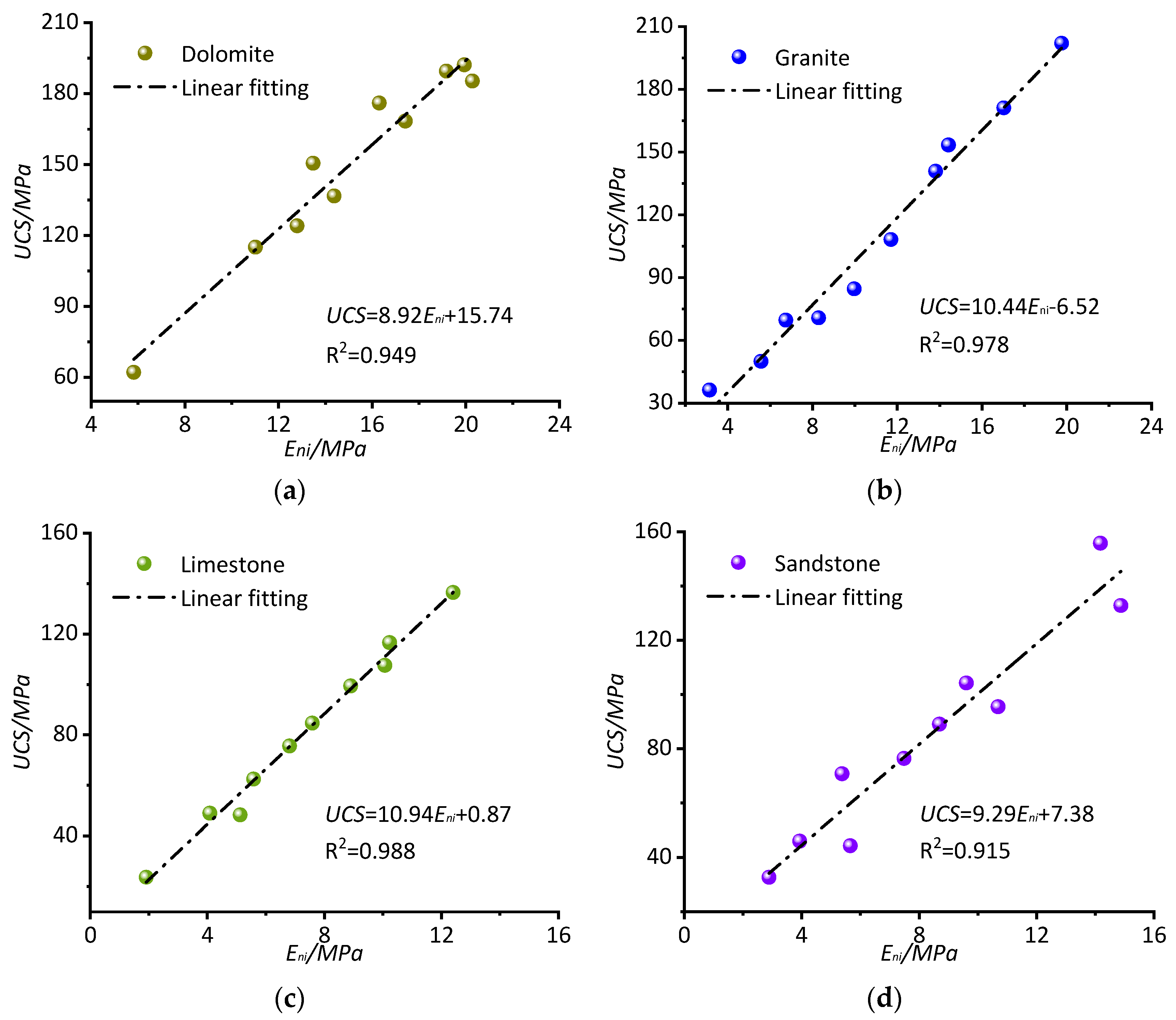

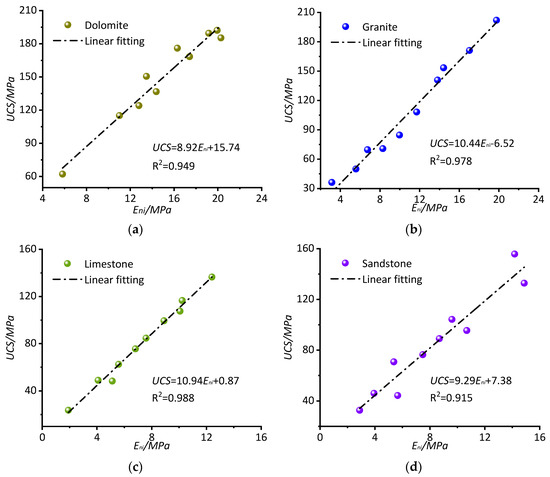

Figure 13. Correlations between UCS and Eni for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Figure 13. Correlations between UCS and Eni for different rock types. (a—Dolomite; b—Granite; c—Limestone; d—Sandstone).
Applsci 12 12725 g013
Figure 14. Comprehensive relationship between UCS and Eni for all the rock types.
Figure 14. Comprehensive relationship between UCS and Eni for all the rock types.
Applsci 12 12725 g014
Table 1. Experimental and fitting results (D—Dolomite; G—Granite; L—Limestone; S—Sandstone).
Table 1. Experimental and fitting results (D—Dolomite; G—Granite; L—Limestone; S—Sandstone).
Type of RockUCS/MPaEni/MPamCoefficients of Determination R2
D0162.155.820.91170.9951
D02115.0611.010.89110.9977
D03124.1012.790.90390.9792
D04150.5913.480.96260.9935
D05136.7414.380.87590.9917
D06176.0416.300.92160.9907
D07168.3717.410.93890.9922
D08189.5319.170.86300.9817
D09192.2119.940.94780.9976
D10185.3420.280.8880 0.9927
G0136.243.140.6508 0.9939
G0249.955.570.76210.9840
G0369.716.740.88720.9859
G0470.768.280.73350.9998
G0584.649.970.77890.9934
G06108.2311.700.88990.9977
G07140.8813.810.95170.9861
G08153.3914.420.94880.9758
G09171.1117.030.94550.9846
G10202.0219.760.99190.9951
L0123.721.910.88680.9907
L0248.964.090.99270.9904
L0348.285.120.98670.9850
L0462.505.580.85690.9850
L0575.606.811.02820.9733
L0684.667.580.86310.9943
L0799.428.900.86840.9897
L08107.6210.070.84060.9888
L09116.5910.230.80390.9948
L10136.4912.400.89810.9870
S0132.692.881.01020.9954
S0246.073.931.05290.9868
S0370.805.370.95180.9947
S0444.315.660.82450.9940
S0589.108.690.92030.9853
S0676.437.481.00950.9762
S07104.299.611.01990.9775
S0895.4910.690.99010.9780
S09155.8514.171.02730.9916
S10132.8414.871.05290.9922
Table 2. Range of m values with different R2 values.
Table 2. Range of m values with different R2 values.
Type of RockBest-Fit RangeRange When R2
Values Exceed 0.95
Range When R2
Values Exceed 0.80
Dolomite0.86~0.960.58~1.200.08~1.46
Granite0.65~0.990.28~1.230.00~1.47
Limestone0.80~1.030.51~1.220.04~1.52
Sandstone0.82~1.050.49~1.260.00~1.32
Table 3. The range of Eni values for different rock types.
Table 3. The range of Eni values for different rock types.
Type of RockRange of Eni/MPa
Dolomite5.82~20.28
Granite3.14~19.76
Limestone1.91~12.40
Sandstone2.88~14.87
Table 4. Linear relationships between UCS and Eni of different rock types.
Table 4. Linear relationships between UCS and Eni of different rock types.
Type of RockLinear Fitting y = ax + bCoefficients of
Determination R2
ab
Dolomite8.9215.740.950
Granite10.44−6.520.978
Limestone10.940.870.988
Sandstone9.297.380.915
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, C.; Chen, S.; Zhang, Y.; Lin, H.; Wang, Y. A Unified Nonlinear Elastic Model for Rock Material. Appl. Sci. 2022, 12, 12725. https://doi.org/10.3390/app122412725

AMA Style

Chen C, Chen S, Zhang Y, Lin H, Wang Y. A Unified Nonlinear Elastic Model for Rock Material. Applied Sciences. 2022; 12(24):12725. https://doi.org/10.3390/app122412725

Chicago/Turabian Style

Chen, Chong, Shenghong Chen, Yihu Zhang, Hang Lin, and Yixian Wang. 2022. "A Unified Nonlinear Elastic Model for Rock Material" Applied Sciences 12, no. 24: 12725. https://doi.org/10.3390/app122412725

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
