Study on Size Optimization of a Protective Coal Pillar under a Double-Key Stratum Structure
Abstract
:1. Introduction
2. Methods

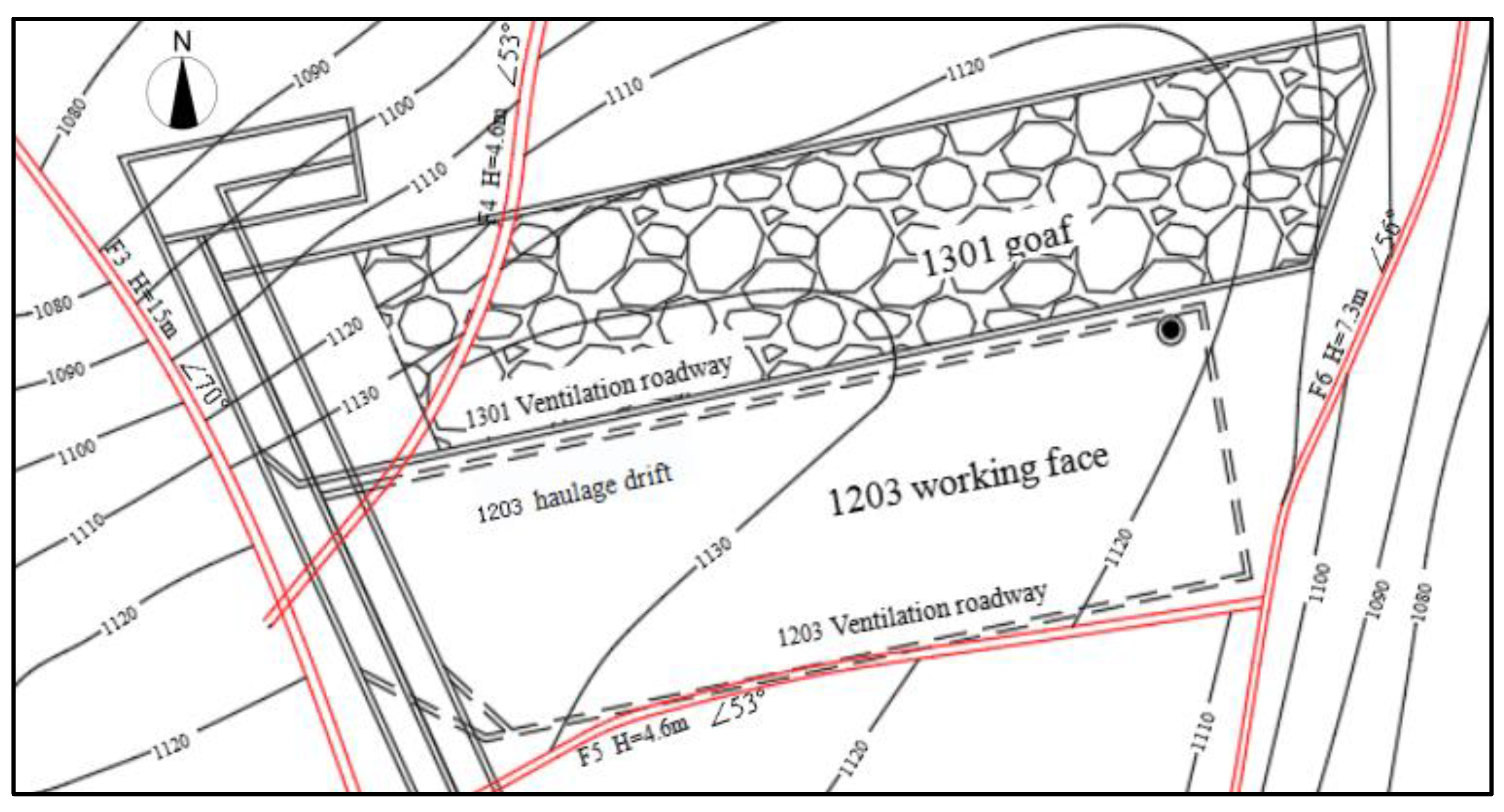

2.1. Engineering Background

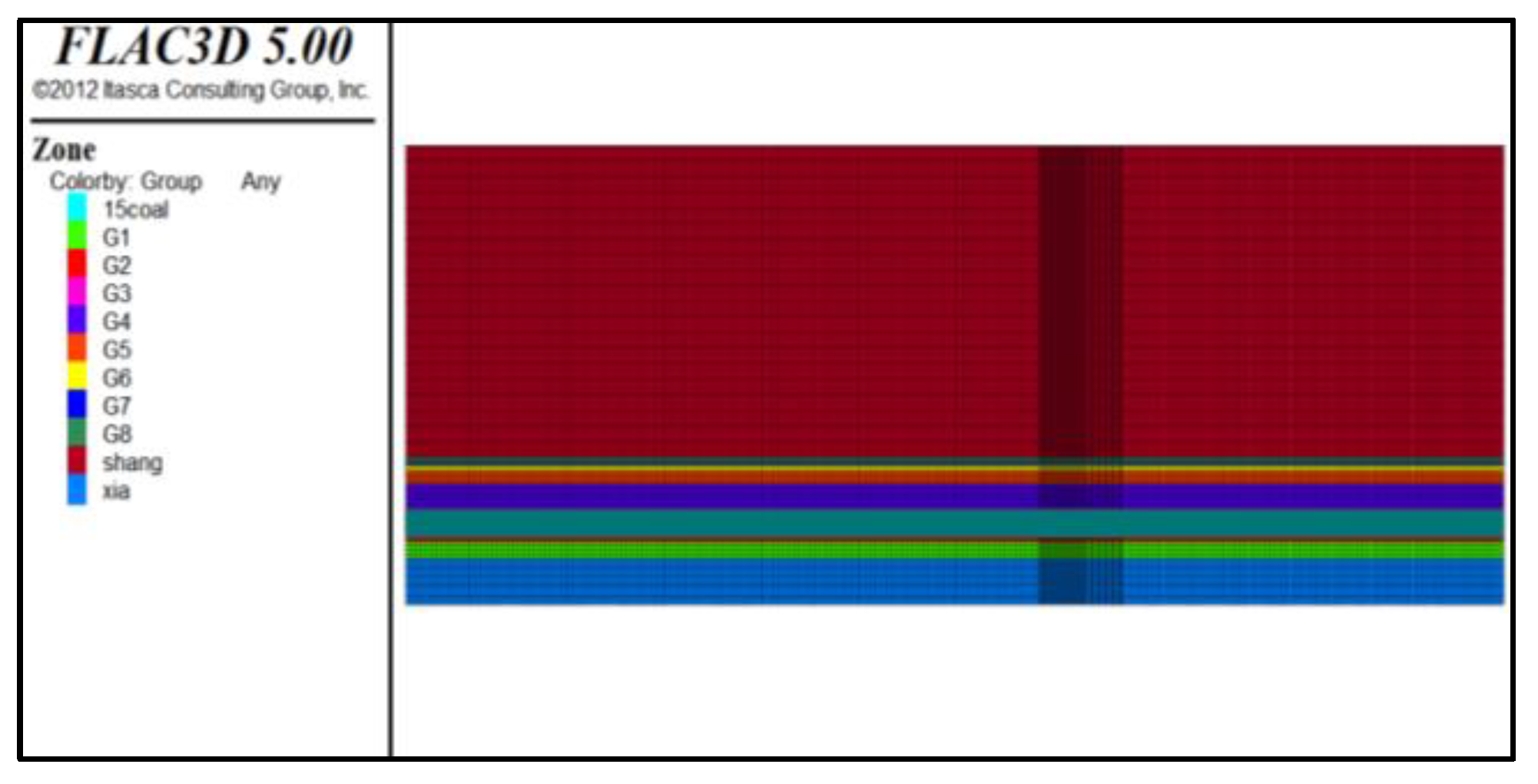

2.2. Build a Model

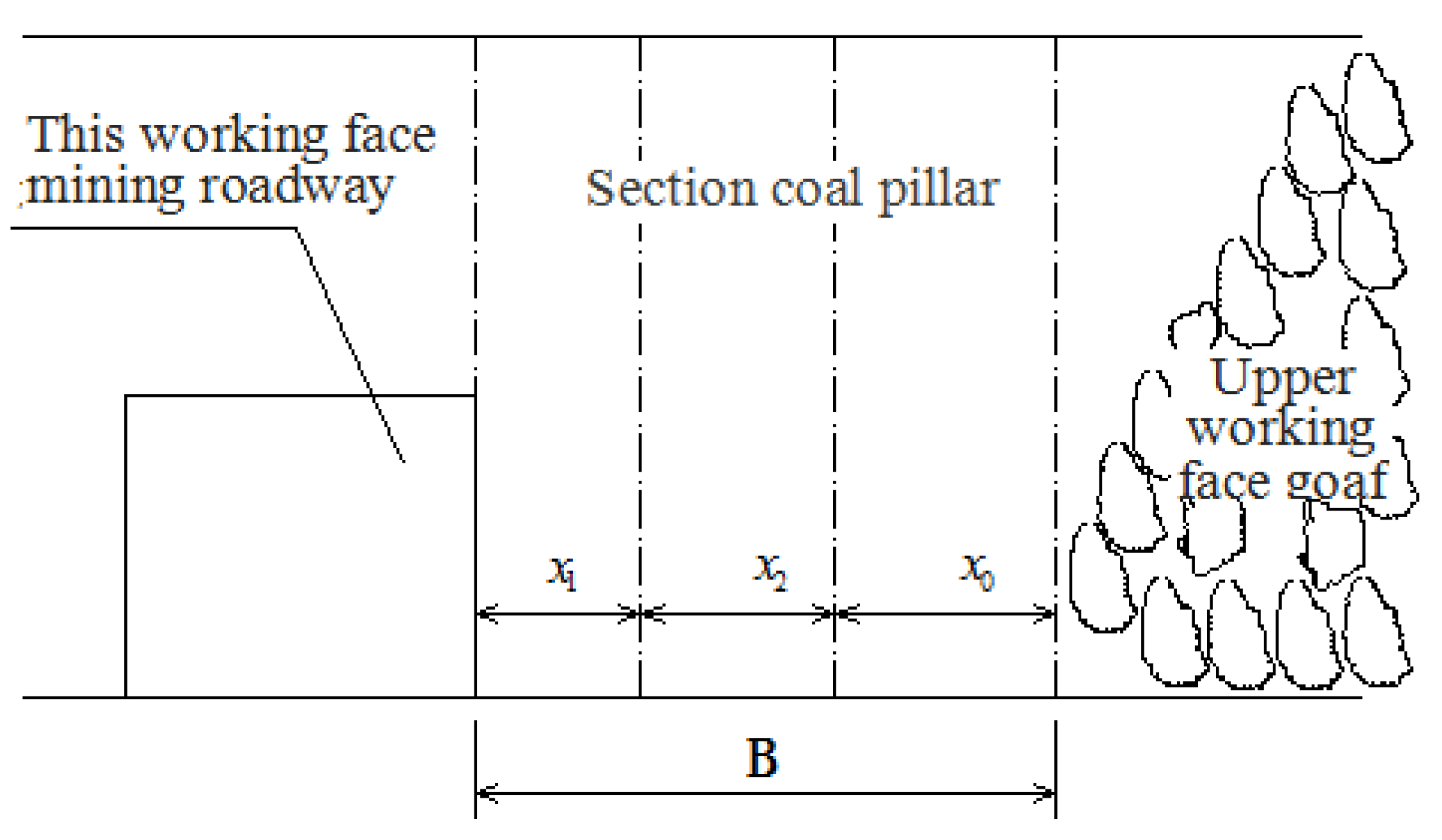

2.3. Theoretical Calculation of the Sectional Coal Pillar Retaining Size under Noncut Roof Conditions
2.4. Key Strata Discrimination of the Working Face
- (1)
- Rigid condition discrimination
- (2)
- Strength condition discrimination
3. Results and Discussion
3.1. Numerical Simulation Analysis of Roof Cutting and Pressure Relief

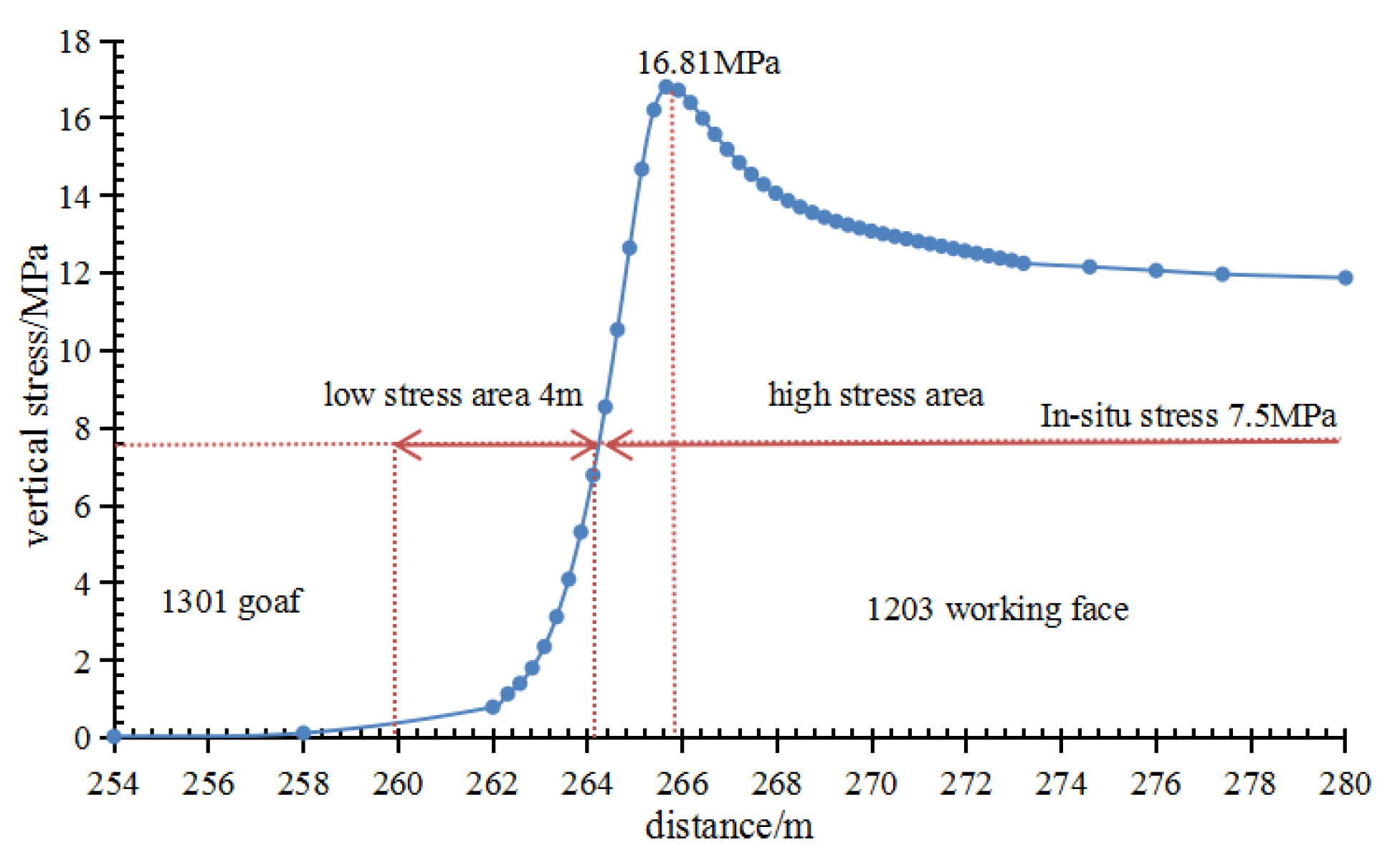

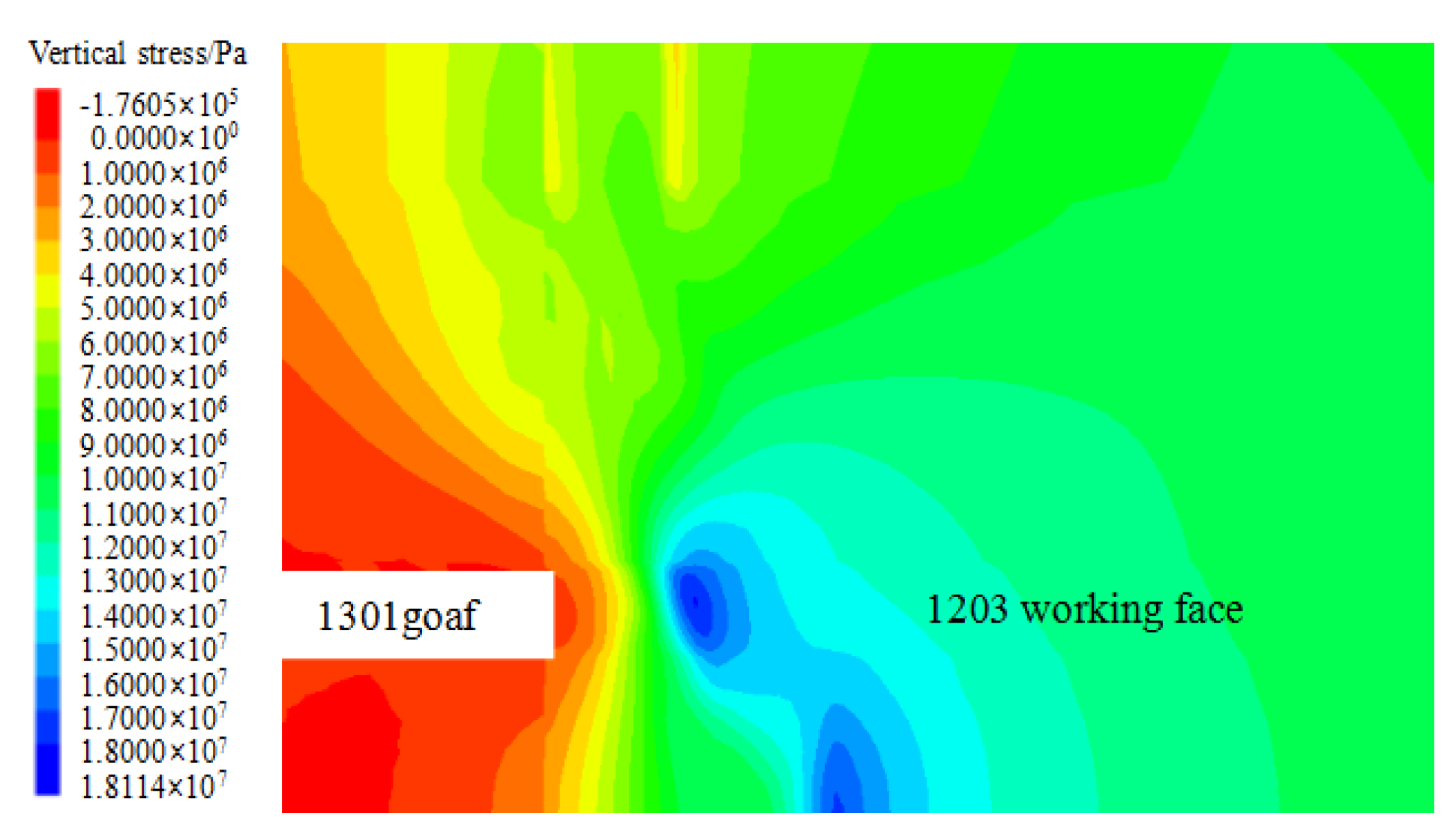

3.1.1. Analysis of the Surrounding Rock Stress Characteristics When the Roof Cutting Measure Is Not Taken

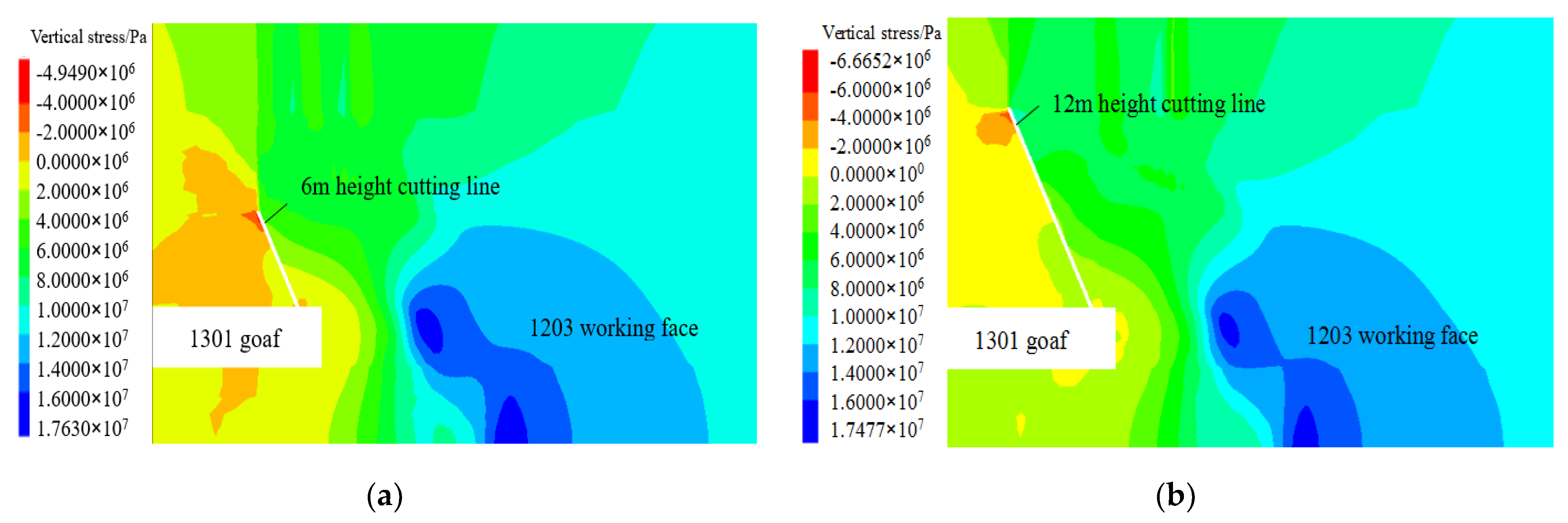

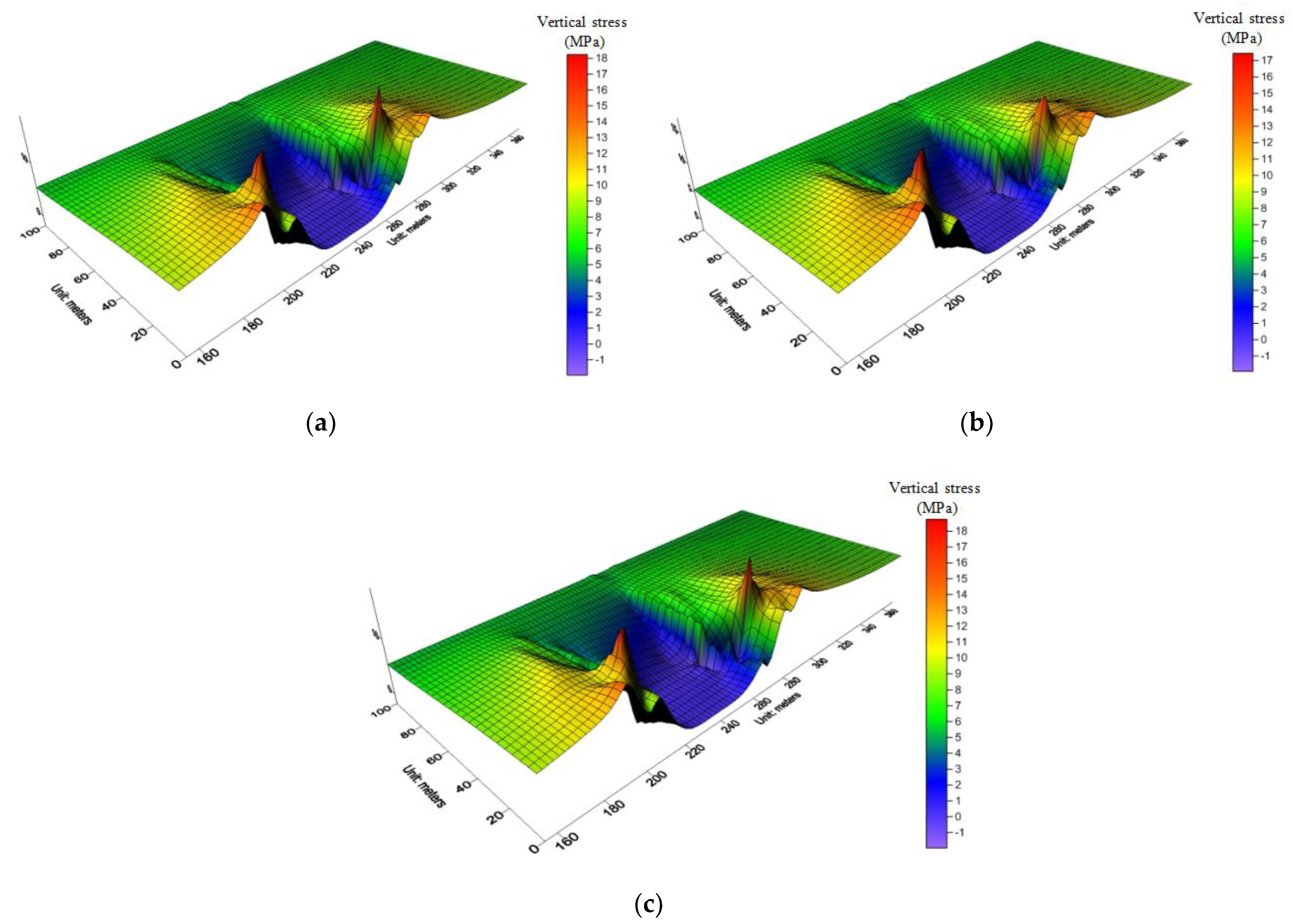

3.1.2. Analysis of the Stress Characteristics of the Surrounding Rock under Roof Cutting and Pressure Relief
3.2. Roof Cutting Scheme Design

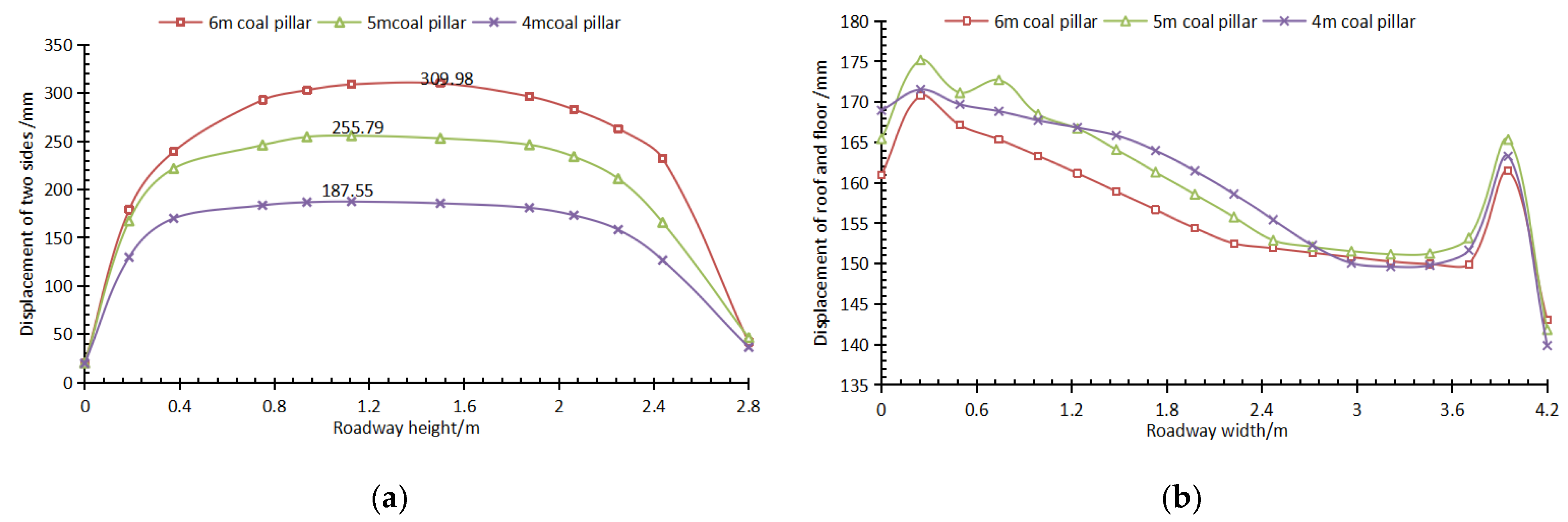

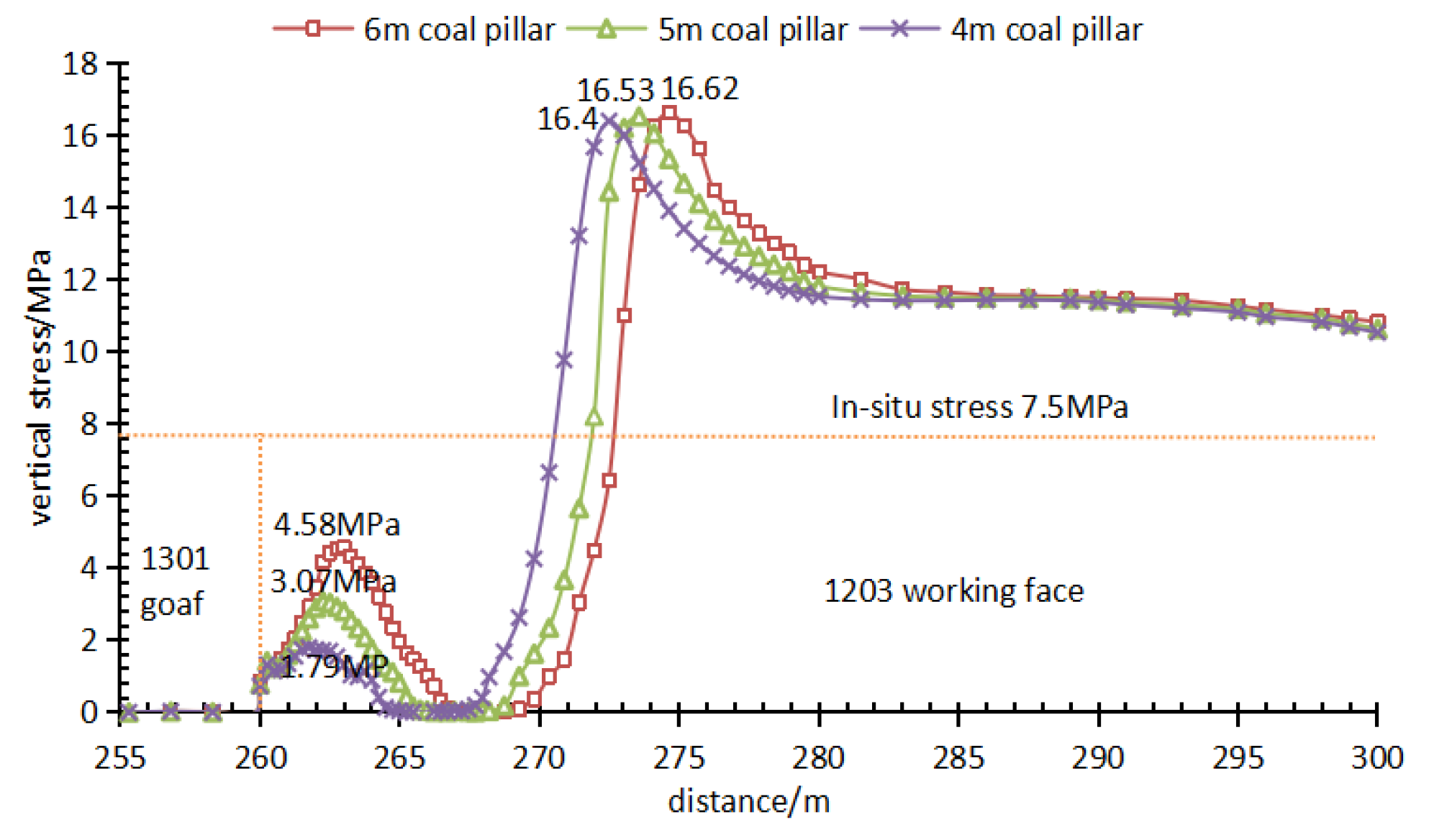

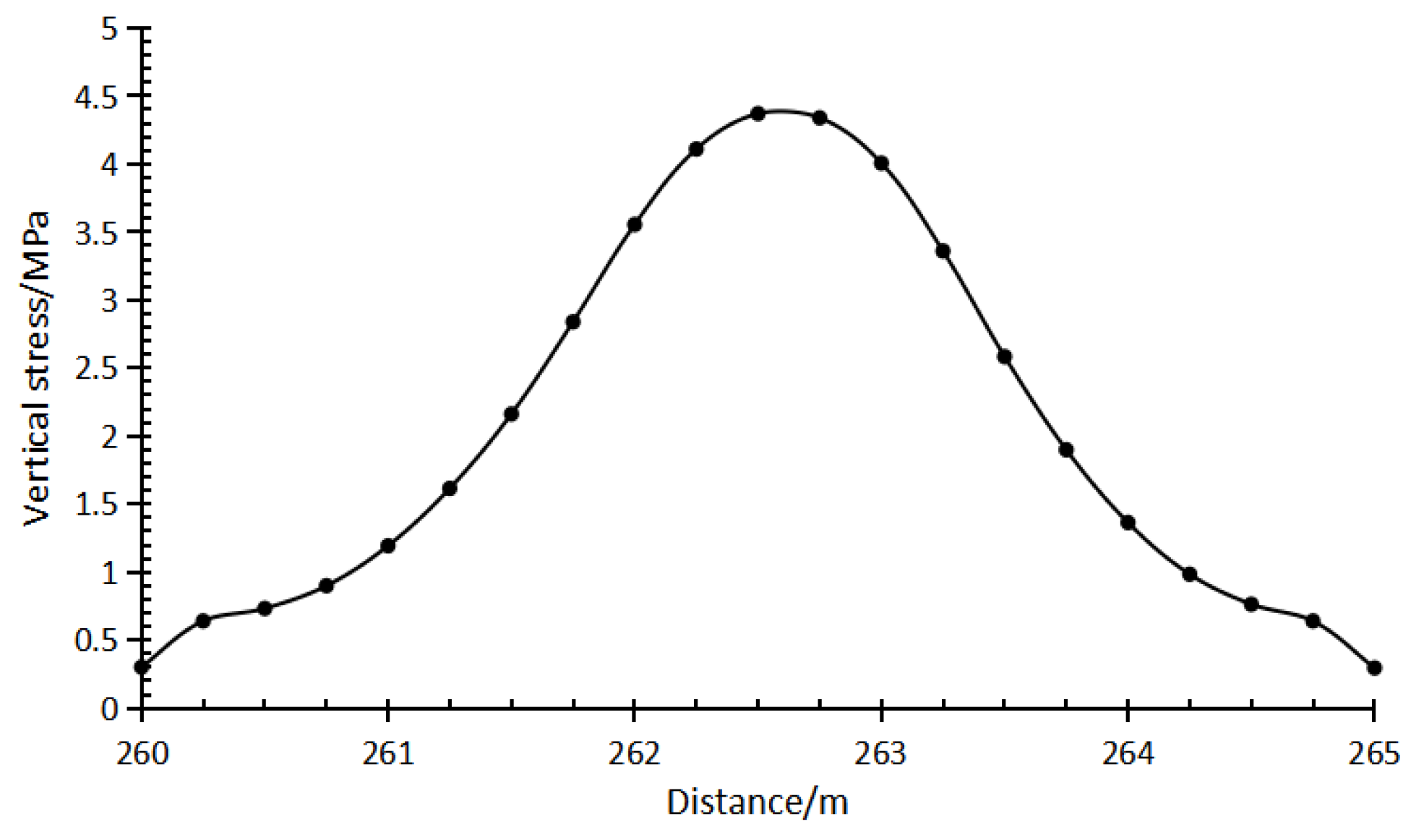

3.3. Optimization of the Small Coal Pillar Size
4. Field Engineering Application
5. Conclusions
- Through theoretical calculations, it is concluded that the width of the section pillar should not be less than 7.15 m without taking roof cutting measures. The size of the section coal pillar can be further reduced if the measure of roof cutting and pressure relief is taken. In addition, based on the theory of key strata, it is concluded that there are main and subkey strata in the overlying strata on the working face. Moreover, limestone G4, 5.6 m above the coal seam, is the subkey stratum, and the composite rock Ge, 11.5 m above the coal seam, is the composite main key stratum.

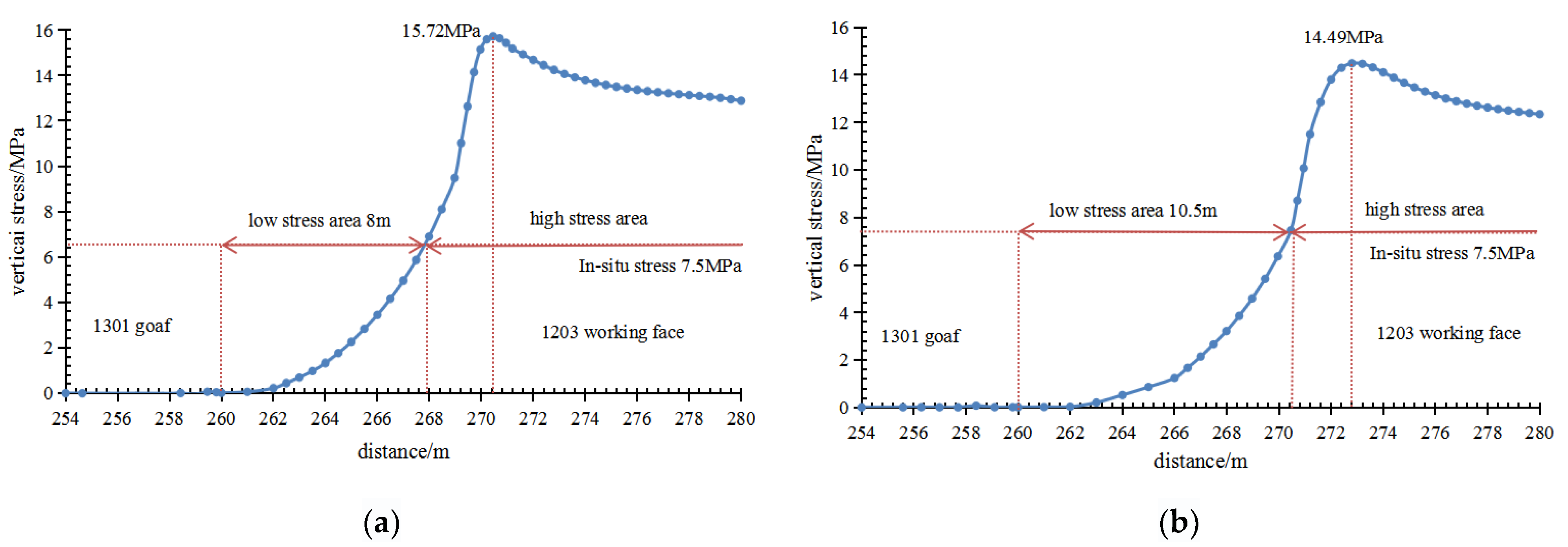

- The numerical simulation method is used to study the stress characteristics of the surrounding rock of the goaf side after the roof cutting of the main and subkey layers. It is concluded that the main key layer plays a main control role on the rock mass activities. When the top cutting height is 12 m, a stress reduction zone of 10.5 m is formed in the surrounding rock of the goaf side.

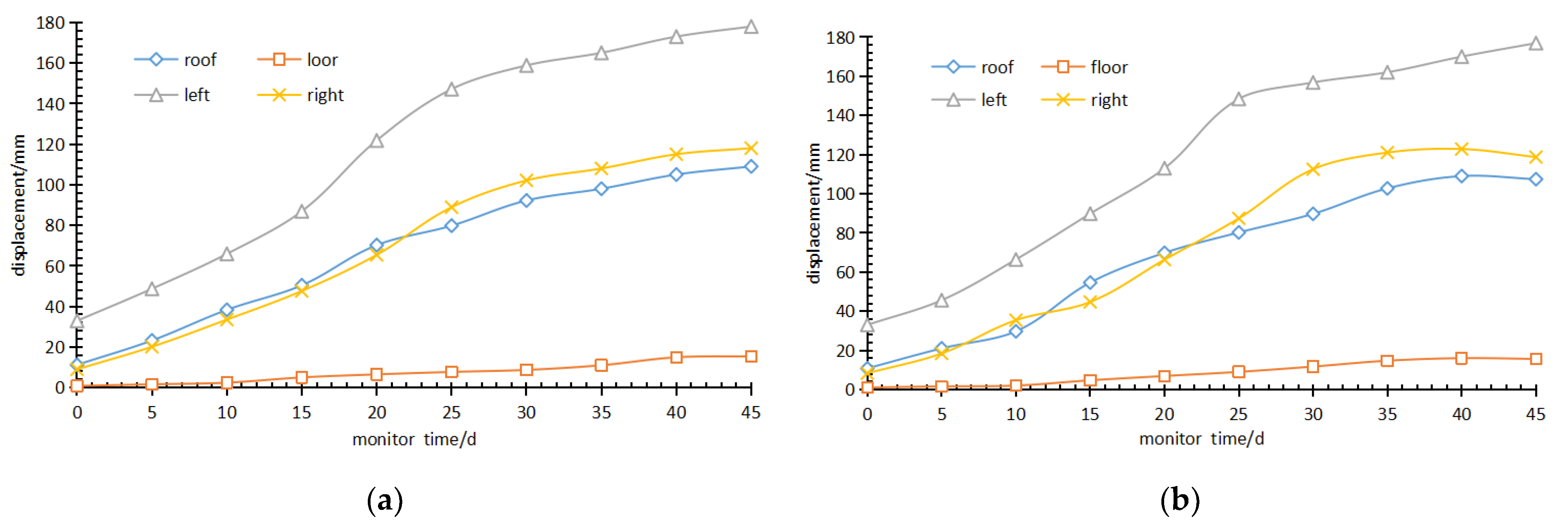

- Through the optimization study of small coal pillar size, it is concluded that the roadway surrounding rock is more conducive to stability when a 5 m coal pillar is set. After field application, the deformation of the roadway surrounding rock is monitored in a controllable range and the roadway is good in use.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yang, H.R.; Ning, S.Z.; Ding, L.; Liu, Z. Research on the current situation and countermeasures of Chinese coal industry in the new period. Coal Geol. China 2021, 33, 44–48. [Google Scholar] [CrossRef]
- Chen, J.; Liu, P.; Liu, L.; Zeng, B.; Zhao, H.; Zhang, C.; Zhang, J.; Li, D. Anchorage performance of a modified cable anchor subjected to different joint opening conditions. Constr. Build. Mater. 2022, 336, 127558. [Google Scholar] [CrossRef]
- Chen, J.; Zeng, B.; Liu, L.; Tao, K.; Zhao, H.; Zhang, C.; Zhang, J.; Li, D. Investigating the anchorage performance of full-grouted anchor bolts with a modified numerical simulation method. Eng. Fail. Anal. 2022, 141, 106640. [Google Scholar] [CrossRef]
- Wu, S.; Ramandi, H.L.; Hagan, P.C.; Crosky, A.; Saydam, S. Mineralogically influenced stress corrosion cracking of rockbolts and cable bolts in underground mines. Int. J. Rock Mech. Min. Sci. 2019, 119, 109–116. [Google Scholar] [CrossRef]
- Zhang, S.H.; Zhang, Y.C.; Liu, Y.M. Study on the distribution law of mining stress in overlying rock under typical key stratum structure. Ind. Mine Autom. 2019, 45, 50–53. [Google Scholar] [CrossRef]
- Li, G.; Cao, Q.; Song, S. Determination of support resistance of Double-key Layer Working Face in near shallow Seam. J. Xinjiang Univ. 2021, 38, 715–721. [Google Scholar]
- Zha, W.H.; Shi, H.; Liu, S.; Kang, C.H. Surrounding rock control of gob-side entry driving with narrow coal pillar and roadway side sealing technology in Yangliu Coal Mine. Int. J. Min. Sci. Technol. 2017, 27, 819–823. [Google Scholar] [CrossRef]
- Zhang, Y.; Wan, Z.; Li, F.; Zhou, C.; Zhang, B.; Guo, F.; Zhu, C. Stability of coal pillar in gob-side entry driving under unstable overlying strata and its coupling support control technique. Int. J. Min. Sci. Technol. 2013, 23, 193–199. [Google Scholar] [CrossRef]
- Li, X.H.; Ju, M.H.; Jia, S.K.; Zhong, Z.H. Study on influencing factors and engineering application of narrow coal pillar stability in goaf excavation. J. Min. Saf. Eng. 2016, 33, 761–769. [Google Scholar] [CrossRef]
- Zhao, M.; Zhang, S.; Chen, Y. Reasonable width of narrow coal pillar of gob-side entry driving in large mining height. Iop Conf. 2017, 59, 012025. [Google Scholar] [CrossRef] [Green Version]
- Wang, Y.; Li, Y.M.; Yu, Z.L.; Zhang, H.; Ding, D. Research on the surrounding rock control technology of gob-side entry with a narrow coal pillar reserved in a fully mechanized caving face with large mining height. Geotech. Geol. Eng. 2021, 40, 285–300. [Google Scholar] [CrossRef]
- Liu, H.Y. Determination of reasonable narrow pillar width of roadway driving along goaf. Coal Technol. 2017, 34, 186–195. [Google Scholar] [CrossRef]
- Li, H.; Syd, P.; Li, H.; Xu, Y.; Yuan, R.; Yue, S.; Li, K. Trial of small gateroad pillar in top coal caving longwall mining of large mining height. Int. J. Min. Sci. Technol. 2016, 26, 139–147. [Google Scholar] [CrossRef]
- Gao, H.; Cui, T.F.; Zhang, K.; Xu, X.B. Gob-side entry driving technology of remaining small coal pillar. Saf. Coal Mines 2012, 4, 24–33. [Google Scholar] [CrossRef]
- He, M.C.; Song, Z.Q.; Wang, A.; Yang, H.H.; Qi, H.G.; Guo, Z.B. Short-wall beam theory and 110 construction methods of long-wall mining—The third mining science and Technology Reform. Coal Sci. Technol. 2017, 1, 1–9,13. [Google Scholar] [CrossRef]
- Yang, X.; Hu, C.; He, M.; Wang, H.; Zhou, Y.; Liu, X.; Zhen, E.; Ma, X. Study on presplitting blasting the roof strata of adjacent roadway to control roadway deformation. Shock. Vib. 2019, 2019, 1–16. [Google Scholar] [CrossRef]
- Jendry, M.; Hadam, A.; Wikaa, M. Directional hydraulic fracturing (DHF)of the roof, as an element of rock burst prevention in the light of underground observations and numerical modelling. Multidiscip. Digit. Publ. Inst. 2021, 14, 562. [Google Scholar] [CrossRef]
- Yang, X.J.; Liu, C.K.; Ji, Y.G.; Zhang, X.Y.; Wang, S. Research on roof cutting and pressure releasing technology of directional fracture blasting in dynamic pressure roadway. Geotech. Geol. Eng. 2018, 37, 1555–1567. [Google Scholar] [CrossRef]
- Yang, M.J. Study on gas-phase fracturing pressure relief and permeability of heading CO2. Coal Technol. 2017, 36, 195–196. [Google Scholar] [CrossRef]
- Hu, B.; Liang, X.X.; WangYFWei, W.Z.; Wu, X.W. Industrial contrast test of deep hole pre-splitting blasting technology and hydraulic fracturing technology. Coal Mine Saf. 2017, 48, 48–51. [Google Scholar] [CrossRef]
- Sun, X.M.; Liu, X.; Liang, G.F.; Wang, D.; Jiang, Y.L. Key parameters of gob-side entry retaining formed by roof cut and pressure releasing in thin coal seams. Chin. J. Rock Mech. Eng. 2014, 33, 1449–1456. [Google Scholar] [CrossRef]
- Zhang, B.S.; Wang, P.F.; Cui, S.Q.; Fang, M.Z.; Qiu, Y.M. Control technology of surrounding rock for pressure relief by cutting roof in goaf excavation with large mining height and small coal pillar. Coal J. 2021, 46, 2254–2267. [Google Scholar] [CrossRef]
- He, M.C.; Ma, Z.M.; Guo, Z.B.; Chen, S.Y. Research on key technical parameters of deep thick coal seam cutting roof retaining. J. China Univ. Min. Technol. 2018, 47, 468–477. [Google Scholar] [CrossRef]
- Yang, X.J.; Sun, Y.; Wang, E.Y.; Mao, W.B. Study and application of gob-side entry retaining formed by roof cutting and pressure relief in medium-thickness coal seam with hard roof. Geotech. Geol. Eng. 2020, 38, 3709–3723. [Google Scholar] [CrossRef]
- Miao, X.X.; Mao, X.B.; Sun, Z.W.; Pu, H. Formation conditions and discrimination methods of composite key stratum in overburden of stope. J. China Univ. Min. Technol. 2005, 5, 547–550. [Google Scholar] [CrossRef]
- Qian, M.G.; Miao, X.X.; Xu, J.L. Theoretical study of key layers in rock formation control. Coal J. 1996, 3, 2–7. [Google Scholar] [CrossRef]
- Miao, J.; Huo, C.; Qi, K. Analysis and discrimination of key layer grouting in Licun Coal Mine. Nei Mongu Coal Econ. 2020, 5, 5–6,9. [Google Scholar] [CrossRef]
- Mao, X.B.; Miao, X.X.; Qian, M.G. Effect of height and composite key layer effect on step step. J. Xiangtan Inst. Min. Technol. 1999, 1, 3–7. [Google Scholar] [CrossRef]
Density/[kg·m−3] | Bulk Modulus [GPa] | Shear Modulus [GPa] | Dilatancy Angle [°] | Frictional Angle [°] |
---|---|---|---|---|
1700 | 10 | 6 | 10.3 | 30 |

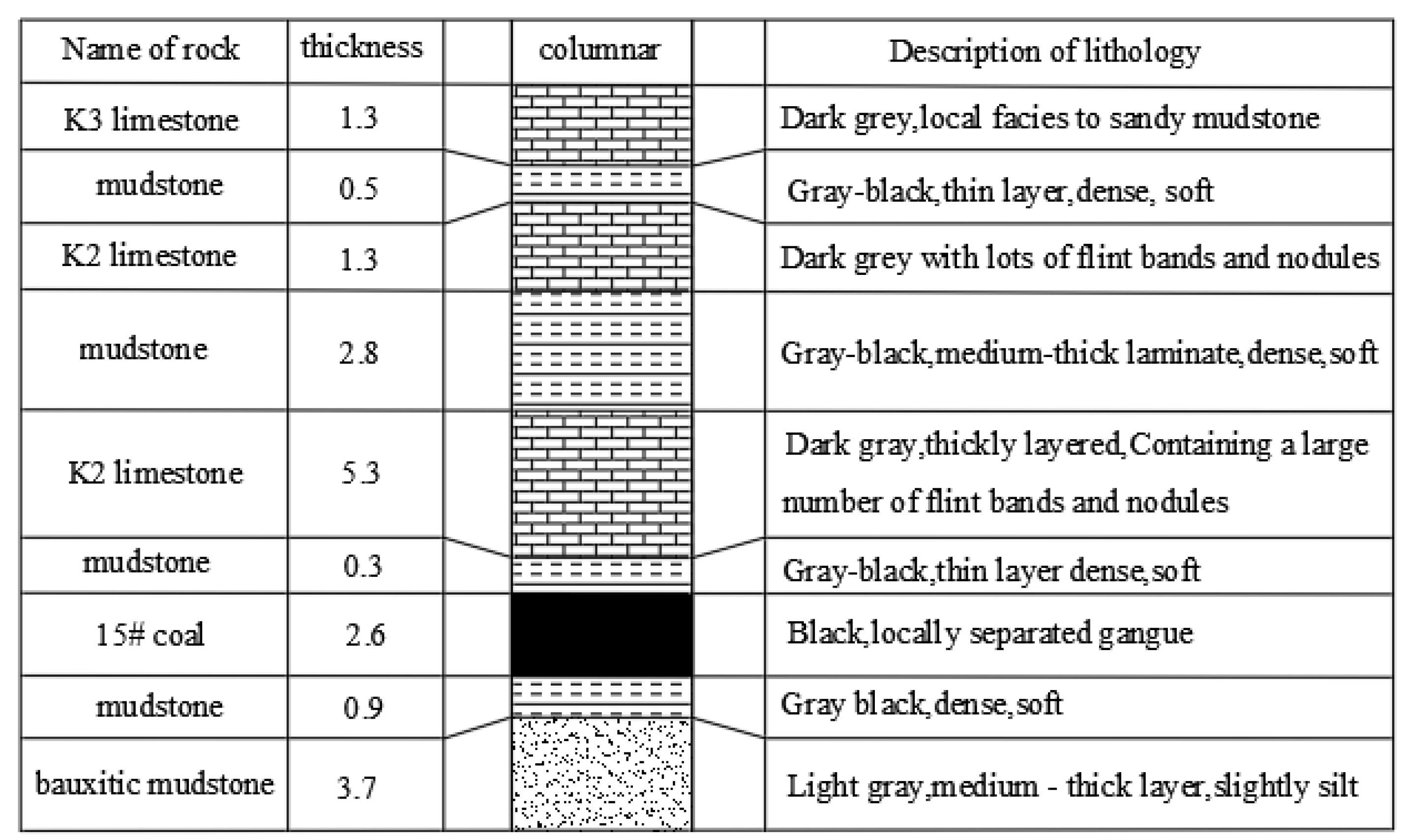

Serial Number | Rock Name | Density [kg·m−3] | Tensile Strength [MPa] | Modulus of Elasticity [MPa] | Poisson Ratio | Angle of Internal Friction [°] | Cohesive Strength [MPa] |
---|---|---|---|---|---|---|---|
G8 | K3 limestone | 2712 | 4.16 | 28,194 | 0.20 | 39°44′ | 8.15 |
G7 | Mudstone | 2684 | 2.05 | 17,048 | 0.23 | 35°18′ | 3.67 |
G6 | K2 limestone | 2712 | 4.16 | 28,194 | 0.20 | 39°44′ | 8.15 |
G5 | Mudstone | 2684 | 2.05 | 17,048 | 0.23 | 35°18′ | 3.67 |
G4 | K2 limestone | 2712 | 4.16 | 28,194 | 0.20 | 39°44′ | 8.15 |
G3 | Mud stone | 2684 | 2.05 | 17,048 | 0.23 | 35°18′ | 3.67 |
#15 coal | #15 coal | 1608 | 1.18 | 6107 | 0.29 | 30°21′ | 1.91 |
G2 | Mudstone | 2684 | 2.05 | 17,048 | 0.23 | 35°18′ | 3.67 |
G1 | Bauxitic mudstone | 2360 | 2.17 | 14,326 | 0.20 | 30°47 | 2.75 |
