Sensitivity Analysis of Holdback Bar Release Load during Catapult-Assisted Takeoff of Carrier-Based Aircraft
Abstract
:1. Introduction
2. Aircraft Mechanical Models of Holdback Bar Tension and Release Stages

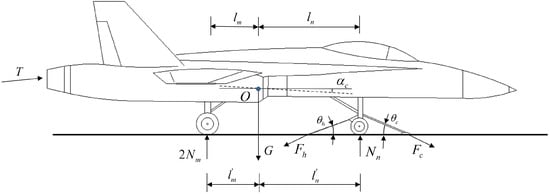

2.1. Aircraft Mechanical Model in Holdback Bar Tensioning State
2.2. Aircraft Gliding Dynamics Model after Holdback Bar Release
2.3. Effect of Holdback Bar Release Load on Catapult-Assisted Takeoff Velocity
3. Holdback Bar Device Connection Relationship and Contact Mechanics Model

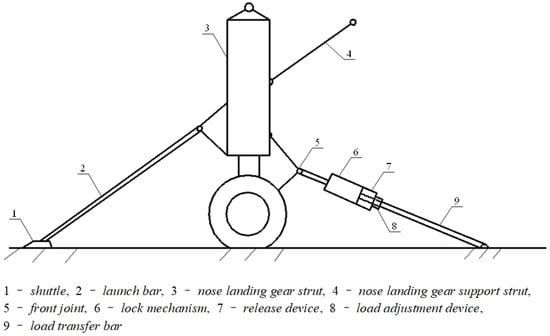

3.1. Connection Relationship of Holdback Bar Device

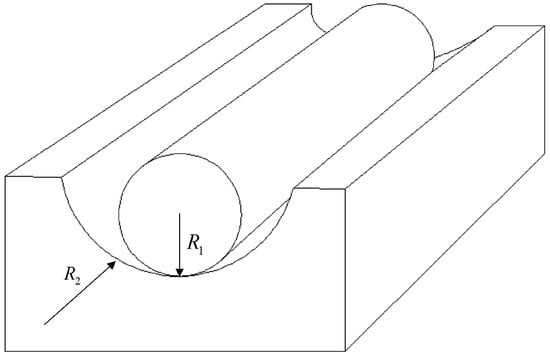

3.2. Contact Mechanics Model
4. Simulation Analysis of Holdback Bar Release Process
4.1. Holdback Bar Simulation Analysis Model
4.1.1. Front Joint Contact Model
4.1.2. Lock Mechanism Contact Model
4.1.3. Release Mechanism Contact Model
4.2. Simulation of Holdback Bar Release Process
5. Result and Discussion
5.1. Influence of the Structural Parameters on the Release Load
5.2. Effect of Contact Surface Friction Coefficient on Released Load
6. Conclusions
- 1.
- The release load of the holdback bar is crucial to the catapult-assisted takeoff speed of the carrier-based aircraft, and the accurate control of the release load is the key to ensure the catapult-assisted takeoff performance.
- 2.
- In determining the structural parameters of the contact surface of the holdback bar release mechanism, consideration should be given to the effect of changes in the angle of the contact surface on the sensitivity of the release load; when the angle of the contact surface is between and the effect on the sensitivity of the release load is small, in order to ensure the stability of the release load, the angle of the contact surface of the holdback bar should be selected within this range.
- 3.
- The release load increases with the increase of friction coefficient of each contact surface of the holdback lock mechanism. When the friction coefficient is greater than the critical value of 0.3, the release load increases rapidly; in order to make the release load more stable, the friction coefficient should be selected in the range of 0.1 to 0.3, when the impact on the sensitivity of the release load is small.
- 4.
- As for repeatable holdback bar, in order to ensure the stability of the release load when repeated, and to accurately control the magnitude of the release load, the factors affecting the sensitivity of the release load should be thoroughly considered in design and applications.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
References
- Helm, J.D.; Perry, H.H. The History and Development of the Repeatable Release Catapult Holdback Bar. SAE Trans. 1985, 94, 909–930. [Google Scholar]
- Systems Engineering and Standardization Department. Military Standard: Bar, Repeatable Release Holdback, Aircraft Launching, General Design Requirements for; MIL-B-85110A; Naval Air Engineering Center: Lakehurst, NJ, USA, 1991. [Google Scholar]
- Naval Air Warfare Center. Military Standard: Airplane Strength and Rigidity Ground Loads for Navy Acquired Airplanes; MIL-A-8863C(AS); Systems Requirements Department: Lakehurst, NJ, USA, 1993. [Google Scholar]
- Naval Air Engineering Center. Military Standard: Launching System, Nose Gear Type, Aircraft: MIL-L-22589D(AS); Naval Air Engineering Center: Lakehurst, NJ, USA, 1991. [Google Scholar]
- Lucas, C. Catapult Criteria for a Carrier-Based Aircraft; Ltv Aerospace Corp Dallas Tex Vought Aeronautics DIV: Dallas, TX, USA, 1968. [Google Scholar]
- Jin, C.J.; Hong, G.X. Dynamic problems of carrier aircraft catapult launching and arrest landing. Chin. J. Aeronaut. 1990, 11, 534–542. [Google Scholar]
- Zheng, B.W. The catapulting performance of the carrier-based airplane and the parameter study. Flight Dynam. 1992, 10, 27–33. [Google Scholar]
- Zheng, B.W. The influence of the nose gear fast-extension on the catapult trajectory for carrier-based airplane. Trans. Nanjing Univ. Aeronaut. Astronaut. 1994, 26, 7. [Google Scholar]
- Zheng, B.W. The study of the parameter optimization of catapult take-off for a carrier-based airplane. Flight Dynam. 1995, 13, 6. [Google Scholar]
- Wallace, M.M. F/A-18E/F Catapult Minimum End Airspeed Testing. Master’s Thesis, University of Tennessee, Knoxville, TN, USA, 2002; p. 12. [Google Scholar]
- Wang, W.J.; Qu, X.J.; Guo, L.L. Multi-agent Based Hierarchy Simulation Models of Carrier-based Aircraft Catapult Launch. Chin. J. Aeronaut. 2008, 21, 223–231. [Google Scholar]
- Yu, H.; Nie, H.; Wei, X.H. Analysis on the dynamic characteristics of carrier-based aircraft nose landing gear with sudden holdback load discharge. Chin. J. Aeronaut. 2011, 32, 1435–1444. [Google Scholar]
- Zhu, Q.D.; Lu, P.; Yang, Z.B.; Ji, X.; Han, Y.; Wang, L.P. Launch bar dynamics character analysis of carrier-based aircraft catapult launch. Appl. Sci. 2019, 9, 3079. [Google Scholar] [CrossRef] [Green Version]
- Fang, X.B.; Nie, H.; Zhang, Z.; Wei, X.H.; Zhang, M. Dynamic response analysis on carrier-based UAV considering catapult shuttle mass. Chin. J. Aeronaut. 2018, 39, 193–201. [Google Scholar]
- Yu, H.W.; Chen, D.W.; Gu, H.B. Dynamic modeling for carrier-based aircraft catapult takeoff. Aeronaut. Comput. Tech. 2018, 48, 4. [Google Scholar]
- Dong, A.P.; Li, S.; Zhu, W.G.; Wu, W.X. Influence factor analysis of catapult launch safety for carrier-based aircraft. J. Beijing Univ. Aeronaut. Astronaut. 2018, 44, 9. [Google Scholar]
- Feng, Y.P.; Chen, B.; Zhang, B.; Xia, B.; Li, R. Influence factor analysis on the catapult launch of the carrier-based aircraft by the aircraft carrier’s vertical toss. Flight Dynam. 2019, 37, 25–30. [Google Scholar]
- Murch, A.; Bolkcom, C. F-35 Lightning II Joint Strike Fighter (JSF) Program: Background, Status, and Issues; Congressional Research Service: Washington, DC, USA, 2004. [Google Scholar]
- Wilson, T. F-35 carrier suitability testing. In Proceedings of the 2018 Aviation Technology, Integration, and Operations Conference, Atlanta, GA, USA, 25–29 June 2018. [Google Scholar]
- Cai, L.Q.; Jiang, J.; Wang, X.H.; Pan, T.T. Effects of deck motion on carrier-based aircraft’s catapult launching performance. Flight Dynam. 2014, 32, 105–109. [Google Scholar]
- Dou, Q.B.; Chen, Y.; Ma, X.L.; Mu, R.K. Experimental study on the sudden-extension performance of carrier-based aircraft landing gear. J. Vib. Eng. 2018, 31, 102–109. [Google Scholar]
- Yang, Y.; Tang, K.B.; Fang, X.; Yao, X.H. Dynamic response analysis method and application of shipboard aircraft take-off structure. J. Nanjing Univ. Aeronaut. Astronaut. 2020, 52, 957–962. [Google Scholar]
- Chen, H.; Fang, X.B.; Nie, H. Analysis of Carrier-Based Aircraft Catapult Launching Based on Variable Topology Dynamics. Appl. Sci. 2021, 11, 9037. [Google Scholar] [CrossRef]
- Popov, V.L. Contact Mechanics and Friction: Physical Principles and Applications; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
- Karnopp, D. Computer Simulation of Stick-slip Friction in Mechanical Dynamic Systems. ASME J. Dynam. Syst. Meas. Control 1985, 107, 100–403. [Google Scholar] [CrossRef]
No. | Friction Coefficient | Release Load (t) |
---|---|---|
1 | 0.1 | 17.1 |
2 | 0.2 | 18 |
3 | 0.3 | 18.8 |
4 | 0.4 | 34.6 |
