Bayesian Model Infers Drug Repurposing Candidates for Treatment of COVID-19

BERG, Building B, Framingham, MA 01701, USA
Center for Medicines Discovery, Nuffield Department of Medicine, University of Oxford, Oxford OX3, UK
Department of Genetics and Genomic Sciences, Icahn School of Medicine at Mount Sinai, One Gustave L. Levy Place, New York, NY 10029, USA
Sema4, North Tower, Stamford, CT 06902, USA
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(6), 2466;
Submission received: 25 January 2021 / Revised: 22 February 2021 / Accepted: 3 March 2021 / Published: 10 March 2021
(This article belongs to the Special Issue Applications of Artificial Intelligence in Pharmaceutics)


The emergence of COVID-19 progressed into a global pandemic that has functionally put the world at a standstill and catapulted major healthcare systems into an overburdened state. The dire need for therapeutic strategies to mitigate and successfully treat COVID-19 is now a public health crisis with national security implications for many countries. The current study employed Bayesian networks to a longitudinal proteomic dataset generated from Caco-2 cells transfected with SARS-CoV-2 (isolated from patients returning from Wuhan to Frankfurt). Two different approaches were employed to assess the Bayesian models, a titer-center topology analysis and a drug signature enrichment analysis. Topology analysis identified a set of proteins directly linked to the SAR-CoV2 titer, including ACE2, a SARS-CoV-2 binding receptor, MAOB and CHECK1. Aligning with the topology analysis, MAOB and CHECK1 were also identified within the enriched drug-signatures. Taken together, the data output from this network has identified nodal host proteins that may be connected to 18 chemical compounds, some already marketed, which provides an immediate opportunity to rapidly triage these assets for safety and efficacy against COVID-19.

1. Introduction

On 11 March 2020, the World Health Organization officially declared coronavirus disease 2019 (COVID-19) as a pandemic. The rate of incidence and progression of cases has rapidly thrust major healthcare systems worldwide into an overburdened state with advanced cases requiring extended ICU care. At time of this manuscript submission, there are greater than 95.7 million cases confirmed across 208 countries and territories with incidence and mortality still rising in Africa, South America and most of the Western Hemisphere. The rapidity and intensity of the COVID-19 transmission and associated morbidity and mortality [1] have created a critically emergent need for the identification and characterization of biological drivers of infection and clinical progression.
The mean time to progression of observable symptoms is reported to be 9.1 to 12.5 days, thereby providing researchers with information on viral pathogenicity and a plausible therapeutic window of opportunity [2,3]. Global efforts are underway to investigate the potential utility of anti-virals and other agents in mitigating the clinical course of SARS-CoV-2 induced complications.
In pharma and healthcare, when data are available but there are unmet needs for markers and therapeutic targets, causal inference has been successfully applied to generate knowledge from data, such as in the identification of novel biomarkers [4], disease regulators [5] and outcome predictors [6]. Similarly, the SARS-CoV-2 9 viral/host interaction necessitates a more comprehensive understanding which can be achieved by coupling protein-based interactome with a Bayesian network (BN) approach. Network based dynamic and temporal graphs have already been deployed to deconvolute epidemiological data associated with SARS-CoV-2 and other approaches such as influence diffusion algorithms hold promise in complex datasets [7,8]. Herein, we applied Bayesian networks [9], differential expression analysis and drug-enrichment analysis to a publicly available longitudinal dataset of proteomics and viral titer from Caco-2 cells infected with SARS-CoV-2 [10]. Utilizing this BN-based approach, a de novo map of host proteins was established as well as drug enrichment signatures were defined. Several of the host proteins presented as linked to the virus titer, providing new insights into the pathogenesis of this virus and defining potential targets for therapeutic intervention that could mitigate the viral load and associated complications. The approach described herein largely complements artificial intelligence (AI) tools and algorithms that have been mobilized during this emerging health crisis.

2. Materials and Methods

2.1. Data Description

Data used in this study was extracted from a publicly available source from ProteomeXchange Consortium via the PRIDE39 partner repository with the dataset identifier PXD017710 [10].
Based on Bojkova et al., data was generated using SARS-CoV-2 isolated from 2 travelers from Wuhan to Frankfurt. Caco-2 cells were infected with SARS-CoV-2. Samples were harvested at 2, 6, 10 and 24 h post infection. Media was changed to DMEM containing 84 mg/L L-Arginine (13C615N4; Cambridge Isotope Laboratories, Cat#CNLM–539-H) and 146 mg/L L-Lysine (13C615N2, Cambridge Isotope Laboratories, Cat#CNLM–291-H) 2 h before harvesting. Cells were then lysed, proteins were precipitated, digested using LysC and trypsin, TMT-labeled and the samples combined. Peptides were then fractionated using HpH RP Fractionation Kit. Easy nLC 1200 coupled to a Q Exactive HF mass spectrometer collected LC-MS/MS data [10].

2.2. Data Extraction

Data source for the current study was as described by Bojkova et al. [10] where the concentrations of SARS-CoV-2 titer in the supernatant at 2 h, 6 h, 10 h and 24 h were reported. The high quality of unprocessed proteomics was accessed and confirmed. The available processed proteomics was used in this analysis with no further modification to maintain the optimal processing-parameters defined in Bojkova et al. [10].

2.3. Model Building

Bayesian networks (BN) [11] are graphical models that characterize the probabilistic dependencies over a set of random variables in a directed acyclic graph. The final models contain a set of nodes connected through directed edges, that denote the inferred causal dependencies within the data. As part of the Interrogative Biology® platform BERG developed bAIcis®, a scalable score-based BN-learning software which uses the Bayesian information criteria [12] for local and global model selection and Bayesian methods to estimate the parameters [13] as previously described [6,9]. From the combined longitudinal proteomics and titer data, 300 networks were generated by bAIcis® and compiled into a unified ensemble network, which was filtered for the edges present in at least 65% of the 300 models. A subnetwork containing the titer-node, and all nodes with a distance of 1 or 2 degrees from the titer-node, was extracted for further analysis (Figure 1).

2.4. Drug Enrichment Analysis

Differential expression analysis from samples with the lowest/highest viral titer was performed using the Bioconductor package LIMMA [14]. Proteins with a significant differential expression (adjusted p-value ≤ 0.001) were projected onto the ensemble network, and the projection further expanded to the 1-degree neighbor nodes, generating a sub-network that overlays differential expression and Bayesian network analysis. This subnetwork contained the titer subnetwork comprised of nodes within a path length of two from the titer node.
Drug signatures (DsigDB) and drug-target coregulated gene sets (ARCHS4) were extracted from the Enrichr database [15]. Subnetworks around each node in the full network were defined both in an undirected and downstream fashion. For each, node enrichment for signatures in the tier subnetwork from a path length 1 through 6 were computed with the R based function fisher.test and adjusted for multi-testing using the FDR setting of the p adjust function. The proportion of nodes with significant enrichment was defined at each path length as the proportion of nodes with existing perturbation and FDR < 0.05 divided by the total number of nodes with existing perturbation.

3. Results

3.1. Titer-Centered Sub-Network

Bayesian network modeling can infer potential causal associations on integrated phenotypic, molecular, biochemical, and omic datasets from disparate sources. Herein, we engaged a Bayesian network approach which identified 1869 causally associated nodes (Figure 2A). To evaluate specific associations with titer we extracted a subnetwork for 1st degree and 2nd degree nodes from the network (Figure 2B).
In the titer subnetwork, 14 nodes were inferred to be associated with the viral titer. In this sub-network, ACE2, a receptor for the SARS-CoV-2 virus, was directly connected to the titer node with increasing levels of the viral titer potentially repressing the expression of ACE2 (Figure 3A). In addition, ACE2 was inferred as potentially repressed by COX6A1 and induced by SLC6A3.
The expression CHEK1 was predicted as potentially induced by the viral infection and UBAP2L but repressed by CAPN7 and, in a downstream event, CHEK1 levels had a reverse effect on BAZ1B levels (Figure 3B). Contrary to ACE2, the increasing titer concentration might induce the expression of MAO-B (Figure 3C), whose expression is also induced by PRMT7, but repressed by TMEM238. Both MAO-B and CHEK1 were also identified as component of drug signatures enriched in the full network.

3.2. Identified Drug Signatures through Network Integration and Associated with Titer

In order to assess possible drug signatures associated with the viral titer, an enriched titer sub-network was generated, and compared to known drug signatures and to drug-target co-regulated gene sets extracted from the Enrichr database [15]. This analysis identified kinase signatures for the protein kinase DNA-Activated catalytic subunit (PRKDC) [OR:7.9; p-value: 1.3e-11], serine/threonine protein kinase (mTOR) [OR:7.1; p-value: 2.6e-7], serine/threonine protein kinase 24 (STK24) [OR:4.9; p-value:1.7e-5], ribosomal protein S6 kinase alpha-3 (RPS6KA3) [OR:4.4; p-value: 9.4e-5], and lysine deficient protein kinase 1 (WNK1) [OR:4.4; p-value: 9.4e-5] that were all enriched in the titer subnetwork at the indicated odds ratios/p-values. In addition to the kinase signatures, signatures for known drug compounds were also significantly enriched in the titer subnetwork Table 1. The prediction that results from these enrichments is that these compounds through their impact on the titer subnetwork have the potential influence of modifying the titer.
Further, de novo, we identified novel links between SARS-CoV-2 titer and host proteins expression that illuminated unique biological signature associated with COVID-19. Several of these associated proteins have therapeutic options already on the market or in clinical trials (Table 2) and serve as possible repurposing opportunities to impact the levels of the SARS-CoV-2 virus in patients.

4. Discussion

The COVID-19 pandemic has ignited a sense of urgency, purpose, and scientific/medical necessity to engage the entire armamentarium of technology, informatic capabilities, therapeutic tools and collaborative spirit to combat this accelerating foe of humanity. Due to the rapid growth kinetics of the disease and impact globally, utilizing emerging crowd sourced data and applying innovative bioinformatic modeling is an optimal approach to illuminate potential drug-targets to mitigate the SARS-CoV-2 infection [10]. Thus, we engaged a Bayesian network approach to identify potential therapeutic targets [6,9] causally integrated with viral titer. Multiple informatic approaches have been applied to the integration of population level, molecular and imaging data associated with SARS-CoV-2 infection. These include conventional interactome networks, associations with abundance trajectories with viral proteins, neural networks, deep and self-supervised learning, as well as machine learning of digital data [8,10,16,17,18,19,20]. Each type of informatic approach has its advantages and disadvantages based on a priori knowledge, power and structure of the dataset, as well as the ability to develop de novo knowledge. Due to the novel nature of SARS-CoV-2, we approached this study with a data agnostic approach based on Bayesian causality to derive unique relationships of molecules in a data driven manner.
Despite the limited data size, which was underpowered to support the inferred causalities, the robustness of bAIcis® analysis was evidenced by the data-driven linkage of SARS-CoV-2 titer to ACE2 [21]. Several studies have confirmed that ACE2 serves as a receptor for binding of the SARS-CoV-2 spike proteins required for host cell entry and viral replication [2]. Overexpression of ACE2 from different species, including human (HeLa cells), pig and civet, was associated with SARS-CoV-2 infection and replication, further demonstrating its role as a receptor for entry into host cells [22]. Furthermore, SARS-CoV-2 entry into host cells is dependent on ACE2 and serine protease TMPRSS 2 for priming, an activity that can be blocked by a specific inhibitor [23]. Interestingly, the expression of ACE2 is found in multiple organs including lungs, kidneys and heart, and is associated with incidence and severity of complications such as acute respiratory distress syndrome (ARDS), acute cardiac injuries and kidney injuries [24,25,26,27]. In addition, the viral titer was also predicted as possibly inhibiting carboxypeptidase (CPD), that belongs to a class of enzymes that includes ACE and ACE2, supporting the robustness of the network model.
Analysis of the ensemble network to identify enriched drug signatures ranked mTOR as a potential target with the ability to influence the viral titer. This is consistent with clinical reports suggesting Azithromycin, an mTOR inhibitor, as a therapeutic for SARS-CoV-2 infections [28]. In fact, the use of mTOR inhibitors to manage viral infections has been extensively investigated as well as their influence on immune systems, forming the basis for a potential use in SARS-CoV-2 infections [29,30]. Additionally, enriched drug signature(s) also indicated an association of COVID-19 and the renin-angiotensin system e.g., cyclopenthiazide, a thiazide diuretic that inhibits angiotensin converting enzyme (ACE).
Further, a direct linkage of ACE2 to COX6A1 (a member of the mitochondrial Cytochrome C Oxidase complex associated with electron transport and critically engaged with oxidative phosphorylation) and SLC26A3 (electroneutral Cl/HCO3+ anti-porter) were identified. Changes in expression of SCL26A3 in the colon has been associated with incidence of infectious diarrhea [31]. Interestingly, in Caco-2 cells (model used in this study), the SLC26A3 transporter activity is regulated by the cystic fibrosis transmembrane conductance regulatory (CFTR) [32]. Given the importance of CFTR and Cl/HCO3+ balance in lung physiology [33], the data from the proteomic network provides the basis for a potential lung-regulated acid-base imbalance in SARS-CoV-2 pulmonary manifestations.
The viral titer was also inferred as associated with MAOB and CHEK1. The role of MAO as virus receptors has been explored since the 1980′s and further supported by literature, demonstrating a relationship between MAO and viral infections [34]. Increases in MAO activity in the brain models of simian immunodeficiency virus (SIV) and human immunodeficiency virus (HIV) have been reported to be associated with central nervous system disorders [35]. An increase in MAOB mRNA was observed in macaques with severe SIV-associated lesion in the brain and correlated with viral loads [35]. Deprenyl, a MAOB inhibitor, improved verbal memory tests in subjects with mild HIV-associated cognitive impairment compared to patients not taking deprenyl [36]. In addition, given the wide-spread use of MAOB inhibitors (e.g., selegiline, rasagiline, safinamide) in clinical management of Parkinson’s Disease (PD) [37], determination of the prevalence of COVID-19 in cohort of PD patients could provide a rapid validation of a role of MOAB in the time-course of COVID-19. Furthermore, such validation would support the use of MOAB inhibitors as supportive therapy in patients with active SARS-CoV-2 infections to improve management and outcomes. Orthogonal support of the potential role of MAO-B in the regulation of SARS-CoV-2 viral titer is the enrichment of these linkages identified within the sertraline drug signatures. Sertaline, a class of Selective Serotonin Reuptake Inhibitors (SSRIs), is used in the treatment of major depressive disorder (MDD), including patients with Parkinson’s Disease diagnosed with depression as comorbidity. Although increase in expression of MAO-A in the brain in MDD has been established, the status of MAO-B is unclear. However, inhibitors of MAO enzyme can have the ability to inhibit activity of both enzymes and have known drug interactions with SSRIs, including Sertaline.
CHEK1, a highly evolutionary conserved serine/threonine-specific protein kinase, preserves the genome integrity by regulating DNA damage and cell cycle checkpoint responses. CHEK1 activation is specifically controlled by ATR through phosphorylation, forming the ATR-CHEK1 pathway. This pathway is involved in a broad spectrum of DNA abnormalities including inhibition of DNA replication, UV-induced DNA damage, inter-strand DNA crosslinking and virus infection [38]. The inferred association between the viral titer and the expression level of CHEK1 in the host cell suggests that SARS-CoV-2 could use the ATR-CHEK1 pathway for its replication. Indeed, several studies have reported that activation of the ATR-CHEK1 pathway occurs during viral DNA synthesis in various viruses including coronavirus [39], hepatitis B virus [40], human papillomavirus [41], parvovirus B19 [42]. Furthermore, utilization of CHEK1 inhibitors has been successfully used to reduce viral replication. For example, the CHEK1 inhibitor MK-8776 reduced viral DNA amplification by 90–99% in HPV infected cells [43]. Similarly, the CHEK1 inhibitor UCN-01 has been reported to decrease hepatitis B virus DNA yield of HL7702 cells by 80 to 90%, without significantly affecting cell survival [40]. The identification of a relationship between CHEK1 expression and a high SARS-CoV-2 titer associated with the literature on CHEK1 inhibitors and viral replication, supports the investigation of these molecules as a potential therapeutic modality for the treatment of COVID-19. Due to the known functions of CHEK1 in cancer through the regulation of the DNA damage response and cell cycle checkpoints, numerous CHEK1 or CHEK1/CHEK2 inhibitors have been developed over the past two decades or are currently in clinical development, mainly for oncology applications. Evaluating the repurposing of these drugs for the treatment of COVID-19 presents an opportunity to rapidly bring therapeutic solutions to patients currently affected by this disease.
The drug signature for diclofenac was identified influencing SARS-CoV-2 viral titer to both CHEK1 and MAOB. Diclofenac is used for pain treatment and belongs to a class of non-steroidal anti-inflammatory drugs (NSAIDs). The ability of thiazolidinediones and ibuprofen to increase ACE2 expression was reported as a potential susceptibility factor for SARS-CoV-2 infection in patients with diabetes and hypertension. However, the World Health Organization (WHO) and the European Medicines Agency (EMA) provided follow up guidance on the lack of scientific evidence supporting role NSAIDs such as ibuprofen in SARS-CoV-2 infection. The identification of diclofenac drug signature and the association of CHEK1 and MAO-B with the viral titer network provide additional insights into an indirect influence of these agents in the viral infectivity. The targets identified in this study supporting underlying mechanism(s) of SARS-CoV-2 infectivity are consistent with targets/therapeutic profiles identified using physical protein interaction map [44].

5. Conclusions

In summary, we applied a Bayesian network approach to a publicly available dataset that modeled a cellular time course experiment integrating proteomics and SARS-CoV-2 titer. Utilization of Bayesian network demonstrates promise in identifying novel biological signatures in disease pathogenesis, of which, holds significant potential in influencing the clinical outcome of diseases, such as COVID-19. This analysis was overlayed with drug enrichment analysis as well as identified novel causal associations with viral titer that had known biological basis molecularly and pharmacologically with viral replication. This integrated novel approach went beyond known biological pathway mapping, since novel biological underpinnings of disease pathogenesis of SARS-CoV2 were not fully elucidated. Taken together, the data herein and associated topology knowledge derived from the model could serve as a foundational for an information database to triage and advance the repurposing of existing drugs or agents currently in development for the treatment, management, and mitigation of COVID-19.

Author Contributions

M.A.K.: Provided substantial contributions to the conception and design of the work, interpretation of data, and drafted the work or substantively revised it; P.S.: Drafted the work or substantively revised it, provided substantial contributions to the conception and design of the work and acquisition, analysis; R.S.: Drafted the work or substantively revised it, provided substantial contributions to the conception and design of the work and interpretation of data; V.K.V.: Drafted the work or substantively revised it and interpretation of data; S.G.: Drafted the work or substantively revised it and interpretation of data; P.K.T.: Drafted the work or substantively revised it; C.B.: Substantively revised and interpretation of data; E.G.: Substantively revised and interpretation of data; E.S.: Drafted the work or substantively revised it and interpretation of data; L.O.R.: Drafted the work or substantively revised it, provided substantial contributions to the conception and design of the work and acquisition, analysis; N.R.N.: Drafted the work or substantively revised it, provided substantial contributions to the conception and design of the work and interpretation of data. All authors have read and agreed to the published version of the manuscript.


BERG would like to acknowledge the generous funding of Mr. Carl Berg for this entire study.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that they have no competing interests.


  1. Fauci, A.S.; Lane, H.C.; Redfield, R.R. Covid-19—Navigating the Uncharted. N. Engl. J. Med. 2020, 382, 1268–1269. [Google Scholar] [CrossRef]
  2. Li, F.; Li, W.; Farzan, M.; Harrison, S.C. Structure of SARS coronavirus spike receptor-binding domain complexed with receptor. Science 2005, 309, 1864–1868. [Google Scholar] [CrossRef]
  3. World Health Organization. WHO R&D Blueprint: Informal Consultation on Prioritization of Candidate Therapeutic Agents for Use in Novel Coronavirus 2019 Infection; World Health Organization: Geneva, Switzerland, 2020. [Google Scholar]
  4. Kiebish, M.A.; Cullen, J.; Mishra, P.; Ali, A.; Milliman, E.; Rodrigues, L.O.; Chen, E.Y.; Tolstikov, V.; Zhang, L.; Panagopoulos, K.; et al. Multi-omic serum biomarkers for prognosis of disease progression in prostate cancer. J. Transl. Med. 2020, 18, 10. [Google Scholar] [CrossRef]
  5. Peters, L.A.; Perrigoue, J.; Mortha, A.; Iuga, A.; Song, W.M.; Neiman, E.M.; Llewellyn, S.R.; Di Narzo, A.; Kidd, B.A.; Telesco, S.E.; et al. A functional genomics predictive network model identifies regulators of inflammatory bowel disease. Nat. Genet. 2017, 49, 1437–1449. [Google Scholar] [CrossRef]
  6. Vemulapalli, V.; Qu, J.; Garren, J.M.; Rodrigues, L.O.; Kiebish, M.A.; Sarangarajan, R.; Narain, N.R.; Akmaev, V.R. Non-obvious correlations to disease management unraveled by Bayesian artificial intelligence analyses of CMS data. Artif. Intell. Med. 2016, 74, 1–8. [Google Scholar] [CrossRef] [Green Version]
  7. La Gatta, V.; Moscato, V.; Postiglione, M.; Sperli, G. An Epidemiological Neural network exploiting Dynamic Graph Structured Data applied to the COVID-19 outbreak. IEEE Trans. Big Data 2020. [Google Scholar] [CrossRef]
  8. Amato, F.; Moscato, V.; Picariello, A.; Sperlí, G. Diffusion algorithms in multimedia social networks: A preliminary model. In Proceedings of the 2017 IEEE/ACM International Conference on Advances in Social Networks Analysis and Mining 2017, Sydney, Australia, 31 July–3 August 2017; pp. 844–851. [Google Scholar]
  9. Zhang, L.; Rodrigues, L.O.; Narain, N.R.; Akmaev, V.R. bAIcis: A Novel Bayesian Network Structural Learning Algorithm and Its Comprehensive Performance Evaluation Against Open-Source Software. J. Comput. Biol. 2020, 27, 698–708. [Google Scholar] [CrossRef] [PubMed]
  10. Bojkova, D.; Klann, K.; Koch, B.; Widera, M.; Krause, D.; Ciesek, S.; Cinatl, J.; Munch, C. Proteomics of SARS-CoV-2-infected host cells reveals therapy targets. Nature 2020. [Google Scholar] [CrossRef] [PubMed]
  11. Amari, S. The Handbook of Brain Theory and Neural Networks; MIT Press: Cambridge, MA, USA, 2003. [Google Scholar]
  12. Schwarz, G. Estimating the dimension of a model. Ann. Stat. 1978, 6, 461–464. [Google Scholar] [CrossRef]
  13. Heckerman, D. A tutorial on learning with Bayesian networks. In Innovations in Bayesian Networks; Springer: Berlin/Heidelberg, Germany, 2008; pp. 33–82. [Google Scholar]
  14. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef] [PubMed]
  15. Kuleshov, M.V.; Jones, M.R.; Rouillard, A.D.; Fernandez, N.F.; Duan, Q.; Wang, Z.; Koplev, S.; Jenkins, S.L.; Jagodnik, K.M.; Lachmann, A.; et al. Enrichr: A comprehensive gene set enrichment analysis web server 2016 update. Nucleic Acids Res. 2016, 44, W90–W97. [Google Scholar] [CrossRef] [Green Version]
  16. Quiroz, J.C.; Feng, Y.-Z.; Cheng, Z.-Y.; Rezazadegan, D.; Chen, P.-K.; Lin, Q.-T.; Qian, L.; Liu, X.-F.; Berkovsky, S.; Coiera, E. Development and Validation of a Machine Learning Approach for Automated Severity Assessment of COVID-19 Based on Clinical and Imaging Data: Retrospective Study. JMIR Med. Inform. 2021, 9, e24572. [Google Scholar] [CrossRef]
  17. Yang, Z.; Bogdan, P.; Nazarian, S. An in silico deep learning approach to multi-epitope vaccine design: A SARS-CoV-2 case study. Sci. Rep. 2021, 11, 3238. [Google Scholar] [CrossRef] [PubMed]
  18. Sun, C.; Hong, S.; Song, M.; Li, H.; Wang, Z. Predicting COVID-19 disease progression and patient outcomes based on temporal deep learning. BMC Med. Inform. Decis. Mak. 2021, 21, 1–16. [Google Scholar] [CrossRef] [PubMed]
  19. Santus, E.; Marino, N.; Cirillo, D.; Chersoni, E.; Montagud, A.; Valencia, A.; Hughes, K.; Lindvall, C. AI-aided Precision Medicine against COVID-19: Strategic Areas of Research and Development. J. Med. Internet Res. 2020. [Google Scholar] [CrossRef] [PubMed]
  20. Li, Z.; Zhao, W.; Shi, F.; Qi, L.; Xie, X.; Wei, Y.; Ding, Z.; Gao, Y.; Wu, S.; Liu, J. A novel multiple instance learning framework for COVID-19 severity assessment via data augmentation and self-supervised learning. Med. Image Anal. 2021, 69, 101978. [Google Scholar] [CrossRef]
  21. Wan, Y.; Shang, J.; Graham, R.; Baric, R.S.; Li, F. Receptor Recognition by the Novel Coronavirus from Wuhan: An Analysis Based on Decade-Long Structural Studies of SARS Coronavirus. J. Virol. 2020, 94. [Google Scholar] [CrossRef] [Green Version]
  22. Zhou, P.; Yang, X.L.; Wang, X.G.; Hu, B.; Zhang, L.; Zhang, W.; Si, H.R.; Zhu, Y.; Li, B.; Huang, C.L.; et al. A pneumonia outbreak associated with a new coronavirus of probable bat origin. Nature 2020, 579, 270–273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Hoffmann, M.; Kleine-Weber, H.; Schroeder, S.; Kruger, N.; Herrler, T.; Erichsen, S.; Schiergens, T.S.; Herrler, G.; Wu, N.H.; Nitsche, A.; et al. SARS-CoV-2 Cell Entry Depends on ACE2 and TMPRSS2 and Is Blocked by a Clinically Proven Protease Inhibitor. Cell 2020, 181, 271–280. [Google Scholar] [CrossRef]
  24. Crackower, M.A.; Sarao, R.; Oudit, G.Y.; Yagil, C.; Kozieradzki, I.; Scanga, S.E.; Oliveira-dos-Santos, A.J.; da Costa, J.; Zhang, L.; Pei, Y.; et al. Angiotensin-converting enzyme 2 is an essential regulator of heart function. Nature 2002, 417, 822–828. [Google Scholar] [CrossRef]
  25. Ding, Y.; He, L.; Zhang, Q.; Huang, Z.; Che, X.; Hou, J.; Wang, H.; Shen, H.; Qiu, L.; Li, Z.; et al. Organ distribution of severe acute respiratory syndrome (SARS) associated coronavirus (SARS-CoV) in SARS patients: Implications for pathogenesis and virus transmission pathways. J. Pathol. 2004, 203, 622–630. [Google Scholar] [CrossRef]
  26. Hamming, I.; Timens, W.; Bulthuis, M.L.; Lely, A.T.; Navis, G.; van Goor, H. Tissue distribution of ACE2 protein, the functional receptor for SARS coronavirus. A first step in understanding SARS pathogenesis. J. Pathol. 2004, 203, 631–637. [Google Scholar] [CrossRef]
  27. Jiang, F.; Deng, L.; Zhang, L.; Cai, Y.; Cheung, C.W.; Xia, Z. Review of the Clinical Characteristics of Coronavirus Disease 2019 (COVID-19). J. Gen. Intern. Med. 2020, 35, 1545–1549. [Google Scholar] [CrossRef] [Green Version]
  28. Gautret, P.; Lagier, J.C.; Parola, P.; Hoang, V.T.; Meddeb, L.; Mailhe, M.; Doudier, B.; Courjon, J.; Giordanengo, V.; Vieira, V.E.; et al. Hydroxychloroquine and azithromycin as a treatment of COVID-19: Results of an open-label non-randomized clinical trial. Int J. Antimicrob. Agents 2020, 105949. [Google Scholar] [CrossRef] [PubMed]
  29. Bowman, L.J.; Brueckner, A.J.; Doligalski, C.T. The Role of mTOR Inhibitors in the Management of Viral Infections: A Review of Current Literature. Transplantation 2018, 102, S50–S59. [Google Scholar] [CrossRef] [PubMed]
  30. Zheng, Y.; Li, R.; Liu, S. Immunoregulation with mTOR inhibitors to prevent COVID-19 severity: A novel intervention strategy beyond vaccines and specific antiviral medicines. J. Med. Virol. 2020. [Google Scholar] [CrossRef]
  31. Borenshtein, D.; Schlieper, K.A.; Rickman, B.H.; Chapman, J.M.; Schweinfest, C.W.; Fox, J.G.; Schauer, D.B. Decreased expression of colonic Slc26a3 and carbonic anhydrase iv as a cause of fatal infectious diarrhea in mice. Infect. Immun. 2009, 77, 3639–3650. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Tse, C.M.; Yin, J.; Singh, V.; Sarker, R.; Lin, R.; Verkman, A.S.; Turner, J.R.; Donowitz, M. cAMP Stimulates SLC26A3 Activity in Human Colon by a CFTR-Dependent Mechanism That Does Not Require CFTR Activity. Cell Mol. Gastroenterol. Hepatol. 2019, 7, 641–653. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Bonar, P.T.; Casey, J.R. Plasma membrane Cl(-)/HCO(3)(-) exchangers: Structure, mechanism and physiology. Channels 2008, 2, 337–345. [Google Scholar] [CrossRef] [Green Version]
  34. Shaskan, E.G.; Oreland, L.; Wadell, G. Dopamine receptors and monoamine oxidase as virion receptors. Perspect. Biol. Med. 1984, 27, 239–250. [Google Scholar] [CrossRef] [PubMed]
  35. Meulendyke, K.A.; Ubaida-Mohien, C.; Drewes, J.L.; Liao, Z.; Gama, L.; Witwer, K.W.; Graham, D.R.; Zink, M.C. Elevated brain monoamine oxidase activity in SIV- and HIV-associated neurological disease. J. Infect. Dis 2014, 210, 904–912. [Google Scholar] [CrossRef]
  36. A randomized, double-blind, placebo-controlled trial of deprenyl and thioctic acid in human immunodeficiency virus-associated cognitive impairment. Dana Consortium on the Therapy of HIV Dementia and Related Cognitive Disorders. Neurology 1998, 50, 645–651. [CrossRef] [PubMed]
  37. Dezsi, L.; Vecsei, L. Monoamine Oxidase B Inhibitors in Parkinson’s Disease. CNS Neurol. Disord. Drug Targets 2017, 16, 425–439. [Google Scholar] [CrossRef]
  38. Zhang, Y.; Hunter, T. Roles of Chk1 in cell biology and cancer therapy. Int. J. Cancer 2014, 134, 1013–1023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Xu, L.H.; Huang, M.; Fang, S.G.; Liu, D.X. Coronavirus infection induces DNA replication stress partly through interaction of its nonstructural protein 13 with the p125 subunit of DNA polymerase delta. J. Biol. Chem 2011, 286, 39546–39559. [Google Scholar] [CrossRef] [Green Version]
  40. Zhao, F.; Hou, N.B.; Song, T.; He, X.; Zheng, Z.R.; Ma, Q.J.; Li, L.; Zhang, Y.H.; Zhong, H. Cellular DNA repair cofactors affecting hepatitis B virus infection and replication. World J. Gastroenterol. 2008, 14, 5059–5065. [Google Scholar] [CrossRef]
  41. Anacker, D.C.; Aloor, H.L.; Shepard, C.N.; Lenzi, G.M.; Johnson, B.A.; Kim, B.; Moody, C.A. HPV31 utilizes the ATR-Chk1 pathway to maintain elevated RRM2 levels and a replication-competent environment in differentiating Keratinocytes. Virology 2016, 499, 383–396. [Google Scholar] [CrossRef] [PubMed]
  42. Luo, Y.; Lou, S.; Deng, X.; Liu, Z.; Li, Y.; Kleiboeker, S.; Qiu, J. Parvovirus B19 infection of human primary erythroid progenitor cells triggers ATR-Chk1 signaling, which promotes B19 virus replication. J. Virol. 2011, 85, 8046–8055. [Google Scholar] [CrossRef] [Green Version]
  43. Banerjee, N.S.; Moore, D.; Parker, C.J.; Broker, T.R.; Chow, L.T. Targeting DNA Damage Response as a Strategy to Treat HPV Infections. Int. J. Mol. Sci. 2019, 20, 5455. [Google Scholar] [CrossRef] [Green Version]
  44. Gordon, D.E.; Jang, G.M.; Bouhaddou, M.; Xu, J.; Obernier, K.; White, K.M.; O’Meara, M.J.; Rezelj, V.V.; Guo, J.Z.; Swaney, D.L.; et al. A SARS-CoV-2 protein interaction map reveals targets for drug repurposing. Nature 2020, 583, 459–468. [Google Scholar] [CrossRef]

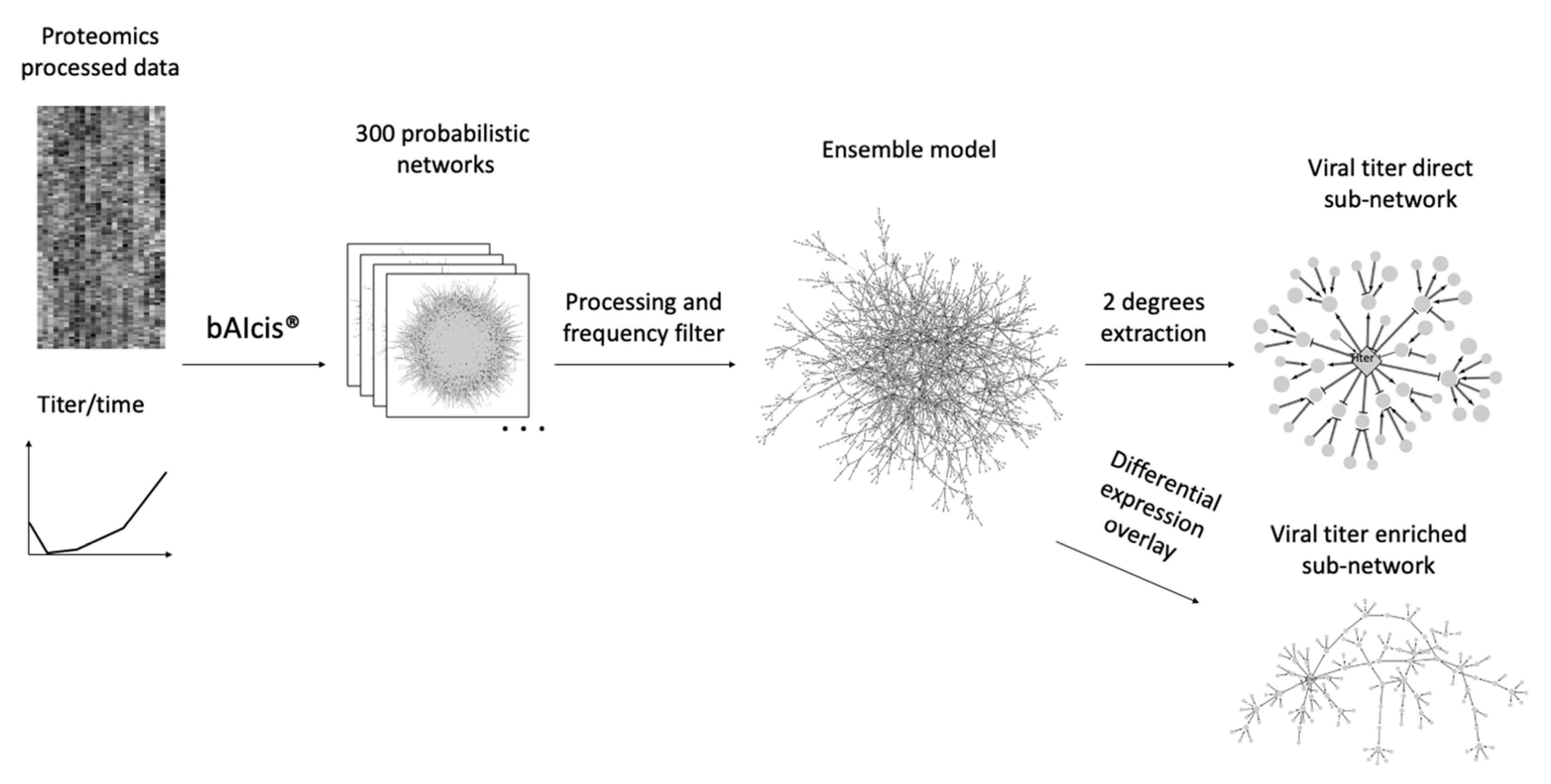

Figure 1. Analysis Workflow. Proteomics and virus titer information were extracted from Bojkova et al., 2020, merged, and analyzed by the platform’s Bayesian network tool, bAIcis®. From the ensemble model, titer first and second degree nodes were selected for a literature evaluation, and a differential-expression enriched sub-network was used in a drug enrichment analysis.
Figure 1. Analysis Workflow. Proteomics and virus titer information were extracted from Bojkova et al., 2020, merged, and analyzed by the platform’s Bayesian network tool, bAIcis®. From the ensemble model, titer first and second degree nodes were selected for a literature evaluation, and a differential-expression enriched sub-network was used in a drug enrichment analysis.
Applsci 11 02466 g001

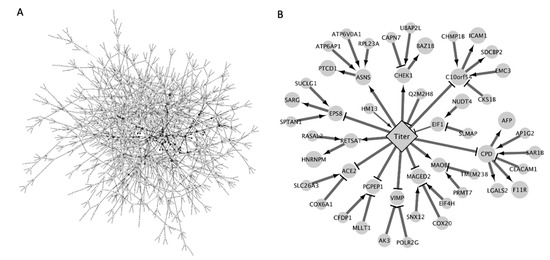

Figure 2. Ensemble Model. A probabilistic ensemble model from proteomics and viral titer was generated by bAIcis®, with nodes representing proteins and titer and edges the conditional dependence between nodes (A). The titer 2-degree sub-network was extracted for further evaluation (B).
Figure 2. Ensemble Model. A probabilistic ensemble model from proteomics and viral titer was generated by bAIcis®, with nodes representing proteins and titer and edges the conditional dependence between nodes (A). The titer 2-degree sub-network was extracted for further evaluation (B).
Applsci 11 02466 g002

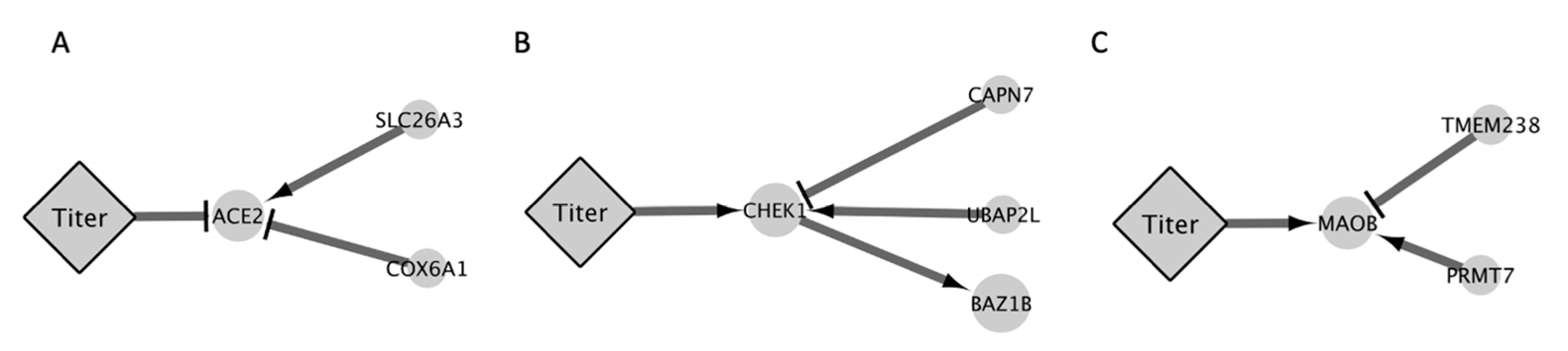

Figure 3. Model Nodes. Selected nodes were highlighted to demonstrate model validation such as ACE2 (A), or as potential new therapeutic targets, such as CHEK1 (B) and MAOB (C). Arrowed edges indicate a positive causal connection (e.g., A → B for A inducing B), and T-shaped arrows indicate a negative causal connection (e.g., A → B for A repressing B).
Figure 3. Model Nodes. Selected nodes were highlighted to demonstrate model validation such as ACE2 (A), or as potential new therapeutic targets, such as CHEK1 (B) and MAOB (C). Arrowed edges indicate a positive causal connection (e.g., A → B for A inducing B), and T-shaped arrows indicate a negative causal connection (e.g., A → B for A repressing B).
Applsci 11 02466 g003
Table 1. List of drug signature based on enrichment analysis to the titer.
Table 1. List of drug signature based on enrichment analysis to the titer.
Drug SignatureFold Enrichmentp-Value
emetine HL60 DOWN5.142.46 E-07
ambroxol PC3 DOWN3.991.30 E-06
Vitinoin CTD 000070693.363.85 E-06
diclofenac CTD 000058044.091.91 E-05
sertraline CTD 000073588.422.03 E-05
ellagic acid BOSS5.847.23 E-05
ellagic acid CTD 000058916.360.00012
ascorbic acid CTD 000054454.730.00013
piperine TTD 0001024521.650.00034
oxygen CTD 000064543.250.00035
Fulvestrant CTD 000027403.910.00053
carbamazepine CTD 000055743.030.00183
menadione PC3 DOWN4.640.00193
indomethacin CTD 000061473.270.00328
Table 2. List of targets with approved drugs or in advanced clinical development.
Table 2. List of targets with approved drugs or in advanced clinical development.
TargetDrug NameIndicationsDevelopment Status
MAOBrasagilineParkinsons diseaseLaunched
ropiniroleParkinsons disease; Restless legs syndromeLaunched
safinamideMovement disorder; Muscle disease; Parkinsons diseaseLaunched
selegilineParkinsons diseaseLaunched
tolcaponeParkinsons diseaseLaunched
CHECK1SRA-737Cancer; Colorectal tumor; Non-small-cell lung cancer; Ovary tumor; Small-cell lung cancer; Soft tissue sarcoma; Transitional cell carcinoma; Uterine cervix tumorPhase 2 Clinical
