# Error Evaluation and Suitability Assessment of Common Reliability Methods in the Case of Shallow Foundations

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- test the hypothesis of whether the factor of safety (FS) follows normal or lognormal distribution;
- probability method error definition;
- defining the criteria for method suitability assessment.

#### Reliability Theory

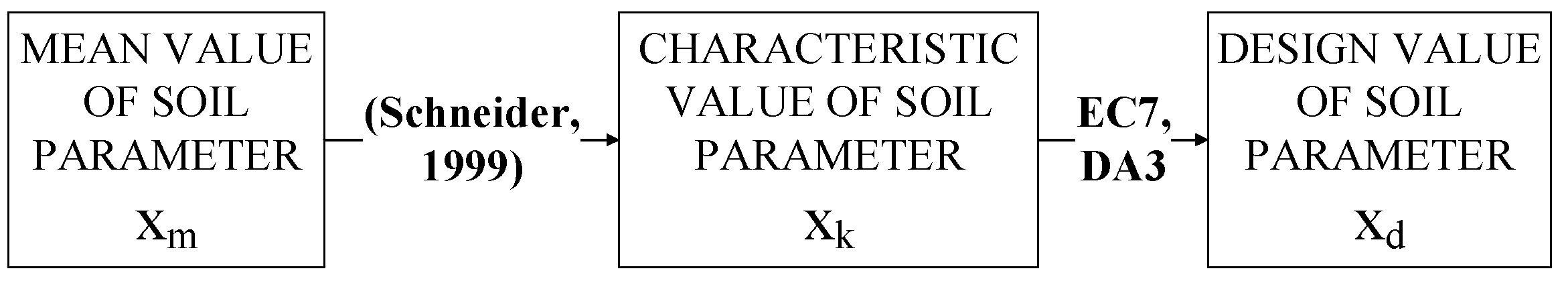

## 2. Materials and Methods

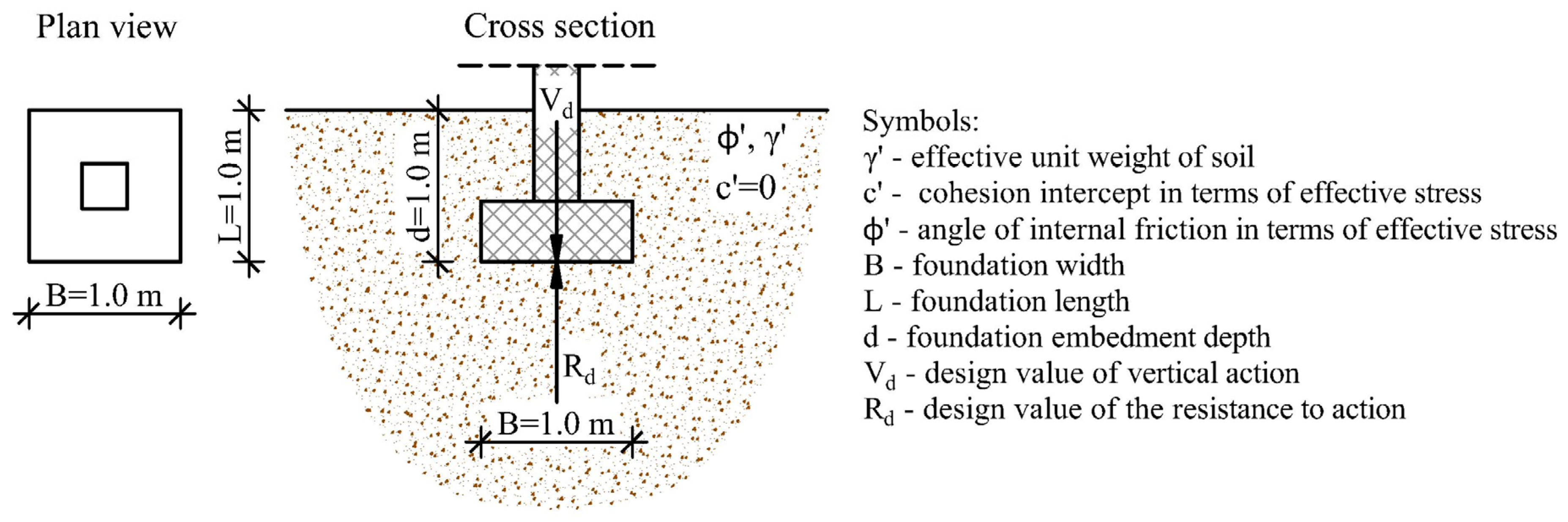

- ${\mathsf{\varphi}}^{\prime}$ and ${\mathsf{\gamma}}^{\prime}$ are positive correlated, ${\mathrm{V}}_{\mathrm{g}}$ is uncorrelated with ${\mathsf{\varphi}}^{\prime}$ and $\mathsf{\gamma}$
- foundation soil is non-cohesive, homogeneous and isotropic
- no presence of groundwater in the soil

#### 2.1. Performance Function

_{1}, X

_{2}and X

_{3}are transformed from the space of real random variables (X space) to the standard normal space (U space) using the Rosenblatt transformation [29]. By applying the transformation, the performance function in U space yields:

#### 2.2. Reliabilty Integral

#### 2.3. Defining the Error of the Reliability Method

#### 2.4. The Criterion for the Estimation of the Suitability of Reliability Methods

#### 2.5. Short Overview of Reliability Methods

#### 2.5.1. Analytical First Order Second Moment (FOSM) and Taylor Series

^{th}parameter increased/decreased by one standard deviation from its mean value [6].

#### 2.5.2. Point Estimate Method (PEM)

^{N}, where N is the number of random variables. In these calculations, the value of the factor of safety is calculated with different combinations of random variables values, which are $\mathrm{E}\left(\mathrm{X}\right)+{\mathsf{\sigma}}_{\mathrm{x}}$ and $\mathrm{E}\left(\mathrm{X}\right)-{\mathsf{\sigma}}_{\mathrm{x}}$ (E(X) is the expected value, and ${\mathsf{\sigma}}_{\mathrm{x}}$ is the standard deviation of random variable X). The result is the reliability index $\mathsf{\beta}$, which is calculated based on the assumption of statistical distribution of the FS.

#### 2.5.3. First Order Reliability Method (FORM)

#### 2.5.4. Simplified FORM

#### 2.5.5. The Monte Carlo Method

_{f}values in the researched examples are in the order of magnitude ${10}^{-3}$; therefore, a relatively large number of simulations is required to achieve satisfactory result accuracy. The coefficient of variation is calculated according to the procedure defined in [34]. Random values were generated using the Mersenne Twister 19,937 algorithm from the open (MIT/x11 License) library of MathNet [35].

#### 2.5.6. Direct Integration Method

## 3. Results

#### 3.1. Statistical Distribution of Factor of Safety (FS)

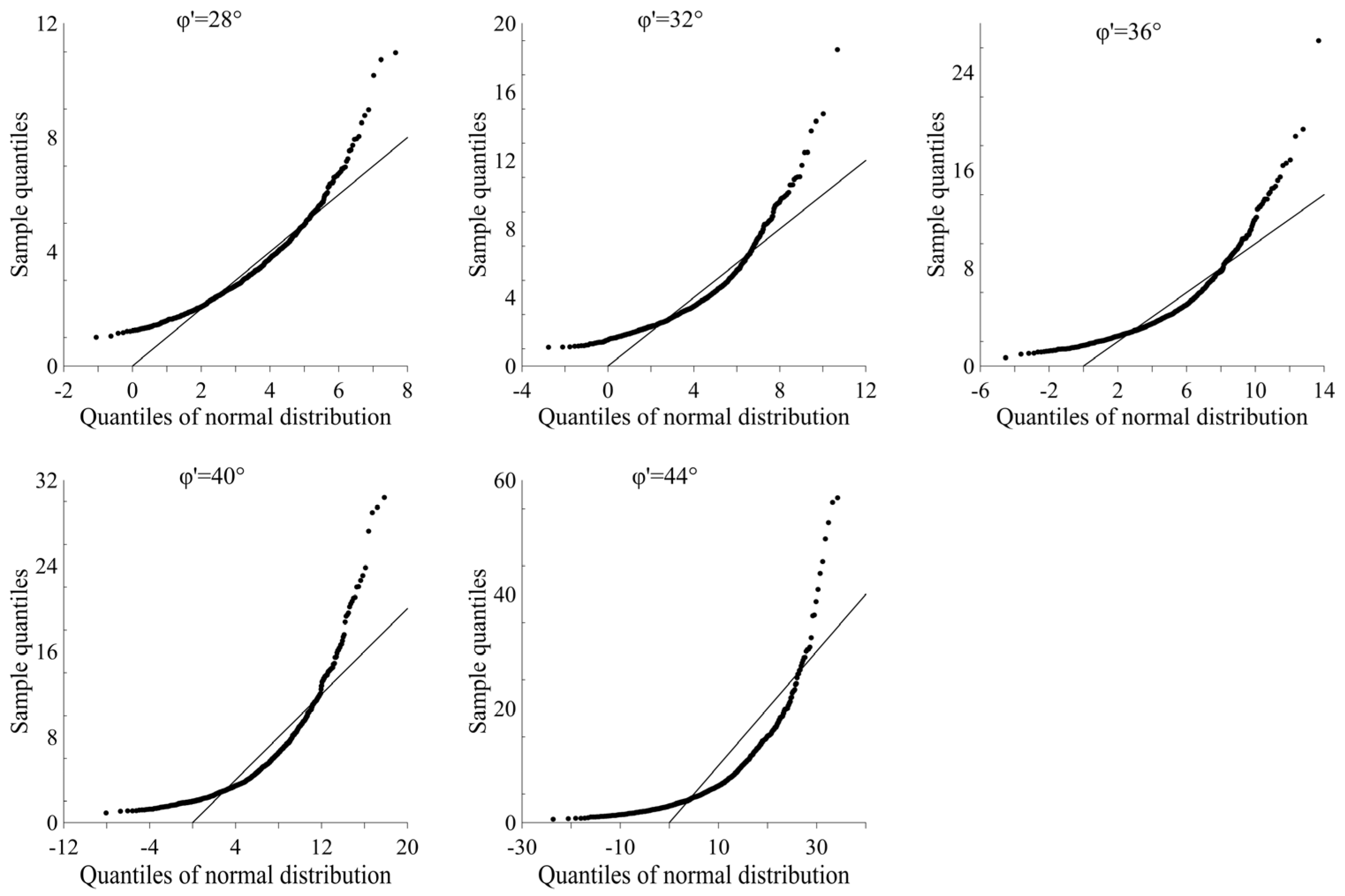

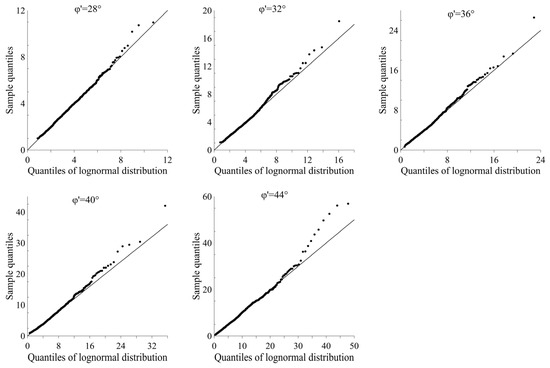

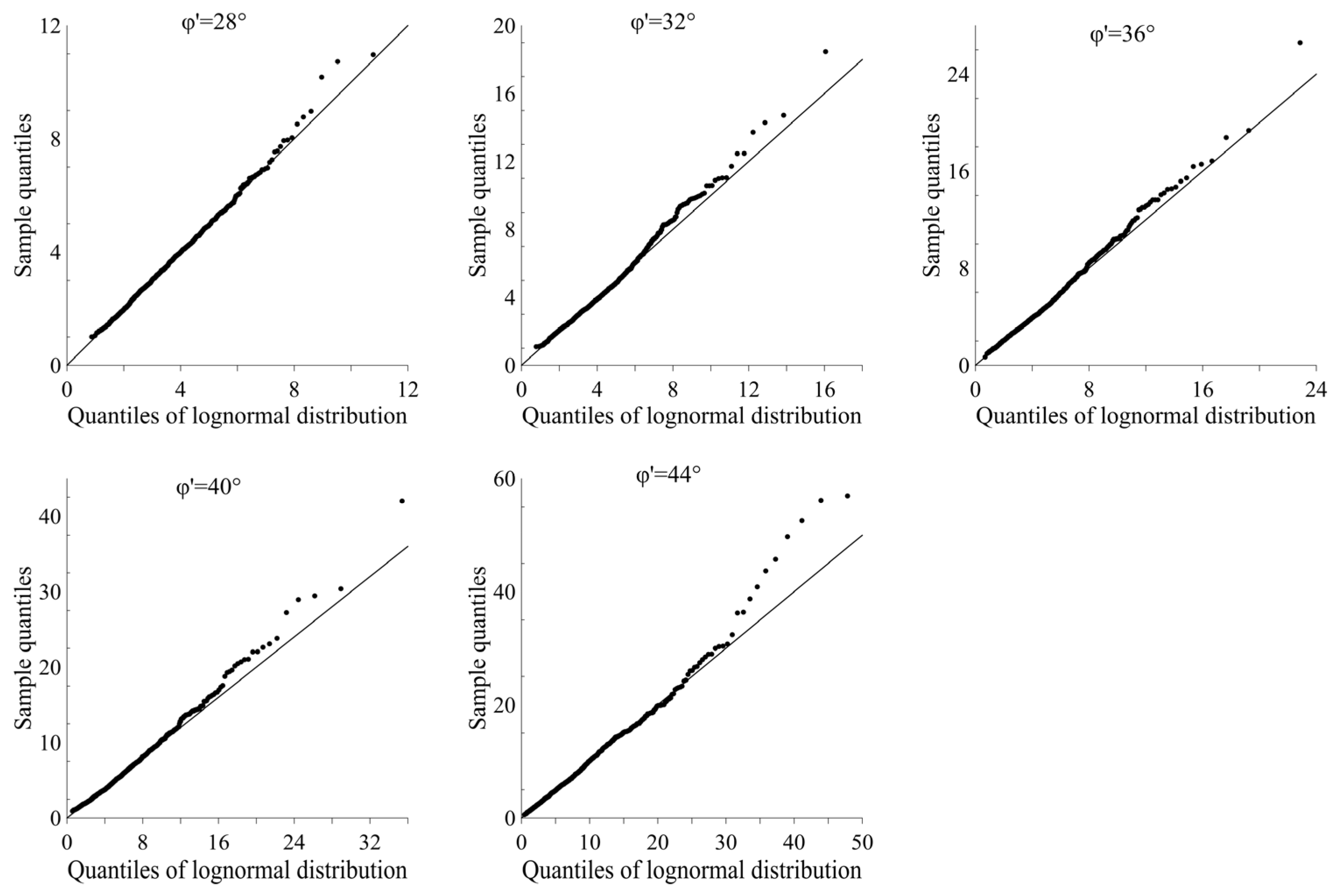

^{5}data, along with the best-fit curves of normal and lognormal PDFs. All curves are skewed to the right with a single distinct peak. This type of histogram shape indicates that the data are unlikely to follow a normal distribution.

#### 3.2. The Results of Reliability Methods

#### 3.2.1. Monte Carlo Method

#### 3.2.2. FORM and Simplified FORM

#### 3.2.3. FOSM and Point Estimate Method (PEM)

#### 3.3. Reliability Methods Suitability Assessment

## 4. Discussion

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Filz, G.M.; Navin, M.P. Final Contract Report; Virginia Transportation Research Council: Charlottesville, VA, USA, 2006. [Google Scholar]
- Duncan, J.M.; Sleep, D.M. Evaluating Reliability in Geotechnical Engineering. In Risk and Reliability in Geotechnical Engineering; Phoon, K.-K., Ed.; Taylor & Francis: New York, NY, USA, 2014. [Google Scholar]
- Baecher, G.B.; Christian, J.T. Reliability and Statistics in Geotechnical Engineering, 1st ed.; Wiley: Chichester, UK, 2003. [Google Scholar]
- Fenton, G.A.; Griffiths, D.V. Risk Assessment in Geotechnical Engineering; Wiley: New Jersey, NJ, USA, 2008. [Google Scholar]
- Wang, Y.; Kulhawy, F.H. Reliability Index for Serviceability Limit State of Building Foundations. J. Geotech. Geoenviron. Eng.
**2008**, 134, 1587–1594. [Google Scholar] [CrossRef] - Duncan, J.M. Factors of Safety and Reliability in Geotechnical Engineering. J. Geotech. Geoenviron. Eng.
**2000**, 126, 307–316. [Google Scholar] [CrossRef] - Phoon, K.-K. Reliability-Based Design in Geotecnical Engineering, 1st ed.; Taylor & Francis Geological: New York, NY, USA, 2008. [Google Scholar]
- Zhang, L.M.; Ng, A.M.Y. Probabilistic limiting tolerable displacements for serviceability limit state design of foundations. Géotechnique
**2005**, 55, 151–161. [Google Scholar] [CrossRef] - Zhang, J.; Zhang, L.; Tang, W.H. Reliability-Based Optimization of Geotechnical Systems. J. Geotech. Geoenviron. Eng.
**2011**, 137, 1211–1221. [Google Scholar] [CrossRef] - Joint Committee on Structural Safety. Probabilistic Model Code Part 1-Basis of Design. 2001. Available online: https://www.jcss-lc.org/jcss-probabilistic-model-code/ (accessed on 31 December 2020).
- Pirić, K. Reliability Analysis in Ship Structural Concept Design. Unpublished Ph.D. Thesis, University of Zagreb, Zagreb, Croatia, 2014. [Google Scholar]
- European Committee for Standardization. Eurocode 7: Geotechnical Design-Part 1: General Rules (EN 1997-1:2004+AC:2009). 2012. Available online: https://www.google.com.hk/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&ved=2ahUKEwjes4O4_ZzuAhWPfd4KHdISAzMQFjAAegQIAhAC&url=https%3A%2F%2Fwww.ngm2016.com%2Fuploads%2F2%2F1%2F7%2F9%2F21790806%2Feurocode_7_-_geotechnical_designen.1997.1.2004.pdf&usg=AOvVaw1zogUKH1d1y3lmSAHbDGDc (accessed on 31 December 2020).
- Lacasse, S.; Nadim, F. Uncertainties in Characterizing Soil Properties. In Uncertainty in the Geologic Environment: From Theory to Practice; ASCE: New York, NY, USA, 1996; pp. 49–75. [Google Scholar]
- Forrest, W.S.; Orr, T.L. Reliability of shallow foundations designed to Eurocode 7. Georisk
**2010**, 4, 186–207. [Google Scholar] [CrossRef] - Gäβler, G. Vernagelte Gelandesprunge-Tragverhalten Und Standsicherheit. Unpublished Ph.D. Thesis, Université de Karlsruhe, Karlsruhe, Germany, 1987. [Google Scholar]
- Nottrodt, H.P. Beitrag Zur Einfuhrung Semiprobabilistischer Methoden in Der Geotechnik. Unpublished Ph.D. Thesis, Université de Weimar, Weimar, Germany, 1990. [Google Scholar]
- European Committee for Standardization. Eurocode: Basis of Structural Design (EN 1990:2002+A1:2005+A1:2005/AC:2010). 2011. Available online: https://standards.iteh.ai/catalog/standards/cen/20024ae2-74ee-4a88-b584-2443b1cb0630/en-1990-2002-a1-2005-ac-2010 (accessed on 31 December 2020).
- Phoon, K.-K.; Kulhawy, F.H. Characterization of geotechnical variability. Can. Geotech. J.
**1999**, 36, 612–624. [Google Scholar] [CrossRef] - Phoon, K.-K. Role of reliability calculations in geotechnical design. Georisk Assess. Manag. Risk Eng. Syst. Geohazards
**2016**, 11, 4–21. [Google Scholar] [CrossRef] - Lee, I.K.; Ingles, O.G.; White, W. Geotechnical Engineering; Pitman: Boston, MA, USA, 1983. [Google Scholar]
- Sujith, M.S.; Menon, D.; Dodagoudar, G.R. Reliability analysis and design of cantilever RC retaining walls against sliding failure. Int. J. Geotech. Eng.
**2011**, 5, 131–141. [Google Scholar] [CrossRef] - Ravindra, M.K.; Galambos, T.V. Load and Resistance Factor Design for Steel. J. Struct. Div.
**1978**, 104, 1337–1353. [Google Scholar] - Holicky, M.; Sykora, M. Stochastic Models in Analysis of Structural Reliability. In Proceedings of the International Symposium on Stochastic Models in Reliability Engineering, Life Sciences and Operation Management, Beer Sheva, Israel, 8–11 February 2010; SCE—Shamoon College of Engineering: Beer Sheva, Israel, 2010. [Google Scholar]
- Jovanović, B.; Van Coile, R.; Hopkin, D.; Khorasani, N.E.; Lange, D.; Gernay, T. Review of Current Practice in Probabilistic Structural Fire Engineering: Permanent and Live Load Modelling. Fire Technol.
**2020**. [Google Scholar] [CrossRef] - United States Naval Facilities Engineering Command. Soil Mechanics, Design Manual 7.01, 2nd ed.; Department of the Navy, Naval Facilities Engineering Command: Alexandria, VA, USA, 1986.
- Schneider, H.R. Definition and Determination of Characteristic Soil Properties. In Proceedings of the Fourteenth International Conference on Soil Mechanics and Foundation Engineering, Hamburg, Germany, 6–12 September 1997; Balkema, A.A., Ed.; BR-3000: Rotterdam, The Netherlands, 1997. [Google Scholar]
- Van Coile, R.; Caspeele, R.; Taerwe, L. Reliability-based evaluation of the inherent safety presumptions in common fire safety design. Eng. Struct.
**2014**, 77, 181–192. [Google Scholar] [CrossRef] - Gernay, T.; Van Coile, R.; Khorasani, N.E.; Hopkin, D. Efficient uncertainty quantification method applied to structural fire engineering computations. Eng. Struct.
**2019**, 183, 1–17. [Google Scholar] [CrossRef] - Lebrun, R.; Dutfoy, A. Do Rosenblatt and Nataf isoprobabilistic transformations really differ? Probab. Eng. Mech.
**2009**, 24, 577–584. [Google Scholar] [CrossRef] - Haukaas, T. The Computer Program Rt. Available online: http://terje.civil.ubc.ca/the-computer-program-rt/ (accessed on 31 December 2020).
- Rosenblueth, E. Point estimates for probability moments. Proc. Natl. Acad. Sci. USA
**1975**, 72, 3812–3814. [Google Scholar] [CrossRef] [PubMed][Green Version] - Xiaoping, D. Probabilistic Engineering Design, First Order and Second Reliability Methods, Lecture Notes; University of Missouri: Rolla, MO, USA, 2005. [Google Scholar]
- Ang, A.H.-S.; Tang, W.H. Probability Concepts in Engineering: Emphasis on Applications in Civil & Environmental Engineering, 2nd ed.; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Li, W. Appendix B. In Risk Assessment of Power Systems; Wiley: Hoboken, NJ, USA, 2014. [Google Scholar]
- Christoph, R. Math.NET Numerics. Available online: https://numerics.mathdotnet.com/ (accessed on 17 September 2020).
- Calculus, A.H. A New Horizon, 6th ed.; Wiley: New York, NY, USA, 1999. [Google Scholar]
- Gong, W.; Juang, C.H.; Martin, J.R. Numerical integration method for computing reliability index of geotechnical system. Georisk Assess. Manag. Risk Eng. Syst. Geohazards
**2015**, 10, 109–120. [Google Scholar] [CrossRef] - Canadian Standards Organization. Canadian Highway Bridge. Design Code; Canadian Standards Organization: Canada, ON, Canada, 2014. [Google Scholar]
- Fenton, G.A.; Naghibi, F.; Dundas, D.; Bathurst, R.J.; Griffiths, D. Reliability-based geotechnical design in 2014 Canadian Highway Bridge Design Code. Can. Geotech. J.
**2016**, 53, 236–251. [Google Scholar] [CrossRef]

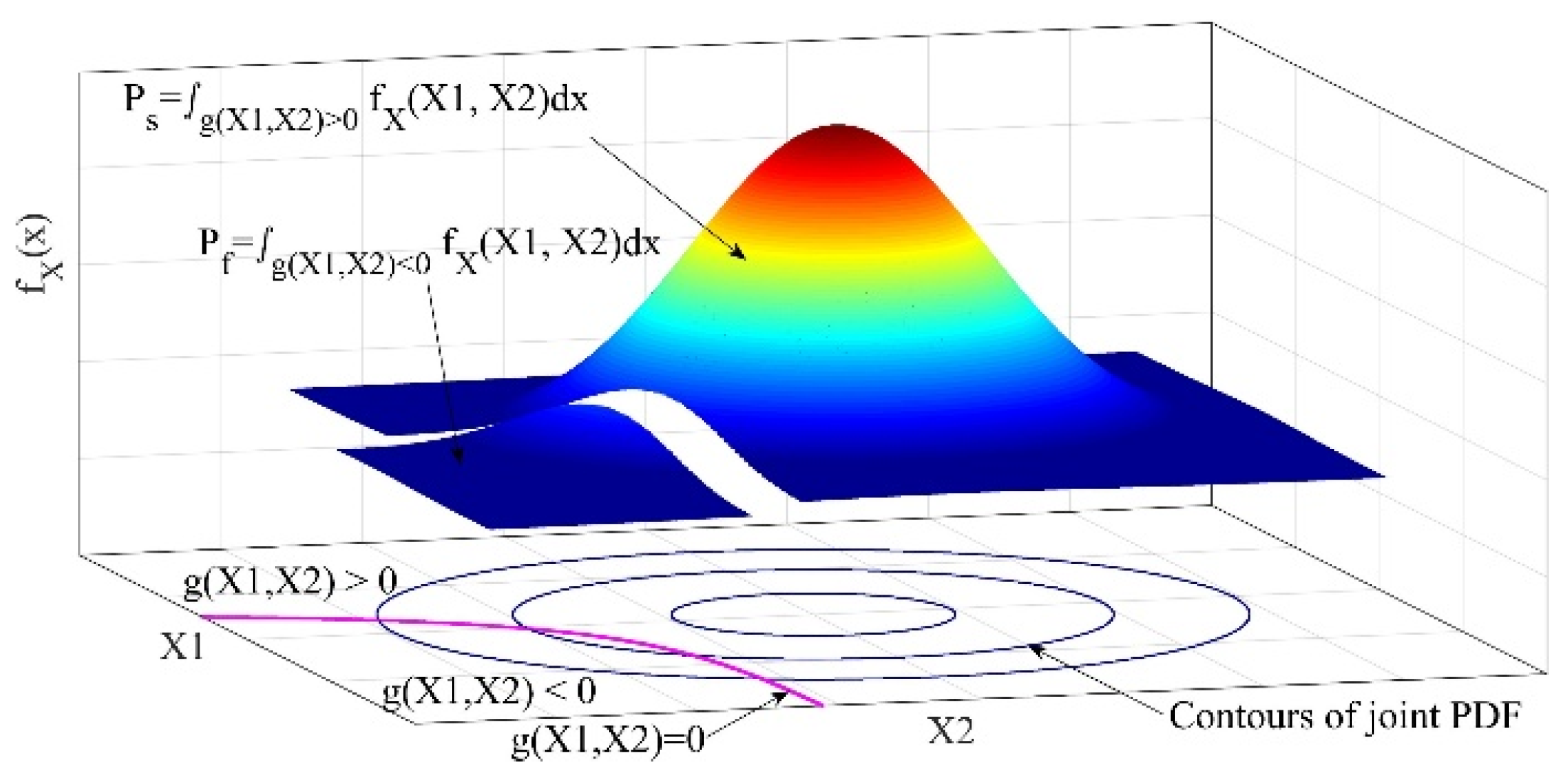

**Figure 1.**Visualization of a simple reliability problem consisting of 2 random variables, X1 and X2, integrand ${\mathrm{f}}_{\mathrm{X}}\left(\mathrm{x}\right)$ and performance function $\mathrm{g}\left(\mathrm{X}1,\mathrm{X}2\right)$.

**Figure 4.**(

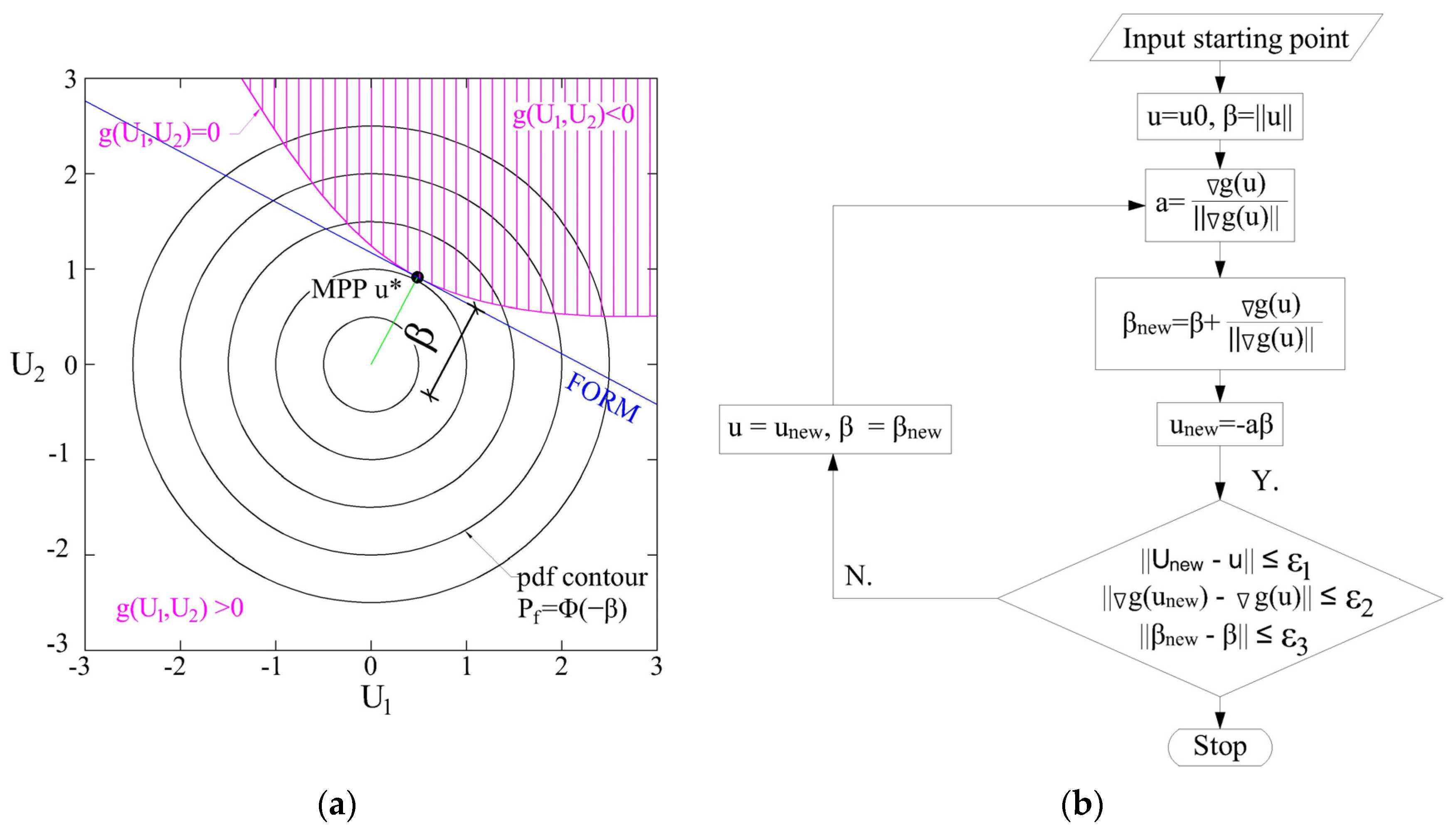

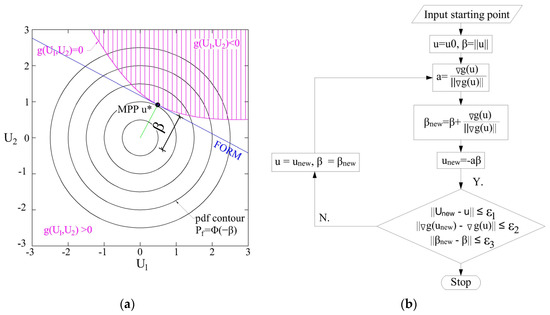

**a**) Geometrical representation of the reliability index in First Order Reliability Method (FORM); (

**b**) The iterative procedure for reliability index calculation using FORM [32].

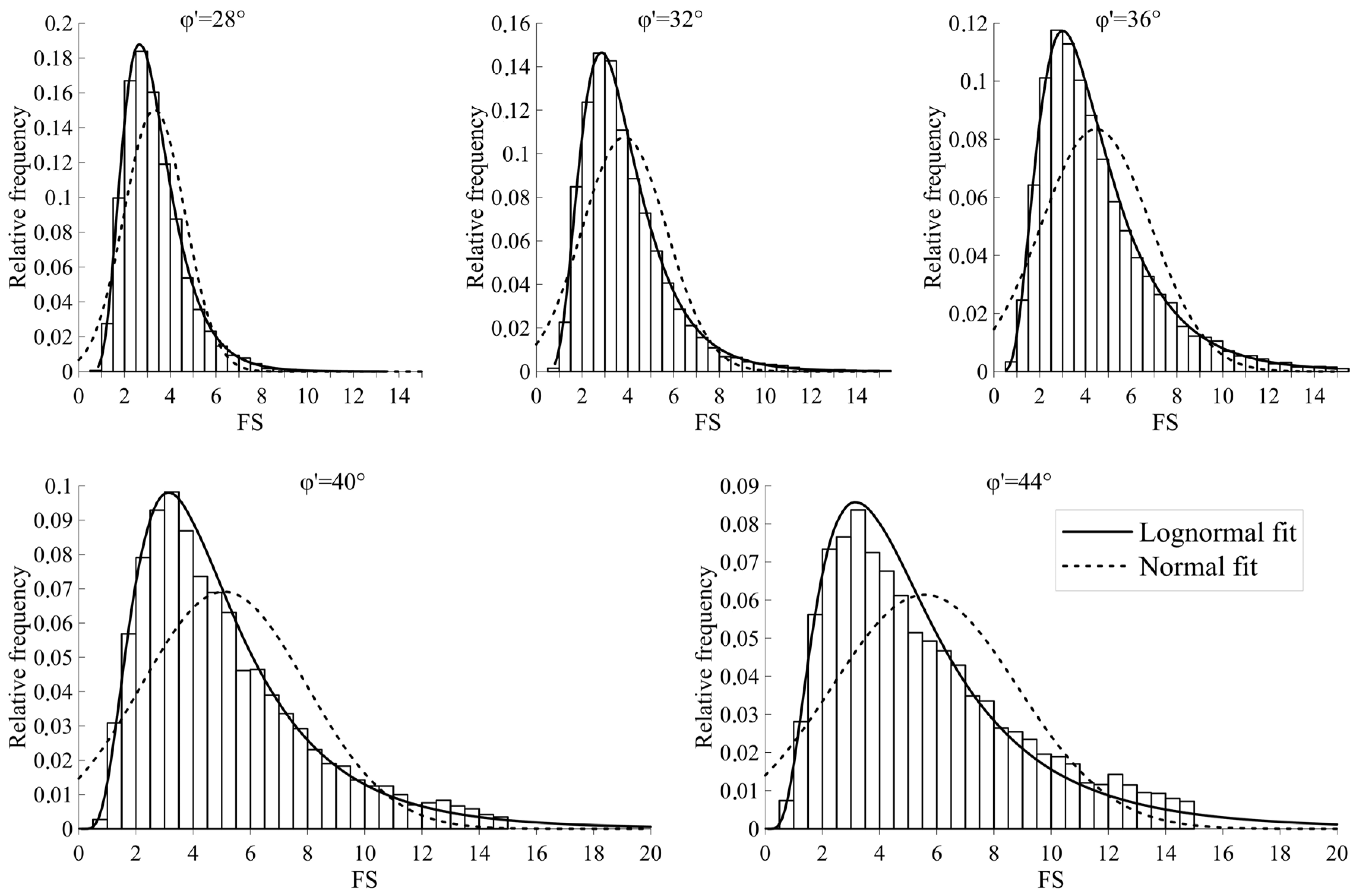

**Figure 5.**The factor of safety histograms for different ${\mathsf{\varphi}}^{\prime}$, along with theoretical best-fit curves of normal and lognormal distribution.

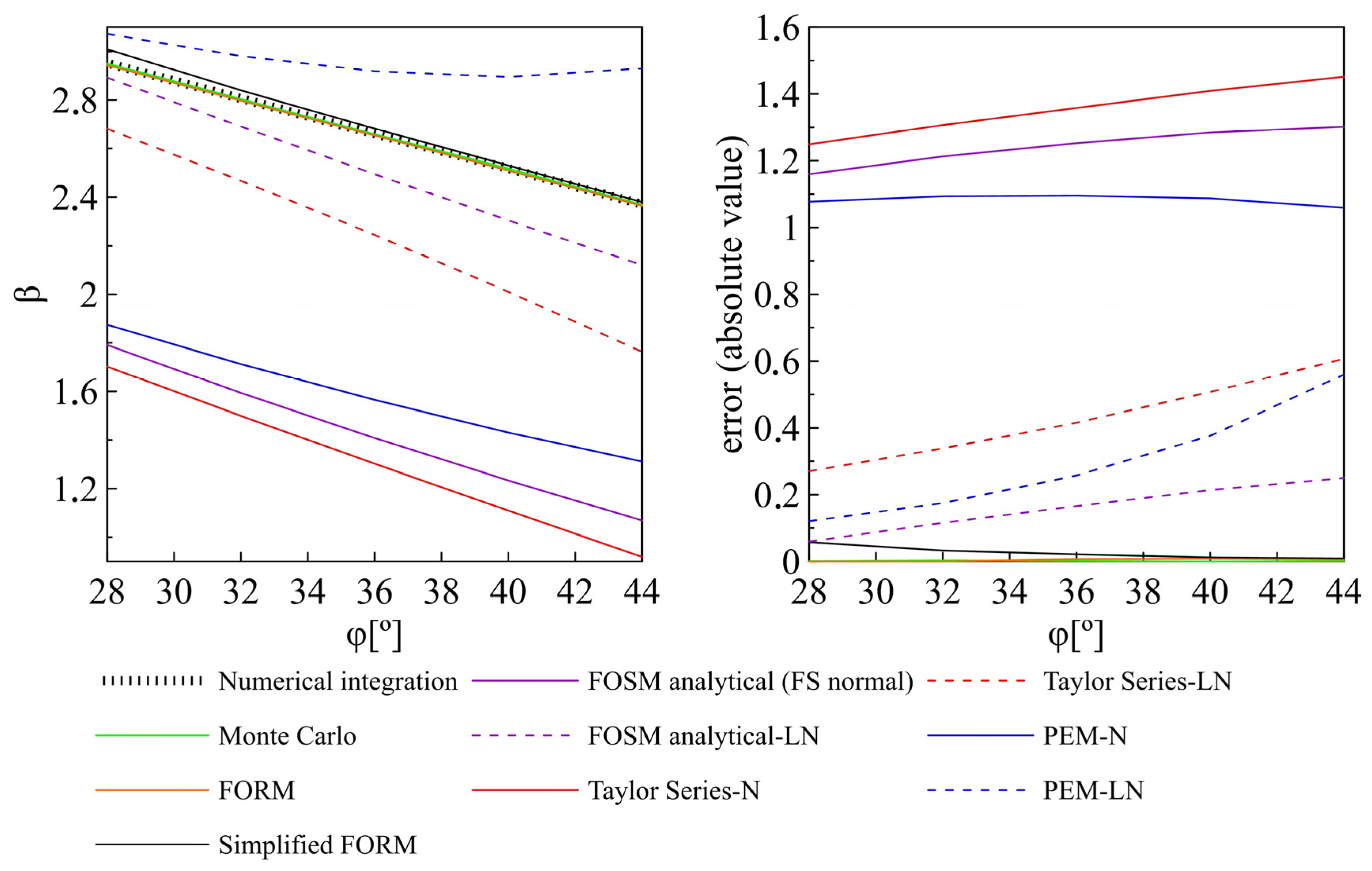

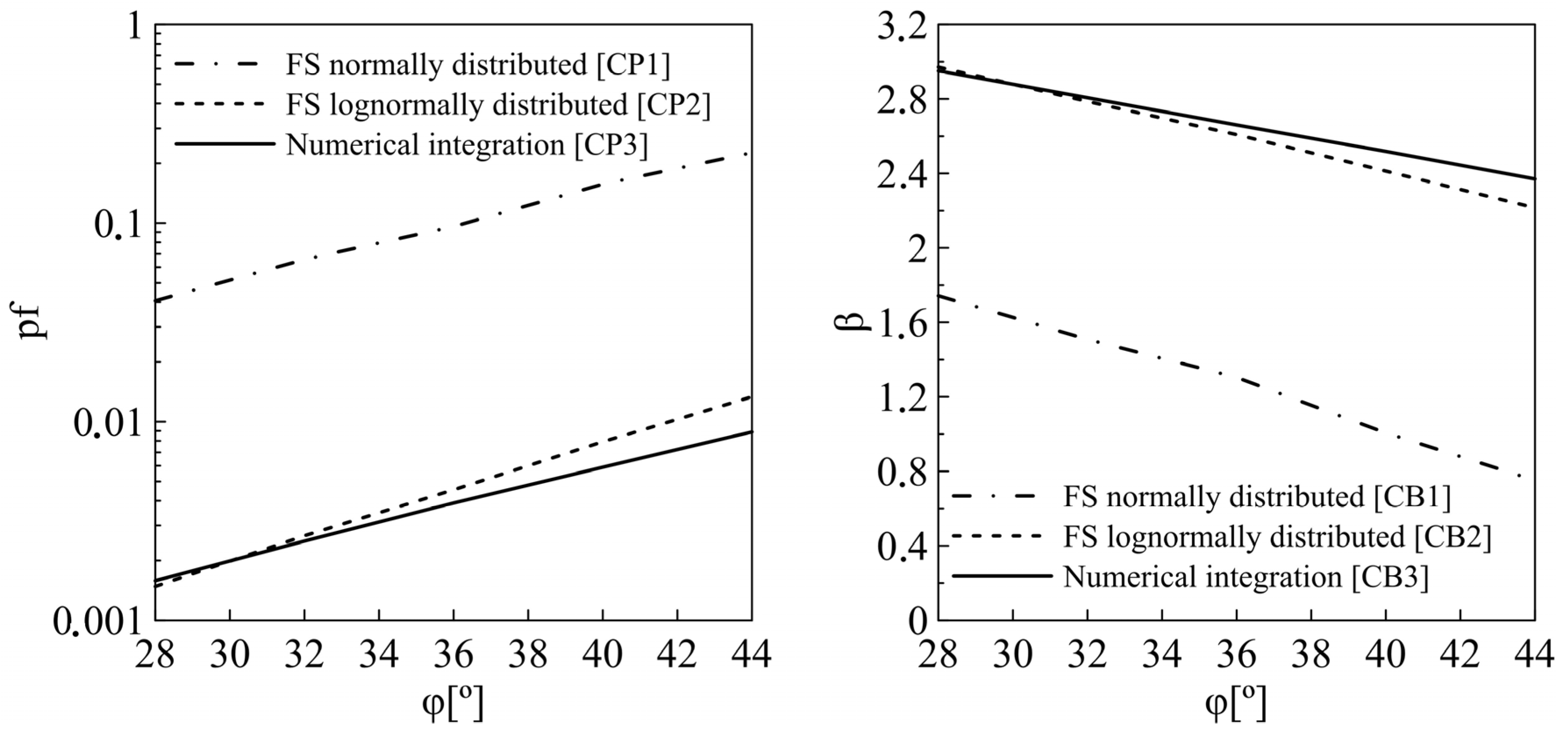

**Figure 8.**Comparison of pf and $\mathsf{\beta}$ calculated with the assumption that FS is normal and lognormal along with the results of Direct Integration of reliability integral.

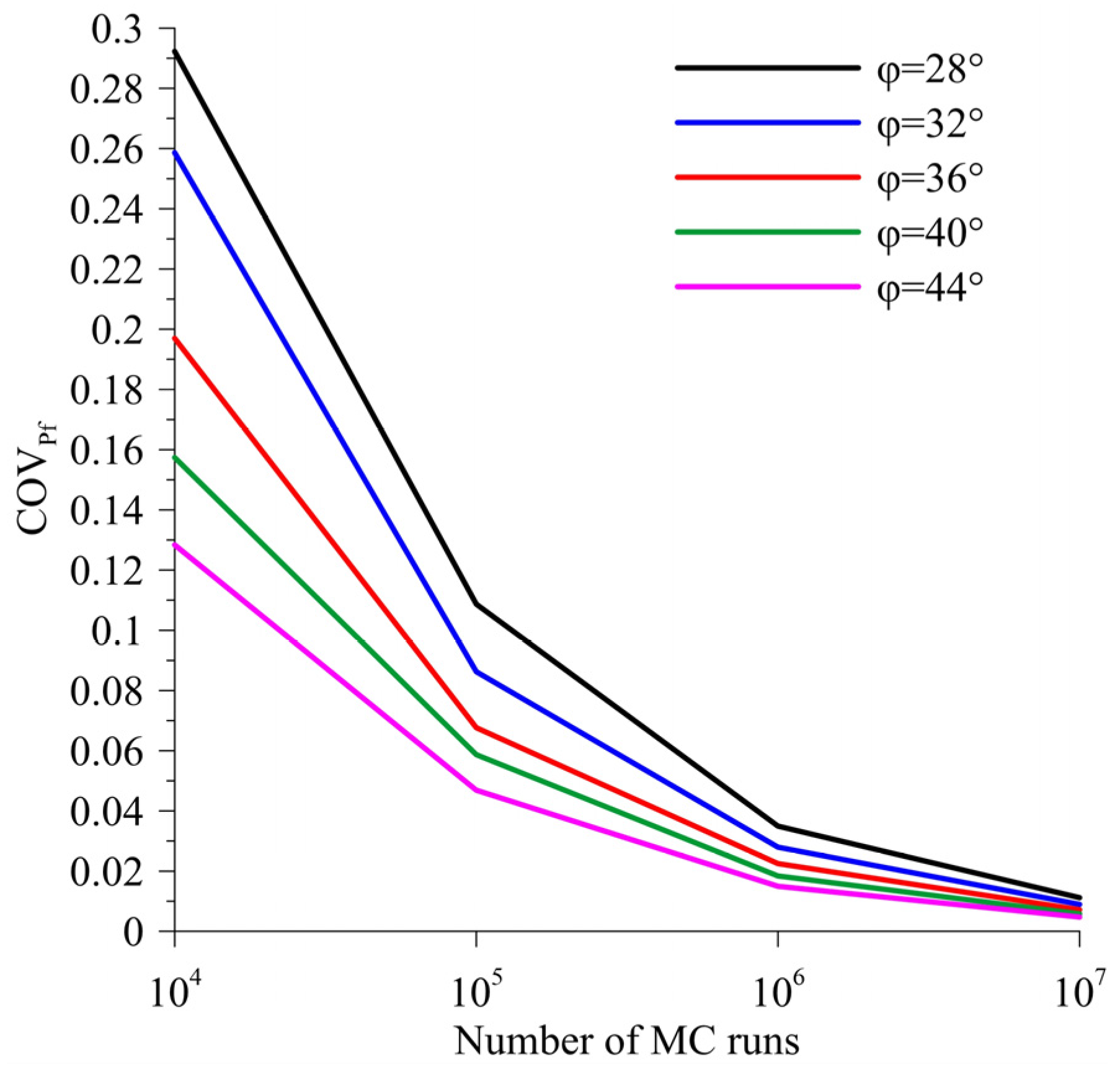

**Figure 10.**Relationship between the $\mathrm{C}\mathrm{O}{\mathrm{V}}_{{\mathrm{p}}_{\mathrm{f}}}$ and number of Monte Carlo (MC) runs.

**Table 1.**Results of the reliability analyses of embankments stability for Cases 1 and 2 [1].

Method | Case 1 | Case 2 | ||
---|---|---|---|---|

p_{f} [1] | $\mathsf{\beta}$ | p_{f} [1] | $\mathsf{\beta}$ | |

Direct Integration | 0.032 | 1.85 | $9\times {10}^{-5}$ | 3.75 |

Taylor Series, lognormal dist. of FS | 0.0036 | 2.69 | $3\times {10}^{-6}$ | 4.53 |

Taylor Series, normal dist. of FS | 0.01 | 2.33 | 0.003 | 2.75 |

PEM, normal dist. of FS | 0.017 | 2.12 | 0.0053 | 2.56 |

Simplified FORM | 0.024 | 1.98 | ${10}^{-4}$ | 3.72 |

**Table 2.**Results of reliability analyses of retaining wall [2].

Method | Sliding on Sand | Sliding in Clay | Bearing Capacity (Undrained) | |||
---|---|---|---|---|---|---|

p_{f} | $\mathsf{\beta}$ | p_{f} | $\mathsf{\beta}$ | p_{f} | $\mathsf{\beta}$ | |

Monte Carlo, 20,000 simulations | 0.024 | 1.98 | 0.022 | 2.01 | 0.018 | 2.10 |

Simplified FORM | 0.024 | 1.98 | 0.025 | 1.96 | 0.023 | 2.00 |

Taylor Series, normal dist. of FS | 0.055 | 1.60 | 0.028 | 1.91 | 0.015 | 2.17 |

PEM, normal dist. of FS | 0.045 | 1.70 | 0.05 | 1.64 | 0.043 | 1.72 |

PEM, lognormal dist. of FS | 0.026 | 1.94 | 0.016 | 2.14 | 0.011 | 2.29 |

Parameter | Designation | Distribution | Coefficient of Variation (COV) |
---|---|---|---|

${\mathsf{\varphi}}^{\prime}$ | ${\mathrm{X}}_{1}$ | Normal | 0.1 |

${\mathrm{V}}_{\mathrm{g}}$ | ${\mathrm{X}}_{2}$ | Normal | 0.1 |

${\mathsf{\gamma}}^{\prime}$ | ${\mathrm{X}}_{3}$ | Normal | 0.05 |

${\mathsf{\varphi}}_{\mathbf{m}}$${[}^{\xb0}]$ | ${\mathbf{V}}_{\mathbf{g},\mathbf{m}}$$\left[\mathbf{k}\mathbf{N}\right]$ | ${\mathsf{\gamma}}^{\prime}{}_{\mathbf{m}}$$[\mathbf{k}\mathbf{N}/{\mathbf{m}}^{3}]$ |
---|---|---|

28 | 184.1 | 17.8 |

32 | 276.3 | 18.5 |

36 | 424.1 | 19.3 |

40 | 669.6 | 20.1 |

44 | 1096.5 | 20.9 |

**Table 5.**Expected performance level according reliability indexes [16].

Expected Performance Level | β | Probability of Unsatisfactory Performance |
---|---|---|

High | 5.0 | 3 × 10^{−7} |

Good | 4.0 | 3 × 10^{−5} |

Above average | 3.0 | 0.01 |

Below average | 2.5 | 0.06 |

Poor | 2.0 | 0.023 |

Unsatisfactory | 1.5 | 0.07 |

Hazardous | 1.0 | 0.16 |

$\mathsf{\varphi}{[}^{\xb0}]$ | Quantiles to which the Lognormal Q-Q Plots are Linear (X) | Cumulative Density Function at X |
---|---|---|

28 | 7.0 | 0.98 |

32 | 7.3 | 0.95 |

36 | 9.2 | 0.94 |

40 | 11.9 | 0.93 |

44 | 17.1 | 0.93 |

Method | Mean Error [Absolute Value] | Mean Error [%] |
---|---|---|

FOSM analytical-LN | 0.16 | 6.1 |

PEM -LN | 0.30 | 11.3 |

Taylor Series-LN | 0.43 | 16.1 |

PEM-N | 1.57 | 59.2 |

FOSM analytical-N | 1.24 | 46.7 |

Taylor Series-N | 1.30 | 48.9 |

**Table 8.**Reliability methods suitability assessment for the case of ULS of shallow foundation according to the proposed criteria.

Method | Error (Absolute Value) | Acceptable Error | Meet the Criteria |
---|---|---|---|

Monte Carlo | $3\times {10}^{-3}$ | 0.25 | Yes |

FORM | $8\times {10}^{-3}$ | Yes | |

Simplified FORM | 0.05 | Yes | |

FOSM analytical-LN | 0.16 | Yes | |

PEM-N | 0.29 | No | |

Taylor Series-LN | 0.42 | No | |

PEM-N | 1.08 | No | |

FOSM analytical-N | 1.24 | No | |

Taylor Series-N | 1.35 | No |

**Table 9.**Reliability methods suitability assessment in the case of stability of embankments [1] according to the proposed criteria.

Method | CASE 1 ^{1} | CASE 2 ^{2} | ||||
---|---|---|---|---|---|---|

Error (Absolute Value) | Acceptable Error | Meet the Criteria | Error (Absolute Value) | Acceptable Error | Meet the Criteria | |

Taylor Series-LN | 0.84 | 0.25 | No | 0.78 | 0.5 | No |

Taylor Series-N | 0.48 | No | 1.00 | No | ||

PEM-N | 0.27 | No | 1.19 | No | ||

Simplified FORM | 0.13 | Yes | 0.03 | Yes |

**Table 10.**Reliability methods suitability assessment in the case of retaining wall [2] according to the proposed criteria.

Method | Sliding on Sand | Sliding in Clay | ||||
---|---|---|---|---|---|---|

Error (Absolute Value) | Acceptable Error | Meet the Criteria | Error (Absolute Value) | Acceptable Error | Meet the Criteria | |

Simplified FORM | 0.00 | 0.25 | Yes | 0.02 | 0.25 | Yes |

Taylor Series-N | 0.38 | No | 0.07 | Yes | ||

PEM-N | 0.28 | No | 0.34 | No | ||

PEM-LN | 0.04 | Yes | 0.16 | Yes |

**Table 11.**Reliability methods suitability assessment in the case of retaining wall [2] according to the proposed criteria.

Method | Bearing Capacity (Undrained) | ||
---|---|---|---|

Error (Absolute Value) | Acceptable Error | Meet the Criteria | |

Simplified FORM | 0.02 | 0.25 | Yes |

Taylor Series-N | 0.19 | Yes | |

PEM-N | 0.26 | No | |

PEM-LN | 0.31 | No |
