Dynamic Instability Analysis of a Double-Blade Centrifugal Pump
Abstract
:1. Introduction
2. Computational Modeling and Experimental Test

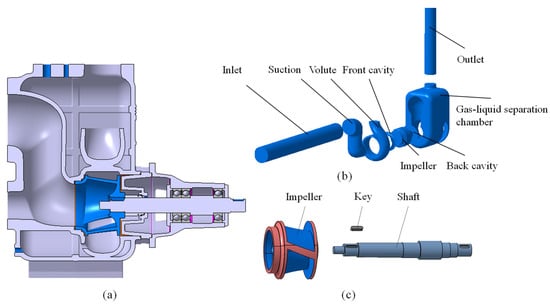

2.1. Pump Model

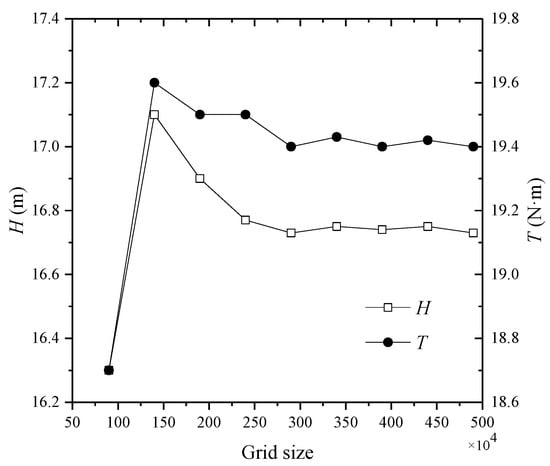

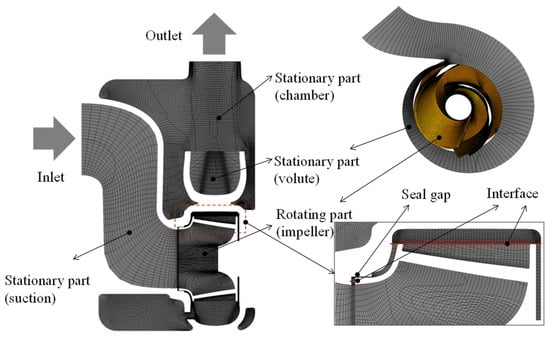

2.2. Simulation Setup

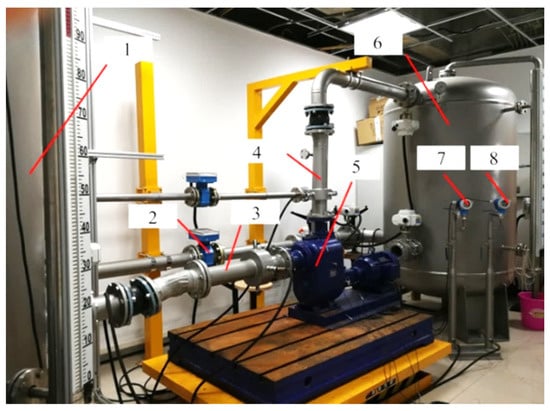

2.3. Experimental Setup

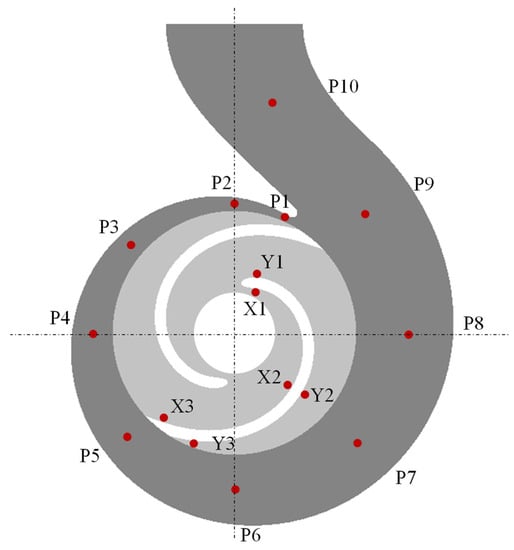

2.4. Layout of Monitoring Points

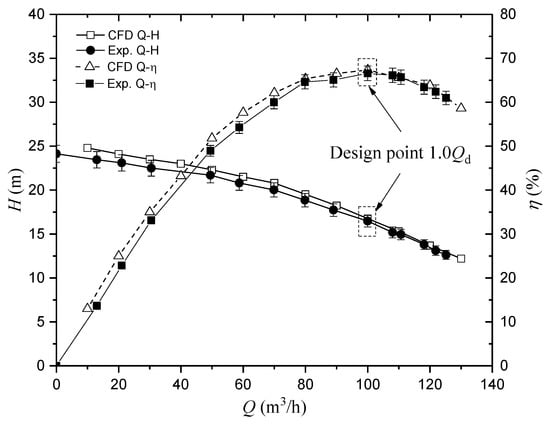

2.5. Simulation Validation
3. Results and Discussion

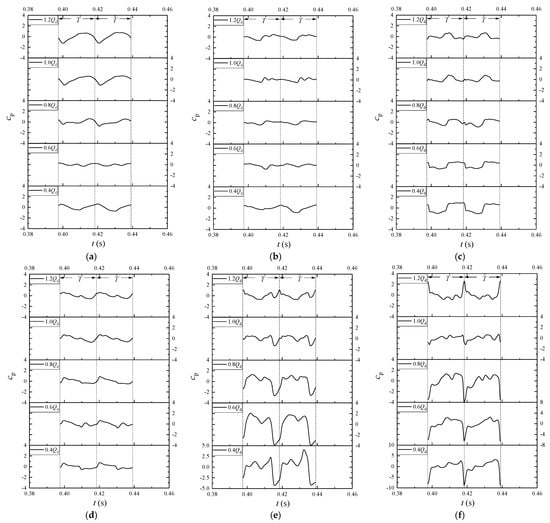

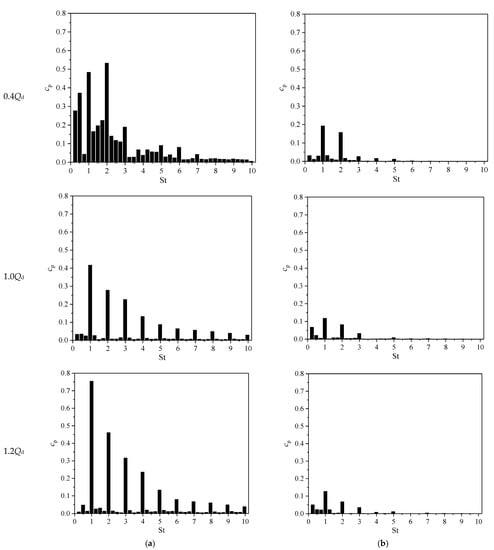

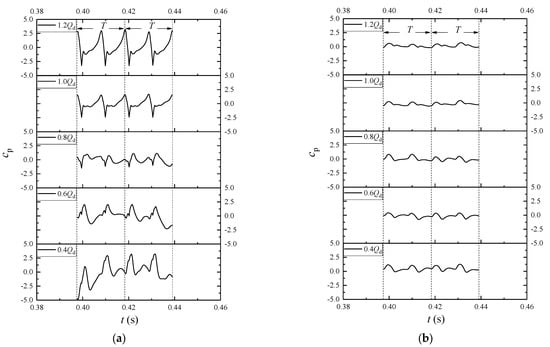

3.1. Pressure Pulsations of Volute at Different Flow Rates

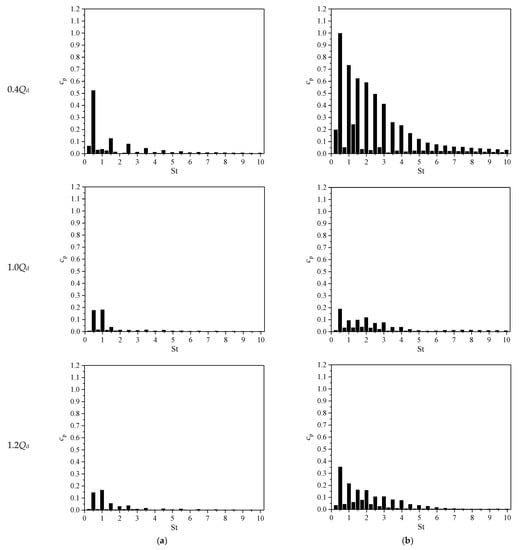

3.2. Pressure Pulsations of Impeller at Different Flow Rates
3.3. Loads of Blade under Different Flow Rates
3.4. Vibration Characteristics of Pump
3.5. Relationship between the Unsteady Flow and the Structural Vibration
4. Conclusions
- (1)

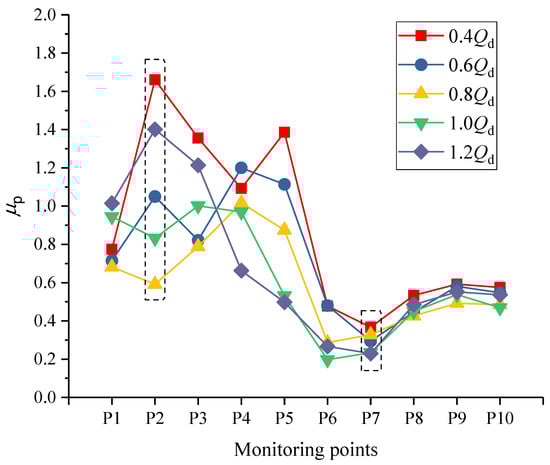

- The region in the pump experiencing the largest pressure pulsation is located at the vicinity of tongue of volute. The amplitude of pressure pulsation decreases as the relative gap between the impeller outlet and the volute wall surface increases. The rotor-stator interference between the impeller and volute is the main source of pressure pulsation. Highly intensive pressure pulsation is found at part-load conditions due to serious flow instability.
- (2)

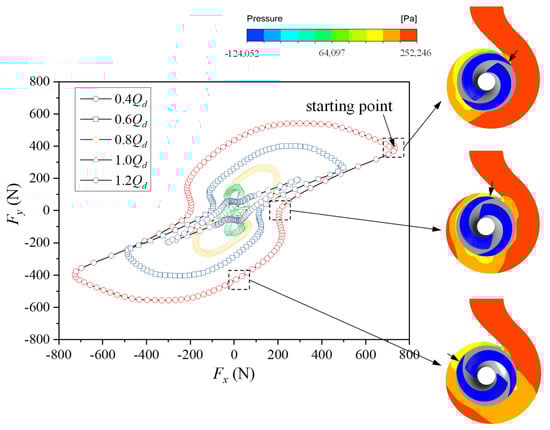

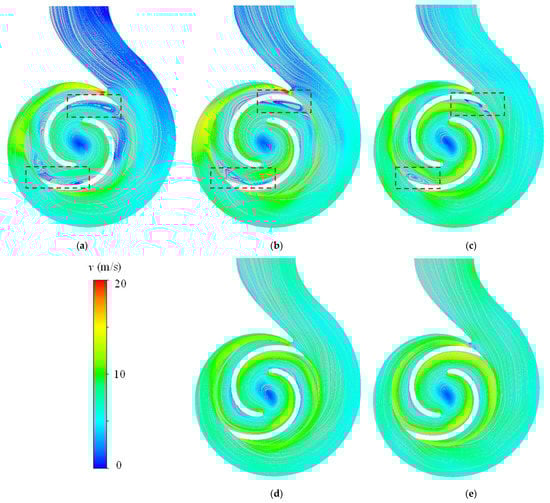

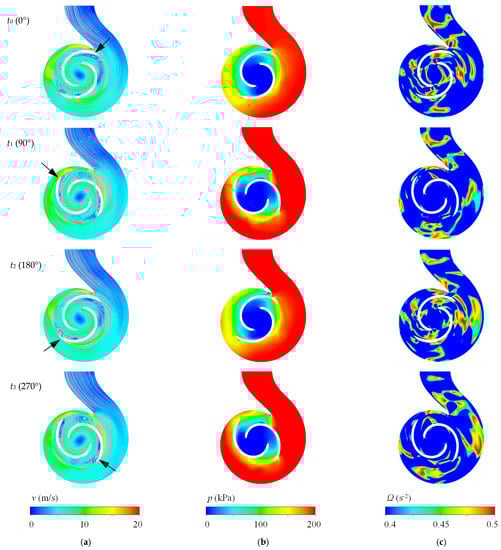

- A strong vorticity fields in the vicinities of volute tongue and suction side of impeller blade were observed. These vortices are unstable, and they influence the normal flow streamlines, and destabilize the radial forces on each blade. Additionally, the interaction between blade and tongue causes the dynamic fluctuation of blade loads.
- (3)

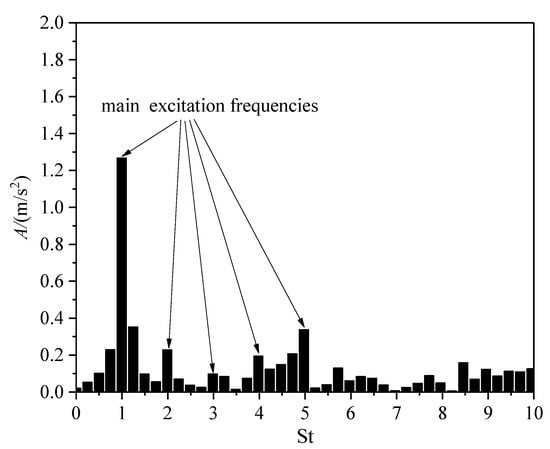

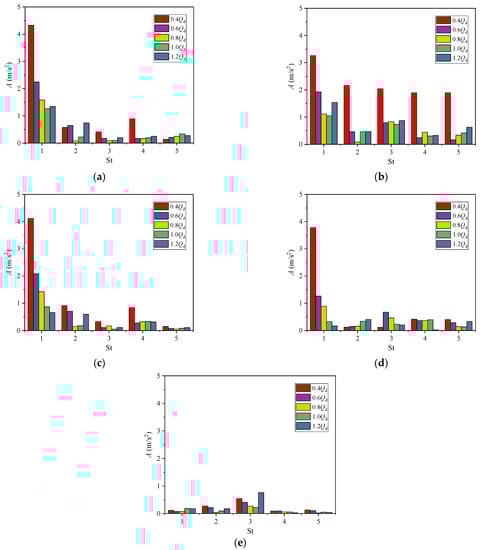

- The main excitation frequencies were identified by measuring the vibration data of the double-blade centrifugal pump. In general, vibration amplitude at blade passing frequency (St = 1) is higher than others. There is a direct link between pressure pulsation and pump vibration, and pressure pulsation is a major source of fluid-induced vibration.
- (4)
- Considering the difficulties in performing the dynamic pressure measurement on pump volute, due to the pump volute being located inside the chamber, CFD was used as a main tool to analyze the dynamic instability of pump model. In future, it will be more comprehensive to involve the measurement on rotor movement orbit to help observe the dynamic behaviors of double-blade centrifugal pump.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Qd | Flow rate at design point |
nq | Specific speed (3.65nQd0.5/Hd0.75) |
cp | Unsteady pressure pulsation coefficient |
μp | Intensity of pressure pulsation |
u2 | Circumferential velocity at impeller outlet |
pi | Transient pressure |
Averaged pressure | |
N | Sample number per revolution |
ρ | Density |
f | Frequency |
fn | Rotational frequency of impeller |
Fx | Radial force along x axe |
Fy | Radial force along y axe |
A | Vibration amplitude |
BPF | Blade passing frequency |
References
- Tan, M.G.; Lian, Y.C.; Liu, H.L.; Wu, X.F.; Ding, R. Visualizing test on the pass-through and collision characteristics of coarse particles in a double blade pump. Int. J. Nav. Archit. Ocean. Eng. 2018, 10, 1–8. [Google Scholar] [CrossRef]
- Wu, D.H.; Ren, Y.; Mou, J.G.; Gu, Y.Q. Investigation of the correlation between noise & vibration characteristics and unsteady flow in a circulator pump. J. Mech. Sci. Technol. 2017, 31, 2155–2166. [Google Scholar]
- Mele, J.; Guzzomi, A.; Pan, J. Correlation of centrifugal pump vibration to unsteady flow under variable motor speed. Mech. Ind. 2014, 15, 525–534. [Google Scholar] [CrossRef]
- Yuan, Y.; Yuan, S.Q.; Tang, L.D. Investigation on the effect of complex impeller on vibration characteristics for a high-speed centrifugal pump. Proc. Inst. Mech. Eng. Part A J. Power Energy 2020, 234, 611–624. [Google Scholar] [CrossRef]
- Lin, P.F.; Song, P.F.; Zhu, Z.C.; Li, X.J. Research on the rotor-stator interaction of centrifugal pump based on sinusoidal tubercle volute tongue. J. Appl. Fluid Mech. 2021, 14, 589–600. [Google Scholar]
- Cui, B.L.; Zhang, Y.B.; Huang, Y.K. Analysis of the pressure pulsation and vibration in a low-specific-speed centrifugal pump. J. Fluid Eng. 2021, 143, 021201. [Google Scholar] [CrossRef]
- Zhang, N.; Gao, B.; Ni, D.; Liu, X. Coherence analysis to detect unsteady rotating stall phenomenon based on pressure pulsation signals of a centrifugal pump. Mech. Syst. Signal Process. 2021, 148, 107161. [Google Scholar] [CrossRef]
- Choi, J.S.; Mclaughlin, D.K.; Thompson, D.E. Experiments on the unsteady flow field and noise generation in a centrifugal pump impeller. J. Sound Vib. 2003, 263, 493–514. [Google Scholar] [CrossRef]
- Gu, Y.Q.; Yu, L.Z.; Mou, J.G.; Wu, D.H.; Xu, M.S.; Zhou, P.J.; Ren, Y. Research strategies to develop environmentally friendly marine antifouling coatings. Mar. Drugs. 2020, 18, 371. [Google Scholar] [CrossRef]
- Guelich, J.F.; Bolleter, U. Pressure pulsations in centrifugal pumps. J. Vib. Acoust. 1992, 114, 272–279. [Google Scholar] [CrossRef]
- Spence, R.; Amaral-Teixeira, J. Investigation into pressure pulsations in a centrifugal pump using numerical methods supported by industrial tests. Comput. Fluids 2008, 37, 690–704. [Google Scholar] [CrossRef]
- Pavesi, G.; Cavazzini, G.; Ardizzon, G. Time–frequency characterization of the unsteady phenomena in a centrifugal pump. Int. J. Heat Fluid Flow 2008, 29, 1527–1540. [Google Scholar] [CrossRef]
- Shibata, A.; Hiramatsu, H.; Komaki, S.; Miyagawa, K.; Maeda, M.; Kamei, S.; Hazama, R.; Sano, T.; Iino, M. Study of flow instability in off design operation of a multistage centrifugal pump. J. Mech. Sci. Technol. 2016, 30, 493–498. [Google Scholar] [CrossRef]
- Ren, Y.; Zhu, Z.C.; Wu, D.H.; Li, X.J.; Jiang, L.F. Investigation of flow separation in a centrifugal pump impeller based on improved delayed detached eddy simulation method. Adv. Mech. Eng. 2019, 11, 1–13. [Google Scholar] [CrossRef]
- Zhao, X.R.; Luo, Y.Y.; Wang, Z.W.; Xiao, Y.X.; Avellan, F. Unsteady flow numerical simulations on internal energy dissipation for a low-head centrifugal pump at part-load operating condition. Energies 2019, 12, 2013. [Google Scholar] [CrossRef] [Green Version]
- Lin, T.; Li, X.J.; Zhu, Z.C.; Xie, R.H.; Lin, Y.P. Investigation of flow separation characteristics in a pump as turbines impeller under the best efficiency point condition. J. Fluid Eng.- T ASME 2021, 143, 061204. [Google Scholar] [CrossRef]
- Zhou, P.J.; Dai, J.C.; Yan, C.S.; Zheng, S.H.; Ye, C.L.; Zhang, X. Effect of stall cells on pressure fluctuations characteristics in a centrifugal pump. Symmetry 2019, 11, 1116. [Google Scholar] [CrossRef] [Green Version]
- Ye, W.X.; Huang, R.F.; Jiang, Z.W.; Li, X.J.; Zhu, Z.C.; Luo, X.W. Instability analysis under part-load conditions in centrifugal pump. J. Mech. Sci. Technol. 2019, 33, 269–278. [Google Scholar] [CrossRef] [Green Version]
- Feng, J.J.; Ge, Z.G.; Yang, H.H.; Zhu, G.J.; Li, C.H.; Luo, X.Q. Rotating stall characteristics in the vaned diffuser of a centrifugal pump. Ocean Eng. 2021, 229, 108955. [Google Scholar] [CrossRef]
- Jia, X.Q.; Zhu, Z.C.; Yu, X.L.; Zhang, Y.L. Internal unsteady flow characteristics of centrifugal pump based on entropy generation rate and vibration energy. Proc. Inst. Mech. Eng. Part E J. Process. Mech. Eng. 2019, 233, 456–473. [Google Scholar] [CrossRef]
- Zhang, N.; Zheng, F.K.; Liu, X.K.; Gao, B.; Li, G. Unsteady flow fluctuations in a centrifugal pump measured by laser doppler anemometry and pressure pulsation. Phys. Fluids 2020, 32, 125108. [Google Scholar] [CrossRef]
- Shim, H.S.; Kim, K.Y. Relationship between flow instability and performance of a centrifugal pump with a volute. J. Fluid Eng. 2020, 142, 111208. [Google Scholar] [CrossRef]
- Zhang, Y.; Gao, B.; Alubokin, A.A.; Li, G.P. Effects of the hydrofoil blade on the pressure pulsation and jet-wake flow in a centrifugal pump. Energy Sci. Eng. 2021, 9, 588–601. [Google Scholar] [CrossRef]
- Wu, D.H.; Zhu, Z.B.; Ren, Y.; Gu, Y.Q.; Zhou, P.J. Influence of blade profile on energy loss of sewage self-priming pump. J. Braz. Soc. Mech. Sci. 2019, 41, 470. [Google Scholar] [CrossRef]
- Technical Committee ISO/TC 108. ISO 10816-1: Mechanical Vibration: Evaluation of Machine Vibration by Measurements on Non-Rotating Parts: General Guidelines; International Organization for Standardization: Geneva, Switzerland, 1995. [Google Scholar]
- Guelich, J.F. Centrifugal Pumps; Springer: New York, NY, USA, 2007. [Google Scholar]
- Liu, C.; Wang, Y.; Yang, Y.; Duan, Z.W. New omega vortex identification method. Sci. China Phys. Mech. 2016, 59, 684711. [Google Scholar] [CrossRef]
Parameter | Value |
---|---|
Design operation condition | |
Flow rate Qd/(m3·h−1) | 100 |
Total head Hd/(m) | 15 |
Rotation speed n/(r·min−1) | 2900 |
Rotation frequency fn/(Hz) | 48.33 |
Specific speed nq | 231.5 |
Reynolds number Re (u22D22/υ) | 3.06 × 106 |
Pump geometrical parameters | |
Impeller inlet diameter D1/(mm) | 100 |
Impeller outlet diameter D2/(mm) | 142 |
Blade outlet width b2/(mm) | 68 |
Blade outlet angle β2/(°) | 21 |
Number of blades z | 2 |
Basic circle diameter D3/(mm) | 150 |
Volute inlet width b3/(mm) | 80 |
Tongue placement angle φ0/(°) | 25 |
Tongue flow angle α0/(°) | 20 |
Throat area A8/(mm2) | 5000 |
Tongue radius Rt/(mm) | 6 |
Pump discharge diameter Do/(mm) | 80 |
Pump suction diameter Di/(mm) | 100 |
Turbulence Model | H (m) | ΔH = |HCFD−HEXP.|/HEXP. (%) |
---|---|---|
Standard k-ε | 16.21 | 1.64 |
RNG k-ε | 16.14 | 2.06 |
EARSM k-ε | 16.30 | 1.09 |
Standard k-ω | 16.95 | 2.85 |
BSL k-ω | 16.76 | 1.69 |
SST k-ω | 16.74 | 1.57 |
Exp. | 16.48 | - |

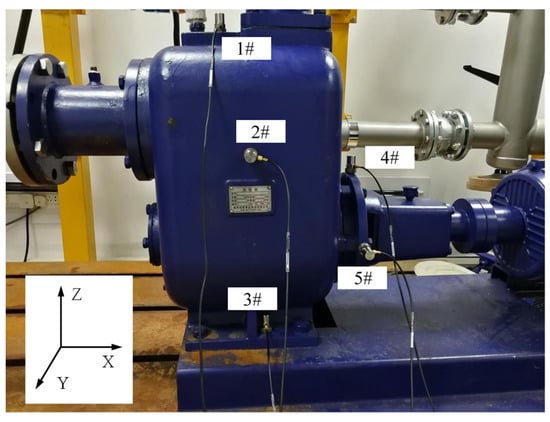

Sensor | Model | Sensitivity | Calibration Temperature | Position |
---|---|---|---|---|
Acceleration sensor 1# | 1A111E | 10.44 mV (m·s−2) | 25 °C | Top of pump housing (Z direction) |
Acceleration sensor 2# | 1A111E | 10.03 mV (m·s−2) | 25 °C | Side wall of pump housing (Y direction) |
Acceleration sensor 3# | 1A111E | 10.23 mV (m·s−2) | 25 °C | Foot of pump housing (Z direction) |
Acceleration sensor 4# | 1A111E | 10.01 mV (m·s−2) | 25 °C | Bearing housing (Z direction) |
Acceleration sensor 5# | 1A111E | 10.05 mV (m·s−2) | 25 °C | Bearing housing (Y direction) |
