Article

Anomalous Beam Transport through Gabor (Plasma) Lens Prototype

1
Department of Physics, Imperial College London, Exhibition Road, London SW7 2AZ, UK
2
Department of Physics, SUPA, University of Strathclyde, 16 Richmond Street, Glasgow G4 0NG, UK
3
STFC Rutherford Appleton Laboratory, Harwell Oxford, Didcot OX11 0QX, UK
4
John Adams Institute for Accelerator Science, Imperial College London, London SW7 2AZ, UK
*
Authors to whom correspondence should be addressed.
Academic Editor: Paolo Branchini
Appl. Sci. 2021, 11(10), 4357; https://doi.org/10.3390/app11104357
Received: 13 April 2021 / Revised: 3 May 2021 / Accepted: 4 May 2021 / Published: 11 May 2021
(This article belongs to the Section Applied Physics)

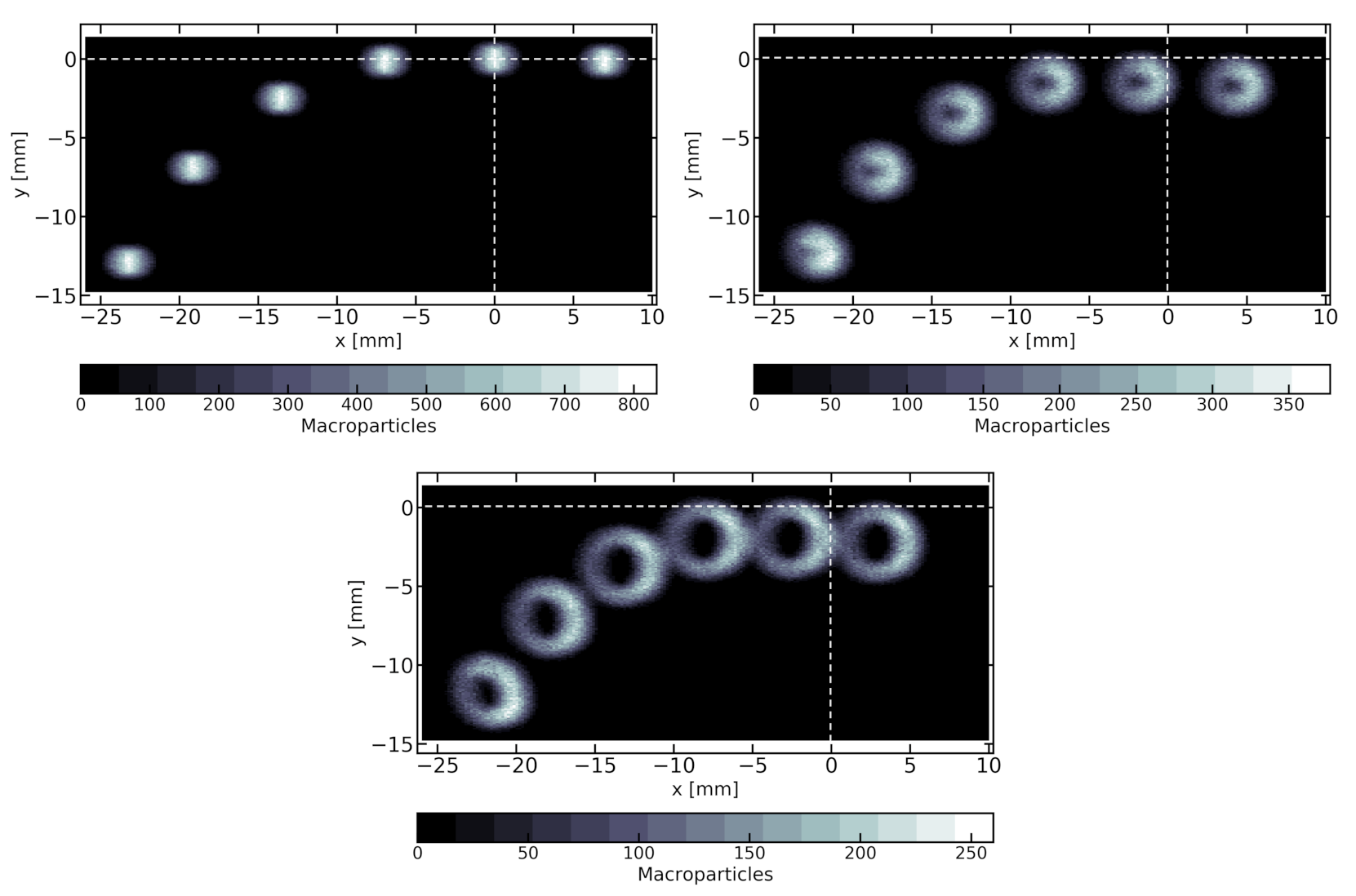

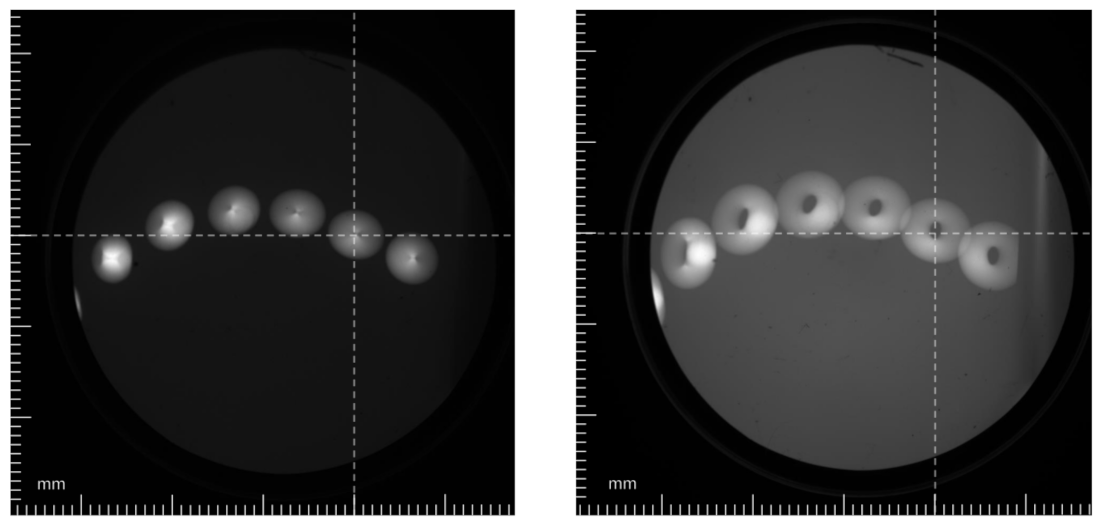

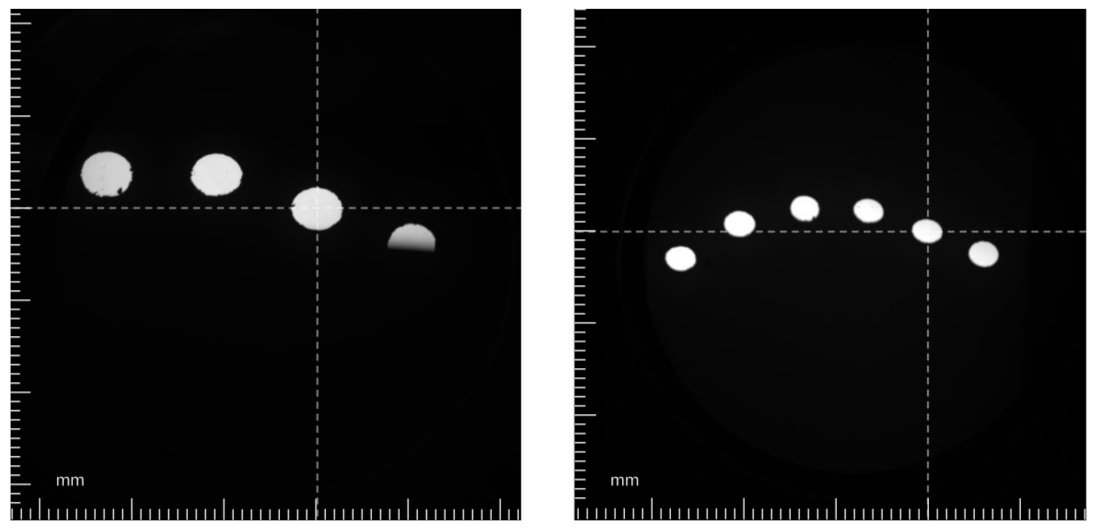

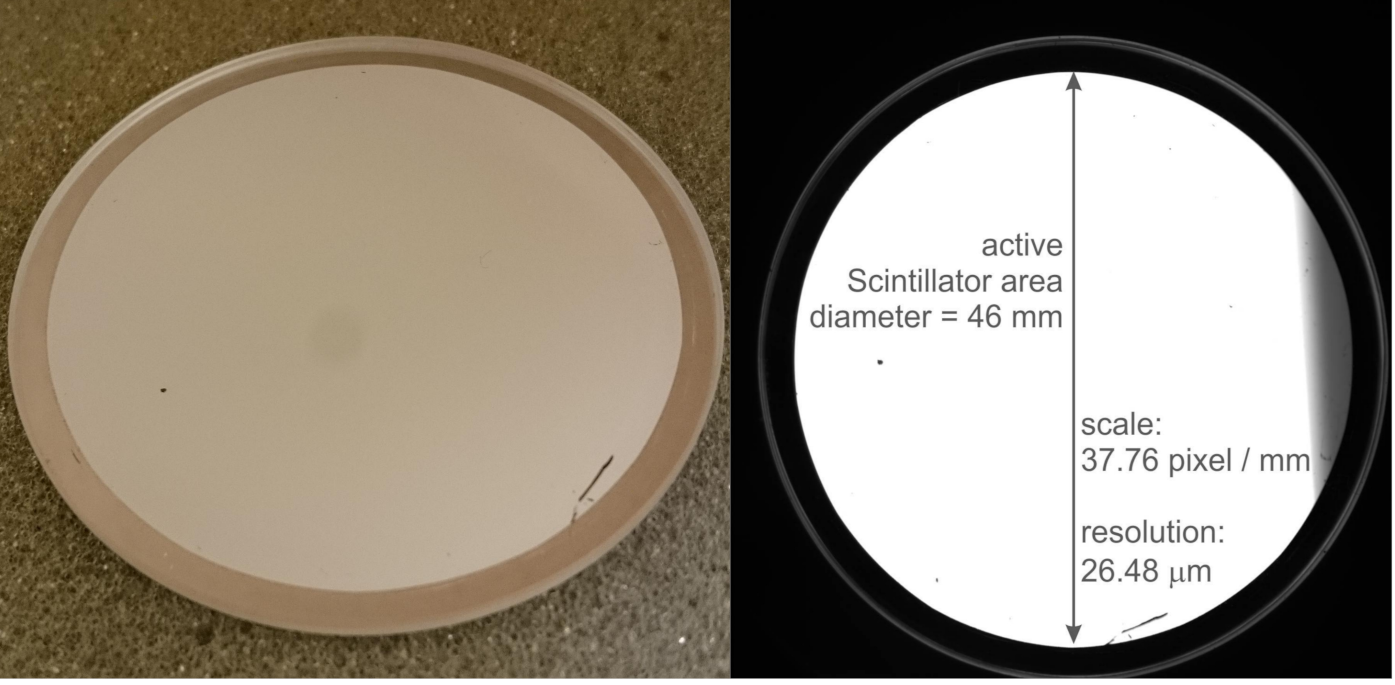

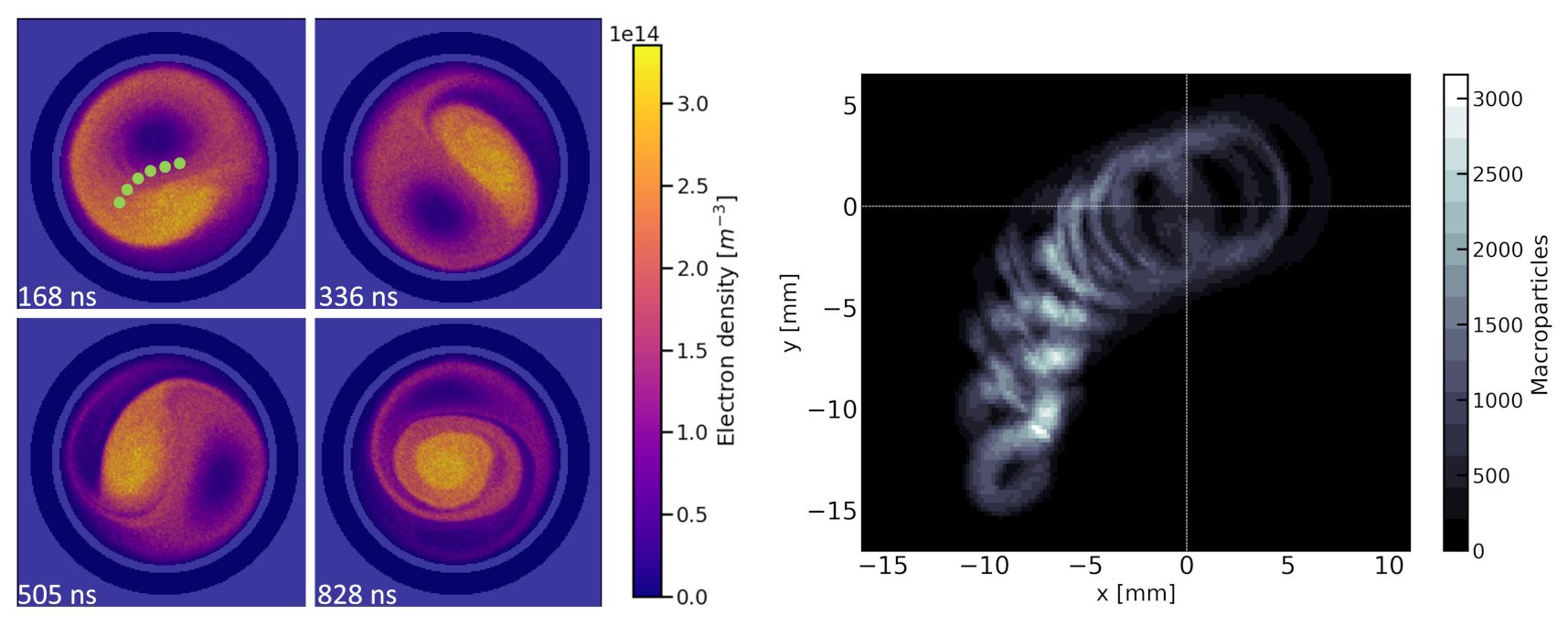

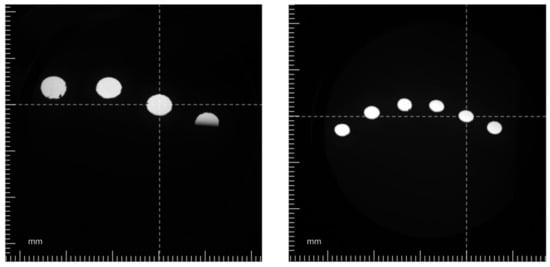

An electron plasma lens is a cost-effective, compact, strong-focusing element that can ensure efficient capture of low-energy proton and ion beams from laser-driven sources. A Gabor lens prototype was built for high electron density operation at Imperial College London. The parameters of the stable operation regime of the lens and its performance during a beam test with 1.4 MeV protons are reported here. Narrow pencil beams were imaged on a scintillator screen 67 cm downstream of the lens. The lens converted the pencil beams into rings that show position-dependent shape and intensity modulation that are dependent on the settings of the lens. Characterisation of the focusing effect suggests that the plasma column exhibited an off-axis rotation similar to the m=1 diocotron instability. The association of the instability with the cause of the rings was investigated using particle tracking simulations. View Full-Text
Keywords: plasma trap; space-charge lens; beam transport; instability; proton therapy plasma trap; space-charge lens; beam transport; instability; proton therapy
