A Review of In-Vivo and In-Vitro Real-Time Corrosion Monitoring Systems of Biodegradable Metal Implants

Faculty of Integrated Technologies, University of Brunei Darussalam, Gadong BE1410, Brunei
Department of Automatic Control and Robotics, AGH University of Science and Technology, Al. A. Mickiewicza 30, 30-059 Cracow, Poland
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(9), 3141;
Received: 29 March 2020 / Revised: 27 April 2020 / Accepted: 27 April 2020 / Published: 30 April 2020


In current modern medicine, biodegradable metal implants are still considered a work-in-progress between the collaborations of both scientists and engineers. As of now, one of the obstacles to this development is monitoring the corrosion rate of the implant. When a biodegradable metal implant (made of Mg, Zn, etc.) is introduced into the harsh environment of the human body, corrosion naturally occurs, causing metal ions to be released which may result in undesired health effects. The released products of the corroding implant can be used to monitor the implant condition. This paper discusses the current real-time corrosion monitoring systems (i.e., electrochemical-, microsensor-, and microdialysis-based) in-vivo and in-vitro. It is acknowledged that the progress in this sector still requires extensive research in order to obtain a desirable monitoring system and it is hoped that this review paper contributes to the research.

1. Introduction

In recent decades, materials engineers and scientists have spent considerable effort and time in conducting research in biodegradable materials. Some may argue that the field of biomaterials possibly began 4 millennia ago when the Egyptians and Romans utilized gold and iron for applications in dental issues and performed toe replacement surgeries with wood without considering the problem of corrosion. The significance of this field has gained prominence after the world wars as the demand for biomaterials was rising [1]. An estimated 8 million fracture-related injuries are reported in the United States annually and a rising cost of US$116 billion has been forecast for the bio-implants market by 2020 [2]. There is no doubt that the field of biomaterials plays a significant role in increasing the mobility and lifestyle of a significant portion of the world’s population.
Study on biodegradable materials can generally be divided into two main categories i.e., (1) biodegradable metal implants and (2) biodegradable non-metal implants. The example of the biodegradable metal implant is discussed in this paper whereas an example of biodegradable non-metal implants (e.g., bioceramic and polymers) has been discussed elsewhere [3]. The concept of a biodegradable metal implant is that it should be able to degrade in an in-vivo (human/animal body fluid) setting at an appropriate rate without any toxic effects to the host body. In addition, the metal implant must be able to uphold its durability while aiding the patient’s recovery. Once the healing process is completed, the implant should then ideally dissolve as soon as new tissues are developed [4]. There are currently three well-studied materials utilized in biodegradable implants: magnesium, iron, and zinc. These biodegradable implants have been utilized in useful medical applications such as coronary stents, bone screws, pins, plates, and such (Figure 1) due to their ability to integrate with human cells and tissues [5].
Although the biodegradable non-metal implant has shown to be more appropriate in practice however, clinical trials are needed before this material can be applied for human use. In contrast with the non-metal option, the biodegradable metal implant is more applicable in a shorter period of time for human applications. Meanwhile, the real-time or rapid corrosion monitoring has remained unsolved. The current method of corrosion monitoring involves performing a subsequent surgical procedure to observe whether there are any chemical reactions between human tissue and the biodegradable metal implant. This risky and potentially fatal issue has motivated the authors to write a review paper regarding existing real-time corrosion monitoring methods. In addition, this is a preliminary study of the development of real-time corrosion monitoring for biodegradable metal implants.

2. Biodegradable Metals and Their Alloys

The most basic criteria for choosing a biomedical device is from observing the compatibility response of the body tissues towards the device [1]. Hence, the most commonly-used biodegradable metals are iron, magnesium, zinc, and their alloys. Not only are these metals compatible with the human body, but are also considered essential elements for the body to function properly. The corrosion rate of iron is usually lower than that of magnesium while zinc corrodes at a rate between iron and magnesium and lastly, magnesium being the quickest to corrode as evident by Vojtech et al. [5] where a comparison of their corrosion rates can be arranged in an ascending order with pure iron, pure zinc, and pure magnesium corroding at rates of 0.2, 0.6, and 4mm/year respectively after immersion in a 37 °C saline solution for 168 h.
Iron is considered as one of the essential elements to allow for normal function inside the human body as it plays an important role of in the transport of oxygen [6]. Its daily intake allowance is set at 20 mg [2]. Exceeding this amount would generate lesions in the digestive tract, induce pain in the abdominal area, cause fatigue, as well as harm the liver [7]. One of the benefits of utilizing iron as a biodegradable metal implant is its mechanical property which is similar to that of 316L stainless steel, which is the actual base standard for biomaterials involving metals. The superior mechanical properties of pure iron compared to pure zinc and pure magnesium makes it an appropriate candidate for constructing implants that require significant structural strength such as coronary stents [5]. In addition, when a complex iron phosphate layer is formed, it causes iron to very slowly degrade in-vivo. Several attempts have however been made to increase its corrosion rate by alloying it with manganese and palladium or adopting a vapor vacuum arc technique to implant silver. Additional efforts such as making it composites with its oxides or bioceramics have shown minor improvement towards iron’s bioactivity [2].
Zinc is considered the latest addition proposed as a biodegradable metal [5] based on its vital function in numerous enzymes and cell metabolic activities, cell reproduction, and cellular differentiation. Its daily allowance is the lowest compared to iron and magnesium which is at 15 mg. In excessive amounts, it poses a threat of neurotoxicity, muscle cramps, diarrhea [8], anemia, and reduced bone formation [6]. The compatibility of zinc-based metals amongst cells has been studied to evaluate its application for bone and vascular implants. The physical properties (i.e., toughness and flexibility) of zinc can be improved by alloying it with a small amount of magnesium (up to 3 wt. %) and further enhanced by adopting severe plastic deformation processing techniques [2] or through thermomechanical treatment (e.g., extrusion) [5]. Since it is relatively new, further research is required to upgrade its ultimate tensile, compressive and yield strengths in order to improve their function in surrounding tissues [9].
Magnesium is the lightest engineering metal possessing a mass to volume ratio of 1.74g/cm3 [10] and has a low ratio of force, about 40 to 45 GPa exerted on the body which is similar to that of human bone [5] making it compatible with bone tissues [11]. Similarly to the aforementioned two metals, it is also an essential element but with a higher intake tolerance level of up to 700 mg and the ability to mimic a protein coagulator, magnesium has influence in numerous bodily reactions involving enzymes [2]. However, exceeding the daily intake causes hypermagnesemia which is linked with diseases such as arrhythmia and asystole. In addition, corroding magnesium creates hydrogen bubbles which have the potential to clog blood vessels, resulting in death [9]. Other side effects include nausea, kidney failure, and ineffective breathing [8]. When utilizing a biodegradable metal implant that is constituted of the alloys of magnesium, an advantage is that there is no presence of unwanted side effects from stress shielding which would otherwise occur in common implants made of metals [12]. It is these factors that permits magnesium to be a material that is osteoconductive [13]. However, there are challenges when adopting a magnesium-based implant due to its relatively low strength and ductility along with the production of hydrogen gas during its degradation. Further improvement on the properties of magnesium-based metals can be accomplished by advanced alloying (e.g., with calcium, zinc, zirconium, and rare earth metals), purifying the metal from impurities such as copper and nickel, switching its microstructure to nanocrystalline and amorphous state [2] and utilizing treatments such as thermomechanical treatment and severely deforming the material [5]. As opposed to iron, applying a coating on the surface of magnesium with bioceramics or biopolymers can delay its corrosion rate [2]. Being the eighth most plentiful element present in the earth’s crust [10] has earned its place in being the most researched amongst all the three biodegradable metal materials [5]. This is mainly due to the fact that the requirement for a secondary removal surgery is not compulsory with the assistance of such material [14]. Comparisons between all three biodegradable metals are summarized in the table below (Table 1).

3. Correlation of In-Vitro and In-Vivo Corrosion

Prior to the analysis of the corrosion behavior of a specimen in its test environment, there are difficulties faced when it comes to mimicking in-vivo conditions in the in-vitro tests. This is because corrosion behavior such as local inflammation and tissue-implant interactions are influenced by a significant amount of factors inside the human body. Such factors are challenging to implement through in-vitro corrosion tests [18]. As performed by Witte et al. [19] when analyzing the corrosion rate of magnesium alloys, the rate of corrosion obtained from in-vivo tests were only smaller in magnitude by four orders compared to those obtained from in-vitro tests. One of the most problematic issues associated with magnesium and its alloys is their unpredictable corrosion behavior in-vivo mainly due to the fact that there are numerous other ions present within the body fluids (e.g., Na+, K+, Ca2+, etc.) which makes metallic corrosion prediction a complicated task [20].
Meanwhile, there are cases where the corrosion rate of a magnesium alloy (XHP Mg) performed in-vitro (immersion tests) compared well with in-vivo studies (implantation into the femurs of rats) as their degradation rate were almost similar. However, the consistency of results of these reported experiments, performed either in-vivo or in-vitro may not be comparable for all alloyed materials because corrosion behavior is influenced not solely on the composition of the electrolyte but also significantly affected by the interactions between the material and the type of electrolyte used [21]. Furthermore, due to the complexity and diversity of the human body internal environment, different evaluation procedures should be carried out for implants located in different areas of the body. To elucidate an example, one study attempted to examine the corrosion behavior and biocompatibility of hydroxyapatite (HAp) and octacalcium phosphate (OCP) coatings on AZ31 alloy by performing an immersion test for a long period of time in a medium (in-vitro) and by implantation test in transgenic mice (in-vivo) [22]. The surfaces of both alloy samples were examined and characterized with the assistance of an optical microscope (OM), backscattered scanning electron microscopy (BSEM), energy dispersive spectroscopy (EDS), X-ray power diffraction (XRD), and grazing incidence X-ray diffraction (GIXD). It was observed that the corrosion in-vitro was macroscopically-localized while microscopically-localized in-vivo. Whereas for the coating composition, in-vitro, the OCP and HAp coatings showed more precipitation of HAp while in-vivo, the HAp crystals dissolved locally. This shows that the test environment either in-vivo or in-vitro should be carefully designed to determine the corrosion behavior of OCP and HAp coatings [22]. At this present stage, it is even acknowledged that completely mimicking the corrosion behavior of an implant in the human body through in-vitro corrosion test is still a challenging task [18].
In Wen et al.’s study [23], they developed a type of relationship between in-vivo and in-vitro called IVIVC (in vitro and in vivo correlation) to assist in screening new materials and monitor the quality of the devices in-vitro for ethical reasons involving protection of animals and reducing the time-consuming process of in-vivo experiments, which has a duration of months or years. While the experiment outcome proved promising, additional improvements are still required to be carried out. Lastly, the established IVIVC still needs to be corroborated by other researchers. To further emphasize the importance of correlating the two test conditions, Ulum et al. [4] has stated that in order for researchers to compare their results easily, a standard method is needed to evaluate how certain parameters exactly influence the in-vitro corrosion of a metal.

4. Compromise between Mechanical Integrity and Degradation Rate

As mentioned previously, the purpose of a biodegradable metal implant is to assist in the patient’s healing process by providing mechanical support to the injured area and then biodegrading away thereafter. As certain medical issues only require a temporary aid for eventual healing (e.g., cardiovascular, orthopedic, and pediatric care), the requirement for a metal implant is to have a non-permanent presence. In ideal cases, a biodegradable metal implant would have an optimal middle ground between keeping its mechanical integrity for a certain duration and thereafter, progression of its deterioration after a period of time, as represented in Figure 2.
After implantation, the inflammatory process (i.e., swelling of the bone’s fractured vessels) begins within a day to a week after fracture. Then, new connective tissues, blood vessels, cartilage and soft spongy bone begin to develop a soft callus within 2 to 6 weeks. By the 12th week, osteoblasts would have already caused the soft callus to harden [24]. The hard callus stage ends when the fragments are firmly healed by a new woven bone, typically within 3 to 4 months. The time taken for the fracture healing period is dependent on the fracture site (i.e., bones located in the lower limbs would take a longer time to heal as their sizes are larger). The recovered bone will continue to remodel itself over the next period of months or years as a result of the stresses derived from physical activity. It is expected that the biodegradable metal implant should retain its mechanical integrity until this stage. The woven bone, via the osteonal remodeling process, will be gradually substituted by the lamellar bone, returning the bone to its original morphology. For different applications (e.g., stents), they should have different mechanical integrity and predicted corrosion rate to accommodate the healing process [2,24]. For example, a coronary stent made from a magnesium alloy is expected to last for a period of 6–12 months during the process of remodeling the blood vessel, and then completely degrade in the next 12–24 months. Meanwhile for orthopedic biomaterials, 3–4 months is needed from the formation of fracture callus to the formation of new bone, which leads to the eventual solidification of the bone thus, restoring a majority of the bone’s intrinsic strength [14].

5. Implant–Tissue Interaction during In Vivo Corrosion

After implantation has been performed, there is continuous interaction between the biodegradable metal implant and the extracellular tissue fluid. For this reason, an electrochemical dissolution of the biodegradable metal implant occurs. This causes a continual process of protein absorption, coagulation, acute, and chronic as a result of the body response to a foreign entity. All these biological processes occur right after implantation thus, inducing space between the implant and tissues to be filled with body fluid. After the first week of post-implantation, cellular inflammation follows which decreases after a period of time, followed by surrounding tissue proliferation to fill the interspace [2].
An illustration of a biodegradable metal interacting with the local tissue followed by the response of the body is presented in Figure 3. Corrosion begins after implantation, and then, the tissue responds to the foreign object. Corrosion products are formed and discharged into the tissue at various sizes; the blood cells transport these products into several other tissue areas depending on location of implant (e.g., muscle skin, bone, etc.) [3].
Corrosion occurs when a material gradually deteriorates after undergoing electrochemical reactions as a result of being placed in the body’s harsh electrolytic environment. The fluid medium in the body is made up of various anions, cations, and other components. Biological molecules, such as proteins, interfere with the equilibrium of corrosion reactions by binding themselves to the ions discharged from the metal whereas those absorbed on the surface reduce the oxygen diffusion at certain regions thus, causing corrosion [1]. In general, corrosion stems from either metal imbalance such as phase variation, grain boundaries, and impurities or from shape and environmental changes such as crevices, scratches, defects in coating, amount of oxygen, and others. For a metal (M), the general corrosion reactions that would occur in a physiological environment is represented below [4]:
Anodic reaction:
M M n + + ne
Cathodic reaction:
2 H 2 O + 2 e H 2 + 2 OH
2 H 2 O + O 2 + 4 e 4 OH
Product formation:
M n + + nOH M ( OH ) n
The physiological solution comprises numerous discharged ions, dissolved oxygen, organic compounds, proteins, and other components. These ions discharged from metal will interact with water and other species to construct a corrosion product layer (e.g., metal hydroxides or metal complexes as illustrated in Figure 4). Simultaneously, water reduction and/or oxidation by electrons released from the metal causes the formation of hydrogen gas or hydroxide ions. Surrounding the implantation site will be a decrease in pH in the range of 5.3 to 5.6 because of the inflammatory response which accelerates the corrosion rate of the metal and reduces the local oxygen concentration. For inorganic ions such as Cl, decomposition of M(OH)n layer occurs, resulting in perpetual and localized corrosion attack. This effect is similar for SO42− whereas other ions such as HPO42−/PO43−, HCO3/CO32−, and Ca2+ help to protect magnesium and iron due to the precipitation of phosphate and carbonate salts on the surface of the metal. Other methods of protection involve delaying the corrosion of magnesium by the adsorption of organic molecules (e.g., albumin) onto the surface of the metal or reducing the obstacles faced by the insoluble salt layer against decomposition of magnesium by utilizing amino acids [2].

6. Real-Time In-Vivo and In-Vitro Corrosion Monitoring

Real-time corrosion monitoring refers to any process that monitors the corrosion of in-vivo/in-vitro biodegradable metal implants which allows for the results to be obtained immediately during the measurement. It is typically done by combining two different methods of corrosion monitoring. For example, pairing radiography with an image processing software or inspecting blood samples online with mass spectroscopy [2]. Since the corrosion of metals is a real-time dependent process, it cannot be ideally observed using techniques such as implant retrieval, histology analysis, etc. [4]. However, there are ways to evaluate the corrosion behavior of the biodegradable implant in real-time; these can be classified into: electrochemical-, biosensor-, and microdialysis-based monitoring systems.

6.1. Electrochemical-Based Monitoring System

The electrochemical-based monitoring system typically analyzes the behavior of the analyte during the corrosion process of the metal. [4]. Normally, a metal would be placed in an aggressive environment, inducing corrosion products to form. If the environment is an electrolyte, two processes would occur, one of which is an anodic process; where the metal undergoes oxidation and the other of which is a cathodic process; where a reduction reaction would occur such as oxide or hydroxide ion reduction. The cations and anions will move in opposite directions, resulting in an electric current being generated within the metal [25]. The electric current can then be transformed and measured as electric potential (voltage). One way of measuring voltage is by setting up three electrodes namely, the working electrode, reference electrode, and counter electrode immersed in the electrolyte; this results in an amperometric sensor circuit (Figure 5a) [4]. The application of three electrodes allows a more precise measurement outcome, usually achieved by passing little or no current through the reference electrode [26]. Another option of measuring voltage is to have an electrochemical cell connected to a potentiostat, also known as the potentiostat circuit (Figure 5b) [4].
Wang et al. [27] adopted this method when conducting research into the vascular bioreactor (Figure 5b) in order to examine the corrosion of the Mg metal alloy in real-time. Since the material was used for constructing vascular stents due to its in-vivo potential, the experimental set-up of the vascular bioreactor consisted of Tygon tubing as a channel for testing, the electrolyte, Dulbeco’s modified Eagle’s medium (DMEM), a flow pump for varying the flow rate, a reservoir, and an incubator. This set-up mimics actual physiological conditions that would be encountered in blood vessels. The potentiostat used in this experiment performs electrochemical impedance spectroscopy (EIS), open circuit potential (OCP), and linear polarization measurement (LPM). To differentiate their study from other Mg electrochemical studies, the approach taken was to observe the corrosion mechanism of Mg affected by forces exerted from fluids in a real-time scenario. This is because, in this type of environment, a more reliable result is obtained from the in-situ data. It can be concluded that in order to determine corrosion in the long term, EIS is a suitable and non-harmful candidate that allows continuous monitoring. In addition, the EIS can provide quantitative data of the corrosion process at the interface of the electrolyte-electrode along with any changes in electrode.
Corrosion characterization system (CCS) is also another approach adopted from electrochemical-based principles. Doepke et al. managed to create a CCS that allows monitoring in real-time by analyzing the soluble corrosion products such as OH, Mg2+, and H2 in the solution during immersion tests [28]. Their study involved combining several methods to monitor the corrosion of Mg continuously in real-time during immersion tests (Figure 6). The real-time methods that they used involved using a glass pH electrode, a water hardness ion-selective electrode (ISE) and a platinum disk sensor to continuously measure the concentration of hydroxide ions, magnesium ions and dissolved hydrogen, respectively. Very small implantable sensors such as an Mg ion selective electrode can be fabricated by infusing an ionophore with a selectivity towards Mg ions in a liquid membrane [29]. The simultaneous usage of multiple electrochemical sensors for measuring corrosion products in a solution is one of the attractive features of CCS. Furthermore, CCS can also evaluate whether protection from corrosion in the form of coatings formed on the surface reduces the rate of corrosion of the metal. The Faradaic and non-Faradaic impedance changes at the metal–solution interfaces were monitored by EIS measurements. At low frequencies, the Faradaic impedances occur from the redox reactions of corrosion while at high frequencies, the non-Faradaic impedances are monitored through surface charging and obstruction by degraded products or passivation. After the immersion tests were completed, the results were analyzed using atomic absorption spectrometry (AAS) to determine the concentration of Mg present in the solution. The limitations of this method was potential interference by other ions or simultaneous usage of potentiometric sensors and EIS instrumentation [28]. In addition, the electrode life affects the EIS technique for in-vivo recording. As time passes, its quality and accuracy deviates [4].
In another study [30], electrochemical methods complemented with real-time imaging technique were adopted to observe the magnesium corrosion in order to determine the local processes as well as the evolution of hydrogen gas. The magnesium specimen used for testing and plan view imaging was exposed to six different electrolytes. A layout of three electrode cell was selected where the working electrode was the magnesium specimen while the reference electrode and counter electrode are calomel electrode and platinum wire, respectively. They performed a potentiodynamic polarization test in which measurement was obtained after three minutes of immersion in the test solution. It was proposed that disruption of the oxide/hydroxide film was caused by the generation of streams of bubbles when an anodic current is available along with environmental conditions that induce depassivation. As a result of the direct exposure of electrolyte and Mg specimen, as well as the larger overpotential due to release of hydrogen bubbles, the corrosion front amplified the current where oxidation rate of magnesium is proportional to the total ‘remote’ anodic current (linked to the evolution of medium to large bubbles) and local anodic current (linked to the streams of hydrogen).
Figure 7a,b represents the six different anodic and cathodic polarization curves. Based on the diagrams, their passive behavior is analyzed. Both curve A and B showed passive behavior in the anodic region indicating presence of a protective film on their surfaces. Despite chloride ions being present (from curve B’s electrolyte solution), there was no significant effect during the whole anodic polarization on the passive film. With a lower concentration of electrolyte (curve C and D), curve C exhibits a passive behavior while curve D represents a very small passive region followed by a quick rise in current density. As for the remaining last two curves (curve E and F), the current densities observed for curve E at anodic and cathodic polarization is lower than that of curve F’s. This is due to the chloride ions disrupting the protective film. Real-time imaging work was also conducted during potentiodynamic polarizations for certain electrolytes (e.g., 0.01 M NaOH) to comprehend the mechanism of hydrogen evolution on magnesium [30]. In general, measurements of potentiodynamic polarization can help determine the instantaneous corrosion rate (icorr) at the corrosion potential, Ecorr [10].
During the corrosion process, the surface released hydroxyl ion and metallic ions as cell growth has different stages, depending on the distance from the sample. Due to the progress in technology, two methods have been developed which makes the investigation of corrosion current density and ion distribution at microscopic spatial resolution possible throughout the corrosion process. These two methods are scanning vibrating electrode technique (SVET) and scanning ion-selective electrode technique (SIET). A study conducted by Yang et al. [31] used SVET and SIET with two representative intermetallic phases, Mg2Ca and MgZn2 to measure corrosion process differences present in Mg-Mg2Ca and Mg-MgZn2 through current density, pH value and magnesium ions concentration.
All in all, methods for corrosion monitoring that is associated with electrochemical techniques include potentiodynamic polarization, potentiostatic polarization, galvanostatic and galvanodynamic polarization, and electrochemical impedance spectroscopy. Furthermore, methods composed of localized electrochemical technique consist of scanning vibrating electrode technique, scanning electrochemical microscopy (SECM), and atomic emission spectroelectrochemistry (AESEC) [10].
The set-up that Zhao et al. developed [32] used CCS to perform real-time corrosion monitoring of Mg with an upgrade by creating a new generation of CCS with home-made capillary pH and Mg2+ electrochemical sensors, where the main advantage of the pH microelectrode is its compatibility with the human body, making it helpful for cell biology applications or small volume experiments. The fabricated electrodes based on glass capillaries for pH and Mg2+ had the ability to detect differences in pH and Mg2+ during corrosion of Mg in NaCl solution. EIS was combined with the sensor to allow for real-time corrosion monitoring during immersion tests without the need for removal of the solutions for offline observation. It was observed that the capillary microsensors for pH and Mg2+ were deemed successful for Mg corrosion real-time measurement [32].

6.2. Microsensor-Based Monitoring System

A microsensor-based monitoring system was first created by Zhao et al. [33]. The experiment was carried out on mice to test the reliability of transdermal H2 measurements with the assistance of a biosensor that is highly sensitive to hydrogen (Figure 8). The measurements were recorded by ensuring the H2 microsensor’s sensor tip touched the skin above the gas cavity at the implanted area. The sensor measures the current and is converted to regional H2 concentration using a calibration curve generated from known levels of H2 saturated water. Further analysis is then carried out using X-ray photoelectron spectroscopy (XPS) and inductively coupled plasma mass spectrometry (ICP-MS). The limitation of this set-up is its dependency on the high permeability of hydrogen leaving the skin, which is potentially a problem when monitoring the corrosion of Mg implants located in areas further underneath the skin such as implants placed at the muscle area or internal organs [33]. However, rapid measurements seem plausible as readings can be collected at a short response time of 30 s despite low concentrations (30–400 µM) of hydrogen through the skin [34]. Furthermore, H2 sensing has been acknowledged to be a beneficial, non-invasive way to monitor the corrosion of Mg alloys in-vivo over a large range of corrosion rates. Thus, this places H2 sensing in a favorable position when compared to traditional methods of monitoring corrosion rates [33].
Another type of sensor detection method is a visual biosensor for the detection of hydrogen. According to Zhao et al. [35], “This method of detection is non-invasive, user-friendly, promising and cheap compared to electrochemical detection”. Their research has reported a usable visual H2 sensor that allows monitoring of the corrosion process in-vivo. The sensor is constituted of a thin coating on a plastic sheet that changes color when H2 gas is present (Figure 9a). By placing it on the skin where the implant or center of the visible gas cavity is located, detection for corrosion can commence. The sheet will undergo a change of color from gray to dark blue after exposure to hydrogen (Figure 9b). This is due to a metal oxide reduction reaction when the H2 is in the presence of a Pd catalyst. The developed materials could change their color reversibly or irreversibly when H2 gas is present [35]. The indicator of the visual H2 sensor can be thin films comprising transition metal oxides that are 0.2 to 10 microns in thickness or nano-sized with a very thin, uneven coating of a catalyst to initiate its reaction with H2. The color sensitive material within the film only responds to gases that are sufficiently permeable through the skin and react with it, making the visual sensor hydrogen-selective, which is ideal [36].
The visual H2 sensor responds in a quantitative manner to the amount of H2 exposed. In-vivo measurements were taken by the visual H2 sensor and a calibrated electrochemical H2 sensor to calibrate the color response of the visual sensor with the electrochemically-measured H2 concentrations. However, it is important to take into consideration that the sensor does not absorb the evolved H2 entirely, as there could be inconsistent barrier between the smooth sensor and the surface of the skin, causing the H2 that is leaving through the skin to escape into the air. Therefore, this would not be a total representation of the amount of H2 released by the corroding implant. A Java-based image processing program known as ImageJ was used to quantify the color changes associated with different levels of H2 generated from corroding Mg alloy implant (Figure 10). The three-dimensional view is useful for assessing the real-time corrosion of specific sections of larger metal implants visually. Due to the current stage of development, a considerable amount of time is still needed for the color change to occur during cases where there are very low levels of H2 infiltrating the skin area [35].
Di Mei et al. [18] has demonstrated another way to perform hydrogen evolution tests by setting up eudiometers with an electronic balance. This setup (Figure 11) automatically records the corrosion rate values with a USB data logger. Of all the three different electrolytes used, it was determined that the corrosion rate for both commercially-pure Mg (CP Mg) and Mg-0.8Ca alloy increases in the following order SBF < MEM < NaCl. This test allows for the obtaining of results at various time points over the course of the experiment, ensuring that the changes in the rate of corrosion happening over the entire duration of the experiment can be monitored [37].
Another set of tools that can be classified as sensor-based are corrosion sensors that are optically based. These were conceived by having the uncoated area of an optical fiber deposited with specific materials (e.g., nickel-phosphorus layer or Fe-C alloy layer). When there is a loss of coating layer, the optical transmission power will drop [29]. However, its application in real-time still needs verification.
A study conducted by Boutry et al. [38] discussed the concept using biodegradable wireless implants. The idea consists of fabricating a fully biodegradable sensor for in-vivo applications. This concept requires a biomedical implant that can be made of materials that are biodegradable. To further improve the implant from partially biodegradable to completely biodegradable, the antennas/coils used for wireless communication needs to have the ability to fully biodegrade. This may be achieved with the advancement of radiofrequency-driven resistor–inductor–capacitor resonators (RF-driven RLC resonators) constituted from biodegradable metals. These can be constructed by electric discharge machining using biodegradable conductive polymer composites (e.g., polycaprolactone-polypyrrole (PCL-PPy), polylactide-polypyrrole (PLLA-PPy)). These composites are made by compression molding alongside laser-cutting. RLC resonators are frequently used in wireless power and data transmission for short range telemetry.
According to Figure 1 of [38], the partially biodegradable implant is composed of a non-biodegradable block for sensing and electronic purposes while the fully biodegradable coil/antenna (10 MHz operation) is used for data or power transmission outside of the body. In comparison with Figure 2 of [38], the whole sensor is completely biodegradable. The biodegradable metals are used to compose electrical circuits with Mg being a potential candidate due to its high conductivity and promising biodegradable characteristics [39] whereas PCL or PLLA could be used as material for packaging due to their significant strength and ability to remain mechanically stable for a long time. Unlike Figure 1 of [38], the fully biodegradable implant does not have a data-processing block to regulate the sensor’s measured signal. However, Figure 2 of [38] shows an implant that is composed of an RLC resonator that consist of a sensitive sensing layer towards stimulus. The stimulus will cause damping of the resonant frequency of the RLC resonator. Thus, the impedance reflected is related to the signal from the sensor which can be obtained by measuring the external coil’s total impedance. On a related note, the data collected are the loaded resonant frequency and loaded quality factor. This data has to be further processed to determine the unloaded parameters which has the real “wanted” sensor signal [38].

6.3. Microdialysis-Based Monitoring System

This technique is known for investigating the reactions taking place at the implant’s interface and tissue [40]. It is basically used for taking samples where the concentration of the corrosion products formed from the implants will be further evaluated. Microdialysis coupled with a variety of detection techniques such as biosensors has been used for the last three decades to combat issues faced by other corrosion monitoring methods [41]. An experiment was performed under ex-vivo settings by Schumacher et al. [40], where the biocompatibility of pure magnesium was tested by adopting microdialysis in an isolated, perfused bovine udder model. Energy dispersive X-ray spectroscopy (EDX) measurements were then conducted to obtain measurements of the ions formed on the magnesium’s surface. They observed that the implant’s corrosion did not have a response to inflammation upon direct contact with the tissue. However, these results imply that even when pure magnesium degrades rapidly, it still has good biocompatibility at the interface of the tissue and implant.
Another type of microdialysis-based monitoring method is the set-up developed by Natasha et al. [41] which involves a microdialysis probe with a cotton fabric-based electrochemical device (FED) attached to a potentiostat for conversion of chemical to electrical analysis. One of the main motivations for Natasha et al. to combine microdialysis with a magnesium-reactive biosensor for the monitoring of Mg corrosion is that the combination of the two systems created a more effective system, which enabled real-time monitoring of the whole corrosion process. This is mainly due to the fact that microdialysis could overcome the biocompatibility issues faced by biosensors while biosensors could increase the temporal resolution of the sampling technique. The set-up obtained a pseudo-linear response and interference was lower than 1% demonstrating that the fabric device has high selectivity. Moreover, only 3 µL of fluid sample was required to complete the measurement. Another advantage is that regardless of the location of the implant, a probe of this size can be implanted beneath the skin therefore, enabling measurement of deeper implants. Although further research is still required to optimize the combination of both systems, the current state of this method has the potential to be suitable for real-time in-vivo corrosion monitoring.
In another research from Ulrich et al. [42], an online-microflow capillary flow (µFC) is coupled online through a flow injection analyzing system (FIAS) with an inductively-coupled plasma mass spectrometer (ICP-MS) as shown in Figure 12 provided monitoring of the corrosion process at certain intervals with high spatial resolution. This allowed detailed in-situ investigation of corrosion mechanisms and determination of corrosion rates at open circuit potential. Due to ICP-MS’s high sensitivity and low detection limits, the alloy ions discharged could be identified at early corrosion stages. However, inaccurate results might be obtained as the bubbles generated from this set-up hinders the contact between the metal surface under exposure and the corrosion media. In addition, the bubbles prevent uniform mixing and dispersal of elements released in the circulating solution within the capillary. This can be solved if a 800 µm I.D. large capillary is used. Overall, this method is considered useful for non-homogeneous materials and for determining phase specific processes.
Further research was conducted by pairing microdialysis with an electrochemical enzymatic biosensor which is well-known for its sensitivity, selectivity, and temporal resolution. The purpose of coupling both tools was to enable in-vivo corrosion monitoring of magnesium in real-time [43]. The fabrication of the biosensor relies on the prerequisite of magnesium ions occurring in enzymatic reactions which enables the required selectivity for this technique. The cloth analytical device (CAD) which was fabricated from cotton cloth could detect magnesium ions at concentrations of 5–1000 µM with a sensitivity of 0.001 µA/µM and the detection limit set at 10.16 µM. Considering that the concentration of Mg2+ in blood serum is usually 0.7 to 1.05 mM and the upper and lower limit are 3 and 9 nmol, respectively, the developed CAD can therefore, measure the blood serum’s magnesium ion concentration. However, further research is needed to test the interference species and improve the reproducibility of the device. Regardless, CAD still remains a potential candidate for implantation in-vivo during surgery to monitor the corrosion rate of biodegradable Mg implants [43].

7. Discussion of Real-Time In-Vivo/In-Vitro Corrosion Monitoring Methods

For the comprehension of the fundamentals of biodegradable metal implants corroding in-vivo, the monitoring techniques need to undergo further development in order to have the potential to monitor the corrosion process in-situ. The challenges that are faced by this research is correlating the results from the in-vitro setting to that of the in-vivo setting [4]. Although in-vitro studies give an insight of the behavior of the material under the given condition, it should not be regarded as the final conclusion for recommending a material as an implant, whereas in-vivo tests examine the actual performance of the implant within the animal models [1]. The potentially-available methods used for monitoring corrosion in real-time are still limited, despite its unique capabilities [4] (Table 2).

8. Technical Improvements

The proposed new techniques should be developed in order to conduct real-time online monitoring that meets the following criteria [2]:
  • Does not have dangerous consequences on living tissues regardless of dosage or amount of exposure in a continuous time frame.
  • Human-centric in the sense that the instrument can be miniaturized, user-friendly and be able to perform its function regardless of the location of the patient.
  • The analysis on the data obtained should be as soon as possible or, ideally, instantaneously.
The proposed new techniques for monitoring the corrosion process can be divided into three sections.

8.1. Monitoring Local Changes Surrounding

As mentioned previously in Section 6.2, one of the potential improvements is the design concept for developing a completely biodegradable implant for in-vivo operation, a wireless biodegradable radio frequency-driven resistor-inductor-capacitor (RLC) resonator that is miniaturized and constructed with biodegradable metals and biodegradable conductive polymer. According to [39], it was concluded that since the resonance peak was still detectable within 6 mm of muscle and fat tissues when located between the RLC resonator and the measurement coil for both metal and polymer resonators even if largely attenuated, the utilization of these materials to manufacture passive wireless communication devices in biosensors implanted within the body is potentially feasible. At this moment, the most reliable candidate to manufacture the RLC resonators is magnesium due to its high conductivity and exceptional biodegradability. In addition, the rate of corrosion can be altered by alloying the magnesium if faster degradation is required or if the implant’s mechanical properties needs to be more enhanced. In addition, the biodegradable conducting polymers PCL-PPy and PLLA-PPy have been attracting attention due to their light mass, high flexibility in the manufacturing process, and their compatibility with MRI and X-rays [39]. As of now, the continued development of biodegradable RLC resonators is the first step towards making a completely biodegradable implant for in-vivo scenarios. Boutry et al. [39] acknowledges that a great deal of effort is required before being able to manufacture fully biodegradable biomedical implants while also stating that this progress would be beneficial in the future for the patient’s safety and comfort.
Another potential technique of real-time in-vivo corrosion monitoring is a monitoring device that use needle type microelectrode as a biosensor as has been presented and proposed by Cordeiro et al. [44] to measure glucose in the brain. An earlier study that proposed ion-selective micro-electrodes for mapping local activity of Mg2+ and H+ is presented in [45]. In the future, an appropriate needle type microelectrode can be developed to measure one or more corrosion rate properties such as weight loss rate of the metal implant and certain ion release. The needle type microelectrode can also be connected to the data acquisition (DAQ) device for automatic timely basis of real-time measurement or monitoring. In detail, the DAQ device will be used for signal conditioning and converting the analog signal to digital signal for further data processing. In order to record and to interpret the raw data into a meaningful data or information, a monitoring device—i.e., computer or laptop with installed driver software and application software—is also necessary for timely saving data as the monitoring can take days or months. The DAQ device connects to a computer through a slot or port and the communication between DAQ device and computer is using a serial bus. An illustration of potential biosensor data acquisition system for real-time in-vivo corrosion monitoring is presented in Figure 13 (adapted from [46]). Potential real-time in-vivo corrosion monitoring has at least the following components: (1) miniaturized biosensor (microelectrode or microsensor); (2) sensor node contains power supply, signal conditioning circuit; and (3) provides the communication hub from sensor and DAQ device to the monitoring system.

8.2. Fabricating an Intelligent Implant

Referring to Section 8.1, further improvements can be made on the implant and the corrosion monitoring process by making the implant ‘intelligent’ where it can detect and alter its own degradation. By adopting a cathodic protection technique, the corrosion rate of the implant can be controlled whereby; a reference electrode applies an external current. The cathodic elements are the polarized by the external current to the open circuit potential of the anodes, resulting in the potential across the cathode and anode becoming equal thereby, altering the corrosion current to a smaller volume [29].

8.3. Off-Clinic Point-of-Care Implant Monitoring

Point-of-care (POC) diagnostics incorporating the microfluidic system was recommended to accelerate diagnostic processes that are time-consuming [47]. Microfluidic technology is easily scalable (integrated system), fast, sensitive, and inexpensive; requiring only a small volume of sample obtained, either invasively or non-invasively. In a POC system, instead of having the patient do a post-check up at the hospital, they can opt to independently monitor their health condition by utilizing a simple diagnostic tool. An example would be a portable device such as those for monitoring blood glucose. The patient’s blood samples can be collected directly using a lancet and then the equipment/meter will show the glucose level [2].
However, a non-invasive option would be to analyze saliva. Saliva has been noted as a diagnostic fluid that can be easily obtained. One design such as the lab-on-a-chip technology is a device that measures putative biomarker of periodontal disease present in saliva. Its function is to measure the concentration of MMP-8 (Matrix metalloproteinase-8) in saliva to determine early diagnosis of periodontitis. The instrument is a microchip electrophoretic immunoassay (µCEI) allowing direct, automatic measurement of total MMP-8 content in saliva. It was originally designed for chair-side use which relies on a compact reader instrument and a disposable fluidic cartridge. It is also acknowledged that µCEI assays have the capability to measure the said biomarkers rapidly from just a small sample volume thus, making it a diagnostic tool with characteristics applicable to a numerous range of diseases [47]. While the examples mentioned are not applied for monitoring the released ions from metal implants, it is a suggested concept whereby a similar colorimetric-based principle can be adopted to monitor the corroded by-products released from an biodegradable metal implant [2].

9. Conclusions

While there have already been several established methods for monitoring the corrosion of a biodegradable metal implant, the suitability still requires further research as each of the corrosion monitoring methods mentioned in this paper has their own limitations that can be improved on. For now, it seems that corrosion monitoring has to adhere to a case-by-case basis (i.e., depending on location of the implant, etc.). One such example is the visual hydrogen sensor; while it is useful in detecting the evolution of hydrogen transdermally, it is not applicable for deeply-implanted implants. Another challenge faced by the biodegradable metal world is the correlation of the results for in-vivo corrosion compared with the tests conducted in-vitro. To compare the different studies and observe a relation between them is time-consuming and a hindrance for efficient progress. Therefore, for further progress to be made, a reliable standard protocol has to be consistently updated to allow for quicker clinical translation to cater to the patient’s needs. For the time being, corrosion monitoring methods for in-vivo studies of biodegradable metal implants are derived from those utilized in bio-inert materials (e.g., histology, radiography, etc.) and thus, do not conclude the whole corrosion process of metals. For future development, extensive research on real-time corrosion monitoring and characterization of in-vivo corrosion monitoring is a definite objective.

Author Contributions

Conceptualization, P.Y.Y.C. and W.C.; Methodology, P.Y.Y.C.; Formal analysis, P.Y.Y.C., W.C., and Q.C.; Resources, P.Y.Y.C., Q.C., and W.C.; Writing—original draft preparation, P.Y.Y.C.; Writing—review and editing, P.Y.Y.C., Q.C., W.C., and A.G.; Supervision, Q.C. and W.C.; Funding acquisition, A.G. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


I would like to express my sincere gratitude towards Wahyu Caesarendra and Quentin Cheok for their guidance and helpful advices throughout this whole project.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Manivasagam, G.; Dhinasekaran, D.; Rajamanickam, A. Biomedical Implants: Corrosion and its Prevention-A Review. Corros. Sci. 2010, 2, 40–54. [Google Scholar]
  2. Paramitha, D.; Ulum, M.F.; Purnama, A.; Wicaksono, D.H.B.; Noviana, D.; Hermawan, H. Monitoring Degradation Products and Metal Ions In Vivo; Elsevier Ltd.: Amsterdam, The Netherlands, 2017. [Google Scholar]
  3. Prakasam, M.; Locs, J.; Salma-Ancane, K.; Loca, D.; Largeteau, A.; Berzina-Cimdina, L. Biodegradable Materials and Metallic Implants—A Review. J. Funct. Biomater. 2017, 8, 44. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Ulum, M.F.; Caesarendra, W.; Alavi, R.; Hermawan, H. In-Vivo Corrosion Characterization and Assessment of Absorbable Metal Implants. Coatings 2019, 9, 282. [Google Scholar] [CrossRef][Green Version]
  5. Hermawan, H. Updates on the research and development of absorbable metals for biomedical applications. Prog. Biomater. 2018, 7, 93–110. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Chen, Q.; Thouas, G.A. Metallic implant biomaterials. Mater. Sci. Eng. R 2015, 87, 1–57. [Google Scholar] [CrossRef]
  7. Zheng, Y.F.; Gu, X.N.; Witte, F. Biodegradable metals. Mater. Sci. Eng. R 2014, 77, 1–34. [Google Scholar] [CrossRef]
  8. Ali, M.; Hussein, M.A.; Al-Aqeeli, N. Magnesium-based composites and alloys for medical applications: A review of mechanical and corrosion properties. J. Alloys Compd. 2019, 792, 1162–1190. [Google Scholar] [CrossRef]
  9. Walker, M.H.E. Magnesium, Iron and Zinc Alloys, the Trifecta of Bioresorbable Orthopaedic and Vascular Implantation-A Review. J. Biotechnol. Biomater. 2015, 5, 1. [Google Scholar]
  10. Esmaily, M.; Svensson, J.E.; Fajardo, S.; Birbilis, N.; Frankel, G.S.; Virtanen, S.; Arrabal, R.; Thomas, S.; Johansson, L.G. Fundamentals and advances in magnesium alloy corrosion. Prog. Mater. Sci. 2017, 89, 92–193. [Google Scholar] [CrossRef]
  11. Noviana, D.; Paramitha, D.; Ulum, M.F.; Hermawan, H. The effect of hydrogen gas evolution of magnesium implant on the postimplantation mortality of rats. J. Orthop. Transl. 2016, 5, 9–15. [Google Scholar] [CrossRef][Green Version]
  12. Reifenrath, J.; Krause, A.; Bormann, D.; Windhagen, H. Profound differences in the in-vivo-degradation and biocompatibility of two very similar rare-earth containing Mg-alloys in a rabbit model. Materialwissenschaft und Werkstofftechnik 2010, 41, 1054–1061. [Google Scholar] [CrossRef]
  13. Cheng, P.; Zhao, C.; Han, P.; Ni, J.; Zhang, S.; Zhang, X.; Chai, Y. Site-Dependent Osseointegration of Biodegradable High-Purity Magnesium for Orthopedic Implants in Femoral Shaft and Femoral Condyle of New Zealand Rabbits. J. Mater. Sci. Technol. 2016, 32, 883–888. [Google Scholar] [CrossRef]
  14. Li, N.; Zheng, Y. Novel Magnesium Alloys Developed for Biomedical Application: A Review. J. Mater. Sci. Technol. 2013, 29, 489–502. [Google Scholar] [CrossRef]
  15. Drelich, A.J.; Zhao, S.; Guillory, R.J.; Drelich, J.W.; Goldman, J. Long-term surveillance of zinc implant in murine artery: Surprisingly steady biocorrosion rate. Acta Biomater. 2017, 58, 539–549. [Google Scholar] [CrossRef]
  16. Razavi, M.; Fathi, M.; Savabi, O.; Vashaee, D.; Tayebi, L. In vivo assessments of bioabsorbable AZ91 magnesium implants coated with nanostructured fluoridated hydroxyapatite by MAO/EPD technique for biomedical applications. Mater. Sci. Eng. C 2015, 48, 21–27. [Google Scholar] [CrossRef][Green Version]
  17. Yu, W.; Zhao, H.; Ding, Z.; Zhang, Z.; Sun, B.; Shen, J.; Chen, S.; Zhang, B.; Yang, K.; Liu, M.; et al. In vitro and in vivo evaluation of MgF2 coated AZ31 magnesium alloy porous scaffolds for bone regeneration. Colloids Surfaces B Biointerfaces 2017, 149, 330–340. [Google Scholar] [CrossRef]
  18. Mei, D.; Lamaka, S.V.; Feiler, C.; Zheludkevich, M.L. The effect of small-molecule bio-relevant organic components at low concentration on the corrosion of commercially pure Mg and Mg-0.8Ca alloy: An overall perspective. Corros. Sci. 2019, 153, 258–271. [Google Scholar] [CrossRef]
  19. Witte, F.; Fischer, J.; Nellesen, J.; Crostack, H.A.; Kaese, V.; Pisch, A.; Beckmann, F.; Windhagen, H. In vitro and in vivo corrosion measurements of magnesium alloys. Biomaterials 2006, 27, 1013–1018. [Google Scholar] [CrossRef]
  20. Sanchez, A.H.M.; Luthringer, B.J.C.; Feyerabend, F.; Willumeit, R. Mg and Mg alloys: How comparable are in vitro and in vivo corrosion rates? A review. Acta Biomater. 2015, 13, 16–31. [Google Scholar] [CrossRef][Green Version]
  21. Hofstetter, J.; Martinelli, E.; Weinberg, A.M.; Becker, M.; Mingler, B.; Uggowitzer, P.J.; Löffler, J.F. Assessing the degradation performance of ultrahigh-purity magnesium in vitro and in vivo. Corros. Sci. 2015, 91, 29–36. [Google Scholar] [CrossRef]
  22. Hiromoto, S.; Inoue, M.; Taguchi, T.; Yamane, M.; Ohtsu, N. In vitro and in vivo biocompatibility and corrosion behaviour of a bioabsorbable magnesium alloy coated with octacalcium phosphate and hydroxyapatite. Acta Biomater. 2015, 11, 520–530. [Google Scholar] [CrossRef] [PubMed]
  23. Lin, W.; Qin, L.; Qi, H.; Zhang, D.; Zhang, G.; Gao, R.; Qiu, H.; Xia, Y.; Cao, P.; Wang, X.; et al. Long-term in vivo corrosion behavior, biocompatibility and bioresorption mechanism of a bioresorbable nitrided iron scaffold. Acta Biomater. 2017, 54, 454–468. [Google Scholar] [CrossRef] [PubMed]
  24. Duffin, M. Closing the gap. Manag. Serv. Qual. Int. J. 1992, 2, 77–79. [Google Scholar] [CrossRef]
  25. Pedeferri, P.M.; Pietro, L.L. Corrosion Science and Engineering; Springer: Cham, Switzerland, 2018. [Google Scholar]
  26. John, K.H.; Zhang, X.J. Electrical Transducers: Electrochemical Sensors and Semiconductor Molecular Sensors; Elsevier Ltd.: Amsterdam, The Netherlands, 2014. [Google Scholar]
  27. Wang, J.; Jang, Y.; Wan, G.; Giridharan, V.; Song, G.L.; Xu, Z.; Koo, Y.; Qi, P.; Sankar, J.; Huang, N.; et al. Flow-induced corrosion of absorbable magnesium alloy: In-situ and real-time electrochemical study. Corros. Sci. 2015, 104, 277–289. [Google Scholar] [CrossRef][Green Version]
  28. Doepke, A.; Kuhlmann, J.; Guo, X.; Voorhees, R.T.; Heineman, W.R. A system for characterizing Mg corrosion in aqueous solutions using electrochemical sensors and impedance spectroscopy. Acta Biomater. 2013, 9, 9211–9219. [Google Scholar] [CrossRef]
  29. Yun, Y.; Dong, Z.; Lee, N.; Liu, Y.; Xue, D.; Guo, X.; Kuhlmann, J.; Doepke, A.; Halsall, H.B.; Heineman, W.; et al. Revolutionizing biodegradable metals. Mater. Today 2009, 12, 22–32. [Google Scholar] [CrossRef]
  30. Yang, Y.; Scenini, F.; Curioni, M. A study on magnesium corrosion by real-time imaging and electrochemical methods: Relationship between local processes and hydrogen evolution. Electrochim. Acta 2016, 198, 174–184. [Google Scholar] [CrossRef]
  31. Liu, Y.; Liu, X.; Zhang, Z.; Farrell, N.; Chen, D.; Zheng, Y. Comparative, real-time in situ monitoring of galvanic corrosion in Mg-Mg 2 Ca and Mg-MgZn 2 couples in Hank’s solution. Corros. Sci. 2019, 161, 108–185. [Google Scholar] [CrossRef]
  32. Zhao, D.; Wang, T.; Guo, X.; Kuhlmann, J.; Doepke, A.; Dong, Z.; Shanov, V.N.; Heineman, W.R. Monitoring Biodegradation of Magnesium Implants with Sensors. JOM 2016, 68, 1204–1208. [Google Scholar] [CrossRef]
  33. Zhao, D.; Wang, T.; Nahan, K.; Guo, X.; Zhang, Z.; Dong, Z.; Chen, S.; Chou, D.T.; Hong, D.; Kumta, P.N.; et al. In vivo characterization of magnesium alloy biodegradation using electrochemical H2 monitoring, ICP-MS, and XPS. Acta Biomater. 2017, 50, 556–565. [Google Scholar] [CrossRef]
  34. Zhao, D.; Wang, T.; Kuhlmann, J.; Dong, Z.; Chen, S.; Joshi, M.; Salunke, P.; Shanov, V.N.; Hong, D.; Kumta, P.N.; et al. In vivo monitoring the biodegradation of magnesium alloys with an electrochemical H2 sensor. Acta Biomater. 2016, 36, 361–368. [Google Scholar] [CrossRef][Green Version]
  35. Zhao, D.; Wang, T.; Hoagland, W.; Benson, D.; Dong, Z.; Chen, S.; Chou, D.T.; Hong, D.; Wu, J.; Kumta, P.N.; et al. Visual H2 sensor for monitoring biodegradation of magnesium implants in vivo. Acta Biomater. 2016, 45, 399–409. [Google Scholar] [CrossRef][Green Version]
  36. Manufacturing, F.U.S. Hydrogen Gas Indicator System. U.S. Patent 6,895,805, 24 May 2005. [Google Scholar]
  37. Kirkland, N.T.; Birbilis, N.; Staiger, M.P. Assessing the corrosion of biodegradable magnesium implants: A critical review of current methodologies and their limitations. Acta Biomater. 2012, 8, 925–936. [Google Scholar] [CrossRef]
  38. Boutry, C.M.; Chandrahalim, H.; Streit, P.; Schinhammer, M.; Haenzi, A.C.; Hierold, C. Towards biodegradable wireless implants. Philos. Trans. R. Soc. 2012, 370, 2418–2432. [Google Scholar] [CrossRef][Green Version]
  39. Boutry, C.M.; Chandrahalim, H.; Streit, P.; Schinhammer, M.; Hänzi, A.C.; Hierold, C. Characterization of miniaturized RLC resonators made of biodegradable materials for wireless implant applications. Sensors Actuators A Phys. 2013, 189, 344–355. [Google Scholar] [CrossRef]
  40. Schumacher, S.; Stahl, J.; Bäumer, W.; Seitz, J.M.; Bach, F.W.; Petersen, L.J.; Kietzmann, M. Ex vivo examination of the biocompatibility of biodegradable magnesium via microdialysis in the isolated perfused bovine udder model. Int. J. Artif. Organs 2011, 34, 34–43. [Google Scholar] [CrossRef]
  41. Natasha, M.S.; Malon, R.S.P.; Wicaksono, D.H.B.; Córcoles, E.P.; Hermawan, H. Monitoring magnesium degradation using microdialysis and fabric-based biosensors. Sci. China Mater. 2018, 61, 643–651. [Google Scholar] [CrossRef][Green Version]
  42. Ulrich, A.; Ott, N.; Tournier-fillon, A.; Homazava, N.; Schmutz, P. Spectrochimica Acta Part B Investigation of corrosion behavior of biodegradable magnesium alloys using an online-micro-flow capillary flow injection inductively coupled plasma mass spectrometry setup with electrochemical control. Spectrochim. Acta Part B At. Spectrosc. 2011, 66, 536–545. [Google Scholar] [CrossRef]
  43. Natasha, S.; Malon, R.S.P.; Wicaksono, D.H.B.; Córcoles, E.P.; Hermawan, H. Electrochemical detection of magnesium ions using magnesium biosensor. Eur. Cells Mater. 2013, 26, 130000. [Google Scholar]
  44. Cordeiro, C.A.; Sias, A.; Koster, T.; Westerink, B.H.C.; Cremers, T.I.F.H. In vivo ‘real-time’ monitoring of glucose in the brain with an amperometric enzyme-based biosensor based on gold coated tungsten (W-Au) microelectrodes. Sensors Actuators, B Chem. 2018, 263, 605–613. [Google Scholar] [CrossRef]
  45. Lamaka, S.V.; Karavai, O.V.; Bastos, A.C.; Zheludkevich, M.L.; Ferreira, M.G.S. Monitoring local spatial distribution of Mg2+, pH and ionic currents. Electrochem. Commun. 2008, 10, 259–262. [Google Scholar] [CrossRef]
  46. Kiskova, T.; Steffekova, Z.; Karasova, M.; Kokosova, N. pH Monitoring of Urine and Tumor Microenvironments in Rats. Available online: (accessed on 20 April 2020).
  47. Herr, A.E.; Hatch, A.V.; Throckmorton, D.J.; Tran, H.M.; Brennan, J.S.; Giannobile, W.V.; Singh, A.K. Microfluidic immunoassays as rapid saliva-based clinical diagnostics. Proc. Natl. Acad. Sci. USA 2007, 104, 5268–5273. [Google Scholar] [CrossRef][Green Version]

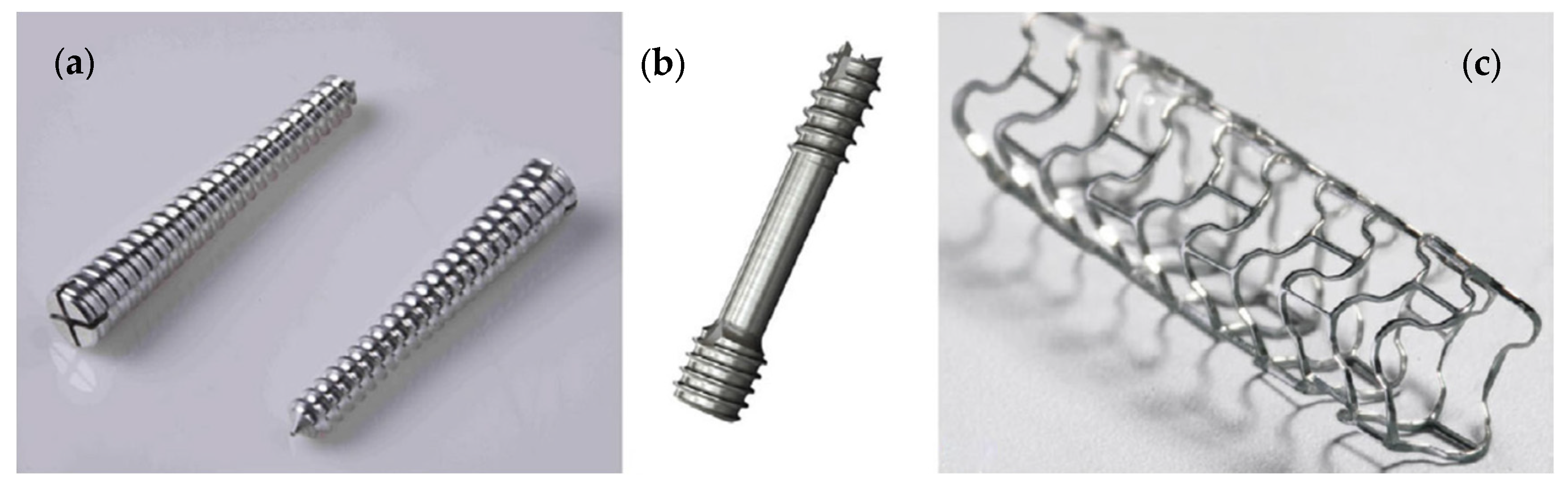

Figure 1. Examples of biodegradable metal implants: (a) headless screws developed by U&I Corporation, Korea, (b) compression screw from a German company; and (c) a biodegradable stent designed by a German company [2].
Figure 1. Examples of biodegradable metal implants: (a) headless screws developed by U&I Corporation, Korea, (b) compression screw from a German company; and (c) a biodegradable stent designed by a German company [2].
Applsci 10 03141 g001

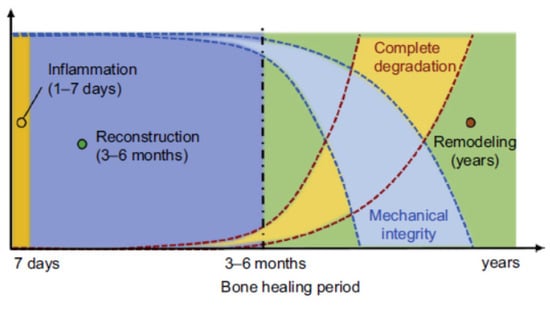

Figure 2. Ideal balance between an implant’s mechanical integrity and corrosion rate [2].
Figure 2. Ideal balance between an implant’s mechanical integrity and corrosion rate [2].
Applsci 10 03141 g002

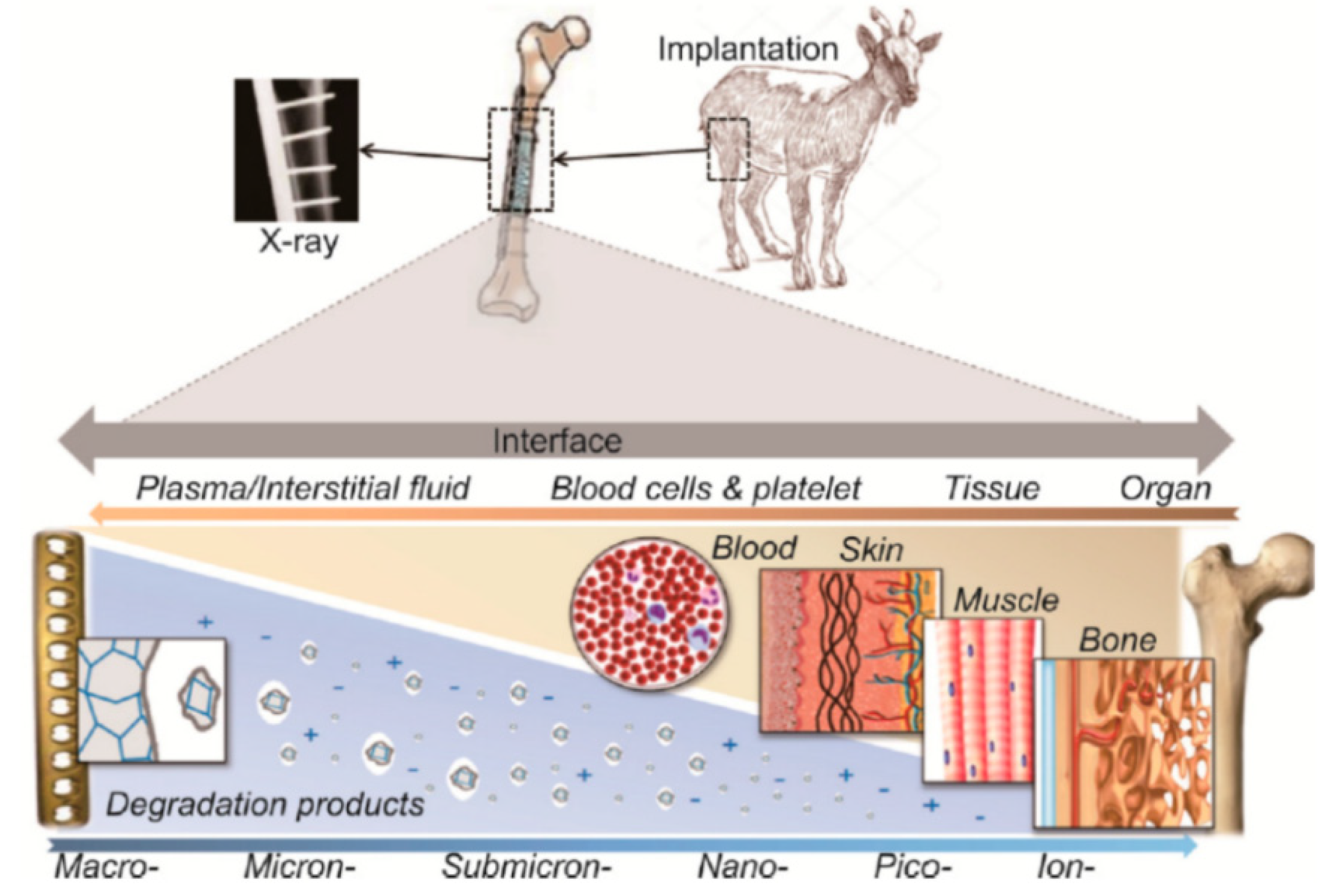

Figure 3. Illustration of biodegradable metal interacting with the local tissue, followed by the body’s response [4].
Figure 3. Illustration of biodegradable metal interacting with the local tissue, followed by the body’s response [4].
Applsci 10 03141 g003

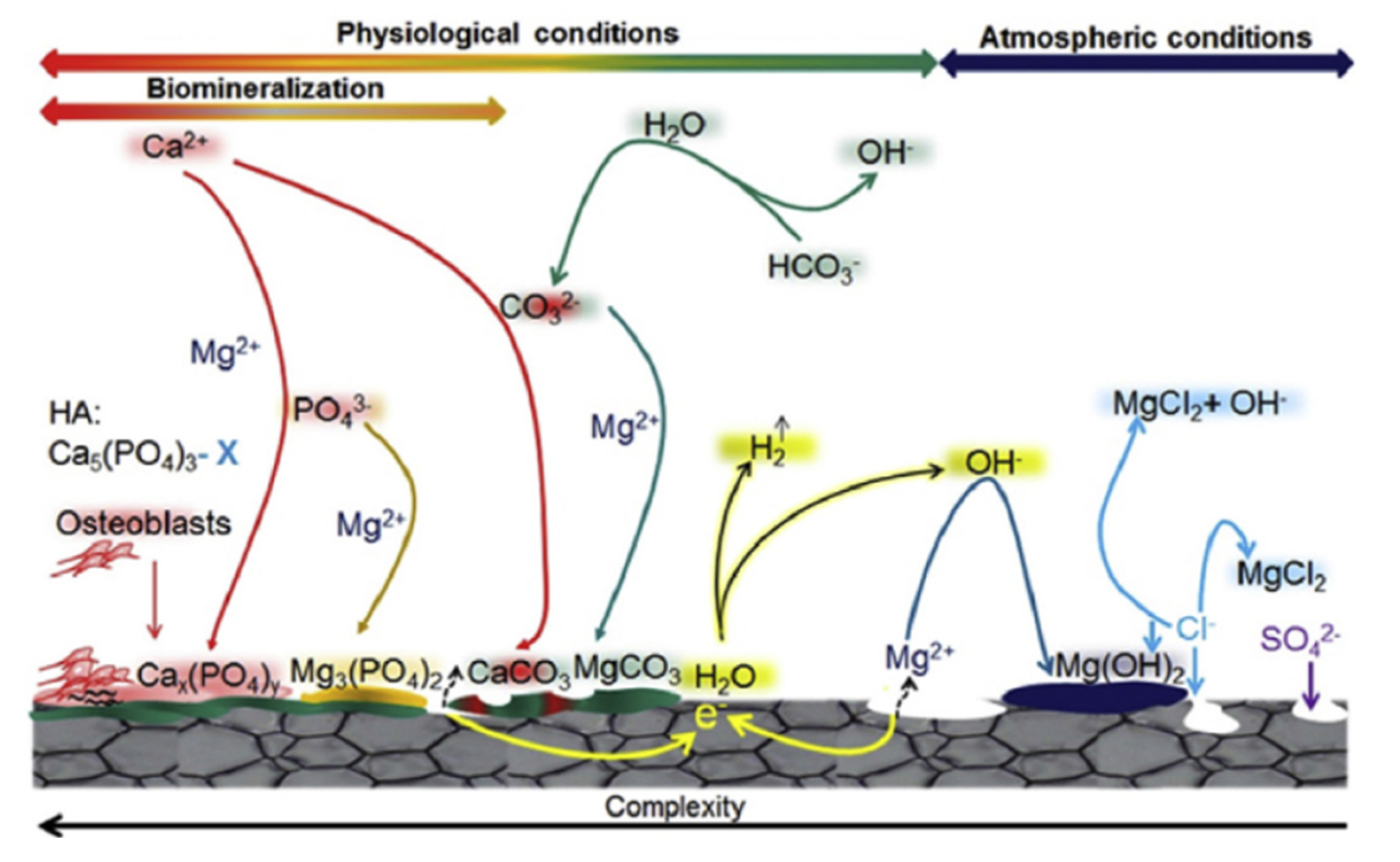

Figure 4. Production of numerous corrosion products in a physiological environment [8].
Figure 4. Production of numerous corrosion products in a physiological environment [8].
Applsci 10 03141 g004
Figure 5. (a) An amperometric sensor circuit; (b) An experimental setup to monitor corrosion of biodegradable metal alloy [4].
Figure 5. (a) An amperometric sensor circuit; (b) An experimental setup to monitor corrosion of biodegradable metal alloy [4].
Applsci 10 03141 g005

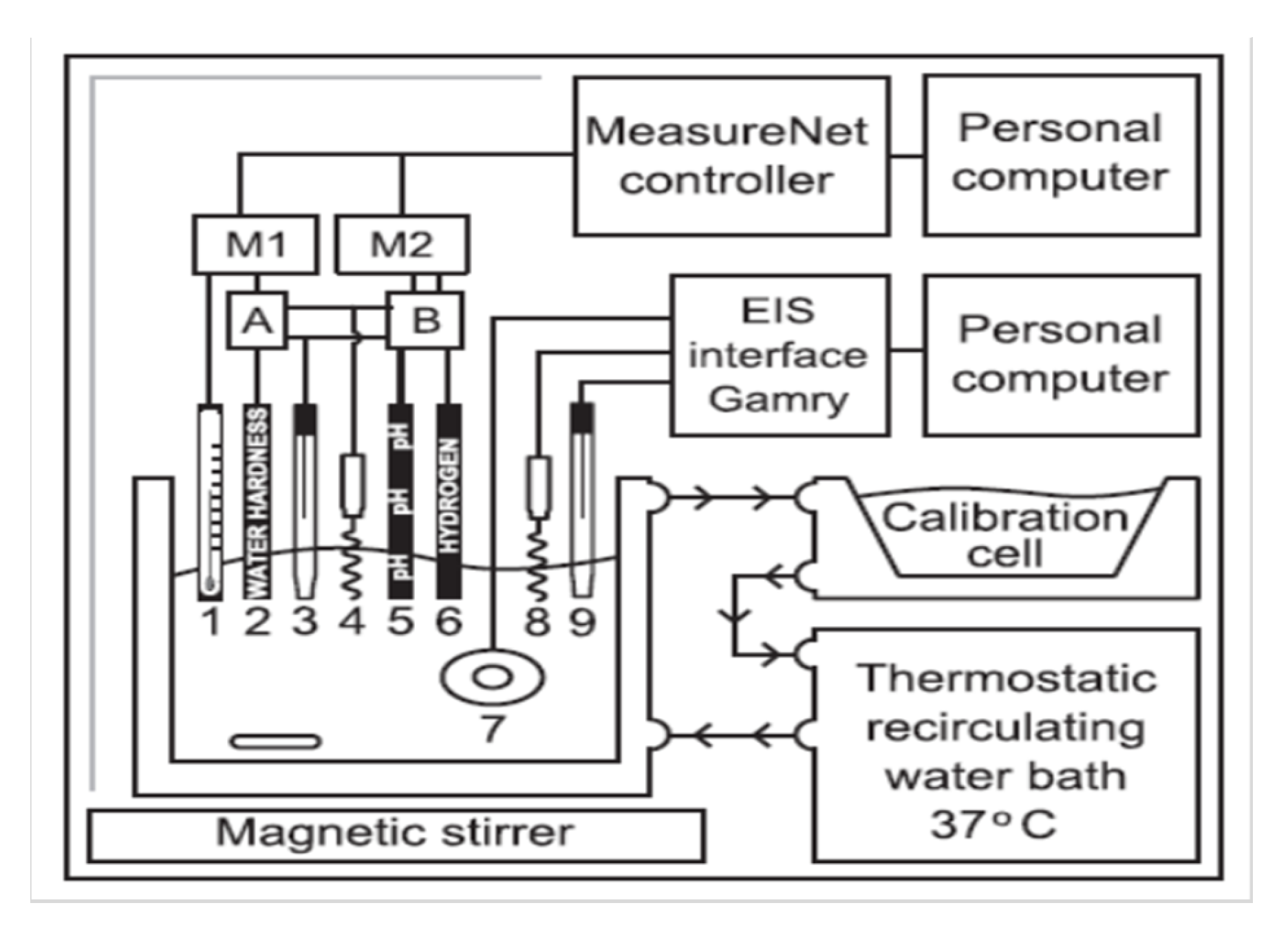

Figure 6. CCS system instrument and cell layout. (1) Temperature instrument, (2) Sensor for water hardness, (3) Reference electrode, (4) Pt solution ground, (5) pH sensor, (6) H2 sensor, (7) Working electrode, (8) Pt auxiliary electrode, (9) Reference electrode, A, B, pre amplifiers; M1, M2, MeasureNet workstations [28].
Figure 6. CCS system instrument and cell layout. (1) Temperature instrument, (2) Sensor for water hardness, (3) Reference electrode, (4) Pt solution ground, (5) pH sensor, (6) H2 sensor, (7) Working electrode, (8) Pt auxiliary electrode, (9) Reference electrode, A, B, pre amplifiers; M1, M2, MeasureNet workstations [28].
Applsci 10 03141 g006

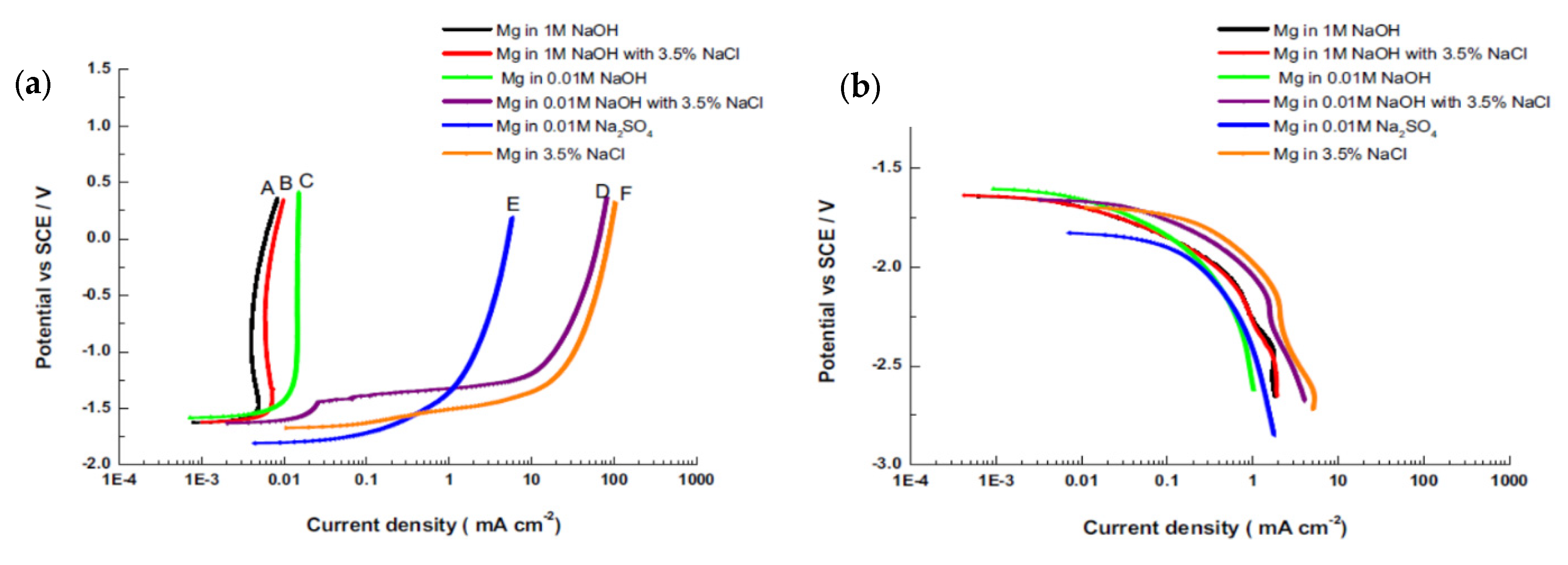

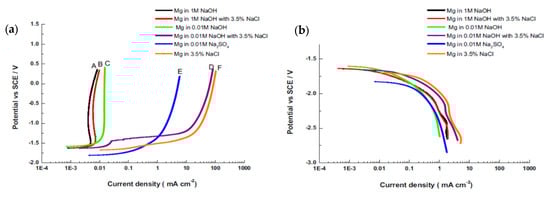

Figure 7. (a) Anodic polarization curves; (b) cathodic polarization curves [30].
Figure 7. (a) Anodic polarization curves; (b) cathodic polarization curves [30].
Applsci 10 03141 g007

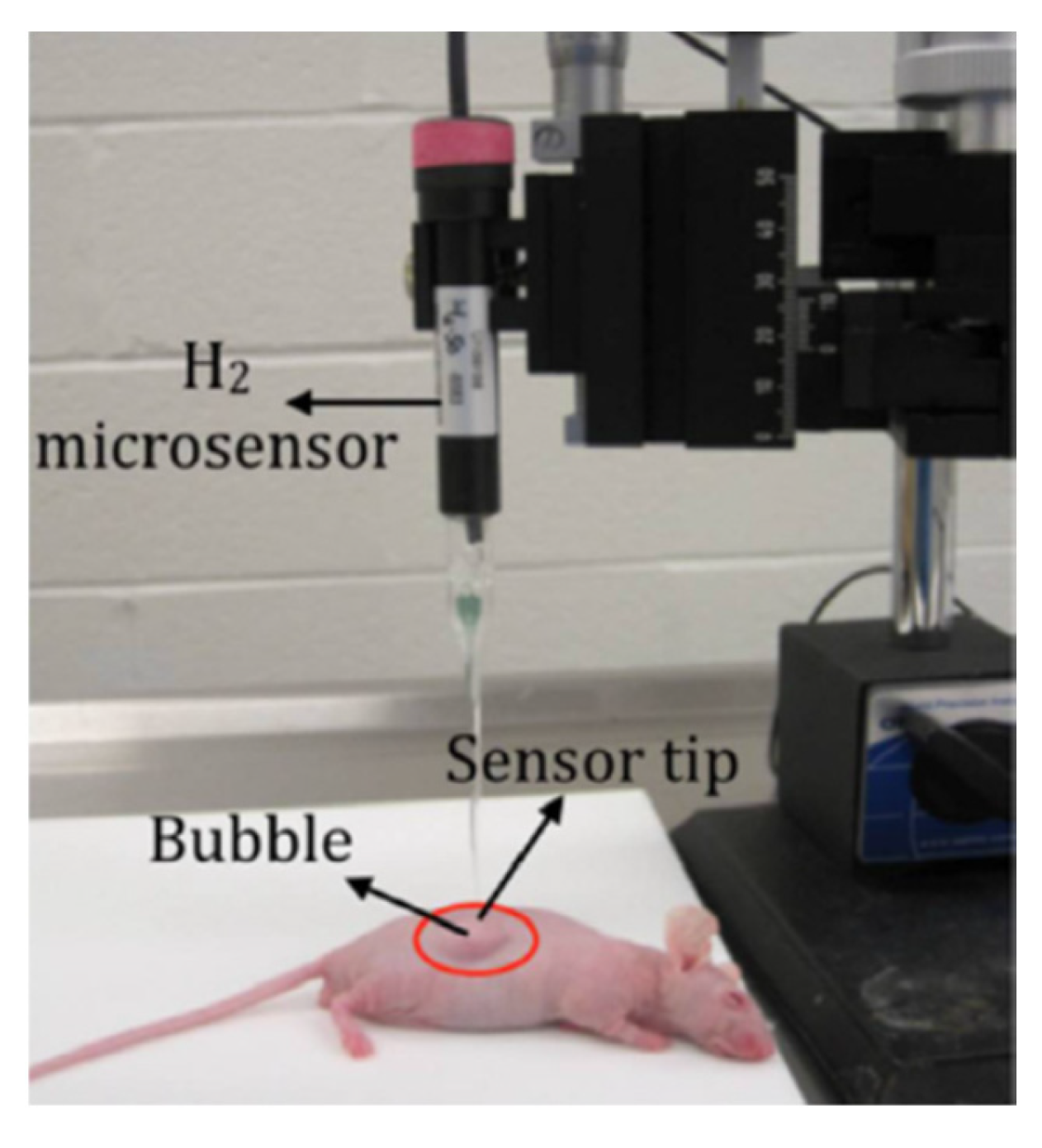

Figure 8. Hydrogen microsensor with direct contact between sensor tip and mice; used to detect and measure hydrogen evolving from an allow of Mg implanted in the mice [34].
Figure 8. Hydrogen microsensor with direct contact between sensor tip and mice; used to detect and measure hydrogen evolving from an allow of Mg implanted in the mice [34].
Applsci 10 03141 g008

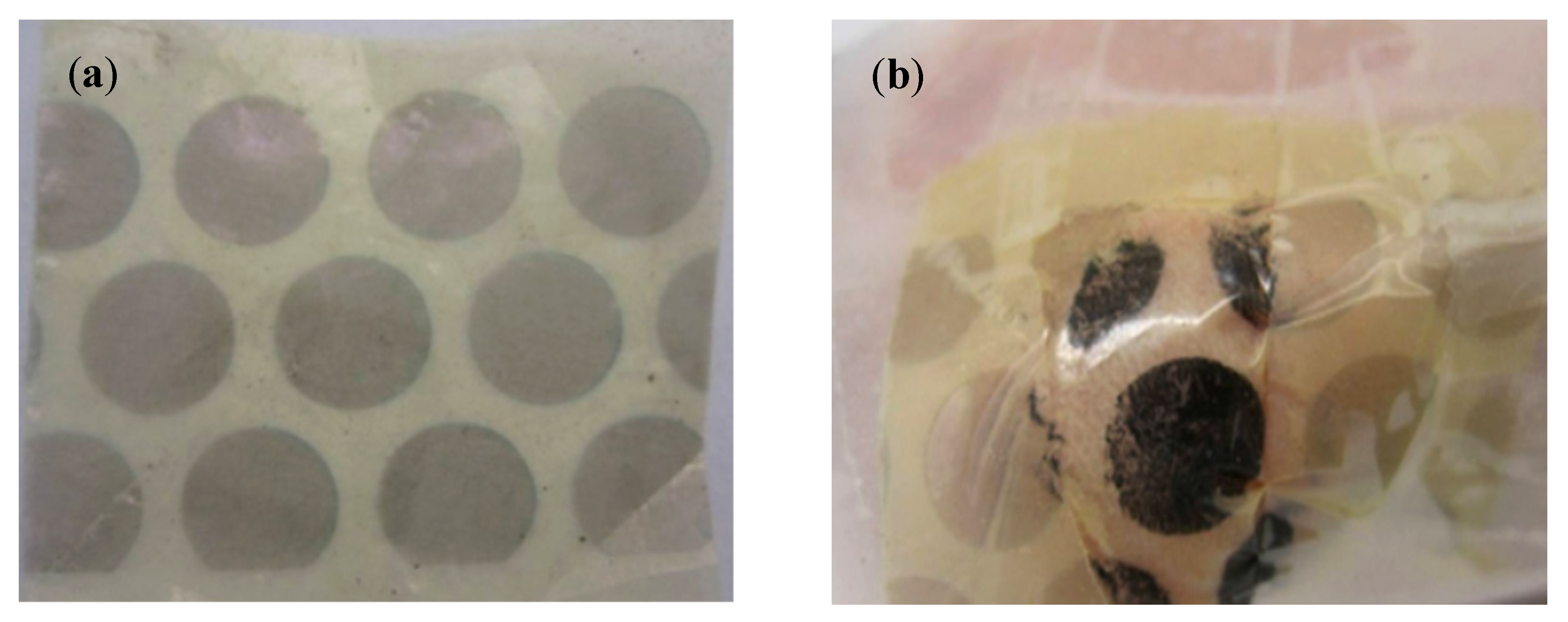

Figure 9. (a) A thin filmed H2 sensor prior to exposure to H2; (b) H2 detected by the film through the mouse’s skin [35].
Figure 9. (a) A thin filmed H2 sensor prior to exposure to H2; (b) H2 detected by the film through the mouse’s skin [35].
Applsci 10 03141 g009

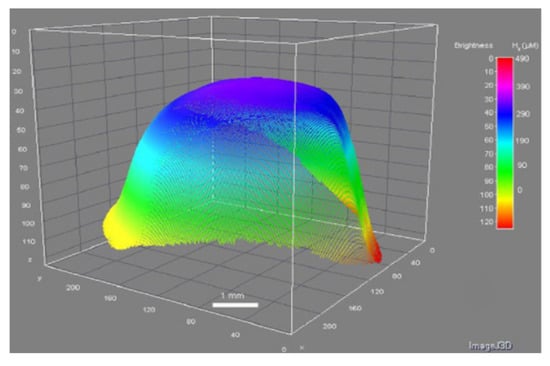

Figure 10. 3D figure of the change in brightness in the H2 sensor area [35].
Figure 10. 3D figure of the change in brightness in the H2 sensor area [35].
Applsci 10 03141 g010

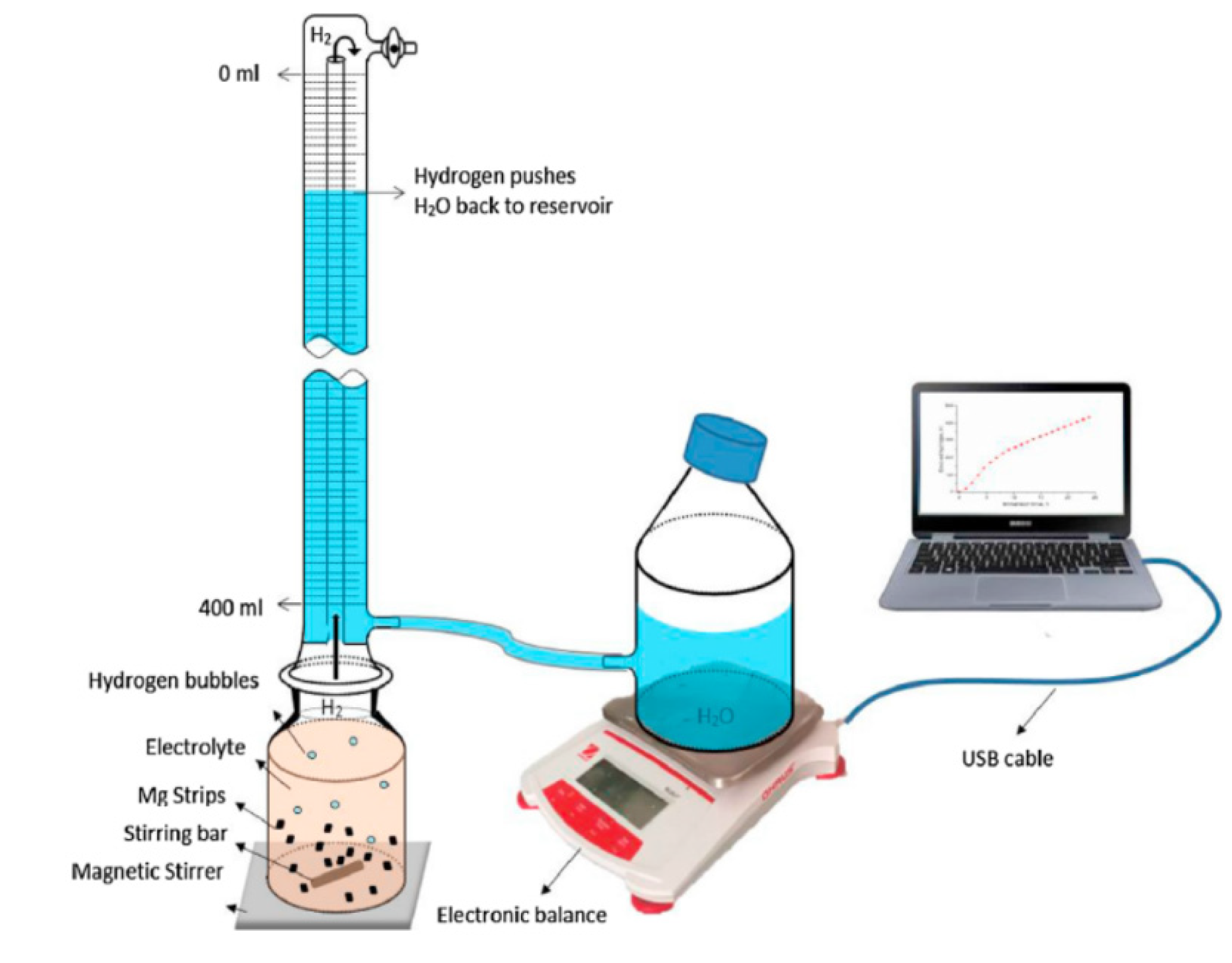

Figure 11. Layout of an hydrogen evolution test experiment involving an eudiometer [18].
Figure 11. Layout of an hydrogen evolution test experiment involving an eudiometer [18].
Applsci 10 03141 g011

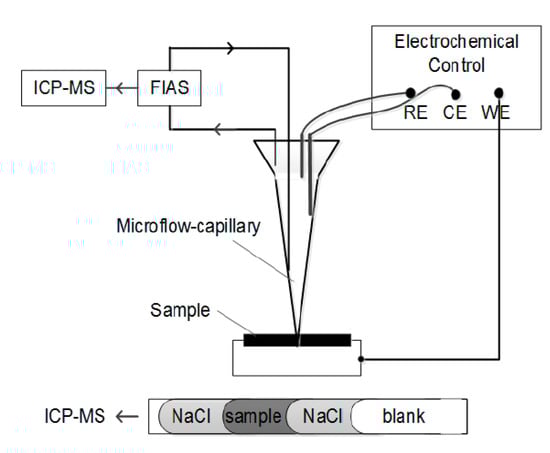

Figure 12. Experiment layout of the µFC-FIAS-ICPMS coupled with three-electrode electro-chemical control unit [42].
Figure 12. Experiment layout of the µFC-FIAS-ICPMS coupled with three-electrode electro-chemical control unit [42].
Applsci 10 03141 g012

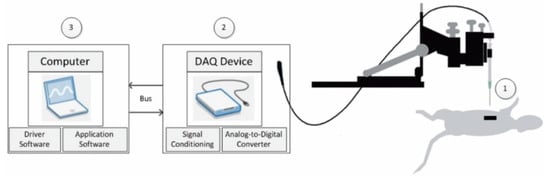

Figure 13. A potential biosensor data acquisition system for real-time in vivo corrosion monitoring: (1) needle-type microelectrode to measure corrosion behavior properties; (2) data acquisition device (DAQ) for signal conditioning and analog-to-digital converter; (3) monitoring device with installed driver software and application software. Adapted from [46].
Figure 13. A potential biosensor data acquisition system for real-time in vivo corrosion monitoring: (1) needle-type microelectrode to measure corrosion behavior properties; (2) data acquisition device (DAQ) for signal conditioning and analog-to-digital converter; (3) monitoring device with installed driver software and application software. Adapted from [46].
Applsci 10 03141 g013
Table 1. Summary comparison of the three biodegradable metals for implants. * Corrosion rate data obtained from identical experiments, i.e., conducting polarization test in 37 °C simulated body fluid. Values might change depending on testing condition and parameters.
Table 1. Summary comparison of the three biodegradable metals for implants. * Corrosion rate data obtained from identical experiments, i.e., conducting polarization test in 37 °C simulated body fluid. Values might change depending on testing condition and parameters.
ApplicationsTissue engineering, orthopedic (e.g., hip joints, screws/pins and dental implants [8]), micro clips for laryngeal microsurgery and cardiovascular applications [3].Vascular and orthopedic applications [9].
Corrosion rateFastestMediumSlowest
Modulus/GPa [2]30 (Pure Mg)
45 (Mg-Based)
60 (Pure Zn)
100 (Zn-Based)
150 (Pure Fe)
200 (Fe-Based)
Tensile Strength/MPa [5]100 (Pure Mg)90 (Pure Zn)200 (Pure Fe)
Maximum elongation/% [5]7 (Pure Mg)8 (Pure Zn)40 (Pure Fe)
Corrosion rate */(mm/year) [5]8 (Pure Mg)0.16 (Pure Zn)0.1 (Pure Fe)
Strengths [9]Its alloys are compatible with the human body and have elastic moduli, strength and compressive strength that are similar to trabecular bone.Anti-inflammatory and anti-proliferative properties. Effective in reducing risk of atherosclerosis.Fe stents have promising mechanical properties and biocompatibility [15].
Weaknesses [14]Quickly corrodes before complete tissue reconstruction due to lack of resistance to chloride elements present in the bodily fluids.Compared to other alloys, it suffers from very low radial strength.Corrodes excessively slowly to be practical for bioresorbable applications.
Solution [9]Surface treatment to reduce corrosion rate. Potential techniques such as alkaline heat treating, microarc oxidation (e.g., FHA/MAO coated Mg implant [16]), calcium phosphate deposition, fluoride treatment [17], electro deposition and polymer coating can be used.Considering that zinc is relatively new to the biodegradable metal family, further studies are required to conclude its potential as vascular scaffold and in orthopedic applications.Alloy elements such as manganese to increase iron’s corrosion rate.
Table 2. Capabilities and limitations comparison of the real-time in-vivo corrosion monitoring techniques [4].
Table 2. Capabilities and limitations comparison of the real-time in-vivo corrosion monitoring techniques [4].
Electrochemical-based monitoring systemQuantitative measurements and electrochemical properties can be obtained in a short period of time.Limited electrode life leads to inability to conduct continuous in-vivo corrosion monitoring affecting quality and accuracy of data over a period of time. Replacement of electrodes might also be costly.
Microsensor-based monitoring systemSome corrosion parameters can be measured accurately (e.g., hydrogen sensor). It has potential for real-time applications, but the sensor must be paired with a data processing device.Needs special processing software (i.e., image or signal) to convert the raw data to obtain desired data.
Microdialysis-based monitoring systemCan be developed for real-time monitoring when probe is connected to a data processing device.Restrictive probe life/performance due to potential biofouling and difficult to calibrate.

Share and Cite

MDPI and ACS Style

Yin Yee Chin, P.; Cheok, Q.; Glowacz, A.; Caesarendra, W. A Review of In-Vivo and In-Vitro Real-Time Corrosion Monitoring Systems of Biodegradable Metal Implants. Appl. Sci. 2020, 10, 3141.

AMA Style

Yin Yee Chin P, Cheok Q, Glowacz A, Caesarendra W. A Review of In-Vivo and In-Vitro Real-Time Corrosion Monitoring Systems of Biodegradable Metal Implants. Applied Sciences. 2020; 10(9):3141.

Chicago/Turabian Style

Yin Yee Chin, Priscilla, Quentin Cheok, Adam Glowacz, and Wahyu Caesarendra. 2020. "A Review of In-Vivo and In-Vitro Real-Time Corrosion Monitoring Systems of Biodegradable Metal Implants" Applied Sciences 10, no. 9: 3141.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
