Article

Towards a Better Understanding of the Removal of Carbamazepine by Ankistrodesmus braunii: Investigation of Some Key Parameters

by
Tania Yehya
1,
Lidia Favier
2,*,
Fabrice Audonnet
1,
Nidal Fayad
1,
Hajar Bahry
1,
Gabriela Elena Bahrim
3,* and
Christophe Vial
1,*
1
Université Clermont Auvergne, CNRS, SIGMA Clermont, Institut Pascal, F-63000 Clermont-Ferrand, France
2
Univ Rennes, Ecole Nationale Supérieure de Chimie de Rennes, CNRS, ISCR—UMR6226, F-35000 Rennes, France
3
Faculty of Food Science and Engineering, “Dunărea de Jos” University of Galati, Domnească Street No. 111, 800201 Galati, Romania
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2020, 10(22), 8034; https://doi.org/10.3390/app10228034
Submission received: 9 October 2020 / Revised: 1 November 2020 / Accepted: 5 November 2020 / Published: 12 November 2020
(This article belongs to the Special Issue Cellular Stress in Applied Microbiology, Biotechnology, and Processes Bioengineering)
Browse Figures
Versions Notes

Abstract

:
Nowadays, water pollution by pharmaceuticals is a major issue that needs an urgent solution, as these compounds, even when found at trace or ultra-trace levels, could have harmful effects on organisms. Carbamazepine (CBZ) is a pharmaceutical product that is detected as a micropollutant in many water resources. Different treatment methods were lately employed for the removal of CBZ, which are often cheap but inefficient or efficient but expensive. Yet, there are limited available studies on the elimination of this molecule by algae despite their well-known highly adaptive abilities. In this study, the biological treatment of CBZ was carried out using the green microalgae, Ankistrodesmus braunii (A. braunii), which has been reported to be particularly resistant to CBZ toxicity in the literature. The respective effects of the culture medium, the initial inoculum, and CBZ concentrations were studied on CBZ removal. Lastly, the mechanism of CBZ elimination by A. braunii was investigated. The presented data clearly demonstrates that the presence of this molecule did not completely repress A. braunii growth or the ability of these algae to remove CBZ; after 60 days of incubation, the highest percentage of CBZ elimination achieved was 87.6%. Elimination was more successful in Bold’s basal medium than in proteose peptone medium. Finally, the removal mechanism was also investigated to provide a better understanding of the transformation mechanism of this molecule. It was shown that the main removal mechanism was the bioaccumulation of CBZ by A. braunii cells, but the biotransformation of the initial CBZ into metabolites was also observed.

1. Introduction

Water pollution due to anthropic contaminants or pollutants is an increasing global concern. Ranging from macro- to micro-pollutants, these are caused by different human activities, such as urban and industrial development, the use of chemical fertilizers and pesticides in agriculture, mining activities, and the disposal of pharmaceuticals and personal care products [1,2,3].
Water contamination by pharmaceuticals has been an environmental issue of concern since the late 1980s [4]. During the 1990s, pharmaceutically active compounds, such as lipid-regulating drugs, analgesics, antibiotics, antiseptics, hormones, and chemotherapy and beta-blocking heart drugs, were detected in wastewaters, streams, and ground-water resources across Europe [5]. These molecules can have diverse and adverse effects on organisms and aquatic life. For this reason, the pharmaceutical product discharges from human and veterinary usage have been the object of intensive research for several years [6]. Numerous studies in Europe and North America have shown that carbamazepine (CBZ) is among the most frequently detected pharmaceutical products in the effluents of the municipal wastewater treatment plants and in the river waters [7]. Indeed, this molecule has a very low biodegradability and is considered environmentally persistent and refractory (see detailed information in Table 1).
CBZ is a human pharmaceutical approved by the United States (US) Food and Drug Administration for treating epileptic seizures and trigeminal neuralgia. It is also used "off-label" to treat bipolar depression, excited psychosis, and mania [9]. CBZ is composed of two benzene rings fused to an azepine group, which in turn is connected to an amide group [10]. Its doses commonly range from 100 to 2000 mg per day [11,12], which is reflected by an annual consumed quantity of CBZ in the world of about 1014 tons [13]. Post-administration, approximately 72% of oral CBZ can be absorbed, metabolized, and excreted in urine, whereas 28% is unchanged and is discharged into waters through feces [14]. Consequently, CBZ and its metabolites: trans-10,11-dihydro-10,11-dihydroxycarbamazepine (CBZ-diol) and 10,11-dihydro-10,11-epoxycarbamazepine (CBZ-epoxide) have been found in water. Several monitoring studies carried out in Europe, America, and Asia have detected CBZ in the aquatic environment at the highest frequency compared to the other pharmaceutical micropollutants. It is most frequently detected in sewage treatment plants effluents, in river water, and in seawater [15]. It was found at the highest concentration of 1.075 μg/L in surface waters in Germany [16], but also at 2.3 µg/L in Canada in wastewater effluent [17]. The toxicity of CBZ at such low levels is not ascertained; the risk does not seem immediate, so the main concerns are the accumulation of CBZ in the aquatic ecosystems and the potential cocktail effects in synergy with other micropollutants [18].
Wastewater treatment plants (WWTPs) have been identified as the most relevant sources of pollution with this molecule. Indeed, the average removal rate of CBZ by the conventional activated sludge process is below 10%, and that it is not significantly improved by the use of modern configurations such as membrane bioreactors, though these are frequently effective at removing other pharmaceuticals [19,20]. The same is reported for sequencing batch reactors in which CBZ appears to be resistant to microbial biodegradation [21]. However, other alternatives are more efficient: biological treatments with Trametes versicolor, for example, with laccase, eliminated about 60% of CBZ after 48 h of contact time [22]. The first drawback of the biological processes, in general, is the possible biodegradation of CBZ into more toxic compounds. The second is that removal may be driven by a biosorption or bioaccumulation mechanism, which only displaces the pollutant. Many studies have tested the toxicity of CBZ in various microorganisms. For instance, CBZ toxicity was tested on the green algae Ankistrodesmus braunii (A. braunii) and Selenastrum capricornutum [23]. They found that no toxic effect on A. braunii could be observed by working at very low concentrations of CBZ and that over 50% of CBZ had been removed in 60 days. Other recent studies focused on the investigation of the microalgae abilities in the elimination of this molecule. Table 2 summarizes the obtained results in terms of removal efficiency as well as the used algal species and cultivation conditions. None or a negligible removal has been reported in some cases, while in other studies, elimination yields between 30% and 50% were reported.
Other work has highlighted that CBZ represents a challenge in terms of efficient elimination strategy [24].
In practice, physicochemical treatments of CBZ were often found to be more efficient than biological treatments. For example, membrane processes with reverse osmosis showed more than 85% elimination of CBZ and of other pharmaceutical compounds [29]. Moreover, ozonation removed up to 99% even when present in trace concentrations [30]. Additionally, Fenton and photo-Fenton processes showed complete elimination of CBZ by Fenton oxidation [31], and heterogeneous photocatalytic processes achieved more than 90% elimination [32]. Hybrid processes that consist of the combination of several conventional processes were also investigated and found efficient for CBZ elimination. For instance, in the treatment based on UV/H2O2, the presence of 25 mg/L of H2O2 eliminated 90% of CBZ at 2.25 J/cm2 UV dose [33]. Ozonation, as Fenton and photocatalytic processes, belong to the class of advanced oxidation processes (AOPs). Despite their ability to eliminate rapidly highly biorefractory chemicals, such as CBZ, they present; however, there are two major drawbacks:
-
Their cost is too high.
-
Mineralization is not complete, and they may also produce secondary pollutants [34].
This is the reason why research still focuses on the development of innovative biological treatments, for example involving the bioaugmentation of activated sludge.
In this work, the objective was to investigate the potential of the green microalgae A. braunii for CBZ removal. Andreozzi et al. [23] have investigated the toxicity of this molecule on A. braunii and noted that about 50% of the initial CBZ had been removed after 60 days. At the moment, it is still unknown whether these algae are able to degrade or transform this refractory pharmaceutical molecule and even less about the degradation mechanism. The aim was to confirm this result at various CBZ initial concentrations using two culture media, the inorganic Bold’s Basal (BB) medium and a proteose peptone (PP) medium, to enhance autotrophic and heterotrophic growth, respectively, both for different inoculum concentrations as a function of cultivation time. First, the influence of CBZ on the growth of the algae will be studied. Then, the elimination of CBZ was investigated quantitatively over time. Finally, the mechanism of CBZ removal was analyzed.

2. Materials and Methods

2.1. Chemicals

Carbamazepine (99.8% pure) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Acetonitrile of HPLC (High Performance Liquid Chromatography) grade was supplied by Sigma-Aldrich (St. Louis, MO, USA). All other chemicals used for analytical purposes or for culture media formulation were of analytical grade and were obtained from Sigma-Aldrich (St. Louis, MO, USA). Ultrapure water was produced by an Elga Option-Q DV-25 system (eBay Inc, SAN Jose, CA, USA).

2.2. Ankistrodesmus Braunii and Culture Media

The algae tested for the elimination of CBZ was Ankistrodesmus braunii, strain CCAP 202/7a, from the Culture Collection of Algae and Protozoa (CCAP, Ambleside, UK). A. braunii was cultivated in two liquid culture media having different elemental compositions: namely, the Bold’s basal medium (BB) and the proteose peptone medium (PP) to compare the relative growth of the algae and its ability to remove CBZ in these media. The components of these liquid culture media and the used protocols are described below. For the BB media, different salt stock solutions at a given concentration were prepared as follows: NaNO3 (5.0 g/200 mL), MgSO4 (1.5 g/200 mL), NaCl (0.5 g/200 mL), K2HPO4 (1.5 g/200 mL), KH2PO4 (3.5 g/200 mL), and CaCl2.2H2O (0.5 g/200 mL). Stock solutions were stored unsterilized at 4 °C. Culture media was prepared by combining 10 mL of each of the six stock solutions with 1 mL of each of the following solutions: alkaline EDTA (5.0 g/100 mL of EDTA-KOH), acidified iron (4.98 g/L of FeSO4 and 1 mL of H2SO4), boron (1.14 g/L of H3BO3) and trace metals solution. The volume was finally filled up to 1 L with ultrapure water. The metals solution used was composed of: 8.82 g of ZnSO4, 1.44 g MnCl2.4H2O, 0.71 g of MoO3, 1.57 g of CuSO4, and 0.49 g of Co(NO3)2.6H2O dissolved in 1 L ultra-pure water. The proteose peptone medium contained per liter: 20 mL of each of the following stock solutions (MgSO4 (1.0 g/L); K2HPO4 (1.0 g/L); KNO3 (10.0 g/L)) and 1 g of proteose peptone powder. The pH of both culture media was adjusted to 7 with NaOH (1 mM) and then sterilized in an autoclave for 15 min at 120 °C.

2.3. Growth Experiments

The precultures were conducted in Erlenmeyer flasks containing 100 mL of the considered medium aseptically inoculated with 10 mL of CCAP algae suspension. These cultures were kept to grow reasonably dense under controlled light and temperature conditions (23 ± 1) °C, irradiance 100 µEs−1.m−2, the day and night pattern was a 16 h day and an 8 h night, using Philips Master (TL-D 18W/827 lamps, Pila, Poland) in a stove (INFROS, Basel, Switzerland). The obtained precultures were then used to inoculate the cultures for the degradation experiments. These tests were carried out in batch mode, in conical flasks containing 1 L of culture medium at two different pollutant concentrations 2.5 and 10 mg/L, which corresponds to the highest CBZ concentrations studied in the case of hospital wastewater [35]. CBZ was directly dissolved in the culture media (BB or PP) to give the desired initial concentration. Erlenmeyer flasks were autoclaved at 121 °C for 15 min prior to inoculation to avoid contamination and provide rapid dissolution of CBZ. No degradation of CBZ was observed during autoclaving. For these cultures, two different initial biomass concentrations (104 and 105 cells/mL) were used in order to investigate the influence of this parameter on algae growth and CBZ biodegradation. Flasks were then incubated as a reference at 30 °C for up to 60 days under agitation at 135 rpm, which can be compared with the conditions of mesophilic anaerobic digestion and also to the data of Andreozzi et al. [23] on A. braunii. The agitation rate was chosen from the range of 100–150 rpm, which is usually used to inoculate algae [36,37]. Appropriate controls without the target compound were conducted for each of the tested cultures conditions to investigate the algal growth, but also for analytical purposes. Indeed, the controls allow distinguishing metabolites resulting from the breakdown of CBZ from those arising from the base metabolism of algae. Thus, twelve different experimental conditions were investigated in duplicate to evaluate the growth of A. braunii as well as CBZ degradation. Samples (2 mL) were taken at different time intervals and evaluated for cell concentration and CBZ concentration, as described below. Culture transfer and sampling were done aseptically to minimize contamination.

2.4. Microscopy

The growth of algae during all the experiments was followed by cell counting using a Malassez hemocytometer (Tiefe Depth, 0.200 mm) and a microscope (Olympus BX41TF, Tokyo, Japan) at a magnification ×100 (oil immersion lens) in the absence and in the presence of CBZ at regular time intervals (2 days) over a period of 60 days, on each of the twelve culture conditions described above. Microscopy was also employed for the morphological observation of algal culture during different tests and to ensure the complete bursting under high-pressure conditions of the algal cells.

2.5. Analytical Procedure

2.5.1. HPLC-DAD Analysis

Samples taken from each of the cultures were filtered using adequate polyester filters (Chromafil Xtra PET, 0.45 µm, 25 mm diameter) and transferred to HPLC vials for subsequent HPLC determination. The quantification of CBZ in the different samples was carried out on HPLC (Waters 2410, Saint-Quentin-en-Yvelines, France) equipped with a diode array detector (DAD) using a reverse-phase C18 column (Waters, Symmetry: 5 µm, 4.6 mm × 250 mm). The mobile phase was acetonitrile in ultra-pure water (30:70 v/v), and detection was carried out at the wavelength λ = 230 nm. The flow rate was 0.5 mL/min. The analysis was conducted in isocratic mode and the retention time of CBZ was about 20 min.

2.5.2. Identification of CBZ Metabolites

Organic reaction intermediates obtained under optimum process conditions were identified using an ultraperformance liquid chromatography-tandem mass spectrometry (UHPLC/MS/MS). The analyses were performed with an Acquity™ UHPLC H-Class system (Waters, Saint-Quentin-en-Yvelines, France) coupled with a Waters Acquity™ triple quadrupole mass spectrometer (MS/MS) equipped with an electrospray ionization source. The separation was achieved with a reversed-phase column BEH C18 (50 mm × 2.1 mm, 1.7 μm) placed in an oven at 45 °C. Elution was carried out with a mixture of acetonitrile/ultrapure water (30/70 ratio) containing 0.1% (v/v) of formic acid and in isocratic mode with a flow rate of 0.5 mL.min−1. For the analysis, a sample volume of 5 μL was used. The MS analyses were carried out in positive mode electrospray ionization.

2.5.3. Analysis of CBZ Bioaccumulation in A. braunii

Samples taken from the reference solutions of CBZ in BB and PP in the absence of algae were analyzed first using HPLC to identify the effect, if any, of the high temperature used to sterilize and dissolve the CBZ on the CBZ elimination. These preliminary results confirmed that in the absence of algae and at high temperature, no possible chemical degradation of CBZ could occur. Bioaccumulation was supposed to be the main removal mechanism of CBZ [34]. To check the fate of and mechanisms for CBZ elimination by A. braunii, cells were burst at 239 MPa using high-pressure cell disruption equipment (Constant systems, Daventry, UK), and the CBZ concentration was then measured by HPLC using the procedure described above. Cells lysis was confirmed by microscopic examination employing an electronic microscope (Olympus CX41, Tokyo, Japan) coupled to a camera (QImaging, Vancouver, Canada). This method gave access to bioaccumulated CBZ.

3. Results and Discussion

3.1. Effect of CBZ on the A. braunii Growth

The growth of the A. braunii was followed in both culture media in the absence and in the presence of CBZ to detect whether there would be any effect after the addition of CBZ at both initial inoculum concentrations of 104 and 105 cells/mL. The growth curves (data from the measurements using a Malassez cell) are reported in Figure 1 at the two initial inoculum concentrations. First, all the curves in the figure showed a short latent phase for both media without CBZ of about five days. However, the latent phase was longer when the pollutant was added to both media, at about eight days for both tested inoculum concentrations. This is probably due to the time necessary for the algae to adapt to the presence of the pollutant in the culture media.
When comparing growth rates, it was found that the algae in the absence of CBZ had, first, approximately the same growth rates in both media. Discrepancies emerged after 25 days, as growth rates suddenly rose steeply in BB, whereas it followed the same trend with a constant slope in PP. This might be due to the difference in nutritive content, particularly the nitrogen source: proteose peptone of bovine source in PP and EDTA in BB, respectively. As a result, growth was faster in BB than in PP in the absence of CBZ, but the exponential growth phase was shorter, and the death phase started earlier in BB. The consequence is that the maximum amount of algae biomass was higher in PP but was reached far later than in BB. However, it must be pointed out that the amount of algae present was still considerable after 60 days of incubation; due to the delayed maximum, the algae concentration was higher in PP, but the death rate was also higher, while it followed a smooth decreasing shape in BB. The comparison between Figure 1a,b also show that the algae concentrations exhibited exactly the same shape when the inoculum concentration was changed and that, at any time (t), the algae concentration was roughly proportional to the inoculum concentration in the absence of CBZ, which means that maximum algae concentrations were observed at the same time, independently from the inoculum concentration without CBZ.
Conversely, this pattern changed greatly when CBZ was present in both media in Figure 1. The addition of CBZ shortened the growth phase in both cases. Consequently, the onset of the death phase started earlier, a lower maximum biomass concentration was achieved than without CBZ, and an almost complete death was observed at the end of the 60 days of cultivation. However, differences emerging from the presence of CBZ were media-dependent. For example, the maximum algae concentration was observed in BB, while it was reported in PP without CBZ. The comparison of the results obtained for the cultures with and without CBZ highlighted that the maximum algae concentrations fell due to CBZ in PP, while they were only slightly decreased in BB. A striking result was also that the rapid increase of the algae concentration was forwarded in BB in Figure 1, but with growth rates nearly as high as without CBZ. This differed strongly in PP: although the maximum algae concentration was also forwarded, the values and the growth rate were always smaller than without CBZ. The comparison between Figure 1a,b also highlighted that if the maximum algae concentration was nearly divided by a factor of ten when the inoculum concentration was reduced from 105 to 104 cells/mL (as without CBZ), the time at which this maximum was achieved depended strongly on the inoculum concentration when CBZ was present in both media, which was not observed without CBZ. This showed clearly that the ratio between inoculum and CBZ concentrations played a key role in the A. braunii growth.
The differences between BB and PP could be related to a possible interaction of CBZ with the proteose peptone in PP, as CBZ is known to interact with proteins [38]. This would lead to a decrease in the amount of the proteins available for the algae to grow, and consequently to a weaker growth rate. However, no interaction between the proteose peptone medium and CBZ was found using HPLC, although this could vanish in the acetonitrile/water eluent. Another explanation is that CBZ is toxic for A. braunii, but that CBZ assimilation is less rapid in the presence of EDTA (nutritive source of C and N in BB), which also accelerated algae growth under these conditions. Conversely, the rapid algae death that followed could be attributed to a toxic effect of CBZ under EDTA limitation. This contradicts the results of Andreozzi et al. [23], who reported no toxicity of CBZ on A. braunii, but used a far lower initial concentration of CBZ, about 2.1 × 10−6 g/L. Finally, for the efficient and rapid growth of A. braunii microalgae, experimental data shows that PP should be preferred, but in the presence of CBZ, BB should be used because of the evidenced strong interaction between CBZ and algae growth.
Consequently, the influence of the initial CBZ concentration was investigated for both media and initial inoculum concentrations. Two initial CBZ contents (2.5 mg/L and, 10 mg/L, respectively) were investigated in this work. Experimental results showed that, for all the experiments, a higher concentration of the pollutant further shortened the exponential growth phase and lowered the obtained maximum algae concentration. Indeed, a high initial CBZ content forwarded the onset of the death phase and led to an earlier A. braunii death when compared to working at 2.5 mg/L of CBZ. Roughly, when the initial CBZ concentration was multiplied by a factor of four, the maximum concentration of algae was divided by the same factor. In addition, the growth profiles of the microalgae presented the same shape for both of the tested inoculum concentrations, but kinetics showed an interaction between CBZ and algae contents. Thus, when the initial inoculum concentration was multiplied by a factor of ten, the culture time necessary to reach the maximum algae concentration was divided approximately by a factor of two at constant initial CBZ concentration, whatever the considered initial pollutant concentration.
In conclusion, the obtained data clearly showed that the presence of the target compound did not repress A. braunii growth, despite its continuous exposure. For all tested conditions, the algae successfully grew in the presence of CBZ. This result is in agreement with previous studies that reported that the toxicity of organic compounds on cells could be attenuated by the uptake of non-toxic nutriments, such as the alternative carbon sources [39,40,41]. However, the initial CBZ concentration impaired the duration of the exponential phase of the growth phase, and the maximum cell number was reduced for all of the investigated conditions when the initial CBZ content was increased. Thus, the presence of the pollutant negatively affected the metabolic reactions associated with the algae’s main metabolism (growth media BB or PP without CBZ). These trends corroborate the probable toxicity of CBZ on A. braunii, which increased with the initial xenobiotic concentration. Similar results were reported by [42] for the growth of Staphylococcus xylosus in the presence of 2,4 dichlorophenol. In addition, the above results also indicate that an additional carbon source is needed to support cell growth in the presence of toxic compounds such as CBZ.

3.2. Effect of the Culture Conditions on the Pollutant Elimination

3.2.1. Effect of Culture Medium

The effect of the composition of culture media used for the A. braunii growth on the removal of CBZ was investigated. Figure 2 plots the time profiles for the residual CBZ concentration for both of the investigated culture media and an initial inoculum and pollutant concentration of 104 cells/mL and 10 mg/L, respectively. As shown in this figure, the evolution of CBZ concentration over time exhibited the same profile in both media. Three phases are really discriminated for both investigated media: first, it was constant or decreased slightly, and then, a steep decrease was reported, followed by a slow decrease of CBZ content. The key difference between BB and PP media was the period at which the steep decrease was reported: it occurred 12 days before in BB than in PP. BB was shown to be more favorable than PP for the CBZ elimination after 60 days of incubation, as a higher removal yield was achieved. For example, with an inoculum concentration of 104 cells/mL and an initial CBZ content of 10 mg/L, this yield was 70% ± 4 in BB medium, but only 66% ± 3 in PP. However, the BB medium also led to faster removal. This is in accordance with the results presented previously.
A. braunii cell concentration and CBZ elimination increased simultaneously, suggesting that CBZ could be used as a nutritive source by the microalgae, but other explanations can be found. For example, these trends could also be related to a bioaccumulative, biosorptive, or metabolic role of A. braunii, as the kinetics of these mechanisms are also proportional to the amount of algae. The results presented here are not unexpected, as algae are known to be able to degrade recalcitrant organic compounds. Indeed, Todd et al. [43] demonstrated the biotransformation of naphthalene and diaryl ethers, complex aromatic pollutants, by Chlorella, Ankistrodesmus, and Scenedesmus strains. Other studies reported that numerous algal strains induce biotransformation of exogenous steroids or low-molecular-weight phenols [44,45,46]. However, to the best of our knowledge, no previous study has demonstrated the removal of CBZ with algae pure cultures.
For a better understanding of experimental results, the growth curves and the residual CBZ concentration were plotted together in Figure 2 for each tested culture medium. The obtained data highlights an interaction between these two parameters: the delayed exponential growth phase in PP led to a delayed death phase and to a delayed onset of CBZ elimination. The role of A. braunii in CBZ elimination is, therefore, assured by comparing growth kinetics and the consequent CBZ amount in both culture media. Figure 2 showed a synchronized behavior between the A. braunii cell growth and the residual amount of CBZ. For example, when working at an initial inoculum concentration of 104 cells/mL and an initial CBZ concentration of 10 mg/L, the amount of CBZ at the very beginning of the culture was almost stable during the first five to eight days corresponding to the latent phase of the algae, but this was followed by a rapid decrease of CBZ concentration that took place at the time where the highest cell concentration is attained in both BB and PP. Thus, during the first phase, cells seem to prepare themselves to better assimilate the pollutant, and no appreciable changes in the biomass and CBZ concentration were observed. The improved performance of A. braunii in the removal of the xenobiotic compound becomes effective during the second phase when a rapid increase in the growth rate and pollutant consumption was observed. Finally, the removal of the target pollutant continues during the negative cell-growth period. A similar trend was observed by Saéz and Rittmann [39] for the elimination of 4-chlorophenol by Pseudomonas putida.
In conclusion, it can be noticed that the presented data assess the role of A. braunii on CBZ removal in both media and that CBZ removal was enhanced in BB in comparison to PP, noting that the growth of the algae was also favored in BB in the presence of CBZ. Moreover, it should be pointed out that the addition of conventional carbon sources in the culture medium can substantially modify the cell density, especially the extracellular enzymes under the considered conditions (as expected, when autotrophic growth is replaced by mixotrophic or heterotrophic conditions [47]) and as a consequence, the removal of the target compound. Other studies also reported for bacteria the positive role of additional carbon sources via a co-metabolism in the removal of toxic organic compounds [48,49,50,51]. Similarly, the literature reports that a primary electron-donor substrate is required to grow and sustain the biomass capable of degrading any co-metabolite, which is an obligate secondary substrate [39], which may also explain our experimental results.

3.2.2. Effect of Inoculum Concentration on the Removal of CBZ

To further clarify the effect of inoculum concentration, a new set of experiments was carried out in order to follow the effect of the initial inoculum concentrations (104 and 105 cells/mL) on the elimination of CBZ. The tests were carried out at both initial concentrations of CBZ (2.5 and 10 mg/L) and in both media (BB and PP). By comparing the HPLC data, it was shown that the removal yield of CBZ was enhanced and that the onset of CBZ elimination was forwarded by the highest initial A. braunii inoculum concentration (105 cells/mL) in both culture media and for both CBZ initial concentrations (Figure 3a,b).
For example, it was shown in these figures that in BB medium for the same initial CBZ concentration of 2.5 mg/L, an increase in the removal of CBZ from 80% to the highest elimination percentage attained of 87% in this work was observed after 60 days of incubation when the concentration of A. braunii increased from 104 to 105 cells/mL. However, it must be pointed out that the increase in removal yield due to higher inoculum content from 104 to 105 cells/mL never exceeded 8%, whatever the removal yield, and that it never approached complete removal. This may be explained as follows: While the additional amount of the eliminating agent, the algae, led to an improved elimination of CBZ, the medium was exhausted more rapidly due to a stronger competition on nutritive sources. As a result, the algae started more rapidly to consume CBZ as the only possible nutritional source, and a higher quantity of algae was removed from the water, but toxic effects of CBZ also grew simultaneously and prevented a complete elimination of this molecule.
In conclusion, CBZ removal could be enhanced by increasing the initial inoculum concentration and, more generally, by increasing the concentration of algae in both media, even though a complete elimination could not be achieved. It is important to notice that the concentrations tested in this work were higher than those presented in the influents of the wastewater treatment plants (in the µg/L range). However, it is also important to take into account that pharmaceuticals are not always detected at trace levels. Thus, in their work, Larsson et al. [52] reported high concentrations of pharmaceutical compounds for effluents from the healthcare industry: some of the mentioned molecules exhibited concentrations of the same order of magnitude as in this study (concentrations levels of 28, 2.4, and 1.3 mg/L were detected for ciprofloxacin, losartan, and cetirizine, respectively). The main objective of our work at this point was to evaluate if the considered algae are able to degrade this refractory pharmaceutical compound. The next step will be focused on the design of degradation tests in culture conditions closer to the real ones (micropollutant concentration, pH, temperature, and real wastewater).

3.2.3. Effect of CBZ Initial Concentration on Its Elimination

The effect of the initial concentration of CBZ was analyzed using experimental data at two initial CBZ concentrations of 2.5 and 10 mg/L, in both media, starting with both initial inoculum concentrations. Experimental results in Figure 4 showed that the increase of the initial CBZ concentration led to a decrease in the percentage of its elimination in both media. For instance, for the same A. braunii inoculum concentration 105 cells/mL, increasing the initial CBZ concentration from 2.5 to 10 mg/L in PP medium induced a decrease in the percentage of elimination from 79.2% to 66.0% after 60 days.
This increase also forwarded the onset of the elimination of CBZ, and it is worth noting that this corresponded to the relative growth of A. braunii at the time. This resulted in a more rapid elimination but with a lower final yield when starting with 10 mg/L of CBZ than when starting with 2.5 mg/L.
In fact, this is due, on the one side, to the more rapid consumption of the higher concentration of CBZ (10 mg/L), that turns out to be more toxic on A. braunii, leading to forwarded death, and on the other side, to the smaller amount of CBZ needed to be harvested by the same inoculum concentration when the initial CBZ content was 2.5 mg/L, leading to a higher elimination yield and reduced toxicity. Indeed, it must be pointed out that even though the yield decreased, the amount of CBZ removed strongly increased when its initial content was increased by a factor of four. This highlights the dual role of CBZ as a substrate and a toxic compound for microalgae.
In conclusion, the elimination yield of CBZ is enhanced when the initial CBZ concentration decreases, as this causes a less toxic effect on the algae and hence, and enhanced capability for approaching a "complete" CBZ elimination. This is an advantage, as CBZ is usually present as a micropollutant in water, but the drawback is that a lower CBZ content induces slower elimination kinetics. Moreover, the obtained data indicate that A. braunii is able to utilize the target compound either as carbon or nitrogen source, whatever these are made available by simpler substrates in the culture media.

3.2.4. Summary of the Removal Yield of CBZ after 60 Days

The removal yield of CBZ as a function of culture media, initial inoculum concentrations, and initial concentration of CBZ after 60 days has been summarized in Table 3. This table shows that the values ranged between 60% and 90%, which is quite high for a biological treatment, accounting for the biorefractory character of CBZ. This assesses the ability of A. braunii to remove CBZ. The results achieved in this work were quite similar to those reported for the degradation of carbamazepine or clofibric acid by white-rot fungi, including Trametes versicolor [53]. It is also important to note that the removal efficiencies obtained with A. braunii were much higher than the ones reported previously based on the activated sludge systems [54,55].
As discussed before, Table 3 emphasizes that the lowest yields in both media corresponded to a high initial concentration of 10 mg/L of CBZ. It also shows that for any value of the initial concentration of A. braunii in both media, the removal yield decreased by about 10% for a factor of four increase in the initial concentration of CBZ. In addition to this, for any value of the initial concentrations of CBZ, a factor of ten increase in the initial inoculum concentration leads to around a 7% increase in CBZ elimination. In other words, this shows that a factor of four increase of the initial concentration of CBZ had more influence than a factor of ten inoculum concentration on the elimination of CBZ. This demonstrates again the toxic effect of CBZ on A. braunii in the range of concentrations studied, but also that this toxicity did not significantly impair the ability of the algae to remove CBZ.

3.2.5. Fate of CBZ

Besides studying the removal of the considered pharmaceutical compound, it is very important to investigate and determine the mechanism involved in the elimination of this molecule. Generally, different mechanisms such as biosorption, accumulation, and biotransformation are involved in the removal of organic pollutants [56,57]. However, they cannot be clearly distinguished since, for example, live cells can also degrade adsorbed pollutants by intracellular mechanisms [58]. In an effort to understand the mechanisms involved in the removal of CBZ by A. braunii, it is important to assess the transformation products. The first insights emerged in the HPLC chromatograms (obtained by successive analysis), which showed the presence of a new peak corresponding to an extracellular compound produced by the algae, the concentration of which increased in parallel to the decrease of CBZ. Being identified at the same wavelength, this exhibited a shorter retention time (3 min, while the retention time of CBZ is 18 min). As a consequence, this seemed to indicate the possible biotransformation of CBZ into metabolites and can be considered as an indicator of the biodegradation process.
To confirm this result and better analyze the fate and the mechanisms of elimination of CBZ by A. braunii, cells were burst under high pressure and then imaged to ensure the complete bursting of the cells so that the CBZ accumulated in the cells, if any, was released in the medium and easy to quantify by HPLC analysis. Figure 5 shows the magnified images of the cells with the elongated shaped A. braunii before pressure treatment and the randomly shaped destroyed cells after the cell burst. This also makes clear, as shown in Figure 5a, the asexual mode and binary fission of A. braunii reproduction in the presence of the target compound.
HLPC analysis of the liquid phase after A. braunii bursting showed that a high quantity of eliminated CBZ was recovered into the medium. Figure 6 gives a comparison of the CBZ concentrations determined in burst and non-burst cells cultured in BB and PP media. It can clearly be concluded from this figure that the bioaccumulation of CBZ in the cells played a key role in the removal of this molecule by A. braunii. However, it could also be observed that the total amount of CBZ found in the solution even after the algal bursting only corresponded to 80% of the initial CBZ concentration, which was 2.5 mg/L. Surprisingly, the lowest amount of CBZ recovered in the medium corresponded to the case of the highest CBZ elimination, i.e., in the BB medium starting with 105 cells/mL of A. braunii and 2.5 mg/L of CBZ.
Moreover, the HPLC data analysis also highlighted that the surface area of both the CBZ and the other peak increased simultaneously in both media after bursting A. braunii cells and that the area of the second peak was maximized in the BB medium starting with 105 cells/mL of A. braunii and 2.5 mg/L of CBZ (data not shown). These results confirm that these algae may take up this substrate into the cell, and another mechanism, namely biodegradation, occurs intracellularly in parallel to the bioaccumulation of CBZ, even though biosorption of this molecule by the microalgae is possible, it is usually negligible [34].
In addition, to confirm the presence of the transformation products generated by the CBZ transformation by A. braunii, MS analyses were carried out in positive mode electrospray ionization. UHPLC/MS/MS data showed the qualitative presence of three different metabolites in the cell-free supernatants (Table 4), confirming the biotransformation role of A. braunii cells on CBZ. The most abundant compound detected was 10-hydroxycarbamazepine (10-OH CBZ). From these results, 10-OH CBZ was the one mostly resembling CBZ; we could be sure that this metabolite is the one that appeared on the HPLC at earlier times at the same wavelength. The other detected metabolites did not appear in the HPLC chromatograms, despite the sensitivity of this analytical method. This suggests that these are unstable and/or are present in concentrations that are below the instrumental limit of detection (LOD) of the used HPLC method.
Based on the chemical structure of the organic intermediates (degradation products), a possible mechanism of the formation of 10-OH CBZ consisting of a two-step reaction could be explained by the epoxidation of carbamazepine, followed by a direct ring-opening of the resulting epoxide and the formation of the resulting alcohol is proposed in Figure 7.
From these data, it can be concluded that in the case of A. braunii cells, the major mechanism involved in the elimination of CBZ was bioaccumulation (at about 80%). It can be supposed that the other main mechanism of CBZ removal was the biometabolic oxidative transformation of CBZ mainly into 10-OH CBZ.
To the authors’ knowledge, this is the first study reporting on the detection CBZ intermediates formed during the CBZ biodegradation by A. braunii. However, more detailed analysis is needed in the future in order to clarify the mechanism of the biotransformation step and to extend the knowledge on the role of A. braunii in the elimination of this refractory pharmaceutic compound.

4. Conclusions

An original biological treatment for the removal of carbamazepine (CBZ), a highly persistent molecule in wastewater treatment plants, was investigated in this work using the algae Ankistrodesmus braunii (A. braunii). Experimental data demonstrated first that CBZ is efficiently removed; up to 87.6% CBZ was found to be eliminated at high A. braunii concentrations of 105 cells/mL, starting with an initial CBZ concentration of 2.5 mg/L. The removal of CBZ was enhanced by increasing the concentration of algae and impaired by initial higher concentrations of CBZ after 60 days. On the contrary, from a kinetic point of view, high CBZ contents and lower inoculum concentrations promoted a more rapid elimination of CBZ, despite the lower final values of the removal yield. This highlights the dual role of CBZ that is a nutritive source for the algae but seems to be toxic at a high dose. An analysis of the fate of CBZ confirmed that about 80% of the CBZ removed was accumulated in A. braunii cells, but the presence of several metabolites found in the cell-free supernatant and in the cells indicated that biotransformation of CBZ also occurred in parallel: three main metabolites of CBZ have been identified, and the surface area of secondary peaks in HPLC chromatograms was clearly negatively correlated with the peak of CBZ.
Finally, all these results prove that a biological treatment using A. braunii could be more efficient for the removal CBZ from water than many other conventional techniques, either biological or physicochemical. However, treatment time remained long, and its effectiveness depends on other carbon sources. So, further work is still needed to circumvent these drawbacks, first to optimize the parameters of the A. braunii growth, and then to investigate the ability of A. braunii to remove CBZ in real water in relation to the influence of the culture media used in this work.

Author Contributions

Conceptualization, C.V., T.Y., G.E.B., F.A., and L.F.; formal analysis, N.F., H.B., and L.F.; investigation, T.Y., N.F., and L.F.; methodology, T.Y., H.B., G.E.B., and C.V.; resources, F.A., and L.F.; software, N.F., and F.A.; supervision, C.V., F.A., G.E.B., and L.F.; validation, T.Y., N.F., H.B., F.A., G.E.B., C.V., and L.F.; Writing—Original draft, T.Y., C.V., and L.F. All authors have read and agreed to the published version of the manuscript.

Funding

Part of this work was supported by the project “Excellence, performance and competitiveness in the Research, Development and Innovation activities” at “Dunărea de Jos University of Galati”, acronym “EXPERT”, financed by the Romanian Ministry of Research and Innovation in the framework of Programme 1—Development of the national research and development system, Sub-programme 1.2—Institutional Performance—Projects for financing excellence in Research, Development and Innovation, Contract No. 14PFE/17.10.2018.

Acknowledgments

L.F. and C.V. are thankful to the Chemical and Process Engineering laboratory for the analytical support in the identification of the biodegradation metabolites.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schwarzenbach, R.P.; Escher, B.I.; Fenner, K.; Hofstetter, T.B.; Jonson, C.A.; von Gunten, U.; Wehrli, B. The challenge of micropollutants in aquatic systems. Science 2006, 313, 1072–1077. [Google Scholar] [CrossRef] [PubMed]
  2. Semrany, S.; Favier, L.; Djelal, H.; Taha, S.; Amrane, A. Bioaugmentation: Possible solution in the treatment of Bio-refractory organic compounds (Bio-ROCs). Biochem. Eng. J. 2012, 69, 75–86. [Google Scholar] [CrossRef]
  3. Yehya, T.; Chafi, M.; Balla, W.; Vial, C.; Essadki, A.; Gourich, B. Experimental analysis and modeling of denitrification using electrocoagulation process. Sep. Purif. Technol. 2014, 132, 644–654. [Google Scholar] [CrossRef]
  4. Doerr-MacEwen, N.A.; Haight, M.E. Expert stakeholders’ views on the management of human pharmaceuticals in the environment. Environ. Manag. 2006, 38, 853–866. [Google Scholar] [CrossRef]
  5. Stackelber, P.E.; Furlon, T.E.; Meyer, M.T.; Zaugg, S.D.; Henderson, A.K.; Reissman, D.B. Persistence of pharmaceutical compounds and other organic wastewater contaminants in a conventional drinking-water treatment plant. Sci. Total Environ. 2004, 329, 99–113. [Google Scholar] [CrossRef] [Green Version]
  6. Mudgal, S.; De Toni, A.; Lockwood, S.; Salès, K.; Backhaus, T.; Sorensen, B.H. Study on the Environmental Risks of Medicinal Products, BIO Intelligence Service, Executive Agency for Health and Consumers. 2013. Available online: http://ec.europa.eu/health/files/environment/study_environment.pdf (accessed on 7 November 2020).
  7. Mohapatra, D.P.; Brar, S.K.; Tyagi, R.D.; Picard, P.; Surampalli, R.Y. Analysis and advanced oxidation treatment of a persistent pharmaceutical compound in wastewater and wastewater sludge-carbamazepine. Sci. Total Environ. 2014, 470–471, 58–75. [Google Scholar] [CrossRef]
  8. Favier, L.; Simion, A.I.; Rusu, L.; Pacala, M.L.; Grigoras, C.; Bouzaza, A. Removal of an organic refractory compound by photocatalysis in batch reactor—kinetic studies. Environ. Eng. Manag. J. 2015, 14, 1327–1328. [Google Scholar] [CrossRef]
  9. Thacker, P.D. Pharmaceutical data elude researchers. Environ. Sci. Technol. 2005, 39, 193A–194A. [Google Scholar]
  10. Hai, F.I.; Li, X.; Price, W.E.; Nghiem, L.D. Removal of carbamazepine and sulfamethoxazole by MBR under anoxic and aerobic conditions. Bioresour. Technol. 2011, 102, 10386–10390. [Google Scholar] [CrossRef] [Green Version]
  11. Kosjek, T.; Andersen, H.; Kompare, B.; Ledin, A.; Heath, E. Fate of carbamazepine during water treatment. Environ. Sci. Technol. 2009, 43, 6256–6261. [Google Scholar] [CrossRef]
  12. Yehya, T.; Favier, L.; Kadmi, Y.; Audonnet, F.; Fayad, N.; Gavrilescu, M.; Vial, C. Removal of carbamazepine by electrocoagulation: Investigation of some key operational parameters. Environ. Eng. Manag. J. 2015, 14, 639–645. [Google Scholar]
  13. Miao, X.S.; Yang, J.J.; Metcalfe, C.D. Carbamazepine and its metabolites in wastewater and in biosolids in a municipal wastewater treatment plant. Environ. Sci. Technol. 2005, 39, 7469–7475. [Google Scholar] [CrossRef] [PubMed]
  14. Li, A.; Cai, R.; Cui, D.; Qiu, T.; Pang, C.; Yang, J.; Ma, F.; Ren, N. Characterization and biodegradation kinetics of a new cold-adapted carbamazepine-degrading bacterium, Pseudomonas sp. CBZ-4. J. Environ. Sci. 2013, 25, 2281–2290. [Google Scholar] [CrossRef]
  15. Miao, X.S.; Metcalfe, C.D. Determination of carbamazepine and its metabolites in aqueous samples using liquid chromatography-electrospray tandem mass spectrometry. Anal. Chem. 2003, 75, 3731–3738. [Google Scholar] [CrossRef] [PubMed]
  16. Heberer, T. Occurrence, fate, and removal of pharmaceutical residues in the aquatic environment: A review of recent research data. Toxicol. Lett. 2002, 131, 5–17. [Google Scholar] [CrossRef]
  17. Metcalfe, C.D.; Koenig, B.G.; Bennie, D.T.; Servos, M.; Ternes, T.A.; Hirsch, R. Occurrence of neutral and acidic drugs in the effluents of Canadian sewage treatment plants. Environ. Chem. Lett. 2003, 22, 2872–2880. [Google Scholar] [CrossRef] [PubMed]
  18. Hai, F.I.; Yang, S.; Asif, M.B.; Sencadas, V.; Shawkat, S.; Sanderson-Smith, M.; Gorman, J.; Xu, Z.-Q.; Yamamoto, K. Carbamazepine as a possible anthropogenic marker in water: Occurrences, toxicological effects, regulations and removal by wastewater treatment technologies. Water 2018, 10, 107. [Google Scholar] [CrossRef] [Green Version]
  19. Sipma, J.; Osuna, B.; Collado, N.; Monclus, H.; Ferrero, V.; Comas, J.; Rodriguez-Roda, I. Comparison of removal of pharmaceuticals in MBR and activated sludge systems. Desalination 2010, 250, 653–659. [Google Scholar] [CrossRef]
  20. Popa Ungureanu, C.; Favier, L.; Bahrim, G.; Amrane, A. Response surface optimization of experimental conditions for carbamazepine biodegradation by Streptomyces MIUG 4.89. New Biotechnol. 2015, 32, 347–357. [Google Scholar] [CrossRef]
  21. Zhang, Y.J.; Geissen, S.U.; Gal, C. Carbamazepine and diclofenac: Removal in wastewater treatment plants and occurrence in water bodies. Chemosphere 2008, 73, 1151–1161. [Google Scholar] [CrossRef]
  22. Hata, T.; Shintate, H.; Kawai, S.; Okamura, H.; Nishida, T. Elimination of carbamazepine by repeated treatment with laccase in the presence of 1-hydroxybenzotriazole. J. Hazard Mater. 2010, 181, 1175–1178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Andreozzi, R.; Marotta, R.; Pinto, G.; Pollio, A. Carbamazepine in water: Persistence in the environment, ozonation treatment and preliminary assessment on algal toxicity. Water Res. 2002, 36, 2869–2877. [Google Scholar] [CrossRef]
  24. Wang, Q.; Liu, W.; Li, X.; Wang, R.; Zhai, J. Carbamazepine toxicity and its co-metabolic removal by the cyanobacteria Spirulina platensis. Sci. Total Environ. 2020, 706, 135686. [Google Scholar] [CrossRef]
  25. Matamoros, V.; Uggtetti, E.; Garcia, J.; Bayona, J.P. Assessment of the mechanisms involved in the removal of emerging contaminants by microalgae from wastewater: A laboratory scale study. J. Hazard Mater. 2016, 301, 197–205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Xiong, J.-Q.; Kurade, M.B.; Abou-Shanab, R.A.I.; Ji, M.-K.; Choi, J.; Kim, J.O.; Jeon, B.-H. Biodegradation of carbamazepine using freshwater microalgae Chlamydomonas Mexicana and Scenedesmus obliquus and the determination of its metabolic fate. Bioresour. Technol. 2016, 205, 183–190. [Google Scholar] [CrossRef]
  27. García-Galán, M.J.; Arashiro, L.; Santos, L.H.M.L.M.; Insa, S.; Rodríguez-Mozaz, S.; Barceló, D.; Ferrer, I.; Garfí, M. Fate of priority pharmaceuticals and their main metabolites and transformation products in microalgae-based wastewater treatment systems. J. Hazard Mater. 2020, 390, 121771. [Google Scholar] [CrossRef] [Green Version]
  28. De Wilt, A.; Butkovskyi, A.; Tuantet, K.; Hernandez Leal, L.; Fernandes, T.V.; Langenhoff, A.; Zeeman, G. Micropollutant removal in an algal treatment system fed with source separated wastewater streams. J. Hazard Mater. 2016, 304, 84–92. [Google Scholar] [CrossRef]
  29. Deegan, A.M.; Shaik, B.; Nolan, K.; Urell, K.; Oelgemöller, M.; Tobin, J.; Morrissey, A. Treatment options for wastewater effluents from pharmaceutical companies. Int. J. Environ. Sci. Technol. 2011, 8, 649–666. [Google Scholar] [CrossRef] [Green Version]
  30. Hua, W.Y.; Bennett, E.R.; Letcher, R.J. Ozone treatment and the depletion of detectable pharmaceuticals and atrazine herbicide in drinking water sourced from the upper Detroit River, Ontario, Canada. Water Res. 2006, 40, 2259–2266. [Google Scholar] [CrossRef]
  31. Mohapatra, D.P.; Brar, S.K.; Tyagi, R.D.; Picard, P.; Surampalli, R.Y. A comparative study of ultrasonication, Fenton’s oxidation and ferro-sonication treatment for degradation of CBZ from wastewater and toxicity test by Yeast Estrogen Screen (YES) assay. Sci. Total Environ. 2013, 447, 280–285. [Google Scholar] [CrossRef]
  32. Doll, T.; Frimmel, F. Cross-flow microfiltration with periodical back-washing for photocatalytic degradation of pharmaceutical and diagnostic residues-evaluation of the long-term stability of the photocatalytic activity of TiO2. Water Res. 2005, 39, 847–854. [Google Scholar] [CrossRef] [PubMed]
  33. Shu, Z.; Bolton, J.R.; Belosevic, M.; El Din, J.M. Photodegradation of emerging micropollutants using the medium-pressure UV/H2O2 Advanced Oxidation Process. Water Res. 2013, 47, 2881–2889. [Google Scholar] [CrossRef] [PubMed]
  34. Xiong, J.-Q.; Kurade, M.B.; Jeon, B.-H. Can Microalgae Remove Pharmaceutical Contaminants from Water? Trends Biotechnol. 2018, 36, 30–44. [Google Scholar] [CrossRef] [PubMed]
  35. Chong, M.N.; Jin, B. Photocatalytic treatment of high concentration carbamazepine in synthetic hospital wastewater. J. Hazard Mater. 2012, 199–200, 135–142. [Google Scholar] [CrossRef]
  36. Truhaut, R.; Ferard, J.F.; Jouany, J.M. Cadmium IC50 determinations on Chlorella vulgaris involving different parameters. Ecotoxicol. Environ. Saf. 1980, 4, 215–223. [Google Scholar] [CrossRef]
  37. Iqbal, M.; Grey, D.; Sepan-Sarkissian, G.; Fowler, M.W. Interactions between the unicellular red alga Porphyridiumcruentum and associated bacteria. Eur. J. Phycol. 1993, 28, 63–68. [Google Scholar] [CrossRef]
  38. Fortuna, A.; Alves, G.; Soares-da-Silva, P.; Falcão, A. Pharmacokinetics, brain distribution and plasma protein binding of carbamazepine and nine derivatives: New set of data for predictive ADME models. Epilepsy Res. 2013, 107, 37–50. [Google Scholar] [CrossRef] [PubMed]
  39. Saéz, P.B.; Rittmann, B.E. Biodegradation kinetics of a mixture containing a primary substrate (phenol) and an inhibitory co-metabolite (4-chlorophenol). Biodegradation 1993, 4, 3–21. [Google Scholar] [CrossRef] [PubMed]
  40. Gauthier, H.; Yargeau, V.; Cooper, D.G. Biodegradation of pharmaceuticals by Rhodococcus rhodochrous and Aspergillus niger by co-metabolism. Sci. Total Environ. 2010, 408, 1701–1706. [Google Scholar] [CrossRef] [Green Version]
  41. Popa, C.; Favier, L.; Dinica, R.; Semrany, S.; Djelal, H.; Amrane, A.; Bahrim, G. Potential of newly wild Streptomyces stains as agents for the biodegradation of a recalcitrant pharmaceutical, carbamazepine. Environ. Technol. 2014, 35, 3082–3091. [Google Scholar] [CrossRef] [PubMed]
  42. Ziagova, M.; Kyriakou, G.; Liakopoulou-Kyriakides, M. Co-metabolism of 2,4 dichlorophenol and 4-Cl-m-cresol in the presence of glucose as an easily assimilated carbon source by Staphylococcus xylosus. J. Hazard Mater. 2009, 163, 383–390. [Google Scholar] [CrossRef] [PubMed]
  43. Todd, S.J.; Cain, R.B.; Schmidt, S. Biotransformation of naphthalene and diaryl ethers by green microalgae. Biodegradation 2002, 12, 229–238. [Google Scholar] [CrossRef] [PubMed]
  44. Pollio, A.; Pinto, G.; Della Greca, M.; De Maio, A.; Fiorentino, A.; Previtera, L. Progesterone bioconversion by microalgal cultures. Phytochemistry 1994, 37, 1269–1272. [Google Scholar] [CrossRef]
  45. Pinto, G.; Pollio, A.; Previtera, L.; Stanzione, M.; Temussi, F. Removal of low-molecular weight phenols from olive oil mill wastewater using microalgae. Biotechol. Lett. 2003, 25, 1657–1659. [Google Scholar] [CrossRef] [PubMed]
  46. Della Greca, M.; Pinto, G.; Pollio, A.; Previtera, L.; Temussi, F. Biotransformation of sinapic acid by the green algae Stichococcus bacillaris 155LTAP and Ankistrodesmus braunii C202.7a. Tetrahedron Lett. 2003, 44, 2779–2780. [Google Scholar] [CrossRef]
  47. Vidotti, A.D.S.; Riaño-Pachón, D.M.; Mattiello, L.; Albuquerque Giraldia, L.; Winck, F.V.; Franco, T.T. Analysis of autotrophic, mixotrophic and heterotrophic phenotypes in the microalgae Chlorella vulgaris using time-resolved proteomics and transcriptomics approaches. Algal Res. 2020, 51, 102060. [Google Scholar] [CrossRef]
  48. Larcher, S.; Yargeau, V. Biodegradation of 17α-ethinylestradiol by heterotrophic bacteria. Environ. Pollut. 2013, 173, 17–22. [Google Scholar] [CrossRef]
  49. Popa Ungureanu, C.; Favier, L.; Bahrim, G. Screening of soil bacteria as potential agents for drugs biodegradation: A case study with clofibric acid. J. Chem. Technol. Biotechnol. 2016, 91, 1646–1653. [Google Scholar] [CrossRef]
  50. Hemidouche, S.; Favier, L.; Amrane, A.; Dabert, P.; Le Roux, S.; Sadaoui, Z. Successful Biodegradation of a Refractory Pharmaceutical Compound by an Indigenous Phenol-Tolerant Pseudomonas aeruginosa Strain. Water Air Soil Pollut. 2018, 229, 103. [Google Scholar] [CrossRef]
  51. Ungureanu, C.V.; Favier, L.; Bahrim, G.E. Improving Biodegradation of Clofibric Acid by Trametes pubescens through the Design of Experimental Tools. Microorganisms 2020, 8, 1243. [Google Scholar] [CrossRef]
  52. Larsson, D.G.; de Pedro, C.; Paxeus, N. Effluent from drug manufactures contains extremely high levels of pharmaceuticals. J. Hazard Mater. 2007, 148, 751–755. [Google Scholar] [CrossRef] [PubMed]
  53. Marco-Urrea, E.; Pérez-Trujillo, M.; Vincent, T.; Caminal, G. Ability of white-rot fungi to remove selected pharmaceuticals and identification of degradation products of ibuprofen by Trametes versicolor. Chemosphere 2009, 74, 765–772. [Google Scholar] [CrossRef] [PubMed]
  54. Oppenheimer, J.; Stephenson, R.; Burbano, A.; Liu, L. Characterizing the passage of personal care products through the wastewater treatment process. Water Environ. Res. 2007, 79, 2564–2577. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Stackelberg, P.E.; Gibs, J.; Furlong, E.T.; Meyer, M.T.; Zaugg, D.; Lippincott, R.L. Efficiency of the conventional drinking-water-treatment process in the removal of pharmaceuticals and other organic compounds. Sci. Total Environ. 2007, 377, 255–272. [Google Scholar] [CrossRef]
  56. Dotto, G.L.; Cadaval, T.R.S.; Pinto, L.A.A. Use of Spirulina platensis micro and nanoparticles for the removal synthetic dyes from aqueous solutions by biosorption. Process Biochem. 2012, 9, 1335–1343. [Google Scholar] [CrossRef]
  57. Denizli, A.; Cihangir, N.; Rad, A.Y.; Taner, M.; Alsancak, G. Removal of chlorophenols from synthetic solutions using Phanerochaete chrysosporium. Process Biochem. 2004, 12, 2025–2030. [Google Scholar] [CrossRef]
  58. Blánquez, P.; Casas, N.; Font, X.; Gabarell, X.; Sarrà, M.; Caminal, G.; Vincent, T. Mechanism of textile metal dye biotransformation by Trametes versicolor. Water Res. 2004, 38, 2166–2172. [Google Scholar] [CrossRef]
Applsci 10 08034 g001 550

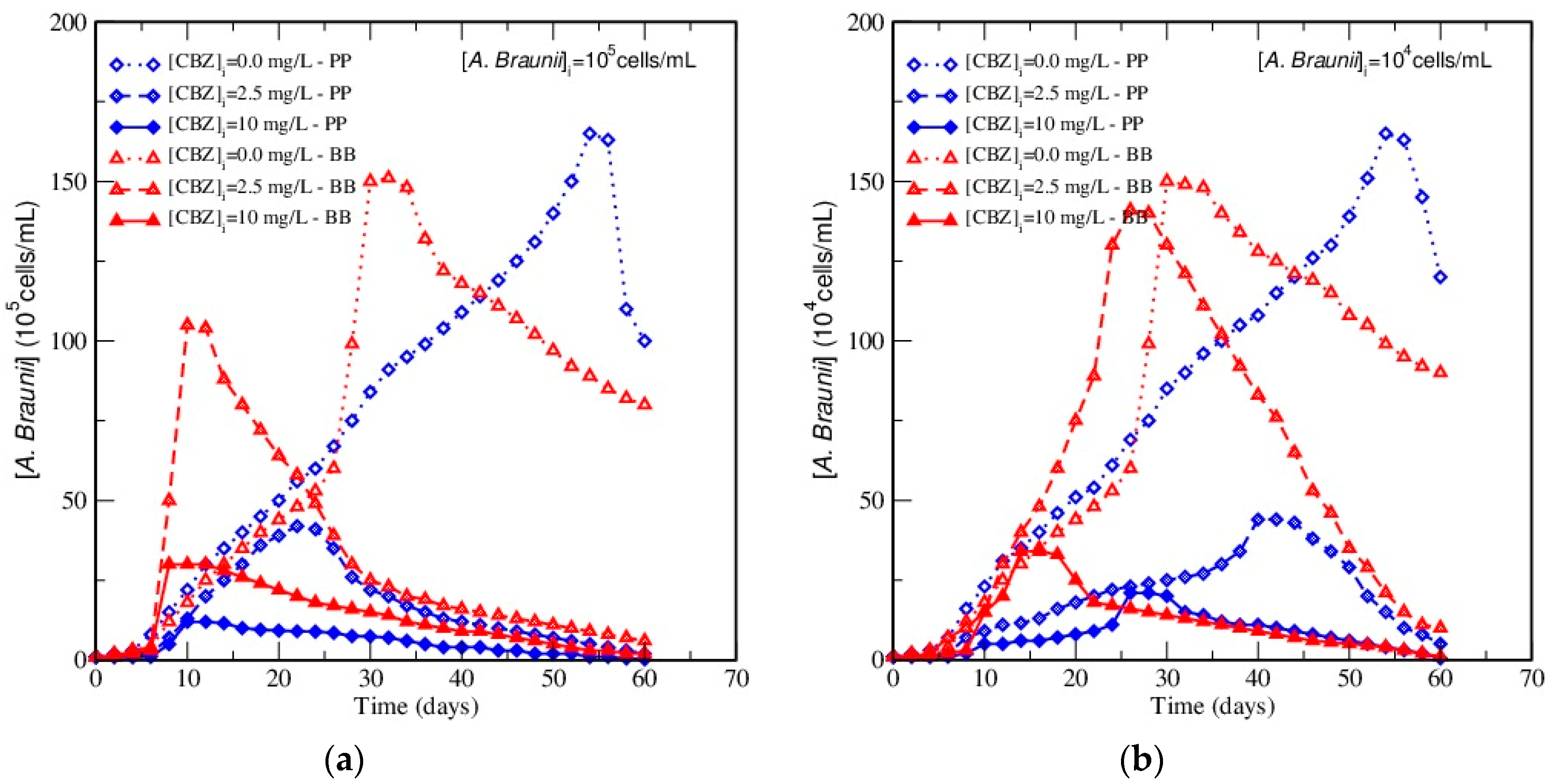

Figure 1. Growth curves of Ankistrodesmus braunii cultured in Bold’s Basal (BB) and proteose peptone (PP) media at different initial CBZ concentrations (0.0, 2.5, and 10 mg/L, respectively) for an initial inoculum concentration (a) 105 cells/mL, (b) 104 cells/mL, during 60 days of incubation.
Figure 1. Growth curves of Ankistrodesmus braunii cultured in Bold’s Basal (BB) and proteose peptone (PP) media at different initial CBZ concentrations (0.0, 2.5, and 10 mg/L, respectively) for an initial inoculum concentration (a) 105 cells/mL, (b) 104 cells/mL, during 60 days of incubation.
Applsci 10 08034 g001
Applsci 10 08034 g002 550

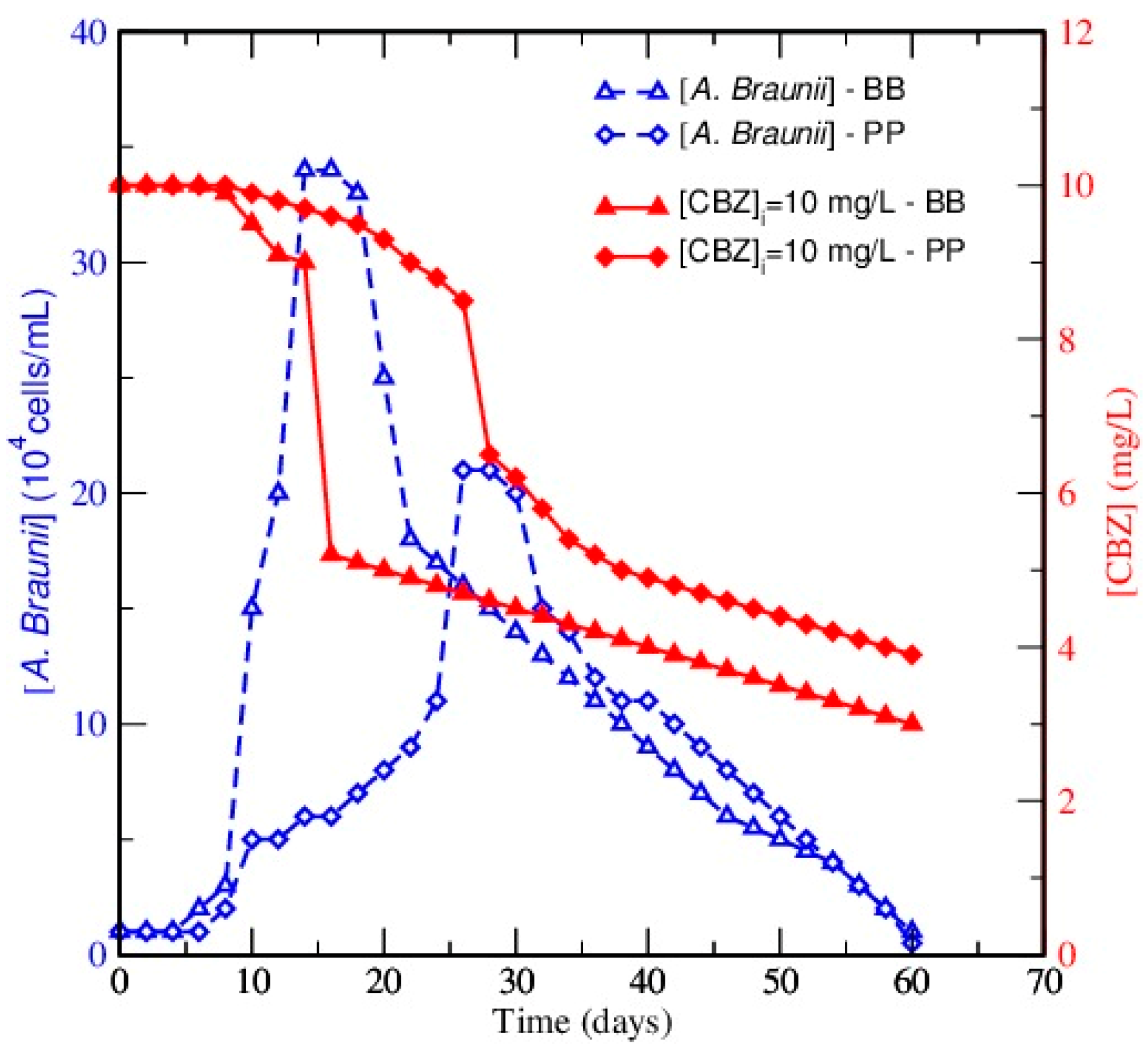

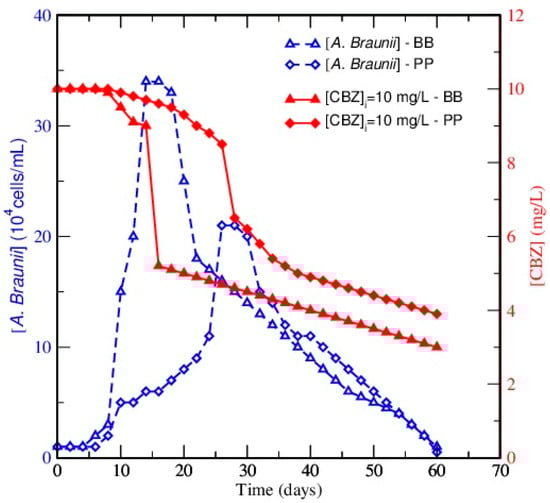

Figure 2. Effect of the culture media on CBZ removal for an initial pollutant concentration of 10 mg/L and an initial inoculum concentration of 104 cells/mL.
Figure 2. Effect of the culture media on CBZ removal for an initial pollutant concentration of 10 mg/L and an initial inoculum concentration of 104 cells/mL.
Applsci 10 08034 g002
Applsci 10 08034 g003 550

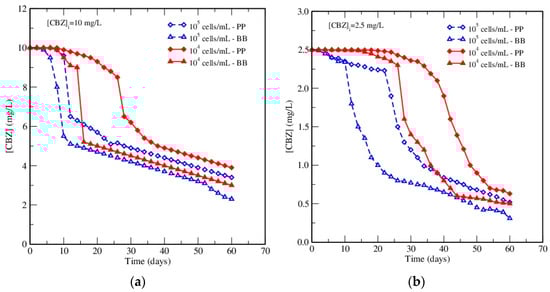

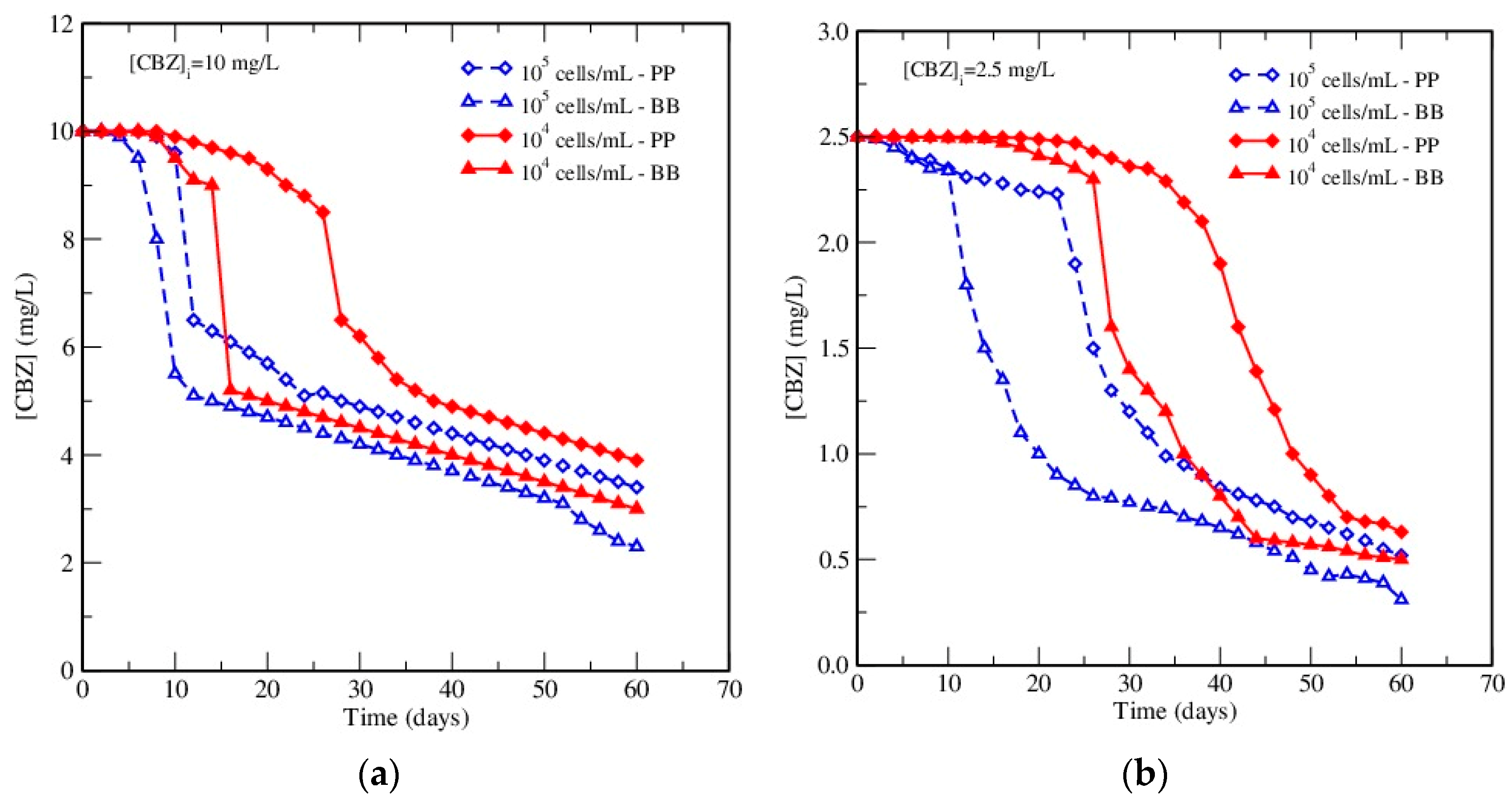

Figure 3. Effect of inoculum concentration on the removal of CBZ in both media at: (a) 10 mg/L, and (b) 2.5 mg/L of CBZ.
Figure 3. Effect of inoculum concentration on the removal of CBZ in both media at: (a) 10 mg/L, and (b) 2.5 mg/L of CBZ.
Applsci 10 08034 g003
Applsci 10 08034 g004 550

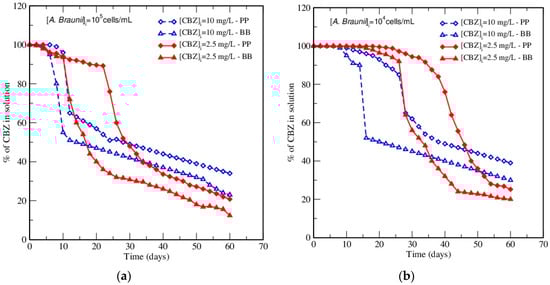

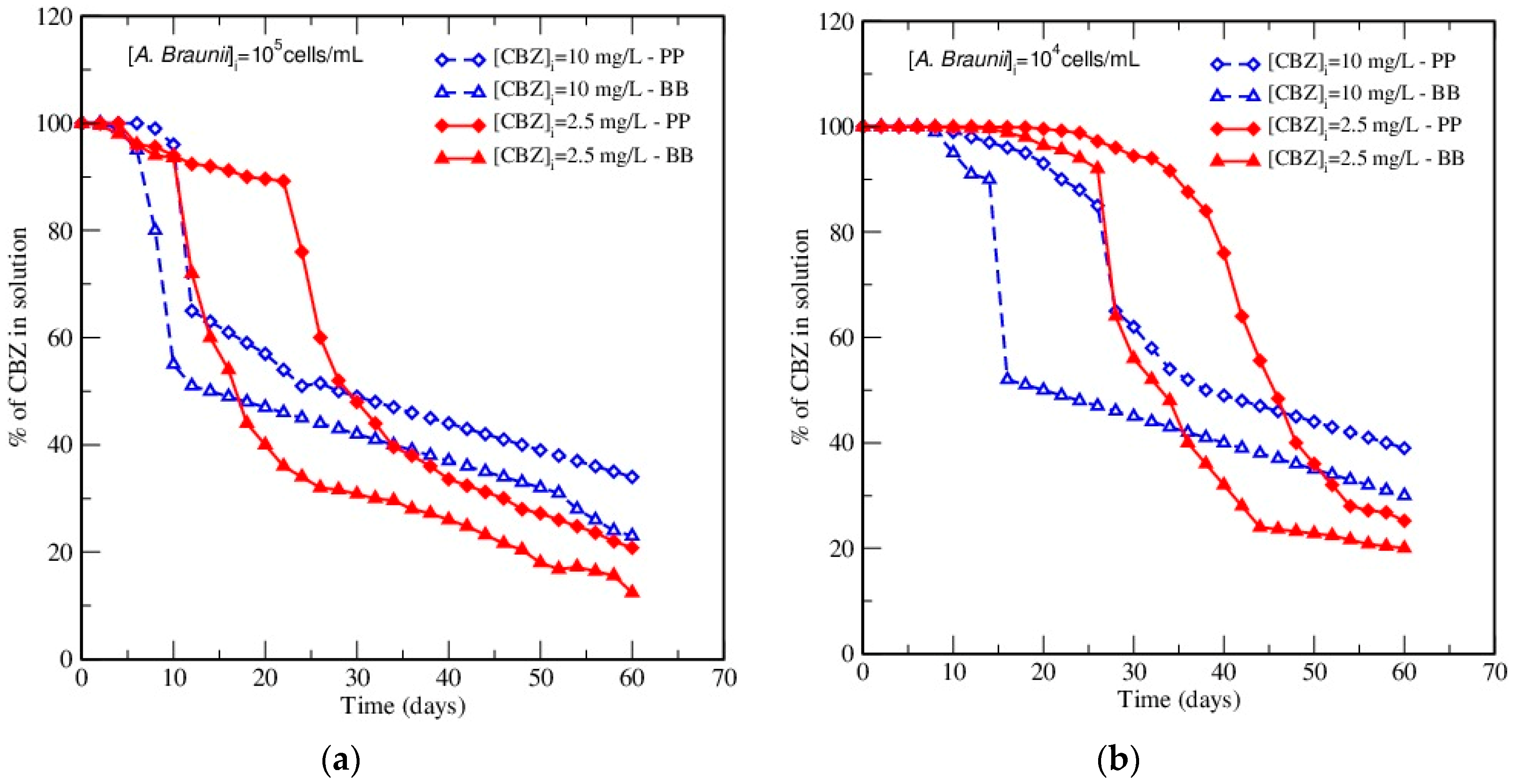

Figure 4. Effect of CBZ initial concentration on the elimination of CBZ at initial A. braunii content: (a) 105 cells/mL, and (b) 104 cells/mL.
Figure 4. Effect of CBZ initial concentration on the elimination of CBZ at initial A. braunii content: (a) 105 cells/mL, and (b) 104 cells/mL.
Applsci 10 08034 g004
Applsci 10 08034 g005 550
Figure 5. Magnified images of A. braunii, (a) non-burst, where the asexual reproduction of binary fission is shown in the circle, and (b) burst cells.
Figure 5. Magnified images of A. braunii, (a) non-burst, where the asexual reproduction of binary fission is shown in the circle, and (b) burst cells.
Applsci 10 08034 g005
Applsci 10 08034 g006 550

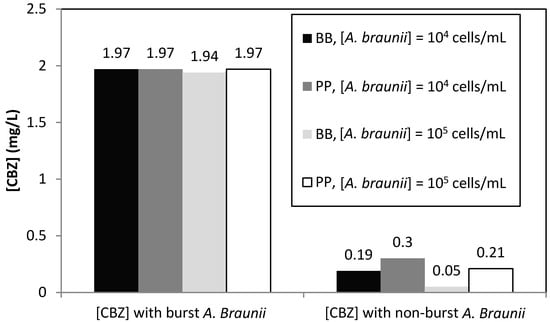

Figure 6. CBZ concentration in BB and PP media with burst and non-burst cells for an initial CBZ concentration of 2.5 mg/L and an inoculum concentration of A. braunii between 104 and 105 cells/mL.
Figure 6. CBZ concentration in BB and PP media with burst and non-burst cells for an initial CBZ concentration of 2.5 mg/L and an inoculum concentration of A. braunii between 104 and 105 cells/mL.
Applsci 10 08034 g006
Applsci 10 08034 g007 550

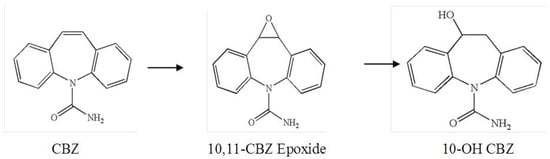

Figure 7. Proposed oxidation reaction of CBZ by A. braunii and the formation of 10-OH CBZ.
Figure 7. Proposed oxidation reaction of CBZ by A. braunii and the formation of 10-OH CBZ.
Applsci 10 08034 g007
Table
Table 1. Therapeutic use and physicochemical properties of carbamazepine.
Table 1. Therapeutic use and physicochemical properties of carbamazepine.
Carbamazepine
Therapeutic classAntiepileptic
FormulaC15H12N2O
Structure Applsci 10 08034 i001
Molar mass (g/mol)236.27
pKa at 25 °C14
Boiling point (°C)411
Solubility in water at 25 °C (mg/L)17.66 a
Log Kow — Octanol Water Partition Coefficient2.25
Koc — Adsorption Coefficient (mL/g)510
Henry’s constant (atm.m3/mol) at 25 °C1.08 × 10−10 a
a [8].
Table
Table 2. Removal of carbamazepine (CBZ) from aqueous solutions by microalgae.
Table 2. Removal of carbamazepine (CBZ) from aqueous solutions by microalgae.
Algal SpeciesCultivation Conditions
(Culture Media, Temperature and Cultivation Time)		CBZ ConcentrationRemoval EfficiencyReference
Spirulina platensis FACHB-431Zarrouk medium, 27 ± 1 °C,
10 days		1–5 mg/L
1–5 mg/L +0.5 g/L glucose		30–16 (%)
50–20 (%)		[24]
Chlorella sp. and Scenedesmus sp.Synthetic wastewater, 23 ± 5 °C, 10 days5 µg/L20%[25]
Ceratozamia mexicanaBold’s basal medium 27 °C,
10 days		1–25 mg/L37–21%[26]
Scenedesmus obliquusBold’s basal medium 27 °C,
10 days		1–25 mg/L30–13%[26]
Microalgae consortiaDomestic wastewater, 21 °C, HRT = 4.5 days<33 ng/Lno removal[27]
Chlorella sorokinianaAnaerobic black water 35 °C, 31 days100–35 µg/L10%[28]
Table
Table 3. Removal yield of CBZ determined by HPLC for an initial CBZ content between 2.5 and 10 mg/L, and an inoculum concentration between 104 and 105 cells/mL after 60 days.
Table 3. Removal yield of CBZ determined by HPLC for an initial CBZ content between 2.5 and 10 mg/L, and an inoculum concentration between 104 and 105 cells/mL after 60 days.
Initial Concentration of CBZInitial Concentration of A. Braunii (Ci)CBZ % of Elimination in PP MediumCBZ % of Elimination in BB Medium
2.5 mg/L104 cells/mL74.8%80.0%
2.5 mg/L105 cells/mL79.2%87.6%
10 mg/L104 cells/mL61.0%70.0%
10 mg/L105 cells/mL66.0%77.0%
Table
Table 4. CBZ metabolites detected by ultraperformance liquid chromatography-tandem mass spectrometry (UHPLC/MS/MS).
Table 4. CBZ metabolites detected by ultraperformance liquid chromatography-tandem mass spectrometry (UHPLC/MS/MS).
MetaboliteExperimental m/z
Applsci 10 08034 i002
1: 10-hydroxycarbamazepine
(10-OH CBZ)		255
Applsci 10 08034 i003
2: 4-carboxy-10-carboxamido-
9(10H)-acridone		283
Applsci 10 08034 i004
3: 10-hydroxy-11-oxa-
carbamazepine		226
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yehya, T.; Favier, L.; Audonnet, F.; Fayad, N.; Bahry, H.; Bahrim, G.E.; Vial, C. Towards a Better Understanding of the Removal of Carbamazepine by Ankistrodesmus braunii: Investigation of Some Key Parameters. Appl. Sci. 2020, 10, 8034. https://doi.org/10.3390/app10228034

AMA Style

Yehya T, Favier L, Audonnet F, Fayad N, Bahry H, Bahrim GE, Vial C. Towards a Better Understanding of the Removal of Carbamazepine by Ankistrodesmus braunii: Investigation of Some Key Parameters. Applied Sciences. 2020; 10(22):8034. https://doi.org/10.3390/app10228034

Chicago/Turabian Style

Yehya, Tania, Lidia Favier, Fabrice Audonnet, Nidal Fayad, Hajar Bahry, Gabriela Elena Bahrim, and Christophe Vial. 2020. "Towards a Better Understanding of the Removal of Carbamazepine by Ankistrodesmus braunii: Investigation of Some Key Parameters" Applied Sciences 10, no. 22: 8034. https://doi.org/10.3390/app10228034

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
