Non-Contact Sensing Testbed for Post-Surgery Monitoring by Exploiting Artificial-Intelligence

Abstract

Non-contact health care monitoring is a unique feature in the emerging 5G networks that is achieved by exploiting artificial intelligence (AI). The ratio of the number of health care problems and patients is increasing exponentially and creating burgeoning data. The integration of AI and Internet of things (IoT) systems enables us to increase the huge volume of data to be generated. The approach by which AI is applied to the IoT systems enhances the intelligence of the health care system. In post-surgery monitoring of the patient, timely consultation is essential before further loss. Unfortunately, even after the advice of the doctor to the patient, he/she may forget to perform the activity in the correct way, which may lead to complications in recovery. In this research, the idea is to design a non-contact sensing testbed using AI for the classification of post-surgery activities. Universal software-defined radio peripheral (USRP) is utilized to collect the data of spinal cord operated patients during weight lifting activity. The wireless channel state information (WCSI) is extracted by using orthogonal frequency division multiplexing (OFDM) technique. AI applies machine learning to classify the correct and wrong way of weight lifting activity that was considered for experimental analysis. The accuracy achieved by the proposed testbed by using a fine K-nearest neighbor (FKNN) algorithm is 99.6%.

1. Introduction

Invention regarding human health is becoming more popular in the science world. Intelligent and regular health monitoring is necessary to diagnose vital signs such as human respiration, heart rate, etc., at the early stage. In particular, regular monitoring of the patient’s state of health is mandatory to avoid significant losses. Healthcare monitoring requires reliable and efficient follow-up on regular operations, resources, and services. Smart healthcare systems need artificial intelligence (AI) and the Internet of things (IoT) to develop smart cities that reduce patient waiting time [1]. Several challenges still exist in ubiquitous healthcare systems such as frequent mobility, scalability, flexibility, reliability, and energy efficiency issues. Successful deployment of smart e-health gateways can ensure that the ubiquitous health monitoring systems are used extensively, especially in the smart hospital environment [2]. Quantifying uncertainty in cloud-based computing for different environments is an important factor for reliability in various configurations [3]. It is essential to build highly secure features based on smart healthcare applications [4]. The development of intelligent and smart medical services reduces the likelihood of death [5]. When solving health care problems, researchers participated in the development of intelligent platforms and the search for promising solutions. According to international perspectives on spinal cord injury from the World Health Organization (WHO) and the International Spinal Cord Society (ISCOS), international incidence data suggest that each year between 250,000 and 500,000 people become spinal cord injured. Most of these cases are traumatic spinal cord injury, the leading causes of which are road traffic injuries, violence, and falls. Usually, these cases require surgical intervention [6]. Even though there are many systems in place for health monitoring, existing platforms such as computer vision, wearable devices, or sensors are relatively mature [7,8], but they have a lot of disadvantages; for example, the computer vision platform cannot be used in private places such as the bathroom and changing room, whereas the wearable sensor platform can be uncomfortable when wearing it all the time, especially for elders and children, and also some of existing platforms do not work in real-time.

Studies have shown that human existence and their movements affect the channel state information (CSI) of Wi-Fi signals using OFDM technology [9,10]. CSI has an advantage over light, infrared, or thermal energy when trying to infer people’s movements [11,12]. WCSI based detection techniques were successfully applied to several applications, such as respiration detection and fall detection [13,14]. These techniques completely depend on AI based machine learning algorithms that require training data for all the detection of target activities [15]. In this paper, our goal was to develop a smart health care system in which computation and data storage are closer to the place where it is needed, and to improve reliability, flexibility, scalability, and portability.

The primary contributions of this paper are summarized below:

• We verify the feasibility of non-contact sensing using USRP by exploiting AI for post-surgery activities detection, especially weight lifting activity. To the great of our knowledge, this is the first work using universal software-defined radio peripheral (USRP) to extract WCSI for healthcare purposes and to monitor patients’ activities.
• We suggest a dynamic feature extraction technique of WCSI, which efficiently decreases the influence of environmental changes.
• We only depend on training data derived in ordinary situations. We collect data when a patient is normally lifting things and feed them into an algorithm to avoid collecting the data after when the patient had surgery, which is hard to collect in practical use.
• We measured the execution of this technique in an actual environment, which we perform in our lab. The experimental outcomes show that the post-surgery activities monitoring testbed has high detection performance in a line of sight (LOS) as well as non-line-of sight (NLOS) scenario.

The rest of this paper is arranged as follows: In Section 2, related work is presented. In Section 3, there is a design overview of the post-surgery activities monitoring testbed that can be applied to various health care applications. In Section 4, the experimental setup and the laboratory environment are discussed. In Section 5, discussion on performed experiments, testbed performance, and results are evaluated. Section 6 concludes the paper and recommends the improvements in the form of future work for this research. The abbreviations used for more readability in this paper are defined in

Table 1. List of used abbreviations.

Abbreviation	Description	Abbreviation	Description
ADC	Analog to Digital Converter	LOS	Line of Sight
AI	Artificial Intelligence	LPA	Log Periodic Antenna
CP	Cyclic Prefix	LPF	Low Pass Filter
DAC	Analog Conversion	LSVM	Linear Support Vector Machine
DAC	Digital to Analog Converter	NLOS	Non-Line-of Sight
DC	Direct Current	OFDM	Orthogonal Frequency Division Multiplexing
DDC	Digital down Converter	PCA	Principal Component Analysis
DUC	Digital up Conversion	QPSK	Quadrature Phase Shift Keying
EBT	Ensemble Boosted Trees	RF	Radio Frequency
FDT	Fine Decision Tree	RGB	Red Green Blue
FFT	Fast Fourier Transform	RSS	Received Signal Strength
FKNN	Fine K-Nearest Neighbor	TA	Transmit Amplification
IFFT	Inverse Fast Fourier Transform	ToF	Time of Flight
ISCOS	International Spinal Cord Society	USRP	Universal Software-Defined Radio Peripheral
ISI	Inter Symbol Interference	WCSI	Wireless Channel State Information
LDA	Linear Discriminant Analysis	WHO	World Health Organization

.

2. Related Work

In this section, we concisely look through related work on health care and non-contact sensing.

2.1. Traditional Health Care Techniques

Traditional health care techniques are classified into three types: computer vision-based, wearable device-based, and ambient sensor-based techniques [16,17]. The computer vision-based techniques use low price RGB cameras and depth cameras to assess the state of a patient [18]. Miguel et al. introduced the RGB camera-based fall detection system, which is a device-free technique [19]. The fall detection system accomplished very good detection performance with a detection rate of greater than 96%. Lotfi et al. proposed a vision-based fall detection technique that deals with occlusion issues by using head tracking [17]. Balakrishnan et al. suggested a camera-based heart rate monitoring technique using subtle heart techniques caused by a pulse [20]. The experimental assessment showed that the detected heart rate was nearly the same as the heart rate measured by an electrocardiogram device. The computer vision-based techniques invade users’ privacy, which is critical for monitoring in private places. The computer vision-based techniques also receive environmental limitations; there can be blind spots in the NLOS environment.

The wearable device technique utilizes wearable sensors, for example, the gyroscope, accelerometer, and light intensity sensor, to detect the patient’s safety state while preserving the patient’s privacy. Jain et al. introduced a portable fall-detection device connected to the neck of a vest [21]. Sabatini et al. introduced a fall detection technique utilizing an inertial sensor and barometer [22]. These techniques compute the root-mean-square accelerometer data and/or other features and detect the large impact. An obvious weakness of the wearable device technique is a deterioration in the comfort of patients when performing movements after surgery. Particularly patients with dementia could also forget to wear the wearable devices.

The ambient sensor-based techniques use sensors such as vibration, pressure, sound, and radar embedded in an environment to recognize the activities of humans. Zigel et al. introduced a fall detection system that depends on vibration and sound generated by a fall event [23]. However, the ambient sensor-based techniques suffer from high false detections because of noise such as everyday object falls [24]. Radar-based device free techniques have also been introduced [25,26]. The radar-based techniques need a line-of-sight (LOS) environment, i.e., no occlusion is allowed between the radar and a patient, which extremely restricts physical deployment

2.2. Using Wi-Fi Communication Signals for Sensing

In the past few years, the use of Wi-Fi signals for sensing has proven to have great potential within the field of device-free sensing. The major power of Wi-Fi sensing is that it is often applied not only to LOS environments but also to NLOS environments. Wi-Fi sensing technologies are widely studied for indoor localization and movement recognition. As an example of conventional Wi-Fi sensing technologies, Sugano et al. introduced an indoor localization system utilizing received signal strength (RSS) in a Wi-Fi sensor network [27]. The Chronos system was introduced, in which an indoor localization system achieved decimeter-level localization employing a single Wi-Fi access point [28]. The Chronos system uses CSI derived from commodity Wi-Fi devices to calculate distances between multiple antennas and a target device based on the time of flight (ToF) of Wi-Fi signals. The Chronos system is similar to state-of-the-art localization systems that need four or five access points.

Sensing techniques based on CSI were also introduced. Ali et al. designed a keystroke recognition technique utilizing CSI [29]. To locate fingers pushing keys on CSI, keystroke features are extracted by playing principal component analysis (PCA). The keystroke recognition technique achieves a word recognition accuracy of greater than 85%. RT-Fall is a fall down detection system using Wi-Fi signals [13]. RT-Fall uses the phase difference between antennas for fall detection and obtains high accuracy. RF-Pose is a through the wall human pose estimation technique utilizing Wi-Fi signals [30]. RF-Pose draws heat maps in two dimensions via a deep neural network to estimate human posture behind walls. Experimental assessments show that RF-Pose can describe human posture in detail [31]. However, post-surgery multiple posture activity detection is still a challenge, so in this research, we detect and monitor multi-pose complex weight lifting activity.

3. Materials and Methods

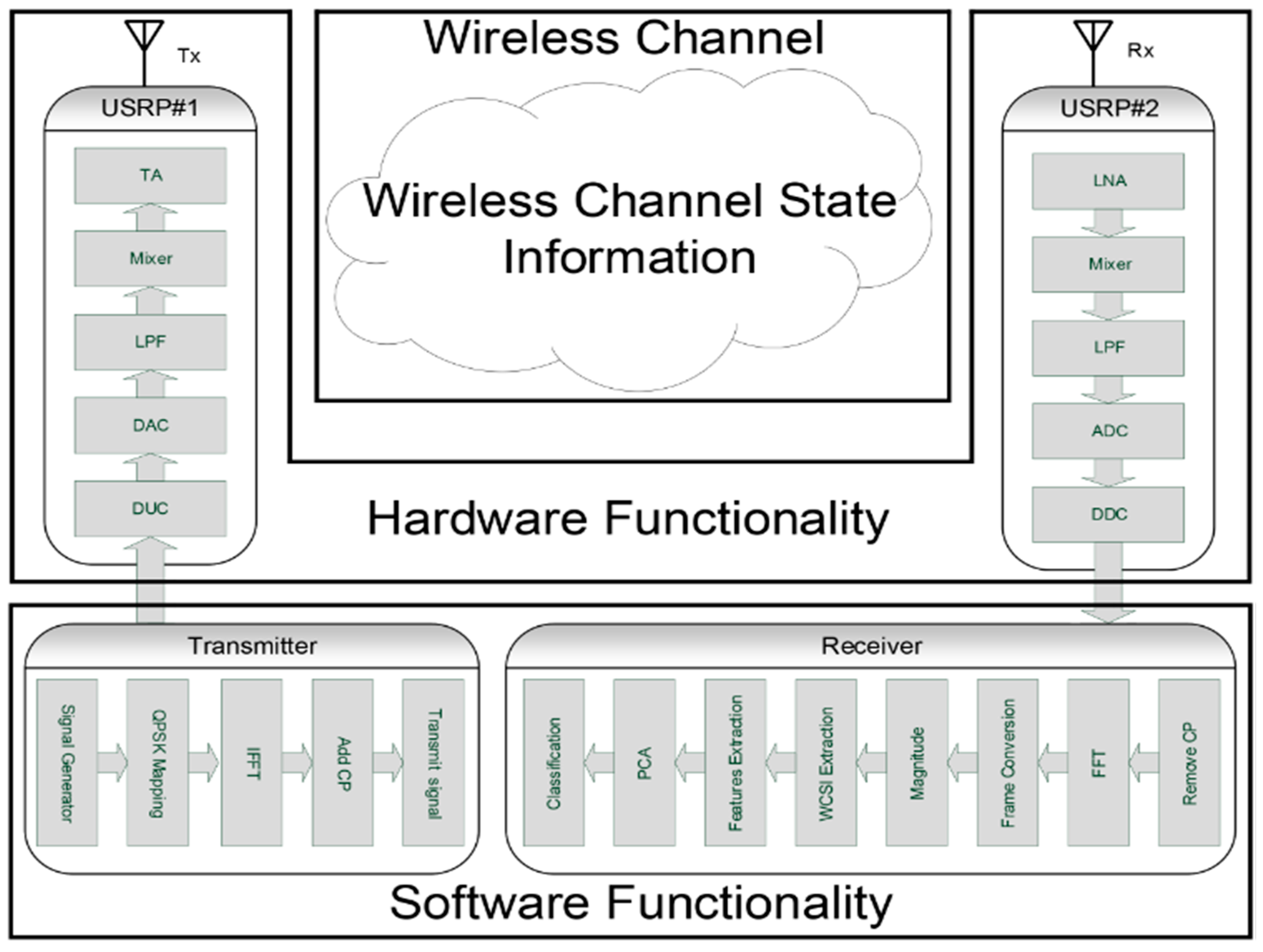

In post-surgery activities monitoring, the design testbed consists of two USRP devices and two Laptops/PCs as shown in Figure 1. Two omnidirectional antennas are utilized to capture the LOS and NLOS based WCSI of the weight lifting activity. The testbed consists of two sections. The first section is about hardware, where we use USRP devices for the processing of RF signals, and the second is software, where MATLAB/Simulink is used for implementing OFDM signal generation and reception and further classification using machine learning algorithms.

3.1. Hardware Functionality

In hardware functionality, the transmitter performs digital up-conversion (DUC), digital to analog conversion (DAC), low-pass filtering (LPF), mixer, and transmit amplification (TA) for the setting of transmitter gain, while the low noise amplification (LNA), mixer, LPF, analog to digital converter (ADC), and digital down converter (DDC) are the operations of the hardware receiver side. The following hardware is used in the experiments: the PC on the transmitter side is a Lenovo, Intel(R) Core (TM) i5-7400 3.00 GHz processor, 8 GB RAM, and Windows 10’ 64-bit operating system. The PC on the receiver side is a Lenovo, Intel(R) Core (TM) i5-7500 3.40 GHz processor, 16 GB RAM, and Windows 10’ 64-bit operating system. Two USRP devices are used and their hardware setting parameters are given in

Table 2. Hardware parameters.

Testbed	USRP B210
Antenna	Omni-directional
Device Frequency Range	70 MHz–6 GHz
Channel Mapping Rx	1
Channel Mapping Tx	1
Center Frequency	5.32 GHz
Clock Source & PPS Source	Internal
Master Clock Rate	200 MHz
Interpolation Factor	250
Enable Burst mode	False
Transport data type	int16
Decimation Factor	250
Output data type	Same as transport data type
Transmitter serial number	30AD2FE
Receiver serial number	30AD311
Transmitter Gain	70
Receiver Gain	50
Samples per frames	80

.

3.2. Software Functionality

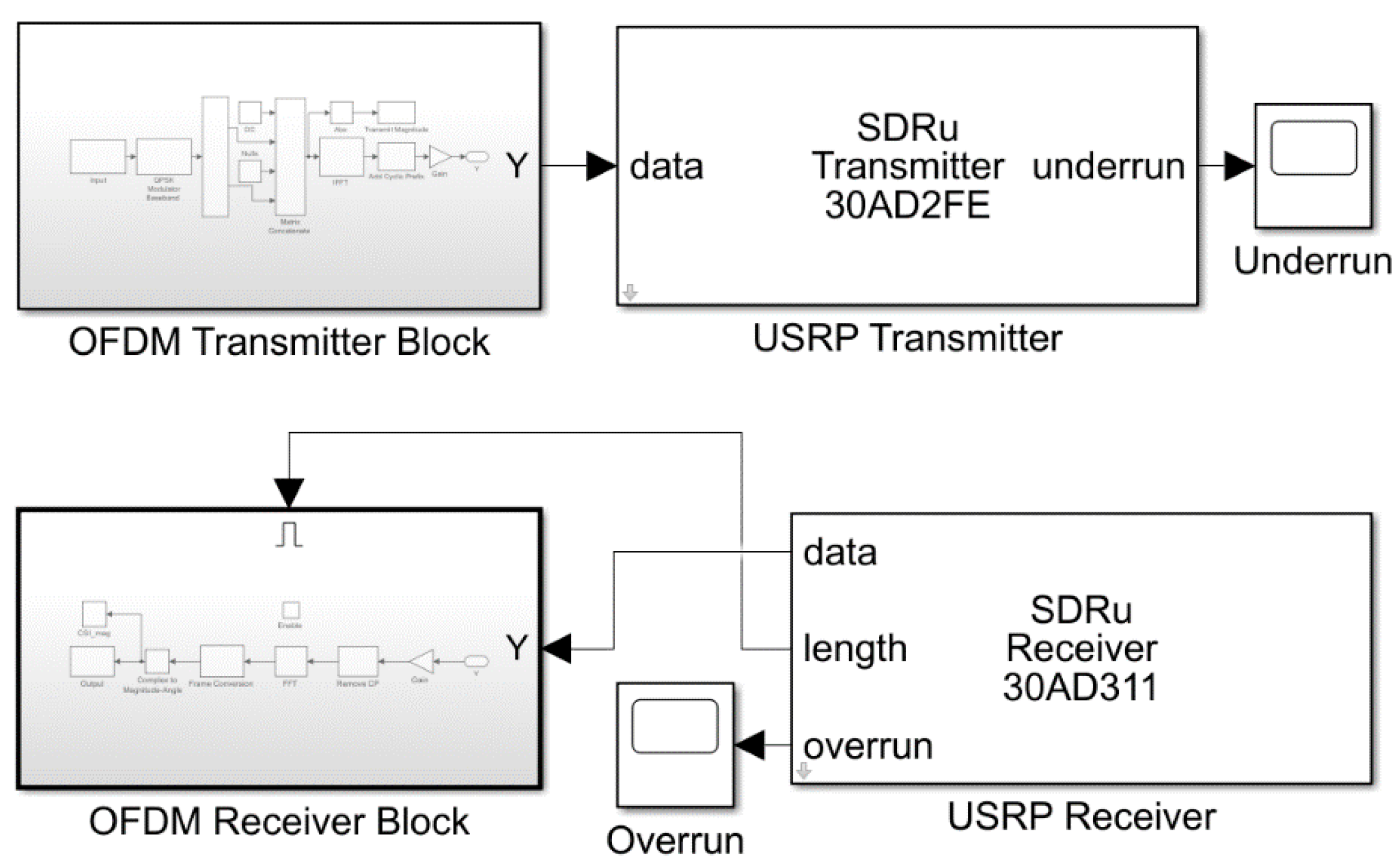

The MATLAB/Simulink version R2019a software is used for implementation. This software part consists of two main blocks, i.e., the first one is the transmitter and the second is the receiver block as depicted in Figure 2. Binary random bits are input to the OFDM transmitter block to generate the OFDM symbols and to utilize the USRP transmitter block for sending the signal. The USRP receiver block receives the signal and WCSI is extracted using the frequency response by applying the FFT at the receiver. The software parameters are shown in

Table 3. Software parameters.

Parameter	Values/Type
Input Bits	104
Bits per Symbols (M)	2
Modulation type	QPSK
OFDM subcarriers	64
Data subcarriers	52
Null subcarriers	11
DC	1
Used subcarriers	52
NFFT	64
Cyclic prefix	NFFT - Data subcarriers
Sampling Frequency	80,000
Samples per frames	80

.

3.2.1. Transmitter Process

As shown in Figure 3, bits are generated and the information maps a vector of bits. These bits are modulated by utilizing the modulation technique quadrature phase-shift keying (QPSK). The applied signal can be either integers or bits. The width must be an integer multiple of the incoming bits per symbol when setting the ‘Input type’ parameter to ‘Bit.’ The De-mux block divides vector signals into smaller vectors or scalars, and these are utilized for the series to parallel transformation. After that, nulls and DC subcarriers are added to create a 64-point OFDM signal, to transform complex frequency domain signals into time-domain by utilizing the IFFT block, and to implement orthogonality between the subcarriers. At the end, the cyclic prefix (CP) is inserted to prevent inter-symbol interference (ISI) and then it is sent to up-sample and DAC in the USRP hardware block.

3.2.2. Receiver Process

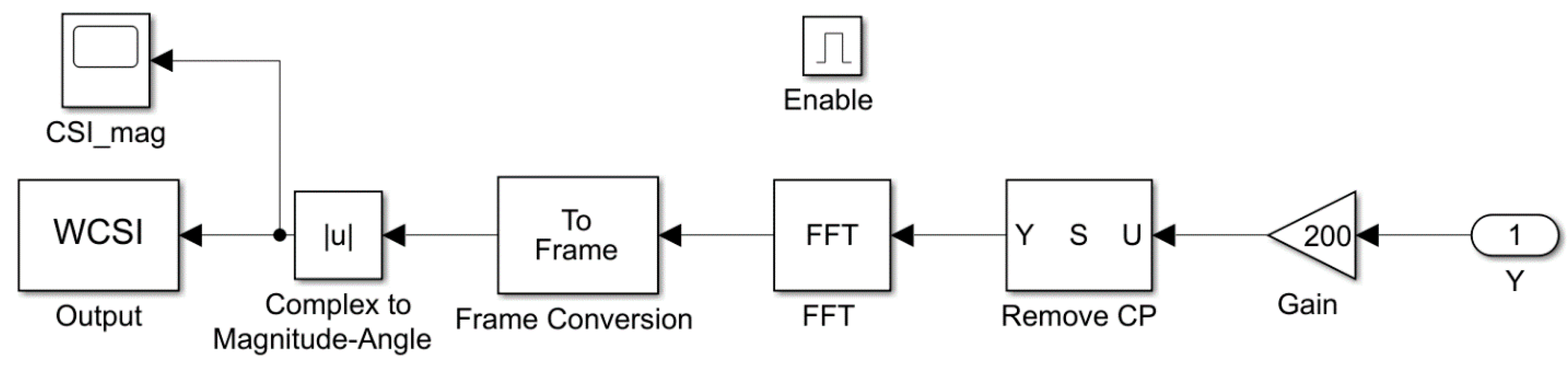

In the receiver process, as it appears in Figure 4, after down-sampling and ADC in the USRP receiver block, the first step is to remove the CP. Then FFT is carried out to transform the signal from the time domain into the frequency domain, and to frame the transformation to set the sampling mode of the output signal. The magnitude of the received signal is calculated in the frequency domain. Table 3 shows the testbed parameters utilized for the generation of the OFDM signal for both the transmitter and the receiver. These parameters are also pliable and can be adjusted according to different requirements and standards. Finally, features are extracted from WCSI to ensure accurate, efficient, or meaningful analysis. Further principal component analysis (PCA) is utilized to reduce the dimensionality and the classification of WCSI data by using different machine learning algorithms.

3.3. Classification Approach

The supervised machine learning algorithm (MLA) is used to develop a posture detection model that makes posture predictions based on WCSI data in the presence of uncertainty. As adaptive algorithms classify wrong and correct posture patterns in the WCSI data, when a learning computer is exposed to more experimental data, the computer improves its identification performance. We consider the entire set of WCSI data as a heterogeneous matrix. Rows of the matrix are 64-subcarriers of the OFDM signal for every single experiment, and columns of the matrix are features. We consider WCSI response data as a column vector where each row is labeled with the corresponding posture in the WCSI row data of whether the subject had wrong or correct posture. To train or fit a model, we choose an efficient algorithm that has more accuracy for a given set of WCSI data. Supervised MLA functionalities comprise an object and stream-lined framework. We can efficiently train different algorithms according to the data set. There are trade-offs among several characteristics of the algorithms, such as memory usage, speed of training, and accuracy achieved in the data. Once we validate the model, we can change it to enhance the accuracy. We can interactively train, validate, and tune MLA models. We can choose between different algorithms to train and validate models for binary or multi-class problems. After training various models, we compare their validation errors side-by-side, and then select the best model. Training a model with a validation approach protects against overfitting using cross-validation. Model accuracy is used as a diagnostic measures to reflect the validated model results and are measured as given in (1):

$$Accuracy=\frac{\mathrm{Number}\mathrm{of}\mathrm{correct}\mathrm{predictions}}{\mathrm{Total}\mathrm{number}\mathrm{of}\mathrm{predictions}}\times 100.$$

(1)

We use binary classification, and accuracy can also be measured in terms of positives and negatives as given in (2):

$$Accuracy=\frac{\mathrm{TP}+\mathrm{TN}}{\mathrm{TP}+\mathrm{TN}+\mathrm{FP}+\mathrm{FN}}\times 100$$

(2)

where TP = True Positives, TN = True Negatives, FP = False Positives, and FN = False Negatives.

4. Experimental Setup

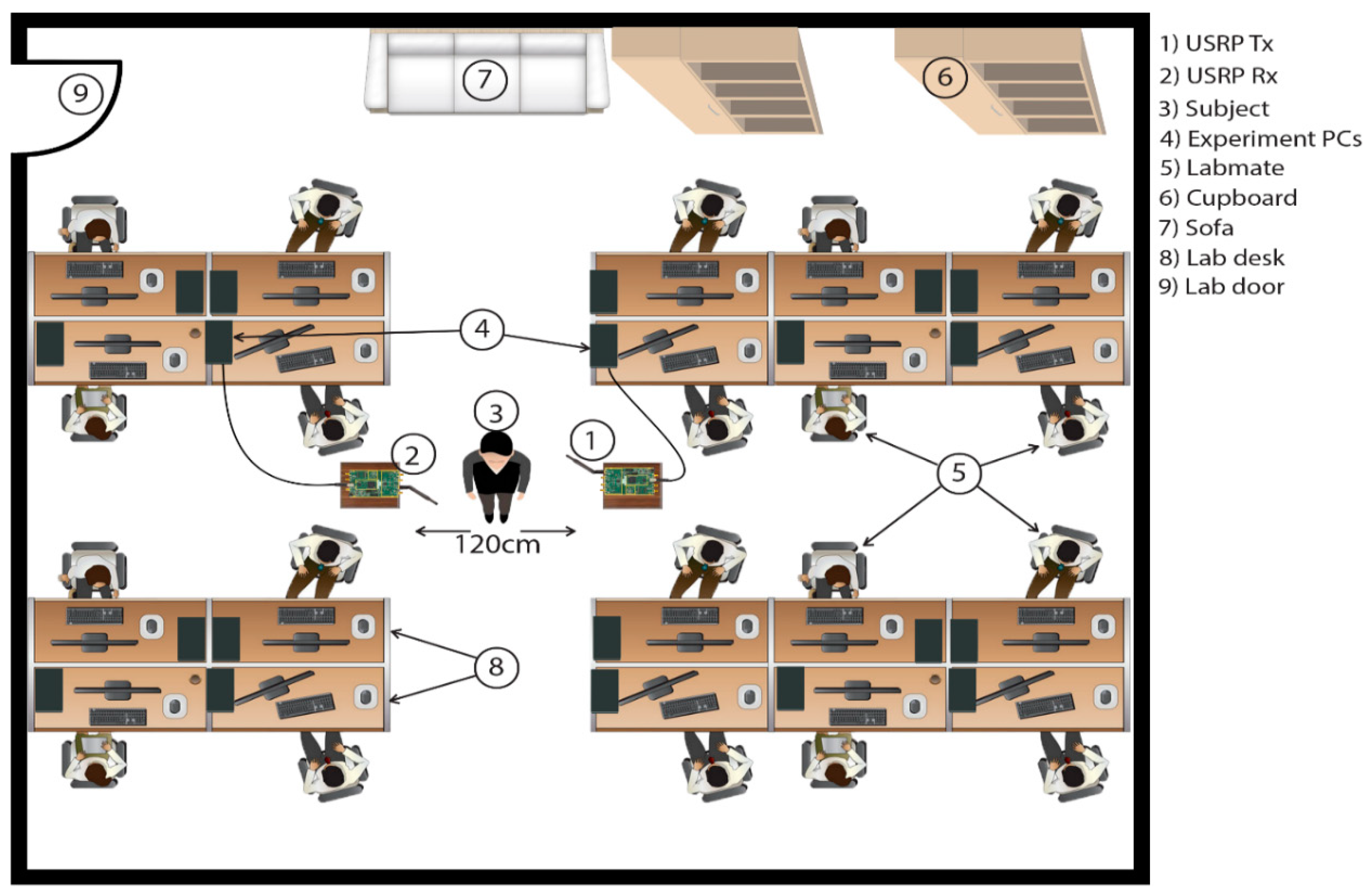

The experiments were performed at Xidian University in the “Internet of Thing” Lab, China. The experimental setup for post-surgery activity detection is shown in Figure 5. Four males and one female of ages between 25 to 35 having different body structures, heights, and weights are given in

Table 4. Subject participation in experiments.

Sr.No	Subject	Body structure	Height (cm)	Weight (Kg)
1	Male	Ectomorph	168	55
2	Male	Endomorph	180	95
3	Female	Mesomorph	168	60
4	Male	Mesomorph	174	76
5	Male	Ectomorph	176	60

to perform the correct and wrong posture activity. The correct and wrong posture of the weight lifting activity literature and videos are used to train the participants [32]. Every participant performed both correct and wrong posture activities. Each activity was performed ten times to train the model more accurately and precisely. Figure 6a,b shows the wrong and correct posture position of the spinal cord patient for the weight lifting activity as prescribed in [32]. All participants performed both activities in the normal routine of the laboratory with all the environmental effects, e.g., reflection, scattering, diffraction, shadowing, etc., to perform experiments. It is widely accepted that an empty environment contained less noise and interference. We considered an experimental setup with tables, chairs, cupboard desktop computers, and a crowded environment that has a large number of multi-paths effects to validate the effectiveness of the system in the process of building the pattern of the WCSI data. This experimental setup can be deployed in any real environment.

5. Results and Discussion

Results achieved and the performance of the testbed are evaluated in the following manner.

I.

Correct and wrong activity magnitude response in the frequency domain.

II.

Accuracy of the machine-learning algorithms model.

5.1. Correct and Wrong Activity Magnitude Response in the Frequency Domain

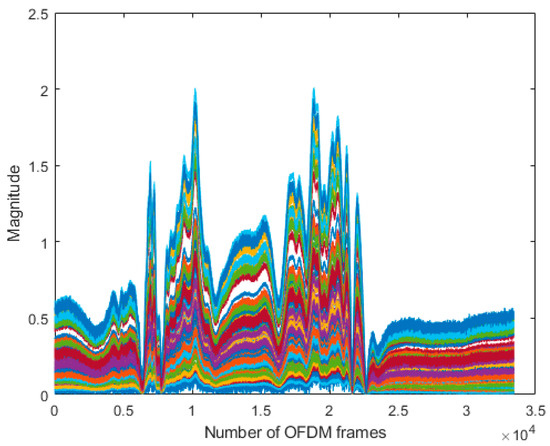

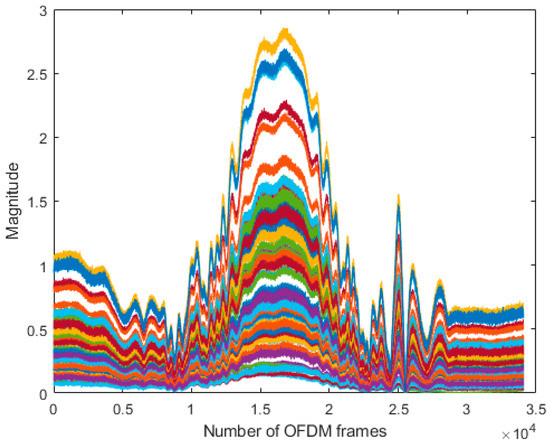

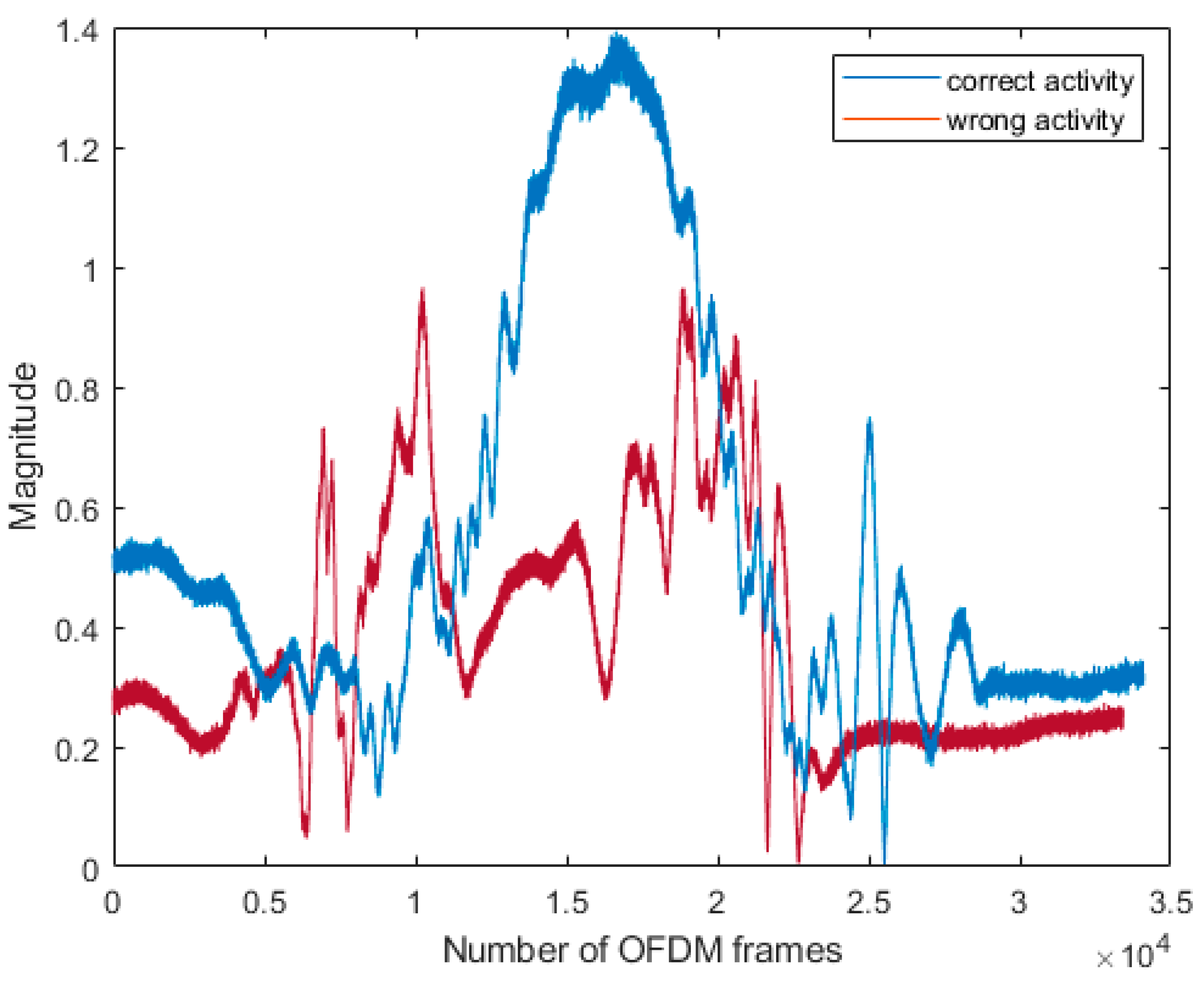

Extensive experiments were performed to design the testbed with settings for the values of different parameters for optimum and reliable results to ensure the testbed will work properly for real-world problems. While considering the initial testing of the system, we considered binary but multi motion activity to test the system. The results achieved for correct and wrong posture are shown in Figure 7 and Figure 8 for all the 64 subcarriers. The magnitude response in the lab with other activities was going on, but the prominent amplitude changes were observed of the subject performing the activity. Although, the small-amplitude variation of the other students working in the lab are also observed because the system is very sensitive to human body motions. It is also observed that it gave strong amplitude changes in the LOS subject as compared to NLOS. NLOS motion is also present in the WCSI, but the response of LOS is more prominent. The randomly selected 10th subcarrier of both activities is shown to analyze the trend in Figure 9. Thus, this trend of WCSI can be useful in the classification of multi activities with multi motions. The achieved results show that both activities can easily be recognized by the naked eye by comparing both of the activities. Amplitude response in the frequency domain of the WCSI is prominent enough to apply supervised machine learning for the classification and justification of system monitoring capabilities.

5.2. Accuracy of the Machine Learning Algorithms Model

We applied 90% of the WCSI data to train a model that classifies wrong and correct posture and 10% of the WCSI data to validate the trained model. We used five-fold cross-validation, which protects against overfitting. The following five well-known algorithms were selected to train the extracted features.

• Fine decision tree (FDT)
• Linear discriminant analysis (LDA)
• Linear support vector machine (LSVM)
• Fine k-nearest neighbor (FKNN)
• Ensemble boosted trees (EBT)

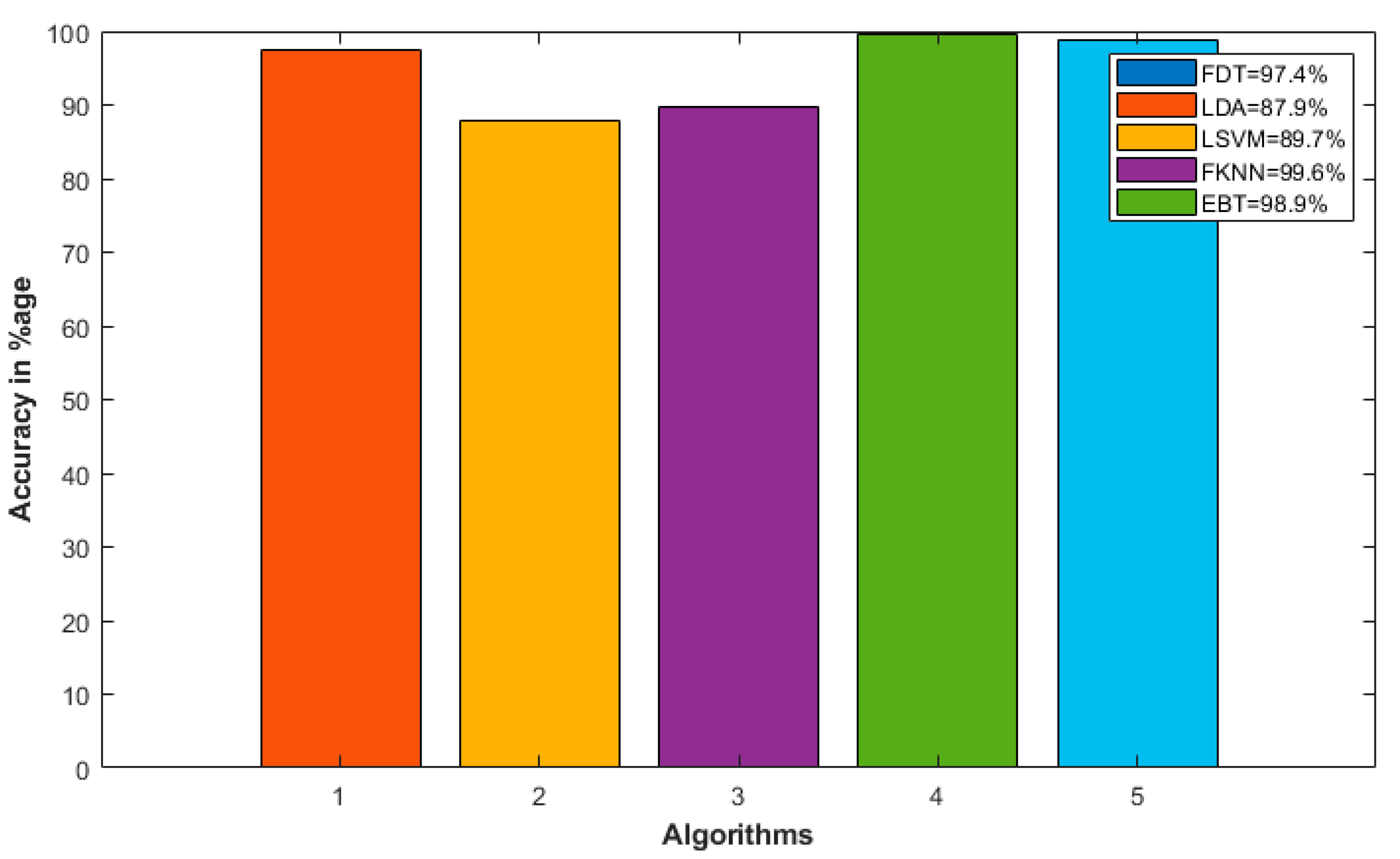

Chart 1 shows the performance of each algorithm applied. The performance of fine KNN is best among all the five algorithms applied and can classify 99.6% of the post-surgery posture. The accuracy of the classifier is high due to binary classification. The result shows that the trained model is not over-fit to the training data set. The accuracy measurement depends on the operating system and can vary slightly. To confirm the accuracy of the model, it is necessary to place your device in the same way as described for collecting the training data. On the basis of the results achieved, we conclude that a non-contact sensing testbed can be implemented for post-surgery monitoring by exploiting artificial-intelligence techniques. This research can be carried out for multiclass, more complex post-surgery monitoring by using this testbed.

6. Conclusions and Future Recommendations

In this paper, we designed a non-contact sensing testbed by exploiting artificial intelligence to classify post-surgery activities. In this research, we considered the correct posture of the spinal cord patients to lift the weight and classified the wrong posture to avoid any damage. We achieved 99.6% accuracy by applying the FKNN machine learning algorithm with PCA. Having adequate accuracy, this model can be used for real-world problems by reducing the cost, data moving, communication, and management.

This testbed can be utilized in the future for post-surgery monitoring of heart, eye, C-sections, and many healthcare applications. It can be further enhanced and explored in various fields. It can be deployed in earthquakes, wars, and emergency conditions to diagnose and monitor health. This system can be improved to mitigate channel noise, optimal gain, and long-distance detection. Still, there is a lot of research opening up by using this testbed to monitor multi-subjects and multi-activities simultaneously.
