An Iterative Hybrid Harmonics Detection Method Based on Discrete Wavelet Transform and Bartlett–Hann Window
Abstract
:1. Introduction
2. Principles of Improved Harmonic Detection Methods

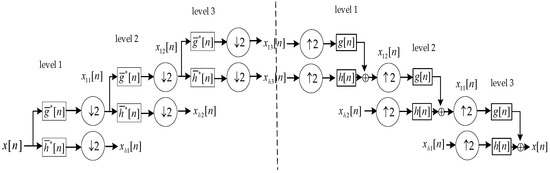

2.1. Mallat Algorithm
2.2. Bartlett–Hann Algorithm Principle

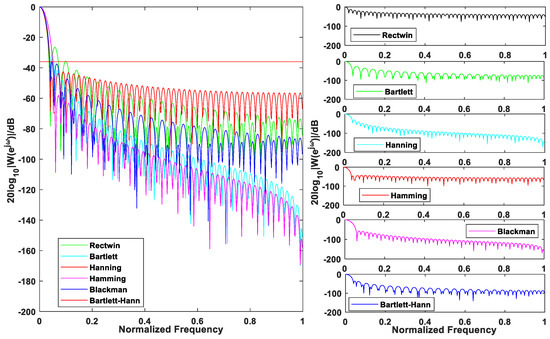

2.3. Comparison of Bartlett–Hann Windows and Common Windows
2.4. Comparison of Bartlett–Hann Windows and Common Windows
3. Design of Improved Harmonic Detection Method

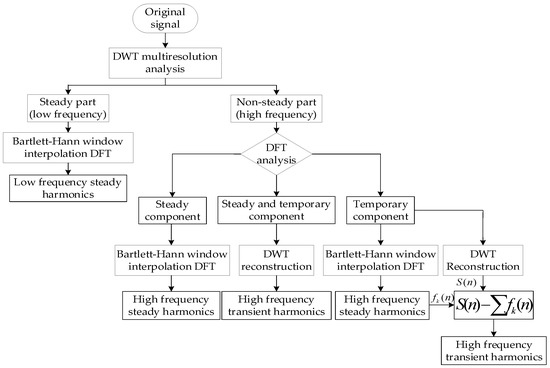

3.1. Hybrid Harmonic Detection Method Based on Bartlett–Hann Window DFT and DWT
- (1)
- Analysis of the reconstructed waveform from the wavelet transform shows that there is no attenuating signal in the high frequency part, but only the steady-state signal. In view of this situation, the parameters extracted from the data obtained by windowed interpolation DFT are used to restore the high frequency harmonics. The obtained is the result of harmonic analysis.
- (2)
- The high frequency part contains only time-varying signals with a tendency to decay. In view of this situation, the reconstruction result of the wavelet transform is used as the result of the final harmonic analysis.
- (3)
- There are both time-varying harmonic signals and steady-state harmonic signals in the high frequency part. In view of this situation, the parameters extracted from the data obtained by the windowed interpolation DFT are used to restore the high frequency harmonics to obtain , and sequentially perform difference processing with the high frequency signal reconstructed by the wavelet. After each , the attenuation rate is recalculated. When the attenuation rate shows a decreasing trend or reaches a minimum or even a negative value, this indicates that is an attenuation harmonic signal and is recorded as . According to , it can restore time-varying harmonic signals.
4. Simulation Test Analysis

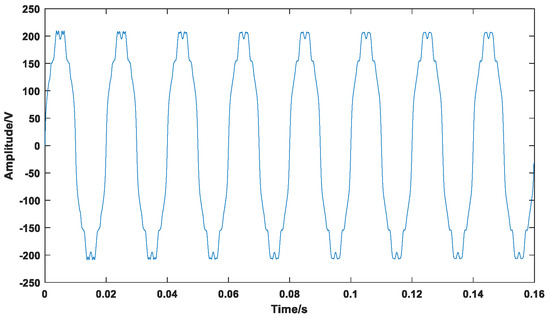

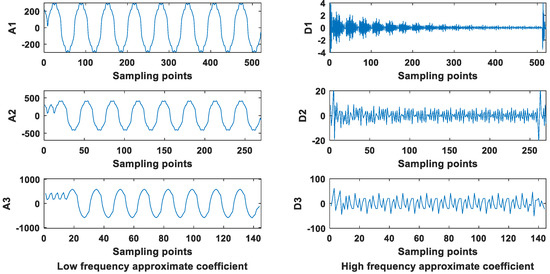

4.1. Modeling and Analysis of Power Signals

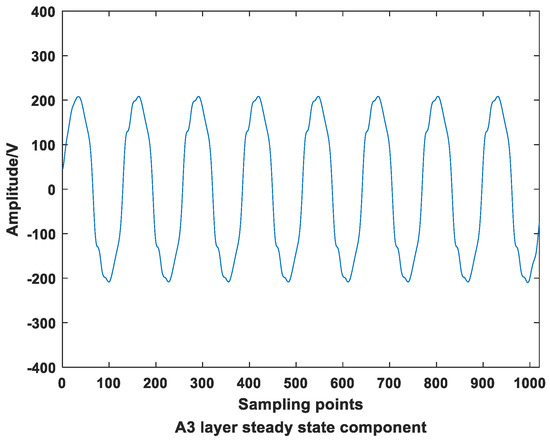

4.2. Simulation Results of Low Frequency Part of Power Data

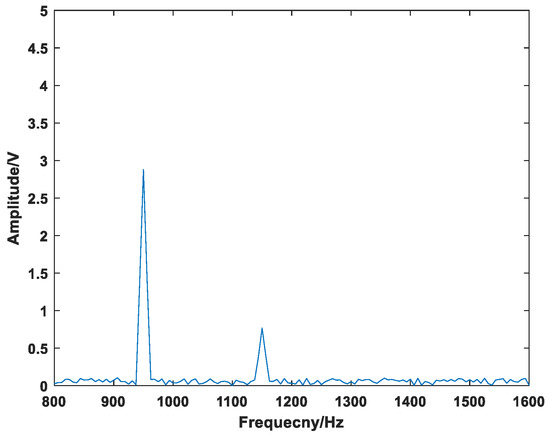

4.3. Simulation Results of High Frequency Part of Power Data

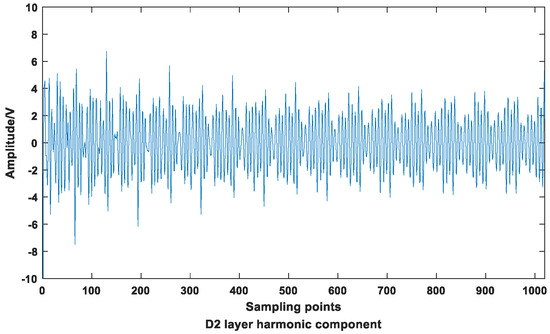

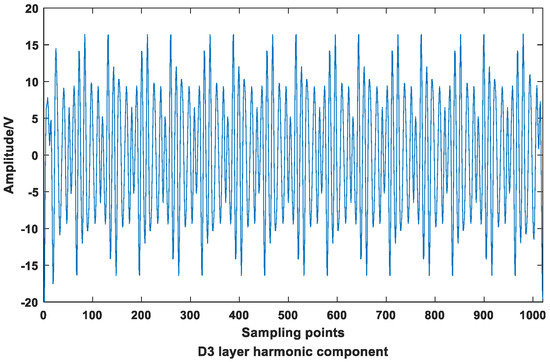

4.3.1. High Frequency Steady-State Component Simulation Results

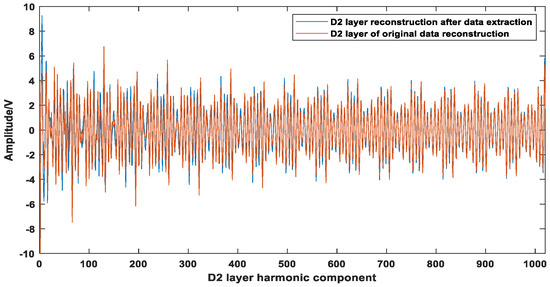

4.3.2. High Frequency Steady-State and Attenuation Component Simulation Results

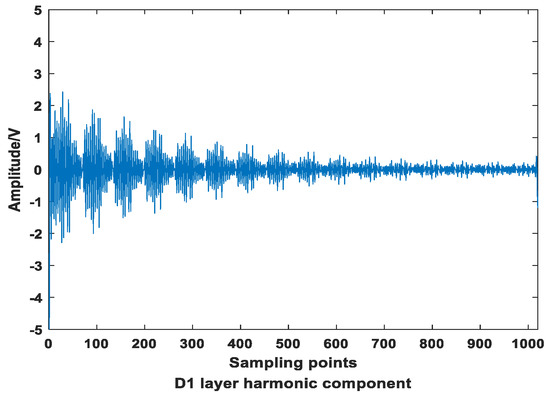

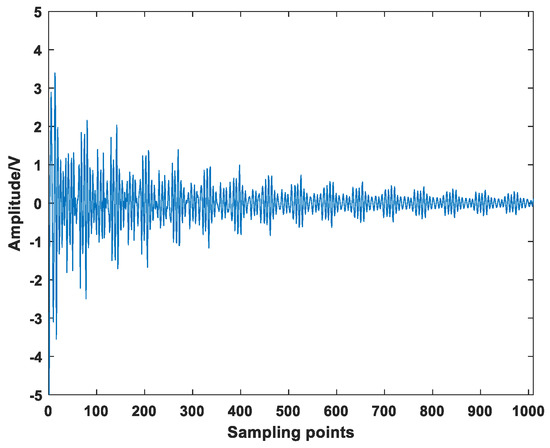

4.3.3. High Frequency Attenuation Component Simulation Results
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Watson, N.R. Power-quality management in New Zealand. IEEE Trans. Power Deliv. 2016, 31, 1963–1970. [Google Scholar] [CrossRef]
- Reddy, M.J.B.; Sagar, K.; Mohanta, D.K. Multifunctional real-time power quality monitoring system using Stockwell transform. IET Sci. Meas. Technol. 2014, 8, 155–169. [Google Scholar] [CrossRef]
- Gao, Z.Q.; Zhao, H.J.; Zhou, X.S.; Ma, Y.J. Summary of power system harmonics. In Proceedings of the 29th Chinese Control and Decision Conference, Chongqing, China, 28–30 May 2017; pp. 2287–2291. [Google Scholar]
- Peng, Y.L.; Zhang, K.F.; Li, Y.B.; Yang, P.K.; Liu, H.Q. Improved harmonic detection algorithm applied to APF. In Proceedings of the IEEE 29th Chinese Control and Decision Conference, Chongqing, China, 28–30 May 2017; pp. 6948–6952. [Google Scholar]
- Subhamita, R.; Sudipta, D. ANN based method for power system harmonics estimation. In Proceeding of the IEEE Applied Signal Processing Conference, Kolkata, India, 7–9 December 2018; pp. 39–43. [Google Scholar]
- Wang, K.; Xie, F.; Zheng, C.B.; Hang, B. Research on harmonic detection method based on BP neural network used in induction motor controller. In Proceeding of the IEEE 12th Conference on Industrial Electronics and Applications, Siem Reap, Cambodia, 18–20 June 2017; pp. 578–582. [Google Scholar]
- Apetrei, V.; Filote, C.; Graur, A. Harmonic analysis based on discrete wavelet transform in electric power system. In Proceeding of the 9th International Conference on Ecological Vehicles and Renewable Energies, Monte-Carlo, Monaco, 25–27 March 2014. [Google Scholar]
- Wang, W.; Ma, X.P.; Wang, Q.J. Research on fault detection of wind turbine based on wavelet analysis. Int. J. Control Autom. 2015, 11, 127–134. [Google Scholar]
- Lai, Z.Q.; Xiao, Z.H.; Zhang, G.Q.; Wang, G.Z.; Liu, Y.; Chen, H.M.; Gao, X. Application of FFT interpolation correction algorithm based on window function in power harmonic analysis. In Proceeding of the 4th International Conference on Environmental Science and Material Application, Xian, China, 15–16 December 2018. [Google Scholar]
- Chen, J.; Wang, W.; Wang, S.H.; Yang, S.M. An approach for electrical harmonic FFT analysis based on Hanning self-multiply window. Power Syst. Prot. Control. 2016, 19, 114–121. [Google Scholar]
- Fang, G.Z.; Yang, C.; Zhao, H. Detection of harmonic in power system based on FFT and wavelet packet. Power Syst. Prot. Control. 2012, 5, 75–79. [Google Scholar]
- Zhu, X.; Xie, D.; Gao, Q.; Zhang, Y.C. Analysis strategy for power system harmonic based on FFT and DWT using db20. Power Syst. Prot. Control. 2012, 40, 62–66. [Google Scholar]
- Ha, Y.H.; Pearce, J.A. New window and comparison to standard windows. IEEE Trans. Acoust. Speech Signal Process. 1989, 37, 298–301. [Google Scholar] [CrossRef]
- Nath, S.; Sinha, P.; Goswami, S.K. A wavelet based novel method for the detection of harmonic sources in power systems. Int. J. Electr. Power Energy Syst. 2012, 40, 54–61. [Google Scholar] [CrossRef]
- Liu, H.; Ren, H.M.; Xiao, Z.H.; Zhao, T. Research on signal extrapolation in the time domain based on wavelet analysis. J. Eng. 2019, 20, 6533–6536. [Google Scholar] [CrossRef]
- Agarwal, P.; Singh, S.P.; Pandey, V.K. Spectrum shaping analysis using tunable parameter of fractional based on Bartlett window. In Proceeding of the 3rd IEEE International Advance Computing Conference, Ghaziabad, India, 22–23 February 2013; pp. 1625–1630. [Google Scholar]
- Tian, W.B.; Yu, J.M.; Ma, X.J.; Li, L. Power system harmonic detection based on Bartlett-Hann windowed FFT interpolation. In Proceedings of the Asia-Pacific Power and Energy Engineering Conference, Shanghai, China, 27–29 March 2012. [Google Scholar]
- Su, T.X.; Yang, M.F.; Jin, T.; Flesch, R.C.C. Power harmonic and interharmonic detection method in renewable power based on Nuttall double-window all-phase FFT algorithm. IET Renew. Power Gener. 2018, 12, 953–961. [Google Scholar] [CrossRef]
- Li, Z.H.; Hu, T.H.; Abu-Siada, A. A minimum side-lobe optimization window function and its application in harmonic detection of an electricity gird. Energies 2019, 12, 2619. [Google Scholar] [CrossRef] [Green Version]
- Wang, Z.J.; Qi, X.H.; Cai, J. Estimation of electrical harmonic parameters by using the Interpolated FFT algorithm based on Blackman window. J. Zhejiang Univ. 2006, 33, 650–653. [Google Scholar]
- Luo, C.H.; Xu, X.L.; An, M.Q.; Mao, L.K.; Zhou, W. Research and design of data acquisition and processing algorithm based on improved FFT. In Proceeding of the 31st Chinese Control and Decision Conference, Nanchang, China, 3–5 June 2019; pp. 1599–1604. [Google Scholar]
Number of Harmonic | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Content(%) | 0.5 | 5 | 0.4 | 3 | 0.6 | 2 | 0.2 | 3 | 0.5 |
Number of Harmonic | Relative Frequency Error (%) | Relative Amplitude Error (%) | ||
Common DFT | Bartlett–Hann Window Interpolation DFT | Common DFT | Bartlett–Hann Window Interpolation DFT | |
Fundamental | −2.34 | −1.86 | −14.52 | −3.43 |
2 | 0.12 | 0.098 | 254.05 | −1.02 |
3 | 0.9 | −0.73 | −27 | −2.36 |
4 | 0.098 | 0.1 | 63.75 | 2.64 |
5 | −0.39 | −0.3906 | −36.64 | 3.37 |
6 | 0.097 | 0.097 | 10.83 | −0.83 |
7 | 0.035 | 0.034 | −28.5 | −4.28 |
8 | 0.098 | 0.098 | 38.25 | −2.44 |
9 | −0.0482 | −0.0484 | −21.67 | −3.67 |
10 | 0.097 | 0.0976 | 8.4 | −3 |

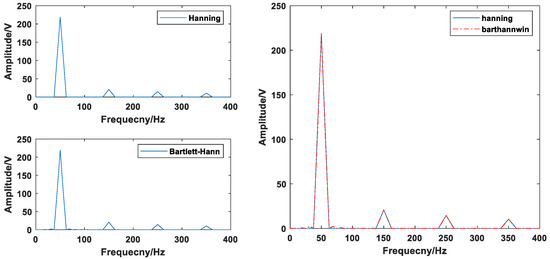

Number of Harmonic | Fundamental | 3 | 5 | 7 |
Theory Frequency (Hz) | 50 | 150 | 250 | 350 |
Actual Frequency (Hz) | 50.78 | 148.44 | 250 | 351.56 |
Theory Amplitude (V) | 220 | 21 | 15 | 13 |
Hanning Window Function Interpolation DFT Algorithm Amplitude (V) | 218.68 | 20.87 | 14.59 | 10.43 |
Bartlett–Hann Window Function Interpolation DFT Algorithm Amplitude (V) | 219.24 | 20.94 | 14.63 | 10.98 |
Number of Harmonic | Fundamental | 3 | 5 | 7 | Average Value | |
Amplitude Accuracy(%) | Hanning Window Function Interpolation DFT Algorithm | 99.4 | 98.38 | 97.27 | 80.23 | 93.82 |
Bartlett–Hann Window Function Interpolation DFT Algorithm | 99.65 | 99.71 | 97.53 | 84.46 | 95.3375 | |
Relative Amplitude Error (%) | Hanning Window Function Interpolation DFT Algorithm | −0.6 | −0.619 | −2.73 | −19.77 | −5.93 |
Bartlett–Hann Window Function Interpolation DFT Algorithm | −0.345 | −0.286 | −2.46 | −15.53 | −4.655 |

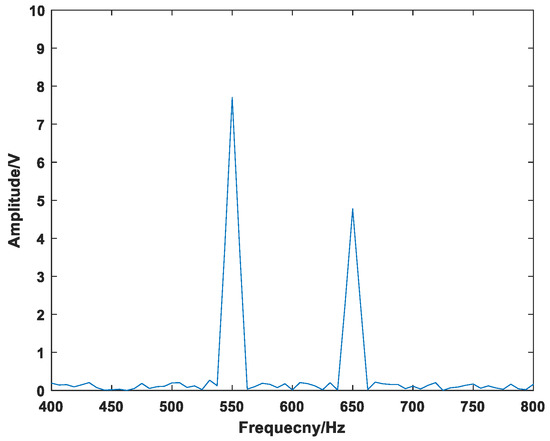

Number of Harmonic | Theory Frequency (Hz) | Actual Frequency (Hz) | Theory Amplitude (V) | Actual Amplitude (V) | Accuracy (%) |
11 | 550 | 549.13 | 8 | 7.71 | 96.365 |
13 | 650 | 650.32 | 5 | 4.77 | 95.4 |
