Design and Implementation of Position-Based Repetitive Control Torque Observer for Cogging Torque Compensation in PMSM
Abstract
:Featured Application
Abstract
1. Introduction

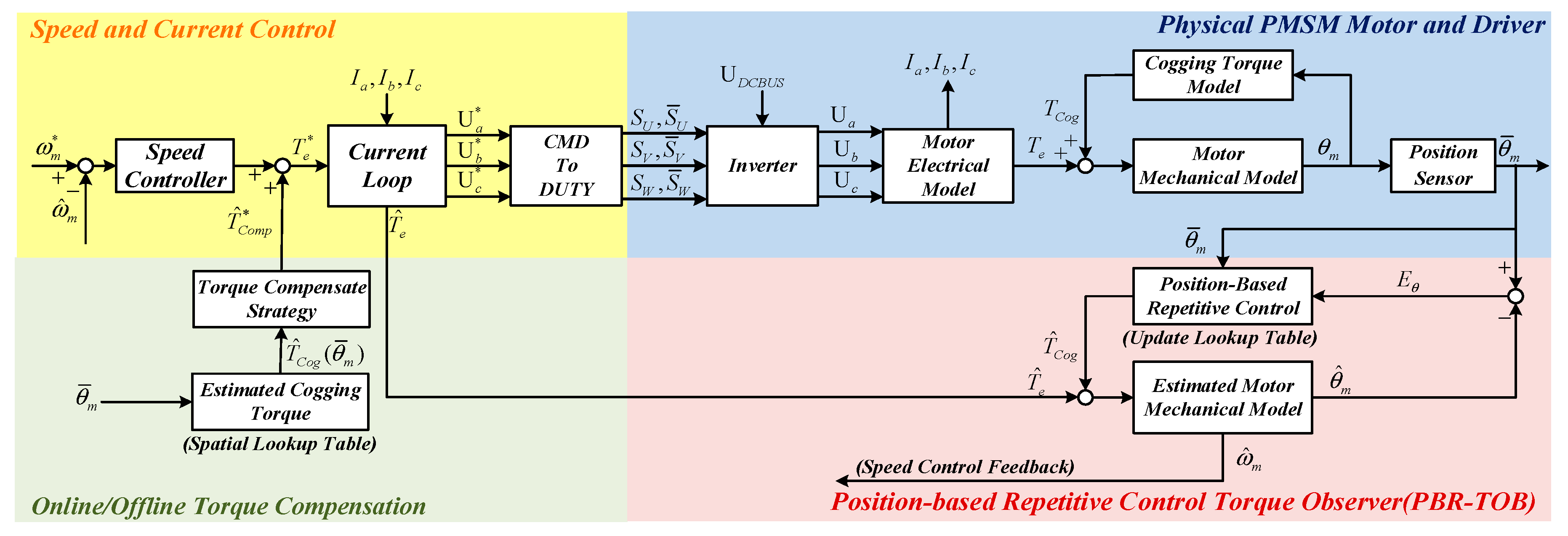

2. Position-Based Repetitive Torque Observer and Compensation Strategy

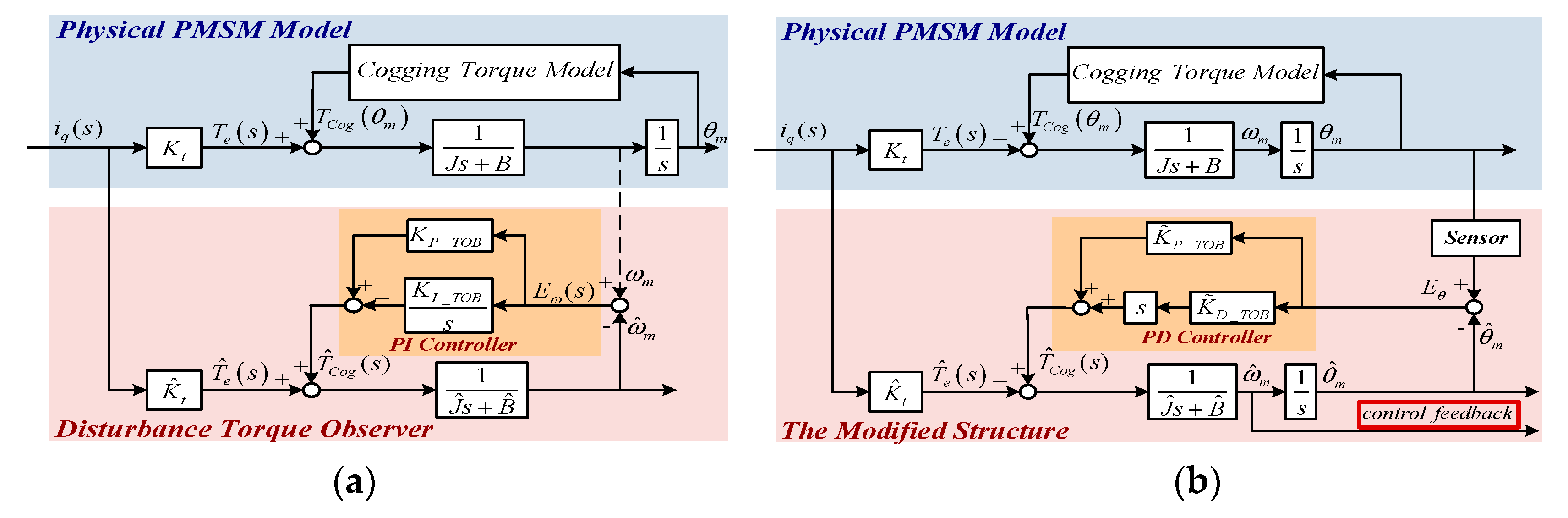

2.1. Disturbance Torque Observer

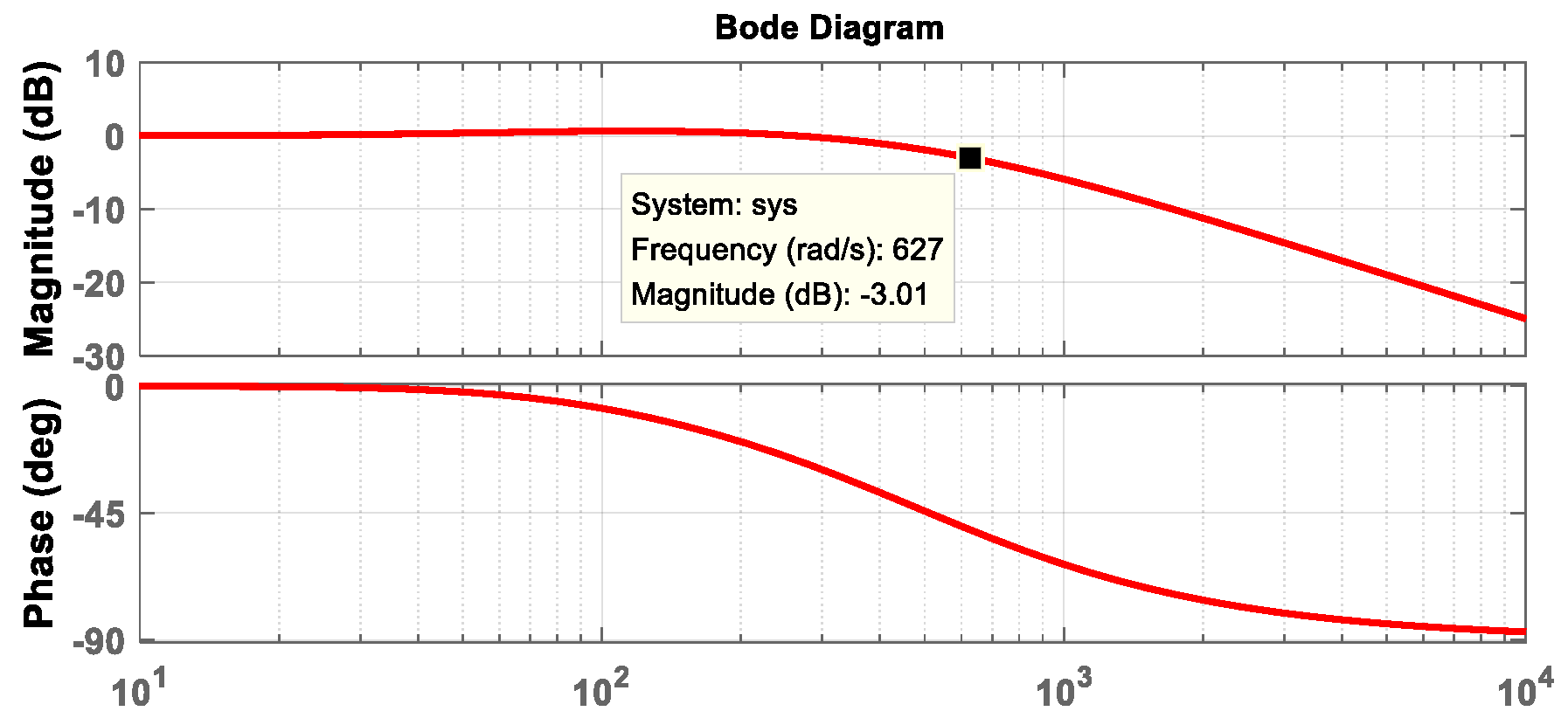

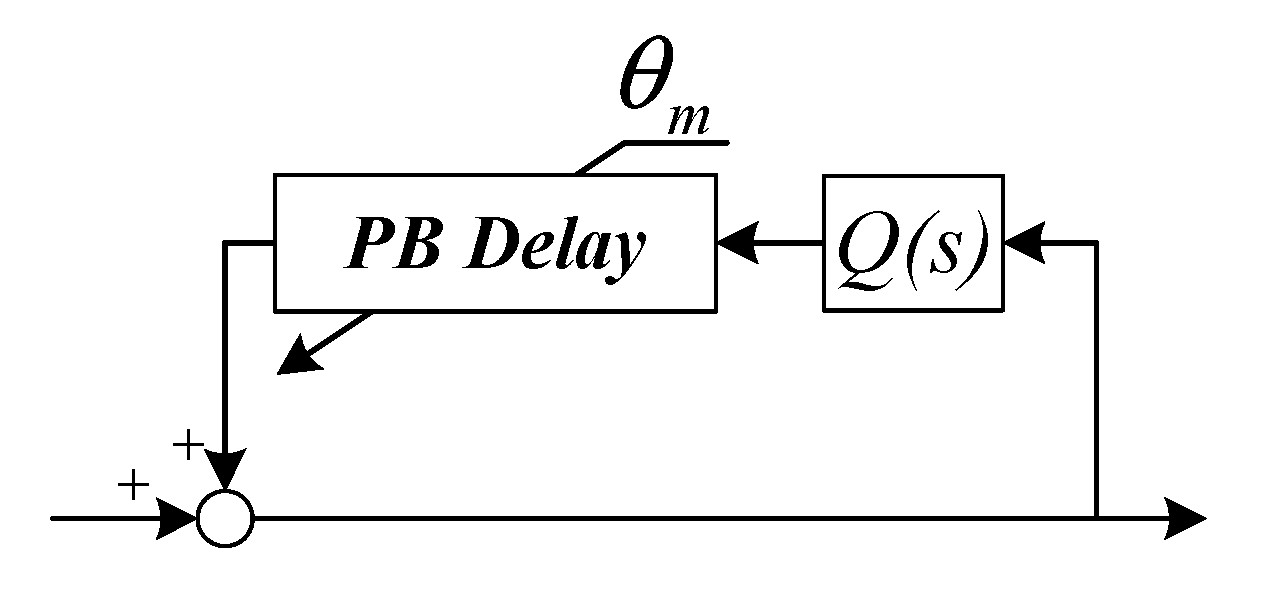

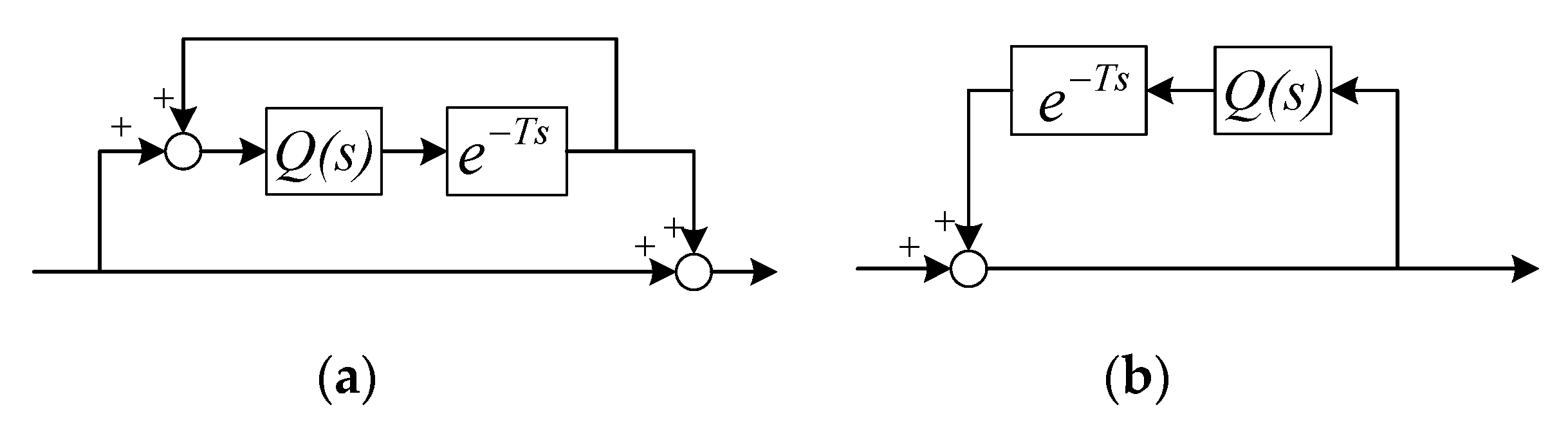

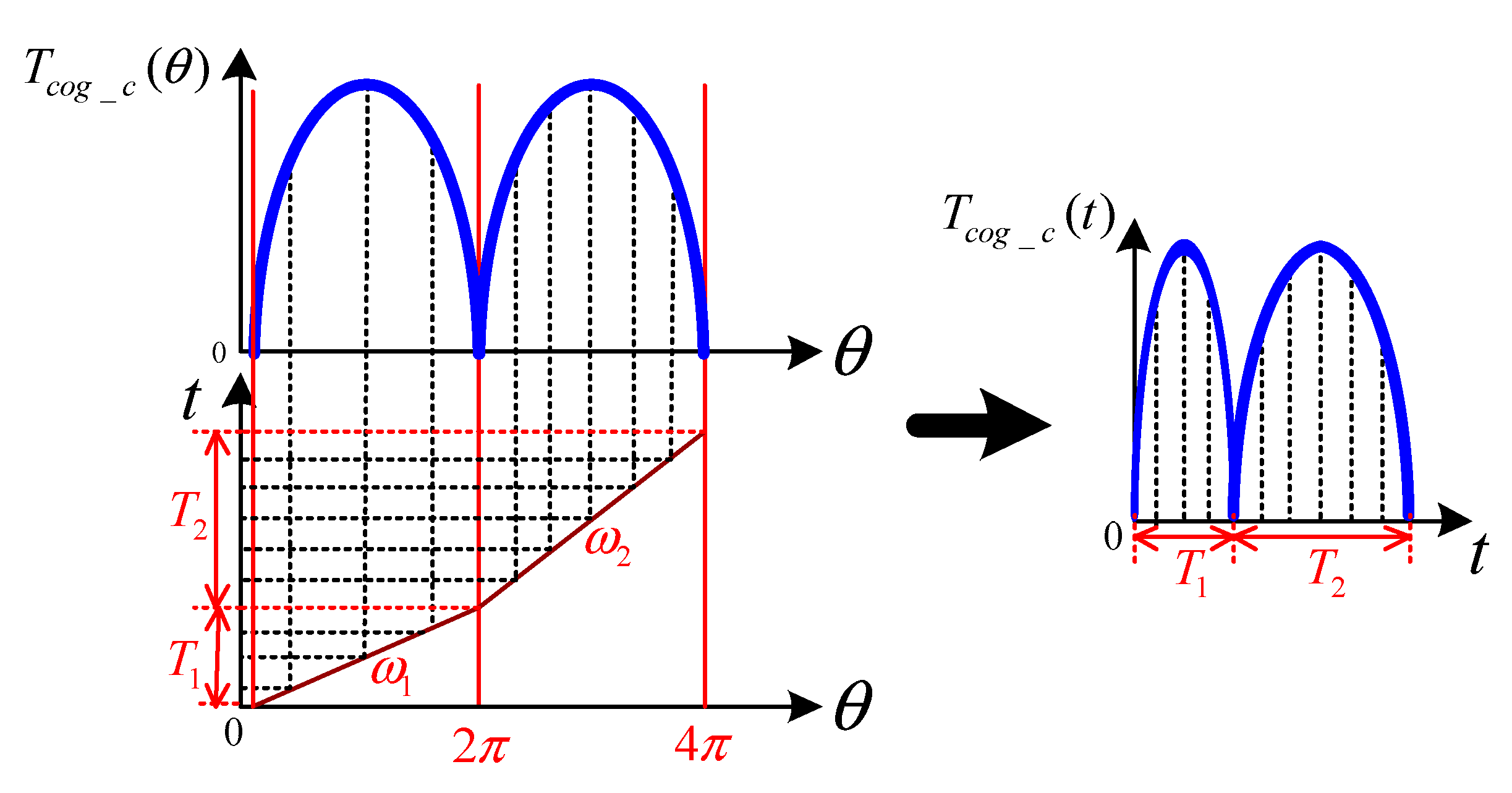

2.2. Principle of Position-Based Repetitive Controller

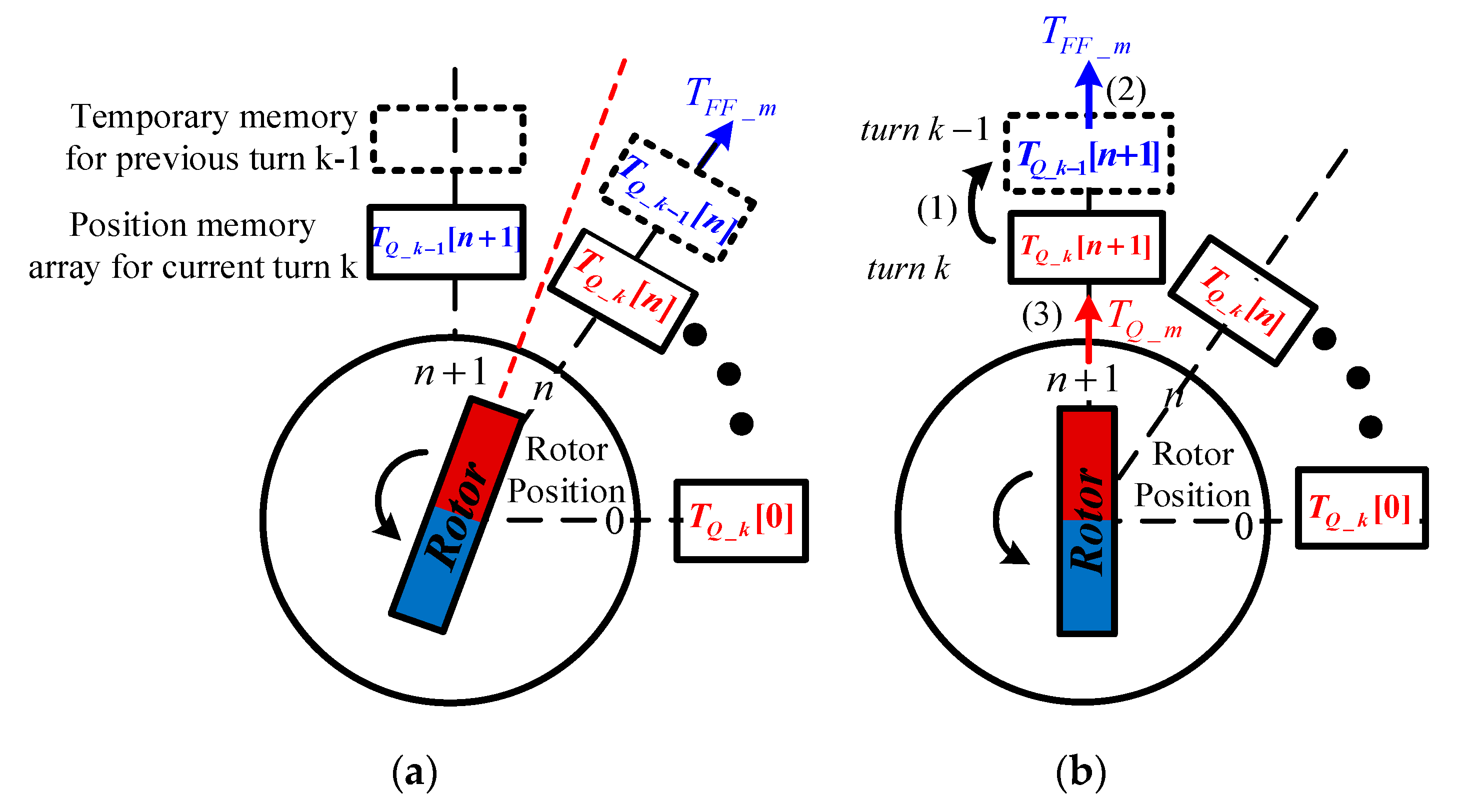

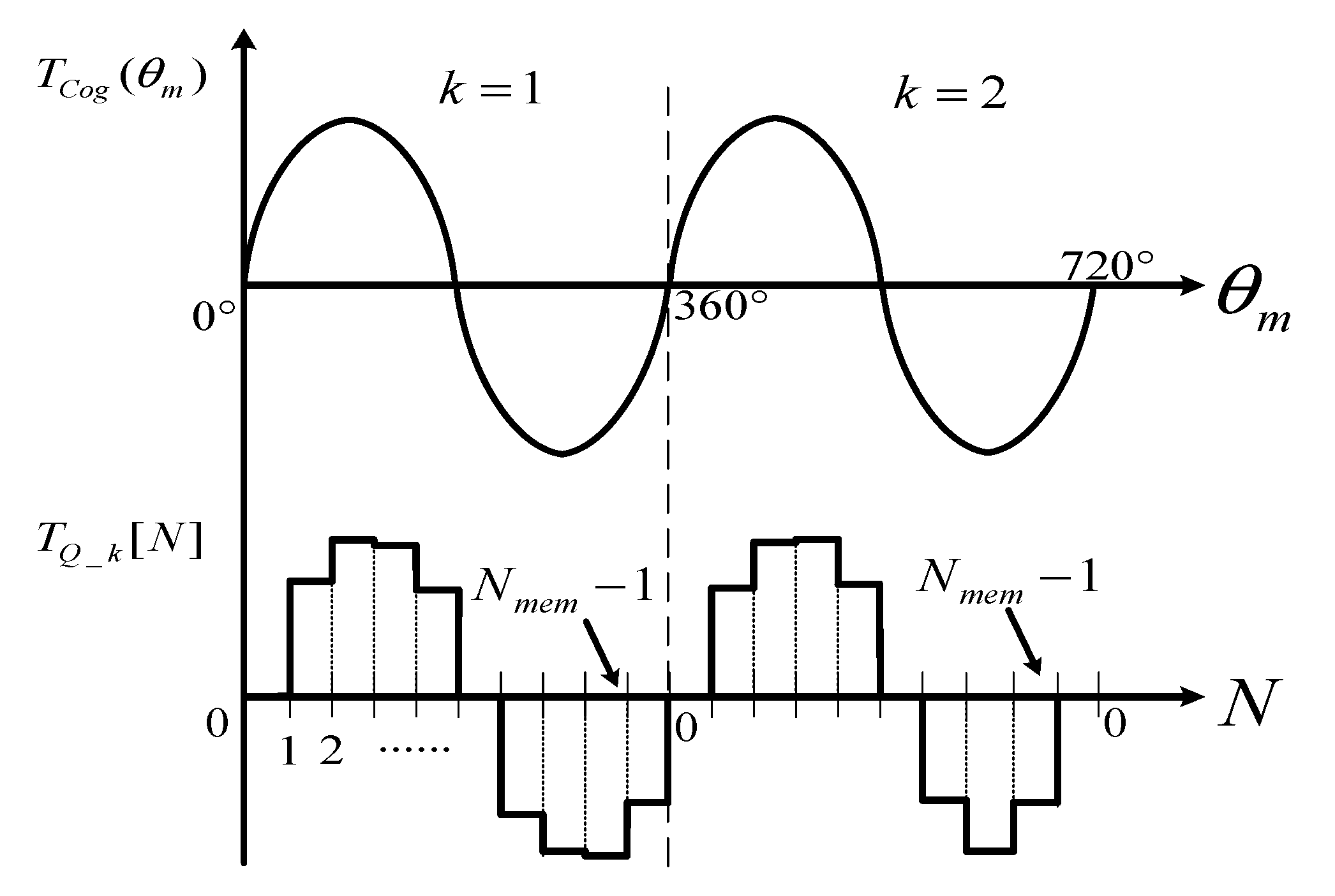

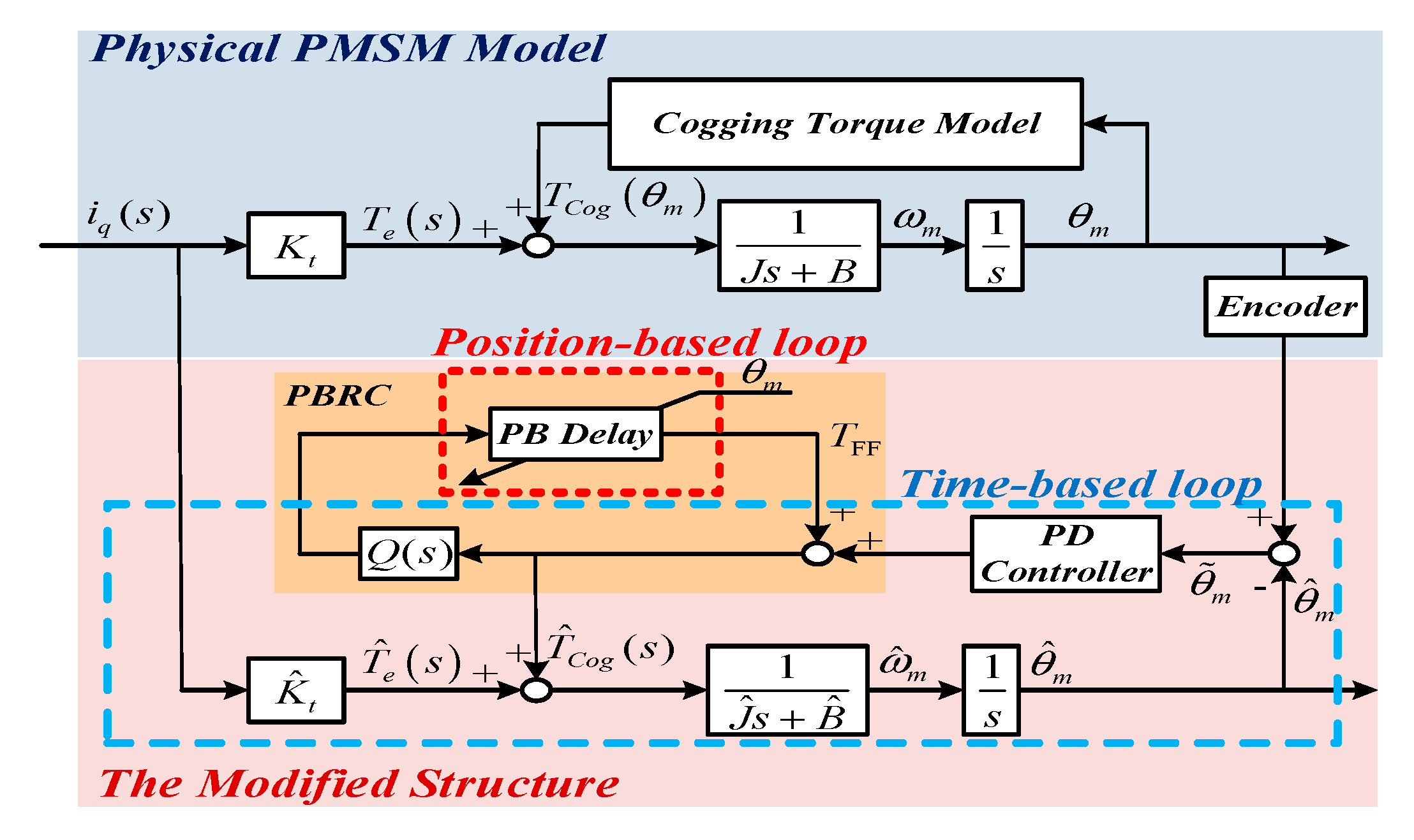

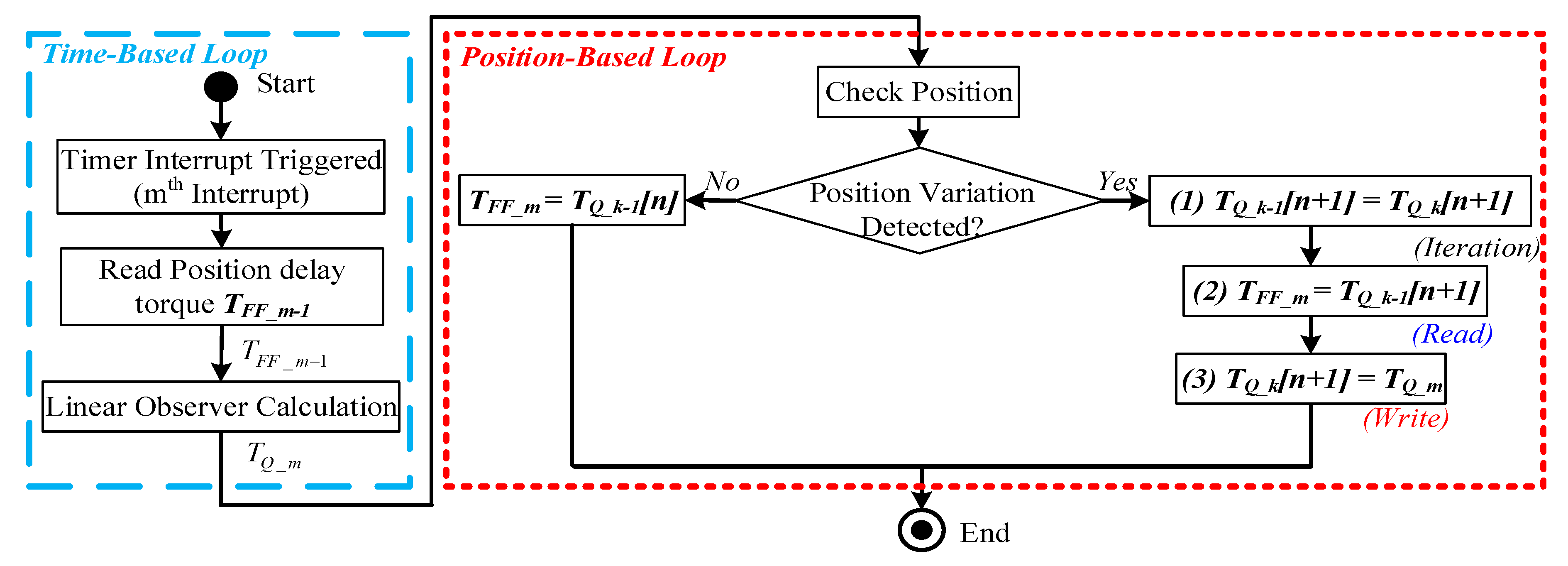

2.3. Realization of PBR-TOB
2.4. Torque Compensation Strategy
2.4.1. Online Compensation with Cogging Torque Table Learning Strategy
- Control the motor to a specific speed.
- After the PBR-TOB operates to steady state, SW1 is switched on to compensate the torque command online.
- If the compensate effect is not satisfied, one can adjust the cutoff frequency of the learning filter and the bandwidth of PBR-TOB.
- After the closed loop reaches steady state, SW2 is switched on to get an offline compensate table.
- According to Equations (12) and (13), the motor speed must be satisfied.
- The lower the speed, the higher the cogging torque resolution.
- The steady-state speed error is maximum.

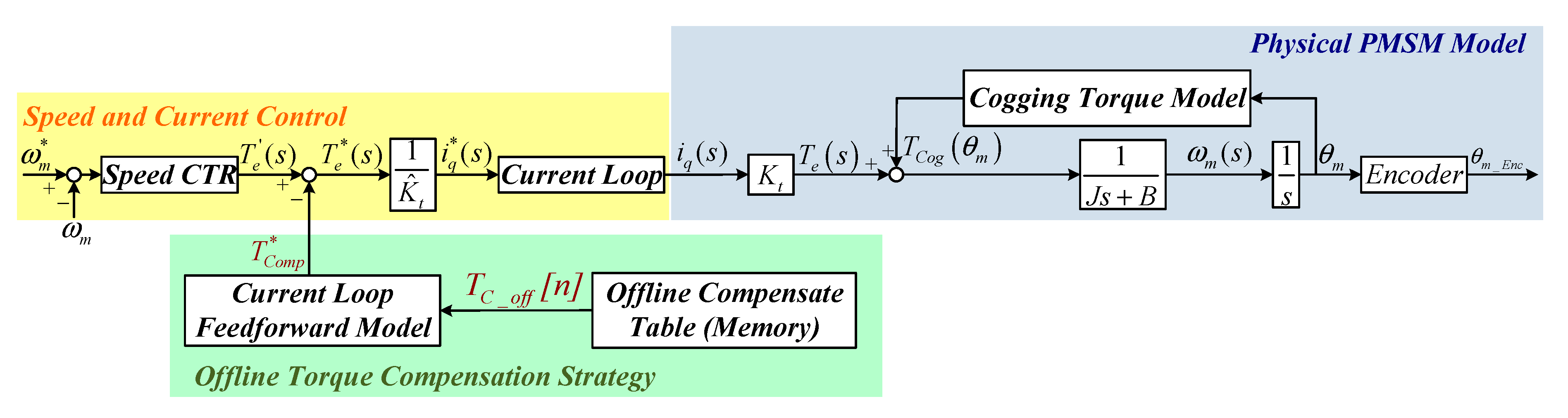

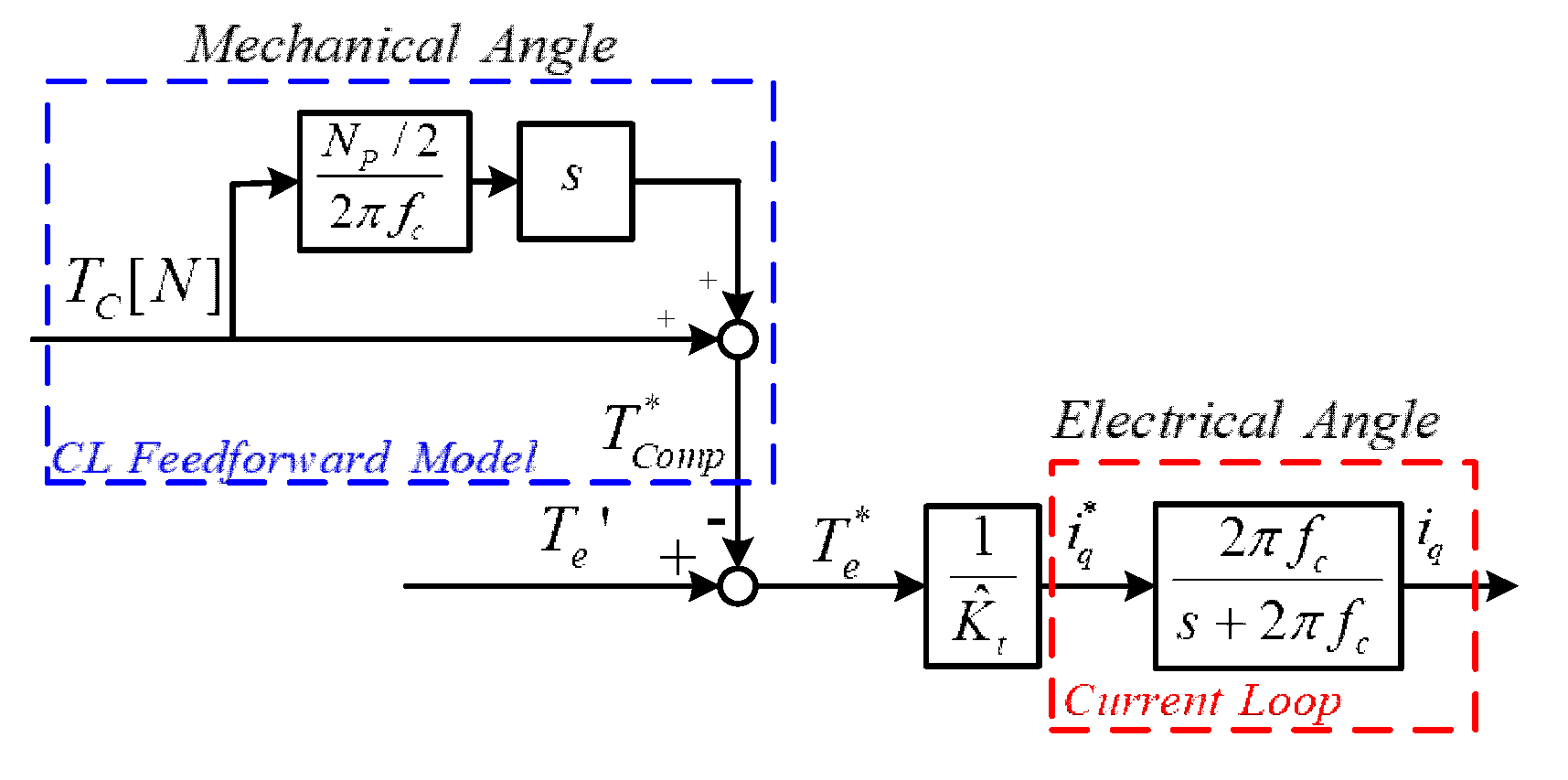

2.4.2. The Offline Compensation Strategy
3. Experiments

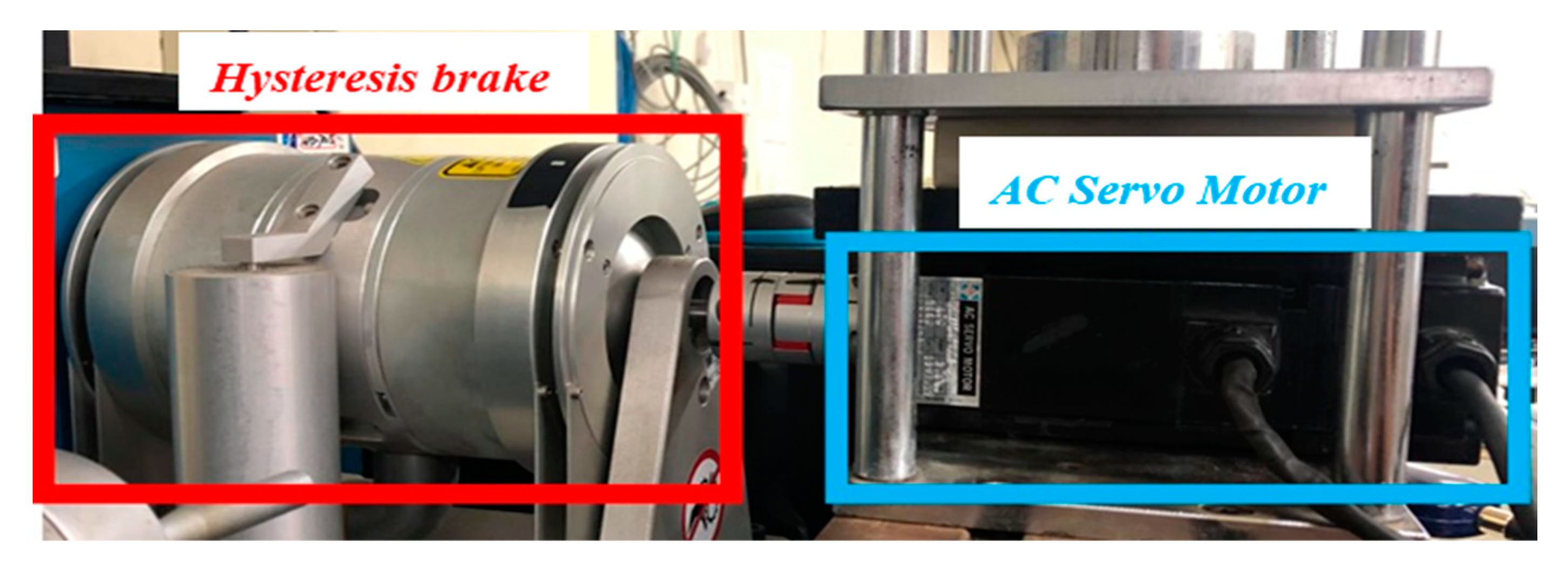

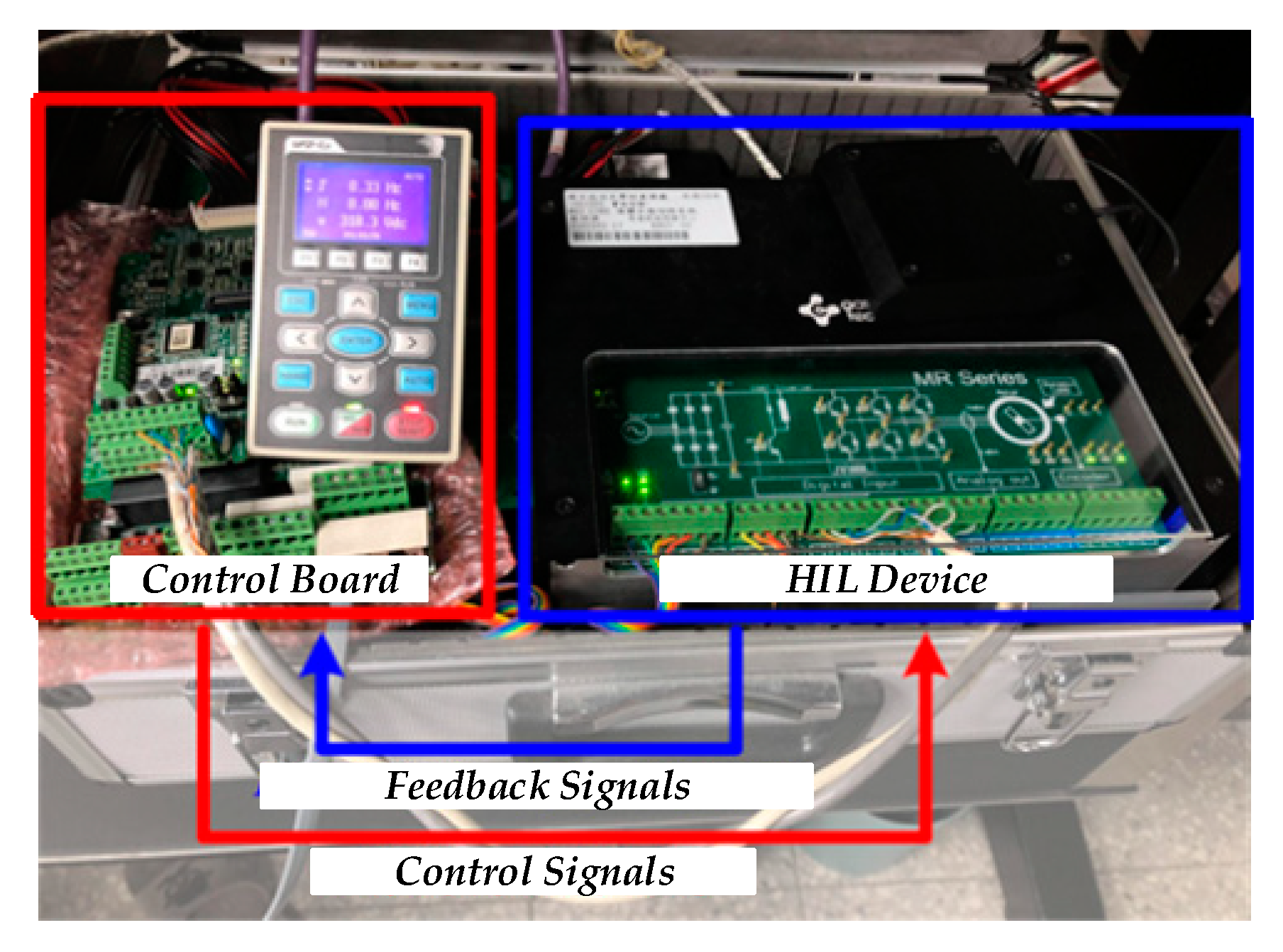

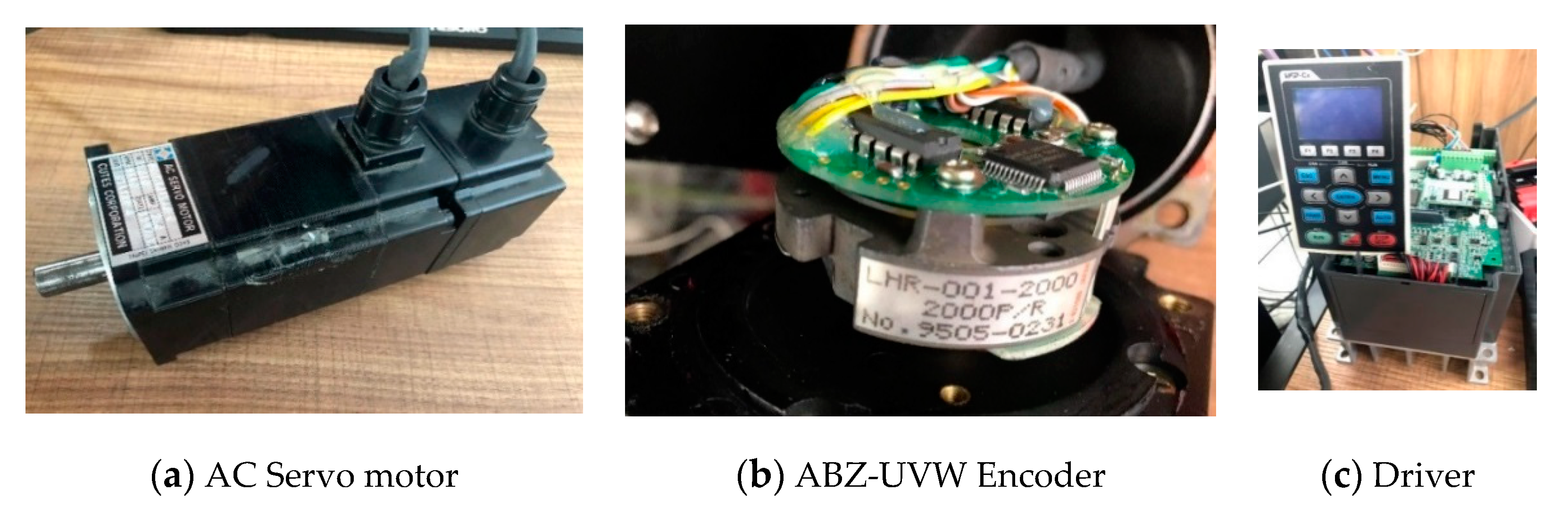

3.1. Hardware Specification and Setup
3.2. Experiment Design
- ◆
- In order to verify the accuracy of the online cogging torque compensation, the procedures are conducted in the following steps:
- Control the motor speed to rated speed under no load condition.
- Decrease the speed command to find the most appropriate operation speed.
- Apply the online torque compensation with the cogging torque learning strategy and compare the SSSE before and after compensation.
- Compare the observed cogging torque with the HIL cogging torque model.
- ◆
- In order to verify the accuracy of offline cogging torque compensation, the procedures are conducted in the following steps.
- Control the motor speed to the most appropriate operation speed and apply the offline torque compensation strategy.
- Verify the offline compensation, which can lower the noise compared with online compensation.
- Decrease the speed command to lower controllable speed and verify the speed performance.
- ◆
- As for the rated load condition, the procedures are conducted in the following steps.
- Control the motor speed to obtain the most appropriate operational speed under the rated load condition.
- Apply the offline torque compensation and compare the SSSE before and after compensation.

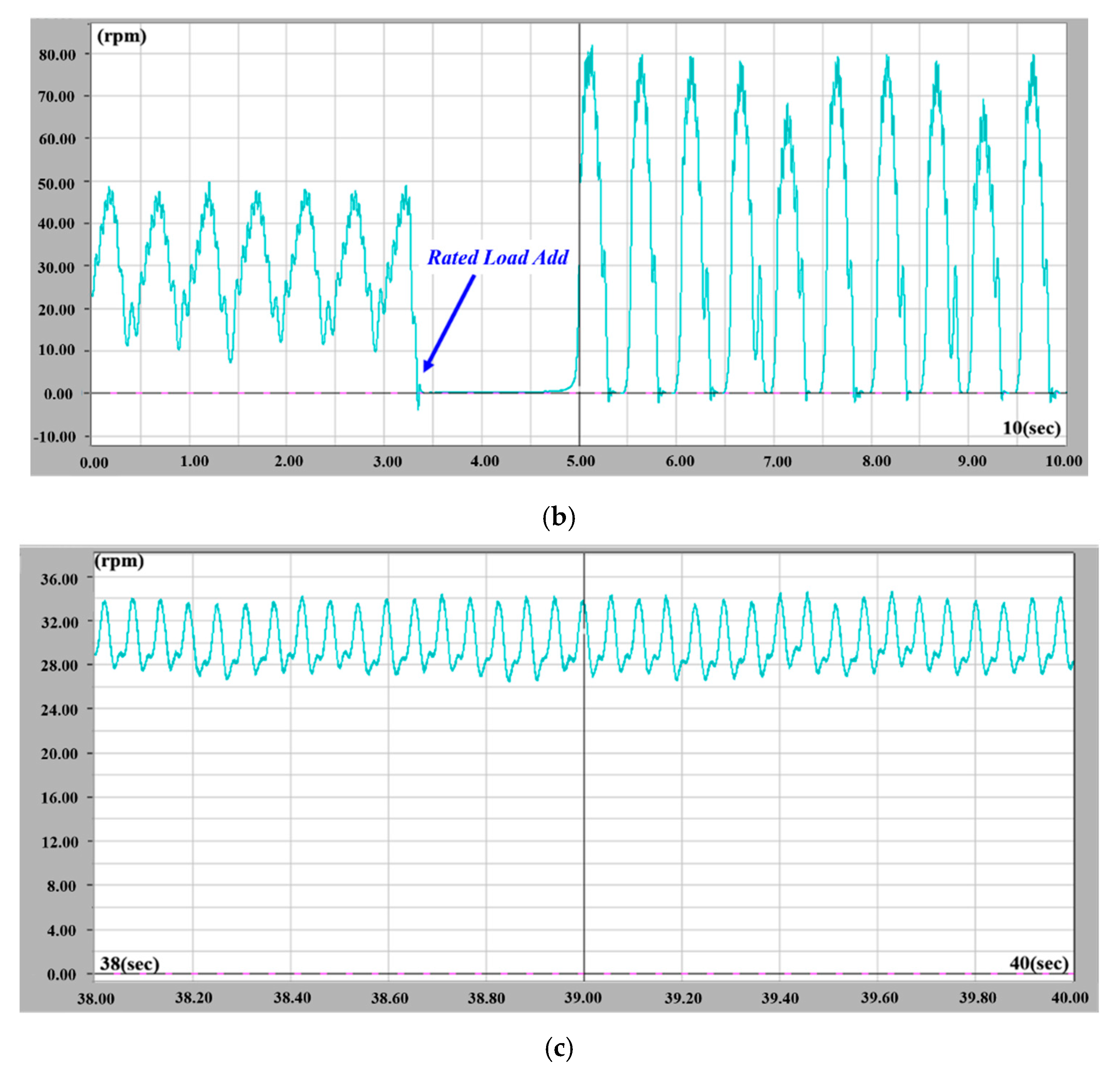

- Decrease the speed command to lower controllable speed and then verify the speed performance.
3.3. Experiment Results of HIL Emulation

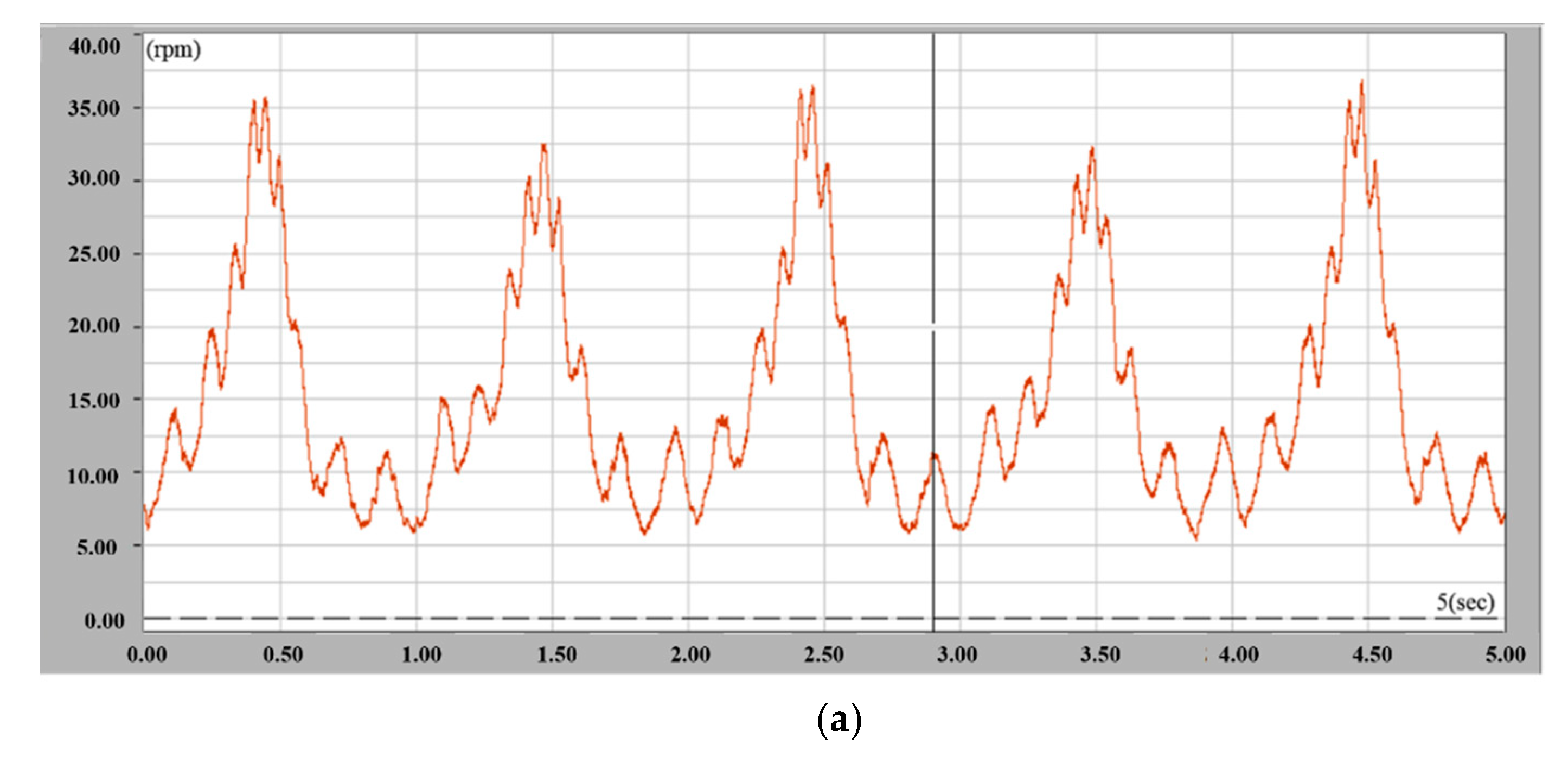

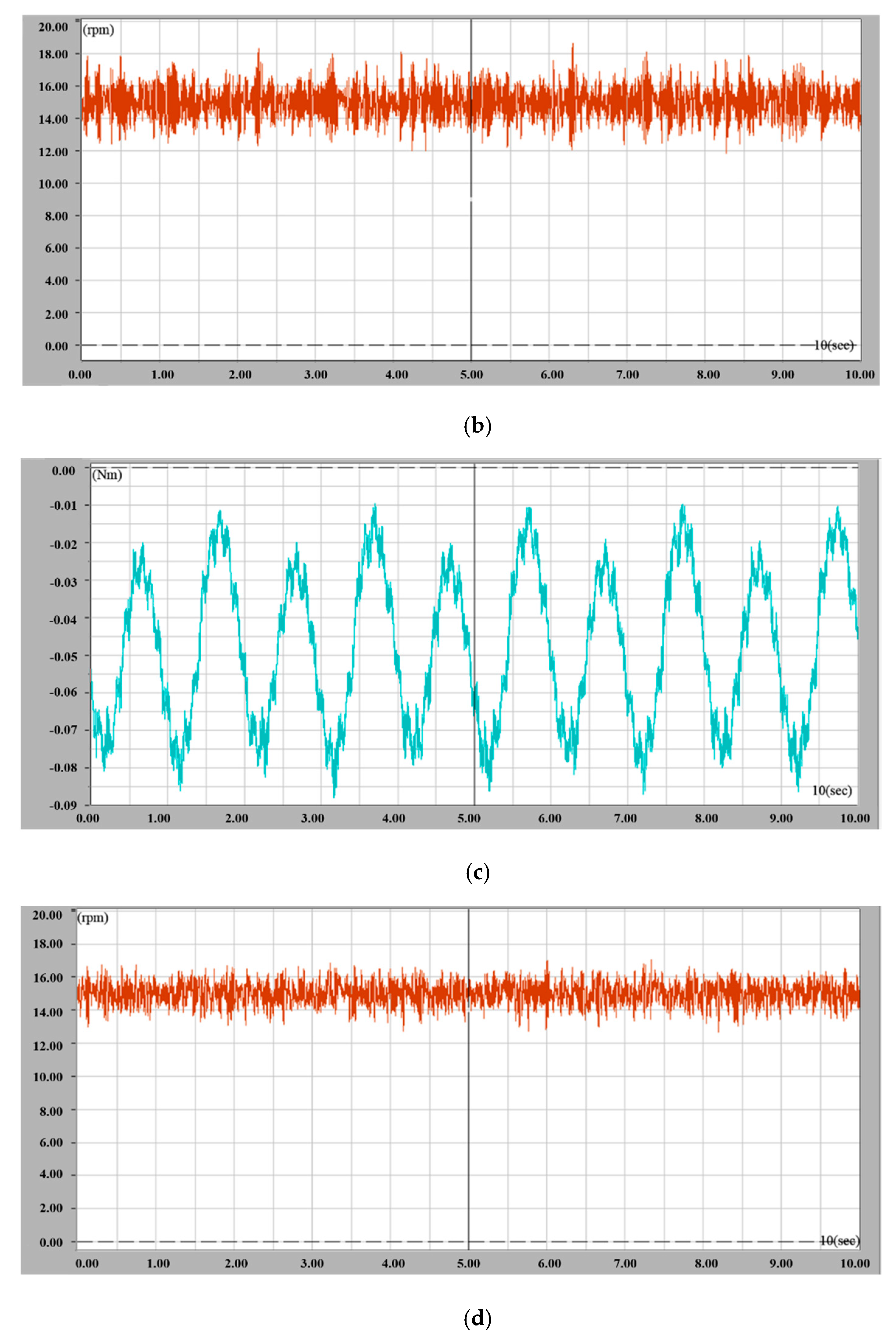

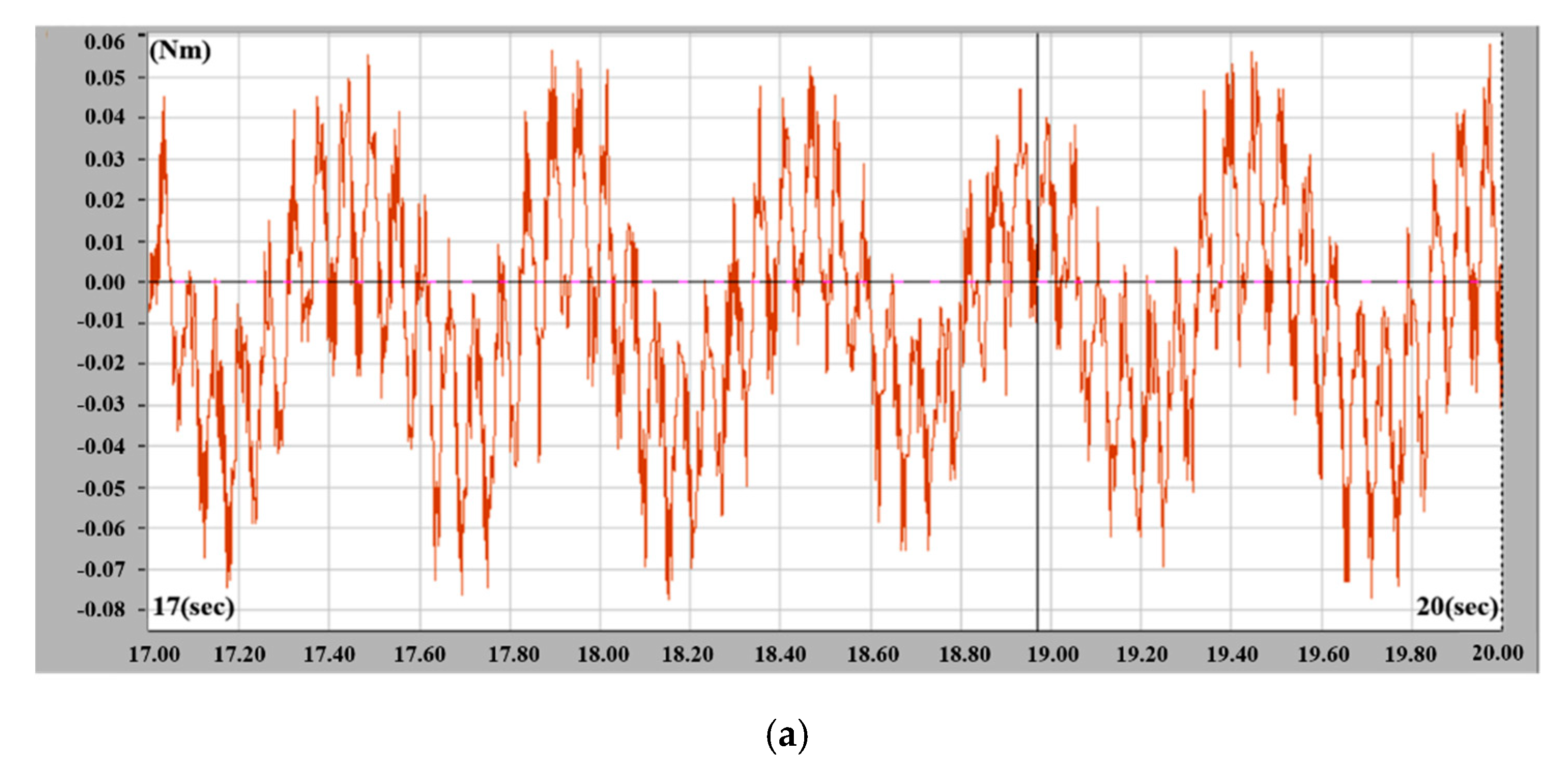

3.4. Experiment Results of Physical Motor Platform
4. Conclusions
- (1)
- Based on the field-oriented control structure, a new observer structure is created to estimate the cogging torque. The proposed observer utilizes the position-based repetitive controller (PBRC) as an internal model in a model reference disturbance observer (MRDOB) to enhance the accuracy of cogging torque estimation.
- (2)

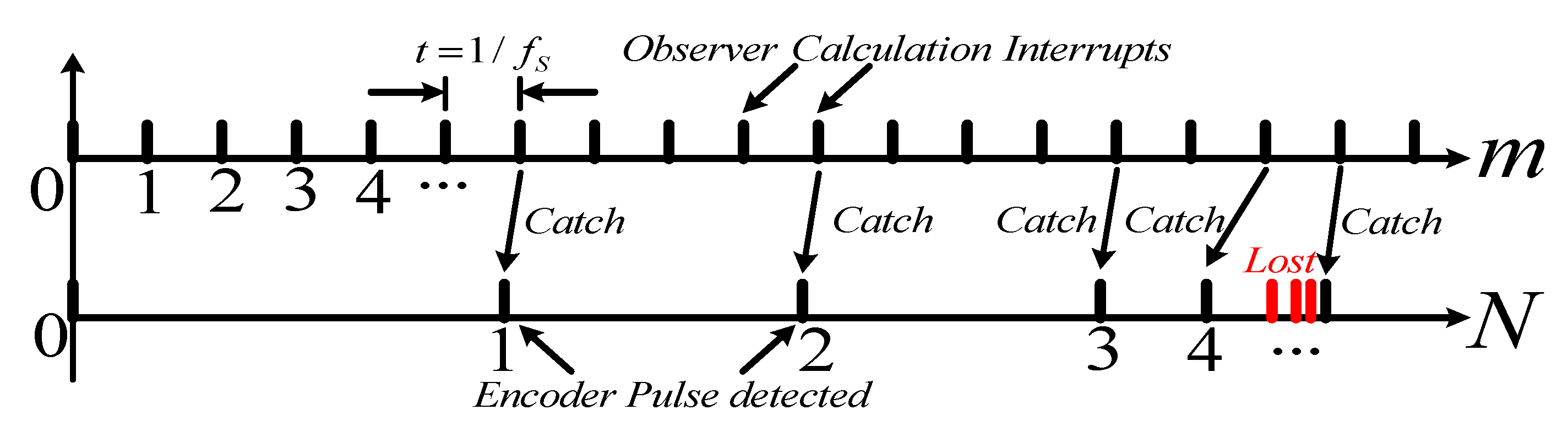

- An incremental encoder is used directly to realize the position-based delay in the PBRC, and a further practical method is introduced to realize the proposed observer with DSP memory array.
- (3)
- Online and offline compensation strategies are proposed, and the position-based forgetting factor and position-based average concept are utilized respectively to reduced noise and uncertainty of the observed information.
- (4)
- The proposed observer and compensation strategies are further verified with HIL emulation and experimental results under no load and rated load conditions. The results show that the cogging torque can be well estimated and the speed ripple can be reduced significantly.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Studer, C.; Keyhani, A.; Sebastian, T.; Murthy, S.K. Study of cogging torque in permanent magnet machines. In Proceedings of the IAS 97. Conference Record of the 1997 IEEE Industry Applications Conference Thirty-Second IAS Annual Meeting, New Orleans, LA, USA, 5–9 October 1997; Volume 1, pp. 42–49. [Google Scholar]
- Setiabudy, R.; Wahab, H.; Putra, Y.S. Reduction of cogging torque on brushless direct current motor with segmentation of magnet permanent. In Proceedings of the2017 4th International Conference on Information Technology, Computer, and Electrical Engineering (ICITACEE), Semarang, Indonesia, 18–19 October 2017; pp. 81–86. [Google Scholar]
- Wahab, H.; Setiabudy, R.; Rahardjo, A. Cogging torque reduction by modifying stator teeth and permanent magnet shape on a surface mounted PMSG. In Proceedings of the 2017 International Seminar on Intelligent Technology and Its Applications (ISITIA), Surabaya, Indonesia, 28–29 August 2017; pp. 227–232. [Google Scholar]
- Ueda, Y.; Takahashi, H.; Ogawa, A.; Akiba, T.; Yoshida, M. Cogging-Torque Reduction of Transverse-Flux Motor by Skewing Stator Poles. IEEE Trans. Magn. 2016, 52, 1–4. [Google Scholar] [CrossRef]
- Ge, X.; Zhu, Z.Q.; Kemp, G.; Moule, D.; Williams, C. Optimal Step-Skew Methods for Cogging Torque Reduction Accounting for Three-Dimensional Effect of Interior Permanent Magnet Machines. IEEE Trans. Energy Convers. 2017, 32, 222–232. [Google Scholar] [CrossRef]
- Ellis, G. Observers in Control Systems: A Practical Guide; Academic Press: Cambridge, MA, USA, 2002. [Google Scholar]
- Li, P.Y. Internal Model Principle, Lecture of Advanced Control System Design. 2016. Available online: http://www.me.umn.edu/courses/me8281/Old/IMP-repetitive.pdf (accessed on 17 August 2018).
- Żak, S.H. The Internal Model Principle, Lecture of Feedback System Analysis and Design. 2016. Available online: https://engineering.purdue.edu/~zak/ECE_382-2014/hand_3.pdf (accessed on 13 August 2018).
- Chen, C.L.; Tsai, M.C. Position-Dependent Repetitive Control for Speed Ripple Reduction of Ultrasonic Motor. IFAC Proc. Vol. 2014, 47, 1754–1759. [Google Scholar] [CrossRef] [Green Version]
- Hara, S.; Yamamoto, Y.; Omata, T.; Nakano, M. Repetitive Control-System—A New Type Servo System for Periodic Exogenous Signals. IEEE Trans. Autom. Control 1988, 33, 659–668. [Google Scholar] [CrossRef] [Green Version]
- Tsai, M.C.; Yao, W.S. Design of a plug-in type repetitive controller for periodic inputs. IEEE Trans. Control Syst. Technol. 2002, 10, 547–555. [Google Scholar] [CrossRef]
- Tsai, M.C.; Yao, W.S. Implementation of Repetitive Controller for Rejection of Position-based Periodic Disturbances. Control Eng. Prac. 2013, 21, 1226–1237. [Google Scholar]
- Gathertech Corp. Lmt. MR2 HIL User Manual. Available online: https://www.gathertech.net/en-us-hil-product (accessed on 18 December 2019).
- Yousefi-Talouki, A.; Pellegrino, G. Sensorless direct flux vector control of synchronous reluctance motor drives in a wide speed range including standstill. In Proceedings of the 2016 XXII International Conference on Electrical Machines (ICEM), Lausanne, Switzerland, 4–7 September 2016; pp. 1167–1173. [Google Scholar]
PMSM Spec. | Value |
---|---|
Rated Power | |
DC Voltage | |
Rated Current | |
Rated Torque | |
Rated Speed | |
Back Electromotive Force (EMF) const. | |
Poles Number |
Driver Spec. | Value |
---|---|
Rated Output Power | |
Rated Output Current | |
Rated Input Current | |
Rated Input Voltage | |
Carrier Frequency |
Brake Spec. | Value |
---|---|
Rated Output Torque | |
Max. Speed | |
Max. Power | |
Poles Number |
