First Macro-Colonizers and Survivors Around Tagoro Submarine Volcano, Canary Islands, Spain

by
Ana Sotomayor-García
1,
José L. Rueda
2,
Olga Sánchez-Guillamón
2,
Javier Urra
2,
Juan T. Vázquez
2,
Desirée Palomino
2,3,
Luis M. Fernández-Salas
3,
Nieves López-González
2,
Marcos González-Porto
1,
J. Magdalena Santana-Casiano
4,
Melchor González-Dávila
4,
Carmen Presas-Navarro
1 and
E. Fraile-Nuez
1,*
1
Instituto Español de Oceanografía, Centro Oceanográfico de Canarias, 38180 Tenerife, Spain
2
Instituto Español de Oceanografía, Centro Oceanográfico de Málaga, 29640 Fuengirola, Spain
3
Instituto Español de Oceanografía, Centro Oceanográfico de Cádiz, 11006 Cádiz, Spain
4
Instituto de Oceanografía y Cambio Global, Universidad de Las Palmas de Gran Canaria, 35017 Las Palmas, Spain
*
Author to whom correspondence should be addressed.
Geosciences 2019, 9(1), 52; https://doi.org/10.3390/geosciences9010052
Submission received: 30 November 2018 / Revised: 10 January 2019 / Accepted: 15 January 2019 / Published: 19 January 2019
(This article belongs to the Special Issue Submarine Volcanic Hazards: Ancient and Modern Perspectives)
Browse Figures
Versions Notes

Abstract

:
Tagoro, the youngest submarine volcano of the Canary Islands, erupted in 2011 South of El Hierro Island. Pre-existing sea floor and inhabiting biological communities were buried by the newly erupted material, promoting the appearance of new habitats. The present study pursues to describe the first metazoans colonizing different new habitats formed during the eruption and to create precedent on this field. Through dredge and remote operated vehicle samplings, five main habitat types have been detected based on the substrate type and burial status after the eruption. Inside the Tagoro volcanic complex (TVC), two new habitats are located in and around the summit and main craters—hydrothermal vents with bacterial mats and sulfurous-like fields mainly colonized by small hydrozoan colonies. Two other habitats are located downslope the TVC; new hard substrate and new mixed substrate, holding the highest biodiversity of the TVC, especially at the mixed bottoms with annelids (Chloeia cf. venusta), arthropods (Monodaeus couchii and Alpheus sp.), cnidarians (Sertularella cf. tenella), and molluscs (Neopycnodonte cochlear) as the first colonizers. An impact evaluation was done comparing the communities of those habitats with the complex and well-established community described at the stable hard substrate outside the TVC, which is constituted of highly abundant hydrozoans (Aglaophenia sp.), antipatharians (Stichopates setacea and Antipathes furcata), and colonizing epibionts (e.g., Neopycnodonte cochlear). Three years after the eruption, species numbers at Tagoro were still low compared to those occurring at similar depths outside the TVC. The first dominant species at the TVC included a large proportion of common suspension feeders of the circalittoral and bathyal hard bottoms of the area, which could have exploited the uncolonized hard bottoms and the post eruptive fertilization of water masses.

1. Introduction

The majority of Earth’s volcanic activity occurs beneath the sea, and oceanic intraplate volcanism represents an important fraction of this phenomenon [1]. There are thousands of seamounts throughout the deep ocean that are by majority extinct volcanoes [2]. The Canary Islands are a volcanic alignment of eight islands, composing an East–West trending archipelago located to the Northwest of the African continent [3,4] (Figure 1A). In October 2011, a submarine eruption took place south of El Hierro Island on the border of the Natural Reserve “Punta de la Restinga—Mar de las Calmas” (27°37′07″ N–017°59′28″ W, Figure 1B). The eruption covered a pre-existing underwater gully with basaltic lava (Figure 1C), creating the youngest shallowest submarine volcano of the Canary Archipelago, Tagoro (Figure 1D). This led to numerous multi-faceted novel studies—geological, physical, chemical, and biological [5,6,7,8,9]—that are producing exciting results to date. Significant anomalies in temperature (>+18.8 °C), pHT (ΔpH up to −2.9 units), and concentration of the reduced species were observed South of El Hierro Island during the first weeks, resulting in a decrease in the oxidation potential (ORP, from 0.2 V to −0.03 V) as well as an enrichment of Fe(II) (>50 µmol kg−1) and inorganic nutrients. As a consequence, the eruption generated an episode of natural ocean acidification and fertilization [10]. Unlike the detailed study on physical–chemical parameters of the water column after the eruptive process [6,10,11,12], no study has yet focused on the survival and colonization by marine benthic and demersal species at the newly formed submarine volcano.
Tagoro is one of the Earth’s shallowest submarine volcanoes being monitored and represents an ideal natural observatory for understanding the immediate and long-term impacts of volcanic eruptions, and their related hydrothermal fields in different ecosystem compartments. Geological natural phenomena have important impacts on marine environments; therefore, studying volcanic hazards over different ecosystems contributes valuable information on nature’s behavior.
The Canary archipelago plays an important role as a natural laboratory for studying the biogeography and evolution of species, due to its geographical location and oceanographic characteristics in the Eastern North Atlantic Subtropical Gyre [13,14,15]. The islands edifices act as an oasis for sustaining life in the open ocean, and as an important corridor for species’ dispersion and colonization of further new habitats [16]. Planktonic larvae dispersion has been identified as one of the main processes permitting new habitat colonization [17,18,19,20]. Larval flow is also closely related to the direction and intensity of ocean currents, topographic features, and substrate availability [17,21,22].
The Tagoro submarine volcano provides a truly valuable opportunity for studying submarine benthic and demersal colonization on newly formed habitats, in addition to understanding the resilience capacity of the disturbed environment in the context of the North Atlantic Ocean. This topic has been previously investigated; Danovaro et al. [8] explored the microbial habitat dominating bacterial mats around the craters. A few studies have been conducted on community diversity at shallow hydrothermal vents in other volcanic archipelagos, such as the Azores Islands [23], Iceland [24], and in Grenada (Caribbean) [25], which can be comparable, however, they do not describe the colonization components of the newly formed volcanic substrate.
The Tagoro volcano complex (TVC, Figure 2) comprises one main cone and thirteen secondary cones, with interspersed depressions, aligned North-Northwest–South-Southeast, NNW-SSE [26,27]. The main edifice extends 88–400 m deep and the lava debris apron spreads 1–1.3 km long south-west (Figure 2A). Different geomorphic features (scarps and crests) were constructed during the eruption, shaped by the pre-existing gully and the different slope gradients (Figure 2A,B), covering depths greater than 1000 m (Figure 1D and Figure 2C). Information on the pre-existing biological communities was obtained by sampling near-by, non-buried areas (Figure 3A,B). Previous studies on underwater lava-substrate colonization have been mostly limited to sub-aerial eruptions that reached the ocean [28,29,30]. Consequently, only intertidal and shallow habitats have been considered. Nonetheless, in the Pacific Ocean, two submarine volcanoes were monitored after their most recent eruption—West Mata in the Tonga Trench at 1200 m depth in 2008–2009 [31,32], and the NW Rota-1 in the Mariana Trench at 517 m depth in 2006 [33]. Although the colonization process was not the main goal of those studies, two alvinocarid endemic shrimp species were identified at West Mata (Opaepele loihi and an unidentified species; [31]), and two similar shrimp species were detected as dominant macrofaunistic components at the NW Rota-1 volcano [31]. These were the only reported findings on colonizing macrofauna at the two sites, and the resilience ability of inhabiting species was not explored. However, colonization processes may sometimes depend on recruitment events from neighbouring communities [34,35], and on the survival rates of the disrupted habitat communities [36]. Clearly, scarce information exists on the settlement of benthic and demersal organisms as colonizers of newly erupted volcanic rocks, and further studies are then critically required.
Due to an overall lack of knowledge on the colonization process of the benthic and demersal fauna onto newly formed volcanic substrates in shallow submarine environments, this study aimed to investigate the survival and colonization components of benthic and demersal communities at the newly formed habitat types of the Tagoro volcano. Further, we evaluate the impact of the volcanic eruption on these communities by comparing them to those existing at similar depths in adjacent areas.

2. Materials and Methods

Expeditions: the scientific dataset presented here was collected during four oceanographic expeditions on board the R/V Ramón Margalef (VULCANO0313, and VULCANA0417), and R/V Ángeles Alvariño (VULCANO0314, and VULCANO1013) between 2013 and 2017, being the earliest sample set less than two years after the end of the eruption. Sample collection was carried out off El Hierro Island, mainly at TVC (27°37′07″ N; 17°59′28″ W, Figure 3C–E), and at one adjacent unaffected area located close to “La Restinga-Mar de las Calmas” Marine Reserve (ca. 1.5 km from the main cone of Tagoro volcano) (Figure 3B).
Hydrography: hydrographic stations were carried out from the surface to 1200 m depth using a SeaBird 9/11-plus CTD (Conductivity-Temperature-Depth) with redundant sensors for temperature and conductivity, in addition to light transmission (Chelsea/Seatech), dissolved oxygen (SBE 43), pH and ORP (Oxygen-Reduction-Potential, SBE27, Figure 4A,B), pressure, and altimeter sensors. The accuracy of the temperature and conductivity sensors was 0.001 °C and 0.0003 S/m, respectively. Water samples were collected with a 24–10 L bottle rosette. The methodology followed has been previously described (Tow-yo and yo-yo techniques) [9,10]. Velocity data were obtained using a Vessel Mounted Acoustic Doppler Current Profiler (VMADCP) for the whole area.
Bathymetry and acoustic imagery: multibeam echosounder datasets were acquired using a Kongsberg-Simrad EM710 during VULCANA0417, which operates at sonar frequencies in the 70–100 kHz range, and were processed using CARIS HIPS & SIPS yielding bathymetric grid resolution of 5 m with 100% coverage.
Seafloor and benthic–demersal characterization: underwater imagery and benthic dredging were used for spatial characterization of the habitats, and their associated benthic and demersal communities. Submarine high quality video images were recorded using an Underwater Camera Sled (UCS) Aphia 2012 (VULCANO1013) and the Remote Operate Vehicle (ROV-Liropus 2000) from the Spanish Institute of Oceanography (VULCANO0314) (Figure 3B,D,E; light blue, VULCANO1013; and strong blue, VULCANO0314). A total of four and thirty-six hours of video were recorded, respectively. Underwater images were analyzed for the presence/absence of species, and the organism identification was done to the lowest possible taxonomic level.
Benthic (and some demersal) species were sampled using a benthic dredge (horizontal opening of 1 m, net mesh size of 1 cm). Samplings were mainly performed to carry out a geological characterization of substrate types in these areas, in order to collect small species that were not detected by underwater images and also to support species already identified in the images. Some dredges were towed at different depths to increase the spatial characterization of the communities at the TVC (Figure 3B,C). A total of 18 dredges were towed during the VULCANO0313 and VULCANO1013 cruises (Figure 3B,C; white and black points, respectively).
To contrast the effects of eruption on the biological community within the shallowest areas (around 200 m depth), a dredge sample and underwater video transect (Underwater Camera Sled-Aphia2012) were obtained in an almost pristine area outside the volcano-affected region (Figure 3B). Due to the invasiveness of the used sampling methodology, only one replicate was obtained in the non-buried (nearly pristine) area outside TVC. Moreover, some patches with slow-growing habitat-forming species were detected in deep areas of the TVC, which was useful for studying the survival of some organisms and alterations caused by the eruption. Collected organisms were separated from seafloor basaltic rocks and sedimentary material, identified to the lowest possible taxonomic level, photographed, and quantified. Sessile organisms attached to lava rocks were also quantified and photographed. Faunistic and geological materials were properly labeled and preserved dry or with 70% ethanol until further processing in the laboratory, to improve species identification when possible.

3. Results

The present study was based on a data set collected from 2013 and 2017, two years after the eruption’s onset (2011). During the survey study period, the Tagoro submarine volcano was in an active degassing phase, emitting heat, different gases, and volatile components—mainly CO2 [6,10]. Important physical–chemical anomalies were detected in the water column as δ(ORP)/δt up to −20 mV and pH anomalies up to −0.5 units (Figure 4A,B). In the same way, and for the interior of the main crater, the physical-chemical anomalies were more pronounced as: (i) thermal increase of +2.55 °C, (ii) salinity decrease of −1.02, (iii) density decrease of −1.43 (kg∙m−3), and (iv) pH decrease of −1.25 units [9]. These alterations were concentrated 0.5 km around the crater (Figure 4A–C).
Pre-existing and newly formed habitat types were classified according to their location inside or outside the TVC-affected area, and substrate types. Within the TVC area, a distinction between the main edifice—which extends 88–400 m deep—and the natural prolongation of the SW flank of the main edifice was based on substrate type (Figure 5A). The main shallower edifice contained two newly formed habitats: hydrothermal vents with bacterial mats and sulphurous-like fields, both associated to the volcanic cones (Figure 2). The former was concentrated around hydrothermal vent sites, displaying a 10 cm yellow band of bacterial mats. However, the sulphurous-like fields were less restricted and extended around the main and secondary cones, and formed sulphur-looking light and sparse material that were easily re-suspended as shown by the underwater images (Figure 5B). Two other habitats conformed to the lava-debris flown apron that covered the SW flank of the volcano were named as new hard substrate and new mixed substrate. The new hard substrate habitat was composed of abundant pyroclastic rocks (from tens of cm to meters) that were deposited around the main cone during the eruption, forming an ideal area for colonizers that generally inhabit small cavities and hard substrate crevices (Figure 5C,D). The new mixed substrate habitat surrounds the previously described habitat type, and was conformed by small to medium size rocks and gravel sediments, offering distinct colonizing substrates (Figure 5E). Basaltic rock dimensions ranged from tens of centimetres (the largest rocks) to centimetres (the finer grained erupted material), creating a bed of rather fine sediment spotted with bigger size rocks. This habitat was less compact and stable than the new hard substrate due to its natural instabilities.
Outside the TVC-affected area a single habitat—named Stable hard substrate—comprised of different substrate types, including some soft sediment dispersed within the rocky bottom (Figure 5F). This habitat, even though being close to the eruptive zone, remained undisturbed thanks to the ocean current direction [12], which flowed south-southwest preventing from any volcano derived burial. This habitat provides comparative pre-eruption conditions due to its undisturbed natural state. It consists of a crumble of solid and well-established rocks, and sediments of different sizes, with finer sediments that had been deposited previously to the eruption along the years. This habitat provides an interesting comparative baseline to investigate the physical and biological recovery of the newly formed shallow habitats.
Diversity of the benthic and demersal species colonizing the aforementioned habitats was set by coupling the analyses of underwater images (VOR and ROV data; Figure 3D,E) and dredge samples (Figure 3C). Determining the abundance was only possible from data collected using the dredges. A total of 6451 individuals, accounting for 116 taxa and nine phyla, were identified over the entire study (Table 1).
Biodiversity was distributed differently across the habitats (Figure 5). At the TVC’s shallowest areas, the biological community of hydrothermal vents with bacterial mats and sulphurous-like fields, were mainly composed of scares of a low number of species including small hydrozoans (Sertularella cf. tenella; size up to 2–3 cm; Figure 5A,B; Figure 6 and Table 1). Underwater images further detected the presence of some cephalopods, small serpulid polychaetes, and fishes, though at very low densities. In addition, previous studies investigated abundant bacterial mats occurring in these areas, which comprised mostly of a recently described genus and species of the order Thiotrichales, commonly known as Venus´s hair (Thiolava veneris) [8]. The bacterial mats concentrated around venting areas (Figure 2C), and were yellow-colored in underwater photographs, and oxidizers of the reduced sulphur that emanates from volcanic vents (Figure 5A).
In the deep areas of the TVC, new hard substrate and new mixed substrate displayed a larger biodiversity with seven different phyla in each habitat type, and a total of 38 and 55 taxa, respectively (Figure 6 and Table 1). Annelids, arthropods, cnidarians, and molluscs were the most diverse phyla in both habitats, generally present as small-sized specimens. The most represented taxa were similar in both habitats, although abundance differed significantly, with higher abundances in the mixed bottoms (Figure 7). Annelids were mainly represented by small sessile (Hyalopomatus sp.) and mobile species (Glycera sp., Chloeia cf. venusta, Onuphis sp.; Figure 8). Monadaeus couchii and Alpheus sp. were the dominant arthropod species (Figure 8). Cnidarians were mostly represented by scarce and small hydrozoan colonies (Sertularella cf. tenella; Figure 8). Finally, molluscs were mainly represented by the ostreid bivalve Neopycnodonte cochlear (reaching locally up to 100 individuals m−2; Figure 8), with shell sizes ranging from less than a cm to more than 6 cm, and probably resembling different cohorts. This ostreid was one of the most dominant species in the large lava rocks deposited after the eruption. In deep areas of the TVC, patches with large antipatharian colonies (mainly Stichopathes cf. setacea and Anthipathes furcata), dead colonial scleractinians of unidentified species, Sertularella sp., Plumulariide, some sponges (Axinella sp.), and a few species of fish (Anthias anthias, Conger conger, Scorpena sp., and Serranus atricauda; Table 1) were detected in the underwater images.
Outside the TVC, the biological community of Stable and hard bottoms not affected by the eruption comprised of nine phyla, with a total of 5774 identified individuals (Figure 6 and Table 1). Cnidarians were mainly represented by large and vulnerable slow-growing habitat-structuring species, including antipatharians such as Stichopathes cf. setacea (Figure 8; some of them with sizes of up to one m), Antipathes furcata (Figure 8), and Tanacetipathes cf. cavernicola (Figure 8), in addition to well-developed hydrozoan colonies, mainly Aglaophenia sp. 2, Sertularella cf. tenella, and Sertularella cf. gayi. Some of these antipatharians contained a wide variety of epibionts, mainly represented by cirripeds (Heteralepas cornuta; Figure 8), bryozoans (Reteporella sp.), and molluscs (Neopycnodonte cochlear, Pteria hirundo; Figure 8), which were the most abundant phyla of these non-buried habitats (Table 1). Annelids were dominated by Semivermillia cf. torulosa and an unidentified serpulid species (ca. 30 and 50 individuals, respectively). Some species of sponges (e.g., Axinella sp., Aplysina sp. and Geodia sp.; Figure 8) cohabited with the antipatharians, as well as taxa from phylla that were not detected in previous habitats of the TVC, such as brachiopods (Megerlia truncata and Pajaudina atlantica), bryozoans (e.g., Frondiporidae and Reteporella sp.), and ascidians.

4. Discussion

The study of the macrofauna at different sites of Tagoro volcano permitted to describe the primary biological evolution of new submarine habitats, with the possibility of identifying fast colonizing organisms as well as survivors to submarine eruptions.
The formation of the Tagoro volcano complex (TVC) included extrusion of magmatic material and the formation of new hard bottoms, as well as changes in the physical–chemical characteristics of water masses in the area [6,10,26,27]. This eruptive process locally impacted pre-existing habitats through burial, mainly those conformed by antipatharians (Stichopathes, Antipathes, and Tanacetipathes), which when detected were considered survivors of the eruption and the water column anomalies [37]. Black corals grow at relatively slow rates (maximum longevities ranging from decades to millennia), with long life spans and older age of maturity [38]; extended longevity of some detected individuals may represent an indicator of resilience to environmental changes, such as the Tagoro eruption is in this case. The impact produced by the physical–chemical anomalies may have also affected other species, for example, no live colonies of scleractinians were detected in the dredge samples (which contained some remains of dead ones) and in the underwater images.
Habitats of hydrothermal vents with bacterial mats and the sulphurous-like fields were the most extremophilous, and were basically colonized by bacteria that oxidizes reduced sulphur emanating from volcanic vents [8]. Nevertheless, very small hydrozoan colonies began to colonize the hard substrates of those habitats, and were also detected on the newly formed hard substrates away from the crater. Hydroids have also been detected as common components in shallow hydrothermal vents (<200 m depth) in the NE Atlantic [24,39,40]. These could represent early colonizers of extremophilous environments. In general, the metazoan biodiversity in these vents and sulphurous fields was very low when compared to the remaining habitats. Usually, hydrothermal vents are impoverished in comparison to other substrates located at similar depths, due to toxic and extremophilous environments that are noxious to most metazoans [40,41].
Regarding the two other new habitats conformed by the erupted lava rocks (new hard substrate and new mixed substrate; Figure 2C), the highest diversity was held by annelids, arthropods, cnidarians (only hydrozoans), echinoderms, and molluscs (Figure 6C,D), some of which are considered to be successful benthic colonizers of new substrates. Part of the identified species are mobile and may have planktotrophic development [42], even though larvae mobility could be influenced by different factors, such as larval mortality [43], pelagic larval duration [44], larval output [45,46], and geography [47,48]. Successful recruitment events of some of these species could have been enhanced because they are dominant components of undisturbed, stable hard bottoms located close to the TVC (Table 1). Additionally, some annelid and mollusc species are opportunistic organisms, and may have high larval settlement success in free empty substrates, a variable determining the spatial pattern of their distribution [49,50]. In the newly formed lava rocks (new hard substrates, Figure 2C), one of the first dominant colonizers was the bivalve Neopycnodonte cochlear (Figure 8A,B) that is a non-selective filter feeder that grows attached to rocks and to some organisms (e.g., antipatharians in this study), adapting its shape to irregular substrates. This ostreid is a very common species in circalittoral hard bottoms of the Canary Islands. It is also one of the whip black corals dominant epibionts (reaching densities of six per Stichopates cf. setacea colony) on the stable hard-bottoms located close to the Marine Reserve (ca. 1.5 km from the main cone of the Tagoro volcano) [51]. The presence of large populations of this fouling bivalve at the undisturbed area, the availability of uncolonized hard substrates, and the high concentration of Fe(II) and inorganic nutrients (natural fertilization event aforementioned; [10]), probably favoured successful recruitment of these ostreids at the TVC. Other common colonizers of the new hard substrates were hydrozoans (basically dominated by Sertularella spp; Figure 8D,E) that have planktonic larvae during their life cycle, which may permit their settlement in remote places. These hydroids are also very common circalittoral hard bottom species, and probably favoured by the same aforementioned reasons as N. cochlear. Another dominant colonizer was the shrimp Plesionika narval (Figure 8F and Table 1), represented by adult and juvenile individuals (high visualization rate in the underwater images), and it is also a common component of the Macaronesian circalitoral bottoms. In this context, its presence in the TVC could be primarily due to horizontal movements of individuals from nearby habitats [52,53]. This could also be the case for the few fish species observed in the TVC and its surrounding areas, Anthias anthias being by far the most abundant species.
In the new mixed substrates, a higher number and abundance of taxa were detected compared to the previously discussed habitats (Figure 8C,D). In these mixed bottoms, combining different types of substrates promotes the presence of a higher number of microhabitats, food sources, and species. A phenomenon that has been generally detected in mature complex communities [54]. The species colonizing lava rocks included most of those detected at the new hard substrates (Table 1). In this habitat, molluscs, annelids, and arthropods were the dominant groups in terms of abundance. Annelids were primarily represented by mobile predators and scavengers with a planktotrophic larval development, high dispersal potential such as Glycera sp. and Chloeia cf. venusta (Figure 8H,I; [55]), and both adults and juveniles (post-eruptive recruitment) were found in the samples. In this case, it remains unclear whether the colonization was only through larval settlement or also through adult and juvenile individuals coming from adjacent habitats with similar substrates that were not buried. Arthropods were mostly represented in the new mixed substrates by species with planktotrophic development that are common in circalittoral soft bottoms, inhabiting crevices and small burrows, such as Monodaeus couchii (Figure 8J), Alpheus sp. (Figure 8L), Munida sp., and Velolambrus cf. expansus (Figure 8K) [56]. Some of those decapods were represented by adults and juveniles (e.g., M. couchii, Alpheus sp.) and they generally inhabit crevices. Therefore, they may not be as mobile as other colonizing decapods with a demersal life style that colonized the TVC (e.g., Plesionika). Those species could have colonized the TVC through larval settlement and were probably favoured by the wide availability of unoccupied crevices of the new substrates (Figure 5C–E). Finally, cnidaria, molluscs, and echinoderms were also quite diverse. Cnidarians and mollusca showed the same pattern as in the new hard substrate, although some species displayed higher abundances (Figure 5 and Figure 6), and echinoderms were mostly represented by echinoid—mainly cidaroids (Figure 8G)—which generally are opportunistic species with broad tolerance ranges, able to live in very diverse substrates as detected in the current study [57]. Moreover, cidaroids are slow-moving species so their presence in the TVC is more likely due to larval settlement than to horizontal movements because only small-sized individuals were detected in the samples and in underwater images.
In the present study, the highest biodiversity was detected at the neighbouring hard and stable hard bottoms, located at a non-disturbed area close to the Marine Reserve “Punta de la Restinga—Mar de las Calmas” (Figure 3B). Taxa from all phyla detected in this study were observed in this undisturbed area, and the biodiversity distribution reflects well-established circalittoral hard bottom communities, with dense antipatharian aggregations and large sponges [58]. Although the sampling effort performed in this highly pristine habitat was smaller (e.g., only one dredge and one video transect outside the TVC) than in newly formed ones, a larger number and abundance of taxa was detected in these non-buried habitats. Antipatharians and large porifera are not considered pioneer colonizers of new substrates due to their slow growth rate and their fragility, making these groups more diverse and abundant at the undisturbed habitats (Figure 5E). Black corals (mainly Stichopates cf. setacea; Figure 8O and Table 1) were the most dominant habitat-forming species within those habitats, acting as habitat-structuring agents hosting different species of bryozoa and brachiopoda, e.g., Frondiporidae unid., Reteporella sp., and Pajaudina atlantica (Table 1). Moreover, these structurally complex organisms, together with large sponges or scleractinians, enhance three-dimensional habitats, which provide other organisms with settling substrates and shelter from predators [59,60]. Indeed, a wide variety and abundance of epibionts with planktotrophic larval development (e.g., N. cochlear (Figure 8Q), Heteralepas cornuta (Figure 8P), serpulids, and hydroids) occurred in Stichopates cf. setacea colonies and on rocky substrates (Figure 8S,T). Some of these epibiotic organisms were later found as key colonizers of the newly formed substrates in the Tagoro volcano. Conversely, the black corals detected in the underwater images at the newly formed habitats, were definitely survivors from the eruption, mainly due to the fact that they were half buried by the erupted volcanic materials, and were located in specific areas of the TVC away for the crater and lava debris apron.
In general, benthic and demersal macrofauna biodiversity and abundance were low close to venting areas, and increased away from the main and secondary cones where TVC structure is sharper and vertical, however, further decrease of biodiversity was detected relative to increasing depth. Species zonation along a depth gradient and between habitat types is known to be affected by several factors, such as temperature [61], pressure [62], currents and topography [63,64], sediment characteristics [65], in addition to biological factors including free-predator substrates, species competition, predation, and trophic levels [66,67]. A lower number of species generally occurred in the deeper parts of the lava debris apron, as higher biodiversity is expected where slope gradient is higher as shown by Gori et al., [68]. At deeper parts of the TVC colonization and recovery will probably occur slowly, since substrate variety, vertical gradient and depth [68] of that zone are curbing the metazoan community diversification. Dispersal capabilities of larvae and early stages might also affect species distribution when colonizing new substrates, as has been discussed for different species [16,69,70].

5. Conclusions

During the eruption of the Tagoro submarine volcano in March 2011, volcanic sediments and lava and gas emissions resulted in important disturbances in the surrounding grounds and on the water column. The results of this study highlight that the eruption first buried most of the previously existing habitats, except some patches with antipatharians that survived the event, and secondly created a highly unstable environment that affected some slow-growing organisms (e.g., cold-water corals), but not others (e.g., antipatharians). Nevertheless, our results indicate that the submarine eruption provided uncolonized hard and soft seafloor substrates to different organisms. These, together with the high concentration of Fe(II) and inorganic nutrients emitted by the volcano, which promoted a natural fertilization event in the area, could have enhanced the establishment and development of sessile suspension feeders (e.g., N. cochlear, hydrozoans) in the newly formed hard and mixed substrates, representing common components in nearby unaffected habitats.

Author Contributions

Conceptualization, A.S.-G. and J.L.R.; methodology, A.S.-G. and O.S.-G.; formal analysis, A.S.-G. and O.S.-G.; investigation, E.F.-N.; data curation, A.S.-G., O.S.-G., and M.G.-P.; writing—original draft preparation, A.S.-G., J.L.R. and J.U.; writing—draft contribution, J.T.V., D.P., L.M.F.-S., N.L.-G., J.M.S.-C., M.G.-D., C.P.-N., and E.F.-N.; writing—review and editing, J.L.R., E.F.-N., and O.S.-G.; supervision, E.F.-N. and J.L.R.; project administration, E.F.-N.; funding acquisition, E.F.-N.

Funding

This research was funded by Ministerio de Economía y Competitividad del Gobierno de España (MINECO) and FEDER through the VULCANO (CTM2012-36317) and VULCANO-II (CTM2014-51837-R) projects, and funds from The Spanish Institute of Oceanography (IEO) through the BIMBACHE (IEO2011-2012) and VULCANA (IEO-2015-2017) projects. The use of the ROV Liropus 2000 was also funded by IEO.

Acknowledgments

The authors would like to thank the captains and crew of the R/V Ramón Margalef and Ángeles Alvariño from the Spanish Institute of Oceanography, as well as the ROV crew from ACSM for their help at sea.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carey, S.; Sigurdsson, H. Exploring submarine arc volcanoes. Oceanography 2007, 20, 80–89. [Google Scholar] [CrossRef]
  2. Rubin, K.H.; Soule, S.A.; Chadwick, W.W.; Fornari, D.J.; Clague, D.A.; Embley, R.W.; Beker, E.T.; Perfit, M.R.; Caress, D.W.; Dziak, R.P. Volcanic eruptions in the deep sea. Oceanography 2012, 25, 142–157. [Google Scholar] [CrossRef]
  3. Carracedo, J.C. The Canary Islands: An example of structural control on the growth of large oceanic-island volcanoes. J. Volcanol. Geotherm. Res. 1994, 60, 225–241. [Google Scholar] [CrossRef]
  4. Zaczek, K.; Troll, V.R.; Cachao, M.; Ferreira, J.; Deegan, F.M.; Carracedo, J.C.; Soler, V.; Meade, F.C.; Burchardt, S. Nannofossils in 2011 El Hierro eruptive products reinstate plume model for Canary Islands. Sci. Rep. 2015, 5, 7945. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Meletlidis, S.; Di Roberto, A.; Pompilio, M.; Bertagnini, A.; Iribarren, I.; Felpeto, A.; Torres, P.A.; D’Oriano, C. Xenopumices from the 2011–2012 submarine eruption of El Hierro (Canary Islands, Spain): Constraints on the plumbing system and magma ascent. Geophys. Res. Lett. 2012, 39, 17. [Google Scholar] [CrossRef]
  6. Fraile-Nuez, E.; González-Dávila, M.; Santana-Casiano, J.M.; Arístegui, J.; Alonso-González, I.J.; Hernández-León, S.; Blanco, M.L.; Rodríguez-Santana, A.; Hernandez-Guerra, A.; Gelado-Caballero, M.D.; et al. The submarine volcano eruption at the island of El Hierro: Physical-chemical perturbation and biological response. Sci. Rep. 2012, 2, 486. [Google Scholar] [CrossRef] [PubMed]
  7. Rivera, J.; Lastras, G.; Canals, M.; Acosta, J.; Arrese, B.; Hermida, N.; Micallef, A.; Tello, O.; Amblas, D. Construction of an oceanic island: Insights from the El Hierro (Canary Islands) 2011–2012 submarine volcanic eruption. Geology 2013, 41, 355–358. [Google Scholar] [CrossRef]
  8. Danovaro, R.; Canals, M.; Tangherlini, M.; Dell’Anno, A.; Gambi, C.; Lastras, G.; Amblas, D.; Sanchez-Vidal, A.; Frigola, J.; Calafat, A.M.; et al. A submarine volcanic eruption leads to a novel microbial habitat. Nat. Ecol. Evol. 2017, 1, 0144. [Google Scholar] [CrossRef]
  9. Fraile-Nuez, E.; Santana-Casiano, J.M.; González-Dávila, M.; Vázquez, J.T.; Fernández-Salas, L.M.; Sánchez-Guillamón, O.; Palomino, P.; Presas-Navarro, C. Cyclic behavior associated with the degassing process at the shallow submarine volcano Tagoro, Canary Islands, Spain. Geoscience 2018, 8, 457. [Google Scholar] [CrossRef]
  10. Santana-Casiano, J.M.; González-Dávila, M.; Fraile-Nuez, E.; De Armas, D.; González, A.G.; Domínguez-Yanes, J.F.; Escánez, J. The natural ocean acidification and fertilization event caused by the submarine eruption of El Hierro. Sci. Rep. 2013, 3, 1140. [Google Scholar] [CrossRef]
  11. Eugenio, F.; Martin, J.; Marcello, J.; Fraile-Nuez, E. Environmental monitoring of El Hierro Island submarine volcano, by combining low and high resolution satellite imagery. Int. J. Appl. Earth Obs. Geoinf. 2014, 29, 53–66. [Google Scholar] [CrossRef]
  12. Santana-Casiano, J.M.; Fraile-Nuez, E.; González-Dávila, M.; Baker, E.T.; Resing, J.A.; Walker, S.L. Significant discharge of CO2 from hydrothermalism associated with the submarine volcano of El Hierro Island. Sci. Rep. 2016, 6, 25686. [Google Scholar] [CrossRef] [PubMed]
  13. Acosta, J.; Uchupi, E.; Muñoz, A.; Herranz, P.; Palomo, C.; Ballesteros, M.; ZEE Working Group. Geologic evolution of the Canarian Islands of Lanzarote, Fuerteventura, Gran Canaria and La Gomera and comparison of landslides at these islands with those at Tenerife, La Palma and El Hierro. Geophys. Canary Isl. 2005, 1–38. [Google Scholar] [CrossRef]
  14. IEO. Caracterizacióndel Bancode La Concepción. Informedel Instituto Españolde Oceanografía-Centro Oceanográficode Canarias; Proyecto LIFE + INDEMARES (LIFE07/NAT/E/000732); Fundación Biodiversidad: Madrid, Spain, 2013; 278p, Available online: https://www.indemares.es/sites/default/files/informe_final_concepcion_ieo.pdf (accessed on 13 April 2018).
  15. IEO. Caracterizacióndel Surde Fuerteventura. Informedel Instituto Españolde Oceanografía-Centro Oceanográficode Canarias; Proyecto LIFE + INDEMARES (LIFE07/NAT/E/000732); Fundación Biodiversidad: Madrid, Spain, 2013; 320p, Available online: https://www.indemares.es/sites/default/files/informe_final_ieo_en_el_sur_de_fuerteventura.pdf (accessed on 13 April 2018).
  16. Shank, T.M. Seamounts: Deep-ocean laboratories of faunal connectivity, evolution, and endemism. Oceanography 2010, 23, 108–122. [Google Scholar] [CrossRef]
  17. Thomson, R.E.; Mihály, S.F.; Rabinovich, A.B.; McDuff, R.E.; Veirs, S.R.; Stahr, F.R. Constrained circulation at Endeavour ridge facilitates colonization by vent larvae. Nature 2003, 424, 545–549. [Google Scholar] [CrossRef] [PubMed]
  18. Thorrold, S.R.; Zacherl, D.C.; Levin, L.A. Population connectivity and larval dispersal: Using geochemical signatures in calcified structures. Oceanography 2007, 20, 80–89. [Google Scholar] [CrossRef]
  19. Mullineaux, L.S.; Adams, D.K.; Mills, S.W.; Beaulieu, S.E. Larvae from afar colonize deep-sea hydrothermal vents after a catastrophic eruption. Proc. Natl. Acad. Sci. USA 2010, 107, 7829–7834. [Google Scholar] [CrossRef] [Green Version]
  20. Bayer, S.R.; Mullineaux, L.S.; Waller, R.G.; Solow, A.R. Reproductive traits of pioneer gastropod species colonizing deep-sea hydrothermal vents after an eruption. Mar. Biol. 2011, 158, 181–192. [Google Scholar] [CrossRef]
  21. Won, Y.; Young, C.R.; Lutz, R.A.; Vrijenhoek, R.C. Dispersal barriers and isolation among deep-sea mussel populations (Mytilidae: Bathymodiolus) from eastern Pacific hydrothermal vents. Mol. Ecol. 2003, 12, 169–184. [Google Scholar] [CrossRef]
  22. Young, C.R.; Fujio, S.; Vrijenhoek, R.C. Directional dispersal between mid-ocean ridges: Deep-ocean circulation and gene flow in Ridgeia piscesae. Mol. Ecol. 2008, 17, 1718–1731. [Google Scholar] [CrossRef]
  23. Ávila, S.P.; Cardigos, F.; Santos, R.S.D. João de Castro Bank, a shallow water hydrothermal-vent in the Azores: Checklist of the marine molluscs. Arquipélago Life Mar. Sci. 2004, 21, 75–80. [Google Scholar]
  24. Fricke, H.; Giere, O.; Stetter, K.; Alfredsson, G.A.; Kristjansson, J.K.; Stoffers, P.; Svavarsson, J. Hydrothermal vent communities at the shallow subpolar Mid-Atlantic ridge. Mar. Biol. 1989, 102, 425–429. [Google Scholar] [CrossRef]
  25. Wishner, K.F.; Sigurdsson, H.; Carey, S.; Smith, D.C.; Staroscik, A.; Shepherd, J.B.; Wilson, W.D.; Lundin, S. Biology of hydrothermal vents on Kick’em Jenny Volcano in the Caribbean. Oceanography 2003, 28, 38–49. [Google Scholar]
  26. Sotomayor-Garcia, A.; Rueda, J.L.; Sánchez-Guillamón, O.; Vázquez, J.T.; Palomino, D.; Fernández-Salas, L.M.; López-González, N.; González-Porto, M.; Urra, J.; Santana-Casiano, M.; et al. Geomophic features, main habitats and associated biota on and around the newly formed Tagoro submarine volcano, Canary Islands. In GeoHab Atlas, 2nd ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2019. [Google Scholar]
  27. Somoza, L.; González, F.J.; Barker, S.J.; Madureira, P.; Medialdea, T.; De Ignacio, C.; Lourenzo, N.; León, R.; Vázquez, J.T.; Palomino, D. Evolution of submarine eruptive activity during the 2011–2012 El Hierro event as documented by hydroacoustic images and remotely operated vehicle observations. Geochem. Geophys. Geosyst. 2017, 18, 3109–3137. [Google Scholar] [CrossRef]
  28. Tomascik, T.; Van Woesik, R.; Mah, A.J. Rapid coral colonization of a recent lava flow following a volcanic eruption, Banda Islands, Indonesia. Coral Reefs 1996, 15, 169–175. [Google Scholar] [CrossRef]
  29. Jewett, S.C.; Bodkin, J.L.; Cheelot, H.; Esslinger, G.G.; Hoberg, M.K. The nearshore benthic community of Kasatochi Island, one year after the 2008 volcanic eruption. Arct. Antarct. Alp. Res. 2010, 42, 315–324. [Google Scholar] [CrossRef]
  30. Bollard, S.; Pinault, M.; Quod, J.P.; Boissin, E.; Hemery, L.; Conand, C. Biodiversity of echinoderms on underwater lava flows with different ages, from the Piton de La Fournaise (Reunion Island, Indian Ocean). Cah. Biol. Mar. 2013, 54, 491–497. [Google Scholar]
  31. Resing, J.A.; Rubin, K.H.; Embley, R.W.; Lupton, J.E.; Baker, E.T.; Dziak, R.P.; Baymberger, T.; Lilley, M.D.; Huber, J.A.; Shank, T.M.; et al. Active submarine eruption of boninite in the northeastern Lau Basin. Nat. Geosci. 2011, 4, 799–806. [Google Scholar] [CrossRef]
  32. Baumberger, T.; Lilley, M.D.; Resing, J.A.; Lupton, J.E.; Baker, E.T.; Butterfield, D.A.; Olson, E.J.; Früh-Green, G.L. Understanding a submarine eruption through time series hydrothermal plume sampling of dissolved and particulate constituents: West Mata, 2008–2012. Geochem. Geophys. Geosyst. 2014, 15, 4631–4650. [Google Scholar] [CrossRef]
  33. Resing, J.A.; Lebon, G.; Baker, E.T.; Lupton, J.E.; Embley, R.W.; Massoth, G.J.; Chadwick, W.W.; De Ronde, C.E.J. Venting of acid-sulfate fluids in a high-sulfidation setting at NW Rota-1 submarine volcano on the Mariana Arc. Econ. Geol. 2007, 102, 1047–1061. [Google Scholar] [CrossRef]
  34. Kritzer, J.P.; Sale, P.F. Marine Metapopulations, 1st ed.; Elsevier Academic Press: Burlington, NJ, USA, 2006; ISBN 9780120887811. [Google Scholar]
  35. Cowen, R.K.; Gawarkiewicz, G.; Pineda, J.; Thorrold, S.R.; Werner, F.E. Population connectivity in marine systems an overview. Oceanography 2007, 20, 14–21. [Google Scholar] [CrossRef]
  36. Hastings, A.; Botsford, L.W. Persistence of spatial populations depends on returning home. Proc. Natl. Acad. Sci. USA 2006, 103, 6067–6072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Álvarez-Valero, A.M.; Burgess, R.; Recio, C.; de Matos, V.; Sánchez-Guillamón, O.; Gómez-Ballesteros, M.; Recio, G.; Fraile-Nuez, E.; Sumino, H.; Flores, J.A.; et al. Noble gas signals in corals predict submarine volcanic eruptions. Chem. Geol. 2017, 480, 28–34. [Google Scholar] [CrossRef]
  38. Wagner, D.; Luck, D.G.; Toonen, R.J. The biology and ecology of black corals (Cnidaria: Anthozoa: Hexacorallia: Antipatharia). Adv. Mar. Biol. 2012, 63, 67–132. [Google Scholar] [CrossRef] [PubMed]
  39. Cardigos, F.; Colaço, A.; Dando, P.R.; Ávila, S.P.; Sarradin, P.M.; Tempera, F.; Conceição, P.; Pascoal, A.; Santos, R.S. Shallow water hydrothermal vent field fluids and communities of the D. João de Castro Seamount (Azores). Chem. Geol. 2005, 224, 153–168. [Google Scholar] [CrossRef]
  40. Couto, R.P.; Rodrigues, A.S.; Neto, A.I. Shallow-water hydrothermal vents in the Azores (Portugal). J. Int. Coast. Z Man 2015, 15, 495–505. [Google Scholar] [CrossRef] [Green Version]
  41. Ávila, S.P.; Cardigos, F.; Santos, R.S. Comparison of the community structure of the marine molluscs of the “Banco D. João de Castro” seamount (Azores, Portugal) with that of typical inshore habitats on the Azores archipelago. Helgol. Mar. Res. 2007, 61, 43–53. [Google Scholar] [CrossRef]
  42. Cowen, R.K.; Sponaugle, S. Larval dispersal and marine population connectivity. Annu. Rev. Mar. Sci. 2009, 1, 443–466. [Google Scholar] [CrossRef]
  43. Cowen, R.K.; Lwiza, K.M.M.; Sponaugle, S.; Paris, C.B.; Olson, D.B. Connectivity of marine populations: Open or closed? Science 2000, 287, 857–859. [Google Scholar] [CrossRef]
  44. Shanks, A.L. Pelagic larval duration and dispersal distance revisited. Biol. Bull. 2009, 216, 373–385. [Google Scholar] [CrossRef]
  45. Steneck, R.; Paris, C.; Arnold, S.; Ablan-Lagman, M.; Alcala, A.; Butler, M.; McCook, L.; Russ, G.; Sale, P. Thinking and managing outside the box: Coalescing connectivity networks to build region-wide resilience in coral reef ecosystems. Coral Reefs 2009, 28, 367–378. [Google Scholar] [CrossRef]
  46. Treml, E.A.; Roberts, J.J.; Chao, Y.; Halpin, P.N.; Possingham, H.P.; Riginos, C. Reproductive output and duration of the pelagic larval stage determine seascape-wide connectivity of marine populations. Integr. Comp. Biol. 2012, 52, 525–537. [Google Scholar] [CrossRef] [PubMed]
  47. Bradbury, I.R.; Laurel, B.; Snelgrove, P.V.R.; Bentzen, P.; Campana, S.E. Global patterns in marine dispersal estimates: The influence of geography, taxonomic category and life history. Proc. R. Soc. Lond. Ser. B 2008, 275, 1803–1809. [Google Scholar] [CrossRef] [PubMed]
  48. Riginos, C.; Douglas, K.E.; Jin, Y.; Shanahan, D.F.; Treml, E.A. Effects of geography and life history traits on genetic differentiation in benthic marine fishes. Ecography 2011, 34, 566–575. [Google Scholar] [CrossRef]
  49. Gaines, S.; Roughgarden, J. Larval settlement rate: A leading determinant of structure in an ecological community of the marine intertidal zone. Proc. Natl. Acad. Sci. USA 1985, 82, 3707–3711. [Google Scholar] [CrossRef] [Green Version]
  50. Dunstan, P.K.; Johnson, C.R. Spatio-temporal variation in coral recruitment at different scales on Heron Reef, southern Great Barrier Reef. Coral Reefs 1998, 17, 71–81. [Google Scholar] [CrossRef]
  51. Hernandez, J.M.; Rolán, E.; Swinnen, F.; Gómez, R.; Pérez, J.M. Moluscos y conchas marinas de Canarias: Solenogastres, Caudofoveata, Polyplacophora, Gastropoda, Bivalvia, Cephalopoda y Scaphopoda; ConchBooks: Hackenheim, Germay, 2011; ISBN 978-3-939767-36-7. [Google Scholar]
  52. Sousa, R.; Henriques, P.; Biscoito, M.; Pinto, A.R.; Delgado, J.; Dellinger, T.; Gouveia, L.; Pinho, M.R. Considerations on the Biology of Plesionika narval (Fabricius, 1787) in the Northeastern Atlantic. Turk. J. Fish. Aquat. Sci. 2014, 14, 727–737. [Google Scholar] [CrossRef]
  53. Sousa, R.; Pinho, M.R.; Delgado, J.; Pinto, A.R.; Biscoito, M.; Dellinger, T.; Henriques, P. Abundance and population structure of Plesionika narval (Fabricius, 1787) in the Northeastern Atlantic. Braz. J. Biol. 2018. [Google Scholar] [CrossRef]
  54. Snelgrove, P.V.R. Getting to the Bottom of Marine Biodiversity: Sedimentary Habitats: Ocean bottoms are the most widespread habitat on Earth and support high biodiversity and key ecosystem services. BioScience 1999, 49, 129–138. [Google Scholar] [CrossRef]
  55. Rouse, G.W.; Pleijel, F. Polychaetes; Oxford University Press: Oxford, UK, 2001; p. 354. [Google Scholar]
  56. Universidad de las Palmas de Gran Canaria, Biblioteca Universitaria. Available online: https://mdc.ulpgc.es/cdm/ref/collection/MDC/id/113158 (accessed on 5 April 2018).
  57. Lawrence, M.J.; Jangoux, M. Cidaroids. Developments in Aquaculture and Fisheries Science. In Sea Urchins: Biology and Ecology; Lawrence, J.M., Ed.; Elsevier: Amsterdam, The Netherlands, 2013; Volume 38, pp. 225–242. ISBN 9780080465586. [Google Scholar]
  58. Jones, C.G.; Lawton, J.H.; Shachak, M. Organisms as ecosystem engineers. Oikos 1994, 69, 373–386. [Google Scholar] [CrossRef]
  59. Collie, J.S.; Escanero, G.A.; Valentine, P.C. Effects of bottom fishing on the benthic megafauna of Georges Bank. Mar. Ecol. Prog. Ser. 1997, 155, 159–172. [Google Scholar] [CrossRef] [Green Version]
  60. Kaiser, M.J.; Cheney, K.; Spence, F.E.; Edwards, D.B.; Radford, K. Fishing effects in northeast Atlantic shelf seas: Patterns in fishing effort, diversity and community structure VII. The effects of trawling disturbance on the fauna associated with the tubeheads of serpulid worms. Fish. Res. 1999, 40, 195–205. [Google Scholar] [CrossRef]
  61. Rowe, G.T.; Menzies, R.J. Zonation of large benthic invertebrates in the deep-sea off the Carolinas. Deep Sea Res. Oceanogr. Abstr. 1969, 16, 531–537. [Google Scholar] [CrossRef]
  62. Young, C.M.; Tyler, P.A.; Gage, J.D. Vertical distribution correlates with pressure tolerances of early embryos in the deep-sea asteroid Plutonaster bifrons. J. Mar. Biol. Assoc. UK 1996, 76, 749–757. [Google Scholar] [CrossRef]
  63. Lampitt, R.S.; Billett, D.S.M.; Rice, A.L. Biomass of the invertebrate megabenthos from 500 to 4100 m in the northeast Atlantic Ocean. Mar. Biol. 1986, 93, 69–81. [Google Scholar] [CrossRef]
  64. Rice, A.L.; Thurston, M.H.; New, A.L. Dense aggregations of a hexactinellid sponge, Pheronema carpenteri, in the Porcupine Seabight (northeast Atlantic Ocean), and possible causes. Prog. Oceanogr. 1990, 24, 179–196. [Google Scholar] [CrossRef]
  65. Aedrich, R.L.; Rowe, G.T.; Polloni, P.T. Zonation and faunal composition of epibenthic populations on the continental slope south of New England. J. Mar. Res. 1975, 33, 191–212. [Google Scholar]
  66. Cartes, J.E.; Carrassón, M. Influence of trophic variables on the depth-range distributions and zonation rates of deep-sea megafauna: The case of the Western Mediterranean assemblages. Deep Sea Res. Part I Oceanogr. Res. Pap. 2004, 51, 263–279. [Google Scholar] [CrossRef]
  67. Bergmann, M.; Dannheim, J.; Bauerfeind, E.; Klages, M. Trophic relationships along a bathymetric gradient at the deep-sea observatory HAUSGARTEN. Deep Sea Res. Part I Oceanogr. Res. Pap. 2009, 56, 408–424. [Google Scholar] [CrossRef] [Green Version]
  68. Gori, A.; Rossi, S.; Berganzo, E.; Pretus, J.L.; Dale, M.R.; Gili, J.M. Spatial distribution patterns of the gorgonians Eunicella singularis, Paramuricea clavata, and Leptogorgia sarmentosa (Cape of Creus, Northwestern Mediterranean Sea). Mar. Biol. 2011, 158, 143–158. [Google Scholar] [CrossRef]
  69. Billett, D.S.M. Deep-sea holothurians. Oceanogr. Mar. Biol. 1991, 29, 259–317. [Google Scholar]
  70. Illian, J.; Penttinen, A.; Stoyan, H.; Stoyan, D. Statistical Analysis and Modelling of Spatial Point Patterns; Wiley: Chichester, UK, 2008; p. 560. ISBN 9780470014912. [Google Scholar]
Geosciences 09 00052 g001 550

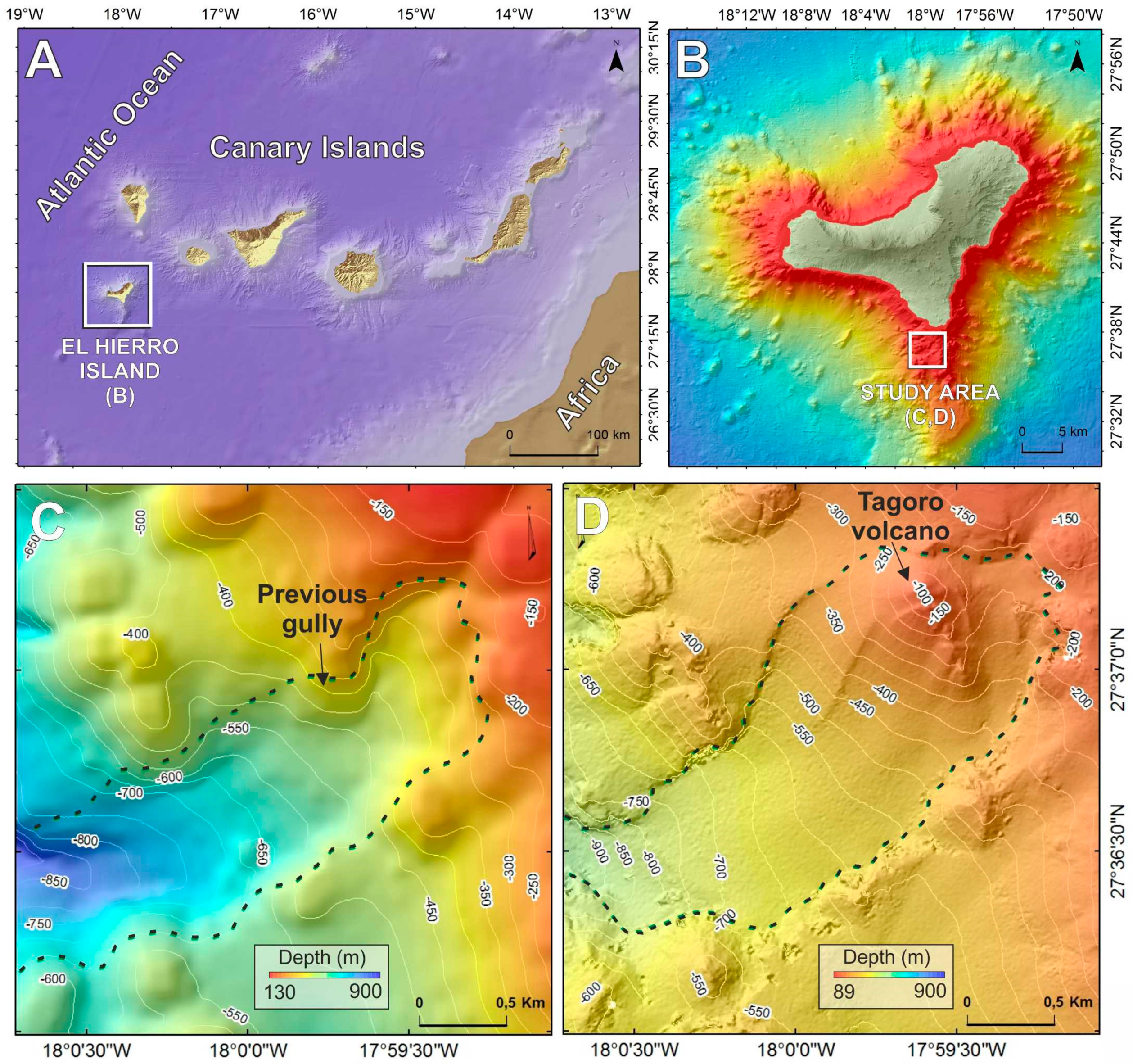

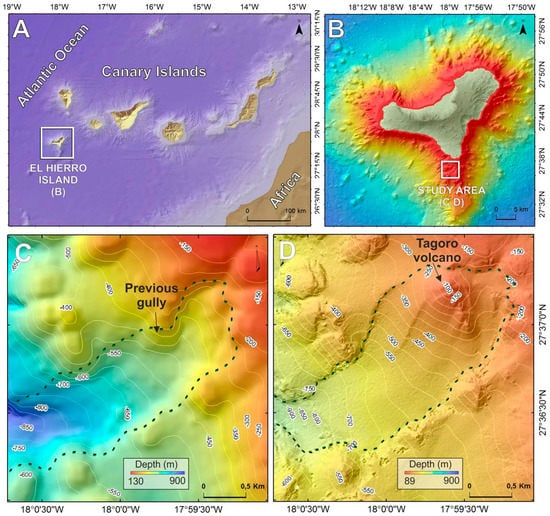

Figure 1. Overview bathymetric maps of the study area. (A) Geographical location of the El Hierro Island at the Canary Islands (Northeast, NE, Atlantic Ocean); (B) Study area location south of El Hierro Island; (C) Pre-eruption topography of the study area where the pre-eruption gully is highlighted; (D) Bathymetric map of the Tagoro volcano.
Figure 1. Overview bathymetric maps of the study area. (A) Geographical location of the El Hierro Island at the Canary Islands (Northeast, NE, Atlantic Ocean); (B) Study area location south of El Hierro Island; (C) Pre-eruption topography of the study area where the pre-eruption gully is highlighted; (D) Bathymetric map of the Tagoro volcano.
Geosciences 09 00052 g001
Geosciences 09 00052 g002 550

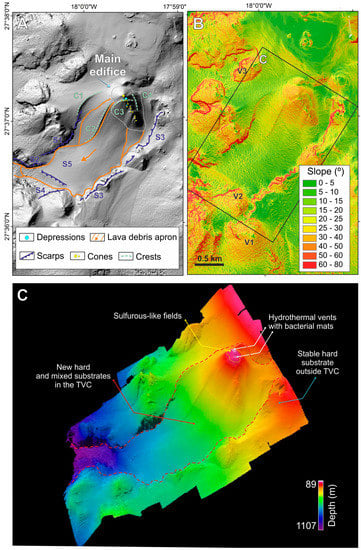

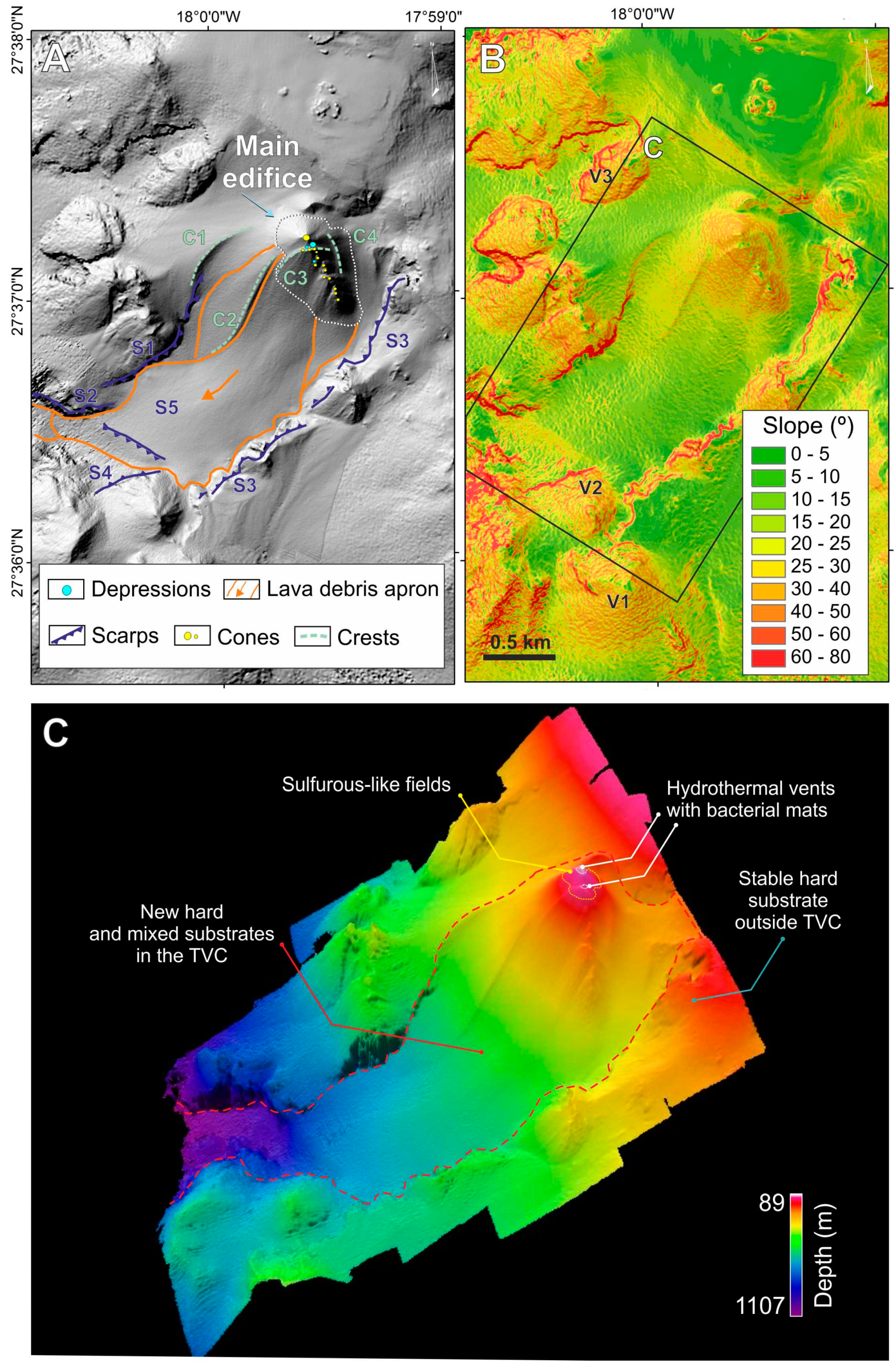

Figure 2. Main geomorphic features and related habitats of the Tagoro Volcanic complex. (A) Hillshade map showing the main geomorphological characteristics of the volcano. (B) Slope map highlighting similar volcanic cones (V1, V2, and V3) around the Tagoro Volcano. (C) 3D bathymetric map showing the location of the main habitats in and around the Tagoro Volcanic complex.
Figure 2. Main geomorphic features and related habitats of the Tagoro Volcanic complex. (A) Hillshade map showing the main geomorphological characteristics of the volcano. (B) Slope map highlighting similar volcanic cones (V1, V2, and V3) around the Tagoro Volcano. (C) 3D bathymetric map showing the location of the main habitats in and around the Tagoro Volcanic complex.
Geosciences 09 00052 g002
Geosciences 09 00052 g003 550

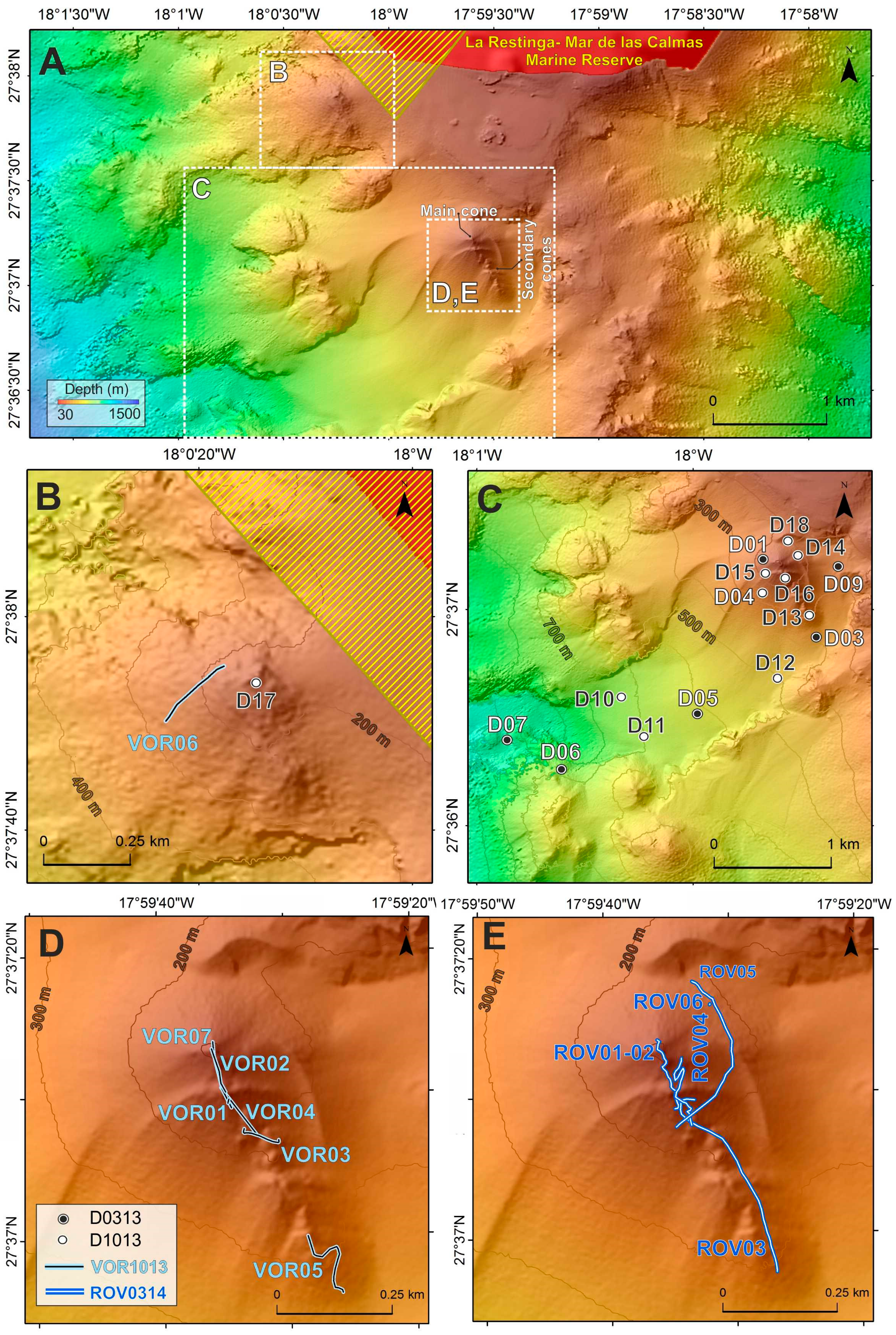

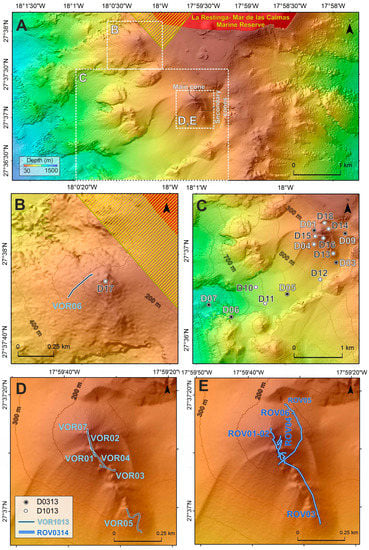

Figure 3. Sampling strategy (A) Bathymetric map showing south of El Hierro Island where the different sampling areas (B–E) are highlighted. (B) Unaffected eruption area close to the La Restinga-Mar de las Calmas Marine Reserve. (C) Tagoro volcanic complex, and (D,E) Main edifice and secondary cones of the Tagoro volcano. Dots represent dredge sites during the VULCANO0313 (black dots), and VULCANO1013 (white dots) oceanographic cruises. Lines indicate vehicle operated remotely (VOR) Aphia, (light blue) and remote operated vehicle (ROV) Liropus (dark blue double line) transects during the Vulcano1013 and Vulcano0314 oceanographic cruises.
Figure 3. Sampling strategy (A) Bathymetric map showing south of El Hierro Island where the different sampling areas (B–E) are highlighted. (B) Unaffected eruption area close to the La Restinga-Mar de las Calmas Marine Reserve. (C) Tagoro volcanic complex, and (D,E) Main edifice and secondary cones of the Tagoro volcano. Dots represent dredge sites during the VULCANO0313 (black dots), and VULCANO1013 (white dots) oceanographic cruises. Lines indicate vehicle operated remotely (VOR) Aphia, (light blue) and remote operated vehicle (ROV) Liropus (dark blue double line) transects during the Vulcano1013 and Vulcano0314 oceanographic cruises.
Geosciences 09 00052 g003
Geosciences 09 00052 g004 550

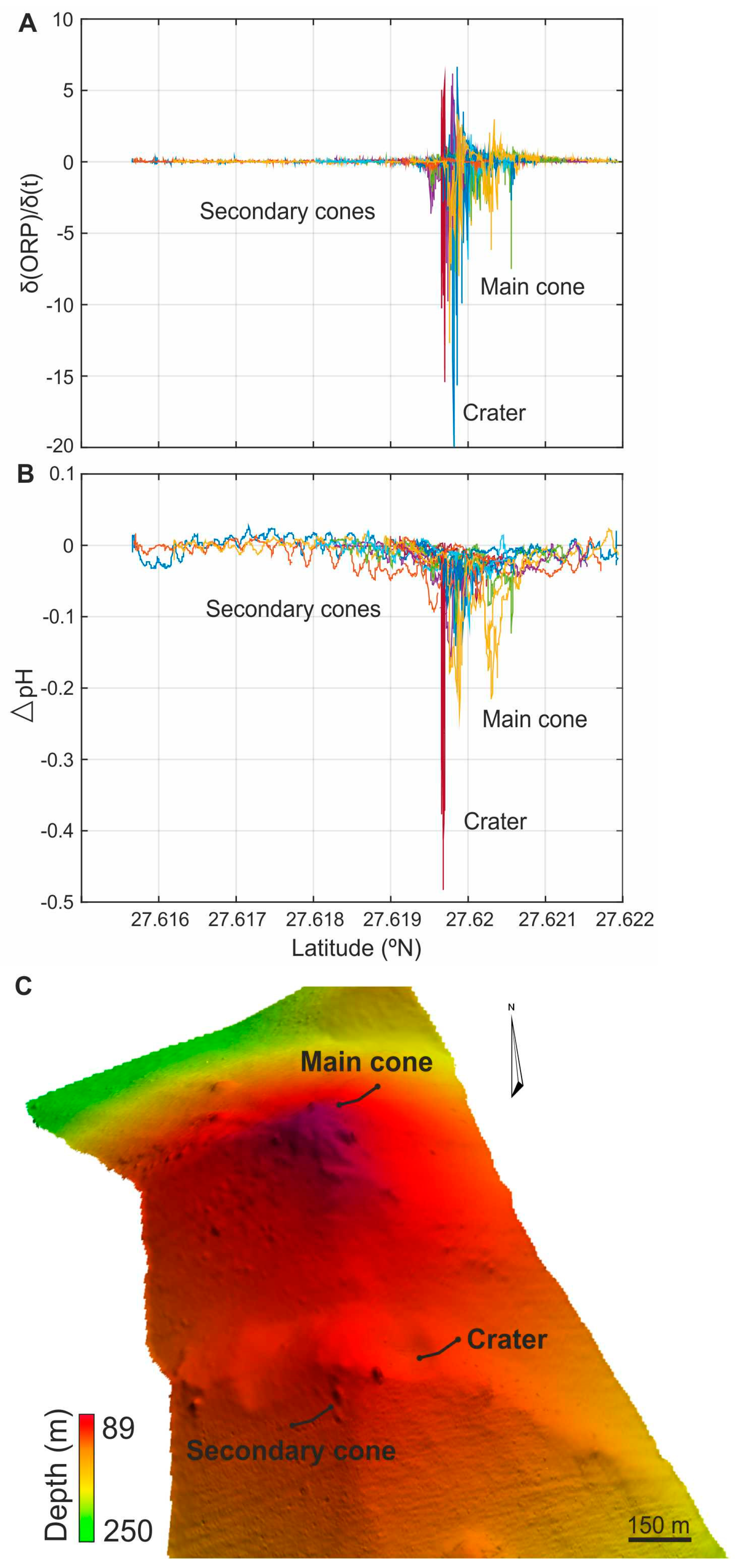

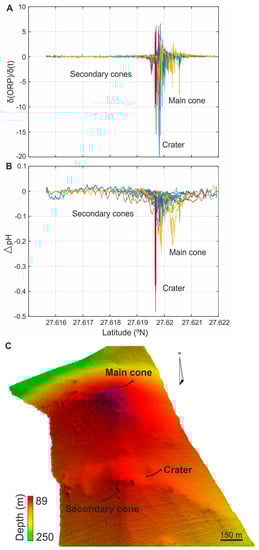

Figure 4. Plots of (A) Magnitude of oxidation-reduction potential (ORP) changes throughout time, δ (ORP)/δ t and (B) The increment of pH, ΔpH, versus latitude obtained from different meridional tow-yo transects (colored lines) over the main volcanic edifice in October 2017, (methodology described in [9,10]. (C) Three-dimensional (3D) graph showing the main and secondary cones, as well as the crater.
Figure 4. Plots of (A) Magnitude of oxidation-reduction potential (ORP) changes throughout time, δ (ORP)/δ t and (B) The increment of pH, ΔpH, versus latitude obtained from different meridional tow-yo transects (colored lines) over the main volcanic edifice in October 2017, (methodology described in [9,10]. (C) Three-dimensional (3D) graph showing the main and secondary cones, as well as the crater.
Geosciences 09 00052 g004
Geosciences 09 00052 g005 550

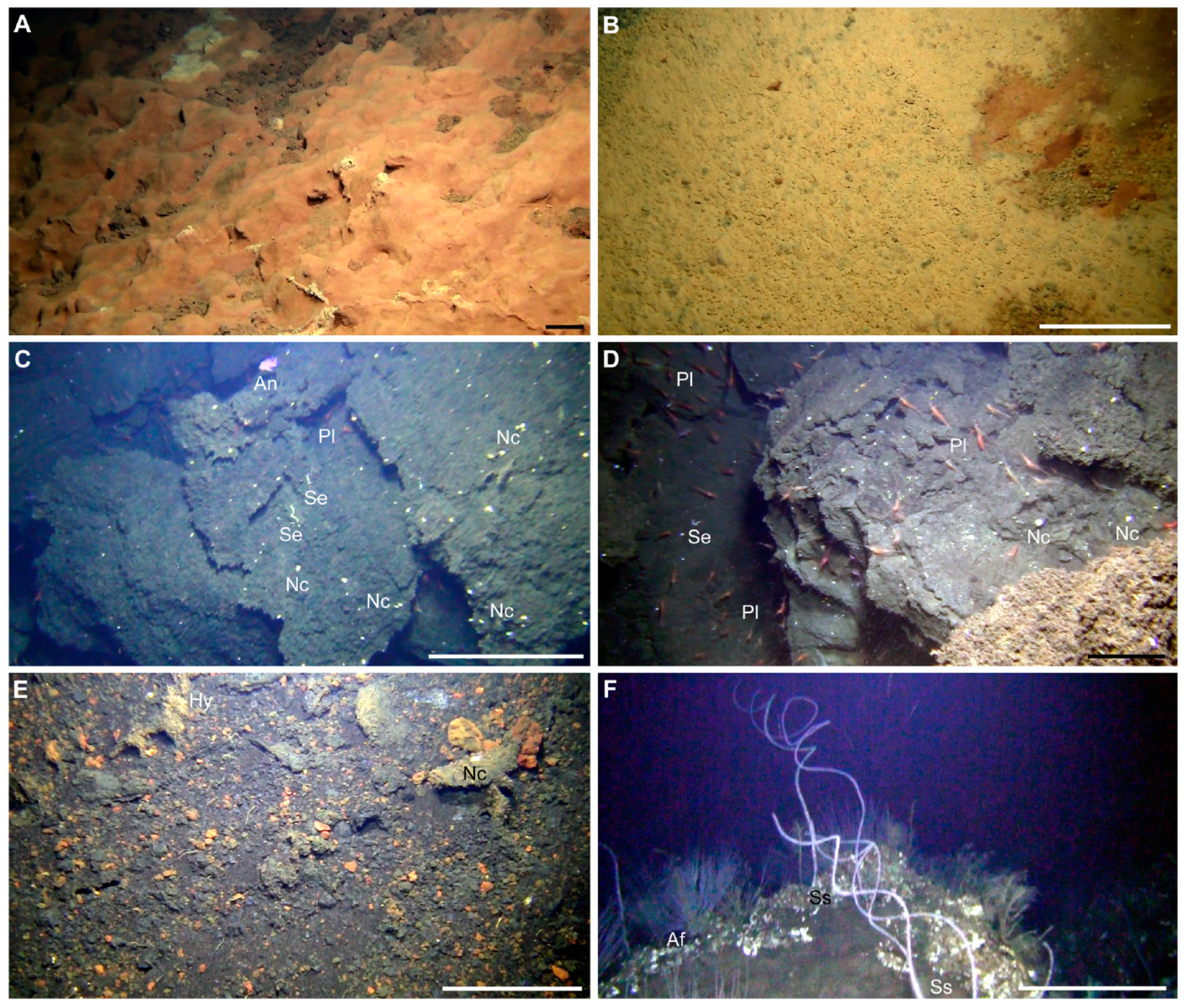

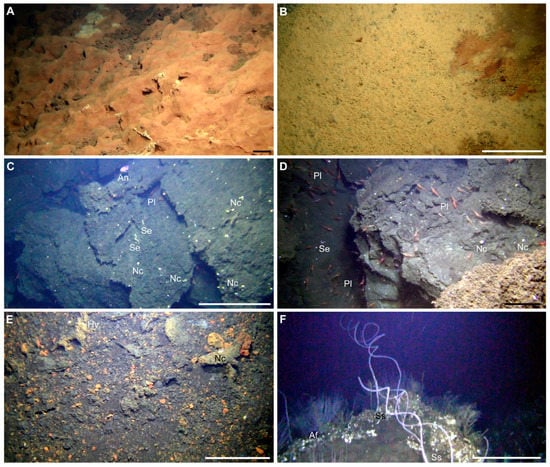

Figure 5. Images of the different habitat types within the Tagoro volcano complex (A–E), and at an undisturbed area (F). (A,B) Seep habitats with extensive bacterial mats close to the main and secondary craters. (C,D) Newly formed pyroclastic rocks harboring Neopycnodonte cochlear (Nc) (Mollusca: Bivalvia) and Hyalopomatus sp. (Hy) (Annelida: Polychaeta) individuals, together with Anthias anthias (An) (Chordata: Actinopterygii), and high densities of Plesionika sp. in the crevices (Pl) (Arthropoda: Decapoda). (E) New mixed substrates with small rocks colonized by individuals of N. choclear and Hyalopomatus sp. (F) Stable undisturbed hard bottoms colonized by fan-shaped Antipathes furcata (Af), and twisted whip-shaped Stichopathes cf. setacea (Ss) (Cnidaria: Anthozoa). Scale bars represent 20 cm.
Figure 5. Images of the different habitat types within the Tagoro volcano complex (A–E), and at an undisturbed area (F). (A,B) Seep habitats with extensive bacterial mats close to the main and secondary craters. (C,D) Newly formed pyroclastic rocks harboring Neopycnodonte cochlear (Nc) (Mollusca: Bivalvia) and Hyalopomatus sp. (Hy) (Annelida: Polychaeta) individuals, together with Anthias anthias (An) (Chordata: Actinopterygii), and high densities of Plesionika sp. in the crevices (Pl) (Arthropoda: Decapoda). (E) New mixed substrates with small rocks colonized by individuals of N. choclear and Hyalopomatus sp. (F) Stable undisturbed hard bottoms colonized by fan-shaped Antipathes furcata (Af), and twisted whip-shaped Stichopathes cf. setacea (Ss) (Cnidaria: Anthozoa). Scale bars represent 20 cm.
Geosciences 09 00052 g005
Geosciences 09 00052 g006 550

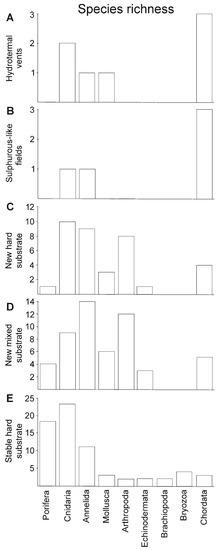

Figure 6. Species richness (number of species) in the different phyla identified in underwater images (ROV and VOR), as well as in the benthic dredges, within the different habitats at the Tagoro volcano complex (A–D) and at an undisturbed area (E).
Figure 6. Species richness (number of species) in the different phyla identified in underwater images (ROV and VOR), as well as in the benthic dredges, within the different habitats at the Tagoro volcano complex (A–D) and at an undisturbed area (E).
Geosciences 09 00052 g006
Geosciences 09 00052 g007 550

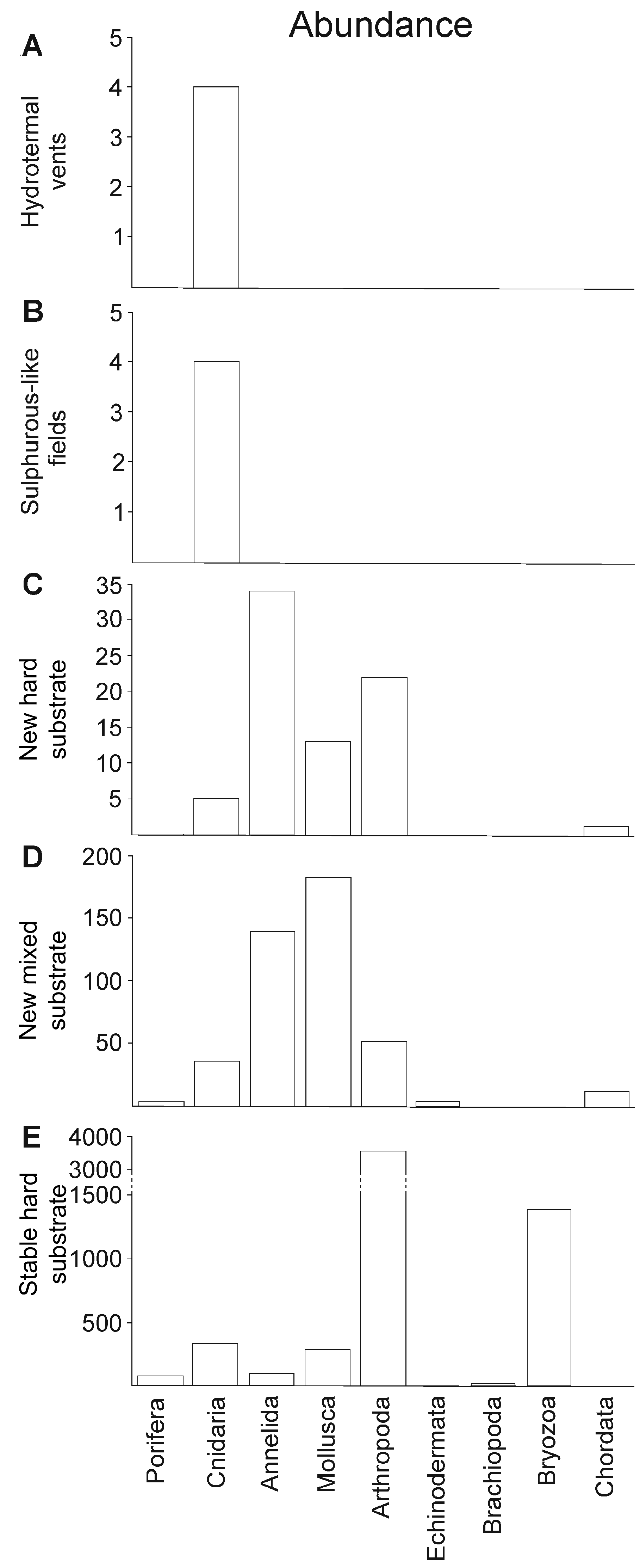

Figure 7. Abundance (number of individuals) in the different phyla collected in the benthic dredges, within the different habitats at the Tagoro volcano complex (A–D) and at an undisturbed area (E).
Figure 7. Abundance (number of individuals) in the different phyla collected in the benthic dredges, within the different habitats at the Tagoro volcano complex (A–D) and at an undisturbed area (E).
Geosciences 09 00052 g007
Geosciences 09 00052 g008 550
Figure 8. Biodiversity associated with new hard substrate and mixed substrate habitats within the Tagoro volcano complex (A–L), and with neighbouring stable hard substrates located at an undisturbed area close to “La Restinga-Mar de las Calmas” Marine Reserve (M–V). (A) Volcanic rock of new formation with small-size specimens of the ostreid bivalve Neopycnodonte cochlear (detailed in B) and serpulid worm (detailed in C). (D,E) Small colonies of the hydrozoan Sertularella cf. tenella colonizing newly formed volcanic rocks. Other dominant colonizers include the shrimp Plesionika narval (F); small-sized individuals of the echinoid Coelopleurus floridanus (G); the annelid Chloeia cf. venusta (H,I); small decapods such as Monodaeus couchii (J); Velolambrus cf. expansus (K); and Alpheus sp. (L). Vulnerable habitat-forming species were mainly represented by antipatharians, such as Tanacetipathes cf. cavernicola (M); Antipathes furcata (N); and Stichopathes cf. setacea (O), the latter being frequently colonized by different epibionts including the cirriped Heteralepas cornuta (P); the bivalves N. cochlear (Q); and Pteria hirundo (also colonized by small H. cornuta; R). Volcanic rocks from past eruptions were also colonized by small epibionts, dominating the brachiopod Pajaudina atlantica (Pa) and different serpulid species (Se; S,T), as well as large non-identified desmosponges (U,V). Scale bars represent 1 cm.
Figure 8. Biodiversity associated with new hard substrate and mixed substrate habitats within the Tagoro volcano complex (A–L), and with neighbouring stable hard substrates located at an undisturbed area close to “La Restinga-Mar de las Calmas” Marine Reserve (M–V). (A) Volcanic rock of new formation with small-size specimens of the ostreid bivalve Neopycnodonte cochlear (detailed in B) and serpulid worm (detailed in C). (D,E) Small colonies of the hydrozoan Sertularella cf. tenella colonizing newly formed volcanic rocks. Other dominant colonizers include the shrimp Plesionika narval (F); small-sized individuals of the echinoid Coelopleurus floridanus (G); the annelid Chloeia cf. venusta (H,I); small decapods such as Monodaeus couchii (J); Velolambrus cf. expansus (K); and Alpheus sp. (L). Vulnerable habitat-forming species were mainly represented by antipatharians, such as Tanacetipathes cf. cavernicola (M); Antipathes furcata (N); and Stichopathes cf. setacea (O), the latter being frequently colonized by different epibionts including the cirriped Heteralepas cornuta (P); the bivalves N. cochlear (Q); and Pteria hirundo (also colonized by small H. cornuta; R). Volcanic rocks from past eruptions were also colonized by small epibionts, dominating the brachiopod Pajaudina atlantica (Pa) and different serpulid species (Se; S,T), as well as large non-identified desmosponges (U,V). Scale bars represent 1 cm.
Geosciences 09 00052 g008
Table
Table 1. List of all taxa identified in different habitat types of the Tagoro volcanic complex (TVC), with adjacent non-buried bottoms in the underwater images (ROV, VOR) and benthic dredges. Abundance is only shown for dredge-sampled taxa. X indicates the presence of taxa in the underwater images.
Table 1. List of all taxa identified in different habitat types of the Tagoro volcanic complex (TVC), with adjacent non-buried bottoms in the underwater images (ROV, VOR) and benthic dredges. Abundance is only shown for dredge-sampled taxa. X indicates the presence of taxa in the underwater images.
Inside TVCOutside TVC
Hydrothermal Vents with Bacterial MatsSulfurous-Like FieldsNew Hard SubstrateNew Mixed SubstrateStable Hard Substrate
PoriferaGeodia sp.----3
Pachastrella sp.----2
Axinella sp.---X3
Aplysina sp.----3
Ircinia sp.----2
Heteroscleromorpha 1---2-
Demospongiae 1----2
Demospongiae 2----2
Demospongiae 3----1
Demospongiae 4----2
Demospongiae 5----24
Demospongiae 6----3
Demospongiae 7----7
Demospongiae 8----10
Demospongiae 9---XX
Demospongiae 10----X
Demospongiae 11----X
Demospongiae 12----X
Demospongiae 13--X--
Euplectellidae 1---1-
Porifera 1----X
CnidariaAglaophenia sp. 1--1-12
Aglaophenia sp. 2----208
Obelia sp.----1
Sertularella cf. gayi (Lamouroux, 1821)--1-6
Sertularella cf. polyzonias (Linnaeus, 1758)---2-
Sertularella cf. tenella (Alder, 1857)4431812
Sertularella sp.--XX3
Lafoeidae 1---321
Lafoeidae 2----1
Plumulariidae 1--X23
Hydrozoa 1X-X8-
Hydrozoa 2--X--
Ceriantharia 1---X-
Antipathes furcata Gray, 1857----7
Stichopathes cf. setacea Gray, 1860--X240
Tanacetipathes cf. cavernicola Opresko, 2001----10
Corallimorpharia 1---X-
Anomocora fecunda (Pourtalès, 1871)----1
Caryophyllia smithii Stokes & Broderip, 1828----1
Caryophyllia sp.----2
Cladocora debilis Milne Edwards & Haime, 1849----1
Madracis sp.----1
Zoantharia 1----2
Bebryce mollis Philippi, 1842----1
Callogorgia verticillata (Pallas, 1766)----X
Paralcyonium cf. spinulosum (Delle Chiaje, 1822)----X
Villogorgia bebrycoides (Koch, 1887)----1
Viminella flagellum (Johnson, 1863)--X-X
Alcyonacea 1--X-6
AnnelidaChloeia cf. venusta Quatrefages, 1866--863-
Eunice sp.----1
Glycera sp.--48-
Hyalinoecia sp.---1-
Leocrates atlanticus (McIntosh, 1885)---1-
Lumbrineris sp.----1
Nereis sp.---43
Onuphis sp.--531
Syllidae 1---21
Hyalopomatus sp.--933-
Placostegus sp.--2--
Protula sp.--335
Semivermilia cf. torulosa (Delle Chiaje, 1822)---430
Serpula vermicularis Linnaeus, 1767----1
Spio sp.---1-
Spiochaetopterus sp.--26-
Vermiliopsis sp.--1--
Sabellidae 1----1
Serpulidae 1XXX850
Terebellidae 1---21
MolluscaMitrella sp.---1-
Onoba sp.---2-
Tritia denticulata (A. Adams, 1852)---X-
Nudibranchia 1--XX-
Asperarca nodulosa (O. F. Müller, 1776)----1
Neopycnodonte cochlear (Poli, 1795)--13178245
Pteria hirundo (Linnaeus, 1758)----41
Arcidae 1---1-
Octopus vulgaris Cuvier, 1797X----
Cephalopoda 1--X--
ArthropodaHeteralepas cornuta (Darwin, 1851)----3560
Megabalanus tulipiformis (Ellis, 1758)---3-
Acanthephyra eximia Smith, 1884---2-
Alpheus macrocheles (Hailstone, 1835)--11-
Alpheus sp.--812-
Homola barbata (Fabricius, 1793)---1-
Macropodia sp.----2
Monodaeus couchii (Couch, 1851)--1021-
Munida sp.--11-
Munidopsis sp.---1-
Plesionika edwardsii (Brandt, 1851)---X-
Plesionika martia (A. Milne-Edwards, 1883)--1--
Plesionika narval (Fabricius, 1787)--X4-
Plesionika sp.--1--
Velolambrus cf. expansus (Miers, 1879)---5-
Decapoda 1--XX-
EchinodermataOphiuroidea 1----6
Centrostephanus longispinus (Philippi, 1845)----1
Coelopleurus floridanus A. Agassiz, 1872---1-
Stylocidaris affinis (Philippi, 1845)--X1-
Diadematoidae 1---1-
BrachiopodaMegerlia truncata (Linnaeus, 1767)----9
Pajaudina atlantica Logan, 1988----25
BryozoaHornera sp.----8
Reteporella sp.----15
Frondiporidae 1----1362
Bryozoa 1----X
ChordataClavelinidae 1----X
Ascidiacea 1----X
Anthias antias (Linnaeus, 1758)XX111X
Conger conger (Linnaeus, 1758)--XX-
Scorpaena sp.---X-
Seriola sp.XX---
Serranus atricauda Günther, 1874XXXX-
Perciformes 1--XX-

Share and Cite

MDPI and ACS Style

Sotomayor-García, A.; Rueda, J.L.; Sánchez-Guillamón, O.; Urra, J.; Vázquez, J.T.; Palomino, D.; Fernández-Salas, L.M.; López-González, N.; González-Porto, M.; Santana-Casiano, J.M.; et al. First Macro-Colonizers and Survivors Around Tagoro Submarine Volcano, Canary Islands, Spain. Geosciences 2019, 9, 52. https://doi.org/10.3390/geosciences9010052

AMA Style

Sotomayor-García A, Rueda JL, Sánchez-Guillamón O, Urra J, Vázquez JT, Palomino D, Fernández-Salas LM, López-González N, González-Porto M, Santana-Casiano JM, et al. First Macro-Colonizers and Survivors Around Tagoro Submarine Volcano, Canary Islands, Spain. Geosciences. 2019; 9(1):52. https://doi.org/10.3390/geosciences9010052

Chicago/Turabian Style

Sotomayor-García, Ana, José L. Rueda, Olga Sánchez-Guillamón, Javier Urra, Juan T. Vázquez, Desirée Palomino, Luis M. Fernández-Salas, Nieves López-González, Marcos González-Porto, J. Magdalena Santana-Casiano, and et al. 2019. "First Macro-Colonizers and Survivors Around Tagoro Submarine Volcano, Canary Islands, Spain" Geosciences 9, no. 1: 52. https://doi.org/10.3390/geosciences9010052

APA Style

Sotomayor-García, A., Rueda, J. L., Sánchez-Guillamón, O., Urra, J., Vázquez, J. T., Palomino, D., Fernández-Salas, L. M., López-González, N., González-Porto, M., Santana-Casiano, J. M., González-Dávila, M., Presas-Navarro, C., & Fraile-Nuez, E. (2019). First Macro-Colonizers and Survivors Around Tagoro Submarine Volcano, Canary Islands, Spain. Geosciences, 9(1), 52. https://doi.org/10.3390/geosciences9010052

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
