Geosciences 2018, 8(6), 223; https://doi.org/10.3390/geosciences8060223

Article
Non-Mineralized Fossil Wood
Geology Department, Western Washington University, Bellingham WA 98225, USA
Received: 25 May 2018 / Accepted: 11 June 2018 / Published: 18 June 2018

Abstract

:
Under conditions where buried wood is protected from microbial degradation and exposure to oxygen or harsh chemical environments, the tissues may remain unmineralized. If the original organic matter is present in relatively unaltered form, wood is considered to be mummified. Exposure to high temperatures, whether from wild fires or pyroclastic flows, may cause wood to be converted to charcoal. Coalification occurs when plant matter undergoes gradual metamorphosis, producing bituminous alteration products. Examples of all three types of non-mineralized wood are common in the geologic record. This report describes some of the most notable occurrences, reviews past research and introduces data from several localities in North America.
Keywords:
fossil wood; carbonized; charcoal; coalified; mummified; paleobotany

1. Introduction

From a deep time perspective, forests are a transient phenomenon, their existence depending on environmental factors that include elevation change, atmospheric physics, ocean currents patterns, and tectonic plate motion. These factors determine whether a region is an arid desert or a lush rainforest. Foresters describe forests that contain trees with ages of only a few hundred years as “old growth”. The oldest known age record for an individual tree is a Bristlecone Pine (Pinus longaeva) growing in White Mountains of California USA; a tree core taken in 2012 was observed to have 5067 annual rings [1]. The ages of clonal tree clusters, where individual trunks share a common root network, may be much greater, e.g. the 80,000 year age estimated for ~47,000 component trees of a Quaking Aspen (Populus tremuloides) grove in central Utah, USA [2]. The ages of these living trees are brief in comparison to fossil evidence of trees that comprised ancient forests. The infiltration and replacement of inorganic minerals produces petrified wood that has sufficient durability to be preserved for many millions of years. Recent reports [3,4] describe these mineralization processes in detail, and list earlier literature. Less well-known are fossil forests where ancient trees have been preserved as original tissue, or as organic material that has undergone structural alteration.
This paper provides a detailed review of fossil wood occurrences where tissues have not been mineralized. These fossils are sometimes described as “carbonized wood”, but unmineralized ancient wood can be divided into three categories. Mummified wood consists of original tissues that may have undergone anatomical distortion or desiccation, but which are otherwise free of alteration. Charcoalified wood originates when wood is combusted in an anaerobic environment, causing much of the organic materials to be reduced to pure carbon. Coalified wood consists of tissues that have been altered by heat and pressure during deep burial, converting the original organic constituents to a mixture of pure carbon and various hydrocarbons.

2. Analytical Methods

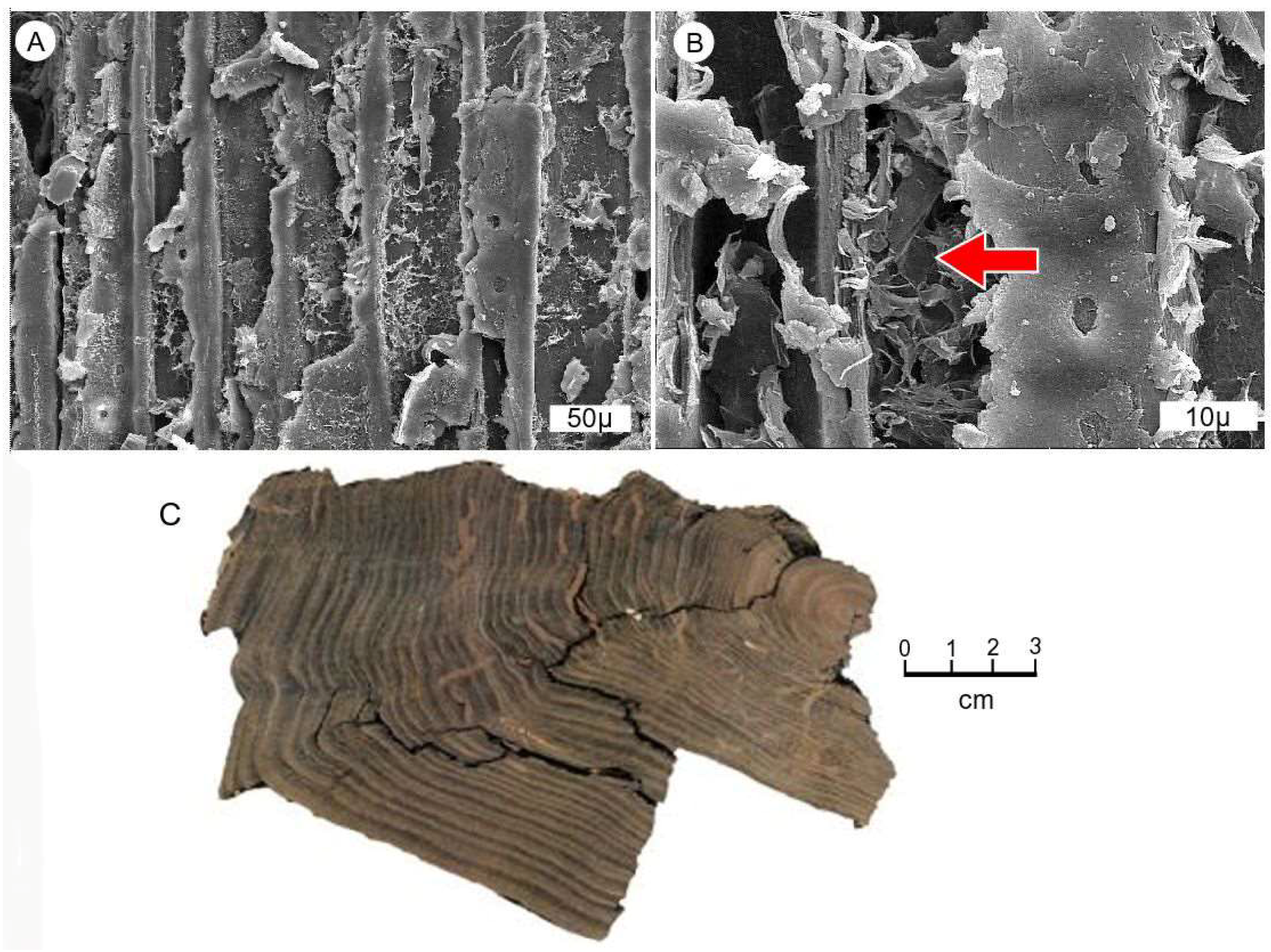

Scanning electron microscope (SEM) images were taken by the author using a Tescan Vega SEM at Western Washington University, Bellingham, WA USA.

3. Mummified Wood

A common question asked of fossil wood researchers is “how long does it take for wood to become petrified?” There is no uniform answer, because fossilization processes are highly variable. In siliceous hot springs, wood may become rapidly impregnated with silica [3,5,6,7], but in other environments, buried wood may be preserved for tens of millions of years without experiencing mineralization. The most important conditions required for mummification are an absence of microbial and chemical degradation, and burial conditions where mineral-bearing groundwater is unable to penetrate the tissues. Mummified wood consists of original tissues that have undergone minimal degradation of cellular constituents. This preservation is a result of several factors: inhibition of wood-destroying microbes, decreased oxygen availability, and the absence of harsh chemical or physical conditions (e.g., high alkalinity or acidity, or elevated temperatures). Environments that favor mummification include deeply submerged wood, burial in impermeable sediments, aridity, or low temperatures [8,9,10,11,12]. Lignin and cellulose, the primary constituents of wood, may undergo alteration on a microscopic level, even though the overall appearance of the ancient wood may appear unchanged. Wood cell walls consist of an outer primary wall that encloses a multilayered secondary wall. The primary wall, which may be relatively thick, consists mostly of cellulose and hemicellulose, in contrast to the thinner secondary wall that is largely composed of a mixture of cellulose and lignin. This secondary wall commonly consists of three discrete layers (lamellae) that differ in the orientation of their cellulosic aggregates and the degree of lignification. Microbial degradation of wood may result in destruction of the wood sugars cellulose and hemicellulose, resulting in relative enrichment of lignin [13,14]. Deterioration of the lignin-rich secondary wall may not greatly disrupt the overall cellular architecture as long as the cellulosic outer walls remain relatively intact (Figure 1). When it is preserved, cellulose has scientific value because carbon and oxygen isotope ratios in this substance can be used to estimate paleoprecipitation and paleotemperature [15,16,17,18].
Reported occurrences of mummified wood range in age from Paleocene to Holocene. This subfossil wood is often locally abundant, particularly in Quaternary deposits, where glacial, fluvial, and volcaniclastic lahar deposits provide deep layers of fine sediment that preserve organic materials. The following section describes some of the best-known localities, but it is not a comprehensive list.

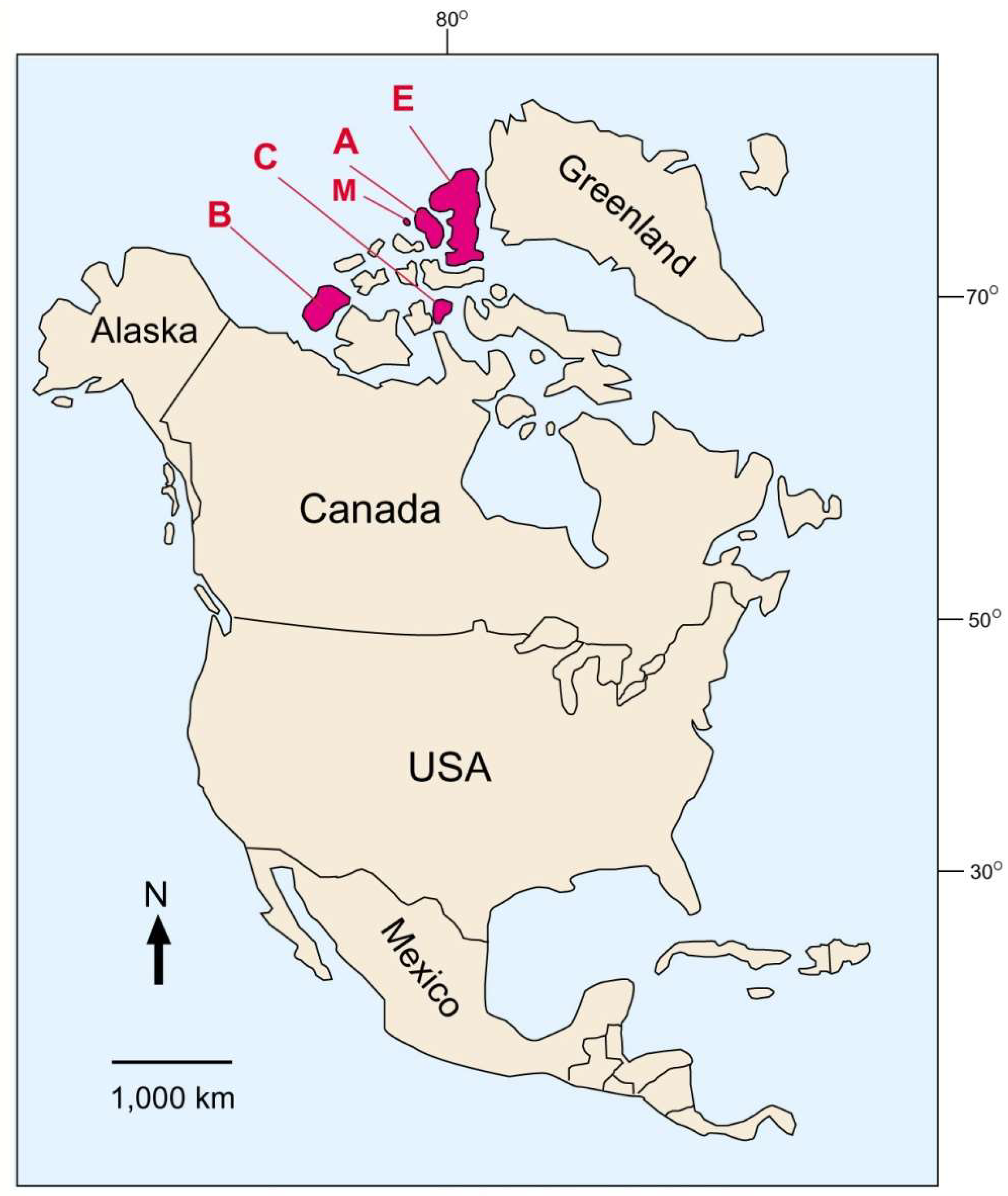

3.1. Canadian Arctic Localities

Spectacular examples of mummified wood occur in the Canadian Arctic, ranging in age from Paleocene to Pliocene (Figure 2). Although the modern High Arctic is a polar desert typified by long cold winters and short cool summers, early Tertiary conditions were very different, with a warm ice-free environment where plants benefited from high humidity and a growing season that had three months of continuous light. Three months of continuous darkness during Arctic Circle winters favored conifers rather than angiosperms. These fossil forests are typically dominated by Metasequoia, an unusual deciduous conifer particularly suited for long dark winters. Many other taxa are represented, particularly in the Miocene and Pliocene occurrences [19,20].

3.2. Ellesmere Island—Late Paleocene/early Eocene, Pliocene

Fossil wood was discovered at northern Ellesmere Island in 1883 at a site later described as “Brainard’s Petrified Forest”, named after a Sargent D.L. Brainard, a survivor of the ill-fated Greely Expedition of 1881–1883 [21]. Interest was revived in the 1980s when Geological Survey of Canada geologist Neil McMillan observed fossil wood at Ellesmere Island. The main fossil forest areas at Strathcona and Stenkul Fjords contain siderite-mineralized wood preserved in Late Paleocene-Early Eocene coal-bearing sediments of the Iceberg Bay Formation [22,23,24]. Pliocene mummified wood occurs at the Beaver Pond fossil site near the head of Strathcona Fjord, where braided river deposits of the Beaufort Formation preserve woody debris [25]. Many of the twigs have teeth marks left by ancestral beaver (Figure 3). Pliocene wood also occurs at nearby Meighen Island, including both individual logs and fine woody debris [26].

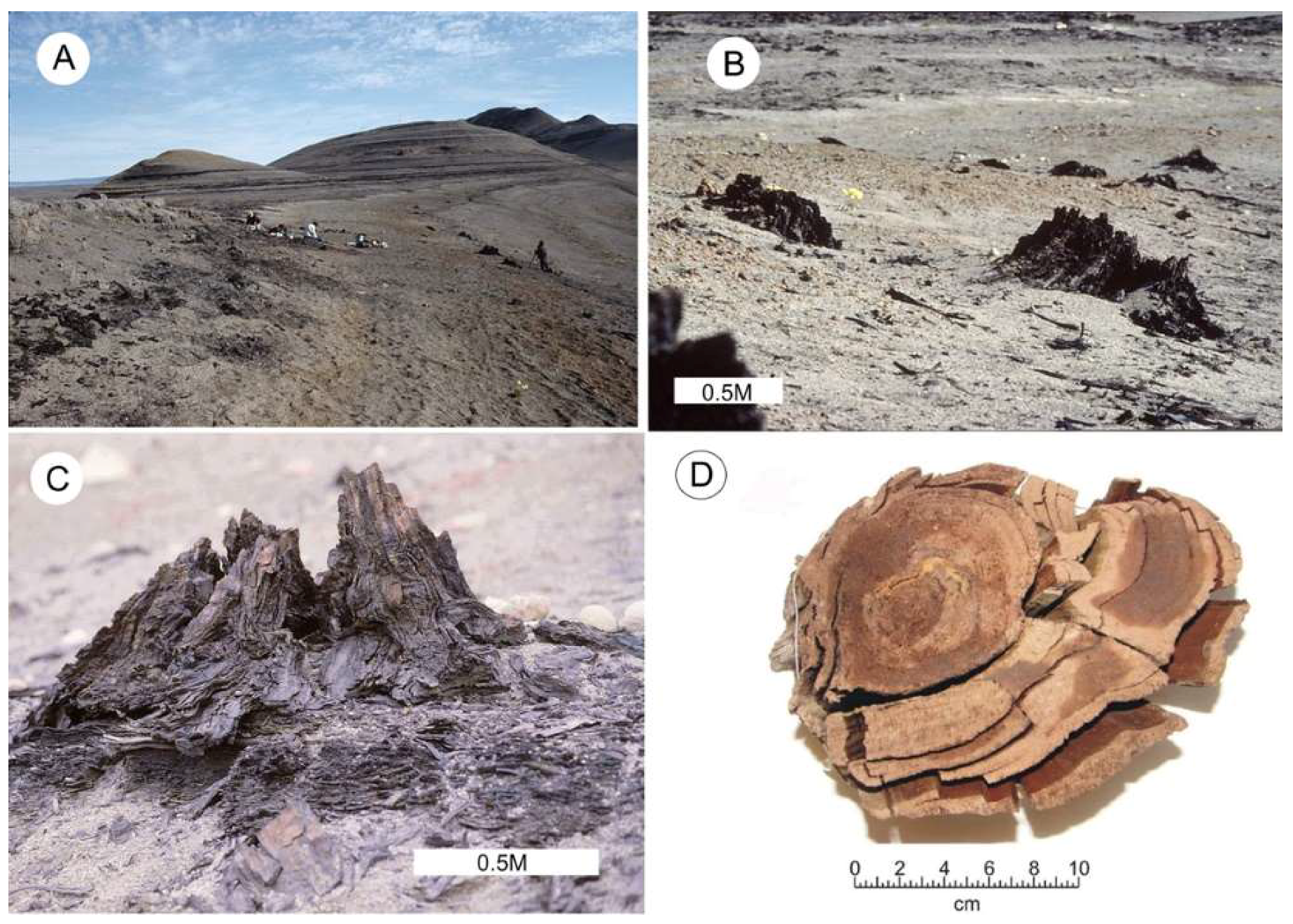

3.3. Axel Heiberg Island—Middle Eocene

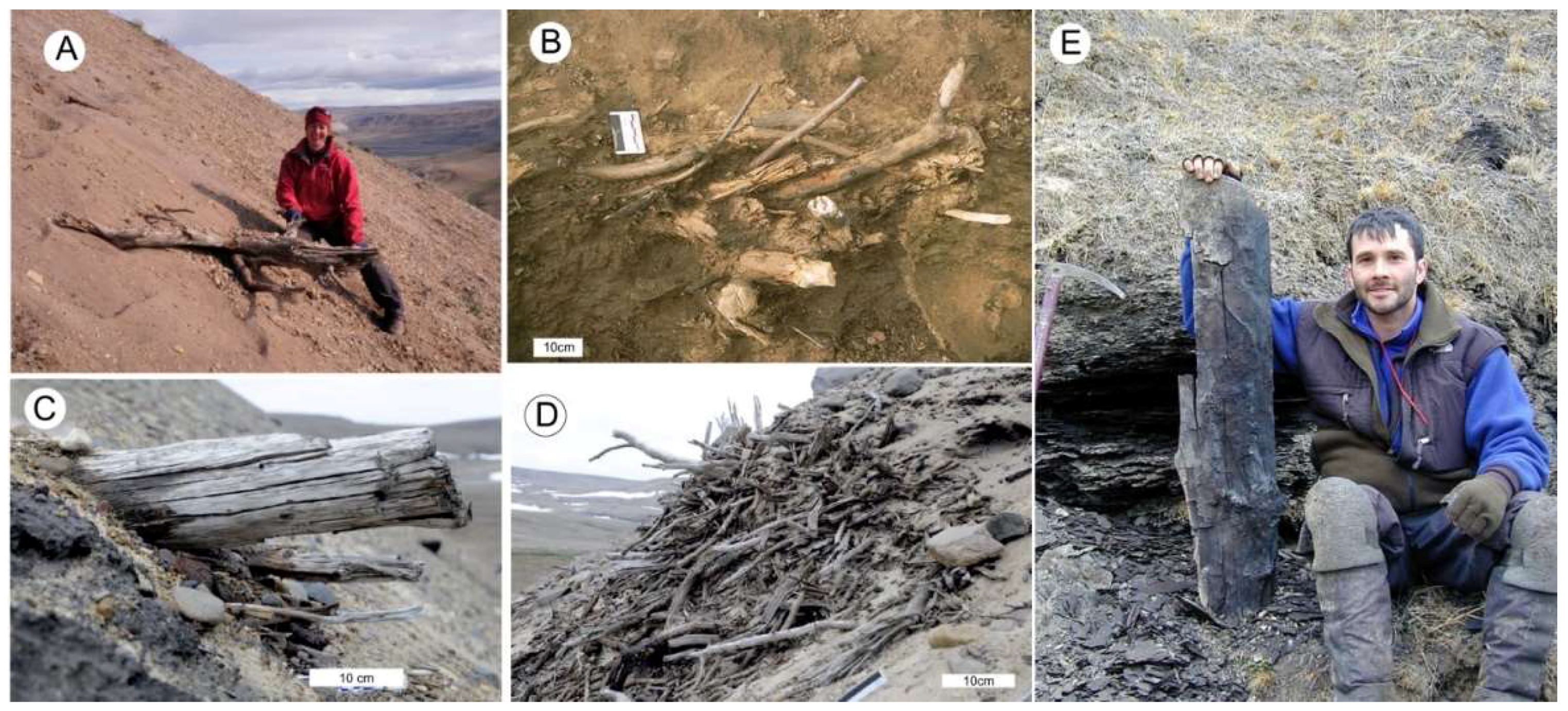

The fossil forest on this island was discovered in 1985 by helicopter pilot Paul Tudge, who had been transporting Canadian Geological Survey scientists to Arctic locations for years. Tudge notified University of Saskatchewan paleobotanist James Basinger, who organized the first expeditions to visit the site.
Located in the Geodetic Hills, the fossil forest is preserved in sediments of the middle Eocene Buchanan Lake Formation. The fossils are preserved in a basin where fluvial sedimentation included episodic floods that killed trees, burying stumps in situ together with fallen logs and abundant forest floor leaf litter. The total depth of sediment exceeds 150 m, and preserves at least 33 separate fossil-bearing layers [27]. As noted later in this report, although mummified wood is a dominant component or the Axel Heiberg Island fossil forest, some specimens have been coalified.
Metasequoia (Dawn Redwood) wood is by far the most abundant fossil (Figure 4). Other conifers include fir, cypress, ginkgo, larch, redwood, spruce, pine and hemlock; Angiosperm trees include maple, alder, birch, hickory, chestnut, beech, ash, holly, walnut, sweetgum, sycamore, oak, willow, and elm. Herbaceous plants are represented by honeysuckle and sumac; other taxa include several species of ferns and mosses [27]. This botanical diversity is evidence of a taxonomically diverse ecosystem, where plant communities flourished in a continually-changing floodplain environment. Despite the rigors of conducting research in a remote location with a harsh modern polar climate, the Axel Heiberg fossil forest has been the subject of enthusiastic scientific inquiry. Published research includes general descriptions [19,22,28,29,30,31,32], as well as more specialized reports. These include analyses of paleoclimate and paleoecology [15,18,33,34,35,36,37,38,39,40], and plant anatomy and taxonomy [14,41,42,43].

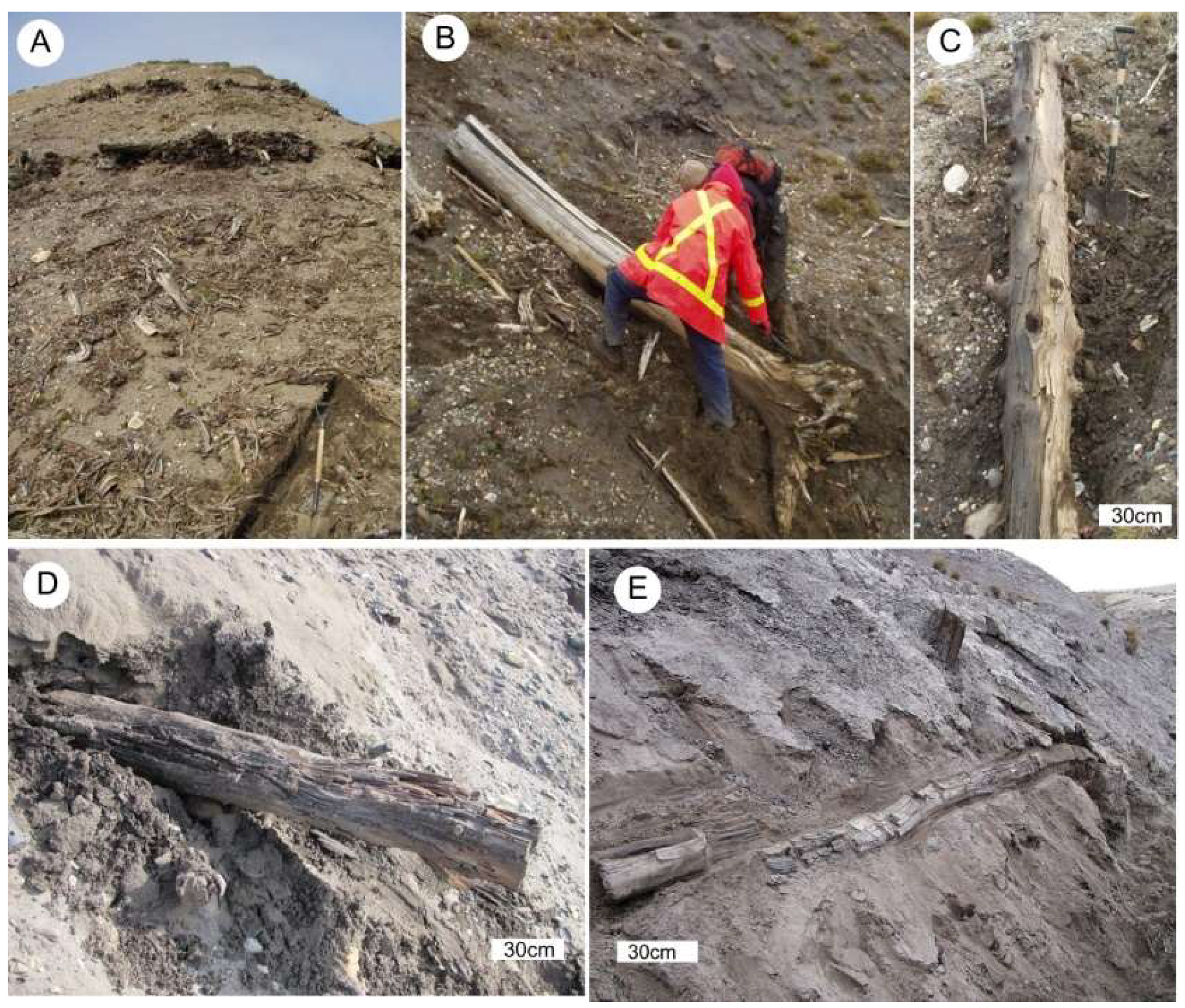

3.4. Banks Island—Middle Miocene-Pliocene

At Banks Island, the Miocene Ballast Brook Formation consists of sediments deposited on an ancient floodplain, where an upper peat layer preserves cones, foliage, twigs, and logs (Figure 5) [45]. In situ stumps are exposed at the top of the peat player; logs buried in the peat lie adjacent to their corresponding stumps [46]. Separated by an unconformity, the overlying Beaufort Formation is a Pliocene braided river deposit where logs and woody debris are preserved as transported material (Williams 2006. Williams et al. 2008). Paleobotanical studies date to the 1960s, when University of Alberta professor Len Hills began studying Banks Island plant fossils [47,48,49,50].

3.5. Cornwallis Island—Miocene

A single sample of mummified collected from a roadcut at Resolute has been described as having elevated levels of Ca, Fe, and S relative to modern wood, but scanning and transmission electron microscopy show no evidence of mineralization [14].

3.6. Northwestern Canada

Late Paleocene/early Eocene woods have been preserved in volcaniclastic material filling the upper zones of kimberlite pipes in the Lac de Gras region of Slave Province, Canada, the site of many open pit diamond mines (Figure 6). The wood is inferred to represent a tree from the boreal forest surrounding the eruption zone, where a trunk collapsed into the diatreme, becoming preserved in the sterile environment of the volcaniclastic kimberlite. Other mummified woods have been recovered from another diamond mine in the same region [51]. Cellulose δ 13C, δ18O and δ2H values indicate the Paleogene climate of the Canadian subarctic was 12–17 °C warmer and four times wetter than present [52,53].

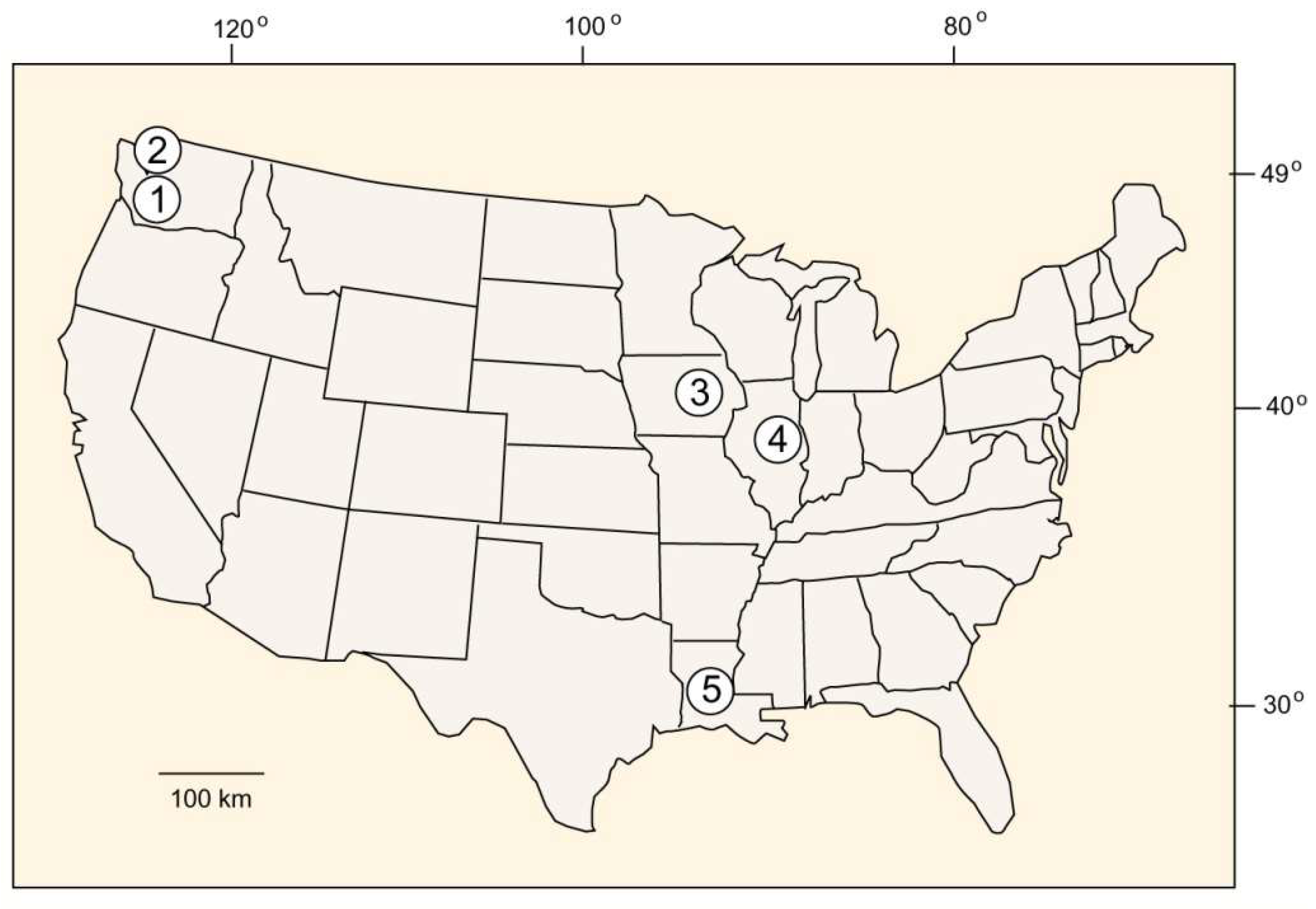

3.7. United States of America

Mummified wood occurs in many locations, particularly in Pleistocene and Holocene sediments. Examples where intact logs are preserved include the Farmdale Geosol in Illinois [54] and Mt. Pleasant Bluff, Louisiana [55]. This report focuses on three locations that offer notable examples of wood mummification that range in age from late Miocene to late Pleistocene (Figure 7).

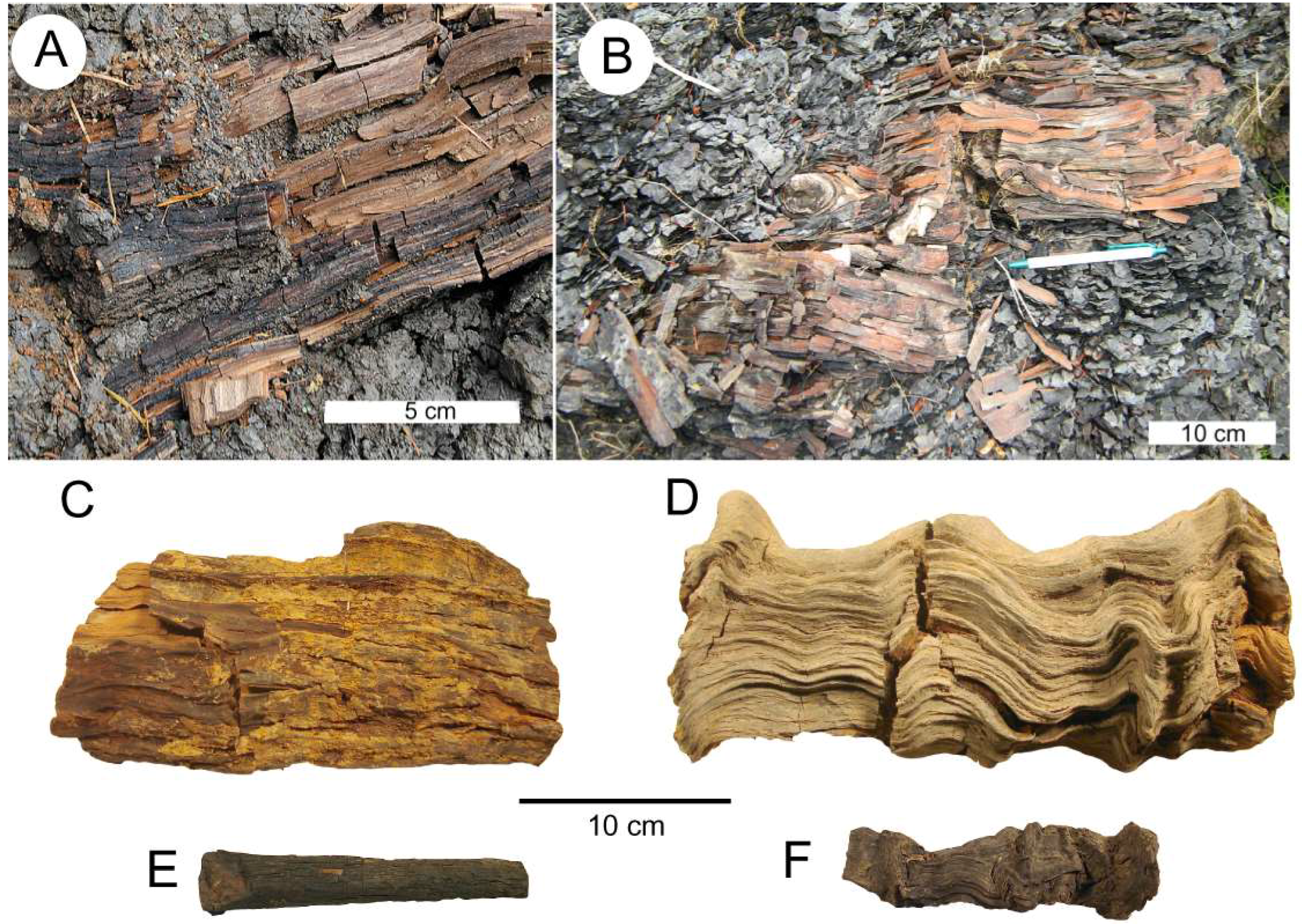

3.8. Wilkes Formation, Washington, USA—Late Miocene

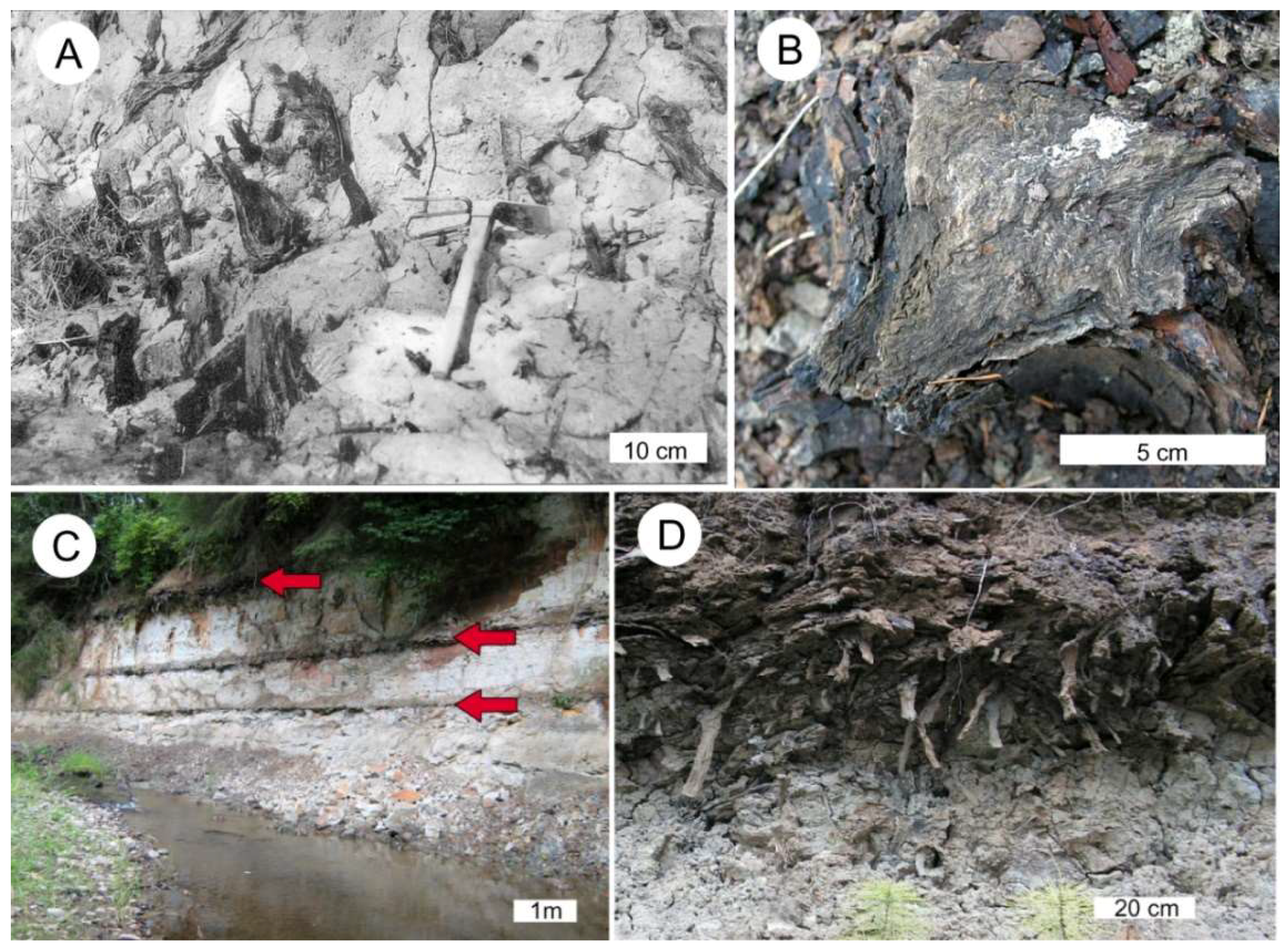

The Wilkes formation consists of a stacked series of volcanic mudflow (lahar) sediments that episodically inundated a lowland forest, alternating with lacustrine strata that were deposited during quiescent intervals. Abundant mummified wood is evidence of paleoenvironment: upright stems where mudflows buried living vegetation (Figure 8A), and layers of woody peat that represents organic debris transported by the mudflow (Figure 8B). Radiometric dating of a tephra interbed gave a Late Miocene age of 6.13 ± 0.08 Ma [56]. Taxonomy of the wood has not been attempted, but fossil pollen provides evidence of a swamp forest dominated by Taxodium (Swamp Cypress) and Nyssa (Tupelo), with diverse angiosperms as minor constituents [57].
Preservation quality of the wood is variable, typically consisting of wood that has been compressed from burial pressure, and deformed by desiccation. Exposure to weathering causes many mummified specimens to be shattered (Figure 9A,B), but intact specimens can be found (Figure 9C). Brown mummified wood is abundant (Figure 9D), as well as wood that has been partially coalified (Figure 9E,F). Even in the freshest-looking specimens, tissues commonly show structural damage (Figure 1C).

3.9. Two Creek Forest, Wisconsin USA—Late Pleistocene

The Two Creeks forest bed is perhaps the most famous Quaternary deposit in the Great Lakes region in north-central USA [58]. The widespread distribution of subfossil wood was first mapped in 1970 [59], though the Two Creeks fossil forest had been described a century earlier [60], with later studies published in the 1930s [61,62]. Radiometric ages for the Two Creeks forest sediments average 13,500 14C years BP (Before Present), equivalent to a calendar age of 11,850 years BP [57,63], a time when spruce forest covered much of the Lake Michigan region following the recession of the great continental ice sheet. Tree-ring analyses show a duration age of the forest to have been 252 years [64] to 310 years [65]. The wood is extremely well preserved, typically showing shrinkage cracks, but few other structural defects (Figure 10). Detailed descriptions of the geologic setting and paleoenvironment can be found in references [59,66,67,68,69].

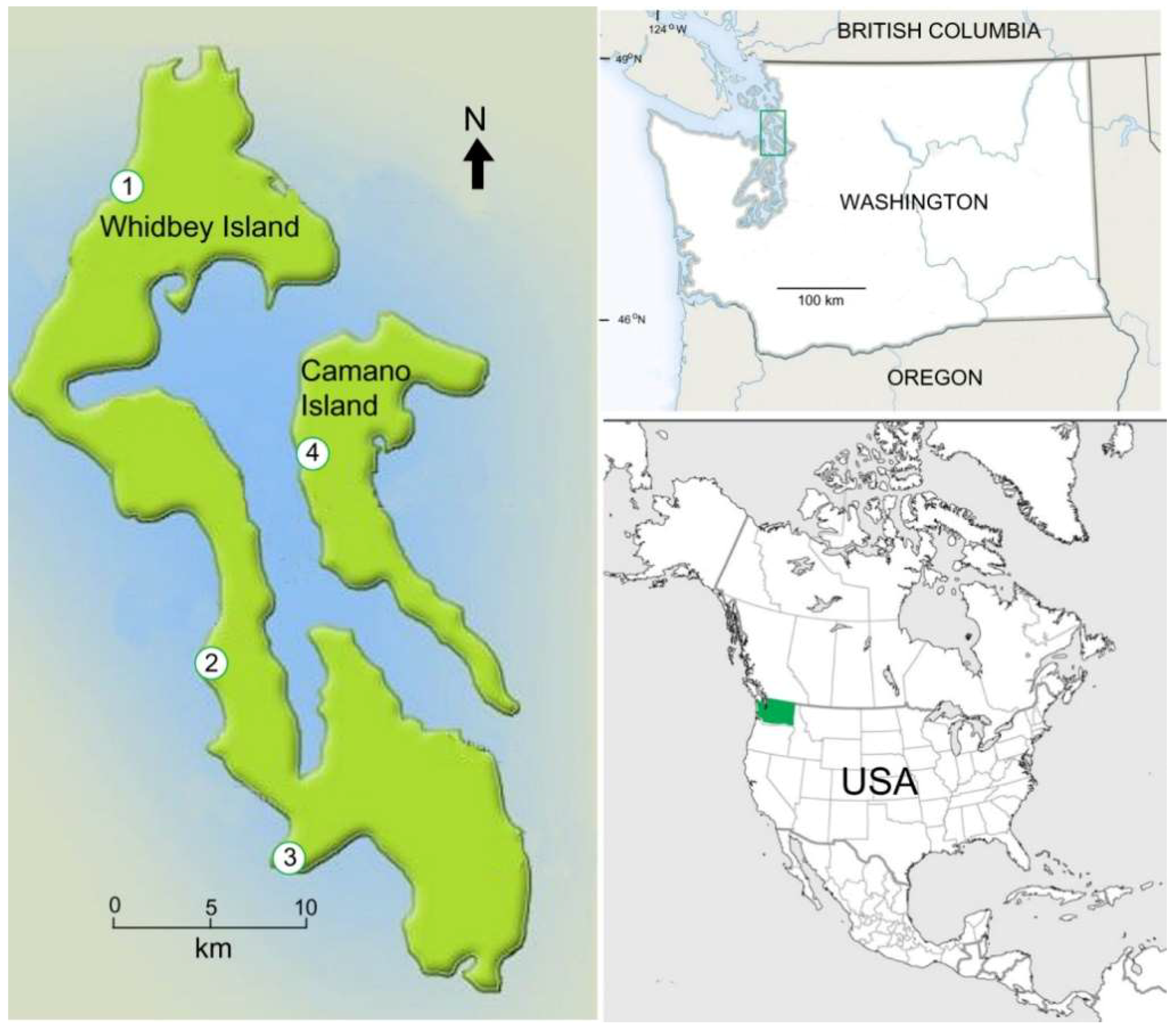

3.10. Puget Sound, Washington—Late Pleistocene

Mummified wood is abundant in Late Pleistocene interglacial deposits in the northern Puget Sound lowlands, northwest Washington, USA, where tree trunks, limbs, and small wood fragments occur in the Whidbey Formation. The region experienced multiple advances and retreats of the cordilleran ice sheet, but evidence of earlier events has largely been obscured by erosion and deposition related to the last glacial episode, the Fraser Glaciation that occurred between ~25,000–10,500 years ago. An exception occurs at Whidbey Island, where Fraser glacial deposits are underlain by prominent exposures of the much older Whidbey Formation. These sediments have ages that exceed the maximum age that can be determined by 14C (>40,000 years); thermoluminescence dates suggest an age of 150,000–100,000 years BP [70]. The Whidbey Formation has an exposed thickness of ~60 m at the type section; other localities expose up to 90 m of strata. In general, the strata originated as fluvial and lacustrine sediments deposited by meandering streams flowing along a coastal floodplain.

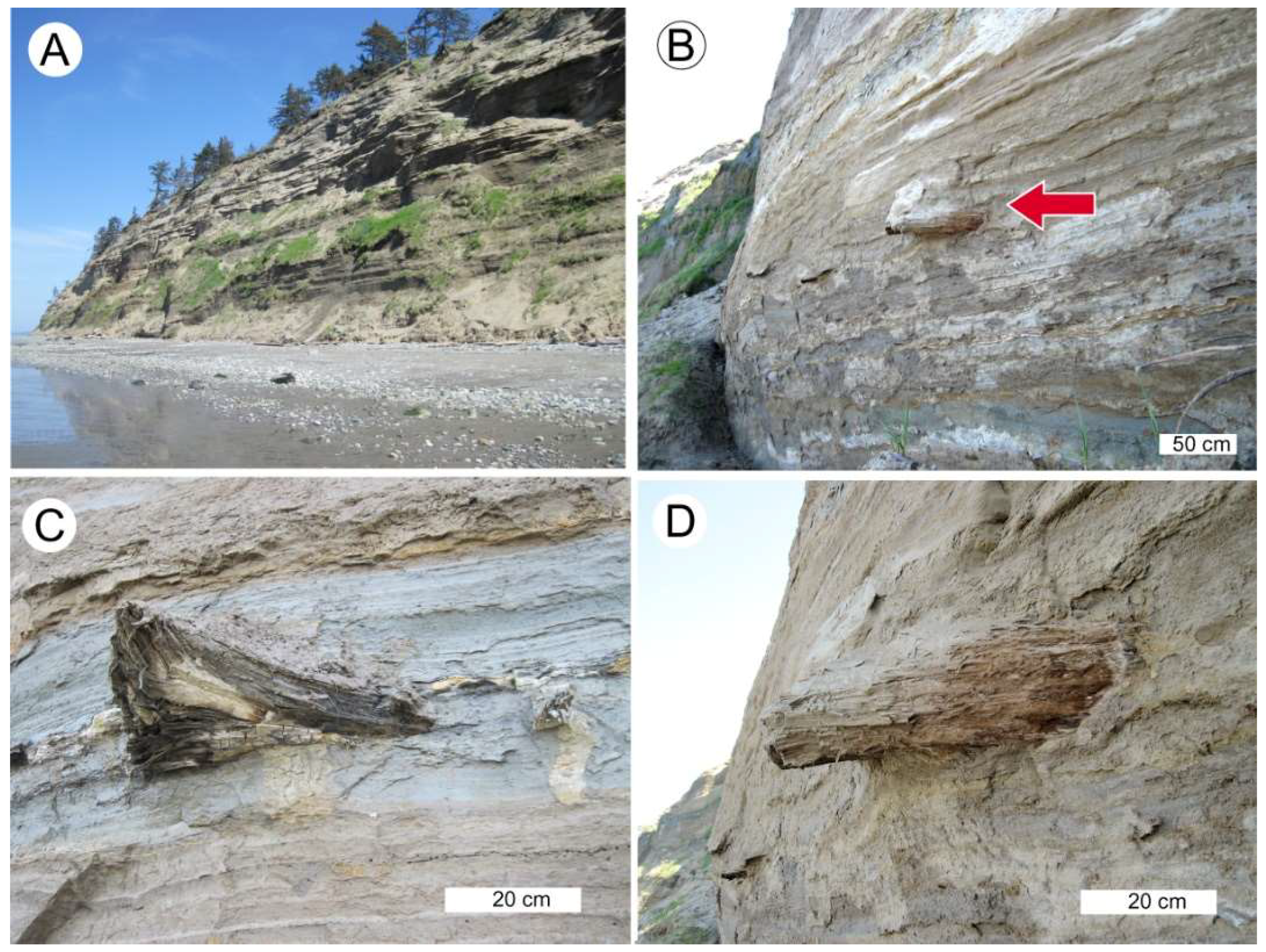

Wood samples used in this study were collected from coastal exposures at Swantown, Lagoon Point, and Double Bluffs on Whidbey Island, and Cama Beach on nearby Camano Island (Figure 11).

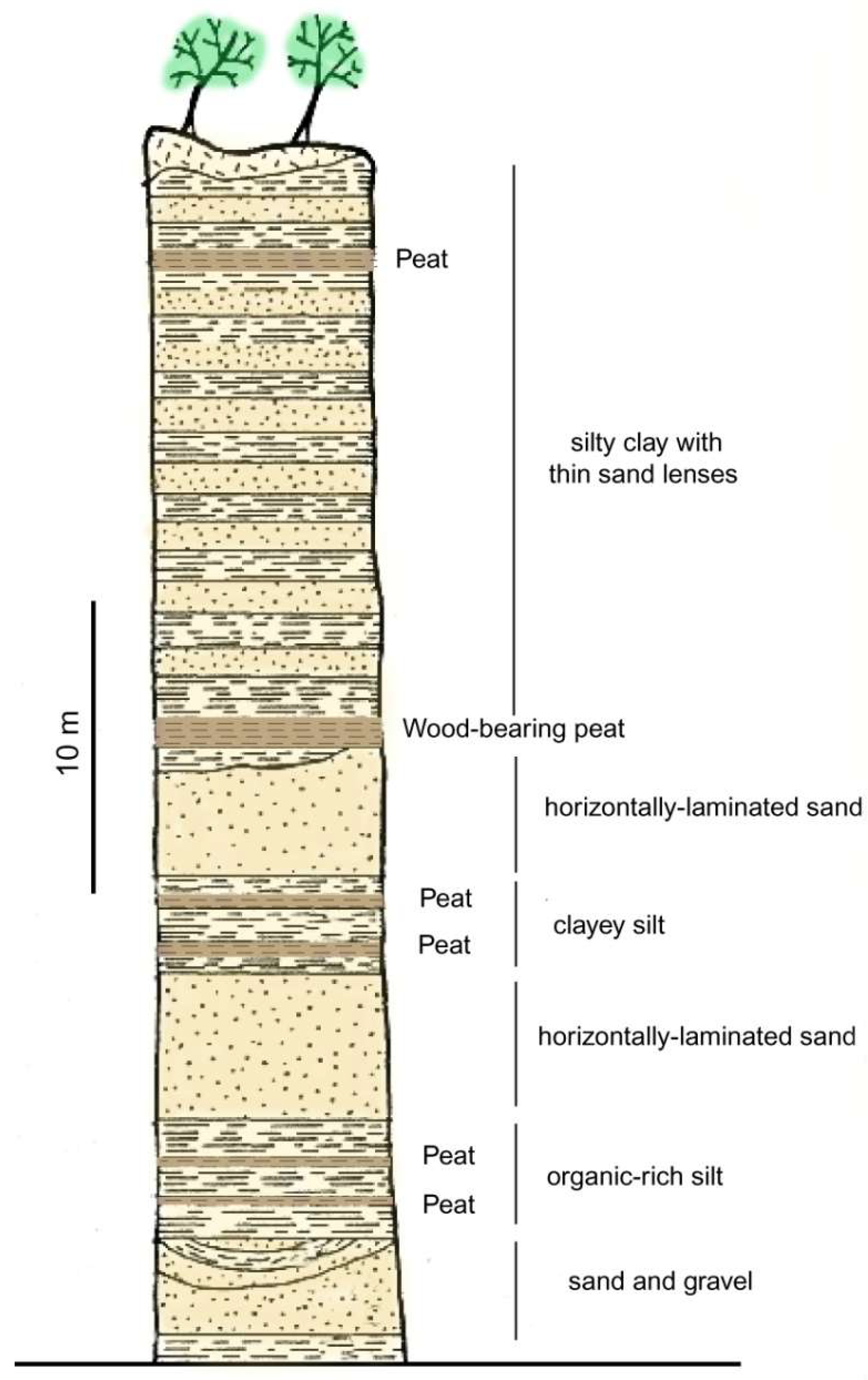

Wood occurs in two sedimentary environments. Individual logs are preserved in thick sandy beds, where they have been transported by fluvial processes. (Figure 12) Wood also occurs in beds of woody peat, ranging in form from abundant flattened stems and small twigs to large branches and rare tree trunks that accumulated in local bogs (Figure 13). Peat beds occur at multiple levels in the Whidbey Formation, interspersed with sandy fluvial deposits (Figure 14).
The Whidbey Formation wood is well-known to local geoscientists, but this material has received little scientific study. Poor anatomical preservation hinders taxonomic identification of the wood, but the forest that produced it is known from pollen obtained from Whidbey Formation peat beds at the Double Bluffs type locality (Figure 14) [71,72]. Pinus contorta (Lodgepole Pine), Tsuga heterophylla (Western Hemlock), and Pseuodtsuga menziesii (Douglas Fir) are abundant elements in the palynoflora. Pollen analysis from the main wood-bearing peat bed in the Whidbey Formation type section contains the above-mentioned conifers as the most abundant taxa, but small amounts of Juniperus (Juniper), Abies (Balsam Fir), and Betula (Birch) are present. A thin peat bed ~20 m higher in the stratigraphic section is dominated by Alnus (Alder) [72]. The pollen flora indicates that during the Whidbey Formation interglacial period the region was inhabited by boreal conifer forest that closely resembles the modern flora.
Preservation quality is variable, largely affected by compression from the weight of overlying sediments. Small twigs and stems in woody peat layers are commonly highly flattened, but larger limbs and trunks are more likely to retain three-dimensional shapes. Regardless of shape, it is rare for specimens to preserve uncompressed cells (Figure 1A and Figure 15A–D).
Whidbey Formation wood is not visibly mineralized, the only exception being a few specimens that have thin coatings of vivianite (Fe2+Fe2+2(PO4)2·8H2O), (Figure 16).

3.11. European Locations

Mummified wood occurs at many locations in throughout the world, including numerous sites in Europe. Examples that have been reported in scientific literature include localities in Belgium [74], England [75], Austria [76], and Siberia [77,78]. Other mummified wood sites are located in Germany, Poland, Czech Republic, and The Netherlands. The following section describes some of the most spectacular occurrences at localities where efforts have been made to display evidence of fossil forests for public viewing.

3.12. Ipolytarnóc Fossil Forest, Hungary—Late Miocene

In July 2007, miners working at an open-pit coal mine at Bükkábrány, Hungary discovered 16 upright tree trunks in the sand layer just above the lignite coal seam (Figure 17A). A team of geologists and paleontologists was quickly organized to study this spectacular occurrence, the only location worldwide where large trees are preserved intending in their original forest setting [79,80]. The fossil forest is believed to have originated when rising lake waters drowned the forest during the late Miocene, with the trunks protected from decay by their deep burial in water-saturated sediment. The trees have been identified as Glyptostroboxylon rudolphii (Figure 17B), a taxon previously described from a site in Germany [81,82]. In 2010, a new visitor center was opened at the Ipolytarnóc Fossils Nature Reserve, where five large stumps from Bükkábrány are displayed (Figure 17C,D).
The fossil trees have commonly been described as being mummified, with the wood soft enough to cut with a razor blade after specimens were soaked in boiling water [80]. Microscopic examination and chemical analyses confirm that the wood of the buried trees is relatively pristine; levels of cellulose and phenolic compounds in wood within the underlying lignite are significantly lower, evidence of incipient gelification [83].

3.13. Dunarobba Fossil Forest, Italy—Pliocene

Discovered during clay mining in 1980, Dunarobba Fossil Forest is preserved in lacustrine sediments of the Tiberino Basin, a Plio-Plesitocene intermontane basin along the western margin of the Apenine Mountains in central Italy [84]. More than 50 upright trunks up to 2.5 m in diameter and 9 m in height are preserved in clay and fine sand sediment, representing a Pliocene conifer forest that flourished along a marshy lake shore ~3–2 Ma (Figure 18). Originally named as a member of the form genus Taxodioxylon [83], the dominant species is now considered to be Glyptostrobus europaeus based on the “whole plant” association of foliage, cones, and wood [85]. The wood is commonly described as mummified, resulting from the protection against degradation provided by the impermeable clay-rich matrix, which restricted influx of oxygenated groundwater. However, the composition of Dunarobba wood has complexities. Chemical analyses reveal that leaching has removed most polyoses and cellulose, leaving lignin as the major structural component [86,87]. Some specimens are partially mineralized with calcite, chlorapatite, chloromagnesite, and clays [88]. Permineralized wood collected from clays above the main fossil forest layer are mineralized by a combination of siderite, goethite, and ferroan calcite [89,90]. Mineral composition may vary within a single specimen, evidence that mineral precipitation was strongly influenced by localized changes in Eh and pH.
Conservation efforts in the 1990s led to the establishment of Dunrobba Botanic Palaeontology Centre, which includes both a small exhibition hall and a path that directs visitors to outdoor displays where upright stumps are protected by individual A-frame shelters. Preservation efforts continue in an ongoing attempt to minimize degradation caused by microbial decay and atmospheric exposure.

3.14. Fossano Fossil Forest, Northern Italy—Pliocene

A major Pliocene fossil forest occurs in northwestern Italy, where upright stumps are exposed along the banks of the Stura di Dimonte River near the small town of Fossano. The site is known as the Fossano Fossil Forest. The site is in proximity to the alps; the river has incised Quaternary sediments to expose Pliocene continental sediments (Figure 19). Two successive forests are represented in separate stratigraphic layers [91,92,93]. As in other Pliocene swamp forests in Italy, Glyptostrobus europaeus is the dominant tree type. The scientific significance of this newly-exposed fossil forest is sure to result in additional descriptions and interpretations in future years.

3.15. Stura di Lanzo Fossil Forest, Northwest Italy—Pliocene

Like the Fossano Fossil Forest, the Stura de Lanzo locality is a site where mummified Pliocene tree trunks have been exposed by river erosion [94,95,96]. The muddy sediments that enclose large Glyptostrobus stumps also preserve seeds and cones, allowing “whole plant” identification [85]. The Stura di Lanzo Fossil Forest has been described in detail in a 2005 booklet [97] published in Italian by Parco la Mandria (Mandria Provincial Park). Conservation efforts at the site have included participation of teachers and young students [98,99].

3.16. Other Locations

In East Asia, Oligocene mummified wood occurs in the Nanning Basin of southern China. The deposit includes fossilized mollusks, fish, reptiles, and mammals as well as plants. Wood occurs as stumps and trunks in a lagerstätte that also preserves foliage and seeds [100]. Pliocene mummified wood has been described from central Japan [101].

4. Charcoalified Wood

Fire has been present throughout the Earth’s history, so the abundance of charred wood in the geologic record is not surprising. Production of charcoal has two primary causes: natural wildfires (Figure 20), and ignition of wood by volcanic flows or hot volcanic ash (ignimbrite) (Figure 21). Charcoal in the fossil record ranges from intact logs to tiny fragments dispersed in clastic sediments and coal. The latter form is commonly called fusain. Regardless of size, ancient charcoal may yield important information about Earth history.
Much of our knowledge of ancient charcoal comes from the work of University of London professor Andrew C. Scott. His research is described in a recent book [96], and in many journal publications [102,103,104,105,106]. Several papers provide general overviews of fossil charcoal research [104-106].
Because charred wood typically has excellent anatomical preservation, intact charcoal specimens are well suited for taxonomic identifications. For relatively young deposits, charcoal is in an ideal material for 14C radiometric dating. Like other plant fossils, charcoal can be used to reconstruct paleoenvironmental conditions. On a global scale, ignition temperature of plant material is related to atmospheric oxygen levels, so the presence of charcoal can be used to trace atmospheric evolution [107].

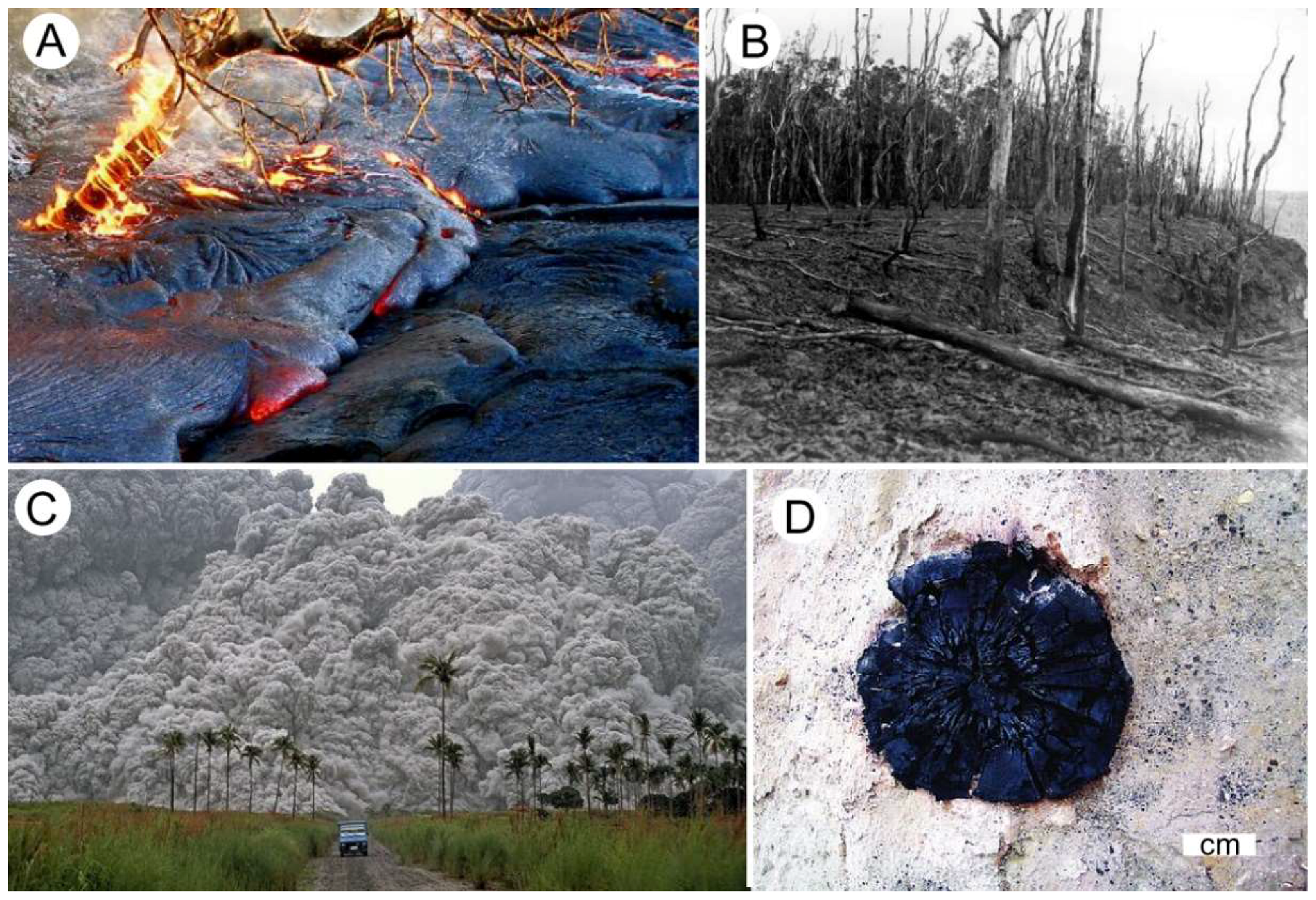

Charring of wood by volcanic processes has been described for the Soufrière Hills Volcano, Monserrat [103], the Miocene volcanic field at Cormandel Peninsula, New Zealand [108] and Recent ignimbrite in the Taupo volcano, New Zealand [109]. In the latter example, charring temperatures estimated from optical reflectance ranged from 267 °C to 414 °C, generally decreasing at distances away from the volcanic vent. At Montseratt, charring temperatures are estimated to mainly be in the range of 200°C–340 °C, with a possible maximum of ~450 °C [104]. In volcanic environments, it is common for tree trunks to be completely charred, though some specimens are less charred in interior regions.

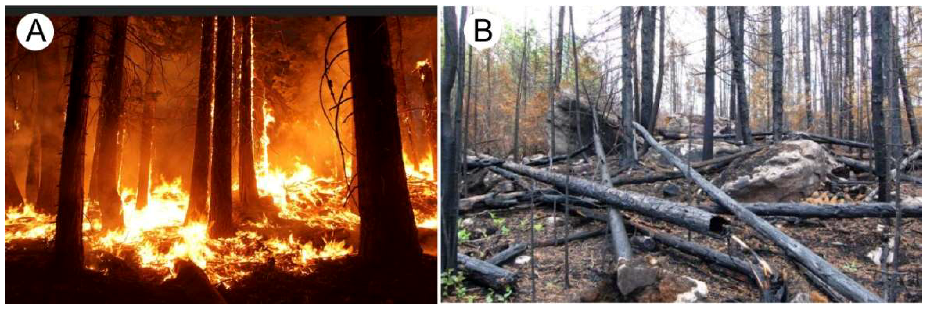

4.1. Evidence of Ancient Wildfires

Fossil evidence of wildfires primarily comes from charcoal. The oldest known charcoal comes from the Silurian [110]. However, wildfires did not become prominent until the appearance of forests in the Middle Devonian [111,112]. By the Carboniferous, high-biomass forests were episodically swept by fires, ultimately producing coal that contains as much as 20% charcoal by volume [99]. The occurrence of fire is related to atmospheric oxygen levels, which determine the ignition temperature of organic materials. Atmospheric oxygen levels during Phanerozoic time was estimated from the organic carbon and sulfur content of clastic sediments [113,114,115], but the usefulness of fossil charcoal for making more precise evaluations was quickly recognized. A minimum oxygen concentration of 13% is required for wildfires; oxygen levels above 35% would reduce ignition temperatures to a point where sustained forest growth would be prohibited [114]. Atmospheric oxygen concentrations are estimated to have been above 26% throughout the Carboniferous and Permian periods, declining abruptly near the time of the Permian-Triassic mass extinction, fluctuating during the Triassic and Jurassic, and declining beginning in the mid Cretaceous to reach the present-day value of ~21% [116,117,118]. Dispersed charcoal is commonly preserved in clastic sediments, but also occurs in lignite coal [119].

4.2. Anatomical Evidence

Dispersed charcoal fragments are useful for tracing wildfire history, but macroscopic specimens are valuable for taxonomic purposes. Light microscopy can be used, but SEM images are richer in detail. Although most research has been done on charred wood, vascular plants (e.g., ferns) may also be represented as fossil charcoal [120]. In higher plants, charred tissues become black and brittle, with a silky sheen. Because charcoal results from heating, compression forces are limited to minor shrinkage effects, so wood retains its 3-dimensional structure The reflectance of the charcoal can be used to estimate charring temperature [105, 107] The most significant structural change is the fusing of the cell walls into a single homogeneous layer, obliterating the original multilayered architecture. Experimental studies show that cell wall homogenization may occur when modern conifer wood is heated for one hour at 350 °C [105,116]. In other aspects, anatomical preservation may be excellent (Figure 22).

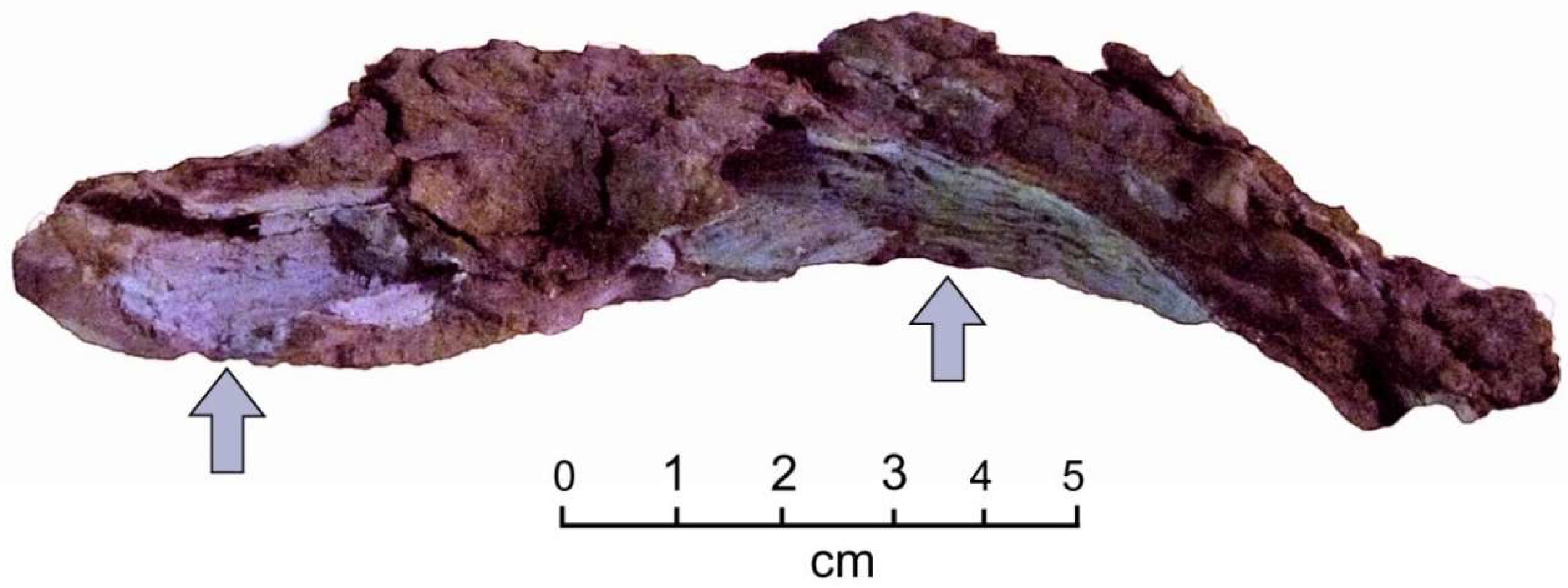

A few occurrences have been reported where partially-charred wood has become silicified [108,121]. A previously unreported occurrence is represented by a single specimen from the Miocene Columbia Plateau basalts of central Washington, USA (Figure 23A). Although the opal mines at Virgin Valley are famous for silicified wood, a few samples show charring, presumably from pyroclastic flows that affected forests bordering the ancient caldera. These examples provide evidence that charred wood is not susceptible to silicification, probably because the pyrolized tissues are not capable of acting as organic templating matrices for the precipitation of silica. However, uncharred interior regions and empty cell lumen may be sites for silica precipitation (Figure 23B,C).

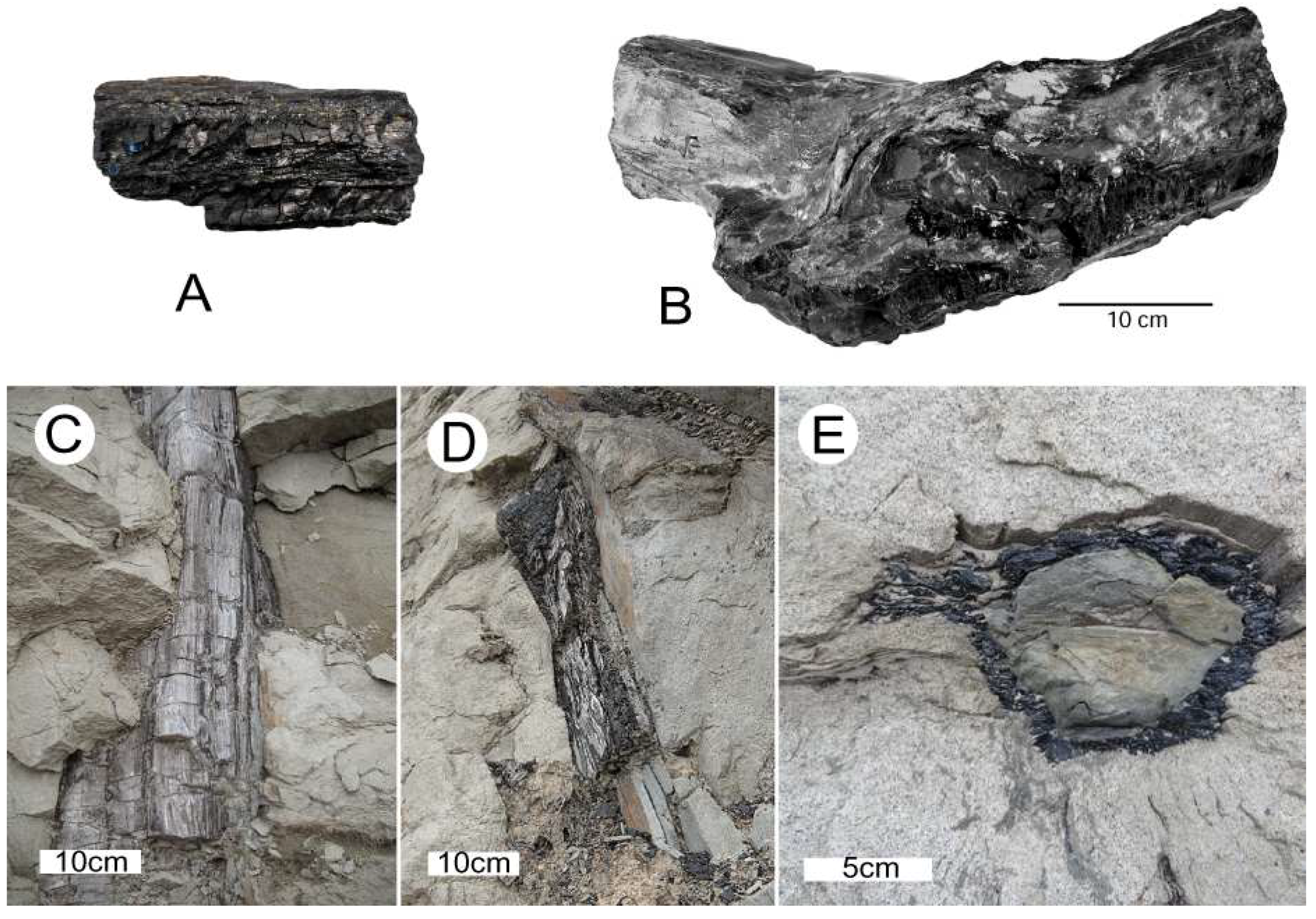

5. Coalified Wood

Mummified wood retains a high proportion of the original cellulosic constituents, in contrast to coalified wood, where loss of cellulose and hemicellulose results in relative enrichment of lignin [73]. During coalification, wood and other plat remains are transformed to peat as a result of humification and gelification, which are biochemical processes. Humification involves the decomposition of original organic constituents to produce dark brown organic polymers. Because these polymers are resistant to microbial attack, peat is a relatively stable material. The amorphous nature of these organic alteration products causes plant tissues to lose their original architecture, producing a gelatinous texture. The conversion of peat to coal is a metamorphic process, where organic compounds are altered as a result of heat and pressure, leading to an increase in carbon content and decreases in oxygen and hydrogen. These reactions involve dehydration, bituminization, and graphitization, and they can be divided into four stages: peat is successively changed into lignite, subbituminous coal, bituminous, and anthracite [122]. Coal is composed of three microscopically-recognizable groups of organic constituents that are known as macerals. Derived from cellular tissues, vitrinite is the most abundant and most homogeneous maceral, the main contributor to the shiny black appearance of coal. U.S. Coals typically contain as much as 80 wt % vitrinite [123]. Liptinite (also called exinite) originates from spores, pollen, resins, lipids, waxes, algae, and bacterial proteins. Inertinite is derived from oxidation. Coalified wood is most commonly found in the lowest-rank coals, lignite and subbituminous, where the macroscopic organic remains may be preserved. Preservation of wood in lignite (brown coal) is very common (e.g., [124,125,126]). However, cellular tissues in a mineralized Permian tree fern have been observed to consist of anthracite [127]. Conversion of original tissue to vitrinite involves the diagenetic alteration of lignocelluloses. In general, both hemi-cellulose and cellulose are greatly reduced or destroyed, and lignin-based components are selectively enriched. [127,128]. Key drivers of vitrinite formation are removal of cellulosic materials followed by physical compression. The result is that cellular anatomy is likely to be destroyed, producing logs and limbs that retain their original form, but often with significant flattening. Coalified wood typically has a vitreous or semi-vitreous luster, brittle with conchoidal fracture (Figure 24). Microscopically, coalified wood cells are typically comminuted and homogenized (Figure 25).

5.1. Coexistence of Mummifoed and Coalified Wood

Fossil forests in the Whidbey Formation and Wilkes Formation in Washington, USA and Axel Heiberg and Ellesmere Islands in the Canadian Arctic primarily contain both mummified wood, but coalified wood is also present. The occurrence of both mummified and coalified wood in a single formation, sometimes within a single stratum, is evidence that conditions of preservation are subject to localized variation. Because the alteration of original organic matter to bituminous products involves a reduction in volume, coalified specimens are typically compressed. At the Eocene fossil forest at Axel Heiberg Island, Canadian Arctic, coalified wood is estimated to have been compressed at a ratio of ~6:1 relative to the original wood [44].

5.2. Accessory Minerals in Mummified and Coalified Wood

The original preface of this paper is a description of fossil woods that are composed of original organic matter or its alteration products. However, nature seldom obeys simple rules, and it is not unusual for non-silicified wood to contain small amounts of inorganic minerals that were introduced during diagenesis. This phenomenon usually involves the precipitation of microcrystalline minerals within empty cell lumen. Figure 26 shows Eocene wood from Yuba River, California. Cell walls have been fused to produce a homogenous carbon layer, suggestive of charring. Individual cell lumen contain a variety of different diagenetic minerals, including apatite, pyrite, and gypsum. Siderite (FeCO3) has previously been reported as a major component of Neogene coalified wood in Alaska, USA [130]. Cretaceous wood from New Mexico, USA, has been reported to contain quartz, apatite, and calcite [131]; small amounts of pyrite, siderite, and clay minerals occur in coalified Miocene tree stumps at the Bilna Mine, Czech Republic [132].

Funding

This research received no external funding.

Acknowledgments

The author thanks the following people for generously providing photographs: Brent Alloway, Franco Bianchi, Tamás Elter, Alberto Garcia, David Greenwood, Hope Jahren, William Hagopian, Benjamin Hook, Sándor Kovács, Edoardo Martinetto, Mark Orsen, Marta Pinzagli, Natalia Rybcynski, Eli Sagor, Brian Schaller, Chris Williams. Fossil wood specimens were contributed by David Lawler, Jim Meissner, and Alex Wolfe. Charles Wampler and Dan Carnevale provided technical support for the SEM used in this research.

Conflicts of interest

The author declares no conflicts of interest.
