Article

Three-Dimensional Architecture of Foreland Basins from Seismic Noise Recording: Tectonic Implications for the Western End of the Guadalquivir Basin

by
David Amador Luna
1,*,
Albert Macau
2,
Carlos Fernández
3 and
Francisco M. Alonso-Chaves
1
1
Departamento de Ciencias de la Tierra, Facultad de Ciencias Experimentales, Universidad de Huelva, Campus El Carmen, 21007 Huelva, Spain
2
Institut Cartogràfic i Geològic de Catalunya, Parc de Montjuic, 08036 Barcelona, Spain
3
Departamento de Geodinámica, Estratigrafía y Paleontología, Facultad de Ciencias Geológicas, Universidad Complutense de Madrid, Ciudad Universitaria, 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
Geosciences 2025, 15(9), 345; https://doi.org/10.3390/geosciences15090345
Submission received: 4 June 2025 / Revised: 4 August 2025 / Accepted: 20 August 2025 / Published: 3 September 2025

Abstract

The Variscan and Mesozoic basement are covered by Neogene and Quaternary sediments belonging to the Guadalquivir foreland Basin (southern Spain). This study explores the subsurface of the northern margin of its westernmost sector using the HVSR method, recording seismic noise at 334 stations between the mouths of the Guadiana and the Guadalquivir rivers, near Doñana National Park. Fundamental frequency and basement measurements enabled the estimation of an empirical formula for basement depth: h = 80.16·f0−1.48. Five distinct HVSR responses were obtained: (a) low-frequency peaks, indicating deep substratum; (b) high-frequency peaks, shallow bedrock; (c) broad peaks, potential critical zones (3D-2D effects, suggesting faults); (d) double peaks (marshlands); and (e) no peaks, near-outcropping bedrock. The soil fundamental frequencies range from 0.23 to 18 Hz, with bedrock depth ranges from 1 to 5 m in the northwest to over 600 m in the southeast. Borehole data correlate strongly with HVSR-derived results, with typical discrepancies of only a few tens of meters, likely due to the presence of non-geological basement acting as a mechanical basement. Although the possibility of ancient fluvial terraces of the Guadalquivir River contributing to abrupt slope changes is considered, H/V spectra with broad peaks suggest tectonic origins. This study presents the first regional three-dimensional model of the basin basement over an area exceeding 2300 km2, revealing a horst-and-graben system formed by foreland deformation linked to the westward advance of the Rif-Betic orogenic front.

1. Introduction

Passive seismic techniques based on the analysis and interpretation of seismic noise recorded by triaxial seismometers have proven to be valuable tools for studying the mechanical properties of soil. The Horizontal-to-Vertical Spectral Ratio (HVSR), also known as the H/V Spectral Ratio, is a passive seismic technique used to determine the fundamental frequency of soil by computing the Fourier spectral ratio between the horizontal and vertical components of seismic noise at a given location. The analysis of this phenomenon enables the estimation of the soil fundamental frequency (f0), a parameter closely related to the thickness of sedimentary layers covering a basin and, consequently, to the depth of the underlying bedrock.
This approach was first proposed by Nogoshi & Igarashi [1,2], but was later popularized by Nakamura [3] for site-effect investigations. Due to its simplicity, it quickly gained popularity. Lermo & Chávez-García [4] applied this method to S-wave seismic records and developed the theoretical foundation for the numerical inversion of SV-waves. A few years later, Ibs-von Seht & Wohlenberg [5] identified a correlation between the fundamental frequency of a soil, measured through seismic noise, and the thickness of sedimentary layers. Their findings concluded that the Nakamura method is a powerful tool for estimating sediment thickness. Later, Yamazaki and Ansary [6] expanded this approach to include site characterization, terrain classification, and other applications.
In Europe, the SESAME Project (Site EffectS assessment using AMbient Excitations) played a crucial role in assessing the reliability of the H/V and array techniques for site-effect estimation and seismic risk mitigation in urban areas. The project ultimately led to the development of guidelines for applying this technique [7].
In recent years, the H/V Spectral Ratio method, also known as HVSR (Horizontal-to-Vertical Spectral Ratio) method, has been extensively used for characterizing the seismic properties of the subsurface, including site classification, site-effect analysis, and velocity structure inversion, among others (e.g., [8,9,10,11,12,13,14,15]). In the Guadalquivir Basin, the HVSR method has proven particularly effective for subsurface studies (e.g., [16,17,18,19,20]), enabling the identification of structures that influence the basin bedrock and shape its geomorphology.
The Guadalquivir Basin is a subtriangular basin, currently crossed by the river of the same name from east to west, with an approximately main direction of N070° E, open towards the Gulf of Cádiz in the southwestern Iberian Peninsula. It represents one of the three major geological domains of Andalusia: to the north, the Variscan Iberian Massif (southern parts of the Central Iberian, Ossa-Morena and South Portuguese Zones); to the southeast, the Alpine Betic Cordillera; and between these, the Guadalquivir Basin. In the westernmost region of the basin, rivers display abrupt changes in orientation, shifting to approximately N-S directions. This pattern is evident in the Guadalquivir River, its tributary the Guadiamar, and the Tinto, Odiel, and Piedras rivers. The Guadiana River, which traverses the Variscan basement from east to west, undergoes a sharp directional change to flow north–south, roughly aligning with the 7.5° W meridian, before continuing toward its mouth, where it forms part of the border between Portugal and Spain. These sudden changes, along with the asymmetry in riverbank morphology and the absence of meandering forms, contrast sharply with the overall smoothness and low gradient of the basin’s relief (1–2° southeastward).
These features may be influenced by blind faults affecting both the basin’s bedrock and its overlying sediments, thereby conditioning its geomorphology, as suggested by Viguier [21] and Alonso-Chaves et al. [19]. However, the region’s surface geology, dominated by Neogene and Quaternary sediments derived from the dismantling of the Variscan basement to the north and the Alpine orogenic front to the east and southeast, can obscure these structures, making their identification highly challenging.
In this context, passive seismic techniques, such as the HVSR method, are crucial for identifying the soil fundamental frequency, which is closely linked to the depth of the contact between materials with high mechanical contrast, such as soft sediments and hard bedrock. In the Guadalquivir Basin, Miocene and Pliocene sediments overlie a Paleozoic basement, with localized Mesozoic outcrops in Niebla and Ayamonte. The basin’s basal unit, known as the Niebla Formation [22,23], is composed of calcarenitic sediments identified in deep boreholes [18]. This formation also acts as a mechanically rigid substrate (though not corresponding to the geological basement), with an estimated thickness of 10–20 m that slightly increases toward the basin interior [23].
This study represents a first regional-scale approach and aims to achieve two primary objectives. First, it seeks to determine the soil fundamental frequency through passive seismic methods, specifically the HVSR method, to estimate the depth of the mechanical bedrock. Second, it analyzes the northern margin of the western end of the Guadalquivir Basin by integrating seismic interpretations with surface geological information and borehole data to identify the tectonic structures conditioning the landscape and to construct a three-dimensional model of the underlying bedrock. Ultimately, the study aims to provide a tectonic perspective on the geodynamic evolution of the forebulge zone of the Betic orogen and to explore how strain partitioning may explain the presence of extensional structures in a region adjacent to an orogenic front within a plate convergence context.

2. Geographical and Geological Setting

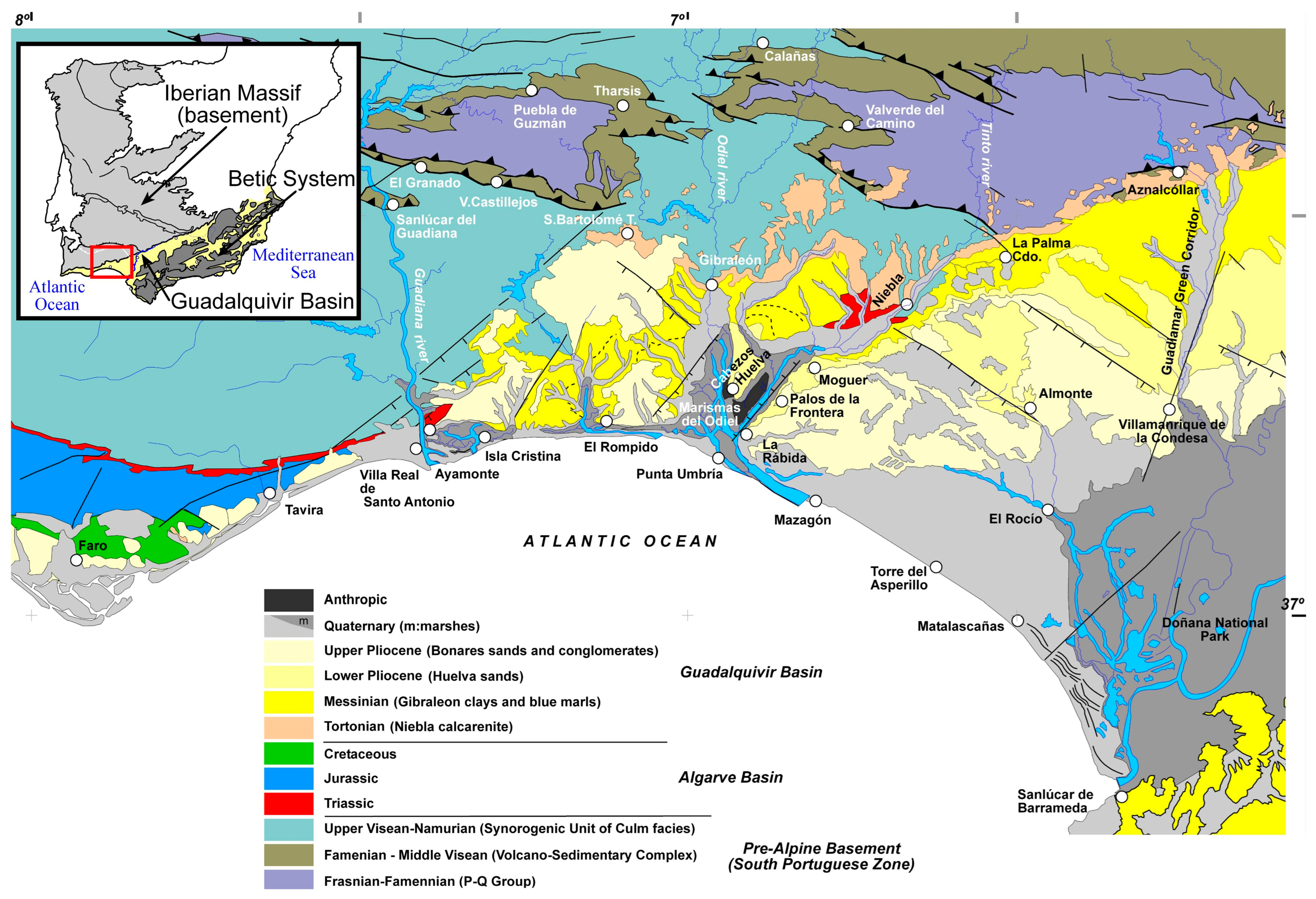

Geologically, the study area is located to the west of the Sevilla meridian in the Guadalquivir Basin, where the basin widens before being covered by the waters of the Atlantic Ocean. It lies between 37.10° N and 37.50° N latitude and 7.4° W and 6.18° W longitude (see Figure 1). The area extends from the vicinity of Aznalcóllar (Seville) in the northeast to the city of Ayamonte in the southwest, encompassing the southern region of Huelva province and the southwestern portion of Seville province. It should be noted that the study focuses exclusively on the northern margin of the westernmost end of the basin.
The Guadalquivir Basin is a major Neogene foreland depression located at the front of the Betic orogen. Since the mid-20th century, the region has attracted sustained interest from the oil industry due to the structural and stratigraphic configuration of its sedimentary fill, which hosts tectono-stratigraphic trap systems with favorable reservoir and seal characteristics [24]. These geological units are marked by considerable thickness, extensive lateral continuity, and excellent sealing and isolation capacities, making them highly suitable for fluid accumulation and long-term storage. Although the basin’s hydrocarbon reservoirs—primarily composed of biogenic gas— are currently depleted or in the process of depletion, their potential for conversion into underground gas storage facilities is under active investigation.
Moreover, the basin’s basement has drawn increasing interest from the mining sector, owing to the presence of economically significant copper and other metal deposits. Until the early 21st century, mining activity in the region was largely concentrated in sites inherited from Roman times—or even earlier—with most operations located where mineral outcrops had historically been identified. A notable exception is the Cobre Las Cruces mine, the only one situated within the interior of the Guadalquivir Basin whose ore deposit is entirely buried beneath Neogene sediments, with no surface exposure. In this case, the ore body—characterized by a more rigid mechanical behavior—lies in direct contact with a softer marly cover, raising the possibility that other mineral deposits may remain buried beneath the basin’s sedimentary fill.
The most prominent geological feature in the study area is the discordance between the basin infill and the Variscan basement to the north. This discordance exhibits a primary N070° E orientation (parallel to the northern boundary of the basin), dipping gently to the southeast. (see Figure 1)
From a geophysical perspective, the various geological units affecting the Guadalquivir Basin in the study area can be classified into two main categories: soft rocks (belonging entirely to the basin infill) and hard rocks (constituting the mechanical basement).
  • Hard rocks:
Phyllite-Quartzite Group (PQ Group), Upper Devonian in age (e.g., [25,26,27]): Located in the northeastern most portion of the area (represented in grayish blue in Figure 1).
Volcano–Sedimentary Complex, ranging from the Upper Devonian to the Lower Carboniferous (e.g., [25,27,28]): Notable for its massive sulfide deposits and numerous mineral occurrences (brownish in Figure 1).
Synorogenic Unit of Culm Facies, Carboniferous in age: Composed of Paleozoic shales and greywackes deposited on the ancient seafloor (e.g., [27,29]), covering the largest surface of the study area (grayish green in Figure 1).
These Paleozoic units, ranging from the Middle Devonian to the Upper Carboniferous, were affected by the Variscan Orogeny, exhibiting predominant NW–SE structures and fabrics. Locally, these basement rocks are overlain by Triassic deposits (red in Figure 1), including sandstones, carbonates, and volcano sedimentary rocks, which outcrop near Ayamonte and Niebla. These rocks constitute the geological basement of the basin and outcrop widely in the northern and northwestern sectors of the study area. These same rocks also behave as a mechanical basement, due to their strong seismic impedance contrast with the overlying soft basin infill.
However, in the eastern part of the study area (east of the Huelva meridian), a calcarenite formation known as the basal transgressive complex or Niebla Calcarenites [30] (salmon in Figure 1)—located immediately above the top of the Variscan and Mesozoic basement—also shows high mechanical impedance and therefore could act as a mechanical basement in HVSR data [19,20]. The Niebla calcarenites, which do not belong to the geological basement, outcrop around Niebla and have been recognized in deep boreholes further south [18]. This basal stratigraphic unit corresponds to a well-documented transgressive sequence that extends westward from the area of Doñana National Park. Its lower boundary, marking the top of the geological basement, is clearly defined in seismic reflection profiles acquired by oil companies [31,32].
In such cases, the HVSR method identifies the interface between the soft basin sediments and the overlying Niebla calcarenites, rather than the deeper Variscan basement. Consequently, while in some parts of the basin the mechanical and geological basement coincide, in others they do not. The method maps either the top of the Niebla calcarenites or, where absent, the top of the Variscan and Mesozoic basement. When this calcarenitic layer is present, the geological basement lies only a few meters below the mechanical basement.
Nevertheless, throughout the manuscript, we refer exclusively to the mechanical basement, except in the Discussion section, where we distinguish between mechanical and geological basement.
2.
Soft rocks:
Gibraleón Clays and Blue Marls Formation (Upper Tortonian–Lower Pliocene): Composed of clays and marls with interbedded silt and sand layers, glauconite-rich horizons, and thicknesses ranging from 30 to 35 m near the Guadiamar River to more than 2000 m southeast of Villamanrique de la Condesa (e.g., [22,33,34,35]) (yellow in Figure 1).
Huelva Sands Formation (Lower Pliocene): Silty sands with glauconite-rich basal levels, reaching ~30 m thickness (e.g., [22,35,36]) (intermediate yellow in Figure 1).
Bonares Sands Formation (Upper Pliocene): Fine-grained sands with a maximum thickness slightly greater than 20 m (e.g., [22,35,36]) (light yellow in Figure 1).
Pleistocene Conglomerates (Conquero Continental Unit, Pleistocene): Reddish gravels and coarse sands with thicknesses up to ~25 m [37].
Quaternary Deposits: Fluvial sediments (conglomerates, sandstones, gravels, and sands) associated with terraces and lowland areas, as well as marine–fluvial deposits and marsh clays and silts (light and dark gray in Figure 1).
All these Neogene and Quaternary units define a gentle homoclinal structure with general dips of less than 5° toward the southeast.
For a more detailed understanding of the lateral variations between all these units, see references [38,39,40,41].
In the western Guadalquivir Basin, river systems display a pronounced reorientation to a N-S direction. Notably, the Guadalquivir River changes its course near Seville, shifting from an overall N070° E trend to a southward flow towards the Gulf of Cádiz. This behavior is especially evident in the segment between the meridians of Aznalcóllar and Villamanrique de la Condesa. The river margins exhibit notable asymmetry, with the eastern margin presenting a slope gradient below 5%, while the western margin exceeds 30%. The tributary networks further highlight this contrast: the eastern tributaries are characterized by longer courses and more hierarchical drainage systems, whereas the western side lacks major tributaries, instead comprising short, first-order streams.
A similar pattern is observed in the Guadiamar River, a tributary of the Guadalquivir. Originating in the Sierra de Aracena (Huelva), the Guadiamar flows NW-SE before reorienting to a NNE-SSW direction near Aznalcóllar (Seville). In this segment, between Aznalcóllar and Villamanrique de la Condesa, the western margin features a hierarchical drainage network with a slope gradient below 10%, while the eastern margin comprises short, first-order tributaries with gradients exceeding 30%.
This asymmetry is also apparent in other rivers within the Guadalquivir Basin, including the Tinto, Odiel, and Piedras Rivers. For example, the Tinto River flows sinuously through Huelva province, transitioning to a pronounced N045° E orientation near Moguer, northeast of Huelva, before discharging into the Ría de Huelva, the estuarine zone where it converges with the Odiel River. Its eastern margin exhibits steep slopes exceeding 30%, while the western margin consists of extensive marshlands with gradients below 5% (to get an idea of the slope of these river margins, refer to Figure 2).
Similarly, the Odiel River originates in the Sierra de Aracena and Picos de Aroche Natural Park (Huelva), flowing NW-SE through a narrow and steep valley until reaching the water reservoir “Embalse del Sancho”, located north of Gibraleón. From this point, the river adopts a N-S orientation, transitioning into an expansive marshland more than 4 km wide (designated as the Natural Area “Marismas del Odiel”) with gradients below 1% (see again Figure 2). The eastern margin of the Odiel is marked by prominent relief (up to 50 m, locally known as “Cabezos de Huelva”) with slopes occasionally exceeding 50%, while the western margin exhibits more subdued topography with elevations around 20 m and slopes exceeding 10%.
Although less pronounced, the Piedras River also displays a reorientation in its final segment, adopting a well-defined NNE-SSW orientation over its last 12 km near the town of Lepe.
Special mention should be made of the numerous anthropogenic deposits and fills that cover the surface of the study area. Notably, immediately east of the city of Huelva, there is a massive phosphogypsum pond located directly on the marshlands, with dimensions nearly comparable to those of the city itself, which poses a significant environmental risk in the event of a plausible earthquake or tsunami. Additionally, the entire study area has been extensively used for agricultural purposes.

3. Methodology

The seismic noise recording in the Guadalquivir Basin was conducted in order to apply the Horizontal to Vertical Spectral Ratio (HVSR) method, which facilitates the identification of the soil fundamental frequency. This parameter is closely linked to the thickness of the sedimentary cover overlying a hard rock basement. The depth (h) of the mechanical discontinuity between the crystalline basement and the “soft” sedimentary cover is strongly correlated with the soil fundamental frequency (f0) and the shear wave velocity (VS) [42]. By applying an empirical equation, which relates the depth of the rock basement (not necessarily the geological Variscan basement) to the soil fundamental frequency, a three-dimensional map of the basement of the basin can be constructed.

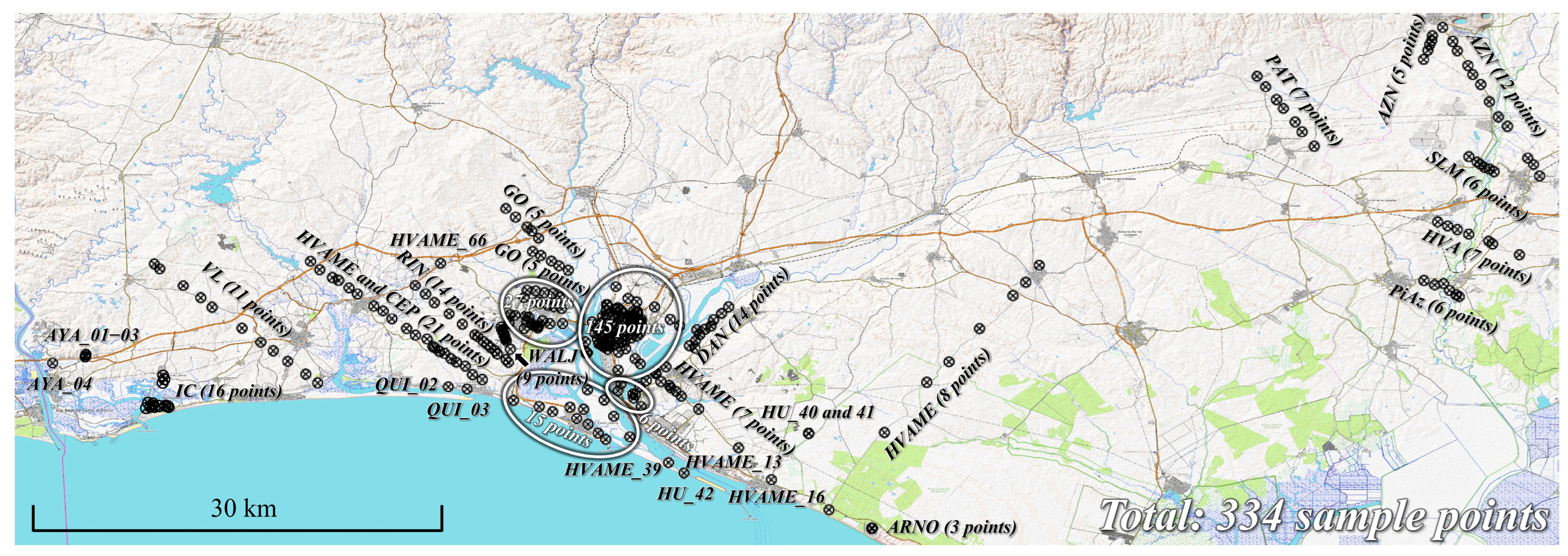

Seismic noise measurements were carried out at a total of 334 discrete sampling points, many of which were integrated into profiles. Most of these profiles are oriented approximately NW-SE, following the general slope of the basement-cover contact (see Figure 3), with variable lengths ranging from 2 km to over 35 km. Additionally, orthogonal NE-SW profiles were designed to delineate potential structural features affecting the area.
The primary limitations encountered during this study were related to restricted access to protected areas, such as the “Marismas del Odiel” Natural Area (Huelva) and the Guadiamar Green Corridor (Seville), which limited vehicle entry and access to certain zones. However, efforts were made to maintain a sufficiently dense sampling grid in these areas to mitigate data gaps. Additional challenges included intense agricultural, industrial, and urban land use, which further restricted access to specific sites. Sampling efforts were consequently adapted to public areas, such as forest roads, walking paths, and other accessible zones.
This study includes seismic noise recordings acquired during the development of the ALERTES-RIM project, focusing on the central sampling area, specifically the city of Huelva and nearby industrial zones. Within this region, five seismic arrays were deployed in the city of Huelva to determine S-wave velocities (VS), and 45 H/V sampling points were recorded, the results of which were previously published by the research team [17,19].
Additionally, this work incorporates data collected during six subsequent campaigns outside the scope of the ALERTES-RIM project and PGC2018-100914-B-I00, covering a total area exceeding 2300 km2 (see location in Figure 3).
The profiles were designed to ensure continuity in the seismic noise data, spanning from the boundary of the basin, where the Variscan basement (geological substratum) outcrops, towards the interior of the basin. This design facilitates the development of both surface and basement topographic profiles.
Some sampling points were positioned directly above historical deep exploratory boreholes, enabling the derivation of empirical relationships for calculating the depth of the basement rock [16,17]. Additional details on sampling, locations, and other relevant information are provided in Table A1 of the Appendix A.
Seismic noise measurements were made with a SARA SL06 digitizer and a Lennartz LE 3D/5s triaxial seismometer, with a natural frequency of 0.2 Hz. Exceptionally, Lennartz LE-3D/20s, with natural frequency of 0.05 Hz were employed in areas presumed to have greater basement depths (southeastern portion of the study area). The equipment simultaneously recorded both time (UTC) and location through an integrated GPS device. The measurements used a sampling frequency of 200.
The minimum recording time was approximately 25–30 min, with a standard duration of 45 min per sampling session. Exceptionally, longer recording times (up to 90 min) were used in areas with adverse conditions, such as high background noise from vehicular traffic or greater substrate depths.
The recorded signal was processed using Geopsy (v. 3.4.2) [43], which generates graphs that relate the Fourier spectra of the horizontal components (N and E) to the vertical component (Z). This process yields an H/V vs. frequency graph from which the soil fundamental frequency (f0) is determined. Between 7 and 19 calculation windows, each approximately 300 s long, were utilized for this analysis.
In most cases, the highest amplitude and lowest frequency peak in these graphs corresponds to the soil fundamental frequency. The high amplitude and narrow width of the peaks allowed for a precise determination of f0.
The interpolation maps of basement depth were generated using Surfer (v. 15.6.3), employing kriging interpolation. These maps were subsequently imported into QGIS (v. 3.32), where they were overlaid onto the surface geological map.

4. Results and Interpretations

4.1. Empirical Equation for the Estimation of the Basement Depth from Vs and f0 for the Western Guadalquivir Basin

The soil fundamental frequency (f0) is related to the shear wave velocity in the soft soil layer (VS) and the thickness of this layer (h) following the relationship proposed by Bard [41] (1):
f 0 = V S 4 h
To calculate the depth of the bedrock (h), it is necessary to know the vertical profile of shear wave velocity (VS) at each point where the fundamental frequency of the soil (f0) has been measured. However, this information is often not available a priori. To address this issue, the vertical profile of VS is parameterized using empirical relationships of the form h = a·f0b, derived from mechanical borehole or geophysical exploration data [5,44,45]. Evidently, the parameters a and b depend on the geomechanical characteristics of the materials constituting the soft soil layer.

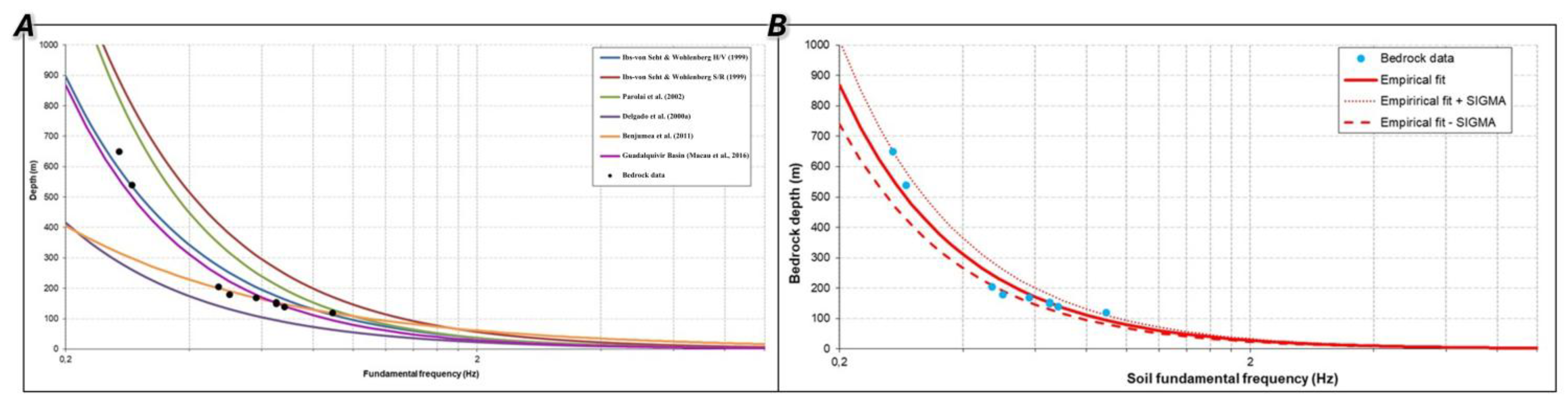

A new empirical relationship has been developed (Figure 4) for the southwestern region of the Guadalquivir Basin by combining data from the H/V spectral ratio method, array techniques (5 datasets), reflection seismics (2 datasets), and mechanical boreholes (2 datasets) that reached the bedrock. This empirical relationship was calibrated using nine data pairs, covering a frequency range from 0.27 to 0.89 Hz and a wide depth range from 120 to 650 m. The correlation coefficient for this relationship is 97.44% (see Figure 4B). The standard deviation of the fit is 0.15, implying a factor error of 1.17.
The equation used for estimating the depth is as follows (2):
h = 80.16 · f 0 1.48
As shown in Figure 4, none of the empirical relationships reported in the literature exhibit as strong a correlation with the data as the one proposed in this study. It is worth noting that most of the data fall within the error bounds, with the largest uncertainties associated with low-frequency values (i.e., greater depths), whereas errors are minimal at higher frequencies (above 1 Hz).

4.2. H/V Graphs, f0, and Estimated Basement Depth

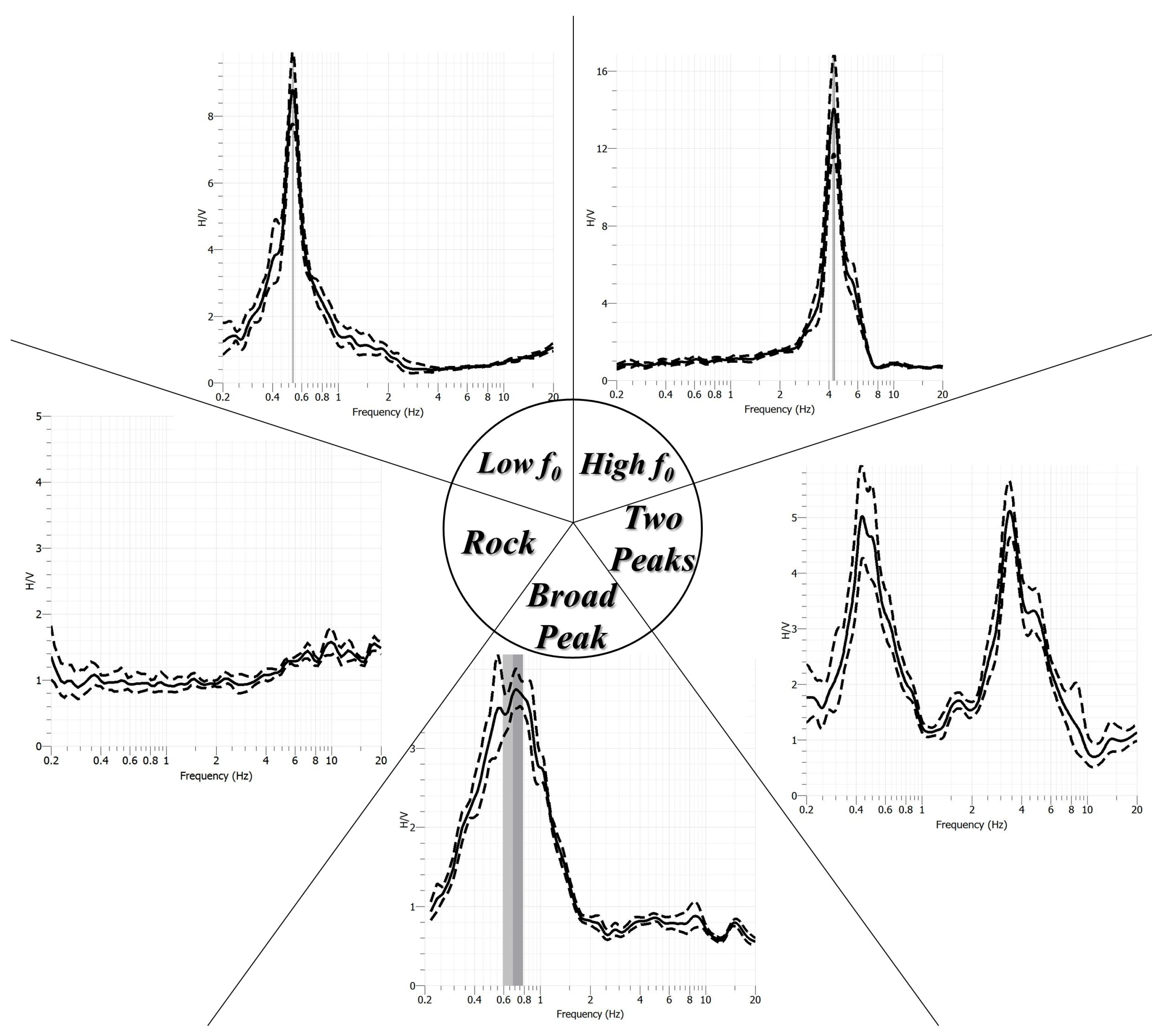

The analysis of 334 seismic noise sampling points has led to the conclusion that most of the H/V spectral ratio graphs exhibit high amplitude and a sufficiently defined peak width for accurate peak identification, with at least one peak exceeding 2 H/V (a necessary criterion for considering it as f0). Furthermore, five distinct response types have been identified in the H/V spectral ratio (see Figure 5):
(a)
High-frequency H/V peaks (>1 Hz): Characteristic of areas where the bedrock is closer to the surface.
(b)
Low-frequency H/V peaks (<1 Hz): Indicative of deep-seated bedrock.
(c)
Broad peaks: Potentially associated with irregular bedrock surfaces, such as fault zones, which are critical areas for further study.
(d)
Multiple peaks (at least two exceeding 2 H/V): Typically found in marshlands or areas with significant lithological contrast between unconsolidated Quaternary sediments and other types of Neogene sediments.
(e)
Flat response (no peaks exceeding 2 H/V): Classified as “rock”, characteristic of shallow or exposed bedrock.

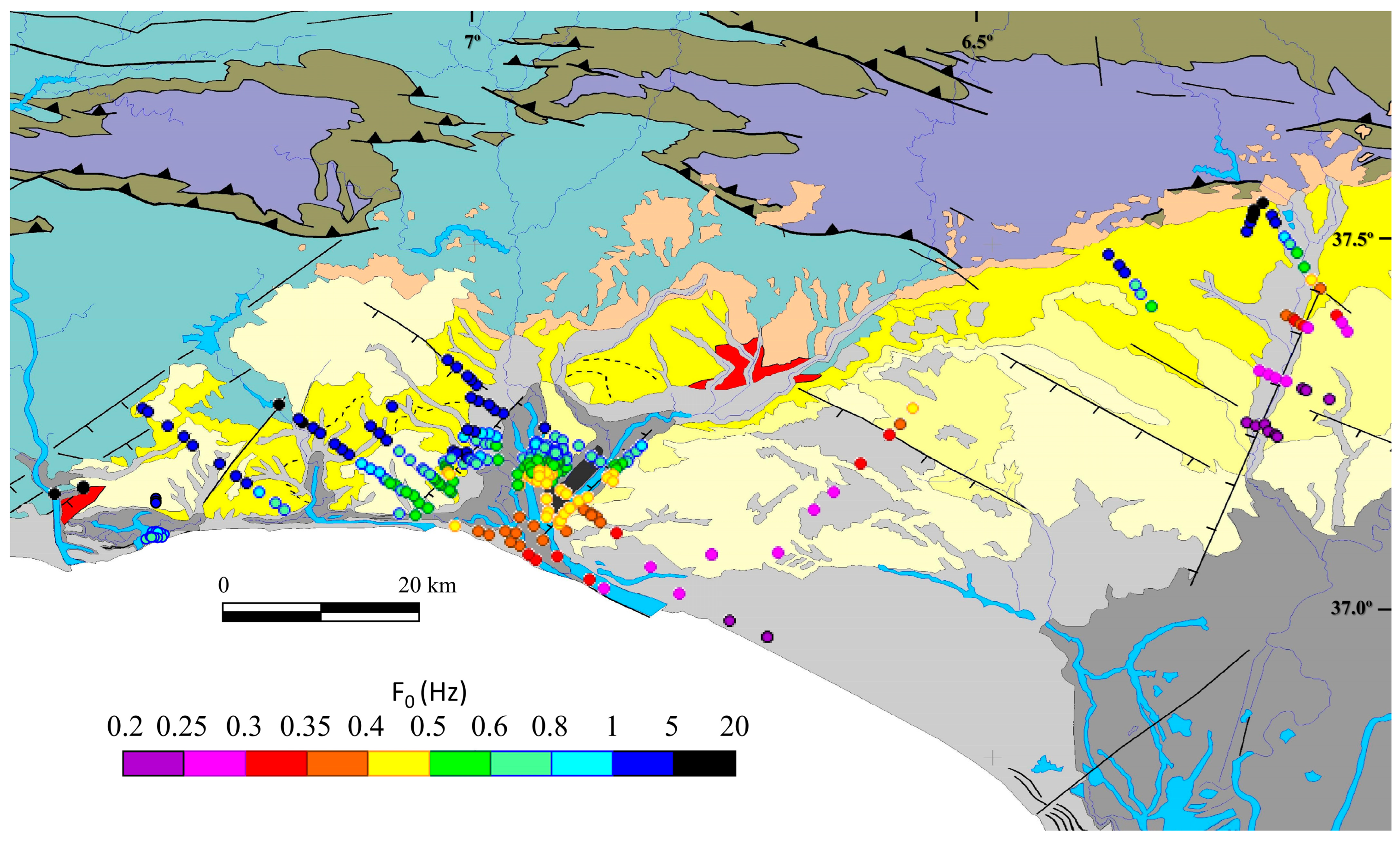

The fundamental frequency (f0) estimated from these graphs ranges from 0.23 to 18 Hz, covering a wide spectrum of values (see Figure 6). The highest frequencies are systematically located near the basin margins (northern and northwestern areas), while lower frequencies dominate in the basin interior (southeastern areas). The f0 values progressively decrease toward the SE, which correlates with the expected increase in sediment thickness and bedrock depth toward the basin interior (from NW to SE). Notably, the color bands representing different frequency ranges align closely with the structural boundary between the bedrock and sedimentary cover.

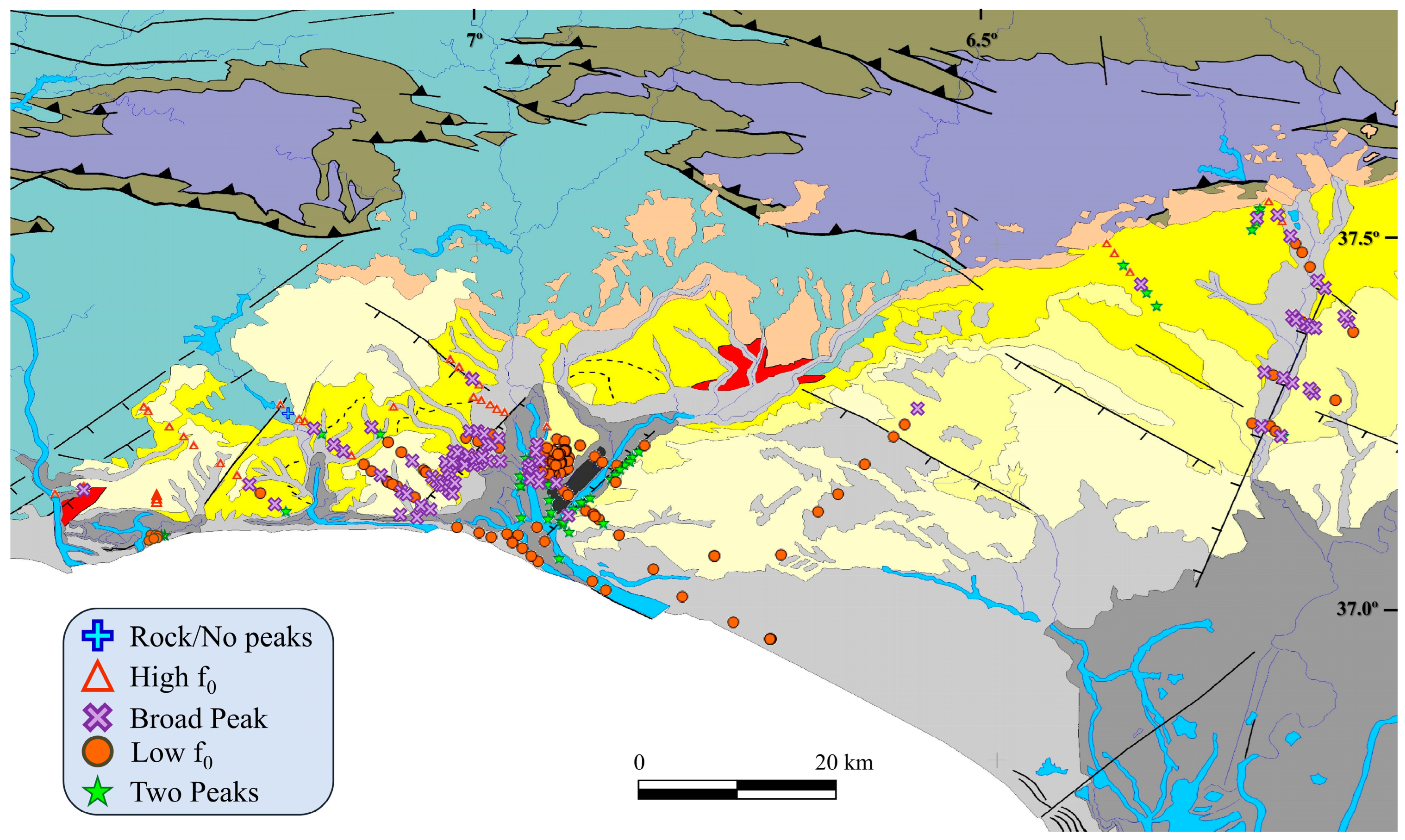

Similarly, as shown in Figure 7, the flat response (rock-type, marked with a blue cross in the figure), observed at only one sampling point, is also located in the northwestern area, where the bedrock is either more exposed or even visible in certain sections.
Moreover, the areas where double-peak responses (green stars in Figure 7) are most concentrated are specifically located in marshlands and floodplains of various rivers. Wide peaks (yellow crosses in Figure 7) are systematically found along NE-SW oriented corridors near the Odiel River (on both the right and left banks) and NNE-SSW in the case of the Guadiamar River. As observed, these align with remarkable precision along fault traces identified through cartographic methods. However, no fault planes could be identified at the surface due to the unconsolidated nature of the overlying materials.
The basement depth is estimated to range from just a few meters below the surface level (or even outcropping in some areas) in the northern and northwestern parts of the study area to depths exceeding 600 m, reaching up to −667 m above the sea level in the southeasternmost sector (Figure 8).
The isolines corresponding to the mechanical basement elevation follow a consistent N70–80° E direction, aligning well with the morphology and orientation of the Guadalquivir Basin. However, deviations in orientation are observed near the rivers (Odiel, Tinto, and Guadiamar), where the isolines locally shift to an E-W direction, particularly beneath the city of Huelva, dipping southward. This pattern may be attributed to fractures affecting both the mechanical (and geological) basement and the overlying Neogene sediments.

4.3. Profiles

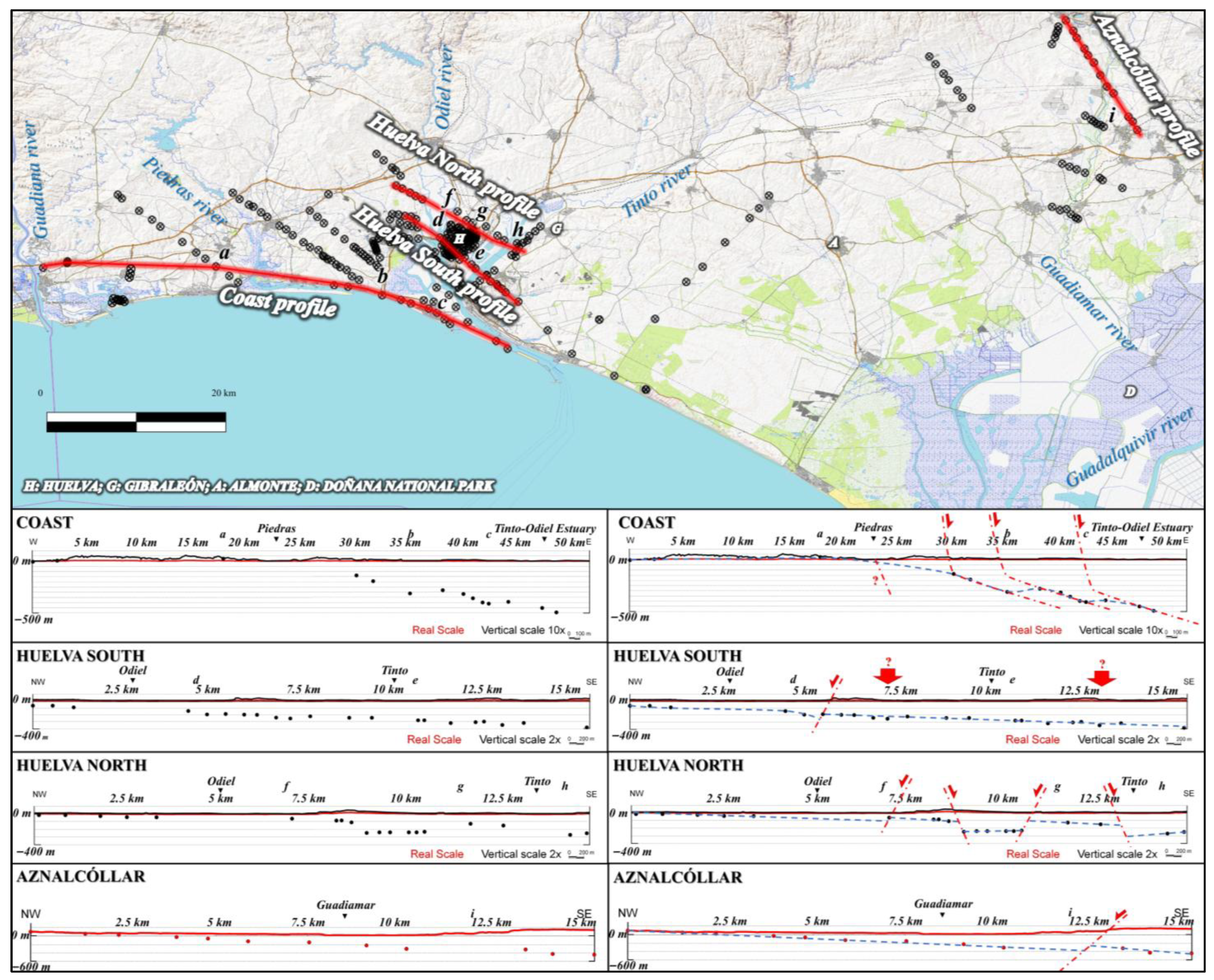

Based on the transects conducted, most of which follow a NW-SE orientation and approximate the true dip of the mechanical basement, an average slope of approximately 1–3° dipping towards the SE has been estimated, with a standard deviation of around 1°. However, as seen in Figure 9, significant localized slope breaks of 5–7° have been identified. These slope discontinuities can be correlated across adjacent profiles (see Figure 9, also can be seen corresponding figures cited in Amador Luna et al. [20]). Notably, these ruptures tend to occur in areas near river channels.
In the Coast profile, three abrupt slope changes have been identified: two at the beginning of the Odiel marshes (on the western bank of the Odiel River, marked as b in Figure 9) and another at the confluence of the Odiel and Tinto rivers (c in the same figure). This subsurface morphology could explain the structural highs to the west and the depressed areas to the east (Odiel marshes and Huelva Estuary). The terraced morphology may be attributed to ancient river terraces on the western bank or to brittle structures (faults) that have downthrown the eastern sector.
In the Huelva profiles, slope changes correlate well with known structural highs identified in the topographic profile, such as the Cabezos de Huelva, east of the Odiel (point d), and the Cabezos de Moguer and Palos, east of the Tinto River (only slightly visible east of the Huelva North profile). A slight elevation, corresponding to the location of northern part of the current phosphogypsum deposits is also observed just east of the city (g in the Huelva North profile).
Although the Huelva South profile requires further investigation in the areas marked with question marks in Figure 9, depth changes show a very good correlation with the faults interpreted (and much more evident) in the Huelva North profile. Notably, the slope changes in both cases occur along corridors that can be correlated between the two profiles.
Another possibility is that the structures identified in the northern profile exhibit greater vertical displacements (several tens of meters) than those in the southern profile (a few tens of meters), making them more difficult to identify. However, this study represents an initial regional assessment intended to delineate target areas for subsequent investigations. Future field campaigns will focus on these key locations, applying a higher-density measurement network. A more detailed study at a smaller scale is planned in the future in order to better delineate these structures.
Across all cases, it is evident that sediment thickness remains minimal in the northwestern sector but increases markedly east of the Odiel River meridian, highlighting significant subsidence in the southeastern region.
In the Aznalcóllar area, the slope change becomes evident beyond the Guadiamar River, coinciding at the surface with an increase in topographic elevation. This could be explained by the presence of a fault that relatively uplifts the eastern block. Although no fault planes have been identified at the surface, the significant basement offset and the corresponding change in the eastern riverbank slope suggest the existence of an uplifted block.
In all cases, these slope discontinuities can be attributed to faults affecting both the mechanical basement and the sedimentary cover. These faults might be high-angle structures, extending over 8 to 15 km, with vertical displacements between 50 and 100 m, and can be correlated across different profiles, following NE-SW to NNE-SSW orientations.

5. Discussion

5.1. Geology and Passive Seismic Results

Regarding the empirical equation used, while it is true that, strictly speaking, the empirical relationship is best constrained between 0.27 and 0.89 Hz, it can be reasonably applied beyond this range—particularly at frequencies above 1 Hz—since the observed deviations are minimal. This is illustrated in Figure 4A, which compares this empirical relationship with others developed in settings with varying geological characteristics, ranging from soft Quaternary deposits [44] to stiff Neogene formations [5]. Despite the heterogeneity in sediment types, the variation in estimated depths remains minor.
Moreover, more than 75% of the fundamental frequencies in the Guadalquivir Basin fall within the 0.27–0.89 Hz range. When considering all values above 0.27 Hz, over 95% of the dataset is encompassed.
As shown in Figure 6, Figure 7, Figure 8 and Figure 9, the results from passive seismic methods are highly consistent with surface geology and the depth estimations inferred from it. High-frequency signals (indicating shallower basement depths) are systematically located near the boundary between the basement and the sedimentary basin, progressively deepening toward the southeast, as expected. Conversely, low-frequency signals (indicating deeper basement levels) are concentrated in the southeastern areas (near to Mazagón or Villamanrique de la Condesa surroundings). The primary orientation of the isolines also exhibits a strong parallelism with this boundary, following an N60–80° E trend. Changes in the basement slope direction coincide with the river channels and variations in surface topography, aligning with the mapped fault traces. However, no fault planes have been identified at the surface. Due to the lithological characteristics of the area—dominated by expansive clays—the identification of fault planes in the field becomes particularly challenging. These materials are prone to intense weathering and plastic deformation, which tend to obscure or entirely erase the structural evidence typically associated with fault planes. As a result, surface expressions of tectonic structures are often subtle or absent, making direct observation and mapping of fault planes virtually impossible without geomorphological criteria or geophysical or subsurface data.
The cross-sections reveal significant changes in the deep basement slope, which also correlate with geomorphological features and mapped fault traces. These vertical separations are estimated to range between 50 and 100 m, affecting both the basement and its overlying cover, which may explain certain cartographic features. These slope variations can be correlated across different profiles, exhibiting an approximate N70–80° E (or even NNE–SSW) orientation, once again coinciding with the basin’s main structural trend.
Two main interpretations can be proposed for these slope changes: (i) they may correspond to ancient fluvial terraces of the Guadalquivir River, which has migrated eastward since the Miocene, leaving elevated terraces in the westernmost part of the basin; or (ii) they may be associated with fractures that control both surface relief and river courses. If the latter is the case, these fractures align well with the passive seismic records, where broad spectral peaks have been observed, typically associated with irregular basement structures such as fault zones. These alignments are consistent with previous studies [19,46]. Therefore, these slope discontinuities can be attributed to faults affecting both the mechanical basement and the sedimentary cover. These faults are high-angle structures, extending over 8 to 15 km, with vertical displacements between 50 and 100 m, and can be correlated across different profiles NE-SW to NNE-SSW. A possible interpretation of these slope variations along the cross-sections as faults is illustrated in Figure 9 (right), where many of these fractures can be correlated across different profiles.
Three main fault zones have been identified in the western part: one at the easternmost end of the Odiel River (coinciding with the relief of the Cabezos de Huelva, see d and f in Figure 9), another at its western margin (see b in Figure 9), and a third one along the eastern margin of the Tinto River near Moguer. Additionally, another fault may be present along the eastern margin of the Guadiamar River. In the central sector of the study area, particularly near Almonte, a noticeable curvature in the orientation of the isolines is observed. This feature coincides with changes in lithology and topographic forms, suggesting the possible presence of a fault, although its fault plane is not identifiable in the field. The so-called “Almonte Fault” and its surrounding areas will be the subject of future investigations, aimed at identifying additional fault structures inferred from satellite imagery, even if their fault planes remain untraceable on the ground.

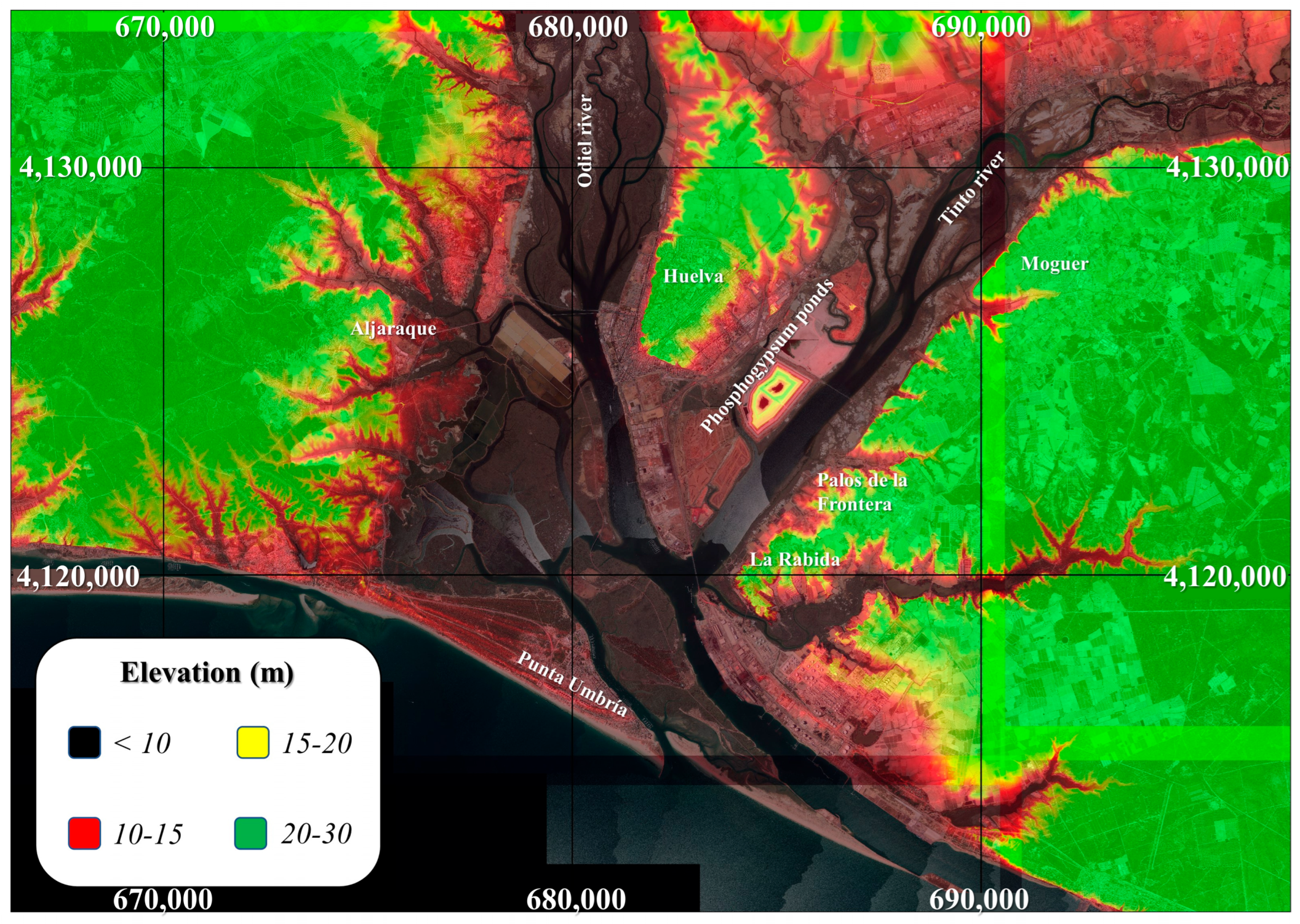

Figure 2 further reveals a sharp topographic break in southern Huelva. The orientation of this possible structure is also reflected in one of the western branches of the Odiel River, and if extended eastward, it coincides with the phosphogypsum deposits. This WNW–ESE-trending structure can also be identified in seismic records, where broad spectral peaks align in the same direction. Moreover, Figure 2 shows that the elevation of the phosphogypsum deposits in the northern sector (>30 m) is higher than in the southern sector (where maximum elevations are around 20 m), potentially indicating subsidence of the southern block, consistent with a south-dipping normal fault. These observations are in agreement with previous studies by González [47] and represent a significant environmental risk due to the critical location of these deposits above a structural feature. This feature can be inferred not only by digital imagery (as shown in Figure 2), but it can also be deduced from changes in the orientation of the isolines in Figure 8, and even identified in the seismic profiles in Figure 9 (point e).

5.2. Boreholes

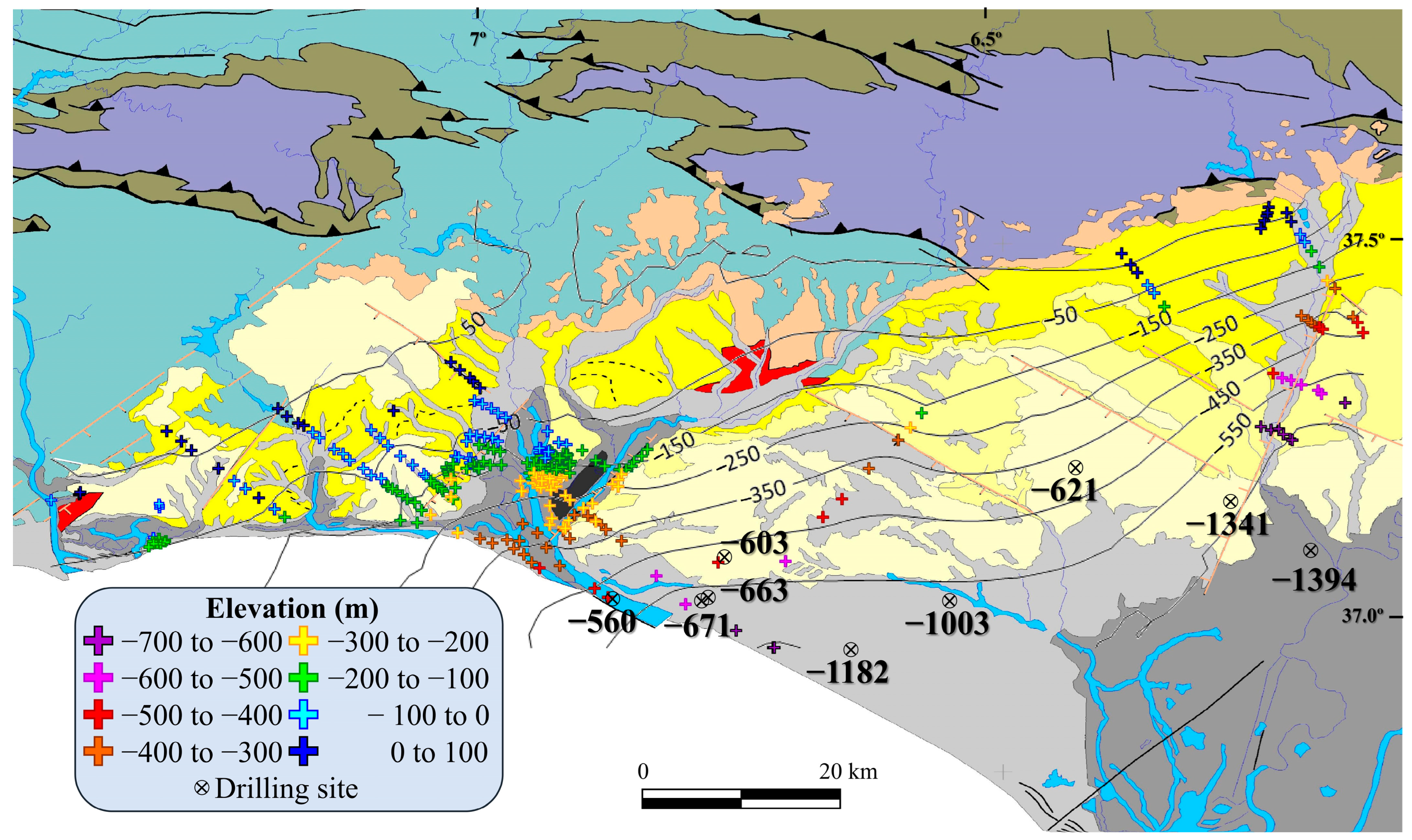

Some of the passive seismic measurements, as shown in Figure 8, were conducted directly above historical boreholes drilled by the IGME and oil companies. These measurements aimed to compare the depth estimates obtained through the passive seismic method with those derived from borehole data (for the depth values used in the comparison, please refer to Table A1). It is important to emphasize that all comparisons between observed and estimated depths presented in the text have been carried out exclusively at locations where HVSR data were directly measured over or very close to the borehole sites. In other words, no interpolated values were used in the discrepancy calculations.
Saltés-1, the easternmost borehole, reached the geological basement at an elevation of −560 m (meters above the sea level), while the passive seismic sampling point HU42, located vertically above it, estimated a mechanical basement depth of −494 m. In the case of Huelva-1, which reached −603 m for the geological basement, HU41 estimated a depth of −500 m for the mechanical basement. Lastly, the Moguer-1 and Mazagón-1 boreholes reached the basement at −679 m, whereas HVAME16 estimated a mechanical basement depth of −585 m. In the case of Aznalcóllar, where passive seismic data were analyzed alongside borehole information subsequently provided by mining companies after the campaigns, a similar pattern was observed, with an estimated depth discrepancy of approximately 30–50 m above the actual geological basement depth (see Figure 10). These data, which were not used in the calibration but served as an independent validation, converged on a similar interpretation.
As previously discussed, the method identifies the mechanical basement—that is, the depth at which a significant change in the mechanical behavior of the ground occurs, from soft to hard materials. In areas where calcarenites are present, which exhibit hard mechanical properties, the method likely identifies the top of this formation. In any case, the calcarenites lie directly above the geological basement. The discrepancy between the depth estimated by the method and the actual geological basement encountered in boreholes could be attributed to the presence of these materials, whose thickness ranges from a few tens of meters near the basin margin to nearly one hundred meters in the basin interior [18]. The observed 30 m error in the northern zone, near to the margin, and the approximately 100 m discrepancy further into the basin could be related to the increasing thickness of this material toward the basin interior, with the actual geological basement lying below the estimated mechanical basement.
A separate discussion is warranted for boreholes located deeper within the basin, where geological basement depths exceed −1000 m. The passive seismic method typically operates at frequencies ranging from 0.2 to 20 Hz, corresponding to a maximum depth of approximately 850 m (based on empirical formula). Thus, at such depths, the method could not reach the mechanical basement. However, in a nearby area, as shown in Figure 8, a well-defined depth of approximately −660 m has been identified (see ARNO in Table A1 in Appendix A). This suggests the presence of a fault with significant throw toward the southeast, which could explain the substantial depth variation between these points.
Lastly, the Almonte-1 borehole, located further north, reached the geological basement at approximately −620 m—significantly deeper than the depth estimated by the seismic method. This discrepancy is most likely due to the lack of sampling in the surrounding area. However, it is situated between two fault systems identified through geological mapping. These faults correspond well with changes in the curvature of the depth isolines. This region is of particular interest and will be the subject of future studies where the sampling grid will be densified. Borehole data indicates a former structural high characterized by a thinner sedimentary cover compared to adjacent boreholes and the absence of certain units, such as the Guadalquivir sands. This elevated structure, along with similar features identified along the eastern margin of the Guadiamar and the western margin of the Guadalquivir, may represent active tectonic elements that influenced the course of the Guadalquivir River and its progressive eastward migration. Additionally, the presence of olistostrome bodies in boreholes further east of the study area (from Villamanrique de la Condesa southwards) [31] suggests that the Miocene orogenic front was formerly located further west, with the Guadalquivir Basin shifting over time. Future surveys should aim to increase data density in this area and extend measurements toward the Guadalquivir River to improve the depth model.

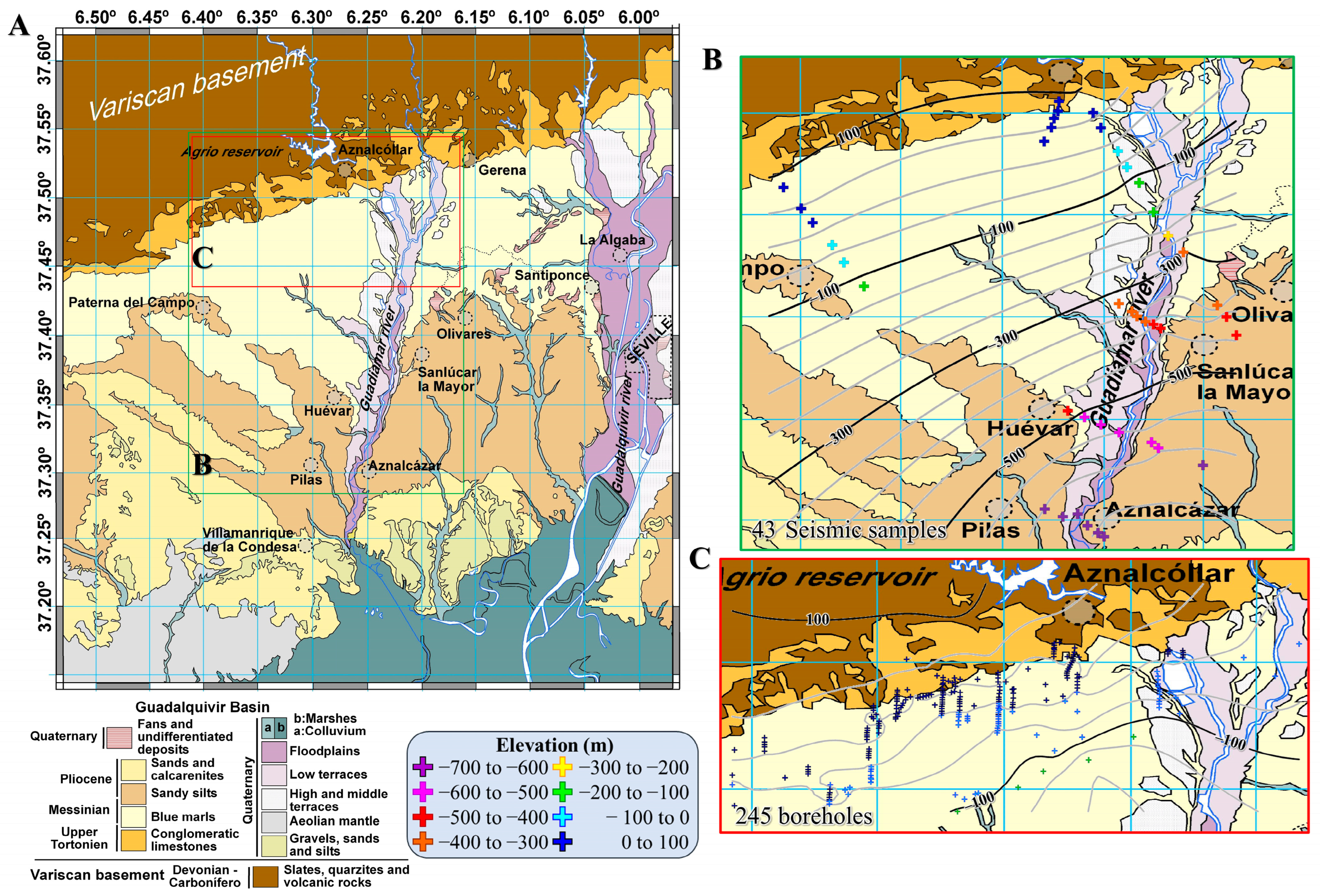

A similar approach was later applied in the Aznalcóllar area using boreholes provided by various companies operating in the area (see Figure 10), revealing a similar pattern with minor discrepancy—of around 30 m—between HVSR-derived estimates and borehole measurements.

5.3. Three-Dimensional Architecture and Tectonic Implications

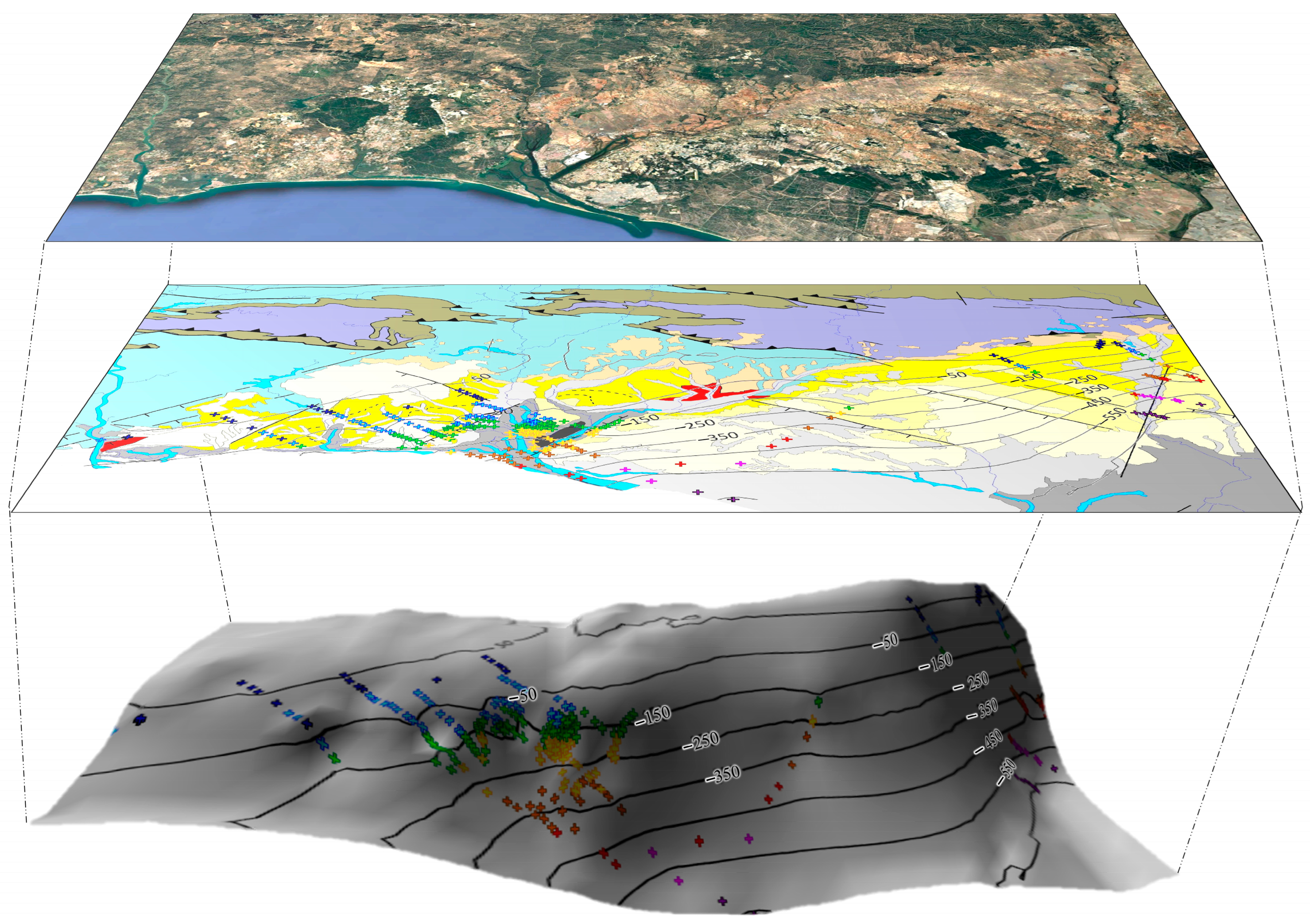

The morphology of the mechanical basement in the westernmost sector of the Guadalquivir Basin (considering that the Variscan basement should be located a few tens of meters below it) is illustrated in Figure 11.
As shown, the interpretations derived from all observations align well with the surface morphology and geology, presenting a general slope towards the southeast, from very shallow or even outcropping basement materials in the west, to deep basements in the east (depths greater than 600 m). Sudden changes in slope are systematically located along the riverbeds, aligning approximately in NE-SW directions (Piedras, Odiel, and Tinto rivers) or NNE-SSW directions (Guadiamar).
The observed structural configuration is likely attributable to lithospheric flexure, facilitating upper-crustal extension. This tectonic regime is consistent with deformation expected in a forebulge setting, associated with the northern segment of the Gibraltar Arc in response to the propagation of the Alpine orogenic front.
Given the structural complexity of the western Guadalquivir Basin, future search should focus on increasing data density, particularly in northeastern areas where borehole data indicate structural highs or anomalies. Additional passive seismic surveys, complemented by geophysical techniques and detailed geological mapping, will be essential to refine the depth model and improve understanding of the tectonic evolution of the region.
In summary, the relief of the western end of the Guadalquivir basin can be explained by the development of structures that create a horst and graben landscape, with the horsts located in areas such as the Cabezos de Huelva and other topographically higher zones (as can also be seen in the eastern end of the Guadiamar), and the grabens being associated with the river marshes. These structures could be explained by the accommodation of deformation caused by the advance of the Alpine orogenic front (the Betics) in the forebulge region, significantly distanced from the front itself.

5.4. Potential Future Applications of the HVSR Technique

The methodology developed in this study opens new avenues for research across various branches of Earth Sciences. In particular, it shows strong potential for application in hydrocarbon exploration, where it could serve as a preliminary tool for identifying potential structural traps and fault systems, including blind faults. Notably, the Cobre Las Cruces deposit—one of the most significant copper deposits globally—was discovered within the study area, beneath the sedimentary fill of the Guadalquivir Basin and rooted in the Variscan basement. This technique could therefore prove highly useful in the identification of similar new buried mineral deposits.
Geophysical anomalies, including gravimetric data, combined with the application of the H/V spectral ratio technique, may offer an effective approach for delineating the geometry of sedimentary fills that overlie geologically prospective zones. Additionally, the areas provide valuable input for seismic vulnerability assessments of infrastructure. This is particularly relevant in seismically active regions such as the San Vicente Transpressive Zone (e.g., [48,49,50,51,52]), where the occurrence of high-magnitude earthquakes remains a plausible scenario.
While the fractures identified in this work would, in most cases, be interpreted as slow-moving or aseismic faults, their identification through the model presented here could allow for correlation with historically and instrumentally recorded seismic activity, such as that documented by the Spanish National Geographic Institute (IGN). Establishing a relationship between seismicity and active faulting in the studied area could, in the near future, contribute to a better understanding of the tectonic setting associated with low- to moderate-magnitude earthquakes. One such example is the event recorded on 20 December 1989, with its epicenter in Ayamonte (Mw ≈ 5 and maximum intensity: VI; [53,54]). However, a more detailed investigation of the seismic source area from a seismotectonic perspective would be required.
To sum up, the generation of three-dimensional maps of the bedrock surface, the recognition of blind faults, along with the determination of soil fundamental frequencies, would enable the development of more detailed hazard maps in areas of high seismic and tsunamigenic risk—such as the study area. Given its simplicity, versatility, rapid data acquisition, low cost, and reliable results, this technique has the potential to become a powerful tool across a range of applications. While its utility in geological studies is demonstrated in the present work, it also holds significant promise for other fields such as civil engineering, geotechnics, hydrocarbon industries, and even mining.

6. Conclusions

Seismic noise measurements were conducted at 334 discrete sampling points in the southwestern end of the Guadalquivir Basin to apply the Horizontal-to-Vertical Spectral Ratio (HVSR) method. The data presented in this study indicate that both the geological and mechanical basement are aligned along an azimuth of N070° E and exhibit a gentle southeastward dip, oriented toward the Alpine orogenic front. This structural surface is disrupted by north-trending fault systems. The integration of 334 data points distributed over an area slightly exceeding 2300 km2 has enabled the construction of a three-dimensional model that delineates first-order reference surfaces relevant to basin architecture—such as, conceptually, the sedimentary fill interface or basin wall.
Furthermore, the incorporation of seismic noise data along NW-SE-oriented profiles permits the identification of variations in the dip of the mechanical basement in two-dimensional cross-sections. Borehole data suggest that similar structural variations may also be present in the geological basement, providing additional support for the observed subsurface heterogeneities.
A new empirical relationship was developed for the southwestern Guadalquivir Basin by integrating data from the HVSR method, seismic array techniques (5 datasets), reflection seismics (2 datasets), and mechanical boreholes (2 datasets) that reached the bedrock. This relationship, expressed as h = 80.16·f0−1.48, enabled the determination of the mechanical basement depth, the Tortonian paleotopography, and the presence of potential fractures influencing current topography.
The mechanical basement reaches depths exceeding 600 m near Mazagón and Villamanrique de la Condesa, located in the southeastern part of the study area. The estimated dip of the basement surface is approximately 1–3° southeastward, with slope breaks coinciding with fluvial courses. The main structural trend follows a N070° E orientation, aligning with the basement-cover contact.
The HVSR spectral ratio method yielded five distinct response types: (i) high-frequency peaks or (ii) no response, associated with shallow or outcropping basement in the northwestern sector; (iii) low-frequency peaks in the southeastern sector, indicative of deep-seated basement; (iv) double peaks in marshland areas; and (v) broad peaks, characteristic of irregular basement surfaces, potentially corresponding to fault zones.
The presence of sites exhibiting at least two peaks in the H/V spectral ratio may reflect not only contrasts in the mechanical behavior of the materials composing the subsurface at those locations, but also potential lithological changes. These double peaks could indicate the presence of different materials within the basin fill itself. As such, the detailed analysis of these features warrants particular attention in future investigations.
Passive seismic results show strong consistency with surface geological observations and depth estimations. Borehole data validated these depth estimations, with minor discrepancies ranging from 30 to 100 m, likely due to the presence of mechanically rigid units such as the Niebla calcarenites.
The main hypothesis proposed to explain abrupt slope changes in the dip of the mechanical basement surface is that they are related to fault activity, which also controls the surface relief, including river orientation and flow direction. The alignment of broad peaks in the HVSR graphs with mapped fault zones supports this hypothesis, suggesting the presence of active or reactivated fault structures.
At depths greater than 800 m, the HVSR method presents limitations; however, the strong variations in basement depth suggest significant faulting in the southeastern sector of the study area.
The interpreted basement morphology reveals a horst and graben system, with structural highs corresponding to elevated areas (e.g., to the west of the Odiel estuary, Cabezos de Huelva, east of the Tinto estuary, or in the Aljarafe area in Seville) and depressions associated with river marshes in the northern margin of the Gulf of Cadiz, including the marshes of Odiel, Tinto, and Doñana, among others.
Finally, future lines of application of the HVSR method in geology, geophysics, and geological engineering are discussed in this work.

Author Contributions

Conceptualization, F.M.A.-C.; Methodology, D.A.L., A.M. and F.M.A.-C.; Software, D.A.L. and A.M.; Validation, D.A.L., A.M. and F.M.A.-C.; Formal analysis, D.A.L., A.M., C.F. and F.M.A.-C.; Investigation, D.A.L., A.M., C.F. and F.M.A.-C.; Resources, F.M.A.-C.; Data curation, D.A.L. and A.M.; Writing—original draft, D.A.L. and F.M.A.-C.; Writing—review & editing, D.A.L., A.M., C.F. and F.M.A.-C.; Visualization, D.A.L., A.M., C.F. and F.M.A.-C.; Supervision, C.F. and F.M.A.-C.; Project administration, F.M.A.-C. All authors have read and agreed to the published version of the manuscript.

Funding

The data acquisition of this project was funded through the following projects: ALERTES-RIM (CGL2013-4572h-C3-2-R), funded by the Spanish Ministry of Economy and Competitiveness, and “Multidisciplinary and multiscale analysis of the mechanisms of localization and distribution of crustal deformation in oblique convergence”, PGC2018-100914-B-I00, funded by the Spanish Ministry of Science and Innovation. Additional funding was provided by the Research and Transfer Policy Strategy (Estrategia Política de Investigación y Transferencia, EPIT) of the University of Huelva, through the predoctoral contract to promote the hiring of early-stage research staff (EPIT20/00832), which supported the recruitment of David Amador Luna.

Acknowledgments

David Amador Luna acknowledges the funding from the ‘Estrategia Política de Investigación y Transferencia’ (EPIT) of the University of Huelva for the predoctoral contract to promote the hiring of novice research personnel (EPIT20/00832), without which this work would not have been possible. We also would like to thank to ALERTES-RIM (CGL2013-4572h-C3-2-R) and “Analisis Multidisciplinar y multiescala de los mecanismos de localización y reparto de la deformación cortical en convergencia oblicua”, PGC2018-100914-B-I00; this study includes seismic noise recordings acquired during the development of these projects.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Summary table of the measurements conducted in the Guadalquivir Basin, including coordinates, fundamental frequency, estimated thickness, basement depth, and interpretation of the resulting HVSR curves.
Table A1. Summary table of the measurements conducted in the Guadalquivir Basin, including coordinates, fundamental frequency, estimated thickness, basement depth, and interpretation of the resulting HVSR curves.
StationCoordinatesFundamental Frequency (f0) (Hz)Thickness (m)Elevation (m)Interpretation
LAT (°)LONG (°)
HVAME237.2888−6.93260.74125−84LOW F0 PEAK
HVAME337.2859−6.92550.77118−79LOW F0 PEAK
HVAME437.2817−6.91080.71133−106LOW F0 PEAK
HVAME1037.2265−6.90960.43280−276TWO PEAKS
HVAME1137.2202−6.90570.38336−321LOW F0 PEAK
HVAME1237.2171−6.89870.37349−311LOW F0 PEAK
HVAME1337.1654−6.84180.28527−506LOW F0 PEAK
HVAME1437.2121−6.89320.36364−345LOW F0 PEAK
HVAME1537.2151−6.89770.38336−298LOW F0 PEAK
HVAME537.2714−6.89800.7136−127LOW F0 PEAK
HVAME737.2391−6.92680.47245−241LOW F0 PEAK
HVAME837.2347−6.92250.46253−246LOW F0 PEAK
HVAME937.2472−6.93460.5224−222BROAD PEAK
HVAME1637.1391−6.81490.25624−585LOW F0 PEAK
HVAME1737.1975−6.87460.33414−382LOW F0 PEAK
HVAME1837.2079−6.88890.39323−319TWO PEAKS
HVAME1937.3162−6.59480.44270−159BROAD PEAK
HVAME2037.3021−6.60580.37349−246LOW F0 PEAK
HVAME2137.2910−6.61630.33414−316LOW F0 PEAK
HVAME2237.2639−6.64380.3476−376LOW F0 PEAK
HVAME2337.2365−6.66890.29501−413LOW F0 PEAK
HVAME2437.2894−7.01820.83106−74LOW F0 PEAK
HVAME2537.2861−7.00710.75123−114LOW F0 PEAK
HVAME2637.2832−6.99840.71133−120BROAD PEAK
HVAME2737.2820−6.99370.62163−156BROAD PEAK
HVAME2837.1143−6.76740.24663−619LOW F0 PEAK
HVAME2937.1781−6.72190.27557−512LOW F0 PEAK
HVAME3037.2195−6.68710.29501−429LOW F0 PEAK
HVAME3137.2664−7.00640.76120−116BROAD PEAK
HVAME3237.2737−7.01450.8995−91BROAD PEAK
HVAME3337.2755−7.02931.3551−46BROAD PEAK
HVAME3437.2640−7.01800.68142−132BROAD PEAK
HVAME3537.2680−6.98640.56189−187BROAD PEAK
HVAME3637.2679−6.99680.69139−136BROAD PEAK
HVAME3737.2702−7.00290.8112−109BROAD PEAK
HVAME3837.2804−6.98730.58180−174LOW F0 PEAK
HVAME3937.1533−6.89940.31454−451LOW F0 PEAK
HVAME4037.1746−6.93110.34396−393TWO PEAKS
HVAME4137.2049−6.95220.38336−331LOW F0 PEAK
HVAME4237.1915−6.94430.36364−361LOW F0 PEAK
HVAME4337.2134−6.96600.39323−320TWO PEAKS
HVAME4437.2530−6.96770.52211−207TWO PEAKS
HVAME4537.2257−7.06040.56189−159BROAD PEAK
HVAME4637.2218−7.05240.5224−211BROAD PEAK
HVAME4737.1989−6.98040.37349−345LOW F0 PEAK
HVAME4837.1973−6.96920.38336−331LOW F0 PEAK
HVAME4937.1724−6.95090.33414−410LOW F0 PEAK
HVAME5037.1849−6.96550.36364−359LOW F0 PEAK
HVAME5137.2985−6.94271.1764−62HIGH F0 PEAK
HVAME5237.2329−7.06640.58180−155LOW F0 PEAK
HVAME5337.2434−7.08320.55194−156LOW F0 PEAK
HVAME5437.1952−6.99470.39323−317LOW F0 PEAK
HVAME5537.1897−6.97490.36364−359LOW F0 PEAK
HVAME5637.2584−7.10730.9389−32LOW F0 PEAK
HVAME5737.2640−7.11460.83106−46LOW F0 PEAK
HVAME5837.2046−7.02670.42289−281LOW F0 PEAK
HVAME5937.2719−7.12661.3850−32HIGH F0 PEAK
HVAME6037.2784−7.13391.5144−20BROAD PEAK
HVAME6137.2975−7.16191.6937−22BROAD PEAK
HVAME6237.3038−7.17058.55320HIGH F0 PEAK
HVAME6337.3060−7.17554.051023HIGH F0 PEAK
HVAME6437.3124−7.1861--33ROCK
HVAME6537.3194−7.19365.39756HIGH F0 PEAK
HVAME6637.3178−7.08671.594016HIGH F0 PEAK
HVAME6737.2663−6.89020.62163−152LOW F0 PEAK
HVAME6837.2489−7.09300.65152−120LOW F0 PEAK
HVAME6937.2553−7.09790.81109−69BROAD PEAK
HVAME7037.2824−7.14161.544−18BROAD PEAK
HVAME7137.2924−7.15501.3750−25TWO PEAKS
HU137.2746−6.94030.62163−98LOW F0 PEAK
HU237.2725−6.94040.6171−123LOW F0 PEAK
HU337.2779−6.94640.77118−97BROAD PEAK
HU437.2739−6.95350.76120−117LOW F0 PEAK
HU537.2693−6.96210.66148−146TWO PEAKS
HU637.2502−6.94360.5224−223BROAD PEAK
HU737.2709−6.92540.67145−125LOW F0 PEAK
HU837.2793−6.93860.65152−102INDETERMINED
HU937.2764−6.93610.66148−108LOW F0 PEAK
HU1037.2717−6.93320.62163−132LOW F0 PEAK
HU1137.2735−6.93060.66148−119LOW F0 PEAK
HU1237.2787−6.95060.86100−95BROAD PEAK
HU1337.2758−6.94980.81109−103BROAD PEAK
HU1437.2684−6.95520.67145−141TWO PEAKS
HU1537.2602−6.96010.55194−190BROAD PEAK
HU1637.2549−6.95790.55194−190TWO PEAKS
HU1737.2607−6.92720.54200−193LOW F0 PEAK
HU1837.2577−6.92530.52211−205LOW F0 PEAK
HU1937.2605−6.92270.55194−188LOW F0 PEAK
HU2037.2561−6.93020.5224−216LOW F0 PEAK
HU2137.2535−6.93510.47245−235LOW F0 PEAK
HU2237.2522−6.93800.46253−249LOW F0 PEAK
HU2337.2583−6.93580.48238−222LOW F0 PEAK
HU2437.2599−6.93850.48238−219LOW F0 PEAK
HU2537.2664−6.93900.53205−173LOW F0 PEAK
HU2637.2639−6.93930.5224−194LOW F0 PEAK
HU2737.2693−6.93020.61167−141LOW F0 PEAK
HU2837.2674−6.94620.53205−158LOW F0 PEAK
HU2937.2742−6.94540.61167−100LOW F0 PEAK
HU3037.2649−6.95120.53205−198LOW F0 PEAK
HU3137.2624−6.94570.5224−184LOW F0 PEAK
HU3237.2605−6.94520.49230−196LOW F0 PEAK
HU3337.2513−6.95670.48238−235BROAD PEAK
HU3437.2642−6.95820.54200−197BROAD PEAK
HU3537.2811−6.94120.71133−106BROAD PEAK
HU3637.2784−6.92800.69139−106LOW F0 PEAK
HU3737.2619−6.94740.5224−191LOW F0 PEAK
HU3837.2578−6.94690.48238−199BROAD PEAK
HU3937.2578−6.94890.48238−212LOW F0 PEAK
HU4037.1774−6.78420.27557−500LOW F0 PEAK
HU4137.1774−6.78420.27557−500LOW F0 PEAK
HU4237.1446−6.88670.29501−494LOW F0 PEAK
G9-10 HU337.2440−6.96620.5224−222TWO PEAKS
G25-26 HU337.2439−6.96670.48238−236TWO PEAKS
G40 HU337.2439−6.96710.5224−222TWO PEAKS
R0S137.2503−6.95040.44270−266TWO PEAKS
R1S237.2504−6.95060.46253−249TWO PEAKS
R1S337.2505−6.95020.47245−241TWO PEAKS
R1S437.2501−6.95030.46253−249TWO PEAKS
R2S537.2507−6.95050.38336−331LOW F0 PEAK
R2S637.2502−6.94980.47245−241TWO PEAKS
R2S737.2500−6.95070.47245−241LOW F0 PEAK
R3S237.2507−6.95140.48238−234LOW F0 PEAK
R3S337.2509−6.94950.46253−249LOW F0 PEAK
R3S437.2494−6.95010.47245−240LOW F0 PEAK
R4S537.2523−6.95140.49230−227LOW F0 PEAK
R4S637.2496−6.94790.47245−241LOW F0 PEAK
R4S737.2488−6.95280.48238−234LOW F0 PEAK
R5S237.2505−6.95470.44270−266BROAD PEAK
R5S337.2528−6.94740.43280−275BROAD PEAK
R5S437.2467−6.94940.48238−234BROAD PEAK
R0S137.2696−6.92320.64155−140LOW F0 PEAK
R1S237.2696−6.92300.65152−137LOW F0 PEAK
R1S337.2698−6.92330.66148−133LOW F0 PEAK
R1S437.2695−6.92350.66148−133LOW F0 PEAK
R2S537.2699−6.92280.65152−137LOW F0 PEAK
R2S637.2697−6.92380.64155−139LOW F0 PEAK
R2S737.2692−6.92310.64155−140LOW F0 PEAK
R3S237.2694−6.92210.64155−141LOW F0 PEAK
R3S337.2705−6.92340.66148−132LOW F0 PEAK
R3S437.2691−6.92410.64155−139LOW F0 PEAK
R4S537.2711−6.92140.67145−131LOW F0 PEAK
R4S637.2703−6.92590.64155−134LOW F0 PEAK
R4S737.2673−6.92260.63159−146LOW F0 PEAK
R0S137.2659−6.92950.58180−163LOW F0 PEAK
R1S237.2660−6.92920.57184−167LOW F0 PEAK
R1S337.2661−6.92970.58180−162LOW F0 PEAK
R1S437.2657−6.92950.57184−168LOW F0 PEAK
R2S537.2664−6.92940.58180−161LOW F0 PEAK
R2S637.2656−6.92920.58180−164LOW F0 PEAK
R2S737.2658−6.93000.58180−164LOW F0 PEAK
R3S237.2662−6.92840.58180−163LOW F0 PEAK
R3S337.2665−6.93030.58180−161LOW F0 PEAK
R3S437.2650−6.92990.56189−175LOW F0 PEAK
R0S137.2775−6.92510.68142−122LOW F0 PEAK
R1S237.2776−6.92480.68142−122LOW F0 PEAK
R1S337.2776−6.92530.68142−121LOW F0 PEAK
R1S437.2772−6.92510.69139−119LOW F0 PEAK
R2S537.2779−6.92500.68142−121LOW F0 PEAK
R2S637.2772−6.92470.69139−120LOW F0 PEAK
R2S737.2773−6.92570.68142−118LOW F0 PEAK
HU4337.2898−6.98890.83106−93BROAD PEAK
HU4437.2928−6.99430.9784−68LOW F0 PEAK
HU4637.2935−7.00130.9586−68BROAD PEAK
HU4737.2951−7.00851.0674−51BROAD PEAK
HU4837.2956−7.0154180−67BROAD PEAK
HU4937.2680−6.94970.55194−180BROAD PEAK
HU5037.2597−6.95520.53205−202BROAD PEAK
HU5137.2629−6.93450.52211−187LOW F0 PEAK
HU5237.2562−6.95390.5224−218BROAD PEAK
HU5337.2547−6.94060.46253−239LOW F0 PEAK
HU5437.2566−6.94700.48238−228LOW F0 PEAK
Odiel137.2837−6.94970.8897−95BROAD PEAK/TWO PEAKS
Odiel237.2836−6.95010.9192−90BROAD PEAK/TWO PEAKS
Odiel337.2835−6.95030.8995−93BROAD PEAK/TWO PEAKS
R0S137.2738−6.93060.65152−124LOW F0 PEAK
R1S237.2740−6.93040.65152−124LOW F0 PEAK
R1S337.2735−6.93060.65152−123LOW F0 PEAK
R1S437.2738−6.93080.65152−123LOW F0 PEAK
R2S537.2742−6.93090.65152−123LOW F0 PEAK
R2S637.2737−6.93010.65152−124LOW F0 PEAK
R2S737.2734−6.93110.64155−124LOW F0 PEAK
R3S237.2743−6.92980.66148−121LOW F0 PEAK
R3S337.2729−6.93050.65152−123LOW F0 PEAK
R3S437.2737−6.93170.66148−117LOW F0 PEAK
ARNO-G12 (L1)37.0991−6.73190.23706−660LOW F0 PEAK
ARNO-G12 (L2)37.0989−6.73260.23706−661LOW F0 PEAK
ARNO-G2 (L1)37.0988−6.73210.24663−661LOW F0 PEAK
WALJ_0937.2468−7.02930.53205−188BROAD PEAK
RIN_1537.2360−7.03090.51220−199BROAD PEAK
RIN_1437.2384−7.03290.51220−211BROAD PEAK
RIN_1337.2430−7.04000.57183−146BROAD PEAK
RIN_0737.2588−7.05840.75123−88LOW F0 PEAK
RIN_0837.2572−7.05600.73129−96LOW F0 PEAK
WALJ_0137.2652−7.03700.66148−112BROAD PEAK
WALJ_0237.2628−7.03620.53203−176BROAD PEAK
WALJ_0337.2611−7.03540.52211−188BROAD PEAK
WALJ_0437.2594−7.03460.56187−165BROAD PEAK
WALJ_0637.2565−7.03360.51217−197BROAD PEAK
WALJ_0537.2574−7.03400.51217−192BROAD PEAK
WALJ_0737.2552−7.03330.48241−211BROAD PEAK/TWO PEAKS
WALJ_0837.2536−7.03260.49228−212BROAD PEAK/TWO PEAKS
EALJ_01.537.2743−7.01671.1070−66BROAD PEAK
EALJ_02.537.2695−7.01561.0179−75BROAD PEAK
EALJ_0337.2681−7.01200.78116−111BROAD PEAK/TWO PEAKS
EALJ_03.537.2666−7.01100.77117−112BROAD PEAK/TWO PEAKS
EALJ_0437.2656−7.00780.75122−112BROAD PEAK
EALJ_0537.2644−7.00670.74126−115BROAD PEAK/TWO PEAKS
RIN_1237.2455−7.04190.52212−189BROAD PEAK
RIN_1137.2481−7.04550.51215−188BROAD PEAK
RIN_1037.2507−7.04830.57185−167BROAD PEAK
RIN_0137.2996−7.10751.4049−4BROAD PEAK
RIN_0237.2924−7.09901.1466−37TWO PEAKS
RIN_0337.2854−7.09181.0179−40LOW F0 PEAK
RIN_0437.2761−7.07970.67145−78LOW F0 PEAK
RIN_0537.2675−7.06880.72129−84BROAD PEAK
RIN_0937.2531−7.05140.60171−150BROAD PEAK
CEP_13A37.2480−7.09160.63157−128LOW F0 PEAK
CEP_13B37.2451−7.08770.56191−150LOW F0 PEAK
CEP_14A37.2391−7.07820.62163−134BROAD PEAK/TWO PEAKS
CEP_14B37.2361−7.07370.57182−160BROAD PEAK/TWO PEAKS
GO_08.537.3120−6.98171.4845−41HIGH F0 PEAK
GO_07.537.3157−6.98941.5044−39HIGH F0 PEAK
GO_06.537.3196−6.99561.7834−27HIGH F0 PEAK
GO_05.537.3243−7.00432.2025−14HIGH F0 PEAK
GO_04.537.3275−7.01112.1027−14HIGH F0 PEAK
GO_0537.3384−7.00611.992911HIGH F0 PEAK
GO_0437.3446−7.01172.621916BROAD PEAK
GO_0337.3478−7.01552.272421HIGH F0 PEAK
GO_0237.3559−7.02502.741836HIGH F0 PEAK
GO_0137.3630−7.03304.85840HIGH F0 PEAK
E_0137.2685−7.03050.71134−105BROAD PEAK
E_0237.2748−7.02561.0674−68BROAD PEAK
PAT_0137.4722−6.415817.991111HIGH F0 PEAK/ALMOST ROCK
PAT_0237.4635−6.40873.801183HIGH F0 PEAK
PAT_0337.4531−6.39991.823347TWO PEAKS
PAT_0437.4456−6.39411.315425HIGH F0 PEAK
PAT_0537.4345−6.38450.78116−40BROAD PEAK
PAT_0637.4263−6.37880.68142−66TWO PEAKS
PAT_0737.4144−6.36880.53205−117TWO PEAKS
AZN_0137.5127−6.26337.734106HIGH F0 PEAK
AZN_0237.5010−6.25502.711861BROAD PEAK
AZN_0337.4933−6.25121.444733HIGH F0 PEAK
AZN_0437.4810−6.24250.9291−17BROAD PEAK
AZN_0537.4736−6.23850.72130−63LOW F0 PEAK
AZN_0637.4654−6.23200.58180−122LOW F0 PEAK
AZN_0737.4513−6.22480.53205−149LOW F0 PEAK
AZN_0837.4386−6.21750.47245−215BROAD PEAK
AZN_0937.4309−6.21000.38336−304BROAD PEAK
AZN_1137.4047−6.19330.30476−319BROAD PEAK
AZN_1237.3993−6.18860.26589−425BROAD PEAK
AZN_13A37.3899−6.18370.26589−441LOW F0 PEAK
E_0337.2685−7.03050.71134−105BROAD PEAK
AZN_1737.4861−6.27891.773436TWO PEAKS
AZN_1637.4936−6.27542.771852TWO PEAKS
AZN_1537.4982−6.27405.68670BROAD PEAK
AZN_13B37.5059−6.27177.62489TWO PEAKS
AZN_1437.5016−6.27245.47678TWO PEAKS
SLM_0137.4059−6.24170.36367−326BROAD PEAK
SLM_0237.4014−6.23500.36370−342BROAD PEAK
SLM_0337.3997−6.23240.35386−363LOW F0 PEAK
SLM_0437.3968−6.22870.36365−343BROAD PEAK
SLM_0537.3957−6.22490.32427−404BROAD PEAK
SLM_0637.3934−6.22110.30481−447BROAD PEAK
HVA_0137.3520−6.26740.28536−479BROAD PEAK
HVA_0237.3487−6.25920.27551−515LOW F0 PEAK
HVA_0337.3456−6.25120.27558−531BROAD PEAK
HVA_0437.3418−6.24180.27567−550BROAD PEAK
HVA_0637.3363−6.22550.24670−564BROAD PEAK
HVA_0737.3337−6.22230.23694−596BROAD PEAK
HVA_0837.3248−6.20020.23707−620LOW F0 PEAK
PiAz_0137.3036−6.27860.24647−601LOW F0 PEAK
PiAz_0237.3000−6.26980.24658−638BROAD PEAK
PiAz_0337.3011−6.26250.24667−653LOW F0 PEAK
PiAz_0437.2954−6.25760.24653−621LOW F0 PEAK
PiAz_0537.2916−6.25220.23694−658BROAD PEAK
PiAz_0637.2902−6.24970.23701−672TWO PEAKS
VL_0137.3173−7.32194.688123HIGH F0 PEAK
VL_0237.3132−7.31764.1710103HIGH F0 PEAK
VL_0337.2993−7.29814.34955HIGH F0 PEAK
VL_0437.2893−7.28374.29959HIGH F0 PEAK
VL_0537.2816−7.27444.52958HIGH F0 PEAK
VL_0637.2642−7.24992.971629HIGH F0 PEAK
VL_0837.2526−7.23441.4347−3HIGH F0 PEAK
VL_1037.2455−7.22421.3949−8BROAD PEAK
VL_1237.2369−7.21230.998225LOW F0 PEAK
VL_1437.2262−7.19750.77119−89BROAD PEAK
VL_1637.2190−7.18770.67146−144TWO PEAKS
AYA_0137.2406−7.37897.73416HIGH F0 PEAK/ALMOST ROCK
AYA_0237.2409−7.378213.22211BROAD PEAK/ALMOST ROCK
AYA_0337.2426−7.378210.36341HIGH F0 PEAK/ALMOST ROCK
AYA_0437.2354−7.40556.345−5HIGH F0 PEAK
DAN_0137.1995−6.92190.39319−318TWO PEAKS
DAN_0237.2064−6.92810.40311−307TWO PEAKS
DAN_0337.2099−6.92860.43283−279TWO PEAKS
DAN_0437.2092−6.92660.43277−272TWO PEAKS
DAN_0537.2296−6.94090.44274−268TWO PEAKS
DAN_0637.2180−6.93860.45266−264TWO PEAKS
DAN_0737.2446−6.94040.46255−252TWO PEAKS
DAN_0837.2124−6.94090.44275−275TWO PEAKS
DAN_0937.2710−6.86240.65153−150TWO PEAKS
DAN_1037.2764−6.85570.70137−135TWO PEAKS
DAN_1137.2818−6.85000.81110−107LOW F0 PEAK
DAN_1237.2660−6.86450.62165−160TWO PEAKS
DAN_1337.2633−6.86940.59174−171TWO PEAKS
DAN_1437.2630−6.87610.59175−173LOW F0 PEAK
DAN_1537.2589−6.87370.51218−215TWO PEAKS
DAN_1637.2541−6.87720.49230−227TWO PEAKS
DAN_1737.2497−6.88220.44275−273TWO PEAKS
DAN_1837.2477−6.87750.44271−250LOW F0 PEAK
DAN_1937.2159−6.92300.43284−282BROAD PEAK
DAN_2037.2210−6.91770.40308−306TWO PEAKS
DAN_2137.2275−6.91010.43280−277TWO PEAKS
DAN_2237.2323−6.90150.43280−277TWO PEAKS
DAN_2337.2526−6.94800.44273−268BROAD PEAK
QUI_0137.1777−6.95730.34394−387LOW F0 PEAK
QUI_0237.2158−7.08030.62163−145BROAD PEAK
QUI_0337.2141−7.06480.53205−195BROAD PEAK
QUI_0437.1995−7.00560.39319−313LOW F0 PEAK
ZPC_0137.2799−6.94250.75124−86LOW F0 PEAK
IC_0137.1981−7.30950.81109−105TWO PEAKS
IC_0237.1976−7.31170.79115−112TWO PEAKS
IC_0337.1991−7.31210.85102−99TWO PEAKS
IC_0537.2004−7.31500.85103−99LOW F0 PEAK
IC_0737.1963−7.31870.71134−131BROAD PEAK?
IC_0837.1974−7.32310.72131−127TWO PEAKS
IC_1037.2008−7.31770.81109−104LOW F0 PEAK
IC_1137.2007−7.32480.72129−125LOW F0 PEAK
IC_1337.2005−7.32750.73129−127LOW F0 PEAK
IC_1437.2042−7.32230.8996−93LOW F0 PEAK
IC_2037.1934−7.33150.80112−109LOW F0 PEAK
IC_3G37.1970−7.32030.71134−131LOW F0 PEAK
IC_2137.2238−7.31381.0674−72HIGH F0 PEAK
IC_2237.2286−7.31181.3651−21HIGH F0 PEAK
IC_2337.2370−7.30921.1466−29HIGH F0 PEAK

References

  1. Nogoshi, M.; Igarashi, T. On the propagation characteristics of microtremors. J. Seismol. Soc. JPN 1970, 23, 264–280. [Google Scholar]
  2. Nogoshi, M.; Igarashi, T. On the amplitude characteristics of microtremor (Part 2). J. Seismol. Soc. JPN 1971, 24, 26–40. [Google Scholar]
  3. Nakamura, Y. A Method for Dynamic Characteristics Estimation of Subsurface Using Microtremor on the Ground Surface; Quarterly Report of Railway Technical Research Institute (RTRI); Railway Technical Research Institute/Tetsudo Gijutsu Kenkyujo: Tokyo, Japan, 1989; Volume 30, pp. 25–33. [Google Scholar]
  4. Lermo, J.; Chavez-Garcia, F.J. Site effect evaluation using spectral ratios with only one station. Bull. Seismol. Soc. Am. 1993, 83, 1574–1594. [Google Scholar] [CrossRef]
  5. Ibs-von Seht, M.; Wohlenberg, J. Microtremor measurements used to map thickness of soft sediments. Bull. Seismol. Soc. Am. 1999, 89, 250–259. [Google Scholar] [CrossRef]
  6. Yamazaki, F.; Ansary, M.A. Horizontal-to-vertical spectrum ratio of earthquake ground motion for site characterization. Earthq. Eng. Struct. Dyn. 2008, 26, 671–689. [Google Scholar] [CrossRef]
  7. Bard, P.Y.; SESAME-Team. Guidelines for the Implementation of the H/V Spectral Ratio Technique on Ambient Vibrations-Measurements, Processing and Interpretations, SESAME European Research Project EVG1-CT-2000-00026, Deliverable D23.12. 2004. Available online: https://www.earth-prints.org/entities/publication/dcfd9f70-c00e-490f-82f6-239082ebc5cf (accessed on 1 June 2025).
  8. Atakan, K.; Bard, P.-Y.; Kind, F.; Moreno, B.; Roquette, P.; Tento, A.; SESAME-Team. JSESAME: A standardized software solution for the H/V spectral ration technique. In Proceedings of the 13th World Conference on Earthquake Engineering, Vancouver, BC, Canada, 1–6 August 2004. Paper #2270. [Google Scholar]
  9. Atakan, K.; Duval, A.-M.; Theodulidis, N.; Guillier, B.; Chatelain, J.-L.; Bard, P.-Y.; SESAME-Team. The H/V spectral ratio technique: Experimental conditions, data processing and empirical reliability assessment. In Proceedings of the 13th World Conference on Earthquake Engineering, Vancouver, BC, Canada, 1–6 August 2004. Paper #2268. [Google Scholar]
  10. Harinarayan, N.H.; Kumar, A. Site classification of strong motion stations of Uttarakhand, India, based on standard spectral ratio, and horizontal-to-vertical spectral ratio methods. Geohazards 2017, 281, 141–149. [Google Scholar]
  11. Ji, K.; Ren, Y.; Wen, R. Site classification for National Strong Motion Observation Network System (NSMONS) stations in China using an empirical H/V spectral ratio method. J. Asian Earth Sci. 2017, 147, 79–94. [Google Scholar] [CrossRef]
  12. Benjumea, B.; Macau, A.; Gabàs, F.; Bellmunt, F.; Figueras, S.; Cirés, J. Integrated geophysical profiles and H/V microtremor measurements for subsoil characterization. Near Surf. Geophys. 2011, 9, 413–425. [Google Scholar]
  13. Pinzon, L.A.; Pujades, L.G.; Macau, A.; Carreño, E.; Alcalde, J.M. Seismic site classification from the horizontal-to-vertical response spectral ratio: Use of the Spanish strong-motion database. Geosciences 2019, 9, 294. [Google Scholar] [CrossRef]
  14. Putti, S.P.; Satyam, N. Evaluation of site effects using HVSR microtremor measurements in Vishakhapatnam. Earth Syst. Environ. 2020, 4, 439–454. [Google Scholar] [CrossRef]
  15. Xu, R.; Wang, L. The Horizontal-to-Vertical spectral ratio and its applications. EURASIP J. Adv. Signal Process. 2021, 2021, 75. [Google Scholar] [CrossRef]
  16. Institut Cartogràfic i Geològic de Catalunya (ICGC). Caracterización geofísica y microzonificación sísmica de la ciudad de Huelva; Informes técnicos de l’Institut Cartogràfic i Geológic de Catalunya, Generalitat de Catalunya. GA-010/16; Institut Cartogràfic i Geològic de Catalunya (ICGC): Barcelona, Spain, 2016; 69p. [Google Scholar]
  17. Macau, A.; Figueras, S.; Benjumea, B.; Alonso-Chaves, F.M.; Gabàs, P.; Bellmunt, F.; Roca, A. Microzonificación sísmica de la ciudad de Huelva (ALERTES-RIM). In Proceedings of the 9ª Asamblea Hispano-Portuguesa de Geodesia y Geofísica, Madrid, España, 28–30 June 2016. [Google Scholar]
  18. Alonso-Chaves, F.M.; Macau, A.; Figueras, S.; Benjumea, B.; Gabàs, A.; Roca, A.; Puig, R.; Sedano, J. Fractures and paleogeography during the Tortonian in the northern border of the Guadalquivir basin inferred from deep wells and passive and active seismicity techniques. In Workshop “Earthquakes and Tsunamis in Iberia (50th Years of the 1969 Saint Vincent Earthquake, M=8.0)“; Universidad Complutense de Madrid: Madrid, Spain, 2019. [Google Scholar]
  19. Alonso-Chaves, F.M.; Macau, A.; Figueras, S.; Benjumea, S.; Gabàs, A.; Roca, A.; García-Navarro, E.; Puig, R.; Sedano, J. Fracturación cortical inferida a partir de técnicas de sismicidad activa y pasiva: Extensión neógena en el forebulge de la Cuenca del Guadalquivir. Geogaceta 2020, 67, 15–18. [Google Scholar]
  20. Amador Luna, D. Seismotectonics and Lithospheric-Scale Strain Partitioning in Relation to Complex Plate Convergence Settings. Doctoral Thesis, University of Huelva, Huelva, Spain, 2025. [Google Scholar]
  21. Viguier, C. Les grands traits de la tectonique du Bassin neogene du Bas–Guadalquivir. Boletín Geológico Y Min. 1977, 88, 39–44. [Google Scholar]
  22. Civis, J.; Sierro, F.; González, J.; Flores, J.; Andrés, I.; Porta, J.; Valle, M. El Neógeno marino de la provincia de Huelva: Antecedentes y definición de las unidades litoestratigráficas. In Paleontología del Neógeno de Huelva; Civis, J., Ed.; Universidad de Salamanca: Salamanca, Spain, 1987; pp. 9–21. [Google Scholar]
  23. Baceta, J.I.; Pendón, J.G. Estratigrafía y arquitectura de facies de la Formación Niebla, neógeno superior, sector occidental de la cuenca del Guadalquivir. Rev. Soc. Geológica España 1999, 12, 419–438. [Google Scholar]
  24. Martínez del Olmo, W.; Torrescusa, S.; Riaza, C.; García, C. Sequence Stratigraphy and Turbidite Reservoir Characterization of Biogenic Gas Fields in the Guadalquivir-Gulf of Cadiz Miocene Basins, SW Spain. In Proceedings of the ABGP/AAPG International Conference and Exhibition, Rio de Janeiro, Brazil, 8–11 November 1998. [Google Scholar]
  25. Schermerhorn, L. An outline stratigraphy of the Iberian Pyrite Belt. Bol. Geológico Y Min. 1971, 82, 238–268. [Google Scholar]
  26. Moreno, C.; Sierra, S.; Sáez, R. Evidence for catastrophism at the Famennian-Dinantian boundary in the Iberian Pyrite Belt. Geol. Soc. Lond. Spec. Publ. 1996, 107, 153–162. [Google Scholar] [CrossRef]
  27. Saez, R.; González, F.; Donaire, T.; Toscano, M.; Yesares, L.; Ruíz de Almodóvar, G.; Moreno, C. Updating Geological Information about the Metallogenesis of the Iberian Pyrite Belt. Minerals 2024, 14, 860. [Google Scholar] [CrossRef]
  28. Oliveira, J.T. Stratigraphy and synsedimentary tectonism. In Pre-Mesozoic Geology of Iberia; Springer: Berlin/Heidelberg, Germany, 1990; pp. 334–347. [Google Scholar]
  29. Moreno, C. Postvolcanic Paleozoic of the Iberian pyrite belt; an example of basin morphologic control on sediment distribution in a turbidite basin. J. Sediment. Res. 1993, 63, 1118–1128. [Google Scholar] [CrossRef]
  30. Coullaut Sáenz de Sicilia, J.L.; Soler Sampere, M.; Portero García, J.M. Mapa Geológico de España, E.:1:50.000 and Memoria, Hoja 961 (11-39) “Aznalcóllar”, IGME. 45 pp. 1978. [Google Scholar]
  31. Martínez del Olmo, W.; Martín Sánchez, D. Surcos erosivos, sistemas de turbiditas y episodios climáticos en el Tortoniense y Messiniense de la Cuenca del Guadalquivir (SO de España). Rev. Soc. Geológica España 2019, 32, 97–112. [Google Scholar]
  32. Martínez del Olmo, W. El complejo olistostrómico del Mioceno de la Cuenca del Río Guadalquivir (SO de España). Rev. Soc. Geológica España 2019, 32, 3–16. [Google Scholar]
  33. Leyva Cabello, F.; Ramírez Copeiro del Villar, J. Mapa Geológico de España E.: 1:50.000 and Memoria, Hoja 983 (11-40) “Sanlúcar la Mayor”, IGME. 18 pp. 1977. Available online: https://info.igme.es/cartografiadigital/geologica/Magna50Hoja.aspx?Id=983&language=es (accessed on 1 August 2025).
  34. Sierro, F.J. Foraminíferos Planctónicos y Bioestratigrafía del Mioceno Superior- Plioceno del Borde Occidental de la Cuenca del Guadalquivir (S.O. de España). Doctoral Thesis, Universidad de Salamanca, Salamanca, Spain, 1984; 391p. [Google Scholar]
  35. Camacho, M.A.; García-Navarro, E.; Morales, J.A. Study on the consolidation state of sediments in the Huelva Estuary (SW Spain). Bull. Eng. Geol. Environ. 2011, 70, 699–707. [Google Scholar] [CrossRef]
  36. Mayoral, E.; Pendón, J.G. Icnofacies y Sedimentación en Zona Costera. Plioceno Superior (?), Litoral de Huelva. Acta Geológica Hispánica 1986, 21–22, 507–513. [Google Scholar]
  37. Bosch-Montoro, A.; Camacho, M.A.; García-Navarro, E.; Alonso-Chaves, F.M. Características geotécnicas de los suelos de la ciudad de Huelva: Parámetros de identificación y ensayos de consolidación. Geogaceta 2006, 39, 79–82. [Google Scholar]
  38. Martínez del Olmo, W.; Martín, D. El neógeno de la cuenca Guadalquivir-Cádiz (sur de España). Rev. Soc. Geológica España 2016, 29, 35–58. [Google Scholar]
  39. Civis, J.; Dabrio, C.J.; González-Delgado, J.A.; Groy, J.L.; Ledesma, S.; Pais, J.; Sierro, F.J.; Zazo, C. Cuenca del Guadalquivir. In Geología de España; Vera, J.A., Ed.; Sociedad Geológica de España—Instituto Geológico y Minero de España: Madrid, Spain, 2004; pp. 543–550. [Google Scholar]
  40. Flinch, J.F.; Bally, A.W.; Wu, S. Emplacement of a passive-margin evaporitic allochthon in the Betic Cordillera of Spain. Tectonics 1996, 15, 89–106. [Google Scholar] [CrossRef]
  41. Salazar, A.; Larrasoaña, J.C.; Abad, M.; Mayoral, E.; Pérez-Asensio, J.N.; González-Regalado, M.L.; Martín-Banda, R.; Civis, J.; Mata, M.P. Neogene lithological units at the west end of the Guadalquivir Basin and their correlations with the Huelva-1 borehole (Huelva—Spain)/Unidades litológicas del Neógeno en el extremo oeste de la Cuenca del Guadalquivir y su correlación con el sondeo Huelva-1 (Huelva—España). Geo-Temas 2016, 16, 173–176. [Google Scholar]
  42. Bard, P.Y. Les Effets de Site D’origine Structural: Principaux Resultants Expérimentaux et Théoriques; Genie Parasismique: París, France, 1985; pp. 223–238. [Google Scholar]
  43. Wathelet, M.; Chatelain, J.L.; Cornou, C.; Di Giulio, G.; Guillier, B.; Ohrnberger, M.; Savvaidis, A. Geopsy: A User-Friendly Open-Source Tool Set for Ambient Vibration Processing. Seismol. Res. Lett. 2020, 91, 1878–1889. [Google Scholar] [CrossRef]
  44. Delgado, J.; López Casado, C.; Estévez, A.; Giner, J.; Cuenca, A.; Molina, S. Mapping soft soils in the Segura River valley (SE Spain): A case study of microtremors as an exploration tool. J. Appl. Geophys. 2000, 45, 19–32. [Google Scholar] [CrossRef]
  45. Parolai, S.; Bormann, P.; Milkereit, C. New Relationship between Vs, Thickness of Sediments, and Resonance Frequency Calculated by the H/V Ratio of Seismic Noise for the Cologne Area (Germany). Bull. Seismol. Soc. Am. 2002, 92, 2521–2527. [Google Scholar] [CrossRef]
  46. Alonso-Chaves, F.M.; García-Navarro, E.; Fernández, C.; Mayoral, E. Tectónica extensional durante el Triásico Superior en el extremo oriental de la cuenca del Algarve (Ayamonte, España) y la reactivación de fallas durante el Plioceno-Cuaternario. Geogaceta 2020, 67, 19–22. [Google Scholar]
  47. González, F. InSAR-based mapping of ground deformation caused by industrial waste disposals: The case study of the Huelva phosphogypsum stack, SW Spain. Bull. Eng. Geol. Environ. 2022, 81, 304. [Google Scholar] [CrossRef]
  48. Moreira, V.S. Seismotectonics of Portugal and its adjacent area in the Atlantic. Tectonophysics 1985, 117, 85–96. [Google Scholar] [CrossRef]
  49. Borges, J.F.; Fitas, A.J.S.; Bezzeghoud, M.; Teves-Costa, P. Seismotectonics of Portugal and its adjacent Atlantic area. Tectonophysics 2001, 331, 373–387. [Google Scholar] [CrossRef]
  50. Buforn, E.; Pro, C.; Bezzeghoud, M.; Udias, A. Mechanism of 2003, 2007 and 2009 earthquakes (S. Vicente Cape) and implications for the 1755 Lisbon earthquake. In Proceedings of the Geophysical Research Abstracts EGU2012-2634, EGU General Assembly, Vienna, Austria, 22–27 April 2012. [Google Scholar]
  51. Ferrao, C.; Bezzeghoud, M.; Caldeira, B.; Borges, J.F. The Seismicity of Portugal and Its Adjacent Atlantic Region from 1300 to 2014: Maximum Observed Intensity (MOI) Map. Seismol. Res. Lett. 2016, 87, 743–750. [Google Scholar] [CrossRef]
  52. Buforn, E.; López Sánchez, C.; Lozano, L.; Martínez-Solares, J.M.; Cesca Oliveira, C.S.; Udías, A. Re-evaluation of Seismic Intensities and Relocation of 1969 Saint Vincent Cape Seismic Sequence: A Comparison with the 1755 Lisbon Earthquake. Pure Appl. Geophys. 2020, 177, 1781–1800. [Google Scholar] [CrossRef]
  53. Instituto Geográfico Nacional (IGN). Catálogo de Terremotos. 2025. Available online: https://www.ign.es/web/sis-catalogo-terremotos (accessed on 1 August 2025).
  54. United States Geological Survey (USGS). M 4.8–3 km WNW of Isla Cristina, Spain. Dec 20, 1989, at 04:15 am (Universal Time). USGS Catalog. Available online: https://earthquake.usgs.gov/earthquakes/eventpage/usp00043au/executive (accessed on 1 August 2025).
Figure 1. Geological map of the southwestern part of Iberia. In the upper left, a schematic representation of the three main domains in the southern Iberian region is shown: the Iberian Massif, the Guadalquivir Basin, and the Betic System. The red square highlights the area depicted in the detailed map.
Figure 1. Geological map of the southwestern part of Iberia. In the upper left, a schematic representation of the three main domains in the southern Iberian region is shown: the Iberian Massif, the Guadalquivir Basin, and the Betic System. The red square highlights the area depicted in the detailed map.
Geosciences 15 00345 g001
Figure 2. Elevation map over orthophotography (provided by the IGN), color-coded by range to highlight the slope on both margins of the two rivers.
Figure 2. Elevation map over orthophotography (provided by the IGN), color-coded by range to highlight the slope on both margins of the two rivers.
Geosciences 15 00345 g002
Figure 3. Location of seismic noise sampling points in the western Guadalquivir basin.
Figure 3. Location of seismic noise sampling points in the western Guadalquivir basin.
Geosciences 15 00345 g003
Figure 4. (A). Comparison between fundamental frequency data by depth and various equations from the literature [5,12,17,44,45]; (B). Empirical relationship for calculating the depth of the bedrock in the Guadalquivir Basin (near the city of Huelva) based on the fundamental frequency.
Figure 4. (A). Comparison between fundamental frequency data by depth and various equations from the literature [5,12,17,44,45]; (B). Empirical relationship for calculating the depth of the bedrock in the Guadalquivir Basin (near the city of Huelva) based on the fundamental frequency.
Geosciences 15 00345 g004
Figure 5. Example of the five different responses obtained during the study. Dashed lines represent the measurement error, while continuous lines represent the average. The gray bands correspond to the uncertainty range in the calculation of f0, where a wider band indicates greater indeterminacy in f0. Finally, a peak is considered when its amplitude exceeds 2H/V.
Figure 5. Example of the five different responses obtained during the study. Dashed lines represent the measurement error, while continuous lines represent the average. The gray bands correspond to the uncertainty range in the calculation of f0, where a wider band indicates greater indeterminacy in f0. Finally, a peak is considered when its amplitude exceeds 2H/V.
Geosciences 15 00345 g005
Figure 6. Fundamental frequency data measured with passive seismic over the same geological map of the study area (Figure 1). The colors represent different ranges of fundamental frequency: cold colors correspond to high frequencies, while warm colors indicate low fundamental frequencies.
Figure 6. Fundamental frequency data measured with passive seismic over the same geological map of the study area (Figure 1). The colors represent different ranges of fundamental frequency: cold colors correspond to high frequencies, while warm colors indicate low fundamental frequencies.
Geosciences 15 00345 g006
Figure 7. Location of the different types of H/V spectral ratio responses vs. f0 (examples of each response type are shown in Figure 5) in the westernmost sector of the Guadalquivir Basin, overlaid on the geological map of the area (Figure 1).
Figure 7. Location of the different types of H/V spectral ratio responses vs. f0 (examples of each response type are shown in Figure 5) in the westernmost sector of the Guadalquivir Basin, overlaid on the geological map of the area (Figure 1).
Geosciences 15 00345 g007
Figure 8. Map of basement depth (in meters above the sea level) estimated by kriging interpolation, based on depths obtained through the H/V method (cross marks) over the geological map (Figure 1). Faults in the study area have been smoothed to emphasize contour lines. Colored points represent depths derived from seismic noise measurements, while black points indicate depths obtained from borehole logging by IGME.
Figure 8. Map of basement depth (in meters above the sea level) estimated by kriging interpolation, based on depths obtained through the H/V method (cross marks) over the geological map (Figure 1). Faults in the study area have been smoothed to emphasize contour lines. Colored points represent depths derived from seismic noise measurements, while black points indicate depths obtained from borehole logging by IGME.
Geosciences 15 00345 g008
Figure 9. Map showing the location of sampling points used to establish topographic and mechanical basement depth profiles. The lower section displays the profiles for each transect, with the red line representing the true-scale profile and the black line showing the vertically exaggerated scale (the vertical exaggeration is indicated in the lower right corner of each profile). Black and red points represent the estimated depth. On the right, the same profiles are presented with interpreted data: the dashed blue line represents the mechanical basement, while the dashed red line marks faults that may explain slope discontinuities. Black continuous lines represent the orography with an exaggerated vertical scale, whereas red continuous lines represent the morphology at real scale. Additionally, the locations of various rivers and specific points of interest (labeled with letters) are indicated. The arrows with question marks indicate areas where the slope changes; however, further study would be required for a rigorous interpretation.
Figure 9. Map showing the location of sampling points used to establish topographic and mechanical basement depth profiles. The lower section displays the profiles for each transect, with the red line representing the true-scale profile and the black line showing the vertically exaggerated scale (the vertical exaggeration is indicated in the lower right corner of each profile). Black and red points represent the estimated depth. On the right, the same profiles are presented with interpreted data: the dashed blue line represents the mechanical basement, while the dashed red line marks faults that may explain slope discontinuities. Black continuous lines represent the orography with an exaggerated vertical scale, whereas red continuous lines represent the morphology at real scale. Additionally, the locations of various rivers and specific points of interest (labeled with letters) are indicated. The arrows with question marks indicate areas where the slope changes; however, further study would be required for a rigorous interpretation.
Geosciences 15 00345 g009
Figure 10. (A). Geological map of the area, with the study area highlighted in green ((B), passive seismic data) and the exploration borehole highlighted in red (C).
Figure 10. (A). Geological map of the area, with the study area highlighted in green ((B), passive seismic data) and the exploration borehole highlighted in red (C).
Geosciences 15 00345 g010
Figure 11. Composite figure of satellite image (top), geological map with data derived from interpolation of seismic noise measurements (Figure 8 middle), and 3D model derived from these data (bottom) of the westernmost sector of the Guadalquivir Basin.
Figure 11. Composite figure of satellite image (top), geological map with data derived from interpolation of seismic noise measurements (Figure 8 middle), and 3D model derived from these data (bottom) of the westernmost sector of the Guadalquivir Basin.
Geosciences 15 00345 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Amador Luna, D.; Macau, A.; Fernández, C.; Alonso-Chaves, F.M. Three-Dimensional Architecture of Foreland Basins from Seismic Noise Recording: Tectonic Implications for the Western End of the Guadalquivir Basin. Geosciences 2025, 15, 345. https://doi.org/10.3390/geosciences15090345

AMA Style

Amador Luna D, Macau A, Fernández C, Alonso-Chaves FM. Three-Dimensional Architecture of Foreland Basins from Seismic Noise Recording: Tectonic Implications for the Western End of the Guadalquivir Basin. Geosciences. 2025; 15(9):345. https://doi.org/10.3390/geosciences15090345

Chicago/Turabian Style

Amador Luna, David, Albert Macau, Carlos Fernández, and Francisco M. Alonso-Chaves. 2025. "Three-Dimensional Architecture of Foreland Basins from Seismic Noise Recording: Tectonic Implications for the Western End of the Guadalquivir Basin" Geosciences 15, no. 9: 345. https://doi.org/10.3390/geosciences15090345

APA Style

Amador Luna, D., Macau, A., Fernández, C., & Alonso-Chaves, F. M. (2025). Three-Dimensional Architecture of Foreland Basins from Seismic Noise Recording: Tectonic Implications for the Western End of the Guadalquivir Basin. Geosciences, 15(9), 345. https://doi.org/10.3390/geosciences15090345

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
