Pockmark Distribution and Genesis in the Mediterranean and Black Seas: A Regional Synthesis

Abstract

Pockmarks are ubiquitous seafloor depressions formed by the fluid/gas seepage through marine sediments, with implications for geohazards, benthic ecosystems, and climate-related processes. Despite extensive research, the mechanisms controlling the formation and spatial distribution of pockmarks are not completely understood, owing to the diverse and site-specific geo-environmental conditions. In this study, we provide a first review of over 7500 pockmarks mapped across the Mediterranean and Black seas, showing their relationship with depth range, slope gradient, seafloor lithology, proximity to tectonic faults, and sediment thickness. Our analysis reveals that pockmarks are predominantly located at intermediate water depths (100–700 m), with two main clusters around 100–200 and 500–700 m. They are commonly found on gently sloping seafloor (<4°), often clustering around slope breaks. In detail, two slope-related peaks around 1.5° and 3.5° suggest distinct geological settings for pockmark formation: sediment-rich and low-energy environments versus more dynamic slope domains. Fault proximity plays a critical role, with over 40% of pockmarks occurring within 1 km of mapped faults, indicating that structural discontinuities act as preferential fluid pathways. Pockmarks concentrate in areas with moderate Plio-Quaternary sediment thickness (300–600 m), suggesting an optimal window for overpressure generation and fluid expulsion. A strong lithological control is evident: 74% of pockmarks occur on muddy sand or sand-rich substrates. In terms of ongoing to recent seepage/activity, ~27% of pockmarks show evidence of ongoing fluid seepage (e.g., acoustic gas flares, seismic wipeouts), particularly in regions such as the Black Sea, Aegean, and Central Tyrrhenian, where faulting, salt tectonics, or hydrothermal systems enhance permeability. Conversely, pockmarks in the Western Mediterranean appear to be generally inactive and buried. These findings underscore the influence of tectono-sedimentary architecture on seafloor fluid escape and provide essential insight into methane seepage, slope stability, and benthic habitats. This pedagogic review enhances our understanding of pockmark systems and establishes a foundation for future geohazard assessment, climate studies, and marine resource exploration.

1. Introduction

Fluids within marine sediments are generally less dense than the surrounding solid particles and, as a result, tend to migrate upward toward the seafloor due to buoyant forces [1]. This phenomenon, known as migration, involves the movement of fluids through sedimentary layers and is referred to as fluid flow [2]. Fluid emissions at the seafloor are typically categorized into two main types: cold seeps, characterized by low-temperature discharges (generally below a few tens of degrees Celsius), and hydrothermal vents, which may reach temperatures between 200 °C and 400 °C. This review focuses primarily on pockmarks associated with cold seeps and freshwater environments, where the emitted gases are mostly composed of methane (CH₄), and occasionally hydrogen sulfide (H₂S), carbon dioxide (CO₂), or nitrogen (N₂), occurring either as free gas or dissolved in pore waters [3]. Methane (CH₄) is generally produced either by microbial degradation of organic matter at low temperatures (microbial gas) [4], or through thermogenic processes involving the breakdown of organic precursors at elevated pressures and temperatures [5,6,7]. CO₂ and N₂ are commonly associated with hydrocarbon systems in proximity to subduction zones or in the final phases of thermogenic gas generation, and also occur in mixed sedimentary-volcanic basins [8,9,10].

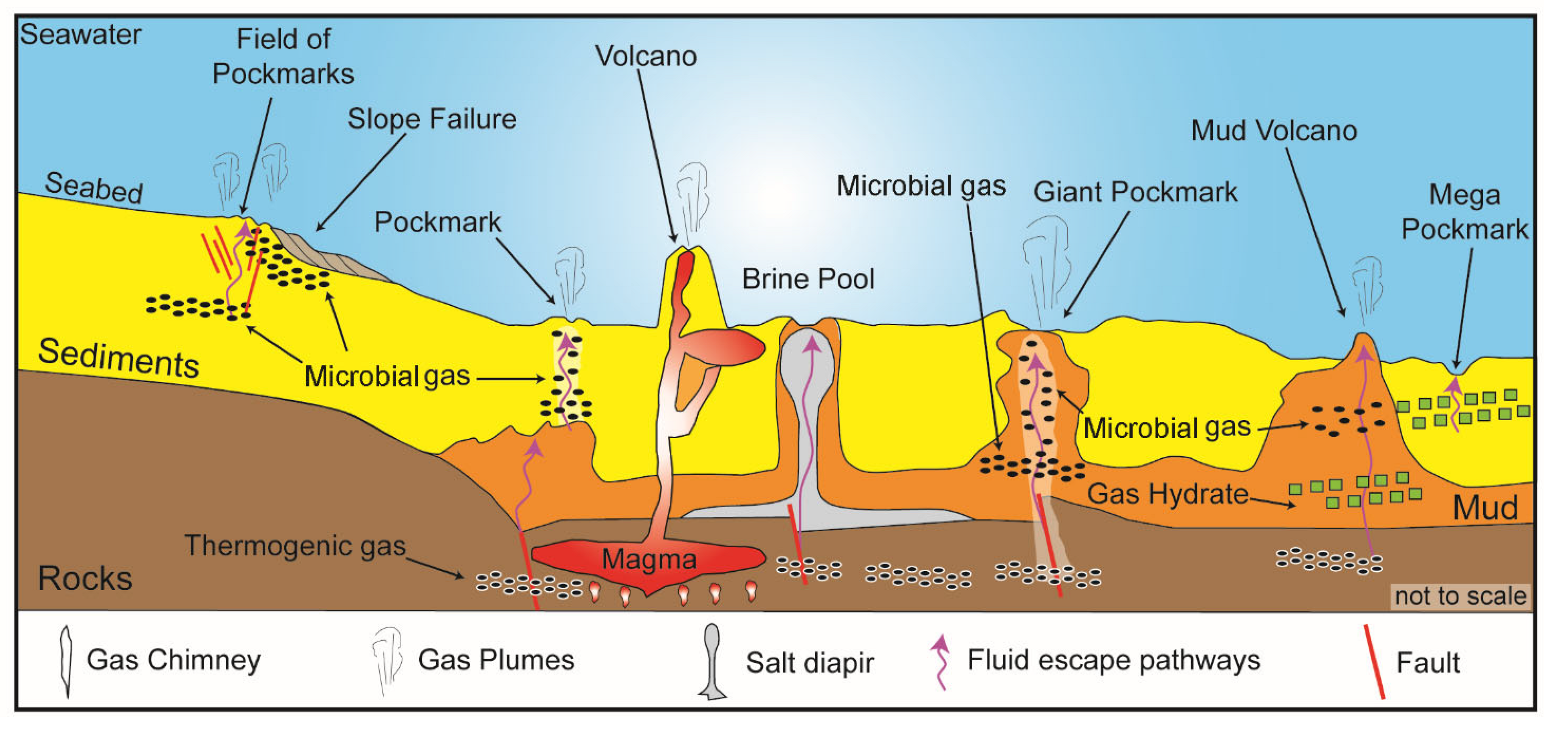

Fluid flow processes are responsible for a variety of seafloor morphologies (Figure 1), including mud volcanoes [11,12,13], brine pools [14,15,16] and pockmarks [16,17,18,19], and they trigger a range of geological, geochemical, and biological processes. These processes can also include the precipitation of methane-derived authigenic carbonates through anaerobic oxidation of methane (AOM), mediated by microbial consortia [1,20,21].

1.1. Definition and Morphological Characteristics of Pockmarks

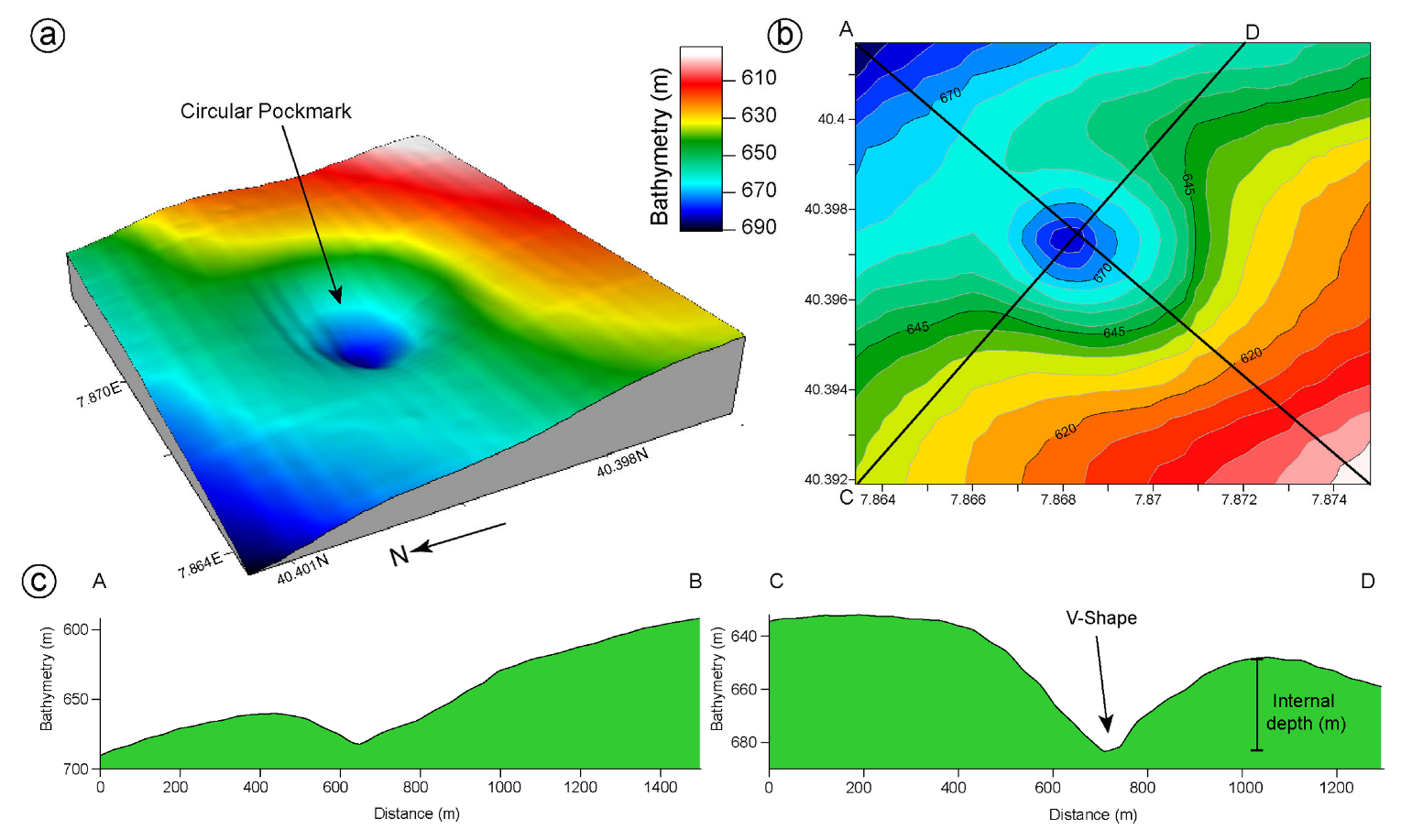

Pockmarks are significant geomorphological features directly associated with fluid flow phenomena. The term “pockmark” was for the first time used to mapped seafloor depressions on the Nova Scotian shelf using echo-sounder records [23]. Pockmarks can reach several km in diameter and up to 150 m in internal depth, with circular to elliptical planforms, steep flanks, and flat or cone-shaped bottoms. They show U- or V-shaped cross-sections (Figure 2), with average flank slopes of approximately 9°, ranging from 6° to 18° [24]. Fresh pockmarks are often cone-shaped depressions that tend to become more rounded or flat-bottomed over time due to slumping or progressive infill by hemipelagic sedimentation [20].

Pockmarks can be classified according to their size. Hovland et al. (2002) [20] defined Unit Pockmarks as small (1–10 m in diameter and up to 0.6 m deep), isolated or clustered depressions that may occur in association with larger pockmarks [25,26] (

Table 1. Summary of the Morpho-dimensional classification of pockmarks.

Type	Diameter	Internal Depth	Typical Distribution
Unit Pockmarks	1–10 m	Up to 0.6 m	Isolated or grouped; often associated with larger pockmarks
Normal Pockmarks	10–250 m	Up to 45 m	Often aligned in strings along sedimentary weakness zones (e.g., faults and fractures)
Giant Pockmarks	>250 m (commonly 300–500 m)	1–16 m (commonly 3–12 m)	Continental margins; organized as cluster or isolated
Mega Pockmarks	>1000 m	Up to ~126 m	Continental margins; organized as cluster or isolated (e.g., Northern South China Sea)

). Normal pockmarks range from 10 to 250 m in diameter and up to 45 m in internal depth [27,28]. These features often align in strings or chains extending for km along sedimentary weakness zones, and they are frequently linked to near-vertical faults, fractures, or flexures [20,29,30,31] and in some cases to seafloor channels [25,26,32]. Pockmarks larger than 250 m in diameter are referred to as giant pockmarks [33]. First documented off the California margin [34], these features have since been reported along several continental margins. For instance, the Gulf of Cádiz hosts pockmarks ranging from 125 to 850 m in diameter (commonly 300–500 m) and internal depths from 1 to 16 m (typically 3–12 m). Giant pockmarks can appear randomly or in clusters and are typically associated with subsurface geological structures such as fault systems such as the irregular pockmarks identified in the Palaeogene strata of the Outer Moray Firth Basin, UK North Sea [35]. At the upper extreme, mega-pockmarks have diameter bigger than 1000 m [24]. Recently mega pockmarks have been documented and described by using high-resolution marine data in the northern South China Sea [36] and from the Chatham Rise (New Zealand) [37], where they can reach diameters of up to 3000 m.

Pockmarks are further categorized based on their activity. Active pockmarks are those with observable fluid or gas emissions often in the form of bubbles, whereas inactive or dormant pockmarks lack current outgassing evidence [38,39,40,41]. Distinguishing between active and dormant pockmarks remains a significant challenge, particularly in the absence of direct visual or acoustic evidence of fluid release. The most reliable indicator of ongoing activity is the presence of gas bubbles emanating into the water column (Figure 3).

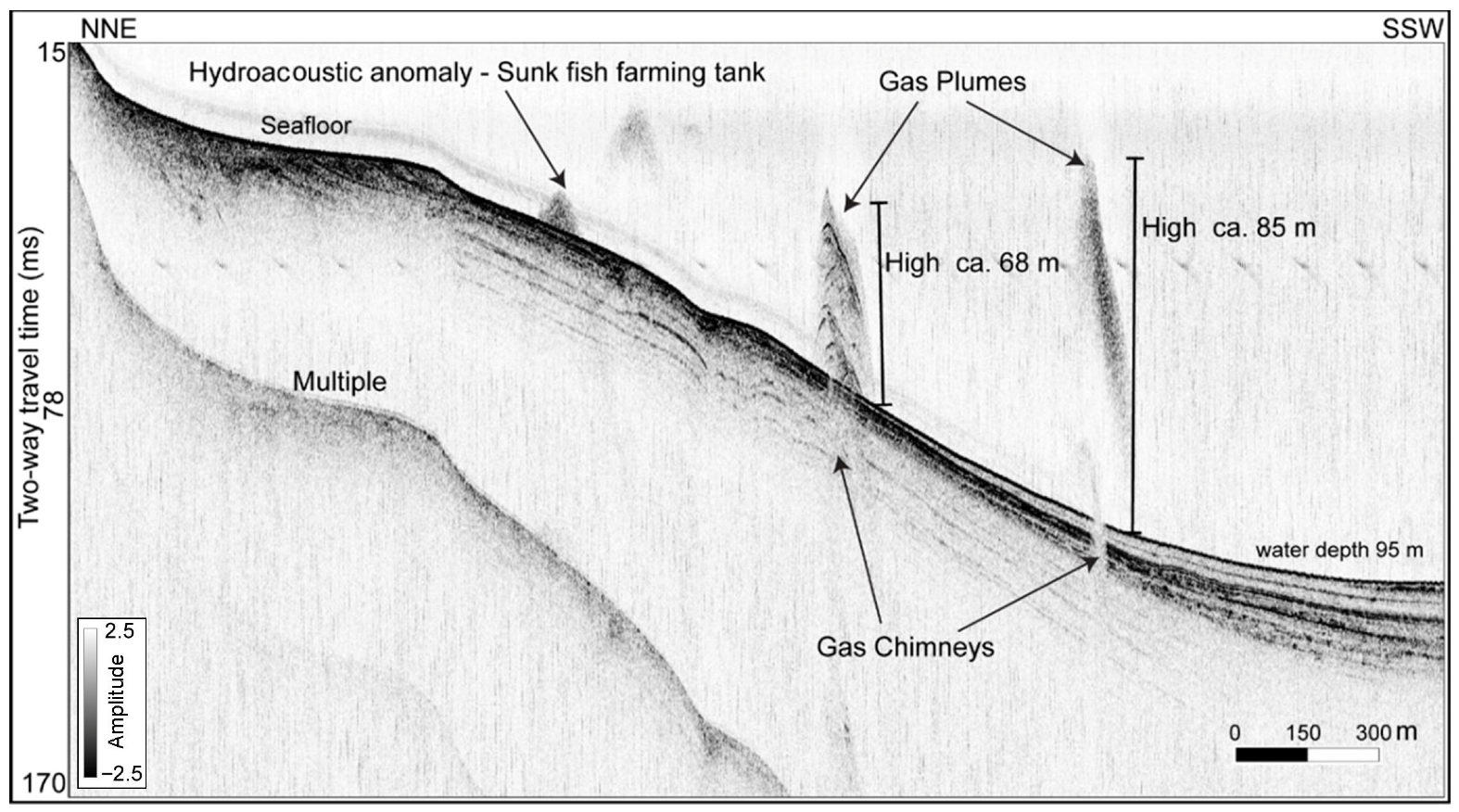

Marine geophysical techniques such as high- and very high-resolution seismic reflection and hydroacoustic surveys have proven effective in detecting such emissions from shallow to deep marine environments as acoustic anomalies [1,42,43,44]. Acoustic anomalies in the water column (e.g., flares) are characterized by high-amplitude, vertically or obliquely oriented scattered signals resulting from the acoustic impedance contrast between gas bubbles and surrounding seawater [1,45]. On seismic reflection profiles, these features often appear as dark hyperbolic reflectors (Figure 4) or vertical columns extending from the seafloor sometimes reaching the sea surface [10]. However, similar acoustic signatures may also be caused by fish shoals, suspended sediment clouds, or even anthropogenic debris such as metal or plastic objects [46,47], highlighting the need for complementary ground-truthing and in situ observations.

1.2. Potential Factors Driving the Formation of Pockmarks

1.2.1. Geological

Despite many years of study and review of extensive worldwide data, the general mechanisms for the formation of pockmarks and their growth are still not completely understood. However geophysical, morphological, sedimentological, and geochemical data acquired in marine areas with pockmarks provide valuable insights into the factors that control their genesis and development at the seafloor.

In recent decades, several conceptual models have been proposed to explain the formation of pockmarks, which involve either continuous processes (seeps) or sudden and episodic releases and blowout (vents) of fluids [48]. Many theories on the origin of pockmarks have been put forward, ranging from biogenic gas generation and overpressure-driven fluid escape to thermogenic seepage [49,50], groundwater discharge [2], and localized sediment dewatering processes [51].

However, the integrated analysis of high-resolution marine geophysical records with core and borehole samples taken from inside pockmarks, suggests that the pockmarks are formed when fluid (gas or water) escaping through the seafloor lifts the fine sediment into suspension [50,52]. Laboratory experiments, theoretical models, and field studies of both active and fossil pockmarks support the hypothesis that these features form abruptly when pockets of locally overpressured fluids or gas erupt through the seafloor sediments [50,53,54].

Ma et al. (2021) [22] proposed that various combined geological factors can lead to overpressure release and the formation of pockmarks. These include seafloor morphology, sediment type and relative thickness [55], tectonics [56], salt diapirism [57], hydrocarbons and gas hydrates dissociation [58,59] and seismic activity [60]. A study conducted in the South China Sea showed that the mechanisms of pockmark formation are also influenced by exogeneous geological process (e.g., denudation, transportation, sedimentation, bottom currents, and channels) [61,62], endogenous geological process (e.g., tectonics) [63] and occurrence of other fluid flow features (e.g., gas chimneys, mud diapirs, mud volcanoes, and faults providing pathways for gas seepage) [64].

Many studies also suggested a role of the water depth range and the sea-level changes as factors driving the formation of pockmarks [65,66,67]. Relative sea-level changes modify hydrostatic pressure and when the sea level falls (e.g., during the Messinian Salinity Crisis [68,69]), gas volume in fluid reservoir increases, resulting in overpressured pore water and thereby favoring an upward migration of gas-rich fluids [49,70]. It is not known how fast gas exsolution/dissolution and related fluid escape responds to decreases/increases in the hydrostatic pressure during sea-level fall/rise [71]. The Late Quaternary sea-level changes with 100-kyr cyclicity are one of the main driving factors in pockmark formation [49]. This control of 100-kyr cyclicity in pockmarks development is deduced from the observation that pockmarks affect well-identified and discrete stratigraphic units.

Faults and/or fractures have been often interpreted as preferential pathways for fluid migration in a variety of settings [72,73]. On the other hand, faults (including blind faults) are also known to be physical barriers to horizontal fluid flow movement. Examples are known in the siliciclastic sedimentary aquifers as well as in the offshore hydrocarbon reservoirs [74,75]. Fluid flow is a physical phenomenon that usually is related to fault activity since it leads to poorly cemented fault breccias and an increase in fault zone permeability [76,77]. Fault damage zones that in the seismic reflection data appear as acoustic turbidity zones have a permeability depending on the faulted lithology, shear strain, dilatation, and fracture development, and can change as a function of burial depth, fault offset, and mineralization [78,79]. Recently, a number of papers have described how pockmarks are maintained due to authigenic carbonate occurrence [80], and bottom current action [25,81,82].

Salt diapirs facilitate fluid migration along faults and fractures. In the Levant Basin (offshore Israel), fluid escape features occur along ridge crests and flanks above deformed overburden and Messinian evaporite withdrawal zones, indicating structurally and stratigraphically controlled fluid flow [83].

Many studies have reported a relationship between pockmark activity and earthquakes [60,84]. Large ground-shaking event, by earthquakes or sedimentary instabilities, modifying the geotechnical characteristic of the sedimentary layers below the seafloor could cause interstitial gas bubbles to be suddenly expelled into the water column [85]. In the recent literature, earthquakes have been interpreted as trigger both for gas venting and pockmark formation in the Northern California [86], and the Arabian Gulf [87,88].

1.2.2. Alternative Hypothesis

Recent high-resolution multibeam data from the German Bight (North Sea) revealed tens of thousands of shallow seafloor depressions previously interpreted as pockmarks [89]. However, no evidence of methane seepage or gas-related features was found. Instead, the study that these depressions were produced by harbor porpoises (Phocoena phocoena), small, toothed cetaceans that forage on benthic fish by bottom grubbing, called pits and pit-scours. During feeding, porpoises orient their bodies vertically, direct their sonar toward the sediment, and dig into the seabed with their snouts, excavating shallow pits about 0.1–0.2 m deep [89]. These initial feeding pits act as nuclei for further modification by tidal currents and storms, evolving into larger scour structures. Comparable biogenic depressions have also been described elsewhere, such as those formed by gray whales (Eschrichtius robustus) in the Bering Sea during suction feeding on benthic prey [90]. These observations demonstrate that cetaceans can act as active erosional agents on the seafloor, creating morphologies that can mimic classic pockmarks but have a purely biological origin.

1.3. Importance and Scientific Objectives of the Review

Despite decades of regional studies, no comprehensive synthesis has yet been compiled and quantitatively analyzed for all mapped pockmarks across the Mediterranean and Black seas. Until now, published reviews have generally addressed fluid flow phenomena in broad terms or focused on the use of high-resolution seismic data for detecting and characterizing fluid-related features [91]; in contrast, the present review specifically concentrates on pockmarks, the most widespread seafloor morphology associated with fluid flow [92]. This review addresses the current lack of a comprehensive and standardized synthesis of Mediterranean present-day pockmarks (at the seafloor) by systematically compiling and harmonizing published data to identify basin-scale spatial patterns, morphometric trends, and suggesting geological controls, thereby highlighting methodological inconsistencies and under-explored areas for future research.

The geological, ecological and societal relevance of seabed pockmarks makes a focused review of these features for the Mediterranean Sea both timely and necessary. Several lines of argument support why such a review is particularly important in the Mediterranean region, densely studied basin. Pockmarks are relevant for submarine infrastructure planning (e.g., pipelines, cables, offshore wind farms) [27,92], for benthic ecology (with unique communities) [93], and for resource and hazard assessments involving gas systems [6] or fluid-related slope instabilities [94,95].

This study is conceived as a pedagogical review, intended to be a baseline study for researchers or students approaching the study of these features, as well as for those seeking a deeper understanding of the mechanisms governing their formation and evolution as well as their hazard implication. This pedagogical style reinforces the broader accessibility and long-term utility of the work. Furthermore, such a synthesis would bridge the academic and applied domains. By consolidating the available literature, a Mediterranean pockmark review would not only be a scientific reference for specialists in marine geomorphology, but also as an educational and methodological resource for students, early-career researchers, and stakeholders engaged in the Blue Economy [96].

In view of what was discussed above, this review is based on a dataset comprising more than 7500 examples of pockmarks located in various sectors of the Mediterranean Sea and surrounding basins (Table S1 in Supplementary Material). The dataset includes information on geographic distribution, bathymetry, proximity to geological faults, and sedimentary characteristics. The objectives of this study are:

(i)

To investigate the spatial distribution of pockmarks in relation to key controlling factors, including:

• Physical environmental parameters (e.g., water depth range, slope gradients, and sediment lithology),
• Geological features and processes (e.g., faulting, sediment thickness, and salt diapirism).

(ii)

To highlight the implications of pockmarks in terms of geohazards, influence on benthic ecosystems and their relevance to past and present climate processes.

2. Geological Framework

The geology of the Mediterranean region is a result of the evolution of the Tethys Ocean, which formed in the late Palaeozoic, reached its maximum opening in the Mesozoic, and finally closed in the Cenozoic [97]. The convergence of the Eurasian and African plates played a crucial role in shaping the circum-Mediterranean thrust belts and forming back-arc basins [97]. These tectonic interactions resulted in significant geological complexities, extensive volcanism, and a relatively high level of seismic activity in the area. Remnants of the Tethys Ocean remain in the Ionian Sea and the Eastern Mediterranean [98,99]. Consequently, the diverse seas within the Mediterranean region are characterized by a range of lithospheric structures, including: (I) remnants of Tethyan oceanic domains (Ionian and Libyan Seas), (II) Neogene oceanic crust (Algero-Provençal Basin and Tyrrhenian Sea), (III) thinned continental lithosphere (Strait of Sicily, Alboran Sea, Valencia Trough, Aegean Sea), and (IV) thick continental lithosphere (Adriatic Sea) [100]. In this paper, we briefly review the geology of the Mediterranean Sea by dividing it into three main basins: Western, Central, and Eastern (Figure 5).

Messinian Salinity Crisis was an extraordinary, short-term, and extreme geological event that occurred between 5.97 and 5.33 Ma [101]. During this time, the Mediterranean Sea became disconnected from the Atlantic Ocean due to uplift of the Gibraltar Strait region and underwent partial desiccation due to an excess of evaporation of marine and freshwater inflow [102]. As a result, more than a million cubic km of salts (carbonates, gypsum, halite and K-salts), representing about 6% of the total dissolved oceanic salt, was deposited, locally exceeding 2–3 km in thickness [101].

The Western Mediterranean Sea was formed by the extensional collapse of an orogen after the collision of a lithospheric fragment with the Eurasian margins in the Eocene. Since the Oligocene, this collapse produced the rupture of this orogen into various fragments and their radial dispersion to the east and south [103,104,105]. The main features correspond to the rotation of the Corsica-Sardinian block and the migration of the Kabilas towards Africa with respect to Eurasia, which led to the formation of the Ligurian Sea and the Algero-Balearic Ocean floored basin [106,107]. For the purpose of this summary, the Western Mediterranean has been divided into four geographic sectors: (i) the Gulf of Lion and Northeast Iberian margins characterized by a relevant Plio-Quaternary sedimentation, which contributed to the formation in the Gulf of Lion of the widest continental shelf in the western Mediterranean [108]; (ii) the Southeast Iberia margins corresponding to the prolongation of the Betic structures on the continental margin and later affected by transtensional or extensional structures [109]; (iii) the Balearic Promontory, a structural high whose present-day configuration is due to the clockwise rotation of the Mallorca and Eivissa blocks resulting from the westward migration of the Alboran microplate; and (iv) the Alboran Sea, a semi-enclosed and tectonically active basin in the westernmost part of the Mediterranean Sea and, characterized by a first extensional stage followed by a compression since the Late Tortonian.

The Central Mediterranean Sea is a complex region shaped by a combination of tectonic, sedimentary, and erosional processes over millions of years. This region encompasses a variety of geological features, including basins, ridges, and volcanic structures [110]. The Central Mediterranean is dominated by the Italian Peninsula, whose present-day morphology is dominated by the Alpine and Apennine orogens, and the surrounding seas [111,112]. For the purpose of this summary, the Central Mediterranean Sea has been divided into four main sectors: (i) the back-arc Tyrrhenian Sea, whose opening occurred from NW to SE in the last 7 millions of years [113]; (ii) the Adriatic basin acting as foreland and foredeep of the Apennines and Dinarides mountain belts [114], (iii) the western part of the deep Ionian Sea, representing the remnants of the Meso-Cenozoic Tethys Ocean and (iv) the Strait of Sicily considered to represent an example of intraplate rift, with the superimposition of extensional and contractional phases [115,116].

The Eastern Mediterranean Sea stands as a geological relic of the Neotethys Ocean, shaped by a complex interplay of tectonic processes over millions of years. During the late Permian to early Middle Jurassic epochs, the Neotethys Ocean began its formation through extensive rifting of the Tauride-Anatolian plate and the Eratosthenes continental fragment from Gondwana’s northern margin [117,118]. This rifting activity ceased by the Bajocian, giving way to post-rift thermal subsidence in the Eastern Mediterranean basin and the subsequent development of passive continental margins in the Levant and Egypt [119].

As a result, much of our geological knowledge focuses on post-Miocene events, including the Messinian salinity crisis [120], the Dead Sea Transform Fault System, the evolution of the Nile delta, and the Cyprus Arc [101]. Recent scientific exploration efforts have unveiled the Eastern Mediterranean Sea significant hydrocarbon potential [38,83]. With a sedimentary cover exceeding 10 km in thickness [121], the basin hosts abundant hydrocarbon resources [122]. The discovery of numerous gas fields in the Nile delta of Egypt and offshore areas of Israel and Sinai underscores the basin’s importance as a hydrocarbon province [123]. For this summary, based on the available pockmark information, the eastern Mediterranean Sea is divided into three sectors: (i) the Nile Delta deep-sea fan, representing a thick sedimentary wedge that accumulated riverine sediments since the late Miocene [124], (ii) the Aegean Sea, one of the Mediterranean Cenozoic back arc basins and characterized by active tectonic [125], and (iii) the Black Sea, a semi-enclosed basin formed as the result of back-arc extension, with the development of two basins that coalesced in a single depocenter during their post-rift phase in the Pliocene [126].

3. Data and Methods

3.1. Dataset

The background bathymetry (e.g., multibeam data with a cell size of ~100 m), and geology data (e.g., faults and seafloor sediments) utilized in this study were obtained from the EMODnet data infrastructure. The infrastructure encompasses seven sub-portals, covering bathymetry, geology, physics, chemistry, biology, seafloor habitats, and human activities. The EMODnet Central Portal serves as a unified access point for these services, all of which are freely accessible and open for use (https://emodnet.ec.europa.eu/geoviewer/#!/ (accessed on 24 November 2025)) [127]. Where available, these data were complemented with high-resolution bathymetric data (e.g., multibeam data with a cell size of ~20 m), collected during various oceanographic cruises conducted between 2007 and 2013 as part of the Magic Project (Marine Geohazards along the Italian Coasts). The access to this additional data is provided by the Italian National Civil protection at the following link: https://www.protezionecivile.gov.it/it/approfondimento/progetto-magic-marine-geohazards-along-italian-coasts/ (accessed on 24 November 2025). The final Digital Elevation Model (DEM) was exported as ASCII ESRI files to ArcMap (https://www.esri.com/en-us/home (accessed on 24 November 2025)). Subsequently, the ASCII ESRI files were converted into raster files, forming the basis for generating the primary map and figures presented in this review.

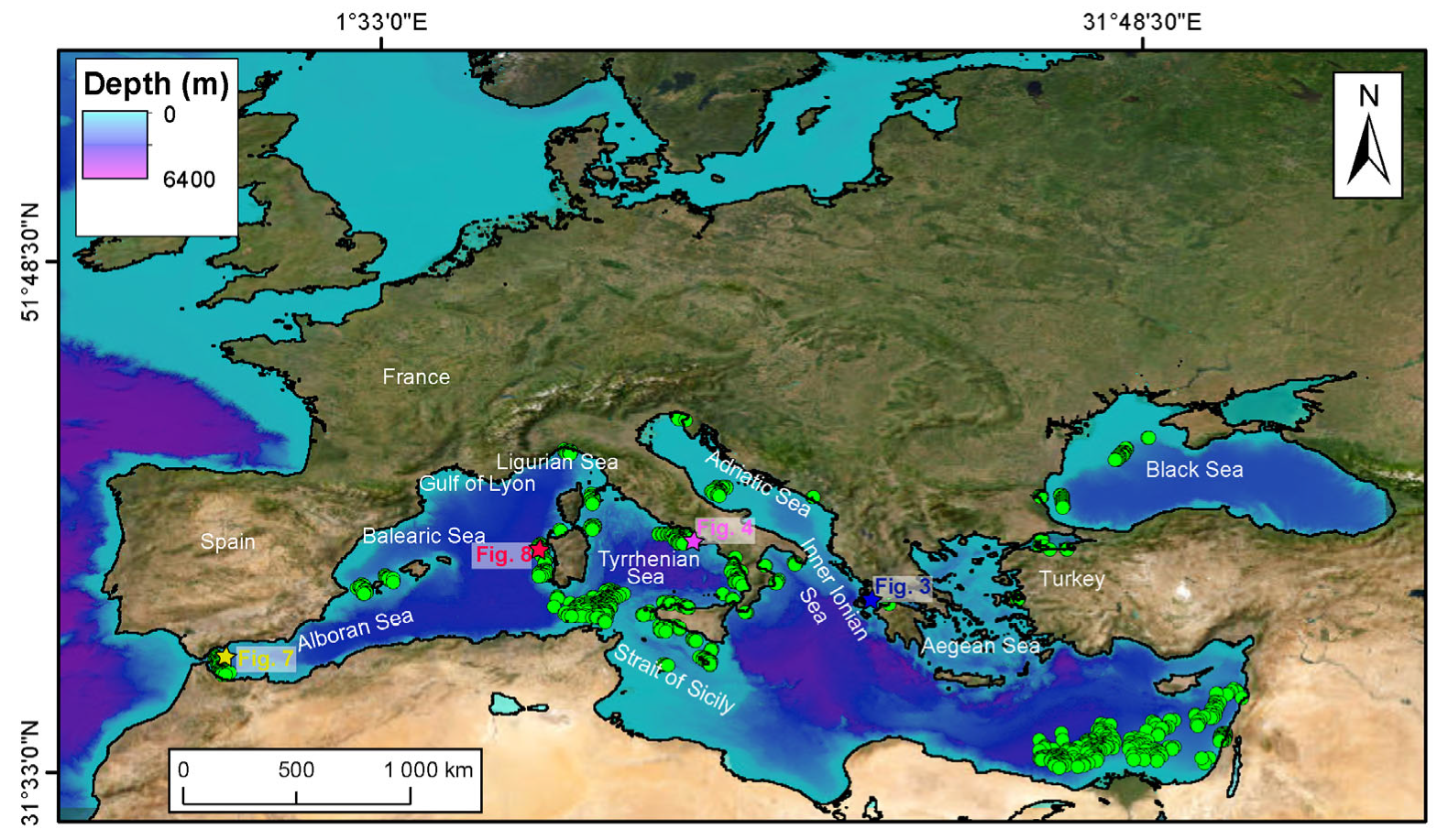

Starting from the public repository of pockmarks published by Spatola et al. (2025) [92] with 7516 valid pockmark records (Figure 6). Each pockmark entry includes up to 31 attributes, although not all fields are fully populated. The most complete and statistically relevant fields include: (i) Geographic location (Latitude, Longitude), (ii) Bathymetry (water depth in m), (iii) Slope of the seafloor (degrees), (iv) Distance from major faults, (v) Sediment thickness (Messinian, Plio-Quaternary, Pre-Messinian), (vi) Pockmark morphology (Mean axis, Internal depth, Shape), (vii) State of activity and fluid type (where available). This above-mentioned information was derived either from the reference articles or extracted from publicly available datasets (as raster, e.g., Sampietro et al. 2023 [128]) using the Extract Values to Points tool in ArcMap 10.8. General geomorphometric parameters (e.g., slope) were extracted from the bathymetric data by using ArcMap 10.8. The distance from two features (e.g., distance from pockmarks and faults) was calculated by using the tool Euclidian distance in ArcMap 10.8 (https://desktop.arcgis.com/en/arcmap/latest/tools/spatial-analyst-toolbox/Euclidean-distance.htm (accessed on 24 November 2025)). A summary table is reported below (

Table 2. Summary table of the main information of the pockmarks mapped in the Mediterranean and Black seas.

Seas	Bathymetry (m)_Mean	Bathymetry (m)_Min	Bathymetry (m)_Max	Slope (°)_Mean	Slope (°)_Min	Slope (°)_Max	Distance from Faults (m)_Mean	Distance from Faults (m)_Min	Distance from Faults (m)_Max	Thickness of the Pre-Messinian Sediments (m)_Mean	Thickness Of The Pre-Messinian Sediments (M)_Min	Thickness of the Pre-Messinian Sediments (m)_Max	Thickness of Messinian Sediments (m)_Mean	Thickness of Messinian Sediments (m)_Min	Thickness of Messinian Sediments (m)_Max	Thickness of Plio-Quaternary Sediments (m)_Mean	Thickness of Plio-Quaternary sediments (m)_Min	Thickness of Plio-Quaternary Sediments (m)_Max
Adriatic Sea	29	22	39	1	1	2	17,387	15,763	17,931	1197	1178	1400	600	600	600	0	0	0
Black Sea	459	103	1133	5	1	17	102,352	74	237,369	8070	5222	8600	1133	622	1600	621	136	1205
Central Adriatic Sea	200	163	242	0	0	1	45,644	21,748	66,678	1663	1489	1933	1435	1200	1556	683	438	782
Central Tyrrhenian Sea	313	48	647	4	0	18	7572	2332	13,927	3346	2733	3667	1214	1022	1356	420	212	548
Eastern Mediterranean Sea	1165	4	3134	4	0	26	131,564	2395	294,308	9731	1800	16,533	3173	1000	6556	2083	176	4528
Inner Ionian Sea	500	8	1050	1	0	2	400	0	1000	-	-	-	-	-	-	50		1500
Italian Seas	488	12	813	5	0	22	42,900	32	236,461	3588	1178	4511	1721	600	3244	807	0	1913
Northern Adriatic Sea	17	16	18	0	0	0	1097	954	1240	1256	1178	1333	911	800	1022	202	133	272
Northern Tyrrhenian Sea	661	125	1188	5	0	19	2547	14	9136	1744	1311	2733	1333	978	1711	566	283	974
Southern Tyrrhenian Sea	663	15	2649	5	0	33	28,612	31	131,554	3263	1756	4556	2184	911	3844	1381	253	2468
Strait of Gibraltar	618	393	914	2	0	10	16,037	421	35,897	2131	1867	2600	1796	1378	2378	1011	583	1684
Strait of Sicily	139	14	842	2	0	16	29,898	5	59,382	4744	3222	6111	1061	822	2667	316	182	1959
Western Mediterranean Sea	647	123	1023	5	0	26	10,931	231	27,087	1840	1489	2244	1459	933	1800	715	276	1147
Western Sea of Marmara	686	576	824	5	1	8	89,220	84,750	92,622	1667	1667	1667	925	911	956	383	375	400

). It is important to note that the sediment thickness data were derived from low-resolution raster datasets [128]. The authors locally calibrated the dataset using available seismic profiles, thereby improving its reliability in selected areas. This data is currently the only available dataset that provides full coverage of the Mediterranean region. Although the limited spatial resolution represents a constraint, it is generally acceptable for regional-scale analyses.

Descriptive statistics such as mean, median, standard deviation, and variance were computed to summarize morphometric attributes of the pockmarks. Further analytical procedures included the construction of correlation matrices to assess relationships between variables, and visual representations including histograms, scatter plots and boxplots. In particular, the statistical assessment focused on identifying spatial trends and relationships between pockmark occurrence and state of activity with geophysical variables such as bathymetry, slope gradient, seafloor sediment lithology, and proximity to fault systems.

Limitations

We recall that some limitations should be considered regarding the resolution of the bathymetric data and the size of the identified pockmarks. These two parameters are not necessarily dependent on each other. The grid size represents the mapping unit used to partition the bathymetric surface, and each cell was assigned a label indicating the presence or absence of pockmarks. Therefore, a 100 m grid resolution does not introduce a bias toward larger pockmarks, since even the smallest mapped features would still mark their intersected cell as “present.” In fact, this limitation is partly mitigated by the fact that the database was compiled, whenever possible by using morphological information extracted from literature sources where pockmarks had been mapped at much higher resolutions. This ensures that the dataset integrates the most accurate positional data currently available. Overall, the adopted 100 m resolution represents a reasonable compromise between spatial detail and computational efficiency. In this sense, the present review aims to provide a synthesis of all published pockmark cases for which the precise geographic location is known. Nevertheless, future mapping efforts could benefit from the application of downscaling techniques in a pre-processing phase to enhance DEM resolution and produce more detailed maps.

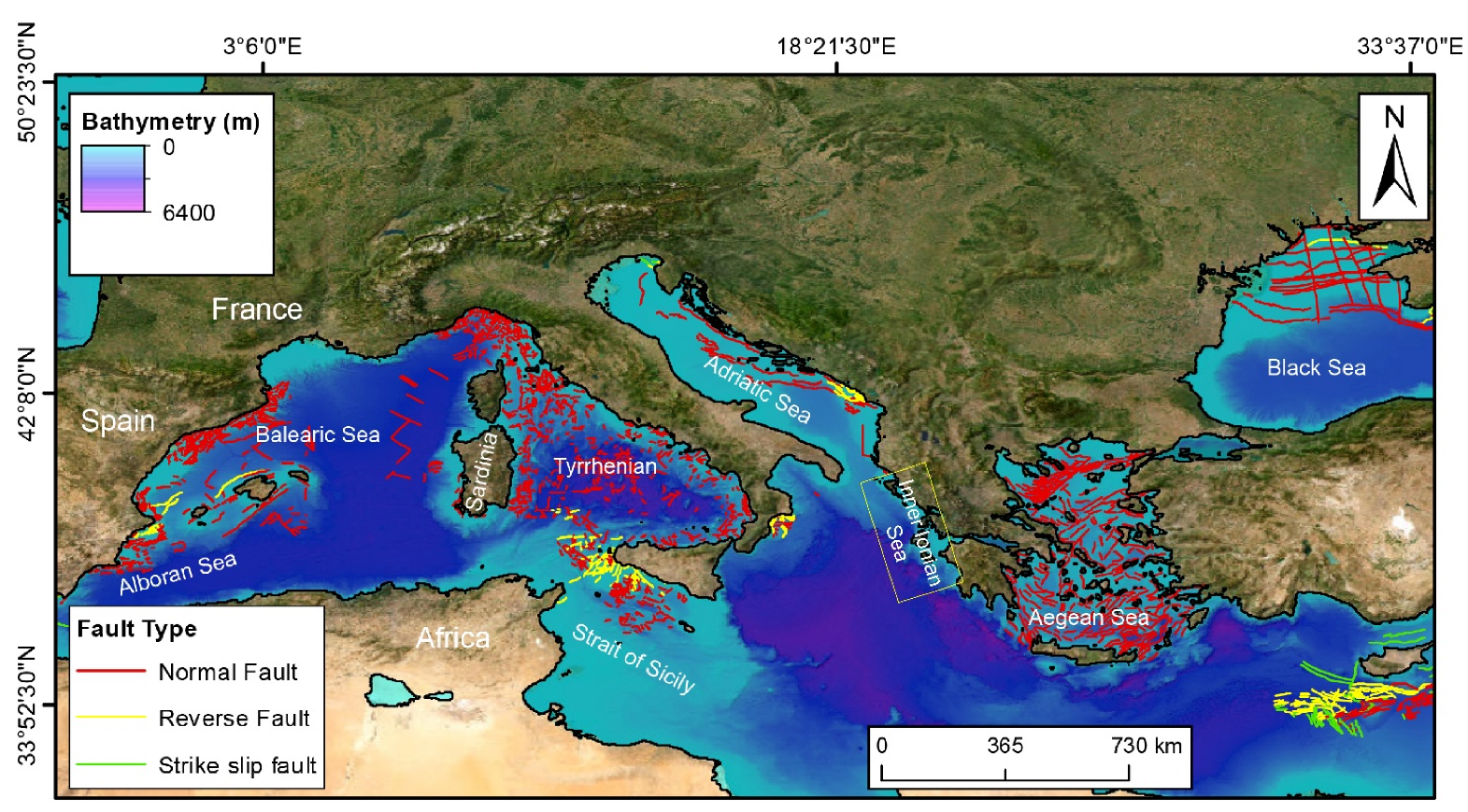

For the fault and seafloor lithology layers, we used data from EMODnet Geology (https://emodnet.ec.europa.eu/geoviewer/ (accessed on 24 November 2025)) as baseline information. Although these public databases provide valuable regional coverage, their relatively low spatial resolution remains a significant limitation. To mitigate this, we integrated additional datasets from scientific sources such as the Modello Strutturale d’Italia [129].

All pockmark information was manually tabulated and independently verified by the authors through consultation of the original literature sources listed in the database (Table S1 in Supplementary Material). Rigorous validation procedures were implemented to ensure data consistency, including the detailed examination of published metadata in public repositories (e.g., EMODnet Bathymetry). Potential outliers or duplicates were identified and removed by analyzing the spatial distribution and morphological characteristics of each feature through georeferencing. Any future updates of the database [17] will undergo the same validation process to ensure reliability and reproducibility.

4. Current State of Knowledge and Case Studies

Pockmarks are probably the most common fluid flow morphology in the Mediterranean region. They are located from its western edge in the back-arc setting of the western Alboran Sea [130] to its eastern edge in the Levantine Basin [38]. They are located from shallow to deep sea areas at both passive and active continental margins such as: (i) active continental margin, e.g., north Sicily [131]; (ii) passive continental margin, e.g., Strait of Sicily [71,131]; (iii) thick sedimentary basin areas, e.g., Nile deep-sea fan [132], (iv) intraslope ridge, e.g., Paola and Palmarola ridges in the Tyrrhenian Sea [33,133]; (v) land-locked inland sea, e.g., Black Sea [44].

4.1. Western Mediterranean Sea

4.1.1. The Gulf of Lion and Northeast Iberian Margins

Fluid emissions in this region span from the shallow prodeltaic environments of major rivers Rhone, Fluvià-Muga, Ter, Besos, Llobregat, Tordera, and Ebro to the deep continental slope. Gas seepage is notably evidenced in continental shelf settings by acoustic wipeouts and acoustically turbid zones that obscure stratified prodelta deposits, suggesting microbial gas derived from organic-rich fluvial sediments [134,135,136]. In the Gulf of Lion prodelta, gas bubbling into the water column has been observed in echosounder data as acoustic plumes, typically located just above sediments showing wipeout and turbidity effects [130]. On the continental slope, more than 180 pockmarks have been identified at water depths between 200 and 500 m, particularly in the interfluve zone between the Boucart and Hérault canyons [108]. These pockmarks are circular in plan-view and V-shaped in cross-section, with diameters ranging from >10 to <200 m and reliefs of a few m. They overlie an anticline structure and show acoustic signatures such as blanking and bright spots indicative of free gas [137]. Seismic profiles further reveal vertically stacked, buried pockmarks beneath the seafloor, suggesting multiple episodes of gas migration associated with Quaternary sea-level fluctuations [49].

Other evidence of fluid escape was recognized at the Cap de Creus canyon head, where gas seepage is indicated by acoustic blanking in near-surface sediments and water column backscatter anomalies manifesting as hyperbolic echoes, possibly due to bubble rise [138]. Further south, on the slope near the Columbretes Islands (Balearic Sea), seismic data shows bright spots, wipeouts, and a mega pockmark with a maximum diameter of ~500 m linked to present-day magmatic activity [139]. On the Ebro continental slope, 3D seismic profiles identify circular and elliptical pockmarks with U-shaped cross-sections, varying from 0.1 to 1 km in diameter and tens of m in internal depth. These features were interpreted to originate from organic-rich Ebro River sediments, with vertical gas migration facilitated by palaeo-canyon incisions that create stratigraphic discontinuities [140].

4.1.2. The Southeast Iberia Margin

The Southeast Iberia Margin is characterized by numerous pockmarks, notably in the Mar Menor continental shelf where circular V-shaped depressions are aligned in NNW-SSE clusters and spatially associated with active faults and volcanic structures [109]. Near the Torrevieja graben, pockmarks on the continental slope at ~500 m water depth range from 400 to 1200 m in diameter and 4–35 m in internal depth. Potential mud volcanoes were also identified, though no mud breccias have been confirmed [141]. The Palomares margin shows many pockmarks both on the shelf and slope domains. On the shelf, distal areas of the Almanzora prodelta host circular and elongated pockmarks (~50 m in diameter, few m in internal depth), some coalescing into linear trains along gully floors and slide scarps. On the slope, the Aguilas High area (770–860 m water depth) features randomly distributed pockmarks up to 90 m wide affecting mass flow deposits.

4.1.3. The Balearic Promontory

Gas-related features are concentrated in the Ibiza Channel and between Ibiza and Mallorca. In the Ibiza Channel, pockmarks with circular plan-view geometries range from 80 to 700 m in diameter and 2–55 m in internal depth [142]. Near the Xàbia seamount, two distinct clusters were recognized: one of large (>500 m) depressions and another of small (~10 m) pockmarks [143]. Southward, consistent 100 m diameter and 15 m relief features appear at ~500 m water depth. Between Ibiza and Mallorca, pockmarks (100–500 m diameter, 10–35 m deep) show diverse morphologies from isolated depressions to linear trails and incipient gullies aligned NW-SE or NE-SW. While the fluid origin remains uncertain, thermogenic sources linked to volcanic bodies and tectonic structures are considered, along with biogenic alternatives [142,143]. In this region, the spatial distribution (alignment) of pockmarks suggests a neotectonics control on fluid migration [142,143].

4.1.4. The Alboran Sea

The Alboran Sea shows widespread pockmarks and mud volcanoes. Over 200 pockmarks have been mapped in the Ceuta Drift (350–900 m water depth), ranging from circular (~100–615 m wide) in the southeast to elliptical (240–1430 m wide) in the northwest near the Strait of Gibraltar [144,145]. These pockmarks display both V- and U-shaped morphologies with internal depths of <1 to 20 m and slopes up to 22°. U-shaped features may reflect sediment infill from slope failures [144]. Additional circular and elongated (affected by the bottom current) pockmarks organized in clusters in the westernmost Alboran Sea (Figure 7). Around Avempace Seamount, circular coalescing pockmarks (~600 m in diameter) are documented [70]. South of the Xauén Bank, ~100 pockmarks (≤400 m in diameter) with circular and elongated shapes occur in plastered drifts along the Moroccan slope [70]. These features are thought to result from shallow gas trapped in coarse contourite sediments, potentially mobilized by internal wave-induced hydraulic pumping [145,146].

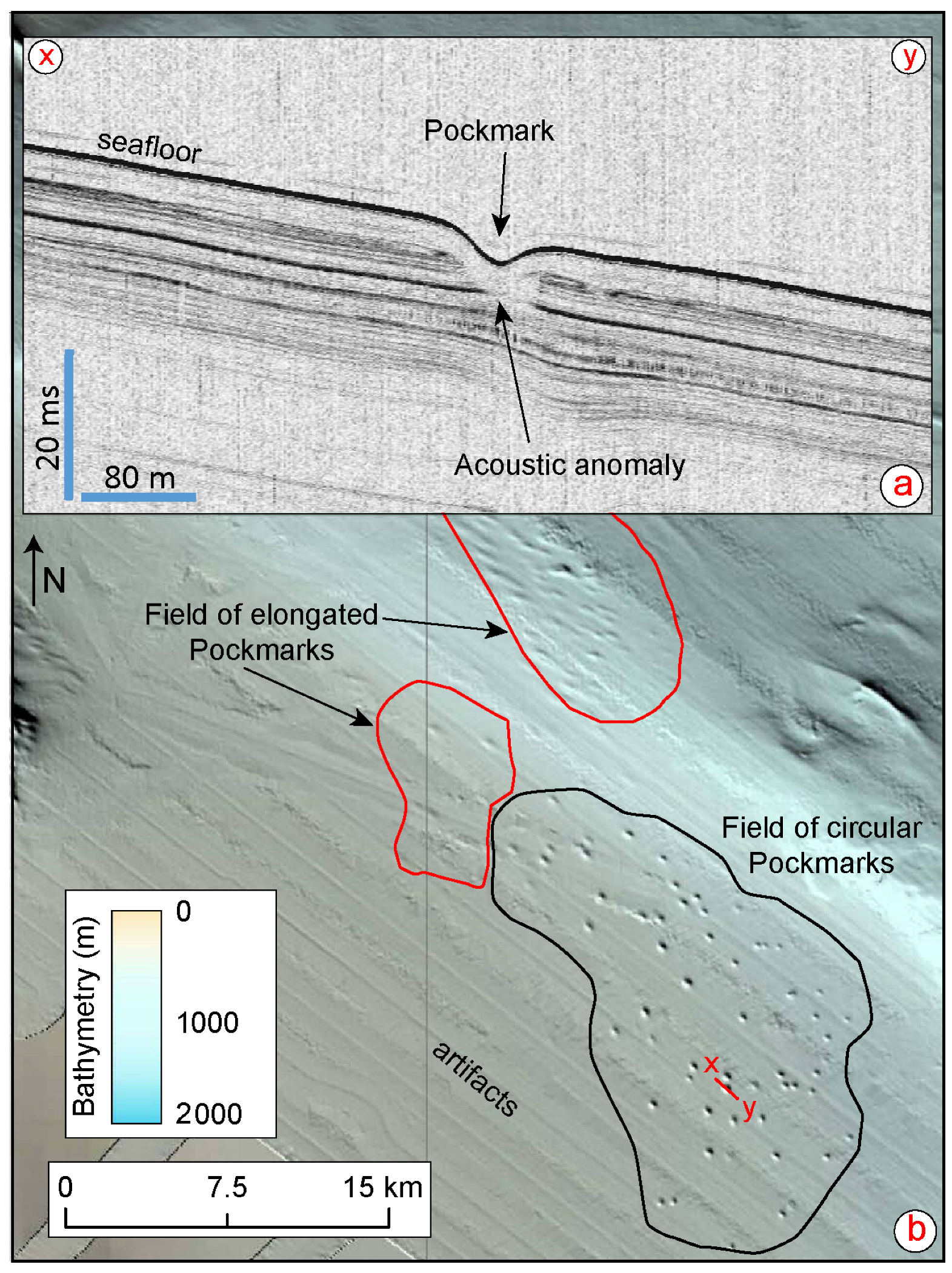

Figure 7. (a) Sub bottom profile crossing a pockmark, location in Figure 7b. (b) Shaded relief map of the Westernmost of Alboran showing the presence of circular and elongated pockmarks organized in cluster. (Data from Instituto de Ciencias del Mar, ICM-CSIC, GMC, Barcelona, Spain). Location in Figure 6.

Figure 7. (a) Sub bottom profile crossing a pockmark, location in Figure 7b. (b) Shaded relief map of the Westernmost of Alboran showing the presence of circular and elongated pockmarks organized in cluster. (Data from Instituto de Ciencias del Mar, ICM-CSIC, GMC, Barcelona, Spain). Location in Figure 6.

4.2. Central Mediterranean Sea

4.2.1. Tyrrhenian Sea

In the Northern Tyrrhenian Sea, significant pockmark activity has been documented in association with mass-transport deposits (MTDs), particularly around the pressure ridges and sidewalls of the Pianosa Slump and within contourite drifts along the Corsica Trough [61,82]. Here, pockmarks are often rooted on buried MTDs and turbiditic lobes or elongated along dominant bottom current pathways. Oblique chimneys visible in seismic profiles underscore the influence of hydrodynamic processes on fluid escape features [61,147]. A noteworthy site is located near a shallow mud volcano on the Pianosa-Elba Ridge, approximately 5 km northeast of Scoglio d’Affrica, where a large field of unit pockmarks has been mapped [148,149]. Gas analyses revealed 95 vol% CH₄, minor CO₂, N2, and traces of He, indicating a predominantly secondary microbial origin. Isotopic compositions of CH₄ (δ13C and δ2H) and CO₂ also support this, alongside a clear signature of crustal-derived radiogenic helium [150].

In the central Tyrrhenian Sea (200–400 m water depth), pockmarks vary widely in size 85–830 m wide, 90–1000 m long, and 9–147 m deep. These features appear as isolated or aligned depressions, often circular or elliptical, and have been identified across abandoned slope channels and blind faults in the western Sardinian margin (Figure 8), which is tectonically passive and characterized by low sedimentation rates [33,94]. Off Cilento’s coast in the southeastern Tyrrhenian Sea, a cluster of 11 circular pockmarks lies within 12–45 m water depth. They are organized into two groups, larger ones measuring 100–200 m across and 20–25 m deep, and smaller ones of 20–40 m diameter and 3–5 m depth. Their formation is linked to turbulent plumes from submarine freshwater springs [151].

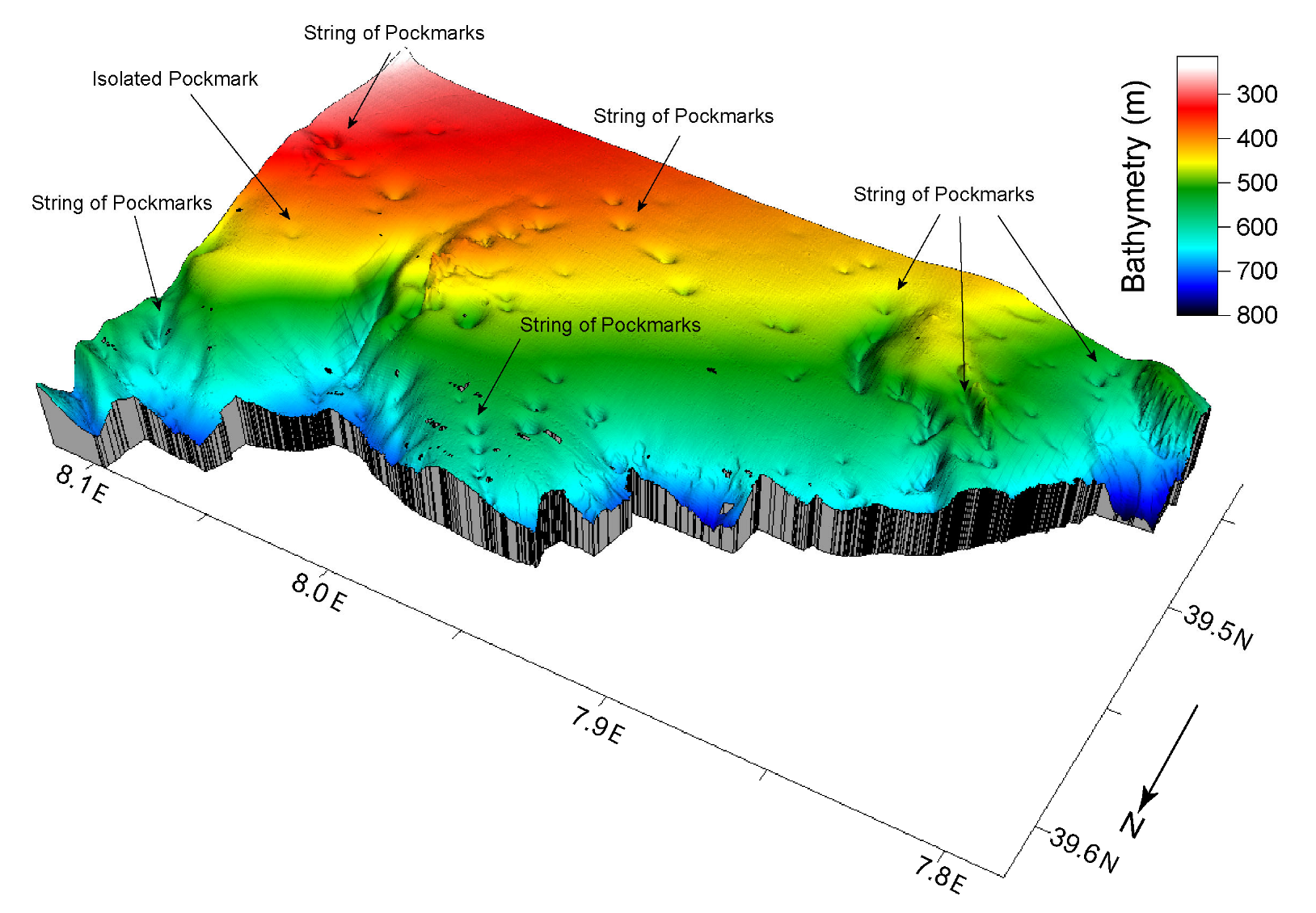

Figure 8. Three-dimensional perspective view (vertical exaggeration 5×) of a large field of pockmarks in the western Sardinian margin. Bathymetric data source: EMODnet Bathymetry (Pixel grid resolution: 25 m). Location in Figure 6.

Figure 8. Three-dimensional perspective view (vertical exaggeration 5×) of a large field of pockmarks in the western Sardinian margin. Bathymetric data source: EMODnet Bathymetry (Pixel grid resolution: 25 m). Location in Figure 6.

On the Paola Ridge (500–1000 m water depth), high-resolution acoustic and seismic data have revealed various seafloor fluid structures: (1) active venting sites with sporadic pockmarks associated with gas flares; (2) low-venting flanks showing mud flows; and (3) inactive seepage features like mud diapirs and extensive pockmark fields [133]. Fluid flow morphologies here were interpreted as hydrothermal vent complexes associated with igneous intrusions, where methane-derived siderite precipitates show δ13C and δ18O enrichment from methanogenesis and deep-sourced CO₂ venting [10]. Mud diapirs host “cold seep” pockmarks (20–50 m wide, 0.5–1 m deep) with the presence of authigenic methane-derived carbonates and chemosymbiotic fauna like Lucina sp. and Acharax sp. [152].

On the northwestern Sicilian margin (260–375 m water depth), nearly 30 sub-circular to elliptical pockmarks are grouped into preferential arrays. These pockmarks (~400 m wide, ~20 m deep, 2–4° wall slope) appear isolated, in clusters, or aligned as elongated gullies. Seismic profiles depict concave-upward reflectors beneath these pockmarks, frequently accompanied by acoustic anomalies suggestive of gas presence.

4.2.2. Adriatic Sea

Fluid seepage in the northern Adriatic was first observed offshore Rovinj, Croatia, as persistent sea-surface bubbling [153]. Later studies in the Venice and Trieste Gulfs revealed pervasive gas seepage at ~10 m water depth, indicated by acoustic plumes and methane-derived carbonate concretions [154], with microbial methane sources confirmed via geochemical evidence [154]. However, the detection of pockmarks remains limited due to a lack of high-resolution bathymetry. Southward, from the Po Delta to Pescara, high-resolution sub-bottom data revealed shallow methane anomalies in both High-Stand and Transgressive System Tracts, suggesting fluid genesis independent of flooding or fluvial input [155]. At Bonaccia, offshore Ancona (~80–90 m depth), circular pockmarks (~200 m diameter, 2 m deep) were mapped using multibeam and seismic data. These features are linked with CH₄-derived carbonates, chemosymbiotic fauna, and acoustic plumes rising 70 m above the seafloor into the water column. Seismic data shows gas traps in channel beds sealed by fine-grained levee deposits ideal vertical migration pathways [156,157]. The Meso-Adriatic Depression (MAD), a residual basin bounded by the Gallignani-Pelagosa Ridge, shows pockmarks potentially linked to focused fluid flow along tectonic structures. These pockmarks show alignment patterns and may date back to the Upper Pleistocene. Southeast of MAD, near Jabuka Islet, salt diapirism has uplifted Triassic igneous bodies, creating pockmarks, gas chimneys, and mud volcanoes. These features are associated with NW-SE faults developed by halokinetic and compressive tectonics since the Paleogene [158].

4.2.3. Strait of Sicily

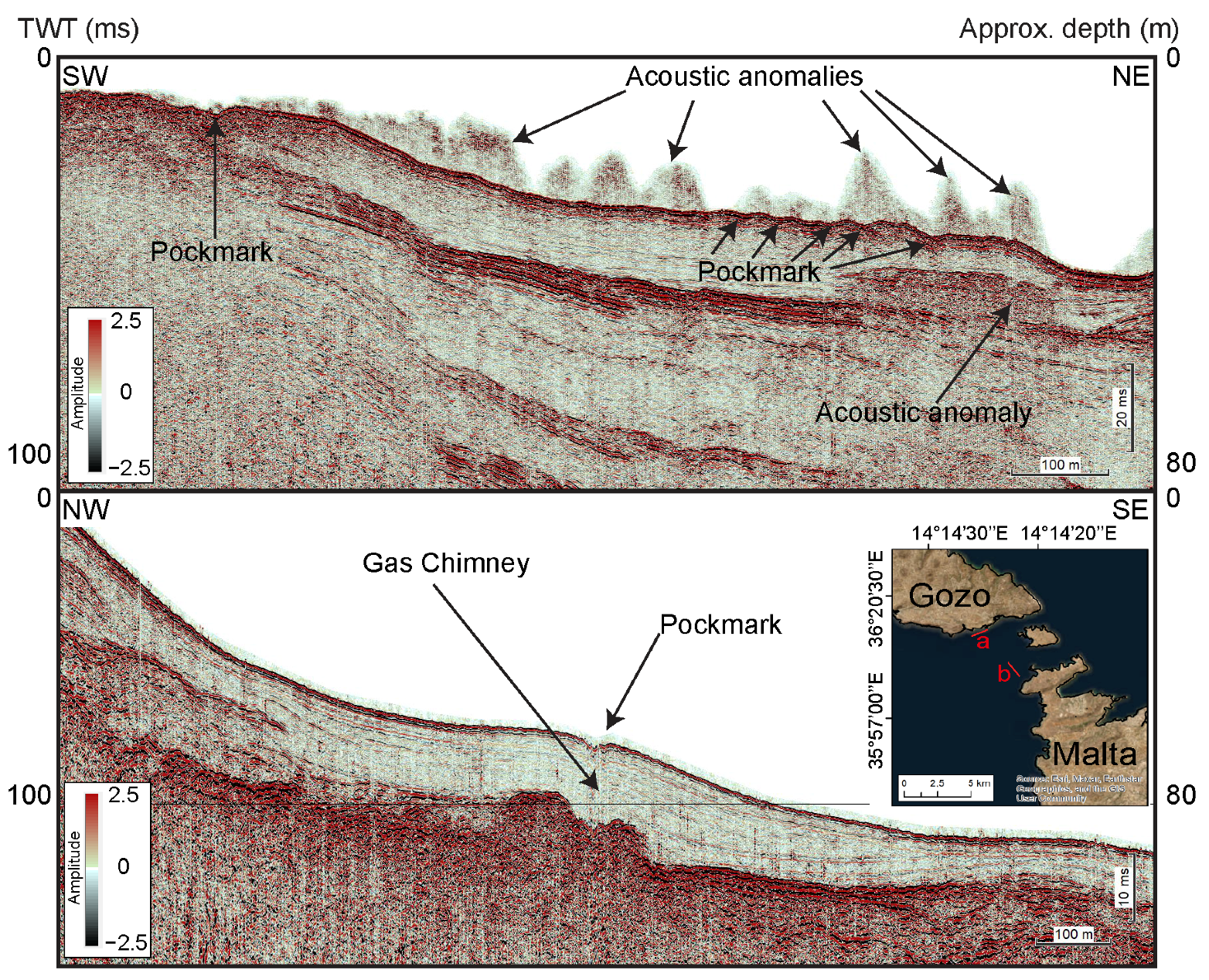

The Strait of Sicily features extensive fluid seepage associated both with shallow and deep reservoirs [71,159,160]. Along the northeastern Malta Plateau (140–170 m water depth), over 100 small mud volcanoes and ridges occur and more than 500 pockmarks (~13 m² area, ~0.6 m depth, max diameter 22 m) have been mapped using side scan sonar. They are clustered mainly at 140–150 m water depth and aligned NW-SE, matching local fault patterns [71]. South of Malta, >1000 circular and elliptical pockmarks (up to 100 m wide, 3 m deep) organized in dense clusters along NW-SE or WSW-ENE trends were identified using high-resolution multibeam and sub-bottom profile data (Figure 9). They are locally characterized by the presence of acoustic anomalies in the subseafloor and in the water column (Figure 9). Water and sediment analyses show high CH₄ and CO₂ concentrations, authigenic minerals (barite, pyrite), and carbonates, often linked with hydroacoustic anomalies and seismic chimneys beneath the seafloor [56,131]. In the NW Strait of Sicily, the Graham Bank hosts giant pockmarks (25–580 m diameter, 1.3–15 m deep) aligned NW-SE or appearing isolated [161]. These features, V-shaped in section, show upward concave reflectors and vertical hydroacoustic anomalies from gas flares [162]. Multichannel seismic profiles reveal vertical acoustic blanking interpreted as gas chimneys (VIDEPI Project, 2012). Around Linosa Island, a vast pockmark field was recently mapped, further confirming the role of Plio-Pleistocene extensional faults as key fluid migration pathways in the Strait of Sicily [163,164].

4.3. Eastern Mediterranean Sea

4.3.1. Inner Ionian Sea and Interconnected Gulfs

In the Inner Ionian Sea (Western Greece), salt diapirs mobilized by tectonic thickening act as fluid conduits [165,166]. Cold seeps are observed in deltas, gulfs, and deep basins [166]. Amvrakikos Gulf features buried pockmarks and plumes at the Pleistocene-Holocene boundary [165,166]. Amphilochia Bay hosts fault-aligned pockmarks with microbial-thermogenic CH₄ [167]. In the southern margin of Patras Gulf, an important pockmark field is situated in the coastal zone of the city of Patras, between the 17–45 m isobaths, consisting of 115 pockmarks (~7.3 m deep) (Figure 10). This field is fault-controlled and has been activated at least twice by earthquakes [84,168]. More recently, a distributed temperature sensor (DTS) system was deployed inside a shallow pockmark for monitoring seabed water temperature recording four thermal events that seem to have a causative link with the local seismicity [169].

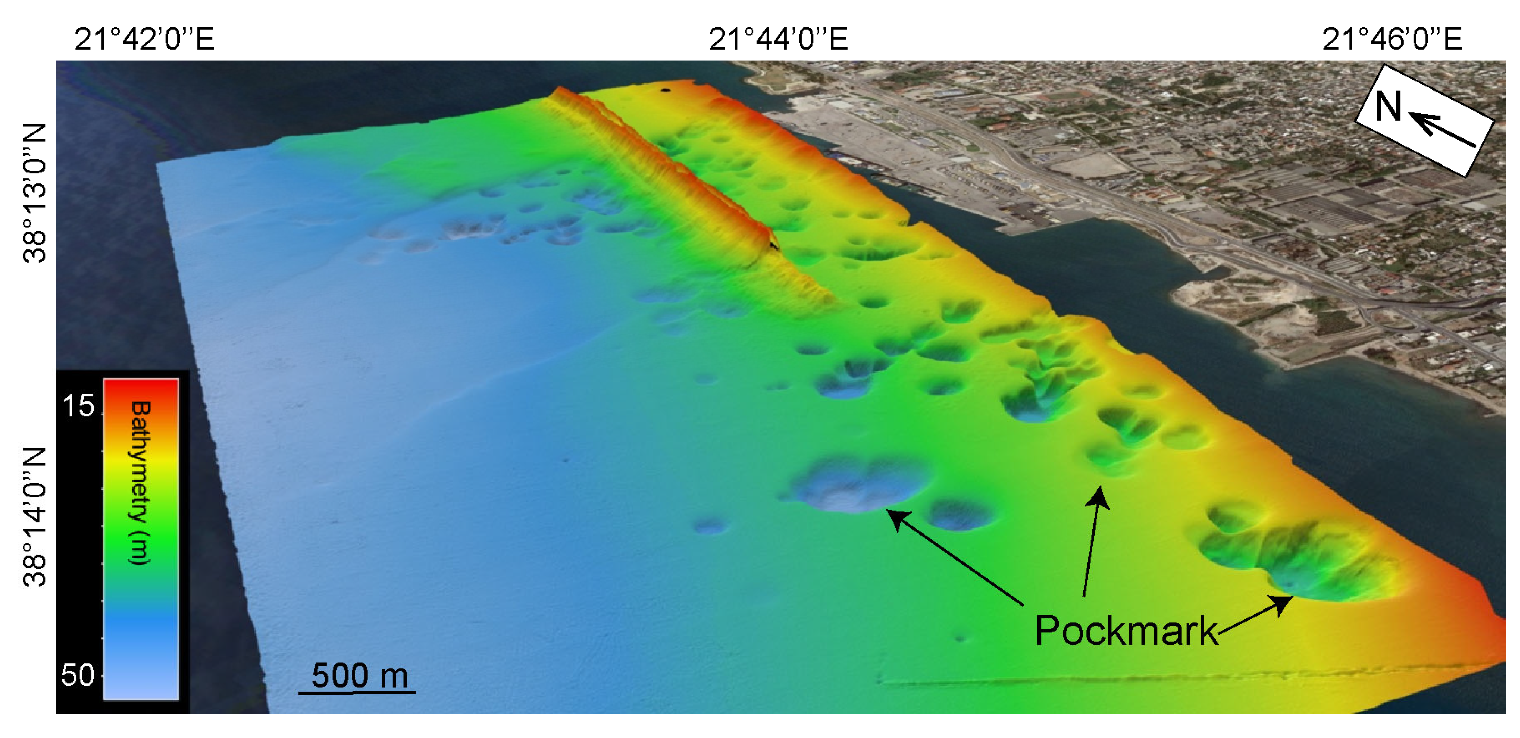

In Helike Delta and Elaionas Bay, pockmarks (10–60 m wide, 10–15 m deep) show gas-charged sediments and freshwater plumes. Biological surveys reveal dense benthic life inside pockmarks, though diversity decreases outward [168]. A deep cluster of nine pockmarks (40–132 m diameter; 2–8 m deep) lies in Kyparissiakos Gulf (~1050 m depth), with seismic chimneys indicating thermogenic gas [165].

4.3.2. NW Mediterranean Ridge to Eratosthenes Seamount

The northwestern part of the Mediterranean Ridge, including the Cobblestone area, lies at water depths between 3000 and 4000 m and hosts different mud volcanoes and pockmarks. Deep-tow side scan sonar surveys have revealed two primary pockmark groupings. The first comprises 4–5 closely spaced pockmarks approximately 75–85 m in diameter, while the second is a composite of a dozen overlapping pockmarks ranging from <20 m to ~50 m in diameter, increasing westwards [170]. In the Olimpi mud volcano field, different pockmarks genesis has been hypothesized as follows. A brine-filled pockmark (~2–3 m in diameter) is situated on the Napoli mud volcano. On the Milano mud volcano’s NW flank, larger superposed pockmarks (>300 m) contain smaller ones (~100 m), some filled with brine. Isolates brine-filled depressions, such as the 250–300 m wide, 8–10 m deep Nadir Brine Lake, occur throughout the Olimpi area [170]. In the United Nation Rise, over 60 pockmarks (>2200 m water depth) are associated with mud volcanoes and/or faults. These include: (i) 15–18 linear pockmarks (90–170 m diameter, >10 m deep); (ii) five nearby pockmarks of similar dimensions; (iii) four overlapping, flat-floored pockmarks (~100–150 m); (iv) 8–9 V-shaped pockmarks aligned with a slump scarp; (v) 15–18 varied-size pockmarks (55–130 m diameter); and (vi) a cluster around a large 350 m-wide depression [171]. At the Eratosthenes Seamount, 42 pockmarks were mapped, ranging from 40 to 200 m in diameter. These pockmarks were subdivided into three size categories: small (<80 m, average 50 m), medium (120–170 m, average 140 m), and large (~200 m). Sub-bottom profiles show these depressions extend from few m to >15 m below the seabed. Furthermore, deep-water pockmarks in this region fall into four types [170]: (i) those associated with active mud volcanoes, (ii) those linked to extinct mud volcanoes and faults, (iii) those near active faults or scarps, and (iv) those occasionally related to submarine slumps [132].

4.3.3. Aegean Sea

Despite its potential, the North Aegean Sea remains underexplored. Gas-charged sediments and wipeouts have been detected on the Thermaikos Gulf shelf-edge and Sporades shelf by using high resolution seismic reflection data [166]. Small pits, likely pockmarks, were found near active fault footwalls [166]. In the Prinos-Nestos basin (6–25 m depth), pockmarks (<25 m wide and <3 m deep) form from submarine freshwater discharge, although thermogenic gas from Greece’s only productive oil field might contribute in the genesis of such morphologies [172]. The South Aegean Sea is characterized by the back-arc volcanism of the Hellenic volcanic arc, which is responsible for many active hydrothermal manifestations both onshore and offshore. CO₂-rich hydrothermal vents dominate fluid chemistry. Marine surveys along the South Aegean Sea Volcanic Arc have focused on Santorini and mainly on the Kolumbo Volcanic Chain, without, in any case, showing the presence of pockmarks [166].

4.3.4. Nile Delta Deep-Sea Fan Region

In the southeastern Mediterranean, pockmarks are widespread along the Levant margin and the eastern Nile fan, particularly at the toe of the salt-rooted Palmahim Disturbance [38]. The Nile Delta deep-sea fan, a passive margin, is characterized by widespread fluid seepage [39]. Pockmarks, recognized by sonar as high backscatter patches, have been identified in the western, central, and eastern provinces [38,39,132]. In the central province (1800–2500 m water depths), a large field of pockmark is associated with sediment destabilization [173]. Gas chimneys beneath some pockmarks suggest thermogenic origins, though others, linked to slope failure, might have mixed microbial and thermogenic sources. In the Rosetta Channel, >1500 unit pockmarks (V-shaped in cross-section) were identified (5–41 m diameter, average 17 m; 0.4–0.8 m deep) at 400–800 m depth [174].

Along the offshore of Israel, 3D seismic data-derived bathymetry data shown the occurrence of sub-circular depressions [83]. These depressions are circular to oval, 200–500 m wide and less than 50 m deep and are interpreted as pockmarks formed by fluid escape at the seabed [83]. Seismic data reveal high-amplitude reflections and fluid pathways linked to faults and folded strata, indicating both vertical and lateral gas migration [38]. ROV observations confirm active methane seepage, with microbial mats and methane-derived carbonates hosting chemosynthetic fauna. These features mark long-lived fluid flow systems and important biodiversity hotspots on the deep Levant margin [175].

4.4. Black Sea

The first recorded sampling of natural gas hydrates in the Black Sea occurred in 1974 [176]. Over the following decades, extensive geophysical and oceanographic surveys identified gas-charged sediments, bottom-simulating reflectors (BSRs), gas hydrate stability zones (GHSZ), and numerous seepage sites, including mud volcanoes and pockmarks [177,178,179]. The northwestern passive margin hosts two major organic-rich sedimentary fans, the Danube and Dniepr [180]. Periodic seafloor anoxia has created conditions favorable for gas accumulation. Over 10,100 vent sites have been mapped in the Romanian and Bulgarian sectors, linked to canyon and levee structures and often associated with gas chimneys, pockmarks, and mud volcanoes [178,181,182]. More than 340 pockmarks, mostly 40–50 m in diameter, have been documented in this margin. Some have coalesced into elongated depressions. Active gas escape is common, with sediment and water samples indicating biogenic or deep-sourced microbial gas, and minor thermogenic components [183]. Offshore Bulgaria, over 300 pockmarks were identified near the southern shelf break (160–350 m water depth), with another 160 near Cape Kaliakra (220–400 m water depth). Many pockmarks display acoustic flares. On the southeastern Turkish shelf, a large field of circular (50–120 m water depth) and elongated (200–250 m, 10–25 m deep) pockmarks occurs near the Yesilırmak Delta [177]. Buried pockmarks suggest episodic gas migration linked to seismicity. In the Tuapse area (NE Black Sea), pockmarks > 100 m diameter occur at >1500 m water depths, linked to shallow gas and faults. At the eastern basin (~2100 m water depth), fault-controlled pockmarks are observed [184]. In central sectors (~2000 m water depth), numerous 80–500 m wide, up to 8 m deep pockmarks form near mud volcano rims and may be deformed by mudflows [185].

5. Results and Discussion

This section presents a detailed statistical analysis of the 7516 pockmarks distributed across the Mediterranean Sea and Black Sea. However, it should be noted that the analysis inherently carries a number of uncertainties that cannot be fully assessed, since the information derives from heterogeneous datasets acquired with different instruments and originally mapped by different operators. The dataset reveals in the Mediterranean region, a wide range of pockmark sizes and depths. Diameters vary from 10 m to over 1000 m, with an average of ~230 m; internal depth values are up to tens of meters. We also tabulated all the pockmark parameters in Table S1 in Supplementary Material.

5.1. Statistical Analysis of Mediterranean Pockmark Dataset

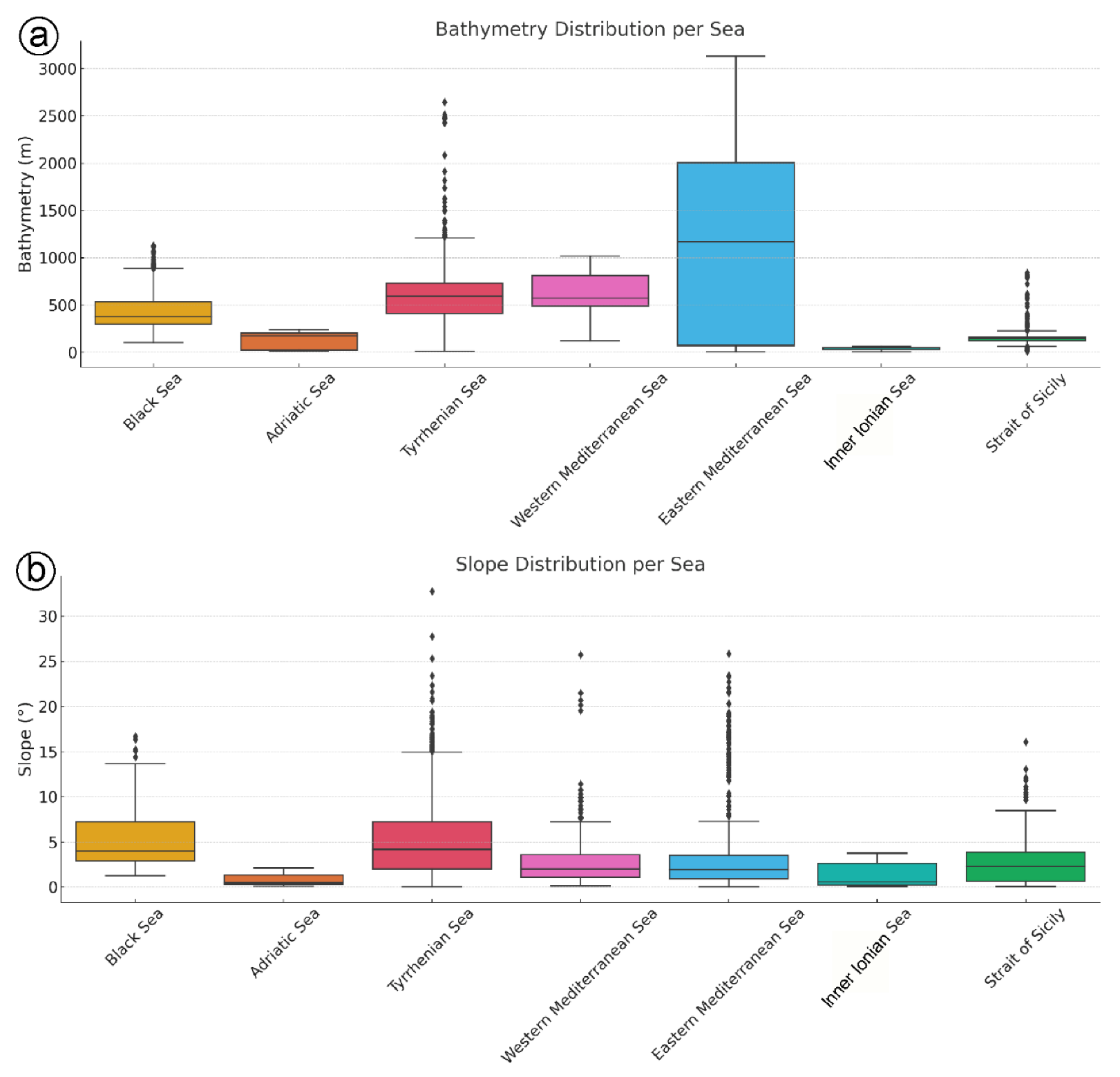

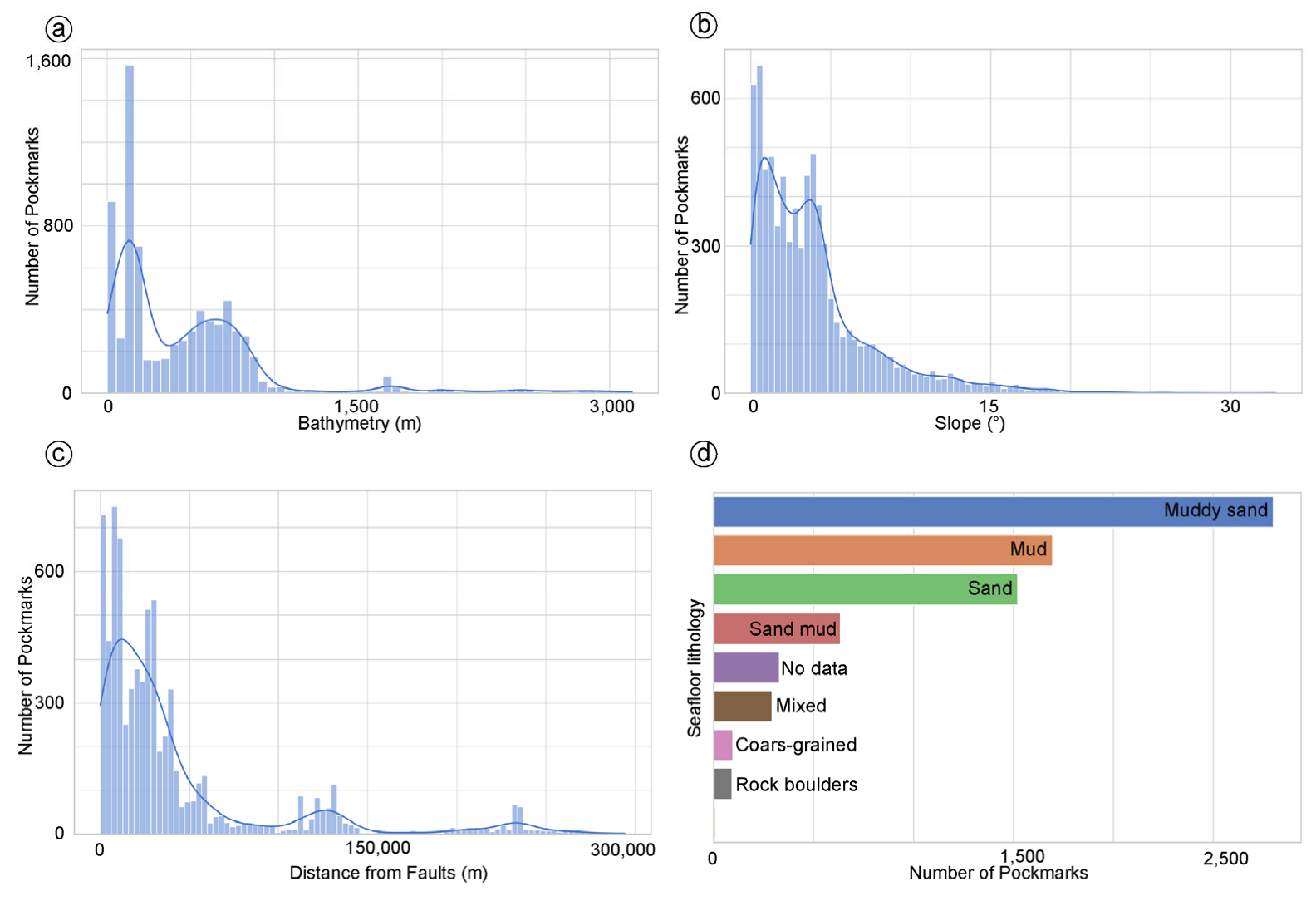

Bathymetry: In the Mediterranean and Black seas, the bathymetric distribution of pockmarks reveals a bimodal trend with two primary clusters: shallow pockmarks (100–200 m) and intermediate depth pockmarks (500–700 m). However, we need to consider that this particular water depth distribution of pockmarks may also be indicative of a technological bias associated with the exponential decline in resolution of vessel-mounted multibeam bathymetry as water depth increases (Figure 11a). Alternatively, this distribution may be influenced by the scarcity of high-resolution bathymetric data available for both the deep sea and the continental shelves [92,186].

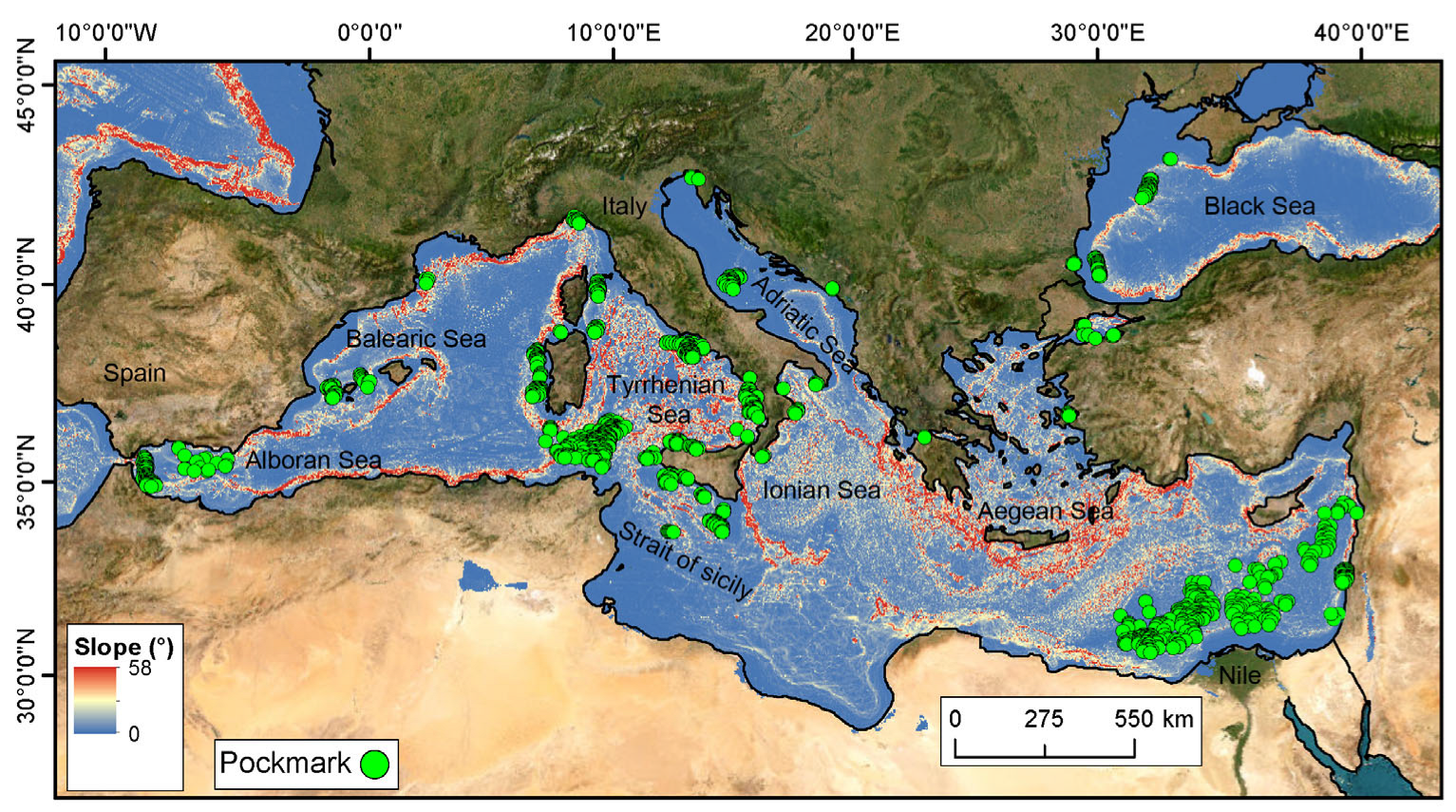

Slope Gradient: Pockmarks show a strong tendency to occur in low-gradient environments (Figure 11 and Figure 12). Around 72% of the pockmarks are found on slopes gentler than 4°, suggesting a pronounced preference for relatively flat or gently inclined seabed settings. A closer examination of the slope histogram indicates a bimodal distribution, with two prominent peaks centered around 1.5° and 3.5° (Figure 11b). This pattern could reflect two principal geological contexts in which pockmarks form. The first peak is associated with gentle slope depositional zones, where fine-grained sediments and slow rates of fluid diffusion provide stable conditions for pockmark development and preservation. The second peak could correspond to slightly steeper settings along the continental slope, where more dynamic processes such as fluid migration through fractures and/or faults enhance the potential for pockmark formation. Conversely, areas with slopes greater than 8° show a marked decline in pockmark occurrence. These environments are typically characterized by higher sediment instability and active downslope transport [187], which can inhibit the formation or long-term preservation of pockmark structures.

Distance from the nearest fault: In this study, we also examined the relationship between pockmarks and fault distribution. This choice was motivated by the findings of Spatola et al. (2025) [92], where a machine-learning-based susceptibility model identified fault proximity as a key factor influencing pockmark occurrence.

The histogram of fault distances shows a left-skewed distribution, indicating that pockmarks are more concentrated near faults; indeed, approximately 40% of all pockmarks occur within 2 km away from the fault. This proximity could be the sign that even minor fractures and faults act as preferential pathway for fluids to migrate upward, breaching the seafloor and forming out the pockmarks.

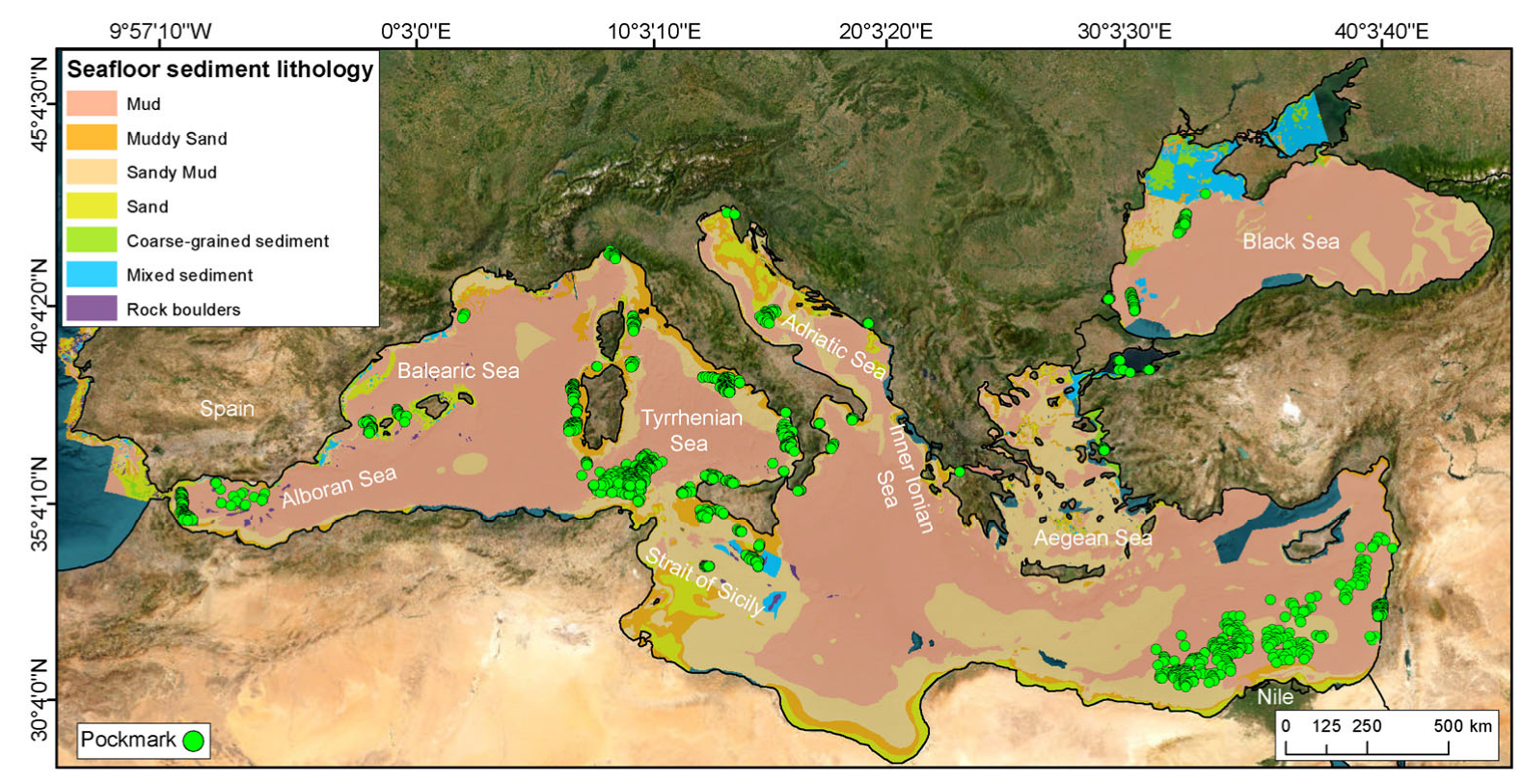

Seafloor sediment lithology: The spatial distribution of pockmarks on the Mediterranean seafloor suggests a strong influence by the seafloor sediment lithology (Figure 11d and Figure 13). The analysis indicates that pockmarks are most commonly associated with substrates characterized by muddy sand, sand and mud. Specifically, muddy sand accounts for approximately 46% of the total mapped pockmarks, followed by sand at around 28% (Figure 11d). Please note that, to address this aspect of the study, we used the low-resolution seafloor sediment lithology dataset from EMODnet Geology, as it was the only publicly available source accessible to us. However, where possible, this information was cross-checked and refined using sedimentological data from the original publications. In fact, the dataset also includes a layer derived from literature-based seafloor lithology.

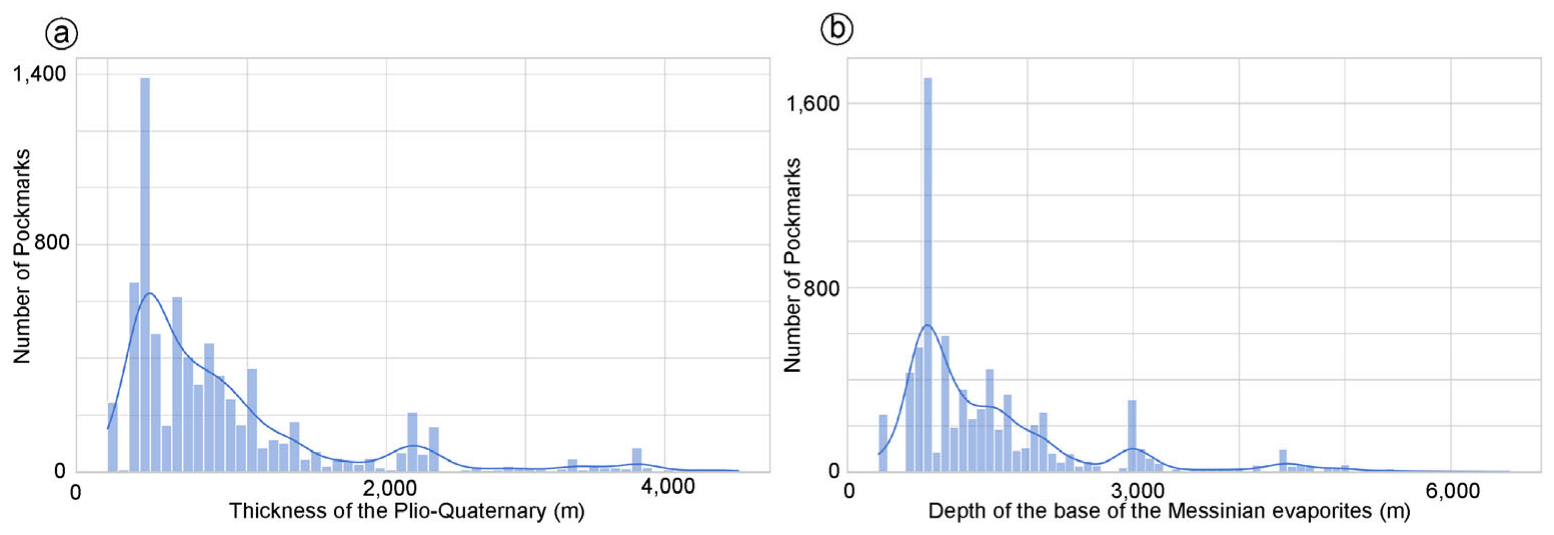

Plio-Quaternary Sediment Thickness: Pockmarks appear to cluster in areas where Plio-Quaternary sediment thickness is moderate, with a unimodal distribution peaking between 300 and 600 m (Figure 14). We recall that the thickness data were derived from low-resolution raster datasets [128]. This suggests that the critical thickness of Plio-Quaternary sediments is necessary to maintain the overpressure conditions required for fluid escape, without being so thick as to fully suppress or diffuse the flux. These sediments often consist of alternating fine-grained and coarse-grained layers, which can facilitate fluid accumulation and vertical migration through permeable horizons. This trend may suggest that thinner sediment layers are insufficient to generate the necessary overpressure, while thicker sequences might inhibit surface venting due to compaction, lithification, or increased lithostatic load [12,71].

Messinian Sediment Thickness: Regarding the link with the base of the Messinian sediment, we decided to investigate the spatial correlation between pockmark distribution and the depth of the Messinian unconformity because recent findings have highlighted a weak but observable correlation between pockmarks and the Messinian sequence in the context of the Italian seas (Figure 14b). However, it is important to stress that such a correlation is unlikely to be consistent across the entire Mediterranean basin. This behavior is probably likely due to a bias in our dataset, as the majority of the mapped pockmarks are located in areas where the Messinian unit is both present and relatively shallow and thin. Pockmarks are frequently associated with areas where the base of the Messinian is at a depth between 200 and 1000 m (below the seafloor). These regions are characterized by tectonically induced deformation, such as diapirism, faulting, and differential compaction, which creates vertical conduits or enhances pre-existing fracture systems, thereby promoting focused fluid migration [68]. In some areas, the presence of a mechanically weak Messinian unit may also act as a detachment surface, further influencing the spatial distribution of overlying pockmarks [68,188]. For example, offshore Israel, thinning (welding) of the Messinian evaporites has facilitated cross-stratal fluid migration, leading to the formation of pockmarks at the seafloor [38,83]. Our interpretation is in line with a GIS-based synthesis of geological data across the Mediterranean revealing significant relationships between the distribution of mud volcanoes, the presence and thickness of Messinian evaporites, and active tectonic structures [189]. The study shows that in the eastern Mediterranean, most mud volcanoes provinces, including those on the Calabrian Arc, the Mediterranean Ridge, and the upper Egyptian margin are found in areas where Messinian evaporites are either thin, absent, or not detectable in seismic data [11,190]. This supports the interpretation that thick evaporite layers act as impermeable seals preventing their escape to the seafloor a mechanism that is well documented in salt-bearing petroleum-rich basins. An exception occurs in the northwestern Nile deep-sea fan, where mud volcanoes [11] and active fluid seeps are present despite a thick Messinian evaporite cover [11,190].

5.2. Analysis of Pockmark Activity States VS to Geomorphological and Stratigraphic Variables

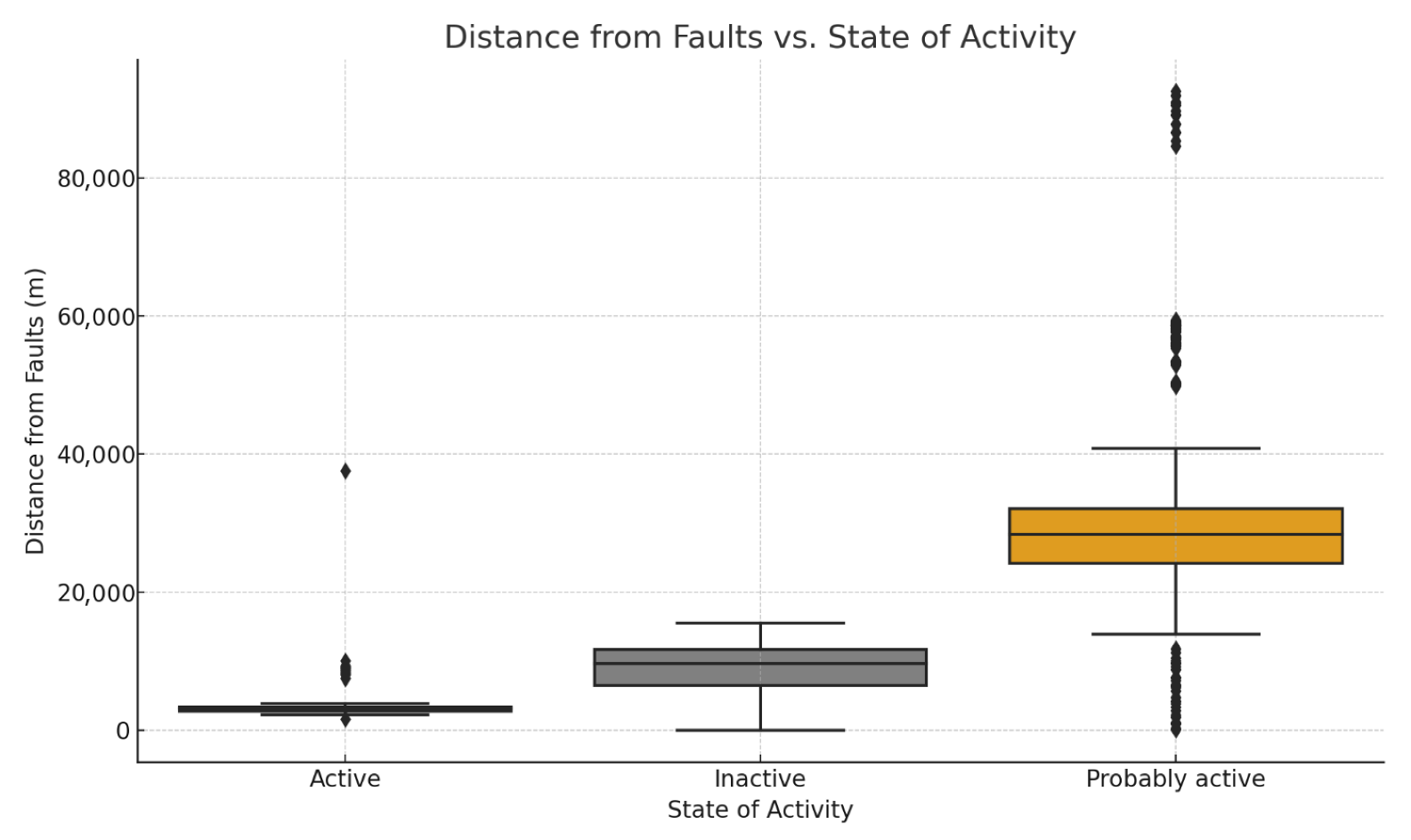

In the literature used to create the Pockmarks database [17], nearly 27% of pockmark records are described as recently or presently active features since they show evidence of gas flares, acoustic wipeout zones, or seismic chimneys indicating either ongoing or recent fluid flow (Figure 3). In this section, we try to understand how the potential pockmark activity appears to vary as a function of the geological factors previously described (i.e., bathymetry, slope, fault distance, and Plio-Quaternary sediment thickness). According to the dataset used, active pockmarks or pockmarks with recent activity apparently are more frequently found at moderate water depths (~100–200 m), whereas inactive ones tend to dominate shallower (below~100 m) and deeper zones deeper than 300 m (Figure 15). We recall that this hypothesis, being derived from a limited dataset, suffers from significant bias. However, this suggests that intermediate-depth settings may provide optimal pressure-temperature conditions or sediment types favorable to active seepage. However, this contrasts with the continental shelf, where the reduced hydrostatic load due to shallow water depth corresponds to a very low number of pockmarks. So far, the only few documented cases in these shallow areas (on the continental shelf) are associated with freshwater seepage in the southern Tyrrhenian Sea [151] as well as in Inner Ionian Sea where pockmarks have been documented in water depths shallower than 40 m [84].

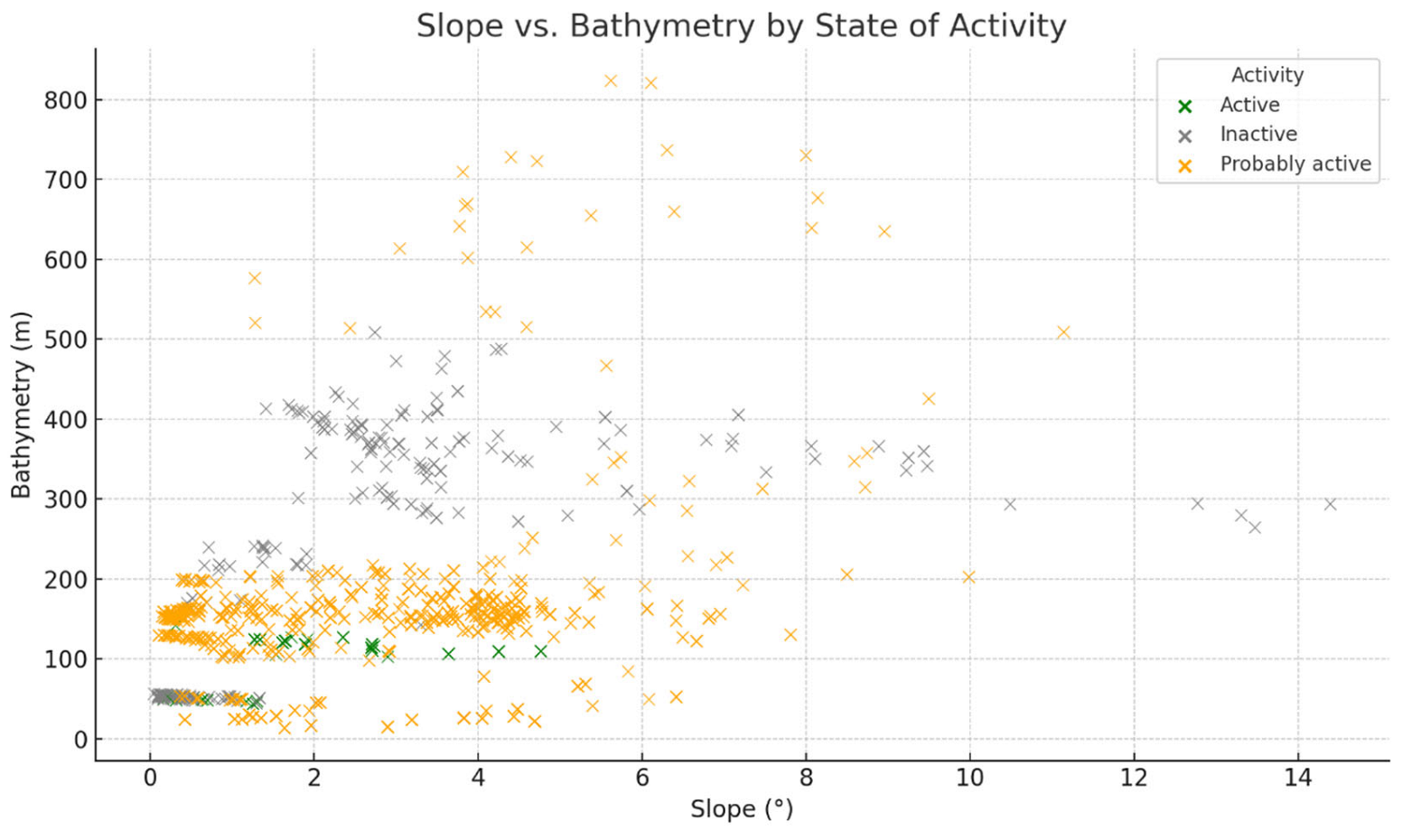

As noted previously, most pockmarks occur on gentle slopes, typically < 4°. However, active pockmarks or pockmarks with recent activity show a slight tendency to occupy slightly steeper terrain (Figure 15), possibly reflecting a link between fluid migration and structural pathways such as normal faults affecting the seafloor forming breaks of slope (e.g., fault scarps) like in the offshore of the Maltese archipelago [56]. Active pockmarks are generally located closer to known tectonic faults than inactive ones (Figure 16), supporting the hypothesis that fault-related permeability enhances focused fluid escape [191], thereby sustaining pockmark activity [63,192].

5.3. Comparative Analysis of Pockmark Morphology, Activity, and Fluid Source Across the Mediterranean

Pockmarks across the Mediterranean and Black seas vary widely in their morphology, fluid sources, geological controls, and state of activity (Figure 16). These differences are closely tied to the tectonic and sedimentary evolution of the basin and reflect a clear spatial gradient from the Western to the Eastern sub-basins. Integration of quantitative data such as bathymetry, slope, and distance from faults alongside qualitative interpretations of tectonic regime and fluid chemistry reveals coherent regional patterns (Table S1 in Supplementary Material). A further dimension, the state of activity, adds temporal context to these features, distinguishing ephemeral seepage from long-lived or persistent fluid expulsion systems. In the Western Mediterranean, pockmarks are generally shallow (typically <200 m water depth), formed in association with high fluvial sedimentation and stratigraphic controls [70]. These features, found predominantly in the Gulf of Lion and Ebro Margin, are rooted in microbial methane production from organic-rich deltaic and prodelta sediments [135]. While these pockmarks may appear active in shallow acoustic profiles, their true state is mostly episodic or inactive, consistent with subsurface evidence of buried, stacked pockmarks linked to sea-level fluctuations [49].

The Central Mediterranean presents a more geologically diverse setting, leading to greater variability in pockmark expression. In the Central Tyrrhenian Sea, pockmarks occur at greater water depths (average ~313 m), on steeper slopes (~4.2°), and in closer proximity to faults (~7.5 km; Figure 11c). In the same region shallower pockmarks are frequently associated with mass-transport deposits [193], hydrothermal systems [10], and active mud volcanoes that emit microbial methane and crustal CO₂ [193,194,195]. The state of activity in this region is mixed: while some pockmarks are inactive and buried, others especially near volcanic ridges and mud mounds remain actively venting and have evidence of acoustic gas flares [196]. In the Central Adriatic Sea and on the eastern part of the Strait of Sicily, pockmarks are shallower (average ~200 m water depth) and occur on gently dipping slopes (~0.4°) and apparently located farther from faults (Figure 17). Despite the lower tectonic intensity, active or recently active pockmarks with recent activity are still observed. This supports the idea that fluid migration in passive or foredeep settings may persist under favorable sedimentological conditions especially where stratigraphic seals concentrate gas over long periods.

In the Eastern Mediterranean Sea, pockmarks are typically found at deeper water depths compared to those in the Central and Western sectors (Figure 17). The Black Sea, for example, has pockmarks with an average water depth of ~459 m, located on steep slopes (~5.2°) (Figure 17). These features are almost uniformly marked as active, consistent with ongoing seepage from overpressured, gas-charged sediments in fan systems such as the Dniepr and Danube. Acoustic plumes, methane seeps, and wipeout zones are common, and some fields contain thousands of active vent sites [178,182,197].

The South Aegean Sea is characterized by the back-arc volcanism of the Hellenic volcanic arc, which is responsible for many active hydrothermal manifestations both onshore and offshore. CO₂-rich hydrothermal vents dominate fluid chemistry [198,199].

In the Inner Ionian Sea (Western Greece), diapirs were mobilized by the overlying tectonic thickening, potentially acting as preferential pathways for upwards fluid migration [132]. In this context, the Ionian Sea and the interconnected water bodies can be considered as an ideal environment for studying gas seepages and related seabed morphological features. Fluid flow sites have been observed in a variety of geological settings such as deltas, fjord-like embayments, gulfs, open shelves, lagoons but also in deep-sea environments [39,84,165,200]. In semi-enclosed gulfs (Patras, Amvrakikos), pockmarks are active and occur at shallow waters, on almost flat seabed (0–2°), and in very close proximity (<1 km) to active faults and in some cases above them (Figure 17). The state of activity, as reflected in our dataset, emphasizes this eastward intensification (Figure 16). In the Black Sea, nearly all pockmarks are listed as active, corresponding with intense subsurface gas migration and minimal structural sealing [178]. Conversely, Western Mediterranean pockmarks are mostly relict and inactive, though they remain morphologically well preserved [17].

5.4. General Implications for Pockmarks

Pockmarks are significant geomorphological features on the seafloor and have broad implications for geohazards, earthquake forecasting, marine biodiversity, climate dynamics, and resource exploitation.

5.4.1. Sedimentary Instabilities

Pockmarks influence the geotechnical properties of marine sediments and are frequently associated with submarine slope failures. Their presence is often linked to gas-charged sediments, which reduce sediment cohesion and promote instability [5,20]. Numerous studies have identified pockmarks in proximity to large sedimentary failures, such as in the Nile Delta deep-sea fan, where they coincide with gas chimneys and major slope instabilities [95,132,173]. Similarly, on the northwestern Sicilian continental margin, a cluster of pockmarks encircles an amphitheater-shaped landslide scar, suggesting a genetic relationship between gas escape features and mass movements. In the Central Black Sea, oval-shaped pockmarks appear modified by mudflows, reinforcing the interplay between fluid escape and sediment deformation [185]. These associations highlight the potential geohazard role of pockmarks, especially concerning the construction of offshore infrastructure. For instance, in Patras (Greece), part of the newly constructed city harbor was built over an active pockmark field. Twenty-three of the 115 identified pockmarks were filled with inert materials and buried beneath the harbor breakwater, which subsequently experienced approximately 1 m of subsidence [165,200].

5.4.2. Pockmarks as Earthquake Precursors?

The Patras Gulf pockmark field was reported as a precursor to the 1993 earthquake in western Greece [84], and further activation of the same site occurred during earthquakes in 1993 and 2008 [168]. Pockmarks can function as physical markers of gas outbursts, reflecting periodic activation of deep-seated fluid pathways [201]. Seismic and hydroacoustic studies suggest that these features could serve as natural laboratories for understanding earthquake precursors. Prior to seismic events, increases in seafloor temperature and gas venting activity have been observed in the western Gulf of Corinth [202]. High-resolution tools such as multibeam sonars and sub-bottom profilers effectively detect active pockmarks and associated water column anomalies like gas flares and chimneys [203]. Given the complexity of the Mediterranean tectonic environment, monitoring known pockmark fields for anomalies in temperature and gas flux could enhance earthquake risk assessments.

5.4.3. Biota

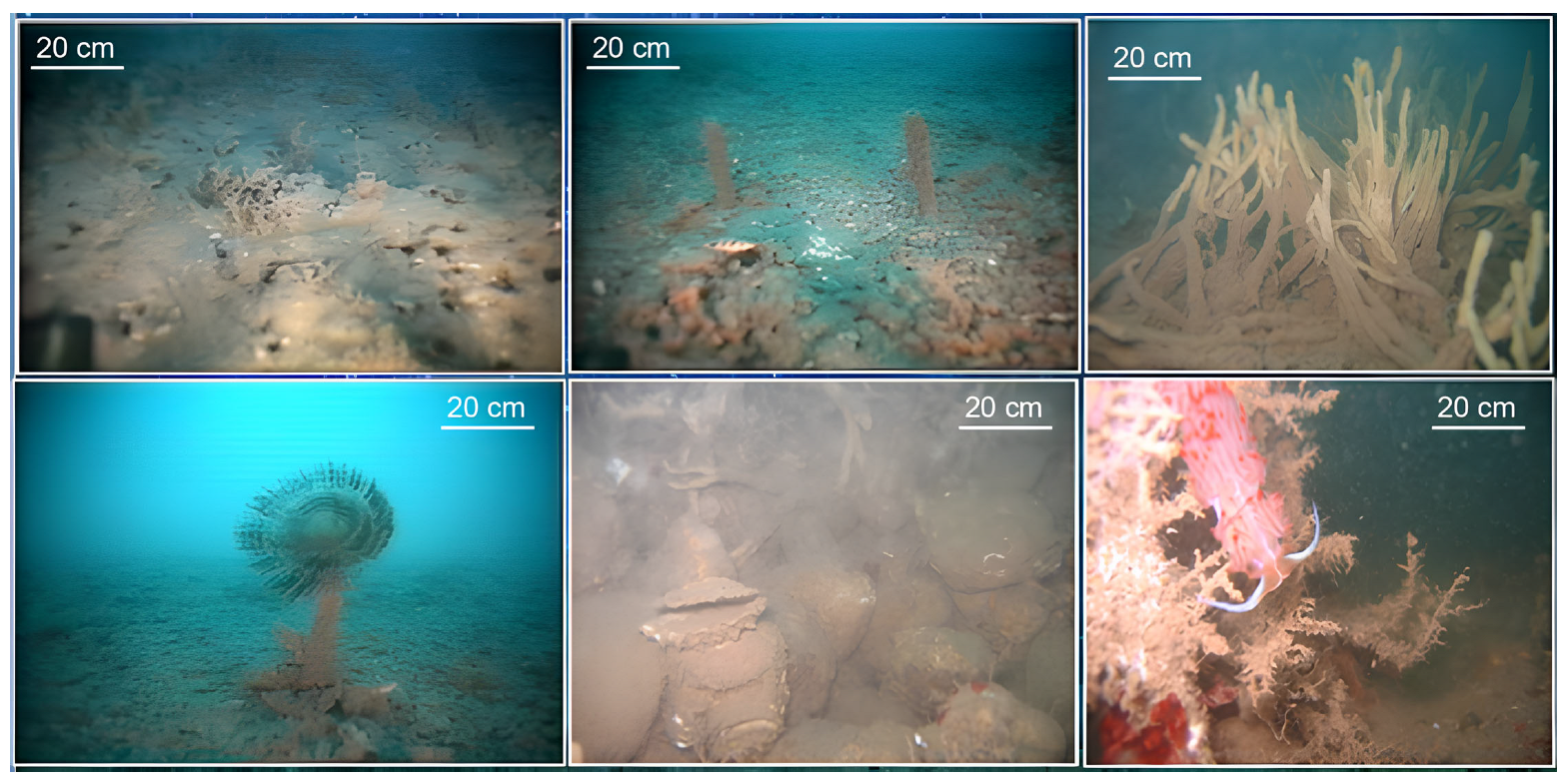

Pockmarks play a vital role in supporting unique benthic ecosystems (Figure 18) due to the release of gases primarily methane from the subsurface [93,204,205,206,207,208]. These fluid flows influences multiple environmental spheres, from hydrospheric chemistry and ocean alkalinity to atmospheric greenhouse gas concentrations [209,210].

In the Mediterranean sea, a known biodiversity hotspot [211], pockmarks enhance seafloor heterogeneity, fostering chemosynthetic communities and increasing species richness. Reference [93] found that up to 25% of benthic species in studied areas were uniquely associated with pockmark sites. While some taxa are underrepresented in these environments, nematodes and microbial consortia flourish, forming the basis of highly specialized food webs [212]. Multitudes of sharks and shark eggs have also been discovered within pockmarks and/or cold seep ecosystems in the Levant Basin [213]. These ecosystems may also offer refuge from human impacts such as bottom trawling [206]. In addition, they are ecologically and economically significant as potential spawning grounds for commercial fish species [161].

5.4.4. Climate Change

Pockmarks are natural pathways for the emission of methane (CH₄) and carbon dioxide (CO₂), contributing to global carbon cycling and potentially influencing past and future climate dynamics [6,210]. It is estimated that seafloor fluid flow features release up to 0.05 gigatons of carbon annually, accounting for up to 5% of global methane emissions [6,210,214]. Recent geochemical studies suggest that CO₂ may play a more substantial role than CH₄ in some settings, particularly in promoting ocean acidification [215,216]. Understanding the temporal evolution of pockmark activity is therefore essential for reconstructing the paleoatmosphere and predicting future climate trends.

5.4.5. Economic Implications

Pockmarks often indicate the presence of subsurface hydrocarbons, making them critical features for the petroleum industry [217]. They are commonly found in hydrocarbon-rich settings and estuarine environments [64,218]. In addition, pockmarks located in regions of high groundwater discharge are potential indicators of freshwater aquifers [2,63], which are increasingly valuable in densely populated Mediterranean coastal areas where freshwater scarcity is an emerging challenge.

5.4.6. Future Research

Building upon the first susceptibility map of pockmarks along the Italian margins [92], future research should aim to extend this approach to the entire Mediterranean and Black seas. As highlighted in this review, these basins encompass a wide range of tectonic, sedimentary, and oceanographic settings that exert a strong control on the formation and spatial distribution of pockmarks. A basin-scale susceptibility analysis would provide unprecedented insights into the regional drivers of submarine fluid escape and their geological, ecological, and societal implications. This goal is now achievable thanks to the recent publication of the first open-access geodatabase of pockmarks in the Mediterranean and Black seas, which offers a robust morphometric foundation for model training, calibration, and validation. Model accuracy could be substantially enhanced if research institutions shared detailed morphometric data for individual pockmarks, rather than only average values at the cluster level as the above-mentioned public dataset.

In addition, replacing EMODnet with higher-resolution bathymetric datasets would significantly improve predictive performance, if data resolution is consistent across all mapped areas. Future work should also aim to quantify how many pockmarks are actively venting and estimate the amount of fluid escaping through them, combining regional seep mapping, data sharing, and modeling approaches despite inherent uncertainties. By integrating the geodatabase with high-resolution bathymetric, geological, and geophysical data, future susceptibility models could more accurately resolve pockmark distribution patterns and support improved risk assessments for offshore infrastructure, including wind farms, pipelines, and telecommunication cables. Furthermore, a broader susceptibility framework could help identify areas of active or incipient fluid seepage, thereby contributing to research on greenhouse gas emissions, the marine carbon cycle, and benthic ecosystem dynamics. Ultimately, the development of a Mediterranean-wide pockmark susceptibility map would represent a critical tool for marine spatial planning, environmental management, and the sustainable use of seafloor resources such as offshore freshened groundwater.

6. Conclusions

Pockmarks are the most widespread and morphologically diverse expressions of fluid flow on the seafloor of Mediterranean and Black seas, with the identification of more than 7500 features on high-resolution morpho-bathymetric and seismic data to date. Our results underscore the multi-factorial nature of pockmark formation, governed by the interplay of tectonic structures, margin architecture, and pressure regimes.

The statistical analysis reveals spatial patterns linked to both geomorphological and sedimentological controls. Pockmarks predominantly occur in low-gradient environments (typically below 4°) and show a bimodal water depth distribution, with peaks in shallow (100–200 m) and intermediate (500–700 m) settings. A key finding is the preferential clustering of active to recently active pockmarks with recent activity near tectonic structures, particularly in proximity of mapped faults, reinforcing the role of fault-controlled permeability in governing focused fluid migration. In fact, pockmarks tend to cluster along fault-controlled pathways in intermediate-depth settings, where sediment thickness and permeability can favor fluid accumulation and focused seepage.

The spatial distribution of pockmarks across the Mediterranean Basin reflects its complex tectono-sedimentary evolution from the extensional back-arc settings of the Tyrrhenian Sea to the salt-influenced basins of the Eastern Mediterranean and the organic-rich fans of the Black Sea. This variability offers a unique opportunity to investigate fluid flow dynamics in contrasting geodynamic contexts. Despite significant advances, key challenges remain. The distinction between active and relict (inactive and/or dormant) pockmarks is often hindered by the lack of long-term monitoring and in situ data. Moreover, the role of pockmarks as potential precursors to geohazards, their impact on benthic ecosystems, and their contribution to carbon cycling warrant further interdisciplinary research. Future research should prioritize high-resolution bathymetric surveys, integration of acoustic and geochemical proxies, and the application of advanced machine learning techniques to detect, classify, and model fluid flow phenomena at regional and local scale. Given the Mediterranean region’s relevance as both a geohazard prone area and a hotspot of marine biodiversity, the study of pockmarks holds critical implications not only for Earth Sciences, but also for environmental management, energy resource assessment, and climate monitoring.
