Methane is a powerful greenhouse gas, and the recent abrupt events of degassing and crater formation on the Yamal and Gydan Peninsulas (Figure 1
) have caused major concern that a warming Arctic may lead to increased thawing of permafrost and gas emissions. In addition, exploration and development of oil and gas fields in northern West Siberia, with construction of production, transportation and support facilities upon permafrost, face problems due to the harsh Arctic climate, low negative temperatures of air and ground and complex periglacial processes like frost heaving, thermokarst, thermal erosion. Processes in shallow permafrost may lead to the formation of gas-emission craters, a phenomenon discovered during exploration for the past decade in the Arctic West Siberia. The first methane-leaking crater (Yamal Crater) was found in the Yamal Peninsula 42 km from the Bovanenkovo gas field (Figure 1
), and that discovery was followed by several more from the Yamal and Gydan Peninsulas [1
]. The Yamal Crater has been better documented [4
] than the others, which are only imaged in few photographs, but the available data are insufficient to concede about the conditions and causes of its origin. The crater origin has been unanimously attributed to an explosive gas emission event, but the origin of the gas remains a subject of discussions.
The proposed hypotheses explaining the formation of the Yamal Crater, and other craters in the Yamal and Gydan Peninsulas, can be divided into two main groups that invoke either deep-seated or shallow causes. The deep-seated causes of crater formation [7
] include increased deep heat flux, upward migration of deep gaseous fluids through fault zones and fault intersections to shallow permafrost and dissociation of intrapermafrost gas hydrates driven by ascending heat and gas flows. These processes can produce reservoirs of pressurized gas in shallow permafrost which can release explosively, break up the frozen cap and form a crater.
The hypothesized shallow prerequisites of crater formation are associated with permafrost temperature variations under the effects of climate and surface heat transfer. These models involve permafrost is warming from above and the ensuing destabilization of relict gas hydrates in the upper permafrost [2
]. Another possible explanation for crater formation is that freezing of a closed talik (a body of unfrozen soils in permafrost) produces a confined hydraulic system with gradually increasing gas pressure and a pingo-like feature prone to collapse by explosive emission of the pressurized gas [10
Understanding the formation mechanisms of gas-emission craters requires collecting and analyzing new relevant field data. At the time being, only a few panoramic photographs of craters other than the Yamal Crater (Figure 1
) and that in the Seyakha River valley [11
] are available. Any new data on the crater structure and evolution, on gas chemistry and stable isotopes, as well as on the lithology of permafrost in the area are of scientific value. Field data from crater evolution is particularly important because the craters have a very short lifetime (a few months to one or two years) before transforming into lakes. However, drilling and geophysical surveys from the craters are lacking as the craters are most often located in hardly accessible remote areas far from infrastructure.
Here we provide substantive background on the cover sediments of the Erkuta crater in the southern Yamal Peninsula (Figure 1
) and propose a formation model that could provide a basis for further assessment with more field data.
2. Erkuta Crater and Its Evolution

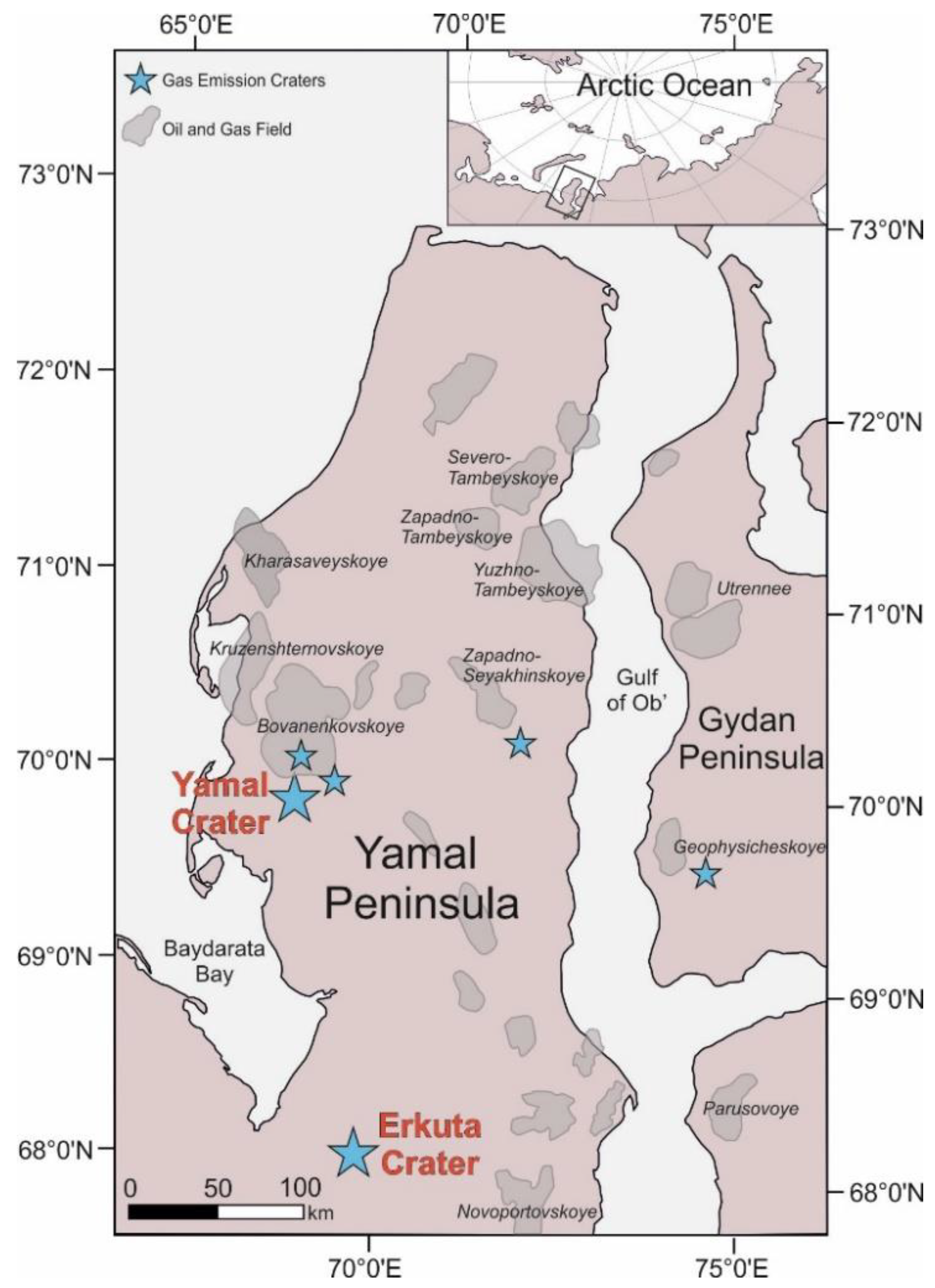

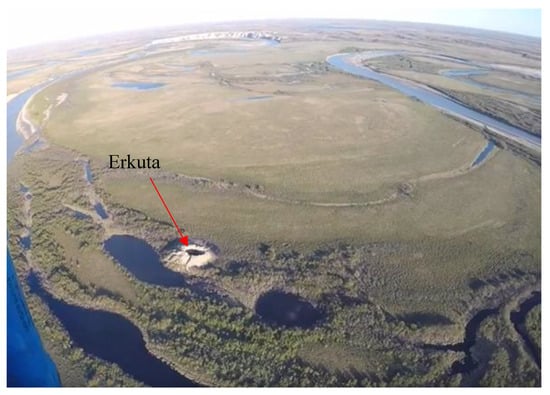

The Erkuta crater formed in the winter of 2016–2017 in the southern Yamal Peninsula (Figure 1
), in typical conditions of continuous permafrost described in a number of publications [12
]. Permafrost mainly consists of interbedded Quaternary (middle-upper Pleistocene and Holocene) sand, silty sand, sandy silt and clay silt with lenses of gas-saturated rocks and cold saline groundwater (cryopegs). Ice contents in shallow permafrost can reach 40%–50%, mainly in fine-grained sediments. Even though the long-term mean ground temperatures of the study area are −5 to −6 °C and permafrost is around 200-m-thick; the zero °C isotherm can be even 100–150 m deeper due to salinity of soils and the presence of cryopegs. The seasonal thaw depth is about 0.7–1.2 m. The territory abounds in ground ice of various genetic types, seasonal and perennial frost heaves, peatlands, swamps and thermokarst lakes that occupy 20% of the area, including lakes with crater-like features possibly associated with gas emission through faults and fractures on the bottom. The gas-emission crater formed in the Erkuta–Yakha River valley filled with floodplain and riverbed alluvial sand and silt enclosing plant detritus. There are many oxbow lakes in the crater area, some close to the crater (Figure 2
The crater was discovered in June 2017 by people from the Erkuta polar station on the floodplain of the Erkuta River, 30 km east of the station. The area is of interest to biologists for its proximity to the nesting-place of falcons. Two years before, the terrain was absolutely flat, as witnessed by Dr. A. Sokolov in a TV broadcast (“Vesti Yamal”) of 30 June 2017.
The team of biologists led by Sokolov observed heaving of the previously flat surface, as well as cracks in soil, during field works in July 2016, a year before the crater was first discovered in June 2017. The newly formed crater had a cylindrical shape, 10 to 12 m in diameter, with smooth walls was 20 m deep (A. Sinitsyn, Personal Communication). The original heave mound was not fully eliminated (Figure 2
): the crater was encircled by a 2–3 m high parapet-like ridge, with its slopes covered with silt and clay silt ejected during the explosive gas emission.

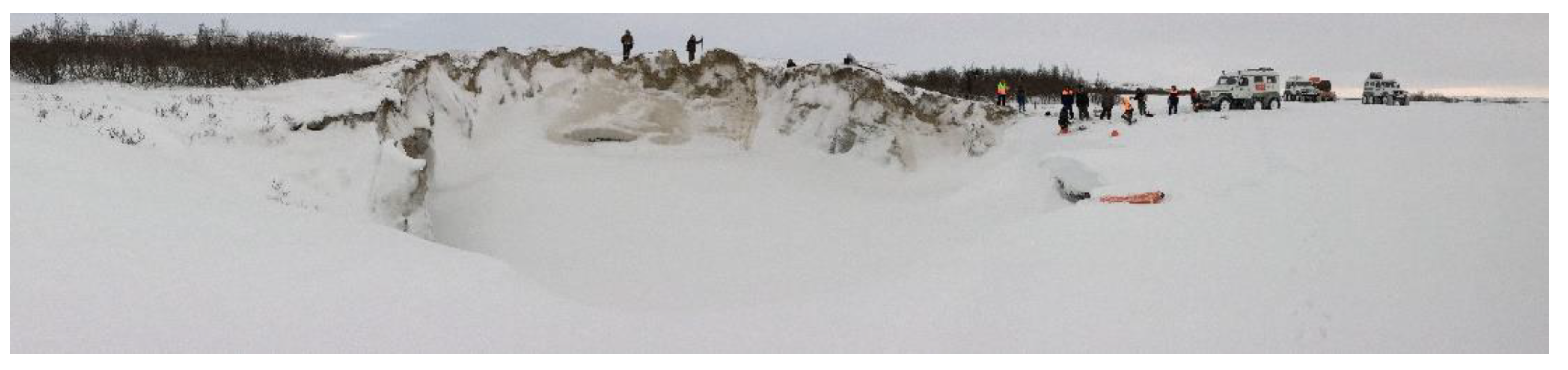

In December 2017, a field trip to the Erkuta crater (Figure 3
) was organized jointly by the government of the Yamal–Nenets Autonomous District, the Total SA and the Skolkovo Institute of Science and Technology (Skoltech). The field work included sampling of soil, ice and water from the crater rim. By that time, the southern wall of the crater had collapsed and the diameter increased to 17.5 m. The crater was partly filled with water which made an up to 8-m-deep lake covered by ~1-m-thick ice under ~0.8 m of snow. A part of the parapet-like ridge remained around the crater next to a lake (Figure 4

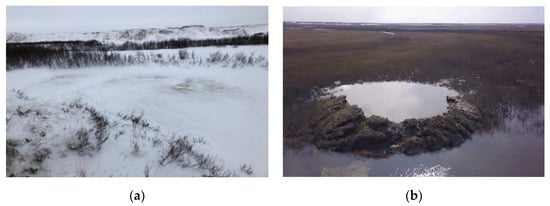

In June 2018, the crater was imaged by a drone survey (Figure 4
b), which showed further degradation of its wall. The deep crater of a year before became almost fully filled with water and transformed into a lake semi-circled by a remnant 2–3 m parapet (Figure 4
b). The crater wall was deformed by thermal erosion and slumping in its outer part but remained vertical in the inner part.
3. Field Data

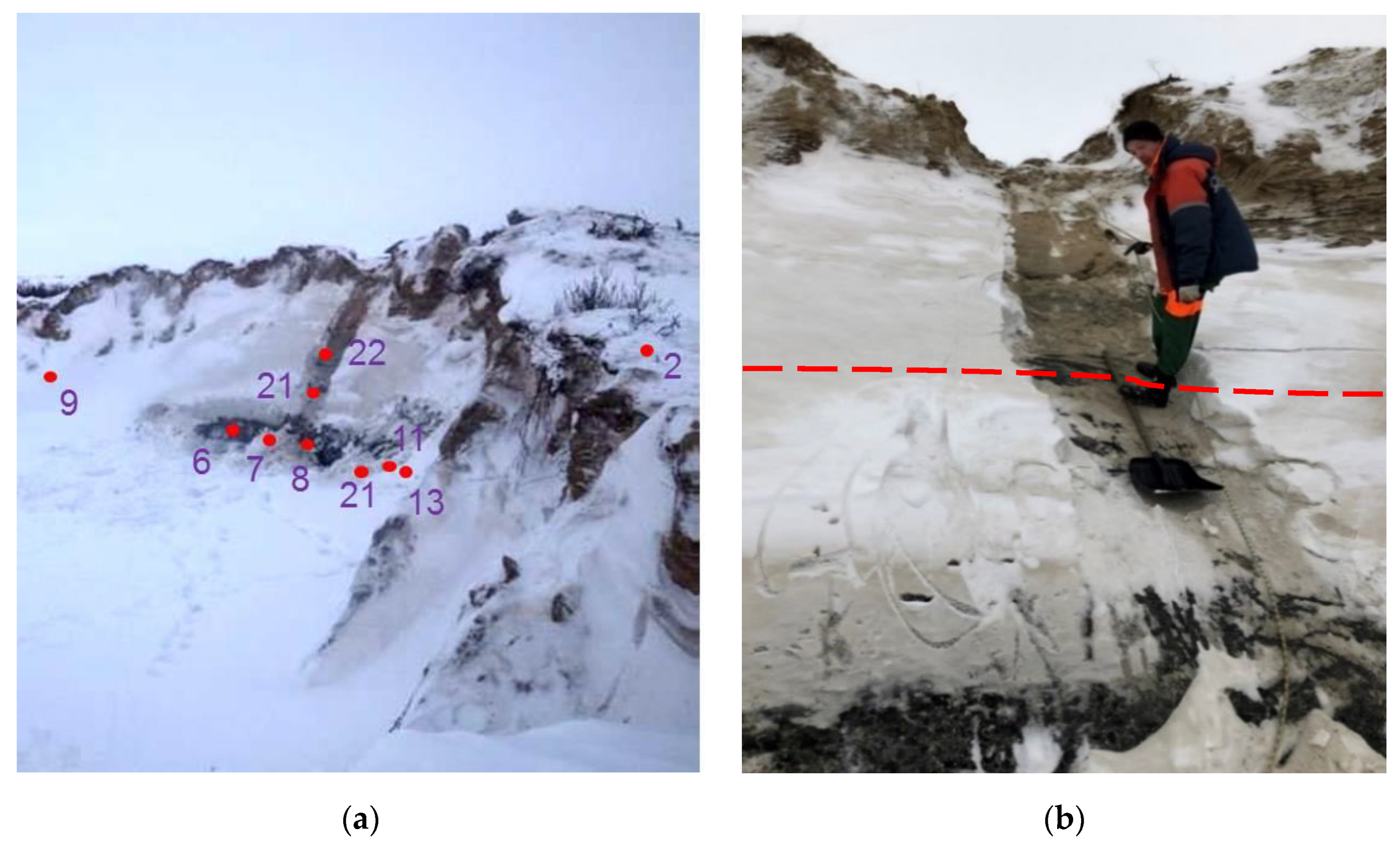

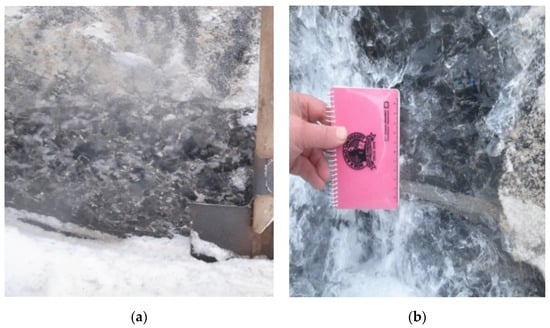

Field studies in December 2017 revealed a layer of massive ground ice, 3–4 m of visible thickness, in the inner wall of the crater (Figure 5

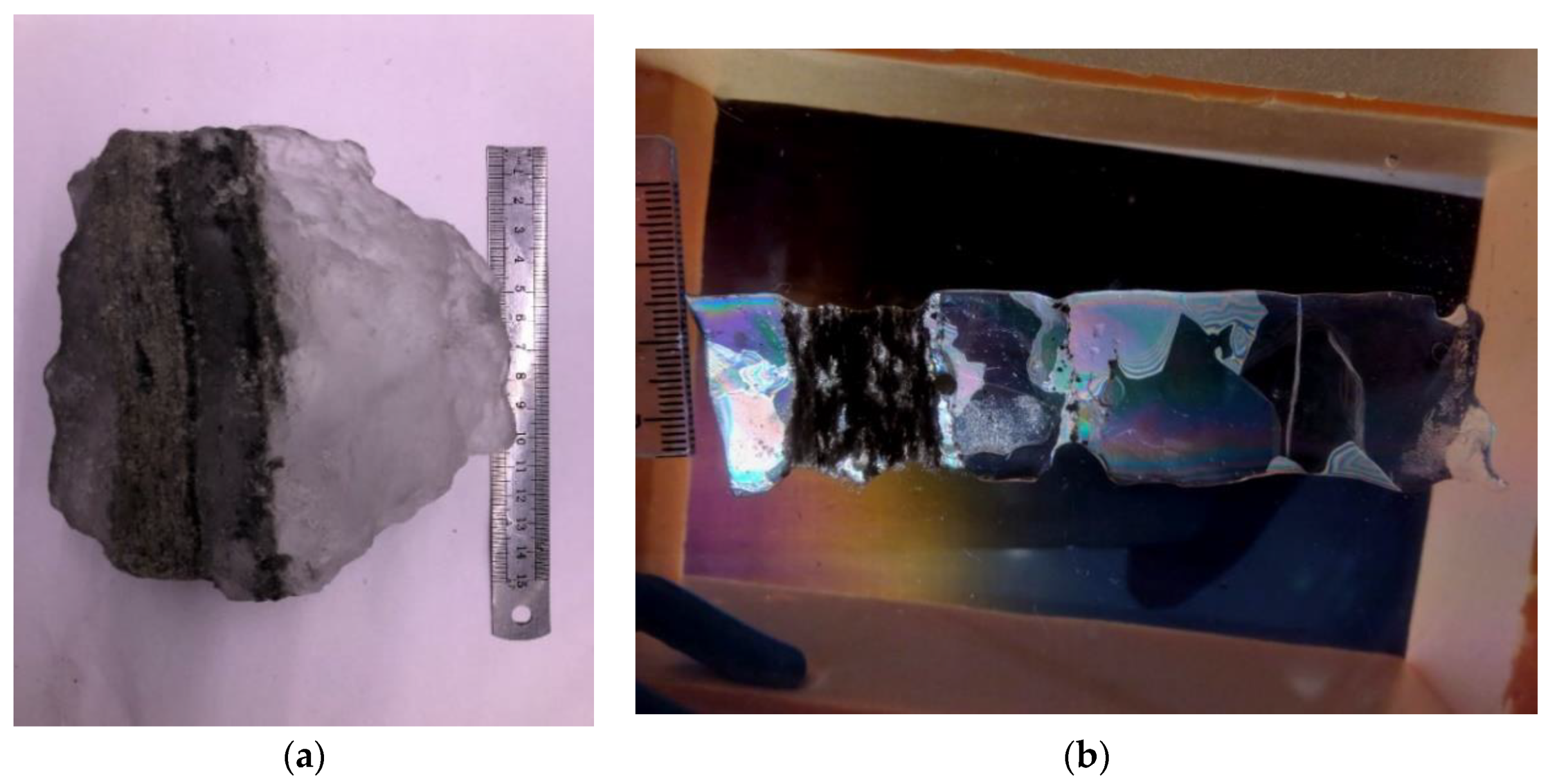

Ice at the sampling site was generally transparent and pure, but locally enclosed 1–2-cm-thick layers of fine-grained soil (Figure 6
a,b) and a minor amount of intricately shaped 1–3 mm gas bubbles. The clear massive ice was topped by a dirty gray ice layer of a few centimeters thick with abundant soil inclusions.

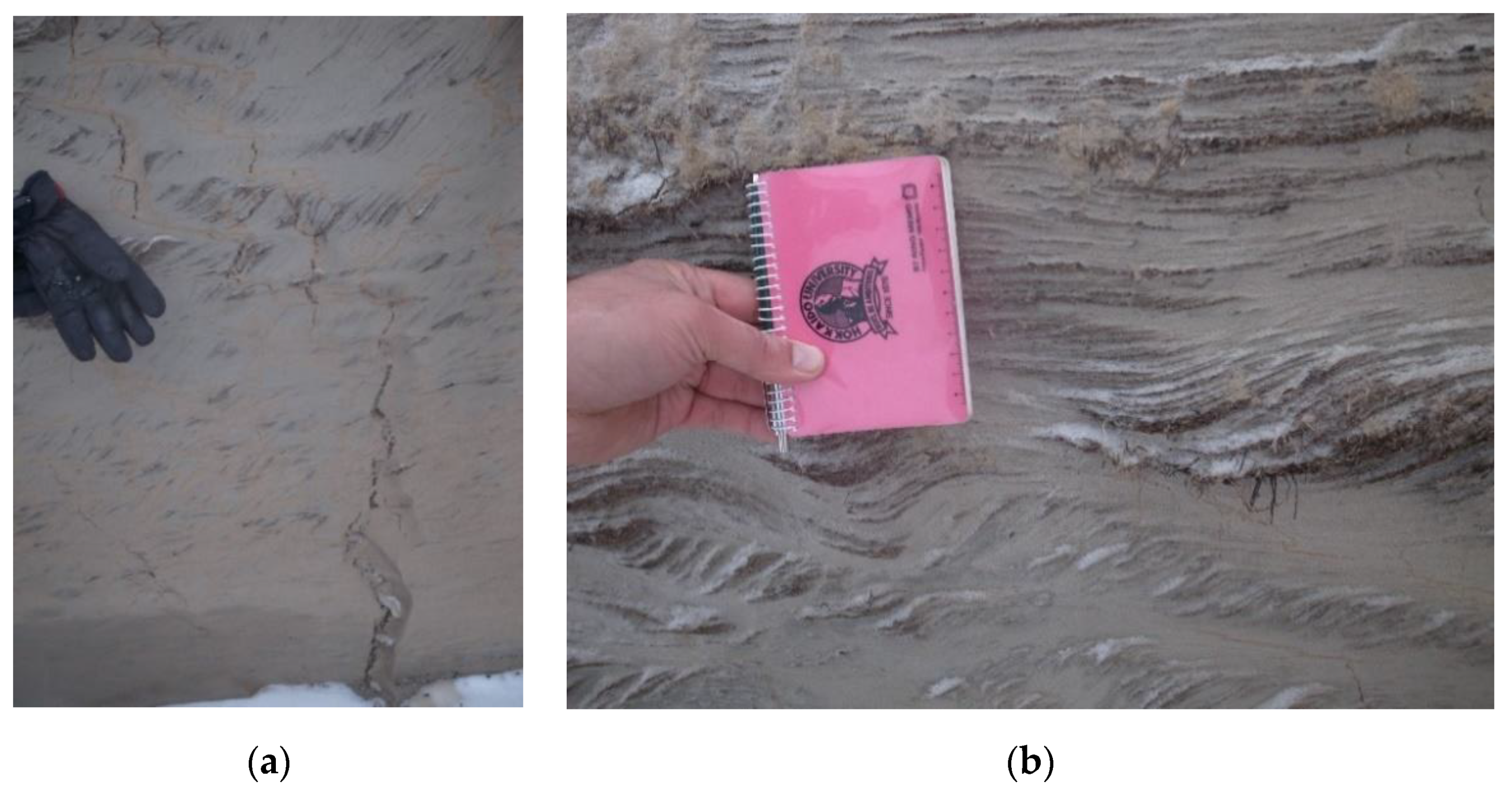

The ground ice was overlain by frozen silt with organic inclusions (plant remnants). The sediments had cross and wavy stratification common to alluvial facies (Figure 7
a,b). Some organic layers and lenses were a few centimeters thick and a few cm to tens of centimeters long.

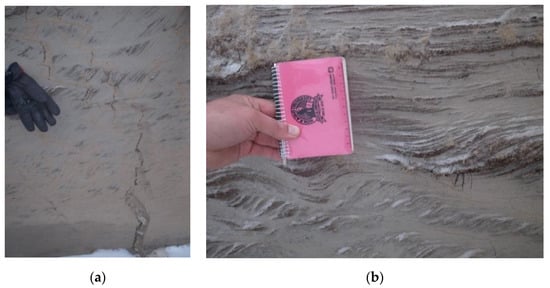

The sandy crater wall was locally cut by discontinuous branching fractures partly filled with ice, often within zones of iron impregnation (Figure 7
a). The fractures possibly formed under stress produced by fluid (water or gas) pressure from underlying sediments.
The ejected clay silt on the outer crater wall was originally wet and was deposited in a floodplain environment; it differed markedly from the overlying organic-rich alluvial sand.
Shrubs on the remnant slope facing the lake do not differ much from the surrounding lowland vegetation. Therefore, heaving shortly preceded the gas emission event and did not cause substantial changes to the vegetation. Otherwise, at years-long heaving, vegetation would have adapted to new conditions. Shrubs in the Arctic tundra are usually lower on topographic highs than on the plainland and lack from many areas where only grass can grow.
5. Formation Model of the Erkuta Crater
The obtained results have implications for the formation mechanism of the Erkuta crater, which formed on the site of the paleo-channel of the Erkuta–Yakha River. The contours of the dried riverbed can be seen in a photograph of 2017 (Figure 2

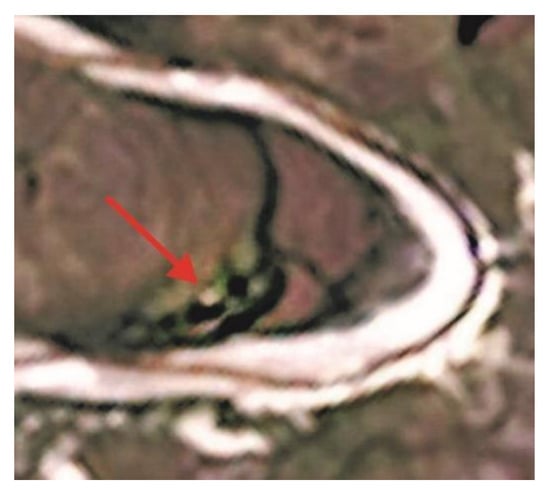

), as well as in a satellite image of 2013 (Figure 15
). As a result of evolution, the paleo-channel gradually turned into an oxbow lake, which continued to degrade and split up into several small drying lakes. Then a heaving mound began to form within one of these dried-up lakes. Contour of a mound is a bright spot (probably slightly elevated and drained soils) against the background of a dark thawed water-saturated soils, which can be distinguished in a satellite image of the beginning of summer 2013 (Figure 15
The thermal effect of such lakes often produces a zone of unfrozen rocks (a talik) underneath. The lake sediments within the taliks contain organic matter recycled by microorganisms with release of biogenic methane. Additionally, gases can penetrate into the lake sediments from deep subsurface through permeable deformed zones. The talik beneath the Erkuta crater was most likely closed, given that the permafrost thickness in the area is about 200 m deep and the lake was small. The lake was gradually shoaling and shrinking whereby the talik was freezing from below and from the sides, which caused stress buildup inside the remaining confined talik [19
]. The stress released explosively by eruption of the gas–water–soil mixture from the freezing talik and the ensuing formation of the crater in its place.

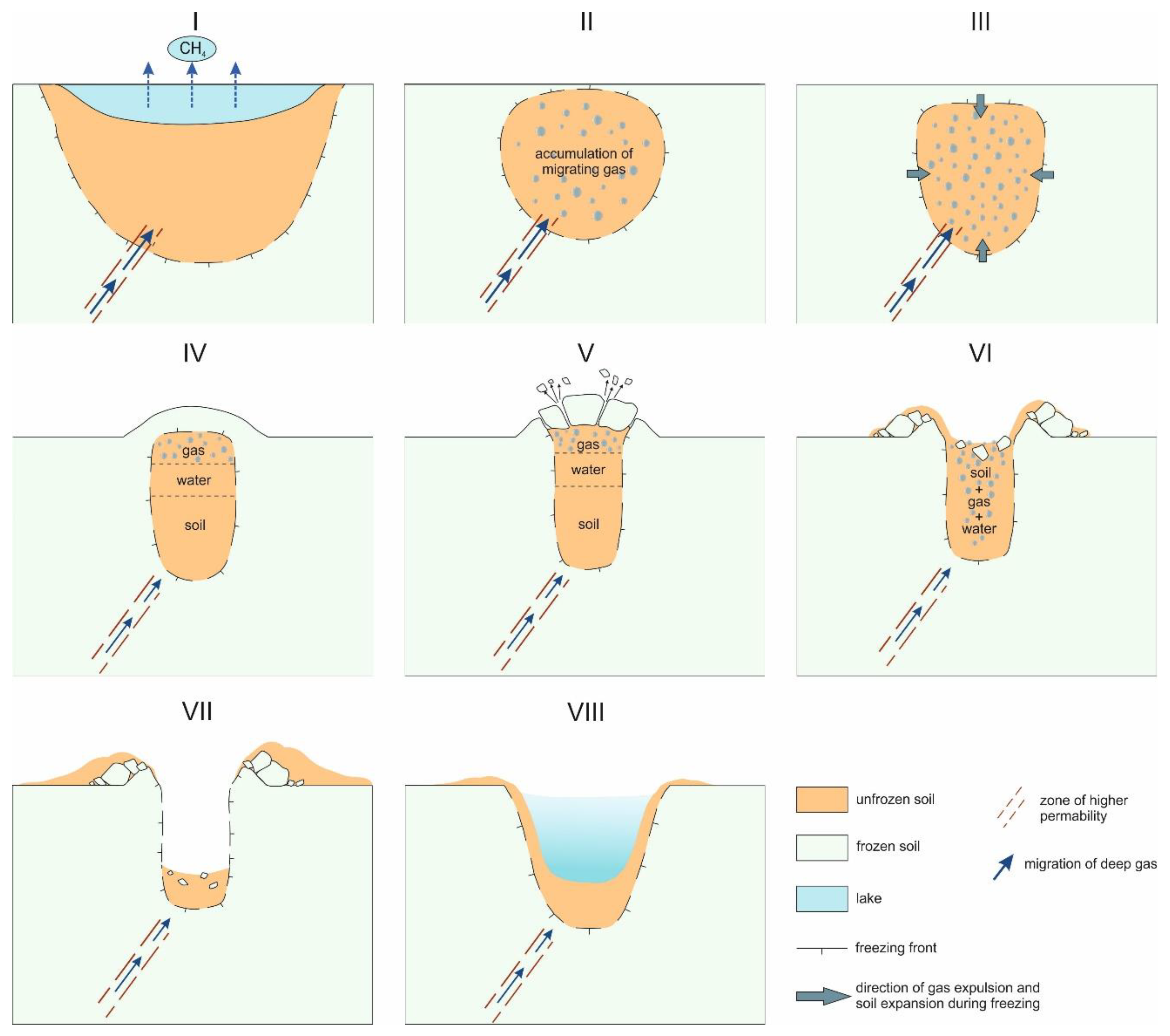

Based on our results and available information, we propose the following conceptual model for formation of the Erkuta crater, (Figure 16
Stage I: A lake is underlain by a talik, with periodic inputs of organic matter into the lake in summer seasons. The organic matter in the lake sediments is recycled microbially with generation of biogenic methane which is accumulated in winter and emitted into the air in spring. The gaseous component of the sediments in the talik increases additionally due to migration of deeper thermogenic gases along faults and fractures in the crust. Emission of deep-seated gases from Arctic lakes is known from several other areas [1
Stage II: Onset of talik freezing takes place after the lake had dried out. The talik undergoes confined freezing and becomes saturated with biogenic and deep-seated thermogenic gas.
Stage III: Confined freezing of the talik and buildup of cryogenic pressure takes place. Freezing of gas-saturated pore moisture under gas pressure at this stage has been studied previously by thermodynamic modeling in laboratory experiments [21
As the lake is drying, the sub-lake unfrozen sediments are freezing from the top and from the sides, which leads to cryogenic gas concentration and stress buildup in the freezing closed talik. Gas-bearing sediments in the latter are confined by the surrounding ice-rich sediments, which increases gas pore pressure in the talik. The pressure may lead to ductile deformation of the permafrost cap above the talik if it exceeds the overburden pressure. At this stage, gas, water and soil in the residual talik can start to stratify.
Stage IV: Stratification of gas, water and soil in the residual talik and heaving. This process occurs in fairly homogeneous alluvial deposits. represented by sandy and silty sediments. As a result of stratification, heavier and denser soil stays on the bottom, while the light volatile gas component rises to the top; liquid water is in the middle. The layers of predominant soil, water and gas components are separated by dash lines in the figure, which are drawn tentatively because each layer contains some amounts of other components. If the pressure buildup is slow, the frozen cap can deform ductily, producing long-lasting heaves on the surface, pingo-like structures. However, if pressure increases rapidly, no slow heaving occurs long before the stress release.
Stage V: Pressure increase in the talik saturated with water and gas and explosive pressure release breaking through the frozen cap. This phenomenon is known as cryovolcanism [10
]: eruption of water, fluids and liquefied soil triggered by overpressure in a freezing confined or open water-bearing system. The collapse of the frozen cap may be accompanied by outpouring of water or mud. No explosion occurs if the amount of gas in the talik is small, but the gas–water–soil mass from the talik erupts explosively and becomes dispersed, together with the frozen cap debris, in the presence of a gas cap.
Stages VI and VII: Progress of cryovolcanism. At stage VI, the gas–water–soil mixture erupts vigorously, and a crater starts to form. The explosive gas emission breaks up the meters thick frozen cap and disperses its material around the cryovolcano vent. A part of the ejected material falls near the crater and produces a parapet-like ridge rising above the surface around the crater, while some other part obviously falls back into the crater and gradually sinks to the bottom. As the eruption continues, the ejected unfrozen soil falls over the debris of the frozen cap. The soil, water and gas components of the talik, which were previously stratified during the confined freezing, mix again when erupting (Figure 16
; Stage VI). The level of the gas–water–soil mixture in the crater gradually decreases and the crater walls emerge. At stage VII, the eruption stops and leaves a crater, with its diameter commensurate with that of the residual closed talik prior to the emission. The ice-rich debris of the cap and the ejected talik sediments are scattered around the crater and cover its bottom.
Note that stages V, VI and VII follow one after another in a few hours to days.
Stage VIII: Stable evolution of the crater and its gradual transformation into a different landform. As the ejected material becomes involved into seasonal freezing–thawing cycles, the crater becomes filled with water in a few months and transforms into a circular lake surrounded by ejected material.
The suggested model explains the crater formation as a result of gas generation and accumulation in a sub-lake talik and the evolution of the talik exposed to confined freezing as the lake is drying out. Gas accumulation in the talik is additionally maintained by ascend of deep fluids migrating upwards through permeable faulted and fractured bedrock.
The data on the structure and composition of soil samples from the crater wall, as well as the proposed conceptual model for formation of the Erkuta crater, characterize it as a feature of explosive gas emission. Apparently, the crater formed in the place of a freezing closed talik under a dried lake by explosion of pressurized gas in the confined unfrozen sediments. The formation of the crater was preceded by rapid heaving within one or two years, judging by remnants of a mound detected in the first helicopter view of the area (Figure 2
). The crater had a shape of a vertical cylinder with smooth walls, possibly because the explosion broke the frozen cap above the talik and mobilized the unfrozen soil–water–gas mass from the talik. A similar process of cryovolcanism has been proposed for formation of the Yamal crater [10
]. In our case, we also consider the talik zone freezing. However, the essential role in the gas accumulation process (unlike the model [10
] for the Yamal crater) is played not by the biogenic gas generated in the bottom sediments of the thermokarst lake, but by the deep gas entering through the permeable zones.
The presence of fractures partly filled with ice on the crater walls (Figure 7
) also indicates that the freezing talik underwent buildup and partial release of stress. Our results indicate that the gas accumulated in and emitted from the talik came from two sources: it was biogenic gas resulting from microbially mediated decay of organic matter in lake sediments and thermogenic gas that migrated from deeper hydrocarbon reservoirs through permeable deformed bedrock. The proposed formation model of the Erkuta crater, unlike that of cryovolcanism suggested for the Yamal Crater [10
], includes the contributions of thermogenic gas that had migrated along faults and fractures from deeper hydrocarbon reservoirs in addition to biogenic gas that formed within the talik.
In general, proposed formation model for the Erkuta crater associated with the emission of gas, which is accumulated in shallow permafrost. Its main feature is the consideration of the combined influence of deep-seated (deep gas migration) and shallow (oxbow lake evolution and closed talik freezing) causes in the process of Erkuta gas-emission crater formation. This vision is fundamentally different from the models of other authors, where only one prerequisites type of crater formation is considered: either deep-seated causes [7
] or only shallow ones [2
The study presents exceptional data on the Erkuta gas-emission crater which was discovered in the summer of 2017 in the floodplain of the Erkuta–Yakha River on the Yamal Peninsula, south of all other craters of this kind found in the North of West Siberia for the past decade.
The main value of the research was the timely organized field trip to the crater in December 2017, which allowed collecting field data and sampling soil, ice and water before the crater became fully filled with water. The lifetime of these features being very short (<2 years), the soil and ground ice collected in December 2017 are the only samples suitable for laboratory analyses.

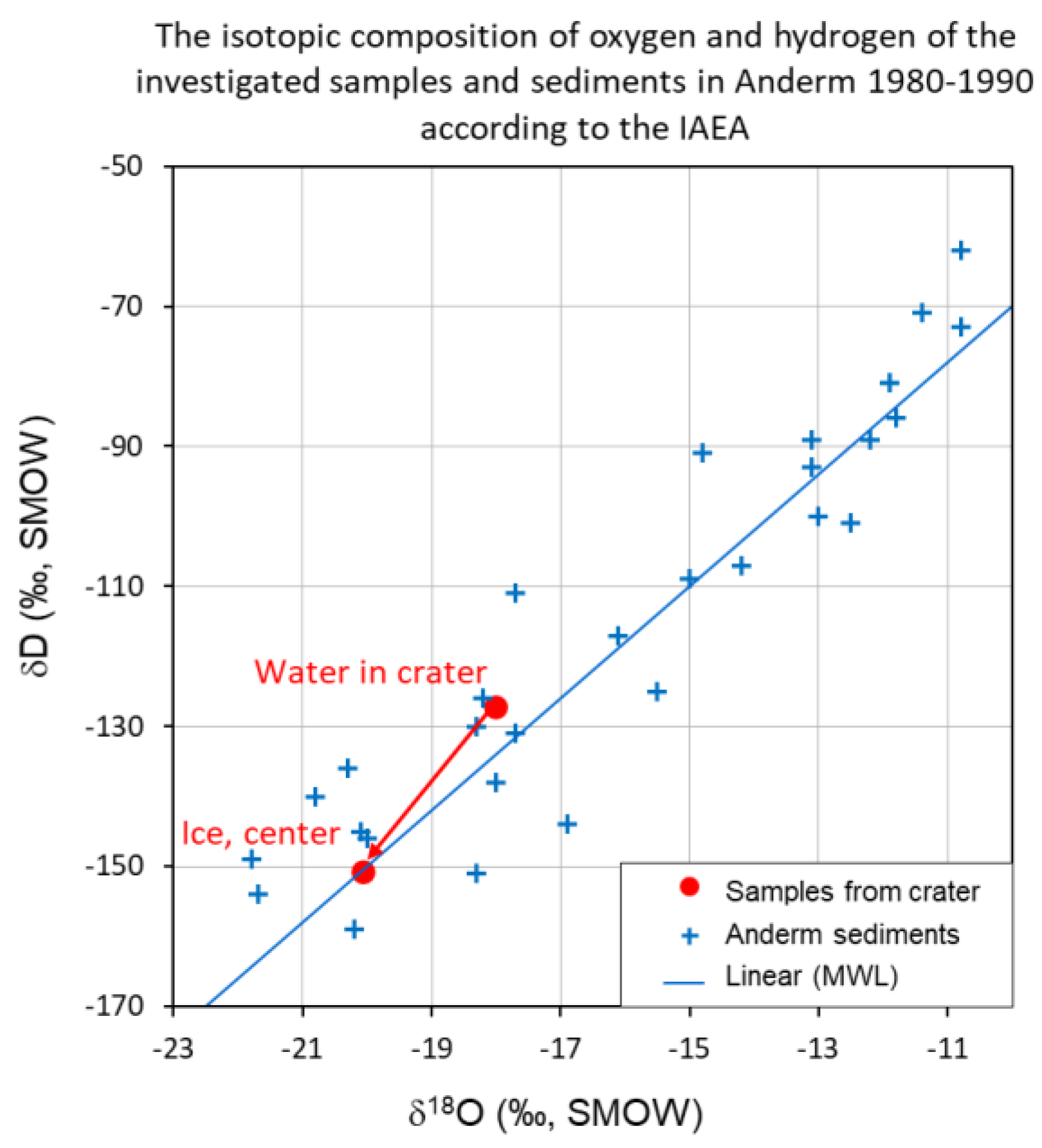

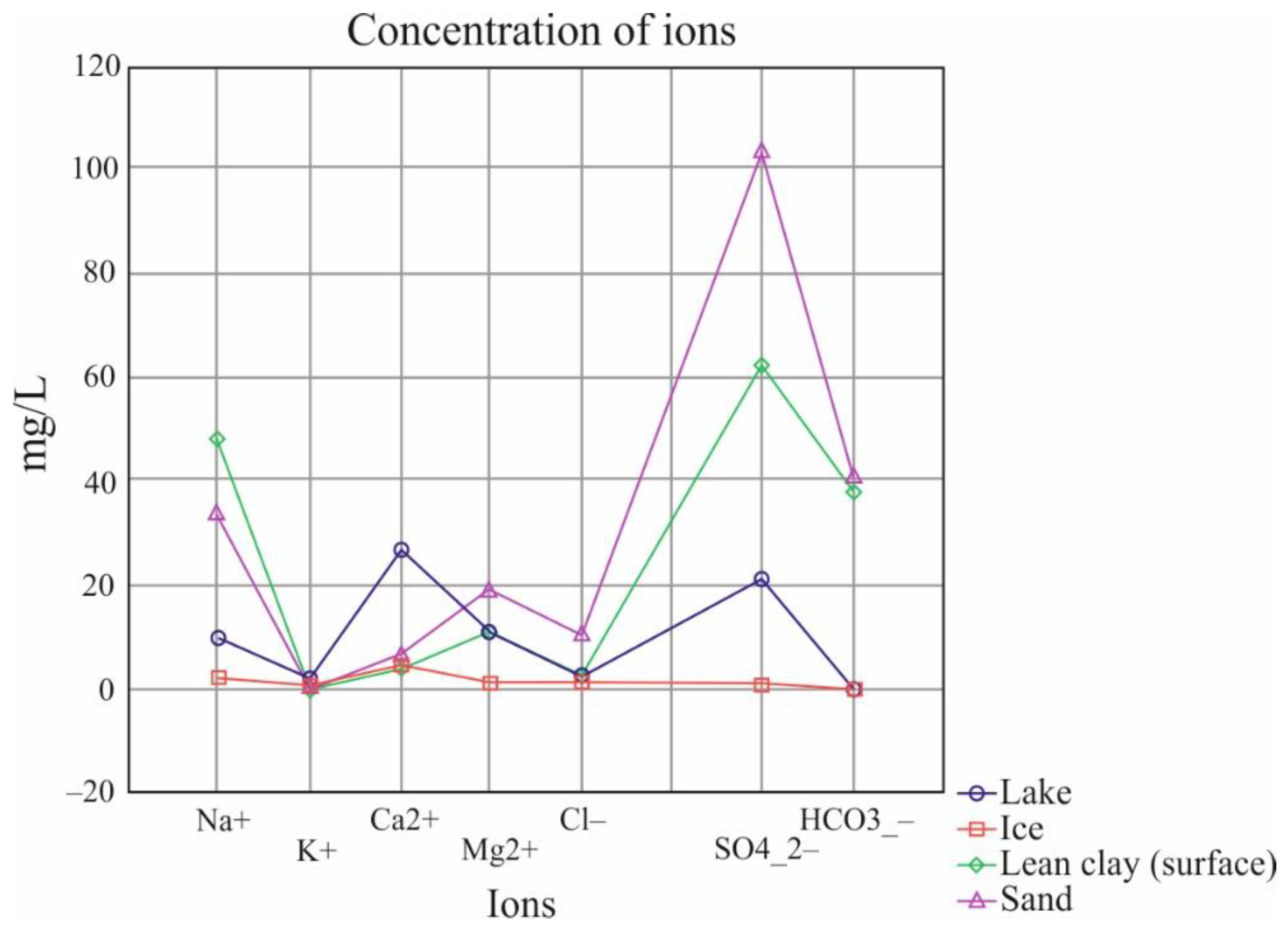

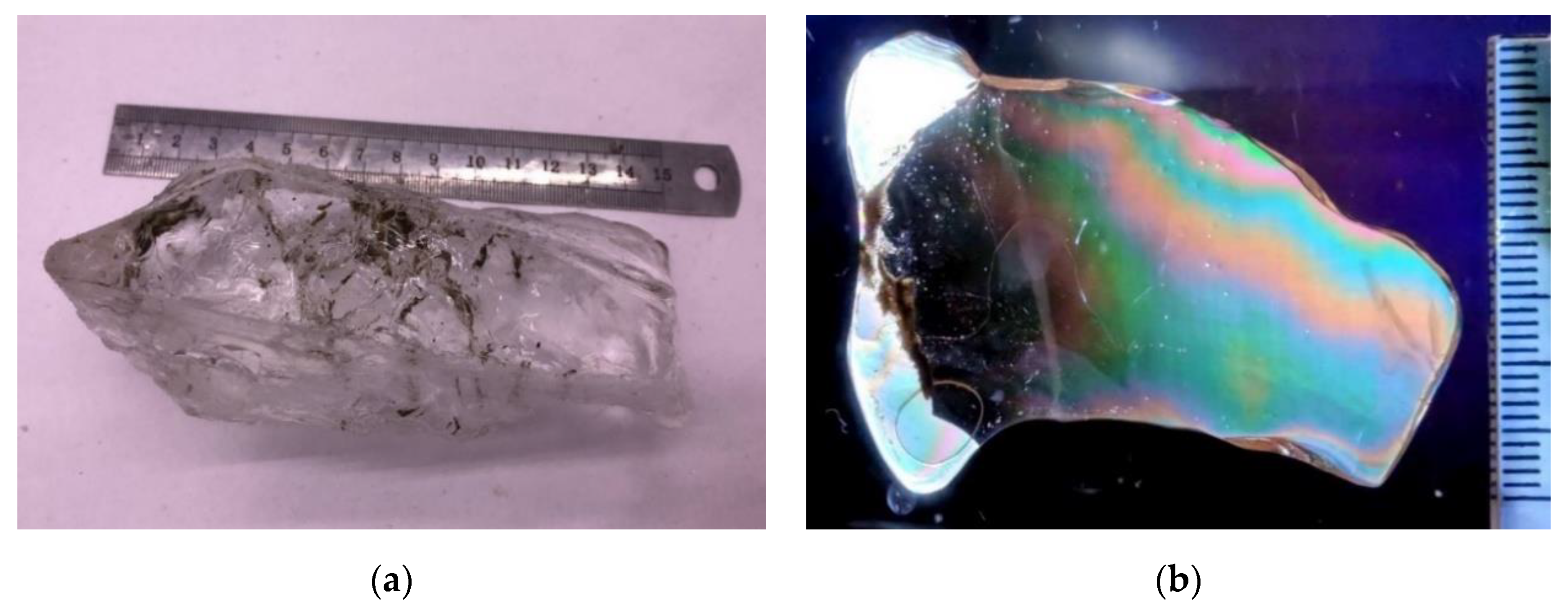

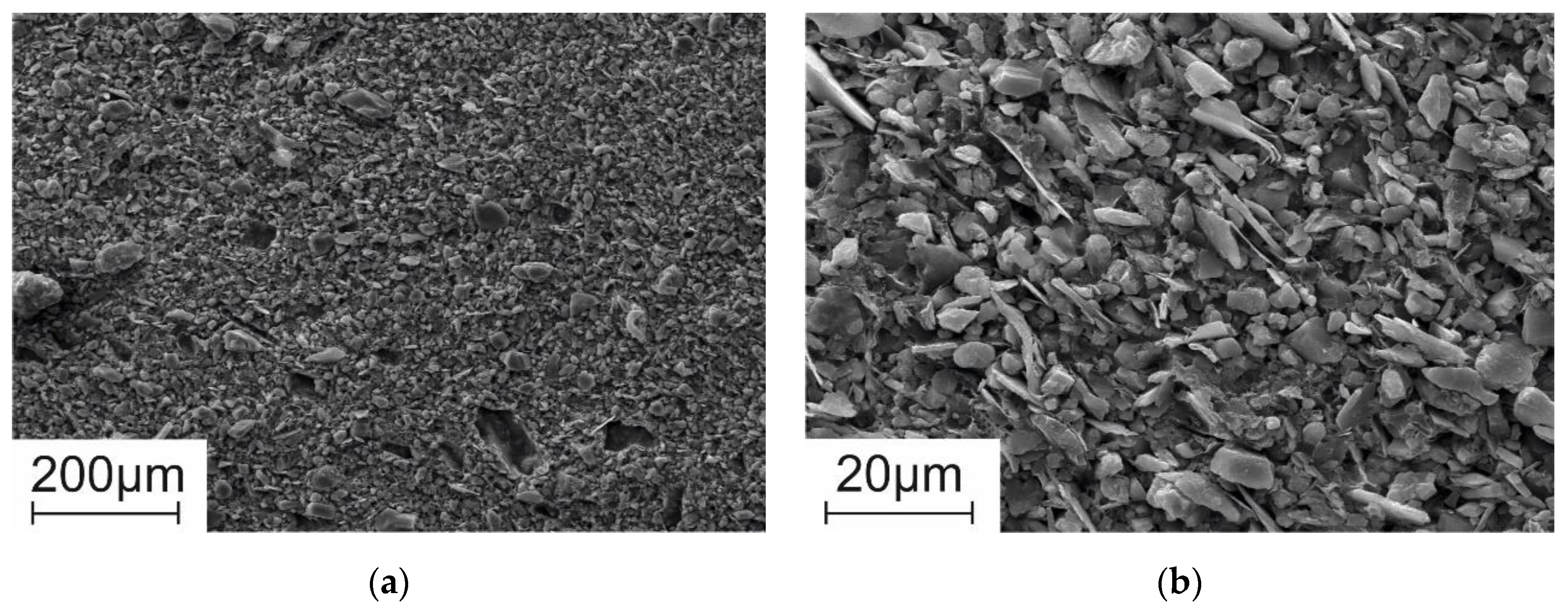

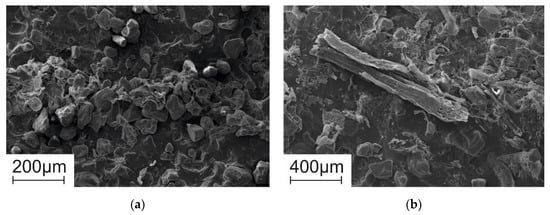

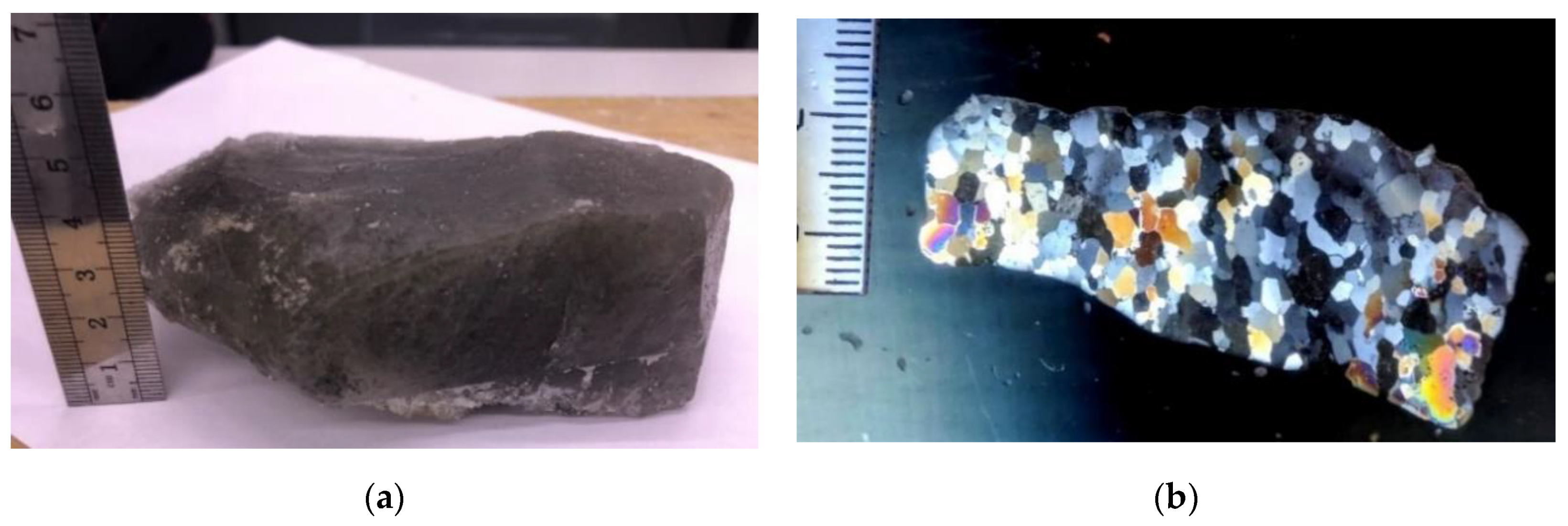

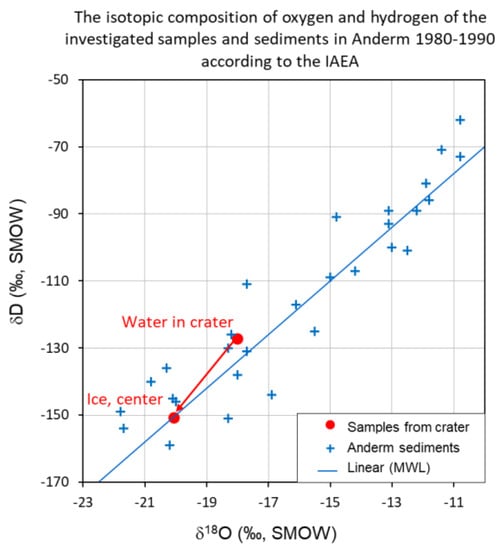

The study provides field data on the crater evolution in 2017–2018 and laboratory results for samples of frozen soil and ground ice from the crater walls. The crater formation was preceded by rapid heaving (within 1–2 years) detectable in aerial photographs. The presence of fractures partly filled with ice on the crater walls records buildup and partial release of stress in the freezing talik.
The carbon isotope composition of the gas component in ground ice proves the biogenic origin of methane in the surrounding permafrost (δ13С = −72‰). The presence of ethane and propane indicates that deep-seated gases generated during sediment maturation processes may have been involved into the gas-emission event. The higher contents of carbon dioxide compared to methane in several samples confirms the assumption of cryogenic concentration, which usually occurs during freezing of taliks.
The results are used to model the formation of the Erkuta gas-emission crater in shallow permafrost caused by the evolution of a talik under a dry lake, assuming a deep gas flow into the unfrozen zone. The model describes the crater evolution in several stages from geological prerequisites to the formation of a new lake-like landform.
