Article

Mapping of Repetitive Sequences in Brachyhypopomus brevirostris (Hypopomidae, Gymnotiformes) from the Brazilian Amazon

by
Paula Pinto Rodrigues
†,
Milla de Andrade Machado
†,
Ananda Marques Pety
,
Willam Oliveira da Silva
,
Julio Cesar Pieczarka
and
Cleusa Yoshiko Nagamachi
*
Laboratório de Citogenética, Centro de Estudos Avançados da Biodiversidade, Instituto de Ciências Biológicas, Universidade Federal do Pará, Belém 66075-750, Brazil
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Animals 2024, 14(12), 1726; https://doi.org/10.3390/ani14121726
Submission received: 24 March 2024 / Revised: 18 May 2024 / Accepted: 31 May 2024 / Published: 7 June 2024
(This article belongs to the Section Animal Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Neotropical electric fish have a large diversity in the Amazon region. We investigated the karyotype of the species Brachyhypopomus brevirostris from two localities in Brazil’s northern region, Santarém in Pará state and Tefé in Amazonas state, using classical and molecular cytogenetics. Specimens from both localities presented the same karyotype. These are the first results regarding the distribution of repetitive sequences for B. brevirostris samples from the Tefé locality, and the first karyotypic description for the Santarém locality. These results differ from those previously described for samples from Humaitá (Amazon state). This karyotypic difference suggests that the Humaitá sample belongs to another species, which is reinforced in the recent redescription of the genus Brachyhypopomus.

Abstract

Brachyhypopomus (Hypopomidae, Gymnotiformes) is a monophyletic genus consisting of 28 formally described species. Karyotypic data are available for 12 species. The same karyotype is described for two species (B. brevirostris and B. hamiltoni), as well as different karyotypes for the same species from distinct locations (B. brevirostris). In this context, B. brevirostris may constitute a cryptic species complex. Thus, in the present study, we analyzed the karyotype of B. brevirostris, from Santarém, Pará, and Tefé, Amazonas, using classical cytogenetics (conventional staining and C-banding) and molecular techniques (fluorescence in situ hybridization using 18S rDNA, 5S rDNA, U2 snRNA, and telomeric probes). The results show that samples from both locations present 2n = 38, with all chromosomes being acrocentric (FC = 38a). In both populations, 18S rDNA sequences are present on only one pair of homologous chromosomes and telomeric sequences occur only at the ends of the chromosomes. In the Tefé sample, the 5S rDNA occurs in two pairs, and the U2 snRNA in three pairs. These results are the first descriptions of these sequences for B. brevirostris samples from the Tefé locality, as well as the first karyotypic description for the Santarém locality. Future cytotaxonomic studies of this genus can benefit from these results.

Graphical Abstract

1. Introduction

South America’s hydrological landscape is shaped by a rich network of hydrobasins. Many of these hydrobasins sustain diverse ecosystems and provide crucial resources to both humans and wildlife, such as the Amazon, Orinoco, Paraná, and many others. One of the largest and most significant hydrobasins in the world, the Amazon Basin, is known for its unparalleled biodiversity and Amazon River [1].
Brachyhypopomus Mago-Leccia 1994, is one of the six genera of electric fish in the family Hypopomidae (Gymnotiformes), widely distributed in the Neotropical region and inhabiting the hydrobasins of South America. It occurs from the La Plata River, in Argentina (35° S), to the Tuira River, in Panama (8° N), and can be found in all South American countries except Chile. It presents greater diversity and abundance in the Amazon Basin [2,3,4,5], which is considered to be the center of origin of this genus, from which it would have dispersed to adjacent basins [5,6].
Brachyhypopomus species, as well as other Gymnotiformes, can generate and detect electrical potentials in water through an electrical organ (EOD) and specialized sensory cells that are organized throughout the animal’s body, called electroreceptors, which are responsible for electrocommunication and active electrolocation [7,8,9,10,11]. These species are cryptically pigmented, nocturnal predators of small and medium-sized aquatic invertebrates and can occur in slow-flowing and shallow habitats, as well as streams, swamps, and seasonal floodplains, and can be an abundant component of the local ichthyofauna [5,12]. Brachyhypopomus is monophyletic, as confirmed by parsimony and Bayesian total evidence-based phylogenetic analyses [5], with 28 valid species (Supplementary Table S1), of which 15 have been recently described [6]. The first species described for the genus was B. brevirostris by Staindachener in 1868 (as Rhamphichthys brevirostris), which is widely distributed in the Amazon, Orinoco, and Guiana basins [6].
Karyotypic data were described for 12 of the 28 species [13,14,15,16,17,18] (Table 1). Different species of Brachyhypopomus differ in 2n (26 to 44), KF, and the number of chromosomes carrying NOR, and may be simple or multiple (Table 1). There are also karyotypes with the multiple sex system X1X1X2X2/X1X2Y found in three species: B. pinnicaudatus (2n = 41/42) and B. flavipomus (2n = 43/44), both from Mamirauá—AM [15], and B. gauderio (2n = 41/42) from the Tietê River—SP [16], from Porto Rico—PR [17], and the Paranapanema River—PR [18], all from the Upper Paraná River. Brachyhypopomus brevirostris, from the Madeira River in Humaitá—AM, was the first species of the genus to have its karyotype studied, showing a diploid number (2n) of 36 chromosomes and a karyotypic formula (FC) of 6m/sm + 30st/a [13]. This 2n is shared by the species B. hamiltoni from Tefé—AM [14], whose karyotype also shares the same FC. On the other hand, B. brevirostris from the Solimões River in the Tefé—AM region presents a karyotype with 2n = 38 and FC = 38st/a [14], which is different from that found in Humaitá.
Cytogenetics has become an important tool for detecting biodiversity [19,20,21], revealing a large amount of information about evolutionary processes within a group, such as chromosomal rearrangements, structural and/or numerical polymorphisms, sexual chromosome systems, and variations associated with the geographic distribution of some species and/or populations [20,21,22].
Although classical cytogenetics has allowed good insights into understanding chromosomal diversity and evolutionary processes, in fish, access to the genome was limited, a fact that made it difficult to detect different levels of genetic divergence [21,23]. The emergence of molecular cytogenetics using fluorescence in situ hybridization (FISH) has resulted in a more precise resolution of the physical location of chromosomes [24].
The aim of using the FISH technique is to understand the structural nature of chromosomes [25], trace the origin and evolution of sex chromosomes [26] and their behavior in the cells’ meiotic process [27], resolve taxonomic questions, and even provide information on the evolution of DNA sequences [28,29,30]. Chromosomal DNA mapping by FISH has been an indispensable tool in understanding chromosomal dynamics and evolution, providing a more refined way of researching chromosomal differentiation. The study of repetitive sequences is therefore crucial to understanding their dynamics and the evolution of the genome, as well as to identifying possible genetic markers for mapping the location of these sequences and indicating their conservation or diversity. Intending to expand our knowledge about the chromosomal structure and the dynamics of repetitive DNA sequences in the Brachyhypopomus genome, we present, for the first time, the karyotype and chromosomal location of three repetitive DNA classes (18S, 5S rDNA, and U2 snDNA) in B. brevirostris from Santarém, Pará, and the Tefé, Amazonas, in the Amazon Basin.

2. Materials and Methods

2.1. Sampling

Samples of B. brevirostris were obtained from two locations: the Mamirauá Reserve, in the region of Tefé—AM, and the municipality of Santarém—PA, from the Aramanaí River (Table 2, Figure 1). The specimens were located and collected with the aid of an electric discharge detector and nylon nets, in addition to the use of flashlights to better visualize the environment. The sample collections took place from dusk, as species in this order have nocturnal habits, being more frequently located on riverbanks. All specimens were processed in the field and euthanized with eugenol [31].

2.2. Cytogenetic Analysis

Metaphase chromosomes were obtained by direct extraction from the head kidney [33] after inducing mitosis by fermentation [34]. C-Banding [35], fluorescence in situ hybridization (FISH) with 18S rDNA [36], 5S rDNA [37], U2 snRNA [38], and telomeric sequence (TTAGGG)n [39] probes followed the protocol previously described [40], using the following primers: 18Sf (5′-CCG CTT TGG TGA CTC TTG AT-3′), 18Sr (5′-CCG AGG ACC TCA CTA AAC CA-3′) [36], 5Sf (5′-GCCACACCACCCTGAACAC-3′), 5Sr (5′-GCCTACGACACCTGGTATTC-3′) [37], U2f (3′-TCTCGGCCTATATTGGCTAA-5′) and U2r (3′-GACGGTAGCTGCAATACCGG-5′) [38]. The 18S rDNA amplification cycles comprised a denaturation for 5 min at 95 °C; 30 cycles of 1 min at 95 °C, 30 seg. at 50 °C, and 45 seg. at 72 °C; a final extension of 5 min at 72 °C; and a cooling period at 4 °C. The 5S rDNA amplification cycles comprised a denaturation for 4 min at 95 °C; 35 cycles of 1 min at 95 °C, 1 min at 60 °C, and 2 min at 74 °C; a final extension of 5 min at 74 °C; and a cooling period at 4 °C. The U2 snRNA amplification cycles comprised a denaturation for 4 min at 95 °C; 30 cycles of 1 min at 95 °C, 1 min at 60 °C, and 2 min at 74 °C; a final extension of 5 min at 74 °C; and a cooling period at 4 °C. The primers (TTAGGG)n and (CCCTAA)n [39] were used to obtain telomeric sequences. PCR was performed with the following profile: 5 min at 94 °C; 35 cycles of 1 min at 94 °C; 30 seg. at 60 °C; 1.5 min at 72 °C, and 5 min at 72 °C. The probes were labeled by PCR using the incorporation of biotinylated dUTP (Invitrogen), or by nick-translation with the BioNick Labeling System kit (Invitrogen, Waltham, MA, USA) for labeling with biotin, and Dig-nick (Roche, Mannheim, Germany) for labeling with digoxigenin. Labeling signals were detected with avidin-Cy3 or anti-digoxigenin-FITC, in addition to DAPI for staining. Images were observed andcaptured using a Zeiss Imager D2 photomicroscope (Zeiss, Oberkochen, Germany) and images were acquired with an Axiocam 503 camera (Zeiss, Oberkochen, Germany) and processed using the ZEN software (Zeiss, Oberkochen, Germany, version 2.0.0.0). The karyotypes were organized using Photoshop CC 2024 (Adobe Systems, San Jose, CA, USA, version 25.10.0). Chromosomes were classified into two groups: metacentric/submetacentric (m/sm) and subtelocentric/acrocentric (st/a) and arranged in decreasing order of size in each group.

3. Results

The diploid number (2n) of Brachyhypopomus brevirostris specimens from both locations is equal to 38, with all chromosomes being acrocentric (Figure 2a,c).
Constitutive heterochromatin (HC) is distributed in small blocks found in the centromeric region of all chromosomes, with some pairs showing a small interstitial band on the long arm and others revealing a small distal band on the long arm. A larger, heteromorphic heterochromatic distal band was seen in the long arm of one of the pair 6 homologs (Figure 2b,d).
Fluorescence in situ hybridization (FISH) with a telomeric sequence probe showed a signal in the terminal region of all chromosomes, with no interstitial marking observed (Figure 3a,c, in green). FISH with 18S rDNA probes showed simple signals in the distal region of the long arm of chromosome pair 19 (Figure 3b,c, in red shown by arrows).
FISH results with 5S rDNA show marking of 5S rDNA in pairs 14 and 16 (Figure 4), and of U2 snRNA sequences (obtained from samples of Tefé—AM region) in multiple chromosomes; it was not possible to identify the pairs in the karyotype (Figure 5).

4. Discussion

The 2n = 38 found in B. brevirostris is within the variation found for the superfamily Rhamphichthyoidea, which varies from 26 chromosomes for B. cf. draco [18], to 50 for Hypopygus lepturus [13], Steatogenys duidae, and Steatogenys elegans [41]. Using ChromEvol, (version 2.0), a software package that implements a series of likelihood models regarding the pathways by which the evolution of chromosome number proceeds, Takagui et al. [18] estimated that 2n = 34 is the ancestral condition for this clade, just as in B. beebei and B. hamiltoni, which have 40 and 36 chromosomes, respectively. B. brevirostris also had its karyotype originated by centromeric fissions.
The karyotype of B. brevirostris in the present study is similar to that found for the Tefé—AM region [14], presenting the same 2n, KF, and constitutive heterochromatin distribution pattern, with the same block size heteromorphism in pair 6. This size heteromorphism, due to the difference in the size of the heterochromatic block, can be explained by a constitutive heterochromatin amplification mechanism between the pairs. This characteristic added to a set of data for this species can be used as a cytogenetic marker, as has been suggested for other neotropical fish species [42,43,44].
Brachyhypopomus brevirostris from the present study, despite sharing the diploid number with B. herdersoni and B. regani, differs in its karyotypic formulas (Table 1), which result from events that modify chromosomal morphology, but do not alter 2n, such as pericentric inversions, translocations of chromosomal segments, and repositioning of the centromere [14,45].
Positive C-band regions are coincident with positive DAPI staining, suggesting that constitutive heterochromatin has a DNA composition rich in A-T nucleotides [16,43]. Previous studies on the location of the Nucleolus Organizer Region (NOR) in Hypopomidae are only available for two genera. NOR presents a multiple system in Brachyhypopomus gauderio [17,18] and in Microsternarchus bilineatus from Rio Negro—AM [46], and a simple system in Brachyhypopomus cf. draco [18] and Microsternarchus aff. bilineatus from Santarém—PA [47]. It is possible to notice that there is a size heteromorphism present between the chromosomes of the NOR pair, a characteristic that is considered common, possibly due to tandem duplication, unequal crossing over between repetitive sequences, or accidental duplication [48]. Despite the difference between the NORs found, it is still not possible to establish a pattern of NOR distribution for this family, as there are little karyotypic data available for the genera of Hypopomidae.
Among the Hypopomidae, published data on 5S DNA and U2 snRNA are scarce or non-existent. Microsternarchus bilineatus from Rio Negro—AM presents 5S DNA signals in a single pair [46], different from B. brevisrostris in this study, which presented signals in two chromosome pairs. In the literature, there are no results of 5S rDNA and U2 snRNA sequences for Brachyhypopomus species, with the data from this study being the first to be presented. The U2 snRNA was previously studied in some Gymnotiformes genera [49,50,51,52], showing simple or multiple hybridization (Table 3), and, in some cases, the U2 snRNA is associated with the 5S rDNA, like in Eigenmannia limbata, E. microstoma [49], and Eigenmannia aff. Trilineata [50]. In this study, we found no association between 5S rDNA and U2 snRNA. We found multiple labeling for the U2 snRNA, and although we were unable to identify which pairs corresponded in the karyotype, the number of chromosome pairs with signals is similar to those of Eigenmannia limbata and Archolaemus janeae.
FISH using telomeric sequence probes showed no interstitial signals, which may suggest that chromosomal rearrangements that occurred during the evolution of the karyotype did not include the presence of these sequences or that they were modified after a fusion event [43,53].
Brachyhypopomus brevirostris is widely distributed in the northern portion of South America (Figure 6), occurring in various habitats and co-occurring geographically with 19 other congenera [6]. Of these, 12 have cytogenetic studies available in the literature, including B. brevirostris [14,15,16,17,18]. Most species of the genus Brachyhypopomus studied cytogenetically come from the Tefé region, located in the Amazon Basin, except B. gauderio, from the Upper Paraná River Basin and B. draco from the Tramandaí Basin in Rio Grande do Sul (Figure 6).
The karyotype of B. brevirostris in the present study (2n = 38, FC = 38st/a) differs from that described (2n = 36, FC = 6m/sm + 30st/a) for Humaitá [13], both in 2n and in the morphology of chromosomes (Table 1). Fusion/fission rearrangements explain the difference in 2n, and inversions and translocations can lead to changes in chromosome morphology. These karyotypic differences between specimens from distinct locations (Table 1; Figure 1) (Tefé—AM, samples from the present study, and Humaitá—AM for the literature sample [13]) may characterize different species and may be cryptic. The three sampled points, Humaitá (1), Tefé (2 to 6), and Santarém (7), of Brachyhypopomus brevirostris, form a triangle on the map (Figure 1), with the Madeira, Tefé, and Tapajós rivers of the three sampling points, respectively, having their mouths on the Amazon River. When the karyotype from Humaitá was published [13], it was assigned to the species B. brevirostris. At that time, only six species were described for the genus Brachyhypopomus. Currently, 15 species are described for this genus [6]. This recent study demonstrated that some previous Brachyhypopomus taxa were composed of more than one species [6]. Regarding the geographic distribution of the Brachyhypopomus species shown on the map (Figure 6), we can see a trend towards some specifically eurytopic species, which are more tolerant to a variety of environments and conditions. For example, B. brevirostris, B. regain, B. hamiltoni, B. beebei, and B. walteri occupy wider geographic areas in the Amazon region, than stenotopic species, except for B. hamiltoni. This has already been observed for other gymnotiform species, such as Gymnotus carapo and Sternopygus macrurus, as well as for other neotropical fish taxa [6,54]. Thus, the sample from Humaitá [13] may belong to another species of this genus, such as B. hamiltoni [14], which has the same karyotype (Table 1).
In addition to providing valuable insights regarding the overall species diversity in South American hydrobasins, Brachyhypopomus distribution can be used to identify biodiversity hotspots and areas that require priority conservation efforts [55]. We observed that sympatry is widespread in this genus (Figure 6), with overlap distribution occurring between three and eleven species, as B. walteri occurs in sympatry with B. draco and B. gauderio, while most other taxa have greater contact with more species and are more widespread. Even though B. flavipomus and B. batesi have smaller distribution areas, they are still sympatric with the other eight species.
Furthermore, Brachyhypopomus can be used as a bioindicator species for the health of hydrobasin ecosystems by demonstrating the presence of suitable habitats and environmental conditions in hydrobasins [56]. Brachyhypopomus occurs in 8 out of the 25 hydrobasins of South America (Figure 7), and its distribution could be influenced by a variety of factors, including the quality of the water, its depth, and the availability of food and shelter [57]. B. hamiltoni, B. flavipomus, and B. batesi are endemic to the Amazon Basin; B. gauderio and B. draco occur at La Plata and Uruguay; B. hendersoni occurs in the Amazon and Northeast South America; B. bennetti is mostly distributed in the Amazon, north of Tocantins, and in a small portion of North Brazil; B. regani is widely spread in the Amazon, Orinoco, Northeast South America and Tocantins, and a small portion of North Brazil; B. pinnicaudatus occurs in the Amazon, Northeast South America, and small areas of the Tocantins and North Brazil; B. brevirostris occurs in the Amazon, Orinoco, Northeast South America, Tocantins, La Plata, and a small portion of North Brazil; B. walteri occurs in the Amazon, La Plata, Tocantins, and a small area of Northeast South America; and B. beebei occurs in the Amazon, Orinoco, Northeast South America, and small areas of Caribbean Coast.
As stated by [1], in South America, river configurations over millions of years have facilitated species dispersal, which has led to an increase in fish diversity. The species richness of Western Amazonia is extremely high and decreases from west to east [1], which is consistent with the pattern observed in Brachyhypopomus, whose majority of representatives reside in the Amazon, and B. hendersoni, B. hamiltoni, B. flavipomus, and B. batesi are found only in Western Amazon.

5. Conclusions

These results are the first descriptions of 18S rDNA, 5S rDNA, and U2 snRNA sequences for B. brevirostris samples from the Tefé locality, and the first karyotypic description for the Santarém locality. The karyotype described for B. brevirostris from Humaitá—AM is similar to that recently described for B. hamiltoni (2n = 36; FC = 6m/sm + 30st/a), which suggests the possibility of them being the same species. The cytogenetic data obtained in this study for the two populations of Brachyhypopomus brevirostris indicate that, even isolated, they maintained the karyotype, with no evidence of recent rearrangements. These results contribute to the karyotypic knowledge of the Hypopomidae family, especially for the genus Brachyhypopomus. These results are extremely important and will be a relevant reference for future comparative studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani14121726/s1, Table S1: Valid species comprising the genus Brachyhypopomus.

Author Contributions

P.P.R.: conceptualization; data curation; formal analysis; investigation; methodology; visualization; writing—original draft; writing—review and editing. M.d.A.M.: investigation; methodology; resources; visualization; writing—review and editing. A.M.P.: data curation; formal analysis; methodology; writing—review and editing. W.O.d.S.: writing—review and editing. J.C.P.: data curation; formal analysis; funding acquisition; resources; visualization; writing—review and editing. C.Y.N.: data curation; formal analysis; funding acquisition; project administration; resources; supervision; visualization; writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), the Fundação Amazônia Paraense de Amparo à Pesquisa (FAPESPA) and the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) on projects coordinated by CY Nagamachi (Edital BIONORTE-CNPq, Proc 552032/2010-7; Edital BIONORTE-FAPESPA, ICAAF 007/2011; Edital Pró-Amazônia Proc 047/2012); Edital Jovens Doutores (CNPq-FAPESPA, termo de Outorga 006/2023); the FAPESPA (Edital Vale—Proc 2010/110447) and Banco Nacional de Desenvolvimento Econômico e Social—BNDES (Operação 2.318.697.0001) on a project coordinated by JC Pieczarka. CYN (307170/2021-7) and JCP (307154/2021-1) are grateful to CNPq for Productivity Grants.

Institutional Review Board Statement

The animal study protocol was approved by the Ethics Committee in Research with experimental animals from the Universidade Federal do Pará, reference 68-2015.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

The authors are grateful to Instituto Chico Mendes de Conservação da Biodiversidade (ICMBio) and Secretaria de Estado de Meio Ambiente do Pará (SEMA-PA), to members of the team of the cytogenetics laboratory UFPA for the fieldwork and chromosomal preparations and to Jorge Rissino, Shirley Nascimento and Maria da Conceição for assistance in laboratory work. This study is part of the P.P.R. Master’s dissertation in Neuroscience and Cell Biology, which was a CAPES Master’s Scholarship.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cassemiro, F.A.S.; Albert, J.S.; Antonelli, A.; Menegotto, A.; Wüest, R.O.; Cerezer, F.; Coelho, M.T.P.; Reis, R.E.; Tan, M.; Tagliacollo, V.; et al. Landscape dynamics and diversification of the megadiverse South American freshwater fish fauna. Proc. Natl. Acad. Sci. USA 2023, 120, e2211974120. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  2. Albert, J.S. Species Diversity and Phylogenetic Systematics of American Knifefishes (Gymnotiformes, Teleostei); Museum of Zoology, University of Michigan: Ann Arbor, MI, USA, 2001; No. 190; pp. 1–129. [Google Scholar]
  3. Albert, J.S.; Crampton, W.G.R. Family Hypopomidae (Bluntnose Knifefishes). In Check List of Freshwater Fishes of the South and Central America; Reis, R.E., Kullander, S.O., Ferraris, C.J., Eds.; Edipucrs: Porto Alegre, Brazil, 2003; 729p. [Google Scholar]
  4. Almirón, A.; Casciotta, J.; Ciotek, L.; Giorgis, P. Pisces, Gymnotiformes, Hypopomidae, Brachyhypopomus Mago-Leccia, 1994: First country record of three species of the genus, Argentina. CheckList 2010, 6, 572–575. [Google Scholar] [CrossRef]
  5. Crampton, W.G.R.; Santana, C.D.; Waddel, J.C.; Lovejoy, N.R. Phylogenetic Systematics, Biogeography, and Ecology of the Electric Fish Genus Brachyhypopomus (Ostariophysi: Gymnotiformes). PLoS ONE 2016, 11, e0161680. [Google Scholar] [CrossRef]
  6. Crampton, W.G.R.; Santana, C.D.; Waddell, J.C.; Lovejoy, N.R. A taxonomic revision of the Neotropical electric fish genus Brachyhypopomus (Ostariophysi: Gymnotiformes: Hypopomidae), with descriptions of 15 new species. Neotrop. Ichthyol. 2016, 14, e150146. [Google Scholar] [CrossRef]
  7. Alves-Gomes, J.A.; Guillermo, O.; Haygood, M.; Heiligenberg, W.; Meyer, A. Phylogenetic analysis of the South American electric fish (order Gymnotiformes) and the evolution of their electrogenic system: A synthesis based on morphology, electrophysiology, and mitochondrial sequence data. Mol. Biol. Evol. 1995, 2, 298–318. [Google Scholar]
  8. Alves-Gomes, J.A. The phylogenetic position of the South American electric fish genera Sternopygus and Archolaemus (Ostariophysi: Gymnotiformes) according to 12S and 16S mitocondrial DNA sequences. In Phylogeny and Classification of Neotropical Fishes; Malabarba, L.R., Reis, R.E., Vari, R.P., Lucena, Z.M.S., Lucena, C.A.S., Eds.; Edipucrs: Porto Alegre, Brazil, 1998; pp. 447–460. [Google Scholar]
  9. Albert, J.S.; Crampton, W.G.R. Diversity and phylogeny of Neotropicalelectric fishes (Gymnotiformes). In Electroreception; Bullock, T.H., Hopkins, C.D., Fay, R.R., Eds.; Springer Handbook of Auditory Research Series; Springer: New York, NY, USA, 2005; pp. 360–409. [Google Scholar]
  10. Albert, J.S.; Crampton, W.G.R. Electroreception and electrogenesis. In The Physiology of Fishes, 3rd ed.; Evans, D., Ed.; CRC Press: New York, NY, USA, 2005; pp. 431–472. [Google Scholar]
  11. Crampton, W.G.R.; Albert, J.S. Evolution of electric signal diversity in gymnotiform fishes. Part A. Phylogenetic systematics, ecology, and biogeography. In Communication in Fishes; Ladish, R., Collin, S.P., Moller, P., Kapoor, B.G., Eds.; Science Publishers: Enfield, UK, 2006; pp. 647–696. [Google Scholar]
  12. Crampton, W.G.R. Gymnotiform fish: An important component of Amazonian floodplain fish communities. J. Fish Biol. 1996, 48, 298–301. [Google Scholar] [CrossRef]
  13. Almeida-Toledo, L.F. Contribuição à Citogenética de Gymnotoidei (Pisces, Osthariophysi). Ph.D. Thesis, Instituto de Biociências, Universidade de São Paulo, São Paulo, Brazil, 1978. [Google Scholar]
  14. Cardoso, A.L.; Pieczarka, J.C.; Crampton, W.G.R.; Ready, J.S.; De Figueiredo Ready, W.M.B.; Waddell, J.C.; Oliveira, J.A.; Nagamachi, C.Y. Karyotypic Diversity and Evolution in a Sympatric Assemblage of Neotropical Electric Knifefish. Front. Genet. 2018, 9, 81. [Google Scholar] [CrossRef] [PubMed]
  15. Cardoso, A.L.; Pieczarka, J.C.; Nagamachi, C.Y. X1X1X2X2/X1X2Y sex chromosome systems in the Neotropical Gymnotiformes electric fish of the genus Brachyhypopomus. Genet. Mol. Biol. 2015, 38, 213–219. [Google Scholar] [CrossRef] [PubMed]
  16. Almeida-Toledo, L.F.; Daniel-Silva, M.F.Z.; Lopes, C.E.; Toledo-Filho, S.A. Sex chromosome evolution in fish: Second occurrence of a X1X2Y sex chromosome system in Gymnotiformes. Chromosome Res. 2000, 8, 335–340. [Google Scholar] [CrossRef]
  17. Mendes, V.P.; Portela-Castro, A.L.B.; Júlio-Júnior, H.F. First record of supernumerary (B) chromosomes in electric fish (Gymnotiformes) and the karyotype structure of three species of the same order from the upper Paraná River basin. Comp. Cytogenet. 2012, 6, 1–16. [Google Scholar] [CrossRef]
  18. Takagui, F.H.; Cardoso, A.L.; Dionisio, J.F.; Shibattac, O.A.; Giuliano-Caetanoa, L. Cytogenetic Analysis of Two Species of Brachyhypopomus (Hypopomidae): New Inferences about Karyotypic Diversification of Grass Knifefish. J. Ichthyol. 2022, 62, 828–839. [Google Scholar] [CrossRef]
  19. Dias, A.L.; Foresti, F. Cytogenetic studies on fishes of the family Pimelodidae (Siluroidei). Rev. Bras. Genética 1993, 16, 585–600. [Google Scholar]
  20. Bertollo, L.A.C.; Born, G.G.; Dergam, J.A.; Fenocchio, A.S.; Moreira-Filho, O. A biodiversity approach in the neotropical Erythrinidae fish, Hoplias malabaricus. Karyotypic survey, geographic distribution of cytotypes and cytotaxonomic considerations. Chromosome Res. 2000, 8, 603–613. [Google Scholar] [CrossRef] [PubMed]
  21. Artoni, R.F.; Castro, J.P.; Jacobina, U.P.; Lima-Filho, P.A.; da Costa, G.W.W.F.; Molina, W.F. Inferring Diversity and Evolution in Fish by Means of Integrative Molecular Cytogenetics. Sci. World J. 2015, 2015, 365787. [Google Scholar] [CrossRef] [PubMed]
  22. Jacobina, U.P.; Affonso, P.R.A.D.M.; Carneiro, P.L.S.; Dergam, J.A. Biogeography and comparative cytogenetics between two populations of Hoplias malabaricus (Bloch, 1794) (Ostariophysi: Erythrinidae) from coastal basins in the State of Bahia, Brazil. Neotrop. Ichthyol. 2009, 7, 617–622. [Google Scholar] [CrossRef]
  23. Molina, W.F. Fish cytogenetics. In Chromosome Changes and Stasis in Marine Fish Groups; Pisano, E., Ozouf-Costa, C., Forest, F., Kapoor, B.G., Eds.; Science Publisher: Enfield, CT, USA, 2007; pp. 69–110. [Google Scholar]
  24. Singh, R.S.; Jiang, J.; Gill, B.S. Current status and the future of fluorescence in situ hybridization (FISH) in plant genome research. Genome 2006, 49, 1057–1068. [Google Scholar]
  25. Vicari, M.R.; De Mello Pistune, H.F.; Castro, J.P.; De Almeida, M.C.; Bertollo, L.A.C.; Moreira-Filho, O.; Camacho, J.P.M.; Artoni, R.F. New insights on the origin of B chromosomes in Astyanax scabripinnis obtained by chromosome painting and FISH. Genetica 2011, 1073, 139. [Google Scholar] [CrossRef]
  26. Yano, C.F.; Poltronieri, J.; Bertollo, L.A.C.; Artoni, R.F.; Liehr, T.; Cioffi, M.B. Chromosomal mapping of repetitive DNAs in Triportheus trifurcatus (Characidae, Characiformes): Insights into the differentiation of the Z and W chromosomes. PLoS ONE 2014, 9, e90946. [Google Scholar] [CrossRef] [PubMed]
  27. Da Silva, M.; Matoso, D.A.; Vicari, M.R.; De Almeida, M.C.; Margarido, V.P.; and Artoni, R.F. Physical Mapping of 5S rDNA in Two Species of Knifefishes: Gymnotus pantanal and Gymnotus paraguensis (Gymnotiformes). Cytogenet. Genome Res. 2011, 134, 303–307. [Google Scholar] [CrossRef]
  28. Lehmann, R.; Kovařík, A.; Ocalewicz, K.; Kirtiklis, L.; Zuccolo, A.; Tegner, J.N.; Wanzenböck, J.; Bernatchez, L.; Lamatsch, D.K.; Symonová, R. DNA transposon expansion is associated with genome size increase in Mudminnows. Genome Biol. Evol. 2021, 13, evab228. [Google Scholar] [CrossRef]
  29. Santos, R.Z.; Calegari, R.M.; Silva, D.M.Z.A.; Ruiz-Ruano, F.J.; Melo, S.; Oliveira, C.; Foresti, F.; Uliano-Silva, M.; Porto-Foresti, F.; Utsunomia, R. A long-term conserved satellite DNA that remais unexpanded in several genomes of Characiformes fish is actively transcribed. Genome Biol. Evol. 2021, 13, evab002. [Google Scholar]
  30. Yano, C.F.; Sember, A.; Kretschmer, R.; Bertollo, L.A.C.; Ezaz, T.; Hatanaka, T.; Liehr, T.; Ráb, P.; Al-Rikabi, A.; Viana, P.F.; et al. Against the mainstream: Exceptional evolutionary stability of ZW sex chromosomes across the fish families Triportheidae and Gasteropelecidae (Teleostei: Characiformes). Chromosome Res. 2021, 29, 391–416. [Google Scholar] [CrossRef] [PubMed]
  31. Fernandes, I.M.; Bastos, Y.F.; Barreto, D.S.; Lourenço, L.S.; Penha, J.M. The efficacy of clove oil as an anesthetic and in eutanásia procedure for small-sized tropical fishes. Braz. J. Biol. 2016, 77, 444–450. [Google Scholar] [CrossRef] [PubMed]
  32. Hijmans, R.J.; Guarino, L.; Bussink, C.; Mathur, P.; Cruz, M.; Barrentes, I.; Rojas, E. DIVA-GIS. Vsn. 5.0. A Geographic Information System for the Analysis of Species Distribution Data. 2004. Available online: http://www.diva-gis.org (accessed on 1 February 2024).
  33. Bertollo, L.A.C.; Takahashi, C.S.; Moreira-Filho, O. Cytotaxonomic considerations on Hoplias lacerdae (Pisces, Erythinidae). Braz. J. Genet. 1978, 2, 103–120. [Google Scholar]
  34. Bertollo, L.A.C. Estimulação de mitoses em peixes. In Proceedings of the I Simpósio de Citogenética Evolutiva e Aplicada de Peixes Neotropicais, Sao Carlos, Brazil, 13–17 August 1986. [Google Scholar]
  35. Sumner, A.T. A simple technique for demonstrating centromeric heterochromatin. Exp. Cell Res. 1972, 75, 304–306. [Google Scholar] [CrossRef] [PubMed]
  36. Hatanaka, T.; Galetti, P.M., Jr. Mapping 18S and 5S ribosomal RNA genes in the fish Prochilodus argenteus Agassiz, 1929 (Characiformes, Prochilodontidae). Genetica 2004, 122, 239–244. [Google Scholar] [CrossRef] [PubMed]
  37. Suárez, P.; Pinto Barroso, I.C.G.; Silva, D.D.S.; Milhomem, S.S.R.; Cabral-de-Mello, D.C.; Martins, C.; Pieczarka, J.C.; Nagamachi, C.Y. Highest diploid number among Gymnotiformes: First cytogenetic insights into Rhabdolichops (Sternopygidae). Zebrafish 2017, 14, 272–279. [Google Scholar] [CrossRef] [PubMed]
  38. Colgan, D.J.; McLauchlan, A.; Wilson, G.D.F.; Livingston, S.P.; Edgecombe, G.D.; Macaranas, J.; Cassis, G.; Gray, M.R. Histone H3 and U2 snRNA DNA sequences and arthropod molecular evolution. Aust. J. Zool. 1998, 46, 419–437. [Google Scholar] [CrossRef]
  39. Ijdo, J.W.; Wells, R.A.; Baldini, A.; Reeders, S.T. Improved telomere detection using a telomere repeat probe (TTAGGG)n generated by PCR. Nucleic Acids Res. 1991, 19, 4780. [Google Scholar] [CrossRef]
  40. Pinkel, D.; Straume, T.; Gray, J.W. Cytogenetic analysis using quantitative, highsensitivity, fluorescence hybridization. Proc. Natl. Acad. Sci. USA 1986, 83, 2934–2938. [Google Scholar] [CrossRef]
  41. Cardoso, A.L.; Pieczarka, J.C.; Feldberg, E.; Milhomem, S.S.R.; Moreira-Almeida, T.; Silva, D.D.S.; da Silva, P.C.; Nagamachi, C.Y. Chromosomal characterization of two species of genus Steatogenys (Gymnotiformes: Rhamphichthyoidea: Steatogenini) from the Amazon basin: Sex chromosomes and correlations with Gymnotiformes phylogeny. Rev. Fish Biol. Fish. 2011, 21, 613–662. [Google Scholar] [CrossRef]
  42. Almeida-Toledo, L.F. Cytogenetic markers in neotropical freshwater fishes. In Phylogeny and Classification of Neotropical Fishes; Malabarba, L.R., Reis, R.E., Vari, R.P., Lucena, Z.M., Lucena, C.A.S., Eds.; EDIPUCRS: Porto Alegre, Brazil, 1998; pp. 583–588. [Google Scholar]
  43. Silva, D.S.; Milhomem, S.S.R.; Souza, A.C.P.; Pieczarka, J.C.; Nagamachi, C.Y. A conserved karyotype of Sternopygus macrurus (Sternopygidae, Gymnotyformes) in the Amazon region: Differences from other hydrographic basins suggest cryptic speciation. Micron 2008, 39, 1251–1254. [Google Scholar] [CrossRef] [PubMed]
  44. Da Silva, P.C.; Nagamachi, C.Y.; Dos Santos Silva, D.; Milhomem, S.S.R.; Cardoso, A.L.; De Oliveira, J.A.; Pieczarka, J.C. Karyotypic similarities between two species of Rhamphichthys (Rhamphichthyidae, Gymnotiformes) from the Amazon basin. Comp. Cytogenet. 2013, 7, 279–291. [Google Scholar] [CrossRef] [PubMed]
  45. White, M.J.D. Animal Cytology and Evolution; Cambridge University Press: Cambridge, UK, 1973. [Google Scholar]
  46. De Jesus, I.S.; Ferreira, M.; Garcia, C.R.; Leila, B.; Alves-Gomes, J.A.; Feldberg, E. First Cytogenetic Description of Microsternarchus bilineatus (Gymnotiformes: Hypopomidae) from Negro River (Brazilian Amazon). Zebrafish 2016, 13, 571–577. [Google Scholar] [CrossRef] [PubMed]
  47. Batista, J.A.; Cardoso, A.L.; Milhomem-Paixão, S.S.R.; Ready, J.S.; Pieczarka, J.C.; Nagamachi, C.Y. The Karyotype of Microsternarchus aff. bilineatus: A First Case of Y Chromosome Degeneration in Gymnotiformes. Zebrafish 2017, 14, 244–250. [Google Scholar] [CrossRef] [PubMed]
  48. Silva, F.H.R.; Pieczarka, J.C.; Cardoso, A.L.; Silva, P.C.; de Oliveira, J.A.; Nagamachi, C.Y. Chromosomal diversity in three species of electric fish (Apteronotidae, Gymnotiformes) from Amazon Basin. Genet. Mol. Biol. 2014, 37, 638–645. [Google Scholar] [CrossRef] [PubMed]
  49. Araya-Jaime, C.A.; Mazzoni Zerbinato de Andrade Silva, D.; Ribeiro da Silva, L.R.; Neves do Nascimento, C.; Oliveira, C.; Foresti, F. Karyotype description and comparative chromosomal mapping of rDNA and U2 snDNA sequences in Eigenmannia limbata and E. microstoma (Teleostei, Gymnotiformes, Sternopygidae). Comp. Cytogenet. 2022, 16, 127–142. [Google Scholar] [CrossRef] [PubMed]
  50. Araya-Jaime, C.; Mateussi, N.T.B.; Utsunomia, R.; Costa-Silva, G.J.; Oliveira, C.; Foresti, F. ZZ/Z0: The New System of Sex Chromosomes in Eigenmannia aff. trilineata (Teleostei: Gymnotiformes: Sternopygidae) Characterized by Molecular Cytogenetics and DNA Barcoding. Zebrafish 2017, 14, 464–470. [Google Scholar] [CrossRef] [PubMed]
  51. Rodrigues, P.P.; Machado, M.d.A.; Pety, A.M.; Silva, D.d.S.; Souza, A.C.P.; Pieczarka, J.C.; Nagamachi, C.Y. Archolaemus janeae (Gymnotiformes, Teleostei): First insights into karyotype and repetitive DNA distribution in two populations of the Amazon. Ecol. Evol. 2021, 11, 15468–15476. [Google Scholar] [CrossRef]
  52. Utsunomia, R.; Scacchetti, P.C.; Pansonato-Alves, J.C.; Oliveira, C.; Foresti, F. Comparative Chromosome Mapping of U2 snRNA and 5S rRNA Genes in Gymnotus Species (Gymnotiformes, Gymnotidae): Evolutionary Dynamics and Sex Chromosome Linkage in G. pantanal. Cytogenet. Genome Res. 2014, 142, 286–292. [Google Scholar] [CrossRef]
  53. Silva, D.S.; Milhomem, S.S.R.; Pieczarka, J.C.; Nagamachi, C.Y. Cytogenetic studies in Eigenmannia virescens (Sternopygidae, Gymnotiformes) and new inference on the origin of sex chromosome in the Eigenmannia genus. BMC Genet. 2009, 10, 74–82. [Google Scholar] [CrossRef] [PubMed]
  54. Carvalho, T.P. Systematics and Evolution of the Toothless Knifefishes Rhamphichthyoidea Mago-Leccia (Actinopterygii: Gymnotiformes): Diversification in South American Freshwaters. Ph.D. Thesis, University of Louisiana at Lafayette, Lafayette, LA, USA, 2013. [Google Scholar]
  55. Jenkins, C.N.; Alves, M.A.S.; Uezu, A.; Vale, M.M. Patterns of Vertebrate Diversity and Protection in Brazil. PLoS ONE 2015, 10, e0145064. [Google Scholar] [CrossRef] [PubMed]
  56. Maltchik, L.; Stenert, C.; Kotzian, C.B.; Pires, M.M. Responses of Odonate Communities to Environmental Factors in Southern Brazil Wetlands. Kans. (Cent. States) Entomol. Soc. 2010, 83, 208–220. [Google Scholar] [CrossRef]
  57. Crampton, W.G.R. Ecology and life history of an Amazon floodplain cichlid: The discus fish Symphysodon (Perciformes: Cichlidae). Neotrop. Ichthyol. 2008, 6, 599–612. [Google Scholar] [CrossRef]
  58. Boschman, L.M.; Carraro, L.; Cassemiro, F.A.S.; de Vries, J.; Altermatt, F.; Hagen, O.; Hoorn, C.; Pellissier, L. Freshwater fish diversity in the western Amazon basin shaped by Andean uplift since the Late Cretaceous. Nat. Ecol. Evol. 2023, 7, 2037–2044. [Google Scholar] [CrossRef]
Animals 14 01726 g001
Figure 1. Photo of a specimen of Brachyhypopomus brevirostris; map showing collection point referring to the B. brevirostris samples from this work. 1: Aramanaí stream—Santarém; 2: Mamirauá Reserve—Tefé. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata accessed on 1 February 2024.
Figure 1. Photo of a specimen of Brachyhypopomus brevirostris; map showing collection point referring to the B. brevirostris samples from this work. 1: Aramanaí stream—Santarém; 2: Mamirauá Reserve—Tefé. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata accessed on 1 February 2024.
Animals 14 01726 g001
Animals 14 01726 g002
Figure 2. Karyotype of Brachyhypopomus brevirostris: (a) conventional staining of the sample from Santarém—PA; (b) C-Banding, from the Santarém—PA sample; (c) conventional staining of the sample from the Mamirauá Reserve, Tefé—AM region; (d) C-banding of the sample from the Mamirauá Reserve, Tefé—AM region.
Figure 2. Karyotype of Brachyhypopomus brevirostris: (a) conventional staining of the sample from Santarém—PA; (b) C-Banding, from the Santarém—PA sample; (c) conventional staining of the sample from the Mamirauá Reserve, Tefé—AM region; (d) C-banding of the sample from the Mamirauá Reserve, Tefé—AM region.
Animals 14 01726 g002
Animals 14 01726 g003
Figure 3. FISH with 18S rDNA and telomeric probes, without evidence of ITS. (a) FISH with Telomeric probe, sample from Santarém—PA. (b) FISH with 18S rDNA probe (red) indicated by white arrows, hybridizing to a chromosomal pair (19q), sample from Santarém–PA. (c) Double FISH with 18S rDNA probe (red) indicated by white arrows, hybridizing to a chromosomal pair (19q) and telomeric probe (green), sample from the Mamirauá Reserve, Tefé–AM region.
Figure 3. FISH with 18S rDNA and telomeric probes, without evidence of ITS. (a) FISH with Telomeric probe, sample from Santarém—PA. (b) FISH with 18S rDNA probe (red) indicated by white arrows, hybridizing to a chromosomal pair (19q), sample from Santarém–PA. (c) Double FISH with 18S rDNA probe (red) indicated by white arrows, hybridizing to a chromosomal pair (19q) and telomeric probe (green), sample from the Mamirauá Reserve, Tefé–AM region.
Animals 14 01726 g003
Animals 14 01726 g004
Figure 4. FISH with 5S rDNA probes hybridizing to two chromosomal pairs: (a) sample from Tefé—AM; (b) sample from Santarém—PA.
Figure 4. FISH with 5S rDNA probes hybridizing to two chromosomal pairs: (a) sample from Tefé—AM; (b) sample from Santarém—PA.
Animals 14 01726 g004
Animals 14 01726 g005
Figure 5. FISH with sn-U2 probe (red), signal in multiple chromosomes of B. brevirostris.
Figure 5. FISH with sn-U2 probe (red), signal in multiple chromosomes of B. brevirostris.
Animals 14 01726 g005
Animals 14 01726 g006
Figure 6. Maps showing the distribution areas of species of the genus Brachyhypopomus [6] that have cytogenetic data available in the literature. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata, accessed on 1 February 2024.
Figure 6. Maps showing the distribution areas of species of the genus Brachyhypopomus [6] that have cytogenetic data available in the literature. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata, accessed on 1 February 2024.
Animals 14 01726 g006
Animals 14 01726 g007

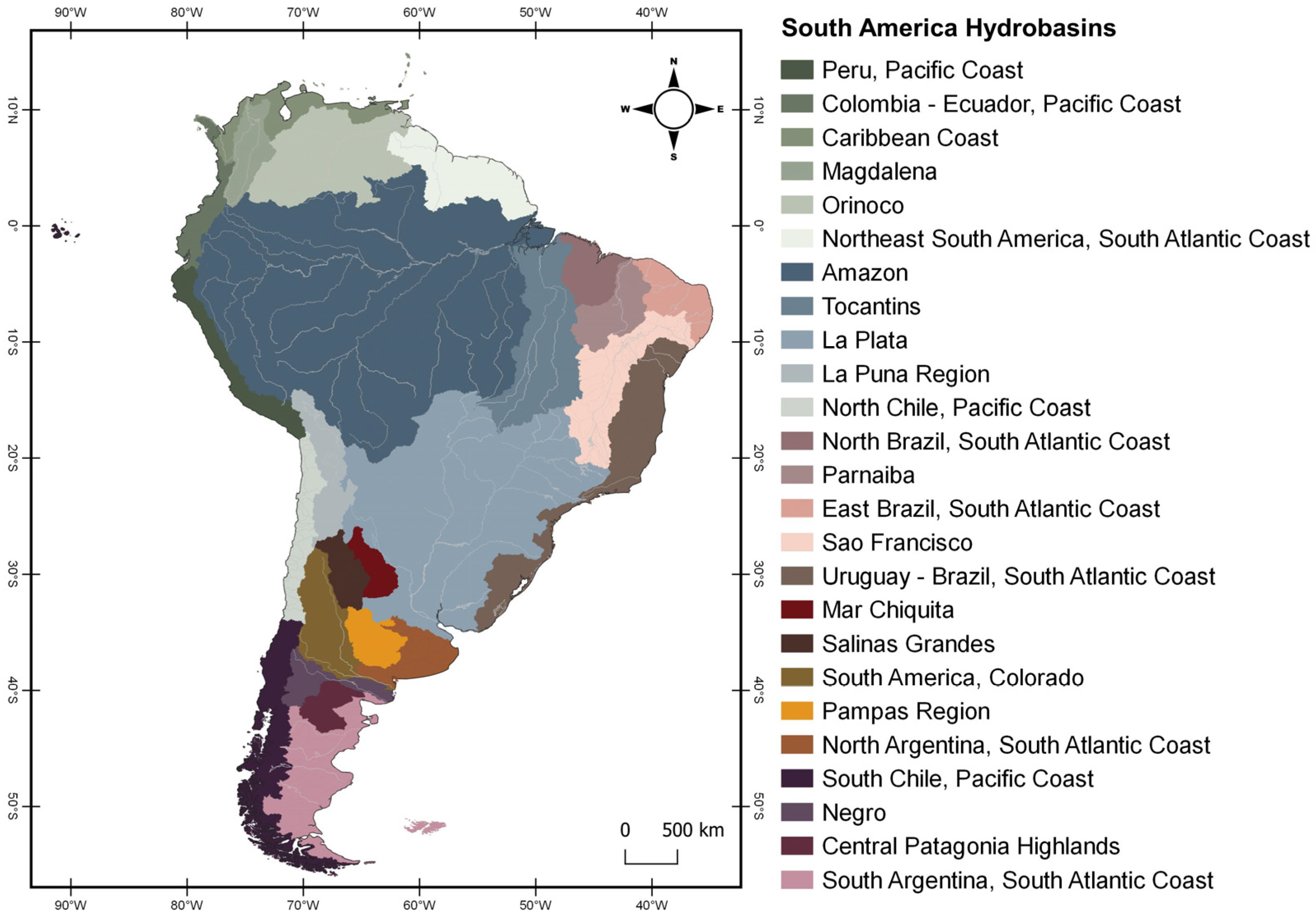

Figure 7. Map showing South America hydrobasins. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata, accessed on 1 February 2024. Hydrobasins’ limits were based on Boschman et al., 2023 [58].
Figure 7. Map showing South America hydrobasins. The map was made using QGIS v. 3.10.7. The shapefiles containing country boundaries, elevation, and hydrography were obtained from DIVA-GIS [32], at the link https://www.diva-gis.org/gdata, accessed on 1 February 2024. Hydrobasins’ limits were based on Boschman et al., 2023 [58].
Animals 14 01726 g007
Table 1. Karyotypic data available for the genus Brachyhypopomus.
Table 1. Karyotypic data available for the genus Brachyhypopomus.
SpeciesLocality2nSexSex SystemKFNOR/18S rDNA 5S rDNA U2 snDNA Reference
B. brevirostrisHumaitá—AM36 6m/sm + 30st/a [13]
Tefé—AM38 38st/a [14]
38 38st/a19q14p; 16p3 pairsPresent study
Santarém—PA38 38st/a19q14p; 16p3 pairsPresent study
B. pinnicaudatusMamirauá—AM41MX1X1X2X2/
X1X2Y		1m/sm + 40st/a [15]
42F42st/a
B. flavipomusMamirauá—AM43MX1X1X2X2/
X1X2Y		1m/sm + 42st/a [15]
44F44st/a
B. batesiTefé—AM40 38m/sm + 2st/a [14]
B. hendersoniTefé—AM38 34m/sm + 4st/a [14]
B. reganiTefé—AM38 14m/sm + 24st/a [14]
B. beebeiTefé—AM40 8m/sm + 32st/a [14]
B. hamiltoniTefé—AM36 6m/sm + 30st/a [14]
B. bennettiTefé—AM40 2m/sm + 38st/a [14]
B. walteriTefé—AM40 2m/sm + 38st/a [14]
B. cf. dracoLagoa dos Quadros—RS26 2m + 24a13p [18]
B. gauderioPorto Rico—PR41MX1X1X2X2/
X1X2Y		1m + 40a8 signals [17]
42F42a
Tietê River—SP41MX1X1X2X2/
X1X2Y		1m + 40a [16]
42F42a
Paranapanema River—PR41MX1X1X2X2/
X1X2Y		1m + 40a2p, 5p, 1q, 16q [18]
42F42a
Legend: 2n—Diploid number, KF—Karyotypic formula, M—male, F—female; [13]: Almeida-Toledo, 1978; [14]: Cardoso et al., 2018; [15]: Cardoso et al., 2015; [17]: Mendes et al., 2012; [16]: Almeida-Toledo et al., 2000; [18]: Takagui et al., 2022.
Table 2. Samples of Brachyhypopomus brevirostris analyzed in this study.
Table 2. Samples of Brachyhypopomus brevirostris analyzed in this study.
SpeciesLocalityID *Sample
Brachyhypopomus brevirostrisMamirauá Reserve—Tefé—AM/Amazon BasinP-26351 ♀
Aramanaí stream—Santarém—PA/Amazon BasinP-3665; P-3667; P-36692♀/1 indetermined
Legend: (*) Ichthyology collection in the Centro de Estudos Avançados da Biodiversidade, CEABIO, UFPa, Brazil.
Table 3. Results of U2 snRNA sequences for Gymnotiformes available in the literature.
Table 3. Results of U2 snRNA sequences for Gymnotiformes available in the literature.
Specie (Localities)2nKFsnDNA U2Reference
Eigenmannia limbata (Rio Branco—AC)388m + 4sm + 26a3 pairs (11, 12, 14)[49]
E. microstoma (Francisco Dumont—MG)388m + 10sm + 20a4 pairs (10, 12, 16, 17)[49]
E. aff. trilineata (Rio Miranda-Paraguai)32♂ 8m + 2sm + 22a
♀ 8m + 1sm + 22a		Simple (Par 12)[50]
Archolaemus janeae (Altamira—PA and Santarém—PA)464m/sm + 42st/a3 pairs (3, 6, 13)[51]
Gymnotus pantanal (Colômbia, SP)404m + 3sm + 13st7 pairs (9, 10, 11, 18, 20, X1)[52]
Gymnotus carapo (Iquitos-Peru)4212m + 6sm + 3stSimple (par 1)[52]
Gymnotus sylvius (Botucatu, SP)4011m + 6sm + 3stSimple (par 1)[52]
Gymnotus inaequilabiatus (Botucatu, SP)5421m + 5sm + 1stSimple (par 5)[52]
Gymnotus pantherinus (Mongaguá, SP)5216m + 9sm + 1stSimple (par 4)[52]
Gymnotus javari (Iquitos-Peru)506m + 4sm + 15stSimple (par 11)[52]
Legends: 2n = diploid number; KF = Karyotypic Formula; [49]: Araya-Jaime et al., 2022; [50]: Araya-Jaime et al., 2017; [51]: Rodrigues et al., 2021; [52]: Utsunomia et al., 2014.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Rodrigues, P.P.; Machado, M.d.A.; Pety, A.M.; Oliveira da Silva, W.; Pieczarka, J.C.; Nagamachi, C.Y. Mapping of Repetitive Sequences in Brachyhypopomus brevirostris (Hypopomidae, Gymnotiformes) from the Brazilian Amazon. Animals 2024, 14, 1726. https://doi.org/10.3390/ani14121726

AMA Style

Rodrigues PP, Machado MdA, Pety AM, Oliveira da Silva W, Pieczarka JC, Nagamachi CY. Mapping of Repetitive Sequences in Brachyhypopomus brevirostris (Hypopomidae, Gymnotiformes) from the Brazilian Amazon. Animals. 2024; 14(12):1726. https://doi.org/10.3390/ani14121726

Chicago/Turabian Style

Rodrigues, Paula Pinto, Milla de Andrade Machado, Ananda Marques Pety, Willam Oliveira da Silva, Julio Cesar Pieczarka, and Cleusa Yoshiko Nagamachi. 2024. "Mapping of Repetitive Sequences in Brachyhypopomus brevirostris (Hypopomidae, Gymnotiformes) from the Brazilian Amazon" Animals 14, no. 12: 1726. https://doi.org/10.3390/ani14121726

APA Style

Rodrigues, P. P., Machado, M. d. A., Pety, A. M., Oliveira da Silva, W., Pieczarka, J. C., & Nagamachi, C. Y. (2024). Mapping of Repetitive Sequences in Brachyhypopomus brevirostris (Hypopomidae, Gymnotiformes) from the Brazilian Amazon. Animals, 14(12), 1726. https://doi.org/10.3390/ani14121726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
