Mini-Intein Structures from Extremophiles Suggest a Strategy for Finding Novel Robust Inteins

by
Mimmu K. Hiltunen
,
Hannes M. Beyer
† and
Hideo Iwaï
*
Institute of Biotechnology, HiLiFE, University of Helsinki, P.O. Box 56, 00014 Helsinki, Finland
*
Author to whom correspondence should be addressed.
†
Current Affiliation: Institute of Synthetic Biology and CEPLAS, University of Düsseldorf, 40225 Düsseldorf, Germany.
Microorganisms 2021, 9(6), 1226; https://doi.org/10.3390/microorganisms9061226
Submission received: 6 May 2021 / Revised: 26 May 2021 / Accepted: 2 June 2021 / Published: 5 June 2021
(This article belongs to the Special Issue Microbial Extremophiles as Life Pioneers and Wellsprings of Valuable Molecules)
Browse Figures
Review Reports Versions Notes

Abstract

:
Inteins are prevalent among extremophiles. Mini-inteins with robust splicing properties are of particular interest for biotechnological applications due to their small size. However, biochemical and structural characterization has still been limited to a small number of inteins, and only a few serve as widely used tools in protein engineering. We determined the crystal structure of a naturally occurring Pol-II mini-intein from Pyrococcus horikoshii and compared all three mini-inteins found in the genome of P. horikoshii. Despite their similar sizes, the comparison revealed distinct differences in the insertions and deletions, implying specific evolutionary pathways from distinct ancestral origins. Our studies suggest that sporadically distributed mini-inteins might be more promising for further protein engineering applications than highly conserved mini-inteins. Structural investigations of additional inteins could guide the shortest path to finding novel robust mini-inteins suitable for various protein engineering purposes.

1. Introduction

Self-splicing protein introns (inteins) are genetic elements that are translated with their host proteins [1,2]. After translation, the inteins catalyze their own excision and re-ligation of flanking protein regions (called exteins) with a peptide bond, resulting in active mature host proteins [1,3]. Inteins are often considered selfish genetic elements, found within coding DNA regions, because their removal generally does not affect the fitness of the host organisms [3]. However, specific regulatory functions of inteins have been proposed for some inteins [4,5].
Inteins are found in all three domains of life and are often considered to have ancient origins that predate the separation of prokaryotes and eukaryotes [4,5,6,7,8]. A recent analysis of an annotated genome database revealed that up to 16 protein hosts with inteins were found for nearly half of all archaea analyzed, whereas only one percent of eukaryotes contain inteins [6,7]. Inteins are also found among various extremophiles, such as thermophiles, halophiles, and acidophiles. Inteins reside in various host proteins with diverse functions [6,7]. However, there is a bias towards proteins involved in DNA metabolisms, such as DNA polymerases, topoisomerases, and ribonucleotide reductases [6,7]. The biased distribution of inteins to specific proteins, and their insertions at active sites, has led to the hypothesis that some inteins have adapted to become environmental sensors that play regulatory roles by protein splicing conditionally under certain conditions, such as high temperature, salinity, and redox states [4,5,6,7].
The closely related thermophiles P. abyssi (Pab) and P. horikoshii (Pho) both contain 14 inteins in their genome, while the halophile Haloquadratum walsbyi contains 15 inteins (Table S1) [6]. These three extremophiles are intein-rich because up to 19 inteins have been identified (Table S1) [6,7]. However, the distribution and size of these inteins are not highly conserved, even among thermophilic archaea of the same genus. Presumably, horizontal gene transfers (HGT) that occurred during evolution contributed to this variation, counterbalanced by the degeneration events of the nested homing endonuclease domains (HENs) [3]. Due to these evolutionary events, the structure and protein-splicing activities of inteins might represent the evolutionary history of each intein [9].
Despite the obscure biological/physiological roles of inteins, their enzymatic mechanisms catalyzing protein-splicing reactions have opened a new horizon in protein chemistry. Utilizing the protein splicing activities of inteins bears a repertoire of potential applications in several areas, including in vivo protein engineering, protein purification, and modification. Indeed, intein-mediated chemical reactions have increasingly been incorporated as practical tools in the fields of protein engineering, synthetic biology, and biotechnology [10,11]. For example, inteins from extremely halophilic archaea have been demonstrated to control protein-splicing reactions with salt concentrations, which has enabled the engineering of a salt-inducible self-cleaving tag for protein purification [12]. Thus, inteins from extremophiles might have great potential for the development of unique biotechnological tools.
Inteins often contain a nested active or inactive HEN, which presumably plays an essential role in the HGT of intein genes [3,6,13]. There is a class of inteins lacking the HEN domain, so-called mini-inteins. Due to their reduced complexity, naturally-occurring mini-inteins lacking HEN domains have been of particular interest for protein engineering to develop biotechnological applications [14,15]. Although the protein-splicing HINT (Hedgehog/INTein) and DNA-processing HEN domains likely function independently of each other [1], attempts to engineer mini-inteins by removing the HEN have revealed a more complicated relationship between the two domains [9,15,16,17]. Some engineered mini-inteins retain their splicing activity, while others lose it completely [9,14,15,16].
Currently, inteins have not been systematically selected and tested biochemically for the robustness of their protein splicing activity, because their splicing activities are not predictable without experimental assessments. Thus, strategies for choosing promising inteins from sequence databases would be highly desirable in order to best advance future protein engineering.
As the first step towards a rational approach to identify robust inteins for protein engineering, we turned our attention to the 14 inteins identified in the genome of P. horikoshii. Three of these inteins can be classified as mini-inteins (≤200 residues). These are the PhoRadA, PhoCDC21-1, and PhoPol-II inteins, consisting of 172, 170, and 166 residues, respectively. The structural and biochemical characterizations of the PhoRadA and PhoCDC21-1 inteins have been previously reported [17,18]. In this work, we determined the 1.48-Å resolution structure of the PhoPol-II intein, the smallest intein found in P. horikoshii, and compared the selected inteins of the Pyrococcus genus with two other mini-inteins in P. horikoshii. The structural comparison and accumulated biochemical data might serve as a practical compass in the quest for robust mini-inteins from genomic sequence data.

2. Materials and Methods

2.1. Cloning and Production of PhoPol-II Intein

The gene encoding the PhoPol-II intein with Cys1Ala (C1A) mutation to inhibit self-cleavages during the purification was amplified from pSKDuet23 [19] using the following two oligonucleotides HK941: 5′-AGGATCCGGTAATGCCTTCCCGGGAGATACAAG and HK942: 5′-TGAAAGCTTACTGATGCGTCACAATATTTTC. The PCR product was cloned between BamHI/HindIII of pHYRSF53 (Addgene #64696) to make a fusion protein with the H6-SUMO domain, resulting in plasmid pCARSF55D [19]. The plasmid pCARSF55D encodes the N-terminal H6-SUMO domain (yeast SMT3) fused with the PhoPol-II intein with C1A mutation. The C-terminal residue was kept as the original glutamine (Gln), followed by the stop codon, resulting in no C-extein residue. The PhoPol-II intein was produced in Escherichia coli strain T7 Express (New England Biolabs) using plasmids pCARSF55D and pRARE encoding for rare tRNAs to minimize the effect of codon bias in thermophilic organisms [18,20]. The transformed cells were grown at 37 °C in 2-L LB expression cultures supplemented with 25 μg mL−1 kanamycin and 5 μg mL−1 chloramphenicol. The cultures were induced with a final concentration of 1 mM isopropyl-β-D-thiogalactoside (IPTG) for 3 h when OD600 reached 0.6. The induced cells were harvested by centrifugation at 4700× g for 10 min, 4 °C and lyzed in 20-mL buffer A (50 mM sodium phosphate, pH 8.0, 300 mM NaCl) using an EmulsiFlex-C3 homogenizer (Avestin Inc, Ottawa, ON, Canada) at 15,000 psi for 10 min, 4 °C. Lysates were cleared by centrifugation at 38,000× g for 60 min, 4 °C. The PhoPol-II intein (C1A) was purified using a 5-mL HisTrap HP column (GE Healthcare Life Sciences) as previously described, including the removal of the N-terminal H6-SUMO fusion domain [19]. The protein was dialyzed against deionized water and concentrated for crystallization using Macrosep® Advance Centrifugal Devices 10K MWCO (PALL Corporation, New York, NY, USA).

2.2. Cis-Splicing of PhoPol-II Intein

For the cis-splicing test of PhoPol-II intein, the gene of the active PhoPol-II intein, including sequence encoding two residues of “GN” and “CD” at the N- and C-terminal splicing junction, was amplified from pCARSF55D as the template using the following two oligonucleotides, J603: 5′-AAGGATCCGGTAATTGCTTCCCGGGAGATACAA and J618: 5′-TAGGTACCATCGCACTGATGCGTCACAATATTTTC. The expression vector for the cis-splicing precursor with the two B1 domains of Staphylococcus protein A (GB1) was created by cloning the PCR product between BamHI/KpnI of SKDuet16, resulting in pLKRDuet30. The expression plasmid for the cis-splicing precursor protein with SUMO and chitin-binding domain (CBD) as N- and C-exteins was constructed by amplifying the intein gene using the following three oligonucleotides, M083: 5′-GAACAGATTGGTGGATCCAAACGTAATTGCTTCCCGGGAGATACAAGA, M084: 5′-GAACAGATTGGTGGATCCGCTAAGAAACGTAATTGCTTCCCGGGAGATACA, and M085: 5′-CACCAGGATTTGTGGTACCGTCGCACTGATGCGTCAC, followed by Gibson Assembly with pHYRSF53 using the following two additional oligonucleotides, J508: 5′-CGGTACCACAAATCCTGGTG and HB030: 5′-GGATCCACCAATCTGTTCTCTG, resulting in plasmid pJEJRSF294. The cis-splicing precursor protein with two GB1 domains as exteins or with SUMO and CBD were produced in E. coli strain T7 Express (New England Biolabs) using either plasmid pLKRDuet30 or pJEJDuet294 as described above. The precursor protein was purified using a 5-mL HisTrap HP column (GE Healthcare Life Sciences) or a Ni-NTA spin column and dialyzed against PBS. The purified precursor protein was incubated in the presence of 0.5 mM TCEP at either room temperature, 37, 50, or 60 °C. The samples were taken at 0, 1, and 3 h, and overnight (ON), and were analyzed by SDS-PAGE on 16.5% acrylamide gels and visualized using Coomassie blue staining.

2.3. Crystallization of PhoPol-II Inteins

PhoPol-II intein (C1A) (23.4 mg/mL) was used for crystallization trials. Drops of 200 nL (100 nL concentrated protein and 100 nL of reservoir solution) were set up in 96-well MRC (Molecular Dimensions) crystallization plates using a Mosquito LCP® (TTP Labtech). Diffracting crystals were obtained with the reservoir solution containing 100 mM MES pH 6, 15% (w/v) PEG 550 MME, and 30 mM zinc sulfate. PEG MME 550 (25%) was added as a cryoprotectant for flash-freezing crystals in liquid nitrogen. The PhoPol-II intein diffraction data were collected on beamline I03 at the diamond light source with Eiger2 XE 16M detector (Oxfordshire, UK) and were subsequently indexed, integrated, and scaled to a 1.48-Å resolution using the program XDS [21].

2.4. Structure Determination and Refinement

The crystal structure of PhoPol-II intein was solved by molecular replacement. The search model was modeled using SWISS-MODEL based on the primary structure [22]. The initial solution obtained from Phaser using the search model was used for auto-building by ARP/WARP [23]. The initial coordinates obtained from ARP/WARP were rebuilt with Coot, followed by rounds of refinement using the Phenix software [24,25]. The polypeptide chain of PhoPol-II intein was fully traced into the electron density map without breaks for 168 residues, 166 of which belong to the intein. We used the comprehensive validation tool in the Phenix GUI for validating the quality of the final structure (Table 1) [25].

3. Results

3.1. Crystal Structure of PhoPol-II Intein

The DNA polymerase II large subunit (Uniprot: O57861) of P. horikoshii contains a 166 residue intein (PhoPol-II intein). Previously, the Pol-II intein from P. abyssi (PabPol-II intein) has been solved by NMR spectroscopy [28]. Whereas PabPol-II consists of 185 residues, the PhoPol-II intein only has 166 residues, which makes the latter more attractive for protein engineering due to its smaller size. The sequence identity between them is 64% (119/185 residues). We solved the three-dimensional structure of the PhoPol-II intein at a 1.48-Å resolution by molecular replacement (Figure 1a,b). The crystal structure revealed the typical HINT fold with the β-strand insertion commonly observed among inteins from thermophilic organisms (Figure 1a) [29]. In line with the loop minimization often observed for proteins from thermophiles [30], we could trace the electron densities for all of the 168 residues without detecting any flexible linker sequences, which were present in the structure of the PabPol-II intein (Figure 1, Figure 2 and Figure 3) [28].

3.2. Comparison with Other Mini-Inteins from P. horikoshii

Although the three mini-inteins in P. horikoshii have similar sizes, between 166 and 172 residues, their three-dimensional structures show distinct differences (Figure 2). All three structures have the extended β-strand insertion (extβ) that is commonly observed among thermophilic inteins [29]. The helical lengths preceding extβ vary among the three structures, with 1.9, 3.6, and 4.2 helical turns for PhoPol-II, PhoRadA, and PhoCDC21-1 inteins, respectively. The PhoRadA intein has a 10-residue insertion at the highly conserved HEN insertion site, which could be removed without affecting the splicing activity [17]. In contrast, the PhoPol-II and PhoCDC21-1 inteins lack such insertions at the HEN insertion site (Figure 2). The relatively short helix of the PhoPol-II intein is rather reminiscent of a canonical mesophilic intein. Despite their similar sizes, the structural comparison suggests that the three inteins are unlikely to have directly evolved from the same ancestral intein, due to the distributed short insertions and deletions over the entire sequence (Figure 2b).

3.3. Comparison with Naturally-Occurring Mini-Intein Structures from Other Thermophiles

We subjected the coordinates of the PhoPol-II intein to the DALI protein structure comparison server in order to identify the closest three-dimensional structures. Not surprisingly, the server returned the PabPol-II intein (2LCJ) as the closest structure, with a Z-score of 22.7, covering 164 residues with 1.5 Å-RMSD for Cα atoms (Figure 3) [28]. The PabPol-II intein shares 70% sequence identity with the PhoPol-II intein (Figure 1c). The largest difference between the two inteins lies in the flexible 19-residue sequence at the HEN insertion site for the PabPol-II intein (Figure 3), which is likely to be a remnant of HEN degradation during evolution. The structures of the CDC21-1 inteins from P. horikoshii and P. abyssi have Z-scores of 22.0 and 22.2, respectively [18]. These two inteins are closely related to the same insertion site in the CDC21 protein. However, the longer helices in the CDC21-1 inteins are very different from the Pol-II inteins. The observed variation in the helix length within the thermophilic insertion might be caused by differences in the evolutionary origins of the different inteins. The VMA mini-intein from Thermoplasma volcanium (TvoVMA) has the same Z-score of 22.2. However, it resembles the PhoRadA intein because both structures share a prominent extension of the helix [14]. The KlbA intein from Methanococcus jannaschii (MjaKlbA) is another naturally-occurring mini-intein and has a Z-score of 19.1 with the PhoPol-II intein [31]. All three-dimensional structures mentioned show the typical HINT fold, including the additional β-strand insertion (extβ) preceded by a helix of variable length, even though the growth temperatures of their hosts vary drastically between 33 and 104 °C (Table 2).

3.4. Protein Splicing Activity of PhoPol-II Intein

While the hyperthermophilic archaeon Pyrococcus horikoshii grows at a temperature between 88 and 104 °C (Table 2) [32], the PhoRadA intein is capable of efficiently catalyzing protein splicing at ambient (20–30 °C) temperatures in vitro and in E. coli cells [17]. This observation suggests that the protein splicing reaction is unlikely a rate limitation during the biosynthesis of the active RadA protein. At ambient temperatures (20–30 °C), the PhoCDC21-1 intein retains protein splicing activity with foreign exteins to a lesser extent than the PhoRadA intein in E. coli, but its splicing activity could be improved by increasing the temperature [19].
Conversely, the PhoPol-II intein was found inactive without increasing the temperature [19]. At a higher temperature and longer incubation, the PhoPol-II intein showed weak protein splicing activity as well as side reactions such as cleavages (Figure 4a–e). When we tested two different combinations of N- and C-exteins with the same junction sequences, the splicing activity and side-reaction profile were dissimilar (Figure 4d,e). The precursor proteins with a SUMO domain and chitin-binding domain (CBD) as exteins were less reactive than the precursor with two GB1 domains, even though the splicing junction sequences were identical. This observation indicates the extein dependency by inteins, presumably due to the mutualism between the intein and the host protein.
Due to this delicate activity profile, it appears plausible that the PhoPol-II intein might contribute to the physiological regulation of active DNA polymerase II production. In other words, the production of active DNA polymerase might be dependent on the protein splicing activity of the PhoPol-II intein, which could be a survival strategy of mini-inteins lacking the HEN domain to protect themselves from elimination.
Both the Pho and Pab Pol-II inteins have an atypical C-terminal Gln residue instead of the canonical Asn responsible for the cleavage of a branched intermediate during the protein splicing reaction (Figure 1c) [28,36]. The 1H-15N correlation peak for the C-terminal Gln was not visible for the PabPol-II intein in the HSQC spectrum, suggesting slow conformational exchanges rather than a fixed conformation [28]. The sidechain of the C-terminal Gln166 in the PhoPol-II intein shows clear electron density, allowing the measurement of precise distances with other key residues (Figure 1b). His154 in block F presumably plays a crucial role in activating Gln cyclization for the cleavage of the branched intermediate. The distance between His154 and the carbonyl group of Q166 is 3.4 Å, which is shorter than the distance (4.6 Å) between the corresponding atoms of His160 in block F and the last residue, Asn172, in the PhoRadA intein structure (Figure 1b) [17]. It appears that His154 stabilizes the side-chain conformation of Q166, making it less reactive towards the side-chain cyclization of Q166.

4. Discussion

Currently, there is a very limited number of inteins suitable for biotechnological applications because such inteins require (i) a most robust splicing activity in vivo and in vitro, (ii) fast reaction kinetics, (iii) a high tolerance of foreign extein contexts, and (iv) functional reconstruction of their catalytically active structures from split fragments in order to enable a versatile use of protein splicing [10,14,15]. Extremophiles could be good sources for hunting for new robust inteins because of the prevalence of inteins: nearly half of all archaea contain inteins [4,6,7]. Although more than 1,500 inteins have been identified, only a dozen mini-inteins have been biochemically characterized [7]. In the past, biochemical as well as structural studies of diversely or arbitrarily selected inteins were performed and resulted in serendipitously identifying robust inteins, which could be suitable for protein engineering [15,19]. We questioned whether there would be a good strategy for identifying mini-inteins with robust splicing activity from the fast-increasing genome sequence data prior to the extensive experimental assessment.
Here, we determined the three-dimensional structure of a naturally-occurring mini-intein, PhoPol-II intein, enabling us to compare the structures of all mini-inteins in the genome of P. horikoshii. Even though all three mini-inteins share the same HINT fold, with an extended β-strand insertion characteristic for inteins from thermophilic organisms [29], the three inteins show distinct differences in helical lengths and loop insertions. The distributed insertion and deletion differences for the entire sequences support the view of specific evolutionary pathways originating from unique ancestors. Among the three mini-inteins of P. horikoshii, only the PhoPol-II intein requires an elevated temperature for some protein splicing activity in vitro, similarly to the PabPol-II intein [36]. The dependence of active DNA polymerase II production on protein splicing activity implies that the PhoPol-II intein could play a critical role in regulating the fitness of the organism in response to environmental stimuli, such as temperature changes, because DNA polymerase II is an essential enzyme. With this strategy, mini-inteins like PhoPol-II intein could avoid their removal under certain conditions [5]. The activity of the PhoPol-II intein was also sensitive to the extein sequences in the same context of the N- and C-terminal junction sequences, suggesting that the mutualism with the host protein has been established so that the PhoPol-II intein is more difficult to be eliminated during evolution.
Mini-inteins lack HEN domains, either because they have been lost during evolution and/or because they have not yet been invaded by a homing endonuclease [13]. The closely related archaea P. horikoshii and P. abyssi contain 14 inteins in their genomes (Table S1). Interestingly, the RadA intein with high splicing activity at room temperature is absent in P. abyssi, whereas both the CDC21 and Pol-II mini-inteins are present in both P. horikoshii and P. abyssi. The PhoRadA intein, which is highly capable of splicing at room temperature, might face a higher elimination pressure in hyperthermophilic organisms than the other mini-inteins requiring elevated temperatures for efficient splicing activity.
Most mini-inteins from extreme halophiles are not halo-tolerant but halo-obligatory inteins, meaning they require high salinity for protein splicing activity [12]. Mini-inteins must acquire a certain mutualism during evolution to become persistent, by providing certain post-translational benefits to the host to ensure survival under specific cellular and environmental conditions [5]. Indeed, salt-dependent inteins seem to give some advantages to the host organism [37]. Because of the established mutualisms with the host proteins, highly conserved inteins across a wide phylogenetic distribution might not be the most promising candidates for robust mini-inteins suitable for wider biotechnological applications. Such highly conserved mini-inteins residing at conserved insertion sites are likely to have developed a significant degree of mutualism in physiological conditions, eventually avoiding their removal under certain environmental or cellular conditions. Demonstrated examples include an elevated temperature for hyperthermophiles and a high salinity for extreme halophiles. Uncharacterized mini-inteins might provide some benefits to the host with other unknown regulatory functions, as found in the RadA intein [38]. Natural mini-inteins that are poorly conserved among different species and exist sporadically in the genome might be better candidates for further biochemical and structural characterizations. However, they might have already developed unknown reasons/regulatory functions to be persistent in their host organisms in physiological conditions, such as the mutualisms between mini-inteins and host proteins [39].
Alternatively, mini-inteins with efficient splicing activity could be obtained by artificially engineering mini-inteins by removing the HEN domains. More inteins bearing HEN domains than mini-inteins are found in genomic sequence databases, judging from their sizes [7,39]. Whereas some engineered inteins are fully capable of catalyzing protein splicing without the HEN domain, others have developed a mutualism with the HEN domain, requiring it for efficient protein splicing activity [9,14,15,16]. Unfortunately, it is unknown what makes their protein splicing activities dependent on the presence of a HEN domain. Thus, this approach still requires tedious experimental trials, including constructing several deletion variants [9,14,15,16]. Furthermore, only a few three-dimensional structures of inteins with HEN domains currently exist, imposing additional constraints on the rational design of HEN-free mini-inteins. Structural elucidation of inteins, particularly those with HEN domains, is awaited to better understand the structural basis of the mutualistic relationship between the HINT and HEN domains. Unveiling the structural basis of mutualism could help to expand the repertoire of promising mini-inteins by protein engineering in a rational and predictive way.
In conclusion, we believe that it is vital to have a rational strategy for effectively selecting mini-intein candidates from the rapidly increasing genomic sequence data for experimental characterizations. Having a strategic approach to navigate the intein sequence space could efficiently increase the repertoires of mini-inteins with robust splicing activity, suitable for biotechnological applications. Our study suggests that sporadically distributed mini-inteins might be better candidates than conserved mini-inteins inserted in highly conserved proteins and locations.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms9061226/s1, Table S1: A list of protein hosts containing inteins in the four thermophiles.

Author Contributions

Conceptualization, H.I.; methodology, H.I., H.M.B., and M.K.H.; validation, M.K.H., H.M.B., and H.I.; formal analysis, M.K.H., H.M.B. and H.I.; investigation, M.K.H., H.M.B., and H.I.; writing—original draft preparation, M.K.H., and H.I.; writing—review and editing, M.K.H., H.M.B., and H.I.; visualization, M.K.H. and H.I.; supervision, H.I.; project administration, H.I.; funding acquisition, H.I. and H.M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded in part by the Academy of Finland, decision numbers:137995, 277335 and Novo Nordisk Foundation (NNF17OC0025402 to H.M.B., NNF17OC0027550 to H. I.) and Biocenter Finland, HiLIFE-INFRA and FINStruct for crystallization and NMR facilities at the Institute of Biotechnology.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The coordinates and structure factor of the PhoPol-II intein have been deposited to the Protein Data Bank with accession number 7OEC.

Acknowledgments

We thank C. Albert, T. Ayupov, J.E. Johansson, L. Krumwiede, and V. Manole for technical help in protein and plasmid preparations. We thank A. Wlodawer for his help in structural analysis. We thank V. Manole for their technical assistance at the crystallization facility.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Paulus, H. Protein splicing and related forms of protein autoprocessing. Annu. Rev. Biochem. 2000, 69, 447–496. [Google Scholar] [CrossRef]
  2. Perler, F.B.; Davis, E.O.; Dean, G.E.; Gimble, F.S.; Jack, W.E.; Neff, N.; Noren, C.J.; Thorner, J.; Belfort, M. Protein splicing elements: Inteins and exteins—A definition of terms and recommended nomenclature. Nucleic Acids Res. 1994, 22, 1125–1127. [Google Scholar] [CrossRef]
  3. Gogarten, J.P.; Senejani, A.G.; Zhaxybayeva, O.; Olendzenski, L.; Hilario, E. Inteins: Structure, function, and evolution. Annu. Rev. Microbiol. 2002, 56, 263–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Novikova, O.; Topilina, N.; Belfort, M. Enigmatic distribution, evolution, and function of inteins. J. Biol. Chem. 2014, 289, 14490–14497. [Google Scholar] [CrossRef] [Green Version]
  5. Belfort, M. Mobile self-splicing introns and inteins as environmental sensors. Curr. Opin. Microbiol. 2017, 38, 51–58. [Google Scholar] [CrossRef] [PubMed]
  6. Pietrokovski, S. Intein spread and extinction in evolution. Trends Genet. 2001, 17, 465–472. [Google Scholar] [CrossRef]
  7. Novikova, O.; Jayachandran, P.; Kelley, D.S.; Morton, Z.; Merwin, S.; Topilina, N.I.; Belfort, M. Intein Clustering Suggests Functional Importance in Different Domains of Life. Mol. Biol. Evol. 2016, 33, 783–799. [Google Scholar] [CrossRef] [Green Version]
  8. Aranko, A.S.; Oeemig, J.S.; Kajander, T.; Iwaï, H. Intermolecular domain swapping induces intein-mediated protein alternative splicing. Nat. Chem. Biol. 2013, 9, 616–622. [Google Scholar] [CrossRef] [Green Version]
  9. Iwaï, H.; Mikula, K.M.; Oeemig, J.S.; Zhou, D.; Li, M.; Wlodawer, A. Structural Basis for the Persistence of Homing Endonucleases in Transcription Factor IIB Inteins. J. Mol. Biol. 2017, 429, 3942–3956. [Google Scholar] [CrossRef] [PubMed]
  10. Topilina, N.I.; Mills, K.V. Recent advances in in vivo applications of intein-mediated protein splicing. Mob. DNA 2014, 5, 1–14. [Google Scholar] [CrossRef]
  11. Nanda, A.; Nasker, S.S.; Mehra, A.; Panda, S.; Nayak, S. Inteins in Science: Evolution to Application. Microorganisms 2020, 8, 2004. [Google Scholar] [CrossRef]
  12. Ciragan, A.; Aranko, A.S.; Tascon, I.; Iwaï, H. Salt-inducible Protein Splicing in cis and trans by Inteins from Extremely Halophilic Archaea as a Novel Protein-Engineering Tool. J. Mol. Biol. 2016, 428, 4573–4588. [Google Scholar] [CrossRef]
  13. Gogarten, J.P.; Hilario, E. Inteins, introns, and homing endonucleases: Recent revelations about the life cycle of parasitic genetic elements. BMC Evol. Biol. 2006, 6, 94. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Aranko, A.S.; Oeemig, J.S.; Zhou, D.; Kajander, T.; Wlodawer, A.; Iwaï, H. Structure-based engineering and comparison of novel split inteins for protein ligation. Mol. Biosyst. 2014, 10, 1023–1034. [Google Scholar] [CrossRef] [PubMed]
  15. Pinto, F.; Thornton, E.L.; Wang, B. An expanded library of orthogonal split inteins enables modular multi-peptide assemblies. Nat. Commun. 2020, 11, 1529. [Google Scholar] [CrossRef] [Green Version]
  16. Hiraga, K.; Derbyshire, V.; Dansereau, J.T.; van Roey, P.; Belfort, M. Minimization and stabilization of the Mycobacterium tuberculosis recA intein. J. Mol. Biol. 2005, 354, 916–926. [Google Scholar] [CrossRef]
  17. Oeemig, J.S.; Zhou, D.; Kajander, T.; Wlodawer, A.; Iwaï, H. NMR and crystal structures of the Pyrococcus horikoshii RadA intein guide a strategy for engineering a highly efficient and promiscuous intein. J. Mol. Biol. 2012, 412, 85–99. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Beyer, H.M.; Mikula, K.M.; Kudling, T.V.; Iwaï, H. Crystal structures of CDC21-1 inteins from hyperthermophilic archaea reveal the selection mechanism for the highly conserved homing endonuclease insertion site. Extremophiles 2019, 23, 669–679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Ellilä, S.; Jurvansuu, J.M.; Iwaï, H. Evaluation and comparison of protein splicing by exogenous inteins with foreign exteins in Escherichia coli. FEBS Lett. 2011, 585, 3471–3477. [Google Scholar] [CrossRef] [Green Version]
  20. Ivanov, A.V.; Korovina, A.N.; Tunitskaya, V.L.; Kostyuk, D.A.; Rechinsky, V.O.; Kukhanova, M.K.; Kochetkov, S.N. Development of the system ensuring a high-level expression of hepatitis C virus nonstructural NS5B and NS5A proteins. Protein Expr. Purif. 2006, 48, 14–23. [Google Scholar] [CrossRef]
  21. Kabsch, W. XDS. Acta Crystallogr. D Biol. Crystallogr. 2010, 66 Pt 2, 125–132. [Google Scholar] [CrossRef] [Green Version]
  22. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; de Beer, T.A.P.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 2018, 46, W296–W303. [Google Scholar] [CrossRef] [Green Version]
  23. Langer, G.; Cohen, S.X.; Lamzin, V.S.; Perrakis, A. Automated macromolecular model building for X-ray crystallography using ARP/wARP version 7. Nat. Protoc. 2008, 3, 1171–1179. [Google Scholar] [CrossRef]
  24. Emsley, P.; Lohkamp, B.; Scott, W.G.; Cowtan, K. Features and development of Coot. Acta Crystallogr. D Biol. Crystallogr. 2010, 66, 486–501. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Adams, P.D.; Grosse-Kunstleve, R.W.; Hung, L.W.; Ioerger, T.R.; McCoy, A.J.; Moriarty, N.W.; Read, R.J.; Sacchettini, J.C.; Sauter, N.K.; Terwilliger, T.C. PHENIX: Building new software for automated crystallographic structure determination. Acta Crystallogr. D Biol. Crystallogr. 2002, 58, 1948–1954. [Google Scholar] [CrossRef] [Green Version]
  26. Brünger, AT. Free R value: A novel statistical quantity for assessing the accuracy of crystal structures. Nature 1992, 355, 472–475. [Google Scholar] [CrossRef]
  27. Karplus, PA.; Diederichs, K. Linking crystallographic model and data quality. Science 2012, 336, 1030–1033. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Du, Z.; Liu, J.; Albracht, C.D.; Hsu, A.; Chen, W.; Marieni, M.D.; Colelli, K.M.; Williams, J.E.; Reitter, J.N.; Mills, K.V.; Wang, C. Structural and mutational studies of a hyperthermophilic intein from DNA polymerase II of Pyrococcus abyssi. J Biol. Chem. 2011, 286, 38638–38648. [Google Scholar] [CrossRef] [Green Version]
  29. Aranko, A.S.; Wlodawer, A.; Iwaï, H. Nature’s recipe for splitting inteins. Protein Eng. Des. Sel. 2014, 27, 263–271. [Google Scholar] [CrossRef] [Green Version]
  30. Razvi, A.; Scholtz, JM. Lessons in stability from thermophilic proteins. Protein Sci. 2006, 15, 1569–1578. [Google Scholar] [CrossRef] [Green Version]
  31. Johnson, M.A.; Southworth, M.W.; Herrmann, T.; Brace, L.; Perler, F.B.; Wüthrich, K. NMR structure of a KlbA intein precursor from Methanococcus jannaschii. Protein Sci. 2007, 16, 1316–1328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. González, J.M.; Masuchi, Y.; Robb, F.T.; Ammerman, J.W.; Maeder, D.L.; Yanagibayashi, M.; Tamaoka, J.; Kato, C. Pyrococcus horikoshii sp. nov., a hyperthermophilic archaeon isolated from a hydrothermal vent at the Okinawa Trough. Extremophiles 1998, 2, 123–130. [Google Scholar] [CrossRef]
  33. Erauso, G.; Reysenbach, A.L.; Godfroy, A.; Meunier, J.R.; Crunp, B.; Partensky, F.; Baross, J.A.; Marteinsson, V.; Barbier, G.; Pace, N.R.; Prieur, D. Pyrococcus abyssi sp. nov., a new hyperthermophilic archaeon isolated from a deep-sea hydrothermal vent. Arch. Microbiol. 1993, 160, 338–349. [Google Scholar] [CrossRef]
  34. Huber, H.; Stetter, K.O. Thermoplasmatales. In The Prokaryotes; Dworkin, M., Falkow, S., Rosenberg, E., Schleifer, K.H., Stackebrandt, E., Eds.; Springer: New York, NY, USA, 2006; pp. 101–112. [Google Scholar] [CrossRef]
  35. Tsoka, S.; Simon, D.; Ouzounis, C.A. Automated metabolic reconstruction for Methanococcus jannaschii. Archaea 2004, 1, 223–229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Mills, K.V.; Manning, J.S.; Garcia, A.M.; Wuerdeman, L.A. Protein splicing of a Pyrococcus abyssi intein with a C-terminal glutamine. J. Biol. Chem. 2004, 279, 20685–20691. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Naor, A.; Altman-Price, N.; Soucy, S.M.; Green, A.G.; Mitiagin, Y.; Turgeman-Grott, I.; Davidovich, N.; Gogarten, J.P.; Gophna, U. Impact of a homing intein on recombination frequency and organismal fitness. Proc. Natl. Acad. Sci. USA 2016, 113, E4654–E4661. [Google Scholar] [CrossRef] [Green Version]
  38. Topilina, N.I.; Novikova, O.; Stanger, M.; Banavali, N.K.; Belfort, M. Post-translational environmental switch of RadA activity by extein-intein interactions in protein splicing. Nucleic Acids Res. 2015, 43, 6631–6648. [Google Scholar] [CrossRef] [Green Version]
  39. Green, C.M.; Novikova, O.; Belfort, M. The dynamic intein landscape of eukaryotes. Mob. DNA 2018, 9. [Google Scholar] [CrossRef] [Green Version]
Microorganisms 09 01226 g001 550

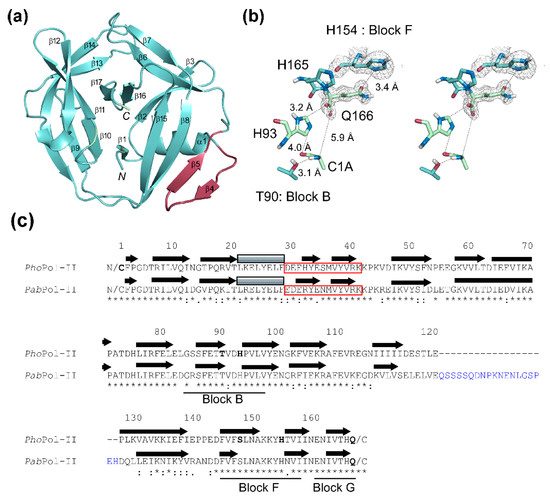

Figure 1. (a) A cartoon presentation of PhoPol-II intein. The β-strand insertion common for thermophilic inteins is colored in orchard. N and C indicate the N- and C-termini, respectively. (b) A stereo view of the close-up of the active site showing Cys1Ala (C1A), Thr90 (T90), His93 (H93), His165(H165), and Gln166 (Q166). The electron densities are shown for H154 and Q166. (c) A sequence alignment of PhoPol-II and PabPol-II inteins with secondary structure elements (arrows for b-strand and gray rectangles for helices). Red rectangles indicate the β-strand insertion. The flexible linker found in PabPol-II intein is colored in blue. Regions for blocks B, F, and G are marked by lines.
Figure 1. (a) A cartoon presentation of PhoPol-II intein. The β-strand insertion common for thermophilic inteins is colored in orchard. N and C indicate the N- and C-termini, respectively. (b) A stereo view of the close-up of the active site showing Cys1Ala (C1A), Thr90 (T90), His93 (H93), His165(H165), and Gln166 (Q166). The electron densities are shown for H154 and Q166. (c) A sequence alignment of PhoPol-II and PabPol-II inteins with secondary structure elements (arrows for b-strand and gray rectangles for helices). Red rectangles indicate the β-strand insertion. The flexible linker found in PabPol-II intein is colored in blue. Regions for blocks B, F, and G are marked by lines.
Microorganisms 09 01226 g001
Microorganisms 09 01226 g002 550

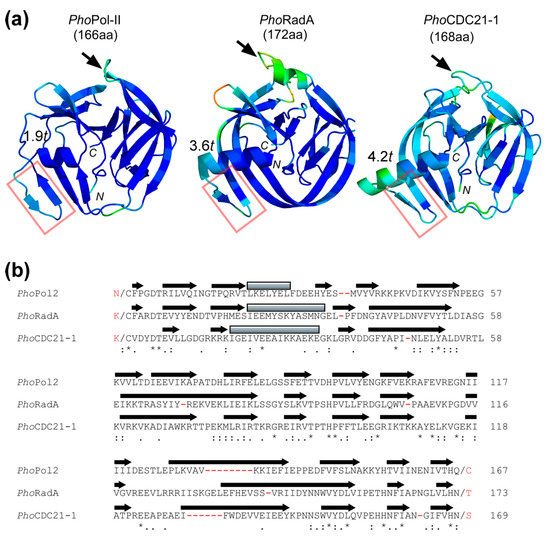

Figure 2. (a) Cartoon representations of the structures of PhoPol-II (7OEC), PhoRadA (4E2T), and PhoCDC21-1 (6RPQ) inteins. The views are from the dorsal side [18]. Chain A from the coordinate (4E2T) was shown for PhoRadA intein [17]. N and C indicate N- and C-termini, respectively. The color codes represent the B-factor. The arrows indicate the insertion sites commonly observed for the homing endonuclease (HEN) domain. Red rectangles indicate the β-strand insertion common for thermophilic inteins. The length of helices is indicated by helical turns (t) (t: 3.6 residues per helical turn). (b) A sequence alignment of all three mini-inteins in P. horikoshii with secondary structure elements by arrows for β-strand and gray rectangles for helices. Deletions are shown by red hyphens. N- and C-extein residues are shown in red.
Figure 2. (a) Cartoon representations of the structures of PhoPol-II (7OEC), PhoRadA (4E2T), and PhoCDC21-1 (6RPQ) inteins. The views are from the dorsal side [18]. Chain A from the coordinate (4E2T) was shown for PhoRadA intein [17]. N and C indicate N- and C-termini, respectively. The color codes represent the B-factor. The arrows indicate the insertion sites commonly observed for the homing endonuclease (HEN) domain. Red rectangles indicate the β-strand insertion common for thermophilic inteins. The length of helices is indicated by helical turns (t) (t: 3.6 residues per helical turn). (b) A sequence alignment of all three mini-inteins in P. horikoshii with secondary structure elements by arrows for β-strand and gray rectangles for helices. Deletions are shown by red hyphens. N- and C-extein residues are shown in red.
Microorganisms 09 01226 g002
Microorganisms 09 01226 g003 550

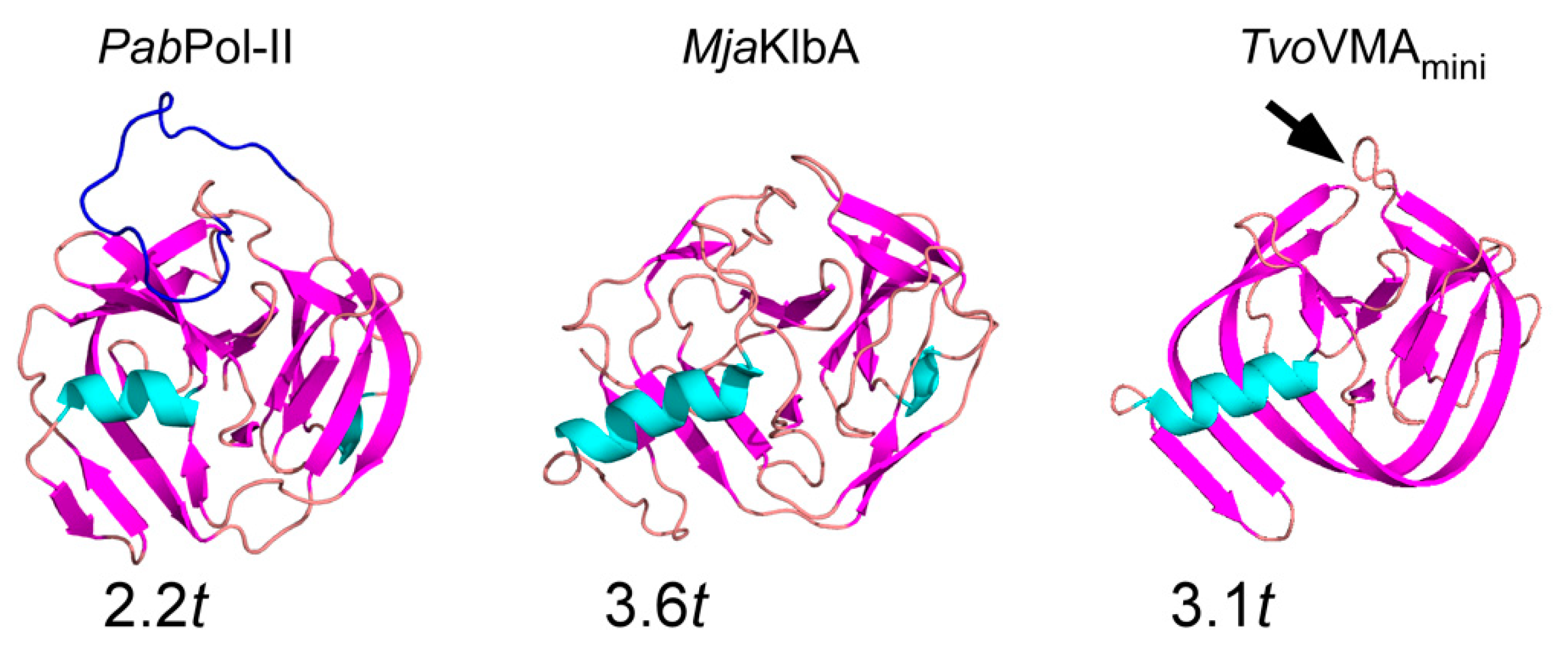

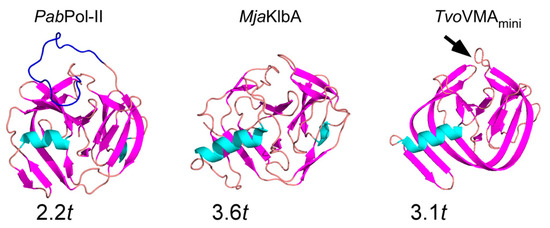

Figure 3. Cartoon models of the three-dimensional structures of the following mini-inteins from other thermophilic organisms: PabPol-II intein (left), MjaKlbA intein (middle), and TvoVMA intein (left). PDB coordinates of 2LCJ (PabPol-II), 2JNQ (MjaKlbA), and 4O1S (TvoVMA) were used. β-strands and helices are colored in magenta and cyan, respectively. The lengths of helices are indicated by the number of helical turns (t: 3.6 residues per helical turn). The flexible loop of PabPol-II is colored in blue. The location of the loop in TvoVMA intein, of which 21 residues were removed for the crystallization, is indicated by an arrow.
Figure 3. Cartoon models of the three-dimensional structures of the following mini-inteins from other thermophilic organisms: PabPol-II intein (left), MjaKlbA intein (middle), and TvoVMA intein (left). PDB coordinates of 2LCJ (PabPol-II), 2JNQ (MjaKlbA), and 4O1S (TvoVMA) were used. β-strands and helices are colored in magenta and cyan, respectively. The lengths of helices are indicated by the number of helical turns (t: 3.6 residues per helical turn). The flexible loop of PabPol-II is colored in blue. The location of the loop in TvoVMA intein, of which 21 residues were removed for the crystallization, is indicated by an arrow.
Microorganisms 09 01226 g003
Microorganisms 09 01226 g004 550

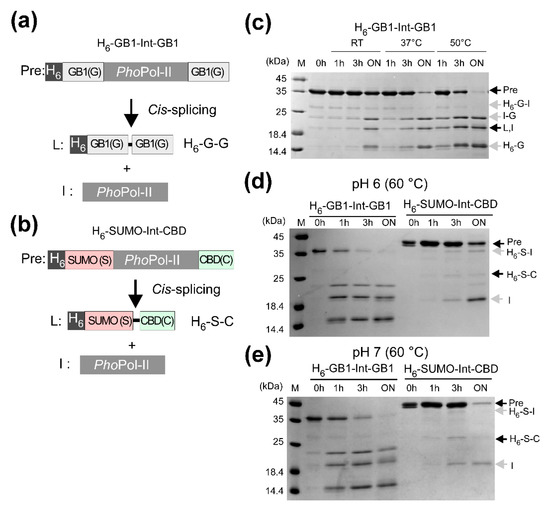

Figure 4. In vitro protein splicing in cis by PhoPol-II intein with different exteins. (a) Precursor protein with two GB1 as exteins. (b) Precursor protein with SUMO domain and chitin-binding domain (CBD) as N- and C-exteins, respectively. Arrows indicate expected migrations of different products in SDS-PAGE gels. (c) The precursor protein (Pre) was purified and incubated at room temperature, 37 °C, and 50 °C. The two precursor proteins with different inteins were incubated at 60 °C and (d) pH 5 or (e) pH 7. The samples were taken at 0, 1, 3 h and overnight for SDS-PAGE analysis.
Figure 4. In vitro protein splicing in cis by PhoPol-II intein with different exteins. (a) Precursor protein with two GB1 as exteins. (b) Precursor protein with SUMO domain and chitin-binding domain (CBD) as N- and C-exteins, respectively. Arrows indicate expected migrations of different products in SDS-PAGE gels. (c) The precursor protein (Pre) was purified and incubated at room temperature, 37 °C, and 50 °C. The two precursor proteins with different inteins were incubated at 60 °C and (d) pH 5 or (e) pH 7. The samples were taken at 0, 1, 3 h and overnight for SDS-PAGE analysis.
Microorganisms 09 01226 g004
Table
Table 1. Data collection and structure refinement.
Table 1. Data collection and structure refinement.
InteinPhoPol-II Intein (C1A)
PDB ID
Data collection		7OEC
DIAMOND I03
 Space groupP 41 21 2
 Cell dimensions
   a, b, c, Å70.82, 70.82, 70.66
   α, β, γ, °90.00, 90.00, 90.00
 Wavelength, Å0.9763
 Resolution, Å35.41−1.48 (1.53–1.48)
 Total reflections776,435 (76,171)
 Unique reflections30,544 (2978)
 Completeness, %99.87 (99.77)
 I/σ16.35 (4.23)
 Rmeas a0.1939 (7.025)
 CC1/2c0.998 (0.572)
 Multiplicity25.4 (25.5)
Refinement
 Molecules/au1
 Resolution, Å35.41−1.48 (1.533–1.480)
 Reflections (refinement/Rfree)30,543/2978
 Rwork/Rfree b0.1539/0.1869
Number of atoms
 Protein 1382
 Water 76
 Ligand 34
 RMS deviations
   Bond length, Å0.017
   Bond angles, °1.44
 Ramachandran plot, %
   Most favored regions97.55
   Outliers0.00
 Average B-factors, Å229.71
   Protein28.21
   Water37.29
 Clash score2.12
 MolProbity score0.97
Numbers in parentheses represent the highest resolution shell. au, asymmetric unit. a Rmeas = Σh[n/(n−1)]1/2 Σi ∣Ii−⟨I⟩∣/ΣhΣi Ii, where Ii is the observed intensity of the ith measurement of reflection h, ⟨I⟩ is the average intensity of that reflection obtained from multiple observations, and n is the multiplicity of the reflection. b R = Σ∣∣ Fo∣−∣Fc∣∣/Σ∣Fo∣, where Fo and Fc are the observed and calculated structure factors, respectively, calculated for all data. Rfree was defined by Brünger [26]. c CC1/2 was defined by Karplus et al. [27].
Table
Table 2. Summary of naturally-occurring mini-inteins from thermophiles and their growth temperatures.
Table 2. Summary of naturally-occurring mini-inteins from thermophiles and their growth temperatures.
OrganismGrowth TemperatureGenePDB
Pyrococcus horikoshii88–104 °C (98 °C) [32]radA2LQM, 4E2U, 4E2T
cdc216RPQ
pol-c7OEC
Pyrococcus abyssi68–102 °C (96 °C) [33]pol-c2LCJ
cdc216RPP
Thermoplasma volcanium33–67 °C (60 °C) [34]vma4O1S
Methanococcus jannaschii48–94 °C (85 °C) [35]klbA2JMZ, 2JNQ
