Seroprevalence of Antibodies against Tick-Borne Pathogens in Czech Patients with Suspected Post-Treatment Lyme Disease Syndrome

Department of Immunology, Faculty of Medicine and Dentistry, Palacky University Olomouc, Hnevotinska 3, 779 00 Olomouc, Czech Republic
Laboratory of Medical Parasitology and Zoology, Public Health Institute Ostrava, Partyzanske Namesti 7, 702 00 Ostrava, Czech Republic
Department of Allergology and Clinical Immunology, University Hospital Olomouc, I.P. Pavlova 185/6, 779 00 Olomouc, Czech Republic
Third Department of Internal Medicine-Nephrology, Rheumatology and Endocrinology, University Hospital Olomouc, I.P. Pavlova 185/6, 779 00 Olomouc, Czech Republic
Institute of Parasitology, Biology Centre, Czech Academy of Sciences, Branisovska 1160/31, 370 05 Ceske Budejovice, Czech Republic
Authors to whom correspondence should be addressed.
Microorganisms 2021, 9(11), 2217;
Submission received: 17 September 2021 / Revised: 15 October 2021 / Accepted: 21 October 2021 / Published: 25 October 2021
(This article belongs to the Special Issue Borrelia and Lyme Disease)


The hypothesized importance of coinfections in the pathogenesis of post-treatment Lyme disease syndrome (PTLDS) leads to the use of combined, ongoing antimicrobial treatment in many cases despite the absence of symptoms typical of the presence of infection with specific pathogens. Serum samples from 103 patients with suspected post-treatment Lyme disease syndrome were tested for the presence of antibodies to the major tick-borne pathogens Anaplasma phagocytophilum, Bartonella henselae/Bartonella quinatana, and Babesia microti. Although the presence of anti-Anaplasma antibodies was detected in 12.6% of the samples and anti-Bartonella antibodies in 9.7% of the samples, the presence of antibodies against both pathogens in the same samples or anti-Babesia antibodies in the selected group of patients could not be confirmed. However, we were able to detect autoantibodies, mostly antinuclear, in 11.6% of the patients studied. Our results are in good agreement with previously published studies showing the presence of a wide spectrum of autoantibodies in some patients with complicated forms of Lyme disease and post-treatment Lyme disease syndrome, but they do not reveal a significant influence of co-infections on the development of PTLDS in the studied group of patients.

1. Introduction

Lyme disease is the most common tick-borne infectious disease of humans in both North America and Eurasia. The number of diagnosed and treated cases has reached nearly 480,000 per year in the United States [1] and up to 850,000 new cases per year in Europe [2,3] in the last 10 years. It is a multisystem infectious disease with a diverse spectrum of clinical manifestations caused by spirochetes of the Borrelia burgdorferi sensu lato (s. l.) complex, which includes 22 well-established species [4,5,6]. Ten species of this complex have already been detected or isolated in humans [2,7,8]. The disease has an anthropozoonosis character, in which wild animals are the reservoirs and ticks of the genus Ixodes transmit the pathogen to humans. The list of animal hosts for ixodid ticks that serve as reservoirs for Borrelia currently includes several hundred vertebrate species, including mammals, reptiles, and birds [9].
Lyme disease occurs in three stages—early localized infection, early disseminated infection, and late infection. However, not all stages develop in every infected person. The clinical manifestations most often affect the skin, joints, nervous system and heart. The appearance of erythema migrans, a highly variable skin rash, is the most common early symptom of Lyme disease. According to the CDC, erythema migrans occurs in 70–80% of infected individuals [10]. Although erythema migrans occurs primarily at the site of the tick bite, it can occur anywhere on the body and can expand in size and number. Within days to weeks, Borrelia can spread to secondary sites of infection where it can affect the peripheral and/or central nervous system, heart, or joints. In late stages of infection, arthritis of the large joints or skin lesions in the form of acrodermatitis chronica atrophicans may occur [4,11]. Borrelia in the early stages of infection are sensitive to a variety of antibiotics, and successful therapy is mainly ensured by substances from the group of tetracyclines (doxycycline) and beta-lactams (penicillin and cephalosporins). There is an ongoing medical debate about the duration of antibiotic treatment of LD patients and the effectiveness of repeated treatment of these patients and patients suffering from PTLDS. Although long-term antibiotic therapy, repeated antibiotic treatments, or a combination of antimicrobial therapies are not currently recommended by most official health authorities [12], a number of published studies support the benefit or efficacy of prolonged antibiotic treatment (for a review, see [13,14]). Although significant improvements were noted after prolonged treatment, relapse of LD symptoms was observed by several authors after the discontinuation of medication [15]. The controversy about the treatment strategy cannot easily be resolved because Lyme disease is a complex condition that requires a complex solution. Possible explanations for the impairment of the results of prolonged or repeated therapy of patients could be found in multiple etiologies of disease, including persistent spirochete infection or other multiple causes leading to an overlap of sources of inflammation (for a review, see [13]). Recently, the possibility of the presence of persistent coinfections with pathogens commonly transmitted by ixodid ticks together with LD spirochetes, especially coinfections with Babesia or Bartonella, has received increasing attention [16,17]. However, it should also be taken into account that many antibiotics have significant immunomodulatory properties; therefore, their transient effect may be due to the suppression of the pathological reactivity of the patient’s own immune system. Long-term antibiotic therapy also carries significant risks, from the spread of resistant strains to life-threatening infections such as membranous enterocolitis.
Preventive vaccination is not possible because of the lack of a reliable vaccine, the production of which is difficult due to the high genetic diversity of the B. burgdorferi sensu lato complex in general and the species pathogenic to humans in particular [18]. Therefore, the best prevention against infection remains to minimize the risk of tick bites (by wearing appropriate clothing with long sleeves and trousers and using repellents during outdoor activities) and to quickly remove ticks that have already attached. Early recognition of symptoms and the use of appropriate antibiotics are critical for successful treatment.
Although antibiotic therapy is effective in most cases, some patients experience long-lasting problems such as myalgia, arthralgia, chronic fatigue, headaches, or cognitive deficits. Various studies report a frequency of these chronic complications in a wide range of 0–40.8% of patients treated with antibiotics, but the most common estimate is between 10% and 15% [19,20]. The persistence of some forms of Borrelia or their remnants is a topic of debate due to their still-unclear influence on the pathogenesis of this disease [21,22]. The role of immunopathological reactions triggered by infection is widely recognized, but their triggers and precise mechanisms are still unknown. The use of the terms “chronic Lyme disease” or “post-treatment Lyme disease syndrome” is intensely debated, and as with any controversial topic, each term has its own proponents [23] or opponents [24]. Notwithstanding some key differences, both sides agree that “Chronic Lyme disease (CLD) is a poorly defined term describing the attribution of various atypical syndromes to protracted Borrelia burgdorferi” [24] or “Chronic Lyme disease has been a poorly defined term and is often dismissed as a fictitious entity” [23]. In this paper, we have not attempted to evaluate the lack of proper terminology or to discuss the limitations of the pre-existing entity. The rapidly evolving scientific and clinical understanding of the persistent manifestations of LD in many patients over time and the advances in the complex research on this topic will lead to the development of better diagnostics and hopefully the eradication of this disease.
The diagnostic criteria for Lyme disease are a major problem worldwide. The diagnosis of PTLDS is challenging because symptoms often mimic those of a variety of known diseases and are mainly based on subjectively perceived symptoms such as pain, fatigue, or cognitive impairment [12,25]. Specific markers for persistent syndrome are still missing, and PTLDS is actually a diagnosis of exclusion that does not provide definitive certainty.
The involvement of other tick-borne pathogens and their potential impacts on PTLDS have been widely discussed. Pathogens thought to accompany Lyme disease spirochetes in ticks include a wide range of bacteria (Anaplasma spp., Bartonella spp., relapsing fever spirochetes, Rickettsia spp.), parasites (Babesia spp.), or viruses (tick-borne encephalitis virus, Powassan virus) [13,26]. The most commonly discussed types of microorganisms are the bacteria Anaplasma phagocytophilum and Bartonella henselae and the parasitic piroplasma Babesia microti. The mechanism by which coinfections contribute to the pathogenesis of long-term postinfectious health problems is not known. Although most coinfections are subclinical or cause milder manifestations in healthy younger individuals, they can have quite different effects in immunocompromised or elderly patients. When LD and frequent coinfections cannot be treated with currently used drugs, it could be due to the emergence of persistent or dormant forms of spirochetes [21] or drug-resistant concomitant bacteria or parasites, or metabolic differences between pathogens [27]. The need to develop new, more effective LD or PTLDS treatment protocols directed on new drug targets or involving newer drug regimens or therapeutic strategies is clear and must target the primary cause of LD and possible tick-borne co-infections, as well as alternative/persistent/dormant forms of pathogens, including biofilms [13].
An in vitro study has shown that coinfection of B. burgdorferi and A. phagocytophilum leads to increased production of matrix metalloproteases, cytokines, and/or chemokines in the culture of human brain microvascular endothelial cells [28]. This indirectly suggests that the pathogens transmitted to humans by tick bites, together with the Lyme disease spirochetes, may be involved in the enhancement of the pathological inflammatory response, and consequently, in its possible persistence. However, there are scant clinical data on the possible effects of coinfection on the course of Lyme disease [29].
A. phagocytophilum (formerly Ehrlichia phagocytophila) is an intracellular, Gram-negative, rickettsia-like bacterium. It is the causative agent of human granulocytic anaplasmosis (HGA). Although this species has long been known to be an animal pathogen, the first cases of human infection were described in 1994 and 1997 in the United States and Europe, respectively [30,31,32]. The disease is probably significantly underdiagnosed due to nonspecific symptoms such as fever, flu-like symptoms, headache, and myalgia, which usually resolve without treatment. According to the National Institute of Public Health (Czech Republic), only 53 cases of HGA were reported here between 2007 and 2017, although a single seroprevalence study conducted in 2014 detected specific antibodies in 34 of 314 individuals tested [33].
Bartonella spp. are facultative intracellular microorganisms that are often classified as emerging pathogens in humans. The most important species pathogenic to humans are Bartonella henselae, which is responsible for cat scratch disease, Bartonella quintana, which causes trench fever, and Bartonella baciliformis, which occurs in endemic areas in South America and causes Carrión disease. Infections of humans are usually vector-borne zoonoses transmitted by blood-sucking insects (fleas, sandflies, lice), but in the case of B. henselae, direct transmission from cats to humans seems to dominate. The role of ticks in the transmission of infection is not yet clear. In Europe, Bartonella infections are mainly found in immunocompromised individuals. In immunocompetent individuals, the infection is often asymptomatic. The most common symptoms include swelling of the lymph nodes, but bacteremia may also occur, which can damage a number of organs, including the heart, eyes, liver, bones, muscles, soft tissues and central nervous system [34,35,36].
Babesia microti is a parasite that infects red blood cells and causes malaria-like diseases in humans. Infection is relatively common in endemic areas in the United States. Transmission to humans occurs through ticks of the genus Ixodes. The natural host is primarily the white-footed mouse (Peromyscus leucopus). However, the infection can also be transmitted through blood transfusions. In immunocompetent individuals, the infection is usually asymptomatic and parasite levels are very low. However, in immunocompromised individuals, especially asplenics, the disease can be life-threatening [37,38]. Thus far, symptomatic infections have only been reported very rarely in Europe, and are mostly imported from the United States.
The aim of the present study was to evaluate the seroprevalence of IgG antibodies against the pathogens that might occur as co-infections in patients with suspected PTLDS in the Czech Republic (A. phagocytophilum, B. henselae/quintana and B. microti) and to investigate the possibility of their contribution to the pathogenesis of post-treatment Lyme disease syndrome.

2. Materials and Methods

2.1. Characteristics of the Studied Patient Group

A total of 103 patients with clinical symptoms that persisted after antibiotic treatment of diagnosed Lyme disease were included in this study. Patients who met the PTLDS criteria (documented disease and antibiotic treatment, long-standing health problems) were selected by the medical staff of the participating clinical departments. From this group, patients with currently positive anti-Borrelia IgG antibody blot results were selected for the study. Blood samples were collected by trained medical staff from the Department of Allergology and Clinical Immunology, the Third Department of Internal Medicine-Nephrology, Rheumatology and Endocrinology, and the Department of Immunology of Olomouc University Hospital, Olomouc Region, or provided by the Laboratory of Medical Parasitology and Zoology of the Institute of Public Health Ostrava, Moravian-Silesian Region, Czech Republic. The samples were collected from 2019 to 2021. The basic parameters of the studied population are listed in Table 1. The protocol of the study, including the informed consent of the patients, was approved by the Ethics Committee of the Olomouc University Hospital (reference number 102/18 of June 2018).

2.2. Laboratory Tests

Positivity of IgG antibodies against Borrelia was confirmed using the Anti-Borrelia EUROLINE-RN-AT (EUROIMMUN, Lübeck, Germany) blot diagnostic kit with evaluation by a flatbed scanner and software EUROLineScan Software 3.4 (EU-ROIMMUN, Lübeck, Germany).
Antibodies against A. phagocytophilum were determined using the BLOTLINE Anaplasma IgG kit (TestLine Clinical Diagnostics, Brno, Czech Republic) based on strips containing the recombinant antigens p44, Asp62 and OmpA. The tests were performed according to the manufacturer’s instructions and evaluated using a flatbed scanner and Immunoblot Software 1.8.0 (TestLine Clinical Diagnostics, Brno, Czech Republic).
Antibodies against Bartonella were determined using the Bartonella henselae/Bartonella quintana (IgG) immunofluorescence kit (EUROIMMUN, Lübeck, Germany). Serum samples were tested at 320-fold dilution according to the manufacturer’s recommendations. At the last wash, the glasses were counterstained with Evans blue solution. Results were analyzed independently by two trained individuals using an Axioskop fluorescence microscope (Carl Zeiss, Jena, Germany) at 400× magnification and an Olympus DP70 digital camera (Olympus, Tokyo, Japan). Samples with the appropriate pattern but significantly lower intensity than the positive control were classified as borderline. Samples with a fluorescence pattern that differed from that of the positive control were classified as non-evaluable. The positive and negative controls included in the kit were used in each sample series. Due to the high cross-reactivity between B. henselae and B. quintana, the results in this analysis are reported together as antibodies to Bartonella spp.
Antibodies against Babesia microti were determined using the Babesia microti IFA IgG antibody kit (Fuller Laboratories, Fullerton, CA, USA). Patient sera were diluted 64-fold and evaluated as described above.
Sera from patients found to have autoantibodies in an immunofluorescence assay were tested for reactivity with individual autoantigens using the immunoblot kits EUROLINE Autoimmune Inflammatory Myopathies 16 Ag (IgG) and EUROLINE ANA Profile 3 plus DSF70 (IgG) (EUROIMMUN, Luebeck, Germany).
All detection kits used are certified for in vitro diagnostics. Data were analyzed using the SPSS v.25 package (IBM Inc., Armonk, NY, USA).

3. Results

3.1. Detection of Anti-Anaplasma Antibodies

Samples with at least one positive and one borderline reaction of the three Anaplasma antigens included in the test were marked as positive by the evaluation software. Of the 103 samples tested, positive results were recorded for 13 samples (12.6%). Samples with 2 borderline or only 1 positive band were classified as equivocal and identified in another 13 samples. The remaining 77 (74.8%) samples were classified as negative.
Of the individual antigens in the positive samples, the OmpA band reacted most frequently. It was positive in 12 (92.3%) and borderline in 1 sample (7.7%). The antigens p44 and Asp62 were consistently positive in 6 samples (46.2%), but Asp62 was borderline confirmed in 3 other samples (23%), as shown in Figure 1. The observed positivity was unevenly distributed by age, with 76.9% of positives detected in individuals over 60 years of age (Figure 2). Using the two-tailed Fisher’s exact test, we found a significant difference in the frequency of positive results between the groups aged 60 years and younger and 61 years and older (p < 0.05). The mean age of the positive patients was 64.3 years.

3.2. Detection of Anti-Bartonella Antibodies

Antibodies against Bartonella henselae/Bartonella quintana were detected by immunofluorescence assay. A positive fluorescence image was observed in 10 samples (9.7%), which matched the pattern and intensity of the positive control included in the test. A similar fluorescence pattern, but with significantly lower intensity of fluorescence and frequency of positive cells than the positive control, was observed in another 14 samples (13.6%). These samples were evaluated as equivocal. Fifty percent of the positive patients were over 60 years of age, with a median of 62.1 years.
An unexpected and interesting finding in a relatively large number of subjects showed a distinct fluorescence pattern not typical of the presence of anti-Bartonella antibodies, but corresponding to fluorescence patterns characteristic of autoantibodies. This phenomenon was observed in 12 serum samples (11.6%), with most autoantibody reactivity patterns consistent with antinuclear antibodies (ANA). Antibodies to mitochondria were detected in one sample (Figure 3). These samples were considered unevaluable because the fluorescence of the anti-Bartonella antibodies could be masked. The mean age of the autoantibody-positive patients was 64.7 years. The presence of specific autoantibodies was confirmed by diagnostic kits based on the immunoblot method. A positive reaction with at least one specific autoantigen was detected in eight patients, a borderline reaction with at least one specific autoantigen was observed in two patients, and in two patients, we could not detect any reaction with the autoantigens included in the tests used.

3.3. Detection of Anti-Babesia Antibodies

None of the samples tested in the immunofluorescence assay showed positive fluorescence comparable to the positive control included in the test kit. All processed samples were therefore scored as negative.
No sample exhibited both anti-Anaplasma and anti-Bartonella antibodies. Detailed results are published as supplementary data, and a summary is provided in Table S1.

4. Discussion

Chronic problems that persist after antibiotic treatment for Lyme disease are one of the greatest challenges in infectious medicine today. Emerging symptoms such as fatigue, headache, joint and muscle pain or cognitive deficits are often strongly subjectively perceived by patients, but are very difficult to objectify. The problem is the non-specificity and frequency of the mentioned symptoms, especially in the elderly population. The clinical definitions of PTLDS published to date are relatively vague, and the lack of a specific marker makes it very difficult to perform a definitive diagnosis. The pathogenesis of post-treatment complications and the options for therapeutic intervention have long been the subject of intense debate among experts and the public [39]. One of the most controversial issues is the influence of tick-borne coinfections such as anaplasmosis, bartonelosis or babesiosis on the occurrence and/or persistence of these symptoms and the consequent benefit of long-term and/or combined antimicrobial treatment [40,41].
Some studies originating in the United States suggest a high frequency of antibodies to other zoonoses in Lyme disease patients. Krause et al. [29] found anti-Babesia antibodies in 40.37% and anti-Anaplasma antibodies in 6.83% of patients who tested positive for Lyme disease in their study that focused on tick-borne zoonoses on the northeast coast of the United States. Horowitz and Freeman [42], in their study of 200 patients (193 of whom were from the United States) with PTLDS, reported positive results of serologic or genetic testing for Anaplasma infections in 13.5%, Bartonella infections in 46.5%, and Babesia infections in 52%. However, no details were given on the laboratory methods used in this study; only indirect (antibody titers) or direct (PCR, FISH) tests in different laboratories were mentioned.
In our study, we focused on the determination of antibodies against A. phagocytophilum, B. hansalea/quintana and B. microti in patients with suspected PTLDS in order to contribute to understanding of their role in the development of this syndrome in the Central Europe region.
A. phagocytophilum is a bacterium with clearly confirmed transmission by ticks of the genus Ixodes, pathogenicity to humans, and occurrence in most European countries. In humans, it causes human granulocytic anaplasmosis. The infection clinically manifests as an acute, nonspecific febrile illness with fatigue, headache, muscle, and joint pain. From a clinical standpoint, it is important that the treatment of anaplasmosis be primarily with doxycycline, just as in cases of Lyme disease. In contrast, antibiotics from the penicillin group, cephalosporins, and macrolides (including azithromycin) are ineffective [43,44]. Although symptomatic disease is rarely reported, specific IgG antibodies are found in a relatively high proportion of subjects in Central Europe. In the study conducted at the University Hospital Brno, Czech Republic, Anaplasma-specific IgG was found in 3.18%, IgM in 6.05%, and both isotypes in 1.59% of patients with suspected Lyme disease [33]. However, the methodology of the study was based on a combined immunoblot test, which contained only a single Anaplasma antigen-p44. In our study, positivity of this antigen was detected in only 46% of the Anaplasma-positive results. Kříž et al. [45] compared the frequency of specific IgG in sera of healthy individuals from the general population in the Czech Republic collected in two periods (1978–1989 and 2001). Samples were stored frozen in the serum bank of the National Institute of Public Health in Prague and tested by indirect immunofluorescence. In the first period, 57 of 434 sera (13.1%), and in the second period, 31 of 270 sera (11.5%), tested positive. Although the study population was not selected for a history of tick bites, the frequency of Anaplasma IgG positivity in this work is virtually identical to the results of our study in patients with suspected PTLDS (12.6%). A very similar result (11%) was also found in the general adult population in southern Norway [46] and in patients with persistent symptoms attributed to suspected tick bite exposure in Sweden, where Anaplasma antibodies were detected in 12% of patients [47]. In a serological study in neighboring Poland, antibodies against Anaplasma were found in 11.8% of forest workers and in 9.4% of healthy control blood donors [48]. In Crete, IgG seropositivity was found in 21.4% of blood donors [49], and in a tick-endemic area in Sweden, it was found in as many as 28% of residents [50]. In none of these studies were participants selected on the basis of a history of tick bites or long-term health complications.
Thus, the frequency of anti-Anaplasma IgG antibodies found in our study in individuals with suspected PTLDS does not exceed the frequency found in the general population in different areas of Europe with the presence of Ixodes ricinus ticks. However, the validity of this comparison is limited by the different methods used. The studies cited above were mainly based on the indirect immunofluorescence method, whereas our study used an immunoblot method based on strips coated with three specific recombinant A. phagocytophillum antigens (p44, OmpA and Asp62), which were then scored using a digital system. This method enables reproducible quantification of the intensity of the reaction with the specific antigens by optical densitometry, thus excluding possible subjective factors that may occur in the evaluation of immunofluorescence assays. The use of the immunoblot method also reduces the risk of a false positive reaction caused by antibodies to non-specific antigenic structures. The test kit we used from a local manufacturer is probably the only commercially available immunoblot-based test with multiple recombinant antigens that is certified for in vitro diagnostics.
We observed a significantly unequal distribution of anti-Anaplasma antibodies among age groups. More than three-quarters (76.9%) of the positive results occurred in individuals older than the mean and median age in the study group. A similar trend was described in an earlier Czech study, in which the authors described the highest incidence of these antibodies in the age group 60–69 years (16.9%), followed by a group aged 70 years and older (15.8%). The lowest percentage of positive results was in a group of 29 years and younger (3.25%) [33]. In our study, we found positivity in 19% of subjects in the 61–70-year-old category and in 20% of subjects in the 71 years and elder category, but only in 5.8% of subjects younger than 59 years. A possible explanation could be the higher susceptibility of elder people to infection reaching a stage that activates specific immunity, whereas in younger people, non-specific immune mechanisms are more often sufficient to eliminate Anaplasma bacteria. However, further studies with a different design would be needed to confirm this hypothesis.
The actual incidence of Bartonella infections in humans in Europe remains unclear. From 2012 to 2020, only 76 cases of Bartonella infection were reported to the Czech Infectious Diseases Information System (ISIN). However, serological studies from some neighboring countries have found a high frequency of antibodies against Bartonella in the population. In a study from Poland, seroprevalence in healthy blood donors was compared with that in rheumatoid patients with unexplained musculoskeletal symptoms. Overall, 23% of the samples tested were positive for antibodies, but no significantly higher frequency was found in rheumatoid patients, in persons previously scratched by a cat, or in persons with a history of tick bites [51]. Different results were obtained in an earlier study from Poland, where persons at increased risk for tick bites (farmers, forestry workers) were seropositive in 30.4% of cases, but the control group was “only” 8.9% [52]. In a study from Germany, positive antibodies against B. henselae with titers of 64 and higher were found in 30% of 270 clinically healthy students (age range 21 to 30 years). No significant difference was found between cat breeders and individuals without contact with cats [53]. In a study from the Maryland–Washington D.C. region, USA, antibodies against Bartonella spp. were found in 62% of patients examined by a rheumatologist, and positive PCR for these bacteria was found in 41.1% of patients [54].
Due to the high frequency of detection of anti-Bartonella antibodies in the general population, the specificity of the tests used is also a topic of debate. Previous studies have indicated serological cross-reactivity between Bartonella sp. and pathogenic bacteria of the genera Chlamydia and Coxiella [55,56]. Vermeulen et al. [57] reported the sensitivity of various tests in the range of 50% to 98% and specificity between 69% and 96%. Some of the tests investigated in this study were also found to be false-positive in patients with cytomegalovirus and Epstein–Barr virus infection. For the commercial test used in our study, the authors of the comparison reported a specificity of 89%. Theoretically, this means that with 103 subjects in our study, 11 to 12 false positives would be expected even in a negative population. However, this is an even higher number than the 10 positive samples we found. The interpretation of the weak positive results that we classified as equivocal is uncertain. If we were to accept them as positive, we would reach 23.3%, which is still consistent with the values reported for the general population in the papers cited above.
In addition, comparisons of results between studies are complicated by the fact that the cut-off point for seropositivity is not uniformly accepted. Although the manufacturer of the kit we used recommends that the serum tested be diluted 320-fold, another immunofluorescence kit recommends that the serum be evaluated with only a 64-fold dilution [58]. A major advantage would be the introduction of new serological methods based only on reactions with specific antigens, such as immunoblotting, which could be used to confirm the reactive results of indirect immunofluorescence screening. Similar two-step tests, in this case, the combination of ELISA and blot, have long been an accepted standard for the serological diagnosis of Lyme disease.
Another unresolved issue is also the possibility of Bartonella sp. transmission by the vectors of B. burgdorferi sensu lato spirochetes, hard ticks from the I. ricinus complex. Infection of Ixodes ticks with Bartonella by an artificial membrane feeding technique, resulting in transovarial and trans-stadial transmission, has previously been demonstrated [59,60]. In one of these studies, the transmission of Bartonella via a tick to a cat was successful, but the power of the study is somewhat limited by the artificial infection of the ticks used with a large number of laboratory-adapted bacterial strains [59]. The detection of DNA of Bartonella sp. in ticks has also repeatedly been described in Europe [61,62,63]. In 2001, Eskow et al. [64] published a series of cases with presumed tick-borne concurrent neurological infection by Borrelia burgdorferi and Bartonella henselae. However, concerns have been raised about the adequacy of the conclusions drawn from the results presented and the methodology used in the study itself, including the specificity of the primers used in the PCR analyses [65,66].
Nevertheless, there is no convincing evidence of the competence of ticks to transmit Bartonella species between domestic or wild animals and humans [40,66]. However, symptomatic infection by the transmission of B. hensalae directly from an infected mammal, usually a cat, has been well described [67]. The cause of seropositivity in asymptomatic individuals who have not been scratched by a cat remains unclear.
In the United States, Babesia microti is endemic in the Northeast and upper Midwest regions and is one of the most common tick-borne pathogens [68]. According to the CDC, approximately 2000 human cases of babesiosis are reported annually. To date, more than 24,000 cases have been identified in the United States, and more than 1000 in neighboring Canada [69]. In Europe, clinical cases of human infection are rarely reported, although B. microti has been found in Ixodes ticks in many European countries [70,71]. Overall, only about 50 symptomatic Babesia infections have been reported in Europe, but most of these have been attributed to another Babesia species, particularly B. divergens, which mainly affects immunocompromised individuals after splenectomy [71]. The natural hosts of this parasite are mainly cattle, which are not a reservoir for B. burgdorferi sensu lato. To date, only one case of B. microti infection has been described in the Czech Republic. The patient was an entomologist returning from a business trip during which he had collected ticks in Connecticut, USA. The disease manifested as fever, fatigue, loss of appetite and dark urine. Laboratory tests showed severe anemia (hemoglobin 65 g/L), leukopenia, trombocytopenia, and elevated levels of C-reactive protein (98 g/L). The presence of the parasite in the erythrocytes was subsequently detected microscopically, but with a positivity of only 0.41% of the erythrocytes. At the same time, anaplasmosis was diagnosed based on serology and he was treated with a combination of antiparasitics and antibiotics, resulting in the remission of symptoms [72].
Serological studies show a low percentage of positive antibodies against B. microti in persons with a history of tick bites, or even in the general population in some European localities. In Belgium, seropositivity of anti-B. microti antibodies was observed in 18 of 199 (9%) patients with clinical symptoms after a tick bite [73]. Conflicting results have been provided by two recent studies from Sweden. Svensson et al. [74] found anti-Babesia IgG antibodies in 16.3% of Borrelia-positive individuals and in 2.5% of healthy controls, whereas Nillson et al. [47] did not detect these antibodies in any of the 224 patients with persistent symptoms due to suspected tick bite exposure in their comprehensive study. The reason for this difference could be the natural endemicity of the presence of the parasite, in addition to the different methods used. In our study, we did not find a convincing positive result in any of the samples tested.
An unexpected and valuable finding of our study was the detection of autoantibodies in 12 (11.6%) patients by immunofluorescence assay using human infected cell culture to determine antibodies against Bartonella. In most cases, these were different patterns belonging to the antinuclear antibody group; in one sample, antibodies with a fluorescence typical of antimitochondrial antibodies were found. We confirmed the presence of autoantibodies in eight of these samples by immunoblotting. A borderline result was obtained in two samples and a negative result in the other two samples. However, the negativity of the blots does not exclude reactivity with other autoantigens absent from the assays used.
Although causality with prior infection cannot be clearly established, the results are consistent with a number of previous studies in patients with complicated forms of Lyme disease and post-Borreliosis syndrome, in which antibodies to a variety of autoantigens were found, such as annexin A2 [75], apolipoprotein B-100 [76], endothelial cell growth factor [77], matrix metalloproteinase-10 [78], phospholipids [79], cyclophilin [80], neural tissue [81,82], γ-enolase [83], ANA, and myositis-associated antibodies [47]. The wide range of specificities of the autoantibodies found suggests the non-specific polyclonal activation of cells of the immune system rather than the cross-reactivity of microbial antigens with autoantigens. In any case, these results must be interpreted with caution, because the presence of autoantibodies does not necessarily indicate the presence of a specific autoimmune disease. However, autoantibodies may be a sign of activation of the immune system, whether long-term after infection or due to the persistence of immunogenic material in the organism.
The limitations of our study are mainly determined by the general limitations of the serological methods used. The co-prevalence of antibodies alone cannot distinguish between a true co-infection and two independent infections separated in time. To determine the frequency of co-infection itself, it would be appropriate to perform direct pathogen detection (PCR, microscopy, and cultivation) in diagnosed patients before starting antibiotic treatment. However, in clinical practice, this is not performed, mainly because of the cost and limited availability of these methods to primary care physicians, where most cases of Lyme disease are diagnosed. The role of co-infections in the pathogenesis of PTLDS would be indicated by a higher frequency of seropositivity against other selected tick-borne infections in this group of chronic patients than in the general population, which was not observed in our study.

5. Conclusions

In our study, we found positive levels of IgG antibodies against A. phagocytophilum in 12.6% of samples from patients with suspected PTLDS from the Olomouc and Moravian-Silesian regions, Czech Republic, and against Bartonella henselae/Bartonnela quintana in 9.7% of samples. Positivity was detected in only a relatively small proportion of samples, and the frequency observed did not exceed the seropositivity found in previous studies in populations without health problems with suspected post-Borreliosis etiology. For antibodies against A. phagocytophilum, we observed a significant dependence of positivity on patient age.
We assume that the results of our study do not show a significant contribution of the co-infections studied above to the pathogenesis of PTLDS in Central Europe and the Czech Republic. However, the positivity of specific antibodies, especially against the bacterium A. phagocytophilum, still deserves medical attention. The benefit of treating the symptoms associated with tick bites with tetracycline antibiotics, which are also effective against the above-mentioned infections, is emphasized.
An important finding was the presence of autoantibodies in 12 (11.6%) of the patients detected by immunofluorescence assay using human infected cell culture to determine antibodies to Bartonella. The presence of autoantibodies was confirmed in eight samples by immunoblotting. An association between previous Borrelia infection, the presence of autoantibodies and clinical symptoms could not be clearly demonstrated in our study, and further studies with sufficiently large control groups are needed to clarify the possible association.

Supplementary Materials

The following are available online at, Table S1: IgG+ selection summary.

Author Contributions

Data curation, N.R. and M.K.; Formal analysis, N.R. and M.K.; Funding acquisition, M.R. (Milan Raska) and M.K.; Investigation, K.S.; J.D.; M.R. (Mojmir Ricansky); P.H.; M.G.; N.R. and M.K.; Methodology, B.K.; B.H.; P.H.; M.G.; N.R. and M.K.; Project administration, M.K.; Resources, M.R. (Milan Raska); Supervision, M.R. (Milan Raska). All authors have read and agreed to the published version of the manuscript.


This research was funded by Ministry of Health of the Czech Republic, grant nr. NV19-05-00191 and by the Palacky University Olomouc grant IGA_LF_2021_015.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinky, and approved by the Institutional Ethics Committee of University Hospital Olomouc (reference number 102/18 from June 2018).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. The protocol of the study, including the informed consent of the patients, was approved by the Ethics Committee of the Olomouc University Hospital (reference number 102/18 of June 2018).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kugeler, K.J.; Schwartz, A.M.; Delorey, M.J.; Mead, P.S.; Hinckley, A.F. Estimating the Frequency of Lyme Disease Diagnoses, United States, 2010–2018. Emerg. Infect. Dis. 2021, 27, 616–619. [Google Scholar] [CrossRef] [PubMed]
  2. Rudenko, N.; Golovchenko, M. Sexual Transmission of Lyme Borreliosis? The Question That Calls for an Answer. Trop. Med. Infect. Dis. 2021, 6, 87. [Google Scholar] [CrossRef]
  3. European Parliament Resolution on Lyme Disease (Borreliosis) (2018/2774(RSP). Available online: (accessed on 15 September 2021).
  4. Steere, A.C.; Strle, F.; Wormser, G.P.; Hu, L.T.; Branda, J.A.; Hovius, J.W.R.; Li, X.; Mead, P.S. Lyme borreliosis. Nat. Rev. Dis. Prim. 2016, 2, 16090. [Google Scholar] [CrossRef]
  5. Krupka, M.; Raska, M.; Belakova, J.; Horynová, M.S.; Novotny, R.; Weigl, E. Biological aspects of lyme disease spirochetes: Unique bacteria of the Borrelia burgdorferi species group. Biomed. Pap. 2007, 151, 175–186. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Mead, P.S. Epidemiology of Lyme Disease. Infect. Dis. Clin. N. Am. 2015, 29, 187–210. [Google Scholar] [CrossRef]
  7. Rudenko, N.; Golovchenko, M.; Grubhoffer, L.; Oliver, J.H. Updates on Borrelia burgdorferi sensu lato complex with respect to public health. Ticks Tick-Borne Dis. 2011, 2, 123–128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Kingry, L.C.; Batra, D.; Replogle, A.; Rowe, L.A.; Pritt, B.S.; Petersen, J.M. Whole Genome Sequence and Comparative Genomics of the Novel Lyme Borreliosis Causing Pathogen, Borrelia mayonii. PLoS ONE 2016, 11, e0168994. [Google Scholar] [CrossRef] [PubMed]
  9. Gern, L. Borrelia burgdorferi sensu lato, the agent of Lyme borreliosis: Life in the wilds. Parasite 2008, 15, 244–247. [Google Scholar] [CrossRef] [Green Version]
  10. Centers for Disease Control and Prevention. Signs and Symptoms of Untreated Lyme Disease. Available online: (accessed on 1 September 2021).
  11. Bamm, V.V.; Ko, J.T.; Mainprize, I.L.; Sanderson, V.P.; Wills, M.K.B. Lyme Disease Frontiers: Reconciling Borrelia Biology and Clinical Conundrums. Pathogens 2019, 8, 299. [Google Scholar] [CrossRef] [Green Version]
  12. Wormser, G.P.; Dattwyler, R.; Shapiro, E.D.; Halperin, J.; Steere, A.C.; Klempner, M.S.; Krause, P.J.; Bakken, J.S.; Strle, F.; Stanek, G.; et al. The Clinical Assessment, Treatment, and Prevention of Lyme Disease, Human Granulocytic Anaplasmosis, and Babesiosis: Clinical Practice Guidelines by the Infectious Diseases Society of America. Clin. Infect. Dis. 2006, 43, 1089–1134. [Google Scholar] [CrossRef]
  13. Horowitz, R.I.; Freeman, P.R. Efficacy of Double-Dose Dapsone Combination Therapy in the Treatment of Chronic Lyme Disease/Post-Treatment Lyme Disease Syndrome (PTLDS) and Associated Co-infections: A Report of Three Cases and Retrospective Chart Review. Antibiotics 2020, 9, 725. [Google Scholar] [CrossRef] [PubMed]
  14. Fallon, B.A.; Petkova, E.; Keilp, J.G.; Britton, C.B. A Reappraisal of the U.S. Clinical Trials of Post-Treatment Lyme Disease Syndrome. Open Neurol. J. 2012, 6, 79–87. [Google Scholar] [CrossRef]
  15. Klempner, M.S. Controlled Trials of Antibiotic Treatment in Patients with Post-Treatment Chronic Lyme Disease. Vector-Borne Zoonotic Dis. 2002, 2, 255–263. [Google Scholar] [CrossRef] [PubMed]
  16. Krause, P.J.; Gewurz, B.E.; Hill, D.; Marty, F.M.; Vannier, E.; Foppa, I.M.; Furman, R.R.; Neuhaus, E.; Skowron, G.; Gupta, S.; et al. Persistent and Relapsing Babesiosis in Immunocompromised Patients. Clin. Infect. Dis. 2008, 46, 370–376. [Google Scholar] [CrossRef] [Green Version]
  17. Horowitz, R.; Freeman, P.R. Healthy Fetal Outcomes Using A Novel Treatment For Maternal Lyme Disease And Babesiosis During Consecutive Pregnancies: A Case Study and Literature Review. Arch. Med Case Rep. 2020, 2, 1–19. [Google Scholar] [CrossRef]
  18. Křupka, M.; Zachová, K.; Weigl, E.; Raska, M. Prevention of Lyme Disease: Promising Research or Sisyphean Task? Arch. Immunol. Ther. Exp. 2011, 59, 261–275. [Google Scholar] [CrossRef]
  19. Cerar, D.; Cerar, T.; Ružić-Sabljić, E.; Wormser, G.P.; Strle, F. Subjective Symptoms after Treatment of Early Lyme Disease. Am. J. Med. 2010, 123, 79–86. [Google Scholar] [CrossRef]
  20. Aucott, J.N.; Crowder, L.; Kortte, K.B. Development of a foundation for a case definition of post-treatment Lyme disease syndrome. Int. J. Infect. Dis. 2013, 17, e443–e449. [Google Scholar] [CrossRef] [Green Version]
  21. Rudenko, N.; Golovchenko, M.; Kybicova, K.; Vancova, M. Metamorphoses of Lyme disease spirochetes: Phenomenon of Borrelia persisters. Parasites Vectors 2019, 12, 1–10. [Google Scholar] [CrossRef] [PubMed]
  22. Baker, P.J. A Review of Antibiotic-Tolerant Persisters and Their Relevance to Posttreatment Lyme Disease Symptoms. Am. J. Med. 2020, 133, 429–431. [Google Scholar] [CrossRef]
  23. Shor, S.; Green, C.; Szantyr, B.; Phillips, S.; Liegner, K.; Burrascano, J.J.J.; Bransfield, R.; Maloney, E.L. Chronic Lyme Disease: An Evidence-Based Definition by the ILADS Working Group. Antibiotics 2019, 8, 269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lantos, P.M. Chronic Lyme Disease. Infect. Dis. Clin. N. Am. 2015, 29, 325–340. [Google Scholar] [CrossRef] [PubMed]
  25. Nemeth, J.; Bernasconi, E.; Heininger, U.; Abbas, M.; Nadal, D.; Strahm, C.; Erb, S.; Zimmerli, S.; Furrer, H.; Delaloye, J.; et al. Update of the Swiss guidelines on post-treatment Lyme disease syndrome. Swiss Med. Wkly. 2016, 146, w14353. [Google Scholar] [CrossRef] [Green Version]
  26. Marcum, L. LYME SCI: Tick-Borne Co-Infections Are the Rule, Not the Exception. Available online: (accessed on 15 September 2021).
  27. Horowitz, R.I.; Freeman, P.R. Are mycobacterium drugs effective for treatment resistant Lyme disease, tick-borne co-infections, and autoimmune disease? JSM Arthritis 2016, 1, 1008. [Google Scholar]
  28. Grab, D.J.; Nyarko, E.; Barat, N.C.; Nikolskaia, O.V.; Dumler, J.S. Anaplasma phagocytophilum—Borrelia burgdorferi Coinfection Enhances Chemokine, Cytokine, and Matrix Metalloprotease Expression by Human Brain Microvascular Endothelial Cells. Clin. Vaccine Immunol. 2007, 14, 1420–1424. [Google Scholar] [CrossRef] [Green Version]
  29. Krause, P.J.; McKay, K.; Thompson, C.A.; Sikand, V.K.; Lentz, R.; Lepore, T.; Closter, L.; Christianson, D.; Telford, S.R.; Persing, D.; et al. Disease-Specific Diagnosis of Coinfecting Tickborne Zoonoses: Babesiosis, Human Granulocytic Ehrlichiosis, and Lyme Disease. Clin. Infect. Dis. 2002, 34, 1184–1191. [Google Scholar] [CrossRef] [Green Version]
  30. Dumler, J.S.; Choi, K.-S.; Garcia-Garcia, J.C.; Barat, N.S.; Scorpio, D.G.; Garyu, J.W.; Grab, D.J.; Bakken, J.S. Human Granulocytic Anaplasmosis and Anaplasma phagocytophilum. Emerg. Infect. Dis. 2005, 11, 1828–1834. [Google Scholar] [CrossRef]
  31. Chen, S.M.; Dumler, J.S.; Bakken, J.S.; Walker, D.H. Identification of a granulocytotropic Ehrlichia species as the etiologic agent of human disease. J. Clin. Microbiol. 1994, 32, 589–595. [Google Scholar] [CrossRef] [Green Version]
  32. Petrovec, M.; Furlan, S.L.; Zupanc, T.A.; Strle, F.; Brouqui, P.; Roux, V.; Dumler, J.S. Human disease in Europe caused by a granulocytic Ehrlichia species. J. Clin. Microbiol. 1997, 35, 1556–1559. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Dvořáková Heroldová, M.; Dvořáčková, M. [Seroprevalence of Anaplasma phagocytophilum in patients with suspected Lyme borreliosis] In Czech. Epidemiol. Mikrobiol. Imunol. 2014, 63, 297–302. [Google Scholar]
  34. Boulouis, H.-J.; Chao-Chin, C.; Henn, J.B.; Kasten, R.W.; Chomel, B.B. Factors associated with the rapid emergence of zoonotic Bartonella infections. Veter Res. 2005, 36, 383–410. [Google Scholar] [CrossRef] [Green Version]
  35. Anderson, B.E.; Neuman, M.A. Bartonella spp. as emerging human pathogens. Clin. Microbiol. Rev. 1997, 10, 203–219. [Google Scholar] [CrossRef] [PubMed]
  36. Mozayeni, B.R.; Maggi, R.; Bradley, J.M.; Breitschwerdt, E.B. Rheumatological presentation of Bartonella koehlerae and Bartonella henselae bacteremias. Medicine 2018, 97, e0465. [Google Scholar] [CrossRef] [PubMed]
  37. Lobo, C.A.; Singh, M.; Rodriguez, M. Human babesiosis: Recent advances and future challenges. Curr. Opin. Hematol. 2020, 27, 399–405. [Google Scholar] [CrossRef]
  38. Parveen, N.; Bhanot, P. Babesia microti-Borrelia burgdorferi Coinfection. Pathogens 2019, 8, 117. [Google Scholar] [CrossRef] [Green Version]
  39. Lantos, P.M. Chronic Lyme disease: The controversies and the science. Expert Rev. Anti-Infect. Ther. 2011, 9, 787–797. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Lantos, P.M.; Wormser, G.P. Chronic Coinfections in Patients Diagnosed with Chronic Lyme Disease: A Systematic Review. Am. J. Med. 2014, 127, 1105–1110. [Google Scholar] [CrossRef]
  41. Stricker, R.B. Counterpoint: Long-Term Antibiotic Therapy Improves Persistent Symptoms Associated with Lyme Disease. Clin. Infect. Dis. 2007, 45, 149–157. [Google Scholar] [CrossRef]
  42. Horowitz, R.I.; Freeman, P.R. Precision medicine: Retrospective chart review and data analysis of 200 patients on dapsone combination therapy for chronic Lyme disease/post-treatment Lyme disease syndrome: Part 1. Int. J. Gen. Med. 2019, 12, 101–119. [Google Scholar] [CrossRef] [Green Version]
  43. Maurin, M.; Bakken, J.S.; Dumler, J.S. Antibiotic Susceptibilities of Anaplasma (Ehrlichia) phagocytophilum Strains from Various Geographic Areas in the United States. Antimicrob. Agents Chemother. 2003, 47, 413–415. [Google Scholar] [CrossRef] [Green Version]
  44. Matei, I.A.; Estrada-Peña, A.; Cutler, S.J.; Vayssier-Taussat, M.; Castro, L.V.; Potkonjak, A.; Zeller, H.; Mihalca, A.D. A review on the eco-epidemiology and clinical management of human granulocytic anaplasmosis and its agent in Europe. Parasites Vectors 2019, 12, 599–619. [Google Scholar] [CrossRef]
  45. Kříž, B.; Malý, M.; Balátová, P.; Kodym, P.; Kurzová, Z.; Daniel, M.; Kybicová, K. A serological study of antibodies to Anaplasma phagocytophilum and Borrelia burgdorferi sensu lato in the sera of healthy individuals collected two decades apart. Acta Parasitol. 2018, 63, 33–39. [Google Scholar] [CrossRef]
  46. Thortveit, E.T.; Aase, A.; Petersen, L.B.; Lorentzen, Å.R.; Mygland, Å.; Ljøstad, U. Human seroprevalence of antibodies to tick-borne microbes in southern Norway. Ticks Tick-Borne Dis. 2020, 11, 101410. [Google Scholar] [CrossRef] [PubMed]
  47. Nilsson, K.; Skoog, E.; Jones, V.; Sandelin, L.L.; Björling, C.; Fridenström, E.; Edvinsson, M.; Mårtensson, A.; Olsen, B. A comprehensive clinical and laboratory evaluation of 224 patients with persistent symptoms attributed to presumed tick-bite exposure. PLoS ONE 2021, 16, e0247384. [Google Scholar] [CrossRef]
  48. Chmielewska-Badora, J.; Moniuszko, A.; Żukiewicz-Sobczak, W.; Zwolinski, J.; Piątek, J.; Pancewicz, S. Serological survey in persons occupationally exposed to tick-borne pathogens in cases of co-infections with Borrelia burgdorferi, Anaplasma phagocytophilum, Bartonella spp. and Babesia microti. Ann. Agric. Environ. Med. 2012, 19, 271–274. [Google Scholar] [PubMed]
  49. Chochlakis, D.; Papaeustathiou, A.; Minadakis, G.; Psaroulaki, A.; Tselentis, Y. A serosurvey of Anaplasma phagocytophilum in blood donors in Crete, Greece. Eur. J. Clin. Microbiol. Infect. Dis. 2008, 27, 473–475. [Google Scholar] [CrossRef]
  50. Wittesjö, B.; Bjöersdorff, A.; Eliasson, I.; Berglund, J. First long-term study of the seroresponse to the agent of human granulocytic ehrlichiosis among residents of a tick-endemic area of Sweden. Eur. J. Clin. Microbiol. Infect. Dis. 2001, 20, 173–178. [Google Scholar] [CrossRef] [PubMed]
  51. Łysakowska, M.E.; Brzezińska, O.; Szybka, M.; Konieczka, M.; Moskwa, S.; Brauncajs, M.; Makowska, J.; Pastuszak-Lewandoska, D.; Grzegorczyk, J. The seroprevalence of Bartonella spp. in the blood of patients with musculoskeletal complaints and blood donors, Poland: A pilot study. Clin. Rheumatol. 2019, 38, 2691–2698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zając, V.; Wójcik-Fatla, A.; Dutkiewicz, J.; Szymańska, J. Bartonella henselae in eastern Poland: The relationship between tick infection rates and the serological response of individuals occupationally exposed to tick bites. J. Vector Ecol. 2015, 40, 75–82. [Google Scholar] [CrossRef] [Green Version]
  53. Sander, A.; Posselt, M.; Oberle, K.; Bredt, W. Seroprevalence of Antibodies to Bartonella henselae in Patients with Cat Scratch Disease and in Healthy Controls: Evaluation and Comparison of Two Commercial Serological Tests. Clin. Diagn. Lab. Immunol. 1998, 5, 486–490. [Google Scholar] [CrossRef] [Green Version]
  54. Maggi, R.G.; Mozayeni, B.R.; Pultorak, E.L.; Hegarty, B.C.; Bradley, J.M.; Correa, M.; Breitschwerdt, E.B. Bartonella spp. Bacteremia and Rheumatic Symptoms in Patients from Lyme Disease–endemic Region. Emerg. Infect. Dis. 2012, 18, 783–791. [Google Scholar] [CrossRef]
  55. La Scola, B.; Raoult, D. Serological cross-reactions between Bartonella quintana, Bartonella henselae, and Coxiella burnetii. J. Clin. Microbiol. 1996, 34, 2270–2274. [Google Scholar] [CrossRef] [Green Version]
  56. Maurin, M.; Eb, F.; Etienne, J.; Raoult, D. Serological cross-reactions between Bartonella and Chlamydia species: Implications for diagnosis. J. Clin. Microbiol. 1997, 35, 2283–2287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Vermeulen, M.; Verbakel, H.; Notermans, D.W.; Reimerink, J.H.J.; Peeters, M. Evaluation of sensitivity, specificity and cross-reactivity in Bartonella henselae serology. J. Med. Microbiol. 2010, 59, 743–745. [Google Scholar] [CrossRef] [Green Version]
  58. Maurin, M.; Rolain, J.-M.; Raoult, D. Comparison of In-House and Commercial Slides for Detection by Immunofluorescence of Immunoglobulins G and M against Bartonella henselae and Bartonella quintana. Clin. Vaccine Immunol. 2002, 9, 1004–1009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Cotté, V.; Bonnet, S.; Le Rhun, D.; Le Naour, E.; Chauvin, A.; Boulouis, H.-J.; Lecuelle, B.; Lilin, T.; Vayssier-Taussat, M. Transmission of Bartonella henselae by Ixodes ricinus. Emerg. Infect. Dis. 2008, 14, 1074–1080. [Google Scholar] [CrossRef] [PubMed]
  60. Król, N.; Militzer, N.; Stöbe, E.; Nijhof, A.; Pfeffer, M.; Kempf, V.; Obiegala, A. Evaluating Transmission Paths for Three Different Bartonella spp. in Ixodes ricinus Ticks Using Artificial Feeding. Microorganisms 2021, 9, 901. [Google Scholar] [CrossRef] [PubMed]
  61. Schouls, L.M.; Van De Pol, I.; Rijpkema, S.G.T.; Schot, C.S. Detection and Identification of Ehrlichia, Borrelia burgdorferi Sensu Lato, and Bartonella Species in Dutch Ixodes ricinus Ticks. J. Clin. Microbiol. 1999, 37, 2215–2222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Hercík, K.; Hášová, V.; Janeček, J.; Branny, P. Molecular evidence of DNA in ixodid ticks in Czechia. Folia Microbiol. 2007, 52, 503–509. [Google Scholar] [CrossRef] [PubMed]
  63. Sanogo, Y.O.; Zeaiter, Z.; Caruso, G.; Merola, F.; Shpynov, S.; Brouqui, P.; Raoult, D. Bartonella henselae in Ixodes ricinus Ticks (Acari: Ixodida) Removed from Humans, Belluno Province, Italy. Emerg. Infect. Dis. 2003, 9, 329–332. [Google Scholar] [CrossRef]
  64. Eskow, E.; Rao, R.-V.S.; Mordechai, E. Concurrent Infection of the Central Nervous System by Borrelia burgdorferi and Bartonella henselae. Arch. Neurol. 2001, 58, 1357–1363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Halperin, J.J.; Wormser, G.P. Of fleas and ticks on cats and mice. Arch. Neurol. 2001, 58, 1345–1347. [Google Scholar] [CrossRef] [PubMed]
  66. Telford, S.R.; Wormser, G.P. Bartonellaspp. Transmission by Ticks Not Established. Emerg. Infect. Dis. 2010, 16, 379–384. [Google Scholar] [CrossRef]
  67. Okaro, U.; George, S.; Anderson, B. What Is in a Cat Scratch? Growth of Bartonella henselae in a Biofilm. Microorganisms 2021, 9, 835. [Google Scholar] [CrossRef]
  68. Diuk-Wasser, M.A.; Vannier, E.; Krause, P.J.; Diuk-Wasser, M.A.; Vannier, E.; Krause, P.J. Coinfection by Ixodes Tick-Borne Pathogens: Ecological, Epidemiological, and Clinical Consequences. Trends Parasitol. 2015, 32, 30–42. [Google Scholar] [CrossRef] [Green Version]
  69. Yang, Y.; Christie, J.; Köster, L.; Du, A.; Yao, C. Emerging Human Babesiosis with “Ground Zero” in North America. Microorganisms 2021, 9, 440. [Google Scholar] [CrossRef]
  70. Rudolf, I.; Golovchenko, M.; Šikutová, S.; Rudenko, N.; Grubhoffer, L.; Hubálek, Z. Babesia microti (Piroplasmida: Babesiidae) in nymphal Ixodes ricinus (Acari: Ixodidae) in the Czech Republic. Folia Parasitol. 2005, 52, 274–276. [Google Scholar] [CrossRef] [Green Version]
  71. Hildebrandt, A.; Gray, J.S.; Hunfeld, K.-P. Human Babesiosis in Europe: What clinicians need to know. Infection 2013, 41, 1057–1072. [Google Scholar] [CrossRef] [PubMed]
  72. Nohynkova, E.; Kubek, J.; Mestankova, O.; Chalupka, P.; Hubalek, Z. A Case of Babesia microti Infection Imported to the Czech Republic from the USA. Cas. Lek. Ces. 2003, 142, 377–381. (In Czech) [Google Scholar]
  73. Lempereur, L.; Shiels, B.; Heyman, P.; Moreau, E.; Saegerman, C.; Losson, B.; Malandrin, L. A retrospective serological survey on human babesiosis in Belgium. Clin. Microbiol. Infect. 2015, 21, 96.e1–96.e7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Svensson, J.; Hunfeld, K.-P.; Persson, K.E.M. High seroprevalence of Babesia antibodies among Borrelia burgdorferi-infected humans in Sweden. Ticks Tick-Borne Dis. 2018, 10, 186–190. [Google Scholar] [CrossRef]
  75. Pianta, A.; Drouin, E.E.; Crowley, J.T.; Arvikar, S.; Strle, K.; Costello, C.E.; Steere, A.C. Annexin A2 is a target of autoimmune T and B cell responses associated with synovial fibroblast proliferation in patients with antibiotic-refractory Lyme arthritis. Clin. Immunol. 2015, 160, 336–341. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Crowley, J.T.; Drouin, E.E.; Pianta, A.; Strle, K.; Wang, Q.; Costello, C.; Steere, A.C. A Highly Expressed Human Protein, Apolipoprotein B-100, Serves as an Autoantigen in a Subgroup of Patients With Lyme Disease. J. Infect. Dis. 2015, 212, 1841–1850. [Google Scholar] [CrossRef] [Green Version]
  77. Drouin, E.E.; Seward, R.J.; Strle, K.; McHugh, G.; Katchar, K.; Londoño, D.; Yao, C.; Costello, C.; Steere, A.C. A novel human autoantigen, endothelial cell growth factor, is a target of T and B cell responses in patients with Lyme disease. Arthritis Rheum. 2012, 65, 186–196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Crowley, J.T.; Strle, K.; Drouin, E.E.; Pianta, A.; Arvikar, S.L.; Wang, Q.; Costello, C.E.; Steere, A.C. Matrix metalloproteinase-10 is a target of T and B cell responses that correlate with synovial pathology in patients with antibiotic-refractory Lyme arthritis. J. Autoimmun. 2016, 69, 24–37. [Google Scholar] [CrossRef] [Green Version]
  79. Greco, T.P.; Conti-Kelly, A.M.; Greco, T.P. Antiphospholipid antibodies in patients with purported ‘chronic Lyme disease’. Lupus 2011, 20, 1372–1377. [Google Scholar] [CrossRef] [PubMed]
  80. Kratz, A.; Harding, M.W.; Craft, J.; Mackworth-Young, C.G.; Handschumacher, R.E. Autoantibodies against cyclophilin in systemic lupus erythematosus and Lyme disease. Clin. Exp. Immunol. 2008, 90, 422–427. [Google Scholar] [CrossRef]
  81. Chandra, A.; Wormser, G.P.; Klempner, M.S.; Trevino, R.P.; Crow, M.K.; Latov, N.; Alaedini, A. Anti-neural antibody reactivity in patients with a history of Lyme borreliosis and persistent symptoms. Brain Behav. Immun. 2010, 24, 1018–1024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Jacek, E.; Fallon, B.A.; Chandra, A.; Crow, M.K.; Wormser, G.P.; Alaedini, A. Increased IFNα activity and differential antibody response in patients with a history of Lyme disease and persistent cognitive deficits. J. Neuroimmunol. 2012, 255, 85–91. [Google Scholar] [CrossRef] [Green Version]
  83. Maccallini, P.; Bonin, S.; Trevisan, G. Autoimmunity against a glycolytic enzyme as a possible cause for persistent symptoms in Lyme disease. Med. Hypotheses 2018, 110, 1–8. [Google Scholar] [CrossRef]

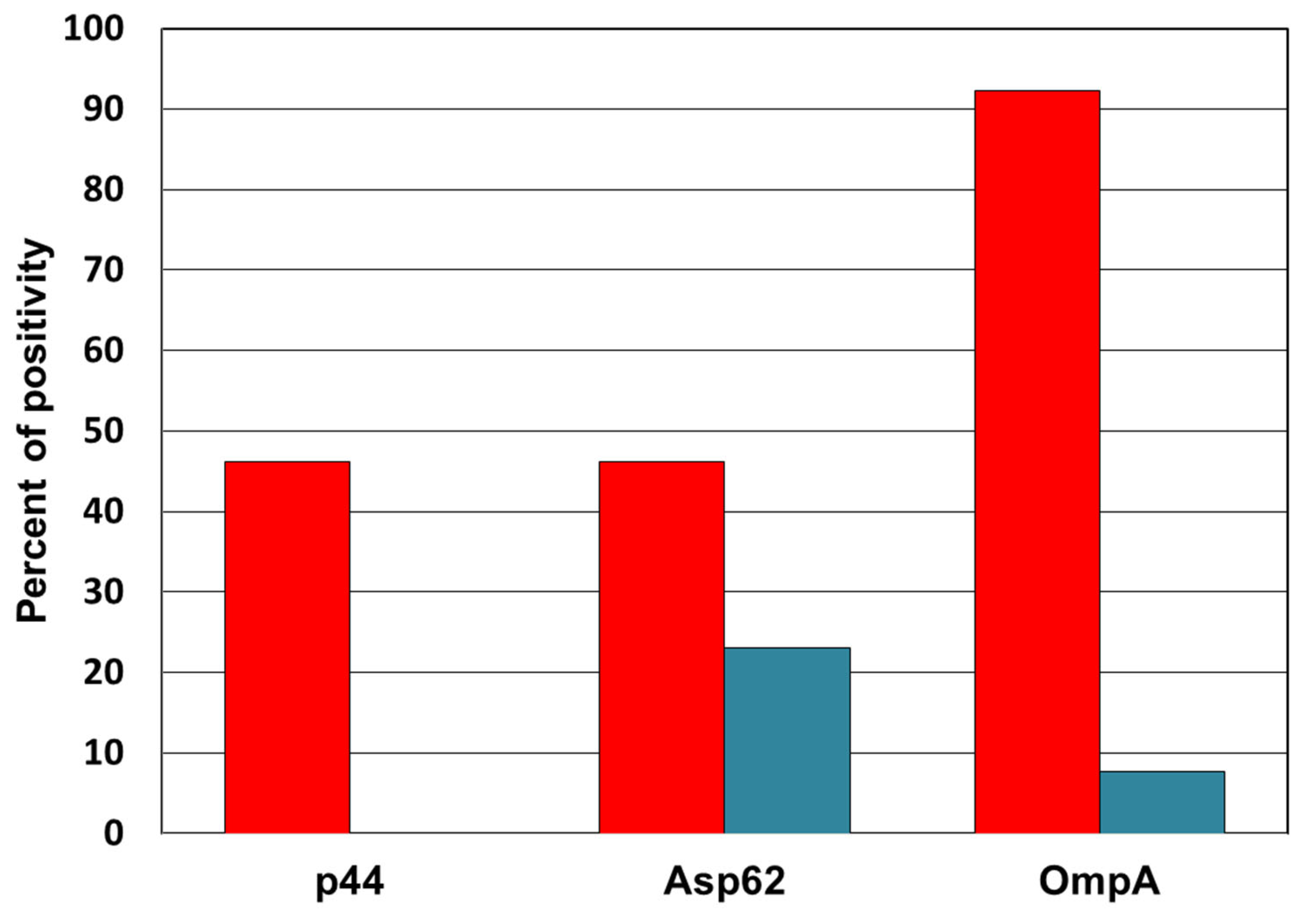

Figure 1. Representation of positive (red) and borderline (blue) reactions of individual antigens in samples with a positive result in the anti-Anaplasma antibody test.
Figure 1. Representation of positive (red) and borderline (blue) reactions of individual antigens in samples with a positive result in the anti-Anaplasma antibody test.
Microorganisms 09 02217 g001

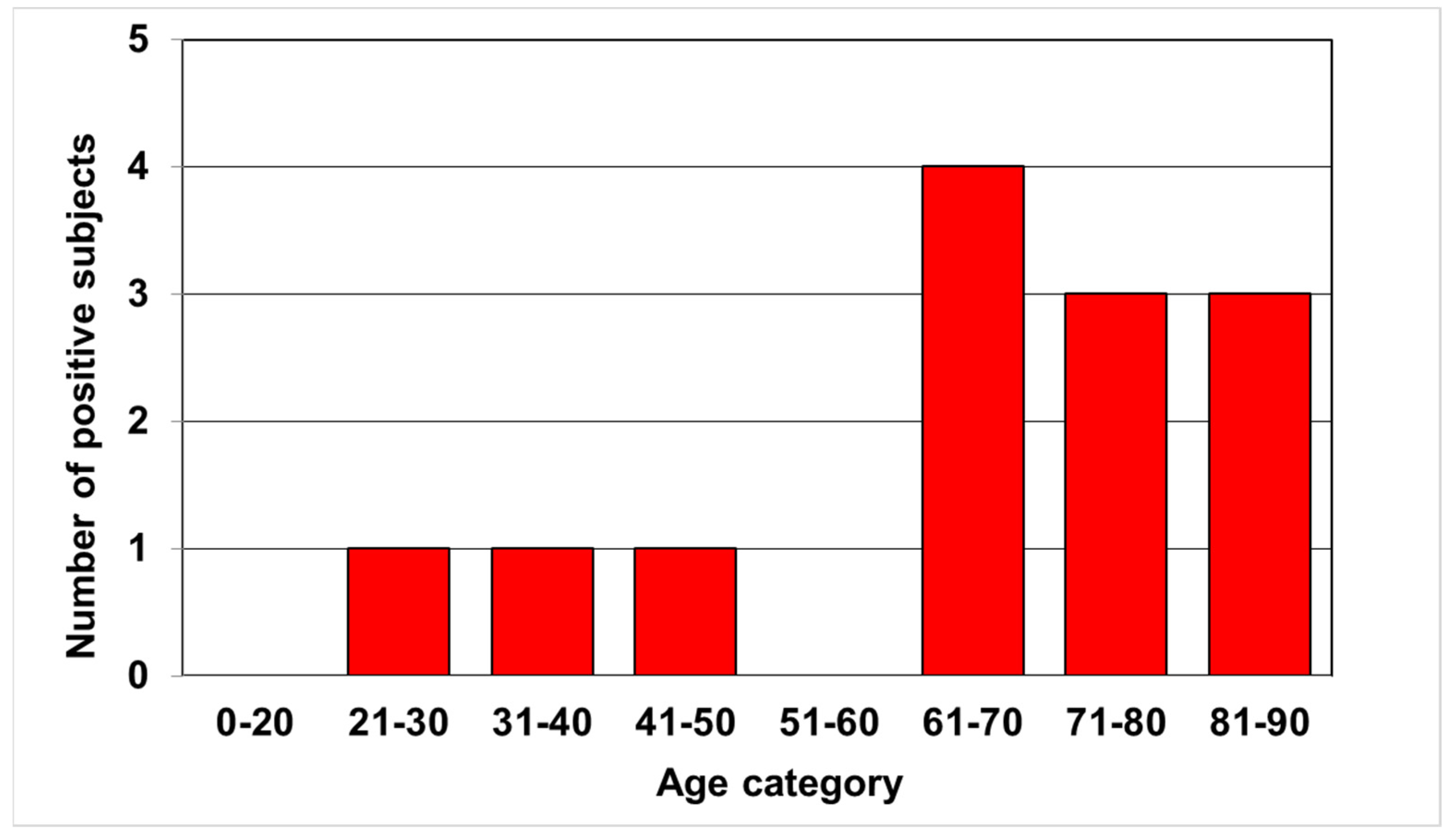

Figure 2. Distribution of positive anti-Anaplasma antibody results by age. The difference in the frequency of positive results between the groups of 60 years and younger and 61 years and older was found to be statistically significant (two-tailed Fisher’s exact test, p <0.05).
Figure 2. Distribution of positive anti-Anaplasma antibody results by age. The difference in the frequency of positive results between the groups of 60 years and younger and 61 years and older was found to be statistically significant (two-tailed Fisher’s exact test, p <0.05).
Microorganisms 09 02217 g002
Figure 3. Fluorescence patterns observed in the study. (A) Positive reaction to Bartonella antibodies, (B) negative reaction, (C) antinuclear antibodies (ANAs), (D) antimitochondrial antibodies (AMA). Images were created using the software assembly of images in green and red fluorescence channels at a total magnification of 400×.
Figure 3. Fluorescence patterns observed in the study. (A) Positive reaction to Bartonella antibodies, (B) negative reaction, (C) antinuclear antibodies (ANAs), (D) antimitochondrial antibodies (AMA). Images were created using the software assembly of images in green and red fluorescence channels at a total magnification of 400×.
Microorganisms 09 02217 g003
Table 1. Characteristics of studied patient group.
Table 1. Characteristics of studied patient group.
Number of Subject103
Average Age (min.–max.)57.4 (6–90) years
Median of Age59 years
0–20 years3
21–30 years8
31–40 years6
41–50 years19
51–60 years16
61–70 years21
71–80 years23
81+ years7
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sloupenska, K.; Dolezilkova, J.; Koubkova, B.; Hutyrova, B.; Racansky, M.; Horak, P.; Golovchenko, M.; Raska, M.; Rudenko, N.; Krupka, M. Seroprevalence of Antibodies against Tick-Borne Pathogens in Czech Patients with Suspected Post-Treatment Lyme Disease Syndrome. Microorganisms 2021, 9, 2217.

AMA Style

Sloupenska K, Dolezilkova J, Koubkova B, Hutyrova B, Racansky M, Horak P, Golovchenko M, Raska M, Rudenko N, Krupka M. Seroprevalence of Antibodies against Tick-Borne Pathogens in Czech Patients with Suspected Post-Treatment Lyme Disease Syndrome. Microorganisms. 2021; 9(11):2217.

Chicago/Turabian Style

Sloupenska, Kristyna, Jana Dolezilkova, Barbora Koubkova, Beata Hutyrova, Mojmir Racansky, Pavel Horak, Maryna Golovchenko, Milan Raska, Natalie Rudenko, and Michal Krupka. 2021. "Seroprevalence of Antibodies against Tick-Borne Pathogens in Czech Patients with Suspected Post-Treatment Lyme Disease Syndrome" Microorganisms 9, no. 11: 2217.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
