Reference Genes for Expression Analyses by qRT-PCR in Enterobacter cancerogenus

by
Yang Pan
,
Yue Zhao
,
Hua-Rui Zeng
,
Jia-Qi Wu
,
Ying-Ying Song
,
Ya-Hao Rao
,
Guo-Qing Li
and
Lin Jin
*
Education Ministry Key Laboratory of Integrated Management of Crop Diseases and Pests/State & Local Joint Engineering Research Center of Green Pesticide Invention and Application, Department of Entomology, College of Plant Protection, Nanjing Agricultural University, Nanjing 210095, China
*
Author to whom correspondence should be addressed.
Microorganisms 2024, 12(5), 1024; https://doi.org/10.3390/microorganisms12051024
Submission received: 25 March 2024 / Revised: 14 May 2024 / Accepted: 15 May 2024 / Published: 19 May 2024
(This article belongs to the Section Microbiomes)
Browse Figures
Versions Notes

Abstract

:
The Enterobacter cancerogenus strain EcHa1 was isolated from the dead larvae of Helicoverpa armigera, and has the potential for biocontrol of some Lepidoptera insects. In order to screen insecticidal-related genes by qRT-PCR, stable endogenous reference genes used for normalizing qRT-PCR data were selected and evaluated from 13 housekeeping genes (HKGs). The expression levels of the HKGs were determined using qRT-PCR under different experimental conditions, including two culture temperatures and three bacterial OD values. Five stability analysis methods (Ct, BestKeeper, NormFinder, geNorm, and RefFinder) were used to comprehensively rank the candidate genes. The results showed that the optimal reference genes varied under different experimental conditions. The combination of gyrA and gyrB was recommended as the best reference gene combination at 28 °C, while gyrA and rpoB was the best combination at 37 °C. When the OD values were 0.5, 1.0 and 2.0, the recommended reference gene combinations were ftsZ and gyrA, rpoB and gyrB, and gyrA and pyk, respectively. The most suitable reference genes were gyrA and gyrB under all experimental conditions. Using gyrA and gyrB as the reference genes for qRT-PCR, EcHa1 was found to invade all tissues of the H. armigera larvae, and expressed a candidate pathogenic factor Hcp at high levels in gut, Malpighian tubules, and epidermis tissues. This study not only establishes an accurate and reliable normalization for qRT-PCR in entomopathogenic bacteria but also lays a solid foundation for further study of functional genes in E. cancerogenus.

1. Introduction

Enterobacter cancerogenus is a Gram-negative anaerobe bacillus [1,2]. It is widely distributed in nature [3], and has been successfully isolated from insect Diprion pini (Hymenoptera, Diprionidae) [4] and Lutzomyia evansi (Diptera, Psychodidae) [5] and plant tomato (Solanum lycopersicum) [6] and rice (Oryza sativa) [7]. A few reports suggest that E. cancerogenus may be a potential pathogen infecting patient skin and soft tissues when a wound exists and cause human diseases such as sepsis [8,9].
Recently, an E. cancerogenus strain, EcHa1, was isolated in the laboratory from the dead larvae of cotton bollworm, Helicoverpa armigera (Lepidoptera: Noctuidae) [10], a significant agricultural pest of cotton worldwide [11]. This was the first isolated strain belonging to E. cancerogenus to have high insecticidal activity against insect larvae. Excitingly, some strains of Enterobacter showed insecticidal, acaricidal, nematocidal, fungicidal, and plant growth-promoting activities, indicating that Enterobacter bacteria have biological control potential in agriculture [4,12,13]. Moreover, some strains contain type VI secretion systems (T6SS), and can establish competition by secreting antimicrobial proteins in the periplasm of bacterial targets [14]. These bacteria have the potential to develop antibacterial technology.
Nowadays, quantitative real-time fluorescent polymerase chain reaction (qRT-PCR), a well-established method that allows for the simultaneous detection and quantification of multiple target genes and organisms in a single sample [15], also offers a powerful tool for microbial detection. qRT-PCR not only enables rapid and sensitive bacterial identification but also aids in the study of the function of known pathogenic microorganisms [16]. However, the qRT-PCR technique has not been fully established in the detection of Enterobacter spp. In addition, various experimental errors during mRNA extraction, reverse transcription, and PCR performance can affect the accuracy of qRT-PCR [17]. In order to avoid these influences, it is necessary to combine relatively stable reference genes for normalization [18].
To facilitate the rapid detection of specific genes in E. cancerogenus EcHa1 and other Enterobacter spp. by qRT-PCR, it is essential to screen for reference genes that exhibit stable expression under various treatment conditions. In the current paper, we aimed to identify the most stably expressed reference genes in E. cancerogenus EcHa1 cultured at two different temperatures and three optical density (OD) values. Thirteen bacterial housekeeping genes (HKGs) (gyrB, gyrA, era, secA, dnaG, ftsZ, RPSD, 16S rRNA, rpoB, proC, pyk, rho and rplD) were selected based on previously documented studies [19,20,21]. Four widely used analytical tools, i.e., Ct [22], geNorm [23], NormFinder [24], and BestKeeper [25], were used to assess the stability of candidate reference genes. Additionally, RefFinder [26,27] was employed to rank the stability of all the 13 HKGs. Based on the results, we recommended the most stable combinations of the internal reference genes for different experimental conditions. Our results will help to accurately detect the expression levels of the target genes in E. cancerogenus EcHa1 for future research and establish a set of methods for searching internal reference genes in Enterobacter bacteria.

2. Materials and Methods

2.1. Bacterial Strain

The E. cancerogenus strain EcHa1 (BioSample ID: SAMN16176831, https://www.ncbi.nlm.nih.gov/biosample/SAMN16176831/, accessed on 5 September 2023) used in this study, which was collected from the infected and dead larvae of H. armigera in Nanjing, China in 2021, was isolated in a laboratory by Nanjing Agricultural University [10]. The strain was grown normally in nutrient-rich Luria–Bertani (LB) medium [28] at 28 °C.

2.2. Bacterial Growth and Collection of Samples

Under normal conditions, E. cancerogenus EcHa1 was inoculated at a ratio of bacterial solution:medium = 1:1000 and cultured overnight (28 °C, 220 r.p.m. shaking) in LB broth provided by the MDBio company. Glycerol bacteria were prepared by adding 15% glycerol to the bacterial solution, which can be stored in the refrigerator at −80 °C for a long time. Glycerol bacteria were removed and cultured regularly to ensure bacterial viability. In this study, the culture temperature and bacterial OD values were used as variables to collect bacterial cells under different treatment conditions. The strains were inoculated in 5 mL LB broth and cultured at 28 °C and 37 °C until the bacterial OD values reached 0.5 after 1–2 h, 1.0 after 3–4 h, and 2.0 after 8–9 h. The bacterial cells were collected by centrifugation under six different treatment conditions (13,000× g, 15 min, 4 °C), and the supernatants were removed. The precipitated bacterial cells were used as an independent sample for RNA extraction from the cells. Each treatment was repeated three times to ensure confidence in the results.

2.3. Selection of Reference Genes

The sequences of thirteen HKGs (DNA gyrase subunit B, gyrB; DNA gyrase subunit A, gyrA; GTP-binding protein Era, era; protein translocase subunit SecA, secA; DNA primase, dnaG; cell-division protein FtsZ, ftsZ; RNA polymerase II subunit D, RPSD; 16S ribosomal RNA, 16s rRNA; RNA polymerase beta subunit, rpoB; pyrroline-5-carboxylate reductase, proC; pyruvate kinase, pyk; Rho termination factor, rho; ribosomal protein L4, rplD) were selected. The sizes of the HKG sequences are listed in Table 1.
The identification of HKGs was performed using reverse-transcription polymerase chain reaction (RT-PCR), with the primers listed in Table 1. The primers were designed by the Primer3 website (https://bioinfo.ut.ee/primer3-0.4.0/, accessed on 15 October 2023), and the sequences of primers were submitted to Tsingke Biological Technology, Nanjing, China for synthesizing. To validate the specificity of the primer pairs, they were aligned against the entire genome sequence and compared with the sequencing results of individual amplified bands. Furthermore, to mitigate any potential impact from other intestinal bacteria in subsequent experiments, we cross-referenced the primer amplification sequences with all known species in NCBI (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 15 October 2023), revealing only E. cancerogenus EcHa1 and its closely related counterparts. These findings affirmed that the primer pair exhibits excellent specificity and is suitable for future functional investigations of target genes (Table S1).
Total RNA of the bacterial cells was extracted using a Bacteria RNA Extraction Kit (Vazyme, Nanjing, China) and then reverse-transcribed using a HiScript® II 1st Strand cDNA Synthesis Kit (+gDNA wiper) (Vazyme, Nanjing, China) according to the manufacturer’s protocols. For RT-PCR, the reverse-transcription process includes RNA template denaturation, genomic DNA removal, and first-strand cDNA synthesis. During the process, random hexamers were used as the reverse-transcription primer, and the reaction solution without RNA template was set as the negative control.
The PCR reaction mixture (final reaction volume of 25 μL) consisted of 9.5 μL of nuclease-free water, 12.5 μL of 2 × Rapid Taq Master Mix (Vazyme, China), 1 μL of forward primer (10 μM), 1 μL of reverse primer (10 μM), and 1 μL of cDNA template. The PCR protocol included an initial step of 95 °C for 30 s, followed by 35 cycles, each cycle including 95 °C for 30 s, 56 °C for 30 s, and 72 °C for 30 s, c, followed by one cycle of 72 °C for 8 min, and stored at 4 °C. The amplified products were separated by electrophoresis on a 1% agarose gel and purified utilizing the Wizard® Preps PCR DNA Purification System (Promega, Madison, WI, USA). Following purification, the DNA was ligated into the pGEM®-T easy vector (Promega), and multiple independent subclones were sequenced bidirectionally. The obtained sequencing results were submitted to GenBank, and their corresponding accession numbers are shown in Table 1.

2.4. Quantitative Real-Time PCR (qRT-PCR)

The primers for qRT-PCR were designed using Beacon Designer 7 (Premier Biosoft International, Palo Alto, CA, USA), and the information of these primers is listed in Table S2. The sequences of these primers were also submitted to Tsingke Biological Technology, Nanjing, China for synthesizing. For qRT-PCR analysis, the reverse-transcription process includes genomic DNA removal and first-strand cDNA synthesis. ChamQ Universal SYBR qPCR Master Mix (Vazyme Biotech Co., Ltd.) was used to prepare the qRT-PCR reaction solutions according to the manufacturer’s protocol, and the QuantStudio™ 7 Pro Real-Time PCR System (Applied Biosystems, Thermo Fischer Scientific, Waltham, CA, USA) was used for performing the reactions. The reaction mixture (final reaction volume of 20 μL) consisted of 7.2 μL of nuclease-free water, 10 μL of 2 × ChamQ Universal SYBR qPCR Master Mix, 0.4 μL of forward primer (10 μM), 0.4 μL of reverse primer (10 μM), and 2 μL of cDNA template. Two negative controls were included for each primer set to confirm the absence of genomic DNA and to check for primer dimers or contamination in the reactions, one without reverse transcriptase and the other without template. The qRT-PCR protocol included an initial step of 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s and then annealing at 60 °C for 34 s, followed by one cycle of 95 °C for 15 s, 60 °C for 60 s, and 95 °C for 1 s. PCR amplicons were subjected for melting curve analysis. The specificity of the qRT-PCR reactions was monitored with melting curves, analyzed by QuantStudio™ Design & Analysis Software (version 1.5.0) and gel electrophoresis. Amplification efficiency was determined by a 10-fold dilution series of template. All experiments were repeated in triplicate.

2.5. Evaluation of Reference Gene Selection

The activated E. cancerogenus EcHa1 solutions were inoculated in LB medium to culture until the OD values reached 0.5, 1.0, and 2.0 (28 °C, 220 r.p.m. shaking). For bioassays, we used diet overlay bioassays to feed larvae of H. armigera. A liquid artificial diet (5 mL) was dispensed into each well of the six-well plate. After the diet cooled and solidified, 800 μL of each three bacteria with different OD values was applied evenly to the diet surface in each well and allowed to dry. A single fourth-instar larva with the same body size and growth was starved for 2 h and placed in each well to feed with E. cancerogenus for 24 h. Larvae were kept at 26 (±1) °C, 60% (±10%) relative humidity, and 16 h light: 8 h dark. A six-well plate was used as one replicate, with three replicates set for each treatment, and the control group was fed the LB medium. The tissue samples of the fat body, head capsule, gut, Malpighian tubules, epidermis and hemolymph of the larvae from different treatments were collected by dissection. The larvae were sterilized with 75% alcohol three times before dissection and washed with water after each sterilization. Total RNA of the tissues was extracted using a Bacteria RNA Extraction Kit (Vazyme, Nanjing, China) and then reverse-transcribed with a HiScript® II 1st Strand cDNA Synthesis Kit (+gDNA wiper) (Vazyme, Nanjing, China) according to the manufacturer’s protocols. We used qRT-PCR to detect the raw Ct values of two reference genes in different tissues of larvae. The averages (±SE) of the raw Ct values were compared using Student’s t test between CK and treatment.
A candidate pathogenic factor, the structural gene Hcp (GenBank accession number: PP768336) encoding the inner tube protein of Type VI secretion system (T6SS) of EcHa1, was used to evaluate the stability of candidate reference genes. The sequence of the primers for qRT-PCR is listed in Table 1. We used qRT-PCR to detect the raw Ct values of two reference genes and Hcp in different tissues of larvae. The average relative levels of Hcp in different tissues of larvae were computed based on the 2−∆∆Ct method and from five replicates. We used SPSS for Windows (Chicago, IL, USA) for statistical analyses. The averages (±SE) were submitted to analysis of variance with the Tukey–Kramer test.

2.6. Data Processing

QuantStudio™ Design & Analysis Software (version 1.5.0) was used to visualize the raw Ct values. In order to obtain the stability of the selected HKGs, three commonly used algorithms, geNorm [23], BestKeeper [25], and Normfinder [24] (https://blooge.cn/RefFinder/?type=reference, accessed on 31 October 2023), were used strictly to analyze the raw Ct values according to the manuals. The jvenn tool [29] was used to analyze the common stable genes from different conditions based on the results from each algorithm, respectively. The comprehensive ranking of HKGs at each condition was analyzed and evaluated according to the algorithm RefFinder [26,27]. In addition, the number of reference genes for normalizing gene expression was decided by the pairwise variation (Vn/n + 1), which was performed using the geNorm program. Universally, when Vn/n + 1 is less than the threshold value of 0.15, it indicates that the most suitable number of the reference genes is n, and there is no need to introduce the n + 1 reference gene for normalization [23].

3. Results

3.1. Selection of Candidate HKGs

Thirteen HKGs were selected and designated as gyrB, gyrA, era, secA, dnaG, ftsZ, RPSD, 16S rRNA, rpoB, proC, pyk, rho and rplD. The resultant sequences were submitted to GenBank, and the accession numbers are listed in Table 1. The correctness of the 13 HKGs was proven by RT-PCR.
The products from RT-PCRs were confirmed by sequencing. Primer specificities for qRT-PCR were verified by melting curve analysis. All the primer pairs amplified a single PCR product with the expected sizes and sequences. The regression coefficients (R2) of the 13 HKGs ranged from 0.991 to 0.999, reaching the standard requirements of conventional qRT-PCR [30]. Moreover, the slopes were near −3.0 and efficacy values stretched from 88.74% to 141.42% (Table S2).

3.2. Ct Values of Candidate HKGs

The qRT-PCR revealed that all 13 HKGs were expressed during bacterial propagation at different OD values and temperatures, indicated by the presence of a single amplicon of the expected size on the agarose gel.
The overall threshold cycle (Ct) values for all experimental conditions are shown in Figure 1. The boxplot results indicated that the expression levels of the 13 HKGs were variable. Under the given experimental conditions, the Ct values of the 13 HKG genes varied from 6.65 to 24.60, and the average Ct value ranged from 9.08 to 22.73. Among them, 16S rRNA and RPSD had high expression levels, and the expression levels of other reference genes were similar (Figure 1).

3.3. BestKeeper Analysis

The online tool BestKeeper was used to rank the stability of the selected genes [25]. Using this analysis, the most stable HKGs were dnaG, gyrB, era, gyrA and secA at 28 °C (Figure 2A), and dnaG, rpoB, rplD, gyrB and gyrA at 37 °C (Figure 2B), respectively. In addition, the most stable HKGs were dnaG, gyrB, gyrA, era and ftsz at OD value of 0.5 of E. cancerogenus (Figure 2C), dnaG, gyrB, gyrA, rplD and ProC at OD value of 1.0 (Figure 2D), and rpoB, rplD, dnaG, gyrB and gyrA at OD value of 2.0 (Figure 2E), respectively. Obviously, dnaG, gyrB and gyrA were stable across different temperature and OD values (Figure 2F).

3.4. NormFinder Algorithm

The stability analysis of NormFinder [24] is based on the relative quantitative expression data of candidate reference genes, and a smaller stability value indicates greater gene expression stability.
According to NormFinder, the genes that are more stably expressed are indicated by lower average expression stability values. NormFinder analysis results revealed that the ranking of stability for the 13 HKGs from high to low was rplD, dnaG, rpoB, 16S rRNA, proC, pyk, rho, ftsZ, secA, era, RPSD, gyrA and gyrB at 28 °C (Figure 3A), and RPSD, ftsZ, secA, era, proC, 16S rRNA, pyk, rho, dnaG, gyrB, rplD, rpoB and gyrA at 37 °C (Figure 3B), respectively. The ranking of stability from high to low was rplD, proC, pyk, rpoB, dnaG, rho, secA, era, gyrA, gyrB, 16S rRNA, RPSD and ftsZ when the OD value was 0.5 (Figure 3C), era, dnaG, secA, ftsZ, pyk, 16S rRNA, proC, gyrA, rho, rplD, rpoB, gyrB and RPSD when the OD value was 1.0 (Figure 3D), and RPSD, ftsZ, proC, rplD, rho, secA, rpoB, dnaG, gyrB, 16S rRNA, gyrA, era and pyk when the OD value was 2.0 (Figure 3E). The genes gyrB and gyrA were among the six most stable genes at different temperature and OD values (Figure 3F).

3.5. geNorm Method

Two parameters were defined by the geNorm statistical algorithm to quantify gene stability: M meaning the average expression stability and V meaning the pairwise variation. The HKG with the lowest M value can be considered to express most stably, while the one with the highest M value has the least stable expression.
According to the M value, the most stable genes were gyrA and RPSD and the most unstable genes were dnaG and rplD at a culture temperature of 28 °C (Figure 4A). Comparably, the most stable genes were gyrA and gyrB (Figure 4B), respectively, at 37 °C. In addition, the most stable genes were gyrA and era (Figure 4C), rpoB and proC (Figure 4D) and era and gyrA (Figure 4E) at OD values of 0.5, 1.0, and 2.0 of E. cancerogenus, respectively. The most unstable genes were secA and RPSD (Figure 4B), proC and rplD (Figure 4C), dnaG and era (Figure 4D), and proC and RPSD (Figure 4E), respectively. The genes gyrB and gyrA were among the six most stable genes at different temperature and OD values (Figure 4F).
A single reference gene may result in significant errors; therefore, the utilization of more than one reference gene is necessary. The Vn/Vn + 1 cutoff value serves as a crucial indicator for evaluating the optimal number of reference genes [23]. To ensure the utmost accuracy in qRT-PCR, multiple reference genes should be employed [31]. In this study, the V2/3 values were less than 0.15 at different temperature and OD values (Figure 5). This suggests that two reference genes were sufficient to analyze gene expression.

3.6. Best Combination of HKGs

In order to evaluate the stability of HKGs under different conditions and ensure statistical consistency and accuracy, a comprehensive ranking of the stability of these candidate genes was carried out using the RefFinder algorithm (Figure 6). RefFinder assigned different ranks to the analyzed HKGs under different conditions. Candidate genes with lower mean weights are considered stable and can be used as ideal reference genes [32].
The RefFinder analysis results revealed the ranking of stability for 13 HKGs from high to low was gyrA, gyrB, RPSD, era, secA, ftsZ, dnaG, rho, pyk, 16S rRNA, proC, rpoB and rplD at 28 °C (Figure 6A), and gyrA, rpoB, gyrB, rplD, dnaG, rho, pyk, proC, 16S rRNA, era, secA, ftsZ and RPSD at 37 °C (Figure 6B), respectively. The ranking of stability from high to low was ftsZ, gyrA, 16S rRNA, era, gyrB, RPSD, dnaG, secA, rho, rpoB, pyk, proC and rplD when the OD value of E. cancerogenus was 0.5 (Figure 6C), rpoB, gyrB, proC, RPSD, rplD, rho, gyrA, dnaG, pyk, 16S rRNA, ftsZ, secA and era when the OD value was 1.0 (Figure 6D), and era, gyrA, pyk, rpoB, gyrB, 16S rRNA, dnaG, rplD, rho, secA, ftsZ, proC and RPSD when the OD value was 2.0 (Figure 6E). In all samples, the stability order was gyrB, gyrA, rho, rpoB, dnaG, 16S rRNA, pyk, secA, ftsZ, proC, era, rplD and RPSD (Figure 6F). Given that two reference genes are sufficient to analyze gene expression, gyrB and gyrA were recommended as the reference genes during qRT-PCR in E. cancerogenus EcHa1.

3.7. Validation of the Selected Reference Genes

The threshold cycle (Ct) values of gyrB and gyrA in the tissues of the fat body, head capsules, gut, Malpighian tubules, epidermis and hemolymph of H. armigera larvae were calculated by qRT-PCR. The results showed that after feeding the EcHa1 to the fourth-instar larvae for 24 h, the Ct values of gyrB and gyrA (Figure 7B) in different tissues of larvae were significantly lower than in tissues of larvae fed on LB medium. This indicates that EcHa1 infected all tissues of the larvae through the oral route.
To demonstrate the utility of gyrB and gyrA in accurate gene expression analysis, the relative expression levels of a candidate pathogenic factor, Hcp, encoding the inner tube protein of EcHa1 T6SS in the fat body, head capsules, gut, Malpighian tubules, epidermis and hemolymph of larvae, were calculated after normalization with a combination of gyrB and gyrA. Compared with those in fat body and hemolymph, EcHa1 expressed Hcp at higher levels in gut, Malpighian tubules, and epidermis tissues of the fourth-instar larvae (Figure 8).

4. Discussion

The qRT-PCR technique has been extensively utilized in molecular biology due to its inherent advantages of precise, sensitive, and rapid quantification of gene expression [33]. It serves as the gold standard technique for detecting or comparing mRNA levels. To ensure accurate measurement of target gene mRNA level, it is generally imperative to calibrate using multiple validated reference genes [34]. In the present paper, we evaluated the stability of 13 candidate reference genes in E. cancerogenus EcHa1 under different temperatures and OD values using five widely employed analysis software tools (Ct, BestKeeper, NormFinder, geNorm, and RefFinder).
In qRT-PCR, the Ct value is commonly utilized for assessing relative gene expression levels [35]. Based on the obtained Ct values in this study, it was observed that during the growth phase of E. cancerogenus EcHa1, the expression of 16S rRNA exhibited a significant increase of more than three cycles (Figure 1). This finding aligns with previous research outcomes indicating high expression levels of 16S rRNA across various experimental settings [20,36,37]. Except for 16S rRNA, the expression levels of RPSD and rplD were also found to be higher compared to other candidate genes, while era exhibited the lowest expression level (Figure 1). Genes with extremely high or low transcript abundance are not suitable as standardization agents for genes with low or high expression levels, respectively [38]. Furthermore, all four tools (BestKeeper, NormFinder, geNorm, and RefFinder) consistently indicated that RPSD, rplD, and era were the least stable under different temperatures and OD values (Figure 2, Figure 4 and Figure 6). These findings suggest that these four genes should be excluded from consideration as reference genes for E. cancerogenus EcHa1. Similarly, rplD showed significant differences in the expression in Listeria monocytogenes under various stress adaptation models [39].
Relying on a single reference gene for normalization can result in inaccurate outcomes and more pronounced errors under specific experimental conditions [37]. Numerous studies have emphasized the significance of employing multiple stably expressed reference genes to achieve precise quantification of target gene expression [40,41,42], as an inadequate or excessive number of reference genes can compromise accuracy [43]. Therefore, it is essential to adjust the number of internal references based on the specific circumstances. In this study, geNorm analysis determined that two stably expressed reference genes were sufficient for analyzing gene expression in E. cancerogenus EcHa1 across different experimental conditions (Figure 5). Consequently, we needed to select two relatively stable reference genes from the remaining nine candidate genes (gyrB, gyrA, secA, dnaG, ftsZ, rpoB, proC, pyk and rho).
Using different tools for results analysis may yield varying outcomes, which can be attributed to the distinct algorithms employed by each tool. A similar scenario was observed in the evaluation of reference genes in Bacillus cereus [44]. In this study, variations were noted in the results obtained from three different tools’ analyses (BestKeeper, NormFinder and geNorm) (Figure 2, Figure 3 and Figure 4). Consequently, RefFinder was utilized to comprehensively rank each candidate reference gene (Figure 6). RefFinder analysis revealed that gyrA and gyrB constituted an ideal combination of reference genes. Consistently, gyrB, gyrA, era, secA and dnaG are commonly expressed with high stability across bacterial phyla [45]. Both gyrA and gyrB encode DNA gyrase enzymes that are capable of regulating the topological conformation of DNA molecules. GyrA is responsible for DNA cleavage and ligation, and GyrB contains ATP-binding sites [46]. DNA gyrase subunits have been recommended as reference genes in several bacterium species, including Oenococcus oeni [47], Shewanella psychrophila [36], Dwardsiella tarda [48], Xanthomonas fragariae [42], Bacillus velezensis [49], Corynebacterium pseudotuberculosis [19] and Herbaspirillum rubrisubalbicans [50].
The determination of the reference genes will be helpful to accurately detect the tissue distribution of entomopathogenic bacteria in insect hosts and the expression level of candidate pathogenic factors. This is of great significance for understanding the insecticidal mechanism of entomopathogenic bacteria and evaluating whether they have the potential for developing microbial insecticides. Entomopathogenic bacteria and/or their toxins must be ingested and enter the alimentary tract of insects where they multiply or are activated to initiate disease. Released bacterial toxins and other virulence factors target the midgut cells to disrupt the epithelial barrier and break through to the main body cavity [51]. Using the reference genes gyrA and gyrB screened in this study, we determined the distribution of E. cancerogenus EcHa1 in different tissues of H. armigera larvae after feeding the bacteria. The results showed that EcHa1 invaded all tissues of the larvae (Figure 7), indicating that EcHa1 was able to overcome a series of defensive mechanisms controlled by larvae and break through to the main body cavity to kill hosts. In addition, we used gyrA and gyrB to detect the relative expression of a candidate pathogenic factor, the structural gene Hcp encoding the inner tube protein of Type VI secretion system (T6SS) of EcHa1, in different tissues of larvae. Compared with those in fat body and hemolymph, EcHa1 expressed Hcp at a high level in gut, Malpighian tubules, and epidermis tissues of the fourth-instar larvae (Figure 8), suggesting that EcHa1 may destroy intestinal cells, Malpighian tubule cells and epidermal cells through T6SS, while cells in hemolymph and fat body may be destroyed by other ways, because these cells have strong innate immunity. It was reported based on reference genes for PCR normalization that the relative expressions of some genes associated with virulence and pathogenicity of Pseudomonas protegens, an entomopathogenic bacterium against muscoid flies by oral infection, were found to significant increase at the gut level of larvae after exposure to the bacterium [52]. Therefore, the relative expression of virulence factors detected by reference genes can be used to analyze the pathogenic mechanisms of pathogenic bacteria and evaluate the virulence level against pests.
What is limited in this study is that the stable reference gene combination gyrA and gyrB is only screened in a single Gram-negative bacterial strain EcHa1 under different temperatures and different bacterial contents. Whether this combination is suitable for other conditions, such as different environmental conditions or interaction between E. cancerogenus and target insect species, as a reference gene to normalize virulence gene expression level has not been clarified. Nevertheless, we used the reference genes to detect the expression level of candidate pathogenic factor Hcp after larvae had fed on EcHa1, and found that the difference in expression level was consistent with our prediction of the EcHa1 infection path, suggesting that the expression level of the reference genes was stable under different conditions. However, we suggest that when evaluating the relative expression level of functional genes of E. cancerogenus, these two reference genes should be used for standardization or combined with the results of protein quantitative analysis to render the conclusions accurate. In addition, the reference genes can only be used to judge whether there are E. cancerogenus in different tissues of insects, but it is impossible to evaluate the relative number because the structure of insect tissues is different. Therefore, in order to accurately analyze the function of bacterial pathogenic factors in the interaction with target insects, the structure and cell numbers of insect tissues should also be taken into account.

5. Conclusions

A set of stable housekeeping genes that can serve as suitable reference genes for E. cancerogenus have successfully been identified by four different analysis tools (BestKeeper, NormFinder, geNorm, and RefFinder). To the best of our knowledge, this study represents the first comprehensive evaluation of the reference genes in E. cancerogenus. The findings provide a solid foundation for future molecular investigations in E. cancerogenus, and provide a method for searching internal reference genes in Enterobacter bacteria.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/microorganisms12051024/s1. Table S1: Specificity verification of 13 candidate housekeeping genes; Table S2: Primers of 13 candidate housekeeping genes and pathogenic factor Hcp used in qRT-PCR.

Author Contributions

Conceptualization, L.J. and G.-Q.L.; methodology, Y.P., Y.Z. and H.-R.Z.; software, Y.P.; validation, Y.P., L.J. and G.-Q.L.; formal analysis, L.J.; investigation, Y.P., Y.Z., H.-R.Z., J.-Q.W., Y.-Y.S. and Y.-H.R.; resources, Y.P. and L.J.; data curation, Y.P. and Y.Z.; writing—original draft preparation, Y.P., Y.Z. and L.J.; writing—review and editing, G.-Q.L. and L.J.; visualization, Y.P., Y.Z. and H.-R.Z.; supervision, L.J.; project administration, G.-Q.L. and L.J.; funding acquisition, L.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant 31970479, the China Agriculture Research System of MOF and MARA, grant CARS-09-P22, and the Lifting Project of Young Scientific and Technological Talents of the Jiangsu Association for Science and Technology, grant TJ-2021-064.

Data Availability Statement

Data generated in association with this study are available in the Supplementary Materials online with this article.

Acknowledgments

We thanks Shen Chen-Hui of the Oil Crop Research Institute, Chinese Academy of Agricultural Sciences for providing analytical suggestions.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Davin-Regli, A.; Lavigne, J.P.; Pagès, J.M. Enterobacter spp.: Update on taxonomy, clinical aspect, and emerging antimicrobial resistance. Clin. Microbiol. Rev. 2019, 32, e00002-19. [Google Scholar] [CrossRef]
  2. Zhai, Y.; Pagan-Medina, C.G.; Perez-Diaz, I.M. CO2-mediated bloater defect can be induced by the uncontrolled growth of Enterobacteriaceae in cucumber fermentation. Food Sci. Nutr. 2023, 11, 6178–6187. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, S.; Chen, L.; Wang, L.; Zhou, B.; Ye, D.; Zheng, X.; Lin, Y.; Zeng, W.; Zhou, T.; Ye, J. Cluster differences in antibiotic resistance, biofilm formation, mobility, and virulence of clinical Enterobacter cloacae complex. Front. Microbiol. 2022, 13, 814831. [Google Scholar] [CrossRef] [PubMed]
  4. Çelik, T.; Sevim, A. Bacterial pathogens from Diprion pini L. (Hymenoptera: Diprionidae) and their biocontrol potential. Biologia 2022, 77, 3001–3013. [Google Scholar] [CrossRef]
  5. Vivero, R.J.; Bedoya Mesa, G.; Robledo, S.M.; Moreno Herrera, C.X.; Cadavid-Restrepo, G. Enzymatic, antimicrobial, and leishmanicidal bioactivity of gram-negative bacteria strains from the midgut of Lutzomyia evansi, an insect vector of leishmaniasis in Colombia. Biotechnol. Rep. 2019, 24, e00379. [Google Scholar] [CrossRef] [PubMed]
  6. Kizheva, Y.; Georgiev, G.; Donchev, D.; Dimitrova, M.; Pandova, M.; Rasheva, I.; Hristova, P. Cross-over pathogenic bacteria detected in infected tomatoes (Solanum lycopersicum L.) and peppers (Capsicum annuum L.) in Bulgaria. Pathogens 2022, 11, 1507. [Google Scholar] [CrossRef] [PubMed]
  7. Ma, Y.N.; Theerakulpisut, P.; Riddech, N. Pesticide tolerant rhizobacteria isolated from rice (Oryza sativa) overcomes the effects of salt and drought stress in pesticide contaminated condition. Plant Soil 2023, 490, 521–539. [Google Scholar] [CrossRef]
  8. Abbott, S.L.; Janda, J.M. Enterobacter cancerogenus (“Enterobacter taylorae”)-Infections associated with severe trauma or crush injuries. Am. J. Clin. Pathol. 1997, 107, 359–361. [Google Scholar] [CrossRef]
  9. Hadano, Y.; Tamagawa, K.; Ohkusu, K. Trauma wound related infection caused by Enterobacter cancerogenus and Aeromonas hydrophilia. Intern. Med. 2018, 57, 131–133. [Google Scholar] [CrossRef]
  10. Li, Z. Analysis of Key Signal Pathways in the Process of Midgut Damage and Regeneration in Helicoverpa Armigera Larvae Stimulated by Enterobacter Cancerogenus. Graduation Thesis, Nanjing Agricultural University, Nanjing, China, 2021. [Google Scholar]
  11. Zhang, S.D.; An, S.H.; Li, Z.; Wu, F.M.; Yang, Q.P.; Liu, Y.C.; Cao, J.J.; Zhang, H.J.; Zhang, Q.W.; Liu, X.X. Identification and validation of reference genes for normalization of gene expression analysis using qRT-PCR in Helicoverpa armigera (Lepidoptera: Noctuidae). Gene 2015, 555, 393–402. [Google Scholar] [CrossRef]
  12. Kim, D.; Lee, S.Y.; Ahn, S.H.; Han, J.H.; Park, J.W. Biological control of gom-chwi (Ligularia fischeri) phytophthora root rot with Enterobacter asburiae ObRS-5 to suppress zoosporangia formation and zoospores germination. Plant Pathol. J. 2020, 36, 244–254. [Google Scholar] [CrossRef]
  13. Sachman-Ruiz, B.; Wong-Villarreal, A.; Aguilar-Marcelino, L.; Fernando Lozano-Aguirre, L.; Espinosa-Zaragoza, S.; Laura Reyes-Reyes, A.; Sanzon-Gomez, D.; Isabel Mireles-Arriaga, A.; Romero-Tirado, R.; Karina Rocha-Martinez, M.; et al. Nematicidal, acaricidal and plant growth-promoting activity of Enterobacter endophytic strains and identification of genes associated with these biological activities in the genomes. Plants 2022, 11, 3136. [Google Scholar] [CrossRef] [PubMed]
  14. Barbe, S.; Figas-Segura, A.; Benada, M.h.; Navarro-Herrero, I.; Maria Sampaio, T.; Biosca, E.G.; Marco-Noales, E. Plant-associated microbiota as a source of antagonistic bacteria against the phytopathogen Erwinia amylovora. Environ. Microbiol. Rep. 2022, 14, 559–569. [Google Scholar] [CrossRef] [PubMed]
  15. Taylor, S.C.; Nadeau, K.; Abbasi, M.; Lachance, C.; Nguyen, M.; Fenrich, J. The ultimate qPCR experiment: Producing publication quality, reproducible data the first time. Trends Biotechnol. 2019, 37, 761–774. [Google Scholar] [CrossRef] [PubMed]
  16. Kralik, P.; Ricchi, M. A basic guide to real time PCR in microbial diagnostics: Definitions, parameters, and everything. Front. Microbiol. 2017, 8, 108. [Google Scholar] [CrossRef] [PubMed]
  17. Kozera, B.; Rapacz, M. Reference genes in real-time PCR. J. Appl. Genet. 2013, 54, 391–406. [Google Scholar] [CrossRef] [PubMed]
  18. Huggett, J.; Dheda, K.; Bustin, S.; Zumla, A. Real-time RT-PCR normalisation; strategies and considerations. Genes Immun. 2005, 6, 279–284. [Google Scholar] [CrossRef]
  19. Carvalho, D.M.; de Sá, P.H.; Castro, T.L.P.; Carvalho, R.D.; Pinto, A.; Gil, D.J.P.; Bagano, P.; Bastos, B.; Costa, L.F.M.; Meyer, R.; et al. Reference genes for RT-qPCR studies in Corynebacterium pseudotuberculosis identified through analysis of RNA-seq data. Antonie Van Leeuwenhoek Int. J. Gen. Mol. Microbiol. 2014, 106, 605–614. [Google Scholar] [CrossRef] [PubMed]
  20. Rocha, D.J.P.; Santos, C.S.; Pacheco, L.G.C. Bacterial reference genes for gene expression studies by RT-qPCR: Survey and analysis. Antonie Van Leeuwenhoek Int. J. Gen. Mol. Microbiol. 2015, 108, 685–693. [Google Scholar] [CrossRef]
  21. Sihto, H.-M.; Tasara, T.; Stephan, R.; Johler, S. Validation of reference genes for normalization of qPCR mRNA expression levels in Staphylococcus aureus exposed to osmotic and lactic acid stress conditions encountered during food production and preservation. Fems Microbiol. Lett. 2014, 356, 134–140. [Google Scholar] [CrossRef]
  22. Silver, N.; Best, S.; Jiang, J.; Thein, S.L. Selection of housekeeping genes for gene expression studies in human reticulocytes using real-time PCR. BMC Mol. Biol. 2006, 7, 33. [Google Scholar] [CrossRef] [PubMed]
  23. Vandesompele, J.; De Preter, K.; Pattyn, F.; Poppe, B.; Van Roy, N.; De Paepe, A.; Speleman, F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol. 2002, 3, research0034. [Google Scholar] [CrossRef] [PubMed]
  24. Andersen, C.L.; Jensen, J.L.; Ørntoft, T.F. Normalization of real-time quantitative reverse transcription-PCR data: A model-based variance estimation approach to identify genes suited for normalization, applied to bladder and colon cancer data sets. Cancer Res. 2004, 64, 5245–5250. [Google Scholar] [CrossRef] [PubMed]
  25. Pfaffl, M.W.; Tichopad, A.; Prgomet, C.; Neuvians, T.P. Determination of stable housekeeping genes, differentially regulated target genes and sample integrity: BestKeeper-Excel based tool using pair-wise correlations. Biotechnol. Lett. 2004, 26, 509–515. [Google Scholar] [CrossRef] [PubMed]
  26. Xie, F.; Xiao, P.; Chen, D.; Xu, L.; Zhang, B. miRDeepFinder: A miRNA analysis tool for deep sequencing of plant small RNAs. Plant Mol. Biol. 2012, 80, 75–84. [Google Scholar] [CrossRef] [PubMed]
  27. Xie, F.; Wang, J.; Zhang, B. RefFinder: A web-based tool for comprehensively analyzing and identifying reference genes. Funct. Integr. Genom. 2023, 23, 125. [Google Scholar] [CrossRef]
  28. Bertani, G. Studies on lysogenesis. J. Bacteriol. 1951, 62, 293–300. [Google Scholar] [CrossRef] [PubMed]
  29. Bardou, P.; Mariette, J.; Escudié, F.; Djemiel, C.; Klopp, C. Jvenn: An interactive Venn diagram viewer. BMC Bioinform. 2014, 15, 293. [Google Scholar] [CrossRef] [PubMed]
  30. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE guidelines: Minimum information for publication of quantitative real-time PCR experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef]
  31. Xiong, F.; Cheng, X.Y.; Zhang, C.; Klar, R.M.; He, T. Optimizations for identifying reference genes in bone and cartilage bioengineering. BMC Biotechnol. 2021, 21, 25. [Google Scholar] [CrossRef]
  32. Shakeel, M.; Rodriguez, A.; Tahir, U.B.; Jin, F. Gene expression studies of reference genes for quantitative real-time PCR: An overview in insects. Biotechnol. Lett. 2018, 40, 227–236. [Google Scholar] [CrossRef] [PubMed]
  33. Vanhauwaert, S.; Lefever, S.; Coucke, P.; Speleman, F.; De Paepe, A.; Vandesompele, J.; Willaert, A. RT-qPCR gene expression analysis in zebrafish: Preanalytical precautions and use of expressed repetitive elements for normalization. In Zebrafish: Genetics, Genomics, and Transcriptomics, 4th ed.; Detrich, H.W., III., Westerfield, M., Zon, L.I., Eds.; Elsevier: Boston, MA, USA, 2016; Volume 135, pp. 329–342. [Google Scholar] [CrossRef]
  34. Archer, M.; Xu, J.P. Current practices for reference gene selection in RT-qPCR of Aspergillus: Outlook and recommendations for the future. Genes 2021, 12, 960. [Google Scholar] [CrossRef] [PubMed]
  35. Ling, D.J.; Pike, C.J.; Salvaterra, P.M. Deconvolution of the confounding variations for reverse transcription quantitative real-time polymerase chain reaction by separate analysis of biological replicate data. Anal. Biochem. 2012, 427, 21–25. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, S.Z.; Meng, C.X.; Xu, G.P.; Jian, H.H.; Wang, F.P. Validation of reference genes for reverse transcription real-time quantitative PCR analysis in the deep-sea bacterium Shewanella psychrophila WP2. Fems Microbiol. Lett. 2018, 365, 229. [Google Scholar] [CrossRef] [PubMed]
  37. Valihrach, L.; Demnerova, K. Impact of normalization method on experimental outcome using RT-qPCR in Staphylococcus aureus. J. Microbiol. Methods 2012, 90, 214–216. [Google Scholar] [CrossRef] [PubMed]
  38. Xu, J.; Welker, D.L.; James, R.R. Variation in expression of reference genes across life stages of a bee, Megachile rotundata. Insects 2021, 12, 36. [Google Scholar] [CrossRef] [PubMed]
  39. Tasara, T.; Stephan, R. Evaluation of housekeeping genes in Listeria monocytogenes as potential internal control references for normalizing mRNA expression levels in stress adaptation models using real-time PCR. Fems Microbiol. Lett. 2007, 269, 265–272. [Google Scholar] [CrossRef] [PubMed]
  40. DeLorenzo, D.M.; Moon, T.S. Selection of stable reference genes for RT-qPCR in Rhodococcus opacus PD630. Sci. Rep. 2018, 8, 6019. [Google Scholar] [CrossRef]
  41. Hommais, F.; Zghidi-Abouzid, O.; Oger-Desfeux, C.; Pineau-Chapelle, E.; Van Gijsegem, F.; Nasser, W.; Reverchon, S. lpxC and yafS are the most suitable internal controls to normalize real time RT-qPCR expression in the phytopathogenic bacteria Dickeya dadantii. PLoS ONE 2011, 6, e20269. [Google Scholar] [CrossRef]
  42. Kaluzna, M.; Kuras, A.; Pulawska, J. mRNA extraction of Xanthomonas fragariae in strawberry and validation of reference genes for the RT-qPCR for study of bacterial gene expression. Mol. Biol. Rep. 2019, 46, 5723–5733. [Google Scholar] [CrossRef]
  43. Ling, D.J.; Salvaterra, P.M. Robust RT-qPCR data normalization: Validation and selection of internal reference genes during post experimental data analysis. PLoS ONE 2011, 6, e17762. [Google Scholar] [CrossRef] [PubMed]
  44. Reiter, L.; Kolsto, A.B.; Piehler, A.P. Reference genes for quantitative, reverse-transcription PCR in Bacillus cereus group strains throughout the bacterial life cycle. J. Microbiol. Methods 2011, 86, 210–217. [Google Scholar] [CrossRef] [PubMed]
  45. Rocha, D.J.P.G.; Castro, T.L.P.; Aguiar, E.R.G.R.; Pacheco, L.G.C. Gene expression analysis in bacteria by RT-qPCR. In Quantitative Real-Time PCR: Methods and Protocols, 2nd ed.; Biassoni, R., Raso, A., Eds.; Humana: New York, NY, USA, 2020; Volume 2065, pp. 119–137. [Google Scholar] [CrossRef]
  46. Oblak, M.; Kotnik, M.; Solmajer, T. Discovery and development of ATPase inhibitors of DNA gyrase as antibacterial agents. Curr. Med. Chem. 2007, 14, 2033–2047. [Google Scholar] [CrossRef]
  47. Peng, S.; Liu, L.X.; Zhao, H.Y.; Wang, H.; Li, H. Selection and validation of reference genes for quantitative real-time PCR normalization under ethanol stress conditions in Oenococcus oeni SD-2a. Front. Microbiol. 2018, 9, 892. [Google Scholar] [CrossRef] [PubMed]
  48. Sun, Z.Y.; Deng, J.; Wu, H.Z.; Wang, Q.Y.; Zhang, Y.X. Selection of stable reference genes for real-time quantitative PCR analysis in Edwardsiella tarda. J. Microbiol. Biotechnol. 2017, 27, 112–121. [Google Scholar] [CrossRef]
  49. Liu, L.M.; Ji, Z.M.; Zhao, K.H.; Zhao, Y.; Zhang, Y.L.; Huang, S.W. Validation of housekeeping genes as internal controls for gene expression studies on biofilm formation in Bacillus velezensis. Appl. Microbiol. Biotechnol. 2022, 106, 2079–2089. [Google Scholar] [CrossRef]
  50. Polese, V.; Soares, C.D.; da Silva, P.R.A.; Simoes-Araújo, J.L.; Baldani, J.I.; Vidal, M.S. Selection and validation of reference genes for RT-qPCR indicates that juice of sugarcane varieties modulate the expression of C metabolism genes in the endophytic diazotrophic Herbaspirillum rubrisubalbicans strain HCC103. Antonie Van Leeuwenhoek Int. J. Gen. Mol. Microbiol. 2017, 110, 1555–1568. [Google Scholar] [CrossRef]
  51. Jurat-Fuentes, J.L.; Jackson, T.A. Bacterial entomopathogens. In Insect Pathology, 2nd ed.; Vega, F.E., Kaya, H.K., Eds.; Elsevier: Boston, MA, USA, 2012; Chapter 8; pp. 265–349. [Google Scholar] [CrossRef]
  52. Ruiu, L.; Mura, M.E. Oral toxicity of Pseudomonas protegens against Muscoid flies. Toxins 2021, 13, 772. [Google Scholar] [CrossRef]
Microorganisms 12 01024 g001
Figure 1. Expression levels of thirteen housekeeping genes in E. cancerogenus.
Figure 1. Expression levels of thirteen housekeeping genes in E. cancerogenus.
Microorganisms 12 01024 g001
Microorganisms 12 01024 g002
Figure 2. The stability of thirteen housekeeping genes in E. cancerogenus based on BestKeeper. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Figure 2. The stability of thirteen housekeeping genes in E. cancerogenus based on BestKeeper. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Microorganisms 12 01024 g002
Microorganisms 12 01024 g003

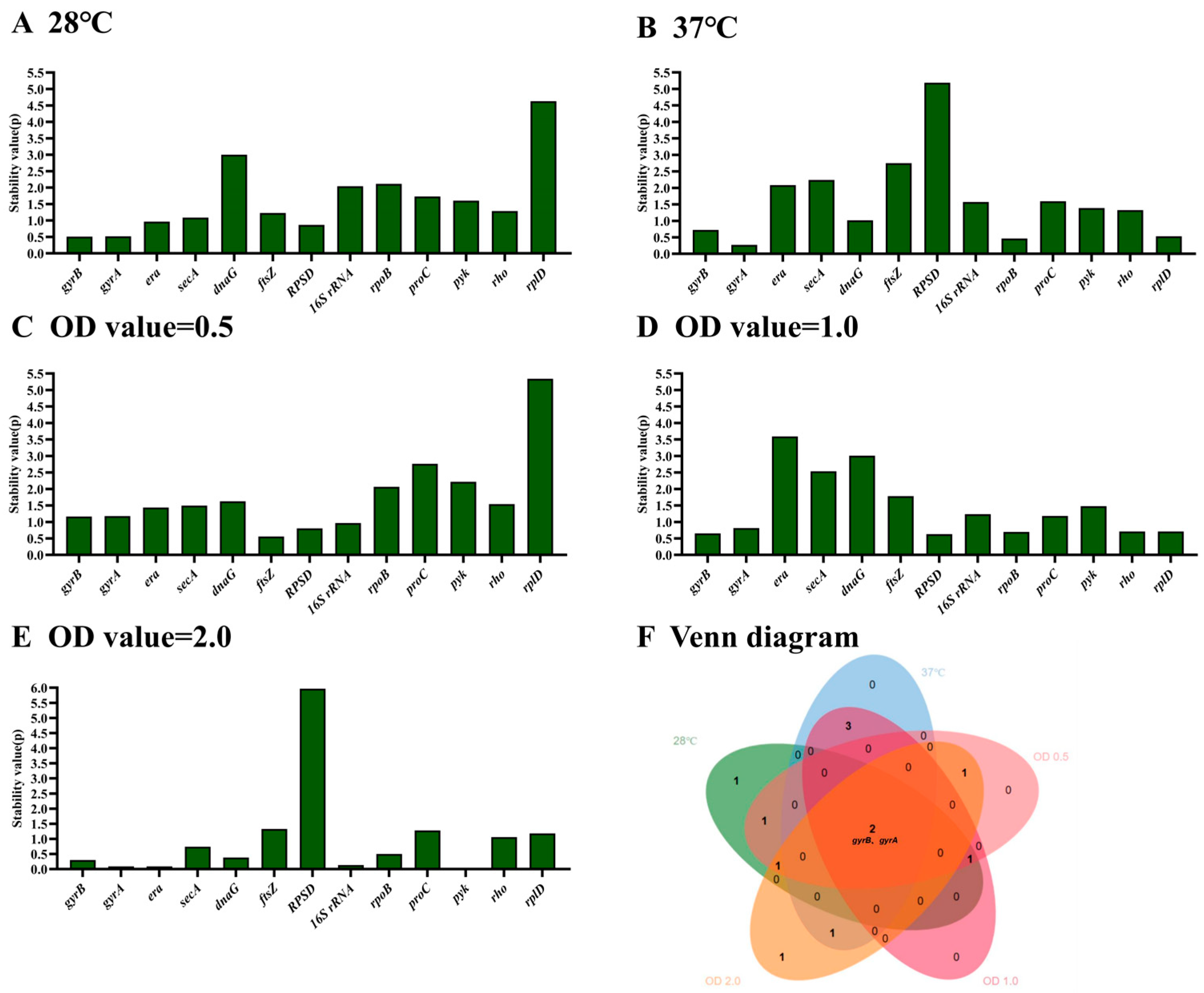

Figure 3. The stability of thirteen housekeeping genes in E. cancerogenus based on NormFinder. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Figure 3. The stability of thirteen housekeeping genes in E. cancerogenus based on NormFinder. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Microorganisms 12 01024 g003
Microorganisms 12 01024 g004
Figure 4. The stability of thirteen housekeeping genes in E. cancerogenus based on geNorm. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Figure 4. The stability of thirteen housekeeping genes in E. cancerogenus based on geNorm. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E). The Venn diagram (F) shows the common stable genes from different conditions.
Microorganisms 12 01024 g004
Microorganisms 12 01024 g005
Figure 5. Optimal number of reference genes used for normalization of gene expression by geNorm. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E).
Figure 5. Optimal number of reference genes used for normalization of gene expression by geNorm. The comparison was performed under two different experimental conditions including temperatures (A,B) and different OD values (C–E).
Microorganisms 12 01024 g005
Microorganisms 12 01024 g006

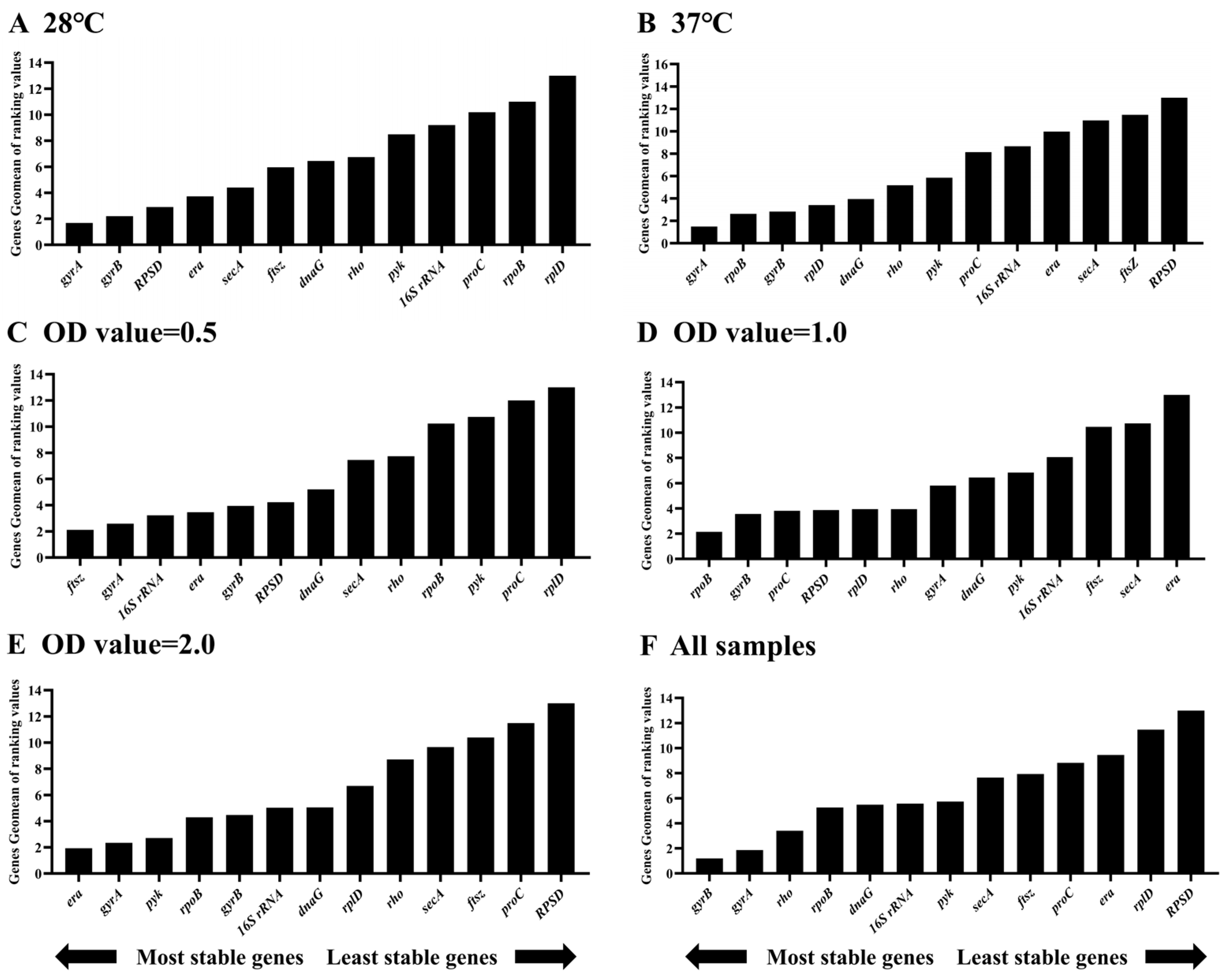

Figure 6. Expression stability of thirteen housekeeping genes in different samples of E. cancerogenus. The stability of the reference genes was calculated by the Geomean method of RefFinder. The comparison was performed under two different experimental conditions including temperatures (A,B), different OD values (C–E), and all samples (F).
Figure 6. Expression stability of thirteen housekeeping genes in different samples of E. cancerogenus. The stability of the reference genes was calculated by the Geomean method of RefFinder. The comparison was performed under two different experimental conditions including temperatures (A,B), different OD values (C–E), and all samples (F).
Microorganisms 12 01024 g006
Microorganisms 12 01024 g007
Figure 7. Expression levels of gyrB and gyrA genes in different tissues of larvae. The fat body (FB), head capsule (H), gut (G), Malpighian tubules (MT), epidermis (EP) and hemolymph (HC) were dissected from the larvae feeding with E. cancerogenus or LB medium for 24 h. For each sample, 5 independent pools of 20–30 individuals were measured in technical triplicate using qRT-PCR. The columns represent averages, with vertical lines indicating SE. The t-test was used to analyze the results, and the asterisks (****) indicate the significant difference (p-value < 0.01).
Figure 7. Expression levels of gyrB and gyrA genes in different tissues of larvae. The fat body (FB), head capsule (H), gut (G), Malpighian tubules (MT), epidermis (EP) and hemolymph (HC) were dissected from the larvae feeding with E. cancerogenus or LB medium for 24 h. For each sample, 5 independent pools of 20–30 individuals were measured in technical triplicate using qRT-PCR. The columns represent averages, with vertical lines indicating SE. The t-test was used to analyze the results, and the asterisks (****) indicate the significant difference (p-value < 0.01).
Microorganisms 12 01024 g007
Microorganisms 12 01024 g008
Figure 8. The relative expression of Hcp from E. cancerogenus in the different tissues of larvae. The fat body (FB), head capsule (H), gut (G), Malpighian tubules (MT), epidermis (EP) and hemolymph (HC) were dissected from the larvae feeding with E. cancerogenus of three different OD values. For each sample, 5 independent pools of 20–30 individuals were measured in technical triplicate using qRT-PCR. The values were calculated using the 2−∆∆Ct method, using the selected reference genes gyrB and gyrA. The relative transcripts are the ratios of copy numbers in different treatments relative to the hemolymph, which is set as 1. The columns represent averages, with vertical lines indicating SE. Different letters indicate significant differences at p value < 0.01 using analysis of variance with the Tukey–Kramer test.
Figure 8. The relative expression of Hcp from E. cancerogenus in the different tissues of larvae. The fat body (FB), head capsule (H), gut (G), Malpighian tubules (MT), epidermis (EP) and hemolymph (HC) were dissected from the larvae feeding with E. cancerogenus of three different OD values. For each sample, 5 independent pools of 20–30 individuals were measured in technical triplicate using qRT-PCR. The values were calculated using the 2−∆∆Ct method, using the selected reference genes gyrB and gyrA. The relative transcripts are the ratios of copy numbers in different treatments relative to the hemolymph, which is set as 1. The columns represent averages, with vertical lines indicating SE. Different letters indicate significant differences at p value < 0.01 using analysis of variance with the Tukey–Kramer test.
Microorganisms 12 01024 g008
Table 1. The list of primers used for RT-PCR of the genes.
Table 1. The list of primers used for RT-PCR of the genes.
Gene NamePrimer Sequences (5′ to 3′)Sequence Size of Complete Gene (bp)Accession Number
gyrBF-ATGTCGAATTCTTATGACTCCTCC
R-TTAGATATCAATATTCGCCGCTT		2412OR922791
gyrAF-ATGAGCGACCTTGCGAGA
R-TTACTCGTCTGCGTCATC		2637OR922792
eraF-ATGAGCGAAGAAAAAACC
R-CTACTGGTCTTCGCCGTA		906OR922793
secAF-ATGCTAATCAAATTATTAACCAAAG
R-TTAGCTCAGGCGGCCGTG		2706OR922794
dnaGF-ATGGCTGGACGAATCCCA
R-TCATTTTTTTTCAAGGGC		1743OR922795
ftsZF-ATGTTTGAACCTATGGAACTGACC
R-TTAGTCAGCTTGCTTACGCAGG		1152OR922796
RPSDF-ATGGCAAGATATTTGGGTCC
R-TTACTTGGAGTAAAGCTCGA		621OR922797
16S rRNAF-ATTGAACGCTGGCGGCAGGCCTAA
R-GCAGGTTCCCCTACGGTTACCTTG		1493OR922798
rpoBF-ATGGTTTACTCCTATACCG
R-TTACTCGTCTTCCAGTTCG		4029OR922799
proCF-ATGGATAAGAAAATCGGGT
R-TCAGGATTTACTGAGCGCC		810OR922800
pykF-ATGTCCAGAAGGCTTCGCA
R-TTACTCGACCGTCATAACG		1443OR922801
rhoF-ATGAATCTTACCGAATTAAAG
R-TTACGAGCGTTTCATCATATCG		1260OR922802
rplDF-ATGGAATTAGTATTGAAAGACGCGC
R-TCATGCCAGCATCTCCTCAACT		606OR922803
HcpF-ATGGCTGATACGTTCCAGAATG
R-TTATTTCGGGGCAAGCGC		492PP768336
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pan, Y.; Zhao, Y.; Zeng, H.-R.; Wu, J.-Q.; Song, Y.-Y.; Rao, Y.-H.; Li, G.-Q.; Jin, L. Reference Genes for Expression Analyses by qRT-PCR in Enterobacter cancerogenus. Microorganisms 2024, 12, 1024. https://doi.org/10.3390/microorganisms12051024

AMA Style

Pan Y, Zhao Y, Zeng H-R, Wu J-Q, Song Y-Y, Rao Y-H, Li G-Q, Jin L. Reference Genes for Expression Analyses by qRT-PCR in Enterobacter cancerogenus. Microorganisms. 2024; 12(5):1024. https://doi.org/10.3390/microorganisms12051024

Chicago/Turabian Style

Pan, Yang, Yue Zhao, Hua-Rui Zeng, Jia-Qi Wu, Ying-Ying Song, Ya-Hao Rao, Guo-Qing Li, and Lin Jin. 2024. "Reference Genes for Expression Analyses by qRT-PCR in Enterobacter cancerogenus" Microorganisms 12, no. 5: 1024. https://doi.org/10.3390/microorganisms12051024

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
