High Virulence and Multidrug Resistance of Escherichia coli Isolated in Periodontal Disease

by
Tania Hernández-Jaimes
1,
Eric Monroy-Pérez
1,*,
Javier Garzón
1,
Rosario Morales-Espinosa
2,
Armando Navarro-Ocaña
3,
Luis Rey García-Cortés
4,
Nancy Nolasco-Alonso
1,5,
Fátima Korina Gaytán-Núñez
6,
Moisés Moreno-Noguez
7,
Felipe Vaca-Paniagua
8,9,10,
Ernesto Arturo Rojas-Jiménez
8,9 and
Gloria Luz Paniagua-Contreras
1,*
1
Facultad de Estudios Superiores Iztacala, Universidad Nacional Autonoma de México, Los Reyes Iztacala, Tlalnepantla 54090, Mexico
2
Departamento de Microbiologia y Parasitologia, Facultad de Medicina, Universidad Nacional Autonoma de México, México City 04510, Mexico
3
Departamento de Salud Publica, Facultad de Medicina, Universidad Nacional Autonoma de México, México City 04510, Mexico
4
Instituto Mexicano del Seguro Social, Naucalpan de Juárez 53370, Estado de México, Mexico
5
Instituto Mexicano del Seguro Social, Tlalnepantla 54030, Estado de México, Mexico
6
Instituto Mexicano del Seguro Social, Los Reyes Iztacala, Tlalnepantla 54090, Estado de México, Mexico
7
Instituto Mexicano del Seguro Social, Zumpango 55600, Estado de México, Mexico
8
Unidad de Biomedicina, Facultad de Estudios Superiores Iztacala, Universidad Nacional Autonoma de México, Los Reyes iztacala, Tlalnepantla 54090, Mexico
9
Laboratorio Nacional en Salud, Diagnostico Molecular y Efecto Ambiental en Enfermedades Cronico-Degenerativas, Facultad de Estudios Superiores Iztacala, Universidad Nacional Autonoma de México, Los Reyes iztacala, Tlalnepantla 54090, Mexico
10
Subdireccion de Investigacion Basica, Instituto Nacional de Cancerologia, Mexico City 14160, Mexico
*
Authors to whom correspondence should be addressed.
Microorganisms 2023, 11(1), 45; https://doi.org/10.3390/microorganisms11010045
Submission received: 30 November 2022 / Revised: 12 December 2022 / Accepted: 19 December 2022 / Published: 23 December 2022
(This article belongs to the Special Issue Virulence Genes, Antimicrobial Resistance Profiles and Genetic Diversity of Escherichia coli)
Browse Figure
Review Reports Versions Notes

Abstract

:
Periodontal disease is caused by different gram-negative anaerobic bacteria; however, Escherichia coli has also been isolated from periodontitis and its role in periodontitis is less known. This study aimed to determine the variability in virulence genotype, antibiotic resistance phenotype, biofilm formation, phylogroups, and serotypes in different emerging periodontal strains of Escherichia coli, isolated from patients with periodontal disease and healthy controls. E. coli, virulence genes, and phylogroups, were identified by PCR, antibiotic susceptibility by the Kirby-Bauer method, biofilm formation was quantified using polystyrene microtiter plates, and serotypes were determined by serotyping. Although E. coli was not detected in the controls (n = 70), it was isolated in 14.7% (100/678) of the patients. Most of the strains (n = 81/100) were multidrug-resistance. The most frequent adhesion genes among the strains were fimH and iha, toxin genes were usp and hlyA, iron-acquisition genes were fyuA and irp2, and protectin genes were ompT, and KpsMT. Phylogroup B2 and serotype O25:H4 were the most predominant among the strains. These findings suggest that E. coli may be involved in periodontal disease due to its high virulence, multidrug-resistance, and a wide distribution of phylogroups and serotypes.

1. Introduction

Periodontal disease is a chronic inflammatory disease caused by the accumulation of microorganism biofilms around the teeth, which promotes the formation of periodontal pockets, which over time cause the progressive destruction of the supporting structures of the teeth, potentially leading to tooth loss [1]. Among the bacteria that cause periodontal disease are gram-positive, and gram-negative anaerobic bacteria such as Porphyromonas gingivalis, Prevotella intermedia, Aggregatibacter actinomycetemcomitans, Treponema denticola, and Tannerella forsythia [2]; other gram-positive facultative anaerobic bacteria, such as Staphylococcus aureus [3] and Escherichia coli have also been identified as colonizer related with periodontitis [4]. The pathogenicity of E. coli during periodontal disease is unknown, however it could contribute to the disease due to its multiple virulence-associated factors, including adhesin-coding genes (fim, afaI, sfa, iha, tsh, papC, papGI, II, and III) that favor the colonization and formation of biofilms, toxins (cnf1, hlyA, set-1, astA, vat, usp, and cva/cvi), iron acquisition systems (iroN, irp2, and iuc), and protectin genes (kpsMT, ompT, and iss), and the horizontal transfer of many of these genes between bacteria occurs via pathogenicity-associated islands (PAIs) [5,6]. In this regard, biofilm production by E. coli may play an important role in the persistence of bacterial infections by conferring antimicrobial tolerance and increased resistance against the host defense [7]. The biofilms associated with periodontal disease have been described as a reservoir of medically important pathogen species commonly associated with relevant systemic infections, including enterobacteria, C. difficile, P. aeruginosa, A. baumannii, N. gonorrhoeae, C. albicans, S. aureus, H. pylori, G. vaginalis, S. marcescens, and S. pneumoniae, among others [8].
Currently, the distribution of the different phylogroups and serotypes in E. coli associated with periodontal disease have not been studied, however, phylogenetic analyzes of E. coli strains causing other extraintestinal infections have classified this species into eight major phylogroups, seven belonging to E. coli sensu stricto (A, B1, B2, C, D, E, and F) and one to clade I (a cryptic E. coli phylogroup) [9]. Serotyping is one of the most frequently used traditional methods for the classification of E. coli, which relies on antisera to identify somatic O antigens and flagellar H antigens [10]. Approximately 187 O antigens and 53 H antigens have been reported in E. coli so far [11].
The treatment of infections caused by E. coli is currently a public health problem, due to the emergence of multi-resistant E. coli strains to multiple families of antibiotics [12,13].
Virulence factors in anaerobic bacteria that cause periodontal disease have been studied. Relevant examples include Porphyromonas gingivalis, which produces several virulence factors in the outer cell membrane, including gingipains and hemagglutinins, that enable the bacteria to adhere to periodontal tissue and degrade host proteins to obtain the nutrients needed for dental plaque formation [14]. Prevotella intermedia produces two proteins homologous to Porphyromonas gingivalis HmuY, but with different heme coordination mode [15]. Aggregatibacter actinomycetemcomitans produces a leukotoxin, which induces apoptosis in human leukocytes [16]. Treponema denticola produces the protease dentilisin, which is involved in nutrient uptake, bacterial coaggregation, complement activation, the evasion of the host immune system, the inhibition of the hemostasis system, and cell invasion [17]; Tannerella forsythia is a bacterial pathogen implicated in periodontal disease that has numerous genes associated with virulence [18].
The virulence factors of E. coli such as adhesins, iron uptake systems, toxins and protectins have been studied in uropathogenic strains [19], but the molecular characteristics of E. coli and its role in periodontitis remain elusive. Therefore, the aim of this study was to determine the variability in the virulence genotype, antibiotic resistance phenotype, biofilm formation, phylogroups, and serotypes in the strains of E. coli isolated from patients with periodontal disease.

2. Materials and Methods

2.1. Patient Selection and Isolation of E. coli

A total of 678 patients (365 women and 313 men) with periodontal disease were selected from the dental service of Hospital No. 60 of the Mexican Institute of Social Security (Instituto Mexicano del Seguro Social—IMSS), State of Mexico. Controls, a group of healthy volunteers (n = 70) who did not exhibit clinical signs of periodontitis, were also included in the study. All subjects gave their informed consent for inclusion before they participated in the study. The study was conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the Ethics Committee of the institution (Project identification code: R-2022-1406-034). Patients who were smokers, underwent periodontal treatment, or were treated with antibiotics in the last 6 months were excluded from this study. The sample group included patients with gingivitis (only where irritation, redness, and inflammation in the gums were displayed), in addition to patients with periodontitis who presented periodontal pockets of more than 4 mm. Patients with moderate periodontitis had dental insertion loss of less than 4 mm, and patients with chronic periodontitis greater than 5 mm. Sterile swabs were used to collect samples from patients. Samples were taken from the surface of the marginal gingiva in patients with gingivitis and by pressing the periodontal pocket in patients with periodontitis. The samples were cultured immediately in 2 mL of Brain Heart Infusion (BHI) broth (Bioxon, México City, México), and incubated at 37 °C for 24 h. Subsequently, the cultures were reseeded by the cross-streak method in the solid culture medium, eosin methylene blue (EMB; MCD LAB, Tlalnepantla, Edo. de México), S110 (MCD LAB, Tlalnepantla, Edo. de México), and Sabouraud (MCD LAB, Tlalnepantla, Edo. de México), and incubated under aerobics conditions at 37 °C for 24 h. The E. coli strains were identified by standard IMViC biochemical tests (Indole, Methyl Red, Voges-Proskauer and Citrate). S. aureus strains were identified by bacteriological and biochemical tests that included mannitol, coagulase, and polymerase chain reaction (PCR) by amplification of the 23S rRNA, nuc, spa x region, and coa genes [20]. C. albicans was identified by PCR amplification of internal transcribed spacers (ITS) 1 and 2 of the rRNA gene [21], S. epidermidis was identified by PCR as previously described [22], and, K. pneumoniae was identified by PCR based on the 16S-23S rDNA internal transcribed spacer [23].

2.2. DNA Extraction and Identification of E. coli by Polymerase Chain Reaction (PCR)

Bacterial DNA was extracted as previously described [24]. From a pure culture of each E. coli strain identified by standard IMViC biochemical tests, a colony was taken, reseeded in 2 mL of Brain Heart Infusion (BHI) broth (Bioxon, México city, México) and incubated at 37 °C for 12 h. The cell pellet was obtained by centrifugation and suspended in 200 μL of sterile water. The resuspended pellet was incubated at 100 °C for 10 min and centrifuged at 10,000× g for 5 min. The pellet was then discarded, and the DNA present in the supernatant was stored at ~20 °C until testing. E. coli strains were identified by PCR amplification of the 16S rRNA gene [25]. Stock dilutions of genomic DNA from each E. coli strain were prepared with nuclease-free water to obtain concentrations of 100 ng/μL. The concentration and purity of the DNA was measured in a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). Each PCR assay was developed using 20 μL of the reaction mix, which included 12 μL Taq DNA Polymerase 2X Master Mix RED (Ampliqon), 1 μL forward primer (F- AGAGTTTGATCMTGGCTCAG), 1 μL reverse primer (R-CCGTCAATTCATTTGAGTTT; Integrated DNA Technologies), 3 μL nuclease-free water, and 3 μL DNA template (300 ng). The concentration of the primers used was 10 pmol. The amplification conditions consisted of initial denaturation for 5 min at 95 °C, 30 cycles of denaturation at 95 °C for 30 s, alignment at 55 °C for 1 min, and extension at 72 °C for 1 min, and a final extension at 72 °C for 5 min. E. coli ATCC 11775 was used as the positive control for each PCR assay [25]. All the primers, and genes evaluated by PCR in this study are presented in Supplementary Material S1.

2.3. Antibiotic Susceptibility Test

The Kirby-Bauer disk diffusion method was used to test the following 12 antibiotics: ampicillin (AM; 10 μg), carbenicillin (CB; 100 μg), cephalothin (CF; 30 μg), cefotaxime (CFX; 30 μg), ciprofloxacin (CPF; 5 μg), chloramphenicol (CL; 30 μg), nitrofurantoin (NF; 300 μg), amikacin (AK; 30 μg), gentamicin (GE; 10 μg), netilmicin (NET; 30 μg), norfloxacin (NOF; 10 μg), and sulfamethoxazole trimethoprim (SXT; 25 μg) (Investigación Diagnóstica, México City, México). These antibiotics are frequently used by the public health sector in Mexico. The results were interpreted according to the criteria established by the Clinical and Laboratory Standards Institute [26]. The American Type Culture Collection (ATCC) strain E. coli 25922 was used as the control. Strains resistant to more than three antibiotics belonging to different categories were classified as multidrug-resistant (MDR) [27].

2.4. Virulence Factor Detection

Previously described PCR conditions and primers were used to amplify the genes encoding adhesins (papA, papGI, papGII, papGIII, fimH, afa, sfaS, iha, focG, and bmaE), toxins (cnf1, hlyA, tsh, usp, set 1 and astA), iron acquisition systems (iuc, iroN, irp2, feoB, fyuA, and ireA), protectins (kpsMT, ompT, iss, and traT), and pathogenicity islands (malX) [28,29]. Each uniplex PCR assay was developed using 20 μL of the reaction mix that included 12 μL Taq DNA Polymerase 2X Master Mix RED (Ampliqon), 1 μL forward primer, 1 μL reverse primer (Integrated DNA Technologies), 3 μL nuclease-free water, and 3 μL DNA template (300 ng). The concentration of the primers used was 10 pmol.

2.5. Quantification of Biofilm Formation

Biofilms produced by E. coli were quantified in triplicate on 96-well polystyrene microtiter plates according to the method as previously described [30]. Adhered bacterial cells were stained with 0.1% crystal violet for 15 min, followed by washing three times with PBS. Bound bacteria were quantified by adding dimethyl sulfoxide at an optical density of 595 nm in an ELISA plate reader (Multiscan, Labsystems, Helsinki, Finland). E. coli strain ATCC 25922 was used as the positive control. Biofilm formation capability was calculated as follows: BF = AB/CW, with BF = biofilm formation; AB = stained attached bacteria; CW = stained control wells [30].
Interpretive criteria were as follows: ≥6.00 = strongly positive; 4.00–5.99 = moderately positive; 2.00–3.99 weakly positive; <2.00 = non-biofilm.

2.6. Identification of Phylogroups

The multiplex PCR method and conditions used to identify phylogroups A, B1, B2, C, D, E, F, and cryptic clade I were previously described [9]. This method allows for the identification of different phylogroups by amplifying chuA and yjaA, the DNA fragments TspE4.C2, and arpA. The final multiplex PCR reaction volume was 20 μL, which included 9 μL of Taq DNA Polymerase 2× Master Mix RED (Ampliqon), 1 μL of first forward and reverse primers, and 3 μL of DNA template (300 ng). The concentration of the primers used was 10 pmol. To determine groups E and C, singleplex PCR was performed separately. The PCR conditions were as follows: 4 min at 94 °C, 30 cycles of 5 s at 94 °C, and 20 s at 57 °C (group E) or 59 °C (group C), and a final extension of 5 min at 72 °C [9].

2.7. Serotyping

The antigens were characterized according to the description by Orskov et al. [31], using 186 rabbit sera against the somatic antigen (O) and 53 rabbit sera against the flagellar antigen (H) (SERUNAM, Mexico). Agglutination reactions were carried out in triplicate on 96-well microtiter plates. The serotype of the strains was determined by the O:H antigenic formula obtained after evaluating the agglutination titers of the sera used.

2.8. Statistical Analysis

We used the Chi-square test with the SPSS statistical program (version 20.0; SPSS Inc., Chicago, IL, USA) (p <0.05) [32] to establish the differences between the percentages of resistance to antibiotics, virulence genes, biofilm formation, phylogroups, serotypes, and different diagnoses of periodontal diseases.

2.9. Unsupervised Hierarchical Clustering

To fully visualize the global characteristics of the strains, we used unsupervised hierarchical grouping with Gower’s similarity algorithm for categorical variables to group them according to their molecular characteristics [33]. A categorical data matrix, including virulence genes, phylogroups, serotypes, biofilm production, and type of infection (gingivitis, moderate periodontitis, and advanced periodontitis), was created in R (v3.6.1) using the cluster package (2.1.0). The distance of each strain was calculated based on the general similarity coefficient, which estimates the maximum possible absolute discrepancy between each combined pair of strains. After calculating the distances, mutually exclusive groups were grouped using Ward’s method in R [34]. The strains were visualized in a genotype-phenotype distribution diagram with a dendrogram constructed using hclust (v3.6.2, R core). The R script and matrices used are presented in Supplementary Material S2.

3. Results

3.1. Patients Studied

Of the 678 patients with periodontal disease, 14.7% (n = 100) of the samples were identified by PCR. Most E. coli strains were isolated from patients with moderate periodontitis (n = 59/100), followed by chronic periodontitis (n = 29/100), and gingivitis (n = 12/100) (Table 1). In addition, we identified other bacteria associated with E. coli (n=100) in periodontal infections, including E. coli/Staphylococcus epidermidis in 31% of cases, E. coli/Staphylococcus aureus in 23%, E. coli/Candida albicans and E. coli/Staphylococcus epidermidis/Candida albicans in 3%, and E. coli/Staphylococcus aureus/Candida albicans, and E. coli/Klebsiella pneumoniae in 1% of cases. Interestingly, in the group of healthy individuals (n = 70), E. coli was not detected in any of the subjects; however, Staphylococcus epidermidis and Staphylococcus aureus were identified in 41.4% of the cases, and Candida albicans in 1.4 %.

3.2. Multiresistance to Antibiotics in E. coli Strains

The highest antibiotic resistance rates of E. coli strains were for the beta-lactams ampicillin, carbenicillin, cephalothin, and cefotaxime, as well as for nitrofurantoin (Table 1). Antibiotic resistance percentages were similar in E. coli strains isolated from patients with gingivitis, moderate periodontitis, and chronic periodontitis, except for the percentage of resistance to chloramphenicol, which was higher in the strains of patients with gingivitis (p < 0.05, Table 1).
Most of the strains (n = 81) were multiresistant to antibiotics, with 33% being multiresistant to four antibiotics and 19% to five antimicrobials.

3.3. Detection of Virulence Genes Related to Phylogroups

The components of the virulence genes were found to be widely distributed among E. coli strains isolated from patients with periodontal disease (Table 2). Half (n = 50) of the E. coli strains were classified into one of the seven phylogroups studied (A1, B1, B2, C, D, E, and F). The most prevalent phylogroups were B2 (n = 26), E (n = 11), and B1 (n = 7), which were more frequent. There were significant differences between the frequency of the adhesion genes fimH, iha, papA, sfaS, papGIII, and focG in the E. coli strains assigned and not assigned to the seven phylogroups according to the three diagnoses (p < 0.05, Table 2), and were identified more frequently in strains belonging to phylogroup B2 from patients with moderate periodontitis than in strains from patients with chronic periodontitis or gingivitis. Similarly, the toxin genes usp, hlyA, cnf1, and set-1, the iron acquisition genes fyuA and irp2, and the protective genes ompT and kpsMT were detected more frequently in the strains belonging to phylogroup B2 from patients with moderate periodontitis (p < 0.05, Table 2). The malX pathogenicity island marker was more prevalent in strains with phylogroup B2 isolated from patients with moderate periodontitis than in strains isolated from patients with other diagnoses (p < 0.05).
The 100 E. coli strains analyzed were distributed within 80 different combinations of virulence genes related to phylogroups and periodontal disease (Table 3). Thirteen strains were distributed among the gene combinations from number 1 to 6, in which combination No. 1, characterized by feoB/iroN iron acquisition genes, was found in three strains related to moderate periodontitis, one belonging to phylogroup B2, and two with unidentified phylogroup. The combination No. 4 composed of genes that code for adhesins, iron uptake systems, toxins, protectins, and pathogenicity islands was found in two strains, one belonging to phylogroup B2 (moderate periodontitis) and the other to phylogroup D (chronic periodontitis). The virulence gene combinations of No. 7 to 80 were composed by 87 strains, each one having a different combination of the same genes, (data not shown).

3.4. Identification of Virulence Genes Related to Biofilm Formation

The majority of the strains (n = 89) produced biofilms (Table 4). The prevalence of virulence genes was similar between biofilm producer strains (weak, moderate, and strong) and non-biofilm producer strains (n = 11; p < 0.05), except for papGIII, which was more prevalent in non-biofilm producer strains, and hlyA, which was more prevalent in strong biofilm-producing strains (p < 0.05). papA, sfaS, papGII, focG, hlyA, and cnf1 were identified in strains that produced biofilms but not in strains that did not produce biofilms.

3.5. Identification of Serotypes in Strains Related to Phylogroups

A total of 41 different E. coli serotypes were identified, the majority of which (n = 59) were isolated from patients with moderate periodontitis (Table 5). The most prevalent serotype was O25:H4 (n = 14), predominantly identified in strains isolated from patients with chronic and moderate periodontitis, whereas O12:H- (n = 12) was more common in strains of patients with moderate periodontitis and gingivitis. There were no significant differences between the frequency of the serotypes associated with the different phylogroups of strains isolated from patients of the three diagnoses (gingivitis, moderate periodontitis, and chronic periodontitis; p < 0.05), except for the O2: H39 serotype, which was more prevalent in the B2 phylogroup of strains with moderate periodontitis and in serotype O15: H18, which was more prevalent in the phylogroup E of strains with moderate periodontitis (p < 0.05).

3.6. Genotypic and Phenotypic Diversity

To characterize the genotypic and phenotypic diversity globally, we performed unsupervised hierarchical clustering analysis. Two large groups were identified based on the similarities between the E. coli strains according to the virulence genotype profile and its relationship with biofilm production, phylogroups, serotypes, and diagnoses (Figure 1). Group 1, which was divided into several subgroups, consisted of 62 strains (I167 to U207; Figure 1), while group 2 consisted of 38 strains (I261 to U115). Most of the strains (n = 80) presented a different virulence genotype composed of different arrays of genes, and 20% of the strains (n = 20) had identical genotype (100% similarity) in both groups. For example, strains U1 (phylogroup B2; serotype O6:H1; strong biofilm) and U10 (phylogroup D; serotype O2:H39; moderate), which were isolated from patients with moderate and chronic periodontitis, respectively, had the same genotype pattern, consisting of 19 virulence genes. Other pairs of strains (U21 and U51; U88 and U115) with identical genotype (100% similarity) were also identified in the subgroups of group 2 (Figure 1).

4. Discussion

Although a variety of gram-negative anaerobic bacteria cause periodontal disease [35], other pathogenic non-oral bacteria, such as E. coli, have been isolated from patients with periodontal disease [36]. E. coli was isolated in 14.7% (n = 100/678) of patients with periodontal disease in this study, most frequently in those with moderate periodontitis (n = 59; Table 1) rather than in those with chronic periodontitis or gingivitis. This proportion is lower than that reported in other studies of patients with chronic periodontitis or aggressive periodontitis [36,37]. Most of the E. coli strains isolated from patients with periodontal disease were multiresistant to groups of three–six antibiotics (n = 81, Table 1). The highest percentages of resistance were found for the beta-lactams ampicillin, carbenicillin, cephalothin, and cefotaxime, as well as for nitrofurantoin, which were similar between the E. coli strains isolated from patients with gingivitis, moderate periodontitis, and chronic periodontitis (p < 0.05, Table 1). High resistance to beta-lactam antibiotics, primarily AM, has also been reported in strains of E. coli isolated from patients with periodontitis and gingivitis [38]. In a recent study, we discovered comparable resistance rates to AM, CB, CF, NET, and GE in cervicovaginal strains of E. coli [39]. The high resistance rate of strains to beta-lactam antibiotics found in this study may be due to the substantial increase in E. coli-producing extended-spectrum beta-lactamase (ESBL), both within the community and in hospitals [40].
The E. coli strains analyzed belonged primarily to phylogroups B2, E, B1, and A (Table 2). These phylogroups were recently identified in E. coli strains that cause urinary tract infections [41] and in Escherichia coli cervicovaginal strains [42]. These findings demonstrate, for the first time, the broad phylogenetic versatility of E. coli isolated from patients with periodontal infections. To date, no study has been conducted on the distribution of virulence markers among the various phylogroups of E. coli strains isolated from patients with periodontal disease. Because adhesion promotes colonization and invasion of tissues, it is considered the most important pathogenic factor for E. coli [43]. The most frequently identified adhesion genes were fimH, iha, papA, sfaS, papGIII, and focG (Table 2), which were more prevalent in strains belonging to phylogroup B2 from patients with moderate periodontitis than in strains belonging to phylogroup B2 from patients with chronic periodontitis or gingivitis (p < 0.05, Table 2).
The prevalence of these genes in E. coli may favor the persistence of periodontal disease, since the expression of fim and sfaS has been associated with the formation of biofilms in uropathogenic E. coli (UPEC) strains [44], and has been frequently identified in E. coli strains causing cystitis [45]. papA genes and the allelic variants papGI and papGII encoding P fimbria (Table 2) cause other types of infections, as these genes are frequently identified in E. coli uropathogenic strains that cause cystitis, prostatitis, and pyelonephritis [46].
Toxins are clinically relevant molecules because they cause tissue damage in the host, facilitate nutrient release and bacterial spread, and inactivate effector cells of the immune system [47]. The toxin genes usp, hlyA, cnf-1, and set-1 were more frequent in strains of phylogroup B2 in patients with moderate periodontitis (p < 0.05, Table 2). The prevalence of these virulence markers in the strains, in addition to the presence of the malX marker of the PAIs (Table 2) may increase the risk of acquiring other types of infections. This is evident by the fact that we identified these genes in strains of E. coli responsible for cervicovaginal infections [39], whereas other authors have identified them in UPEC strains causing urinary tract infections [48].
The iron acquisition genes fyuA and irp2, and the protectins ompT and KpsMT were prevalent among the strains of phylogroup B2 in patients with moderate periodontitis (p < 0.05, Table 2), while the frequency of the feoB and traT genes was similar between the phylogroups of the strains isolated from patients with the three diagnoses (p < 0.05). The presence of these virulence markers in E. coli may increase periodontal disease pathogenicity, as iron is essential for the survival and persistence of E. coli in infectious processes [49], while the capsular antigen K encoded by kpsMT protects the bacteria against phagocytosis, and traT and iss increase resistance to serum [50]. Iron acquisition and protectin genes have been identified in strains of extraintestinal E. coli that cause urinary tract infections [51] and septicemia [50].
Numerous patterns of virulence markers were identified in E. coli strains related to the phylogroups and periodontal disease of the patients (n = 80; Table 3). Pattern 4 contained a greater number of genes (n = 19) and was detected in a strain belonging to phylogroup B2 (moderate periodontitis) and the other to phylogroup D (chronic periodontitis; Table 3); Pattern 5 contained 15 genes and was found in a strain belonging to phylogroup B2 from patients with gingivitis and moderate periodontitis. The coexistence of different combinations of virulence markers identified in E. coli strains may favor the acuteness of periodontal infections.
Most of the strains (n = 89) formed biofilms, predominantly in patients diagnosed with moderate periodontitis (n = 33; Table 4). The frequency of virulence genes was comparable between biofilm-producing strains (weak, moderate, and strong) and non-biofilm producing strains (n = 11; p < 0.05), but the genes papA, sfaS, papGII, focG, hlyA, and cnf1 were identified exclusively in the biofilm-producing strains. These findings demonstrate that E. coli strains are capable of contributing to the pathogenicity of chronic periodontal infections, as the biofilm protects the bacteria from the host’s immune response and antibiotic action [52]. Notably, the percentages of biofilm production identified in the strains were comparable to those previously reported in highly pathogenic UPEC strains [44]. Additionally, it has been suggested that E. coli lipopolysaccharides (LPS) may have a role in the inflammatory processes associated with periodontal disease [53,54].
In this study, 41 distinct serotypes of E. coli strains isolated from periodontal disease were identified using serological methods (Table 5). The serotype distribution was similar across strain phylogroups (p < 0.05), except for the O2: H39 serotype, which was more prevalent in the B2 phylogroup of strains from patients with moderate periodontitis, and in serotype O15: H18, which was more prevalent in the E phylogroup of strains from patients with moderate periodontitis (p < 0.05). The most frequently encountered serotype was O25: H4, which was more prevalent in strains belonging to phylogroup B2, and strains that did not belong to any of the phylogroups studied in patients with chronic and moderate periodontitis (Table 5). These results show that many serotypes that cause other types of infections may participate in the pathogenesis of periodontal disease, as was the case for serotype O25:H4, which has been frequently associated with uropathogenic strains responsible for urinary tract infections [55].
E. coli strains isolated from the three clinical diagnoses were classified into two large groups, which were further divided into subgroups according to their virulence genotype, biofilm formation phenotype, phylogroups, and serotypes (Figure 1). The strains within group 1 (strains I167 to U207; see Figure 1) were predominantly serotype O24H:4 and belonged to phylogroup B1, while the strains in group 2 (strains I261 to U115) had a greater number of virulence markers and most frequently belonged to phylogroup B2 and serotype O25:H4 and O12:H-. It is worth noting that most of the strains presented a different virulence genotype, which leads us to assume that these strains isolated from patients with periodontal disease are different. However, strains with identical virulence genotype were also identified in unrelated patients belonging to some of the subgroups of groups 1 and 2, which suggests that these strains may be prevalent in the population with periodontitis (Figure 1). Interestingly, E. coli was not detected in any of the subjects in the group of healthy individuals, which suggests a pathogenic role of E. coli that needs to be studied further. Overall, these results demonstrate that complex and diverse expression patterns of virulence genes of E. coli may occur during the pathogenesis of periodontal disease, which could lead to more acute or chronic infections when combined with multiresistance to antibiotics and biofilm production. We could not identify the phylogroup in half of the E. coli strains, possibly due to variation in primer recognition sites or due to genetic recombination events, which may have prevented amplification [56]. It is also possible that these strains belong to very rare phylogroups that are not covered by this method [57]. The same occurred in some of the serotypes, which could probably be due to new serotypes. Therefore, further studies of whole genome sequencing of these strains could provide precise identification of their phylogroups, and serotypes, as well as their virulence and antibiotic resistance gene load.

5. Conclusions

In summary, the findings of this study are significant as they reveal the wide molecular variation of E. coli that may act as a pathogen in periodontal disease. We found that the strains harbored a substantial number of virulence markers and notable multiresistance to the antibiotics commonly used in clinical practice. The characterization of the strains showed that phylogroup B2 and serotype O25:H4 were the most prevalent. This is the first global molecular study conducted on periodontal strains of E. coli and can aid in the development of new strategies for the treatment of periodontal infections in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/microorganisms11010045/s1.

Author Contributions

Conceptualization, G.L.P.-C. and E.M.-P.; methodology, T.H.-J., L.R.G.-C., J.G., A.N.-O., N.N.-A., F.K.G.-N. and M.M.-N.; software, E.A.R.-J.; formal analysis, R.M.-E., A.N.-O. and F.V.-P.; investigation, G.L.P.-C., E.M.-P. and T.H.-J.; data curation, T.H.-J. and R.M.-E.; writing—original draft preparation, T.H.-J., G.L.P.-C. and E.M.-P.; writing—review and editing, G.L.P.-C., E.M.-P. and F.V.-P.; funding acquisition, G.L.P.-C. and E.M.-P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Universidad Nacional Autonoma de México, Direccion General de Asuntos del Personal Académico (DGAPA), Project PAPIIT IN216517, Official Letter DGAP/1734/2016.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the Ethics Committee of the institution (Project identification code: R-2022-1406-034).

Informed Consent Statement

All subjects gave their informed consent for inclusion before they participated in the study.

Data Availability Statement

Not applicable.

Acknowledgments

Tania Hernández-Jaimes is a student who received a scholarship from CONACYT-México and would like to thank Posgrado en Ciencias Biológicas of Universidad Nacional Autónoma de México (UNAM) at Facultad de Estudios Superiores Iztacala. This article is a requirement for obtaining the Doctor of Science degree of the Programa de Posgrado de Ciencias Biológicas, UNAM. We thank the dentists of Hospital No. 60 of the IMSS; Rubén Padilla Villafuerte, Elizabet Carbajal Cruz, and Patricia Moran Rodríguez, who provided support in determining the diagnoses of the degree of periodontal disease in each patient.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Papapanou, P.N.; Sanz, M.; Buduneli, N.; Dietrich, T.; Feres, M.; Fine, D.H.; Flemmig, T.F.; Garcia, R.; Giannobile, W.V.; Graziani, F.; et al. Periodontitis: Consensus report of workgroup 2 of the 2017 World Workshop on the Classification of Periodontal and Peri-Implant Diseases and Condition. J. Periodontol. 2018, 89, S173–S182. [Google Scholar] [CrossRef] [Green Version]
  2. Han, J.; Wang, P.; Ge, S. The microbial community shifts of subgingival plaque in patients with generalized aggressive periodontitis following non-surgical periodontal therapy: A pilot study. Oncotarget 2017, 8, 10609–10619. [Google Scholar] [CrossRef] [Green Version]
  3. Uribe-García, A.; Paniagua-Contreras, G.L.; Monroy-Pérez, E.; Bustos-Martínez, J.; Hamdan-Partida, A.; Garzón, J.; Alanís, J.; Quezada, R.; Vaca-Paniagua, F.; Vaca, S. Frequency and expression of genes involved in adhesion and biofilm formation in Staphylococcus aureus strains isolated from periodontal lesions. J. Microbiol. Immunol. Infect. 2021, 54, 267–275. [Google Scholar] [CrossRef]
  4. Estemalik, J.; Demko, C.; Bissada, N.F.; Joshi, N.; Bodner, D.; Shankar, E.; Gupta, S. Simultaneous detection of oral pathogens in subgingival plaque and prostatic fluid of men with periodontal and prostatic diseases. J. Periodontol. 2017, 88, 823–829. [Google Scholar] [CrossRef]
  5. Munkhdelger, Y.; Gunregjav, N.; Dorjpurev, A.; Juniichiro, N.; Sarantuya, J. Detection of virulence genes, phylogenetic group and antibiotic resistance of uropathogenic Escherichia coli in Mongolia. J. Infect. Dev. Ctries. 2017, 11, 51–57. [Google Scholar] [CrossRef] [Green Version]
  6. Chittò, M.; Berger, M.; Klotz, L.; Dobrindt, U. Sub-Inhibitory concentrations of SOS-Response inducing antibiotics stimulate integrase expression and excision of pathogenicity islands in uropathogenic Escherichia coli strain 536. Int. J. Med. Microbiol. 2020, 310, 151361. [Google Scholar] [CrossRef]
  7. Sharma, G.; Sharma, S.; Sharma, P.; Chandola, D.; Dang, S.; Gupta, S.; Gabrani, R. Escherichia coli biofilm: Development and therapeutic strategies. J. Appl. Microbiol. 2016, 121, 309–319. [Google Scholar] [CrossRef] [Green Version]
  8. Vieira Colombo, A.P.; Magalhães, C.B.; Hartenbach, F.A.; Martins do Souto, R.; Maciel da Silva-Boghossian, C. Periodontal-disease-associated biofilm: A reservoir for pathogens of medical importance. Microb. Pathog. 2016, 94, 27–34. [Google Scholar] [CrossRef] [PubMed]
  9. Clermont, O.; Christenson, J.K.; Denamur, E.; Gordon, D.M. The Clermont Escherichia coli phylo-typing method revisited: Improvement of specificity and detection of new phylo-groups. Environ. Microbiol. Rep. 2013, 5, 58–65. [Google Scholar] [CrossRef] [PubMed]
  10. Ingle, D.J.; Valcanis, M.; Kuzevski, A.; Tauschek, M.; Inouye, M.; Stinear, T.; Levine, M.M.; Robins-Browne, R.M.; Holt, K.E. In silico serotyping of E. coli from short read data identifies limited novel O-loci but extensive diversity of O:H serotype combinations within and between pathogenic lineages. Microb. Genom. 2016, 2, e000064. [Google Scholar] [CrossRef] [PubMed]
  11. Hernández-Chiñas, U.; Pérez-Ramos, A.; Belmont-Monroy, L.; Chávez-Berrocal, M.E.; González-Villalobos, E.; Navarro-Ocaña, A.; Eslava, C.A.; Molina-Lopez, J. Characterization of auto-agglutinating and non-typeable uropathogenic Escherichia coli strains. J. Infect. Dev. Ctries. 2019, 13, 465–472. [Google Scholar] [CrossRef]
  12. Sadeghi, M. Molecular Characterization of Multidrug-Resistant Escherichia coli Isolates in Azerbaijan Hospitals. Microb. Drug. Resist. 2019, 25, 1287–1296. [Google Scholar] [CrossRef]
  13. Mfoutou Mapanguy, C.C.; Adedoja, A.; Kecka, L.G.V.; Vouvoungui, J.C.; Nguimbi, E.; Velavan, T.P.; Ntoumi, F. High prevalence of antibiotic-resistant Escherichia coli in Congolese students. Int. J. Infect. Dis. 2021, 103, 119–123. [Google Scholar] [CrossRef]
  14. Eltigani, S.A.; Eltayeb, M.M.; Bito, T.; Ichiyanagi, T.; Ishihara, A.; Arima, J. Argeloside I inhibits the pathogenicity of Porphyromonas gingivalis TDC60. J. Biosci. Bioeng. 2020, 130, 644–649. [Google Scholar] [CrossRef]
  15. Bielecki, M.; Antonyuk, S.; Strange, R.W.; Siemińska, K.; Smalley, J.W.; Mackiewicz, P.; Śmiga, M.; Cowan, M.; Capper, M.J.; Ślęzak, P.; et al. Prevotella intermedia produces two proteins homologous to Porphyromonas gingivalis HmuY but with different heme coordination mode. Biochem. J. 2020, 477, 381–405. [Google Scholar]
  16. Nagasawa, T.; Kato, S.; Furuichi, Y. Evaluation of the Virulence of Aggregatibacter actinomycetemcomitans Through the Analysis of Leukotoxin. Methods. Mol. Biol. 2021, 2210, 185–193. [Google Scholar]
  17. Kikuchi, Y.; Ishihara, K. Characterization of the Treponema denticola Virulence Factor Dentilisin. Methods. Mol. Biol. 2021, 2210, 173–184. [Google Scholar]
  18. Zwickl, N.F.; Stralis-Pavese, N.; Schäffer, C.; Dohm, J.C.; Himmelbauer, H. Comparative genome characterization of the periodontal pathogen Tannerella forsythia. BMC. Genomics. 2020, 21, 150. [Google Scholar] [CrossRef]
  19. Bunduki, G.K.; Heinz, E.; Phiri, V.S.; Noah, P.; Feasey, N.; Musaya, J. Virulence factors and antimicrobial resistance of uropathogenic Escherichia coli (UPEC) isolated from urinary tract infections: A systematic review and meta-analysis. BMC. Infect. Dis. 2021, 21, 753. [Google Scholar] [CrossRef]
  20. Paniagua-Contreras, G.; Monroy-Pérez, E.; Gutiérrez-Lucas, R.; Sainz-Espuñes, T.; Bustos-Martínez, J.; Vaca, S. Genotypic characterization of methicillin-resistant Staphylococcus aureus strains isolated from the anterior nares and catheter of ambulatory hemodialysis patients in Mexico. Folia Microbiol. 2014, 59, 295–302. [Google Scholar] [CrossRef]
  21. Luo, G.; Mitchell, T.G. Rapid identification of pathogenic fungi directly from cultures by using multiplex PCR. J. Clin. Microbiol. 2002, 40, 2860–2865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Sunagar, R.; Deore, S.N.; Deshpande, P.V.; Rizwan, A.; Sannejal, A.D.; Sundareshan, S.; Rawool, D.B.; Barbuddhe, S.B.; Jhala, M.K.; Bannalikar, A.S.; et al. Differentiation of Staphylococcus aureus and Staphylococcus epidermidis by PCR for the fibrinogen binding protein gene. J Dairy Sci. 2013, 96, 2857–2865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Liu, Y.; Liu, C.; Zheng, W.; Zhang, X.; Yu, J.; Gao, Q.; Hou, Y.; Huang, X. PCR detection of Klebsiella pneumoniae in infant formula based on 16S-23S internal transcribed spacer. Int. J. Food. Microbiol. 2008, 125, 230–235. [Google Scholar] [CrossRef] [PubMed]
  24. Paniagua-Contreras, G.L.; Monroy-Pérez, E.; Rodríguez-Moctezuma, J.R.; Domínguez-Trejo, P.; Vaca-Paniagua, F.; Vaca, S. Virulence factors, antibiotic resistance phenotypes and O-serogroups of Escherichia coli strains isolated from community-acquired urinary tract infection patients in Mexico. J. Microbiol. Immunol. Infect. 2017, 50, 478–485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lane, D.J.; Pace, B.; Olsen, G.J.; Stahl, D.A.; Sogin, M.L.; Pace, N.R. Rapid determination of 16S ribosomal RNA sequences for phylogenetic analyses. Proc. Natl. Acad. Sci. USA 1985, 82, 6955–6959. [Google Scholar] [CrossRef] [Green Version]
  26. Wayne, P.A. Performance standards for antimicrobial susceptibility testing. In CLSI, Twenty-Third Informational Supplement M100-S23; Carpenter, D.E., Ed.; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2013; p. 74. [Google Scholar]
  27. Sakai, A.M.; Iensue, T.N.A.N.; Pereira, K.O.; De Souza, N.A.A.; Silva, C.M.; Salvador, M.S.A.; Rodrigues, R.; Capobiango, J.D.; Pelisson, M.; Vespero, E.C.; et al. Colonization by multidrug-resistant microorganisms of hospitalized newborns and their mothers in the neonatal unit context. J. Infect. Dev. Ctries 2020, 14, 765–771. [Google Scholar] [CrossRef]
  28. Rodriguez, S.K.E.; Giddings, C.W.; Doetkott, C.; Johnson, T.J.; Fakhr, M.; Nolan, L.K. Comparison of Escherichia coli isolates implicated in human urinary tract infection and avian colibacillosis. Microbiology 2005, 151, 2097–2110. [Google Scholar] [CrossRef] [Green Version]
  29. Momtaz, H.; Karimian, A.; Madani, M.; Safarpoor Dehkordi, F.; Ranjbar, R.; Sarshar, M.; Souod, N. Uropathogenic Escherichia coli in Iran: Serogroup distributions, virulence factors and antimicrobial resistance properties. Ann. Clin. Microbiol. Antimicrob. 2013, 12, 8. [Google Scholar] [CrossRef] [Green Version]
  30. Agarwal, J.; Mishra, B.; Srivastava, S.; Srivastava, R. Genotypic characteristics and biofilm formation among Escherichia coli isolates from Indian women with acute cystitis. Trans. R. Soc. Trop. Med. Hyg. 2013, 107, 183–187. [Google Scholar] [CrossRef]
  31. Orskov, I.; Orskov, F.; Jann, B.; Jann, K. Serology, chemistry, and genetics of O and K antigens of Escherichia coli. Bacteriol. Rev. 1977, 41, 667–710. [Google Scholar] [CrossRef]
  32. Ahmed, N.; Dorn, J.; Napieralski, R.; Drecoll, E.; Kotzsch, M.; Goettig, P.; Zein, E.; Avril, S.; Kiechle, M.; Diamandis, E.P.; et al. Clinical relevance of kallikrein-related peptidase 6 (KLK6) and 8 (KLK8) mRNA expression in advanced serous ovarian cancer. Biol. Chem. 2016, 397, 1265–1276. [Google Scholar] [CrossRef] [Green Version]
  33. Gower, J.C. A General Coefficient of Similarity and Some of Its Properties. Biometrics 1971, 27, 857–871. [Google Scholar] [CrossRef]
  34. Ward, J.H., Jr. Hierarchical Grouping to Optimize an Objective Function. J. Am. Stat. Assoc. 1963, 58, 236–244. [Google Scholar] [CrossRef]
  35. Dahlen, G.; Basic, A.; Bylun, J. Importance of virulence factors for the persistence of oral bacteria in the inflamed gingival crevice and in the pathogenesis of periodontal disease. J. Clin. Med. 2019, 8, 1339. [Google Scholar] [CrossRef] [Green Version]
  36. Da Silva, B.C.M.; Do, S.R.M.; Luiz, R.R.; Colombo, A.P. Association of red complex, A. actinomycetemcomitans and non-oral bacteria with periodontal diseases. Arch. Oral. Biol. 2011, 56, 899–906. [Google Scholar] [CrossRef] [Green Version]
  37. Souto, R.; de Andrade, A.F.B.; Uzeda, M.; Colombo, A.P.V. Prevalence of “non-oral” pathogenic bacteria in subgingival biofilm of subjects with chronic periodontitis. Braz. J. Microbiol. 2006, 37, 208–215. [Google Scholar] [CrossRef] [Green Version]
  38. Gaetti-Jardim, E.C.; Marqueti, A.C.; Faverani, L.P.; Gaetti, J.E., Jr. Antimicrobial resistance of anaerobes and facultative anaerobes isolated from the oral cavity. J. Appl. Oral. Sci. 2010, 18, 551–559. [Google Scholar] [CrossRef] [Green Version]
  39. Paniagua-Contreras, G.L.; Monroy-Pérez, E.; Solis, R.R.; Cerón, A.B.; García Cortés, L.R.; Alonso, N.N.; Camarillo, D.H.; Arreygue, L.S.; Domínguez-Trejo, P.; Velásquez, C.D.; et al. O-serogroups of multi-drug resistant cervicovaginal Escherichia coli harboring a battery of virulence genes. J. Infect. Chemother. 2019, 25, 494–497. [Google Scholar] [CrossRef]
  40. Krilanović, M.; Tomić, P.M.; Meštrović, T.; Beader, N.; Herljević, Z.; Conzemius, R.; Barišić, I.; Vraneš, J.; Elveđi-Gašparović, V.; Bedenić, B. Extended-spectrum beta-lactamases and plasmid diversity in urinary isolates of Escherichia coli in Croatia: A nation-wide, multicentric, retrospective study. Folia. Microbiol. 2020, 65, 649–667. [Google Scholar] [CrossRef]
  41. Amarsy, R.; Guéret, D.; Benmansour, H.; Flicoteaux, R.; Berçot, B.; Meunier, F.; Mougari, F.; Jacquier, H.; Pean de Ponfilly, G.; Clermont, O.; et al. Determination of Escherichia coli phylogroups in elderly patients with urinary tract infection or asymptomatic bacteriuria. Clin. Microbiol. Infect. 2019, 25, 839–844. [Google Scholar] [CrossRef]
  42. Monroy-Pérez, E.; Cerón, A.B.; García, C.L.R.; Alonso, N.N.; Domínguez-Trejo, P.; Hernández, J.T.; Bustos-Martínez, J.; Hamdan-Partida, A.; Rojas Jiménez, E.A.; Vaca, S.; et al. Virulence gene transcription, phylogroups, and antibiotic resistance of cervico-vaginal pathogenic E. coli in Mexico. PLoS ONE 2020, 15, e0234730. [Google Scholar] [CrossRef] [PubMed]
  43. Mulvey, M.A. Adhesion and entry of uropathogenic Escherichia coli. Cell. Microbiol. 2002, 4, 257–2571. [Google Scholar] [CrossRef] [PubMed]
  44. Zamani, H.; Salehzadeh, A. Biofilm formation in uropathogenic Escherichia coli: Association with adhesion factor gene. Turk. J. Med. Sci. 2018, 48, 162–167. [Google Scholar] [CrossRef] [PubMed]
  45. Morales-Espinosa, R.; Hernandez-Castro, R.; Delgado, G.; Mendez, J.L.; Navarro, A.; Manjarrez, A.; Cravioto, A. UPEC strain characterization isolated from Mexican patients with recurrent urinary infections. J. Infect. Dev. Ctries. 2016, 10, 317–328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Lavigne, J.P.; Bruyère, F.; Bernard, L.; Combescure, C.; Ronco, E.; Lanotte, P.; Coloby, P.; Thibault, M.; Cariou, G.; Desplaces, N.; et al. Resistance and virulence potential of uropathogenic Escherichia coli strains isolated from patients hospitalized in urology departments: A French prospective multicentre study. J. Med. Microbiol. 2016, 65, 530–537. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Lüthje, P.; Brauner, A. Virulence factors of uropathogenic Escherichia coli and their interaction with the host. Adv. Microbiol. Physiol. 2014, 65, 337–372. [Google Scholar]
  48. Hozzari, A.; Behzadi, P.; Kerishchi, K.P.; Sholeh, M.; Sabokroo, N. Clinical cases, drug resistance, and virulence genes profiling in Uropathogenic Escherichia coli. J. Appl. Genet. 2020, 61, 265–273. [Google Scholar] [CrossRef]
  49. Bauckman, K.A.; Matsuda, R.; Higgins, C.B.; DeBosch, B.J.; Wang, C.; Mysorekar, I.U. Dietary restriction of iron availability attenuates UPEC pathogenesis in a mouse model of urinary tract infection. Am. J. Physiol. Renal. Physiol. 2019, 316, F814–F822. [Google Scholar] [CrossRef]
  50. Daga, A.P.; Koga, V.L.; Soncini, J.G.M.; de Matos, C.M.; Perugini, M.R.E.; Pelisson, M.; Kobayashi, R.K.T.; Vespero, E.C. Escherichia coli Bloodstream Infections in Patients at a University Hospital: Virulence Factors and Clinical Characteristics. Front. Cell. Infect. Microbiol. 2019, 9, 191. [Google Scholar] [CrossRef]
  51. Yun, K.W.; Kim, H.Y.; Park, H.K.; Kim, W.; Lim, I.S. Virulence factors of uropathogenic Escherichia coli of urinary tract infections and asymptomatic bacteriuria in children. J. Microbiol. Immunol. Infect. 2014, 47, 455–461. [Google Scholar] [CrossRef] [Green Version]
  52. Singh, S.; Singh, S.K.; Chowdhury, I.; Singh, R. Understanding the mechanism of bacterial biofilms resistance to antimicrobial agents. Open. Microbiol. 2017, 11, 53–62. [Google Scholar] [CrossRef] [Green Version]
  53. Palaska, I.; Gagari, E.; Theoharides, T.C. The effects of P. gingivalis and E. coli LPS on the expression of proinflammatory mediators in human mast cells and their relevance to periodontal disease. J. Biol. Regul. Homeost. Agents. 2016, 30, 655–664. [Google Scholar]
  54. Ali, M.; Kucko, N.; Jansen, J.A.; Yang, F.; Walboomers, X.F. The effect of lipoxin A4 on E. coli LPS-induced osteoclastogenesis. Clin. Oral. Investig. 2021, 25, 957–969. [Google Scholar] [CrossRef]
  55. Molina-López, J.; Aparicio-Ozores, G.; Ribas-Aparicio, R.M.; Gavilanes-Parra, S.; Chávez-Berrocal, M.E.; Hernández-Castro, R.; Manjarrez-Hernández, H.Á. Drug resistance, serotypes, and phylogenetic groups among uropathogenic Escherichia coli including O25-ST131 in Mexico City. J. Infect. Dev. Ctries. 2011, 5, 840–849. [Google Scholar] [CrossRef] [Green Version]
  56. Touchon, M.; Hoede, C.; Tenaillon, O.; Barbe, V.; Baeriswyl, S.; Bidet, P.; Bingen, E.; Bonacorsi, S.; Bouchier, C.; Bouvet, O.; et al. Organised genome dynamics in Escherichia coli results in highly diverse adaptive paths. PLoS Genet. 2009, 5, e1000344. [Google Scholar] [CrossRef]
  57. Song, Y.; Wu, K.Y.; Wu, W.; Duan, Z.Y.; Gao, Y.F.; Zhang, L.D.; Chong, T.; Garstka, M.A.; Zhou, W.; Li, K. Epithelial C5aR1 Signaling Enhances Uro- pathogenic Escherichia coli Adhesion to Human Renal Tubular Epithelial Cells. Front. Immunol. 2018, 9, 949. [Google Scholar] [CrossRef]
Microorganisms 11 00045 g001 550

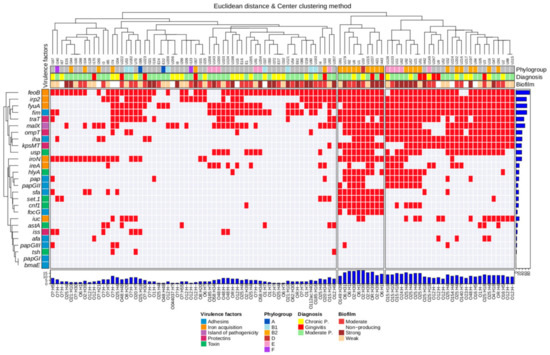

Figure 1. Hierarchical clustering of E. coli strains according to the virulence genotype profile and its relationship with biofilm production, phylogroups, serotypes, and diagnoses. Positivity and negativity for a given genotype are represented by a red and gray “rectangle” respectively. Genetic functions, biofilm production, phylogroups, serotypes, and diagnostics are color-coded as indicated in the key below. Cladograms of the strains and genes are shown along the top and “left” respectively. Upper axis: ID of the strains. Left axis: name of the virulence genes. Right blue bars: detection percentage of each virulence gene. Lower blue bars: number of virulence genes detected in each strain. Lower axis: serotypes identified in each strain.
Figure 1. Hierarchical clustering of E. coli strains according to the virulence genotype profile and its relationship with biofilm production, phylogroups, serotypes, and diagnoses. Positivity and negativity for a given genotype are represented by a red and gray “rectangle” respectively. Genetic functions, biofilm production, phylogroups, serotypes, and diagnostics are color-coded as indicated in the key below. Cladograms of the strains and genes are shown along the top and “left” respectively. Upper axis: ID of the strains. Left axis: name of the virulence genes. Right blue bars: detection percentage of each virulence gene. Lower blue bars: number of virulence genes detected in each strain. Lower axis: serotypes identified in each strain.
Microorganisms 11 00045 g001
Table
Table 1. Resistance and multiresistance to antibiotics in E. coli (n = 100).
Table 1. Resistance and multiresistance to antibiotics in E. coli (n = 100).
Antibiotic GroupAntibioticsNo. of Resistant Strains (%)
Gingivitis
(n = 12)
No. (%)		Moderate Periodontitis
(n = 59)
No. (%)		Chronic Periodontitis
(n = 29)
No. (%)		p-Value
Beta-lactamsAmpicillin (AM)12 (100)57 (97)29 (100)1
Carbenicillin (CB)11 (92)55 (93)28 (97)0.84
Cephalothin (CF)11 (92)50(85)28 (97)0.29
Cefotaxime (CFX)9 (75)34 (58)17 (59)0.60
QuinolonesNorfloxacin (NOF)5 (42)27 (46)15(52)0.8
Ciprofloxacin (CPF)5 (42)26 (44)13 (45)0.98
PhenicolsChloramphenicol (CL)7 (58)10 (17)8 (28)0.01
NitrofuransNitrofurantoin (NF)10 (83)50 (85)24 (83)1
AminoglycosidesAmikacin (AK)4 (33)35 (59)18 (62)0.2
Gentamicin (GE)6 (50)28 (47)9 (31)0.29
Netilmycin (NET)6 (50)28 (47)17 (59)0.61
Sulfonamide/TrimethoprimSulfamethoxazole/trimethoprim8 (67)25 (42)14 (48)0.3
Multiresistance
(Different Families of Antibiotics)
(n = 81)		No. of Antibiotic GroupsNo. of Strains
318
433
519
611
Notes: Significant p-values (<0.05) were presented in bold.
Table
Table 2. Frequency of virulence genes according to phylogroups in E. coli.
Table 2. Frequency of virulence genes according to phylogroups in E. coli.
FunctionPhylogroupsGingivitis
(n = 12)
No. of Strains		Moderate Periodontitis
(n = 59)
No. of Strains		Chronic Periodontitis
(n = 29)
No. of Strains		p-ValueTotal
(n = 100)
AB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentified
Gene005000007251500920261260120017
AdhesinsfimH--3-----51412--91-13-26-12--90.00568
iha--2-----5--9--31-8--5-12--20.00538
papA--2--------6--3--1--3-11--10.000088718
sfaS--2-----1--8-----2--1-1---20.00217
papGII--1--------5--3-----2-11---0.000029213
focG--2--------5--------1-1----0.00019
afa--------3-----------2------15
papGIII-----------2--------1-----20.655
papGI---------------------------00
bmaE---------------------------00
Toxinsusp--2-----1--10--6--7--5-11--30.000046736
hlyA--3-----1--6--3-----2-11--20.000319
cnf1--3--------8--1--1--2-1----0.000002516
set-1--3--------6--11-2--1-1---10.00116
astA--------2--1--1--4-1------10.7310
tsh-----------------1--1-----113
Iron AcquisitionfeoB--5-----61514--61-23126-11--140.0586
fyuA--3-----62511--9--14-16-12--90.0169
irp2--5-----51312--41-15-16-12--100.0566
iroN--2-----11110--31-8--2-11--50.1536
ireA--2-----1--3--6--4--1--2--20.00221
iuc--1-----3-24-----4--3-1---20.1320
ProtectinstraT--3-----61310--5--8--5-12--60.0850
ompT--3-----2-311--3--5--6-12--20.0000034538
kpsMT--3-----4--12--1--6--5-11--20.0000028335
iss---------11----1-3--------20.058
PAIsmalX--4-----2-113--7--13--6-11--80.000015956
Notes: Significant p-values (<0.05) were presented in bold.
Table
Table 3. Distribution of virulence gene association patterns in strains of E. coli.
Table 3. Distribution of virulence gene association patterns in strains of E. coli.
No. of CombinationCombination of Virulence GenesGingivitis
(n = 12)
No. of Strains		Moderate Periodontitis
(n = 59)
No. of Strains		Chronic Periodontitis
(n = 29)
No. of Strains		Total
(n = 100)
AB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentified
005000007251500920261260120017
1feoB/iroN-----------1-----2---------3
2feoB/irp2/iroN-----------------1--------12
3feoB/fyuA/fimH-----------------2---------2
4feoB/irp2/fyuA/fimH/traT/
malX/ompT/iha/kpsMT/usp/
iroN/hlyA/papA/papGII/
sfaS/set1/cnf1/focG/iuc		-----------1----------1----2
5feoB/irp2/fyuA/fimH/traT/
malX/ompT/iha/kpsMT/usp/hlyA
/papA/papGII/cnf1/iuc		--1--------1---------------2
6feoB/irp2/fyuA/fimH/traT
/malX/ompT/iha/kpsMT		-----------------2---------2
7–80Different combination of the same genes00400000725120092019126002001687
Table
Table 4. Frequency of virulence genes according to biofilm formation in E. coli.
Table 4. Frequency of virulence genes according to biofilm formation in E. coli.
FunctionGeneBiofilm (+)
(n = 89)		Biofim (−)
(n = 11)		p-ValueTotal
(n = 100)
Weak
(n = 27)
No. (%)		Moderate
(n = 33)
No. (%)		Strong
(n = 29)
No. (%)		Non Producing
(n = 11)
No. (%)
AdhesinsfimH17 (63)23 (70)20 (69)8 (73)0.9368
iha10 (37)12 (36)11 (38)5 (45)0.9638
papA4 (15)5 (15)9 (31)0 (0)0.1218
sfaS6 (22)4 (12)6 (21)1 (9)0.6417
papGII3 (11)4 (12)6 (21)0 (0)0.4413
focG2 (7)3 (9)4 (13)0 (0)0.749
afa2 (7)2 (6)0 (0)1 (9)0.425
papGIII2 (7)0 (0)1 (3)2 (18)0.045
papGI0 (0)0 (0)0 (0)0 (0)00
bmaE0 (0)0 (0)0 (0)0 (0)00
Toxinsusp8 (30)13 (39)12 (41)3 (27)0.7336
hlyA3 (11)5 (15)11 (37)0 (0)0.0119
cnf13 (11)4 (12)9 (31)0 (0)0.0616
set-14 (14)5 (15)6 (20)1 (9)0.8816
astA4 (14)4 (12)1 (3)1 (9)0.5010
tsh0 (0)1 (3)1 (3)1 (9)0.433
Iron AcquisitionfeoB23 (85)27 (81)27 (93)9 (81)0.5786
fyuA16 (59)25 (75)21 (72)7 (63)0.5269
irp218 (67)22 (67)19 (66)7 (63)166
iroN11 (40)10 (30)10 (34)5 (45)0.7536
ireA3 (11)12 (36)4 (13)2 (18)0.0721
iuc6 (22)7 (21)5 (17)2 (18)0.9620
ProtectinstraT13 (48)17 (52)15 (52)5 (45)0.9750
ompT9 (33)11 (33)14 (48)4 (36)0.6138
kpsMT10 (37)10 (30)11 (37)4 (36)0.9235
iss4 (15)4 (12)0 (0)0 (0)0.108
PAIsmalX14 (51)17 (51)17 (58)8 (72)0.6556
Notes: Significant p-values (<0.05) were presented in bold.
Table
Table 5. Frequency of the serotypes according to phylogroups in the E. coli strains.
Table 5. Frequency of the serotypes according to phylogroups in the E. coli strains.
SerotypeGingivitis
(n = 12)
No. of Strains		Moderate Periodontitis
(n = 59)
No. of Strains		Chronic Periodontitis
(n = 29)
No. of Strains		p-ValueTotal
(n = 100)
AB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentifiedAB1B2CDEFCLADE IUnidentified
005000007251500920261260120017
O25:H4--1--------3-----3--3-----40.3614
O12:H---1-----3-1----1-5--------10.1912
O?:H-----------1---11-2--1-----20.328
O2:H39-----------3-----1--1-1----0.046
O48:H---------------1--2--1------0.144
O25:H18--------21-------------1---0.204
O6:H1--1--------2-----1---------0.424
O?:H?-----------------21--------0.303
O15:H18--------------2--------1---0.013
O?:H30--------1--------1---------12
O1:H------------------2---------12
O1:H7-----------------1-1-------0.372
O16:H5-----------1--------------112
O21:H10----------11---------------0.182
O48:H48--------11-----------------0.152
O58:H34--------------2------------0.062
O6:H?--------------------------212
O8:H20----------1------1---------0.372
OR:H------------------1--------112
O?:H21-----------1---------------0.51
O?:H5--------------------------111
O?:H55--------------------------111
O044037:H?--------------------------111
O1:H?--------------------------111
O112ac:H40----------1----------------0.131
O12:H9-----------------1---------11
O140:H?-----------1---------------0.51
O149:H39-----------1---------------0.51
O15:H10--------------1------------0.241
O154:H4-----------------1---------11
O185:H?--------------1------------0.241
O185:H16-------------------1-------0.131
O20:H?--------------------------111
O20:H34--1------------------------0.51
O23:H---------------------------111
O24:H---------------1------------0.241
O4:H18-----------------1---------11
O6:H31-----------1---------------0.51
O62:H30-----------------1---------11
OR:H39--1------------------------0.51
OR:H4-----------1---------------0.51
O?: could not be determined by serology; OR: rough phenotype, reaction to all antisera; H-: did not develop flagellum; H?: could not be determined by serology. Notes: Significant p-values (<0.05) were presented in bold.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hernández-Jaimes, T.; Monroy-Pérez, E.; Garzón, J.; Morales-Espinosa, R.; Navarro-Ocaña, A.; García-Cortés, L.R.; Nolasco-Alonso, N.; Gaytán-Núñez, F.K.; Moreno-Noguez, M.; Vaca-Paniagua, F.; et al. High Virulence and Multidrug Resistance of Escherichia coli Isolated in Periodontal Disease. Microorganisms 2023, 11, 45. https://doi.org/10.3390/microorganisms11010045

AMA Style

Hernández-Jaimes T, Monroy-Pérez E, Garzón J, Morales-Espinosa R, Navarro-Ocaña A, García-Cortés LR, Nolasco-Alonso N, Gaytán-Núñez FK, Moreno-Noguez M, Vaca-Paniagua F, et al. High Virulence and Multidrug Resistance of Escherichia coli Isolated in Periodontal Disease. Microorganisms. 2023; 11(1):45. https://doi.org/10.3390/microorganisms11010045

Chicago/Turabian Style

Hernández-Jaimes, Tania, Eric Monroy-Pérez, Javier Garzón, Rosario Morales-Espinosa, Armando Navarro-Ocaña, Luis Rey García-Cortés, Nancy Nolasco-Alonso, Fátima Korina Gaytán-Núñez, Moisés Moreno-Noguez, Felipe Vaca-Paniagua, and et al. 2023. "High Virulence and Multidrug Resistance of Escherichia coli Isolated in Periodontal Disease" Microorganisms 11, no. 1: 45. https://doi.org/10.3390/microorganisms11010045

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
