Phylogeny of Regulators of G-Protein Signaling Genes in Leptographium qinlingensis and Expression Levels of Three RGSs in Response to Different Terpenoids

by
Tian Gan
,
Huanli An
,
Ming Tang
and
Hui Chen
*
State Key Laboratory for Conservation and Utilization of Subtropical Agro-Bioresources, College of Forestry and Landscape Architecture, South China Agricultural University, Guangzhou 510642, China
*
Author to whom correspondence should be addressed.
Microorganisms 2022, 10(9), 1698; https://doi.org/10.3390/microorganisms10091698
Submission received: 20 July 2022 / Revised: 16 August 2022 / Accepted: 22 August 2022 / Published: 24 August 2022
(This article belongs to the Special Issue Plant-Microbe Interaction State-of-the-Art Research in China)
Browse Figures
Versions Notes

Abstract

:
Leptographium qinlingensis is a bark beetle-vectored pine pathogen in the Chinese white pine beetle (Dendroctonus armandi) epidemic in Northwest China. L. qinlingensis colonizes pines despite the trees’ massive oleoresin terpenoid defenses. Regulators of G-protein signaling (RGS) proteins modulate heterotrimeric G-protein signaling negatively and play multiple roles in the growth, asexual development, and pathogenicity of fungi. In this study, we have identified three L. qinlingensis RGS genes, and the phylogenetic analysis shows the highest homology with the regulators of G-protein signaling proteins sequence from Ophiostoma piceae and Grosmannia clavigera. The expression profiles of three RGSs in the mycelium of L. qinlingensis treated with six different terpenoids were detected, as well as their growth rates. Under six terpenoid treatments, the growth and reproduction in L. qinlingensis were significantly inhibited, and the growth inflection day was delayed from 8 days to 12–13 days. By analyzing the expression level of three RGS genes of L. qinlingensis with different treatments, results indicate that LqFlbA plays a crucial role in controlling fungal growth, and both LqRax1 and LqRgsA are involved in overcoming the host chemical resistances and successful colonization.

1. Introduction

Phytophagous insects with fungal pathogens that attack coniferous trees have drawn a lot of attention due to the enormous amount of damage they cause. The damage caused by these fungal pathogens has important implications for climate change through the obvious impact of tree mortality on forest carbon dynamics [1]. The ascomycete Leptographium qinlingensis (Lq) is a fungal pathogen of Chinese white pine trees (Pinus armandii) and is vectored by the Chinese white pine beetle (Dendroctonus armandi, CWPB) [2]. CWPB and Lq form an interactive biological complex that has caused a rapid, large-scale decline in the Chinese white pine (P. armandii) in the Qinling and Bashan Mountains of China [3,4,5]. L. qinlingensis can stain the sapwood blue when the CWPB-Lq complex is inoculated manually into healthy host trees; such discoloration reduces the commercial value of lumber [6,7,8]. Like all conifers, the pine hosts of the CWPB-Lq complex have complex oleoresin-based chemical defences that protect these trees against most potential pests and pathogens [9,10]. The highly specialized CWPB-Lq complex, which colonizes the monoterpene-rich environment of pine phloem and sapwood, requires mechanisms to overcome the host defence chemicals [11,12].
The heterotrimeric G-protein (G-protein) signaling pathway is one of the most important signaling pathways that transmits external signals into the inside of the cell [13]. G-proteins are composed of α (Gα), β (Gβ), and γ (Gγ) subunits. The β and γ subunits are tightly associated and can be regarded as one functional unit [14,15]. In the presence of a ligand, G-protein-coupled receptors (GPCRs) activate the G-proteins through the exchange of GDP for GTP on the Gα subunit, resulting in the dissociation of the Gα and Gβγ complex [16,17]. Both Gα and Gβγ subunits signal to various cellular pathways [14]. Upon GTP hydrolysis to GDP by the intrinsic GTPase activity of the Gα subunit, the G-protein subunits reassociate, and signaling is terminated [18,19]. In addition, regulators of G-protein signaling (RGS) proteins are a group of proteins containing a conserved RGS domain of about 120 amino acids, which specifically interacts with the GTP-bound Gα subunit, accelerates its intrinsic GTPase activity, and thus negatively regulates G-protein signaling [19,20].
In filamentous fungi, four RGS proteins (Sst2, Rgs2, Rax1, and Mdm1) were first found in Saccharomyces cerevisiae [21,22]. In the genome of the model filamentous fungus Aspergillus nidulans, five genes (FlbA, RgsA, RgsB, RgsC, and GprK) that encode RGS proteins were identified. The functions of these A. nidulans RGS genes in controlling hyphal proliferation, asexual spore formation, sexual fruiting, and the mycotoxin sterigmatocystin production have been discovered [23,24,25]. Aspergillus flavus contains six RGS domain-containing proteins (RgsA, RgsB, RgsC, RgsD, RgsE, and FlbA) and has been established as having important roles in pathogenicity [26]. Likewise, the functions of six RGSs (FlbA, GprK, RgsA, Rax1, RgsC, and RgsD) from Aspergillus fumigatus in the regulation of fungal growth, asexual development, germination, stress tolerance, and virulence have been identified [17,27,28,29,30]. These studies demonstrate that RGSs of filamentous fungi are involved in multiple important biological processes. However, the role of RGSs in overcoming host resistance and successful colonization during phytopathogenic fungi invasion of host trees remains unclear.
In this report, we identify three RGS genes from L. qinlingensis and compare their homology with other fungal RGSs. Based on the results of this experiment, three concentrations (5%, 10%, and 20%) of (±)-α-pinene, (−)-β-pinene, (+)-3-carene, (+)-limonene, turpentine, and mix-monoterpene are used to amend artificial media to determine their effects on the growth and reproduction (measured as colony area) of L. qinlingensis. In addition, the expression of three LqRGS genes under different terpenoid treatments confirms the role of RGS genes in L. qinlingensis overcoming the resistance of host trees.

2. Materials and Methods

2.1. Strain

Leptographium qinlingensis (NCBI Taxonomy ID: 717,526) was isolated from P. armandii sapwood phloem that had been attacked by the D. armandi in the Qinling Mountains and deposited at the College of Forestry and Landscape Architecture, South China Agricultural University (Guangzhou, China).

2.2. Fungal Media and Growth Condition

L. qinlingensis was cultured on potato dextrose agar (PDA) media in the dark for 7 days at 28 °C for induction. A disk (1 cm diameter) was cut using a cork borer from the actively growing margin of the source of fungus and transferred to the center of MEA medium containing 1% Oxoid malt extract agar and 1.5% technical agar overlaid with cellophane, and the pH was adjusted to 5.5 for subsequent experiments.

2.3. Terpenoid Treatments

Experimental group: Monoterpenes (±)-α-pinene((+)-α-pinene:(−)-α-pinene = 1:1), (−)-β-pinene, (+)-3-carene, (+)-limonene, turpentine, mix-monoterpene ((+)-limonene: (+)-3-carene: (±)-α-pinene: (−)-β-pinene = 5:3:1:1) were diluted with DMSO to three concentrations of 5%, 10% and 20% [31,32,33]. The main steps of terpenoid treatment are shown in Supplementary Figure S1. According to the purity of the terpenoid reagent, the volume (V1) of DMSO to be added to each 100 mL stock solution when preparing a 20% concentration terpenoid dilution was calculated (Table 1). Add 100 mL of terpenoid stock solution and V1 volume of DMSO to the burette, and after mixing, it is a 20% concentration of terpenoid dilution (solution A). Take 100 mL of solution A into a new burette, add 100 mL of DMSO, and mix to obtain a 10% concentration of terpenoid dilution (solution B). Take 100 mL of solution B into a new burette, add 100 mL of DMSO, and mix to obtain a 5% terpenoid dilution (solution C). Pipette 200 mL of each concentration test chemical onto the centre of each MEA medium overlaid with cellophane and gently swirl over the agar surface before inoculation.
Control group: 200 mL DMSO was added to the MEA medium overlaid with cellophane.
A 1 cm diameter L. qinlingensis mycelial plug was inserted into the center of the above medium, incubated at 28 °C in the dark, and the growth (colony area measured by its diameter in cm) was measured every 3 days in four directions and averaged until the strain brought the fungus to the edge of the plate [32,34]. For the eight different media, the growth condition was obtained by calculating the area of the colony. Each treatment was repeated five times.

2.4. RNA Isolation and cDNA Synthesis

Total RNA was isolated from L. qinlingensis by the UNIQ-10 Column Trizol Total RNA Isolation Kit (Sangon Biotech, Shanghai, China) following the manufacturer’s protocol. Its integrity was checked on 1% agarose gels and quantified using NANO DROP 2000 spectrophotometry (Thermo Scientific, Pittsburgh, PA, USA). The purity was calculated by the mean of relation A260/A280 ratio (μg/mL = A260 × dilution factor × 40). The synthesized cDNA obtained from the sample was used as the template using the HisScript®III 1st Strand cDNA Synthesis Kit (+gDNA wiper) (Vazyme Biotech, Nanjing, China).

2.5. Gene Amplification and Cloning

The cDNA synthesized from the sample was used as a template for the PCR reaction. Degenerate primers (Table 2) were designed in Primer Premier 5.0, based on the regulator of G-protein signaling (RGS) protein sequences of Grosmannia clavigera and Ophiostoma piceae from NCBI (http://www.ncbi.nlm.nih.gov/, accessed on 18 July 2022). PCR amplifications were performed in a C1000 Touch Thermal Cycler (Bio-Rad, Hercules, CA, USA), and the cDNA amplification was performed in a 50 μL reaction volume: 5 μL cDNA, 10 μM each primer, 25 μL Green Taq Mix (Vazyme Biotech, Nanjing, China), with ddH2O added to 50 μL. The reaction conditions were as follows: 95 °C for 5 min, 30 cycles of 95 °C for 30 s, TM of each pair of primers for 30 s and 72 °C for 1 min, with a final extension for 10 min at 72 °C. The PCR products were visualized on 1% agarose gels stained with Ultra GelRed (10,000×) (Vazyme Biotech, Nanjing, China) and compared with a DL2000 Plus DNA Marker (Vazyme Biotech, Nanjing, China).
Single-stranded 5’ and 3’ RACE-ready cDNA was synthesized from RNA using a SMARTer™ RACE cDNA Amplification Kit (Clontech Laboratories Inc., Mountain, CA, USA) according to the manufacturer’s protocol. Partial sequences were used in the primer design (Table 2), and the PCR was performed as described in the SMARTer™ RACE cDNA Amplification Kit (Clontech Laboratories Inc., Mountain, CA, USA). The amplicons were purified, cloned, and sequenced. Sequences were manually edited with DNAMAN 6.0 software (Lynnon BioSoft, Vaudreuil, Quebec, Canada) to obtain inserts sequences, which were then BLASTed against the NCBI database.

2.6. Analysis of Full-Length cDNA Sequences

Full-length cDNA sequences were assembled in DNAMAN 6.0, using sequence fragments and RACE results. To avoid chimera sequences, specific primers (Table 2) from initiation to terminator codon were designed based on complete sequences. Open reading frames (ORFs) of full-length cDNA were obtained via ORF Finder (https://www.ncbi.nlm.nih.gov/orffinder/, accessed on 18 July 2022), and cDNA was then translated to amino acid sequences using the ExPASy Translate Tool (http://www.expasy.org/tools/dna.html, accessed on 18 July 2022), and colored in DNAMAN 6.0. Molecular mass (kDa) and isoelectric points were determined in the ProtParam tool. RGSs of L. qinlingensis were checked for likely subcellular localization using Target P 2.0 software (http://www.cbs.dtu.dk/services/TargetP/, accessed on 18 July 2022) with the default parameters. RGSs of L. qinlingensis homologs were identified with the NCBI-BlastP network server (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 18 July 2022). Amino acid identity was analyzed through the construction of a homology tree in DNAMAN6.0. A neighbor-joining phylogenetic tree was built in MEGA-X, employing ClustalW with default parameters, p-distance model, pairwise gap deletion, and 1000 bootstrap replicates. The putative N-terminal signal peptide was predicted in SignalP 5.0 Server (https://services.healthtech.dtu.dk/service.php?SignalP-5.0, accessed on 18 July 2022).

2.7. Effects of Terpenoids on Expression Levels of three L. qinlingensis RGSs (Real Time-qPCR)

In the Ultra-clean workbench, the mycelium cultured for 15 days on the solid medium was gently scraped with tweezers into the RNase-free microfuge tubes (1.5 mL) and stored at −80 °C until use. RNA isolation and cDNA synthesis followed previous descriptions (“RNA Isolation and cDNA Synthesis”). Five repetitions per treatment were prepared.
The CFX96TM Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA) was used for qRT-PCR, with L. qinlingensis EF1 (accession number: AHZ56579.1) as the reference gene. Specific qRT-PCR primers were designed in PRIMER 3Plus (https://www.primer3plus.com/, accessed on 18 July 2022), based on nucleotide sequences (Table 2), and their amplification efficiencies were calculated using relative standard curves with a five-fold cDNA dilution series; the efficiency values for the primers were 100 ± 5%. The sizes of the amplicons were 128 bp (EF1), 135 bp (FlbA), 127 bp (Rax1), and 136 bp (RgsA). Amplicons were confirmed as the correct size after the qRT-PCR assay via gel electrophoresis and were then sequenced by a biotechnology company (TSINGKE Biotechnology, Beijing, China) to make sure the correct amplification products were obtained.
The reaction mixture (20 µL) contained 10 µL of ChamQ Universal SYBR qPCR Master Mix (Vazyme Biotech, Nanjing, China), 2 µL of cDNA (diluted 4 times), 0.4 µL of each primer, and 7.2 µL of nuclease-free water. Template-free negative controls were included in every reaction. Thermocycling conditions were as follows: 95 °C for 2 min, followed by 39 cycles of 95 °C for 10 s, and 60 °C for 30 s, melting curve analysis at 95 °C for 5 s, 65 °C for 5 s. At the end of each reaction, a melting curve analysis was performed to detect single gene-specific peaks and check for primer dimers. Three biological and three technical replicates were included to ensure reproducibility.

2.8. Statistical Analysis

Relative expression values of L. qinlingensis RGSs were determined using the Ct (ΔΔCt) method (Livak and Schmittgen 2008) and analyzed with Excel 2019 (Microsoft Office). To evaluate significant differences in the expression for L. qinlingensis RGSs, 2−ΔΔCt values transformed at log2 were subjected to a one-way analysis of variance (ANOVA) and Tukey’s honest significant difference test (HSD) to determine whether the gene expression differed among the treatments. The 2−ΔΔCt values and standard error (SE) were transformed at log2 to generate graphs. All of the statistical analyses were performed with SPSS 22.0 (IBM SPSS Statistics, Chicago, IL, USA) and plotted with OriginPro 2021 software (OriginLab, Northampton, MA, USA).

3. Results

3.1. Identification of L. qinlingensis RGS Genes

In L. qinlingensis, three regulators of G-protein signaling (RGS) genes were identified, all of which possess the conserved RGS domain and were termed LqFlbA, LqRax1, and LqRgsA. The full-length sequence of RGSs in L. qinlingensis showed a relatively high amino acid identity to the sequences predicted from the genomes of the bark beetle-associated fungi O. piceae UAMH 11346 and G. clavigera kw1407, respectively, LqFlbA (87.98% and 77.18%), LqRax1 (92.35% and 83.74%), LqRgsA (79.38% and 65.87%). RGSs in L. qinlingensis also shared a strong identity with other RGSs genes from the genus Sporothrix (S. brasiliensis, S. insectorum, and S. schenckii) (Table 3).
Phylogenetic analysis revealed that these three L. qinlingensis RGSs amino acid sequences had the highest identity to O. piceae UAMH 11346 according to a neighbor-joining method analysis of the putative full-length amino acid sequences (Figure 1).

3.2. Physicochemical Properties and Bioinformation Analysis

The full-length open reading frames (ORFs) of RGSs in L. qinlingensis were 2349 bp (LqFlbA), 1101 bp (LqRax1), and 1296 bp (LqRgsA) encoding 782 (LqFlbA), 366 (LqRax1), and 431 (LqRgsA) amino acids. The predicted molecular masses were 85.09 kDa (LqFlbA), 41.23 (LqRax1), and 48.46 kDa (LqRgsA). The lowest isoelectric point of RGSs was 5.91 (LqRax1), and the isoelectric point of LqFlbA and LqRgsA were 9.04 and 9.60, respectively. The predicted subcellular location of LqFlbA and LqRax1 by the Target P1.1 program suggests a cytoplasmic location, but LqRgsA suggests a nuclear location (Table 4).
The deduced amino acid sequences and domain structures of RGSs in L. qinlingensis were analyzed (Figure 2 and Figure S2). LqFlbA contains a C-terminal RGS domain and two DEP domains at the N-terminus (Figure 2A), which is the same as the Sst2 in S. cerevisiae [35]. LqRax1 contains an N-terminal RGS domain and three DEP domains transmembrane domains at the C-terminus (Figure 2B), which is the same as the Rax1 in S. cerevisiae [36]. The structure of LqRgsA is similar to that of LqRax1 (Figure 2C).

3.3. Effect of Terpenoids on L. qinlingensis Growth and Reproduction

Compared with the control group (DMSO), the terpenoids showed different degrees of L. qinlingensis growth inhibition (Figure 3). At 5% concentration, (+)-limonene, (±)-α-pinene, and (−)-β-pinene had stronger inhibitory effects on mycelial growth than mix-monoterpene, (+)-3-carene, and turpentine (Figure 3A). At 10% concentration, (±)-α-pinene, (+)-limonene, and turpentine had stronger inhibitory effects on mycelial growth than (−)-β-pinene, (+)-3-carene, and mix-monoterpene (Figure 3B). At 20% concentration, (+)-limonene, mix-monoterpene, and (−)-β-pinene had stronger inhibitory effects on mycelial growth than (±)-α-pinene, (+)-3-carene, and turpentine (Figure 3C). In addition, the addition of DMSO alone also inhibited the growth in L. qinlingensis when compared to the MEA medium (Figure 3).
The logistic curve fits the growth curve of L. qinlingensis in different terpenoid treatments (R2 > 0.97). According to the logistic curve fitting of the growth curve, the growth inflection day of L. qinlingensis growth on MEA media occurred after approximately 9 days and the growth inflection day on different terpenoid treatments occurred after approximately 12–13 days (Table 5). However, the growth inflection day occurred after over 15 days for the medium with 5% concentration (+)-limonene treatment (Table 5).

3.4. Effect of Terpenoids on Expression Level of LqRGS

To determine whether the three L. qinlingensis RGSs are involved in overcoming host chemoresistance, we analyzed the expression profiles of RGSs from mycelia grown on MEA medium treated with six terpenoids ((+)-3-carene, (±)-α-pinene, (−)-β-pinene, (+)-limonene, mix-monoterpene, and turpentine) at three concentrations. The transcription levels in most RGSs were significantly changed after exposure to the terpenoids (Table 6).
For LqFlbA, significant downregulation was found only after treatment with (−)-β-pinene and (+)-limonene at the 5% and 10% concentrations (Figure 4A). The transcription level in LqRax1 was significantly overexpressed after treatment with (±)-α-pinene and turpentine but downregulated after treatment with mix-monoterpene at 10% (Figure 4B). The expression in LqRgsA was significantly downregulated after treatment with (+)-3-carene at all concentrations; however, treatment with the other five terpenoids caused overexpression at 5% but downregulation at 10% and 20% for LqRgsA (Figure 4C).

4. Discussion

As the primary upstream components of the G-protein signaling pathway, regulators of G-protein signaling (RGSs) are the key negative regulators of the G-proteins to control the activities of GTPase in Gα subunits [17,26,37]. It has been known that RGSs are highly conserved in most filamentous fungi and play diverse roles in the growth, reproduction, and pathogenicity of fungi [38,39]. In this study, three RGS genes in the bark beetle-associated fungi L. qinlingensis were identified, all of which possess the conserved RGS domain, and were termed FlbA, Rax1, and RgsA, respectively.
The FlbA gene from L. qinlingensis, homologous to Sst2 from S. cerevisiae and FlbA from the model filamentous fungus A. nidulans, has the same domains including one RGS and two DEP [24,40]. The DEP domain is responsible for specific GPCRs recognition and targets RGS proteins to the Golgi and plasma membranes [35,41]. In this study, both mycelial growth and FlbA expression of L. qinlingensis were inhibited after exposure to the terpenoids (Figure 4A), which is consistent with studies on the positive regulation of asexual development by FlbA in other fungi such as A. nidulans and A. flavus [26,42].
As a fungal-specific RGS protein, Rax1 has no mammalian counterparts [24]. The Rax1 from L. qinlingensis—which contains one RGS domain and three putative transmembrane domains at the C-terminus—is similar to the Rax1 protein in S. cerevisiae [43], which plays a key role in yeast bipolar budding reproduction [36,44,45]. In the opportunistic human pathogenic fungus A. fumigatus, Rax1 has been reported to play a positive controlling role in the growth, development, and oxidative stress response [46], as well as helping to regulate the normal growth in fungi under ER stress conditions [47]. The transcription level in LqRax1 was significantly overexpressed after treatment with (±)-α-pinene and turpentine but was downregulated after treatment with mix-monoterpene at 10% (Figure 4B). The differences in the functional expression in Rax1 between plant pathogenic fungi and mammalian pathogenic fungi require further comparative study.
Except for the isoelectric point, the properties and functional domains of LqRgsA are similar to that of LqRax1. The bark beetle-associated fungi O. piceae UAMH 11346 and G. clavigera kw1407 also contain two RGS genes of similar size and structure [33,48], which belong to different groups in the phylogenetic tree (Figure 1). LqRgsA was expressed more significantly than LqRax1 in response to terpenoid stress. The expression in LqRgsA was upregulated at low concentrations (5%) and downregulated at high concentrations (10% and 20%) in almost all terpenoid treatments except that (+)-3-carene caused downregulation at all concentrations (Figure 4C). LqRgsA might contribute to the fungus’ ability to overcome host defense chemicals and survive in an unfavorable environment at the beginning of the invasion of the insect-fungal complex in the host trees [8].
The beetle-fungi complex requires mechanisms to overcome host defences when colonizing healthy host trees [8,48]. Beetle-symbiotic fungi can not only help metabolize phenolics and terpenoids [49,50], but also provide nutritional support for bark beetles [34,51]. In this study, the growth rate in L. qinlingensis was slowed down after exposure to terpenoids, and the logistic curve showed that its growth inflection point was delayed by 4–5 days, which is consistent with the results of previous studies [31,32].
Overall, our results demonstrate that there are three RGS genes in L. qinlingensis, containing conserved RGS domains. The physicochemical properties and phylogenetic analysis showed that the three RGS genes in L. qinlingensis had high homology with the RGS genes in the beetle-symbiotic fungi O. piceae and G. clavigera. To explore the role of RGS genes in beetle-fungal complexes against host resistance, we diluted six terpenoids into three concentrations to treat L. qinlingensis separately. By monitoring the growth rate in hyphae exposed to host-volatile terpenoids and measuring the expression in three LqRGS genes, it was shown that LqRGS genes play an important role in both growth and overcoming host resistance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms10091698/s1, Figure S1. The main steps of terpenoid treatment. Figure S2. Domain structure analysis of three putative RGS proteins in L. qinlingensis.

Author Contributions

T.G., M.T. and H.C. conceived and designed the experiment; T.G. and H.A. performed the experiments; T.G. performed data analyses; T.G. wrote the original draft; H.C. reviewed and edited the document. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 31870636.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within this article.

Acknowledgments

We acknowledge support with respect to the collection of Leptographium qinlingensis from Huangguan Forest Farm of Ningxi Forestry Bureau, Shaanxi, China.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kurz, W.A.; Dymond, C.C.; Stinson, G.; Rampley, G.J.; Neilson, E.T.; Carroll, A.L.; Ebata, T.; Safranyik, L. Mountain pine beetle and forest carbon feedback to climate change. Nature 2008, 452, 987–990. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, X.; Yu, J.; Wang, C.; Chen, H. Cellulolytic bacteria associated with the gut of Dendroctonus armandi larvae (Coleoptera: Curculionidae: Scolytinae). Forests 2014, 5, 455–465. [Google Scholar] [CrossRef]
  3. Chen, H.; Tang, M. Spatial and temporal dynamics of bark beetles in Chinese white pine in Qinling Mountains of Shaanxi province, China. Environ. Entomol. 2014, 36, 1124–1130. [Google Scholar] [CrossRef]
  4. Chen, H.; Tang, M.; Zhu, C.; Hu, J. The enzymes in the secretions of Dendroctonus armandi (Scolytidae) and their symbiotic fungus of Leptographium qinlingensis. Sci. Silvae Sin. 2004, 40, 123–126. (In Chinese) [Google Scholar]
  5. Tang, M.; Chen, H. Effect of symbiotic fungi of Dendroctonus armandi on host trees. Sci. Silvae Sin. 1999, 35, 63–66. (In Chinese) [Google Scholar]
  6. Hofstetter, R.W.; Dinkins-Bookwalter, J.; Davis, T.S.; Klepzig, K.D. Symbiotic Associations of Bark Beetles. In Bark Beetles; Vega, F.E., Hofstetter, R.W., Eds.; Elsevier: San Diego, CA, USA, 2015; pp. 209–245. [Google Scholar] [CrossRef]
  7. Lehenberger, M.; Benkert, M.; Biedermann, P.H. Ethanol-enriched substrate facilitates ambrosia beetle fungi, but inhibits their pathogens and fungal symbionts of bark beetles. Front. Microbiol. 2021, 11, 3487. [Google Scholar] [CrossRef]
  8. Wang, Y.; Lim, L.; DiGuistini, S.; Robertson, G.; Bohlmann, J.; Breuil, C. A specialized ABC efflux transporter GcABC-G1 confers monoterpene resistance to Grosmannia clavigera, a bark beetle-associated fungal pathogen of pine trees. New Phytol. 2013, 197, 886–898. [Google Scholar] [CrossRef]
  9. Erbilgin, N.; Cale, J.A.; Lusebrink, I.; Najar, A.; Klutsch, J.G.; Sherwood, P.; Bonello, P.; Evenden, M.L. Water-deficit and fungal infection can differentially affect the production of different classes of defense compounds in two host pines of mountain pine beetle. Tree Physiol. 2017, 37, 338–350. [Google Scholar] [CrossRef] [Green Version]
  10. Raffa, K.F.; Aukema, B.H.; Erbilgin, N.; Klepzig, K.D.; Wallin, K.F. Interactions among conifer terpenoids and bark beetles across multiple levels of scale: An attempt to understand links between population patterns and physiological processes. Recent Adv. Phytochem. 2005, 39, 79–118. [Google Scholar] [CrossRef]
  11. Dai, L.; Li, Z.; Yu, J.; Ma, M.; Zhang, R.; Chen, H.; Pham, T. The CYP51F1 gene of Leptographium qinlingensis: Sequence characteristic, phylogeny and transcript levels. Int. J. Mol. Sci. 2015, 16, 12014–12034. [Google Scholar] [CrossRef] [Green Version]
  12. Lah, L.; Haridas, S.; Bohlmann, J.; Breuil, C. Biology The cytochromes P450 of Grosmannia clavigera: Genome organization, phylogeny, and expression in response to pine host chemicals. Fungal Genet. Biol. 2013, 50, 72–81. [Google Scholar] [CrossRef] [PubMed]
  13. Neves, S.R.; Ram, P.T.; Iyengar, R. G protein pathways. Science 2002, 296, 1636–1639. [Google Scholar] [CrossRef] [PubMed]
  14. Syrovatkina, V.; Alegre, K.O.; Dey, R.; Huang, X.-Y. Regulation, signaling, and physiological functions of G-proteins. J. Mol. Biol. 2016, 428, 3850–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Worzfeld, T.; Wettschureck, N.; Offermanns, S. G(12)/G(13)-mediated signalling in mammalian physiology and disease. Trends Pharmacol. Sci. 2008, 29, 582–589. [Google Scholar] [CrossRef] [PubMed]
  16. Hill, C.; Goddard, A.; Davey, J.; Ladds, G. Investigating RGS proteins in yeast. Semin. Cell Dev. Biol. 2006, 17, 352–362. [Google Scholar] [CrossRef]
  17. Park, H.-S.; Kim, M.-J.; Yu, J.-H.; Shin, K.-S. Heterotrimeric G-protein signalers and RGSs in Aspergillus fumigatus. Pathogens 2020, 9, 902. [Google Scholar] [CrossRef]
  18. Kimple, A.J.; Bosch, D.E.; Giguère, P.M.; Siderovski, D.P. Regulators of G-protein signaling and their Gα substrates: Promises and challenges in their use as drug discovery targets. Pharmacol. Rev. 2011, 63, 728–749. [Google Scholar] [CrossRef] [Green Version]
  19. Moretti, M.; Wang, L.; Grognet, P.; Lanver, D.; Link, H.; Kahmann, R. Three regulators of G protein signaling differentially affect mating, morphology and virulence in the smut fungus Ustilago maydis. Mol. Microbiol. 2017, 105, 901–921. [Google Scholar] [CrossRef] [Green Version]
  20. McCudden, C.; Hains, M.; Kimple, R.; Siderovski, D.; Willard, F. G-protein signaling: Back to the future. Cell. Mol. Life Sci. 2005, 62, 551–577. [Google Scholar] [CrossRef] [Green Version]
  21. Chasse, S.A.; Flanary, P.; Parnell, S.C.; Hao, N.; Cha, J.Y.; Siderovski, D.P.; Dohlman, H.G. Genome-Scale analysis reveals Sst2 as the principal regulator of mating pheromone signaling in the yeast Saccharomyces cerevisiae. Eukaryot. Cell 2006, 5, 330–346. [Google Scholar] [CrossRef] [Green Version]
  22. Versele, M.; de Winde, J.H.; Thevelein, J.M. A novel regulator of G protein signalling in yeast, Rgs2, downregulates glucose-activation of the cAMP pathway through direct inhibition of Gpa2. EMBO J. 1999, 18, 5577–5591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Han, K.-H.; Seo, J.-A.; Yu, J.-H. Regulators of G-protein signalling in Aspergillus nidulans: RgsA downregulates stress response and stimulates asexual sporulation through attenuation of GanB (Gα) signalling. Mol. Microbiol. 2004, 53, 529–540. [Google Scholar] [CrossRef] [PubMed]
  24. Yu, J.H. Heterotrimeric G protein signaling and RGSs in Aspergillus nidulans. J. Microbiol. 2006, 44, 145–154. Available online: https://pubmed.ncbi.nlm.nih.gov/16728950 (accessed on 18 August 2022).
  25. Yu, J.H.; Wieser, J.; Adams, T. The Aspergillus FlbA RGS domain protein antagonizes G protein signaling to block proliferation and allow development. EMBO J. 1996, 15, 5184–5190. [Google Scholar] [CrossRef] [PubMed]
  26. Xie, R.; Yang, K.; Tumukunde, E.; Guo, Z.; Zhang, B.; Liu, Y.; Zhuang, Z.; Yuan, J.; Wang, S.; Buan, N.R. Regulator of G protein signaling contributes to the development and aflatoxin biosynthesis in Aspergillus flavus through the regulation of Gα activity. Appl. Environ. Microbiol. 2022, 88, e00244-22. [Google Scholar] [CrossRef]
  27. De Vries, R.P.; Riley, R.; Wiebenga, A.; Aguilar-Osorio, G.; Amillis, S.; Uchima, C.A.; Anderluh, G.; Asadollahi, M.; Askin, M.; Barry, K. Comparative genomics reveals high biological diversity and specific adaptations in the industrially and medically important fungal genus Aspergillus. Genome Biol. 2017, 18, 28–72. [Google Scholar] [CrossRef] [Green Version]
  28. Jung, M.G.; Kim, S.S.; Yu, J.H.; Shin, K.-S. Characterization of gprK encoding a putative hybrid G-protein-coupled receptor in Aspergillus fumigatus. PLoS ONE 2016, 11, e0161312. [Google Scholar] [CrossRef]
  29. Kim, Y.; Lee, M.-W.; Jun, S.-C.; Choi, Y.-H.; Yu, J.-H.; Shin, K.-S. RgsD negatively controls development, toxigenesis, stress response, and virulence in Aspergillus fumigatus. Sci. Rep. 2019, 9, 811–825. [Google Scholar] [CrossRef]
  30. Mah, J.H.; Yu, J.H. Upstream and downstream regulation of asexual development in Aspergillus fumigatus. Eukaryot. Cell 2006, 5, 1585–1595. [Google Scholar] [CrossRef] [Green Version]
  31. An, H.; Gan, T.; Tang, M.; Chen, H. Molecular mechanism of overcoming host resistance by the target of rapamycin gene in Leptographium qinlingensis. Microorganisms 2022, 10, 503. [Google Scholar] [CrossRef]
  32. Dai, L.; Zheng, J.; Ye, J.; Chen, H. Phylogeny of Leptographium qinlingensis cytochrome P450 genes and transcription levels of six CYPs in response to different nutrition media or terpenoids. Arch. Microbiol. 2021, 204, 16. [Google Scholar] [CrossRef] [PubMed]
  33. Di Guistini, S.; Wang, Y.; Liao, N.Y.; Taylor, G.; Tanguay, P.; Feau, N.; Henrissat, B.; Chan, S.K.; Hesse-Orce, U.; Alamouti, S.M.; et al. Genome and transcriptome analyses of the mountain pine beetle-fungal symbiont Grosmannia clavigera, a lodgepole pine pathogen. Proc. Natl. Acad. Sci. USA 2011, 108, 2504–2509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Dai, L.; Li, H.; Zheng, J.; Chen, H. Transcriptome analyses of the Chinese white pine beetle-fungal symbiont Leptographium qinlingensis under terpene stress or growth on host pine sawdust. Symbiosis 2022, 86, 17–31. [Google Scholar] [CrossRef]
  35. Ballon, D.R.; Flanary, P.L.; Gladue, D.P.; Konopka, J.B.; Dohlman, H.G.; Thorner, J. DEP-domain-mediated regulation of GPCR signaling responses. Cell 2006, 126, 1079–1093. [Google Scholar] [CrossRef] [Green Version]
  36. Fujita, A.; Lord, M.; Hiroko, T.; Hiroko, F.; Chen, T.; Oka, C.; Misumi, Y.; Chant, J. Rax1, a protein required for the establishment of the bipolar budding pattern in yeast. Gene 2004, 327, 161–169. [Google Scholar] [CrossRef]
  37. Zhang, H.; Tang, W.; Liu, K.; Huang, Q.; Zhang, X.; Yan, X.; Chen, Y.; Wang, J.; Qi, Z.; Wang, Z. Eight RGS and RGS-like proteins orchestrate growth, differentiation, and pathogenicity of Magnaporthe oryzae. PLoS Pathog. 2011, 7, e1002450. [Google Scholar] [CrossRef] [Green Version]
  38. Li, L.; Wright, S.J.; Krystofova, S.; Park, G.; Borkovich, K.A. Heterotrimeric G protein signaling in filamentous fungi. Annu. Rev. Microbiol. 2007, 61, 423–452. [Google Scholar] [CrossRef]
  39. Ma, N.; Zhao, Y.; Wang, Y.; Yang, L.; Li, D.; Yang, J.; Jiang, K.; Zhang, K.-Q.; Yang, J. Functional analysis of seven regulators of G protein signaling (RGSs) in the nematode-trapping fungus Arthrobotrys oligospora. Virulence 2021, 12, 1825–1840. [Google Scholar] [CrossRef]
  40. Dohlman, H.G.; Song, J.; Ma, D.; Courchesne, W.E.; Thorner, J. Sst2, a negative regulator of pheromone signaling in the yeast Saccharomyces cerevisiae: Expression, localization, and genetic interaction and physical association with Gpa1 (the G-protein alpha subunit). Mol. Cell. Biol. 1996, 16, 5194–5209. [Google Scholar] [CrossRef] [Green Version]
  41. Burchett, S.A. Regulators of G protein signaling: A bestiary of modular protein binding domains. J. Neurochem. 2000, 75, 1335–1351. [Google Scholar] [CrossRef]
  42. Yu, J.H.; Keller, N. Regulation of secondary metabolism in filamentous fungi. Annu. Rev. Phytopathol. 2005, 43, 437–458. [Google Scholar] [CrossRef] [PubMed]
  43. Lafuente, M.J.; Gancedo, C. Disruption and basic functional analysis of six novel ORFs of chromosome XV from Saccharomyces cerevisiae. Yeast 1999, 15, 935–943. Available online: https://pubmed.ncbi.nlm.nih.gov/10407273 (accessed on 18 August 2022). [CrossRef]
  44. Kang, P.J.; Angerman, E.; Nakashima, K.; Pringle, J.R.; Park, H.O. Interactions among Rax1p, Rax2p, Bud8p, and Bud9p in marking cortical sites for bipolar bud-site selection in yeast. Mol. Biol. Cell 2004, 15, 5145–5157. [Google Scholar] [CrossRef] [PubMed]
  45. Ni, L.; Snyder, M. A genomic study of the bipolar bud site selection pattern in Saccharomyces cerevisiae. Mol. Biol. Cell 2001, 12, 2147–2170. [Google Scholar] [CrossRef] [Green Version]
  46. Igbalajobi, O.A.; Yu, J.H.; Shin, K.S. Characterization of the rax1 gene encoding a putative regulator of G protein signaling in Aspergillus fumigatus. Biochem. Biophys. Res. Commun. 2017, 487, 426–432. [Google Scholar] [CrossRef]
  47. Choi, Y.H.; Lee, M.W.; Igbalajobi, O.A.; Yu, J.H.; Shin, K.S. Transcriptomic and functional studies of the RGS protein Rax1 in Aspergillus fumigatus. Pathogens 2020, 9, 36. [Google Scholar] [CrossRef] [Green Version]
  48. Haridas, S.; Wang, Y.; Lim, L.; Massoumi Alamouti, S.; Jackman, S.; Docking, R.; Robertson, G.; Birol, I.; Bohlmann, J.; Breuil, C. The genome and transcriptome of the pine saprophyte Ophiostoma piceae, and a comparison with the bark beetle-associated pine pathogen Grosmannia clavigera. BMC Genom. 2013, 14, 373. [Google Scholar] [CrossRef] [Green Version]
  49. Cheng, C.; Xu, L.; Xu, D.; Lou, Q.; Lu, M.; Sun, J. Does cryptic microbiota mitigate pine resistance to an invasive beetle-fungus complex? Implications for invasion potential. Sci. Rep. 2016, 6, 33110. [Google Scholar] [CrossRef] [Green Version]
  50. Howe, M.; Keefover-Ring, K.; Raffa, K.F. Pine engravers carry bacterial communities whose members reduce concentrations of host monoterpenes with variable degrees of redundancy, specificity, and capability. Environ. Entomol. 2018, 47, 638–645. [Google Scholar] [CrossRef]
  51. Briones-Roblero, C.I.; Rodríguez-Díaz, R.; Santiago-Cruz, J.A.; Zúñiga, G.; Rivera-Orduña, F.N. Degradation capacities of bacteria and yeasts isolated from the gut of Dendroctonus rhizophagus (Curculionidae: Scolytinae). Folia Microbiol. 2017, 62, 1–9. [Google Scholar] [CrossRef]
Microorganisms 10 01698 g001 550

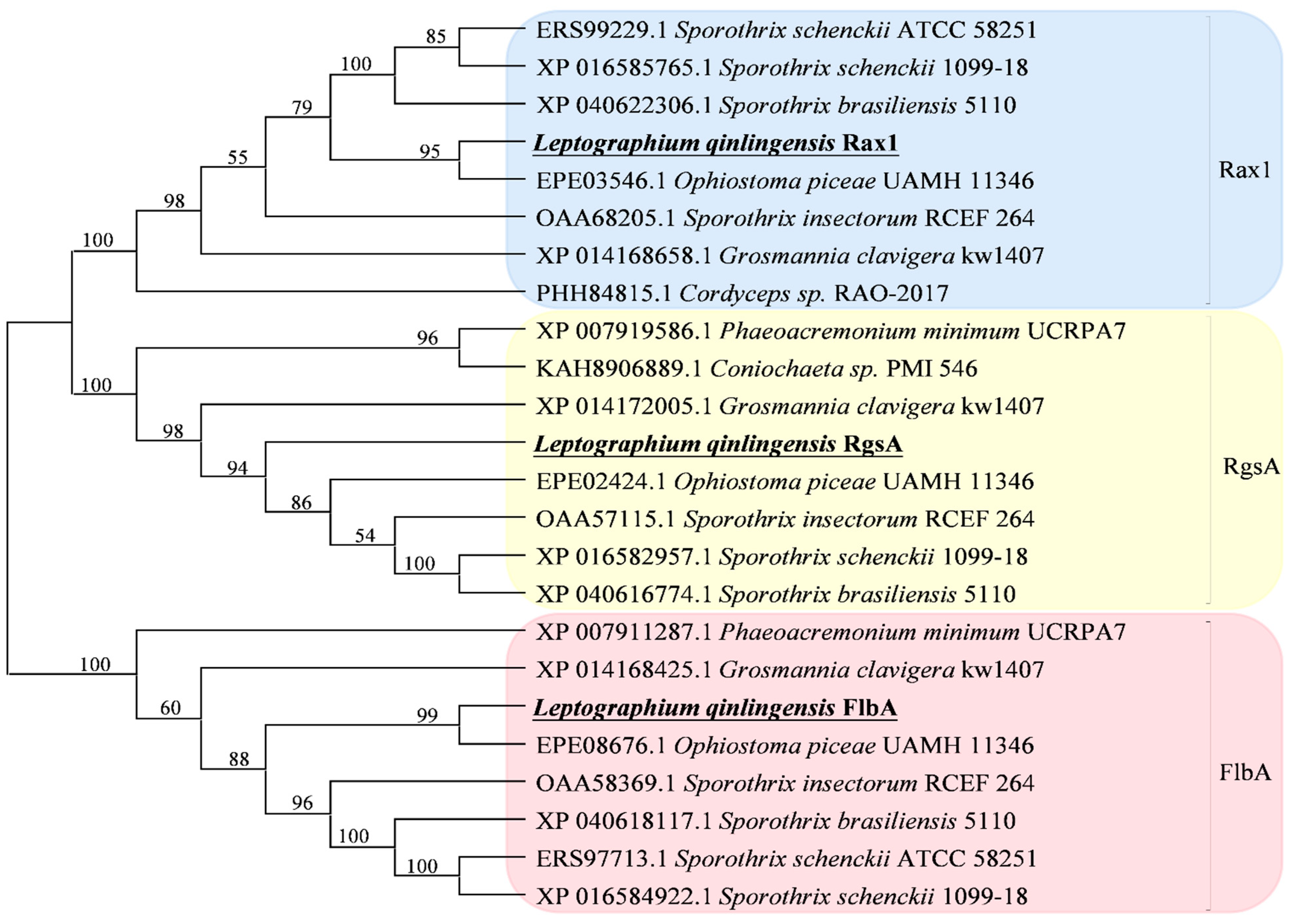

Figure 1. Phylogenetic tree of three regulators of G-protein signaling (RGS) from L. qinlingensis. The sequences from L. qinlingensis are marked in black. The phylogenetic tree was constructed with MEGA-X using the neighbor-joining method. Values indicated at the nodes are bootstrap values based on 1000 replicates.
Figure 1. Phylogenetic tree of three regulators of G-protein signaling (RGS) from L. qinlingensis. The sequences from L. qinlingensis are marked in black. The phylogenetic tree was constructed with MEGA-X using the neighbor-joining method. Values indicated at the nodes are bootstrap values based on 1000 replicates.
Microorganisms 10 01698 g001
Microorganisms 10 01698 g002 550

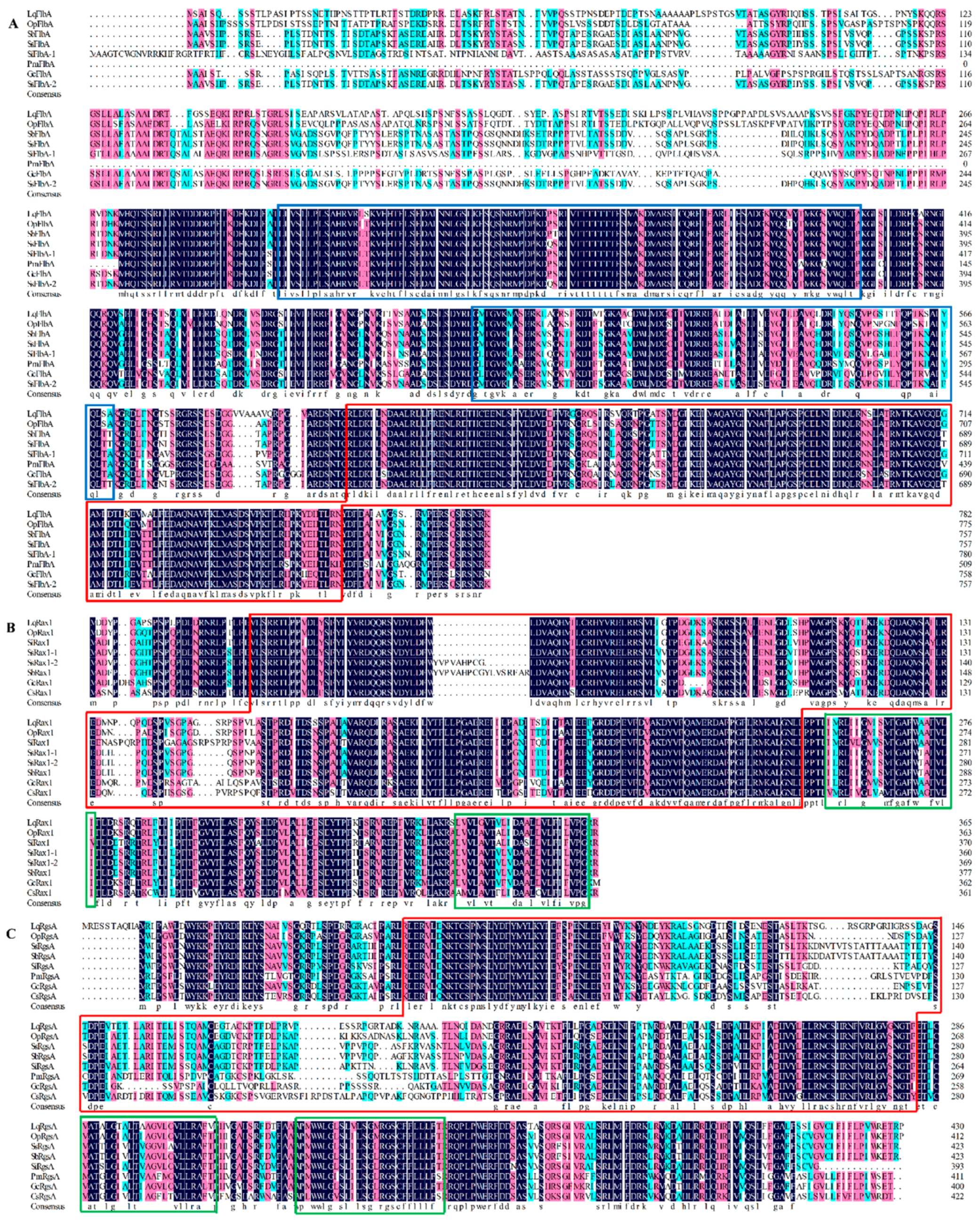

Figure 2. Structure of RGSs in L. qinlingensis. (A) Alignment of LqFlbA sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpFlbA, EPE08676.1), S. brasiliensis 5100 (SbFlbA, XP_040618117.1), S. schenckii ATCC 58251 (SsFlbA-1, ERS97713.1), S. schenckii 1099-18 (SsFlbA-2, XP_016584922.1), S. insectorum RCEF 264 (SiFlbA, OAA58369.1), P. minimum UCRPA7 (PmFlbA, XP_007911287.1), and G. clavigera kw1407 (GcFlbA, XP_014168425.1), both of which contain two copies of the DEP domain and a C-terminal RGS domain; (B) Alignment of LqRax1 sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpRax1, EPE03546.1), S. insectorum RCEF 264 (SiRax1, OAA68205.1), S. schenckii ATCC 58251 (SsRax1-1, ERS99229.1), S. schenckii 1099-18 (SsRax1-2, XP_016585765.1), S. brasiliensis 5100 (SbRax1, XP_040622306.1), G. clavigera kw1407 (GcRax1, XP_014168658.1), and C. sp. RAO-2017 (CsRax1, PHH84815.1), both of which contain an N-terminal RGS domain and three DEP domains transmembrane domains; (C) Alignment of LqRgsA sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpRgsA, EPE03546.1), S. insectorum RCEF 264 (SiRgsA, OAA68205.1), S. schenckii ATCC 58251 (SsRgsA-1, ERS99229.1), S. schenckii 1099-18 (SsRgsA-2, XP_016585765.1), S. brasiliensis 5100 (SbRgsA, XP_040622306.1), G. clavigera kw1407 (GcRgsA, XP_014168658.1). and C. sp. PMI_546 (CsRgsA, KAH8906889.1), both of which contain an N-terminal RGS domain and three DEP domains transmembrane domains and are similar to that of Rax1. Identical amino acid residues in all proteins are shown in black; pink parts indicate more than 75% identical amino acids, and blue parts indicate more than 50% identical amino acids. Rad frames: RGS domains; Blue frames: DEP domains; Green frames: transmembrane region.
Figure 2. Structure of RGSs in L. qinlingensis. (A) Alignment of LqFlbA sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpFlbA, EPE08676.1), S. brasiliensis 5100 (SbFlbA, XP_040618117.1), S. schenckii ATCC 58251 (SsFlbA-1, ERS97713.1), S. schenckii 1099-18 (SsFlbA-2, XP_016584922.1), S. insectorum RCEF 264 (SiFlbA, OAA58369.1), P. minimum UCRPA7 (PmFlbA, XP_007911287.1), and G. clavigera kw1407 (GcFlbA, XP_014168425.1), both of which contain two copies of the DEP domain and a C-terminal RGS domain; (B) Alignment of LqRax1 sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpRax1, EPE03546.1), S. insectorum RCEF 264 (SiRax1, OAA68205.1), S. schenckii ATCC 58251 (SsRax1-1, ERS99229.1), S. schenckii 1099-18 (SsRax1-2, XP_016585765.1), S. brasiliensis 5100 (SbRax1, XP_040622306.1), G. clavigera kw1407 (GcRax1, XP_014168658.1), and C. sp. RAO-2017 (CsRax1, PHH84815.1), both of which contain an N-terminal RGS domain and three DEP domains transmembrane domains; (C) Alignment of LqRgsA sequences and the consensus sequences in other species, including: O. piceae UAMH 11346 (OpRgsA, EPE03546.1), S. insectorum RCEF 264 (SiRgsA, OAA68205.1), S. schenckii ATCC 58251 (SsRgsA-1, ERS99229.1), S. schenckii 1099-18 (SsRgsA-2, XP_016585765.1), S. brasiliensis 5100 (SbRgsA, XP_040622306.1), G. clavigera kw1407 (GcRgsA, XP_014168658.1). and C. sp. PMI_546 (CsRgsA, KAH8906889.1), both of which contain an N-terminal RGS domain and three DEP domains transmembrane domains and are similar to that of Rax1. Identical amino acid residues in all proteins are shown in black; pink parts indicate more than 75% identical amino acids, and blue parts indicate more than 50% identical amino acids. Rad frames: RGS domains; Blue frames: DEP domains; Green frames: transmembrane region.
Microorganisms 10 01698 g002
Microorganisms 10 01698 g003 550
Figure 3. Growth rate of L. qinlingensis in different terpenoid treatments. The growth condition was obtained by calculating the area of the colony. The results represent the mean ± SE of five independent experiments. (A) 5% concentration treatments; (B) 10% concentration treatments; (C) 20% concentration treatments.
Figure 3. Growth rate of L. qinlingensis in different terpenoid treatments. The growth condition was obtained by calculating the area of the colony. The results represent the mean ± SE of five independent experiments. (A) 5% concentration treatments; (B) 10% concentration treatments; (C) 20% concentration treatments.
Microorganisms 10 01698 g003
Microorganisms 10 01698 g004 550

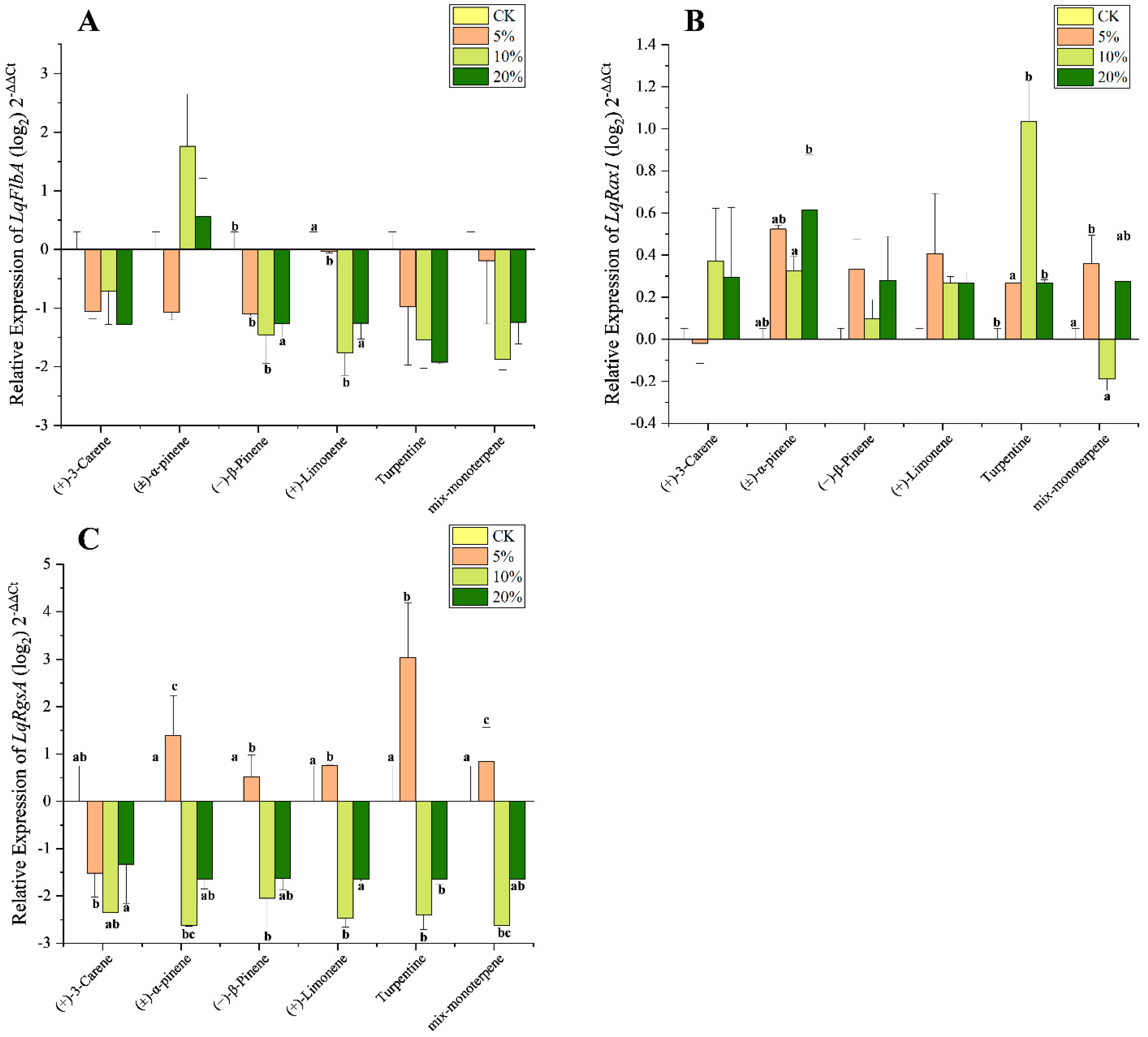

Figure 4. Quantitative expression of the three RGS genes (mean ± SE) in L. qinlingensis following treatment with different terpenoids. (A) Relative expression of LqFlbA; (B) Relative expression of LqRax1; (C) Relative expression of LqRgsA. RGSs expressions were normalized with EF1 gene. The 2−ΔΔCt and SE values were transformed at log2 for plotting. Different letters indicate significant differences at p < 0.05 (Tukey test, no letter means no significant difference) among different concentrations of the same stimulus. Mycelial growth on MEA medium with 200 mL DMSO was set as the control group (CK). Based on the value of CK (X-axis), the expression levels of other treatments are higher than CK as a positive value (expression up-regulation), and vice versa for a negative value (expression down-regulation).
Figure 4. Quantitative expression of the three RGS genes (mean ± SE) in L. qinlingensis following treatment with different terpenoids. (A) Relative expression of LqFlbA; (B) Relative expression of LqRax1; (C) Relative expression of LqRgsA. RGSs expressions were normalized with EF1 gene. The 2−ΔΔCt and SE values were transformed at log2 for plotting. Different letters indicate significant differences at p < 0.05 (Tukey test, no letter means no significant difference) among different concentrations of the same stimulus. Mycelial growth on MEA medium with 200 mL DMSO was set as the control group (CK). Based on the value of CK (X-axis), the expression levels of other treatments are higher than CK as a positive value (expression up-regulation), and vice versa for a negative value (expression down-regulation).
Microorganisms 10 01698 g004
Table
Table 1. Description of the main reagents used in terpenoid treatments.
Table 1. Description of the main reagents used in terpenoid treatments.
ReagentsReagent SourcePurityV1 (DMSO) *
(+)-α-pinene/(−)-α-pineneShanghai Aladdin Bio-Technology Co., Ltd. (Shanghai, China)98%390 mL
(+)-3-careneShanghai Aladdin Bio-Technology Co., Ltd. (Shanghai, China)90%350 mL
(−)-β-pineneShanghai Aladdin Bio-Technology Co., Ltd. (Shanghai, China)99%395 mL
(+)-limoneneShanghai Aladdin Bio-Technology Co., Ltd. (Shanghai, China)98%390 mL
turpentineShanghai Aladdin Bio-Technology Co., Ltd. (Shanghai, China)AR400 mL
* V1 represents the volume of DMSO that needs to be added to 100 mL of terpenoid reagent stock solution when preparing a 20% terpenoid dilution for the first time.
Table
Table 2. Primer sequences used in the research.
Table 2. Primer sequences used in the research.
GenePrimer Direction 5′→3′Purpose
ForwardReverse
FlbAACTTGCGCGAGACCCAAATTTCGGCACCGAGTCGCTcDNA
GCCAGGACGGTGCTATGATCGCGGATCCTCCACTAGTGATTTCACTATAGG3′RACE
CTAATACGACTCACTATAGGGCAAGCAGTGGTATCAACGCAGAGTAAAGACAGGTTCTCCTCGCAG5′RACE
ATGTCCGCCATCTCTCAGTCCTCTTTTACTTGCGGTTCGACCGGCTCTGGFull-length
GCTATGATCGACACCCTGAAGGTAGTTTCTCAGCGTATGGTCGqPCR
Rax1CTGGCTCGATGTTGCCCAGCACATGACTGGAACGAGGCCAGAAAGTACACcDNA
CTGCCTTTGTGCTCATCTTCGCGGATCCTCCACTAGTGATTTCACTATAGG3′RACE
CTAATACGACTCACTATAGGGCAAGCAGTGGTATCAACGCAGAGTGCTGAGGTCGCCCAGGTTC5′RACE
ATGGACGACTACCCCGGCGCTACAGCCGGCGGCFull-length
CACCGGTCGATCTGTACTCGCGCAGTTCACGCACATAGTGqPCR
RgsAACCCCGCCCACCTCAAGCCCTGGGCGTCCTTGACGCGCAGCTTcDNA
GCTTCTTCTTACTGCTGTTCACGCGGATCCTCCACTAGTGATTTCACTATAGG3′RACE
CTAATACGACTCACTATAGGGCAAGCAGTGGTATCAACGCAGAGTAAAGGTGCCATTGCCGACG5′RACE
ATGCGAGAATCATCAACAGTTAAAGAGGCCGCGTCTCFull-length
ACAAGAAGCCAGAGTACCGCTTGTTCTCGAGGACACGCTCqPCR
EF1CCGCTGGTACGGGTGAGTTCTTGGTGGTGTCCATCTTGTTqPCR
Table
Table 3. Amino acid identity of regulators of G-protein signaling genes isolated from L. qinlingensis with related sequences in other fungi species.
Table 3. Amino acid identity of regulators of G-protein signaling genes isolated from L. qinlingensis with related sequences in other fungi species.
GeneBLAST Matches in GenbankIdentity in the Full Length *
SpeciesGeneAccession No.Blastp (%)
LqFlbAOphiostoma piceae UAMH 11346FlbAEPE08676.187.98
Sporothrix brasiliensis 5110FlbAXP_040618117.183.63
Sporothrix schenckii ATCC 58251FlbAERS97713.183.12
Sporothrix schenckii 1099-18FlbAXP_016584922.182.86
Sporothrix insectorum RCEF 264FlbAOAA58369.181.89
Phaeoacremonium minimum UCRPA7FlbAXP_007911287.179.64
Grosmannia clavigera kw1407FlbAXP_014168425.177.18
LqRax1Ophiostoma piceae UAMH 11346Rax1EPE03546.192.35
Sporothrix insectorum RCEF 264Rax1OAA68205.186.02
Sporothrix schenckii ATCC 58251Rax1ERS99229.188.25
Sporothrix schenckii 1099-18Rax1XP_016585765.186.13
Sporothrix brasiliensis 5110Rax1XP_040622306.184.6
Grosmannia clavigera kw1407Rax1XP_014168658.183.74
Cordyceps sp. RAO-2017Rax1PHH84815.179.78
LqRgsAOphiostoma piceae UAMH 11346RgsEPE02424.179.38
Sporothrix brasiliensis 5110RgsXP_040616774.175.41
Sporothrix schenckii 1099-18RgsXP_016582957.174.70
Sporothrix insectorum RCEF 264RgsOAA57115.172.84
Grosmannia clavigera kw1407RgsXP_014172005.165.87
Phaeoacremonium minimum UCRPA7RgsXP_007919586.163.25
Coniochaeta sp. PMI_546RgsKAH8906889.161.31
* As predicted by BLAST (www.ncbi.nlm.nih.gov, accessed on 18 July 2022).
Table
Table 4. Physicochemical properties and cellular localization of RGSs of L. qinlingensis.
Table 4. Physicochemical properties and cellular localization of RGSs of L. qinlingensis.
Gene NameFull Length (bp) *ORF Size (aa/bp) *Mw (kDa) *I.P. *Signal Peptide Prediction **
LqFlbA2699782/234985.099.04SP 0 mTP 0 other 1
LqRax11884366/110141.235.91SP 0 mTP 0 other 1
LqRgsA1894431/129648.469.60SP 0.0001 mTP 0.0001 other 0.9998
* As predicted by the ProtParamprogram. ** As predicted by TargetP 2.0 program. I.P.: isoelectric point; Mw: molecular weight; ORF: open reading frame; SP: secretory pathway signal peptide; mTP: mitochondrial targeting peptide.
Table
Table 5. Growth curve of L. qinlingensis in different terpenoid treatments after logistic curve fitting.
Table 5. Growth curve of L. qinlingensis in different terpenoid treatments after logistic curve fitting.
MediaKabR2Inflection Day
DMSO91.16745.0034.6250.99712.35
MEA68.201241.9599.1570.9838.99
5%(+)-3-Carene91.61365.045.1520.97812.16
(±)-α-Pinene81.624416.2827.540.97812.00
(−)-β-Pinene79.843419.7317.6630.98211.82
(+)-Limonene112.499111.5874.6050.97915.36
Turpentine93.140124.7815.7620.97312.56
Mix-monoterpene91.486126.5495.840.97412.43
10%(+)-3-Carene89.768125.25.90.97612.28
(±)-α-Pinene81.116488.7977.6720.98612.11
(−)-β-Pinene81.752192.8696.7330.98311.72
(+)-Limonene88.877179.0276.1140.99912.73
Turpentine89.513203.7856.4060.97212.45
Mix-monoterpene91.04086.2535.460.97712.25
20%(+)-3-Carene91.99587.8835.450.97512.32
(±)-α-Pinene81.688344.1787.2910.98612.02
(−)-β-Pinene82.197353.5447.2740.98712.10
(+)-Limonene80.416691.627.9840.99512.29
Turpentine93.776115.5995.6590.97212.59
Mix-monoterpene86.014322.1047.0350.97312.31
Logistic equation: Y = K/(1 + ae−bt), Y means size of the colony (cm2), t means culture time, K is maximum size of the colony (cm2), a is parameter and b is maximum of relative growth rate (cm2/day).
Table
Table 6. Statistics significant of RGSs expression from L. qinlingensis in different terpenoids.
Table 6. Statistics significant of RGSs expression from L. qinlingensis in different terpenoids.
Gene(+)-3-Carene(±)-α-Pinene(−)-β-Pinene(+)-LimoneneTurpentineMix-Monoterpene
FSigFSigFSigFSigFSigFSig
LqFlbA5.8170.0610.4550.72890.02920.2240.0074.2570.0984.4520.092
LqRax11.7530.2947.8410.03825690.1922.6420.18643.6790.0028.5910.032
LqRgsA5.0450.04518.9650.0089.8410.02629.2710.00423.1060.00517.9670.009
Values in bold indicate significant difference among different concentrations of the same stimulus with one-way ANOVA (α = 0.05). Multiple comparisons among different terpenoids with Tukey tests are shown in Figure 4 with different letters.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gan, T.; An, H.; Tang, M.; Chen, H. Phylogeny of Regulators of G-Protein Signaling Genes in Leptographium qinlingensis and Expression Levels of Three RGSs in Response to Different Terpenoids. Microorganisms 2022, 10, 1698. https://doi.org/10.3390/microorganisms10091698

AMA Style

Gan T, An H, Tang M, Chen H. Phylogeny of Regulators of G-Protein Signaling Genes in Leptographium qinlingensis and Expression Levels of Three RGSs in Response to Different Terpenoids. Microorganisms. 2022; 10(9):1698. https://doi.org/10.3390/microorganisms10091698

Chicago/Turabian Style

Gan, Tian, Huanli An, Ming Tang, and Hui Chen. 2022. "Phylogeny of Regulators of G-Protein Signaling Genes in Leptographium qinlingensis and Expression Levels of Three RGSs in Response to Different Terpenoids" Microorganisms 10, no. 9: 1698. https://doi.org/10.3390/microorganisms10091698

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
