Article

Effect of Serotype and Strain Diversity on Dengue Virus Replication in Australian Mosquito Vectors

by
O’mezie Ekwudu
1,2,3,
Louise Marquart
4,5,
Lachlan Webb
4,
Kym S. Lowry
1,
Gregor J. Devine
2,
Leon E. Hugo
2,† and
Francesca D. Frentiu
1,*,†
1
Institute of Health and Biomedical Innovation, School of Biomedical Sciences, Queensland University of Technology, Brisbane 4000, Australia
2
Mosquito Control Laboratory, QIMR Berghofer Medical Research Institute, Brisbane 4006, Australia
3
Department of Microbiology, Chukwuemeka Odumegwu Ojukwu University, Uli 431124, Nigeria
4
Statistics Unit, QIMR Berghofer Medical Research Institute, Brisbane 4006, Australia
5
Clinical Malaria, QIMR Berghofer Medical Research Institute, Brisbane 4006, Australia
*
Author to whom correspondence should be addressed.
†
Equal contribution.
Pathogens 2020, 9(8), 668; https://doi.org/10.3390/pathogens9080668
Submission received: 6 July 2020 / Revised: 13 August 2020 / Accepted: 17 August 2020 / Published: 18 August 2020
(This article belongs to the Section Animal Pathogens)
Browse Figures
Versions Notes

Abstract

:
Dengue virus (DENV) is the most important mosquito-borne viral pathogen of humans, comprising four serotypes (DENV-1 to -4) with a myriad of genotypes and strains. The kinetics of DENV replication within the mosquito following ingestion of a blood meal influence the pathogen’s ability to reach the salivary glands and thus the transmission potential. The influence of DENV serotype and strain diversity on virus kinetics in the two main vector species, Aedes aegypti and Ae. albopictus, has been poorly characterized. We tested whether DENV replication kinetics vary systematically among serotypes and strains, using Australian strains of the two vectors. Mosquitoes were blood fed with two strains per serotype, and sampled at 3, 6, 10 and 14-days post-exposure. Virus infection in mosquito bodies, and dissemination of virus to legs and wings, was detected using qRT-PCR. For both vectors, we found significant differences among serotypes in proportions of mosquitoes infected, with higher numbers for DENV-1 and -2 versus other serotypes. Consistent with this, we observed that DENV-1 and -2 generally replicated to higher RNA levels than other serotypes, particularly at earlier time points. There were no significant differences in either speed of infection or dissemination between the mosquito species. Our results suggest that DENV diversity may have important epidemiological consequences by influencing virus kinetics in mosquito vectors.

1. Introduction

Dengue virus (DENV) is one of the most important arthropod-borne viruses affecting humans [1]. It is a positive-sense RNA virus and member of the Flavivirus genus, comprising four antigenically distinct serotypes with multiple genotypes and strains within these. Dengue outbreaks in Australia predate the 20th century [2], but the past two decades have seen an increasing number of outbreaks related to increased international air travel and the consequent importation of viruses with travellers returning to Australia from endemic countries [3,4,5]. Local virus transmission occurs in central and North Queensland, where there is an established presence of Aedes aegypti, the primary vector of DENV in Australia [5,6]. The increasing number and frequency of DENV importations heightens the chances of local human populations being exposed to multiple serotypes of DENV and the risk of severe disease [7]. Aedes albopictus is a highly invasive species with an expanding worldwide range [8], and is also a competent vector of DENV and other arboviruses [9,10]. It thrives in both temperate and tropical climates [11]. In the Australian context, modelling has shown that all of mainland Australia’s coastal regions would provide suitable habitat for Ae. albopictus should it invade [12]. If this were accompanied by an expanding geographic distribution of DENV, seasonal epidemics in urban centres like Brisbane or Perth would result in major public health burdens [13]. Populations of Ae. albopictus have already become established in the Torres Strait between mainland Australia and Papua New Guinea, most likely due to human maritime traffic from Indonesia [12,14]. The species has been intercepted at Australia’s mainland air and seaports [15] and was implicated in a 2016 dengue outbreak in the Torres Strait [16].
The first dengue vaccine Dengvaxia® is licensed in some countries but, due to adverse safety events [17], the vaccine is recommended only for persons having a prior history of dengue infection, who are between 9 and 45/60 years and live in a dengue endemic region [18]. Without a universally available vaccine, efforts to prevent dengue continue to rely on mosquito control strategies, which can include the use of physical barriers, chemical insecticides and biocontrol [19,20]. Many of these efforts have been ineffective at times, due, in part, to an incomplete understanding of the factors that regulate DENV transmission by mosquitoes.
Mosquito populations from different geographic locations vary in their susceptibility to infection with, as well as the ability to transmit, different strains of DENV [21,22]. Variability among DENV serotypes and lineages within genotypes has been associated with differences in the extrinsic incubation period (EIP) [23,24,25], the time it takes an arbovirus to disseminate in the mosquito, from the ingestion of an infected blood meal to when the virus can be detected in saliva. Previous studies have reported variation in DENV EIPs of between 2 and 15 days [26]. For example, differences in the dissemination of different strains of DENV-2 have been observed [27] and a Southeast Asian genotype of DENV-2 has been shown to have shorter EIP than an American strain which it displaced [28]. However, most vector competence studies have focused on the susceptibility of mosquito populations to infection with individual strains or small collections of strains that represent only a subset of the genetic diversity of the dengue viruses [29,30]. This reduces the accuracy of comparison of virus replication kinetics between serotypes as virus replication is highly dependent on experimental factors. Furthermore, investigations are typically restricted to assessments of virus kinetics within a single mosquito species [31]. Here, we systematically tested whether variation in DENV serotypes and strains results in differences in infection and dissemination kinetics by simultaneously testing representative strains from all four dengue serotypes in both Ae. aegypti and Ae. albopictus.

2. Results

We quantified the replication dynamics of eight genetically diverse strains of DENV representing all four serotypes (two strains/serotype), that had been isolated from outbreaks in South East Asia and the Pacific over a 25-year period (Table 1). We orally exposed mosquitoes from Australian populations of Ae. aegypti and Ae. albopictus to 107 pfu/mL of DENV in sheep blood. The overall proportions of Ae. aegypti (63%) and Ae. albopictus (57%) that engorged on the DENV infected blood meals were similar.
Mosquitoes were sampled at 3, 6, 10 and 14 d post exposure (dpe) and tested for DENV infection in bodies and dissemination to legs and wings (hereafter referred to as legs/wings) using quantitative Reverse Transcriptase—Polymerase Chain Reaction (qRT-PCR). Both species of mosquito were susceptible to infection with all DENV strains tested.
The proportion of Ae. aegypti bodies with a detectable DENV infection increased over time for each strain (Table 2). Infection rate patterns for strains within serotypes were broadly similar and differed between DENV serotypes. DENV serotypes 1 and 2 strains infected the highest proportion of mosquitoes (range 35–70% at 14 dpe) whereas strains from serotypes 3 and 4 infected a maximum of 30% of mosquitoes by 14 dpe. DENV-2 strain NC-483 infected the highest proportion of mosquitoes of any strain (70%). Dissemination of DENV to Ae. aegypti mosquito leg and wing tissue was first detected at 6 dpe for all serotypes (Table 2). The proportion of mosquitoes with virus in leg and wing tissues gradually increased over time, reaching a maximum of 20–40% of mosquitoes for DENV-1 and DENV-2 strains, and 10–20% for DENV-3 and DENV-4 strains. Given the similarities between strains from each serotype, the data were pooled for each serotype and the effect of serotype on the proportion of mosquitoes infected at different time points was tested (Supplemental Table S1). Serotypes differed significantly in their ability to lead to a detectable infection in mosquitoes at 6 and 10 dpe (p < 0.05, Fisher’s exact test). When leg and wing infection rates were pooled for different strains within each dengue serotype, serotype significantly affected the proportion of mosquitoes with a leg and wing infection at 10 dpe but not at the other time points (Supplemental Table S1).
The levels of DENV RNA accumulation in Ae. aegypti bodies and legs/wings harvested after the four incubation periods were quantified by qRT-PCR. Virus loads in mosquito bodies and legs/wings samples, defined here as the log10 number of DENV copies per sample, were determined for individual Ae. aegypti mosquitoes according to virus strain and time point (Figure 1). The highest mean (±SD) virus load in bodies was from DENV-3 (ET-3), reaching 6.10 ± 0.44 log10 DENV copies at 10 dpe (Figure 1a). The number of virus copies detected from Ae. aegypti leg and wing tissue generally increased or remained stable from 6 to 14 dpe and reached between 2.3 to 7 log10 genome copies across all strains at 14 dpe (Figure 1b). The highest mean (±SD) virus load in legs and wings was from DENV-2 55763, which reached 4.62 ± 0.87 log10 RNA copies/mosquito at 14 dpe.
Similar to Ae. aegypti, the proportion of Ae. albopictus bodies with a detectable dengue infection increased over time and infection patterns differed more greatly between dengue serotypes than for strains within each serotype (Table 2). Higher infection rates were again observed from DENV-1 and DENV-2 strains (20–55% mosquitoes infected) compared to DENV-3 and DENV-4 strains (10–45% mosquitoes infected). The data were pooled for each serotype and significant differences in the proportion of mosquito bodies with a detectable dengue infection were observed between serotypes at 6, 10 and 14 dpe (Supplemental Table S2). Disseminated infections were first detected from Ae. albopictus leg and wing tissue between 6–10 d for DENV-1 and DENV-2 strains and between 6–14 d for DENV-3 and DENV-4 strains (Table 2). The proportion of mosquitoes with detectable infection in Ae. aegypti leg and wing tissue generally increased over time to reach a maximum of between 10 and 30% of mosquitoes for DENV-1 and DENV-2 strains and between 5% and 20% for DENV-3 and DENV-4 (Table 2). The proportion of mosquitoes with detectable infection in leg and wing tissue differed significantly between dengue serotypes at 6 and 10 dpe but not at the other time points (Supplemental Table S2).
The mean number of dengue genome copies in Ae. albopictus bodies generally increased from 0–10 dpe before stabilizing or decreasing to 14 dpe (Figure 2). The highest mean (±SD) virus loads were observed from DENV-2 VN130604 and DENV-1 ET243 (5.91 ± 0.36 log10 and 5.90 ± 0.60 log10 RNA copies/mosquito, respectively, at 10 dpe). The mean number of dengue genome copies in leg and wing tissue generally remained stable between 6 and 14 d, however there was an increasing trend for DENV-2. The highest mean (±SD) DENV titre in Ae. albopictus legs and wings was observed from DENV-1 (NC-483) at 14 dpe (4.27 ± 0.41 log10 RNA copies/mosquito).

3. Effects of Mosquito Species, Virus Strain and Incubation Time on DENV Loads

Given the strong similarities in the infection kinetics of the DENV strains in both Ae. aegypti (Figure 1) and Ae. albopictus (Figure 2), we tested the significance of the main effects of mosquito species, virus strain and incubation time using a general linear model (GLM). The main effects of incubation time and virus strain significantly affected genome levels for body and legs/wings samples (Table 3). However, the main effect of mosquito species (Ae. aegypti or Ae. albopictus) was not significant for either tissue type.
As the overall effect of mosquito species was not significant, data for both species were pooled and the within-treatment effects of virus strain and incubation time were compared for bodies and legs/wings by pairwise testing using Tukey’s method. DENV-1 and DENV-2 reached significantly higher virus genome copy numbers in mosquito bodies than the DENV-4 strain NC-39s (Tukey’s multiple pairwise comparisons; Figure 3). DENV-1 strains and DENV-2 (55763) reached higher genome copy numbers in mosquito legs and wings than mosquitoes infected with DENV-4 NC39, while all other strains reached intermediate titres in legs/wings. Similarly, over all strains and mosquito species, DENV virus titres in mosquito bodies increased significantly from 3 dpe to 10 dpe (Tukey’s multiple pairwise comparisons; Figure 3) before stabilising. In legs and wings, viral RNA was not detected in any mosquito at 3 dpe, however there were significant increases in virus genome copy numbers over successive time points from 6 to 14 dpe.

4. Discussion

We have identified substantial differences in the kinetics of virus infection between dengue serotypes and strains within the two major mosquito vector species, Ae. aegypti and Ae. albopictus. Virus infection kinetics were generally more similar between strains within a serotype than strains from other serotypes. We observed that DENV-1 and -2 infected the largest proportion of mosquitoes and generally produced the highest titres within mosquito tissue, consistent with previous observations from studies utilizing independent virus strains [32] and genetically different mosquito populations [33]. These findings support a hypothesis that the higher infectivity and increased virulence of DENV-1 and DENV-2 in Aedes mosquito vectors have contributed to the global dominance and higher disease burden caused by DENV-1 and -2 [34]. However, some within serotype variation was observed. For example, while DENV-1 NC483 out-performed most of the other DENV strains in both infection and dissemination, DENV-1 ET243 disseminated at a relatively slower rate, especially in Ae. albopictus. Furthermore, across all virus serotypes and strains, variation in virus load between mosquito species was non-significant. This challenges the reputation of Ae. albopictus as a secondary vector of dengue behind Ae. aegypti. Data on transmission rates are required to confirm these findings.
Most previous studies of virus replication dynamics and EIP for DENV have infected a single species of mosquito with individual or small collections of virus strains, making it difficult to compare virus replication kinetics between DENV serotypes [23,35,36]. As such, there is limited data available on the influence of DENV serotype or strain on the kinetics of DENV infection in mosquitoes [26]. Here we simultaneously evaluated multiple strains of the four serotypes of DENV. We show that both serotype and strain differences help determine the speed of dissemination of dengue virus within mosquitoes. In general, DENV-2 VN130604 achieved peak infection rate in both mosquito species at day 10 dpe while DENV-3 ET3 achieved peak infection and dissemination rates at 14 days post infection. This may be due to differences in virus replication kinetics that reflect intrinsic differences between virus serotypes.
Differences in the kinetics of infection in mosquitoes potentially affect mosquito vector competence and progression of dengue outbreaks [31]. Although it is well established that other factors, including temperature [37,38,39] and mosquito genes [40] influence virus replication dynamics, the impact of variation in serotypes and strains is often ignored in vector competence models [41]. Virus strain diversity contributes to heterogeneity in DENV transmission dynamics and while it may be impossible to evaluate individual strain attributes, an attempt to capture the evolutionary and epidemiological potential of different strains should be made in future dengue control strategies and models.
Aedes albopictus is considered to play a secondary role in transmission of DENV where Ae. aegypti and Ae. albopictus co-exist. Previous studies found that dissemination of dengue virus took longer in Ae. albopictus than in Ae. aegypti [33,42], however comparisons were not significant in our analyses (data not shown). Dissemination rates at 14 days post exposure varied from 10 to 50% in Ae. aegypti and from 5 to 45% in Ae. albopictus, which indicated that both species may become competent for transmission at a similar rate. Furthermore, we showed that the dengue strains reached equivalent titres in both vector species. Ae. albopictus has been implicated in DENV transmission in the Torres Strait [16] and should it become established on the Australian mainland, it would present a serious risk of DENV transmission in any urban centres that receive large numbers of viraemic visitors or returning residents from dengue endemic countries [12]. Key to gauging that risk is an understanding of the competence of Ae. albopictus for commonly circulating strains of DENV. Our findings, together with greater potential for range expansion of Ae. albopictus in Australia necessitate that Ae. albopictus be regarded as posing at least an equivalent level of risk of dengue transmission to Ae. aegypti in Australia.
A limitation of our study is that we did not investigate the appearance of detectable virus in the saliva of mosquitoes. However, previous evidence indicates that dissemination of DENV to legs and wings of mosquitoes is generally a reliable indicator of whether mosquitoes are capable of transmitting DENV [23,43,44], at least for Ae. aegypti. Another feature of this study which may affect how the outcome is compared to other assessments of mosquito vector competence is the use of qRT-PCR to quantify virus titre in mosquito tissues rather than a live virus assay such as a plaque assay to detect infectious virus. However, the detection of virus genomes allowed us to effectively determine the kinetics of infection such as the time at first detection of virus in different tissues and to measure relative differences in virus titres between the serotypes. We only tested a single infectious dose of 107 PFU/mL. This dose is within the range of titres observed from human viraemia; however, a range of infectious doses may have presented a different set of parameter estimates given that infectious dose is a powerful determinant of DENV infection probability and virus kinetics in Ae. aegypti [45,46,47].
This study has established that there is significant variation in the interval between the ingestion of a blood meal and the appearance of detectable virus in the legs and wings of Australian Ae. aegypti and Ae. albopictus among DENV isolates representing the diversity of serotypes circulating in Southeast Asia and the Pacific. The heterogeneity in DENV transmission kinetics highlighted here, even within the same serotype, could potentially affect the timing and magnitude of dengue outbreaks. Should Ae. albopictus become established on mainland Australia, it is possible this species will be able to transmit multiple strains of DENV to a similar extent to Ae. aegypti. This work represents the first parallel evaluation of multiple regionally relevant strains of DENV in regionally relevant populations of Ae. aegypti and Ae. albopictus mosquitoes and raises important questions about the epidemiological implications of strain and serotype diversity in DENV. It also underscores the potential contribution of Ae. albopictus to DENV transmission in mainland Australia.

5. Materials and Methods

5.1. Viruses

Four strains of DENV were obtained from the WHO Collaborating Centre for Arbovirus Reference and Research at Queensland University of Technology (QUT) Australia, with additional strains being generous gifts from Prof Paul Young (The University of Queensland) and Dr Myrielle Dupont-Rouzeyrol (Institut Pasteur New Caledonia). All viruses had been passaged 3–7 times after isolation from patients. The viruses were propagated at 27 °C in mosquito C6/36 cells following infection at a multiplicity of infection of 0.1. Supernatants containing infectious virus were harvested at times of peak virus production; 5 days post infection (p.i.) for DENV-1 (NC-483), DENV-2 (55763), DENV-4 (NC-39) and DENV-4 (MY1261), at 6 days p.i. for DENV-2 (VN-130604) and DENV-3 (ET-3), and 7 days p.i. for DENV-1 (ET-243) and DENV-3 (31298). Virus stocks were then concentrated by ultrafiltration in 100 kDa Amicon filters (Merck Millipore, Burlington, MA, USA) according to the manufacturer’s instructions and aliquoted into sterile 2 mL tubes before freezing at −80 °C.

5.2. Mosquitoes

Ae. aegypti and Ae. albopictus mosquitoes used in infection experiments were sourced from established colonies at QIMR Berghofer Medical Research Institute (QIMR Berghofer). The Ae. albopictus colony originated from eggs collected on Hammond Island, Torres Strait in June 2014. The Ae. aegypti colony was established from Wolbachia-free eggs collected from Cairns, Queensland in 2015. Both mosquito colonies were established and maintained in the QIMR Berghofer insectary at 27 (±1) °C and 75 (±5)% relative humidity (RH), with a photoperiod of 12 h:12 h light:dark (L:D) cycles.

5.3. Immunofocus Assay

Titres of infectious virus were quantified by performing an immuno-focus assay based on the immuno-detection of infectious foci developing in African green monkey kidney epithelial cell (Vero: ATCC) monolayers. Once confluent, cells were inoculated with ten-fold serial dilutions of virus in Dulbecco’s Modified Eagle Medium D-glucose (1 g/L) and sodium pyruvate/L-Glutamine (100 ng/L) (Life Technologies Australia, Mulgrave, Australia). The virus was allowed to adsorb for 2 h at 37 °C, then cells were overlayed with 8% w/v carboxy-methyl cellulose (Sigma-Aldrich, Castle Hill, Australia) in Medium 199 (Sigma-Aldrich). Plates were incubated at 37 °C and 5% v/v CO2/air for 5–7 days. At the conclusion of the incubation period, the overlay was discarded, and the cell monolayers were washed in PBS, dried and fixed with ice-cold (1:1 (v/v) acetone-methanol (200 µL/well) at room temperature for 5 min. The fixative then was aspirated, and the plates dried at room temperature again for 1 h. Plates were stored inverted for at least 8 h at 4 °C before staining. Non-specific binding of antibodies to the cell monolayer was blocked by the addition of 200 µL of 5% w/v skim milk powder in PBS for 1 h at 37 °C. DENV infected cells were detected by the addition of 200 µL anti-flavivirus envelope reactive monoclonal antibody 4G2 (TropBio, Cairns, Australia) [48] diluted 1:1000 in 5% (w/v) skim milk powder in 1× Phosphate Buffered Saline (PBS) to each well for 1 h at 37 °C. After six washes with PBS, horseradish peroxidase (HRP)-conjugated goat anti-mouse IgG (Invitrogen, Carlsbad, CA, USA) diluted 1:2000 v/v in 5% w/v SMP/PBS was added to each cell monolayer for 1 h at 37 °C. The antibody solution then was discarded, the cell monolayers washed six times with PBS and 200 µL of substrate/chromogen (urea hydrogen peroxide/3,3′Diaminobenzidine, Sigma-Aldrich) added and incubated in the dark for 15 min. DENV positive foci or plaques were counted and stock concentration of each virus was quantified as plaque forming units (PFU) per mL.

5.4. Mosquito DENV Challenge Experiments

Mosquito eggs were hatched by submerging in aged de-chlorinated tap water (Ae. aegypti) or rainwater (Ae. albopictus). Larvae were reared at a density of 250 mosquitoes in 3 L of water in larval development trays and were provided fish food (Tetramin, Tetra Melle, Germany) ad libitum. Pupae were transferred to 500 mL bowls inside 30 × 30 × 30 cm insect rearing cages (BugDorm, Megaview, Taiwan) where adults emerged and mated freely. Adults were maintained on 10% w/v sugar water until blood feeding.
Female mosquitoes (5–7 days old) were starved for 12 h and deprived of water for 6 h prior to being offered a viraemic blood meal for 1 h on a membrane. For each mosquito species, two groups of approximately 100 mosquitoes each were exposed to one strain of DENV. The membrane feeding apparatus consisted of a series of glass membrane feeders with inner blood-filled chambers covered with pig intestinal membrane (sausage casing) and outer chambers connected by pipes circulating water from a 37 °C water bath. The blood meal consisted of 1:1 mix of defibrinated sheep blood (Equicell, Melbourne, Australia) and virus (~107 PFU/mL). Adenosine Triphosphate (ATP) (Sigma-Aldrich) was added to the blood mixture to a final concentration of 5 Mm. Sub-samples of the blood meal were saved at the completion of feeding to determine the titre of infectious virus at the end of the feeding process. No significant decreases in the titres of virus were observed (data not shown). After 1 h of feeding, mosquitoes were anaesthetized with CO2 and sorted on a cold table within a Perspex glove box. Mosquitoes that were not completely engorged were discarded. The engorged mosquitoes for each mosquito virus combination were transferred to 250 mL plastic cups and held for up to 14 days in environmental chambers at 27 (±1) °C with 12 h-12 h light-dark (L:D) cycles and provided with 10% w/v sugar water ad libitum.
For each mosquito-virus combination, 20 mosquitoes were harvested at each of four time points (3, 6, 10 and 14 days) post blood feeding by anaesthetizing the insects with CO2 and then with ice before removing legs and wings. The bodies were stored separately from the legs/wings in microtubes and preserved at −80 °C until further testing.

5.5. Detection of Dengue Virus in Mosquito Tissue by qRT-PCR

Mosquito tissue samples were thawed on ice and total RNA isolated as previously described [49]. Briefly, each sample was homogenized with 100-µL extraction buffer (10 mM Tris pH 8.2, 1 mM EDTA, 50 mM NaCl) and 60 µL proteinase K (15 mg/mL Bioline) in a mini-beadbeater (Biospec, Bartlesville, OK, USA) for 1.5 min and then incubated in a heat block for 5 min at 56 °C. The sample then was heated at 98 °C for 5 min (to inactivate proteinase K). One-step qRT-PCR was carried out in 384-well Hard-Shell® thin-wall plates (Bio-Rad, Gladesville, Australia) with the CFX384™ real-time PCR detection system (Bio-Rad). The reaction mix was prepared using Taqman® Fast Virus One-Step RT-PCR Master Mix Reagents (Applied Biosystems, Thermo Fisher Scientific, Brisbane, Australia), following the manufacturer’s instructions. Each sample was assayed in a 10 µL reaction volume consisting of 2.5 µL of Taqman® Fast Virus One-Step mix, 3 µL of total RNA extract and 400 nM each of the forward and reverse primers and 250 nM of probe labelled with FAM and BHQ-1 at the 5′ and 3′ ends respectively. Reverse transcription (RT) was performed at 50 °C for 3 min, followed by inactivation and denaturation of RNA-DNA hybrids at 95 °C for 20 s. This was followed by 45 cycles of 95 °C for 10 s, 60 °C for 30 s and 72 °C for 1 s. A plasmid containing the target DENV genome sequence (synthesized at Genscript, Piscataway, NJ, USA), serially diluted to known concentrations, was used to produce DNA standards. Ten-fold dilutions (107 to 101 DNA copies/µL) of the purified linearized plasmids were tested to generate standard curves and to determine the limit of detection across qPCR runs.
To determine the threshold cycle (Ct), the threshold level of fluorescence was optimized so that the standard curve gradient was the theoretical value of −3.30, which indicates 100% PCR efficiency. Data were accepted if the slope of the standard curve was between −3.0 and −3.6 and with a correlation coefficient (r2) above 0.95. The limit of detection was 10 genome copies/µL. All samples were analysed in triplicate with each analysis including positive and negative controls, non-template control (NTC) and a serially diluted standard curve of the plasmid standard (107 to 101 copies/µL). Samples with calculated DNA copy number values on or above the limit of detection were scored as “positive” indicating the presence of DENV.

5.6. Statistical Analysis

Infection was inferred to have occurred if virus was detected in the body. Dissemination was inferred to have occurred if the virus was detected in legs/wings. The infection rate was calculated as the number of infected mosquitoes divided by the number of mosquitoes engorged after the bloodmeal. The dissemination rate was calculated as the number of mosquitoes with legs/wings infected with DENV divided by the number of mosquitoes engorged after the blood meal. Infection rates were compared using Fisher’s Exact tests. Duplicate estimates of the DENV RNA loads per sample were summarised by the geometric mean and then were transformed to be on the log10 scale. For samples where all technical replicates were negative (i.e., below the limit of detection) were given a value of 1, so that when analysis on the log10 scale was performed they would have a value of 0. A general linear model (GLM) was performed on the data. Preliminary analysis indicated similar variances between mosquitoes within 64 combinations (8 virus strains × 2 mosquito species × 4 time points) per body site (body or legs/wings), such that the 20 mosquitoes per combination could be pooled together and summarised as the mean of the log10 RNA data. Preliminary GLMs indicated that the 2-way and 3-way interactions effects were of similar size and could be pooled as an estimate of error to test for differences between main effects. Hence the GLM tested for differences between levels of the main effects as a higher order of magnitude than the interactions. Therefore, the following GLM was applied to the mean of the log10 RNA data and performed separately for the body and legs/wings data.
Log10(RNA) = βDayDay + βSpSpecies + βVVirus
The model had three main effects: Day being a categorical variable of the time point (3, 6, 10 or 14 d). Species being a categorical variable of the two mosquito species (Ae. aegypti and Ae. albopictus), and Virus being a categorical variable of the eight different dengue virus strains.
Statistical analyses of infectivity and dissemination rates were conducted with STATA version 15, analyses and graphs of DENV RNA loads were conducted in R (Version 3.6.2) Pairwise comparisons for Virus type and Day were performed using Tukey’s method in the glht function in R. Graphs prepared with GraphPad Prism® Version 7.00 (GraphPad Software, La Jolla, CA, USA, 2008).

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-0817/9/8/668/s1, Table S1: Variation in infection and dissemination rates between dengue serotypes in Ae. aegypti. Percentage (number tested) of mosquitoes with detectable dengue infection in bodies or legs and wings at various times after feeding virus from one of the four DENV serotypes. Comparisons were made using Fisher’s Exact test. † Mosquitoes infected with DENV-1 strain NC-483 did not survive to 14 d and therefore DENV-1 was excluded from the analysis of samples at this time point. Table S2: Variation in infection and dissemination rates between dengue serotypes in Ae. albopictus. Percentage (number positive/number tested) of Ae. albopictus mosquitoes with detectable dengue infection in bodies or legs and wings at various times after feeding on virus from one of the four DENV serotypes. Comparisons were made using Fisher’s Exact test.

Author Contributions

Conceptualization, O.E., G.J.D. and F.D.F.; Data curation, O.E.; Formal analysis, O.E., L.M., L.W., G.J.D., L.E.H. and F.D.F.; Funding acquisition, F.D.F.; Investigation, O.E., K.S.L. and L.E.H.; Project administration, F.D.F.; Resources, G.J.D. and F.D.F.; Supervision, G.J.D., L.E.H. and F.D.F.; Writing—original draft, O.E.; Writing—review & editing, O.E., L.M., L.W., K.S.L., G.J.D., L.E.H. and F.D.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The National Health and Medical Research Council (NHMRC) of Australia, grant number APP1020817. The APC was funded by the Queensland University of Technology (QUT) Library. OE was funded by the government of Nigeria through the TeTFund Scholarship and a QUT part-scholarship.

Acknowledgments

We thank Debbie Phillips for technical assistance in the laboratory. We thank John Aaskov (Queensland University of Technology), Paul Young (The University of Queensland) and Myrielle Dupont-Rouzeyrol (Insitut Pasteur New Caledonia) for generously providing some of the DENV strains used in this study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results

References

  1. Gubler, D.J. Dengue, urbanization and globalization: The unholy trinity of the 21(st) century. Trop. Med. Health 2011, 39 (Suppl. 4), 3–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hare, F.E. The 1897 epidemic of dengue in north Queensland. Aust. Med. Gaz. 1898, 17, 98–107. [Google Scholar]
  3. Hanna, J.N.; Ritchie, S.A. An apparent recent decline in importations of dengue from Papua New Guinea into north Queensland. Commun. Dis. Intell. Q. Rep. 2009, 33, 34–35. [Google Scholar]
  4. Warrilow, D.; Northill, J.A.; Pyke, A.T. Sources of dengue viruses imported into Queensland, Australia, 2002–2010. Emerg. Infect. Dis. 2012, 18, 1850–1857. [Google Scholar] [CrossRef] [PubMed]
  5. Viennet, E.; Ritchie, S.A.; Faddy, H.M.; Williams, C.R.; Harley, D. Epidemiology of dengue in a high-income country: A case study in Queensland, Australia. Parasites Vectors 2014, 7, 379. [Google Scholar] [CrossRef] [Green Version]
  6. Russell, R.C.; Currie, B.J.; Lindsay, M.D.; Mackenzie, J.S.; Ritchie, S.A.; Whelan, P.I. Dengue and climate change in Australia: Predictions for the future should incorporate knowledge from the past. Med. J. Aust. 2009, 190, 265–268. [Google Scholar] [CrossRef]
  7. Halstead, S.B. Dengue. Lancet 2007, 370, 1644–1652. [Google Scholar] [CrossRef]
  8. Kraemer, M.U.G.; Reiner, R.C., Jr.; Brady, O.J.; Messina, J.P.; Gilbert, M.; Pigott, D.M.; Yi, D.; Johnson, K.; Earl, L.; Marczak, L.B.; et al. Past and future spread of the arbovirus vectors Aedes aegypti and Aedes albopictus. Nat. Microbiol. 2019, 4, 854–863. [Google Scholar] [CrossRef]
  9. Bonizzoni, M.; Gasperi, G.; Chen, X.; James, A.A. The invasive mosquito species Aedes albopictus: Current knowledge and future perspectives. Trends Parasitol. 2013, 29, 460–468. [Google Scholar] [CrossRef] [Green Version]
  10. Gratz, N.G. Critical review of the vector status of Aedes albopictus. Med. Vet. Entomol. 2004, 18, 215–227. [Google Scholar] [CrossRef]
  11. Thomas, S.M.; Obermayr, U.; Fischer, D.; Kreyling, J.; Beierkuhnlein, C. Low-temperature threshold for egg survival of a post-diapause and non-diapause European aedine strain, Aedes albopictus (Diptera: Culicidae). Parasite Vectors 2012, 5, 100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Nicholson, J.; Ritchie, S.A.; Van Den Hurk, A.F. Aedes albopictus (Diptera: Culicidae) as a potential vector of endemic and exotic arboviruses in Australia. J. Med. Entomol. 2014, 51, 661–669. [Google Scholar] [CrossRef] [PubMed]
  13. Trewin, B.J.; Darbro, J.M.; Jansen, C.C.; Schellhorn, N.A.; Zalucki, M.P.; Hurst, T.P.; Devine, G.J. The elimination of the dengue vector, Aedes aegypti, from Brisbane, Australia: The role of surveillance, larval habitat removal and policy. PLoS Negl. Trop. Dis. 2017, 11, e0005848. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Beebe, N.W.; Ambrose, L.; Hill, L.A.; Davis, J.B.; Hapgood, G.; Cooper, R.D.; Russell, R.C.; Ritchie, S.A.; Reimer, L.J.; Lobo, N.F.; et al. Tracing the tiger: Population genetics provides valuable insights into the Aedes (Stegomyia) albopictus Invasion of the Australasian Region. PLoS Negl. Trop. Dis. 2013, 7, e2361. [Google Scholar] [CrossRef] [Green Version]
  15. Sly, A.; Mack, C. Protecting Australia from disease vectors: Exotic mosquito management at the border. Microbiol. Aust. 2018, 39, 108–110. [Google Scholar] [CrossRef]
  16. Muzari, M.O.; Devine, G.; Davis, J.; Crunkhorn, B.; van den Hurk, A.; Whelan, P.; Russell, R.; Walker, J.; Horne, P.; Ehlers, G.; et al. Holding back the tiger: Successful control program protects Australia from Aedes albopictus expansion. PLoS Negl. Trop. Dis. 2017, 11, e0005286. [Google Scholar] [CrossRef]
  17. Halstead, S.B.; Katzelnick, L.C.; Russell, P.K.; Markoff, L.; Aguiar, M.; Dans, L.R.; Dans, A.L. Ethics of a partially effective dengue vaccine: Lessons from the Philippines. Vaccine 2020, 38, 5572–5576. [Google Scholar] [CrossRef]
  18. Guy, B.; Ooi, E.E.; Ramos-Castaneda, J.; Thomas, S.J. When can one vaccinate with a live vaccine after wild-type dengue infection? Vaccines 2020, 8, 174. [Google Scholar] [CrossRef] [Green Version]
  19. WHO. Dengue: Guidelines for Diagnosis, Treatment, Prevention and Control; World Health Organization: Geneva, Switzerland, 2009. [Google Scholar]
  20. Hoffmann, A.A.; Ross, P.A.; Rasic, G. Wolbachia strains for disease control: Ecological and evolutionary considerations. Evol. Appl. 2015, 8, 751–768. [Google Scholar] [CrossRef]
  21. Gubler, D.J.; Rosen, L. Variation among geographic strains of Aedes albopictus in susceptibility to infection with dengue viruses. Am. J. Trop. Med. Hyg. 1976, 25, 318–325. [Google Scholar] [CrossRef]
  22. Tesh, R.B.; Gubler, D.J.; Rosen, L. Variation among goegraphic strains of Aedes albopictus in susceptibility to infection with chikungunya virus. Am. J. Trop. Med. Hyg. 1976, 25, 326–335. [Google Scholar] [CrossRef] [PubMed]
  23. Gubler, D.J.; Nalim, S.; Tan, R.; Saipan, H.; Sulianti Saroso, J. Variation in susceptibility to oral infection with dengue viruses among geographic strains of Aedes aegypti. Am. J. Trop. Med. Hyg. 1979, 28, 1045–1052. [Google Scholar] [CrossRef]
  24. Vazeille-Falcoz, M.; Mousson, L.; Rodhain, F.; Chungue, E.; Failloux, A.B. Variation in oral susceptibility to dengue type 2 virus of populations of Aedes aegypti from the islands of Tahiti and Moorea, French Polynesia. Am. J. Trop. Med. Hyg. 1999, 60, 292–299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Weaver, S.C.; Vasilakis, N. Molecular evolution of dengue viruses: Contributions of phylogenetics to understanding the history and epidemiology of the preeminent arboviral disease. Infect. Genet. Evol. 2009, 9, 523–540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Chan, M.; Johansson, M.A. The incubation periods of Dengue viruses. PLoS ONE 2012, 7, e50972. [Google Scholar] [CrossRef] [PubMed]
  27. Christofferson, R.C.; Mores, C.N. Estimating the magnitude and direction of altered arbovirus transmission due to viral phenotype. PLoS ONE 2011, 6, e16298. [Google Scholar] [CrossRef] [PubMed]
  28. Rico-Hesse, R.; Harrison, L.M.; Salas, R.A.; Tovar, D.; Nisalak, A.; Ramos, C.; Boshell, J.; de Mesa, M.T.; Nogueira, R.M.; da Rosa, A.T. Origins of dengue type 2 viruses associated with increased pathogenicity in the Americas. Virology 1997, 230, 244–251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. da Moura, A.J.; de Melo Santos, M.A.; Oliveira, C.M.; Guedes, D.R.; de Carvalho-Leandro, D.; da Cruz Brito, M.L.; Rocha, H.D.; Gomez, L.F.; Ayres, C.F. Vector competence of the Aedes aegypti population from Santiago Island, Cape Verde, to different serotypes of dengue virus. Parasites Vectors 2015, 8, 114. [Google Scholar] [CrossRef] [Green Version]
  30. Poole-Smith, B.K.; Hemme, R.R.; Delorey, M.; Felix, G.; Gonzalez, A.L.; Amador, M.; Hunsperger, E.A.; Barrera, R. Comparison of vector competence of Aedes mediovittatus and Aedes aegypti for dengue virus: Implications for dengue control in the Caribbean. PLoS Negl. Trop. Dis. 2015, 9, e0003462. [Google Scholar] [CrossRef]
  31. Fontaine, A.; Lequime, S.; Moltini-Conclois, I.; Jiolle, D.; Leparc-Goffart, I.; Reiner, R.C.; Lambrechts, L. Epidemiological significance of dengue virus genetic variation in mosquito infection dynamics. PLoS Pathog. 2018, 14, e1007187. [Google Scholar] [CrossRef] [Green Version]
  32. Novelo, M.; Hall, M.D.; Pak, D.; Young, P.R.; Holmes, E.C.; McGraw, E.A. Intra-host growth kinetics of dengue virus in the mosquito Aedes aegypti. PLoS Pathog. 2019, 15, e1008218. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Whitehorn, J.; Kien, D.T.; Nguyen, N.M.; Nguyen, H.L.; Kyrylos, P.P.; Carrington, L.B.; Tran, C.N.; Quyen, N.T.; Thi, L.V.; Le Thi, D.; et al. Comparative susceptibility of Aedes albopictus and Aedes aegypti to dengue virus infection after feeding on blood of viremic humans: Implications for public health. J. Infect. Dis. 2015, 212, 1182–1190. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Messina, J.P.; Brady, O.J.; Scott, T.W.; Zou, C.; Pigott, D.M.; Duda, K.A.; Bhatt, S.; Katzelnick, L.; Howes, R.E.; Battle, K.E.; et al. Global spread of dengue virus types: Mapping the 70 year history. Trends Microbiol. 2014, 22, 138–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Armstrong, P.M.; Rico-Hesse, R. Differential susceptibility of Aedes aegypti to infection by the American and Southeast Asian genotypes of dengue type 2 virus. Vector Borne Zoonotic Dis. 2001, 1, 159–168. [Google Scholar] [CrossRef] [Green Version]
  36. Rohani, A.; Wong, Y.C.; Zamre, I.; Lee, H.L.; Zurainee, M.N. The effect of extrinsic incubation temperature on development of dengue serotype 2 and 4 viruses in Aedes aegypti (L.). Southeast Asian J. Trop. Med. Public Health 2009, 40, 942–950. [Google Scholar]
  37. Tjaden, N.B.; Thomas, S.M.; Fischer, D.; Beierkuhnlein, C. Extrinsic incubation period of dengue: Knowledge, backlog, and applications of temperature dependence. PLoS Negl. Trop. Dis. 2013, 7, e2207. [Google Scholar] [CrossRef] [Green Version]
  38. Watts, D.M.; Burke, D.S.; Harrison, B.A.; Whitmire, R.E.; Nisalak, A. Effect of temperature on the vector efficiency of Aedes aegypti for dengue 2 virus. Am. J. Trop. Med. Hyg. 1987, 36, 143–152. [Google Scholar] [CrossRef]
  39. Carrington, L.B.; Armijos, M.V.; Lambrechts, L.; Scott, T.W. Fluctuations at a low mean temperature accelerate dengue virus transmission by Aedes aegypti. PLoS Negl. Trop. Dis. 2013, 7, e2190. [Google Scholar] [CrossRef]
  40. Ye, Y.H.; Chenoweth, S.F.; Carrasco, A.M.; Allen, S.L.; Frentiu, F.D.; van den Hurk, A.F.; Beebe, N.W.; McGraw, E.A. Evolutionary potential of the extrinsic incubation period of dengue virus in Aedes aegypti. Evolution 2016, 70, 2459–2469. [Google Scholar] [CrossRef]
  41. Reiner, R.C., Jr.; Perkins, T.A.; Barker, C.M.; Niu, T.; Chaves, L.F.; Ellis, A.M.; George, D.B.; Le Menach, A.; Pulliam, J.R.; Bisanzio, D.; et al. A systematic review of mathematical models of mosquito-borne pathogen transmission: 1970–2010. J. R. Soc. Interface 2013, 10, 20120921. [Google Scholar] [CrossRef] [Green Version]
  42. Lambrechts, L.; Scott, T.W.; Gubler, D.J. Consequences of the expanding global distribution of Aedes albopictus for dengue virus transmission. PLoS Negl. Trop. Dis. 2010, 4, e646. [Google Scholar] [CrossRef] [PubMed]
  43. Vazeille, M.; Rosen, L.; Mousson, L.; Failloux, A.B. Low oral receptivity for dengue type 2 viruses of Aedes albopictus from Southeast Asia compared with that of Aedes aegypti. Am. J. Trop. Med. Hyg. 2003, 68, 203–208. [Google Scholar] [CrossRef] [PubMed]
  44. Turell, M.J.; Beaman, J.R.; Tammariello, R.F. Susceptibility of selected strains of Aedes aegypti and Aedes albopictus (Diptera: Culicidae) to chikungunya virus. J. Med. Entomol. 1992, 29, 49–53. [Google Scholar] [CrossRef] [PubMed]
  45. Ferguson, N.M.; Kien, D.T.; Clapham, H.; Aguas, R.; Trung, V.T.; Chau, T.N.; Popovici, J.; Ryan, P.A.; O’Neill, S.L.; McGraw, E.A.; et al. Modeling the impact on virus transmission of Wolbachia-mediated blocking of dengue virus infection of Aedes aegypti. Sci. Trans. Med. 2015, 7, 279ra237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Nguyen, T.H.; Nguyen, H.L.; Nguyen, T.Y.; Vu, S.N.; Tran, N.D.; Le, T.N. Field evaluation of the establishment potential of wMelPop Wolbachia in Australia and Vietnam for dengue control. Parasites Vectors 2015, 8, 563. [Google Scholar] [CrossRef] [Green Version]
  47. Duong, V.; Lambrechts, L.; Paul, R.E.; Ly, S.; Lay, R.S.; Long, K.C.; Huy, R.; Tarantola, A.; Scott, T.W.; Sakuntabhai, A.; et al. Asymptomatic humans transmit dengue virus to mosquitoes. Proc. Natl. Acad. Sci. USA 2015, 112, 14688–14693. [Google Scholar] [CrossRef] [Green Version]
  48. Henchal, E.A.; Gentry, M.K.; McCown, J.M.; Brandt, W.E. Dengue virus-specific and flavivirus group determinants identified with monoclonal antibodies by indirect immunofluorescence. Am. J. Trop. Med. Hyg. 1982, 31, 830–836. [Google Scholar] [CrossRef]
  49. Terradas, G.; McGraw, E.A. Wolbachia-mediated virus blocking in the mosquito vector Aedes aegypti. Curr. Opin. Insect Sci. 2017, 22, 37–44. [Google Scholar] [CrossRef]
Pathogens 09 00668 g001 550

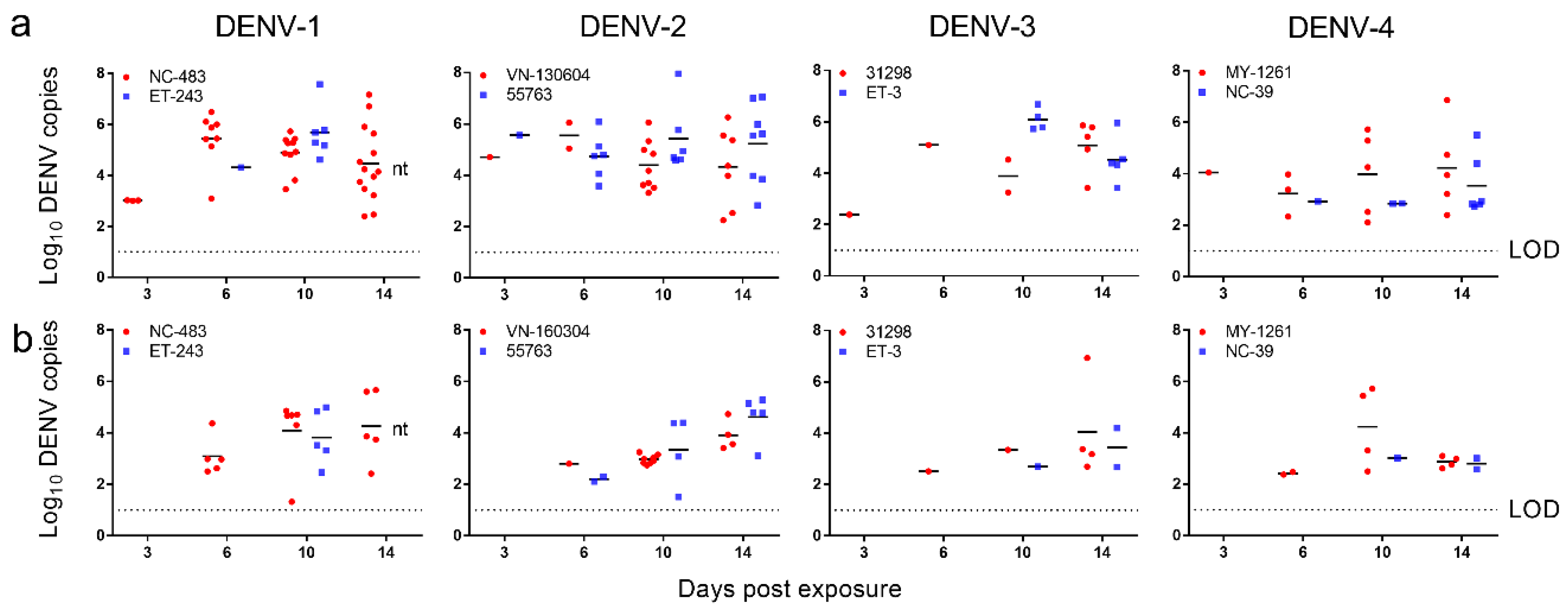

Figure 1. Growth kinetics of dengue virus strains from all four serotypes within Ae. aegypti mosquitoes. Virus loads in (a) bodies and (b) legs and wings. Points show the number of virus copies in individual samples. Lines indicate means. nt, not tested (mosquitoes infected with DENV-1 ET-243 did not survive to 14 dpe). LOD, limit of detection.
Figure 1. Growth kinetics of dengue virus strains from all four serotypes within Ae. aegypti mosquitoes. Virus loads in (a) bodies and (b) legs and wings. Points show the number of virus copies in individual samples. Lines indicate means. nt, not tested (mosquitoes infected with DENV-1 ET-243 did not survive to 14 dpe). LOD, limit of detection.
Pathogens 09 00668 g001
Pathogens 09 00668 g002 550

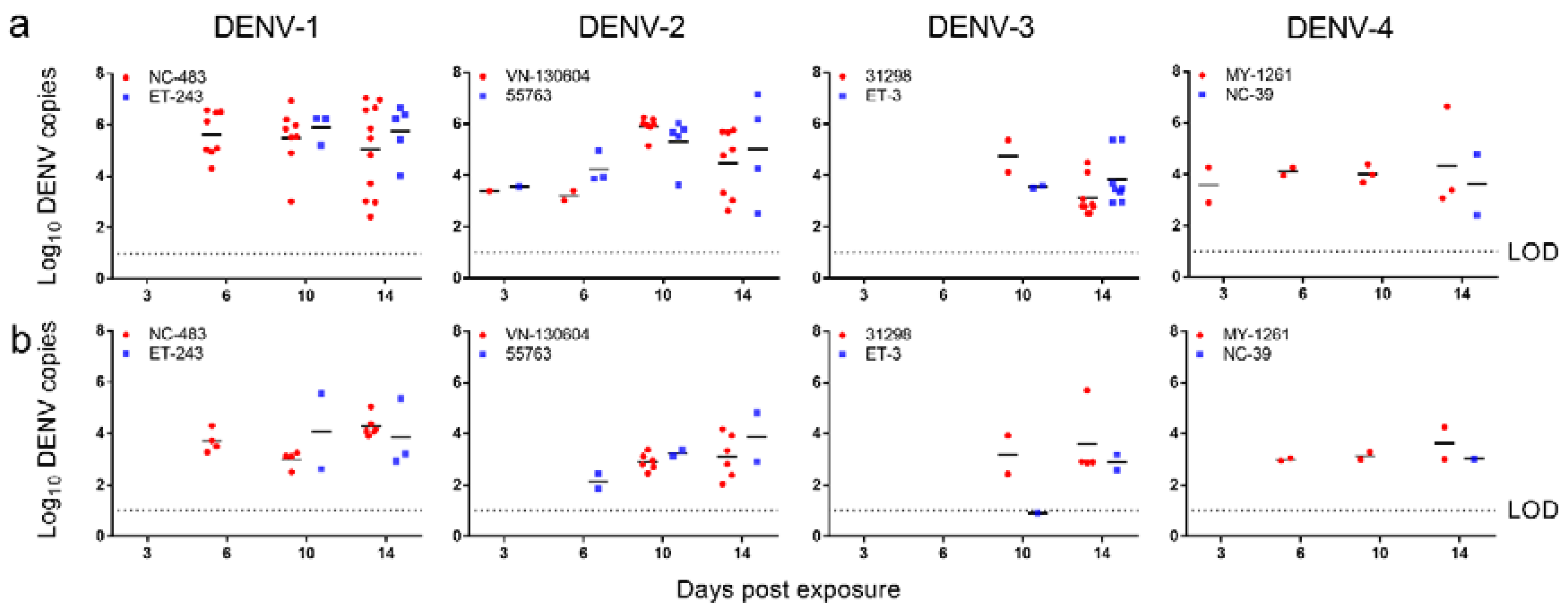

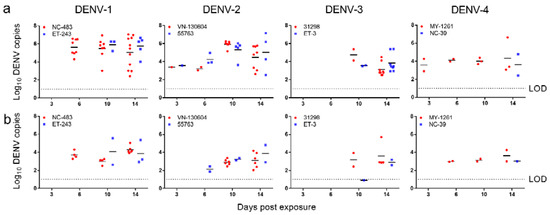

Figure 2. Growth kinetics of dengue virus strains from all four serotypes within Ae. albopictus mosquitoes. Virus loads in (a). bodies and (b). legs and wings. Points show the number of virus copies in individual samples. Lines indicate means. LOD, limit of detection.
Figure 2. Growth kinetics of dengue virus strains from all four serotypes within Ae. albopictus mosquitoes. Virus loads in (a). bodies and (b). legs and wings. Points show the number of virus copies in individual samples. Lines indicate means. LOD, limit of detection.
Pathogens 09 00668 g002
Pathogens 09 00668 g003 550

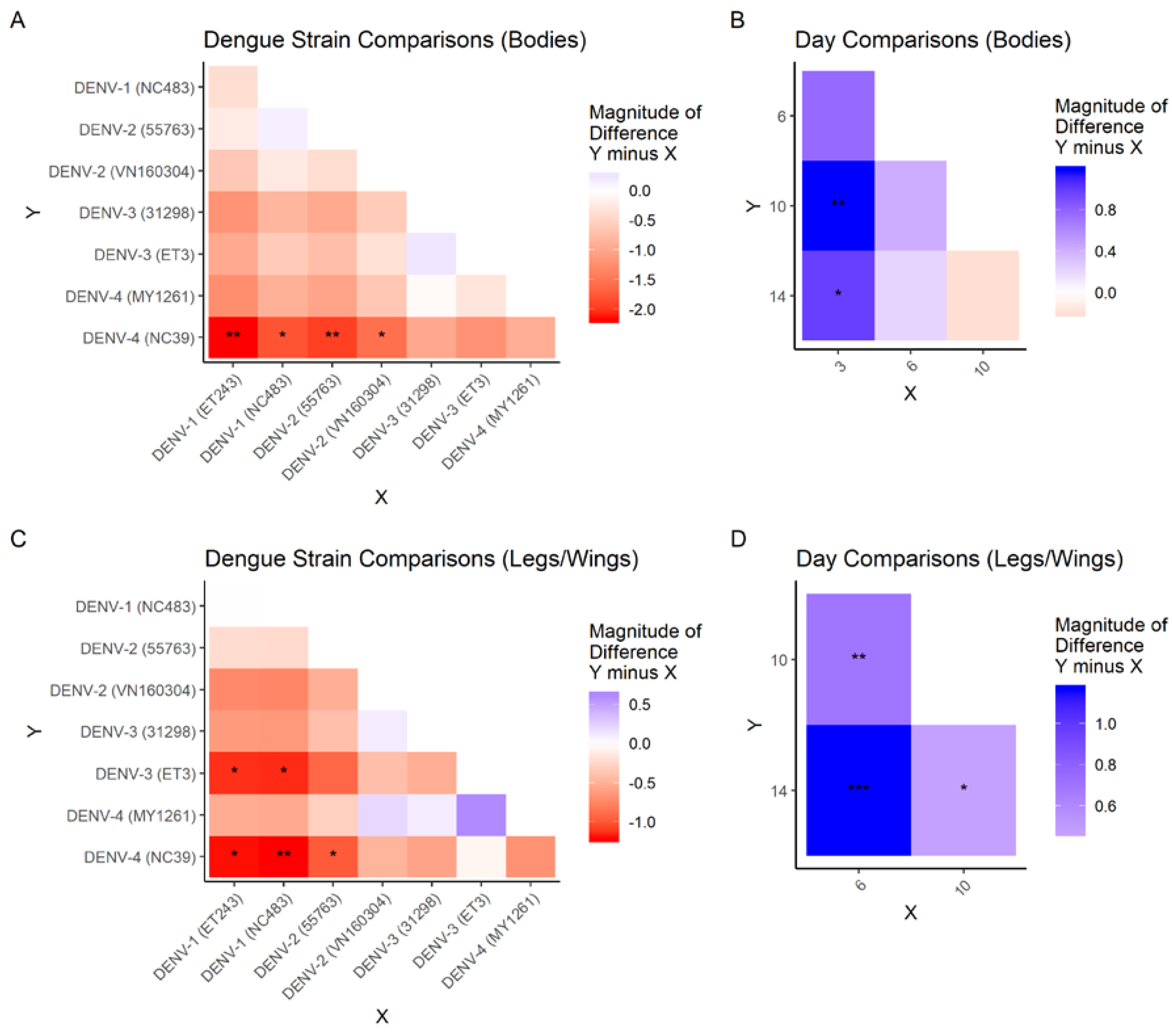

Figure 3. Magnitude of differences from Tukey’s pairwise difference test for each pair of dengue strain and pair of days post DENV exposure (Days). Direction of difference in reference to Y axis (vertical) minus X axis (horizontal). (A) Pairwise comparisons among Dengue strains in Bodies, (B) Pairwise comparisons among Days in Bodies, (C) Pairwise comparisons among Dengue strains in Legs/Wings, (D) Pairwise comparisons among Days in Legs/Wings. *, p < 0.05. **, p < 0.01. ***, p < 0.001.
Figure 3. Magnitude of differences from Tukey’s pairwise difference test for each pair of dengue strain and pair of days post DENV exposure (Days). Direction of difference in reference to Y axis (vertical) minus X axis (horizontal). (A) Pairwise comparisons among Dengue strains in Bodies, (B) Pairwise comparisons among Days in Bodies, (C) Pairwise comparisons among Dengue strains in Legs/Wings, (D) Pairwise comparisons among Days in Legs/Wings. *, p < 0.05. **, p < 0.01. ***, p < 0.001.
Pathogens 09 00668 g003
Table
Table 1. Strains of DENV used in vector competence experiments.
Table 1. Strains of DENV used in vector competence experiments.
SerotypeStrainCountry of OriginDate of Isolation
DENV-1NC483New Caledonia2008
ET243 *Timor-Leste2013
DENV-2VN130604Vietnam2002
55763Timor-Leste1985
DENV-3ET-3 *Timor-Leste2000
DENV-431298Cook Islands1988
MY1261Myanmar2000
NC-39New Caledonia2009
* Strains were isolated in Australia from patients infected in Timor-Leste.
Table
Table 2. Infection rates among Aedes aegypti and Aedes albopictus mosquitoes following feeding on eight strains of dengue from four serotypes. dpe, days post exposure. nt, not tested. Ae. aegypti mosquitoes infected with DENV-1 (ET-483) did not survive to 14 dpe.
Table 2. Infection rates among Aedes aegypti and Aedes albopictus mosquitoes following feeding on eight strains of dengue from four serotypes. dpe, days post exposure. nt, not tested. Ae. aegypti mosquitoes infected with DENV-1 (ET-483) did not survive to 14 dpe.
Mosquito Infection Rate (n Tested) at Various Days Post Exposure (dpe) to Dengue Virus
3 dpe6 dpe10 dpe14 dpe
MosquitoSerotypeStrainBodiesLegs/WingsBodiesLegs/WingsBodiesLegs/WingsBodiesLegs/Wings
Ae. aegyptiDENV-1NC-48315 (20)0 (20)40 (20)25 (20)50 (20)25 (20)70 (20)25 (20)
ET-2430 (20)0 (20)5 (20)0 (20)30 (20)25 (20)ntnt
DENV-2VN-1306045 (20)0 (20)10 (20)5 (20)45 (20)40 (20)35 (20)20 (20)
557635 (20)0 (20)30 (20)10 (20)30 (20)20 (20)40 (20)25 (20)
DENV-3312985 (20)0 (20)5 (20)5 (20)10 (20)5 (20)25 (20)20 (20)
ET-30 (20)0 (20)0 (20)0 (20)20 (20)5 (20)25 (20)10 (20)
DENV-4NC-390 (20)0 (20)5 (20)0 (20)10 (20)5 (20)30 (20)10 (20)
MY-12615 (20)0 (20)15 (20)10 (20)25 (20)20 (20)25 (20)20 (20)
Ae. albopictusDENV-1NC-4830 (20)0 (20)40 (20)20 (20)40 (20)20 (20)55 (20)30 (20)
ET-2430 (20)0 (20)0 (20)0 (20)15 (20)10 (20)25 (20)15 (20)
DENV-2VN-1306045 (20)0 (20)10 (20)0 (20)35 (20)30 (20)40 (20)30 (20)
557635 (20)0 (20)15 (20)10 (20)25 (20)10 (20)20 (20)10 (20)
DENV-3312980 (20)0 (20)0 (20)0 (20)10 (20)10 (20)45 (20)20 (20)
ET-30 (20)0 (20)0 (20)0 (20)10 (20)5 (20)40 (20)10 (20)
DENV-4NC-390 (20)0 (20)0 (20)0 (20)0 (20)0 (20)10 (20)5 (20)
MY-126110 (20)0 (20)10 (20)10 (20)15 (20)10 (20)15 (20)10 (20)
Table
Table 3. Main effects of virus strain, incubation period and mosquito species on the number of DENV genome copies in mosquito bodies and legs/wings determined using a general linear model (GLM). Data excludes samples in which no DENV copies were detected. The main effects that are significant at p-value < 0.05 are bolded. df, degrees of freedom. F, F statistic.
Table 3. Main effects of virus strain, incubation period and mosquito species on the number of DENV genome copies in mosquito bodies and legs/wings determined using a general linear model (GLM). Data excludes samples in which no DENV copies were detected. The main effects that are significant at p-value < 0.05 are bolded. df, degrees of freedom. F, F statistic.
EffectBody
(Error df = 37)		Legs/Wings
(Error df = 26)
dfFp-Value †dfFp-Value †
Incubation period34.090.0132 *19.66<0.001
Mosquito Species10.480.4912.960.097
Virus strain74.120.00274.770.001
* Legs/wings sampled at 3 dpe were negative for DENV. † p-value based on the F-statistic with degrees of freedom corresponding to the effect and the error term.

Share and Cite

MDPI and ACS Style

Ekwudu, O.; Marquart, L.; Webb, L.; Lowry, K.S.; Devine, G.J.; Hugo, L.E.; Frentiu, F.D. Effect of Serotype and Strain Diversity on Dengue Virus Replication in Australian Mosquito Vectors. Pathogens 2020, 9, 668. https://doi.org/10.3390/pathogens9080668

AMA Style

Ekwudu O, Marquart L, Webb L, Lowry KS, Devine GJ, Hugo LE, Frentiu FD. Effect of Serotype and Strain Diversity on Dengue Virus Replication in Australian Mosquito Vectors. Pathogens. 2020; 9(8):668. https://doi.org/10.3390/pathogens9080668

Chicago/Turabian Style

Ekwudu, O’mezie, Louise Marquart, Lachlan Webb, Kym S. Lowry, Gregor J. Devine, Leon E. Hugo, and Francesca D. Frentiu. 2020. "Effect of Serotype and Strain Diversity on Dengue Virus Replication in Australian Mosquito Vectors" Pathogens 9, no. 8: 668. https://doi.org/10.3390/pathogens9080668

APA Style

Ekwudu, O., Marquart, L., Webb, L., Lowry, K. S., Devine, G. J., Hugo, L. E., & Frentiu, F. D. (2020). Effect of Serotype and Strain Diversity on Dengue Virus Replication in Australian Mosquito Vectors. Pathogens, 9(8), 668. https://doi.org/10.3390/pathogens9080668

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
