Article

Pangenomic Characterization of Campylobacter Plasmids for Enhanced Molecular Typing, Risk Assessment and Source Attribution

by
Lucas Harrison
1,*,
Sampa Mukherjee
1,
Cong Li
1,
Shenia Young
1,
Qijing Zhang
2 and
Shaohua Zhao
1
1
U.S. Food and Drug Administration, Center for Veterinary Medicine, Laurel, MD 20708, USA
2
College of Veterinary Medicine, Iowa State University, Ames, IA 50011, USA
*
Author to whom correspondence should be addressed.
Pathogens 2025, 14(9), 936; https://doi.org/10.3390/pathogens14090936
Submission received: 6 June 2025 / Revised: 3 September 2025 / Accepted: 9 September 2025 / Published: 16 September 2025
(This article belongs to the Section Bacterial Pathogens)
Browse Figures
Review Reports Versions Notes

Abstract

Plasmid-mediated dissemination of antimicrobial resistance (AMR) and virulence genes plays a critical role in enhancing the adaptive potential of Campylobacter spp. While Campylobacter plasmids of concern are commonly classified as pTet, pVir, pCC42 or a large plasmid encoding a T6SS (pT6SS), existing classification systems often lack the resolution to capture intra-group diversity. Here we demonstrate a plasmid typing approach with enhanced discriminatory power that categorizes these major plasmid groups into discrete subgroups and strengthens risk-assessment investigations. Pangenomic analysis of 424 Campylobacter plasmid sequences revealed 30 distinct plasmid groups. The four major groups above accounted for 74.3% of the dataset. Within these major groups, 177 plasmid type-specific loci were used to define 16 subgroups. pTet plasmids were subdivided into 5 subgroups, with subgroup 3 enriched in C. coli. pVir plasmids formed 3 subgroups, with only subgroup 3 harboring the tet(O) genes. The 5 pCC42 subgroups displayed Campylobacter species specificity while the 3 pT6SS subgroups encoded distinct AMR profiles. This high-resolution typing approach provides a unified and scalable method to characterize Campylobacter plasmid diversity and identifies genetic markers critical for pathogen surveillance, source attribution and mitigation strategies employed to safeguard human and animal health.

1. Introduction

Campylobacter bacteria are human pathogens and part of the community of commensal microorganisms in food animals, wild animals and companion animals [1,2]. Campylobacter species have been isolated from a wide range of sources including live animals, retail meats, freshwater reservoirs, topsoil and even vegetation [2,3,4]. While many Campylobacter strains reside asymptomatically in immunocompetent veterinary hosts, some strains exhibit increased pathogenicity [5,6]. Although sporadic in nature, campylobacteriosis remains the most common form of human bacterial foodborne enteritis [5]. The rarity of outbreak events indicates that the progression to disease is not always dependent on highly clonal populations of pathogenic strains that are adapted to survive in a broad range of environments. Rather, it indicates that campylobacteriosis is dependent on the broad genetic diversity within the Campylobacter population that allows individual strains to capitalize on the opportunities presented in their unique microenvironment. These sporadic infections, caused by genetically diverse strains, also challenge efforts to identify the specific genetic elements that differentiate highly pathogenic strains from those with decreased pathogenicity [7].
One approach to differentiate Campylobacter strains involves the use of whole-genome sequencing (WGS) to identify the core set of genes conserved among the two most clinically relevant species C. coli and C. jejuni [8]. This effort led to the development of a 1343 loci core genome multilocus sequence typing (cgMLST) schema [8]. The cgMLST typing scheme has been instrumental in associating genomic profiles with AMR gene carriage, geographical location, isolation host and pathogenic risk [9,10]. However, the core loci shared among non-jejuni or -coli Campylobacter species may be as low as 500 loci [11], limiting the typing method’s utility for characterizing clinically relevant strains from other species. Furthermore, cgMLST does not fully account for the diversity of virulence and AMR genes located in the accessory genome or on mobile genetic elements [12].
The Campylobacter cgMLST loci contain alleles commonly associated with virulence or antimicrobial resistance, including but not limited to cdtB/CAMP0068 [13], cmeC/CAMP0330 [13], cmeB/CAMP0331 [13], cmeA/CAMP0332 [13], PEB4/CAMP0554 [14], gyrA/CAMP0950 [15], cheY/CAMP1039 [16,17], htrB/CAMP1055 [18], CJ1135/CAMP1056 [19], porA/CAMP1178 [20] and kpsF/CAMP1354 [21]. While other mechanisms of resistance and virulence are encoded among the chromosomes of other Campylobacter species, these elements are found outside the core genome [22,23,24]. In some cases, these accessory elements reside on mobile elements such as plasmids, and can encode genes associated with resistance to tetracyclines, macrolides, aminoglycosides, chloramphenicol, cephalosporins and other β-lactam antibiotics [9]. Further, plasmid-borne genes can enhance virulence by providing Campylobacter strains with type IV (T4SS), type VI (T6SS) and other secretion systems [25]. These systems mediate host cell adhesion, injection of protein effector molecules into host cells and horizontal DNA transfer between bacteria [26]. Plasmid-mediated transfer of DNA through secretion systems can augment the AMR profile and virulence potential of strains beyond what is accounted for in the core genome [27,28].
Despite their potential to enable antimicrobial resistance or increase the pathogenicity of Campylobacter strains, Campylobacter plasmids are not as well characterized as plasmids from Gammaproteobacteria. Three of the major Campylobacter plasmid groups have been named: pTet, pVir and pCC42. The fourth major Campylobacter plasmid group is often referred to as the Campylobacter megaplasmid and encodes a T6SS [29]. pTet and pVir are the two most commonly reported Campylobacter plasmids [30]. pTet plasmids are carried by both C. jejuni and C. coli, maintain a size of ~40–55 kb, and commonly encode the tet(O) tetracycline resistance gene [31]. pVir plasmids carry a T4SS, are found in both C. jejuni and C. coli and contribute to the virulence factors that allow Campylobacter bacteria to survive in the host [30]. The first pCC42 plasmid was recovered from a C. coli isolate from a 42-year-old patient, and while pCC42 plasmids are most prevalent among C. coli, they have been identified in C. jejuni as well [31]. The pCC42 plasmids are smaller (<30 kb) and also encode a T4SS, but generally lack AMR genes [32]. A newer group of large (190 kb) T6SS-encoding plasmids (pT6SS) has been linked to enhanced red blood cell-specific cytotoxicity [29]. Although each group is defined by a core genetic background, individual plasmids carry unique gene profiles that highlight the sequence diversity found within these plasmid groups [25].
These four plasmid groups harbor functionally important genes, yet there is no unified typing scheme to define their core genetic elements or resolve their internal diversity. While the Campylobacter chromosome can be characterized with cgMLST, there is no analogue for Campylobacter plasmids that aids in plasmid tracking, risk assessment or molecular epidemiological studies. Here we use a plasmid characterization tool, Lociq [33], to perform a pangenomic analysis of a large dataset of Campylobacter plasmids from human, animal and environmental origin. Our goals are to (1) define the core loci for each of the major plasmid types, (2) develop a high-resolution typing framework to distinguish plasmid subgroups, and (3) identify signature genetic elements to facilitate risk assessment and source attribution of plasmid-associated AMR and virulence factors. This approach provides a scalable and informative method to investigate Campylobacter plasmid diversity and its implications for human and animal health.

2. Materials and Methods

2.1. Campylobacter Chromosome and Plasmid Sequencing and Assembly

Plasmid sequences were recovered from two sources. The dataset of 83 Campylobacter plasmids from the US National Antimicrobial Resistance Monitoring System (NARMS) used in this study was represented by a combination of plasmids that were sequenced onsite for this study and closed Campylobacter plasmid sequences from the NARMS program that had been previously uploaded to the National Center for Biotechnology Information (NCBI) [34]. The dataset of 341 Campylobacter plasmids from PLSDB were recovered by downloading a local copy of the PLSDB v2023_11_03_v2 [35] database and extracting all sequences from entries associated with a Campylobacter isolation source. DNA from 58 NARMS [36] Campylobacter isolates was recovered using the Wizard® Genomic DNA Purification Kit (Promega, Madison, WI, USA). WGS was performed on an Oxford Nanopre Technology (ONT) MinIon, version MIN-101B, using the Flow Cell R9.4.1 and rapid barcoding kit, SQK-RBK004 (Oxford Nanopore, Oxford, UK), following manufacturer’s instructions. Sequences were assembled with Trycycler v0.5.5 [37] using FLYE v2.9.3 [38], Raven v1.8.3 [39] and miniasm v0.3-r179 [40] as the primary sequence assemblers and specifying an approximate genome size of 1.8 Mb. Assemblies were first polished with Medaka v1.11.3 [41] and Polypolish v0.6.0 [42] when short-read sequences were available through NCBI, and then screened for regions of low coverage using samtools v1.18 [43] and bedtools v2.27.1 [44]. Contigs larger than 1.4 Mb were identified as chromosomal sequences, while smaller contigs with lower depth of coverage than the chromosomal contigs were removed. The remaining contigs were processed as plasmid contigs.

2.2. Plasmid Feature Annotation

Plasmid assemblies were annotated with PROKKA v1.14.6 set to include non-coding RNAs [45] and the resulting ordered protein sequence files were analyzed using MacSyFinder v2.1.4 with the TXSScan v1.1.3 and CONJScan v2.0.1 libraries [46,47,48] to identify molecular secretion and conjugation systems. Additional plasmid-borne virulence and antibiotic resistance genes were identified through AMRFinder Plus [49] v3.10.45 with the -plus parameter included. Plasmid sequences were characterized using the MOB-suite mob_typer 3.1.9 [50,51].

2.3. Plasmid Group Characterization

Within this study, Campylobacter plasmid type refers to the accepted plasmid classification system that contains but is not limited to pTet, pVir and pCC42. Campylobacter plasmid group, however, refers to the plasmid groupings derived from our dataset during this study using the following process. Campylobacter plasmids were analyzed and organized into groups by gene content using the Lociq [33] plasmid analysis method. This process included the generation of the pangenome of combined coding and intergenic sequences with the Roary v3.13.0 [52] and Piggy v1.5 [53] programs, respectively. The pangenome was translated into a presence/absence matrix of genetic elements and the pairwise Jaccard distances were calculated between all plasmids in R [54]. We then applied the elbow method to the sum of squared Jaccard distance values to determine the number of plasmid groups contained in the dataset [55]. Images for the elbow plots were generated in the core R environment. Plasmid typing loci were selected using the Lociq default values of >90% prevalence within the plasmid group and <10% outside the plasmid group.
Campylobacter plasmid groups were subdivided by applying the elbow method described above to the set of plasmids within each group. The plasmid typing loci for the plasmid subgroups were determined in a similar two-step process. First, a candidate library of loci was generated by identifying the loci with a <10% prevalence outside the plasmid group to filter out loci that were likely to be more prevalent in other plasmid groups. Second, the prevalence of the loci from this subset was evaluated for each plasmid subgroup. Loci with a prevalence >90% in any of the plasmid subgroups were identified as being a plasmid typing locus for that plasmid subgroup. Plasmid subgroup typing results were compared to mob_typer assignments with the adjusted Rand index in R using the mclust v6.1.1 package [56].
Plasmid typing loci were checked for uniqueness by generating a pairwise percent identity matrix of their primary protein sequences using the R package bio3d v2.4-4 [57]. Loci with a greater than 70% identity of their aligned regions were removed from the set of plasmid typing loci. Functional annotation of the remaining coding loci was performed by querying the protein sequences against the Uniprot 2024_04 database and with BlastKOALA v3.0 through their respective web interfaces [58,59]. Consensus sequences of the intergenic loci were generated through EMBOSS v6.6.0.0 cons program using default parameters [60].

3. Results

Eighty-three closed plasmid sequences were recovered from 58 Campylobacter isolates collected through the NARMS program. Pangenomic analyses (Figure 1) revealed that the Campylobacter plasmids were organized in 8 groups (Figure S1). The largest 4 groups accounted for 72 of the 83 plasmids (86.7%) and contained between 16 and 21 plasmids each. Plasmids from each of these major plasmid groups aligned with one of four known Campylobacter plasmid types: pTet, pVir, pCC42 and pT6SS. As our initial analysis identified 8 plasmid groups, the remaining 4 plasmid groups contained the 11 plasmids left in the dataset.
Next, we evaluated if the pattern of 4 major Campylobacter plasmid groups would emerge when the pangenome was reconstructed using a combined dataset of 83 NARMS plasmid sequences and 341 plasmid sequences from an external database representing 15 Campylobacter species. The combined dataset of 424 Campylobacter plasmids was divided into 30 plasmid groups, and 315 of the 424 plasmids were sorted into the 4 major Campylobacter plasmid groups representing pTet, pVir, pCC42 and pT6SS (Figure S2). Alignment of the plasmid sequences to representative plasmids from the four major groups showed that plasmids in the pTet, pVir and pCC42 groups aligned to the reference with >89% identity (Table 1). The pT6SS plasmids only aligned to the reference with 65% identity. However, 36.1% of the pTet reference plasmid aligned to the pT6SS plasmid sequences, indicating the presence of conserved regions shared between the two plasmid groups.
All plasmids from the 4 major Campylobacter plasmid groups that were represented in the NARMS dataset were mapped to their corresponding group in the combined dataset (Figure 2). A visual inspection of the distribution of loci revealed that each major plasmid group was made up of several, smaller subgroups. This pattern of subdivision was most notable in the pCC42 plasmids of the NARMS dataset where half of the pCC42 plasmids contained loci that were absent in the other pCC42 plasmids (Table S2). Next, we generated elbow plots of the major Campylobacter plasmid groups to determine whether the groups warranted further subdivision, and if so, to identify the number of subgroups present in each (Figure S3). The pTet and pCC42 groups were each divided into 5 subgroups while the pVir and pT6SS groups were each divided into 3 subgroups.
Pangenomic analysis using the Lociq program revealed 177 genetic markers that defined the 16 plasmid subgroups: 5 pTet subgroups, 5 pCC42 subgroups, 3 pVir subgroups and 3 pT6SS subgroups (Table S2). Typing of these subgroups showed strong agreement with the secondary cluster ID assigned by the MOBTyper program (adjusted Rand index, 0.669) (Figure S4). Protein coding regions of plasmid loci were evaluated in a percent identity matrix to identify loci pairs with a sequence similarity greater than 70% shared between plasmid subgroups (Table S3). Only one typing locus was identified in multiple groups; the hicB antitoxin gene was shared between the pTet and the pT6SS plasmids. Of the protein coding regions, 108 were initially annotated as hypothetical proteins. Functional annotation of these 108 loci was performed with BlastKOALA. This approach provided multiple annotations per locus resulting from multiple functional sites on a given locus. The best match for each locus was selected as the annotation (Table S2).
Group 1 represented the 165 pTet plasmids collected from all isolation sources represented in the dataset (Table S1). 84.8% of the pTet plasmids encoded a pT4SSt system and 9.8% of the pTet plasmids carried type T T4SS genes. Only 3.0% of pTet plasmids lacked any known bacterial secretion systems. The pTet group accounted for the plasmids with the greatest prevalence and diversity of AMR genes. Specifically, 96.4% of pTet plasmids bore AMR genes and 16/17 AMR genes found in the dataset were identified in the pTet group.
Plasmid-encoded AMR genes were unequally distributed among the 5 pTet subgroups (Figure 3). While the pTet.5 subgroup contained plasmids that only encoded the tet(O) AMR gene, at least 7 AMR genes were identified in each of the 4 remaining pTet subgroups. Of these subgroups, pTet.3 showed the greatest diversity of AMR genes with 12 unique AMR alleles present in the subgroup (Figure 3). Additionally, all pTet subgroups from C. coli showed a greater prevalence of AMR genes than pTet plasmids recovered from C. jejuni. The importance of this is highlighted in pTet.3 which not only contained the highest number of AMR genes, but also contained the greatest fraction of pTet+ C. coli isolates of human origin (Table S1). Of note, the large number of AMR genes represented in this subgroup was driven by a set of plasmids recovered from chicken isolates that bore aad9, ant(6′)I-a, aph(2”)-Ig, aph(3′)-IIIa, sat4 and tet(O) (Table S1).
A total of 38 loci were identified across the 5 pTet subgroups (Table S2); 29 loci encoded proteins while 9 loci were intergenic sequences. Fourteen of the protein coding loci were specific to a single pTet subgroup (Table S2). pTet.2 plasmids were identified by the presence of genes encoding proteins with amino acid sequence similarity to a demethylase (Uniprot ID: A0A1C7H5E6), an EexN family lipoprotein (Uniprot ID: A0A4U8UF75), a toprim domain-containing protein (Uniprot ID: A0A329ZV89) and a variant of the conjugal transfer protein TraJ (Uniprot ID: A0A329ZX00). pTet.3 plasmids were defined by genes encoding unique variants of TrbL (Uniprot ID: A0A329ZY80) and TraJ (Uniprot ID: A0A329ZX00) as well as a DUF2306 domain-containing protein (Uniprot ID: A0A2U2XA67), a ribonuclease P protein component (Uniprot ID: A0A926MQ05), and a large polyvalent protein-associated domain-containing protein (Uniprot ID: V8CF05). pTet.4 plasmids were identified by genes encoding DNA topoisomerase 3 (Uniprot ID: B9KGJ1), a TraC variant (Uniprot ID: A0A4U7BAF4) and an uncharacterized protein. Only one gene encoding a site-specific recombinase/resolvase (Uniprot ID: B9KGG8) was indicative of pTet.5 plasmids while pTet.1 plasmids contained no loci that were unique to their specific subgroup.
Campylobacter plasmid group 2 (pCC42) contained 67 plasmids recovered from all isolation sources represented in this study (Table S1). The pCC42 plasmids encoded either a T4SS with a functional protein transfer system (65/67) or the related genetic mechanisms for plasmid transfer (2/67) (Table S1). The pCC42 group was divided into 5 separate subgroups using 36 protein-coding loci and 10 intergenic loci (Table S2). Sequence analysis revealed seven instances where two or more protein-coding loci from pCC42 subgroup plasmids shared >70% sequence identity (Table S3). The sequence similarity among loci suggests that the functional roles of these variants are specialized for each subgroup (Table 2). The prevalence of pCC42 by species was 35.8% in C. jejuni, 62.7% in C. coli and 1.5% in C. armoricus (Table S4). The pCC42 subgroups demonstrated greater species specificity than other Campylobacter plasmid groups (Table S4). Subgroups pCC42.1 and pCC42.4 were represented by 83.3% and 100% C. jejuni, respectively. C. coli was the dominant species in pCC42.2, pCC42.3 and pCC42.5, representing 90.9%, 100.0% and 71.4% of the subgroups, respectively.
The Group 3 plasmids (pVir) contained 31 plasmids and were recovered from human, chicken and environmental sources (Table S1). All pVir plasmids encoded either a protein modified T4SS (TXSScan: pT4SSt) or related mechanisms of plasmid transfer. tet(O) was the only AMR gene present in the pVir group, and only 3 (9.7%) of the plasmids bore the gene. A 4904 bp sequence surrounding tet(O) was conserved in all pVir tet(O)+ plasmids. The aligned region of this sequence had >99% sequence identity to a 7952 bp region of the reference pTet plasmid (Figure 4). While the 7952 bp aligned region found on the reference pTet plasmid contained both tet(O) and repA, repA was missing from the tet(O)+ pVir plasmids (Figure 4). Even though this ~5 kb sequence was found in multiple Campylobacter plasmid groups, no insertion sequences were detected in the gene-cassette flanking regions or in the repA region of the pTet plasmid to explain this pattern of recombination.
Twenty-five coding region loci and 3 intergenic sequence loci were identified as indicative of the pVir plasmids (Table S2). While the pVir group was divided into 3 subgroups, the subgroup pVir.2 contained only a single plasmid recovered from a C. novaezeelandiae isolate. The pVir.1 plasmids contained genes that encoded proteins with sequence similarity to a stage 0 sporulation protein A homolog (Uniprot ID: A0A1D8GI77), a plasmid replication initiation protein (Uniprot ID: A0AA43I9M7) and 4 additional uncharacterized proteins. The pVir.3 plasmids contained a different set of genes that encoded proteins with sequence similarity to a P-type type IV conjugative transfer system coupling protein TraG/VirD4 (Uniprot ID: A0A7H9CK28), a plasmid mobilization relaxosome protein MobC (Uniprot ID: A0A2P8QYF6), a T4SS protein VirB5 (Uniprot ID: A0A3D8IGZ2) and three additional uncharacterized proteins. Further, the pVir.3 subgroup was the only pVir group to contain plasmids encoding the tet(O) gene mentioned above. All three pVir.3-tet(O)+ plasmids were recovered from chicken isolates; two isolates were C. coli and one was C. jejuni. However, even though the pVir.3 subgroup contained tet(O), no pVir.3 plasmids were recovered from a human-origin Campylobacter isolate.
Group 4 (pT6SS) contained the largest plasmids (~123 kb) compared with all Campylobacter plasmid groups. These pT6SS plasmids were recovered from Campylobacter strains isolated from human sources, avian sources and a single ursine source (Table S1). These large plasmids had the greatest number of typing loci containing 46 coding loci and 19 intergenic loci (Table S2). The pT6SS plasmids were divided into three subgroups; pT6SS.1 was defined by 21 coding and 9 intergenic loci, pT6SS.3 was defined by 13 coding and 4 intergenic loci and the pT6SS.2 plasmids lacked any subgroup-specific typing loci.
Despite the diversity of typing loci among pT6SS plasmids, all three subgroups contained hybrid pT6SS/pTet plasmids (Table S1). In total, 16/52 of the pT6SS plasmids contained at least 70% of the reference pTet plasmid sequence. These 16 plasmids were on average 45 kb larger than the set of pT6SS plasmids that contained less than 70% of the reference pTet plasmid sequence (Figure 5). Additionally, in comparison to a 96.4% carriage rate of tet(O) in pTet plasmids, only 87.5% of the hybrid pT6SS/pTet plasmids bore the tet(O) gene.
Aside from tet(O), the distribution of AMR genes among the pT6SS plasmids showed plasmid subgroup specificity (Table S1). tet(O) was the only AMR gene present among the pT6SS.1 plasmids while only two plasmids in pT6SS.2 carried AMR genes: NZ_CP082878.1 carried tet(O) and pN17C264.1 carried both tet(O) and aph(3′)-IIIa. Subgroup 3, however, had the greatest prevalence and diversity of AMR genes among the pT6SS plasmids. Genes encoding Aad9, Aph(2′′)-If, Aph(3′)-IIIa, Aph(3′)-VIIa and Tet(O) were all found in the pT6SS.3 subgroup and seventeen of the 22 pT6SS.3 plasmids carried at least one of these 5 AMR genes. Notably, the aminoglycoside resistance gene aph(3′)-VIIa was only found in the pT6SS.3 subgroup among all 424 plasmids in the combined Campylobacter plasmid dataset.
A comparison of the four major Campylobacter plasmid groups by isolation source revealed that the respective plasmid subgroups were not found equally among either the Campylobacter species or the host organisms from which the Campylobacter isolates were recovered (Figure 6). For example, 12 of the 15 plasmid subgroups demonstrated Campylobacter species specificity; only the pTet.3, pTet.5 and pVir.3 subgroups were comparably represented by both C. coli and C. jejuni. Further, the Campylobacter species composition within the set of isolates recovered from humans differed by plasmid subgroup. Thirteen of the 15 plasmid subgroups contained plasmids recovered from human isolates. In 9 of these 13 subgroups, plasmids from the human isolates were recovered exclusively from either C. jejuni or C. coli. Only four plasmid subgroups, pCC42.1, pTet.2, pTet.3 and pTet.5, contained plasmids from human isolates of both C. jejuni and C. coli.
The pTet, pVir, pCC42 and pT6SS plasmid groups mentioned above represent the four major groups out of the 30 plasmid groups that were identified. Groups 5, 9, 10, 12 and 18 were the largest of the remaining groups and contained more than five plasmids each (Table S4). Plasmid groups 5, 9 and 10 contained smaller plasmids (<5 kb or less) from C. coli and C. jejuni that were recovered from human, poultry and unknown sources and lacked any known AMR genes (Table S1). Plasmids from group 5 were identified as mobilizable plasmids, but no mechanisms of transfer or virulence were detected in plasmids from groups 9 or 10. Plasmid group 12 also contained smaller plasmids from C. coli and C. jejuni but were recovered from a broader range of hosts. In addition to human sources, these plasmids were recovered from Campylobacter isolates of cattle, wild-bird and unknown origin.
Plasmid group 18 differed from the other plasmid groups not belonging to the four major plasmid groups in group size, sequence length, plasmid host and isolation source. First, plasmid group 18 was the largest of these smaller plasmid groups and contained 17 plasmids that ranged between 25 and 73 kb in length. No plasmids from this group were recovered from C. jejuni or C. coli, and none were recovered from human or poultry sources. Rather, 15 plasmids were recovered from C. fetus of cattle origin, while the remaining two were recovered from the recently named C. vicugnae from goat and alpaca sources. Pangenomic clustering of the plasmid loci revealed that group 18 could be divided into 3 subgroups (Figure S5). The two plasmids from C. vicugnae were assigned to the same subgroup as other plasmids from C. fetus (Table S1), indicating that the plasmids are shared between these two closely related Campylobacter species. Plasmids from group 18 encoded two variants of the T4SS (TXSScan: pT4SSt, CONJScan: dCONJ_typeT) and aligned to the pCC42 reference plasmid with up to 48.3% identity (Table S1).

4. Discussion

Our pangenomic plasmid typing approach applied to a dataset of closed Campylobacter plasmid sequences yielded three key findings. First, the method successfully reconstructed the four primary Campylobacter plasmid types (pTet, pVir, pCC42, and pT6SS) without prior classification. This independent reconstruction of Campylobacter plasmid types demonstrates the method’s utility to identify conserved groups of related plasmids from sequence data alone. Second, our analysis revealed that the major plasmid groups were represented by multiple, genetically distinct plasmid subgroups. These plasmid subgroups shared the set of core loci representative of their plasmid group (e.g., pTet), along with a set of accessory loci that were unique to their specific subgroup (e.g., pTet.2) (Table S2). Third, the identification of both group- and subgroup-specific loci offers a new framework for enhancing source attribution and AMR risk assessment in Campylobacter epidemiology.
The use of a single characterization method for all Campylobacter plasmids allows for enhanced comparisons between plasmid types. Prior to this investigation, similarities between Campylobacter plasmid types were identified by querying shared genes of interest (e.g., replicon, AMR or mobilization genes) or comparing the entire genetic content of differing plasmid types [25,32,51,52,62]. Our approach provides a unified system to compare all Campylobacter plasmids based on shared and exclusive loci [34]. This loci-based approach enables researchers to distinguish between plasmids that have acquired AMR or virulence genes via horizontal gene transfer versus those formed through plasmid fusion events. For example, the pVir.3 plasmids pN19C101.2, pN17C406.2 and pN58084.2 all encoded the hallmark tet(O) gene of the pTet plasmids. However, they contained only two pTet-specific typing loci, pTet49 and its neighboring intergenic region, both immediately upstream of tet(O) (Figure 4). This indicates that the integration of tet(O) into the pVir plasmids was a localized event and not the hybridization of two separate plasmids. This contrasts with the 14 tet(O)+ pT6SS plasmids where each plasmid contained 26–32 of the 38 pTet typing loci (Figure 5). The difference in pTet typing loci between tet(O)+ pVir plasmids and tet(O)+ pT6SS plasmids illustrates the method’s usefulness to infer evolutionary routes of gene acquisition.
This work bridges the gap between existing plasmid characterization and plasmid classification methods. Existing Campylobacter plasmid characterization approaches identify core and accessory genes present in specific plasmid types [25,63,64]. This approach produces a large pool of targets that accurately describe plasmid molecules. However, the pool of genes often contained elements present in other plasmid types. For example, the T4SS identified in the core genome of pTet plasmids is present in other plasmid types [25]. In contrast, methods to classify Campylobacter plasmids typically employ a small number of highly predictive loci to determine the plasmid type but are unable to describe the genetic diversity of plasmids within a given plasmid type [63]. One exception to this is the MOB-suite toolset that uses a combination of sequence alignment and biomarker matching to classify plasmids based on their similarity to a reference plasmid set [51,52]. While MOBTyper classifies Campylobacter plasmid types with similar resolution to the pangenomic method described here, the method prioritizes biomarkers associated with plasmid replication and transfer and may not include other medically relevant targets [51,52]. The pangenomic clustering of plasmids provided by the method used here not only provides a gene target-based plasmid classification method with high discriminatory power for plasmid subgroup identification, but it also organizes the data for downstream applications that include plasmid sequence typing and detection of structural rearrangements.
Analysis of Campylobacter plasmid sequences revealed that the plasmid groups could be divided into subgroups using subgroup-specific typing loci. These subgroups often displayed a bias for a given Campylobacter species, consistent with what has been described for the pCC42 group [32]. For example, among the pTet subgroups, only pTet.3 was prevalent in both C. jejuni and C. coli, suggesting possible cross-species transmission or shared ecological niches. Further, when multiple Camplyobacter species were represented in a plasmid subgroup, plasmids from different species could display differing AMR gene profiles. These subgroup-specific loci provide actionable targets for pathogen monitoring systems such as NARMS, allowing for early detection of high-risk plasmid lineages linked to AMR carriage. Finally, the integration of these typing loci into routine molecular surveillance workflows could automate the detection of specific plasmid subgroups. For example, the presence of the gene encoding the hypothetical protein A0A2U2XA67 from pTet.3 has the potential to indicate a plasmid with a greater likelihood of AMR gene carriage than a plasmid bearing the gene encoding the EexN family lipoprotein from pTet.2. The incorporation of plasmid typing loci into this analysis would expedite risk communication during pathogen investigations.
While the plasmid typing metrics identified in this study can be used to characterize plasmids in the sample dataset, our study has limitations that may affect its usefulness for analyzing the broader population of Campylobacter plasmids. First, we recognize the potential for sampling bias in our reference dataset. Plasmids from medically relevant Campylobacter isolates are more likely to be selected for long read sequencing than those collected through routine monitoring. Out of 15 Campylobacter species in our combined database, 87% of the plasmids were recovered from C. coli or C. jejuni. Further, 74% of the plasmids belonged to only four of the 30 plasmid groups. This limits applicability of conclusions drawn from the analyses of this dataset to less-studied Campylobacter species. Second, the definitions of the plasmid loci may be influenced by the annotation database used. The PROKKA annotation program excels at identifying many of the genes and regulatory elements found in the prokaryotic genome [46]. However, the correct identification of discipline-specific elements such as AMR or virulence genes can require the use of specialized databases. Our analysis incorporated directed searches for AMR, virulence and bacterial secretion system elements, but did not include an investigation of IS, transposon or CRISPR elements. The addition of these or other discipline-specific markers may improve the relevance of the Campylobacter plasmid definitions.
In summary, our findings demonstrate the value of using a single, scalable pangenomic framework for Campylobacter plasmid typing. Our approach was not only able to recapitulate the four major Campylobacter plasmid groups, it was also able to further subtype them into distinct lineages of plasmid subgroups. The enhanced characterization provided by this method revealed associations between the plasmid subgroup with both AMR gene carriage and host species. This multilocus plasmid typing approach enables researchers to not only detect plasmids from the major plasmid groups but also identify the specific subgroup the plasmid belongs to. As a result, application of the Lociq method to Campylobacter plasmids can support enhanced source attribution and inform risk assessment evaluations, supporting efforts to protect human and animal health.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/pathogens14090936/s1, Table S1: Metadata and reference alignments for Campylobacter plasmids; Table S2: Typing loci annotation and sequence data; Table S3: Amino acid percent identity matrix of the protein-coding typing loci; Table S4: Frequency of plasmid sequences by Campylobacter species and plasmid subgroup; Figure S1: Elbow plot of in-house loci profiles; Figure S2: Elbow plot of combined dataset of loci profiles; Figure S3: Elbow plot of loci-profiles for groups representative of Campylobacter plasmid types from the combined dataset; Figure S4: Alignment of plasmid subgroups to MOBTYper assignments; Figure S5: Elbow plot of the Group 18 loci profiles from plasmids recovered from C. fetus.

Author Contributions

Conceptualization, L.H. and S.Z.; Methodology, L.H., S.M., C.L., S.Y. and S.Z.; Software, L.H. and S.M.; Validation, L.H.; Formal Analysis, S.M.; Investigation, L.H., S.M., Q.Z. and S.Z.; Resources, S.M., C.L., S.Y. and S.Z.; Data Curation, L.H., S.M. and S.Z.; Draft Writing, L.H.; Writing—Review, L.H., S.M., C.L., S.Y., Q.Z. and S.Z.; Visualization, L.H.; Supervision, S.Z.; Project Administration, S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Accession numbers for all isolates may be found in the first table of the Supplementary Materials.

Acknowledgments

We would like to acknowledge our colleagues at the United States Department of Agriculture Food Safety and Inspection Service and the United States Centers for Disease Control and Prevention for their dedication, expert counsel and support of the NARMS program.

Conflicts of Interest

The authors declare no conflicts of interest.

Disclaimer

The views expressed in this article are those of the authors and do not necessarily reflect the official policy of the U.S. Department of Health and Human Services, the U.S. Food and Drug administration, or the U.S. Government. Reference to any commercial materials, equipment, or process does not imply recommendation or endorsement by the U.S. Department of Health and Human Services.

Abbreviations

The following abbreviations are used in this manuscript:
AMRAntimicrobial Resistance
cgMLSTCore Genome Multilocus Sequence Typing
CRISPRClustered Regularly Interspaced Short Palindromic Repeats
DNADeoxyribonucleic Acid
FDAUnited States Food and Drug Administration
ISInsertion Sequence
NARMSNational Antimicrobial Resistance Monitoring System
NCBINational Center for Biotechnology Information
ONTOxford Nanopore Technology
PLSDBPlasmid Sequence Database
pT4SStTi-plasmid type T4SS with a functional protein transfer system
T4SSType IV Secretion System
T6SSType VI Secretion System
WGSWhole-Genome Sequencing

References

  1. Lee, M.D.; Newell, D.G. Campylobacter in poultry: Filling an ecological niche. Avian Dis. 2006, 50, 1–9. [Google Scholar] [CrossRef]
  2. Piña-González, A.M.; Castelán-Sánchez, H.G.; Hurtado-Ramírez, J.M.; López-Leal, G. Campylobacter prophage diversity reveals pervasive recombination between prophages from different Campylobacter species. Microbiol. Spectr. 2024, 12, e02795-23. [Google Scholar] [CrossRef]
  3. Horrocks, S.; Anderson, R.; Nisbet, D.; Ricke, S. Incidence and ecology of Campylobacter jejuni and coli in animals. Anaerobe 2009, 15, 18–25. [Google Scholar] [CrossRef]
  4. Dearlove, B.L.; Cody, A.J.; Pascoe, B.; Méric, G.; Wilson, D.J.; Sheppard, S.K. Rapid host switching in generalist Campylobacter strains erodes the signal for tracing human infections. ISME J. 2016, 10, 721–729. [Google Scholar] [CrossRef]
  5. Tack, D.M.; Marder, E.P.; Griffin, P.M.; Cieslak, P.R.; Dunn, J.; Hurd, S.; Scallan, E.; Lathrop, S.; Muse, A.; Ryan, P.; et al. Preliminary incidence and trends of infections with pathogens transmitted commonly through food—Foodborne Diseases Active Surveillance Network, 10 US sites, 2015–2018. Morb. Mortal. Wkly. Rep. 2019, 68, 369. [Google Scholar] [CrossRef] [PubMed]
  6. United States Centers for Disease Control and Prevention. Antibiotic Resistance Threats in the United States. 2019. Available online: https://www.cdc.gov/antimicrobial-resistance/media/pdfs/2019-ar-threats-report-508.pdf (accessed on 1 April 2025).
  7. Brinch, M.L.; Hald, T.; Wainaina, L.; Merlotti, A.; Remondini, D.; Henri, C.; Njage, P.M.K. Comparison of source attribution methodologies for human campylobacteriosis. Pathogens 2023, 12, 786. [Google Scholar] [CrossRef] [PubMed]
  8. Cody, A.J.; Bray, J.E.; Jolley, K.A.; McCarthy, N.D.; Maiden, M.C. Core genome multilocus sequence typing scheme for stable, comparative analyses of Campylobacter jejuni and C. coli human disease isolates. J. Clin. Microbiol. 2017, 55, 2086–2097. [Google Scholar] [CrossRef]
  9. Hsu, C.-H.; Harrison, L.; Mukherjee, S.; Strain, E.; McDermott, P.; Zhang, Q.; Zhao, S. Core genome multilocus sequence typing for food animal source attribution of human Campylobacter jejuni infections. Pathogens 2020, 9, 532. [Google Scholar] [CrossRef]
  10. Harrison, L.; Mukherjee, S.; Hsu, C.-H.; Young, S.; Strain, E.; Zhang, Q.; Tillman, G.E.; Morales, C.; Haro, J.; Zhao, S. Core genome MLST for source attribution of Campylobacter coli. Front. Microbiol. 2021, 12, 703890. [Google Scholar] [CrossRef] [PubMed]
  11. Wu, R.; Payne, M.; Zhang, L.; Lan, R. Uncovering the boundaries of Campylobacter species through large-scale phylogenetic and nucleotide identity analyses. mSystems 2024, 9, e0121823. [Google Scholar] [CrossRef]
  12. Nguyen, M.; Olson, R.; Shukla, M.; VanOeffelen, M.; Davis, J.J. Predicting antimicrobial resistance using conserved genes. PLoS Comput. Biol. 2020, 16, e1008319. [Google Scholar] [CrossRef]
  13. Guo, B.; Lin, J.; Reynolds, D.L.; Zhang, Q. Contribution of the multidrug efflux transporter CmeABC to antibiotic resistance in different Campylobacter species. Foodborne Pathog. Dis. 2010, 7, 77–83. [Google Scholar] [CrossRef]
  14. Kale, A.; Phansopa, C.; Suwannachart, C.; Craven, C.J.; Rafferty, J.B.; Kelly, D.J. The virulence factor PEB4 (Cj0596) and the periplasmic protein Cj1289 are two structurally related SurA-like chaperones in the human pathogen Campylobacter jejuni. J. Biol. Chem. 2011, 286, 21254–21265. [Google Scholar] [CrossRef]
  15. Schiaffino, F.; Parker, C.T.; Olortegui, M.P.; Pascoe, B.; Villanueva, K.M.; Bardales, P.F.G.; Mourkas, E.; Huynh, S.; Yori, P.P.; Cachique, L.R.; et al. Genomic resistant determinants of multidrug-resistant Campylobacter spp. isolates in Peru. J. Glob. Antimicrob. Resist. 2024, 36, 309–318. [Google Scholar] [CrossRef]
  16. Duan, J.; Zhao, Q.; Wang, Y.; Chi, Z.; Li, W.; Wang, X.; Liu, S.; Bi, S.; Søgaard-Andersen, L. The dCache Domain of the Chemoreceptor Tlp1 in Campylobacter jejuni Binds and Triggers Chemotaxis toward Formate. mBio 2023, 14, e0356422. [Google Scholar] [CrossRef]
  17. Parkinson, J.S.; Hazelbauer, G.L.; Falke, J.J. Signaling and sensory adaptation in Escherichia coli chemoreceptors: 2015 update. Trends Microbiol. 2015, 23, 257–266. [Google Scholar] [CrossRef]
  18. Carbonero, A.; Maldonado-Iniesta, A.; Trujillo, Y.; Perea, J.; Riofrío, M.; Garcia-Bocanegra, I.; Borge, C. Identification of genes associated with environmental persistence in Campylobacter jejuni and Campylobacter coli isolates from processing in a broiler abattoir. Vet. Res. Commun. 2022, 46, 1325–1330. [Google Scholar] [CrossRef] [PubMed]
  19. Zhong, C.; Qu, B.; Hu, G.; Ning, K. Pan-Genome Analysis of Campylobacter: Insights on the Genomic Diversity and Virulence Profile. Microbiol. Spectr. 2022, 10, e0102922. [Google Scholar] [CrossRef] [PubMed]
  20. Dai, L.; Wu, Z.; Xu, C.; Sahin, O.; Yaeger, M.; Plummer, P.J.; Zhang, Q.; Palmer, G.H. The Rho-Independent Transcription Terminator for the porA Gene Enhances Expression of the Major Outer Membrane Protein and Campylobacter jejuni Virulence in Abortion Induction. Infect. Immun. 2019, 87, e00687-19. [Google Scholar] [CrossRef]
  21. Guerry, P.; Poly, F.; Riddle, M.; Maue, A.C.; Chen, Y.-H.; Monteiro, M.A. Campylobacter polysaccharide capsules: Virulence and vaccines. Front. Cell. Infect. Microbiol. 2012, 2, 7. [Google Scholar] [CrossRef] [PubMed]
  22. Ghielmetti, G.; Seth-Smith, H.M.B.; Roloff, T.; Cernela, N.; Biggel, M.; Stephan, R.; Egli, A. Whole-genome-based characterization of Campylobacter jejuni from human patients with gastroenteritis collected over an 18 year period reveals increasing prevalence of antimicrobial resistance. Microb. Genom. 2023, 9, 000941. [Google Scholar] [CrossRef]
  23. Ocejo, M.; Oporto, B.; Lavín, J.L.; Hurtado, A. Whole genome-based characterisation of antimicrobial resistance and genetic diversity in Campylobacter jejuni and Campylobacter coli from ruminants. Sci. Rep. 2021, 11, 8998. [Google Scholar] [CrossRef] [PubMed]
  24. Whitehouse, C.A.; Young, S.; Li, C.; Hsu, C.-H.; Martin, G.; Zhao, S. Use of whole-genome sequencing for Campylobacter surveillance from NARMS retail poultry in the United States in 2015. Food Microbiol. 2018, 73, 122–128. [Google Scholar] [CrossRef]
  25. He, Y.; Dykes, G.E.; Kanrar, S.; Liu, Y.; Gunther, N.W.; Counihan, K.L.; Lee, J.; Capobianco, J.A. Comparative Genomic Analysis of Campylobacter Plasmids Identified in Food Isolates. Microorganisms 2025, 13, 206. [Google Scholar] [CrossRef] [PubMed]
  26. Gabbert, A.D.; Mydosh, J.L.; Talukdar, P.K.; Gloss, L.M.; McDermott, J.E.; Cooper, K.K.; Clair, G.C.; Konkel, M.E. The Missing Pieces: The Role of Secretion Systems in Campylobacter jejuni Virulence. Biomolecules 2023, 13, 135. [Google Scholar] [CrossRef]
  27. Fischer, W.; Tegtmeyer, N.; Stingl, K.; Backert, S. Four Chromosomal Type IV Secretion Systems in Helicobacter pylori: Composition, Structure and Function. Front. Microbiol. 2020, 11, 1592. [Google Scholar] [CrossRef] [PubMed]
  28. Oyarzabal, O.A.; Rad, R.; Backert, S. Conjugative transfer of chromosomally encoded antibiotic resistance from Helicobacter pylori to Campylobacter jejuni. J. Clin. Microbiol. 2007, 45, 402–408. [Google Scholar] [CrossRef]
  29. Marasini, D.; Karki, A.B.; Bryant, J.M.; Sheaff, R.J.; Fakhr, M.K. Molecular characterization of megaplasmids encoding the type VI secretion system in Campylobacter jejuni isolated from chicken livers and gizzards. Sci. Rep. 2020, 10, 12514. [Google Scholar] [CrossRef]
  30. Bacon, D.J.; Karki, A.B.; Buchheim, M.A.; Fakhr, M.K. DNA sequence and mutational analyses of the pVir plasmid of Campylobacter jejuni 81-176. Infect. Immun. 2002, 70, 6242–6250. [Google Scholar] [CrossRef]
  31. Marasini, D.; Karki, A.B.; Buchheim, M.A.; Fakhr, M.K. Phylogenetic relatedness among plasmids harbored by Campylobacter jejuni and Campylobacter coli isolated from retail meats. Front. Microbiol. 2018, 9, 2167. [Google Scholar] [CrossRef]
  32. Pearson, B.M.; Rokney, A.; Crossman, L.C.; Miller, W.G.; Wain, J.; van Vliet, A.H.M. Complete Genome Sequence of the Campylobacter coli Clinical Isolate 15-537360. Genome Announc. 2013, 1, e01056-13. [Google Scholar] [CrossRef] [PubMed]
  33. Harrison, L.; Zhao, S.; Li, C.; McDermott, P.F.; Tyson, G.H.; Strain, E. Lociq provides a loci-seeking approach for enhanced plasmid subtyping and structural characterization. Commun. Biol. 2023, 6, 595. [Google Scholar] [CrossRef]
  34. National Center for Biotechnology Information (NCBI). 1988. Available online: https://www.ncbi.nlm.nih.gov/ (accessed on 1 June 2022).
  35. Galata, V.; Fehlmann, T.; Backes, C.; Keller, A. PLSDB: A resource of complete bacterial plasmids. Nucleic Acids Res. 2019, 47, D195–D202. [Google Scholar] [CrossRef] [PubMed]
  36. United States Department of Agriculture Food Safety and Inspection Service. FSIS Cecal Sampling Under the National Antimicrobial Resistance Monitoring System Surveillance Program. 2024. Available online: https://www.fsis.usda.gov/sites/default/files/media_file/2020-08/10100.1.pdf (accessed on 1 September 2025).
  37. Wick, R.R.; Judd, L.M.; Cerdeira, L.T.; Hawkey, J.; Méric, G.; Vezina, B.; Wyres, K.L.; Holt, K.E. Trycycler: Consensus long-read assemblies for bacterial genomes. Genome Biol. 2021, 22, 266. [Google Scholar] [CrossRef]
  38. Kolmogorov, M.; Yuan, J.; Lin, Y.; Pevzner, P.A. Assembly of long, error-prone reads using repeat graphs. Nat. Biotechnol. 2019, 37, 540–546. [Google Scholar] [CrossRef]
  39. Vaser, R.; Šikić, M. Time-and memory-efficient genome assembly with Raven. Nat. Comput. Sci. 2021, 1, 332–336. [Google Scholar] [CrossRef] [PubMed]
  40. Li, H. Minimap and miniasm: Fast mapping and de novo assembly for noisy long sequences. Bioinformatics 2016, 32, 2103–2110. [Google Scholar] [CrossRef]
  41. Wright, C.; Wykes, M. Medaka. 2022. Available online: https://github.com/nanoporetech/medaka (accessed on 1 May 2024).
  42. Wick, R.R.; Holt, K.E. Polypolish: Short-read polishing of long-read bacterial genome assemblies. PLoS Comput. Biol. 2022, 18, e1009802. [Google Scholar] [CrossRef]
  43. Danecek, P.; Bonfield, J.K.; Liddle, J.; Marshall, J.; Ohan, V.; Pollard, M.O.; Whitwham, A.; Keane, T.; McCarthy, S.A.; Davies, R.M.; et al. Twelve years of SAMtools and BCFtools. Gigascience 2021, 10, giab008. [Google Scholar] [CrossRef]
  44. Quinlan, A.R.; Hall, I.M. BEDTools: A flexible suite of utilities for comparing genomic features. Bioinformatics 2010, 26, 841–842. [Google Scholar] [CrossRef]
  45. Seemann, T. Prokka: Rapid prokaryotic genome annotation. Bioinformatics 2014, 30, 2068–2069. [Google Scholar] [CrossRef]
  46. Abby, S.S.; Néron, B.; Ménager, H.; Touchon, M.; Rocha, E.P. MacSyFinder: A program to mine genomes for molecular systems with an application to CRISPR-Cas systems. PLoS ONE 2014, 9, e110726. [Google Scholar] [CrossRef]
  47. Denise, R.; Abby, S.S.; Rocha, E.P. Diversification of the type IV filament superfamily into machines for adhesion, protein secretion, DNA uptake, and motility. PLoS Biol. 2019, 17, e3000390. [Google Scholar] [CrossRef]
  48. Abby, S.S.; Cury, J.; Guglielmini, J.; Néron, B.; Touchon, M.; Rocha, E.P.C. Identification of protein secretion systems in bacterial genomes. Sci. Rep. 2016, 6, 23080. [Google Scholar] [CrossRef]
  49. Feldgarden, M.; Brover, V.; Haft, D.H.; Prasad, A.B.; Slotta, D.J.; Tolstoy, I.; Tyson, G.H.; Zhao, S.; Hsu, C.-H.; McDermott, P.F.; et al. Validating the AMRFinder tool and resistance gene database by using antimicrobial resistance genotype-phenotype correlations in a collection of isolates. Antimicrob. Agents Chemother. 2019, 63, e00483-19. [Google Scholar] [CrossRef]
  50. Robertson, J.; Nash, J.H. MOB-suite: Software tools for clustering, reconstruction and typing of plasmids from draft assemblies. Microb. Genom. 2018, 4, e000206. [Google Scholar] [CrossRef]
  51. Robertson, J.; Bessonov, K.; Schonfeld, J.; Nash, J.H. Universal whole-sequence-based plasmid typing and its utility to prediction of host range and epidemiological surveillance. Microb. Genom. 2020, 6, mgen000435. [Google Scholar] [CrossRef] [PubMed]
  52. Page, A.J.; Cummins, C.A.; Hunt, M.; Wong, V.K.; Reuter, S.; Holden, M.T.G.; Fookes, M.; Falush, D.; Keane, J.A.; Parkhill, J. Roary: Rapid large-scale prokaryote pan genome analysis. Bioinformatics 2015, 31, 3691–3693. [Google Scholar] [CrossRef] [PubMed]
  53. Thorpe, H.A.; Bayliss, S.C.; Sheppard, S.K.; Feil, E.J. Piggy: A rapid, large-scale pan-genome analysis tool for intergenic regions in bacteria. Gigascience 2018, 7, giy015. [Google Scholar] [CrossRef]
  54. R Core Team. R: A Language and Environment for Statistical Computing; R Core Team: Vienna, Austria, 2013. [Google Scholar]
  55. Thorndike, R.L. Who belongs in the family? Psychometrika 1953, 18, 267–276. [Google Scholar] [CrossRef]
  56. Scrucca, L.; Fraley, C.; Murphy, T.B.; Raftery, A.E. Model-Based Clustering, Classification, and Density Estimation Using Mclust in R; Chapman and Hall/CRC: London, UK, 2023. [Google Scholar] [CrossRef]
  57. Grant, B.J.; Rodrigues, A.P.; ElSawy, K.M.; McCammon, J.A.; Caves, L.S. Bio3d: An R package for the comparative analysis of protein structures. Bioinformatics 2006, 22, 2695–2696. [Google Scholar] [CrossRef] [PubMed]
  58. Kanehisa, M.; Sato, Y.; Morishima, K. BlastKOALA and GhostKOALA: KEGG tools for functional characterization of genome and metagenome sequences. J. Mol. Biol. 2016, 428, 726–731. [Google Scholar] [CrossRef] [PubMed]
  59. UniProt: The universal protein knowledgebase in 2025. Nucleic Acids Res. 2025, 53, D609–D617. [CrossRef]
  60. Rice, P.; Longden, I.; Bleasby, A. EMBOSS: The European molecular biology open software suite. Trends Genet. 2000, 16, 276–277. [Google Scholar] [CrossRef]
  61. Alikhan, N.-F.; Petty, N.K.; Ben Zakour, N.L.; Beatson, S.A. BLAST Ring Image Generator (BRIG): Simple prokaryote genome comparisons. BMC Genom. 2011, 12, 402. [Google Scholar] [CrossRef]
  62. Carattoli, A.; Zankari, E.; García-Fernández, A.; Larsen, M.V.; Lund, O.; Villa, L.; Aarestrup, F.M.; Hasman, H. PlasmidFinder and pMLST: In silico detection and typing of plasmids. Antimicrob. Agents Chemother. 2014, 58, 3895–3903. [Google Scholar] [CrossRef]
  63. Garcia-Fernandez, A.; Janowicz, A.; Marotta, F.; Napoleoni, M.; Arena, S.; Primavilla, S.; Pitti, M.; Romantini, R.; Tomei, F.; Garofolo, G.; et al. Antibiotic resistance, plasmids, and virulence-associated markers in human strains of Campylobacter jejuni and Campylobacter coli isolated in Italy. Front. Microbiol. 2024, 14, 1293666. [Google Scholar] [CrossRef]
  64. Pena-Fernández, N.; Janowicz, A.; Marotta, F.; Napoleoni, M.; Arena, S.; Primavilla, S.; Pitti, M.; Romantini, R.; Tomei, F.; Garofolo, G.; et al. Campylobacter fetus Plasmid Diversity: Comparative Analysis of Fully Sequenced Plasmids and Proposed Classification Scheme. Genome Biol. Evol. 2024, 16, evae203. [Google Scholar] [CrossRef] [PubMed]
Pathogens 14 00936 g001

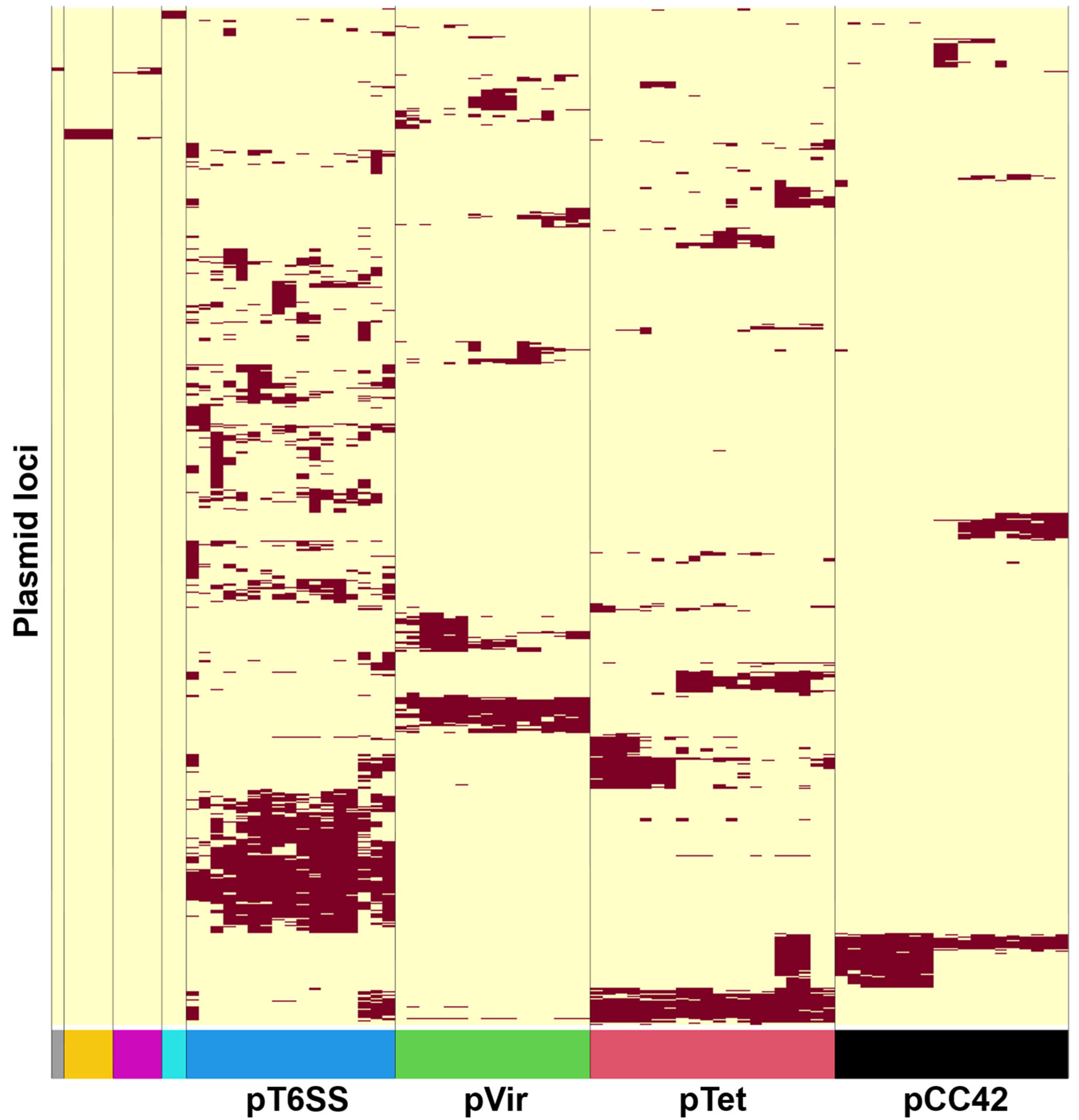

Figure 1. Visual representation of the pangenome of 83 NARMS Campylobacter plasmids where plasmids are organized along columns and loci among rows and cells indicate the presence or absence of loci through a dark red or light-yellow color, respectively. Color bars on the bottom correspond to Campylobacter plasmid groups and the four largest groups are labeled as the four major Campylobacter plasmid types.
Figure 1. Visual representation of the pangenome of 83 NARMS Campylobacter plasmids where plasmids are organized along columns and loci among rows and cells indicate the presence or absence of loci through a dark red or light-yellow color, respectively. Color bars on the bottom correspond to Campylobacter plasmid groups and the four largest groups are labeled as the four major Campylobacter plasmid types.
Pathogens 14 00936 g001
Pathogens 14 00936 g002

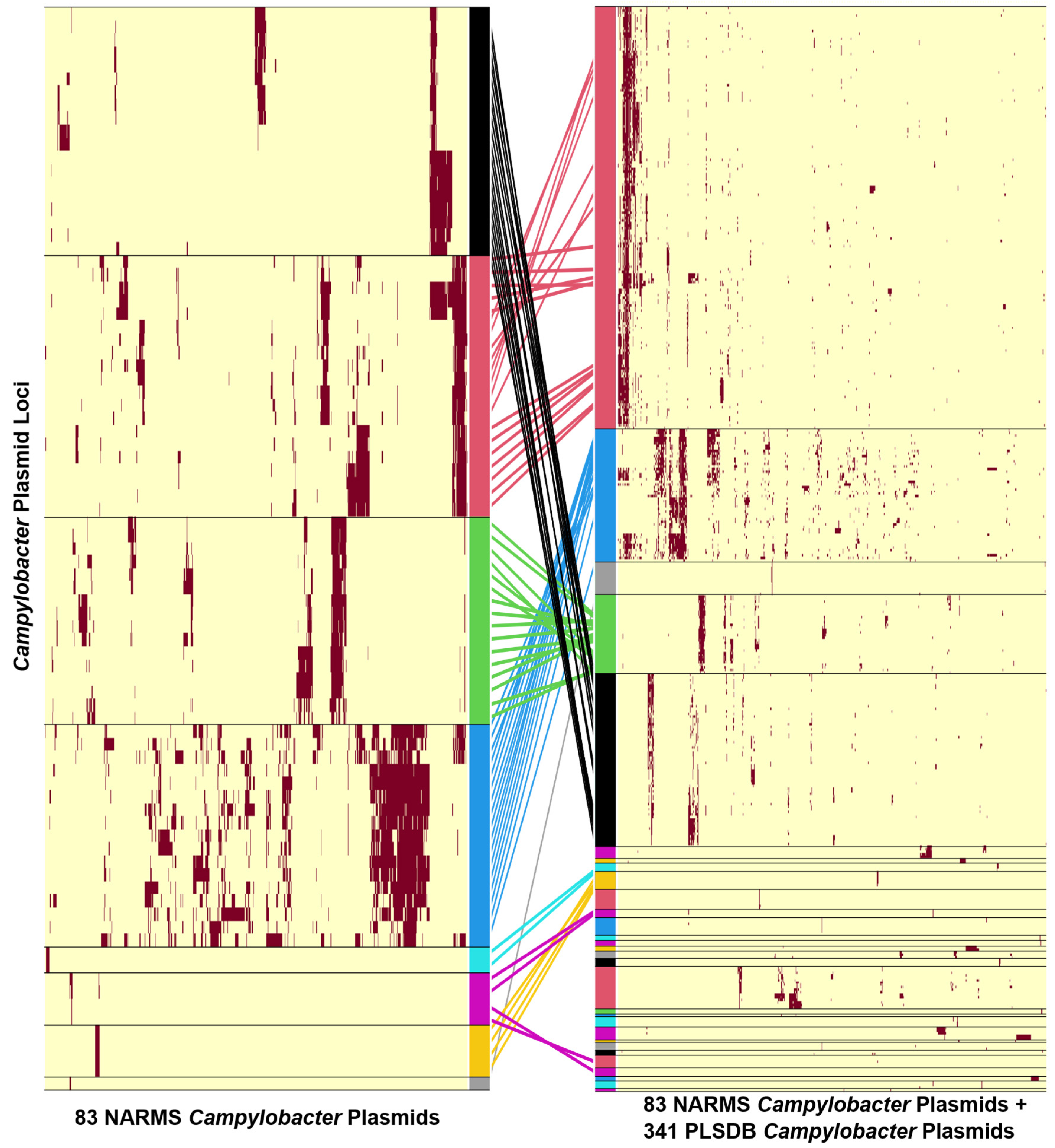

Figure 2. Visual representation of two Campylobacter plasmid pangenomes: the 83 plasmids from NARMS isolates (left) and the combined dataset of 424 plasmids (right). Color bars correspond to the same Campylobacter plasmid groups as Figure 1. Plasmids from the NARMS pangenome are connected to their positions in the combined pangenome through lines color-coded to their plasmid group.
Figure 2. Visual representation of two Campylobacter plasmid pangenomes: the 83 plasmids from NARMS isolates (left) and the combined dataset of 424 plasmids (right). Color bars correspond to the same Campylobacter plasmid groups as Figure 1. Plasmids from the NARMS pangenome are connected to their positions in the combined pangenome through lines color-coded to their plasmid group.
Pathogens 14 00936 g002
Pathogens 14 00936 g003

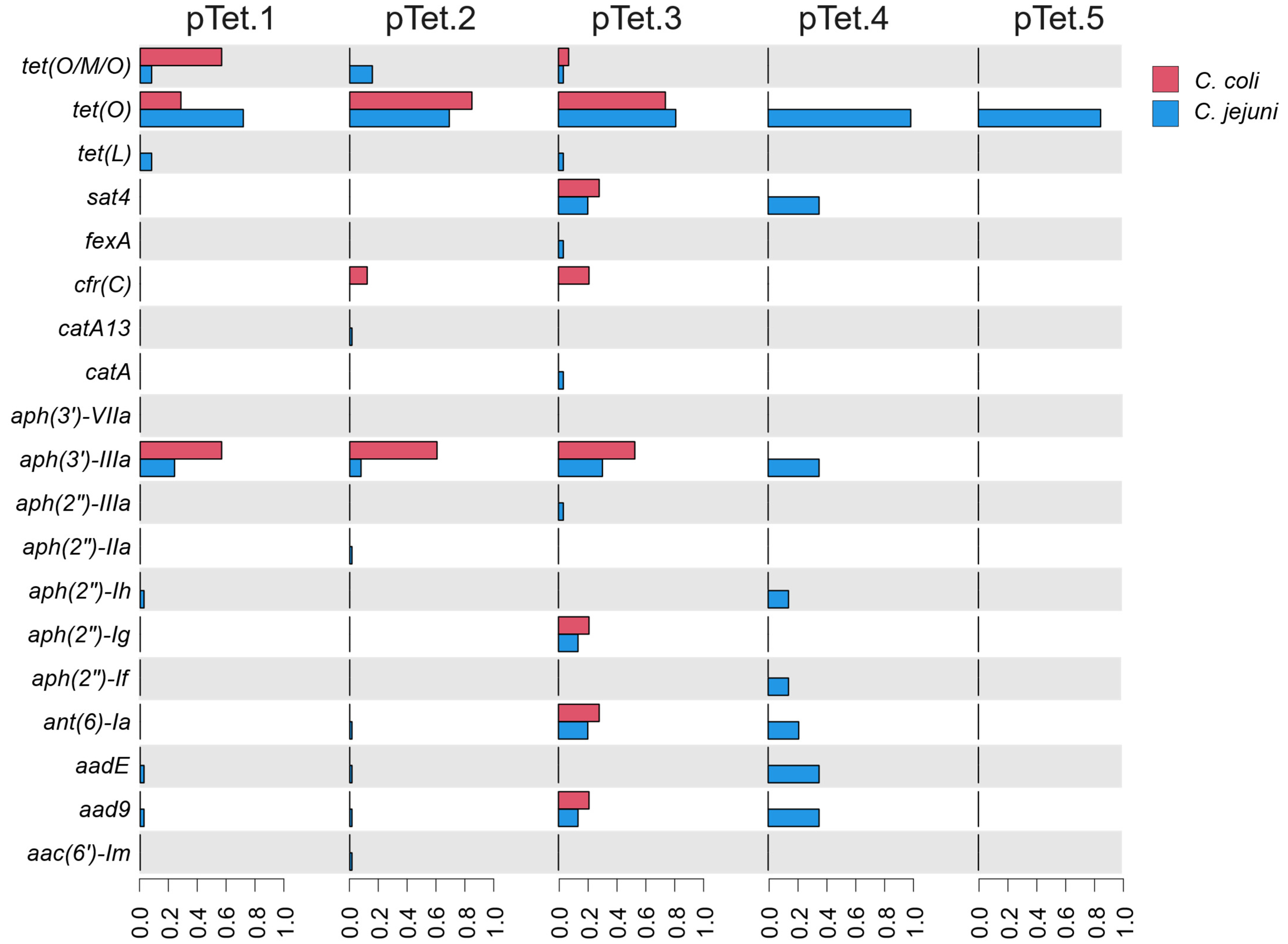

Figure 3. Bar graph showing the prevalence of AMR genes among the Campylobacter pTet plasmid subgroups where the x-axis details the proportion of isolates within the subgroup bearing the corresponding AMR gene. C. coli is represented with red bars while C. jeuni is represented with blue bars.
Figure 3. Bar graph showing the prevalence of AMR genes among the Campylobacter pTet plasmid subgroups where the x-axis details the proportion of isolates within the subgroup bearing the corresponding AMR gene. C. coli is represented with red bars while C. jeuni is represented with blue bars.
Pathogens 14 00936 g003
Pathogens 14 00936 g004

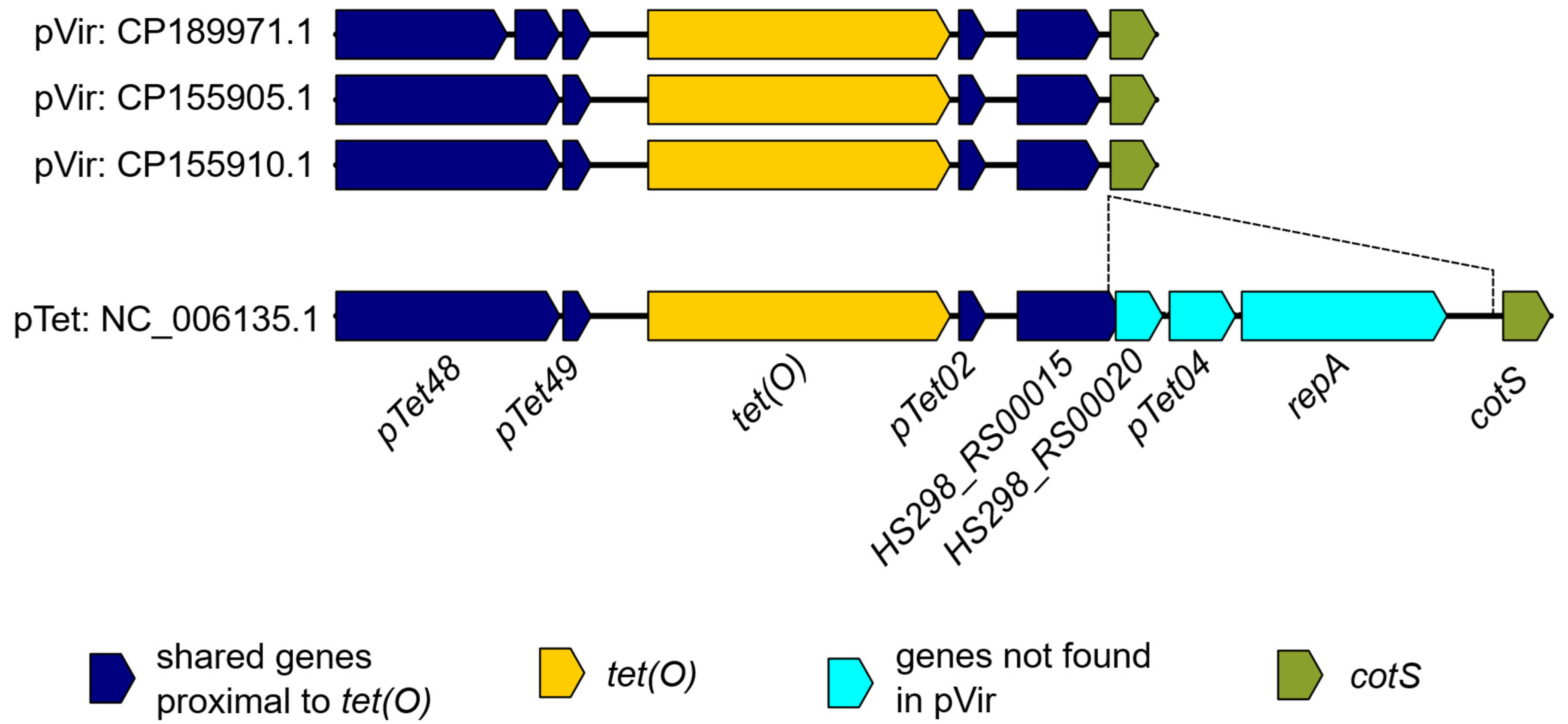

Figure 4. Comparison of the tet(O) region of the reference NC_006135.1 pTet plasmid and the pVir.3 tet(O)+ plasmids in the dataset. Genes shared between the four plasmids are in blue; the tet(O) gene is in yellow; the genes not found in pVir are in cyan; and the shared cotS gene downstream of tet(O) is in green.
Figure 4. Comparison of the tet(O) region of the reference NC_006135.1 pTet plasmid and the pVir.3 tet(O)+ plasmids in the dataset. Genes shared between the four plasmids are in blue; the tet(O) gene is in yellow; the genes not found in pVir are in cyan; and the shared cotS gene downstream of tet(O) is in green.
Pathogens 14 00936 g004
Pathogens 14 00936 g005

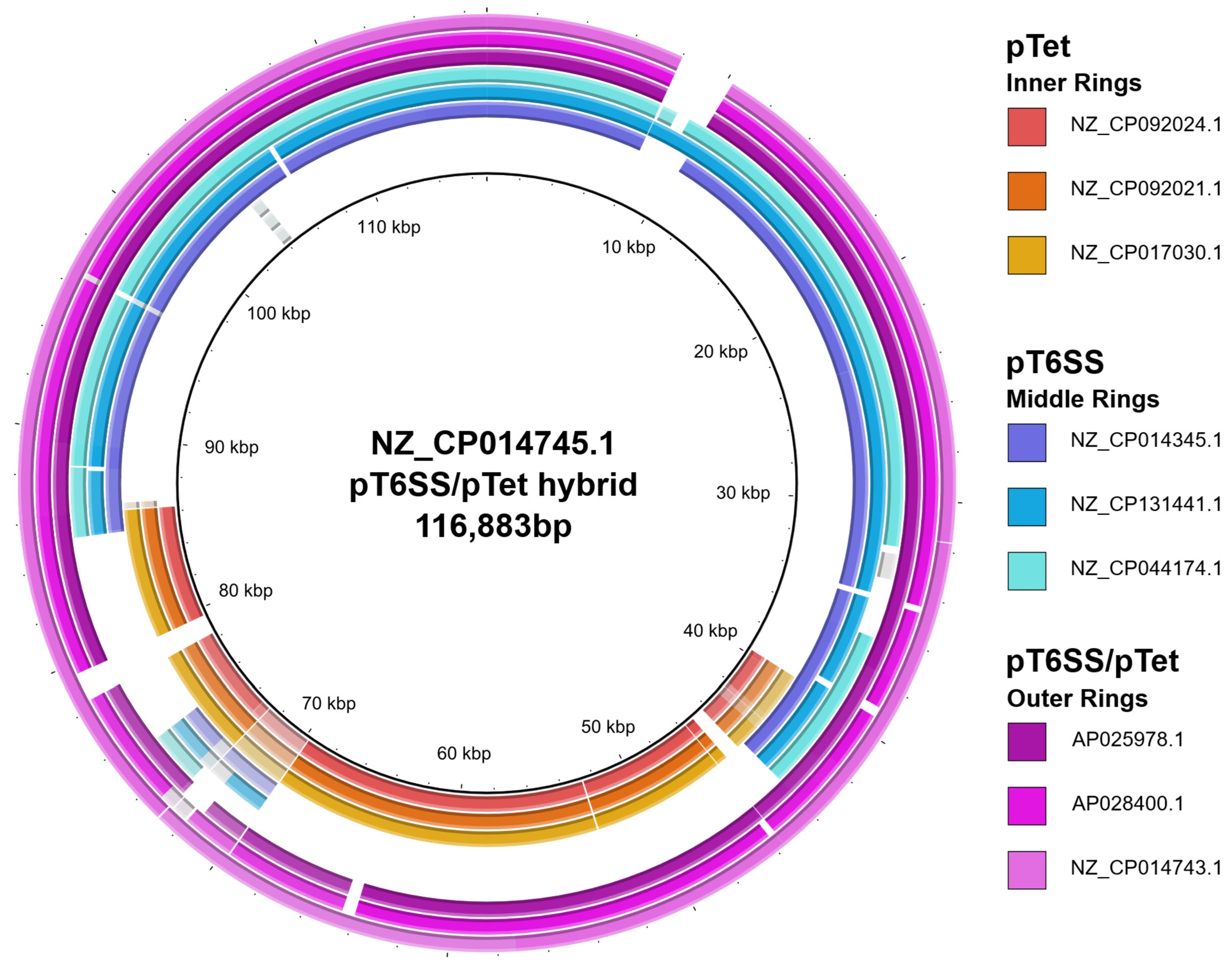

Figure 5. Alignment of pTet, pT6SS and hybrid pTet/pT6SS plasmids to a hybrid pT6SS/pTet reference. Three Campylobacter pTet sequences (inner three alignments, orange), non-hybrid pT6SS sequences (middle three alignments, blue) and hybrid pT6SS/pTet sequences (outer three alignments, purple) were mapped to the NZ_CP014745.1 hybrid pT6SS/pTet plasmid reference sequence to identify the pTet and pT6SS regions of the hybrid plasmid. This image was generated using the Blast Ring Image Generator (BRIG) v0.95 [61].
Figure 5. Alignment of pTet, pT6SS and hybrid pTet/pT6SS plasmids to a hybrid pT6SS/pTet reference. Three Campylobacter pTet sequences (inner three alignments, orange), non-hybrid pT6SS sequences (middle three alignments, blue) and hybrid pT6SS/pTet sequences (outer three alignments, purple) were mapped to the NZ_CP014745.1 hybrid pT6SS/pTet plasmid reference sequence to identify the pTet and pT6SS regions of the hybrid plasmid. This image was generated using the Blast Ring Image Generator (BRIG) v0.95 [61].
Pathogens 14 00936 g005
Pathogens 14 00936 g006

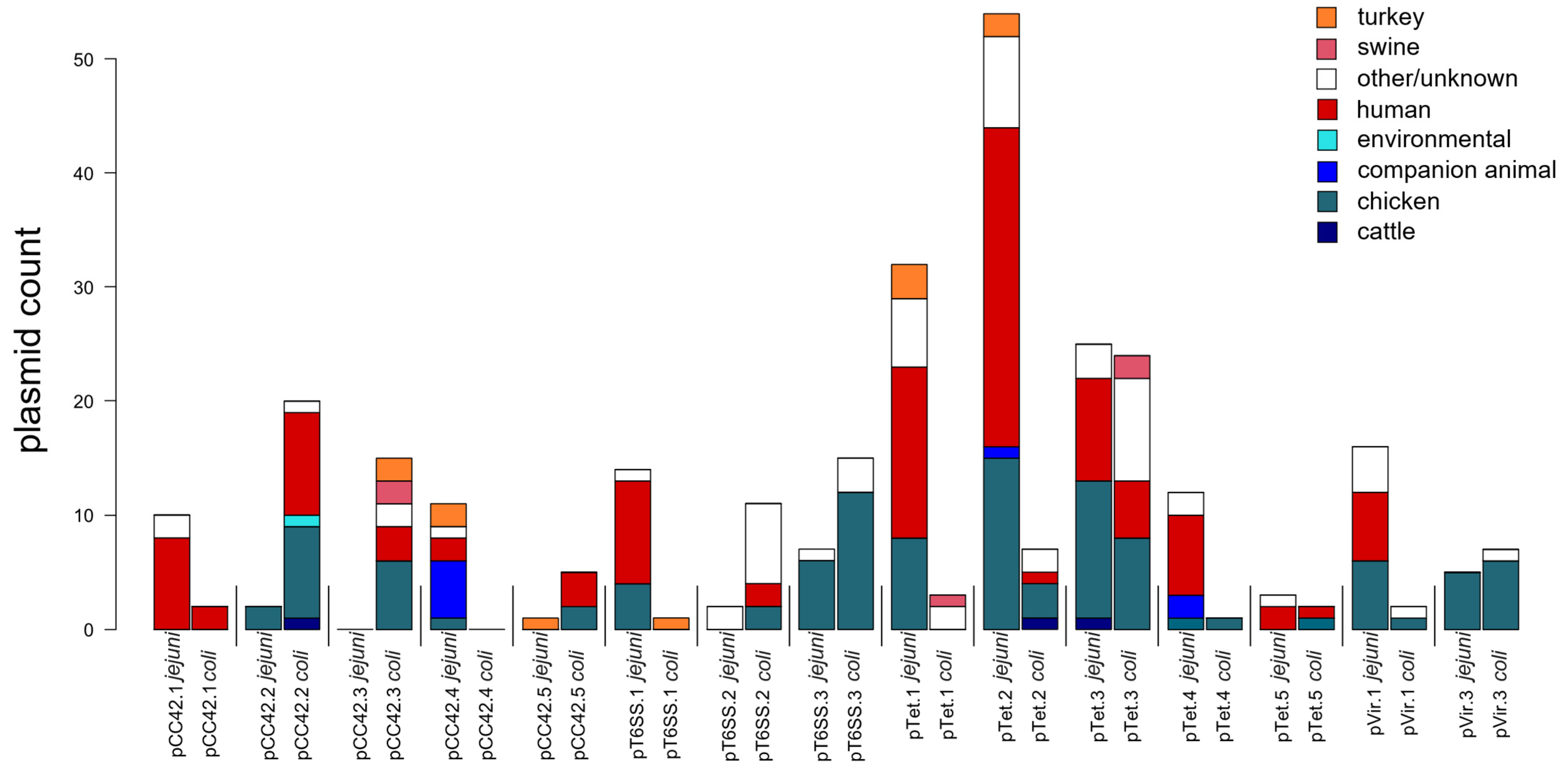

Figure 6. Source attribution bar graph of plasmid subgroups from the major Campylobacter species C. coli and C. jejuni. Bar height corresponds to the number of plasmids isolated from a given plasmid subgroup.
Figure 6. Source attribution bar graph of plasmid subgroups from the major Campylobacter species C. coli and C. jejuni. Bar height corresponds to the number of plasmids isolated from a given plasmid subgroup.
Pathogens 14 00936 g006
Table 1. Alignment of Campylobacter Plasmid Sequences to Reference Sequence.
Table 1. Alignment of Campylobacter Plasmid Sequences to Reference Sequence.
Plasmid Group IDCombined Dataset (n)pTet Mean % IDpVir Mean % IDpCC42 Mean % IDpT6SS Mean % ID
pTet16590.90.52.437.4
pVir312.089.00.00.8
pCC42670.90.290.00.4
pT6SS5236.10.34.565.2
26 minor groups1092.60.14.91.2
Reference plasmid sequences are NC_006135.1 (pTet), AF226280.2 (pVir), MH634987.1 (pCC42) and CP014743.1 (pT6SS) and values shown represent the mean alignment value for all plasmids of a plasmid group to the reference plasmid.
Table 2. pCC42 Typing Loci Identity by Subgroup.
Table 2. pCC42 Typing Loci Identity by Subgroup.
Typing LocusSubgroup Variant 1Subgroup Variant 2% Identity Between Variants 1 and 2
TrbEpCC42.2pCC42.1, pCC42.491.72
TrbHpCC42.4pCC42.2, pCC42.379.31
TrbDpCC42.5pCC42.282.09
TraLpCC42.4pCC42.2, pCC42.587.67
Signal Peptidase IpCC42.4pCC42.287.1
Uniprot: S3X8X6pCC42.2, pCC42.3pCC42.1, pCC42.4, pCC42.591.3
Uniprot: S3YFQ1pCC42.2pCC42.1, pCC42.492.06
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Harrison, L.; Mukherjee, S.; Li, C.; Young, S.; Zhang, Q.; Zhao, S. Pangenomic Characterization of Campylobacter Plasmids for Enhanced Molecular Typing, Risk Assessment and Source Attribution. Pathogens 2025, 14, 936. https://doi.org/10.3390/pathogens14090936

AMA Style

Harrison L, Mukherjee S, Li C, Young S, Zhang Q, Zhao S. Pangenomic Characterization of Campylobacter Plasmids for Enhanced Molecular Typing, Risk Assessment and Source Attribution. Pathogens. 2025; 14(9):936. https://doi.org/10.3390/pathogens14090936

Chicago/Turabian Style

Harrison, Lucas, Sampa Mukherjee, Cong Li, Shenia Young, Qijing Zhang, and Shaohua Zhao. 2025. "Pangenomic Characterization of Campylobacter Plasmids for Enhanced Molecular Typing, Risk Assessment and Source Attribution" Pathogens 14, no. 9: 936. https://doi.org/10.3390/pathogens14090936

APA Style

Harrison, L., Mukherjee, S., Li, C., Young, S., Zhang, Q., & Zhao, S. (2025). Pangenomic Characterization of Campylobacter Plasmids for Enhanced Molecular Typing, Risk Assessment and Source Attribution. Pathogens, 14(9), 936. https://doi.org/10.3390/pathogens14090936

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
