Article

Understanding Artemisia cina Ethyl Acetate Extract’s Anthelmintic Effect on Haemonchus contortus Eggs and L3 Larvae: The Synergism of Peruvin Binary Mixtures

by
Luis David Arango-De-la Pava
1,
Manasés González-Cortazar
2,
Alejandro Zamilpa
2,
Jorge Alfredo Cuéllar-Ordaz
1,
Héctor Alejandro de la Cruz-Cruz
1,
Rosa Isabel Higuera-Piedrahita
1,2,* and
Raquel López-Arellano
1,*
1
Facultad de Estudios Superiores Cuautitlán, Universidad Nacional Autónoma de México, Cuautitlán 54714, Estado de México, Mexico
2
Centro de Investigación Biomédica del Sur, Instituto Mexicano del Seguro Social, Xochitepec 62790, Morelos, Mexico
*
Authors to whom correspondence should be addressed.
Pathogens 2024, 13(6), 509; https://doi.org/10.3390/pathogens13060509
Submission received: 9 May 2024 / Revised: 10 June 2024 / Accepted: 13 June 2024 / Published: 16 June 2024

Abstract

:
Haemonchus contortus, a blood-feeding parasite in grazing sheep, causes economic losses. Drug resistance necessitates exploring plant-based anthelmintics like Artemisia cina (Asteraceae). The plant, particularly its ethyl acetate extract, shows anthelmintic activity against H. contortus. However, there is limited information on pharmacodynamic interactions in ethyl acetate compounds. The study aims to identify pharmacodynamic interactions in the ethyl acetate extract of A. cina with anthelmintic effects on H. contortus eggs and L3 larvae using binary mixtures. Bioactive compounds were isolated via chromatography and identified using spectroscopic techniques. Pharmacodynamic interactions were assessed through binary mixtures with a main compound. Four bioactive compounds were identified: 1-nonacosanol, hentriacontane, peruvin, and cinic acid. Binary mixtures, with peruvin as the main compound, were performed. Peruvin/1-nonacosanol-hentriacontane and peruvin/cinic acid mixtures demonstrated 1.42-fold and 4.87-fold increased lethal effects in H. contortus L3 infective larvae, respectively, at a 0.50LC25/0.50LC25 concentration. In this work, we determined the synergism between bioactive compounds isolated from the ethyl acetate extract of A. cina and identified unreported compounds for the specie.

1. Introduction

Haemonchus contortus is recognized as one of the most pathogenic gastrointestinal nematodes, causing inflammation, mucosal secretions, and micro-hemorrhages in the abomasum of small ruminants. Its blood-feeding habits contribute significantly to global economic losses in flocks, leading to malnutrition, low feed conversion, anemia, reduced appetite, diminished fertility rates, and increased mortality in both young and mature animals [1]. Moreover, H. contortus can elude the host immune response, employing various genetic mechanisms to tolerate the toxicity of widely used anthelmintic drugs. This has resulted in the diminishing efficacy of anthelmintic drugs in many countries [2,3]. Consequently, the control of H. contortus has become a worldwide concern, prompting exploration into alternative control strategies beyond chemotherapy, such as the investigation of medicinal plants [4], such as Artemisia cina.
The efficacy of A. cina against H. contortus has been demonstrated both in vitro and in vivo. In vitro, the n-hexane extract (n-HE) of A. cina exhibited the highest larvicidal activity against transitional larvae L3–L4 of H. contortus [5]. In an in vivo study conducted on naturally infected periparturient goats, the administration of n-HE derived from A. cina resulted in a notable reduction in the fecal egg counts of H. contortus and Teladorsagia circumcincta. This extract was found to contain two previously unidentified compounds for A. cina, namely isoguaiacin and norisoguaiacin [6]. Recently, a bio-guided isolation of the ethyl acetate extract (EAE) was realized, allowing the identification of cinic acid, a new sesquiterpene with promising larvicidal activity against L3 of H. contortus infective larvae. [7]. However, a limitation of this bio-guided isolation is that it does not consider pharmacodynamic interactions, which are crucial when formulating pharmaceutical preparations.
Pharmacodynamics allows the study of the biochemical and physiological actions that arise from administering bioactive compounds, particularly about dose–response and their effects. When two bioactive molecules are administered together, they can affect different targets or the same targets, leading to additive, synergistic, or subadditive actions [8]. Additivity refers to the combined effects of each bioactive compound in a drug combination. Synergy occurs when the overall impact of the drug combination surpasses the anticipated outcome based on simple additivity. At the same time, subadditivity manifests when the observed effect of the drug combination is inferior to the cumulative impact of its components [9].
Plant extracts are a complex matrix of bioactive compounds, and it is not easy to understand their mechanism of action. The methodological approach involving binary mixtures with a main compound and compounds of interest leads to the discovery of pharmacological interactions desirable for formulating plant-based pharmaceutical preparations [10]. Therefore, this study aimed to determine the presence of pharmacodynamic interactions among bioactive compounds in the ethyl acetate extract of A. cina with anthelmintic effects on eggs and L3 infective larvae of H. contortus. This information will be utilized to establish the foundations for an anthelmintic pharmaceutical preparation based on A. cina.

2. Materials and Methods

2.1. Plant Material

The dried pre-flowering leaves and stems of A. cina O. Berg ex Poljakov (Asteraceae) (3.8 kg) were acquired from the Hunab laboratory. Dr. Alejandro Torres-Montúfar verified and authenticated a voucher specimen, which was then preserved in the herbarium of Facultad de Estudios Superiores Cuautitlán (FES-C) UNAM, México, assigned voucher number 11967. The plant was cultivated under controlled conditions of 80% humidity, a temperature of 24 °C, and soil with a pH of 6.3. The plant was cut and dried at room temperature for seven days at pre-flowering. It was cut into pieces of approximately 2 cm and packed in a plastic container until use.

2.2. Ethyl Acetate Artemisia cina Extract (EAE)

The extraction process was through maceration. A total of 1 kg of dried A. cina leaves and stems was finely ground and placed in a 1 L Erlenmeyer flask. The leaves and stems were extracted using 5 L of ethyl acetate (J.T. Baker®(Madrid, Spain), allowing the mixture to macerate for 72 h at room temperature (23–25 °C). The resulting extract was filtered through Whatman No. 4 paper, and the solvent was eliminated through low-pressure distillation using a rotary evaporator (DLAB RE-100 Pro, Beijing, China) operating at 40 °C and 100 rpm. The obtained extract was subsequently lyophilized (Biobase BK-FD10PT, Jinan, China ) and stored at four °C in refrigeration (Biobase BXC-V588M, Jinan, China) for further phytochemical and biological assays.

2.3. Isolation of Chemical Compounds from the Ethyl Acetate Extract

A total of 28.7 g of the EAE was separated using open-column chromatography. The stationary phase utilized was standard silica gel 60 (Merck, particle size: 0.015–0.040 mm), while a solvent gradient system consisting of n-hexane-ethyl acetate (J.T. Baker®) was employed. The column began with n-hexane and decreased concentrations of n-hexane and increased concentrations of ethyl acetate. A total of 40 samples was acquired and categorized into 11 fractions based on their chemical similarity, which was assessed through thin-layer chromatography. Subsequently, the samples were concentrated using a rotary evaporator. According to thin layer chromatography (TLC), fractions 3 (C1F3), 5 (C1F5), and 6 (C1F6) contained crystals that were washed with ethyl acetate (C1F3) and n-hexane (C1F5 and C1F6). C1F3, C1F5, and C1F6 crystals were analyzed by HPLC-DAD and GC-MS. C1F3 (81 mg, 0.28% yield) did not display UV spectra in HPLC-DAD, but in GC-MS, two prominent peaks represented 83.955% of the abundance of the sample (Figure S1). Compound 1 presented a retention time (RT) of 31.105 min (GC-MS), 31.343% of relative abundance (Figure S1), and [M + H]+ = 425 m/z (Figure S2); Compound 2 an RT of 33.938 min (GC-MS), 52.612% of relative abundance (Figure S1), and [M + H]+ = 437 m/z (Figure S3). C1F5 (Compound 3) (87 mg, 0.30% yield) presented an RT of 24.786 min (Figure S4) and [M + H]+ = 283 m/z (Figure S5) (GC-MS), 15.748 min, and UV spectra λmax of 211.0 nm (Figure S6) (HPLC-DAD). C1F6 (Compound 4) (267 mg, 0.93% yield) 22.526 min and [M + H]+ = 265 m/z (Figures S7 and S8) (GC-MS), 14.208 min, and UV spectra λmax 216.9 nm (Figure S9) (HPLC-DAD).

2.4. TLC and HPLC Analyses

Analytical TLC was performed on precoated Merck silica gel 60F254 or RP-18F254 plates. Ceric sulfate reagent was used to visualize isolated compounds.
HPLC-DAD analyses used a Waters 2695 separations module with a Waters 2996 photodiode array detector. The HPLC analysis utilized a LiChrospher® 100 RP-18 column (4 mm × 250 mm, five μm) from Merck, Kenilworth, NJ, USA. The mobile phase consisted of two solvent reservoirs: A (H2O-Trifluoroacetic acid 0.05%) and B (CH3CN). The gradient system employed was as follows: 0–8 min, transitioning from 100% to 0% B; 9–12 min, shifting from 90% to 10% B; 13–15 min, changing from 80% to 20% B; 16–20 min, varying from 70% to 30% B; 21–25 min, transitioning from 0% to 100% B; and 26–28 min, maintaining 100% B. The flow rate was set at 1 mL/min, and the injection volume was ten μL [10].

2.5. GC-MS Analysis

The GC-MS analysis utilized an Agilent Technologies HP 6890 gas chromatograph coupled with an MSD 5973 quadrupole mass detector (HP Agilent, Santa Clara, CA, USA). An HP-5MS capillary column was employed (30 m length, 0.25 mm inner diameter, and 0.25 µM film thickness). Helium served as the carrier gas at a constant 1 mL/min flow. The inlet temperature was maintained at 250 °C, and the oven temperature initially held at 40 °C for 1 min, then increased to 280 °C at ten °C/min intervals. The mass spectrometer operated in a positive electron impact mode (ionization energy: 70 eV) with selective ion monitoring. Identification and quantification were based on target ions, comparing mass spectra with the NIST library (version 1.7a). Relative percentages were determined by signal integration using GC Chem Station software (version C.00.01), with composition reported as a percentage of the total signal area [7].

2.6. NMR Experiments

Nuclear Magnetic Resonance (NMR) experiments such as 1H, COSY, HSQC, HMBC, and DEPTQ were realized using a Bruker AVANCE III HD at a frequency of 500 MHz. CD3COCD3, CDCl3, and C6D6 were used as solvents; tetramethylsilane (TMS) was employed as an internal standard. The chemical shifts (δ) are presented in ppm, and coupling constants are expressed in Hz.

2.7. In Vitro Assays with Haemonchus contortus Eggs and L3 Infective Larvae

Isolated compounds were then assessed for anthelmintic activity in lethal effect (LE) and inhibition of the larvae hatching through egg hatching inhibition (EHI) assays, conducted in vitro in a 96-well microplate with approximately 100 L3 larvae/eggs per well ° (n = 4), with three replicates under the same conditions. Two control groups were used: (a) distilled water and (b) ivermectin (5 mg/mL, Sigma Aldrich, Darmstadt, Germany). Peruvin and 1-nonacosanol/hentriacontane (21.3% and 52.6% of C1F3, respectively) were tested at five different concentrations (2.000, 1.000, 0.500, 0.250, and 0.125 mg/mL); cinic acid was tested at eight concentrations (2.000, 1.000, 0.500, 0.250, 0.120, 0.062, 0.003, and 0.001 mg/mL). The lethal effect in L3 infective larvae was evaluated 24 h post-exposure, and egg hatching inhibition 48 h post-exposure. Dead and alive larvae, the number of unhatched eggs (dead and larvated), and L1 larvae were counted to determine the mortality and egg hatching inhibition percentage [6]. A microscope with 10× magnification (Olympus®, model CK-2, Tokio, Japan) was used to count larvae and eggs.

2.8. Isobolograms of Binary Mixtures of Isolated Compounds from Ethyl Acetate Artemisia cina Extract

Isobolograms were performed to determine the type of pharmacodynamic interaction that presented the binary mixtures using a main compound (Mc). The Mc was chosen considering the hatching inhibition, lethal effect, yield percentage, and purity. The binary mixtures were prepared using subsequent dilutions of LC25 and evaluated in a fixed proportions scheme starting from the LC25 of the Mc and isolated compounds (Table 1) (1.00ALC25/0.00BLC25, 0.75ALC25/0.25BLC25, 0.50ALC25/0.50BLC25, 0.25ALC25/0.75BLC25, and 0.00ALC25/1.00BLC25), where A was the Mc and B was the other compounds isolated. A Mc and B stock solution was freshly prepared and combined in the well just before incubation. The proposed dilutions allowed us to observe the behavior of the mixture when the concentration of the main compound (Mc) was higher than that of the other isolated compounds (B) when they were at the same concentration and when the Mc was present in a lower concentration than B.
The egg hatching inhibition and lethal effect ratio were calculated by:
Egg hatching inhibition ratio = OEHI/EOEHI
where:
  • OEHI: Observed egg hatching inhibition (%);
  • EOEHI: Expected observed egg hatching inhibition (%).
An egg hatching inhibition ratio close to 1 indicated additivity, <1 subadditivity, and >1 synergism [11]
Lethal effect ratio = OEHI/EOEHI
where:
  • OLE: Observed lethal effect (%),
  • ELE: Expected lethal effect (%).
A lethal effect ratio close to 1 indicated additivity, <1 subadditivity, and >1 synergism [11].

2.9. Statistical Analyses

Differences among lethality and egg hatching inhibition percentage means were compared using the Duncan test (p < 0.05). Lethal concentrations (LC25, LC50, and LC90) were calculated utilizing the PROBIT method integrated into the SAS statistical package 9

3. Results

3.1. Isolation and Identification of Compounds

Compounds 1 and 2 (C1F3: 1-nonacosanol/hentriacontane) 13DEPTQ (500 MHz, D6H6) δ (ppm) (Figure S10): δ 64.66 (-RCH2-OH), δ 34.87 (CH2), δ 29.51 (CH2), δ 23.47 (CH2), and δ 14.72 (CH3). 1H-NMR (500 MHz, D6H6) δc (ppm) (Figure S11): δ 4.08 (t, J = 6.7 Hz, 1H), δ 2.21 (t, J = 7.4 Hz, 1H), δ 2.08 (t, J = 7.4 Hz, 1H), δ 1.36–1.23 (m), and δ 0.93–0.89 (m). The signals at δ 64.66 and 4.08 (t, J = 6.7 Hz, 1H) provide evidence of a primary alcohol. Additionally, signals at δ 34.87, δ 29.51, and δ 1.36–1.23 (m) correspond to R-CH2-R units of saturated alkanes. The signals at δ 23.47 and δ 2.21 (t, J = 7.4 Hz, 1H) and 2.08 (t, J = 7.4 Hz, 1H) indicate CH2 groups bound to a CH3 moiety. Finally, the signals at δ 14.72 and δ 0.93–0.89 (m) correspond to a CH3 group. Aromatic or unsaturated carbons are not detected in accordance with the chemical shifts and the absence of UV absorption. Furthermore, the multiplicity revealed in DEPQ indicates the absence of any CH groups. Based on these findings, compounds 1 and 2 are linear saturated organic compounds featuring a terminal OH group.
Compound 1 showed a molecular ion of [M + H]+ = 425 m/z (Figure S2) and compound 2 ([M + H]+ = 437) (Figure S3). 1-Nonacosanol (1) and hentriacontane (2) (Figure 1) match the previously mentioned chemical and structural characteristics and also exhibit the expected molecular ion. According to GC-MS, C1F3 is composed of 31.343% 1-noncacosanol and 52.612% hentriacontane (Figure S1).
Compound 3 (Cinic acid): C1F5 HPLC-DAD retention time (15.749 min), UV spectra (λmax 211.0 nm) (Figure S6), and mass spectra [M + H]+ = 283 m/z (Figure S5) coincide with the cinic acid (Figure 2) previously reported ([7]).
Compound 4 (Peruvin): (1H-NMR and DEPTQ 500 MHz, CD3Cl3, δ (ppm)) (Figures S12 and S13): C1F6 13CNMR data show 15 signals characteristic of sesquiterpene (Table 2). The δ 216.14 signal (C-4) corresponds to a ketone carbonyl and δ 168.20 to an ester or carboxylic acid carbonyl. The δ 141.33 (C-11) and δ 122.72 (C-13) signals were alkene types, and the aromatic signal was discarded due to the absence of signals between δ 7.00 and δ 8.00 in the 1H -NMR spectrum. δ 83.86 and 80.84 correspond to C-O signals. Methyl groups were observed at δ 22.82 (C-14) and δ 18.91 (C-15).
HMBC analysis shows a correlation between C-12 and H-8 (δ 4.95 ddd, J = 12.0, 8.0, 3.1 Hz) indicating the presence of a lactone group (Figure S14). The occurrence of signals corresponding to ketone, ester carbonyl, and alkene is commonly observed in guaianolides and pseudoguaianolides (5-7 bicyclic compounds) [12]. The presence of a methyl group at the C-5 ring junction (C-14 δ 22.82) and C-10 (C-15 δ 18.91) confirms the presence of a pseudoguaianolide.
According to spectroscopic data and mass spectra ([M + H]+ = 265 m/z) (Figure S7), compound 3 can be peruvin (Figure 3). The C1F3 NMR data were compared with peruvin [13], confirming the presence of the sesquiterpene lactone.

3.2. Lethal Effect against Infective Larvae L3 and Egg Hatching Inhibition of H. contortus from Compounds Isolated in the Ethyl Acetate Extract of A. cina

The isolated compounds were tested against H. contortus L3 and eggs. All compounds exhibited lethal effects (LEs) against infective larvae and demonstrated more significant activity than the ethyl acetate extract (EAE) except for 1-nonacosanol/hentriacontane, which had no difference with EAE at LC90. Based on LC90 and LC50, cinic acid showed the highest lethal effect, followed by peruvin and 1-nonacosanol/hentriacontane (Table 1).
On the other hand, cinic acid showed no inhibition of larvae hatching in the egg-hatching inhibition (EHI) assay at the tested concentrations. Higher concentrations of cinic acids were not evaluated to obtain an effect because the highest concentration evaluated was 2 mg/mL, which is close to the ethyl acetate (EAE) LC50 (2.422 (2.287–2.555)) with no egg hatching inhibition (EHI) activity. This means that cinic acid is not responsible for EAE activity related to EHI, and in a practical scenario, it is better to use EAE than cinic acid. Also, a large amount of pure compound would be necessary to perform the experiment.
Compared to EAE, 1-nonacosanol/hentriacontane and peruvin showed better EHI, with 1-nonacosanol/hentriacontane presenting the most significant EHI activity, followed by peruvin.
Peruvin was chosen as the main compound (Mc) for leading binary mixtures based on its EHI, LE, and yield percentage in the EAE.

3.3. Pharmacodynamic Interactions

Binary mixtures were prepared to investigate pharmacodynamic interactions. Ratios close to 1 indicate additivity, ratios < 1 suggest subadditivity, and ratios > 1 suggest synergism [14]. For EHI, only mixtures of peruvin-1-nonacosanol/hentriacontane (Table 3) were evaluated due to the absence of EHI in cinic acid.
All proportions of peruvin/1-nonacosanol/hentriacontane exhibited a ratio close to 1, indicating additivity. On the other hand, binary mixtures evaluating LE showed synergism in 0.50LC25/0.50LC25 and 0.25LC25/0.75LC25 peruvin-1-nonacosanol/hentriacontane, with ratios of 4.87 and 1.75, respectively (see Table 4).
Peruvin–cinic acid mixtures also demonstrated synergism at 0.50LC25/0.50LC25 with a ratio of 1.42. Binary mixtures with peruvin and the Mc allowed us to find pharmacodynamic interactions.

4. Discussion

A plant extract is a complex matrix of various plant secondary metabolites, making it challenging to determine the specific compound responsible for pharmacological activity [15]. While bio-guided separation is effective in identifying the active compound in a plant extract, it has limitations; notably, it does not consider potential interactions (pharmacological interactions) between compounds of different polarities. Therefore, in the present study, binary mixtures are proposed as simpler matrices than a plant extract to comprehend better the possible mode of action of the plant extracts, the EAE of A. cina in this case. To perform binary mixtures, it is necessary to set a main compound (Mc) and a compound of interest (Ci). The established Mc is desirable to be a significant component of the plant extract and well-documented regarding its biological evaluation. The CIs are preferable to be at least one type of secondary metabolite present in the plant extract from which they are isolated. Unfortunately, there is a lack of information about the chemical profile of A. cina, and the only reported compound of EAE is sesquiterpene cinic acid [7]. But, this work provides information of A. cina and its EAE chemical profile, describing the presence of sesquiterpene lactones, such as peruvin, fatty alcohol like 1-nonacosanol, and alkane such as hentriacontane.
The isolated compounds were tested against H. contortus eggs and larvae L3, demonstrating anthelmintic activity. The 1-nonacosanol/hentriacontane mixture exhibited the most significant inhibition of larvae hatching in the egg hatching inhibition (EHI) assay and displayed a lethal effect (LE) on LC50 superior to EAE LC50. The anthelmintic activity observed could be attributed to its potential for an interaction with cellular membrane phospholipids, leading to alterations in the membrane fluidity and functionality of both eggs and larvae [16]. Also, the inhibition of larvae hatching can increase with the number of carbons [17]. The large difference between LC50 and LC90 in LE can be attributed to a flat dose–response curve. This indicates that increases in dosage do not result in a proportional increase in lethal effect. A steeper curve would be expected in a highly potent drug, where a slight increase in dosage would produce a large increase in effect. Additionally, the affinity and efficacy of nonacosanol/hentriacontane for the biological target may reflect a low or moderate affinity, requiring higher concentrations to achieve a lethal effect in most of the population due to the saturation of action sites or resistance mechanisms that limit the efficacy [18].
In the cases of peruvin and cinic acid, these compounds exhibit a significant structural similarity. Both are sesquiterpenes, but the differences lie in the absence of the γ-lactone ring closed at C8 and the presence of an OH group at C8 in cinic acid compared to peruvin. Peruvin displayed EHI and LE activities, whereas cinic acid did not show an inhibition of larvae hatching. The effectiveness of peruvin can be attributed to the existence of the α-methylene, γ-lactone system. This system acts as a Michael acceptor, facilitating an interaction with thiol groups found in proteins [19]. The presence of the α-methylene, γ-lactone system is essential for the EHI activity of sesquiterpene lactones. On the other hand, those structural changes between peruvin and cinic acid enhance LE. Cinic acid displayed a 1.85-fold increase at LC90 and a 7.11-fold increase at LC50 compared to peruvin. It suggests that the α-methylene, γ-carbonyl system is responsible for LE. Peruvin was selected as the Mc for binary mixtures based on the results obtained for EHI, LE, yield percentage, and purity. There was no previous report on anthelmintic activity against H. contortus for peruvin.
The methodological approach involving binary mixtures with Mc and Ci identified pharmacological interactions, as the interaction presented by the peruvin-1-nonacosanol/hentriacontane mixture exhibited synergism in LE and additivity in EHI. The synergism in LE may be attributed to the collaborative action of peruvin and 1-nonacosanol/hentriacontane, which operate through different mechanisms of action when working together. Peruvin, resembling ivermectin as a lactone and with a strong affinity for thiol groups in proteins [20], may act similarly to ivermectin by selectively binding to glutamate-gated chloride ion channels present in the muscle and nerve cells of H. contortus. This binding enhances the permeability of the cell membrane to chloride ions, resulting in cell hyperpolarization, paralysis, and eventual parasite death [21]. Additionally, 1-nonacosanol/hentriacontane may influence cellular membrane fluidity and functionality [17]. It is potentially amplifying permeability to chloride ions and LE up to 4.87-fold. This binary mixture can also be tested in in vivo models due to the low dose required: 0.035 mg/kg of peruvin combined with 0.0017 mg/kg of hentriacontane.
The peruvin–cinic acid mixture also presents synergism in LE, and it is hypothesized that the synergism (1.42-fold) is attributed to the collaborative mechanism of action of the α-methylene, γ-lactone system of peruvin and the α-methylene, γ-carbonyl system of cinic acid.
Additionally, these results confirm that plants from the Asteraceae family and sesquiterpene lactones can be an alternative against Haemonchus contortus [22,23,24,25].

5. Conclusions

This is an initial exploratory study identifying bioactive compounds isolated from the ethyl acetate extract of Artemisia cina, establishing its in vitro anthelmintic activity and its LC50-90. LC90 ensures that therapeutic doses in in vivo experiments are below the lethal level, minimizing animal suffering as much as possible. This information is indispensable for conducting in vivo studies, as it would be unethical to use experimental animals without first demonstrating the in vitro activity and the doses to be administered. The next step would be to demonstrate anthelmintic activity in a murine model and sheep. In vivo experiments are necessary to determine the real effectiveness of the ethyl acetate extract, isolated compounds, and the synergistic binary mixture (Peruvin–hentriacontane/1-nonacosanol), given that the internal conditions of the animal (pH and enzymes) could degrade the bioactive compounds, potentially reducing or increasing their activity.
The methodological approach employing binary mixtures with a main compound and the compounds of interest represents a strategic avenue for uncovering valuable pharmacological interactions. The study of pharmacodynamic interactions via binary mixtures utilizing a main compound in conjunction with compounds of interest isolated from the same extract significantly enhances our comprehension of the mechanism of action of A. cina ethyl acetate extract. These interactions are crucial for the formulation of an A. cina pharmaceutical preparation with anthelmintic activity against H. contortus.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/pathogens13060509/s1, Figure S1: GC-MS chromatogram of C1F3 isolated from Artemisia cina ethyl acetate extract; Figure S2: Mass spectra of 1-nonacosanol identified from Artemisia cina ethyl acetate extract; Figure S3: Mass spectra of hentriacontane identified from Artemisia cina ethyl acetate extract; Figure S4: CG-MS chromatogram of cinic acid isolated from Artemisia cina ethyl acetate extract; Figure S5: Cinic acid mass spectra isolated from Artemisia cina ethyl acetate extract; Figure S6: Chromatogram and UV-VIS spectra obtained by HPLC-DAD and viewed at 215 nm of cinic acid isolated from Artemisia cina ethyl acetate extract; Figure S7: Peruvin mass spectra isolated from Artemisia cina ethyl acetate extract; Figure S8: Peruvin CG-MS chromatogram isolated from Artemisia cina ethyl acetate extract; Figure S9: Chromatogram and UV-VIS spectra obtained by HPLC-DAD and viewed at 215 nm of peruvin isolated from Artemisia cina ethyl acetate extract; Figure S10: DEPTq spectra obtained at 500 MHz of C1F3 isolated from Artemisia cina ethyl acetate extract and dissolved in D6H6; Figure S11: 1H NMR spectra obtained at 500 MHz of C1F3 isolated from Artemisia cina ethyl acetate extract and dissolved in D6H6; Figure S12: 1H NMR spectra obtained at 500 MHz of peruvin isolated from Artemisia cina ethyl acetate extract and dissolved in CD3Cl3; Figure S13: DEPTq spectra obtained at 500 MHz of peruvin isolated from Artemisia cina ethyl acetate extract and dissolved in CD3COCD3; Figure S14: HMBC analysis of peruvin dissolved in CD3Cl3 and obtained at 500 MHz.

Author Contributions

Conceptualization: L.D.A.-D.-l.P. and R.I.H.-P.; methodology: L.D.A.-D.-l.P., M.G.-C. and R.I.H.-P.; resources: R.I.H.-P., M.G.-C. and A.Z.; writing—original draft preparation: L.D.A.-D.-l.P. and R.L.-A.; writing—review and editing: J.A.C.-O., R.L.-A., A.Z. and M.G.-C.; funding acquisition: R.I.H.-P. and H.A.d.l.C.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Support Program for Research and Technological Innovation Projects (PAPIIT-UNAM), titled: Estudio del acoplamiento molecular de dos lignanos 3-demetoxi-6-o-demetilisoguaiacina y norisoguaiacina obtenidos a partir de Artemisia cina sobre la ciclo-oxigenasa 2 y su efecto antiinflamatorio in vitro (TA200324) and the postdoctoral grant (DGAPA-UNAM) for L.D.A.-D.-l.P.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available within the article or Supplementary Materials.

Acknowledgments

To the social service student who supported us in obtaining biological material: Eduardo Rico-Mejía.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gravdal, M.; Woolsey, I.D.; Robertson, L.J.; Höglund, J.; Chartier, C.; Stuen, S. Benzimidazole-resistance associated mutation in Haemonchus contortus in Norwegian sheep, as detected by droplet digital PCR. Vet. Parasitol. Reg. Stud. Rep. 2023, 46, 100938. [Google Scholar] [CrossRef] [PubMed]
  2. Dolinská, M.; Ivanišinová, O.; Königová, A.; Várady, M. Anthelmintic resistance in sheep gastrointestinal nematodes in Slovakia detected by in-vitro methods. BMC Vet. Res. 2014, 10, 1–5. [Google Scholar] [CrossRef] [PubMed]
  3. Coles, G.C.; Jackson, F.; Pomroy, W.E.; Prichard, R.K.; von Samson-Himmelstjerna, G.; Silvestre, A.; Taylor, M.A.; Vercruysse, J. The detection of anthelmintic resistance in nematodes of veterinary importance. Vet. Parasitol. 2006, 136, 167–185. [Google Scholar] [CrossRef] [PubMed]
  4. Maqbool, I.; Wani, Z.A.; Shahardar, R.A.; Allaie, I.M.; Shah, M.M. Integrated parasite management with special reference to gastro-intestinal nematodes. J. Parasit. Dis. 2016, 41, 1–8. [Google Scholar] [CrossRef] [PubMed]
  5. Higuera-Piedrahita, R.I.; Dolores-Hernández, M.; Jiménez-Pérez, L.G.; Camacho-Enríquez, B.C.; Zamilpa, A.; López-Arellano, R.; Mendoza-De-Gives, P.; Cuéllar-Ordaz, J.A.; López-Arellano, M.E. In Vitro Nematocidal Effect and Anthelmintic Activity of Artemisia cina Against Haemonchus contortus in Gerbils and Relative Expression of Hc29 Gene in Transitional Larvae (L3–L4). Acta Parasitol. 2021, 66, 938–946. [Google Scholar] [CrossRef] [PubMed]
  6. Higuera-Piedrahita, R.I.; Dolores-Hernández, M.; de la Cruz-Cruz, H.A.; López-Arellano, R.; Gives, P.M.-D.; Olmedo-Juárez, A.; Cuéllar-Ordaz, J.A.; González-Cortazar, M.; Ble-González, E.A.; López-Arellano, M.E.; et al. 3′-Demethoxy-6-O-demethylisoguaiacin and norisoguaiacin nematocidal lignans from Artemisia cina against Haemonchus contortus Infective Larvae. Plants 2023, 12, 820. [Google Scholar] [CrossRef]
  7. Arango-De la Pava, L.D.; González-Cortázar, M.; Zamilpa, A.; Cuéllar-Ordaz, J.A.; de la Cruz-Cruz, H.A.; Higuera-Piedrahita, R.I.; López-Arellano, R. Bio-guided isolation of a new sesquiterpene from Artemisia cina with anthelmintic activity against Haemonchus contortus L3 infective larvae. PLoS ONE 2024, 19, e0305155. [Google Scholar] [CrossRef]
  8. Ballent, M.; Canton, C.; Dominguez, P.; Bernat, G.; Lanusse, C.; Virkel, G.; Lifschitz, A. Pharmacokinetic-pharmacodynamic assessment of the ivermectin and abamectin nematodicidal interaction in cattle. Vet. Parasitol. 2020, 279, 109010. [Google Scholar] [CrossRef]
  9. Niu, J.; Straubinger, R.M.; Mager, D.E. Pharmacodynamic Drug–Drug Interactions. Clin. Pharmacol. Ther. 2019, 105, 1395–1406. [Google Scholar] [CrossRef]
  10. Arango-De la Pava, L.D.; Zamilpa, A.; Trejo-Espino, J.L.; Domínguez-Mendoza, B.E.; Jiménez-Ferrer, E.; Pérez-Martínez, L.; Trejo-Tapia, G. Synergism and subadditivity of verbascoside-lignans and-iridoids binary mixtures isolated from Castilleja tenuiflora benth. On NF-κB/ap-1 inhibition activity. Molecules 2021, 26, 547. [Google Scholar] [CrossRef]
  11. Frum, Y.; Viljoen, A.M.; Van Heerden, F.R. Verbascoside and luteolin-5-O-β-d-glucoside isolated from Halleria lucida L. exhibit antagonistic anti-oxidant properties in vitro. S. Afr. J. Bot. 2007, 73, 583–587. [Google Scholar] [CrossRef]
  12. Patricia, V.; Virginia, S.; Martino, S. Sesquiterpene Lactones Advances in their Chemistry and Biological Aspects; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar] [CrossRef]
  13. Błoszyk, E.; Rychłewska, U.; Szczepanska, B.; Buděšínský, M.; Drożdż, B.; Holub, M. Sesquiterpene lactones of Ambrosia artemisiifolia L. and Ambrosia trifda L. species. Collect. Czechoslov. Chem. Commun. 1992, 57, 1092–1102. [Google Scholar] [CrossRef]
  14. Foucquier, J.; Guedj, M. Analysis of drug combinations: Current methodological landscape. Pharmacol. Res. Perspect. 2015, 3, e00149. [Google Scholar] [CrossRef] [PubMed]
  15. Krakowska-Sieprawska, A.; Kiełbasa, A.; Rafińska, K.; Ligor, M.; Buszewski, B. Modern Methods of Pre-Treatment of Plant Material for the Extraction of Bioactive Compounds. Molecules 2022, 27, 730. [Google Scholar] [CrossRef] [PubMed]
  16. De Carvalho, C.C.C.R.; Caramujo, M.J. The various roles of fatty acids. Molecules 2018, 23, 2583. [Google Scholar] [CrossRef] [PubMed]
  17. Pineda-Alegría, J.A.; Sánchez, J.E.; González-Cortazar, M.; Von Son-De Fernex, E.; González-Garduño, R.; Mendoza-De Gives, P.; Zamilpa, A.; Aguilar-Marcelino, L. In vitro nematocidal activity of commercial fatty acids and β-sitosterol against Haemonchus contortus. J. Helminthol. 2020, 94, e135. [Google Scholar] [CrossRef]
  18. Cross, M.E.; Plunkett, E.V.E. (Eds.) Affinity, Efficacy and Potency. In Physics, Pharmacology and Physiology for Anaesthetists: Key Concepts for the FRCA, 2nd ed.; Cambridge University Press: Cambridge, UK, 2014; p. 160. [Google Scholar] [CrossRef]
  19. Foster, J.G.; Cassida, K.A.; Turner, K.E. In vitro analysis of the anthelmintic activity of forage chicory (Cichorium intybus L.) sesquiterpene lactones against a predominantly Haemonchus contortus egg population. Vet. Parasitol. 2011, 180, 298–306. [Google Scholar] [CrossRef]
  20. Abood, S.; Eichelbaum, S.; Mustafi, S.; Veisaga, M.-L.; López, L.A.; Barbieri, M. Biomedical properties and origins of sesquiterpene lactones, with a focus on dehydroleucodine. Nat. Prod. Commun. 2017, 12, 6. [Google Scholar] [CrossRef]
  21. Atif, M.; Estrada-Mondragon, A.; Nguyen, B.; Lynch, J.W.; Keramidas, A. Effects of glutamate and ivermectin on single glutamate-gated chloride channels of the parasitic nematode H. contortus. PLoS Pathog. 2017, 13, e1006663. [Google Scholar] [CrossRef]
  22. Jasso Díaz, G.; Hernández, G.T.; Zamilpa, A.; Becerril Pérez, C.M.; Ramírez Bribiesca, J.E.; Hernández Mendo, O.; Arroyo, H.S.; Cortazar, M.G.; de Gives, P.M. In vitro assessment of Argemone mexicana, Taraxacum officinale, Ruta chalepensis and Tagetes filifolia against Haemonchus contortus nematode eggs and infective (L3) larvae. Microb. Pathog. 2017, 109, 162–168. [Google Scholar] [CrossRef]
  23. Ademola, I.O.; Eloff, J.N. Anthelminthic activity of acetone extract and fractions of Vernonia amygdalina against Haemonchus contortus eggs and larvae. Trop. Anim. Health Prod. 2011, 43, 521–527. [Google Scholar] [CrossRef] [PubMed]
  24. Tayo Gertrude, M.; Wabo Poné, J.; Marie Claire, K.; Jeannette, Y.; Ngangout Alidou, M.; Mbida, M. In vitro Anthelmintic Activity of Bidens pilosa Linn. (Asteraceae) Leaf Extracts against Haemonchus contortus Eggs and Larvae. Eur. J. Med. Plants 2014, 4, 1282–1292. [Google Scholar] [CrossRef]
  25. Panda, S.K.; Luyten, W. Antiparasitic activity in Asteraceae with special attention to ethnobotanical use by the tribes of Odisha, India. Parasite 2018, 25, 10. [Google Scholar] [CrossRef] [PubMed]

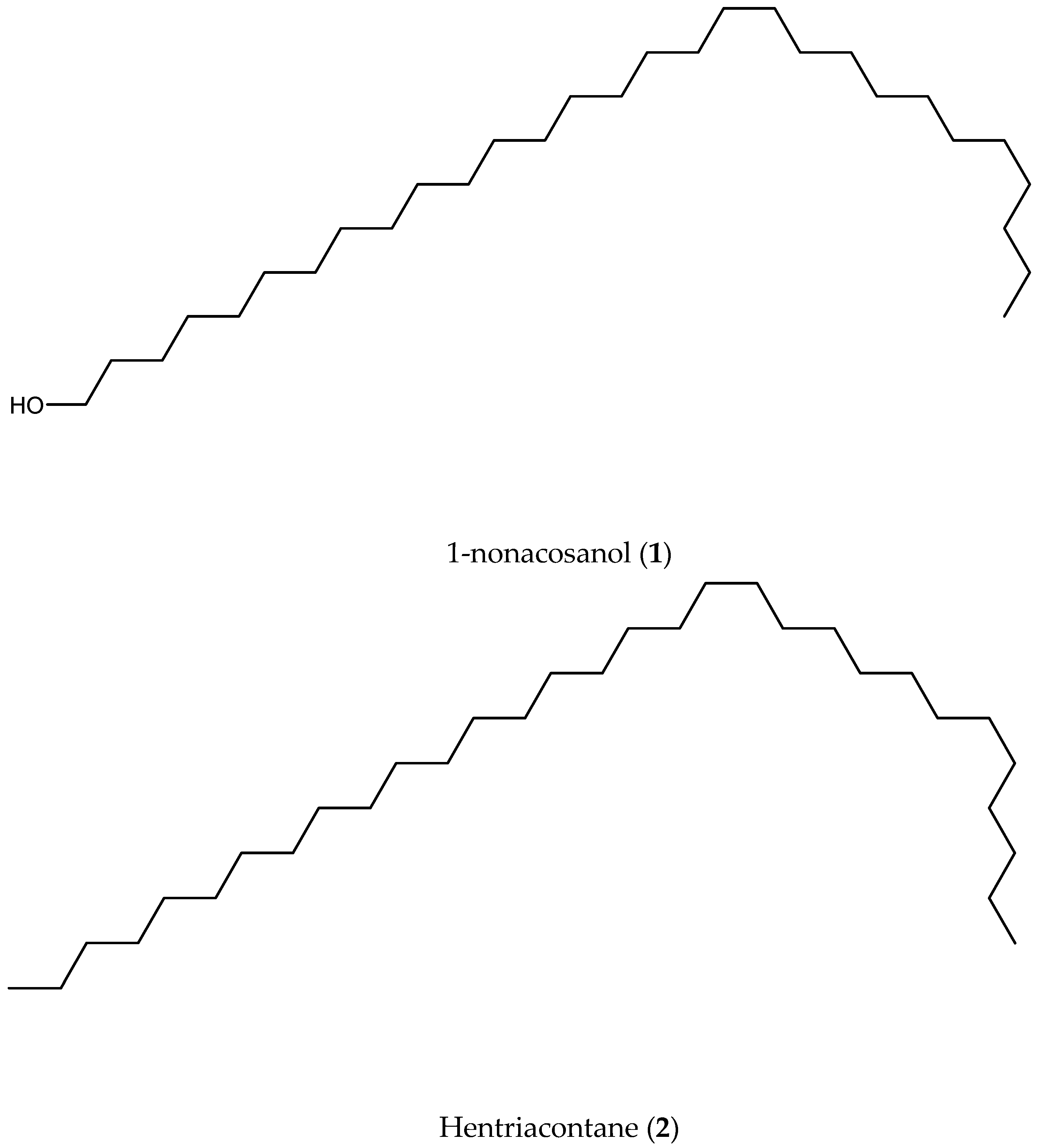

Figure 1. Compounds identified from C1F3 present in Artemisia cina ethyl acetate extract.
Figure 1. Compounds identified from C1F3 present in Artemisia cina ethyl acetate extract.
Pathogens 13 00509 g001
Figure 2. Cinic acid isolated from Artemisia cina ethyl acetate extract.
Figure 2. Cinic acid isolated from Artemisia cina ethyl acetate extract.
Pathogens 13 00509 g002
Figure 3. Peruvin isolated from Artemisia cina ethyl acetate extract.
Figure 3. Peruvin isolated from Artemisia cina ethyl acetate extract.
Pathogens 13 00509 g003
Table 1. Egg hatching inhibition and larvicidal effect of A. cina isolated compounds from the ethyl acetate extract against eggs and infective larvae of H. contortus.
Table 1. Egg hatching inhibition and larvicidal effect of A. cina isolated compounds from the ethyl acetate extract against eggs and infective larvae of H. contortus.
TreatmentsLC90 (mg/mL)LC50 (mg/mL)LC25 (mg/mL)
Egg hatching inhibition
EAE3.849 (3.640–4.107) b2.422 (2.287–2.555) c1.897 (1.739–2.037) c
C1F31.322 (1.214–1.454) a0.459 (0.423–0.496) a0.263 (0.235–0.292) a
Cinic acidNo effectNo effectNo effect
Peruvin1.582 (1.402–1.687) a1.095 (1.055–1.135) b0.902 (0.855–0.943) b
Larvicidal effect
EAE3.302 (3.265–3.569) C2.564 (2.457–2.654) C1.786 (1.622–1.928) C
C1F32.607 (1.810–4.432) C0.060 (0.034–0.089) A0.003 (0.002–0.003) A
Cinic acid0.220 (0.192–0.254) A0.018 (0.015–0.021) A0.005 (0.003–0.006) A
Peruvin0.410 (0.377–0.466) B0.128 (0.119–0.137) B0.069 (0.063–0.076) B
C1F3: 1-nonacosanol/hentriacontane. Same letters indicate no significant difference between groups. Duncan α < 0.05.
Table 2. 1H -NMR and DEPTq spectroscopy data of compound 1 (CD3COCD3, 500 MHz).
Table 2. 1H -NMR and DEPTq spectroscopy data of compound 1 (CD3COCD3, 500 MHz).
PositionDEPTq1H (J in Hz)13C (ppm)
1C-83.86
2CH2α 2.44 (1H, m)32.76
β 1.72 (1H, m)
3CH2α 2.44 (1H, m)31.67
2.44 1H, (m)
4C-216.14
5C-54.99
6CH2α 2.55 (1H, dd, J = 15.1, 5.2 Hz)35.71
β 1.47 (1H, dd, J = 15.1, 13.0 Hz)
7CH3.83 (1H, m)38.98
8CH4.95 (1H, ddd, J = 12.0, 8.0, 3.1 Hz)80.84
9CH2α 2.19 (1H, ddd, J = 13.7, 5.0, 3.1 Hz)36.78
β 1.85 (1H, dt, J = 13.7, 12.0 Hz)
10CH2.06 (1H, ddq, J = 12.2, 4.9, 7.3)41.25
11C-141.33
12C-170.61
13CH2Ha 6.23 (1H, d, J = 2.8),122.72
Hb 5.64 (1H, d, J = 2.4 Hz)
14CH31.18 (3H, d, J =7.3)22.82
15CH31.06 (3H, s)18.91
Table 3. Fixed proportions scheme of peruvin-1-nonacosanol/hentriacontane binary mixture on H. contortus egg hatching inhibition activity.
Table 3. Fixed proportions scheme of peruvin-1-nonacosanol/hentriacontane binary mixture on H. contortus egg hatching inhibition activity.
Binary MixtureExpected H. contortus EHI (%)Observed H. contortus EHI (%)Ratio
Water 2.1 ± 1.92 a
Ivermectin 100 ± 0.00 c
P-C1F3 proportion
1.00/0:0025.0019.94 ± 6.38 b
0.75/0.2522.4523.24 ± 5.51 b1.03
0.50/0.5024.9624.98 ± 4.23 b1.00
0.25/0.7527.4725.60 ± 5.82 b0.93
0.00/1.0025.0029.99 ± 4.70 b
P-C1F3: peruvin-1-nonacosanol/hentriacontane. EHI: egg hatching inhibition. Same letters indicate no significant difference between groups. Duncan α < 0.05. Inhibition ratio close to 1 indicates additivity, <1—subadditivity, and >1—synergism. Incubated for 48 h.
Table 4. Fixed proportions scheme of peruvin-1-nonacosanol/hentriacontane and peruvin–cinic acid binary mixtures on the lethal effect of H. contortus L3.
Table 4. Fixed proportions scheme of peruvin-1-nonacosanol/hentriacontane and peruvin–cinic acid binary mixtures on the lethal effect of H. contortus L3.
Binary MixtureExpected LE on H. contortus L3 (%)Observed LE on H. contortus L3 (%)Ratio
Water 3.53 ± 0.91 a
Ivermectin 100 ± 0.00 f
P-C1F3 proportion
1.00/0:0025.0021.36 ± 4.18 b
0.75/0.2516.5619.78 ± 3.19 b1.19
0.50/0.5019.9697.33 ± 2.22 e4.87
0.25/0.7514.9726.27 ± 5.64 bc1.75
0.00/1.0025.0018.54 ± 8.0 b
P-C proportion
1.00/0:0025.0023.28 ± 4.60 b
0.75/0.2525.8522.88 ± 6.18 b0.99
0.50/0.5028.3940.42 ± 8.25 d1.42
0.25/0.7530.9525.60 ± 5.82 b0.85
0.00/1.0025.0033.51 ± 4.96 cd
P-C1F3: peruvin-1-nonacosanol/hentriacontane, P-C: peruvin–cinic acid, and LE: lethal effect. The same letters indicate no significant difference between groups. Duncan α < 0.05. Inhibition ratio close to 1 indicates additivity, <1—subadditivity, and >1—synergism. Incubated for 24 h.
