Opinion

The Bm86 Discovery: A Revolution in the Development of Anti-Tick Vaccines

Animal Biotechnology Department, Center for Genetic Engineering and Biotechnology, Avenue 31 between 158 and 190, P.O. Box 6162, Havana 10600, Cuba
Pathogens 2023, 12(2), 231; https://doi.org/10.3390/pathogens12020231
Submission received: 6 January 2023 / Revised: 30 January 2023 / Accepted: 31 January 2023 / Published: 2 February 2023
(This article belongs to the Special Issue 10th Anniversary of Pathogens—Classic Papers in Tick Research)

Abstract

:
The presence in nature of species with genetic resistance to ticks, or with acquired resistance after repeated tick infestations, has encouraged the scientific community to consider vaccination as an alternative to the unsustainable chemical control of ticks. After numerous attempts to artificially immunize hosts with tick extracts, the purification and characterization of the Bm86 antigen by Willadsen et al. in 1989 constituted a revolutionary step forward in the development of vaccines against ticks. Previously, innovative studies that had used tick gut extracts for the immunization of cattle against Rhipicepahalus microplus (previously named Boophilus microplus) ticks, with amazingly successful results, demonstrated the feasibility of using antigens other than salivary-gland-derived molecules to induce a strong anti-tick immunity. However, the practical application of an anti-tick vaccine required the isolation, identification, and purification of the responsible antigen, which was finally defined as the Bm86 protein. More than thirty years later, the only commercially available anti-tick vaccines are still based on this antigen, and all our current knowledge about the field application of immunological control based on vaccination against ticks has been obtained through the use of these vaccines.

1. Introduction

Today, the main method used to control ectoparasite infestations in livestock and companion animals is still the application of chemicals. A whole range of these substances, such as organochlorines, organophosphates, amidines, and pyrethroids, among others, have enabled tick control and eradication programs around the world [1]. More than 98% mortality can be achieved when the chemical used has a demonstrated efficacy against species living in a specific region. However, this efficacy means that there is a very small percentage of the population that will be randomly resistant to a given chemical, and, after a relatively short period of repeated intensive use of the same substance, and/or after a misapplication, a tick population resistant to that substance may have been selected, making it necessary to change to another kind of chemical [2,3]. In fact, resistant and multiresistant tick strains have been reported in many countries [4,5,6,7,8]. As concerns about food and environmental contamination with these chemicals are added to the above situation, the need to apply other, more sustainable, strategies to ectoparasite control is evident.
As early as the first half of the 20th century, natural or acquired resistance to tick feeding had already been well documented in both laboratory and domestic animals [9,10,11,12]. Those papers and some others showed that this resistance was mediated by a host immune response [13,14,15,16]. Artificial immunizations of hosts with extracts of salivary glands resulted in the induction of a host-protective response similar to that of acquired tick immunity characterized by hypersensitivity reactions [17,18,19,20]. However, it was also demonstrated that tick feeding could stimulate host antibodies against antigens other than those associated with salivary glands, because rabbits infested with Hyalomma anatolicum excavatum and Rhipicephalus sanguineus ticks also developed antibodies against digestive tract antigens [21].
A novel concept of “concealed” antigens able to stimulate an effective anti-tick response was introduced by Allen and Humphreys in 1979 [22]. In this pioneering work, antigens that are not presented to the host immune system during tick feeding, but are exposed to their effector elements through the blood meal were used to induce an effective immunity against ticks. This concept had previously been noticed following an increase in the death rate of Anopheles stephensi mosquitoes fed on rabbits immunized with a preparation of ground mosquito midgut [23]. Interestingly, this induced immunity against the internal organs of ectoparasites is quite different from that acquired naturally. The latter has an effect on the engorged female yield, whereas the vaccination-induced immunity results in reductions of the female engorgement weight and egg laying. The direct consequence of these effects is a reduction in the tick population [24].
The work published by Willadsen et al. in 1989 [25] brilliantly provided the long-awaited isolation and characterization of an antigen involved in the previous host immunizations with tick gut extracts that successfully limited R. microplus tick feeding and reproductive performance [26,27,28]. This important discovery allowed a deeper characterization of the mechanisms by which the host immunological response to concealed antigens exerts its effects on ticks [29,30,31], and also allowed the technological development of Bm86-based vaccines against R. microplus ticks [31,32,33,34,35,36,37]. Finally, this finding paved the way for research into new concealed antigens for anti-tick vaccine development [38,39,40].

2. Discovery

The paper published by Willadsen et al. in 1989 [25] described in detail the process of Bm86 purification from a crude membrane preparation of the Yeerongpilly strain of R. microplus ticks, using previous experience in the isolation of an antigenic fraction capable of conferring bovine protection against ticks [24]. Briefly, they used lectin affinity chromatography (wheat germ lectin and Con A) after the preparation of the membrane extracts, followed by preparative isoelectric focusing (IEF). The 5.1–5.6 PI range was pooled and subjected to serial HPLC gel filtration. The glycoprotein purified in this way, with a molecular weight of around 89,000 Da, was used as an antigen in two immunization experiments in bovines, which differed essentially in the quantity of antigen and the final formulation with or without adjuvant (CFA, IFA, or none). After three shots, given 4 weeks apart, bovines were challenged with 1000 tick larvae per day for 3 weeks (Figure 1). A 92% reduction in the number of larval progeny from ticks fed on vaccinated animals compared to controls was calculated, taking into account the effects of vaccination on the number and average weight of ticks recovered each day on individual cattle and a visual estimate of damaged ticks, and also the weight of eggs laid per gram of engorged ticks. These results confirmed that Bm86 was the molecule responsible for the damaged gut cells in ticks fed on hosts previously immunized with tick membrane extracts [24,41].
In addition to these essential experiments, the authors also described structural features of several peptides from the 182 amino acids sequenced of the Bm86 protein and demonstrated that this antigen was located on the tick gut digestive cell surface via indirect immunofluorescence, using either bovine antisera to the native Bm86 or rabbit antisera to a recombinant Bm86 protein produced in Escherichia coli. Finally, pre-incubations of tick digestive cell suspensions with antisera from vaccinated bovines showed a very strong inhibition of the endocytosis ability of fluorescein-labeled BSA in these cells. Heat-inactivated antisera were as inhibitory as unheated sera, which demonstrated that complement was not responsible for this inhibition. All these results together constituted indirect evidence suggesting putative biological functions for this protein which have still not been well elucidated more than thirty years later [42,43,44,45,46].

3. Impacts

Multicellular parasites are the most complex pathogens to be combated by vaccination, especially ectoparasites which are in contact with the host immune system only during feeding and, in addition, have developed highly effective methods for eluding the host immune system over millions of years [47]. Hence, the great scientific challenge of achieving ectoparasite control through immunization. However, the work developed by Willadsen et al. in 1989 [25] demonstrated that host vaccination with a defined hidden tick antigen can be used to induce an immunologic response whose effector mechanisms take place inside ticks after a blood meal. Unlike immunization with salivary gland proteins, which increases host cutaneous sensitivity to ticks, these internal molecules are not introduced into the host during feeding and the immune reaction does not occur at the host–parasite interface, which is a desirable characteristic of an anti-tick vaccine in order that unwanted side effects such as skin irritation may be avoided in its practical application [48,49]. However, the advantage implicit in the concept of concealed antigens requires multiple host immunizations in order to guarantee high antibody titers against the target molecule and consequent efficacy against ticks [33,50].
The isolation of Bm86 and the description of its amino acid sequence [25] allowed the cloning of its coding sequence and its recombinant expression in different hosts [32,51,52]. These biotechnological approaches have permitted the protein to be obtained in sufficient quantities to develop the only registered, commercial anti-tick vaccines, which have demonstrated efficacy against R. microplus ticks under field conditions [35,37,53,54,55]. These Bm86-based vaccines have also shown successful immunological efficacy against other tick species, expanding their practical use for tick control in other species [56,57,58,59,60,61,62,63]. However, there have been variable results with different strains and species of ticks [60,64,65,66]; even today, these differences lack a clear explanation [64,67]. Although this antigen has been used to immunize cattle for more than thirty years, its biological function in the gut membrane cells and the reasons for varying levels of protection against different ticks have not yet been completely elucidated.
Despite these gaps in knowledge, the implementation of the Bm86-based vaccine in large-scale production, with more than 3 million vaccinated cattle, has demonstrated the efficacy of this vaccine to control ticks [36,68,69], including pesticide-resistant tick strains [6,35]. These impressive results have made the Bm86 protein into the reference antigen for all studies on anti-tick vaccine development and stimulated the scientific community to search for new antigens with broader action spectra, to be used either alone or combined with Bm86 in tick control programs [38,40,70,71,72,73]. These investigations had a “boom” in the first fifteen years of the 21st century, as evidenced by the number of papers and presentations at international conferences addressing the topic [74]. Notwithstanding promising results obtained in laboratory experiments with diverse antigens against different tick species, none has been tested under field conditions, nor have any been registered as commercial products [75,76]. This fact reflects that the concept demonstration of an effective antigen against ticks is only the first step of a long and costly road to sanitary registration of an anti-tick vaccine, in which there are many involved actors.
On the other hand, the experience in the field application of Bm86-based vaccines has demonstrated that anti-tick vaccines are hard to commercialize because a change in thinking based on classic concepts of preventive vaccines against viruses and bacteria is needed. These are not “knock down” vaccines. The reduction in the tick’s reproductive capacity achieved by the Bm86-based vaccines leads to continuing reductions in tick populations after two or three generations of feeding on vaccinated animals, keeping their infestations at an acceptable level for livestock and favoring the enzootic equilibrium for hemoparasitic diseases. As a consequence of this reduction of tick infestations, the use of chemicals can be reduced, increasing their useful lifespan by delaying or eliminating the appearance of resistant tick strains and diminishing food contamination and environmental pollution.
It has become clear that a single method is not effective enough to achieve the control of tick infestations and ectoparasites in general. Overall tick control will depend on the harmonious integration of various methods instead of on one method alone, and vaccination can be included as the backbone of the adopted management strategy [36,77]. To date, the best results in tick control programs that include vaccination with Bm86 antigen have been obtained when governments have been involved and have applied regional implementation policies [36,68,77]. It has also been learned that these vaccines must be commercialized as a package which includes specialized technical support for training people in their proper use within these integrated programs. The main objective of these programs should be tick infestation control rather than eradication. With this tenet in mind, a clear strategy should be established from the beginning of a research project, when the proof-of-concept testing for new antigens against ticks will be performed in the laboratory. This strategy should guarantee a successful pipeline of technological development towards a marketable product which takes into consideration not only the efficacy needed for tick control in the field, but also novel methods for vaccine formulation that ensure the highest quality and longest lasting host immune response against the antigen, the industry’s demand for low cost, and consumer training in the correct implementation of the program, including vaccination. All these are imperative to enable effective development and commercialization of this innovative biotechnology and to make these products attractive to animal health companies.
Another significant reported impact on Bm86-vaccinated cattle is that the incidence of hemoparasitic diseases is decreased [36,37]. It is not clear whether this effect is caused by the reduction in tick infestations or because there is a specific effect of this antigen on the tick’s ability to transmit these pathogens, although there are preliminary studies that suggest the tick’s ability to act as a vector is affected by antibodies against Bm86 [78,79]. Another anti-tick antigen has also shown an ability to protect vaccinated hosts against viruses transmitted by infected ticks such as TBEV [80]. It appears at this point that an antigen design with a dual effect (against ticks and against tick-borne pathogens) could be one of the major impacts of a vaccine against ticks, taking into account that the main health concern about ectoparasites is their ability to transmit disease agents to host animals [81,82].
Finally, these successful results obtained in the practical implementation of vaccination against ticks could be extrapolated to the control of other ectoparasites such as the human body louse [83,84], mosquitoes [85,86,87], sand flies [88], and sea lice of salmonids [89,90], which can be affected in their life cycles via the same immunological mechanisms of a vaccinated host as have been described for ticks, and the control of which is currently addressed mainly through the use of chemicals.

Funding

This research received no external funding.

Acknowledgments

The author would like to thank Alejandro Cabezas for the invitation to write this opinion paper for the Special Issue “10th Anniversary of Pathogens—Classic Papers in Tick Research”, Julio E. Duque Vizcaino for the tick drawing used in the figure, and also John van der Meer for his valuable English review.

Conflicts of Interest

The author declares that there is no conflict of interest.

References

  1. Graf, J.F.; Gogolewski, R.; Leach-Bing, N.; Sabatini, G.; Molento, M.; Bordin, E.; Arantes, G. Tick control: An industry point of view. Parasitology 2004, 129 (Suppl. 1), S427–S442. [Google Scholar] [CrossRef]
  2. Miller, J.A. Controlled release products for control of ectoparasites of livestoc in Controlled Release Veterinary Drug Delivery. In Biological and Pharmaceutical Considerations; Rathbone, M.J., Gurny, R., Eds.; Elsevier: Amsterdam, The Netherlands, 2000; pp. 229–248. [Google Scholar]
  3. McNair, C.M. Ectoparasites of medical and veterinary importance: Drug resistance and the need for alternative control methods. J. Pharm. Pharmacol. 2015, 67, 351–363. [Google Scholar] [CrossRef]
  4. Temeyer, K.B.; Pruett, J.; Olafson, P.; Chen, A. R86Q, a mutation in BmAChE3 yielding a Rhipicephalus microplus organophosphate-insensitive acetylcholinesterase. J. Med. Entomol. 2007, 44, 1013–1018. [Google Scholar] [CrossRef]
  5. He, H.; Chen, A.; Davey, R.; Ivie, G.; George, J. Identification of a point mutation in the para-type sodium channel gene from a pyrethroid-resistant cattle tick. Biochem. Biophys. Res. Commun. 1999, 261, 558–561. [Google Scholar] [CrossRef]
  6. Redondo, M.; Fragoso, H.; Ortiz, M.; Montero, C.; Lona, J.; Medellin, J.; De la Fuente, J. Integrated control of acaricide-resistant Boophilus microplus populations on grazing cattle in Mexico using vaccination with Gavac and amidine treatments. Exp. Appl. Acarol. 1999, 23, 841–849. [Google Scholar] [CrossRef]
  7. Heath, A.; Levot, G. Parasiticide resistance in flies, lice and ticks in New Zealand and Australia: Mechanisms, prevalence and prevention. N. Z. Vet. J. 2015, 63, 199–210. [Google Scholar] [CrossRef] [PubMed]
  8. Dutta, S.; Godara, R.; Katoch, R.; Yadav, A.; Katoch, M.; Singh, N. Detection of amitraz and malathion resistance in field populations of Rhipicephalus (Boophilus) microplus (Acari: Ixodidae) in Jammu region of India. Exp. Appl. Acarol. 2017, 71, 291–301. [Google Scholar] [CrossRef]
  9. Johnston, T.H.; Bancroft, M. A tick resistant condition in cattle. Proc. R. Soc. Qld. 1918, 30, 219–317. [Google Scholar]
  10. Trager, W. Acquired immunity to ticks. J. Parasitol. 1939, 25, 57–81. [Google Scholar] [CrossRef]
  11. Trager, W. Further observations on acquired immunity to the tick Dermacentor variabilis Say. J. Parasitol. 1939, 25, 137–139. [Google Scholar] [CrossRef]
  12. Allen, J.R. Tick resistance: Basophils in skin reactions of resistant guinea pigs. Int. J. Parasitol. 1973, 3, 195–200. [Google Scholar] [CrossRef] [PubMed]
  13. Wikel, S.K.; Allen, J. Acquired resistance to ticks. I. Passive transfer of resistance. Immunology 1976, 30, 311–316. [Google Scholar]
  14. Wikel, S.K.; Allen, J. Acquired resistance to ticks. II. Effects of Cyclophosphamide on resistance. Immunology 1976, 30, 479–484. [Google Scholar] [PubMed]
  15. Wikel, S.K. Acquired resistance to ticks: Expression of resistance by C4-deficient guinea pigs. Am. J. Trop. Med. Hyg. 1979, 28, 586–590. [Google Scholar] [CrossRef]
  16. Brossard, M. Immunologic relations between cattle and ticks, specifically between cattle and Boophilus microplus. Acta Tropica 1976, 33, 15–36. [Google Scholar]
  17. Garin, N.S.; Grabarev, P. Immune reaction in rabbits and guinea pigs during repeated feeding on them of ixodid ticks Rhipicephalus sanguineus (Latr., 1806)]. Med. Parazitol. 1972, 41, 274–279. [Google Scholar]
  18. Wikel, S.K. The induction of host resistance to tick infestation with a salivary gland antigen. Am. J. Trop. Med. Hyg. 1981, 30, 284–288. [Google Scholar] [CrossRef]
  19. Wikel, S.K. Immunomodulation of host responses to ectoparasite infestation--an overview. Vet. Parasitol. 1984, 14, 321–339. [Google Scholar] [CrossRef]
  20. Allen, J.R.; Khalil, H.; Graham, J. The location of tick salivary antigens, complement and immunoglobulin in the skin of guinea-pigs infested with Dermacentor andersoni larvae. Immunology 1979, 38, 467–472. [Google Scholar]
  21. Köhler, G.; Hoffmann, G.; Hörchner, F.; Weiland, G. Immunobiological studies on rabbits infested with Ixodid ticks. Berl. Münchener Tierärztliche Wochenschr. 1967, 80, 396–400. [Google Scholar]
  22. Allen, J.R.; Humphreys, S. Immunisation of guinea pigs and cattle against ticks. Nature 1979, 280, 491–493. [Google Scholar] [CrossRef]
  23. Alger, N.E.; Cabrera, E. An increase in death rate of Anopheles stephensi fed on rabbits immunized with mosquito antigen. J. Econ. Entomol. 1972, 65, 165–168. [Google Scholar] [CrossRef] [PubMed]
  24. Willadsen, P.; McKenna, R.; Riding, G. Isolation from the cattle tick, Boophilus microplus, of antigenic material capable of eliciting a protective immunological response in the bovine host. Int. J. Parasitol. 1988, 18, 183–189. [Google Scholar] [CrossRef] [PubMed]
  25. Willadsen, P.; Riding, G.; McKenna, R.; Kemp, D.; Tellam, R.; Nielsen, J.; Gough, J. Immunologic control of a parasitic arthropod. Identification of a protective antigen from Boophilus microplus. J. Immunol. 1989, 143, 1346–1351. [Google Scholar] [CrossRef] [PubMed]
  26. Johnston, L.A.; Kemp, D.; Pearson, R. Immunization of cattle against Boophilus microplus using extracts derived from adult female ticks: Effects of induced immunity on tick populations. Int. J. Parasitol. 1986, 16, 27–34. [Google Scholar] [CrossRef] [PubMed]
  27. Agbede, R.I.; Kemp, D. Immunization of cattle against Boophilus microplus using extracts derived from adult female ticks: Histopathology of ticks feeding on vaccinated cattle. Int. J. Parasitol. 1986, 16, 35–41. [Google Scholar] [CrossRef] [PubMed]
  28. Kemp, D.H.; Agbede, R.; Johnston, L.; Gough, J. Immunization of cattle against Boophilus microplus using extracts derived from adult female ticks: Feeding and survival of the parasite on vaccinated cattle. Int. J. Parasitol. 1986, 16, 115–120. [Google Scholar] [CrossRef]
  29. Gough, J.M.; Kemp, D. Localization of a low abundance membrane protein (Bm86) on the gut cells of the cattle tick Boophilus microplus by immunogold labeling. J. Parasitol. 1993, 79, 900–907. [Google Scholar] [CrossRef]
  30. Kemp, D.H.; Pearson, R.; Gough, J.; Willadsen, P. Vaccination against Boophilus microplus: Localization of antigens on tick gut cells and their interaction with the host immune system. Exp. Appl. Acarol. 1989, 7, 43–58. [Google Scholar] [CrossRef]
  31. Penichet, M.; Rodriguez, M.; Castellano, O.; Mandado, S.; Rojas, Y.; Rubiera, R.; De La Fuente, J. Detection of Bm86 antigen in different strains of Boophilus microplus and effectiveness of immunization with recombinant Bm86. Parasite Immunol. 1994, 16, 493–500. [Google Scholar] [CrossRef]
  32. Rand, K.N.; Moore, T.; Sriskantha, A.; Spring, K.; Tellam, R.; Willadsen, P.; Cobon, G. Cloning and expression of a protective antigen from the cattle tick Boophilus microplus. Proc. Natl. Acad. Sci. USA 1989, 86, 9657–9661. [Google Scholar] [CrossRef] [PubMed]
  33. Willadsen, P. Vaccines, genetics and chemicals in tick control: The Australian experience. Trop. Anim. Health Prod. 1997, 29 (Suppl. 4), 91S–94S. [Google Scholar] [CrossRef] [PubMed]
  34. Rodríguez, M.; Rubiera, R.; Penichet, M.; Montesinos, R.; Cremata, J.; Falcón, V.; Sánchez, G.; Bringas, R.; Cordovés, C.; Valdés, M.; et al. High level expression of the B. microplus Bm86 antigen in the yeast Pichia pastoris forming highly immunogenic particles for cattle. J. Biotechnol. 1994, 33, 135–146. [Google Scholar] [CrossRef] [PubMed]
  35. De la Fuente, J.; Rodriguez, M.; Montero, C.; Redondo, M.; Garcia-Garcia, J.; Mendez, L.; Lleonart, R. Vaccination against ticks (Boophilus spp.): The experience with the Bm86-based vaccine Gavac TM. Genet. Anal. 1999, 15, 143–148. [Google Scholar] [CrossRef]
  36. Rodríguez-Valle, M.; Mendez, L.; Valdez, M.; Redondo, M.; Espinosa, C.M.; Vargas, M.; Piñeiro, M.J. Integrated control of Boophilus microplus ticks in Cuba based on vaccination with the anti-tick vaccine Gavac TM. Exp. Appl. Acarol. 2004, 34, 375–382. [Google Scholar] [CrossRef]
  37. de la Fuente, J.; Rodriguez, M.; Redondo, M.; Montero, C.; Garcia-Garcia, J.; Mendez, L.; Garcia, L. Field studies and cost-effectiveness analysis of vaccination with Gavac against the cattle tick Boophilus microplus. Vaccine 1998, 16, 366–373. [Google Scholar] [CrossRef]
  38. Hajdusek, O.; Almazan, C.; Loosova, G.; Villar, M.; Canales, M.; Grubhoffer, L.; De la Fuente, J. Characterization of ferritin 2 for the control of tick infestations. Vaccine 2010, 28, 2993–2998. [Google Scholar] [CrossRef]
  39. Almazán, C.; Lagunes, R.; Villar, M.; Canales, M.; Rosario-Cruz, R.; Jongejan, F.; De la Fuente, J. Identification and characterization of Rhipicephalus (Boophilus) microplus candidate protective antigens for the control of cattle tick infestations. Parasitol. Res. 2010, 106, 471–479. [Google Scholar] [CrossRef]
  40. Rodríguez-Mallon, A.; Fernández, E.; Encinosa, P.; Bello, Y.; Méndez-Pérez, L.; Cepero, L.; Estrada, M. A novel tick antigen shows high vaccine efficacy against the dog tick, Rhipicephalus sanguineus. Vaccine 2012, 30, 1782–1789. [Google Scholar] [CrossRef]
  41. Willadsen, P.; Kemp, D. Vaccination with ‘concealed’ antigens for tick control. Parasitol. Today 1988, 4, 196–198. [Google Scholar] [CrossRef]
  42. Nijhof, A.M.; Balk, J.; Postigo, M.; Rhebergen, A.; Taoufik, A.; Jongejan, F. Bm86 homologues and novel ATAQ proteins with multiple epidermal growth factor (EGF)-like domains from hard and soft ticks. Int. J. Parasitol. 2010, 40, 1587–1597. [Google Scholar] [CrossRef]
  43. Nijhof, A.M.; Taoufik, A.; De la Fuente, J.; Kocan, K.; de Vries, E.; Jongejan, F. Gene silencing of the tick protective antigens, Bm86, Bm91 and subolesin, in the one-host tick Boophilus microplus by RNA interference. Int. J. Parasitol. 2007, 37, 653–662. [Google Scholar] [CrossRef]
  44. Kiper, I. Two-hybrid analysis and functional annotation of Bm86 and ATAQ from Rhipicephalus microplus in Faculty of Biological and Agricultural Sciences. Ph.D. Thesis, Department of Genetics. University of Pretoria, Pretoria, South Africa, 2013. [Google Scholar]
  45. Marr, E.J.; Sargison, N.; Nisbet, A.; Burgess, S. RNA interference for the identification of ectoparasite vaccine candidates. Parasite Immunol. 2014, 36, 616–626. [Google Scholar] [CrossRef]
  46. Galay, R.L.; Umemiya-Shirafuji, R.; Mochizuki, M.; Fujisaki, K.; Tanaka, T. RNA Interference-A Powerful Functional Analysis Tool for Studying Tick Biology and Its Control, in RNA Interference; IntechOpen: London, UK, 2016. [Google Scholar]
  47. Bloom, B. An immunological approach. Nature 1976, 260, 380–381. [Google Scholar] [CrossRef]
  48. Wikel, S.K. Immunological control of hematophagous arthropod vectors: Utilization of novel antigens. Vet. Parasitol. 1988, 29, 235–264. [Google Scholar] [CrossRef] [PubMed]
  49. Ackerman, S.; Floyd, M.; Sonenshine, D. Artificial immunity to Dermacentor variabilis (Acari: Ixodidae): Vaccination using tick antigens. J. Med. Entomol. 1980, 17, 391–397. [Google Scholar] [CrossRef] [PubMed]
  50. Willadsen, P. Anti-tick vaccines. Parasitology 2004, 129 (Suppl. 1), S367–S387. [Google Scholar] [CrossRef] [PubMed]
  51. Richardson, M.A.; Smith, D.; Kemp, D.; Tellam, R. Native and baculovirus-expressed forms of the immuno-protective protein Bm86 from Boophilus microplus are anchored to the cell membrane by a glycosyl-phosphatidyl inositol linkage. Insect Mol. Biol. 1993, 1, 139–147. [Google Scholar] [CrossRef]
  52. Rodríguez, M.; Penichet, M.; Mouris, A.; Labarta, V.; Luaces, L.L.; Rubiera, R.; Cordovés, C.; Sánchez, P.; Ramos, E.; Soto, A.; et al. Control of Boophilus microplus populations in grazing cattle vaccinated with a recombinant Bm86 antigen preparation. Vet. Parasitol. 1995, 57, 339–349. [Google Scholar] [CrossRef]
  53. Canales, M.; Enriquez, A.; Ramos, E.; Cabrera, D.; Dandie, H.; Soto, A.; de la Fuente, J. Large-scale production in Pichia pastoris of the recombinant vaccine Gavac against cattle tick. Vaccine 1997, 15, 414–422. [Google Scholar] [CrossRef]
  54. Smith, D.R.; Hungerford, J.; Willadsen, P.; Cobon, G. The development of TickGARD: A commercial vaccine against the cattle tick Boophilus microplus. In 8th International Congress of Parasitology; Turkish Society for Parasitology: Turkey, Istanbul, 1994. [Google Scholar]
  55. Cobon, G.S.; Levine, M.; Woodrow, G.; Kaper, J. An anti-arthropod vaccine: TickGARD-a vaccine to prevent cattle tick infestations. New Gener. Vaccines 1997, 129, 1145–1151. [Google Scholar]
  56. Fragoso, H.; Rad, P.; Ortiz, M.; Rodríguez, M.; Redondo, M.; Herrera, L.; De la Fuente, J. Protection against Boophilus annulatus infestations in cattle vaccinated with the B. microplus Bm86-containing vaccine Gavac. Vaccine 1998, 16, 1990–1992. [Google Scholar] [CrossRef] [PubMed]
  57. Miller, R.; Estrada-Pena, A.; Almazan, C.; Allen, A.; Jory, L.; Yeater, K.; de Leon, A.P. Exploring the use of an anti-tick vaccine as a tool for the integrated eradication of the cattle fever tick, Rhipicephalus (Boophilus) annulatus. Vaccine 2012, 30, 5682–5687. [Google Scholar] [CrossRef] [PubMed]
  58. Perez-Perez, D.; Bechara, G.; Machado, R.; Andrade, G.; Del Vecchio, R.; Pedroso, M.; Farnos, O. Efficacy of the Bm86 antigen against immature instars and adults of the dog tick Rhipicephalus sanguineus (Latreille, 1806) (Acari: Ixodidae). Vet. Parasitol. 2010, 167, 321–326. [Google Scholar] [CrossRef] [PubMed]
  59. Pipano, E.; Alekceev, E.; Galker, F.; Fish, L.; Samish, M.; Shkap, V. Immunity against Boophilus annulatus induced by the Bm86 (Tick-GARD) vaccine. Exp. Appl. Acarol. 2003, 29, 141–149. [Google Scholar] [CrossRef] [PubMed]
  60. Rodriguez-Valle, M.; Taoufik, A.; Valdes, M.; Montero, C.; Ibrahin, H.; Hassan, S.; De la Fuente, J. Efficacy of Rhipicephalus (Boophilus) microplus Bm86 against Hyalomma dromedarii and Amblyomma cajennense tick infestations in camels and cattle. Vaccine 2012, 30, 3453–3458. [Google Scholar] [CrossRef]
  61. Ben Said, M.; Galai, Y.; Mhadhbi, M.; Jedidi, M.; De la Fuente, J.; Darghouth, M. Molecular characterization of Bm86 gene orthologs from Hyalomma excavatum, Hyalomma dromedarii and Hyalomma marginatum marginatum and comparison with a vaccine candidate from Hyalomma scupense. Vet. Parasitol. 2012, 190, 230–240. [Google Scholar] [CrossRef]
  62. Odongo, D.; Kamau, L.; Skilton, R.; Mwaura, S.; Nitsch, C.; Musoke, A.; Bishop, R. Vaccination of cattle with TickGARD induces cross-reactive antibodies binding to conserved linear peptides of Bm86 homologues in Boophilus decoloratus. Vaccine 2007, 25, 1287–1296. [Google Scholar] [CrossRef]
  63. De Vos, S.; Zeinstra, L.; Taoufik, O.; Willadsen, P.; Jongejan, F. Evidence for the utility of the Bm86 antigen from Boophilus microplus in vaccination against other tick species. Exp. Appl. Acarol. 2001, 25, 245–261. [Google Scholar] [CrossRef]
  64. Garcia-Garcia, J.C.; Gonzalez, I.; Gonzalez, D.; Valdes, M.; Mendez, L.; Lamberti, J.; de la Fuente, J. Sequence variations in the Boophilus microplus Bm86 locus and implications for immunoprotection in cattle vaccinated with this antigen. Exp. Appl. Acarol. 1999, 23, 883–895. [Google Scholar] [CrossRef]
  65. Ben Said, M.; Galai, Y.; Ahmed, M.B.; Gharbi, M.; De la Fuente, J.; Jedidi, M.; Darghouth, M. Hd86 mRNA expression profile in Hyalomma scupense life stages, could it contribute to explain anti-tick vaccine effect discrepancy between adult and immature instars? Vet. Parasitol. 2013, 198, 258–263. [Google Scholar] [CrossRef] [PubMed]
  66. Coumou, J.; Wagemakers, A.; Trentelman, J.; Nijhof, A.; Hovius, J. Vaccination against Bm86 homologues in rabbits does not impair Ixodes ricinus feeding or oviposition. PLoS ONE 2014, 10, e0123495. [Google Scholar] [CrossRef] [PubMed]
  67. Popara, M.; Villar, M.; Mateos-Hernandez, L.; de Mera, I.; Marina, A.; del Valle, M.; De la Fuente, J. Lesser protein degradation machinery correlates with higher BM86 tick vaccine efficacy in Rhipicephalus annulatus when compared to Rhipicephalus microplus. Vaccine 2013, 31, 4728–4735. [Google Scholar] [CrossRef] [PubMed]
  68. Suarez, M.; Rubi, J.; Pérez, D.; Cordova, V.; Salazar, Y.; Vielma, A.; Estrada, M. High impact and effectiveness of Gavac™ vaccine in the national program for control of bovine ticks Rhipicephalus microplus in Venezuela. Livest. Sci. 2016, 187, 48–52. [Google Scholar] [CrossRef]
  69. Vargas, M.; Montero, C.; Sanchez, D.; Perez, D.; Valdes, M.; Alfonso, A.; Farnos, O. Two initial vaccinations with the Bm86-based Gavacplus vaccine against Rhipicephalus (Boophilus) microplus induce similar reproductive suppression to three initial vaccinations under production conditions. BMC Vet. Res. 2010, 6, 43. [Google Scholar] [CrossRef]
  70. Trimnell, A.R.; Davies, G.; Lissina, O.; Hails, R.; Nuttall, P. A cross-reactive tick cement antigen is a candidate broad-spectrum tick vaccine. Vaccine 2005, 23, 4329–4341. [Google Scholar] [CrossRef]
  71. Guerrero, F.D.; Andreotti, R.; Bendele, K.; Cunha, R.; Miller, R.; Yeater, K.; de Leon, A.P. Rhipicephalus (Boophilus) microplus aquaporin as an effective vaccine antigen to protect against cattle tick infestations. Parasit. Vectors 2014, 7, 475. [Google Scholar]
  72. Rodriguez Mallon, A.; Gonzalez, L.J.; Guzman, P.E.; Bechara, G.; Sanches, G.; Pousa, S.; Estrada, M. Functional and mass spectrometric evaluation of an anti-tick antigen based on the P0 peptide conjugated to Bm86 protein. Pathogens 2020, 9, 513. [Google Scholar] [CrossRef]
  73. Almazan, C.; Kocan, K.; Bergman, D.; Garcia-Garcia, J.; Blouin, E.; De la Fuente, J. Identification of protective antigens for the control of Ixodes scapularis infestations using cDNA expression library immunization. Vaccine 2003, 21, 1492–14501. [Google Scholar] [CrossRef]
  74. Guerrero, F.D.; Miller, R.; De Leon, A.P. Cattle tick vaccines: Many candidate antigens, but will a commercially viable product emerge? Int. J. Parasitol. 2012, 42, 421–427. [Google Scholar] [CrossRef]
  75. Bhowmick, B.; Han, Q. Understanding tick biology and its implications in anti-tick and transmission blocking vaccines against tick-borne pathogens. Front. Vet. Sci. 2020, 7, 319. [Google Scholar] [CrossRef]
  76. Ndawula, C., Jr. From Bench to Field: A Guide to Formulating and Evaluating Anti-Tick Vaccines Delving beyond Efficacy to Effectiveness. Vaccines 2021, 9, 1185. [Google Scholar] [CrossRef] [PubMed]
  77. De la Fuente, J.; Almazan, C.; Canales, M.; de la Lastra, J.P.; Kocan, K.; Willadsen, P. A ten-year review of commercial vaccine performance for control of tick infestations on cattle. Anim. Health Res. Rev. 2007, 8, 23–28. [Google Scholar] [CrossRef] [PubMed]
  78. Rodríguez-Mallon, A.; Bechara, G.; Zacarias, R.; Benavides-Ortiz, E.; Soto-Rivas, J.; Gómez-Ramírez, A.; Estrada-García, M. Inhibition of Ehrlichia canis and Babesia canis transmission among ticks fed together on dogs vaccinated with Bm86 antigen. Open J. Anim. Sci. 2013, 3, 24–32. [Google Scholar] [CrossRef]
  79. Koči, J.; Bista, S.; Chirania, P.; Yang, X.; Kitsou, C.; Rana, V.; Pal, U. Antibodies against EGF-like domains in Ixodes scapularis Bm86 orthologs impact tick feeding and survival of Borrelia burgdorferi. Sci. Rep. 2021, 11, 6095. [Google Scholar]
  80. Labuda, M.; Trimnell, A.; Lickova, M.; Kazimirova, M.; Davies, G.; Lissina, O.; Nuttall, P. An antivector vaccine protects against a lethal vector-borne pathogen. PLoS Pathog. 2006, 2, e27. [Google Scholar] [CrossRef]
  81. De León, A.A.P.; Mitchell, R.D., III; Watson, D. Ectoparasites of cattle. Vet. Clin. N. Am. Food Anim. 2020, 36, 173–185. [Google Scholar] [CrossRef]
  82. Colella, V.; Nguyen, V.; Tan, D.; Lu, N.; Fang, F.; Zhijuan, Y.; Halos, L. Zoonotic vectorborne pathogens and ectoparasites of dogs and cats in Eastern and Southeast Asia. Emerg. Infect. Dis. 2020, 26, 1221. [Google Scholar] [CrossRef]
  83. Mumcuoglu, K.Y.; Ben-Yakir, D.; Ochanda, J.; Miller, J.; Galun, R. Immunization of rabbits with faecal extract of Pediculus humanus, the human body louse: Effects on louse development and reproduction. Med. Vet. Entomol. 1997, 11, 315–318. [Google Scholar] [CrossRef]
  84. Ochanda, J.O.; Mumcuoglu, K.; Ben-Yakir, D.; Okuru, J.; Oduol, V.; Galun, R. Characterization of body louse midgut proteins recognized by resistant hosts. Med. Vet. Entomol. 1996, 10, 35–38. [Google Scholar] [CrossRef]
  85. Foy, B.D.; Magalhaes, T.; Injera, W.; Sutherland, I.; Devenport, M.; Thanawastien, A.; Beier, J. Induction of mosquitocidal activity in mice immunized with Anopheles gambiae midgut cDNA. Infect. Immun. 2003, 71, 2032–2040. [Google Scholar] [CrossRef] [PubMed]
  86. Almeida, A.P.G.; Billingsley, P. Induced immunity against the mosquito Anopheles stephensi (Diptera: Culicidae): Effects of cell fraction antigens on survival, fecundity, and Plasmodium berghei (Eucoccidiida: Plasmodiidae) transmission. J. Med. Entomol. 2002, 39, 207–221. [Google Scholar] [CrossRef]
  87. Manning, J.E.; Oliveira, F.; Coutinho-Abreu, I.; Herbert, S.; Meneses, C.; Kamhawi, S.; Memoli, M. Safety and immunogenicity of a mosquito saliva peptide-based vaccine: A randomised, placebo-controlled, double-blind, phase 1 trial. Lancet 2020, 395, 1998–2007. [Google Scholar] [CrossRef] [PubMed]
  88. Moreno-Cid, J.A.; De la Lastra, J.P.; Villar, M.; Jimenez, M.; Pinal, R.; Estrada-Pena, A.; De la Fuente, J. Control of multiple arthropod vector infestations with subolesin/akirin vaccines. Vaccine 2013, 31, 1187–1196. [Google Scholar] [CrossRef] [PubMed]
  89. Carpio, Y.; Basabe, L.; Acosta, J.; Rodríguez-Mallon, A.; Mendoza, A.; Lisperger, A.; Estrada, M. Novel gene isolated from Caligus rogercresseyi: A promising target for vaccine development against sea lice. Vaccine 2011, 29, 2810–2820. [Google Scholar] [CrossRef] [PubMed]
  90. Swain, J.K.; Carpio, Y.; Johansen, L.; Velazquez, J.; Hernandez, L.; Leal, Y.; Estrada, M. Impact of a candidate vaccine on the dynamics of salmon lice (Lepeophtheirus salmonis) infestation and immune response in Atlantic salmon (Salmo salar L.). PLoS ONE 2020, 15, e0239827. [Google Scholar] [CrossRef] [PubMed]

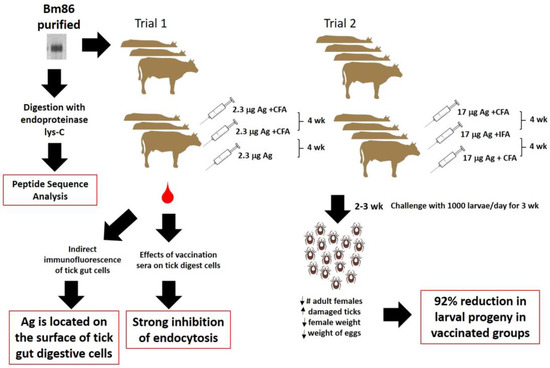

Figure 1. Scheme summarizing the experiments performed by Willadsen et al. in 1989 [25]. Legend: Ag—antigen; wk—weeks; CFA—complete Freund’s adjuvant; IFA—incomplete Freund’s adjuvant.
Figure 1. Scheme summarizing the experiments performed by Willadsen et al. in 1989 [25]. Legend: Ag—antigen; wk—weeks; CFA—complete Freund’s adjuvant; IFA—incomplete Freund’s adjuvant.
Pathogens 12 00231 g001
