The Effect of Milling Cooling Conditions on the Surface Integrity and Fatigue Behavior of the GH4169 Superalloy
Abstract
:1. Introduction
2. Experimental
2.1. Materials

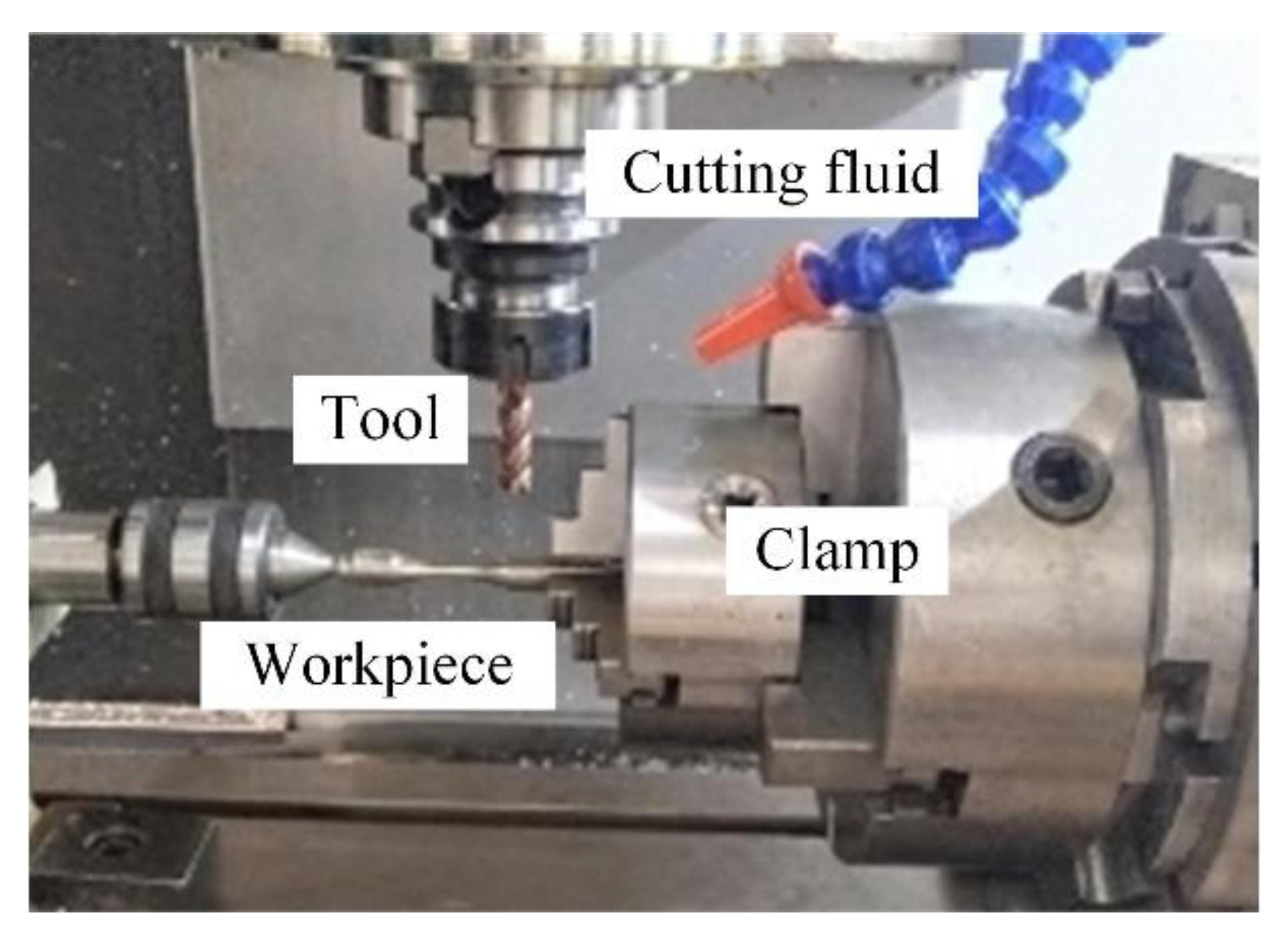

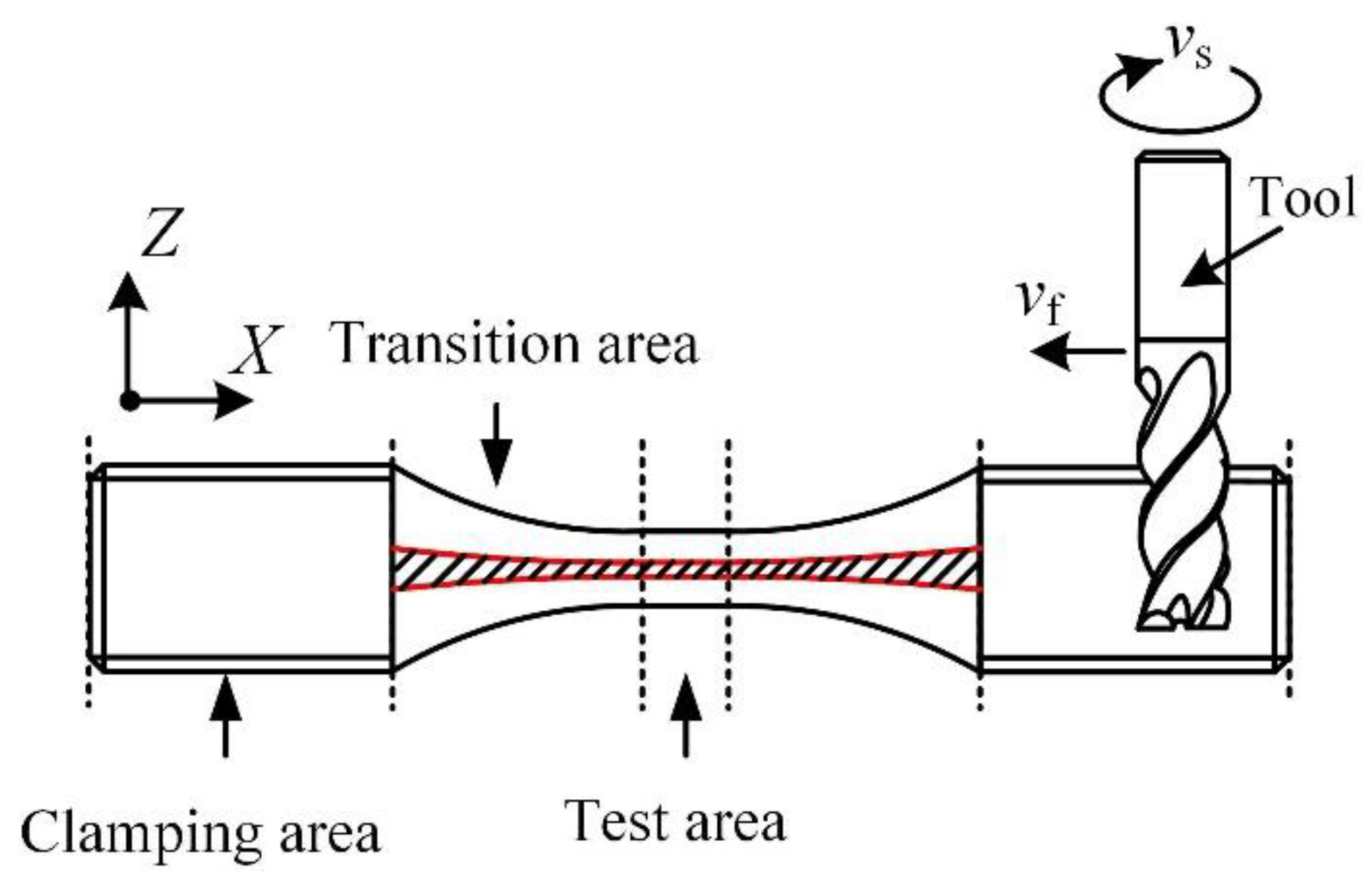

2.2. Conditions and Process of Milling Experiment
3. Results and Discussion

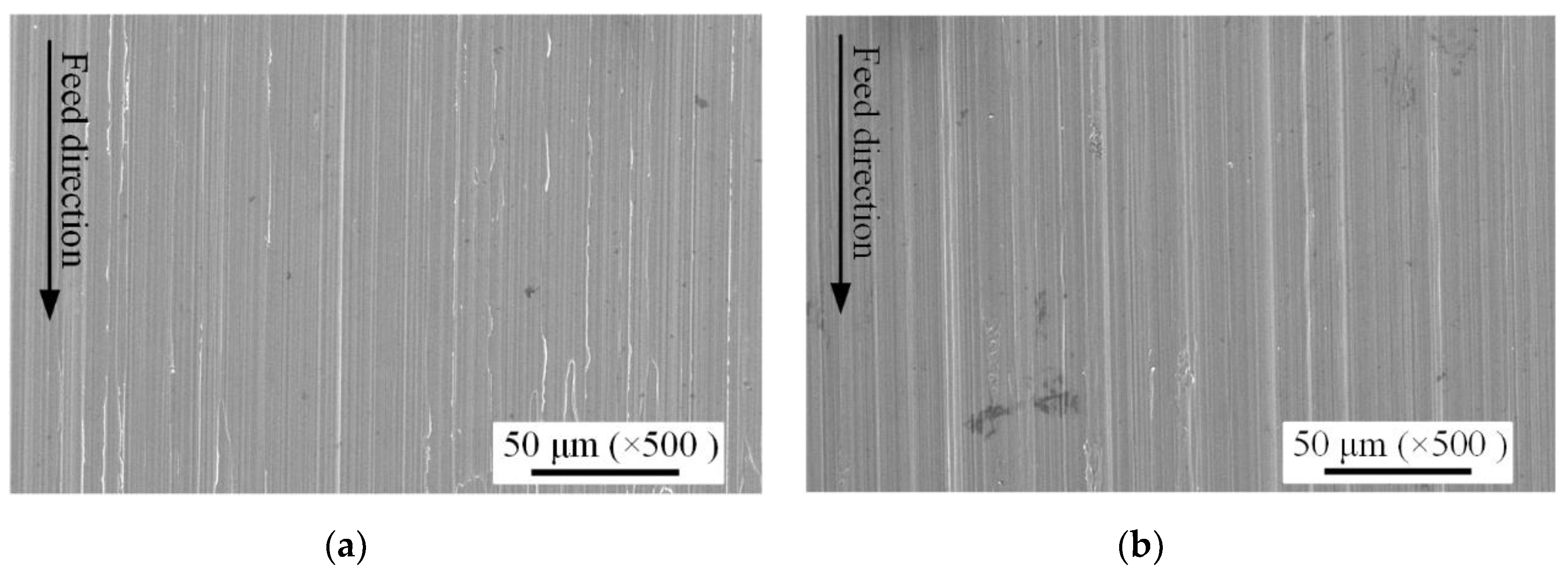

3.1. Surface Roughness and Topography
3.2. Surface Microhardness Rate
3.3. Surface Residual Stress
3.4. Microstructure
3.5. Fatigue Behavior
4. Conclusions

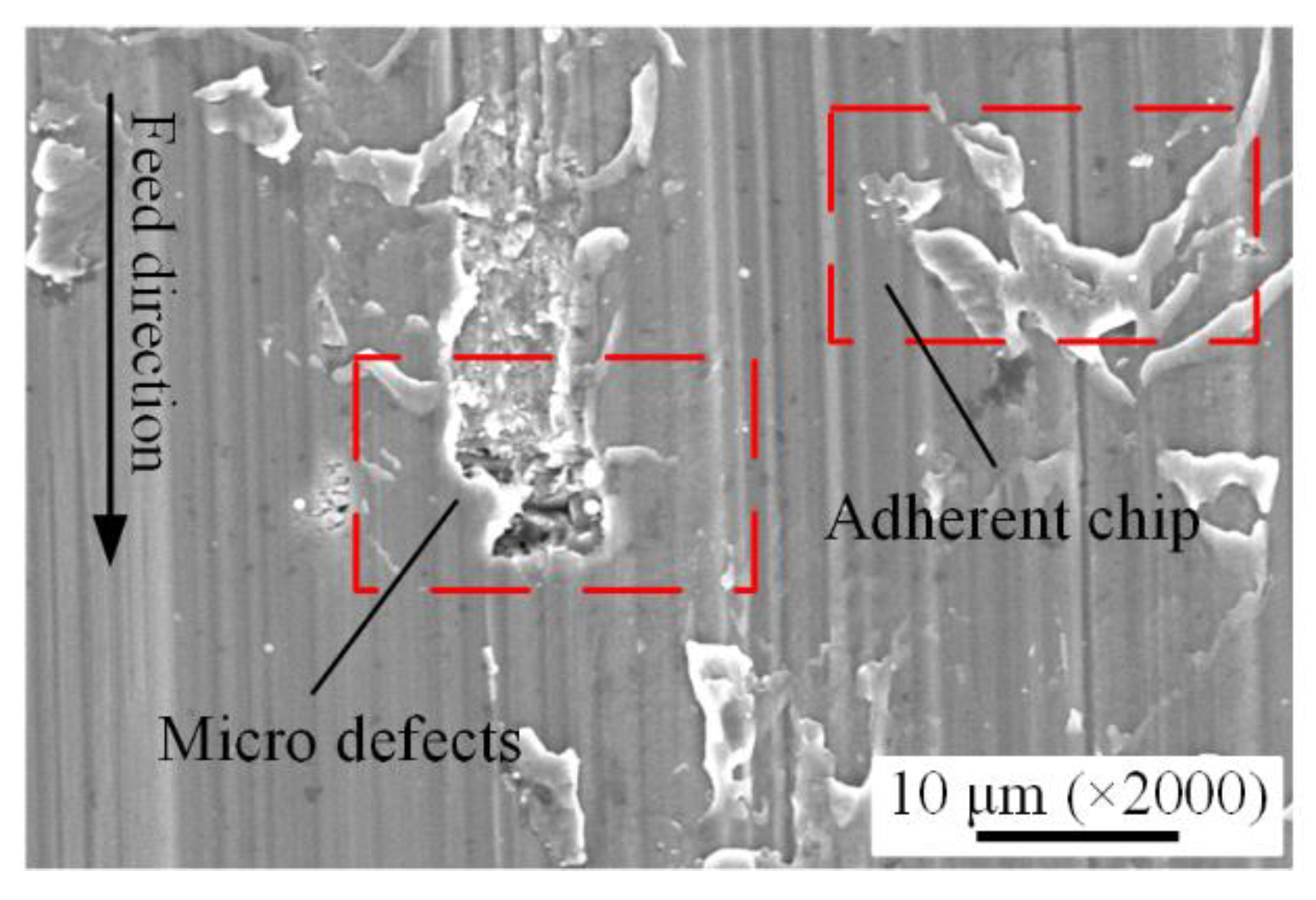

- Cooling conditions have a direct impact on the surface integrity of the milled GH4169 superalloy. Microdefects formed by adherent chips of surface topography on the dry milling surface are the main reason that the fatigue behavior of specimens of the GH4169 superalloy of dry milling is lower than that with wet milling.
- In the case of side milling, surface roughness along the fatigue loading direction has no significant impact on the fatigue behavior of specimens of the GH4169 superalloy after wet milling and dry milling. The improvement in residual surface tensile stress is the predominant factor in the fatigue behavior of the GH4169 superalloy specimens, with wet milling slightly decreasing while specimens’ fatigue behavior utilizing dry milling is mainly influenced by surface micro defects and adherent chips of surface topography. A minor factor in the fatigue behavior of dry milling is the increase in surface residual stress and the decrease in the surface microhardness rate.

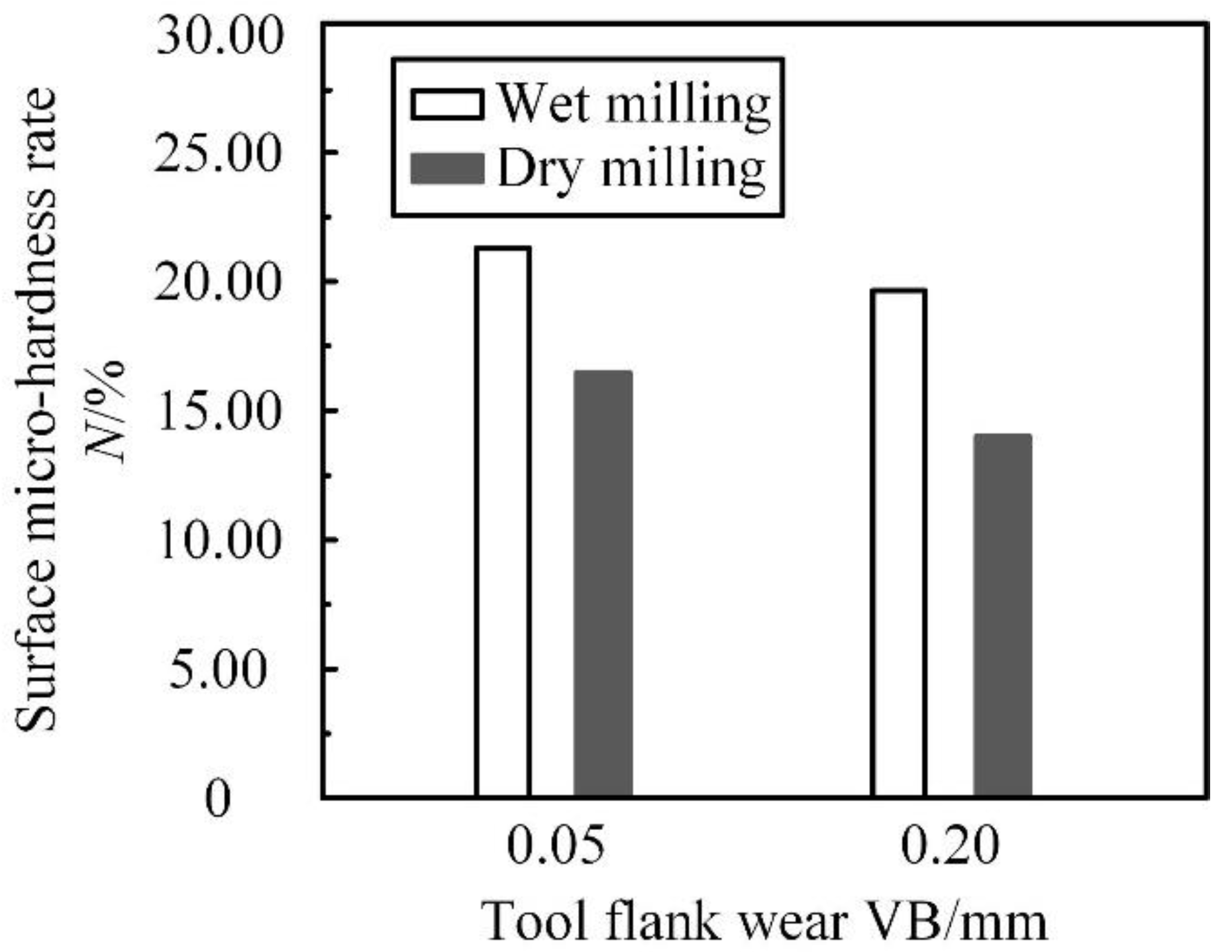

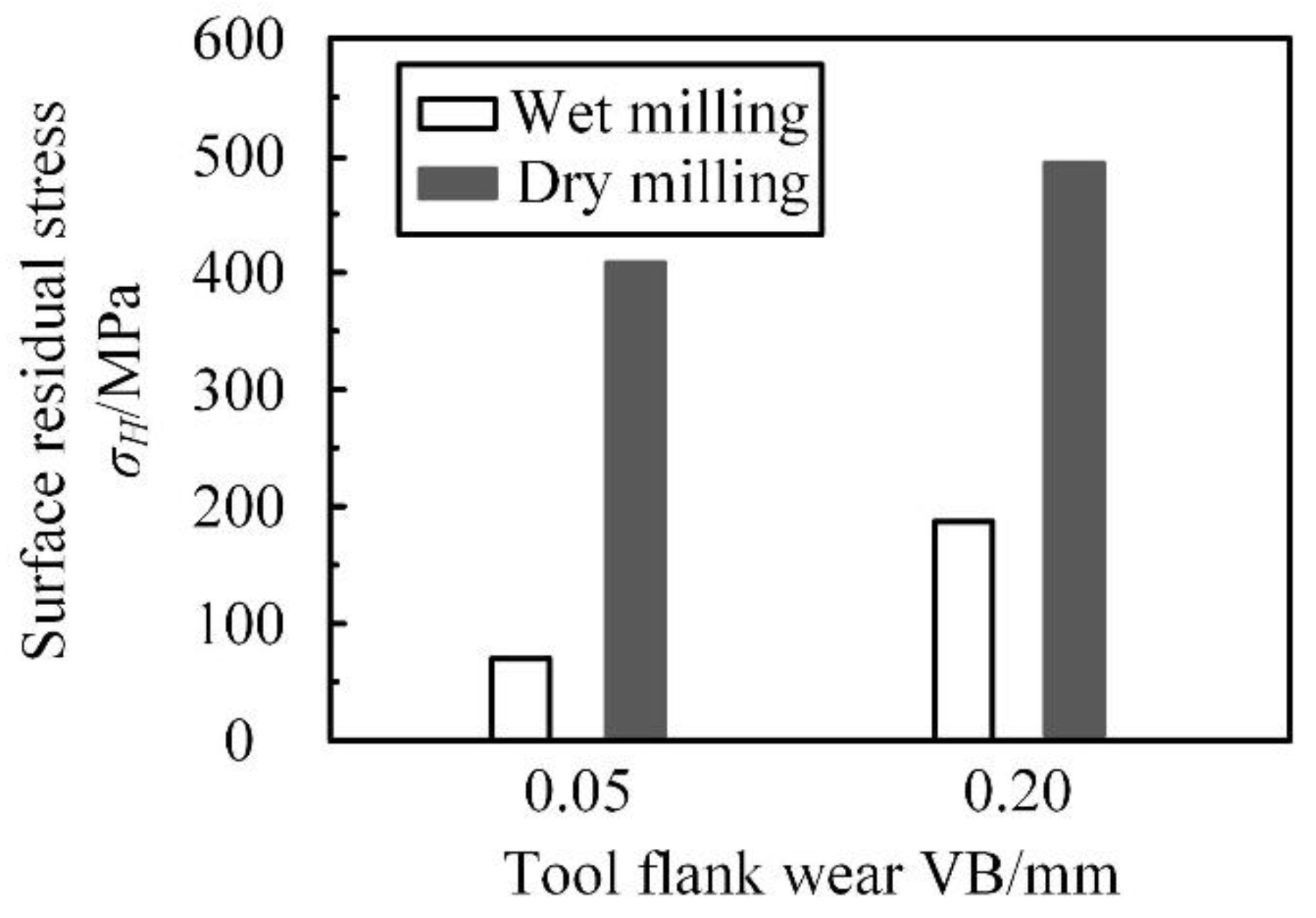

- Compared with wet milling, the process of dry milling has little impact on surface roughness and the depth of the plastic deformation layer. However, it can lead to an increase in the residual surface tensile stress and a decrease in the surface microhardness rate, and produce surface micro defects and adherent chips of surface topography.

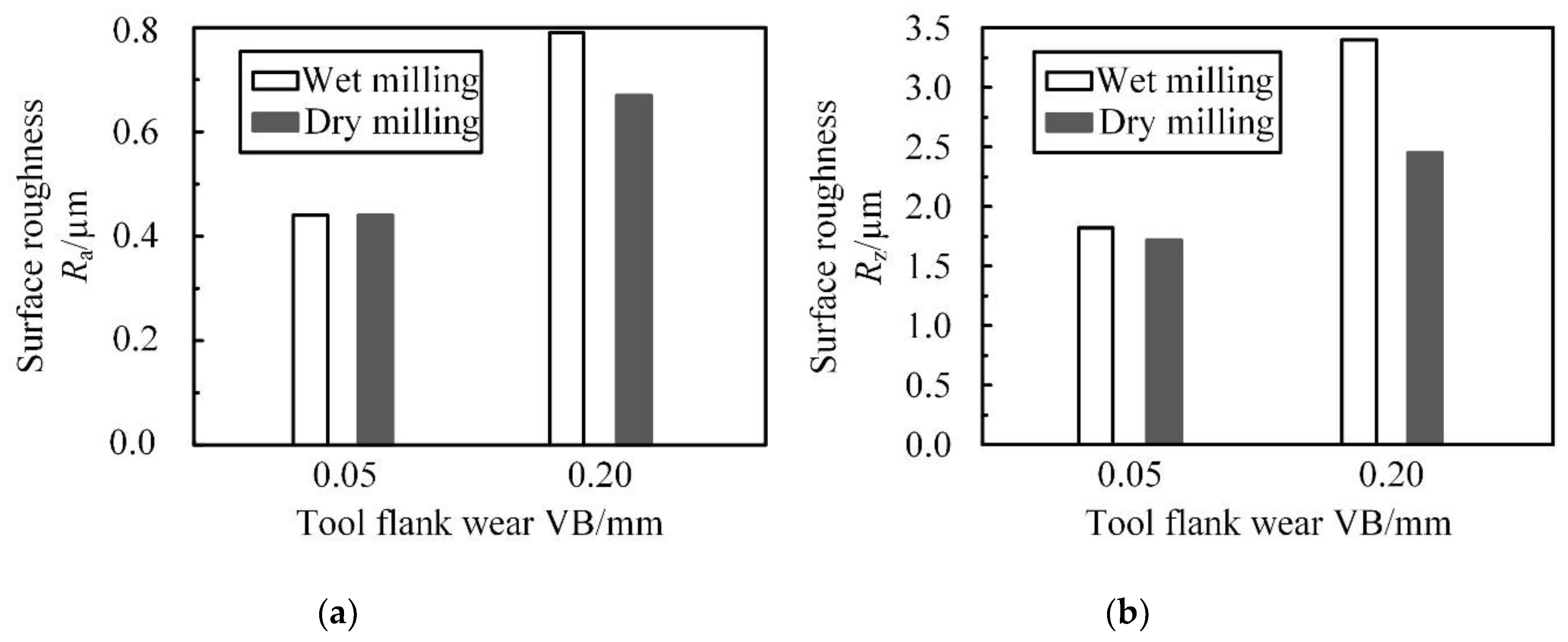

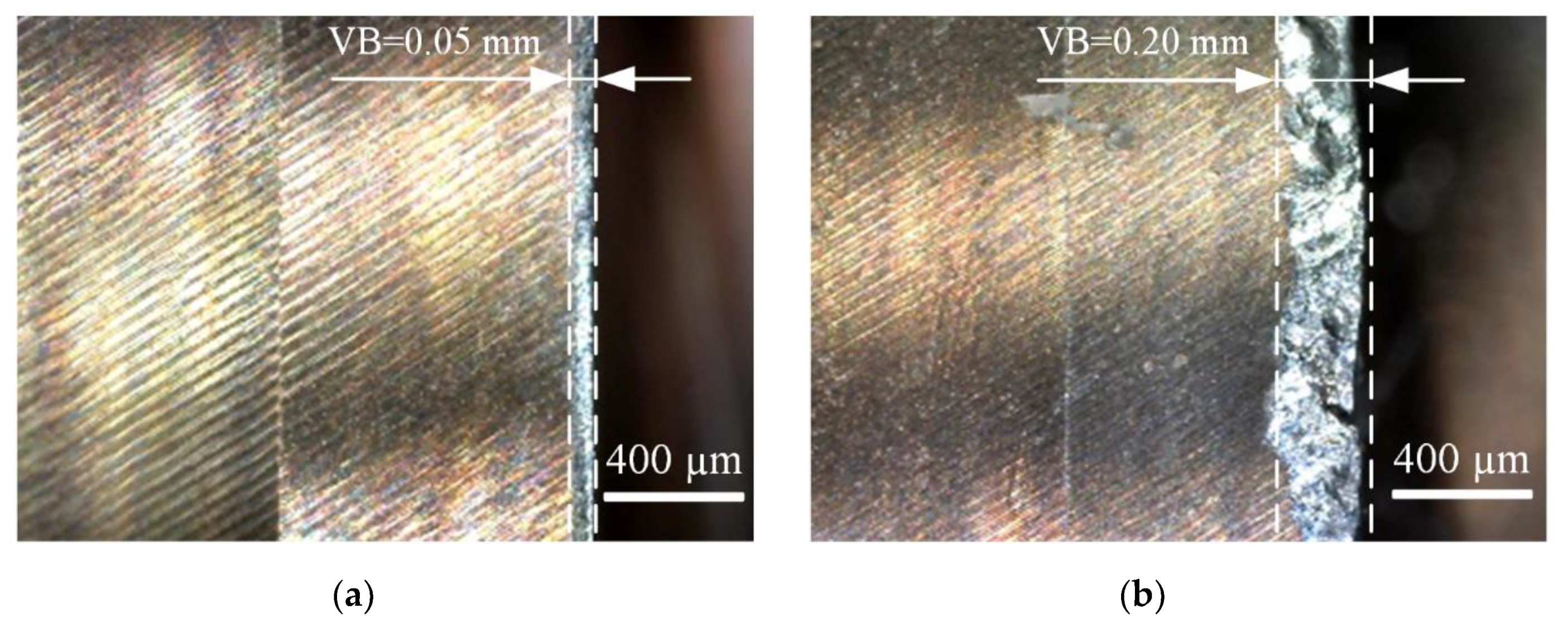

- With the increase in tool flank wear, the surface integrity of wet milling and dry milling follows the same trend, by which surface roughness increases, the surface microhardness rate experiences little change, the residual surface tensile stress rises immensely, and the depth of the plastic deformation layer increases significantly.
Author Contributions
Funding
Conflicts of Interest
References
- Miller, S. Advanced materials mean advanced engines. Interdiscip. Sci. Rev. 1996, 20, 117–129. [Google Scholar] [CrossRef]
- Pollock, T.M.; Tin, S. Nickel-based superalloys for advanced turbine engines: Chemistry, microstructure, and properties. J. Propuls. Power 2006, 22, 361–374. [Google Scholar] [CrossRef]
- Zhang, S.H.; Ye, N.Y.; Cheng, M.; Song, H.W.; Zhou, H.W.; Wang, P.B. Effect of cold rolling and heat treatment on the mechanical properties of GH4169 alloy sheet at room temperature. Metals 2016, 6, 1. [Google Scholar] [CrossRef]
- Ulutan, D.; Ozel, T. Machining induced surface integrity in titanium and nickel alloys: A review. Int. J. Mach. Tools Manuf. 2011, 51, 250–280. [Google Scholar] [CrossRef]
- Wu, D.; Zhang, D.; Yao, C. Effect of turning and surface polishing treatments on surface integrity and fatigue performance of nickel-based alloy GH4169. Metals 2018, 8, 549. [Google Scholar] [CrossRef]
- Sharman, A.; Dewes, R.C.; Aspinwall, D.K. Tool life when high speed ball nose end milling Inconel 718. J. Mater. Process. Technol. 2001, 118, 29–35. [Google Scholar] [CrossRef]
- Suárez, A.; Veiga, F.; de Lacalle, L.L.; Polvorosa, R.; Wretland, A. An investigation of cutting forces and tool wear in turning of Haynes 282. J. Manuf. Process. 2019, 37, 529–540. [Google Scholar] [CrossRef]
- Li, W.; Guo, Y.B.; Barkey, M.E.; Jordon, J.B. Effect tool wear during end milling on the surface integrity and fatigue life of Inconel 718. Procedia Cirp 2014, 14, 546–551. [Google Scholar] [CrossRef]
- Zhou, J.L.; Sun, Z.H.; Wu, Y.X.; Yu, Y. Influence of minimum quantity lubrication on cutting force and tool wear during machining of GH4169. Adv. Mater. Res. 2014, 893, 653–657. [Google Scholar] [CrossRef]
- Iturbe, A.; Hormaetxe, E.; Garay, A.; Arrazola, P.J. Surface integrity analysis when machining Inconel 718 with conventional and cryogenic cooling. Procedia Cirp 2016, 45, 67–70. [Google Scholar] [CrossRef]
- Musfirah, A.H.; Ghani, J.A.; Haron, C.H.C. Tool wear and surface integrity of inconel 718 in dry and cryogenic coolant at high cutting speed. Wear 2017, 376–377, 125–133. [Google Scholar] [CrossRef]
- Pereira, O.; Rodríguez, A.; Fernández-Abia, A.I.; Barreirob, J.; de Lacalle, L.N.L. Cryogenic and minimum quantity lubrication for an eco-efficiency turning of AISI 304. J. Clean. Prod. 2016, 139, 440–449. [Google Scholar] [CrossRef]
- Pereira, O.; Urbikain, G.; Rodríguez, A.; Fernández-Valdivielso, A.; Calleja, A.; Ayesta, I.; de Lacalle, L.L. Internal cryolubrication approach for Inconel 718 milling. Procedia Manuf. 2017, 13, 89–93. [Google Scholar] [CrossRef]
- Suárez, A.; López de Lacalle, L.N.; Polvorosa, R.; Veiga, F.; Wretland, A. Effects of high-pressure cooling on the wear patterns on turning inserts used on alloy IN718. Mater. Manuf. Process. 2017, 32, 678–686. [Google Scholar] [CrossRef]
- Polvorosa, R.; Suárez, A.; de Lacalle, L.N.L.; Cerrillo, I.; Wretland, A.; Veiga, F. Tool wear on nickel alloys with different coolant pressures: Comparison of alloy 718 and waspaloy. J. Manuf. Process. 2017, 26, 44–56. [Google Scholar] [CrossRef]
- Cai, X.J.; Qin, S.; An, Q.; Li, J.; Chen, M. Experimental investigation on surface integrity of end milling nickel based alloy-Inconel 718. Adv. Mater. Res. 2012, 500, 31–46. [Google Scholar] [CrossRef]
- Mohsan, A.U.H.; Liu, Z.; Padhy, G.K. A review on the progress towards improvement in surface integrity of Inconel 718 under high pressure and flood cooling conditions. Int. J. Adv. Manuf. Technol. 2017, 91, 107–125. [Google Scholar] [CrossRef]
- Li, X.; Wang, Y.; Xu, R.; Yang, S.; Guan, C.; Zhou, Y. Influence of surface integrity on fatigue behavior of Inconel 718 and Ti6Al4V workpieces with CBN electroplated wheel. Int. J. Adv. Manuf. Technol. 2019, 102, 2345–2356. [Google Scholar] [CrossRef]
- Devillez, A.; Coz, G.L.; Dominiak, S.; Dudzinski, D. Dry machining of Inconel 718, workpiece surface integrity. J. Mater. Process. Technol. 2011, 211, 1590–1598. [Google Scholar] [CrossRef]
- Leppert, T. Effect of cooling and lubrication conditions on surface topography and turning process of C45 steel. Int. J. Mach. Tools Manuf. 2011, 51, 120–126. [Google Scholar] [CrossRef]
- Yan, S.; Zhu, D.; Zhuang, K.; Zhang, X.; Dinga, H. Modeling and analysis of coated tool temperature variation of dry milling of Inconel 718 turbine blade considering flank wear effect. J. Mater. Process. Technol. 2014, 214, 2985–3001. [Google Scholar] [CrossRef]
C | Nb | Si | Mn | Cr | Ti | Al | Mo | Ni | Cu | Co | Fe |
---|---|---|---|---|---|---|---|---|---|---|---|
0.08 | 4.75–5.5 | 0.35 | 0.35 | 17–20 | 0.75–1.15 | 0.3–0.7 | 2.8–3.3 | 50–55 | 0.3 | 1.0 | Balance |
Tensile Strength /MPa | Elastic Modulus/GPa | Elongation/% | Hardness/HV | Thermal Conductivity/(W/m·°C) | Shrinkage/% |
---|---|---|---|---|---|
1280 | 205 | 15 | 423 | 14.65 | 41 |
Number | Cooling Conditions | VB/mm | vs/(m/min) | fz/(mm/z) | ae/mm |
---|---|---|---|---|---|
1 | Wet milling | 0.05 | 20 | 0.10 | 0.1 |
2 | 0.20 | ||||
3 | Dry milling | 0.05 | |||
4 | 0.20 |
