Next Article in Journal
Oxygen Reduction Behavior of HDH TiH2 Powder during Dehydrogenation Reaction
Previous Article in Journal
Microstructure and Mechanical Properties of Friction Stir Welded Joint of an Aluminum Alloy Sheet 6005A-T4
Open AccessArticle

Effect of the δ Phase on the Tensile Properties of a Nickel-Based Superalloy

1
School of Materials Science and Engineering, Harbin Institute of Technology at Weihai, Weihai 264209, China
2
Institute of High Temperature Materials, Central Iron & Steel Research Institute, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(11), 1153; https://doi.org/10.3390/met9111153
Received: 1 October 2019 / Revised: 25 October 2019 / Accepted: 25 October 2019 / Published: 27 October 2019

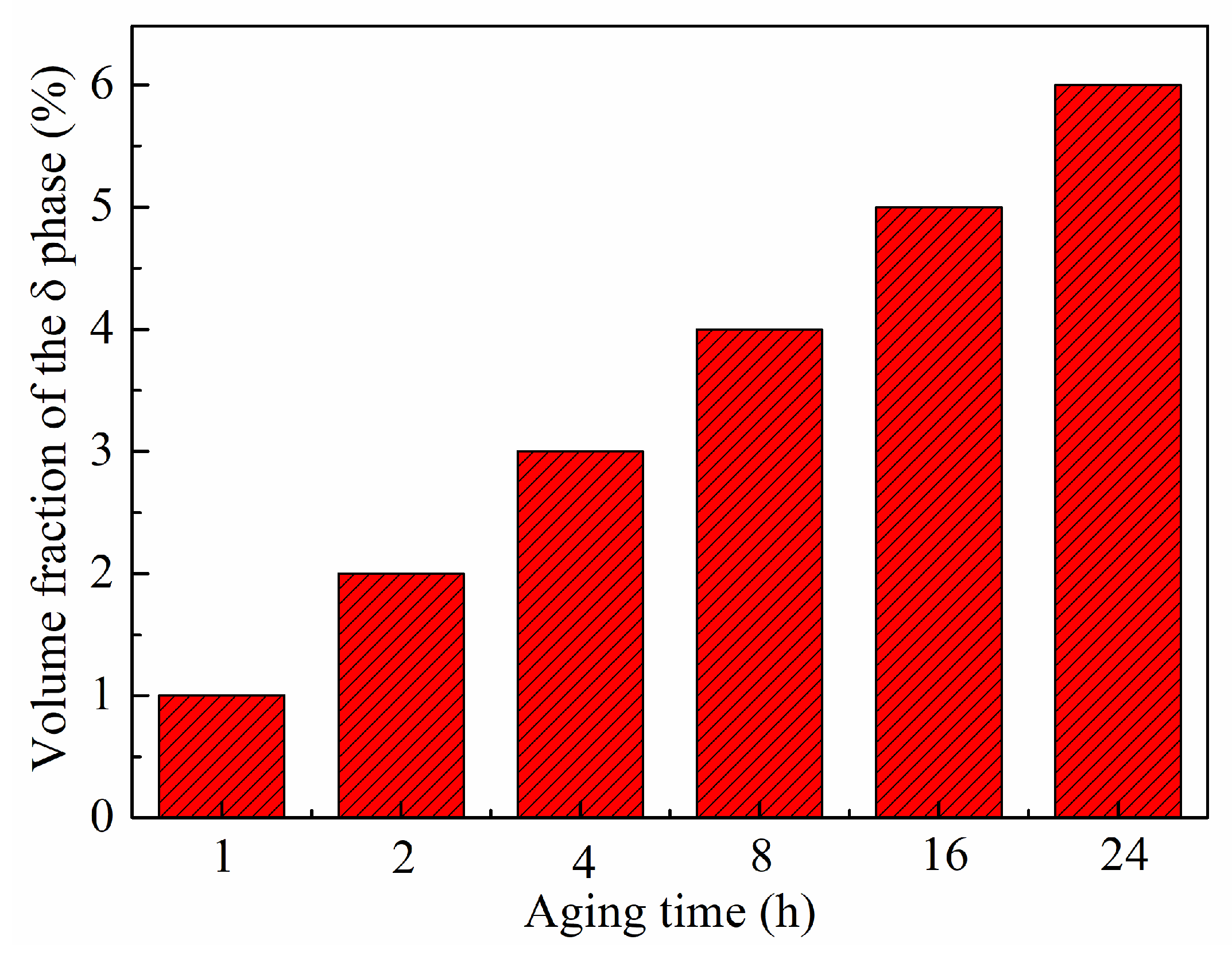

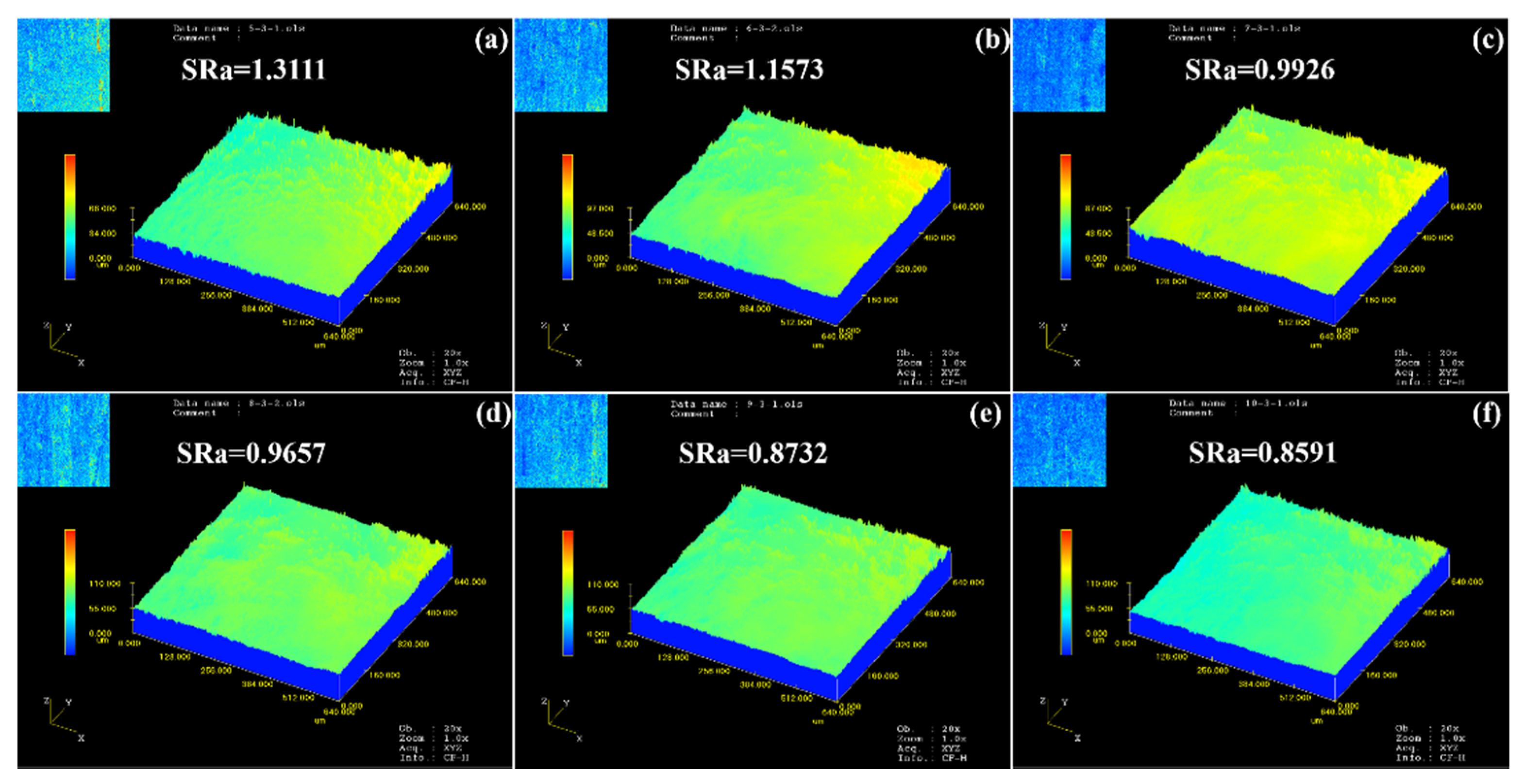

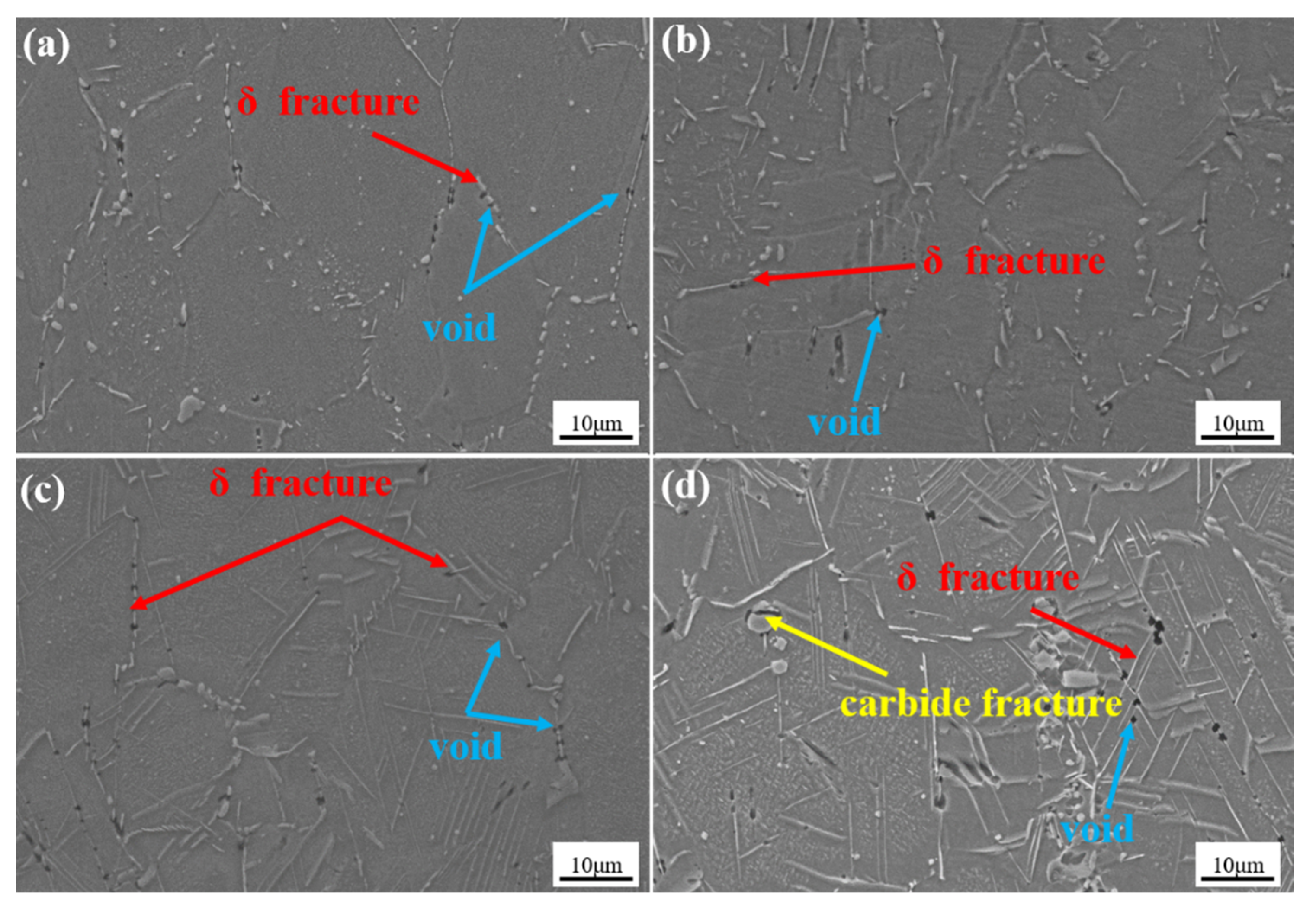

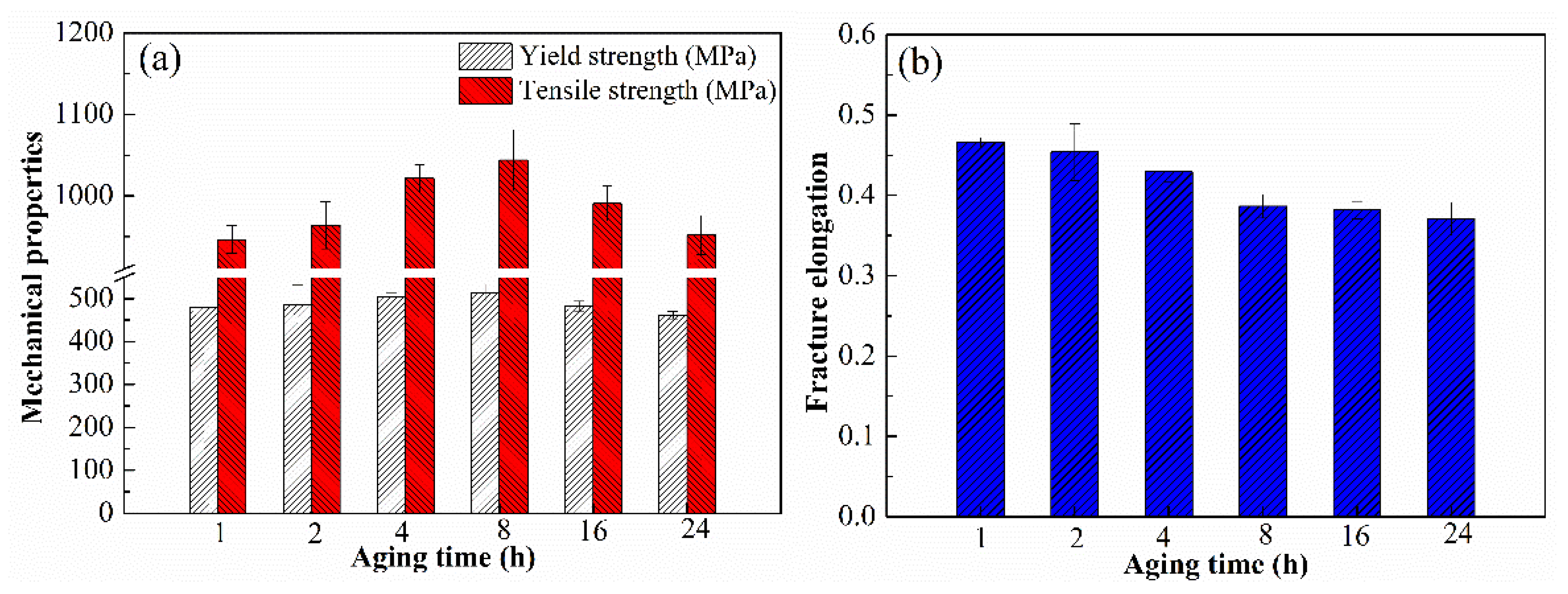

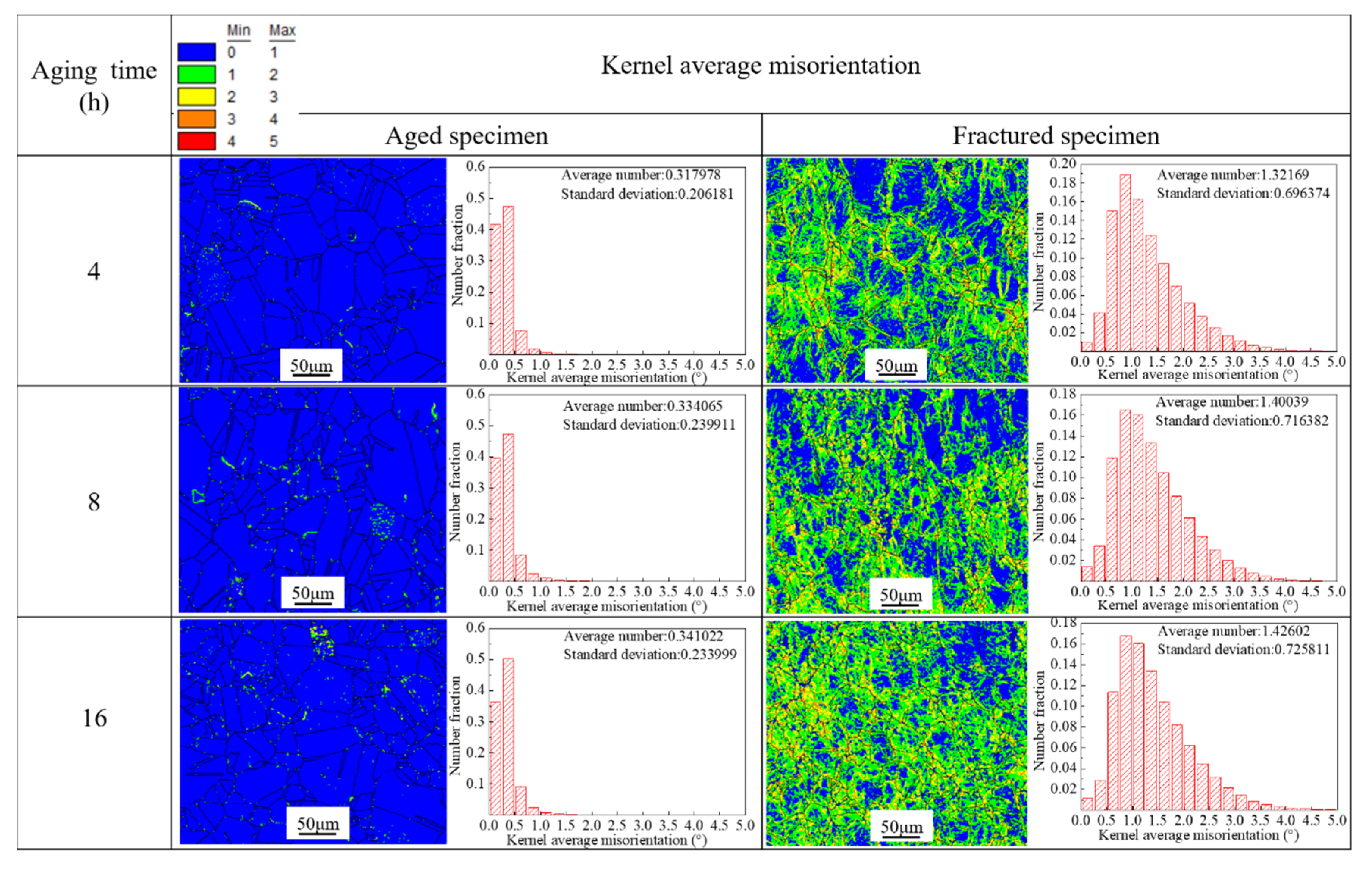

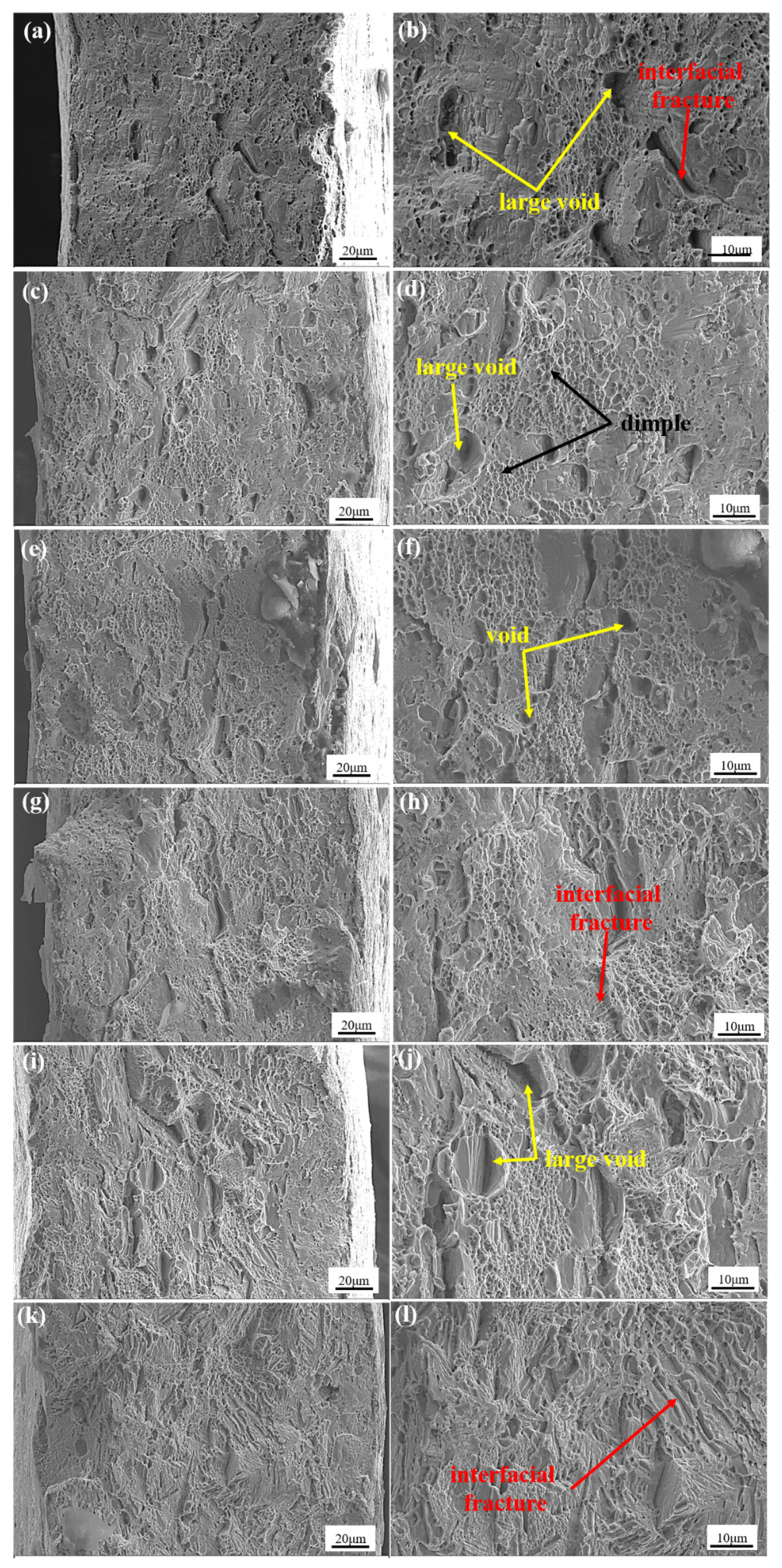

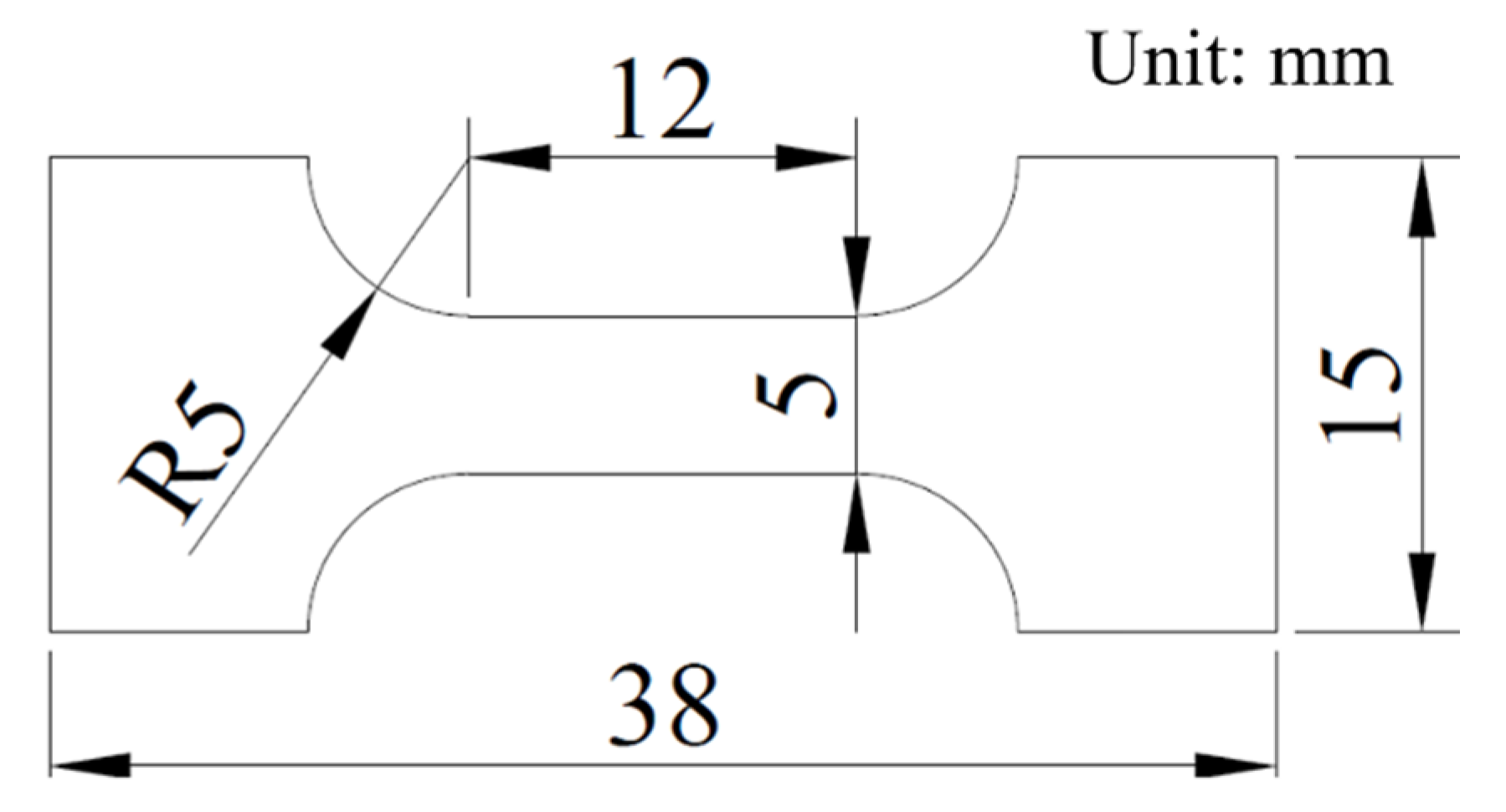

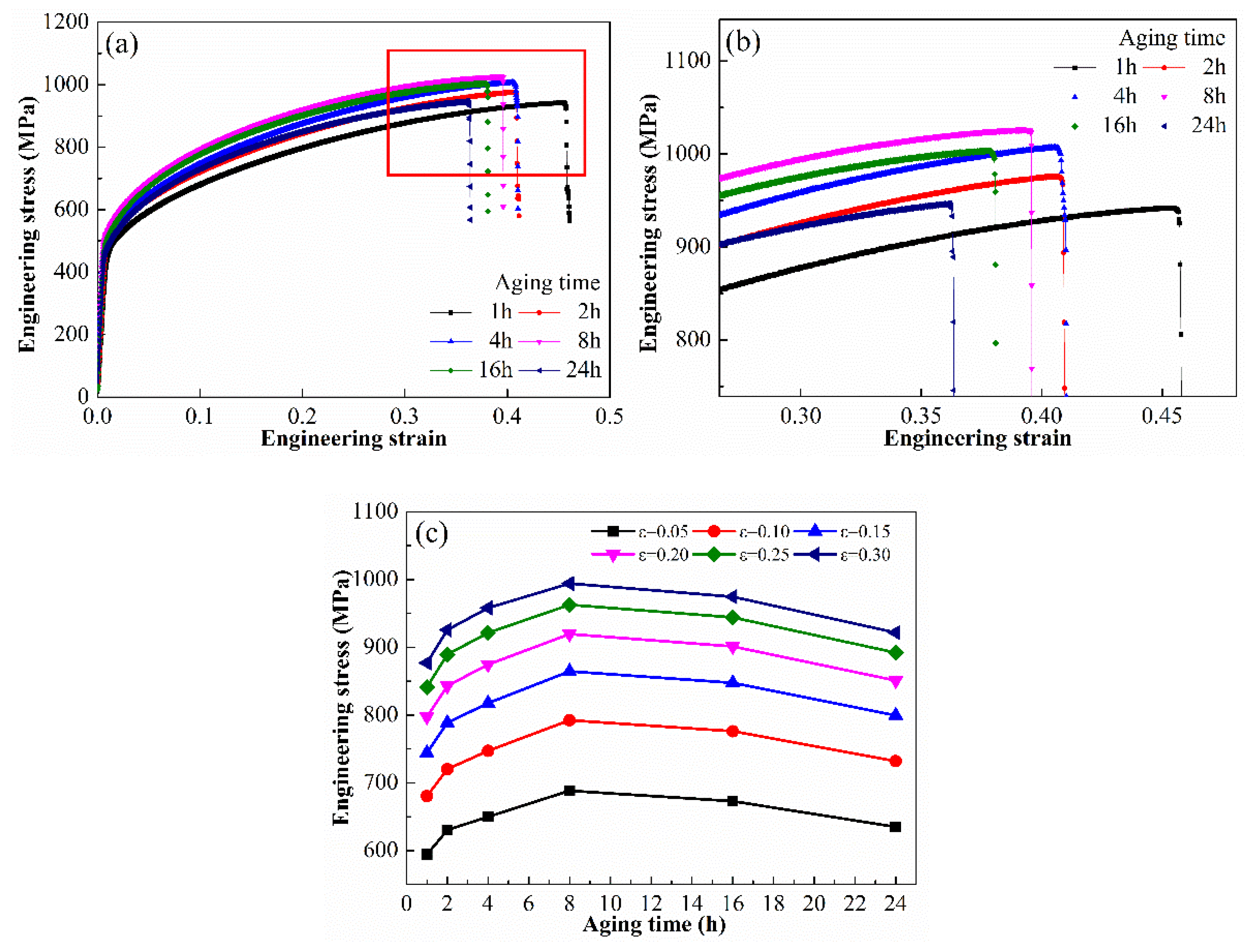

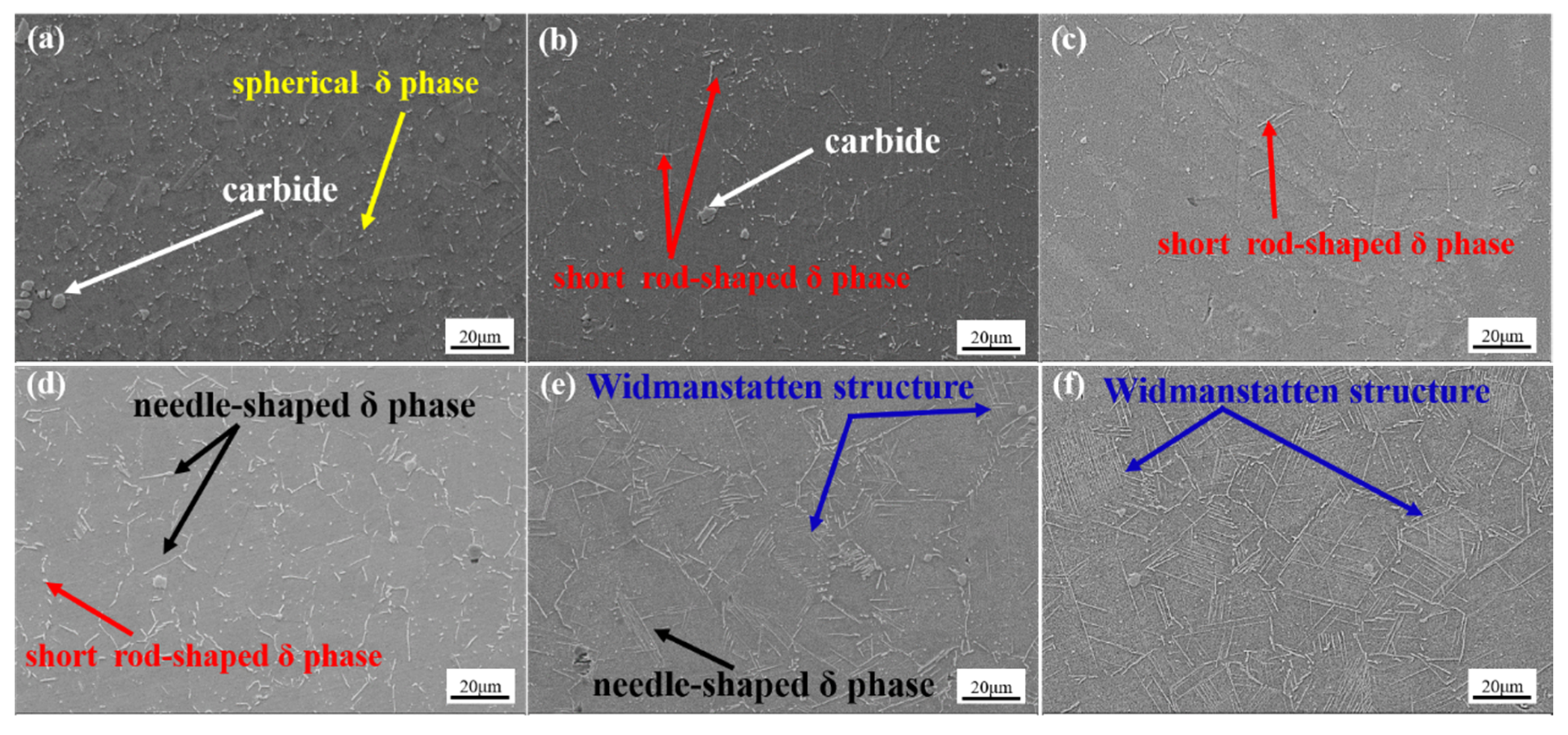

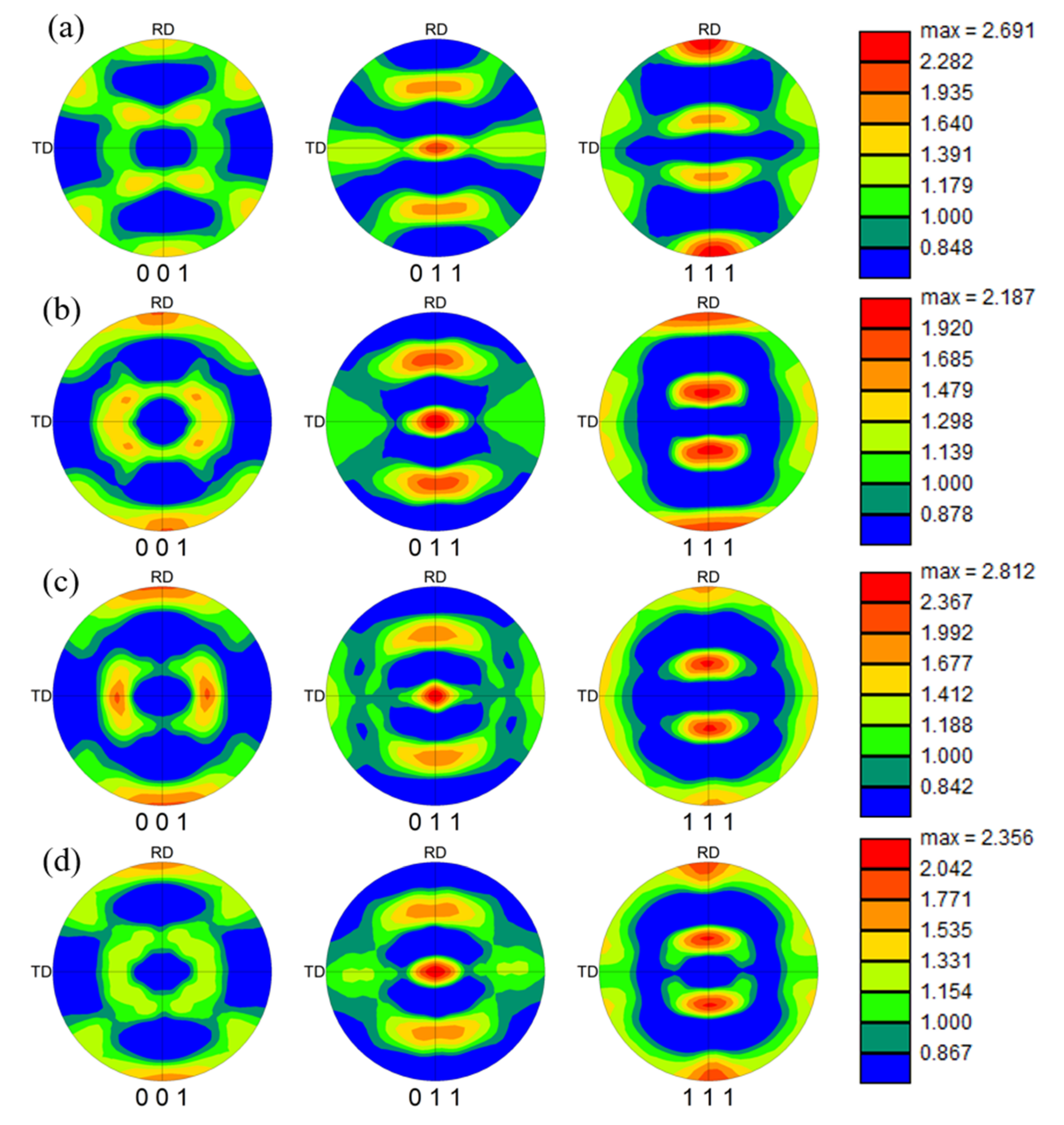

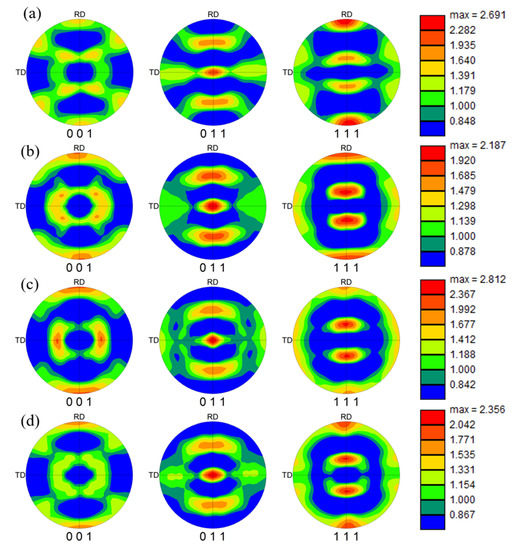

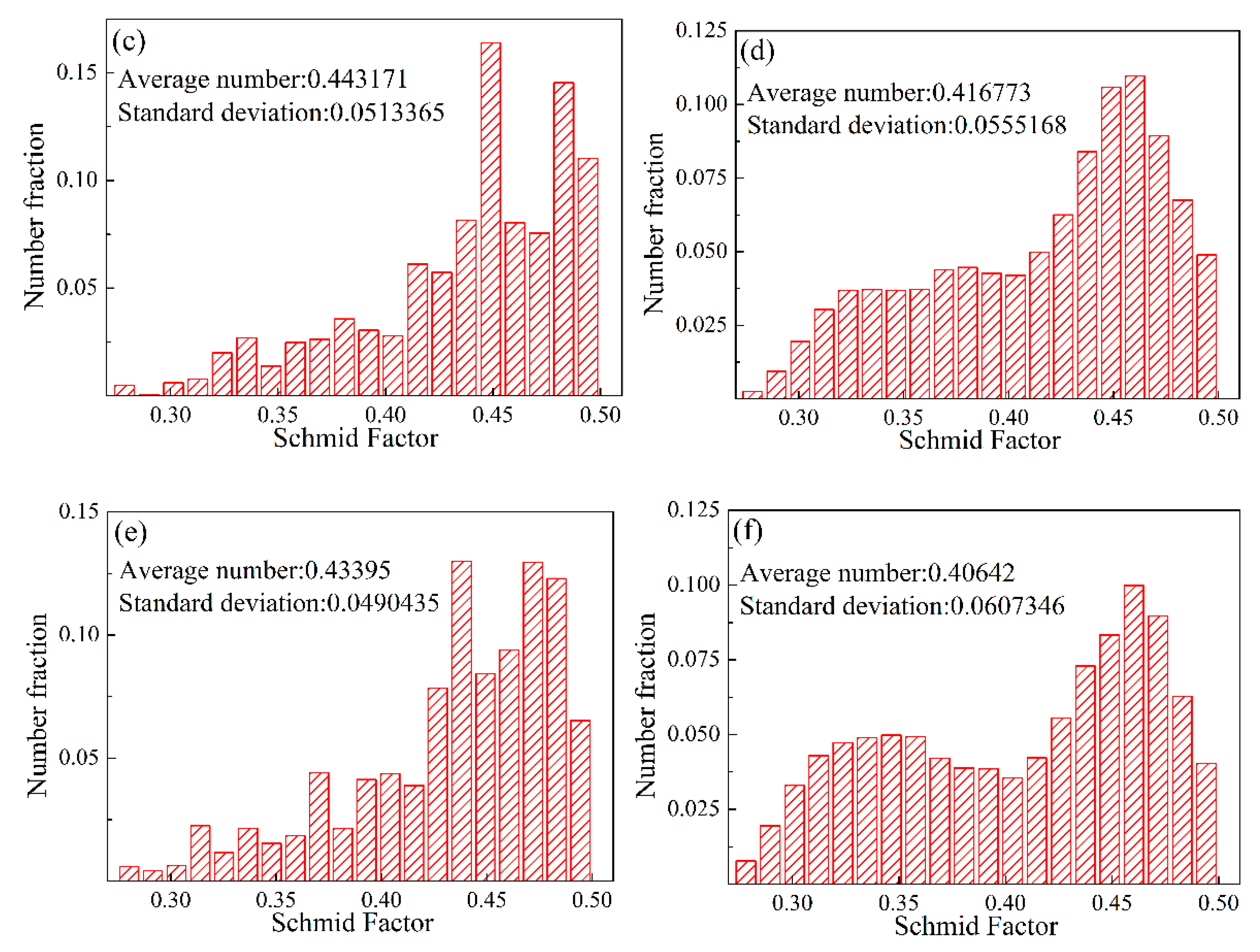

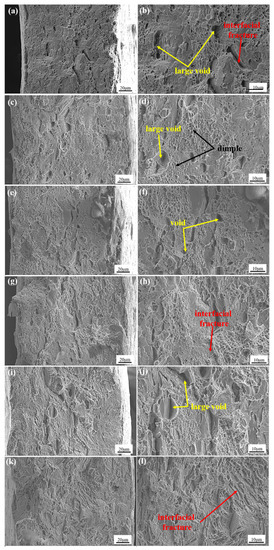

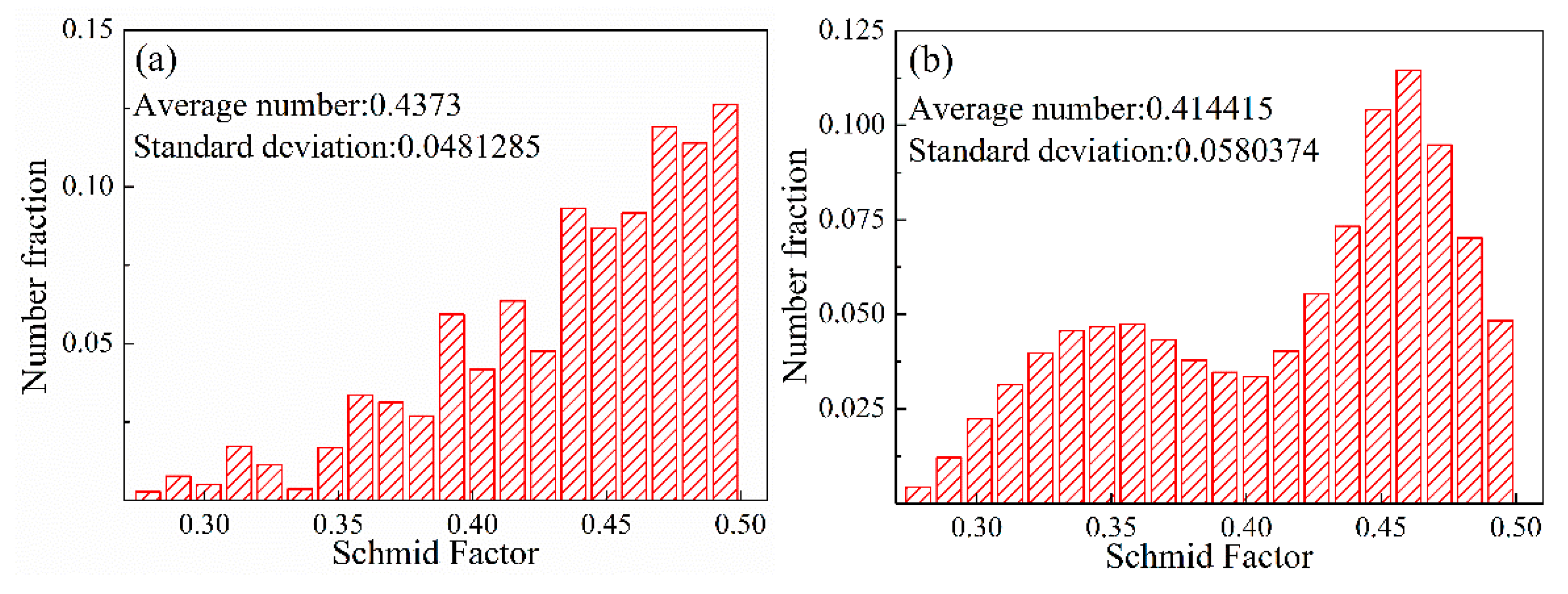

Nickel-based superalloys are widely used in aerospace and other fields due to their excellent properties. In this study, the aging treatment and tensile tests of a GH4169 alloy were carried out. The effects of the δ phase on the alloy’s mechanical properties and fracture behavior were studied. The results showed that the appearance of the δ phase changed from a short rod shape to a needle shape with an increase in aging time. The precipitation method changed from a single mode of precipitation along the grain boundary to two modes of precipitation along the grain boundary and direct precipitation inside the grain. The yield strength and ultimate tensile strength of the alloy first increased and then decreased with an increase in aging time and were related with the microstructure of the δ phase. The similar Widmanstatten structure was not conducive to the mechanical properties of the alloy. The distribution of the δ phase led to the generation of inhomogeneous strain and limited the surface roughening during plastic deformation. The voids initiated at the interface between the δ phase and the matrix γ phase or directly from the δ phase fracture site. View Full-Text
Keywords: superalloy; microstructure evolution; tensile deformation; strain evolution; fracture superalloy; microstructure evolution; tensile deformation; strain evolution; fracture
Show Figures

Figure 1

MDPI and ACS Style

Zhu, Q.; Chen, G.; Wang, C.; Cheng, L.; Qin, H.; Zhang, P. Effect of the δ Phase on the Tensile Properties of a Nickel-Based Superalloy. Metals 2019, 9, 1153.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
