Next Article in Journal
Simultaneously Enhanced Strength, Toughness and Ductility of Cast 40Cr Steels Strengthened by Trace Biphase TiCx-TiB2 Nanoparticles
Previous Article in Journal
First-Principles Approaches to Metals, Alloys, and Metallic Compounds
Previous Article in Special Issue
Additional Phases at High Boron Content in High-Temperature Co–Re–Cr Alloys
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessFeature PaperArticle
Metals 2018, 8(9), 706;

Influence of σ Phase on the Allotropic Transformation of the Matrix in Co-Re-Cr-Based Alloys with Ni Addition

Institut für Werkstoffe, TU Braunschweig, 38106 Braunschweig, Germany
Institut für Werkstofftechnik, Universität Siegen, 57068 Siegen, Germany
Author to whom correspondence should be addressed.
Received: 3 August 2018 / Revised: 3 September 2018 / Accepted: 6 September 2018 / Published: 8 September 2018
(This article belongs to the Special Issue High Temperature Materials Development beyond Ni-Base Superalloys)
Full-Text   |   PDF [4356 KB, uploaded 11 September 2018]   |


Co-Re-Cr alloys are being developed for high-temperature application in gas turbines. In these alloys, the Cr2Re3-based σ phase is stable when the Cr content is higher than 20 atomic %. The addition of Ni is being studied to partially substitute Cr, which aims to suppress σ formation without sacrificing the benefit of Cr in the oxidation resistance of the alloy. The microstructure of the alloys with varying Cr (18–23%) and Ni (8–25%) was investigated by electron microscopy in the present study, primarily to look into the stability of the σ phase and its influence on the Co matrix phase transformation. The σ phase is mainly found in two morphologies in these alloys, where at high temperature only blocky σ phase is present at grain boundaries but cellular σ is formed through a discontinuous precipitation within the grains at lower heat treatment temperatures. The presence of fine cellular σ phase influences the alloy hardness. Moreover, the σ precipitation, which depletes the matrix in Re, also influences the allotropic transformation of the Co matrix. View Full-Text
Keywords: Co-Re-Cr-based alloys; nickel; σ phase; phase transformation Co-Re-Cr-based alloys; nickel; σ phase; phase transformation

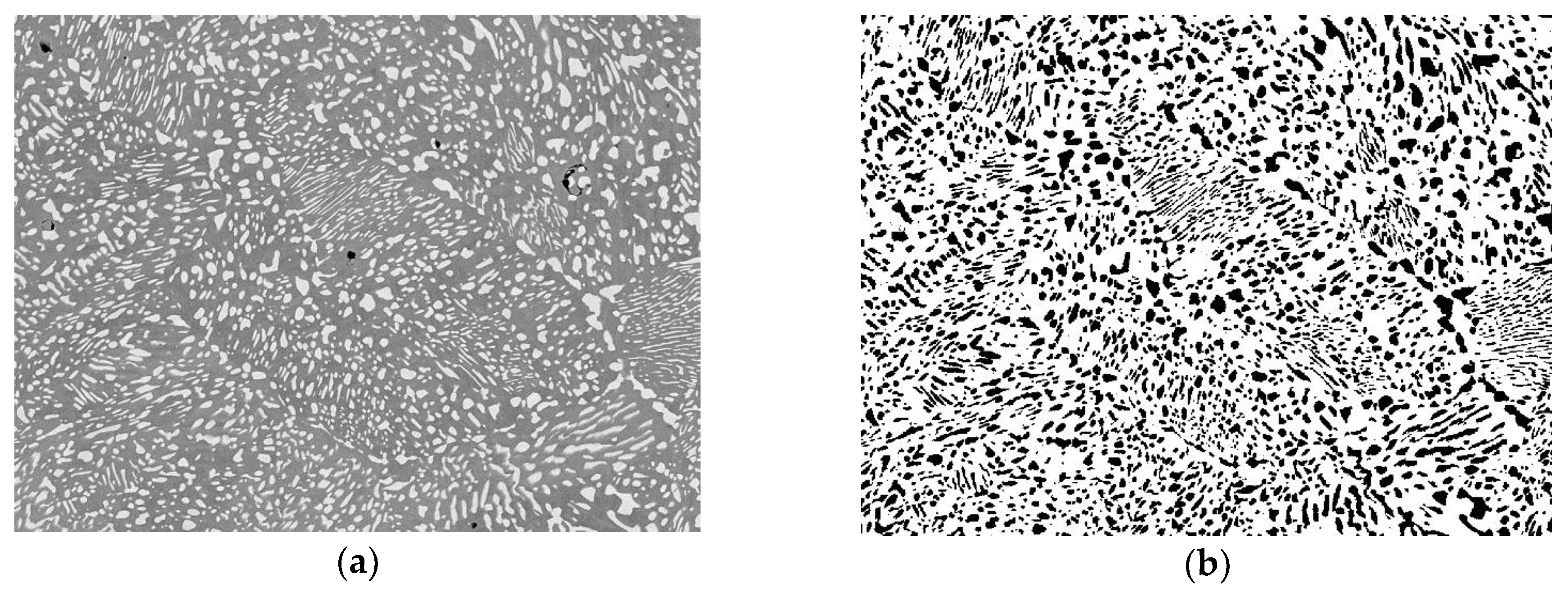

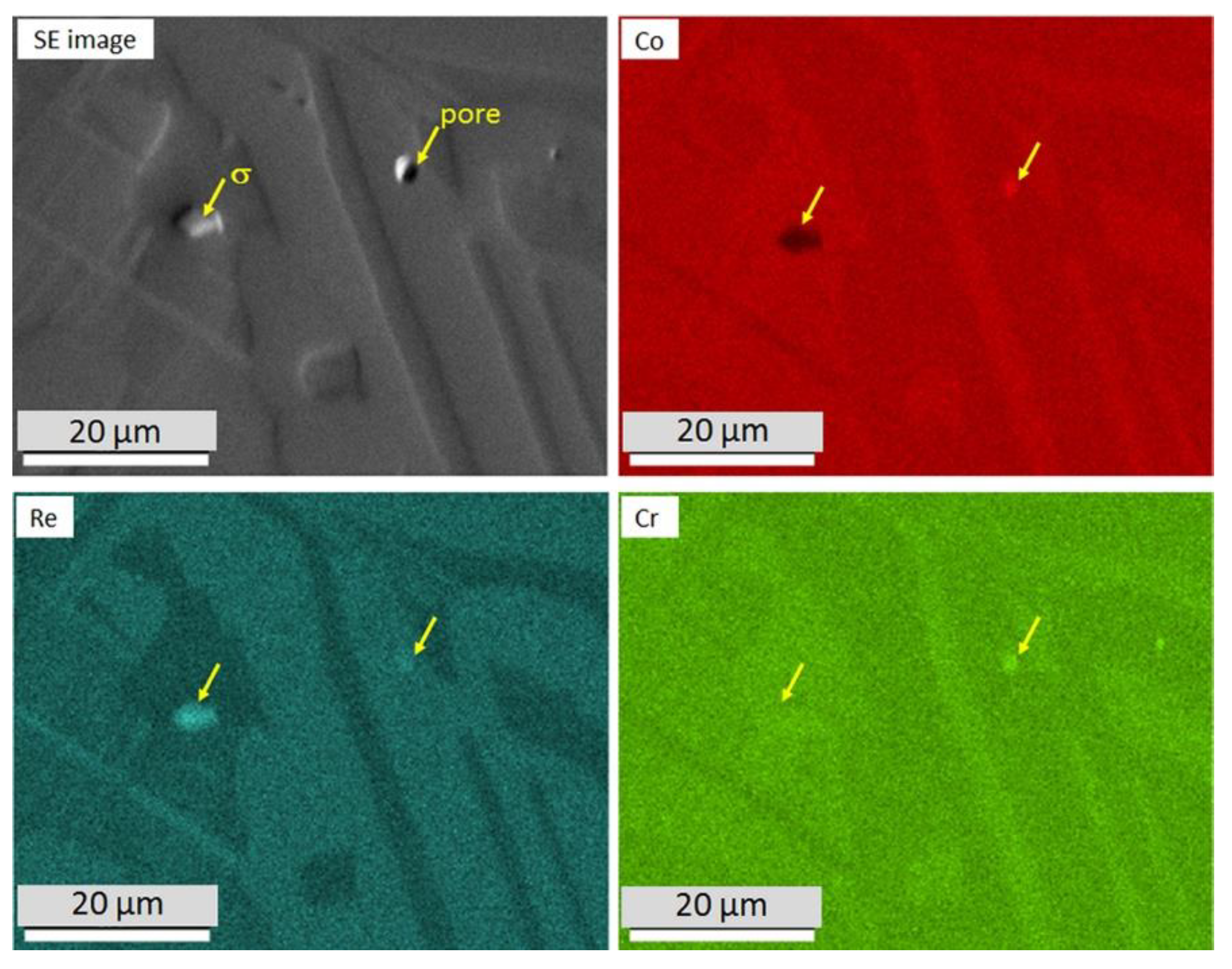

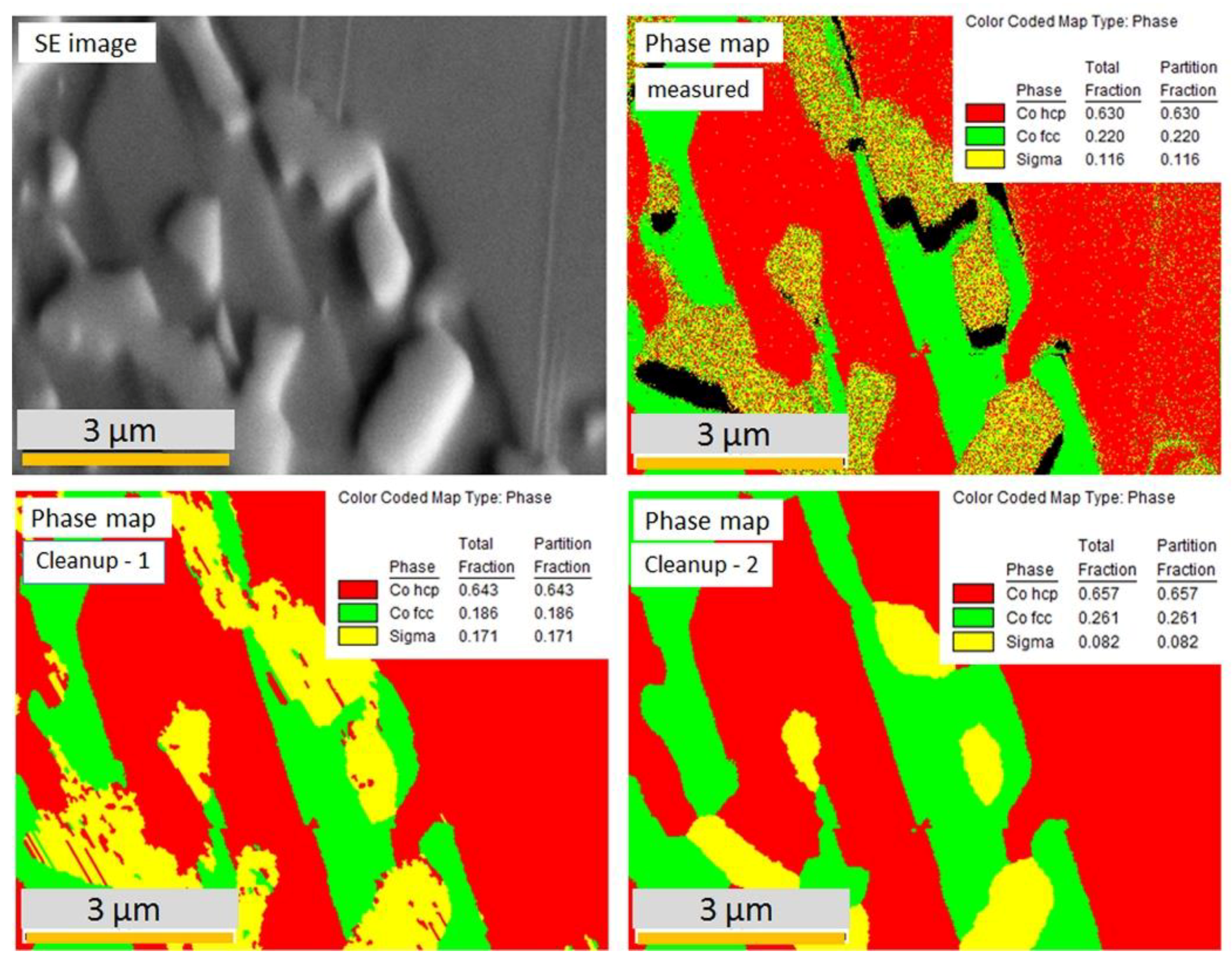

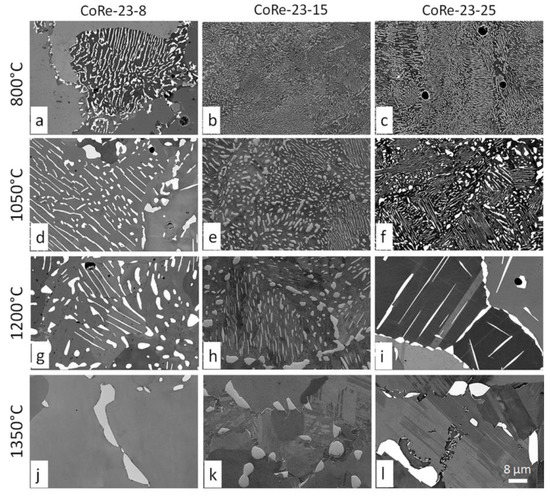

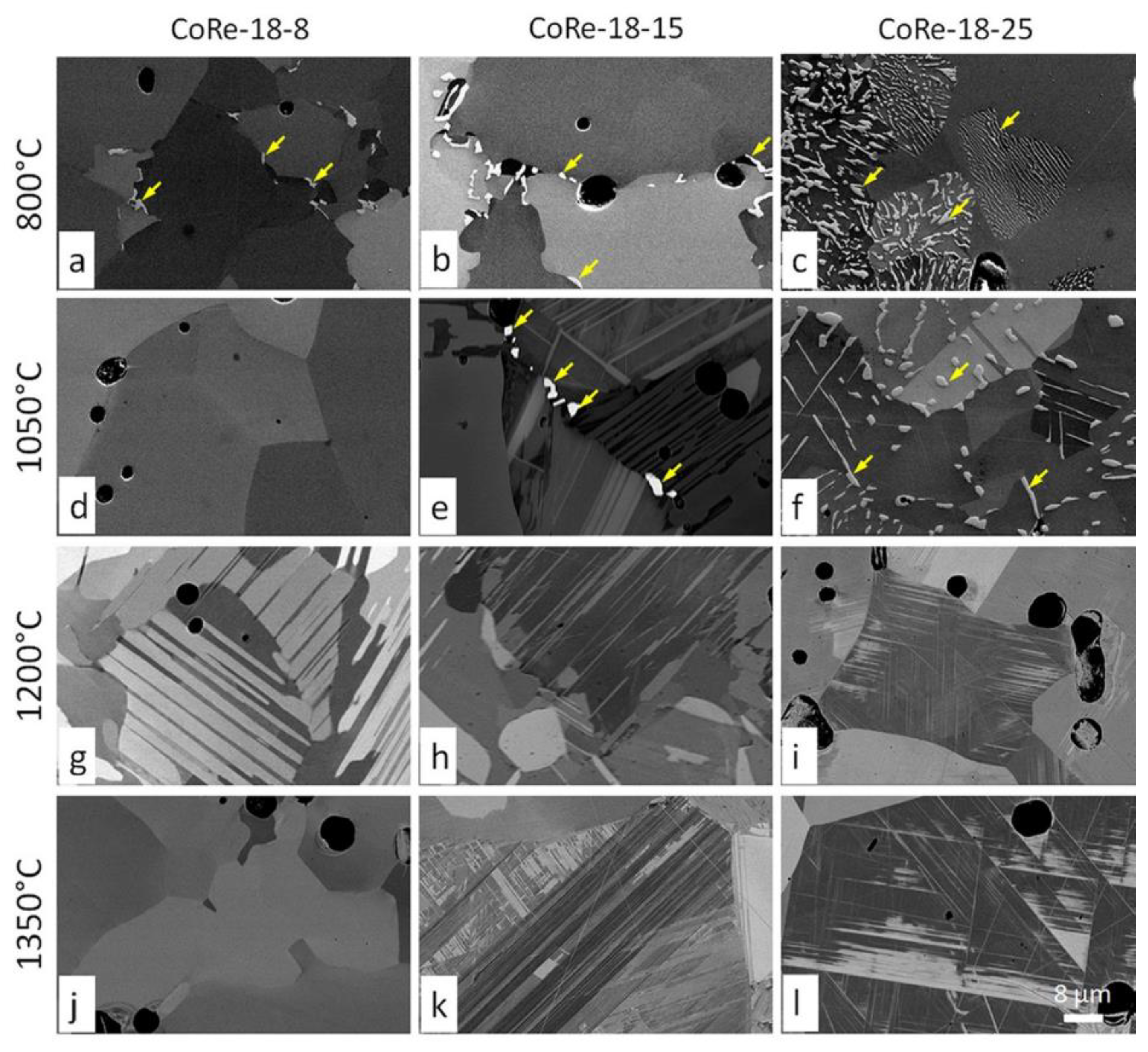

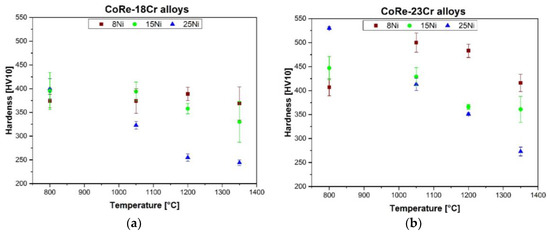

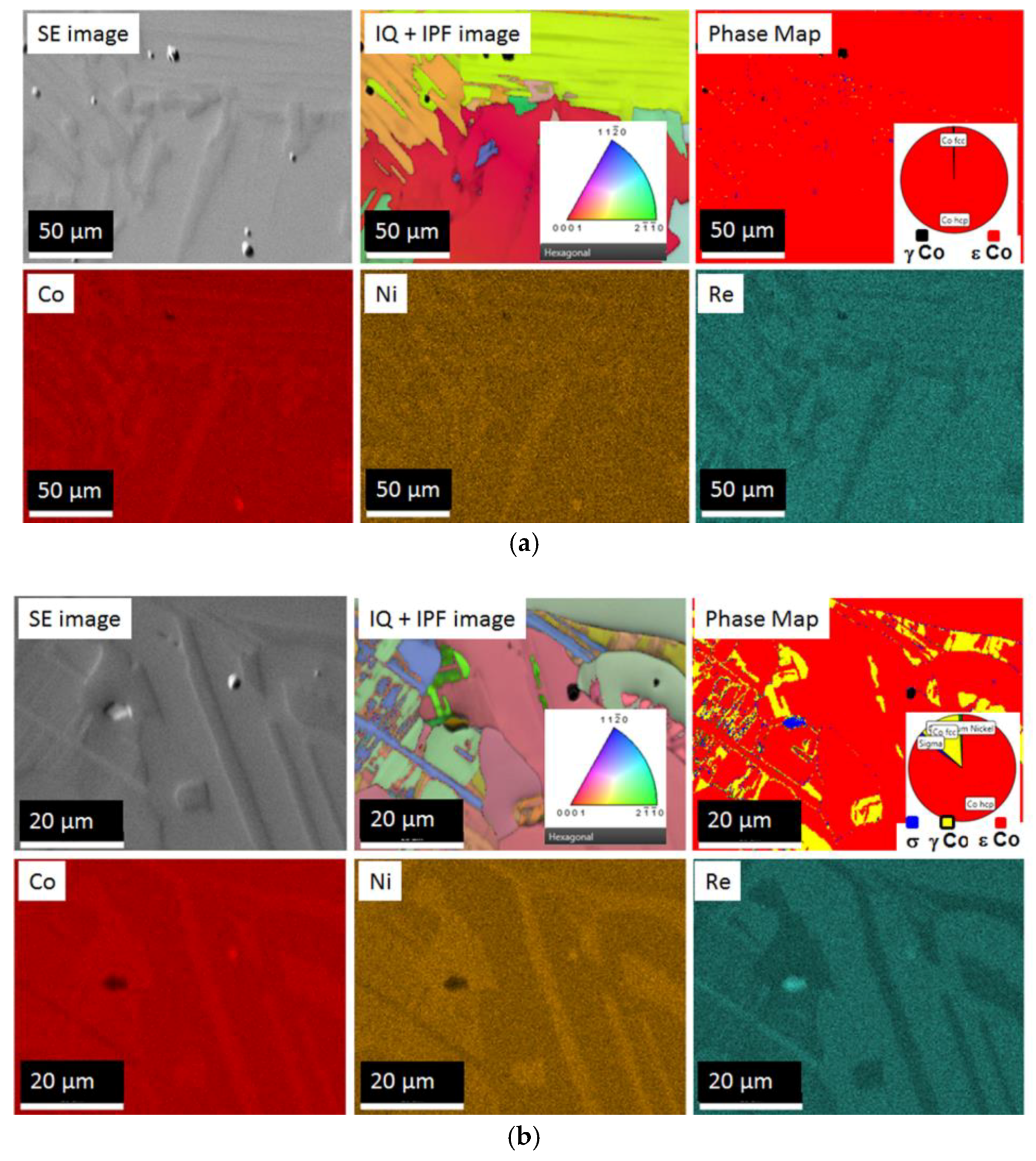

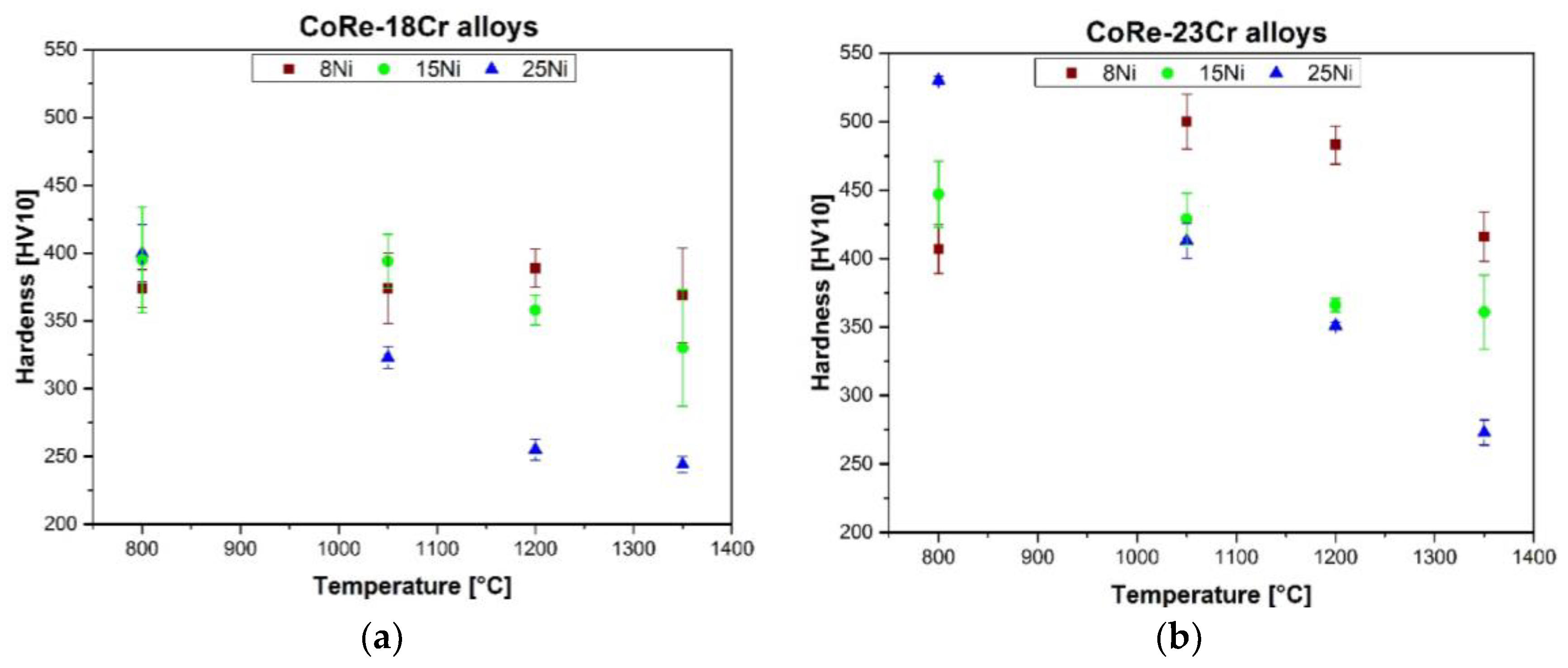

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Dörries, K.; Mukherji, D.; Rösler, J.; Esleben, K.; Gorr, B.; Christ, H.-J. Influence of σ Phase on the Allotropic Transformation of the Matrix in Co-Re-Cr-Based Alloys with Ni Addition. Metals 2018, 8, 706.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
