Metals 2018, 8(8), 647; https://doi.org/10.3390/met8080647
B4C Particles Reinforced Al2024 Composites via Mechanical Milling
Advanced Materials Research Center (CIMAV), National Laboratory of Nanotechnology, Miguel de Cervantes No. 120, Chihuahua C.P. 31136, Mexico
La Salle University of Chihuahua, Prol. Lomas de Majalca No. 11201, Chihuahua C.P. 31020, Mexico
CONACYT-The Mexican Corporation for Research on Materials (COMIMSA), Ciencia y Tecnología 790, Fracc. Saltillo 400, Saltillo C.P. 25290, Mexico
Author to whom correspondence should be addressed.
Received: 13 July 2018 / Accepted: 14 August 2018 / Published: 17 August 2018
The control of a homogeneous distribution of the reinforcing phase in aluminum matrix composites is the main issue during the synthesis of this kind of material. In this work, 2024 aluminum matrix composites reinforced with boron carbide were produced by mechanical milling, using 1 and 2 h of milling. After milling, powdered samples were cold consolidated, sintered and T6 heat treated. The morphology and microstructure of Al2024/B4C composites were investigated by scanning electron microscopy; analysis of X-ray diffraction peaks were used for the calculation of the crystallite size and microstrains by the Williamson–Hall method. The mechanical properties were evaluated by compression and hardness tests. B4C particles were found to be well dispersed into the aluminum matrix as a result of the high-energy milling process. The crystallite size of composites milled for 2 h was lower than those milled for 1 h. The hardness, yield strength and maximum strength were significantly improved in the composites processed for 2 h, in comparison to those processed for 1 h and the monolithic 2024 alloy.
Keywords:Al2024; boron carbide; mechanical milling
Aluminum matrix composites are considered as promising materials for the development of the automotive and aerospace industry. This is because of the attractive characteristics, such as lightness, strength, high specific modulus and good corrosion resistance. For these reasons, extensive theoretical and experimental studies have been carried out on the fundamental relationships between the mechanical properties and the microstructure of metal matrix composites (MMCs) with different types of matrices and either particles or fibers as reinforcements [1,2,3,4]. The selection of the reinforcement type, geometry and volume fraction is critical for obtaining the best combination of properties with a low cost . The size of the reinforcing phase is a key factor, in such a way that the interaction of particles with dislocations becomes of significant importance and, when they are considered with other strengthening effects typically found in conventional MMCs, gives as a result a remarkable improvement of the mechanical properties [6,7,8,9].
Another aspect to be considered in the synthesis of MMCs is the low wettability of ceramic particles with the molten metal matrix, which prohibits the production of MMCs by conventional casting processes. Mechanical milling, a method of powder metallurgy, offers homogeneous dispersion of hard particles with a control of particle size. It also allows the fragmentation of ceramic clusters as well as the formation of alloys by diffusion mechanisms starting from pure metals, producing preforms by in situ reaction of reinforcements [10,11,12,13,14].
Monolithic B4C ceramic is a low-density material having a high hardness, strength and stiffness. However, densification of monolithic B4C requires the application of high temperatures and/or high pressures . The density of B4C is lower than that of other commercially available ceramic reinforcements, such as SiC, TiB2, ZrSiO4, Al2O3, and TiC, resulting in composites with higher specific stiffness. Due to the fact that it possesses a low density (2.52 g/cm3), a hardness just below that of diamond (9.5 + in Mohs’ scale), excellent thermal stability and wettability, remarkable chemical inertness, and high abrasive capacity, it is an ideal candidate as a reinforcement for aluminum-based composites . However, a major limitation to its widespread use arises from its extreme susceptibility to brittle fracture. Researchers have known that combining B4C with a metal could solve the recognized difficulties with B4C. Therefore, this research focuses on the homogeneous dispersion of hard B4C particles into the 2024 aircraft grade aluminum alloy. This is due to the extensive use of this alloy in structural applications and the potential for increasing its mechanical performance by adding hard particles. The use of solid-state routes, such as mechanical alloying to achieve an effective homogeneous dispersion of hard particles into different matrices, makes them an interesting way to be explored for expanding the mechanical capabilities of aluminum alloys, for future applications under room and hot working conditions. The evolution of the microstructure and mechanical properties of Al2024/B4C composites prepared by mechanical milling and conventional sintering, followed by a T6 heat treatment, will be analyzed.
2. Materials and Methods
The raw materials used in this investigation were Al2024 alloy swarf, which was produced from a commercial solid bar, and B4C particles of average diameter 7 µm (Mills Electro Minerals Corp., Washington, DC, USA) were used as reinforcing agent. First of all, the Al2024 alloy swarf was mixed with B4C in different concentrations (0.0, 0.5, 1.0, 1.5, 2.0, 2.5 wt.%) and then they were mechanically milled in a high-energy milling apparatus (SPEX 8000M, Metuchen, NJ, USA) for 1 and 2 h. AISI D2 vial and balls were selected as milling media. Milling process parameters were selected as follows: ball-to-powder ratio 5:1, argon atmosphere protection, and addition of methanol as a process control agent (PCA). After milling, the Al2024/B4C composite mixtures were loaded into a steel die and uniaxially cold pressed using 900 MPa for 3 min to produce billets with a diameter of 6 mm and a height of 12 mm. Sintering process was carried out with a heating rate of 15 °C/min up to 500 °C for 3 h under an Ar atmosphere; samples were allowed to cool down inside the furnace. Finally, the samples were artificially aged (T6 temper) for 6 h at 191 °C . A monolithic Al2024 alloy was subjected to the same process for comparison purposes.
Microstructure, distribution and morphology of samples were determined using a scanning electron microscope (SEM, Hitachi SU3500, Tokyo, Japan). Crystallite size and microstrains were evaluated by X-ray diffraction (XRD) using Cu Kα (λ = 0.15406 nm) radiation source, in a diffractometer (BRUKER model D8 Advance, Billerica, MA, USA), in the 2θ range of 20°–100° operating at 40 kV/30 mA, with a scanning speed of 0.005°/s. Williamson–Hall analysis was used for estimating the crystallite size and microstrains, according to Equation (1). Metallographic specimens for the composites were prepared by cutting a cross section of samples followed by hot mounting. Sample were ground by using emery papers on a metallographic grinding machine. After that, a fine polish was made with high-alumina powder. Finally, samples were etched with Keller’s reagent.
Vickers microhardness of the samples was measured at room temperature by a microhardness tester (FM-7, Tokyo, Japan) using a maximum load of 1 kgf and dwelling time of 15 s; a total of five measurements were performed for each sample, and the average value was reported. Compression tests were performed at room temperature in a universal testing machine (Instron, Norwood, MA, USA) with a constant cross-head speed of 0.5 mm/min to obtain the yield strength (σy) and maximum strength (σmax); three measurements were achieved for each sample and the average value was reported. Additionally, the fracture surfaces were further examined in detail by SEM.where: β = FWHM, D = crystallite size, ε = strain, λ = wavelength of Cu Kα, and K = shape factor (0.9).
3. Results and Discussion
3.1. Microstructure Analysis
Figure 1 shows images of the Al2024 alloy swarf and the as-received B4C powder, the latter presenting a wide distribution of particle size with an angular morphology. Figure 2 shows the milling effect on the morphology and particle size of the Al2024-2.0 wt.% B4C composite. After 1 h of milling (Figure 2a), the particles have an equiaxial morphology and wide particle size distribution. When the milling time increases to 2 h (Figure 2b), the micro-scale particles present a noticeable refinement. The increment in milling time produces hardened particles due to cold working  owing to the predominance of the fracture stage in the fracture-welding process occurring during the mechanical milling.
Figure 3 shows XRD diffraction patterns of the as-milled Al2024 alloy (0.0 wt.% B4C) and its composites as a function of the B4C concentration. A respective inset displays the effect of milling time and B4C concentration on the macrostrains and crystallite size. No significant decrease in the intensity of the X-ray diffraction peaks nor broadening are visible in the patterns. However, a deeper analysis indicates changes in the crystallite size and variations in the microstrains as the milling time increases from 1 to 2 h, and as a function of the B4C concentration. A decrement in crystallite size is observed when milling time increases from 1 to 2 h. This effect can be attributed to the increment in the milling time producing a size reduction of the B4C particles.
When the as-milled powders were sintered and T6 heat treated, the reinforcing particles became smaller and sub-rounded (Figure 4a); furthermore, the particles can be seen as well embedded and homogenously distributed throughout the Al2024 matrix, with no areas substantially depleted of B4C (Figure 4b). The spacing between the B4C particles varies from 0 to 20 µm, with an average of about 8 µm. At higher magnifications (Figure 4b,c), it is noticeable that the B4C particles have different sizes ranging from 3 to 20 µm. The properties of the MMCs depend not only on the matrix, particle morphology and the volume fraction, but also on the distribution of the reinforcing particles, as well as the interface bonding between the particle and the matrix [19,20]; a good interface bonding can be seen in the representative image shown in Figure 4c. The most important factor in the fabrication of MMCs is the uniform dispersion of the reinforcing phase.
The spatial distribution of the elements in the composites after the T6 heat treatment was examined through a scanning electron microscope with energy dispersive spectroscopy (SEM-EDS) mapping, as shown in Figure 5a for the Al2024-2.0 wt.% B4C specimen. The mapping reveals a homogeneous distribution of the B4C particles, even though they present a varied particle size. The energy dispersive spectroscopy (EDS) analysis taken from one of the bigger particles (Figure 5b) confirmed the chemical composition of the B4C phase.
3.2. Mechanical Properties
3.2.1. Microhardness Measurements
The microhardness results of the composites milled for 1 and 2 h are shown in Figure 6; the error bars represent the standard deviation. As can be seen, the microhardness of the composites increases with the increment in the milling time, which is related to the material strain hardening during the mechanical process. On the other hand, for both milling conditions, the microhardness of the composites increases with increments in the B4C content up to 2.0 wt.%, reaching values of 110 and 125 HV for samples milled for 1 and 2 h, respectively. These values represent an increment in microhardness of around 45% and 68%, respectively, compared with the microhardness of a commercial as-cast 2024 aluminum alloy with T6 heat treatment condition (76 HV) . These increments in microhardness are associated with the combined effects of the homogeneous distribution of the B4C particles into the Al2024 matrix and the overall microstructure refinement induced by the milling process. From 2.5 wt.% of B4C, the microhardness begins to decrease, which may be due to the carbon matrix saturation .
3.2.2. Compression Tests
Figure 7 presents the effect of the B4C addition and milling time on the yield strength (σy) of the composites; the error bars represent the standard deviation. Similar to the hardness results, there is a clear influence of the B4C content on the σy behavior, up to saturation values of about 338 and 440 MPa for samples milled for 1 and 2 h, respectively. With 2.5 wt.% of B4C the σy of composites begins to decrease. Concerning the milling time effect, it is evident how σy increases for all composites milled for 2 h, in comparison with those milled for 1 h. Figure 7 shows also the σy value reported in the literature for the as-cast Al2024 alloy in the T6 heat treated condition (315 MPa) . Samples milled for 1 h containing between 1.5 and 2.0 wt.% of B4C exceed the σy value of the commercial sample. The low σy values of samples milled for 1 h with 0.5 and 1.0 wt.% of B4C can be due to the porosity inherent to the sintering process . All composites milled for 2 h exceeded the σy value of the commercial sample, which proves the positive effect of the mechanical milling process in counteracting the adverse effect of the porosity in the sintered samples. In the case of the sample milled for 2 h with 1.5 wt.% of B4C, the positive trend was broken. For both milling times, with 2.5 wt.% of B4C the σy begins to decrease, probably because of the matrix saturation, but still these values are higher than that of the commercial sample.
Regarding the maximum strength (σmax), whose values are shown in Figure 8, the effect of the B4C content and the milling time were comparable to those found for the yield strength. Similar to other research works [24,25,26,27], the strengthening mechanisms involved here can be related to the following: (i) the dispersion of second phases (B4C particles); (ii) the microstructure refinement induced by the high-energy milling; and (iii) the grain-boundary strengthening (Hall-Petch effect). Even though the Orowan strengthening mechanism does not occur in composites with microreinforcements, the particle fragmentation due to milling effects must be considered, and thus this mechanism may be considered owing to the presence of fragmented B4C particles finely dispersed into the Al2024 alloy matrix.
3.3. Fractographic analysis
Figure 9a shows the fracture surface of the Al2024-2.0 wt.% B4C composite milled for 2 h. Intact B4C particles can be observed on the surface of fractured samples (pointed by arrows in Figure 9b), which indicates a good bonding between B4C particles and the Al2024 alloy matrix. Axial cracks similar to those presented in brittle materials under uniaxial loads during compression tests can be observed. In addition, it can be seen that the sample was broken along the loading direction. This suggests that the addition of 2.0 wt.% of B4C improves the ductility of the composite material; however, this behavior must be deeply analyzed in future work. Some fracture dimples around the B4C particles were found (Figure 9c), which were formed at the microscopic level by the mechanism of ductile failure of the Al2024 matrix. A full examination of the fracture surface of samples demonstrated the scarcity of cracking in the reinforcement; a decohesion of the matrix/reinforcement interface could not be seen either. These results indicate the formation of a strong interface allowing the load to be efficiently transferred between the matrix and the reinforcing particles.
The milling process, followed by cold compaction, sintering and T6 heat treatment, were successfully applied to reinforce the 2024 aluminum alloy with B4C. B4C particles were homogeneously dispersed throughout the 2024 aluminum matrix. A strong interface bonding between B4C and Al2024 was achieved with no reaction between them during the whole synthesis process. The milling time had an effect on the refinement of the crystallite size and microstrains increase for both milling times (1 and 2 h). An increase in the amount of B4C in the Al2024 matrix did not result in a finer crystallite size for all composites milled for 2 h; however, for composites milled for 1 h, the amount of reinforcement increased both the crystallite size and microstrains. Defects such as pores and cracks were not detected. Both milling time and B4C content had a positive effect on the mechanical properties of the composites. The best properties, hardness, σy, and σmax, were obtained with 2 h of milling and 2.0 wt.% of B4C particles.
C.L.-M. and E.L.-S. prepared metallographic samples; R.C.-B. developed the composites by mechanical milling; R.P.B. and J.M.H.-R. characterized the composite powders by SEM; I.E.-G. characterized the samples by microhardness and compression tests; C.C.-G. designed the experiments, analyzed the data and wrote the paper.
The authors thank to Red Tematica de Nanociencias y Nanotecnologia, Red Tematica Nacional de Aeronautica and Red Tematica de Materiales Compuestos. The authors gratefully acknowledge the efforts of D. Lardizabal-Gutierrez and K. Campos-Venegas for their technical assistance.
Conflicts of Interest
The authors declare no conflict of interest.
- Zheng, R.X.; Hao, X.; Yuan, Y.; Ma, C. Effect of high volume fraction of B4C particles on the microstructure and mechanical properties of aluminum alloy based composites. J. Alloy. Compd. 2013, 576, 291–298. [Google Scholar] [CrossRef]
- Ganesh, V.V.; Chawla, N. Effect of particle orientation anisotropy on the tensile behavior of metal matrix composites: Experiments and microstructure-based simulation. Mater. Sci. Eng. A 2005, 391, 342–353. [Google Scholar] [CrossRef]
- Bethune, D.S.; Bethune, D.S.; Kiang, C.H.; De Vries, M.S.; Gorman, G.; Savoy, R.; Vazquez, J.; Beyers, R. Cobalt-catalysed growth of carbon nanotubes with single-atomic-layer walls. Nature 1993, 363, 605–607. [Google Scholar] [CrossRef]
- Friler, J.B.; Argon, A.S.; Cornie, J.A. Strength and toughness of carbon fiber reinforced aluminum matrix composites. Mater. Sci. Eng. A 1993, 162, 143–152. [Google Scholar] [CrossRef]
- Davies, C.H.J.; Raghunathan, N.; Sheppard, T. Structure–property relationships of SiC reinforced advanced Al–Zn–Mg–Cu alloy. Mater. Sci. Technol. 1992, 8, 977–984. [Google Scholar] [CrossRef]
- Zhang, Z.; Chen, D.L. Contribution of Orowan strengthening effect in particulate-reinforced metal matrix nanocomposites. Mater. Sci. Eng. A 2008, 483, 148–152. [Google Scholar] [CrossRef]
- Zhang, Z.; Chen, D.L. Consideration of orowan strengthening effect in particulate-reinforced metal matrix nanocomposites: A model for predicting their yield strength. Scr. Mater. 2006, 54, 1321–1326. [Google Scholar] [CrossRef]
- Sanaty-Zadeh, A. Comparison between current models for the strength of particulate-reinforced metal matrix nanocomposites with emphasis on consideration of hall–petch effect. Mater. Sci. Eng. A 2012, 531, 112–118. [Google Scholar] [CrossRef]
- Luo, P.; McDonald, D.T.; Xu, W.; Palanisamy, S.; Dargusch, M.S.; Xia, K. A modified hall–petch relationship in ultrafine-grained titanium recycled from chips by equal channel angular pressing. Scr. Mater. 2012, 66, 785–788. [Google Scholar] [CrossRef]
- Shehata, F.; Fathy, A.; Abdelhameed, M.; Moustafa, S.F. Preparation and properties of Al2O3 nanoparticle reinforced copper matrix composites by in situ processing. Mater. Des. 2009, 30, 2756–2762. [Google Scholar] [CrossRef]
- Carreño-Gallardo, C.; Estrada-Guel, I.; Romero-Romo, M.; Cruz-García, R.; López-Meléndez, C.; Martínez-Sánchez, R. Characterization of Al2O3NP–Al2024 and AgCNP–Al2024 composites prepared by mechanical processing in a high energy ball mill. J. Alloy. Compd. 2012, 536, 26–30. [Google Scholar] [CrossRef]
- Kollo, L.; Leparoux, M.; Bradbury, C.R.; Jäggi, C.; Carreño-Morelli, E.; Rodríguez-Arbaizar, M. Investigation of planetary milling for nano-silicon carbide reinforced aluminium metal matrix composites. J. Alloy. Compd. 2010, 489, 394–400. [Google Scholar] [CrossRef]
- De Cicco, M.; Turng, L.S.; Li, X.C.; Perepezko, J.H. Production of semi-solid slurry through heterogeneous nucleation in metal matrix nanocomposites (MMNC) using nano-scale ultrasonically dispersed inoculants. Solid State Phenom. 2008, 141–143, 487–492. [Google Scholar]
- Lai, M.O.; Lu, L.; Laing, W. Formation of magnesium nanocomposite via mechanical milling. Compos. Struct. 2004, 66, 301–304. [Google Scholar] [CrossRef]
- Thévenot, F. Boron carbide—A comprehensive review. J. Eur. Ceram. Soc. 1990, 6, 205–225. [Google Scholar] [CrossRef]
- Wu, C.; Shen, Q.; Luo, G.; Fang, P.; Li, C.; Wang, Y.; Zhang, L. Microstructure and mechanical properties of Al-7075/B4C composites fabricated by plasma activated sintering. J. Alloy. Compd. 2014, 588, 265–270. [Google Scholar]
- Bray, G.H.; Glazov, M.; Rioja, R.J.; Li, D.; Gangloff, R.P. Effect of artificial aging on the fatigue crack propagation resistance of 2000 series aluminum alloys. Int. J. Fatigue 2001, 23, 265–276. [Google Scholar] [CrossRef]
- Suryanarayana, C. Mechanical alloying and milling. Prog. Mater. Sci. 2001, 1–2, 1–184. [Google Scholar] [CrossRef]
- Sahin, Y. Preparation and some properties of SiC particle reinforced aluminium alloy composites. Mater. Des. 2003, 24, 671–679. [Google Scholar] [CrossRef]
- Saboori, A.; Moheimani, S.K.; Dadkhah, M.; Pavese, M.; Badini, C.; Fino, P. An overview of key challenges in the fabrication of metal matrix nanocomposites reinforced by graphene nanoplatelets. Metals 2018, 8, 172. [Google Scholar] [CrossRef]
- Matweb, Material Property Data. Available online: http://www.matweb.com. (accessed on 15 April 2018).
- Pérez-Bustamante, R.; Pérez-Bustamante, F.; Maldonado-Orozco, M.C.; Martínez-Sánchez, R. The effect of heat treatment on microstructure evolution in artificially aged carbon nanotube/Al2024 composites synthesized by mechanical alloying. Mater. Charact. 2017, 126, 28–34. [Google Scholar] [CrossRef]
- Xue, L.; Wierzbicki, T. Ductile fracture characterization of aluminum alloy 2024-T351 using damage plasticity theory. Int. J. Appl. Mech. 2009, 1, 267–304. [Google Scholar] [CrossRef]
- Angers, R.; Krishnadev, M.R.; Tremblay, R.; Corriveau, J.-F.; Dubé, D. Characterization of SiCp/2024 aluminum alloy composites prepared by mechanical processing in a low energy ball mill. Mater. Sci. Eng. A 1999, 262, 9–15. [Google Scholar] [CrossRef]
- Vaidya, R.U.; Song, S.G.; Zurek, A.K. Dynamic mechanical response and thermal expansion of ceramic particle reinforced aluminium 6061 matrix composites. Philos. Mag. A 1994, 70, 819–836. [Google Scholar] [CrossRef]
- Yang, Y.; Lan, J.; Li, X. Study on bulk aluminum matrix nano-composite fabricated by ultrasonic dispersion of nano-sized SiC particles in molten aluminum alloy. Mater. Sci. Eng. A 2004, 380, 378–383. [Google Scholar] [CrossRef]
- Martínez-Sánchez, R.; Reyes-Gasga, J.; Caudillo, R.; García-Gutierrez, D.I.; Márquez-Lucero, A.; Estrada-Guel, I.; Mendoza-Ruiz, D.C.; José-Yacaman, M. Mechanical and microstructural characterization of aluminum reinforced with carbon-coated silver nanoparticles. J. Alloy. Compd. 2007, 438, 195–201. [Google Scholar] [CrossRef]

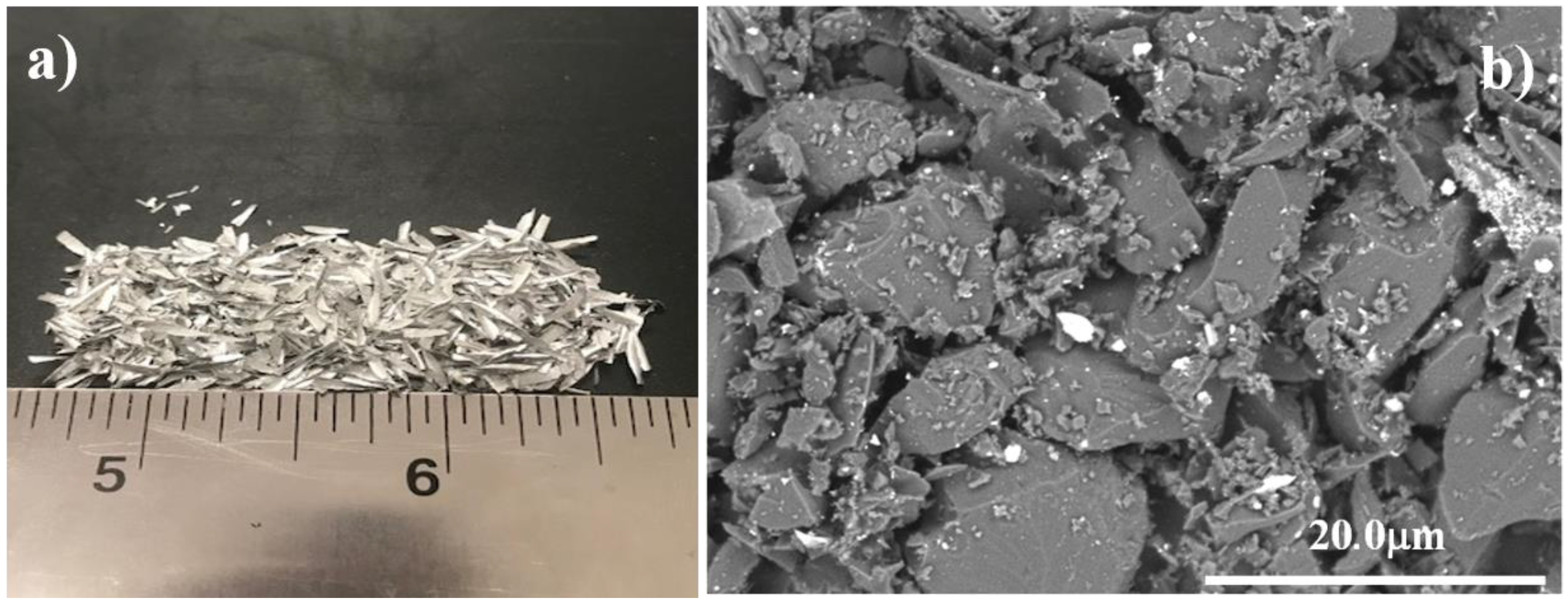

Figure 1. (a) Photography of the Al2024 alloy swarf and (b) Backscattered electron-scanning electron microscope (BE-SEM) image of the B4C powder.
Figure 2. Secondary electron-scanning electron microscope (SE-SEM) micrographs of the Al2024-2.0 wt.% B4C composite milled during (a) 1 h and (b) 2 h.

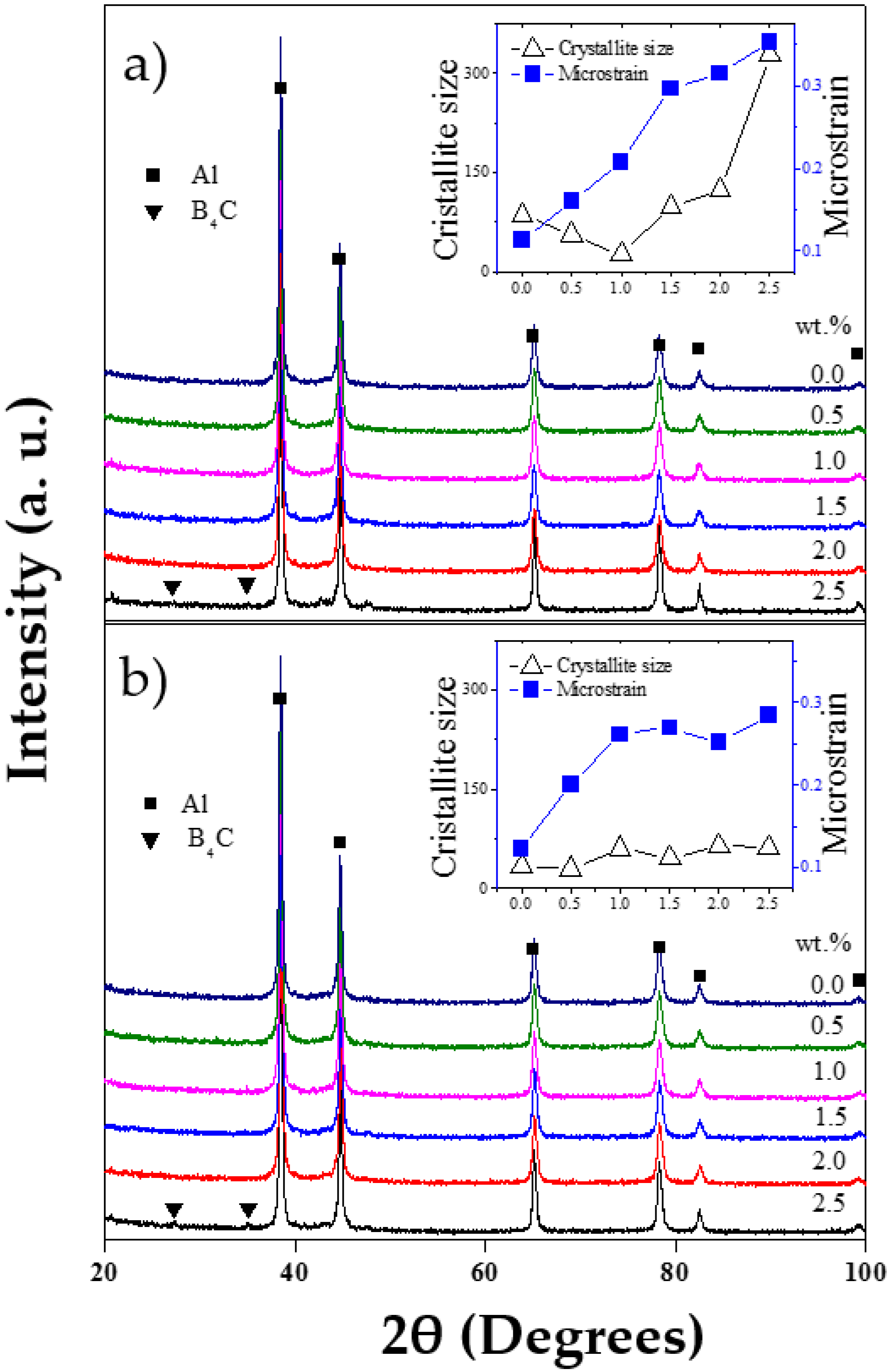

Figure 3. X-ray diffraction (XRD) diffraction patterns, crystallite size and microstrains as a function of the B4C content: (a) 1 h and (b) 2 h of milling.
Figure 4. Al2024-2.0 wt.% B4C specimen milled for 2 h, sintered and T6 heat treated: (a) low-magnification optical micrograph and (b) high-magnification SEM micrograph; (c) morphology of a single B4C particle.

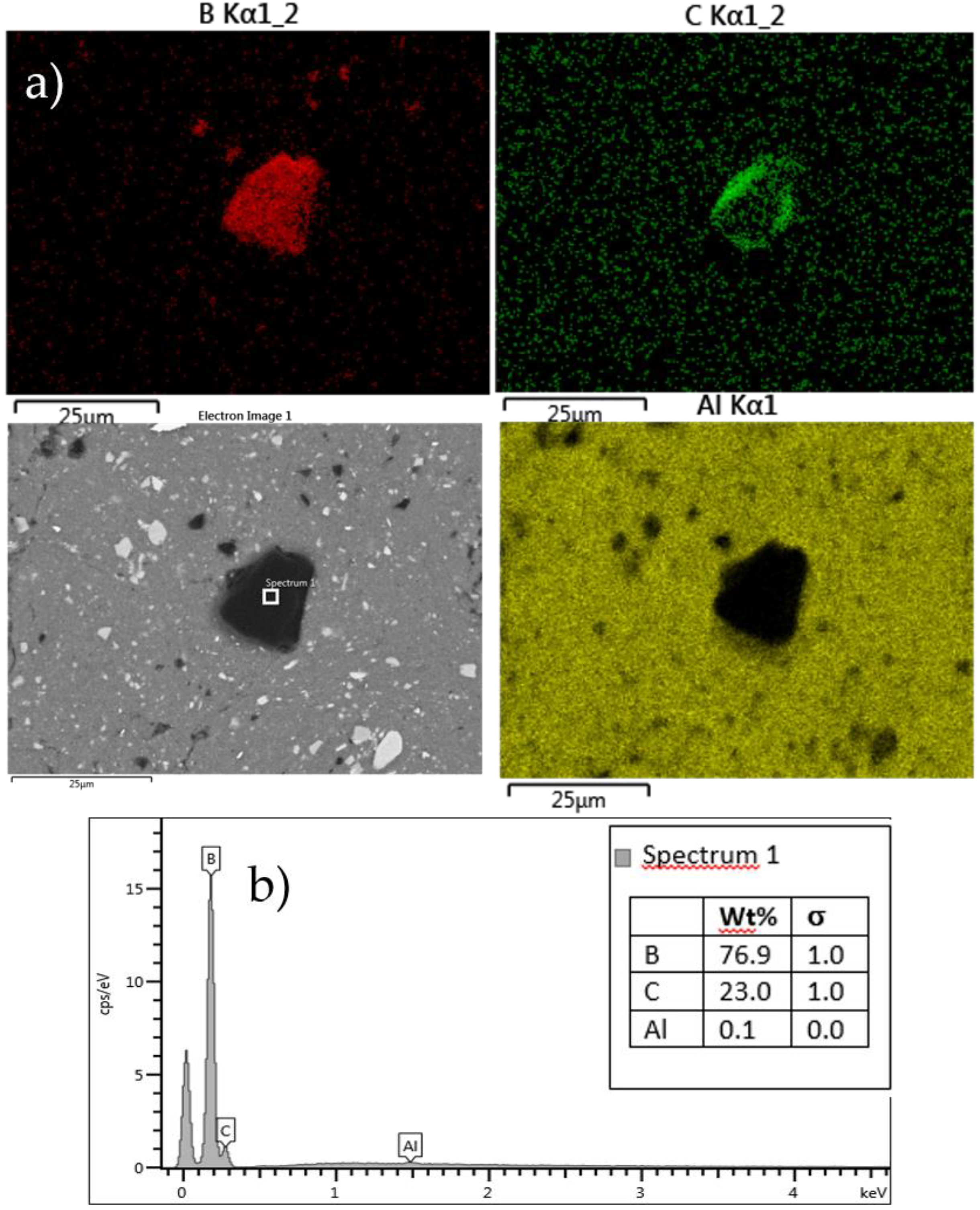

Figure 5. (a) scanning electron microscope-energy dispersive spectroscopy (SEM-EDS) mapping analysis of the Al2024-2.0 wt.% B4C milled for 2 h; (b) EDS analysis of a B4C particle.

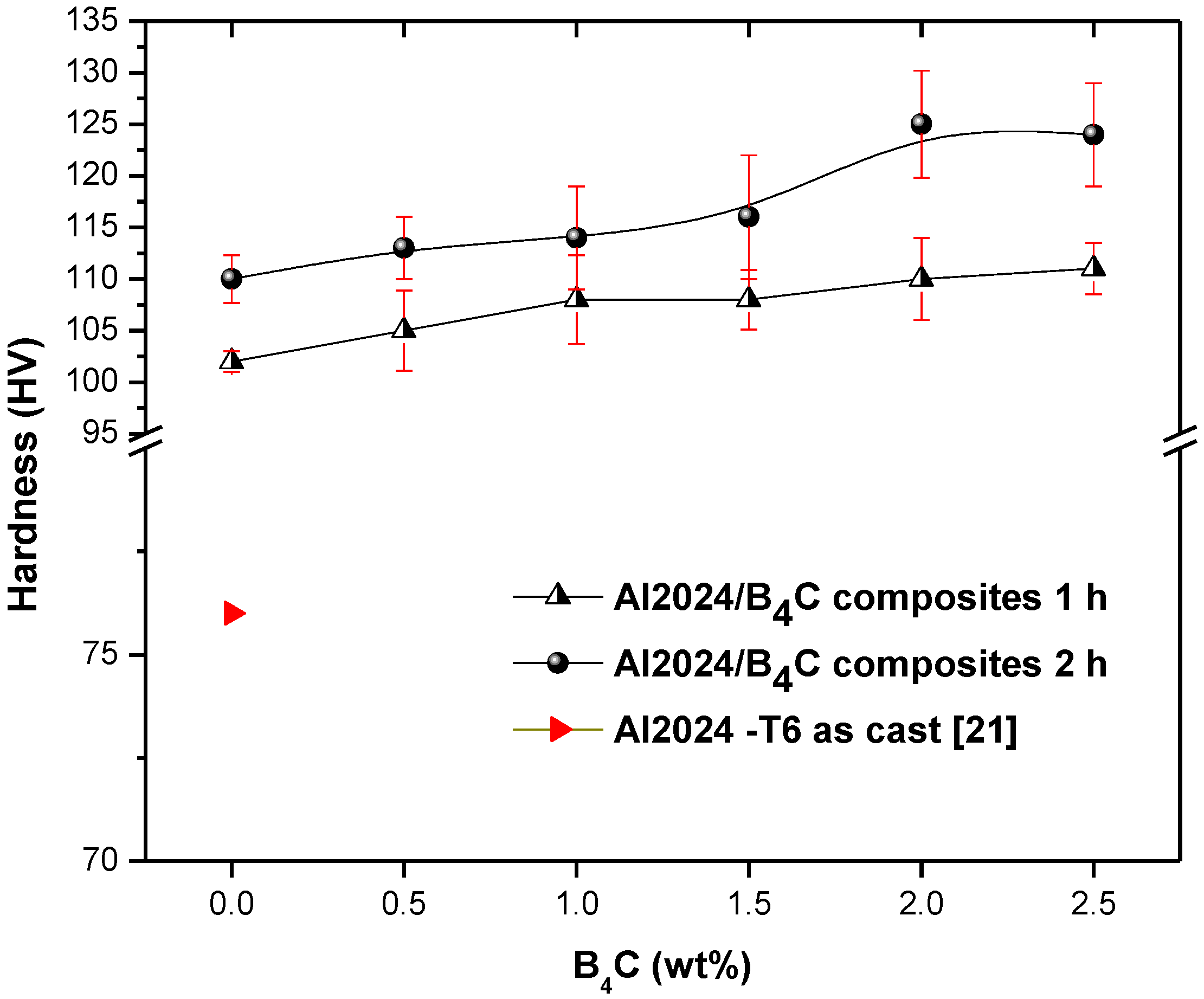

Figure 6. Effect of the B4C content and milling time on the microhardness of the Al2024/B4C composites.

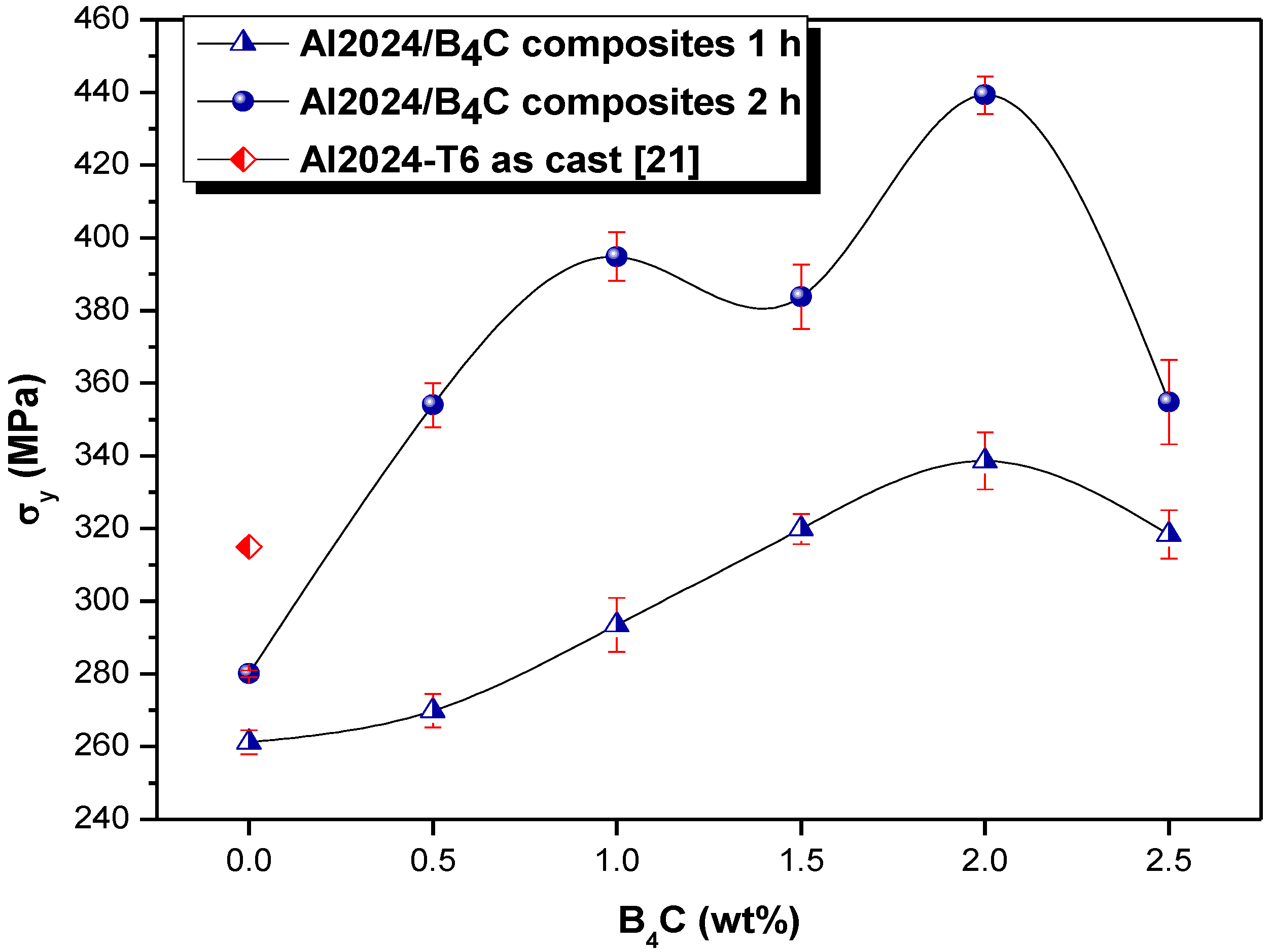

Figure 7. Yield strength (σy) as a function of the B4C content and milling time.
Figure 8. Maximum strength (σmax) as a function of the B4C content and milling time.
Figure 9. (a) Fracture surface examination of the Al2024-2.0 wt.% B4C composite milled for 2 h; (b) B4C particles on the fractured surface and (c) Fracture dimples around the B4C particles.
