The Difference of Lamellar Structure Formation between Ti-45Al-5.4V-3.6Nb-Y Alloy and Ti-44Al-4Nb-4V-0.3Mo-Y Alloy

Abstract

In this study, the effect factors on the formation of lamellar structure for Ti-45Al-5.4V-3.6Nb-Y alloy and Ti-44Al-4Nb-4V-0.3Mo-Y alloy is discussed in detail. During heat treatment in different procedures, temperature was the common factor influencing the formation of lamellar structures of Ti-45Al-5.4V-3.6Nb-Y and Ti-44Al-4Nb-4V-0.3Mo-Y alloys. In the range of 1230 °C and 1300 °C, the volume fraction of lamellar structure in Ti-45Al-5.4V-3.6Nb-Y alloy was proportional to the annealing temperature. However, between 1210 °C and 1260 °C, the volume fraction of lamellar structure in Ti-44Al-4Nb-4V-0.3Mo-Y alloy deceased when temperature was located in the α + γ + β triple phase field and then increased when temperature was in the α + β binary phase field. Besides the influence of temperature, the lamellar structure formation of Ti-44Al-4Nb-4V-0.3Mo-Y alloy was also affected by the β-phase stabilizing element.

1. Introduction

TiAl based alloys are attractive for use in advanced propulsion systems for aircraft and also in automobile engine parts, due to the combination of low density, high specific strength, high specific stiffness, good creep strength up to 700 °C, and better high temperature oxidation resistance than titanium alloys [1,2,3,4]. However, low room temperature ductility and poor formability limit their extensive application [5,6]. During the last decades, considerable efforts have been devoted to improving their room temperature ductility and formability and some typical TiAl alloys and components have been developed by optimizing the composition and processing routes. By means of reducing Al content and adding β-phase stabilizing elements, β-solidifying TiAl alloy is designed to solidify via the solidification path as L→β→α…. instead of the L + β→α peritectic solidification path. This kind of alloy reportedly attains adequately balanced mechanical properties via conventional manufacturing routes and heat treatments due to the enlarged processing window [7,8]. As a typical β-solidifying TiAl alloy, TNM alloy has been isothermally forged into blades for the engine PW1134G [9].

Lamellar structure is a main and essential component for TiAl based alloys, regardless of whether they are in as-cast or hot-working (hot forging, hot extrusion, or hot rolling) conditions [2,5,10,11]. Furthermore, lamellar structure with small grain size is currently regarded as the most attractive microstructure for a TiAl alloy, due to the excellent combination of yield strength, ductility, fracture toughness, and creep resistance [12,13]. It is commonly acknowledged that the lamellar structure of traditional TiAl alloy is the product of the transformation of α→α₂ + γ, α→α₂→α₂ + γ or α→α + γ→α₂ + γ [14,15]. However, unlike the traditional TiAl alloy which only consists of α₂-phase and γ-phase at room temperature, a β-solidifying TiAl alloy is composed of α/α₂-, β/β₀-, and γ-phases at room temperature. The formation mechanism of lamellar structure is reasonably influenced by β/β₀-phase and β-phase stabilizing elements. Therefore, the heat treatment to obtain fully (α₂ + γ) lamellar structure is different for the two kinds of TiAl alloy. As a β-solidifying TiAl alloy, Ti-44Al-6Nb-2Mo-Y alloy is reported to produce fully lamellar structure through short term annealing at temperatures slightly above β-transus, instead of annealing in the single α phase field (the typical fully lamellar treatment for peritectic solidification TiAl alloy) [16]. Thus, the formation of lamellar structure of β-solidifying TiAl alloy is complicated and affected by multiple factors. Therefore, it is essential to understand the lamellar structure formation of the β-solidifying TiAl alloy and to study the effect of β/β₀-phase on the formation of lamellar structure.

In this study, two β-solidifying TiAl alloys, Ti-45Al-5.4V-3.6Nb-Y and Ti-44Al-4Nb-4V-0.3Mo-Y alloy, were adopted. The lamellar microstructure and formation characteristics of the two alloys were studied carefully. Moreover, by comparing the formation of lamellar structure in Ti-45Al-5.4V-3.6Nb-Y and Ti-44Al-4Nb-4V-0.3Mo-Y alloy, the influence factors were discussed and the dominant factor was revealed.

2. Experimental Procedure

Ingots of Ti-44Al-4Nb-4V-0.3Mo-Y and Ti-45Al-5.4V-3.6Nb-Y alloy were fabricated by induction skull melting (ISM) technique and subsequently followed by hot isostatic pressing (HIP) at 1200 °C for 3 h under a pressure of 130 MPa in argon atmosphere. Cylindrical blanks with dimensions of ø60 mm × 100 mm were cut from the Ti-45Al-5.4V-3.6Nb-Y cast ingot by electric-discharge machining and then canned in 304 stainless steel tubes with a thickness of 10 mm. The canned blank was forged by two-step forging at 1250 °C with a strain rate of 0.05 s⁻¹. The total reduction of the canned blank was about 80%.

Heat treatment specimens with a dimension of 10 × 10 × 10 mm³ were cut using an electrical-discharge method from the ingots of Ti-44Al-4Nb-4V-0.3Mo-Y alloy and from the center of the forging cake of Ti-45Al-5.4V-3.6Nb-Y. A vacuum tube-type heat treatment furnace was used to study the formation of lamellar structure for current β-solidifying TiAl alloys. Water quenching was adopted to investigate the high-temperature phase composition of Ti-44Al-4Nb-4V-0.3Mo-Y alloy. The specimens were heat treated at different temperature for 2 h and then water quenched (WQ) or furnace cooled (FC).

The microstructural characterization was performed by Quanta 200 FEG and Tescan MRIA3 field-emission scanning electron microscopy (SEM) using backscattered electrons mode (BSE). The chemical composition of local area was detected by SEM equipped with an energy dispersive X-Ray spectroscopy (EDS). Five images per condition were analyzed to obtain the mean value. Microstructural specimens were mechanical grounded and electro-polished. Electro-polishing was implemented at −19 V and −45 °C and the electrolyte was a solution of 6% perchloric acid +34% butanol +60% methanol.

3. Results and Discussion

3.1. Ti-45Al-5.4V-3.6Nb-Y Alloy

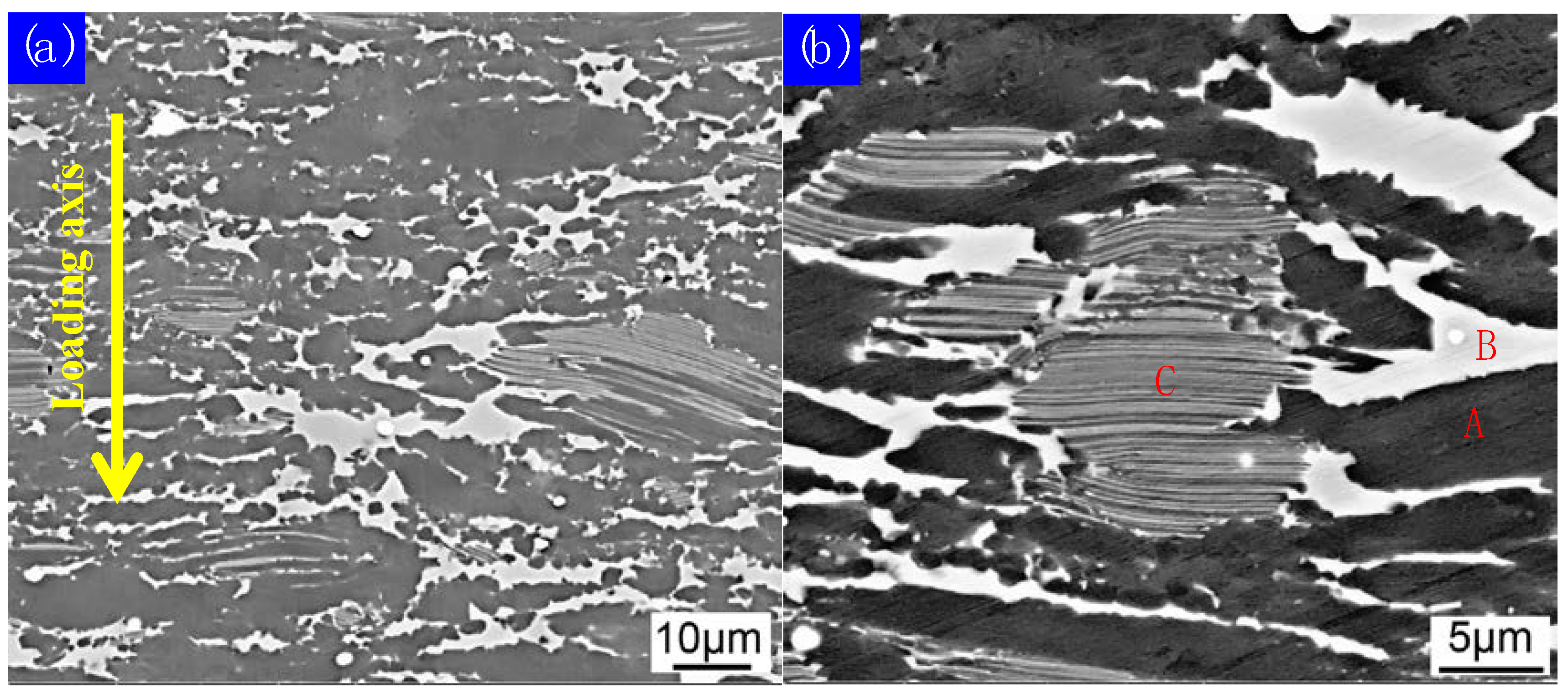

It is a common consensus that the lamellar structure is the result of the transformation α→α₂→L (α₂/γ) in both conventional solidification and β-solidifying TiAl alloys (L indicates lamellae), regardless of their processing conditions [14,15]. The microstructure of as-forged Ti-45Al-5.4V-3.6Nb-Y alloy is shown in Figure 1. As a typical β-solidifying TiAl alloy, after hot forging in (α + γ + β) three-phase field at 1250 °C, its microstructure consisted of γ-phase, β/β₀-phase, and lamellar structure. The microstructure with streamline can be clearly seen in Figure 1a, which is perpendicular to the deformation orientation. The orientation of lamellar structure was rotated to vertical with the deformation axis and β/β₀-phases were elongated along the streamline. Furthermore, some of the elongated β/β₀-phases were broken into small particles. It is noticeable that there was no single α₂-phase in this as-forged structure. This can be mainly attributed to the transformation into lamellar structure (α₂/γ) from α-phase during the subsequent cooling process. EDS analysis of the local area as marked in Figure 1b is summarized in

Table 1. EDS analysis of Figure 1.

Position	Ti (at.%)	Al (at.%)	V (at.%)	Nb (at.%)	Y (at.%)
A	42 ± 0.63	50 ± 0.75	4 ± 0.12	4 ± 0.15	00.00
B	46 ± 0.78	39 ± 0.36	10 ± 0.23	4 ± 0.33	00.00
C	45 ± 0.55	46 ± 0.69	5 ± 0.18	4 ± 0.26	00.00

. As can be seen, Ti element and β-phase stabilizing elements V and Nb mainly segregated in β/β₀-phase and α₂-phase, while Al element was enriched in γ-phase. As revealed in the literature [17], the segregation of β-phase stabilizing elements in β/β₀-phase is more serious than α/α₂-phase. So positions A, B and C in Figure 1b can be clarified as the single γ-phase, single β/β₀-phase and (α₂ + γ) lamellar structure, respectively.

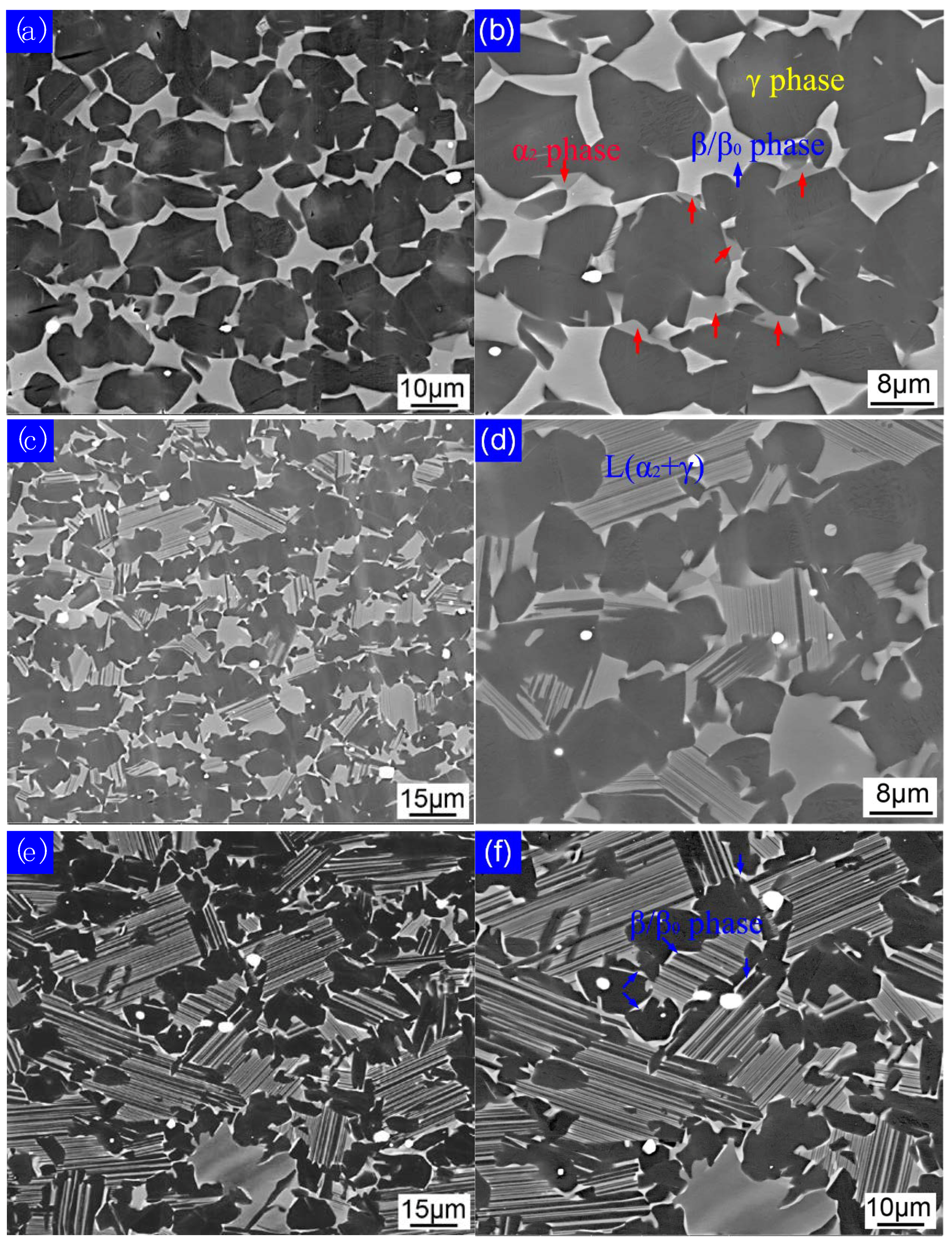

The as-forged specimen was annealed at 1230 °C for 2 h with FC and the annealed microstructure is shown in Figure 2. The microstructure exhibited the typical near-gamma feature, mainly consisting of equiaxed γ-phase and β/β₀-phase. As illustrated in Figure 2b, there was a small amount of α₂-phase which always distributed around β/β₀-phase (α₂-phase is marked by small red arrows). It was revealed that the annealed structure at 1230 °C was composed of γ-, α₂-, and β/β₀-phase, without lamellar structure. This means that α-phase transformed into its ordered state of α₂-phase rather than the lamellar structure, even though the cooling rate was slow. With the rise of anneal temperature, the furnace cooled microstructure changed dramatically. As shown in Figure 2c,d, after annealing at 1260 °C, the single α₂-phase is instead of (α₂ + γ) lamellar structure. When anneal temperature increased to 1300 °C, the microstructure transformed to the duplex structure (illustrated in Figure 2e,f. However, it should be noted that the duplex structure at 1300 °C still contained β/β₀-phase, which mainly distributed on the interface of lamellar colony and γ grain (β/β₀-phase is marked by blue arrows in Figure 2f)). When anneal temperature increased from 1230 °C to 1300 °C, the fraction of β/β₀-phase deceased and α-phase fraction (α phase decomposed into lamellar structure at 1260 °C and 1300 °C) increased.

As reported, α-phase could decompose into lamellar structure during slow cooling process [18]. However, as shown in Figure 2a,b, the microstructure of the as-forged alloy annealed at 1230 °C, followed by furnace cooling consisting of α₂-phase, β/β₀-phase, and γ-phase, without lamellar structure. As a disorder to order transition, the energy needed for the α→α₂ phase transformation was smaller than that of the α₂→α₂ + γ precipitation transition. Therefore, in view of the energy analysis, heat treatment at 1230 °C did not meet the energy requirements of α₂→α₂ + γ. In addition, the diffusion and solution of alloying elements were additional influence factors. First, at 1230 °C, the solubility of Al element in α-phase is lower, which did not satisfy the concentration for the precipitation of γ-phase during cooling. Furthermore, with the low temperature, the diffusion coefficient appeared to be smaller. Then the heat treatment temperature at 1230 °C was too low to improve the diffusion of Al element. In total, the lower energy, lower solution of Al in α-phase, and smaller diffusivity of Al are the main reasons that α-phase ordered into α₂-phase rather than transforming into lamellar structure at 1230 °C. When temperature was elevated to 1260 °C or even higher, the higher diffusivity of Al promoted the nucleation and growth of γ-phase. Meanwhile, the higher temperature may have contributed to the supersaturation of α-phase, then facilitated the precipitation of γ-phase in α₂-phase reasonably. So the microstructure component of 1260 °C and 1300 °C contained a significant amount of lamellar structure and the volume fraction of lamellar structure increased with the temperature elevation.

3.2. Ti-44Al-4Nb-4V-0.3Mo-Y Alloy

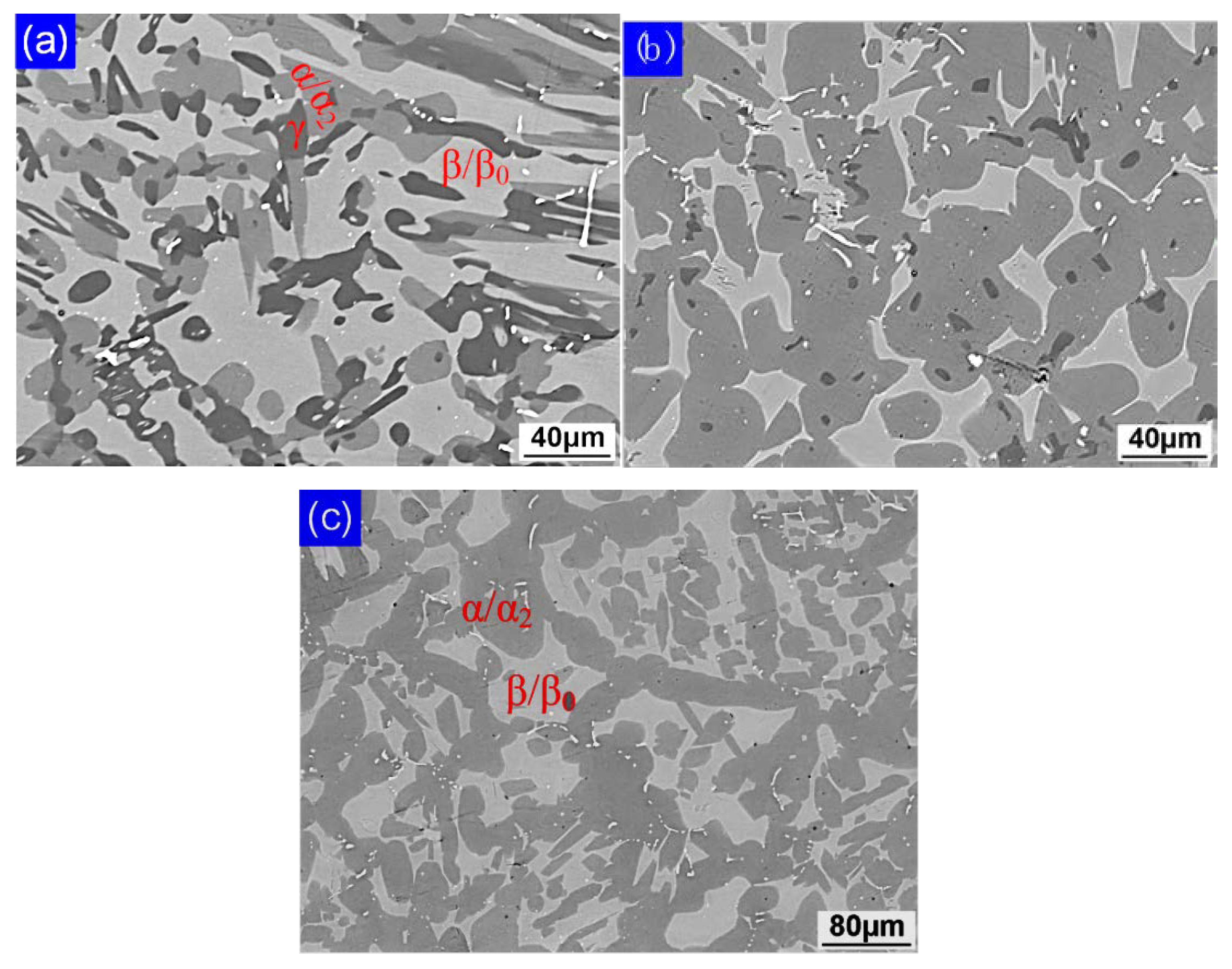

The as-cast microstructure of Ti-44Al-4Nb-4V-0.3Mo-Y alloy is shown in Figure 3, which consisted of lamellar structure, β/β₀ + γ block structure, and β/β₀ + γ pearlite-like structure. The as-cast microstructure of Ti-44Al-4Nb-4V-0.3Mo-Y alloy with less lamellar structure and more mixture structure of β/β₀-phase and γ-phase has been analyzed in previous research [14]. Due to the high content of β-stabilizer element, γ-phase discontinuously precipitated from β-phase, forming the mixture structure of β-phase and γ-phase. The microstructure of Ti-44Al-4Nb-4V-0.3Mo-Y alloy after annealing at 950 °C for 48 h is shown in Figure 3c,d. It is obvious that the as-annealed microstructure was mainly composed of γ-phase and β/β₀-phase.

According to the Ti-Al binary phase diagram [19], this Ti-44Al-4Nb-4V-0.3Mo-Y alloy solidified through the solidification path of L→L + β→β→β + α→β + α + γ→β + γ + α₂/γ, without the single α-phase field. As shown in Figure 4, after heat treatment at 1210 °C, the volume fraction of lamellar structure was 67%, while the volume fraction of lamellar structure decreased to 26% with temperature elevation to 1240 °C (the phase volume fraction was analyzed by Image J software, and 20 images per condition were used to obtain the mean value). The clear difference after heat treating at 1260 °C was that the volume fraction of lamellar structure increased to 87%. This indicated that the lamellar structure fraction of this beta-gamma TiAl alloy decreased as the temperature increased from 1210 °C to 1240 °C at first and then increased dramatically from 1240 °C to 1260 °C. This tendency differed from the β-solidifying TiAl alloy, whose lamellar structure fraction monotonically increased with elevated temperatures (as discussed in the prior section).

Due to the high content of β-stabilizing elements, such as Nb, Mo, and V, which are high melting point elements with high diffusion activation energy, the formation of lamellar structure in beta-gamma TiAl alloy was always influenced by β-stabilizing elements [20]. The slow diffusion of β-stabilizing elements and the difference of element distribution in β-, α-, and γ-phase were the main influence factors. The microstructure after heat treatment and water cooling is shown in Figure 5 and the volume fraction of γ-phase, α-phase, and β-phase is shown in Figure 6. When quenched from 1210 °C, which is located in the lower temperature region of α + β + γ triple phase field (as shown in Figure 7 [21]), the mean volume fraction of γ-phase, α-phase, and β-phase were 27.8%, 30.26%, and 41.2%, respectively. At this temperature, the transformation of α₂ + γ→α was the main phase transition. However, the transformed α-phase contained less β-stabilizing elements due to the high barrier of diffusing from β-phase to α phase at 1210 °C. Then the α→α₂ + γ transformation proceeded during cooling from 1210 °C, according to the solidification path.

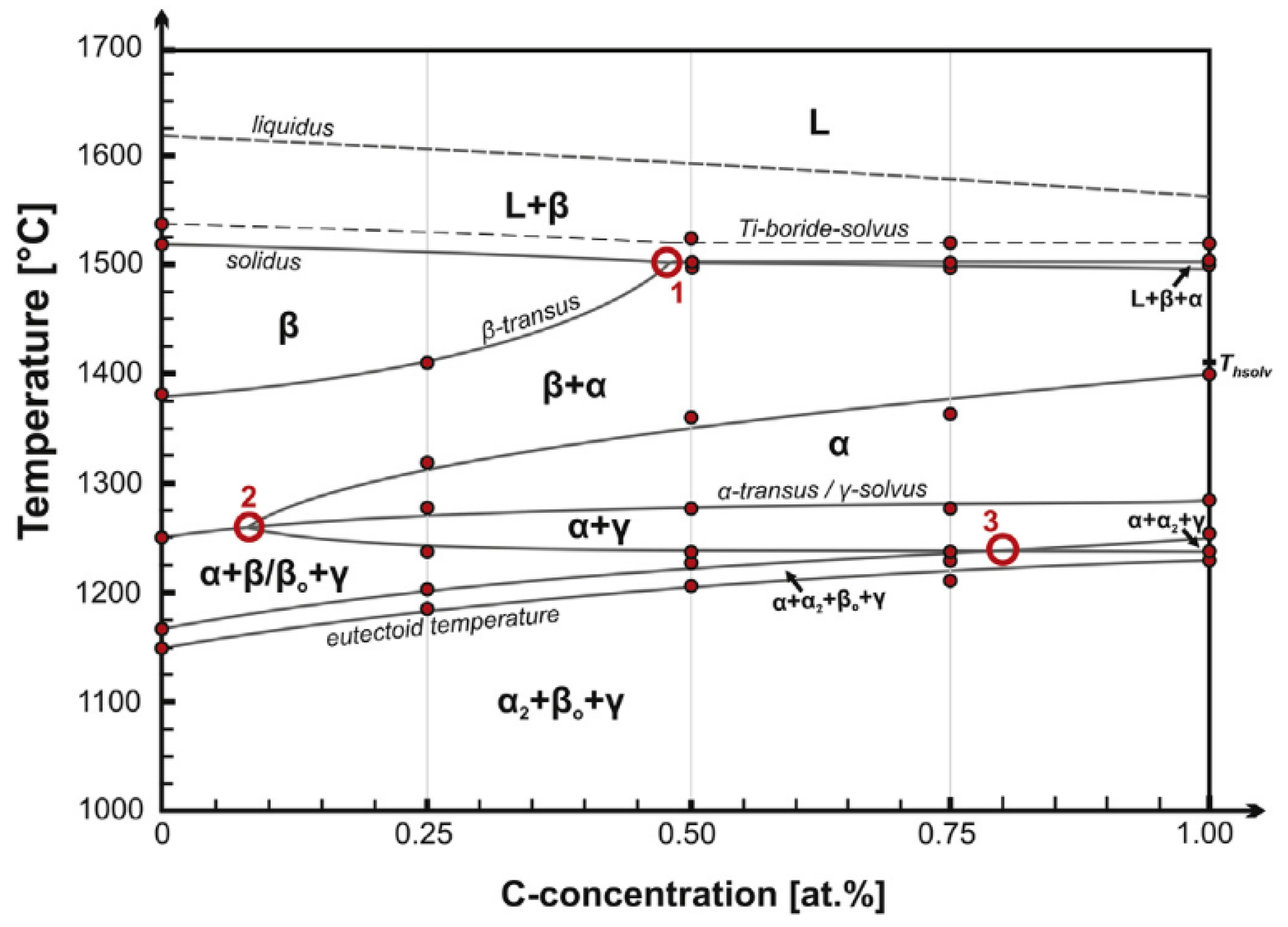

When temperature was elevated to 1240 °C, which was still located in the α + β + γ triple phase field (as shown in Figure 7), the mean volume fraction of α-phase increased to 69.7% and the mean volume fraction of γ-phase and β-phase decreased to 2.5% and 24.7%, respectively. When temperature increased to 1240 °C, apart from the transformation of α₂ + γ→α, the formation of α-phase on the β/γ-phase interface via the transition of β + γ→α appeared to be the major procedure. This phase transformation was strongly affected by the diffusibility of β-stabilizing elements. The high diffusion activation energy of these elements gave rise to the composition inhomogeneity of α-phase transformed through the reaction of β + γ→α. In other words, the part of α-phase close to β-phase contained more β-phase stabilizing elements, while more Al segregated in the opposite side of α-phase, which is adjacent to γ-phase. Such inhomogeneity of the β-phase stabilizing element and Al in α-phase resulted in the formation of β/β₀ + γ structure again, rather than lamellar structure, during the subsequent cooling process. This phenomenon appeared to be similar to the “wetting” of grain boundary by the second solid phase [22,23,24]. In Ti-Fe polycrystals, the α(Ti, Fe)-phase formed either continuous or discontinuous layers in the β(Ti, Fe)/β(Ti, Fe) grain boundaries (GBs), corresponding to complete or incomplete (or partial) GB wetting [21]. With the increasing anneal temperature, the thickness of continuous GB layer of α(Ti, Fe)-phase increased monotonously. So too does the portion of completely wetted β(Ti, Fe)/β(Ti, Fe) GBs. According to the literature, the increase of GB layer thickness is mainly attributed to the increasing bulk diffusion coefficient of iron in titanium, corresponding to the present work. Meanwhile, the transformation temperature of α→β + γ was higher than that of the transition of α→α₂ + γ. Then, with the temperature cooling down from 1240 °C to room temperature, the transformation of α→β + γ was prior to the transition of α→α₂ + γ. This resulted in a phenomenon in which a certain amount of α-phase, which was formed through γ→α transition, would decompose into β/β₀ + γ. This is why the volume fraction of the lamellar structure at 1240 °C was lower than that of 1210 °C (shown in Figure 4).

With temperature increasing to 1260 °C (α + β two phase field), as shown in Figure 5c and Figure 6, γ-phase was almost consumed. The mean volume fraction of α-phase decreased to 65.5%, while the β-phase volume fraction increased to 33.9%. Then, α-phase decomposed into (α₂ + γ) lamellar structure during the cooling process and most of the β-stabilization elements were ejected to the interface of lamellar colonies and β-phase. Afterward, the β-phase transformed to β + γ structure with temperature cooling down to α + γ + β triple-phase field. In a word, it was critical that temperature should be elevated into α + β binary-phase field or even higher to form the (α₂ + γ) lamellar structure. Due to the influence of β-stabilizing elements, heat treatment in α + γ + β triple-phase field for obtaining lamellar structure was hard to accomplish. This corresponds to the literature [16] published by Niu, who reported that the full lamellar structure of beta-gamma TiAl alloy without single α-phase can be gained through heat treatment in single β-phase field.

4. Conclusions

In this study, the formation of lamellar structure in as-forged Ti-45Al-5.4V-3.6Nb-Y and as-cast Ti-44Al-4Nb-4V-0.3Mo-Y alloy was investigated. From the obtained results, the following conclusions could be drawn:

• As a typical β-solidifying TiAl alloy, the as-forged microstructure of Ti-45Al-5.4V-3.6Nb-Y alloy is composed of γ-phase, β/β₀-phase, and lamellar structure. The lamellar structure formation is influenced monotonically by temperature, when heat treated at different temperatures with the same holding time. At 1230 °C, the annealed structure consists of α₂-phase, β/β₀-phase, and γ phase, without lamellar structure. When the anneal temperature is elevated to 1260 °C, lamellar structure becomes one of components of the furnace cooled microstructure, instead of the single α₂-phase. When the temperature is increased to 1300 °C, the microstructure changes to duplex structure, with more lamellar structure visible. The amount of lamellar structure increases with the increase of anneal temperature from 1260 °C to 1300 °C.
• Ti-44Al-4Nb-4V-0.3Mo-Y alloy has no α single-phase field in its solidification path. Different to the Ti-45Al-5.4V-3.6Nb-Y alloy, the formation of lamellar structure of Ti-44Al-4Nb-4V-0.3Mo-Y alloy is not only affected by the heat treatment temperature but also affected by β-phase stabilizing elements. When heat treatment temperature is elevated from 1210 °C to 1240 °C, the lamellar structure fraction decreases dramatically. However, a totally different tendency can be observed when temperature increases from 1240 °C to 1260 °C, which is that the volume fraction of lamellar structure clearly increases. Therefore, the heat treatment temperature, the segregation, and diffusivity of β-phase stabilizing elements are the main factors on the lamellar structure formation of Ti-44Al-4Nb-4V-0.3Mo-Y alloy.
