# Neural Network Modeling for the Extraction of Rare Earth Elements from Eudialyte Concentrate by Dry Digestion and Leaching

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

_{4}(Ca, Ce, Fe)

_{2}ZrSi

_{6}O

_{17}(OH, Cl)

_{2}, but the component of the mineral may be sometimes different because of the zeolite crystal structure, which possesses ion-exchange properties of eudialyte [20,21].

_{2}SO

_{4}. It was found that dry digestion with high concentrated HCl benefits the extraction of REE and prevents gel formation. The recommended concentration of HCl to decompose the eudialyte concentrate is 10 mol/L [24].

## 2. Theoretical Background

#### 2.1. Multiple Linear Regression

#### 2.2. Stepwise Regression

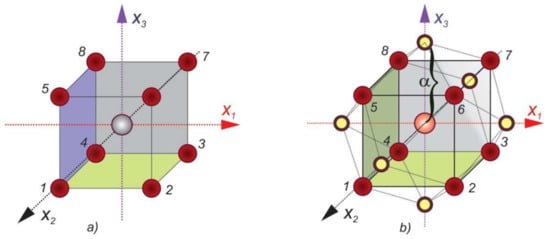

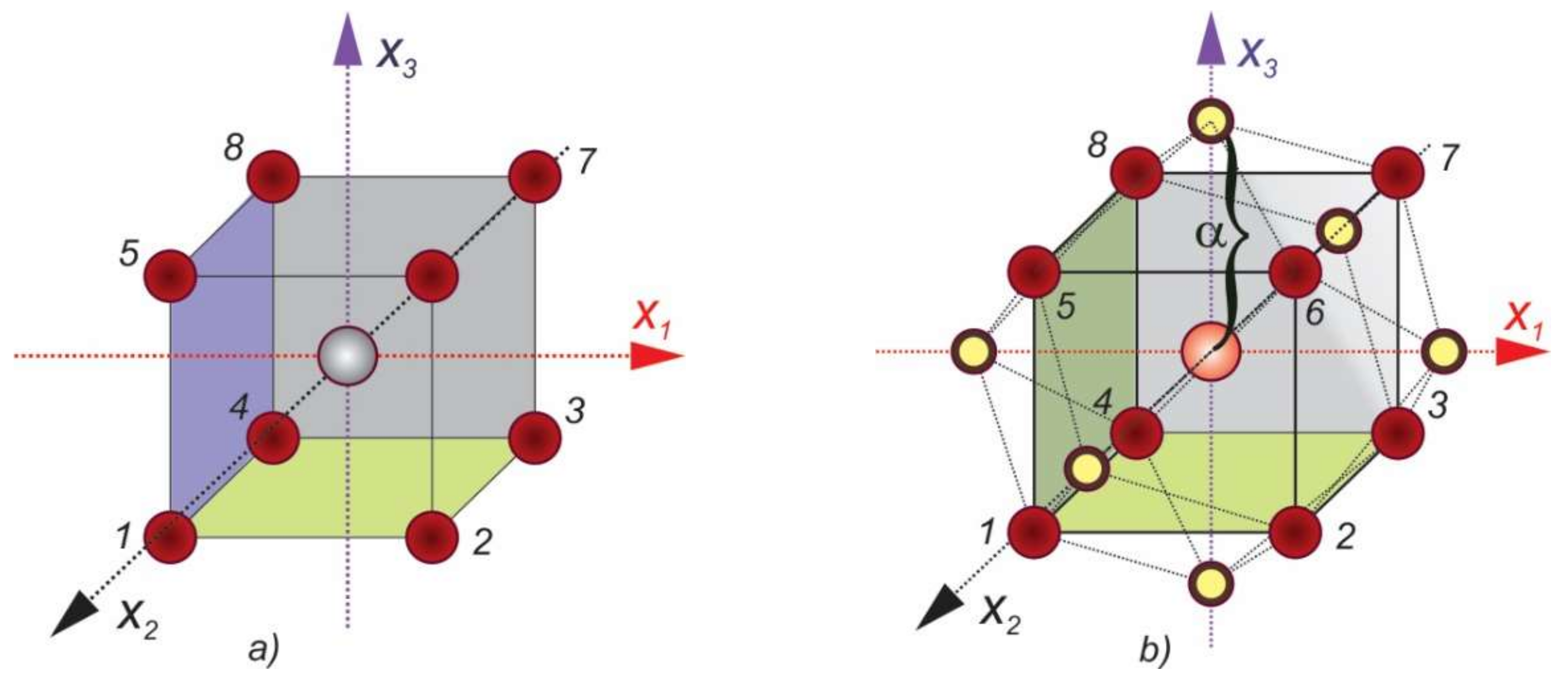

#### 2.3. Design of Experiments

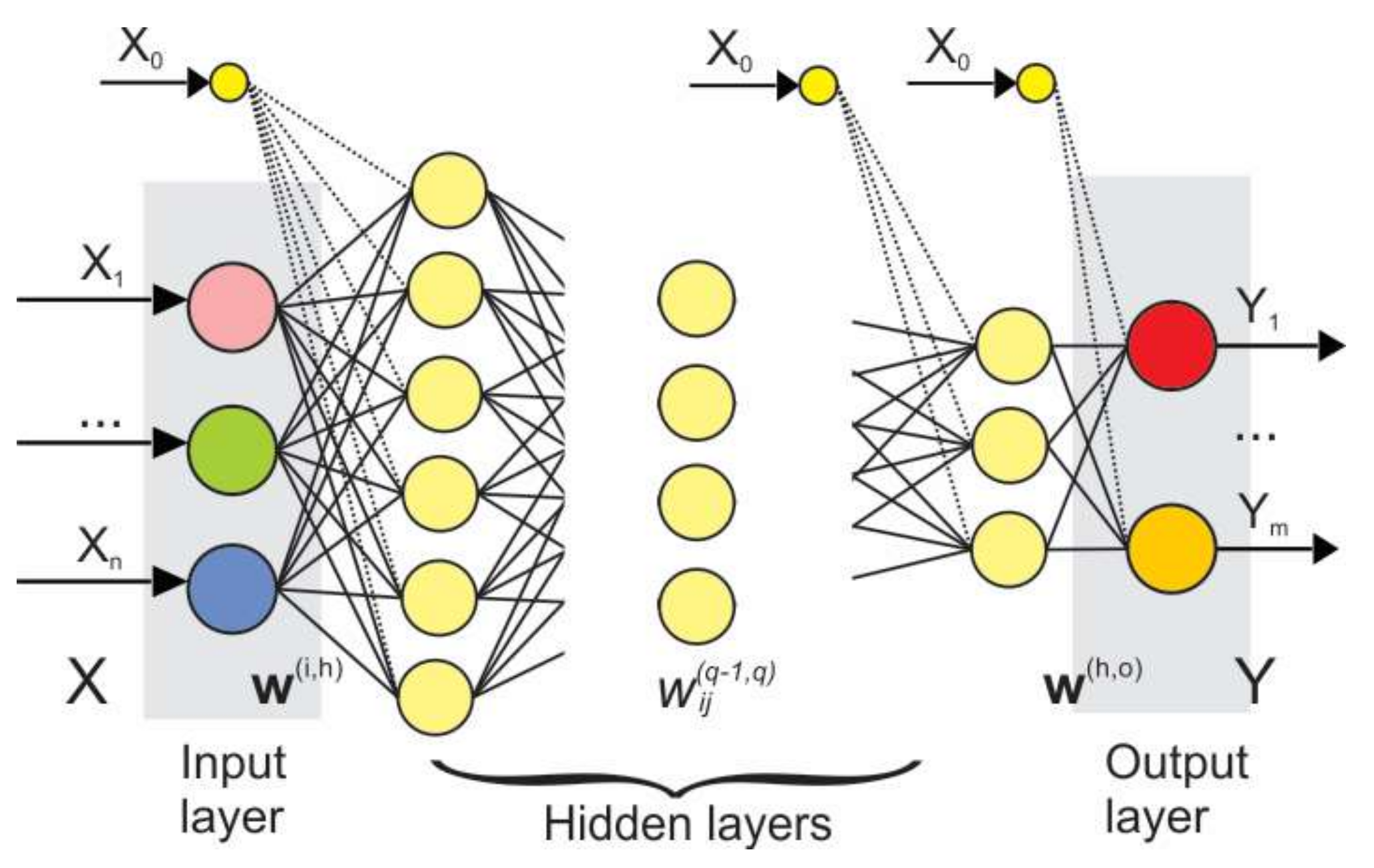

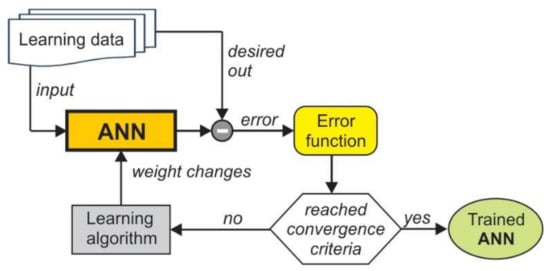

#### 2.4. Artificial Neural Network

## 3. Materials and Methods

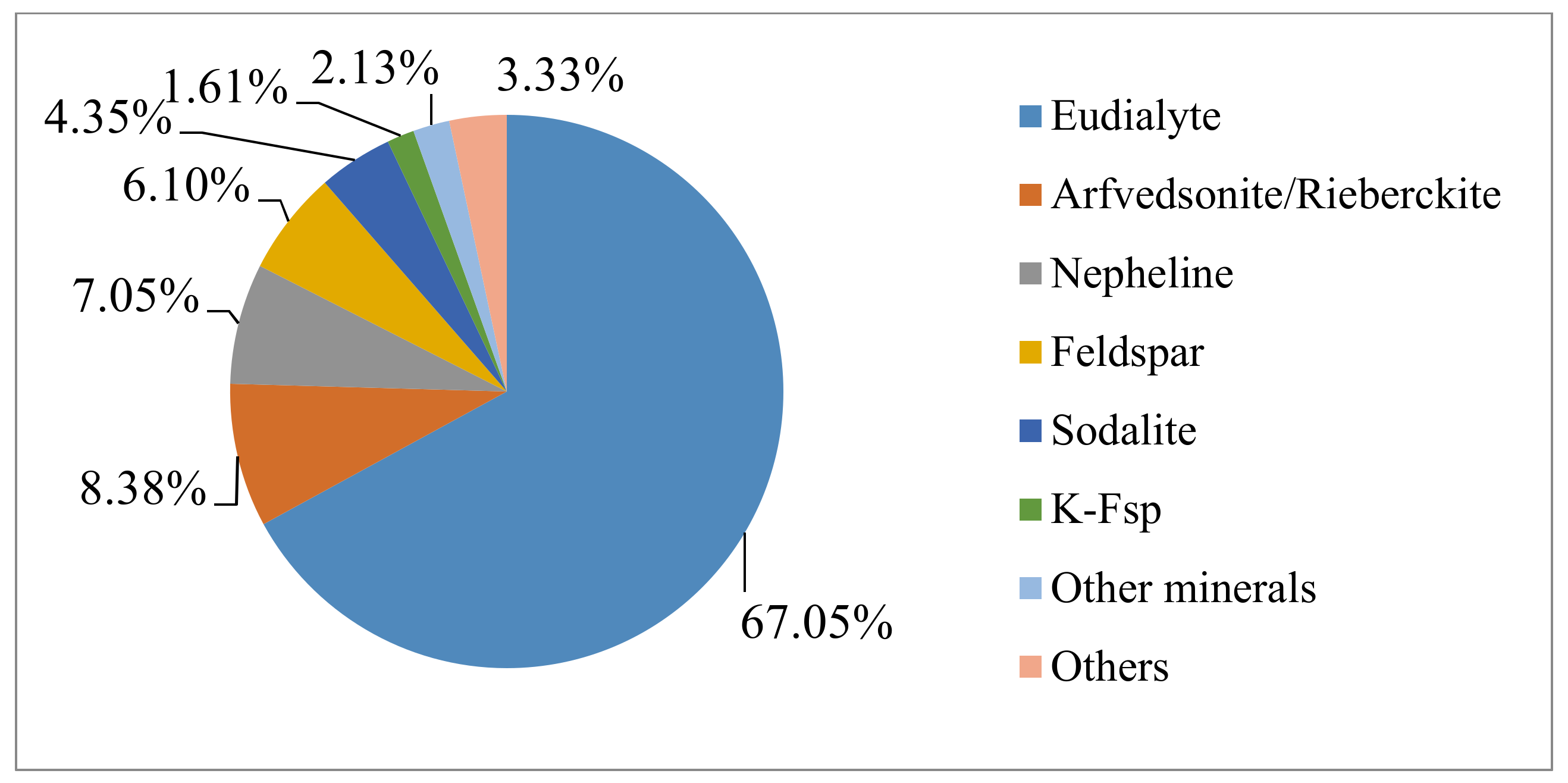

#### 3.1. Material and Analysis

#### 3.2. Extraction Procedure

## 4. Experiments and Obtained Measurements of Process Outputs

## 5. Model Setup and Results

#### 5.1. Process Modeling in MLR Form

- (a)
- first order multiple linear regression$$y={b}_{0}+{\displaystyle \sum _{i=1}^{k}{b}_{i}}\xb7{x}_{i}$$
- (b)
- first order multiple linear regression with interaction effects$$y={b}_{0}+{\displaystyle \sum _{i=1}^{k}{b}_{i}}\xb7{x}_{i}+{\displaystyle \sum _{i=1}^{k-1}{\displaystyle \sum _{j=i+1}^{k}{b}_{ij}}\xb7{x}_{i}\xb7{x}_{j}+{\displaystyle \sum _{i=1}^{k-2}{\displaystyle \sum _{j=k+1}^{k-1}{\displaystyle \sum _{l=j+1}^{k}{b}_{ijl}\xb7}{x}_{i}\xb7{x}_{j}\xb7{x}_{k}}}}$$

_{2}O (variable $c{\mathrm{H}}_{2}\mathrm{O}$) rise, and that the maximum values of extraction are around 90%. Furthermore, TREE extraction efficiency increases with the extension of time from 20 min. (Figure 7a), to 60 min. (Figure 7b). Although the model is in the form of a hyperplane (7), i.e., (8), adequate (${F}_{rLF}=3.9<{F}_{t}=4$), it can be observed that the process is characterized by high levels of noise, which is indicated by the standard error ($s(y)=3.458072$). For this standard error value, it is relatively easy to perform proof of adequacy. In addition to the above, although the model (8) is adequate, its accuracy is very low, as can be seen from the value of its parameters: the coefficient of multiple determination (${R}^{2}=0.433$), the adjusted coefficient of multiple determination (${R}_{adj}^{2}=0.244$), and root mean squared error, which is calculated in total for all of the experiments, is $RMSE=4.668$.

#### 5.2. Modeling with Stepwise Regression

^{2}= 0.194481, 0.411

^{2}= 0.168921). This further extends the understanding of the significance of the observed regressors, and the sum of Part usually differs from ${R}_{adj}^{2}$ due to existence of joint effects.

#### 5.3. Modeling with ANN

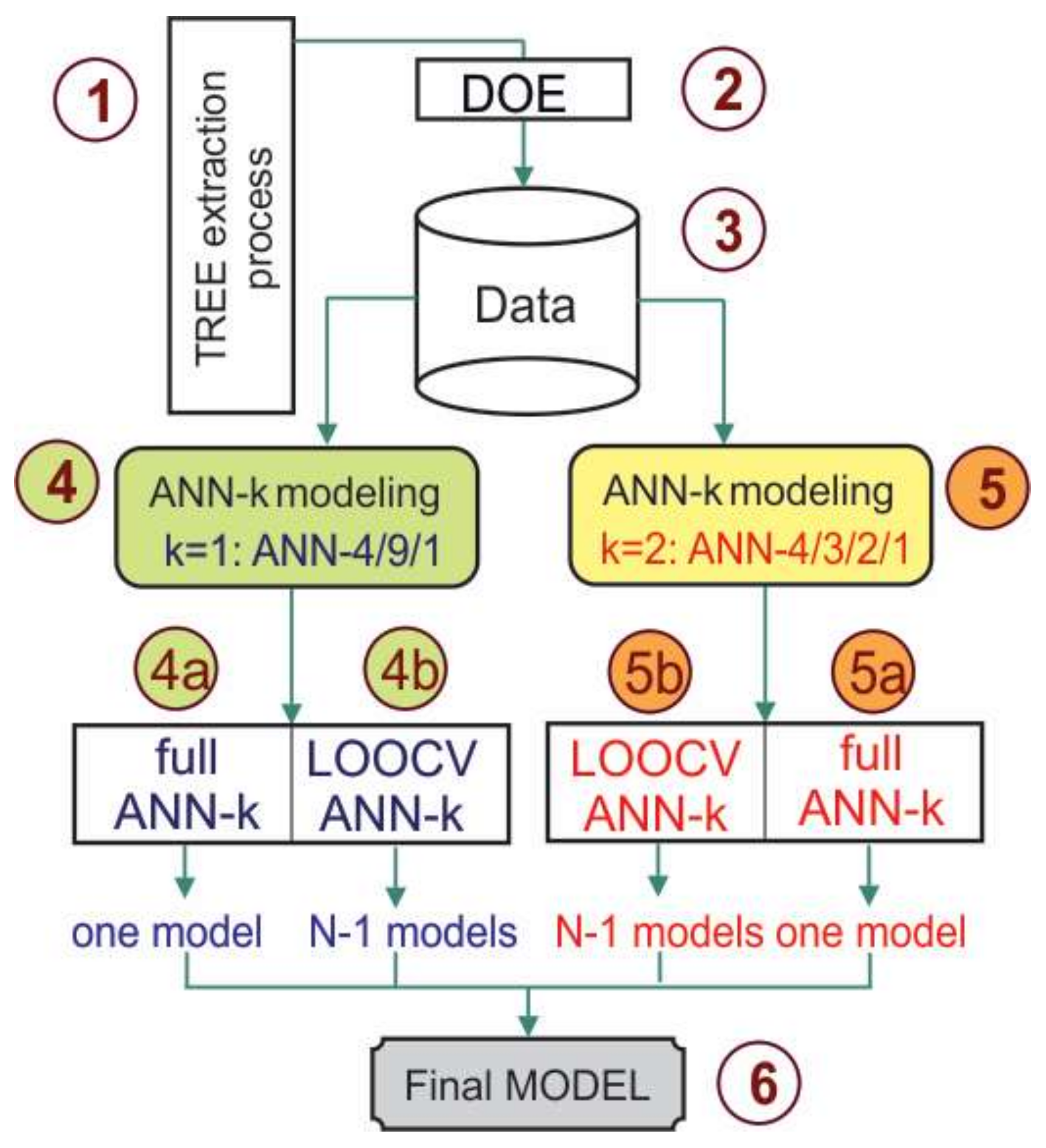

#### 5.3.1. ANN Modeling of TREE Extraction Based on LOO CV

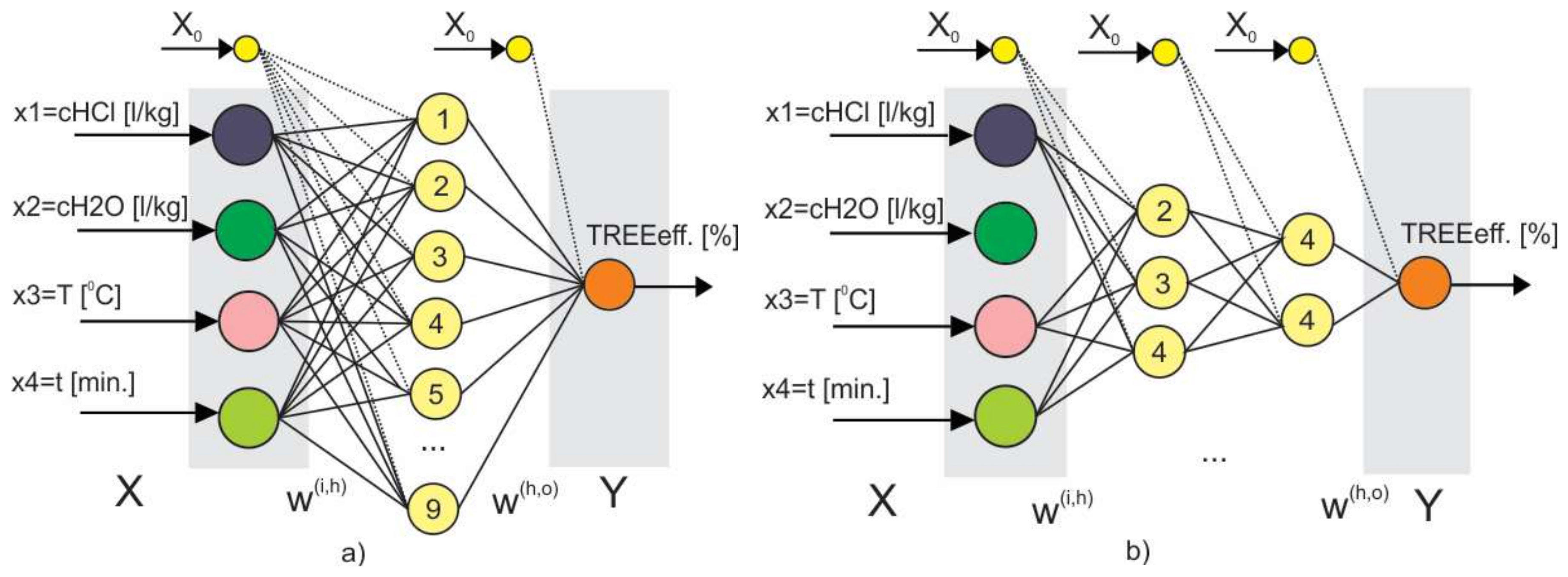

_{k}

_{=1}(4a) and Full ANN

_{k}

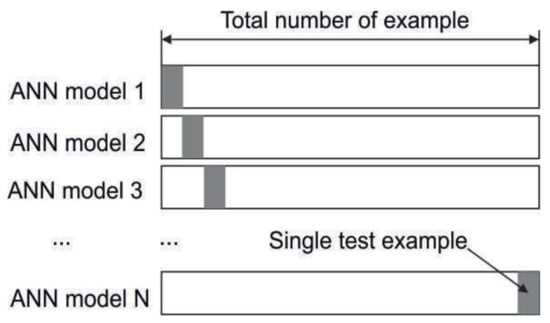

_{=2}(5a) were created on the basis of all 17 input/output pairs, where the 17th pair corresponds to the average measurement at the central point of the experimental plan (A17, Table 2). These models represent ANN models, which selected network architectures can generate. In addition, both network architectures (4) and (5) generate 16 ANN models (N − 1 = 16), based on the LOO CV strategy. Leave-one-out Cross validation is a model validation method, which is described in detail in [48]. For very sparse datasets, as in our research, LOO CV can be used in order to train the ANN on the largest possible number of examples. For a dataset with N examples, N ANN models are trained. For each model, N − 1 examples are used for learning (training) and the remaining example for ANN testing (Figure 11).

_{k}

_{=1}(4b) and LOO CV ANN

_{k}

_{=2}(5b) each generated 16 ANN models, as mentioned earlier. Therefore, for ANN LOO CV modeling, only one sample is in the test dataset, but its exclusion from the training dataset significantly influences the ANN model’s form. Due to space, as an example, Figure 12 shows only a few ANN models that were obtained during ANN LOO CV modeling.

#### 5.3.2. Simulation and Prediction Based on ANN Models

## 6. Validation of the Model and Scale-up

#### 6.1. Validation of REE Extraction Model and Obtained Optimal Process Regimes

_{ANN}= 1.65. The obtained results confirmed the adequacy of the adopted ANN model, which was the basis for selecting the optimal regime of the REE extraction technological procedure on the scale-up level.

#### 6.2. Dry Digestion and Leaching Process Scale-Up

## 7. Discussion

#### 7.1. REE Extraction Modeling and Optimal Regimes

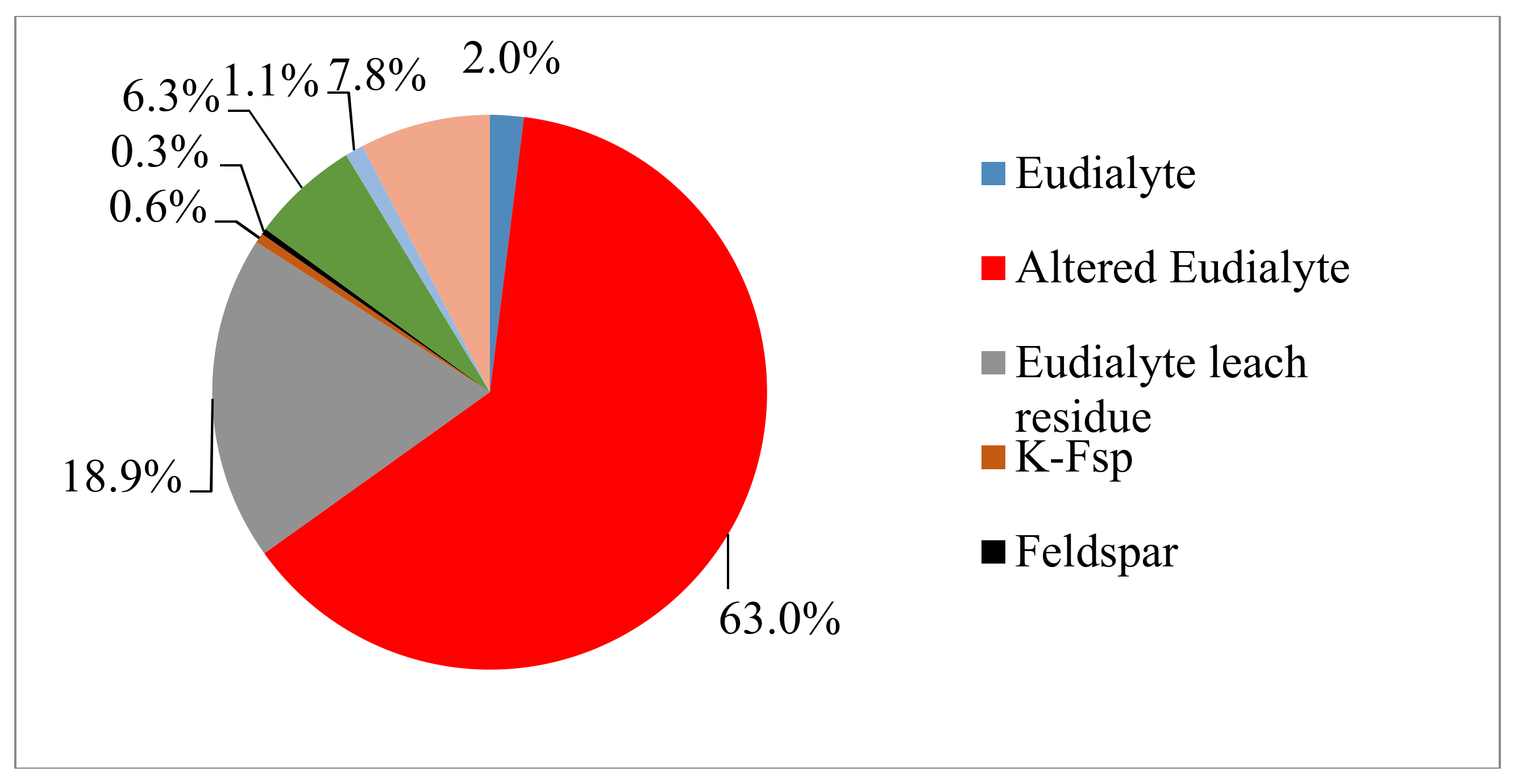

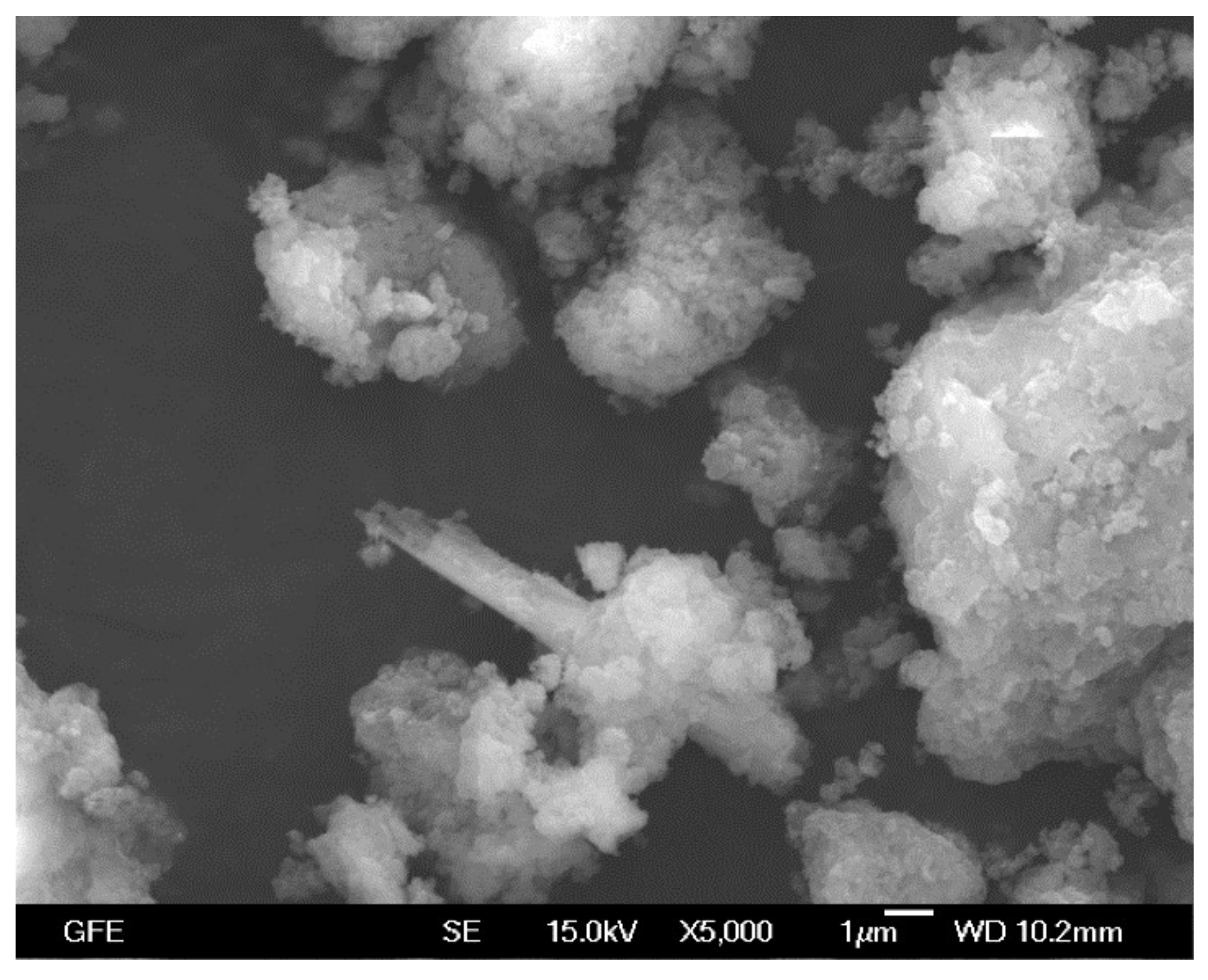

#### 7.2. Phase Changes during REE Extraction

## 8. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Thomas, P.J.; Carpenter, D.; Boutin, C.; Allison, J.E. Rare earth elements (REEs): Effects on germination and growth of selected crop and native plant species. Chemosphere
**2014**, 96, 57–66. [Google Scholar] [CrossRef] [PubMed] - Morais, C.A.; Ciminelli, V.S.T. Process development for the recovery of high-grade lanthanum by solvent extraction. Hydrometallurgy
**2004**, 73, 237–244. [Google Scholar] [CrossRef] - Maestro, P.; Huguenin, D. Industrial applications of rare earths: Which way for the end of the century? J. Alloys Compd.
**1995**, 225, 520–528. [Google Scholar] [CrossRef] - Krishnamurthy, N.; Gupta, C.K. The Rare Earths, Extractive Metallurgy of Rare Earths; CRC Press: Boca Raton, FL, USA, 2015; pp. 1–84. [Google Scholar]
- Hoshino, M.; Sanematsu, K.; Watanabe, Y. REE mineralogy and resources. In Handbook on the Physics and Chemistry of Rare Earths; Elsevier: New York, NY, USA, 2016; Volume 49, pp. 129–291. [Google Scholar]
- McLemore, V.T. Rare earth elements (REE) deposits associated with great plain margin deposits (alkaline-related), southwestern united states and eastern mexico. Resources
**2018**, 7, 8. [Google Scholar] [CrossRef] - Möller, V.; Williams-Jones, A.E. A hyperspectral study (V-NIR-SWIR) of the Nechalacho REE-Nb-Zr deposit, Canada. J. Geochem. Explor.
**2018**, 188, 194–215. [Google Scholar] [CrossRef] - Alonso, E.; Sherman, A.M.; Wallington, T.J.; Everson, M.P.; Field, F.R.; Roth, R.; Kirchain, R.E. Evaluating rare earth element availability: A case with revolutionary demand from clean technologies. Environ. Sci. Technol.
**2012**, 46, 3406–3414. [Google Scholar] [CrossRef] [PubMed] - Golev, A.; Scott, M.; Erskine, P.D.; Ali, S.H.; Ballantyne, G.R. Rare earths supply chains: Current status, constraints and opportunities. Resour. Policy
**2014**, 41, 52–59. [Google Scholar] [CrossRef] - Goodenough, K.; Schilling, J.; Jonsson, E.; Kalvig, P.; Charles, N.; Tuduri, J.; Deady, E.; Sadeghi, M.; Schiellerup, H.; Müller, A. Europe’s rare earth element resource potential: An overview of REE metallogenetic provinces and their geodynamic setting. Ore Geol. Rev.
**2016**, 72, 838–856. [Google Scholar] [CrossRef] - Balomenos, E.; Davris, P.; Deady, E.; Yang, J.; Panias, D.; Friedrich, B.; Binnemans, K.; Seisenbaeva, G.; Dittrich, C.; Kalvig, P. The EURARE project: Development of a sustainable exploitation scheme for Europe’s Rare Earth Ore deposits. Johns. Matthey Technol. Rev.
**2017**, 61, 142–153. [Google Scholar] [CrossRef] - García, M.V.R.; Krzemień, A.; Del Campo, M.Á.M.; Álvarez, M.M.; Gent, M.R. Rare earth elements mining investment: It is not all about China. Resour. Policy
**2017**, 53, 66–76. [Google Scholar] [CrossRef] - Torró, L.; Proenza, J.; Aiglsperger, T.; Bover-Arnal, T.; Villanova-de-Benavent, C.; Rodríguez-García, D.; Ramírez, A.; Rodríguez, J.; Mosquea, L.; Salas, R. Geological, geochemical and mineralogical characteristics of REE-bearing Las Mercedes bauxite deposit, Dominican Republic. Ore Geol. Rev.
**2017**, 89, 114–131. [Google Scholar] [CrossRef] - Edahbi, M.; Benzaazoua, M.; Plante, B.; Doire, S.; Kormos, L. Mineralogical characterization using QEMSCAN
^{®}and leaching potential study of REE within silicate ores: A case study of the Matamec project, Québec, Canada. J. Geochem. Explor.**2018**, 185, 64–73. [Google Scholar] [CrossRef] - Mikhailova, J.; Pakhomovsky, Y.A.; Ivanyuk, G.Y.; Bazai, A.; Yakovenchuk, V.; Elizarova, I.; Kalashnikov, A. REE mineralogy and geochemistry of the Western Keivy peralkaline granite massif, Kola Peninsula, Russia. Ore Geol. Rev.
**2017**, 82, 181–197. [Google Scholar] [CrossRef] - Deymar, S.; Yazdi, M.; Rezvanianzadeh, M.R.; Behzadi, M. Alkali metasomatism as a process for Ti–REE–Y–U–Th mineralization in the Saghand Anomaly 5, Central Iran: Insights from geochemical, mineralogical, and stable isotope data. Ore Geol. Rev.
**2018**, 93, 308–336. [Google Scholar] [CrossRef] - Davris, P.; Stopic, S.; Balomenos, E.; Panias, D.; Paspaliaris, I.; Friedrich, B. Leaching of rare earth elements from eudialyte concentrate by suppressing silica gel formation. Miner. Eng.
**2017**, 108, 115–122. [Google Scholar] [CrossRef] - Borst, A.M.; Friis, H.; Andersen, T.; Nielsen, T.; Waight, T.E.; Smit, M.A. Zirconosilicates in the kakortokites of the Ilímaussaq complex, South Greenland: Implications for fluid evolution and high-field-strength and rare-earth element mineralization in agpaitic systems. Miner. Mag.
**2016**, 80, 5–30. [Google Scholar] [CrossRef] - Anthony, J.W.; Bideaux, R.A.; Bladh, K.W.; Nichols, M.C. Handbook of Mineralogy, Volume IV, Arsenates, Phosphates, Vanadates; Mineralogical Society of America: Chantilly, VA, USA, 2000. [Google Scholar]
- Johnsen, O.; Ferraris, G.; Gault, R.A.; Grice, J.D.; Kampf, A.R.; Pekov, I.V. The nomenclature of eudialyte-group minerals. Can. Miner.
**2003**, 41, 785–794. [Google Scholar] [CrossRef] - Zakharov, V.; Maiorov, D.; Alishkin, A.; Matveev, V. Causes of insufficient recovery of zirconium during acidic processing of lovozero eudialyte concentrate. Rus. J. Non-Ferr. Met.
**2011**, 52, 423–428. [Google Scholar] [CrossRef] - Lebedev, V. Sulfuric acid technology for processing of eudialyte concentrate. Rus. J. Appl. Chem.
**2003**, 76, 1559–1563. [Google Scholar] [CrossRef] - Lebedev, V.; Shchur, T.; Maiorov, D.; Popova, L.; Serkova, R. Specific features of acid decomposition of eudialyte and certain rare-metal concentrates from Kola peninsula. Rus. J. Appl. Chem.
**2003**, 76, 1191–1196. [Google Scholar] [CrossRef] - Voßenkaul, D.; Birich, A.; Müller, N.; Stoltz, N.; Friedrich, B. Hydrometallurgical processing of eudialyte bearing concentrates to recover rare earth elements via low-temperature dry digestion to prevent the silica gel formation. J. Sustain. Metall.
**2017**, 3, 79–89. [Google Scholar] [CrossRef] - Alkan, G.; Yagmurlu, B.; Cakmakoglu, S.; Hertel, T.; Kaya, Ş.; Gronen, L.; Stopic, S.; Friedrich, B. Novel Approach for Enhanced Scandium and Titanium Leaching Efficiency from Bauxite Residue with Suppressed Silica Gel Formation. Nat. Sci. Rep.
**2018**, 8, 5676. [Google Scholar] [CrossRef] [PubMed] - Vaccarezza, V.; Anderson, C. Beneficiation and Leaching Study of Norra Kärr Eudialyte Mineral; TMS Annual Meeting & Exhibition; Springer: Berlin, Germany, 2018; pp. 39–51. [Google Scholar]
- Rivera, R.M.; Ulenaers, B.; Ounoughene, G.; Binnemans, K.; Van Gerven, T. Extraction of rare earths from bauxite residue (red mud) by dry digestion followed by water leaching. Miner. Eng.
**2018**, 119, 82–92. [Google Scholar] [CrossRef] - Milivojevic, M.; Stopic, S.; Friedrich, B.; Stojanovic, B.; Drndarevic, D. Computer modeling of high-pressure leaching process of nickel laterite by design of experiments and neural networks. Int. J. Miner. Metall. Mater.
**2012**, 19, 584–594. [Google Scholar] [CrossRef] - Milivojevic, M.; Stopic, S.; Stojanovic, B.; Drndarevic, D.; Bernd, F. Forward stepwise regression in determining dimensions of forming and sizing tools for self-lubricated bearings. METALL
**2013**, 67, 92–98. [Google Scholar] - Mata, J. Interpretation of concrete dam behaviour with artificial neural network and multiple linear regression models. Eng. Struct.
**2011**, 33, 903–910. [Google Scholar] [CrossRef] - Cohen, J.; Cohen, P.; West, S.G.; Aiken, L.S. Applied Multiple Regression/Correlation Analysis for the Behavioral Sciences; Routledge: Abingdon, UK, 2013. [Google Scholar]
- Fisher, R.A. The Design of Experiments; Oliver and Boyd: Edinburgh, UK; London, UK, 1937. [Google Scholar]
- Box, G.E.; Wilson, K.B. On the experimental attainment of optimum conditions. In Breakthroughs in Statistics; Springer: Berlin, Germany, 1992; pp. 270–310. [Google Scholar]
- Dong, L.; Park, K.-H.; Zhan, W.; Guo, X.-Y. Response surface design for nickel recovery from laterite by sulfation-roasting-leaching process. Trans. Nonferr. Met. Soc. China
**2010**, 20, s92–s96. [Google Scholar] - Rumelhalt, D. Learning Internal Representation by Error Propogation, Parallel Distributed Processing: Explorations in the Microstructure of Cognition (Vol. 1); MIT Press: Cambridge, MA, USA, 1986. [Google Scholar]
- Drndarevic, D. Modeling and Optimization of Powder Metallurgy Process by Neural Networks. Ph.D. Thesis, University of Belgrade, Beograd, Serbia, 1996. [Google Scholar]
- Law, R. Back-propagation learning in improving the accuracy of neural network-based tourism demand forecasting. Tour. Manag.
**2000**, 21, 331–340. [Google Scholar] [CrossRef] - Majdi, A.; Beiki, M. Evolving neural network using a genetic algorithm for predicting the deformation modulus of rock masses. Int. J. Rock Mech. Min. Sci.
**2010**, 47, 246–253. [Google Scholar] [CrossRef] - Yu, Z. Feed-Forward Neural Networks and Their Applications in Forecasting; University of Houston: Houston, TX, USA, 2000. [Google Scholar]
- Heaton, J. Programming Neural Networks with Encog 3 in c#; Heaton Research, Inc.: St. Louis, MI, USA, 2015. [Google Scholar]
- Riedmiller, M.; Braun, H. A Direct Adaptive Method for Faster Backpropagation Learning: The RPROP algorithm. In Proceedings of the IEEE International Conference on Neural Networks, San Francisco, CA, USA, 28 March–1 April 1993; pp. 586–591. [Google Scholar]
- Riedmiller, M. Advanced supervised learning in multi-layer perceptrons—From backpropagation to adaptive learning algorithms. Comput. Stand. Interfaces
**1994**, 16, 265–278. [Google Scholar] [CrossRef] - Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv. 2014. arXiv.org e-Print archive. Available online: https://arxiv.org/abs/1412.6980 (accessed on 22 December 2014).
- Milivojević, M. Methods of Development and Adaptation of Regression Models Based on Genetic Algorithms. Ph.D. Thesis, University of Kragujevac, Kragujevac, Serbia, 2016. [Google Scholar]
- Pallant, J. SPSS Survival Manual, 3rd ed.; Mc Graw Hill: New York, NY, USA, 2007. [Google Scholar]
- Team, R. RR Development Core Team: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2012; ISBN 3-900051-07-0. [Google Scholar]
- Hecht-Nielsen, R. Kolmogorov’s mapping neural network existence theorem. In Proceedings of the International Conference on Neural Networks, San Diego, CA, USA, 21–24 June 1987; pp. 11–14. [Google Scholar]
- McCaffrey, J. Understanding and using K-fold cross validation for neural networks. Visual Studio Magazine, 24 October 2013. [Google Scholar]
- Sadri, F.; Nazari, A.M.; Ghahreman, A. A review on the cracking, baking and leaching processes of rare earth element concentrates. J. Rare Earths
**2017**, 35, 739–752. [Google Scholar] [CrossRef] - Krebs, D.; Furfaro, D. Processing of Rare Earth and Uranium Containing Ores and Concentrates. Patent WO 2014/082113 A1, 5 June 2014. [Google Scholar]

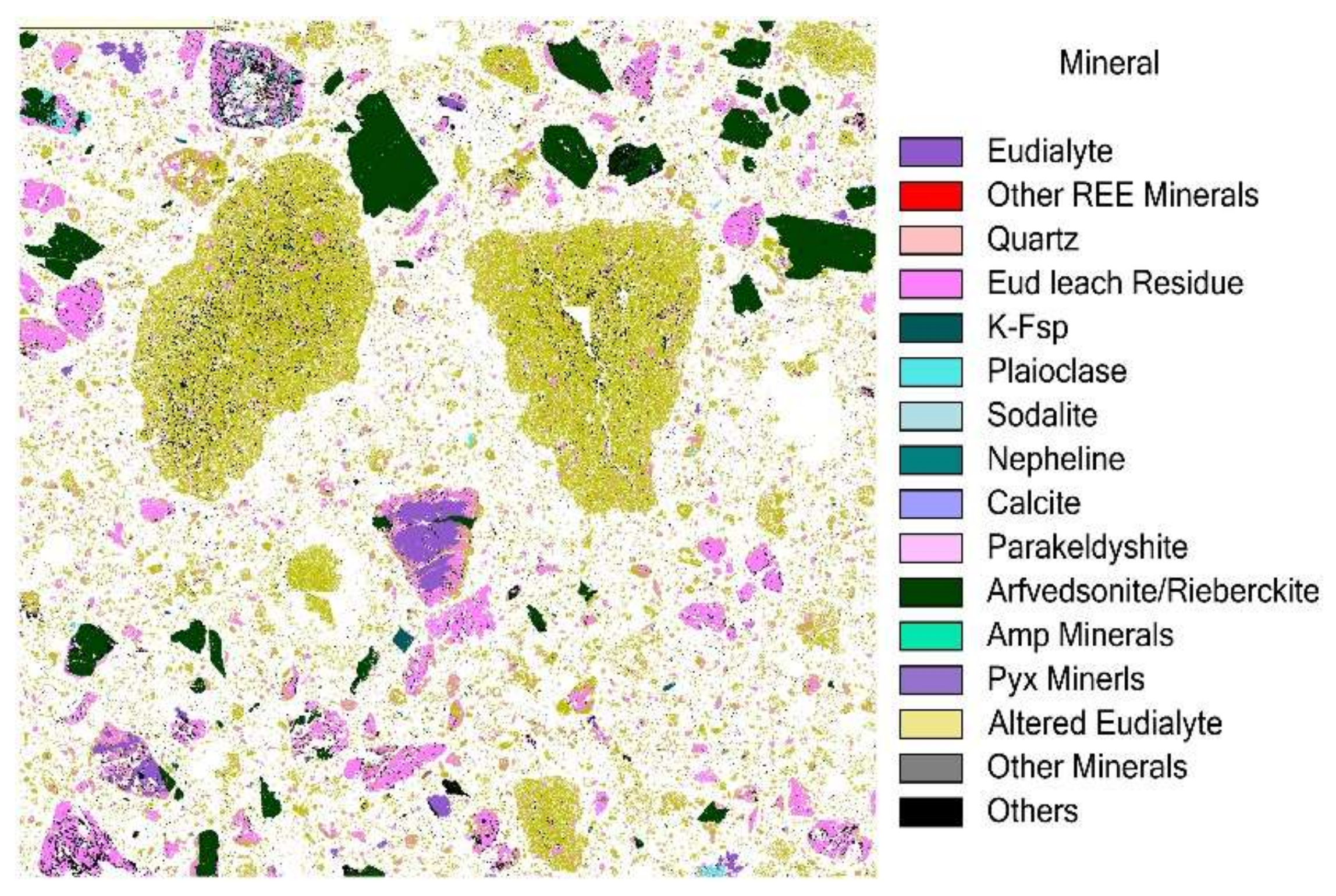

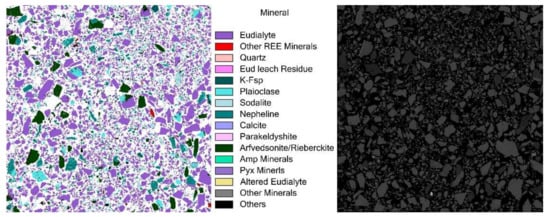

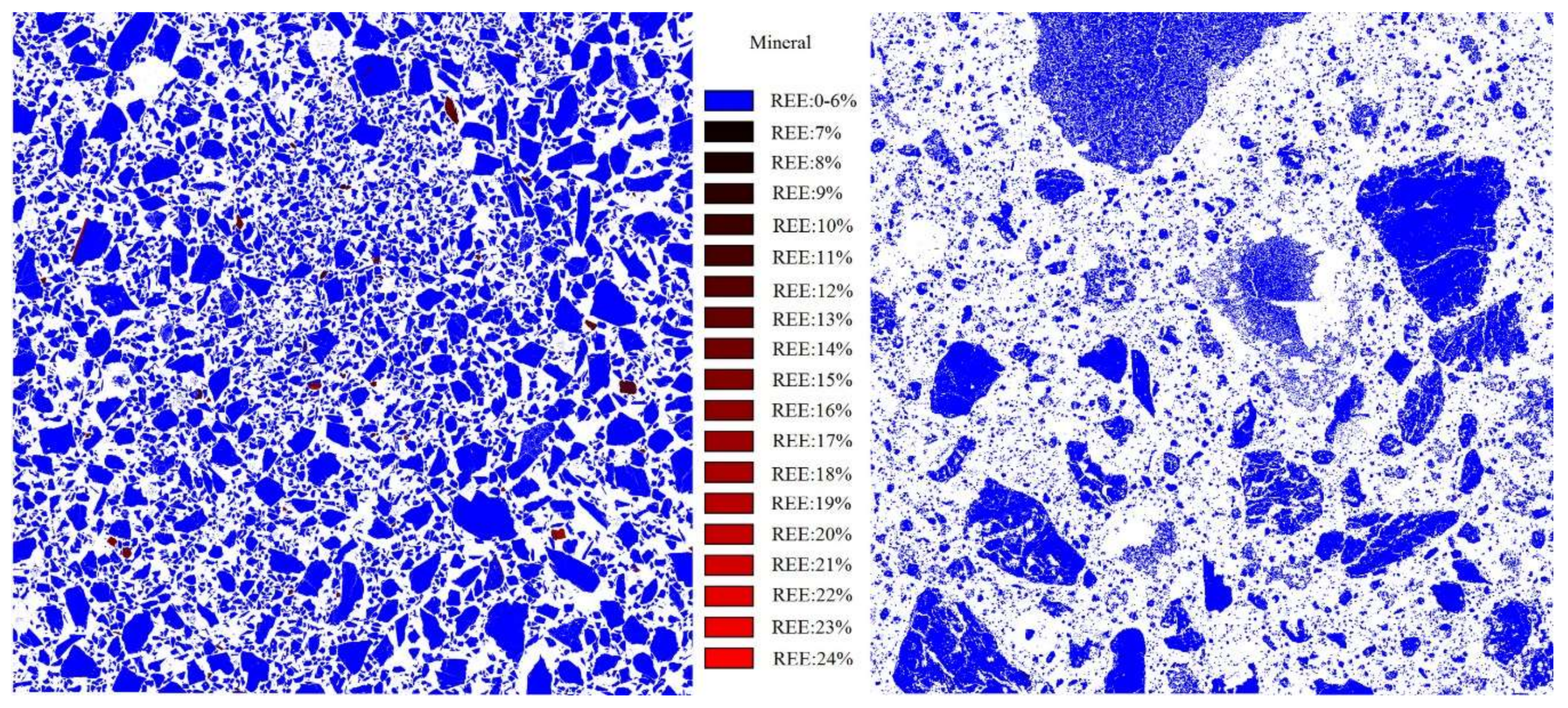

**Figure 4.**QEMSCAN analysis of eudialyte concentrate ((

**left**) false color image after evaluation, (

**right**) initial BSE-image).

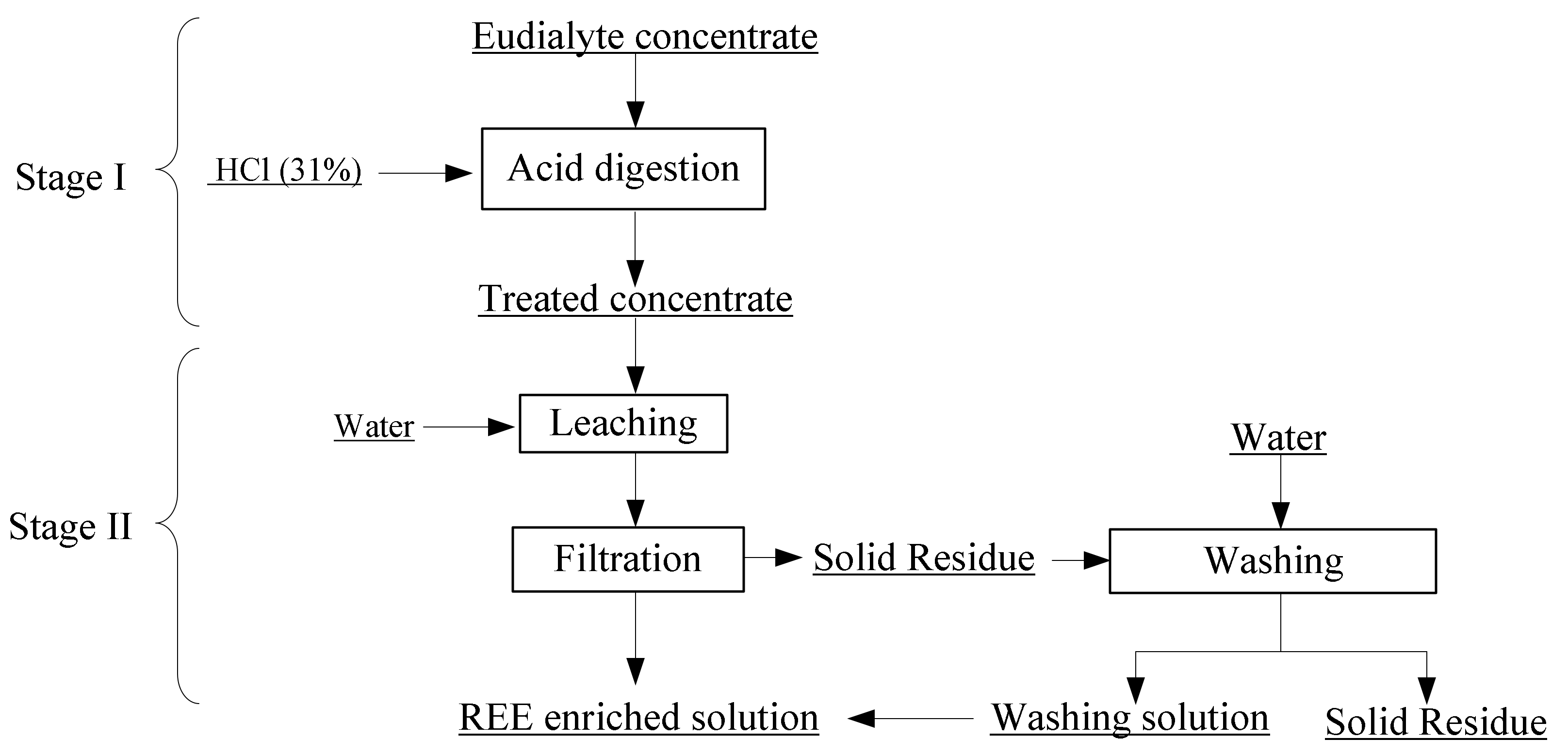

**Figure 6.**Proposed flowchart of the treatment of rare earth elements (REE) extraction from eudialyte concentrate.

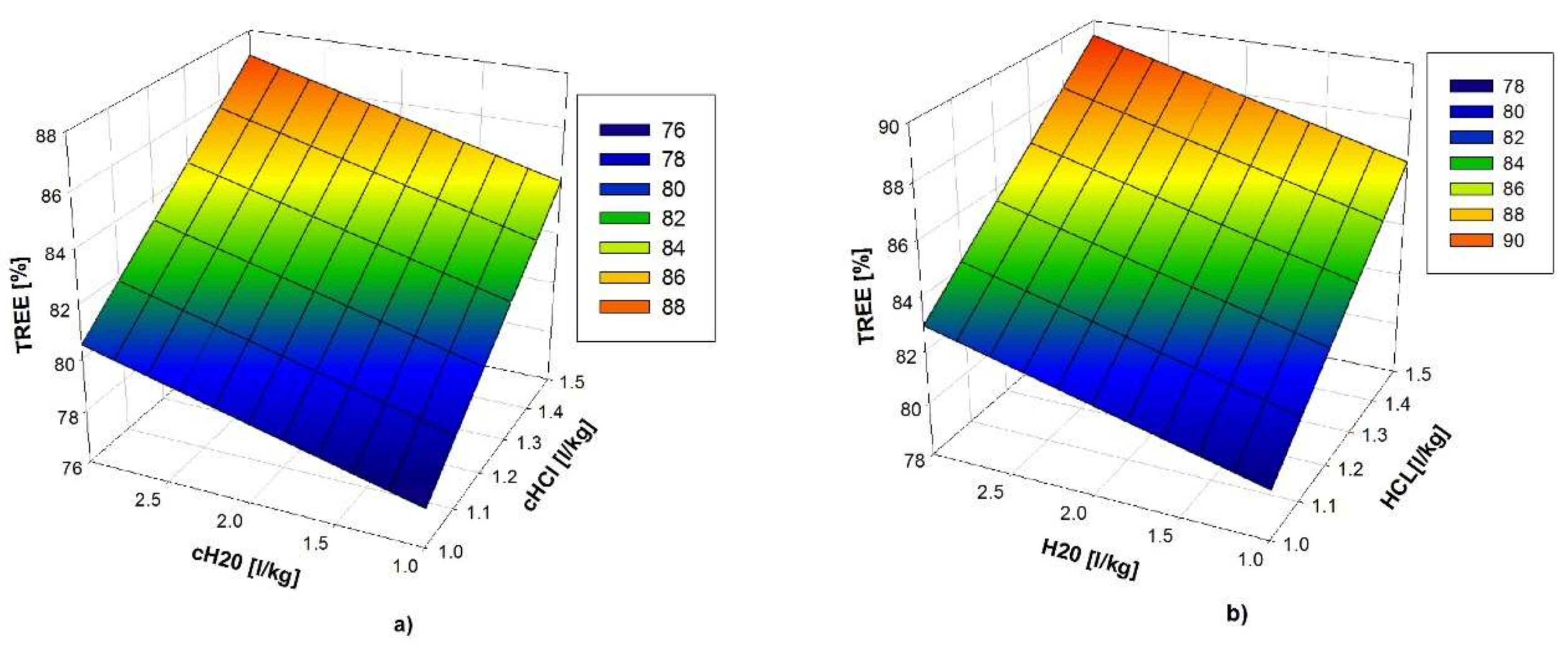

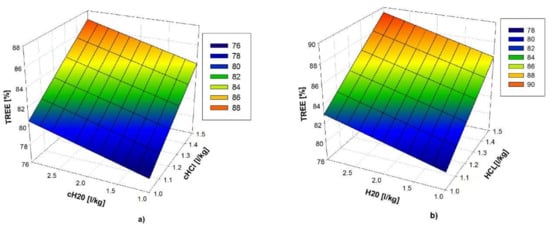

**Figure 7.**TREE

_{eff.}= f(cHCl, cH

_{2}O) for (

**a**) T = const. = 20 °C, t = const. = 20 min.; and, (

**b**) T = const. = 20 °C, t = const. = 60 min.

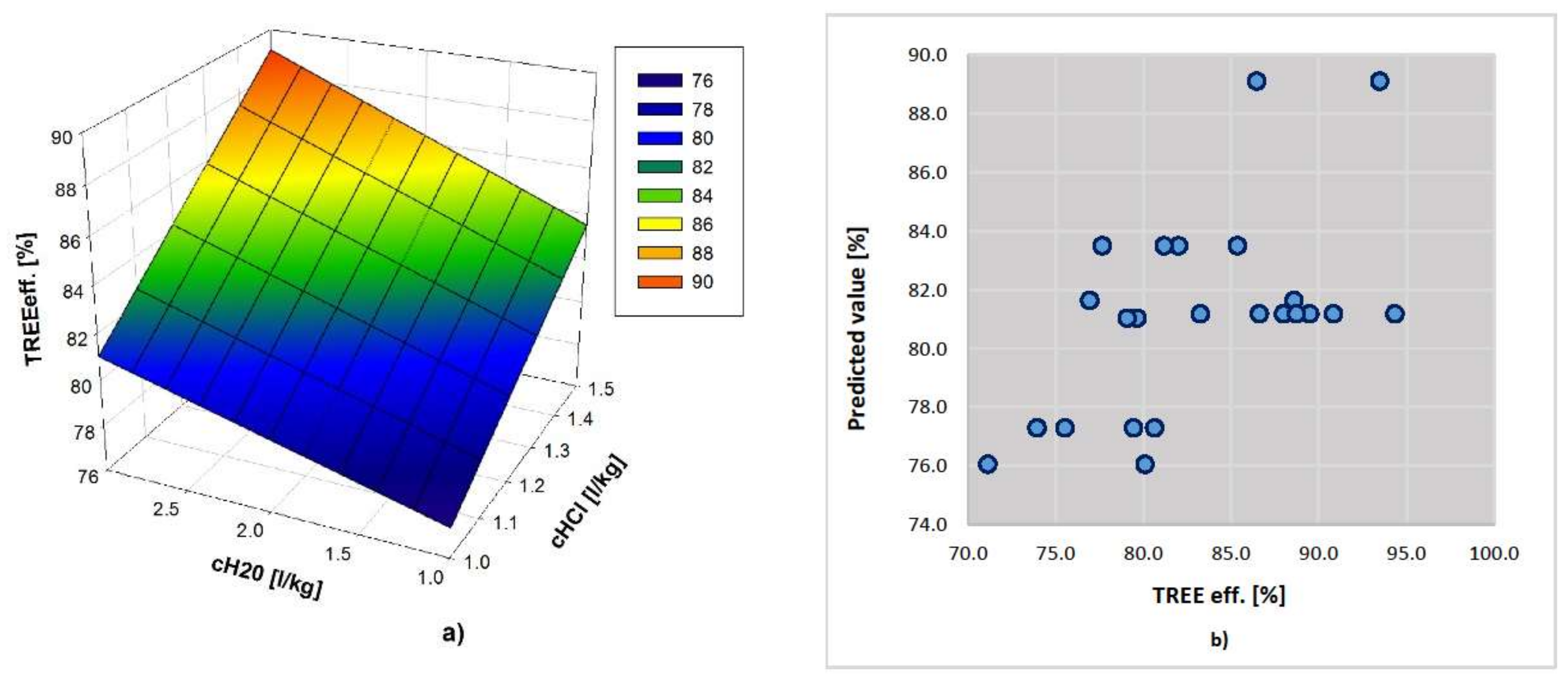

**Figure 8.**(

**a**) Total rare earth elements (TREE) extraction model; and, (

**b**) Predicted by Observed plot for TREE

_{eff}.

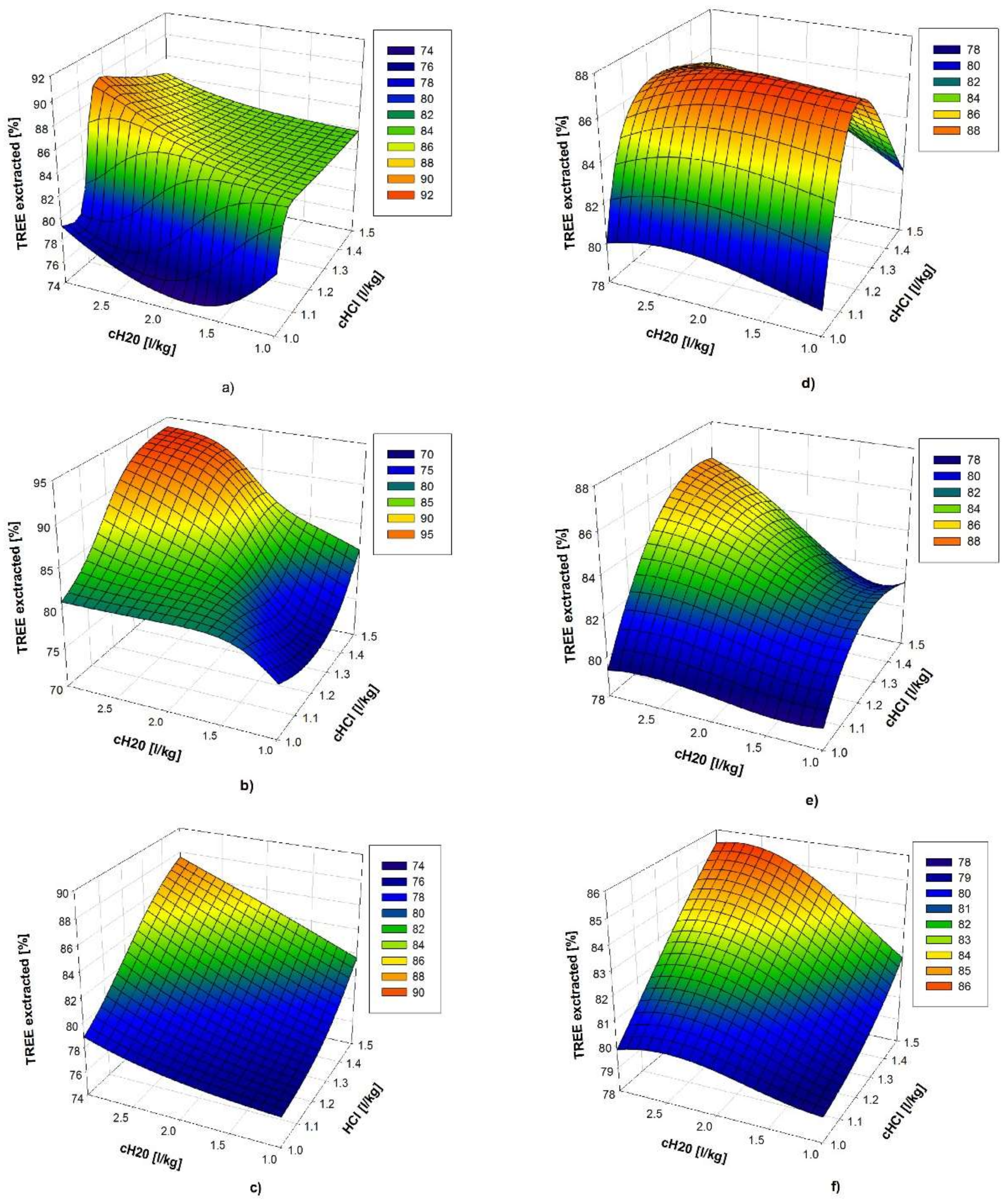

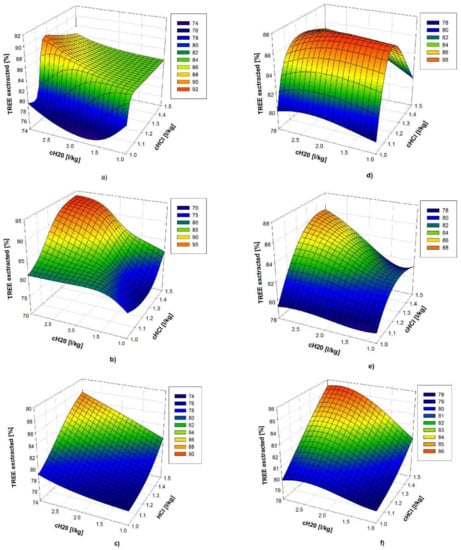

**Figure 12.**Examples of ANN models obtained during the leave-one-out cross validation (LOO CV) process: (

**a**) ANN-4/3/2/1 model: excluded sample A4; (

**b**) ANN-4/3/2/1 model: excluded sample A5; (

**c**) ANN-4/3/2/1 model: excluded sample A10; (

**d**) ANN-4/10/1 model: excluded sample A2; (

**e**) ANN-4/10/1 model: excluded sample A10; and, (

**f**) ANN-4/10/1 model: excluded sample A16.

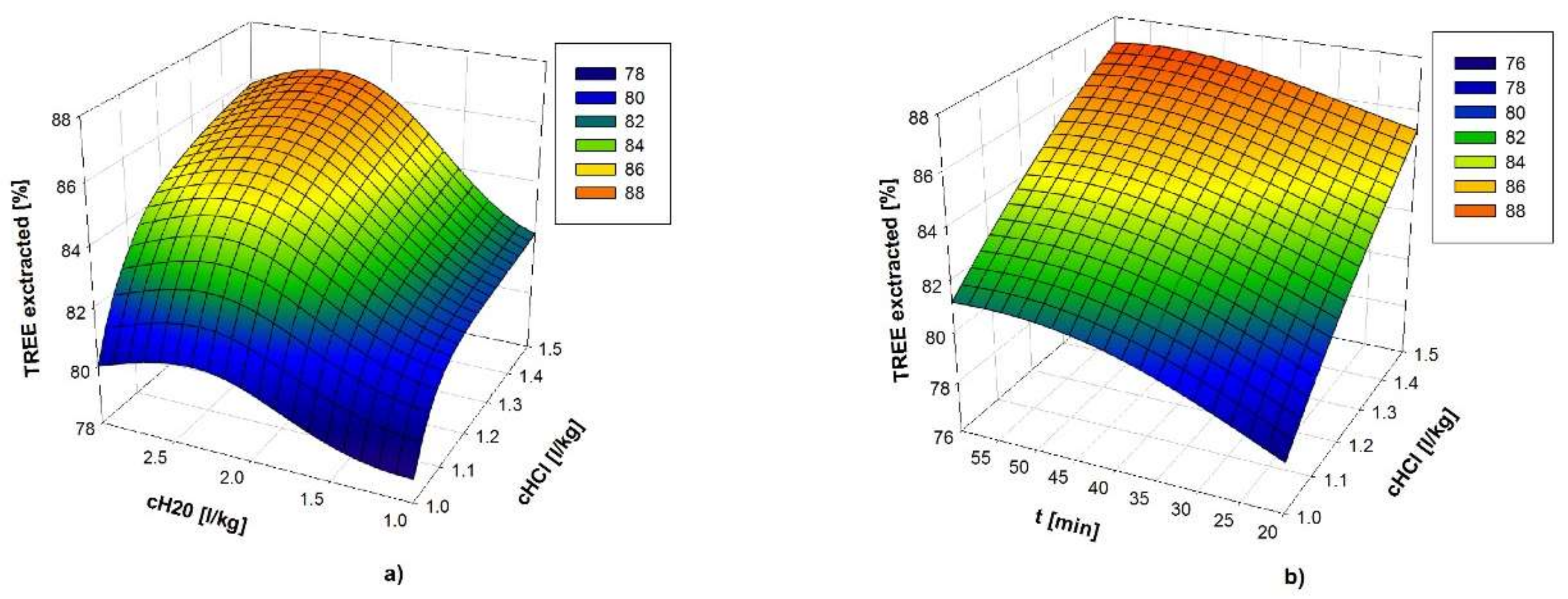

**Figure 13.**Final ANN data table numerical model for TREE extraction: (

**a**) T = 20 °C = const., t = 60 min. = const.; (

**b**) T = 20 °C = const., cH

_{2}O = 1.5 L/kg = const.

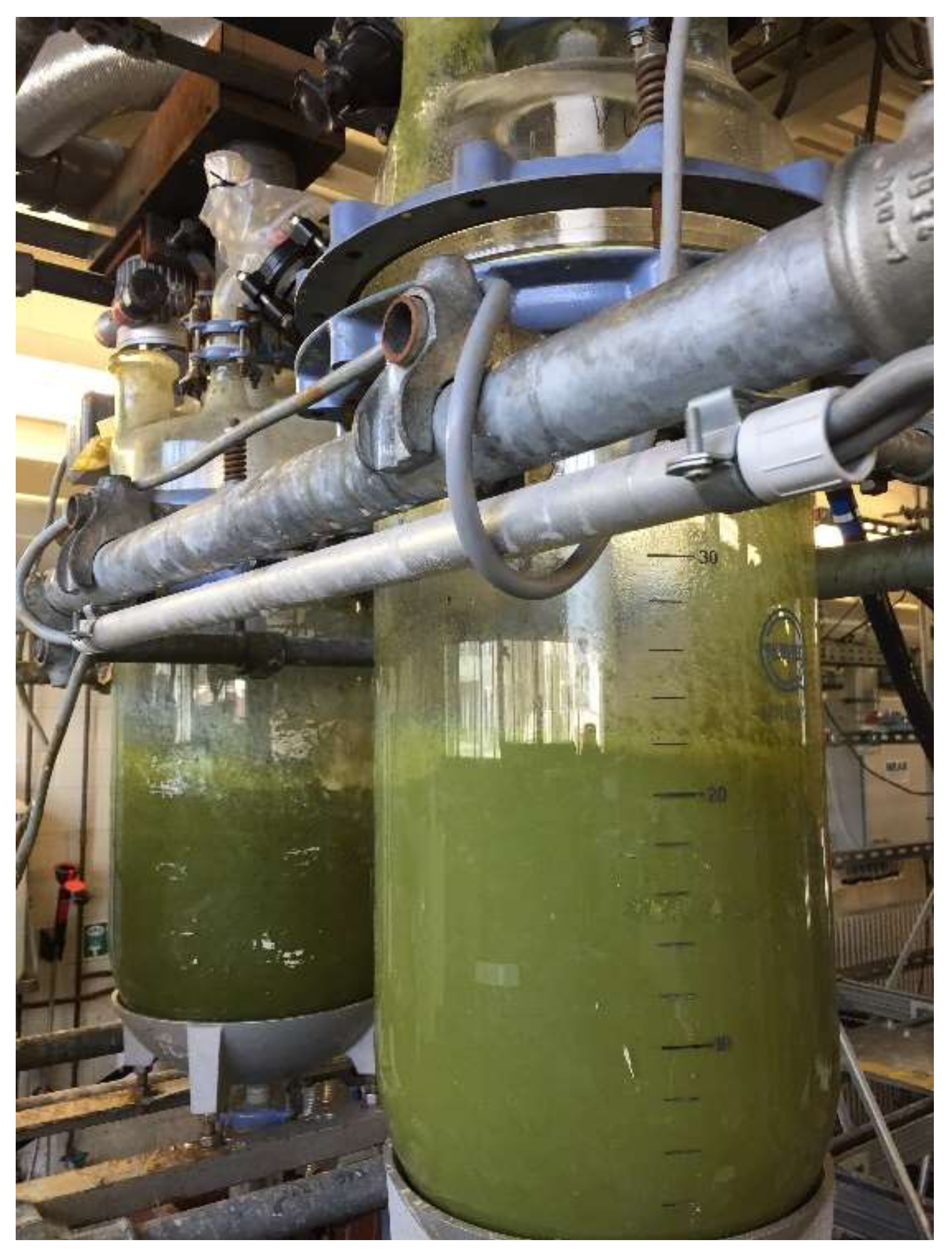

**Figure 14.**Treatment of eudialyte concentrate in two reactors at the Institute of Process Metallurgy and Metal Recycling (IME) demonstration plant, RWTH Aachen.

Element | Content (wt %) | Element | Content (wt %) |
---|---|---|---|

Al | 3.2 | Ce | 0.52 |

Ca | 5.7 | Pr | 532 mg/kg |

Fe | 6.04 | Nd | 0.21 |

Mn | 0.39 | Sm | 440 mg/kg |

Nb | 0.36 | Gd | 239 mg/kg |

Zr | 5.08 | Dy | 580 mg/kg |

Hf | 0.11 | Y | 0.33 |

Si | 23.1 | Yb | 368 mg/kg |

La | 0.25 | TREE | 1.52 |

No. | X1:HCl:Con. (L:kg) | X2:Water:Con. (L:kg) | X3:Leaching Temp. (°C) | X4:Leaching Time (min.) | Y:TREE Extr. (%) | ||||
---|---|---|---|---|---|---|---|---|---|

1:1, 1.25:1, 1.5:1 | 1:1, 2:1, 3:1 | 20, 50, 80 | 20, 40, 60 | [0–100] | |||||

c.v. | a.v. | c.v. | a.v. | c.v. | a.v. | c.v. | a.v. | ||

A1 | 1 | 1.5:1 | 1 | 3:1 | 1 | 20 | 1 | 60 | 93.475 |

A2 | −1 | 1:1 | 1 | 3:1 | 1 | 20 | 1 | 60 | 79.640 |

A3 | 1 | 1.5:1 | −1 | 1:1 | 1 | 20 | 1 | 60 | 82.010 |

A4 | −1 | 1:1 | −1 | 1:1 | 1 | 20 | 1 | 60 | 73.940 |

A5 | 1 | 1.5:1 | 1 | 3:1 | −1 | 20 | 1 | 60 | 86.465 |

A6 | −1 | 1:1 | 1 | 3:1 | −1 | 20 | 1 | 60 | 79.070 |

A7 | 1 | 1.5:1 | −1 | 1:1 | −1 | 20 | 1 | 60 | 81.170 |

A8 | −1 | 1:1 | −1 | 1:1 | −1 | 20 | 1 | 60 | 79.450 |

A9 | 1 | 1.5:1 | 1 | 3:1 | 1 | 20 | −1 | 20 | 85.350 |

A10 | −1 | 1:1 | 1 | 3:1 | 1 | 20 | −1 | 20 | 80.630 |

A11 | 1 | 1.5:1 | −1 | 1:1 | 1 | 20 | −1 | 20 | 76.940 |

A12 | −1 | 1:1 | −1 | 1:1 | 1 | 20 | −1 | 20 | 71.140 |

A13 | 1 | 1.5:1 | 1 | 3:1 | −1 | 20 | −1 | 20 | 77.650 |

A14 | −1 | 1:1 | 1 | 3:1 | −1 | 20 | −1 | 20 | 75.525 |

A15 | 1 | 1.5:1 | −1 | 1:1 | −1 | 20 | −1 | 20 | 88.600 |

A16 | −1 | 1:1 | −1 | 1:1 | −1 | 20 | −1 | 20 | 80.090 |

A17 * | 0 | 1.25:1 | 0 | 2:1 | 0 | 50 | 1 | 40 | 89.49, 87.99, 88.74, 90.85, 86.63, 94.35, 83.24 |

**Table 3.**Multiple Linear Regression (MLR) models, regression coefficients and their 95% confidence interval, F-test values, as well as the standard deviation of residuals σ

_{res}.

First-Order MLR Model: $\mathit{y}\mathbf{=}{\mathit{\beta}}_{\mathbf{0}}\mathbf{+}{\mathit{\beta}}_{\mathbf{1}}\mathbf{\xb7}{\mathit{x}}_{\mathbf{1}}\mathbf{+}{\mathit{\beta}}_{\mathbf{2}}\mathbf{\xb7}{\mathit{x}}_{\mathbf{2}}\mathbf{+}{\mathit{\beta}}_{\mathbf{3}}\mathbf{\xb7}{\mathit{x}}_{\mathbf{3}}\mathbf{+}{\mathit{\beta}}_{\mathbf{4}}\mathbf{\xb7}{\mathit{x}}_{\mathbf{4}}$ | |||
---|---|---|---|

${\beta}_{0}$ | $83.144565$ | $[81.378-84.911]$ | ${F}_{t}({f}_{R},{f}_{E},\alpha )={F}_{t}(12,6,0.05)=4$ ${F}_{rLF}=3.90$ ${s}^{2}(y)=11.958262;\text{}s(y)=3.458072$ ${{s}^{2}}_{LF}=46.61679$ ${F}_{rLF}<{F}_{t}\text{}is\text{}adequate$, ${\sigma}_{res}=6.8276488$ |

${\beta}_{1}$ | $3.2609375$ | $[1.143-5.379]$ | |

${\beta}_{2}$ | $1.5290625$ | $[-0.589-3.647]$ | |

${\beta}_{3}$ | $-0.3059375$ | $[-2.424-1.812]$ | |

${\beta}_{4}$ | $1.2059375$ | $[-0.912-3.324]$ |

Coefficients ^{a} | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Model | Unstandard. Coeff. | Standard. Coeff. | t | Sig. | 95.0% Confidence Interval for B | Correlations | Collinearity Statistics | ||||||

B | Std. Error | Beta | Lower Bound | Upper Bound | Zero-Order | Partial | Part | Tolerance | VIF | ||||

1 | (Constant) | 64.866 | 6.293 | 10.307 | 0.000 | 51.452 | 78.280 | ||||||

$c\mathrm{HCl}$ | 13.044 | 4.943 | 0.563 | 2.639 | 0.019 | 2.509 | 23.579 | 0.563 | 0.563 | 0.563 | 1.000 | 1.000 | |

2 | (Constant) | 64.866 | 5.651 | 11.478 | 0.000 | 52.746 | 76.986 | ||||||

$c\mathrm{HCl}$ | 10.554 | 4.587 | 0.456 | 2.301 | 0.037 | 0.715 | 20.393 | 0.563 | 0.524 | 0.441 | 0.936 | 1.068 | |

$c\mathrm{HCl}\xb7c{\mathrm{H}}_{2}\mathrm{O}\xb7t$ | 0.031 | 0.015 | 0.425 | 2.146 | 0.050 | 0.000 | 0.062 | 0.540 | 0.497 | 0.411 | 0.936 | 1.068 |

^{a}Dependent Variable: TREE

_{eff.}[%].

Parameter | Units | B1 | B2 | B3 | B4 |
---|---|---|---|---|---|

HCl:Concentrate | L:kg | 1.3:1 | 1.4:1 | 1.4:1 | 1.5:1 |

Water:Concentrate | L:kg | 2.25:1 | 2.25:1 | 2.5:1 | 3:1 |

Leaching time | min | 40 | 50 | 50 | 60 |

Predicted value | 85.35% | 87.90% | 89.40% | 89.40% | |

Actual value | 87.65% | 89.40% | 89.70% | 91.20% |

Element | Concentration (g/L) | Element | Concentration (g/L) |
---|---|---|---|

Al | 0.56 | Ce | 0.951 |

Ca | 10.49 | Pr | 0.105 |

Fe | 2.02 | Nd | 0.370 |

Mn | 0.269 | Sm | 0.094 |

Nb | <0.0001 | Gd | 0.075 |

Zr | 0.02 | Dy | 0.105 |

Hf | 0.010 | Y | 0.601 |

Si | 0.099 | Yb | 0.069 |

La | 0.425 | TREE | 2.80 |
