Metals 2018, 8(1), 47; https://doi.org/10.3390/met8010047

Direct Numerical Study of a Molten Metal Drop Solidifying on a Cold Plate with Different Wettability

1
School of Transportation Engineering, Hanoi University of Science and Technology, No. 01 Dai Co Viet, Hai Ba Trung, Hanoi 100000, Vietnam
2
Institute of Mechanics, Vietnam Academy of Science and Technology, 18 Hoang Quoc Viet, Cau Giay, Hanoi 100000, Vietnam
*
Author to whom correspondence should be addressed.
Received: 21 December 2017 / Revised: 3 January 2018 / Accepted: 8 January 2018 / Published: 11 January 2018
(This article belongs to the Special Issue Rapid Solidification Processing)
Full-Text   |   PDF [11765 KB, uploaded 11 January 2018]   |

Abstract

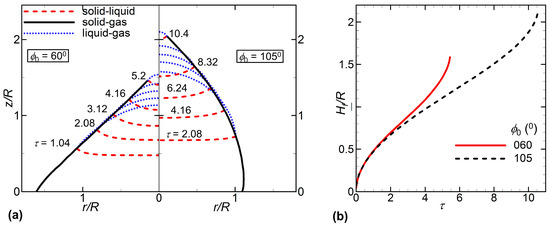

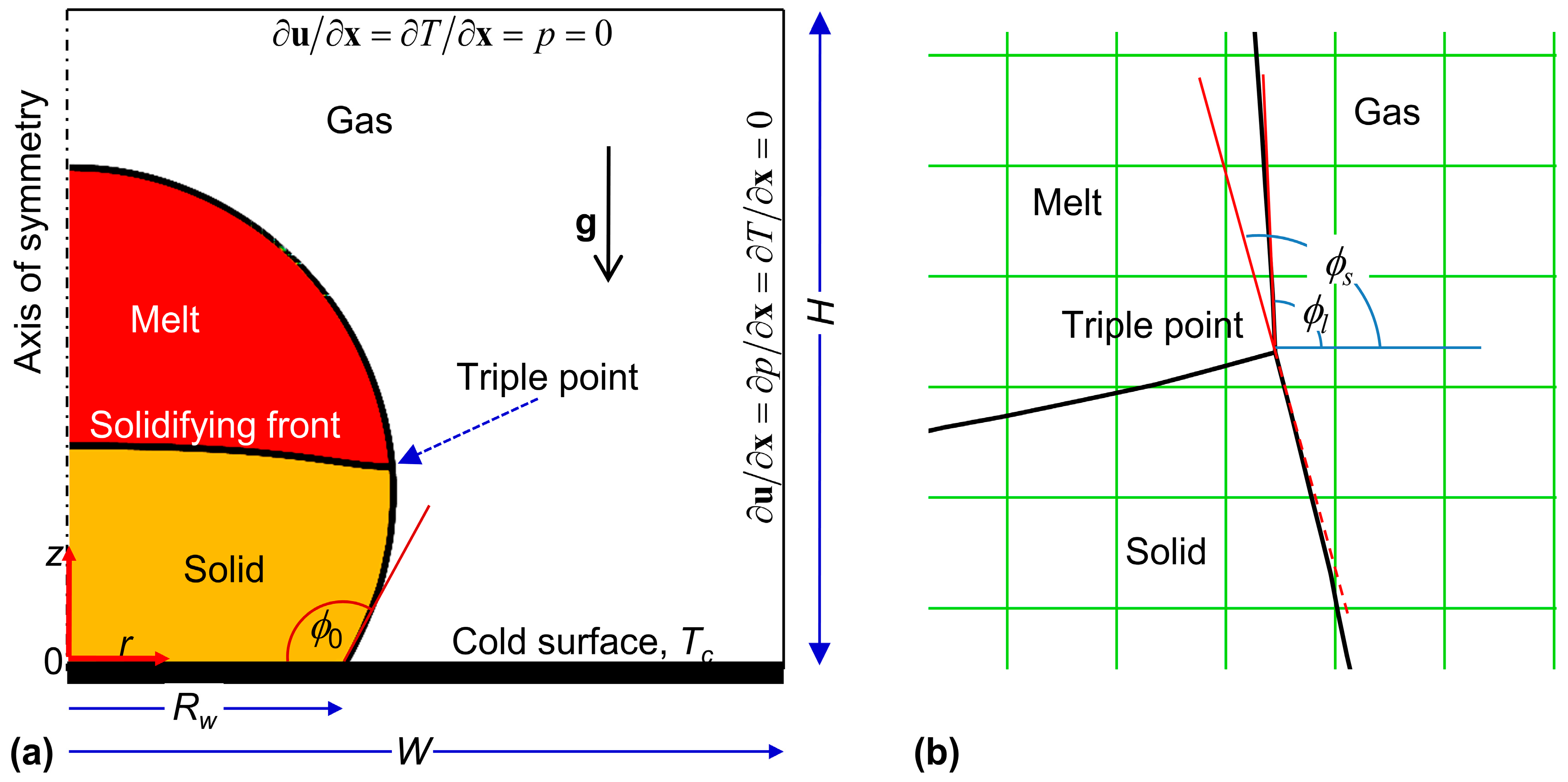

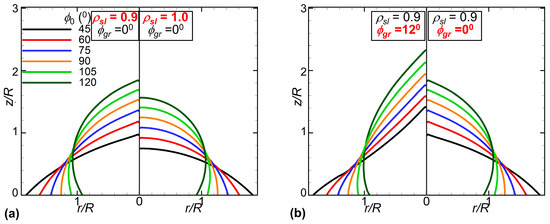

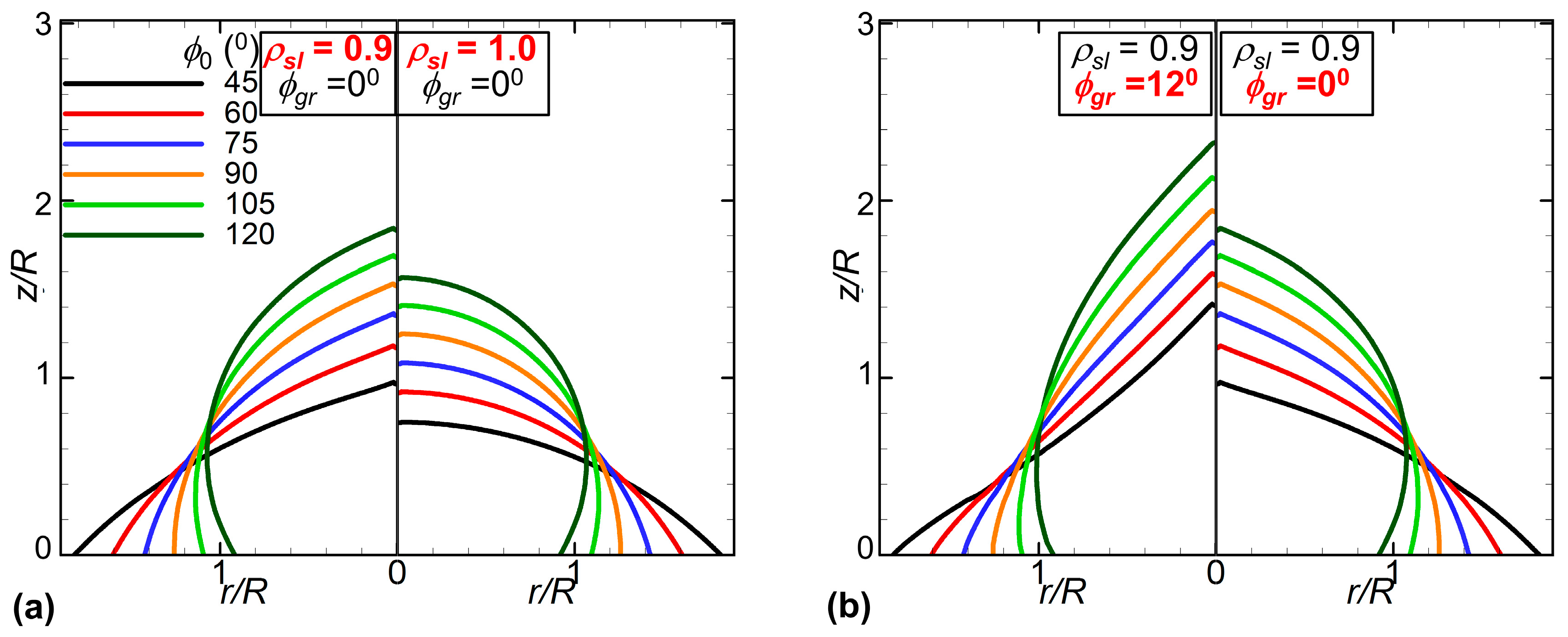

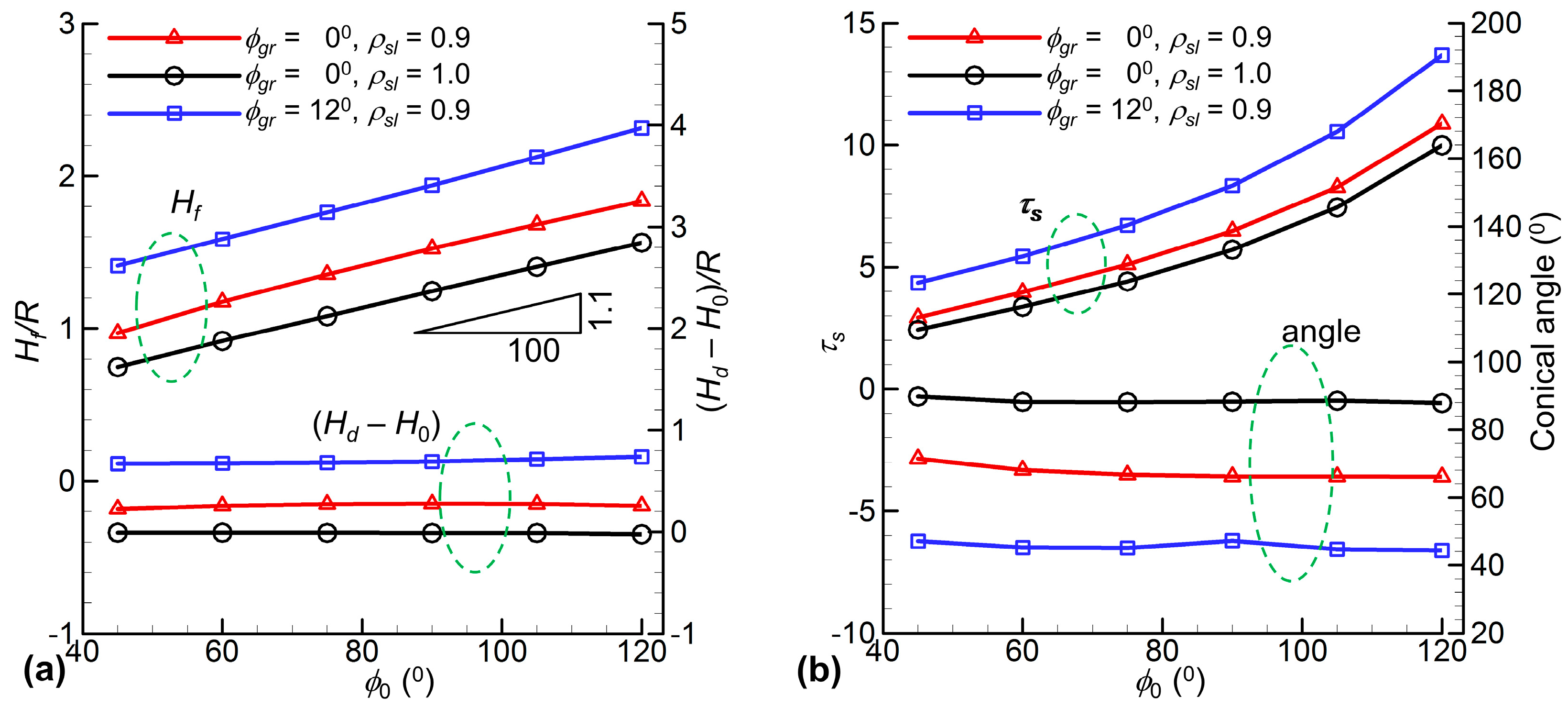

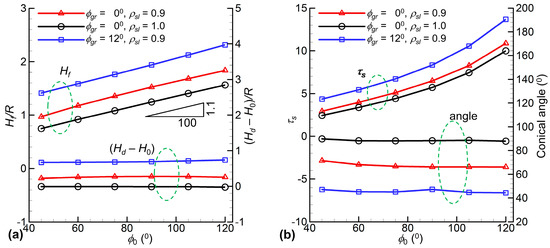

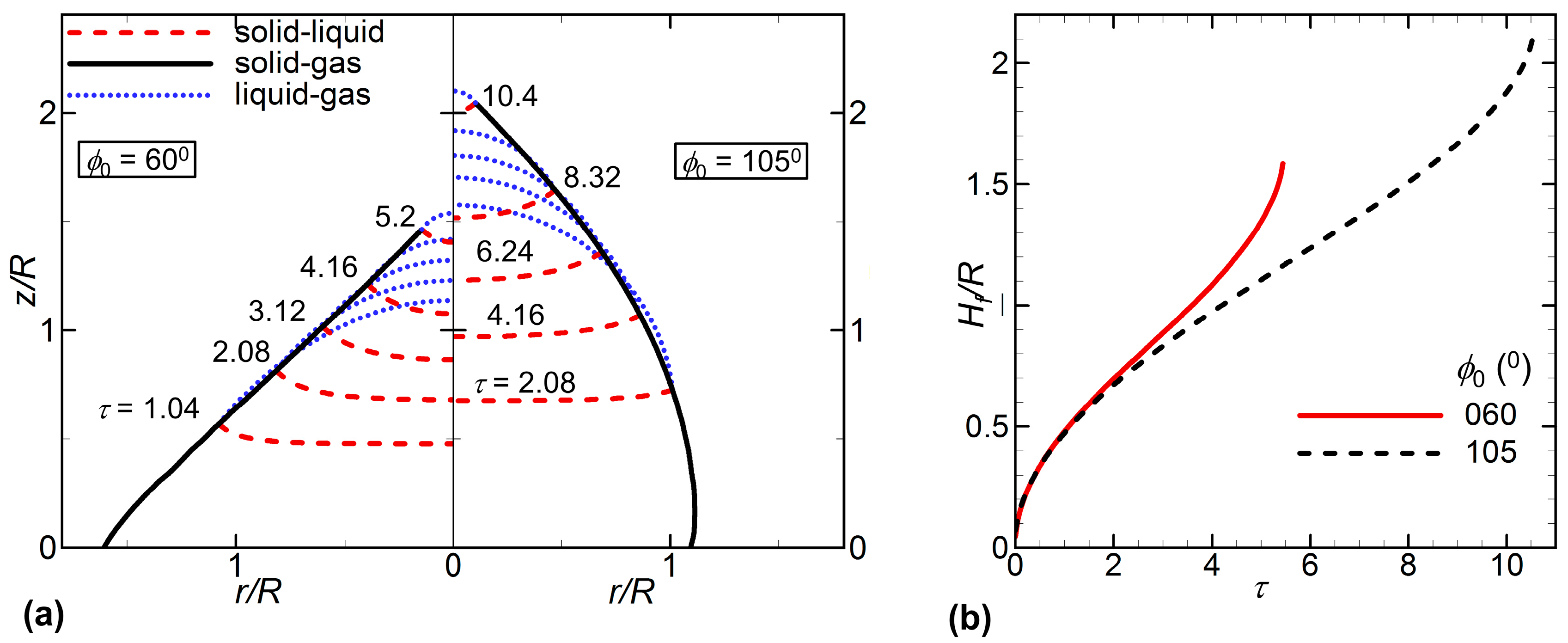

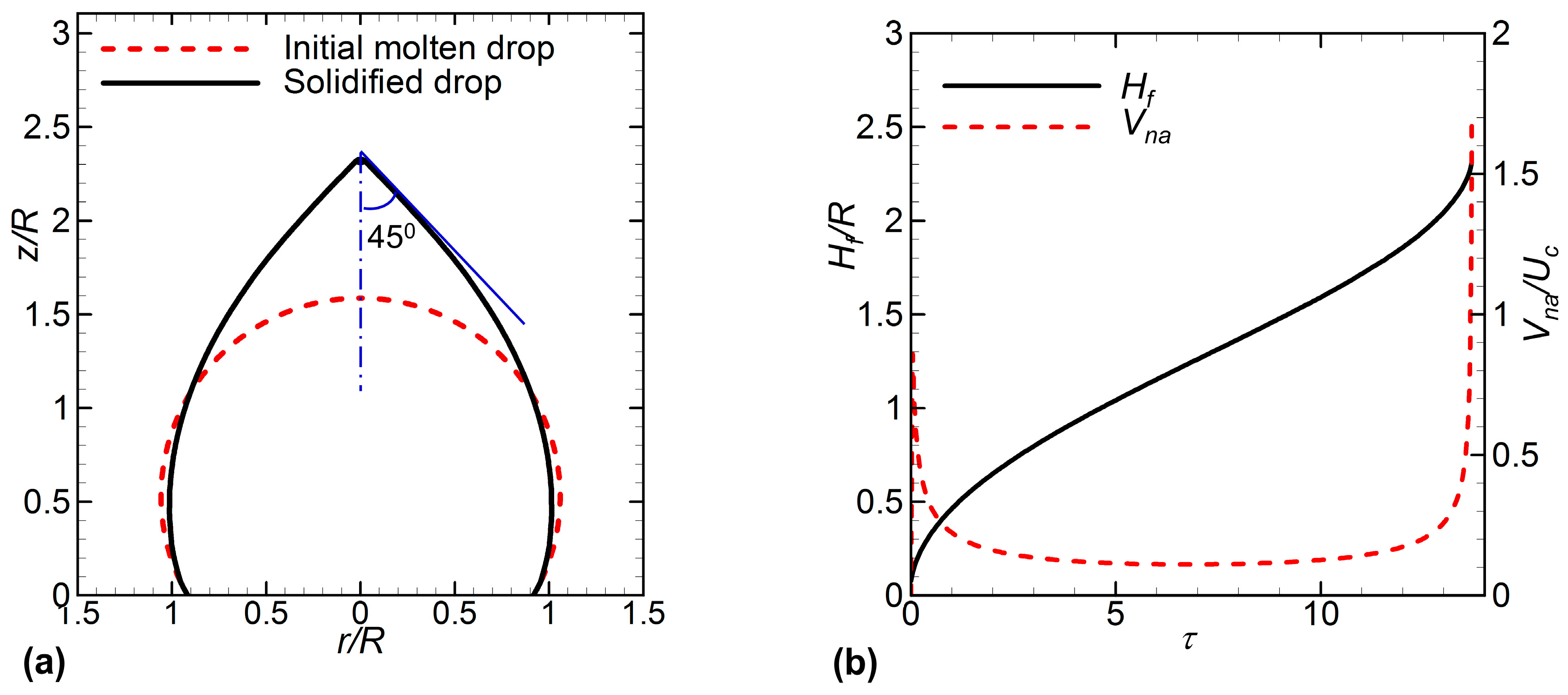

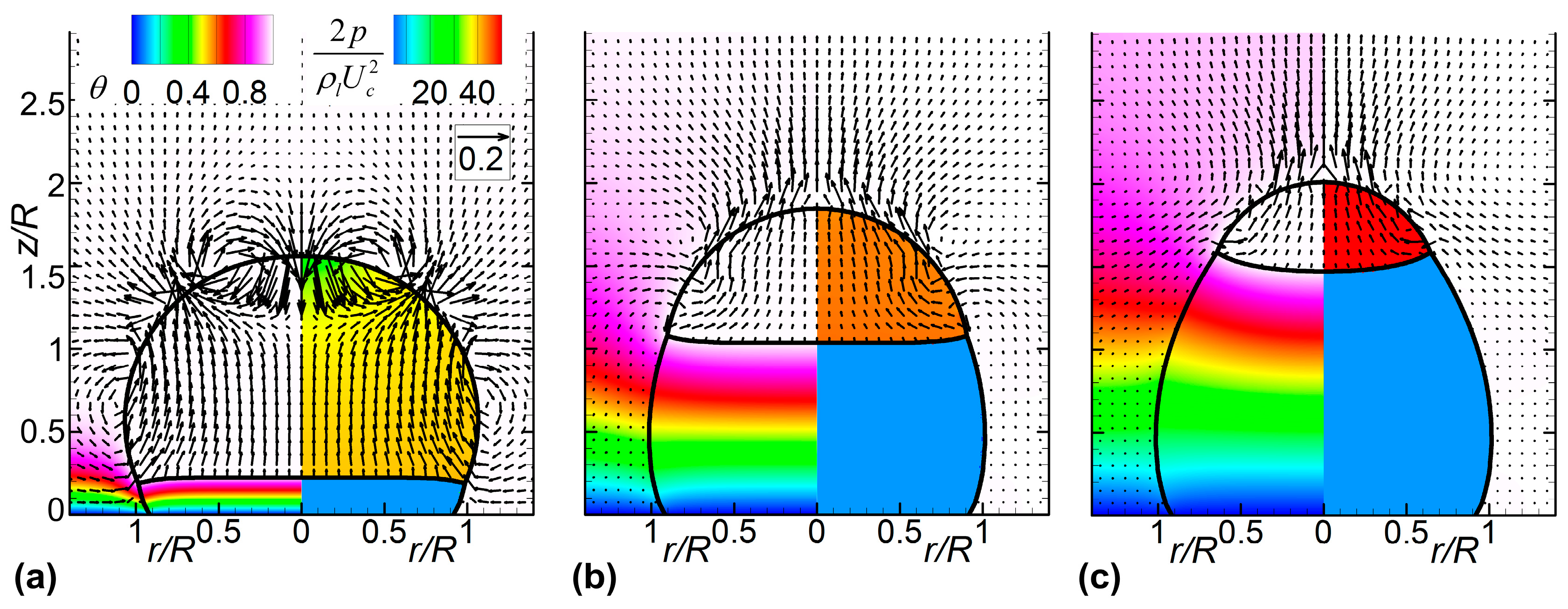

This paper presents a direct numerical simulation of solidification of a molten metal drop on a cold plate with various wettability by an axisymmetric front-tracking method. Because of the plate kept at a temperature below the fusion value of the melt, a thin solid layer forms at the plate and evolves upwards. The numerical results show that the solidifying front is almost flat except near the triple point with a high solidification rate at the beginning and final stages of solidification. Two solid-to-liquid density ratios ρsl = 0.9 (volume change) and 1.0 (no change in volume), with two growth angles φ0 = 0° and 12° are considered. The presence of volume change and a non-zero growth angle results in a solidified drop with a conical shape at the top. The focusing issue is the effects of the wettability of the plate in terms of the contact angle φ0. Increasing the contact angle in the range of 45° to 120° increases time for completing solidification, i.e., solidification time. However, it has a minor effect on the conical angle at the top of the solidified drop and the difference between the initial liquid and final solidified heights of the drop. The effects of the density ratio and growth angle are also presented. View Full-Text
Keywords: molten metal drop; direct numerical simulation; cold plate; contact angle; front-tracking molten metal drop; direct numerical simulation; cold plate; contact angle; front-tracking
