Next Article in Journal / Special Issue
The Hot Deformation Activation Energy of 7050 Aluminum Alloy under Three Different Deformation Modes
Previous Article in Journal
On the Modelling of the Transient Flow Behavior of Metallic Glasses: Analogy with Portevin-Le Chatelier Effect
Previous Article in Special Issue
Phase Evolution and Mechanical Behavior of the Semi-Solid SIMA Processed 7075 Aluminum Alloy
Open AccessArticle

Fabrication of Corrosion Resistance Micro-Nanostructured Superhydrophobic Anodized Aluminum in a One-Step Electrodeposition Process

Centre Universitaire de Recherche sur l’Aluminium (CURAL), Université du Québec à Chicoutimi, 555 Boulevard de l’Université, Chicoutimi, QC G7H 2B1, Canada
*
Author to whom correspondence should be addressed.
Academic Editor: Nong Gao
Metals 2016, 6(3), 47; https://doi.org/10.3390/met6030047
Received: 23 December 2015 / Accepted: 22 February 2016 / Published: 29 February 2016
(This article belongs to the Special Issue Aluminum Alloys)

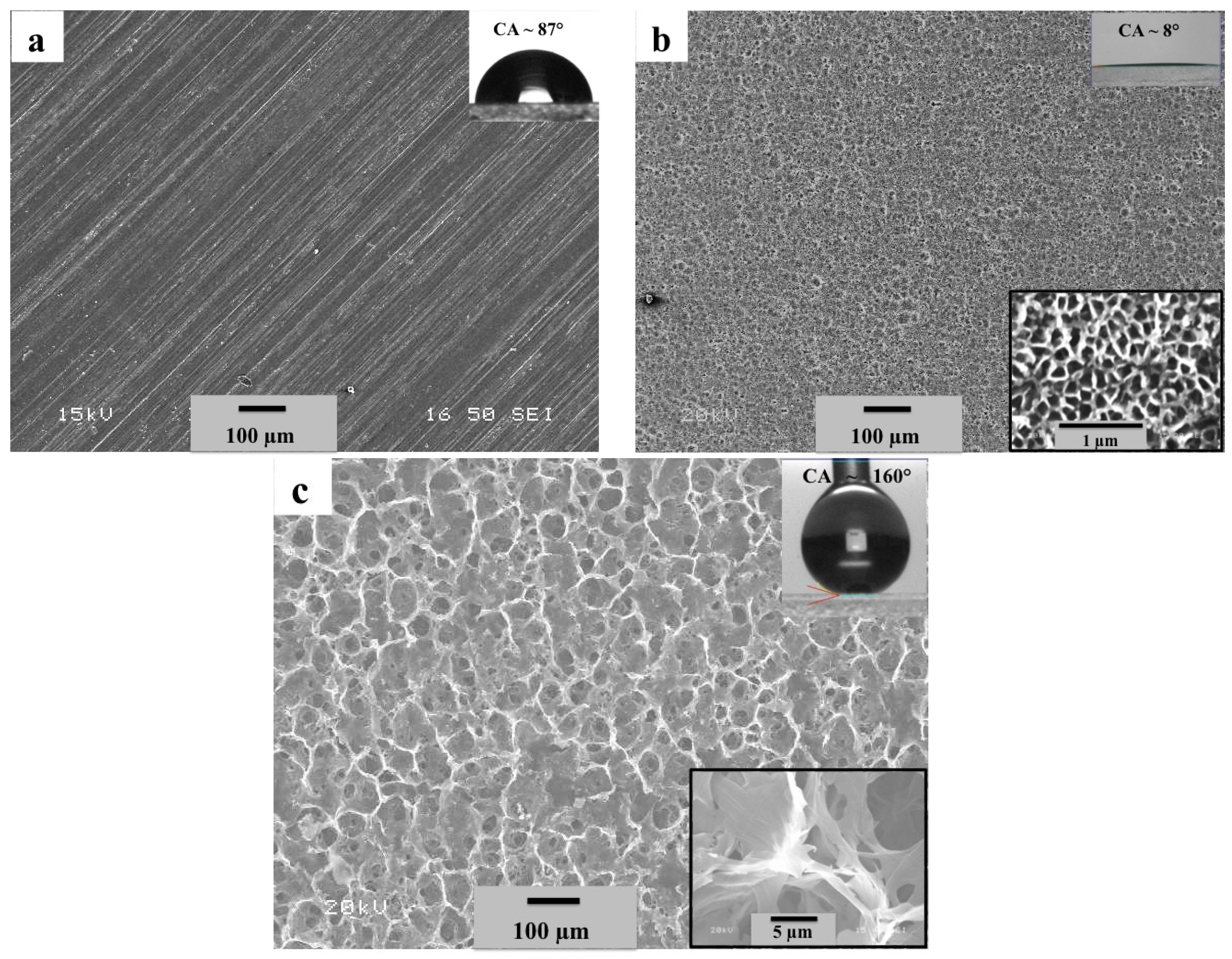

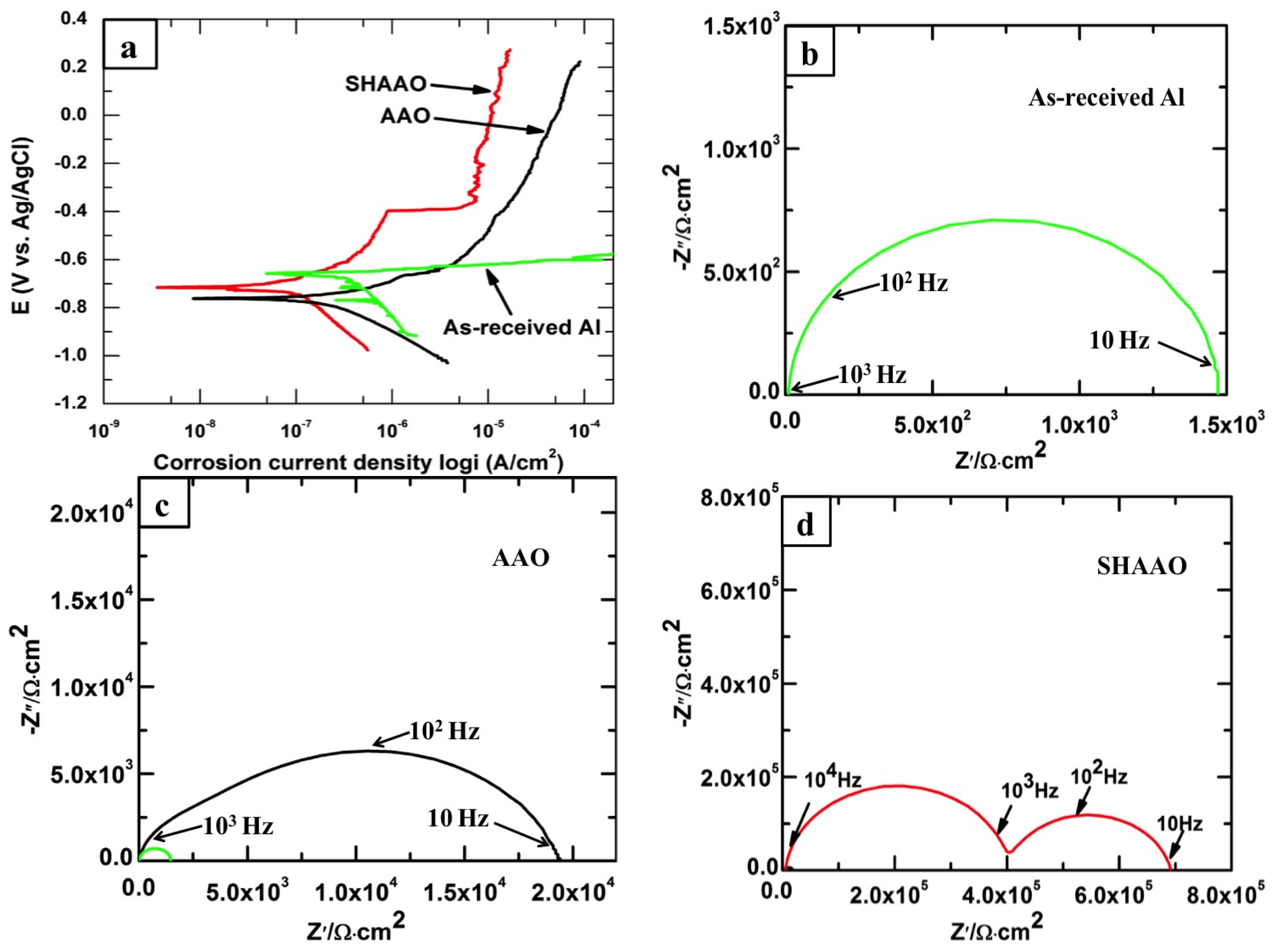

The formation of low surface energy hybrid organic-inorganic micro-nanostructured zinc stearate electrodeposit transformed the anodic aluminum oxide (AAO) surface to superhydrophobic, having a water contact angle of 160°. The corrosion current densities of the anodized and aluminum alloy surfaces are found to be 200 and 400 nA/cm2, respectively. In comparison, superhydrophobic anodic aluminum oxide (SHAAO) shows a much lower value of 88 nA/cm2. Similarly, the charge transfer resistance, Rct, measured by electrochemical impedance spectroscopy shows that the SHAAO substrate was found to be 200-times larger than the as-received aluminum alloy substrate. These results proved that the superhydrophobic surfaces created on the anodized surface significantly improved the corrosion resistance property of the aluminum alloy. View Full-Text
Keywords: superhydrophobic aluminum; corrosion; anodized aluminum oxide (AAO); organic-inorganic; micro-nanostructure; zinc stearate (ZnSA); potentiodynamic polarization; electrochemical impedance spectroscopy (EIS) superhydrophobic aluminum; corrosion; anodized aluminum oxide (AAO); organic-inorganic; micro-nanostructure; zinc stearate (ZnSA); potentiodynamic polarization; electrochemical impedance spectroscopy (EIS)

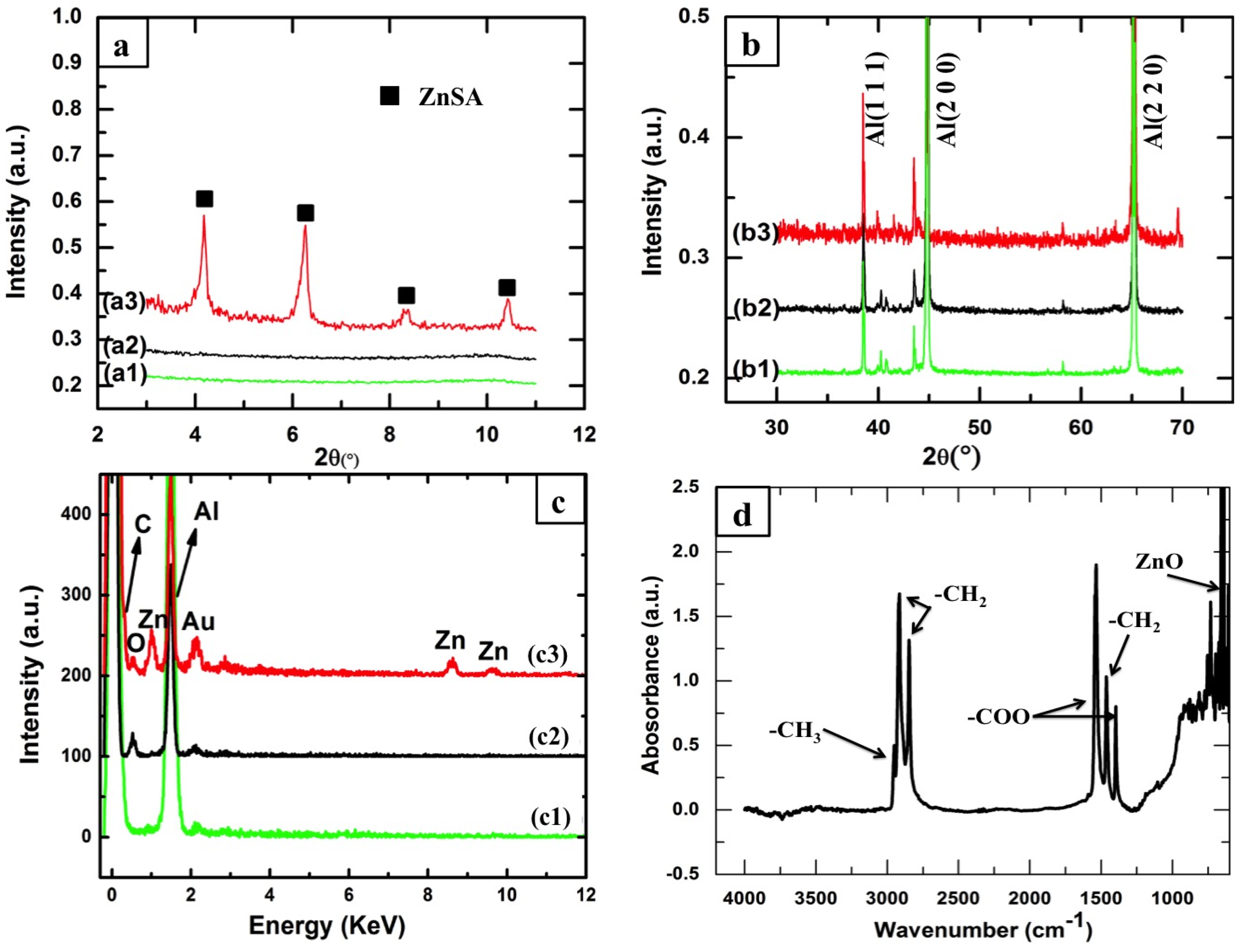

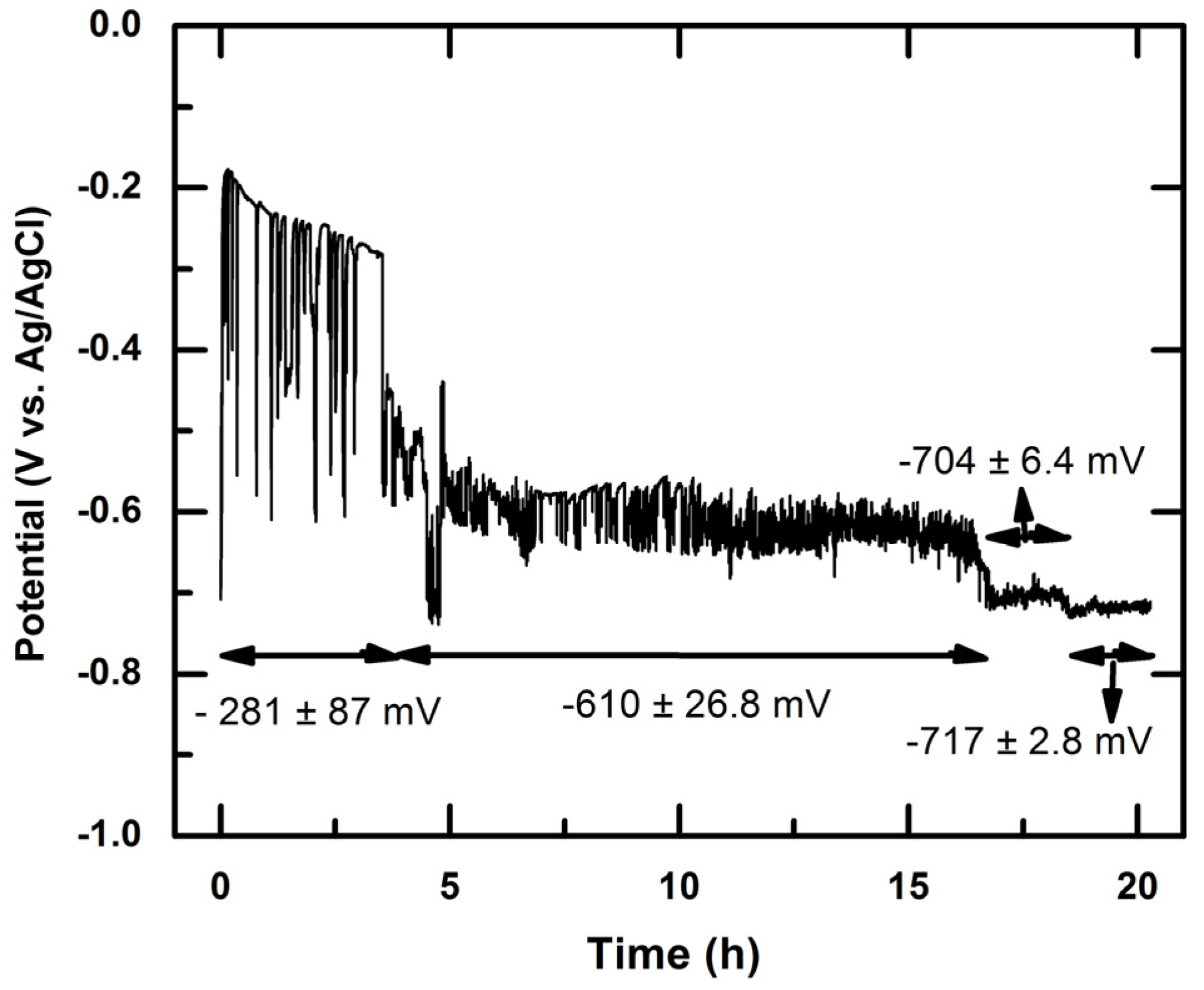

Show Figures

Graphical abstract

MDPI and ACS Style

Huang, Y.; Sarkar, D.K.; Chen, X.-G. Fabrication of Corrosion Resistance Micro-Nanostructured Superhydrophobic Anodized Aluminum in a One-Step Electrodeposition Process. Metals 2016, 6, 47.

AMA Style

Huang Y, Sarkar DK, Chen X-G. Fabrication of Corrosion Resistance Micro-Nanostructured Superhydrophobic Anodized Aluminum in a One-Step Electrodeposition Process. Metals. 2016; 6(3):47.

Chicago/Turabian Style

Huang, Ying; Sarkar, Dilip K.; Chen, X.-Grant. 2016. "Fabrication of Corrosion Resistance Micro-Nanostructured Superhydrophobic Anodized Aluminum in a One-Step Electrodeposition Process" Metals 6, no. 3: 47.

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
