Next Article in Journal
Hot Deformation Behavior of Ti-3.5Al-5Mo-6V-3Cr-2Sn-0.5Fe Alloy in α + β Field
Next Article in Special Issue
Experimental Investigation of the Equal Channel Forward Extrusion Process
Previous Article in Journal
Vacuum Die Casting Process and Simulation for Manufacturing 0.8 mm-Thick Aluminum Plate with Four Maze Shapes
Previous Article in Special Issue
Effect of Strain Localization on Pitting Corrosion of an AlMgSi0.5 Alloy
Article Menu

Export Article

Open AccessArticle
Metals 2015, 5(1), 206-215;

Nanocrystalline Ti Produced by Cryomilling and Consolidation by Severe Plastic Deformation

Institute of Physics of Advanced Materials, Ufa State Aviation Technical University, 12 K. Marx str., Ufa 450000, Russia
Institute for Frontier Material, Geelong Technology Precinct, Deakin University, 75 Pigdons Road, Waurn Ponds, Victoria 3216, Australia
Department of Chemical Engineering and Materials Science, University of California, Davis, CA 95616, USA
Laboratory for Mechanics of Bulk Nanostructured Materials, Saint Petersburg State University, Universitetsky pr. 28, Peterhof 198504, Saint Petersburg, Russia
Author to whom correspondence should be addressed.
Academic Editor: Heinz Werner Höppel
Received: 18 December 2014 / Revised: 12 January 2015 / Accepted: 30 January 2015 / Published: 5 February 2015
(This article belongs to the Special Issue Ultrafine-grained Metals)
PDF [1168 KB, uploaded 5 February 2015]


We report on a study of the nanocrystalline structure in Ti, which was produced by cryogenic milling followed by subsequent consolidation via severe plastic deformation using high pressure torsion. The mechanisms that are believed to be responsible for the formation of grains smaller than 40 nm are discussed and the influence of structural characteristics, such as nanometric grains and oxide nanoparticles, on Ti hardening is established. View Full-Text
Keywords: Ti; cryomilling; high pressure torsion; nanostructure; strengthening Ti; cryomilling; high pressure torsion; nanostructure; strengthening

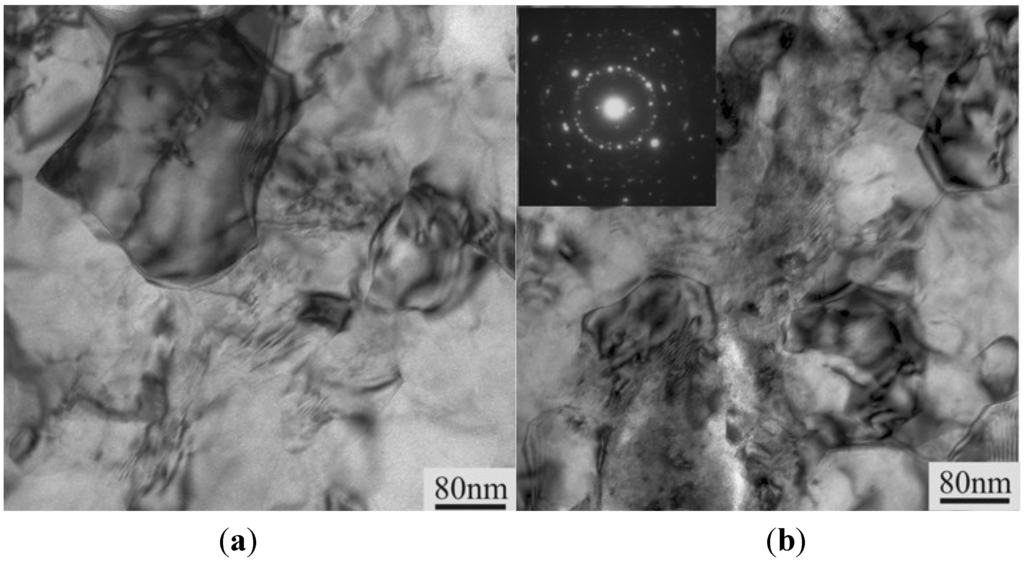

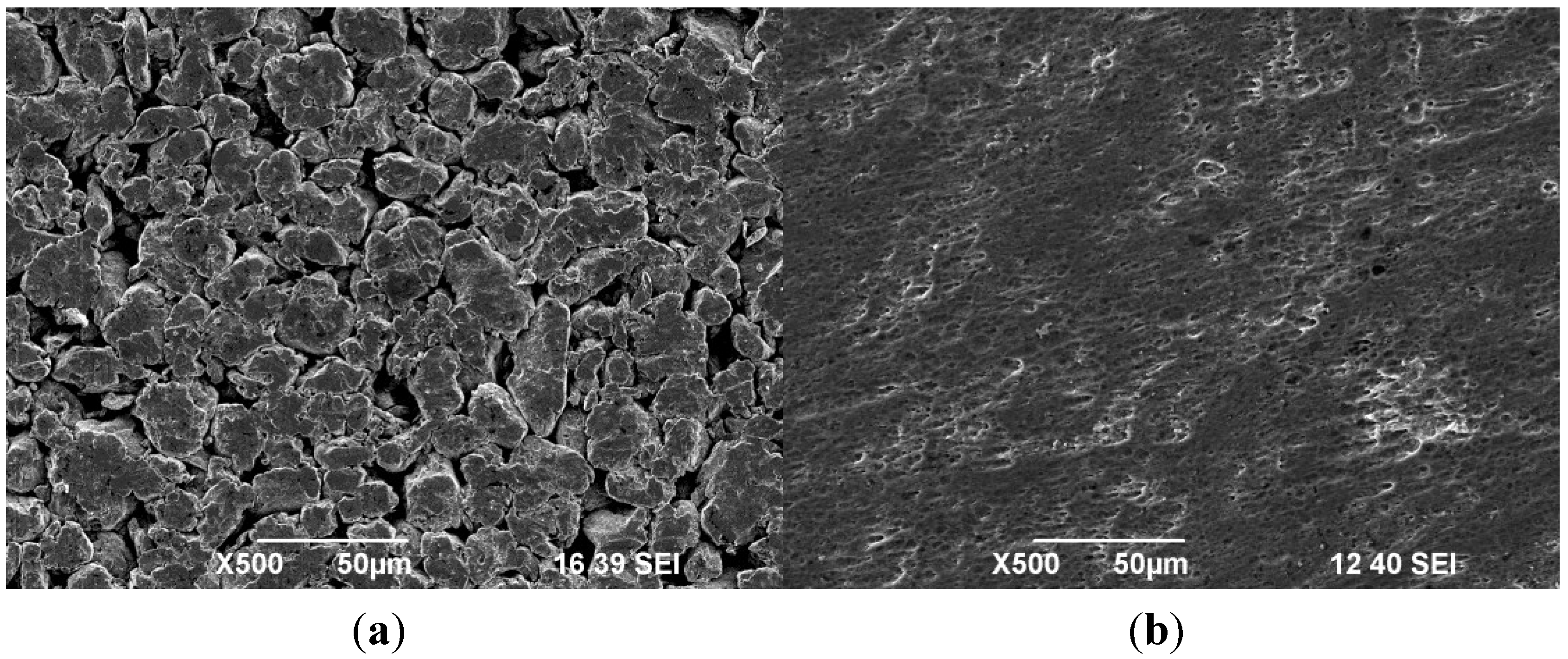

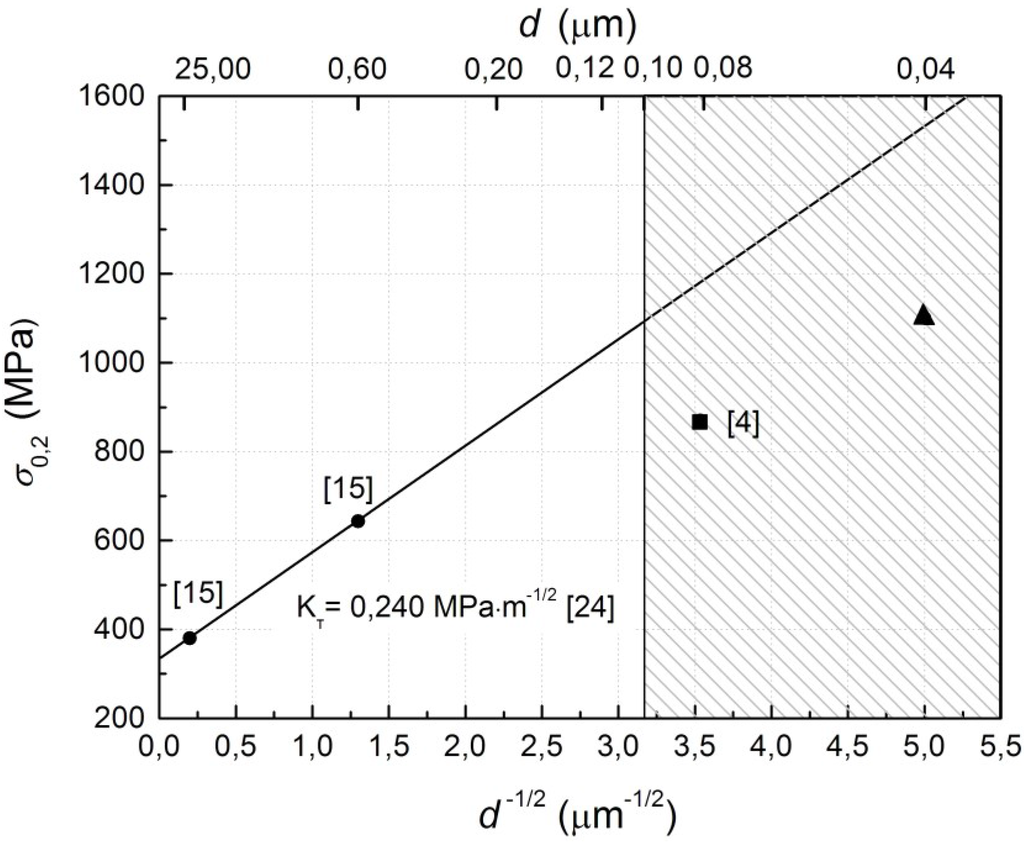

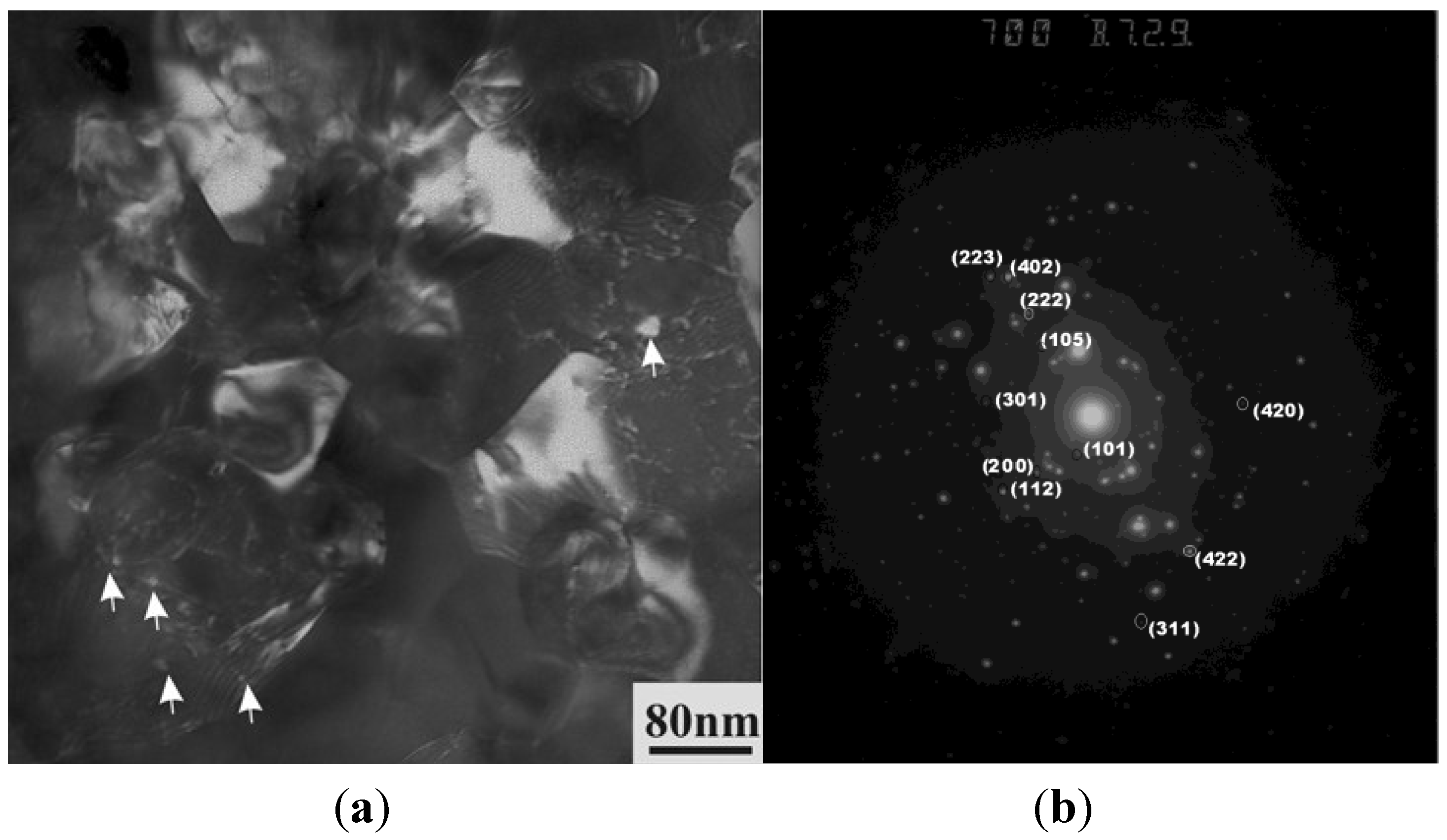

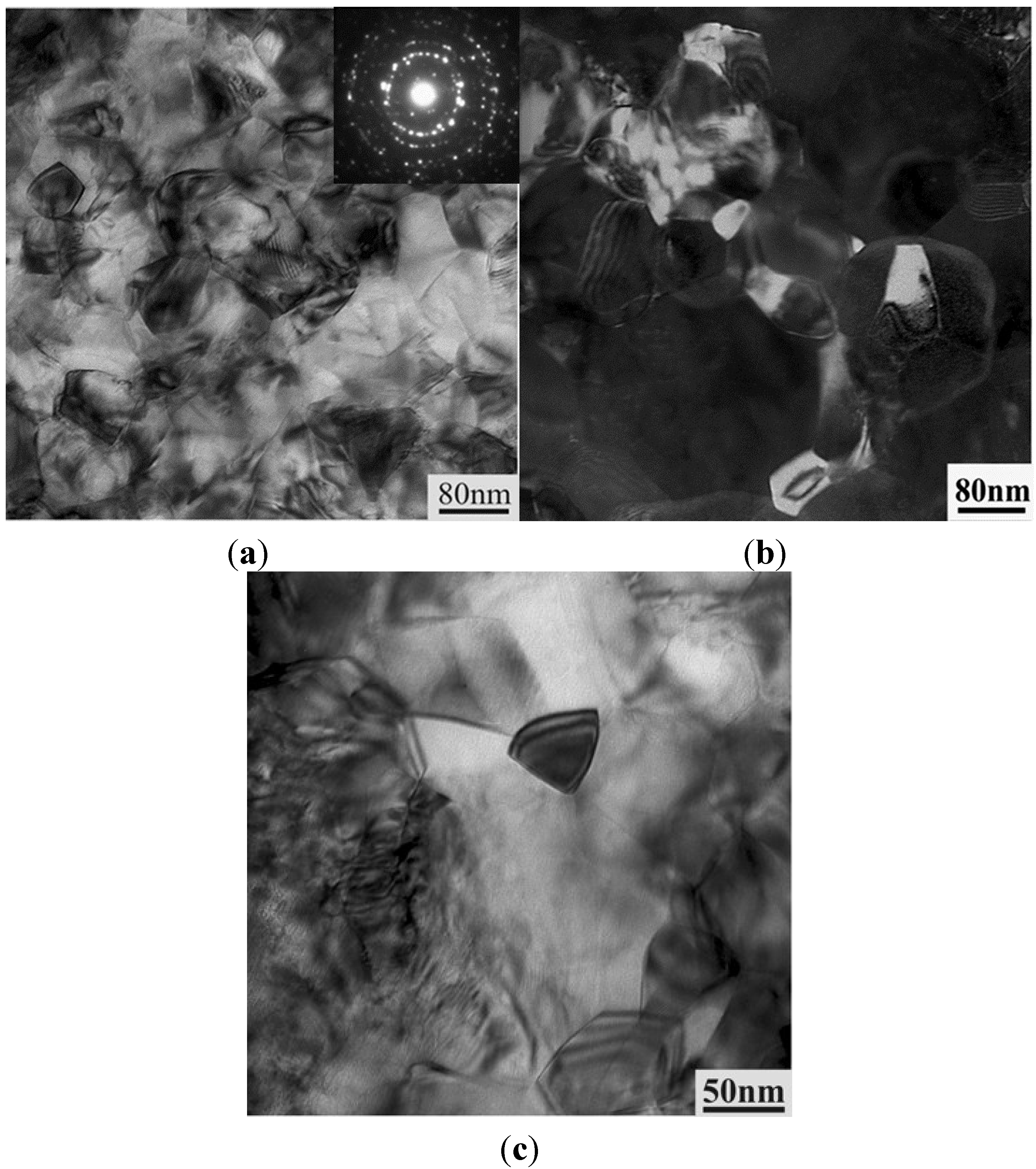

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Semenova, I.; Timokhina, I.; Islamgaliev, R.; Lavernia, E.; Valiev, R. Nanocrystalline Ti Produced by Cryomilling and Consolidation by Severe Plastic Deformation. Metals 2015, 5, 206-215.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
