Preparation and Characterization of MnFe₂O₄/Fe Soft Magnetic Composites by Surface Oxidation

Abstract

MnFe₂O₄/Fe soft magnetic composites (SMCs) were designed by the surface oxidation method, and the MnFe₂O₄ layer was utilized as the insulation coating. The microstructure of SMCs and the chemical composition of the insulation layer were observed using scanning electron microscopy and energy-dispersive spectroscopy. The surface phase composition of SMCs was characterized using X-ray diffraction, X-ray photoelectron spectrometry, and Raman spectroscopy. The effect of annealing temperature on the insulation layer was investigated, and its relationship with the magnetic properties of the MnFe₂O₄/Fe SMCs was explored. The best overall performances were obtained at 50 mT and 100 kHz with saturation magnetization M_s = 205 emu/g, amplitude permeability μ_a = 100, and a core loss of 234.9 W/kg. Therefore, this work can provide a method to develop a novel insulating coating to reduce core loss, which is of great significance to the investigation of other Fe-based soft magnetic composites for applications in high-frequency magnetic fields.

1. Introduction

Soft magnetic composites (SMCs) are a new type of soft magnetic material made by insulating and coating the surface of metal in soft magnetic powder with a high saturation magnetic induction intensity using high-resistivity organic or inorganic compounds, and pressing the coated powder using powder metallurgy technology [1]. SMCs are widely used in transformers, relay electronic devices, and measuring instruments due to their high saturation magnetization, high electrical resistivity, low core loss, and three-dimensional isotropic magnetic properties [2,3,4,5,6,7,8]. Therefore, SMCs are attracting increasing attention from researchers due to these excellent electromagnetic properties [9,10,11,12,13,14].

Eddy current loss is the main component of core loss in SMCs. For SMCs, the most effective and convenient method to reduce eddy current loss is to insulate the surface of the powder particles. Usually, insulation coating is mainly divided into organic, inorganic insulating, and ferromagnetic materials. Organic compounds include phenolic resin [15], epoxy resin [16], and silicone resin [17]. Generally, organic matter is dissolved in an organic solvent, then magnetic powder is added and stirred evenly. Finally, the solvent is evaporated to allow the organic matter to coat the surface of the magnetic powder. Although organic resins have good adhesion with magnetic powders, their poor thermal stability limits their application. Inorganic insulating coating materials, possessing high thermal stability and high resistivity, among other characteristics, have become a focal point in recent research on insulating coatings. Yu et al. [18] prepared an Al₂O₃ insulation layer coating on the surface of FeSiCr powder using the sol–gel method and investigated the effect of the insulation layer on the magnetic properties. Peng et al. [19] investigated the effect of calcination temperature on the microstructure and magnetic properties of FeNiMo@Al₂O₃ prepared by the sol–gel method. Lee et al. [20] utilized MgO as an insulating buffer layer to enhance the thermal stability of Fe-Ni soft magnetic composites and investigated the effect of high-temperature heat treatment on those soft magnetic properties. Han et al. [21] utilized SiO₂ as an insulating layer to fabricate FeSiCr@SiO₂ soft magnetic composites and investigated their magnetic properties. Inorganic oxides, such as oxides (e.g., ZrO₂, AlN, Al₂O₃, Cr₂O₃, TiO₂, SiO₂, and MgO) [22,23,24,25,26,27,28,29,30], are often non-ferromagnetic, causing magnetic dilution, which reduces the permeability and saturation magnetic flux density of the core, making it disadvantageous for achieving miniaturization of devices. As a magnetic material (e.g., Fe₃O₄, NiZnFe₂O₄, MgFe₂O₄, CoFe₂O₄, ZnFe₂O₄, and MnZnFe₂O₄) [31,32,33,34,35,36], ferrite has high resistivity and low eddy current loss, making it an ideal insulation coating for SMCs without significantly reducing magnetic performance.

In this work, a uniform MnFe₂O₄ layer was carefully fabricated on the surface of Fe powder using the surface oxidation method. The coating is produced through a direct chemical reaction with Fe, which prevents the detachment of the insulation layer during the subsequent compression molding process and achieves the goal of reducing core loss. By controlling the concentration of ammonia solution, the MnFe₂O₄ insulating layer thickness was adjusted. The microstructure and magnetic properties of SMCs with different thicknesses of MnFe₂O₄ insulation layers were investigated. The results show that the MnFe₂O₄/ESR organic–inorganic composite insulation coating effectively reduced the core loss of SMCs. This study provides a feasible solution with simple operation and low cost for preparing low-core-loss SMCs.

2. Experiments

The MnFe₂O₄ insulating layer was coated with Fe powder through the surface oxidation method. The water-atomized iron powder used in this paper comes from Heganas (China) Co., Ltd. (Shanghai, China), with an average particle size of about 57 µm. Its specific composition is 99.946 wt% iron, 0.004 wt% carbon, and 0.050 wt% oxygen. A 100 g amount of Fe powder was mixed with 300 mL of different concentrations of NH₃·H₂O (1.5, 2.5, and 3.5 wt%) with the addition of MnCl₂·4H₂O (1.98 g and 0.01 mol). The mixture was placed into a 500 mL autoclave and heated at 180 °C for 1 h to complete the surface oxidation reaction. The obtained powder was washed with deionized water and ethanol three times prior to mixing with an epoxy-modified silicone resin (ESR) (2 wt%) dissolved in dimethyl benzene. The mixture was stirred at 70 °C until complete evaporation of the solution occurred. The toroidal powder cores with an outer diameter of 26.1 mm, an inner diameter of 18.1 mm, and a thickness of 5.0 mm were fabricated by a cold pressure of 800 MPa at room temperature. Then, the compacted cores were annealed at various temperatures (500–600 °C) for 1 h in an Ar atmosphere to reduce the internal stress caused by pressing.

The surface morphology and composition of the oxidized Fe powders and annealed SMC samples were detected by scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS; Hitachi SU8010, Tokyo, Japan). The identification of the phases in the Fe powders and the oxidized powders was performed by X-ray diffraction (XRD; Bruck Advance D8, Berlin, Gremany) using Cu Kα radiation. The oxidation state of the surface insulation layer of the SMC powders was analyzed by X-ray photoelectron spectrometry (XPS; ESCALAB250Xi, Thermo Fisher Scientific, Waltham, MA, USA) and further analyzed using Fourier-transform infrared (FT-IR) spectroscopy (Bruker VERTEX 70, Billerica, MA, USA) over a frequency range of 400 to 4000 cm⁻¹. Raman measurement was performed in a LABRAM Aramis Raman microscopy system from Jobin Yvon France (Palaiseau, France) in the range from 100 to 1000 cm⁻¹ with a 532 nm laser. The thermal analysis was performed by thermogravimetry and differential scanning calorimetry (TG-DSC, NETZSCH STA 449C, Selb, Germany), in which the samples were heated from room temperature to 700 °C under an Ar atmosphere in alumina crucibles at a rate of 10 °C/min. Magnetic hysteresis was achieved in a vibrating sample magnetometer (VSM; Lake-shore 7400-s, Westerville, OH, USA) in powder form at room temperature within the field range of ±20,000 Oe. The amplitude permeability and core loss of the SMCs were measured with a maximum applied induction of 50 mT over the frequency range from 10 to 170 kHz by an auto testing system for magnetic materials (Iwatsu SY8258B-H/m, Tokyo, Japan).

3. Results and Discussion

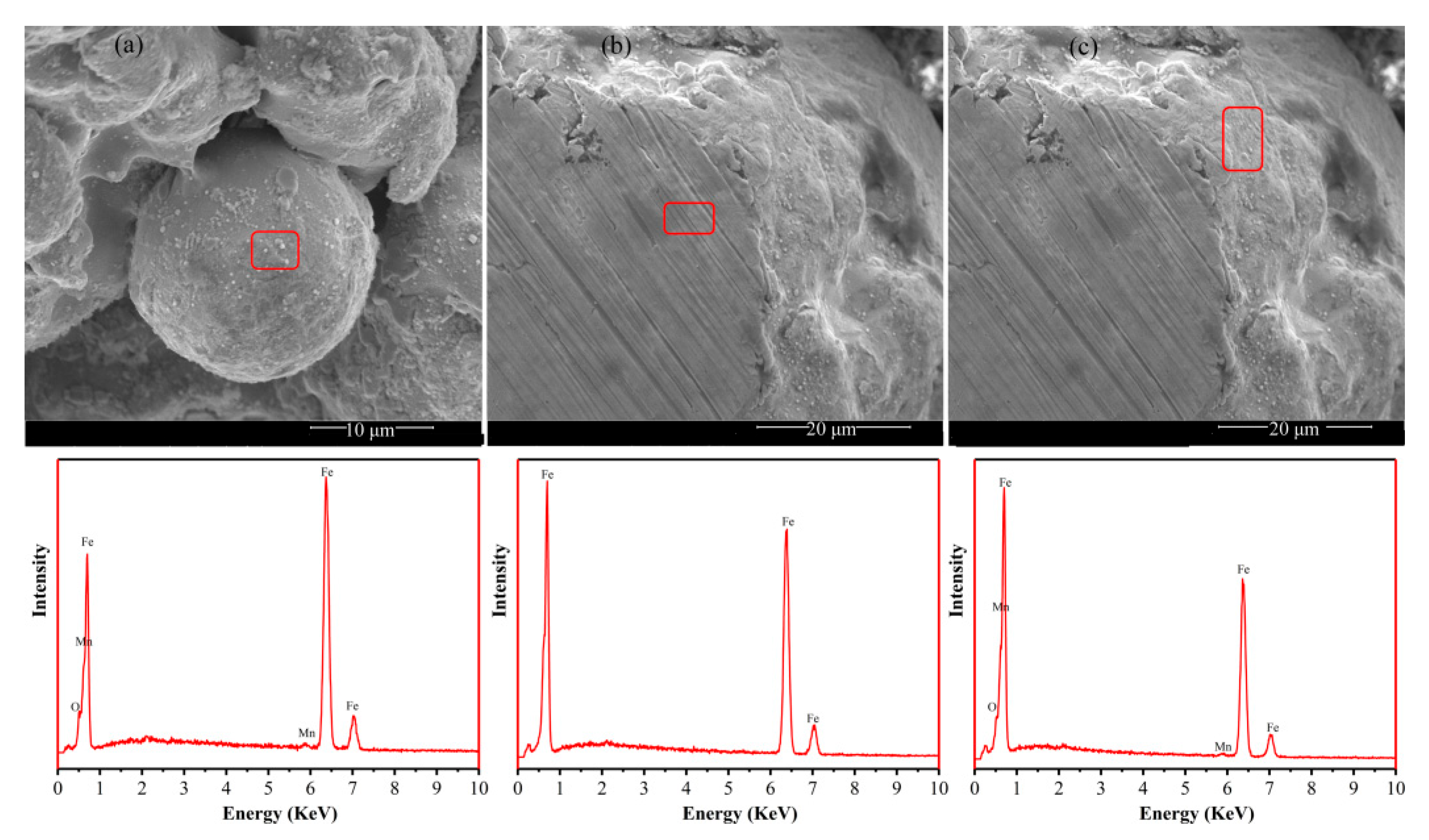

Figure 1 shows the SEM morphologies and EDS elemental analysis of the oxidized Fe powders. The surface morphology of oxidized iron powder particles under SEM is rough, and the EDS selective element analysis was performed on the surface oxidation layer, as shown in Figure 1a. The results indicate that the coating layer consists of manganese, iron, and oxygen elements; therefore, it can be inferred that the chemical composition of the insulation layer is manganese ferrite (MnFe₂O₄). Figure 1b,c show the cross-sectional morphology of the oxidized iron powder after embedding and polishing, indicating that the particle surface was coated with a thin insulating layer. The EDS elemental analysis was conducted on both the interior and surface of the particles, and the comparative test results showed that only iron was present inside the particles, while manganese, oxygen, and iron were present on the surface of the particles. This further indicates that the surface of the oxidized iron powder was insulated with MnFe₂O₄.

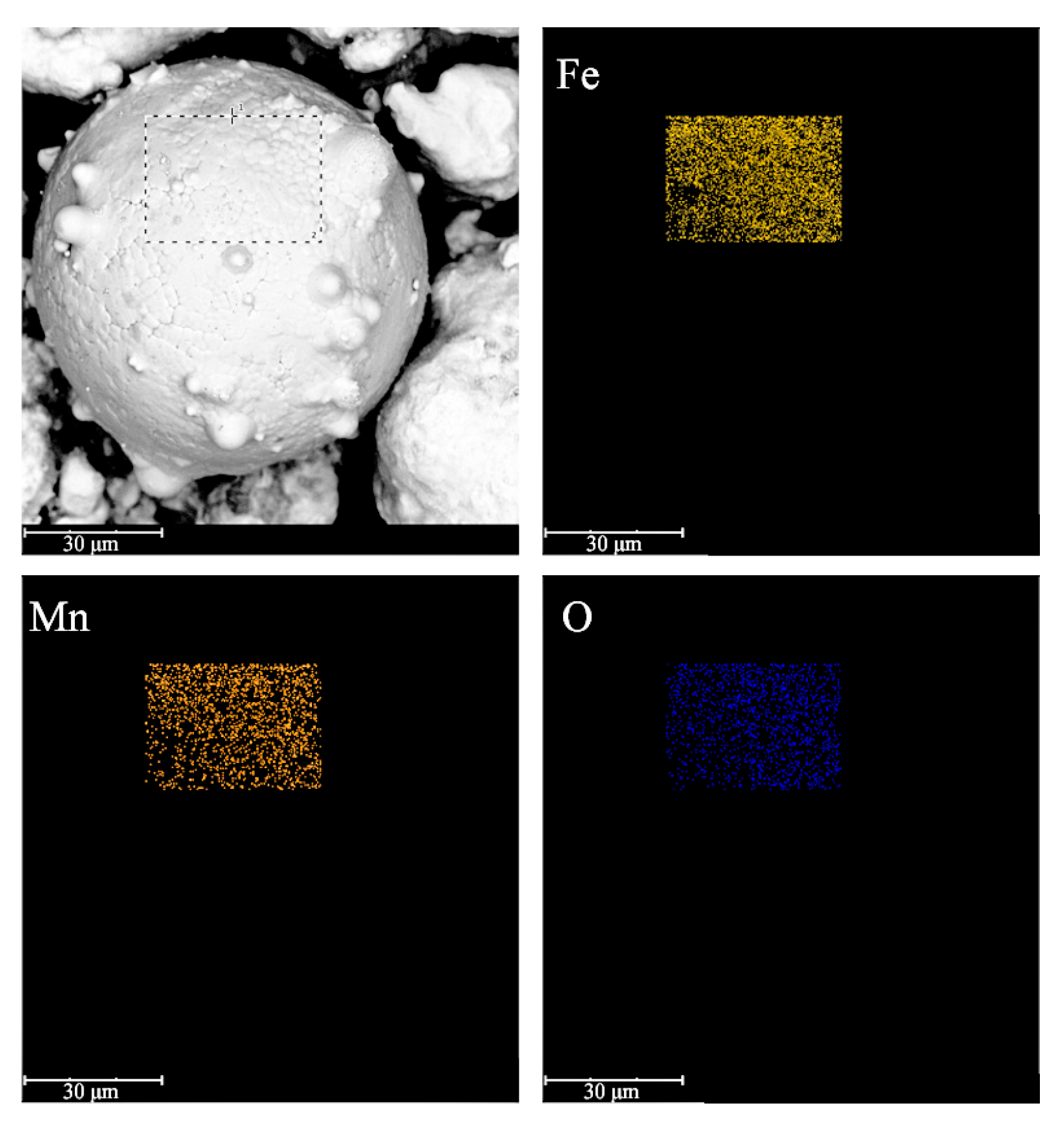

To further determine the uniformity and integrity of the insulation coating, EDS surface scanning elemental analysis was performed on the surface of the oxidized iron powder particles, and the results are shown in Figure 2. The iron, manganese, and oxygen elements in the coating layer are uniformly distributed on the surface of the particles, which further confirms that the chemical composition of the insulating coating layer is MnFe₂O₄. The uniform and complete coating layer guarantees the amplitude permeability of SMCs, which have frequency stability and low eddy current losses at high frequencies.

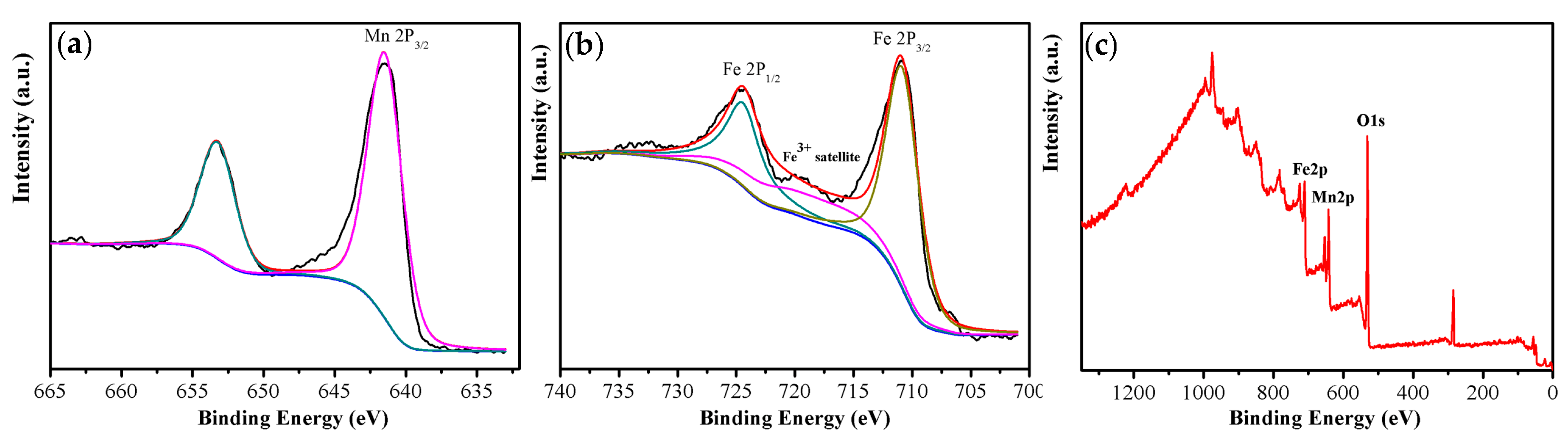

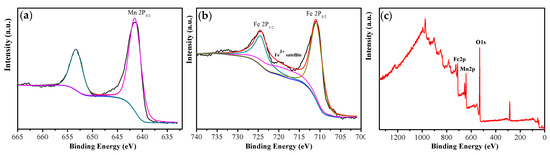

XPS analysis was conducted on iron powder oxidized by 2.5 wt% ammonia solution to further confirm the chemical composition of the insulation layer. The Mn 2p3/2 peak is located at 641.5 eV, as shown in Figure 3, indicating the presence of divalent Mn²⁺ ions on the surface of the oxidized iron powder [37]. The two peaks corresponding to Fe 2p1/2 and Fe 2p3/2 are shown in the XPS Fe 2p spectrum, located at around 724.6 eV and 711.0 eV, respectively. It is worth noting a weak satellite peak at approximately 719.1 eV, which was assigned to Fe in the 3+ oxidation state [38]. The survey spectrum of oxidized powder is shown in Figure 3c, which indicates the insulating layer comprising MnFe₂O₄.

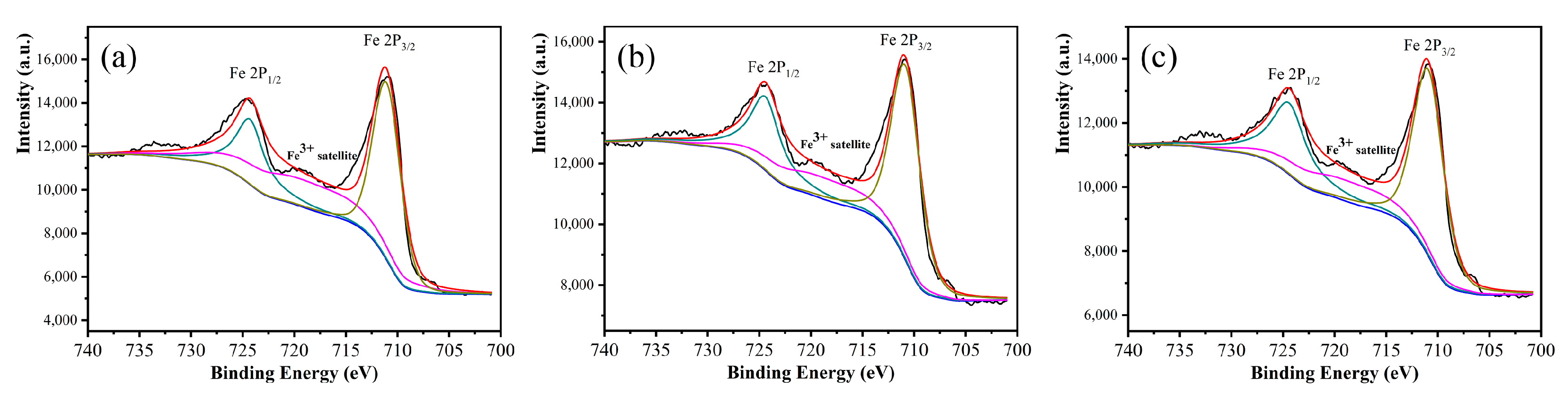

To analyze the effect of ammonia concentration on the insulation coating, the XPS measurements were conducted on iron powder oxidized with different ammonia concentrations, and the results are shown in Figure 4. Comparing the intensity of the satellite peak of 719.1 eV under different concentrations of ammonia, it was found that the intensity of satellite peaks slightly increased with an increase in ammonia water concentration, indicating that the content of Fe³⁺ in the surface insulation layer increased with an increase in ammonia concentration, and therefore, the thickness of the insulation coating layer gradually increased. No Fe 2p3/2 peak corresponding to metallic Fe⁰ was observed in the 706.6 eV region of all samples, indicating that the insulation layer was completely coated on the surface of the iron powder.

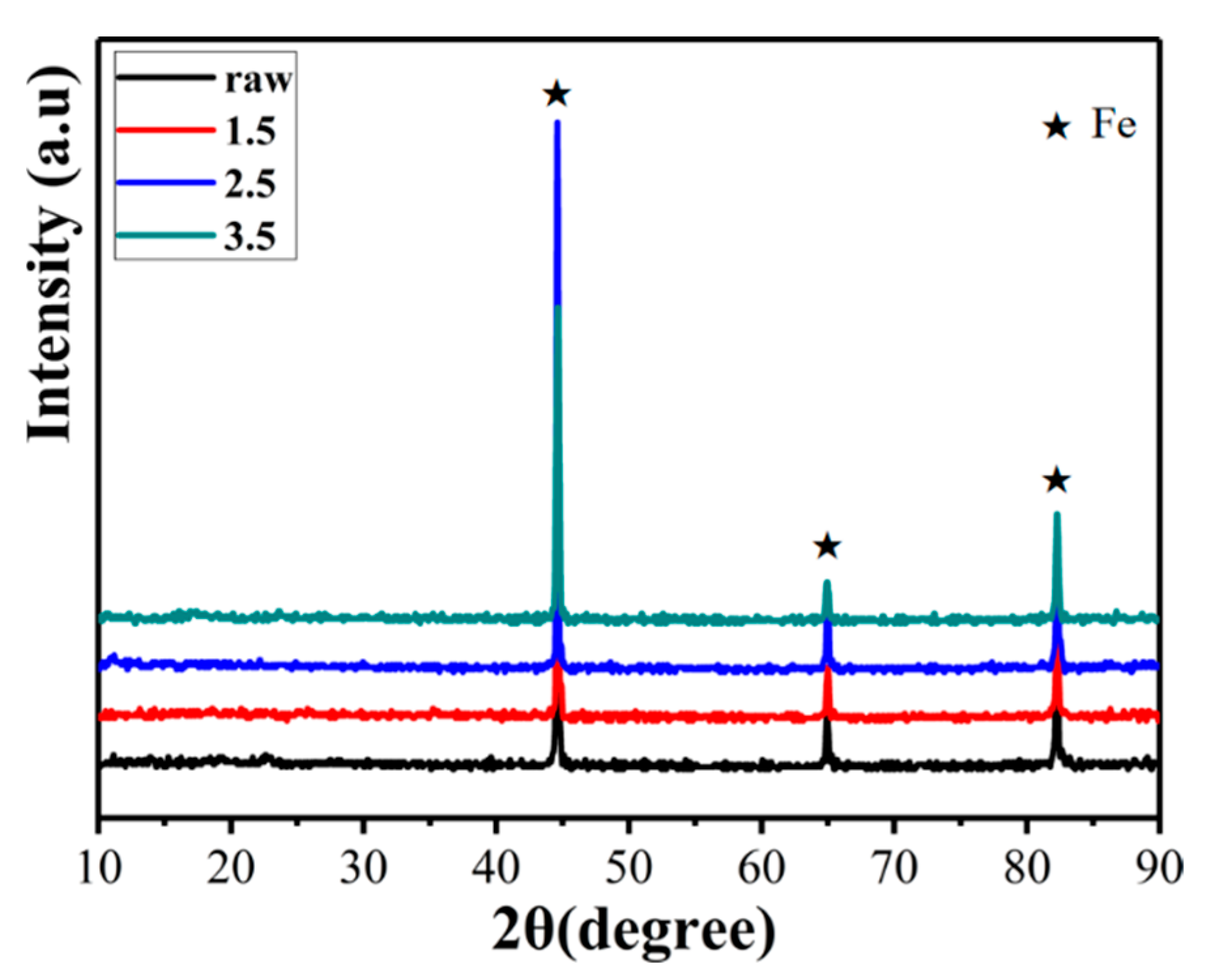

XRD measurements were carried out on raw iron powder and iron powder oxidized with different concentrations of ammonia to analyze the chemical composition of the insulation coating layer, and the results are shown in Figure 5. According to JCPDS Card No. 87-0721, the diffraction peaks at 2θ values of ca. 44.60°, 64.98°, and 82.26° were from the (110), (200), and (211) planes of the α-Fe phase. It is worth noting that no peak corresponding to the oxide was observed; only the peak originating from the raw material powder was detected. This result can be explained by the amount of oxide phase being too low to be detected by XRD.

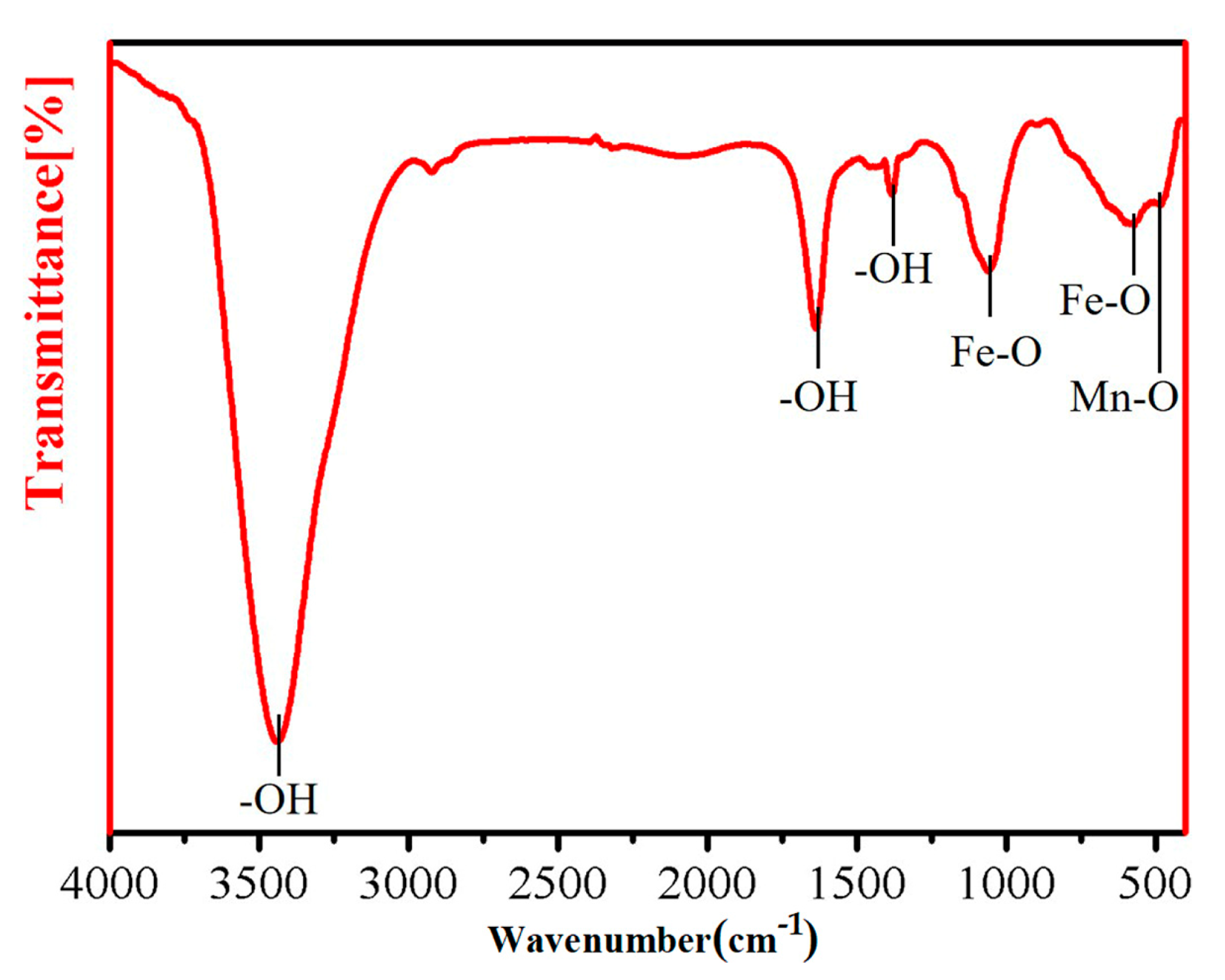

FT-IR spectroscopy of oxidized iron powder was performed in the 4000–400 cm⁻¹ range, as shown in Figure 6. The peaks at 3436, 1633, and 1380 cm⁻¹ correspond to the -OH stretching vibration peaks, which are caused by the adsorption of water from the air on the sample surface. The peaks displayed at 1061 and 572 cm⁻¹ correspond to the Fe-O vibrational stretching peak [39], while the peak at 478 cm⁻¹ corresponds to the Mn-O bond. The test results indicate the presence of Mn-O and Fe-O bonds on the surface of the sample after insulation coating, which further demonstrates that the chemical composition of the insulation layer is MnFe₂O₄.

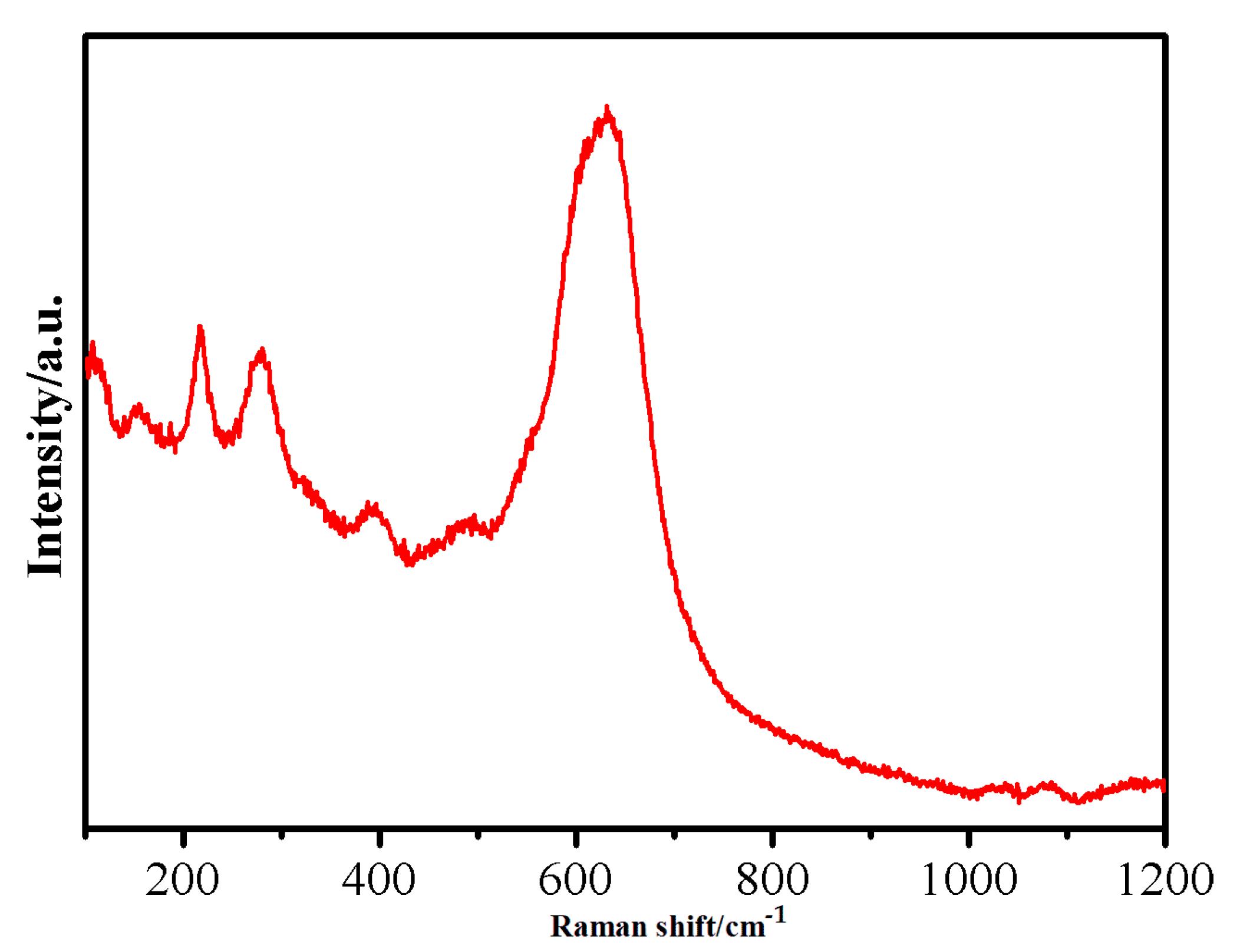

The Raman spectra of oxidized iron powder are shown in Figure 7. The sharp characteristic peaks of MnFe₂O₄ appear at 217 and 279 cm⁻¹, while broad peaks appear simultaneously at 393, 490, and 630 cm⁻¹. This experimental result confirms that MnFe₂O₄ ferrite has a cubic spinel structure [40]. The Raman test results further indicate that the chemical composition of the surface insulation coating of oxidized iron powder is MnFe₂O₄.

Based on the above analysis results, the reaction mechanism of surface oxidation can be inferred. The possible reaction for forming MnFe₂O₄ in this process can be expressed as the following equation. According to the Pourbaix diagram [41], the Fe reacted with H₂O to form Fe(OH)₂ and was further oxidized to [Fe(OH)_n]⁻⁽ⁿ⁻³⁾ (n = 2, 3) by a small amount of dissolved O₂ in the solution. Moreover, the Mn²⁺ ions formed Mn(NH₃)₆²⁺ due to the strong coordinating ability of Mn²⁺ with NH₃. Finally, Mn(NH₃)₆²⁺ reacted with hydroxy complexes [Fe(OH)_n]⁻⁽ⁿ⁻³⁾ to form ferromagnetic MnFe₂O₄ [42]:

$$\mathrm{Fe}+2{\mathrm{H}}_2\mathrm{O}\to \mathrm{F}\mathrm{e}(\mathrm{O}\mathrm{H}{)}_2+{\mathrm{H}}_2$$

$$\mathrm{Fe}(\mathrm{OH}{)}_2+\mathrm{O}{\mathrm{H}}^{-}+{\mathrm{O}}_2+{\mathrm{H}}_2\mathrm{O}\to [\mathrm{Fe}(\mathrm{OH}{)}_{\mathrm{n}}{]}^{-\left(\mathrm{n}-3\right)} (\mathrm{n}=2,3)$$

$${\mathrm{M}\mathrm{n}}^{2+}+6{\mathrm{N}\mathrm{H}}_3·{\mathrm{H}}_2\mathrm{O}\to {\mathrm{M}\mathrm{n}\left({\mathrm{N}\mathrm{H}}_3\right)}_6^{2+}+6{\mathrm{H}}_2\mathrm{O}$$

$$\left[\mathrm{F}\mathrm{e}\right(\mathrm{O}\mathrm{H}{)}_{\mathrm{n}}{]}^{-\left(\mathrm{n}-3\right)}+{\mathrm{M}\mathrm{n}\left({\mathrm{N}\mathrm{H}}_3\right)}_6^{2+}\to {\mathrm{M}\mathrm{n}\mathrm{F}\mathrm{e}}_2{\mathrm{O}}_4$$

According to the above surface oxidation reaction mechanism, as the concentration of ammonia increases, OH⁻ and NH₄⁺ in the solution increase, causing the insulation coating to become thicker. Therefore, the reaction concentration will affect the thickness of the insulating coating and then affect the magnetic properties of the magnetic powder after insulating coating. Figure 8 shows the hysteresis loops of raw iron powder and those oxidized with different concentrations of ammonia, with a test magnetic field range of −20,000 Oe to 20,000 Oe. The saturated magnetization (M_s) value of the raw iron powder was 210 emu/g, while the M_s of the iron powder after insulation coating decreased from 205 emu/g to 198 emu/g when the ammonia water concentration increased from 1.5 wt% to 3.5 wt%, as shown in the left inset. On the one hand, the slight change in the M_s of iron powder after insulation coating is due to the thin thickness of the insulation layer. On the other hand, the M_s of the insulating layer MnFe₂O₄ is lower than that of the iron powder, resulting in a gradual decrease in the saturation magnetic induction intensity of the coated magnetic powder with increasing ammonia concentration. As shown in the right inset, the coercive field of the oxidized Fe powders increased with increasing ammonia concentration, mainly owing to the increasing content of MnFe₂O₄ in the insulating layer.

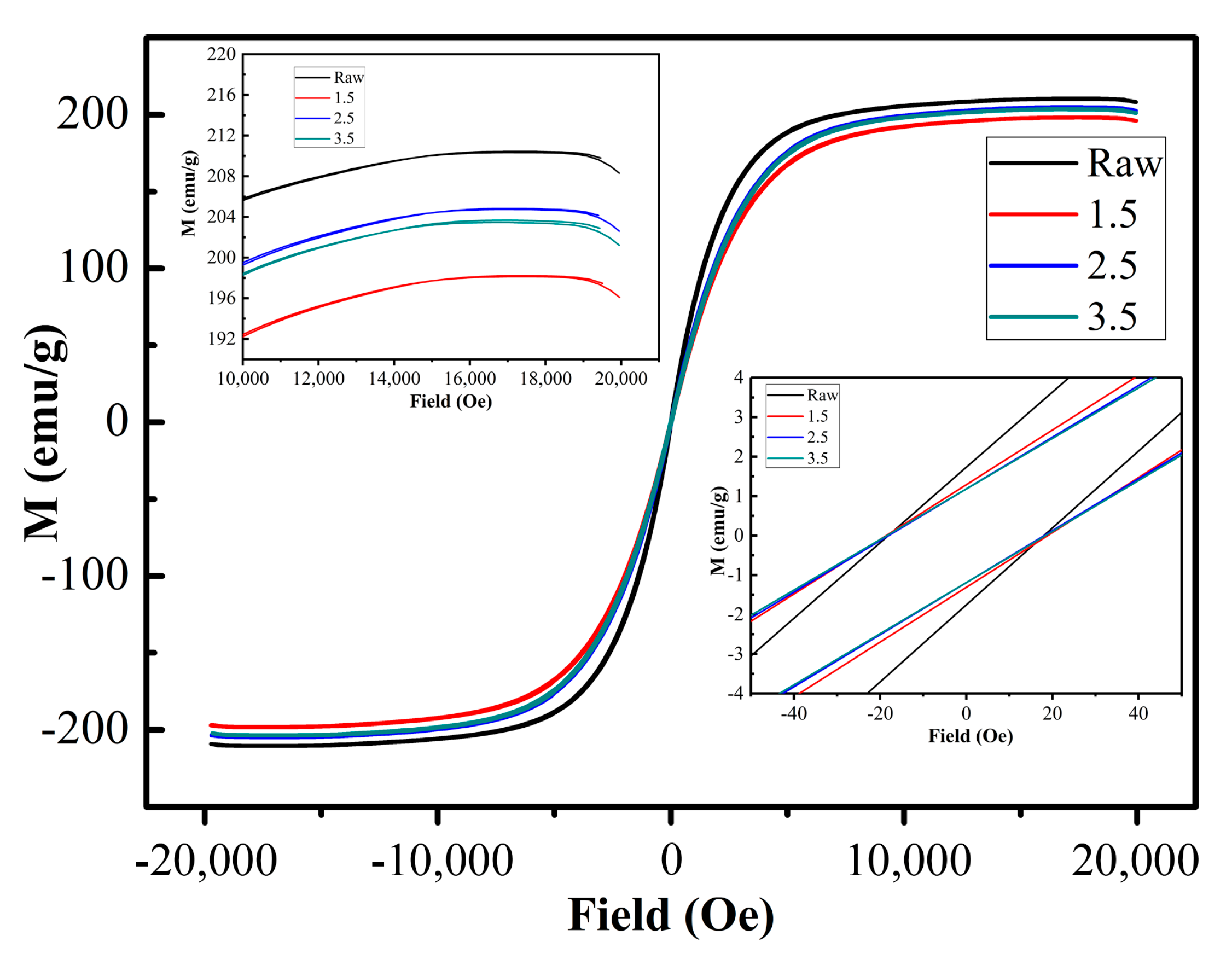

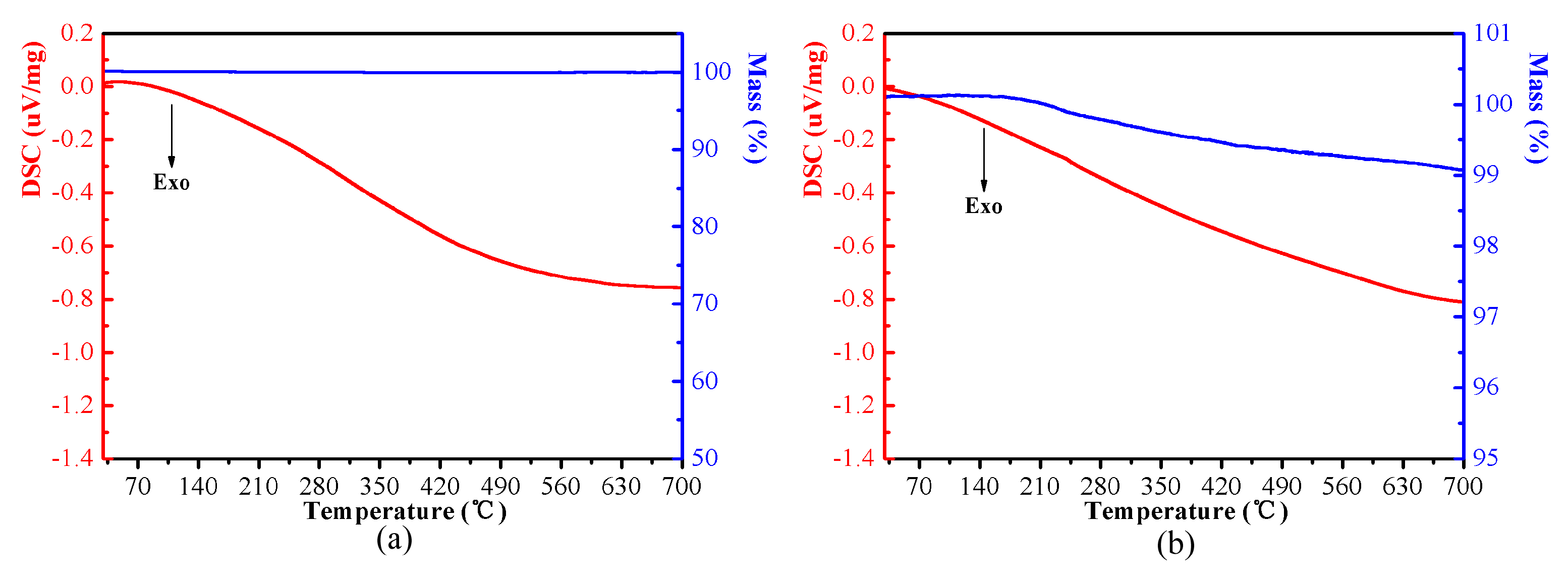

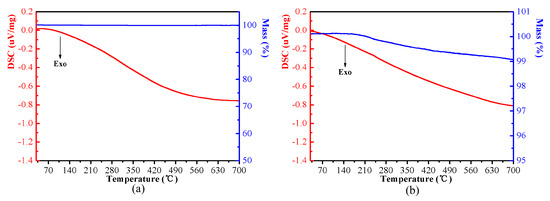

In order to analyze the thermal stability of the coating, TG-DSC measurements were conducted on the iron powder coated with MnFe₂O₄ and the iron powder coated with MnFe₂O₄/ESR, as shown in Figure 9. According to Figure 9a, it can be seen that the mass of iron powder after MnFe₂O₄ insulation coating remains unchanged during the process of increasing the temperature from room temperature to 700 °C. The results indicate that MnFe₂O₄ does not decompose below 700 °C. As shown in Figure 9b, an apparent decrease in the mass was observed at approximately 200 °C due to thermal degradation of the ESR layer, which decomposed slowly with increasing temperature. When the temperature rises to 700 °C, the decrease in mass is 0.97%, which is less than the mass fraction of 2 wt% ESR, which is because the ESR decomposes and generates silicon dioxide.

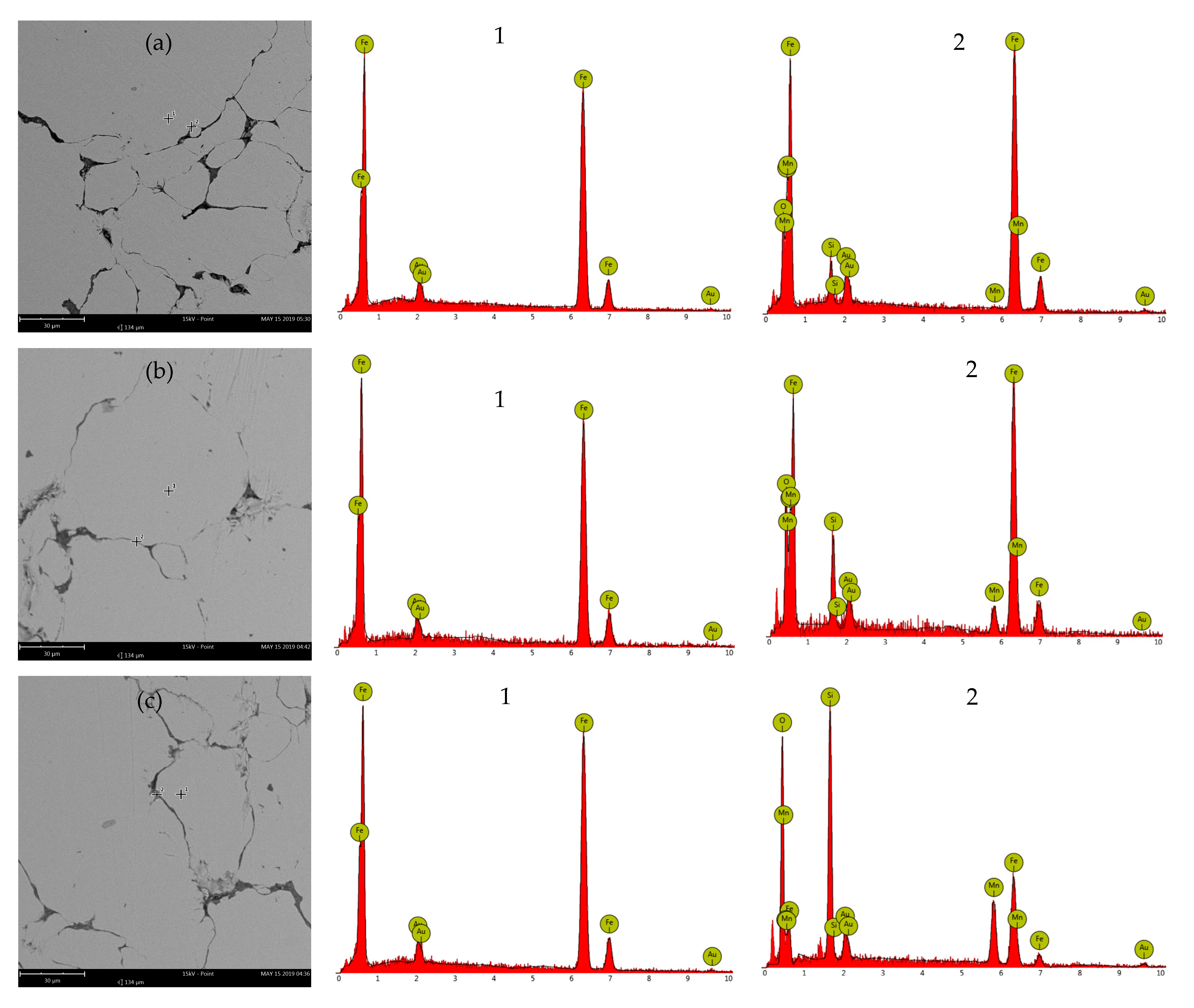

To further analyze the impact of annealing temperature on the insulating coating, SEM morphology observation and corresponding EDS elemental analysis were conducted on the cross-section of the SMCs at different annealing temperatures; the results are shown in Figure 10. The presence of gold in the EDS test results of all samples is due to the gold spraying treatment on the samples. The EDS test results of the magnetic core cross-section at different annealing temperatures show that the interior (1) of the particles only contains iron, while the surface (2) of the particles contains manganese, oxygen, iron, and silicon. This is due to the presence of an insulating layer of MnFe₂O₄ on the particle surface and the decomposition of silicone resin into silicon dioxide after annealing. In addition, the peak intensity of silicon increases with an increase in annealing temperature because the gradual decomposition of silicone resin increases the content of silicon dioxide. The peak intensity of manganese also increases with the increase in annealing temperature, which is due to the gradual decomposition of silicone resin, exposing more MnFe₂O₄ on the surface of the particles.

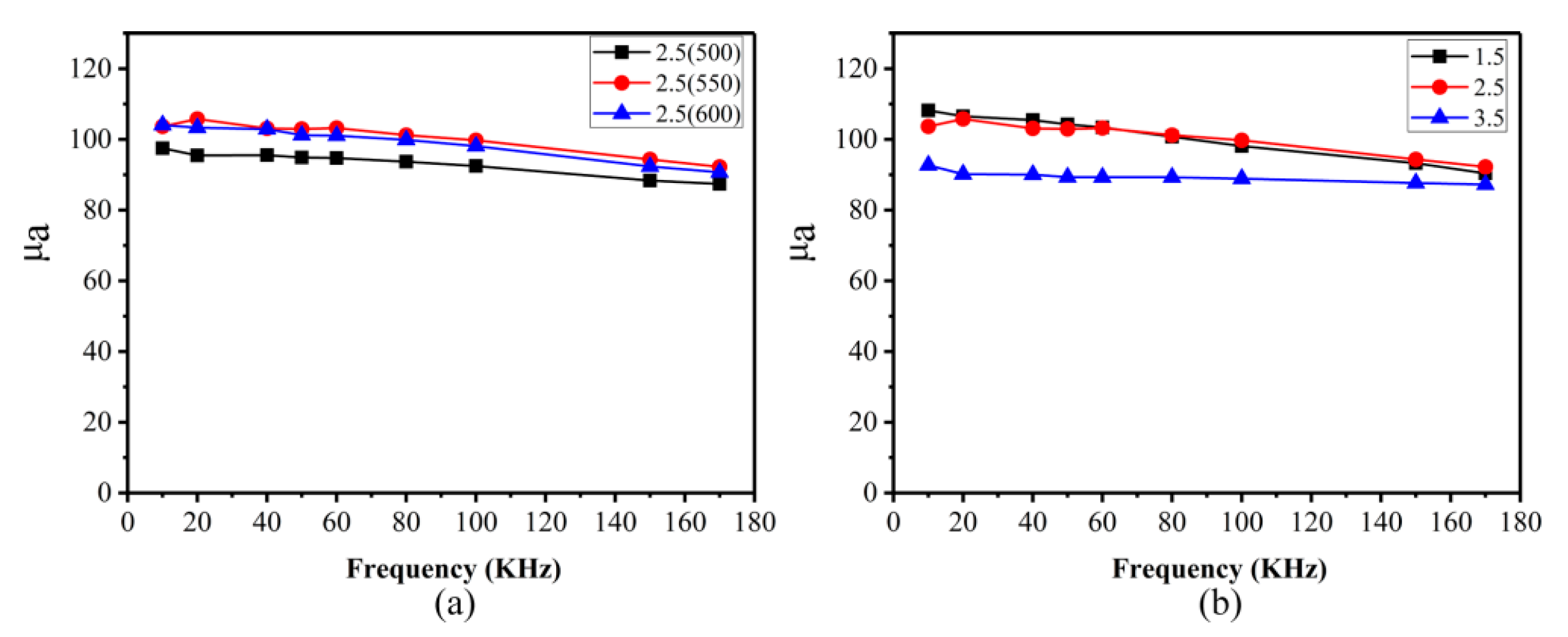

Figure 11a shows the variation curves of the amplitude permeability of the Fe SMCs with frequency under different annealing temperatures, where the Fe SMCs were prepared by insulation oxidation with an ammonia concentration of 2.5 wt%. The external magnetic field applied during testing was 50 mT. All samples exhibited high amplitude permeability with frequency stability, indicating that the insulation layer was completely coated on the surface of the iron powder particles. It can also be observed that as the annealing temperature increased from 500 °C to 550 °C, the amplitude permeability of the core significantly increased. However, when the annealing temperature was further raised to 600 °C, the amplitude permeability of the core slightly decreased. On the one hand, the release of internal stress in the core became more thorough with increasing temperature, which was beneficial for improving the amplitude permeability. On the other hand, the increase in annealing temperature led to an increase in the porosity of the core, which reduced the amplitude permeability. Therefore, when the annealing temperature increased from 500 °C to 550 °C, the elimination of internal stress played a dominant role in enhancing the amplitude permeability. When the annealing temperature increased from 550 °C to 600 °C, the increase in porosity had a more pronounced effect on reducing the amplitude permeability, indicating that the internal stress in the core was fully eliminated at an annealing temperature of 550 °C.

The variation curves of amplitude permeability with frequency for the Fe SMCs prepared at different ammonia concentrations under an annealing temperature of 550 °C, as shown in Figure 11b. As the ammonia concentration increased from 1.5 wt% to 2.5 wt%, the amplitude permeability of the Fe SMCs slightly decreased, which was attributed to the increase in the thickness of the insulation layer. Additionally, when the ammonia concentration was 1.5 wt%, the amplitude permeability of the Fe SMCs gradually decreased with increasing frequency because of the thin insulation coating layer, which resulted in weaker frequency stability of the amplitude permeability. While the ammonia concentration reached 3.5 wt%, the amplitude permeability of the core exhibited excellent frequency stability, indicating that the insulation layer was complete and had a certain thickness. Furthermore, the amplitude permeability of the Fe SMCs significantly decreased due to the increased content of MnFe₂O₄ in the magnetic powder.

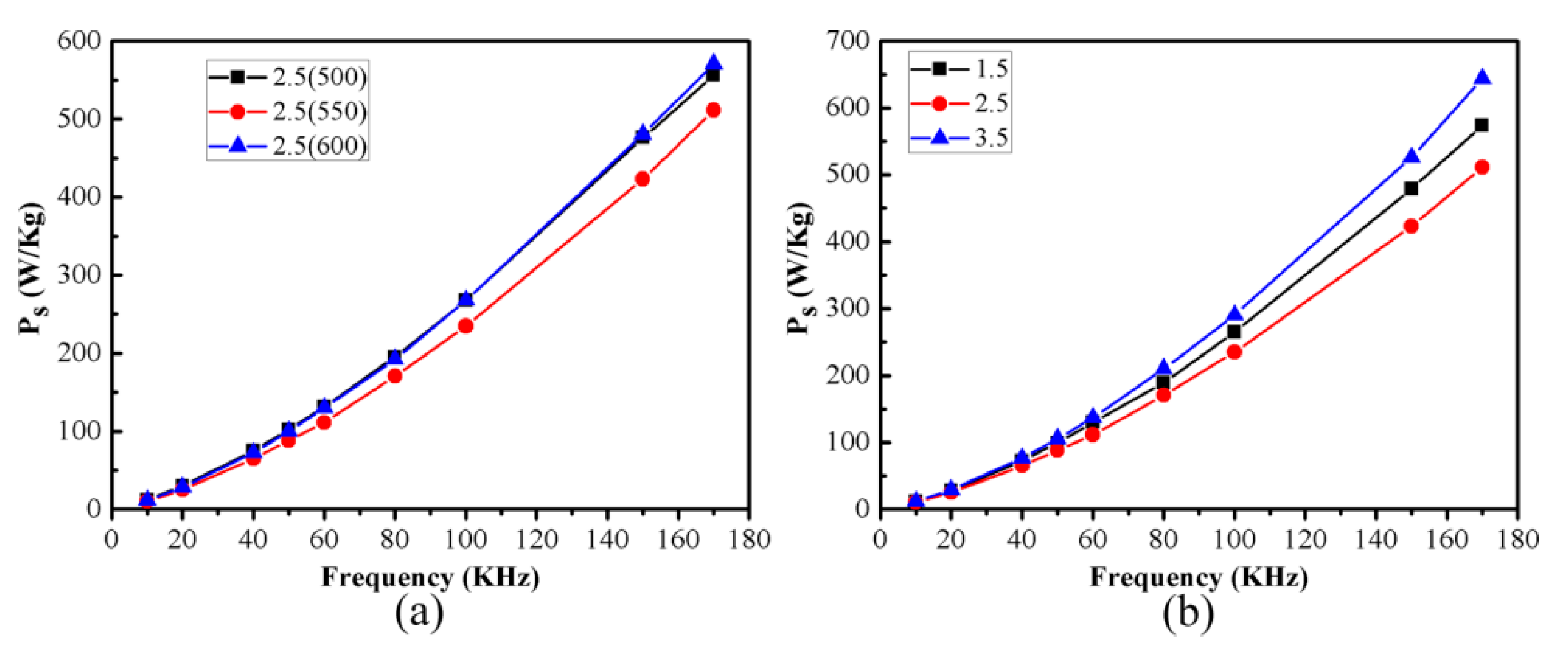

Figure 12 shows the core loss (P_s) versus the frequency of the Fe SMCs annealed at different temperatures, oxidized by different ammonia concentrations, and annealed at 550 °C. The P_s of the SMCs mainly consists of the hysteresis loss P_h and eddy current loss P_e [43]. Figure 12a shows the P_s of the SMC samples after oxidation with an ammonia concentration of 2.5 wt% under different annealing temperatures, with the applied external magnetic field being 50 mT. At the frequency of 100 kHz, the core loss decreased from 267.6 W/kg to 234.9 W/kg as the annealing temperature increased from 500 °C to 550 °C. This mainly resulted from the reduced residual stresses and decreased coercivity caused by the annealing treatment, decreasing the hysteresis loss of P_s. When the annealing temperature rose to 600 °C, the core loss increased to 268.0 W/kg. This was mainly caused by the further decomposition of the coating layer, leading to an increase in the eddy current loss. Therefore, 550 °C is the optimal annealing temperature for obtaining the lowest core loss of the SMCs.

Figure 12b shows the P_s with frequency for the SMCs prepared under different ammonia concentrations at an annealing temperature of 550 °C, with the applied external magnetic field being 50 mT. At the frequency of 100 kHz, the core loss decreases and then increases with an increase in ammonia concentration, reaching a minimum of 234.9 W/kg at an ammonia concentration of 2.5 wt%. The thickness of the insulating coating increases with the ammonia solution concentration. On the one hand, an increase in the thickness of the MnFe₂O₄ insulating layer leads to reduced eddy current loss, thereby decreasing the core loss. On the other hand, an increase in the thickness of the insulating layer leads to an increase in hysteresis loss, thereby increasing the core loss. The analysis of the amplitude permeability of the SMCs with changes in ammonia concentration indicates that the insulating layer thickness of the core prepared at an ammonia concentration of 1.5 wt% is very thin. When the ammonia concentration increases from 1.5 wt% to 2.5 wt%, the former effect is more significant, thereby reducing the core loss. When the ammonia concentration increases to 3.5 wt%, the insulating layer thickness further increases, and the latter effect dominates, causing the core loss to rise. Combined with the annealing temperature and ammonia concentration, 550 °C and 2.5 wt% were the optimal conditions for obtaining good soft magnetic properties with a high amplitude permeability (approximately 100) and low core loss (234.9 W/kg, 50 mT 100 kHz) in the SMCs.

4. Conclusions

In this work, Fe soft magnetic composites based on powder coated with MnFe₂O₄/ESR insulating layers were prepared by surface oxidation and mixing with the ESR. The chemical composition of the insulation layer was analyzed by characterization methods such as SEM, EDS, and XPS, and the results showed that the insulation layer was made of manganese ferrite (MnFe₂O₄). The influence of ammonia concentration and annealing temperature on the magnetic properties of Fe SMCs was investigated. The SMCs prepared with an ammonia concentration of 2.5 wt% had the best comprehensive magnetic properties after annealing at 550 °C. The SMCs exhibited an excellent amplitude permeability of 99.7 and significantly low core loss of 234.9 W/kg (at 100 kHz, 50 mT). This study provides a new method for developing SMCs that can operate at high frequencies with high magnetic permeability and low loss, which may be beneficial for the miniaturization, integration, and energy saving of electronic components.
