Next Article in Journal
Recovery of Critical Raw Materials from Industrial Wastes by Advanced Methods
Previous Article in Journal
Microstructure Evolution in Homogenization Heat Treatment of Inconel 718 Manufactured by Laser Powder Bed Fusion


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
This is an early access version, the complete PDF, HTML, and XML versions will be available soon.
Article

Microstructure and Properties of Dissoluble LA141-0.5Cu Magnesium Alloy Wires Applied to Oil and Gas Resource Exploitation

1
Research Institute of Petroleum Exploration & Development, Beijing 100083, China
2
Key Laboratory of Oil and Gas Reservoir Transformation, China National Petroleum Corporation, Langfang 065007, China
*
Author to whom correspondence should be addressed.
Metals 2025, 15(8), 860; https://doi.org/10.3390/met15080860 (registering DOI)
Submission received: 6 May 2025 / Revised: 13 July 2025 / Accepted: 17 July 2025 / Published: 31 July 2025

Abstract

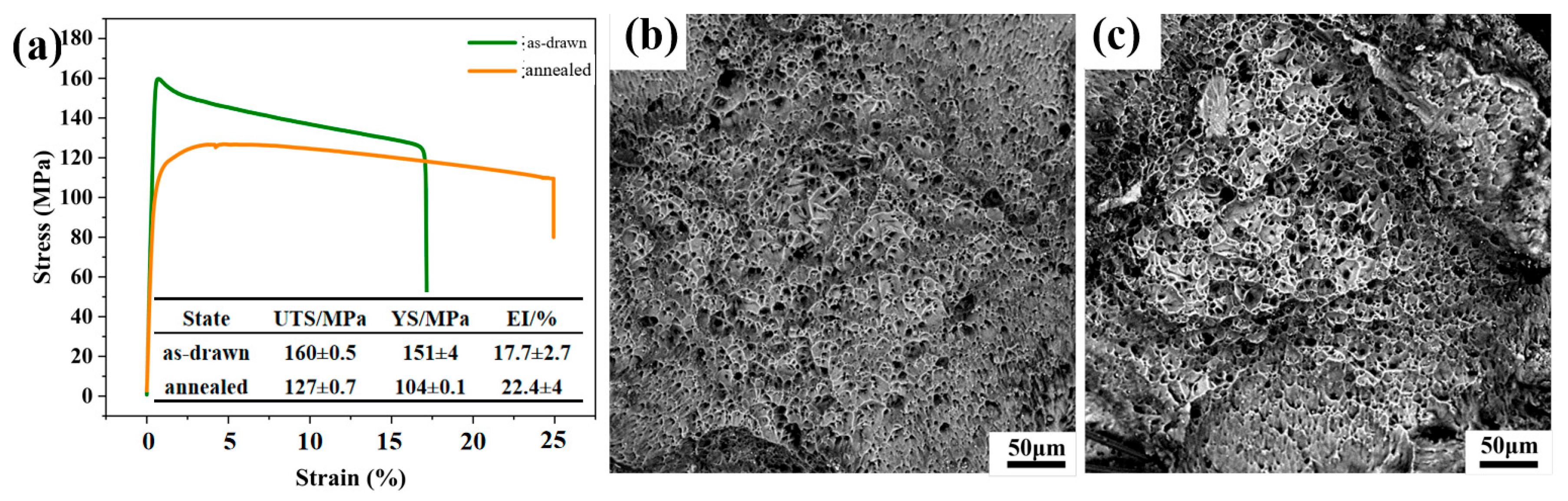

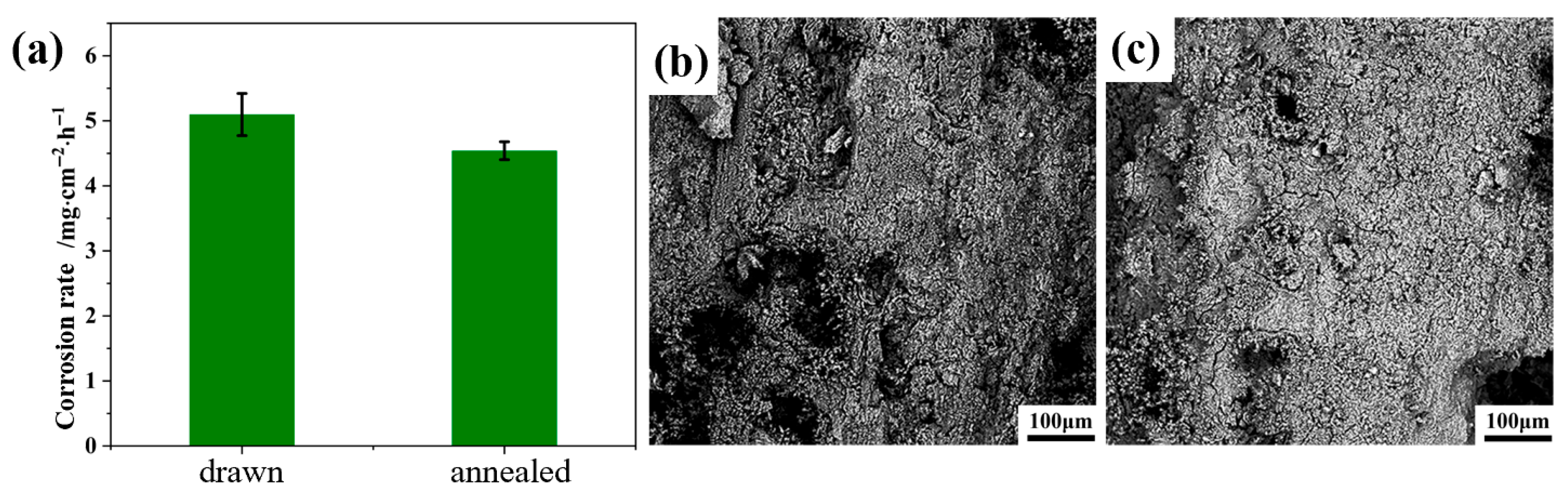

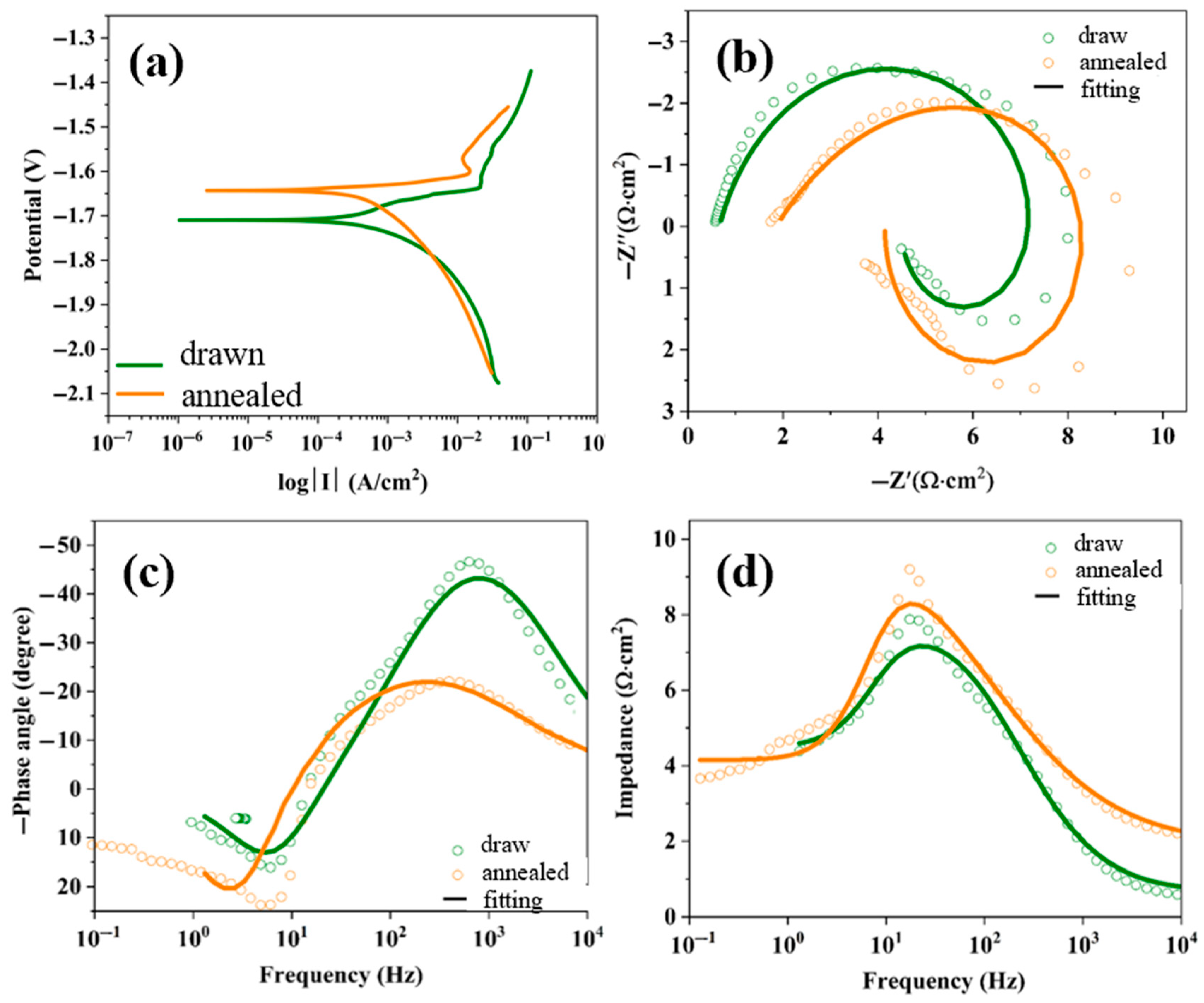

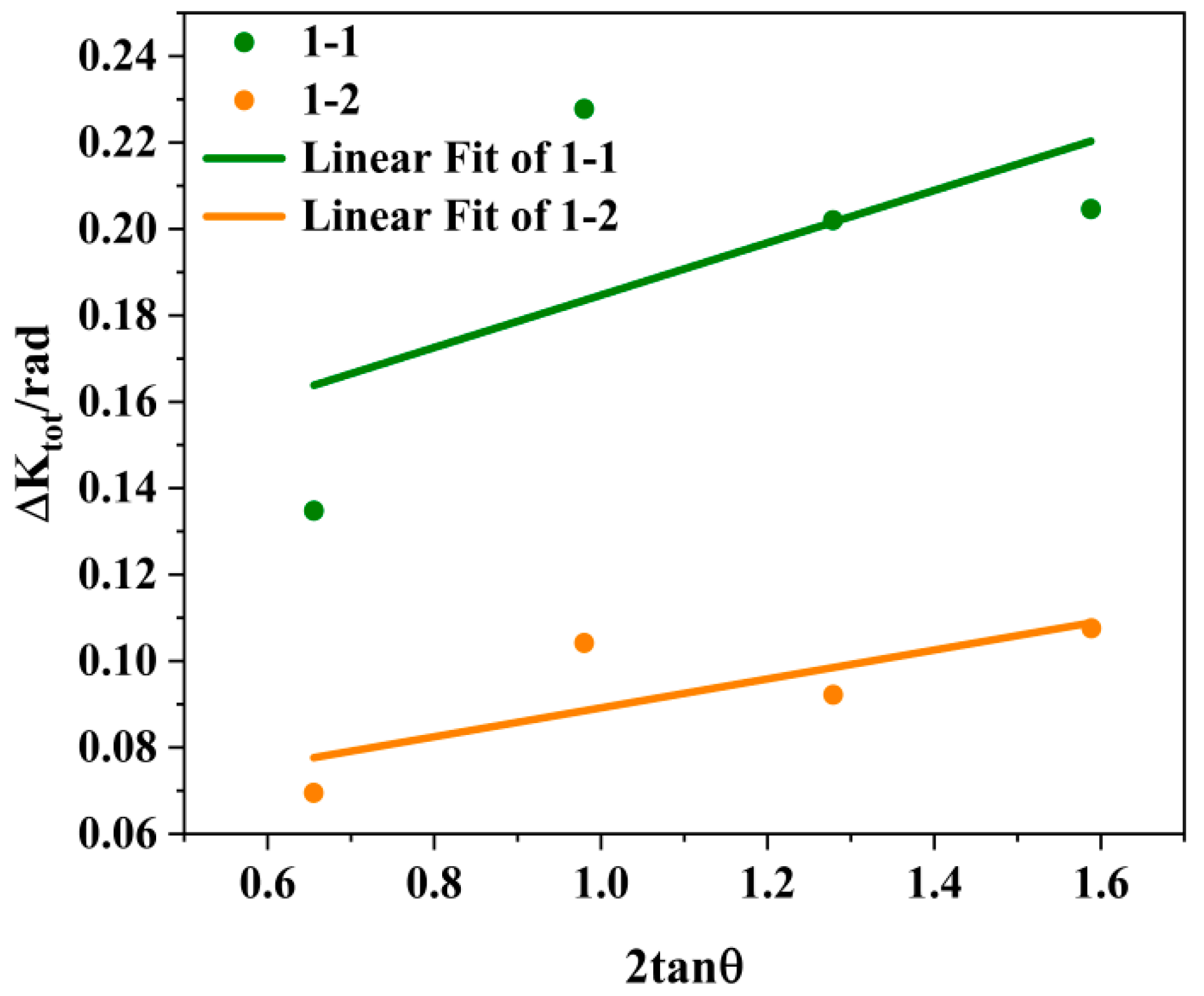

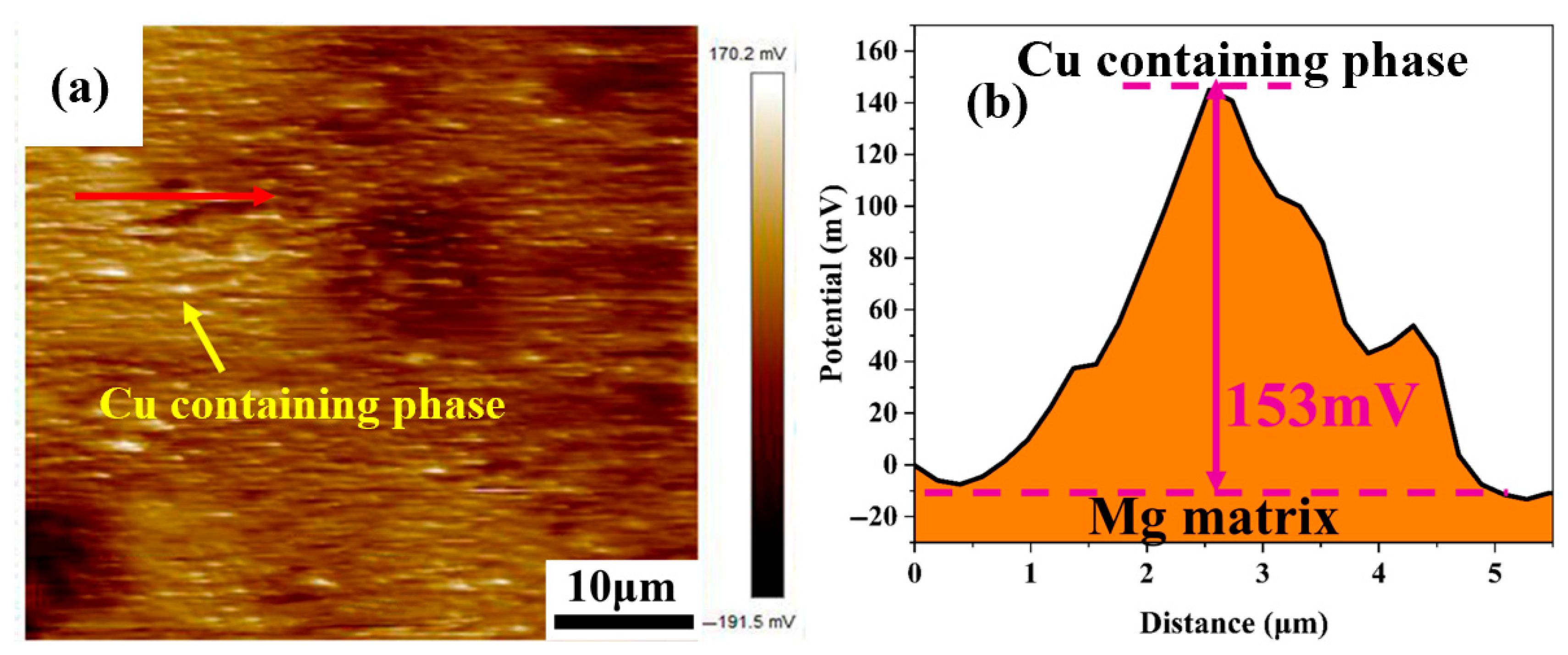

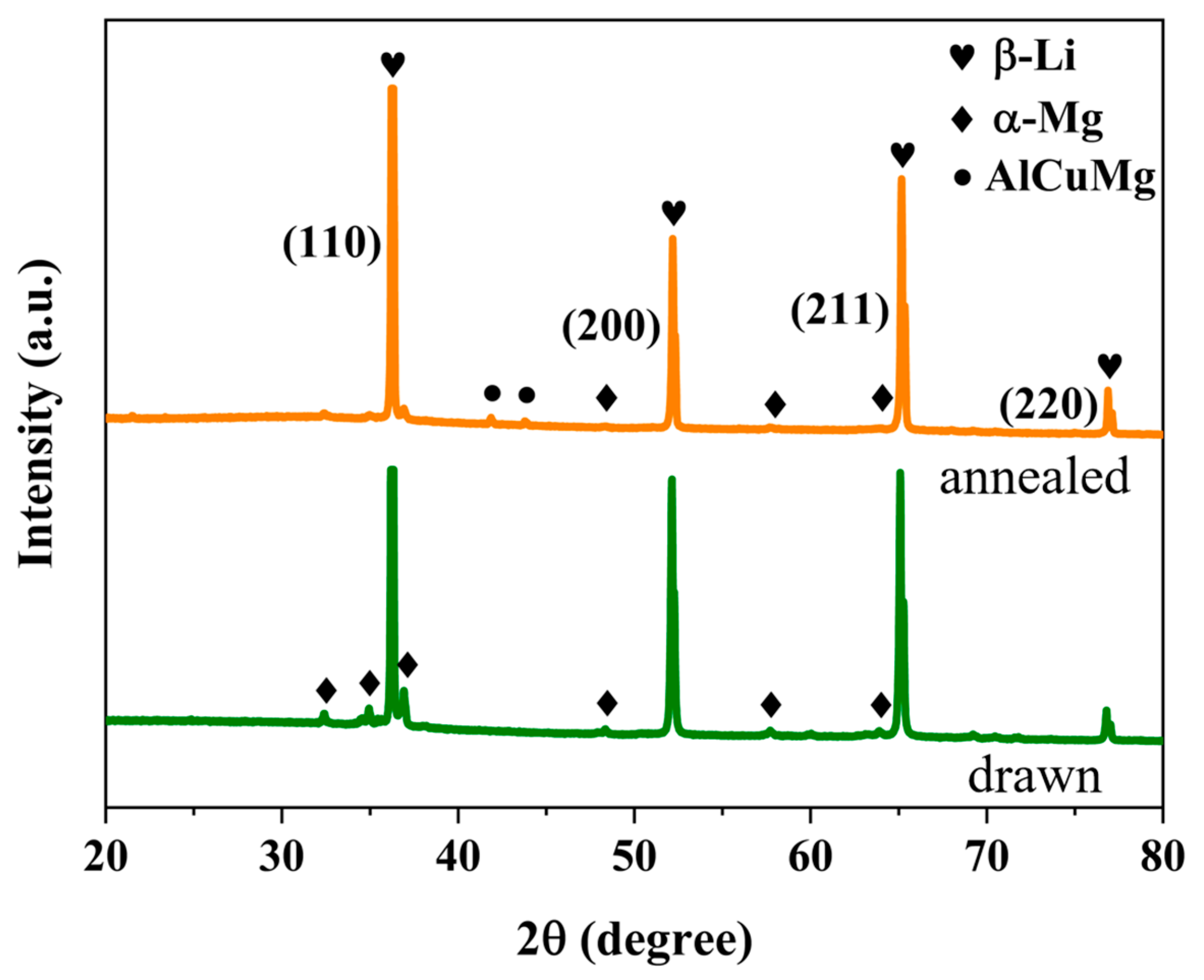

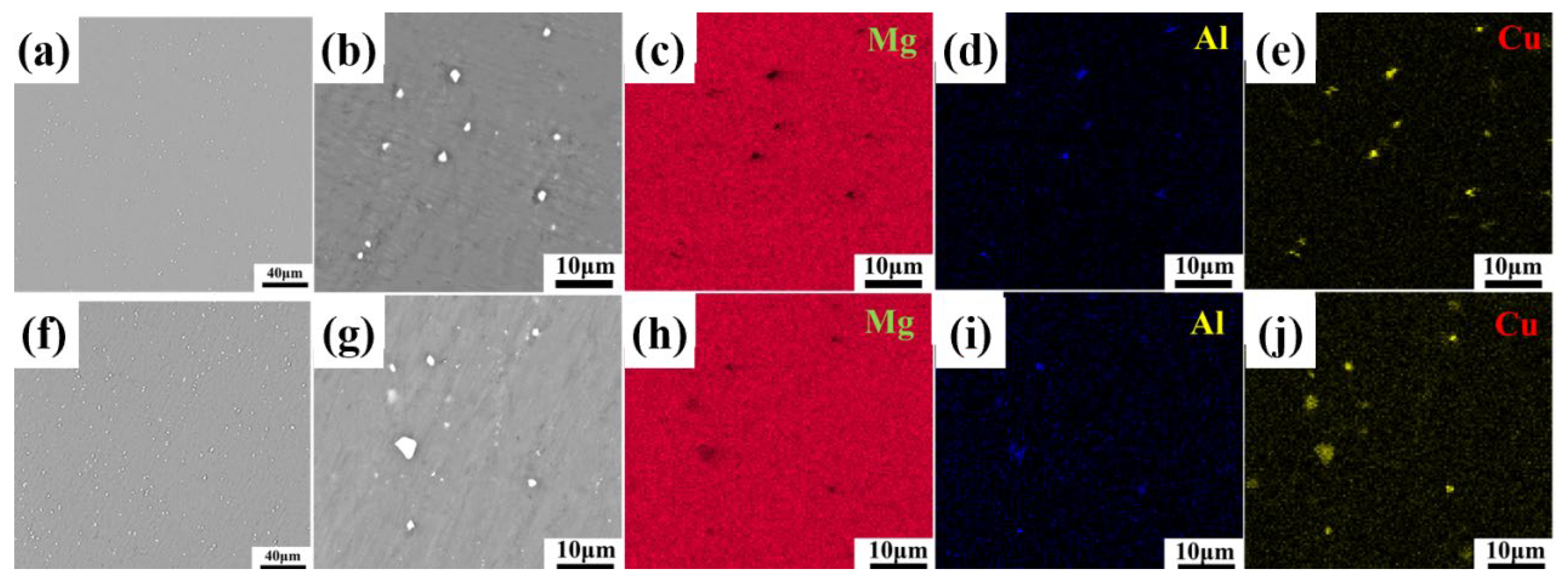

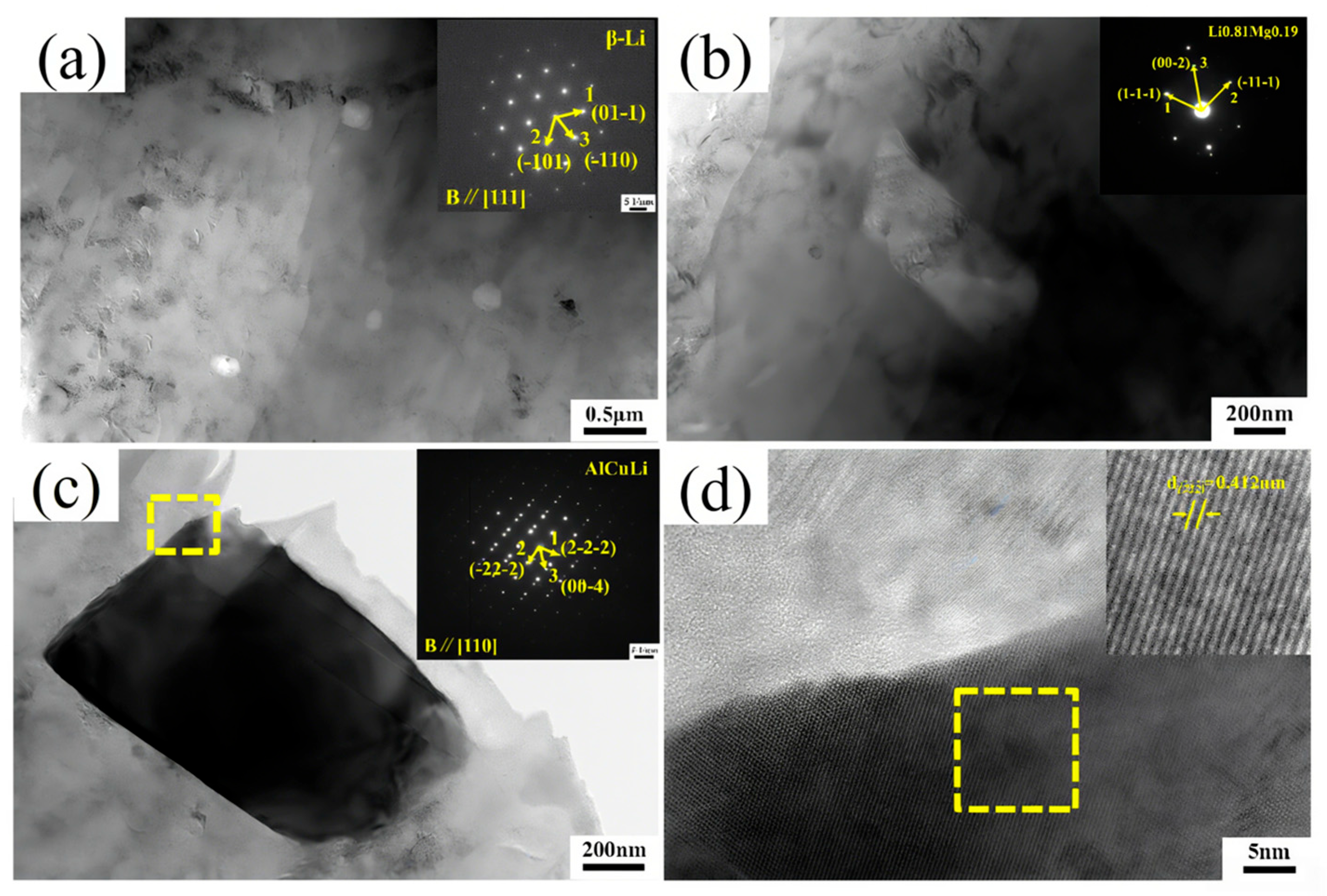

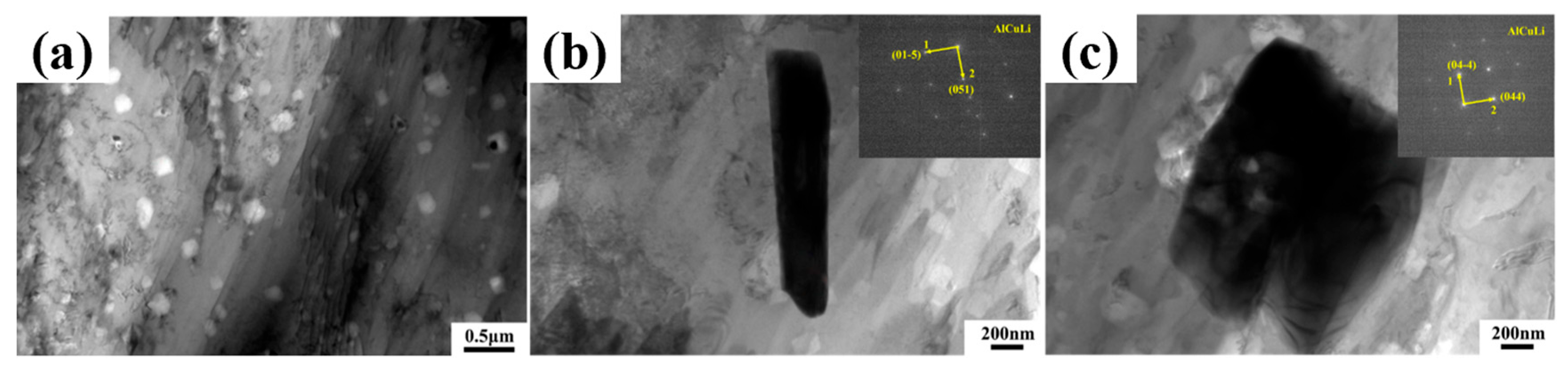

Mg-Li-based dissoluble metal is a promising material for preparing dissoluble magnesium alloy wires. However, there are few reports on the development of Mg-Li dissoluble magnesium alloy wires so far. In this paper, the mechanical properties and dissoluble properties of as-drawn and annealed LA141-0.5Cu wires were investigated in detail. It was found that the tensile strength of the LA141-0.5Cu wires decreased from 160 MPa to 127 MPa and the elongation increased from 17% to 22% after annealing. The difference in corrosion rates (93 °C/3% KCl solution) between the as-drawn wires and annealed wires is not significant, with values of 5.1 mg·cm−2·h−1 and 4.5 mg·cm−2·h−1, respectively. This can be explained as follows: after annealing, the number of dislocations in the wire decreases, the strength decreases, and the plasticity increases. The reason why the wires have a significant corrosion rate is that there is a large potential difference between the Cu-containing second phase and the magnesium matrix, which forms galvanic corrosion. The decrease in dislocation density after annealing leads to a slight reduction in the corrosion rate of the wires. This work provides a qualified material for fabricating temporary blocking knots for the exploitation of unconventional oil and gas resources.
Keywords: LA141 magnesium alloy wires; mechanical properties; dissoluble magnesium alloy; Cu alloying; precipitates LA141 magnesium alloy wires; mechanical properties; dissoluble magnesium alloy; Cu alloying; precipitates

Share and Cite

MDPI and ACS Style

Sun, Q.; Xue, J.; Shi, Y.; Weng, D.; Zhang, S.; Wei, R.; Tong, Z.; Qian, J. Microstructure and Properties of Dissoluble LA141-0.5Cu Magnesium Alloy Wires Applied to Oil and Gas Resource Exploitation. Metals 2025, 15, 860. https://doi.org/10.3390/met15080860

AMA Style

Sun Q, Xue J, Shi Y, Weng D, Zhang S, Wei R, Tong Z, Qian J. Microstructure and Properties of Dissoluble LA141-0.5Cu Magnesium Alloy Wires Applied to Oil and Gas Resource Exploitation. Metals. 2025; 15(8):860. https://doi.org/10.3390/met15080860

Chicago/Turabian Style

Sun, Qiang, Jianjun Xue, Yang Shi, Dingwei Weng, Shaolin Zhang, Ran Wei, Zheng Tong, and Jie Qian. 2025. "Microstructure and Properties of Dissoluble LA141-0.5Cu Magnesium Alloy Wires Applied to Oil and Gas Resource Exploitation" Metals 15, no. 8: 860. https://doi.org/10.3390/met15080860

APA Style

Sun, Q., Xue, J., Shi, Y., Weng, D., Zhang, S., Wei, R., Tong, Z., & Qian, J. (2025). Microstructure and Properties of Dissoluble LA141-0.5Cu Magnesium Alloy Wires Applied to Oil and Gas Resource Exploitation. Metals, 15(8), 860. https://doi.org/10.3390/met15080860

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
