Electro-Chemical Actuation of Nanoporous Metal Materials Induced by Surface Stress
Abstract
1. Introduction
2. The Actuation Mechanism of Nanoporous Metals

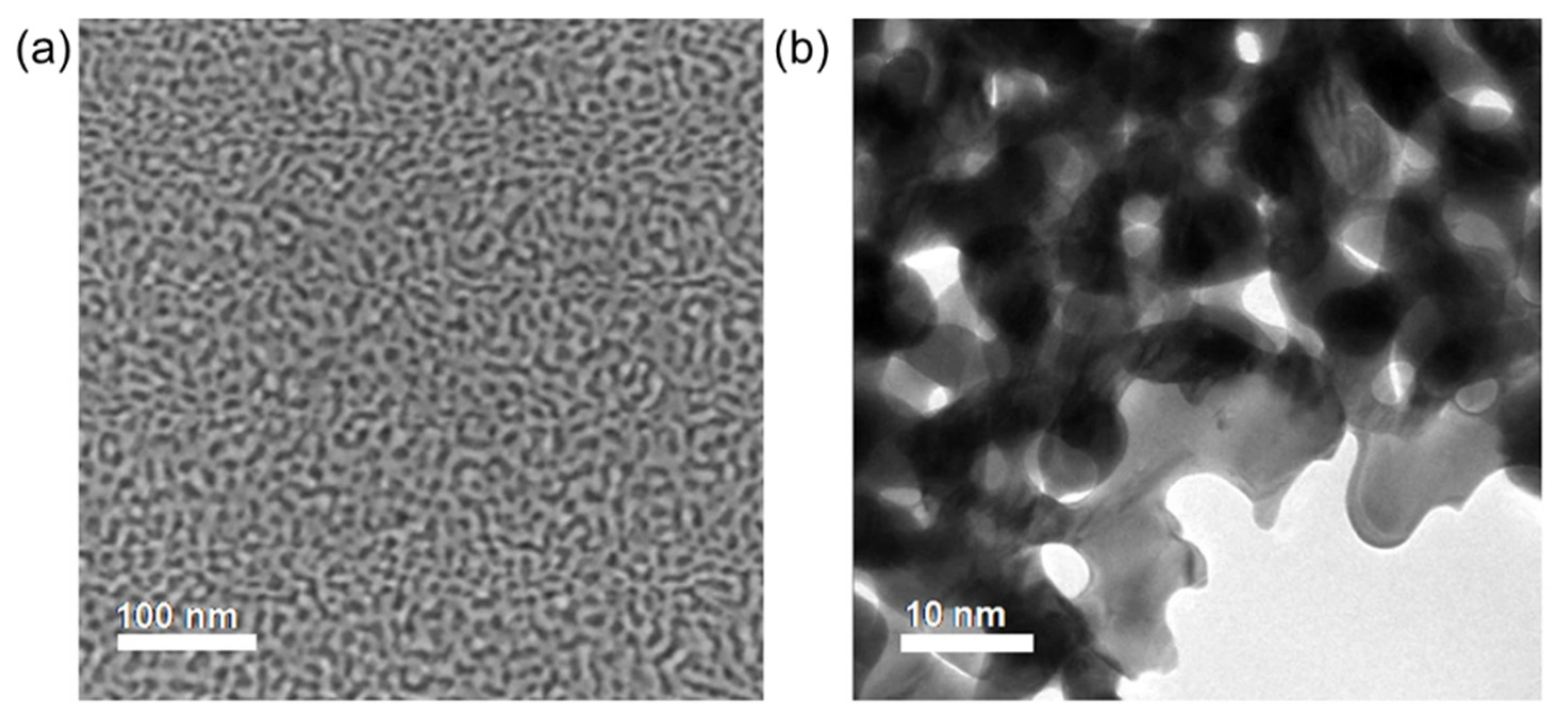

3. Preparation Methods of Nanoporous Metals
4. Experimental Strategies

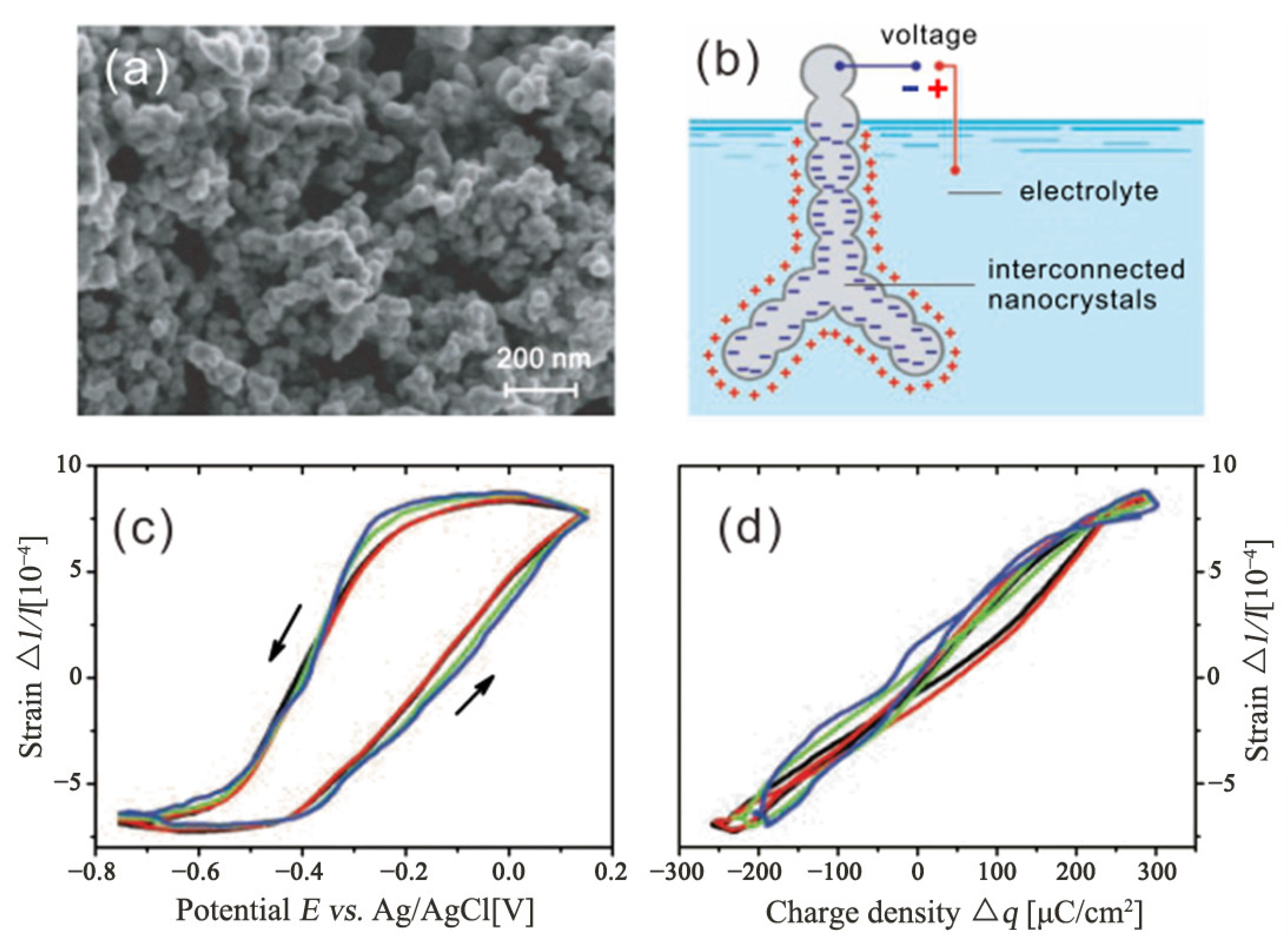

4.1. Contact Method: In Situ Dilatometry Measurement

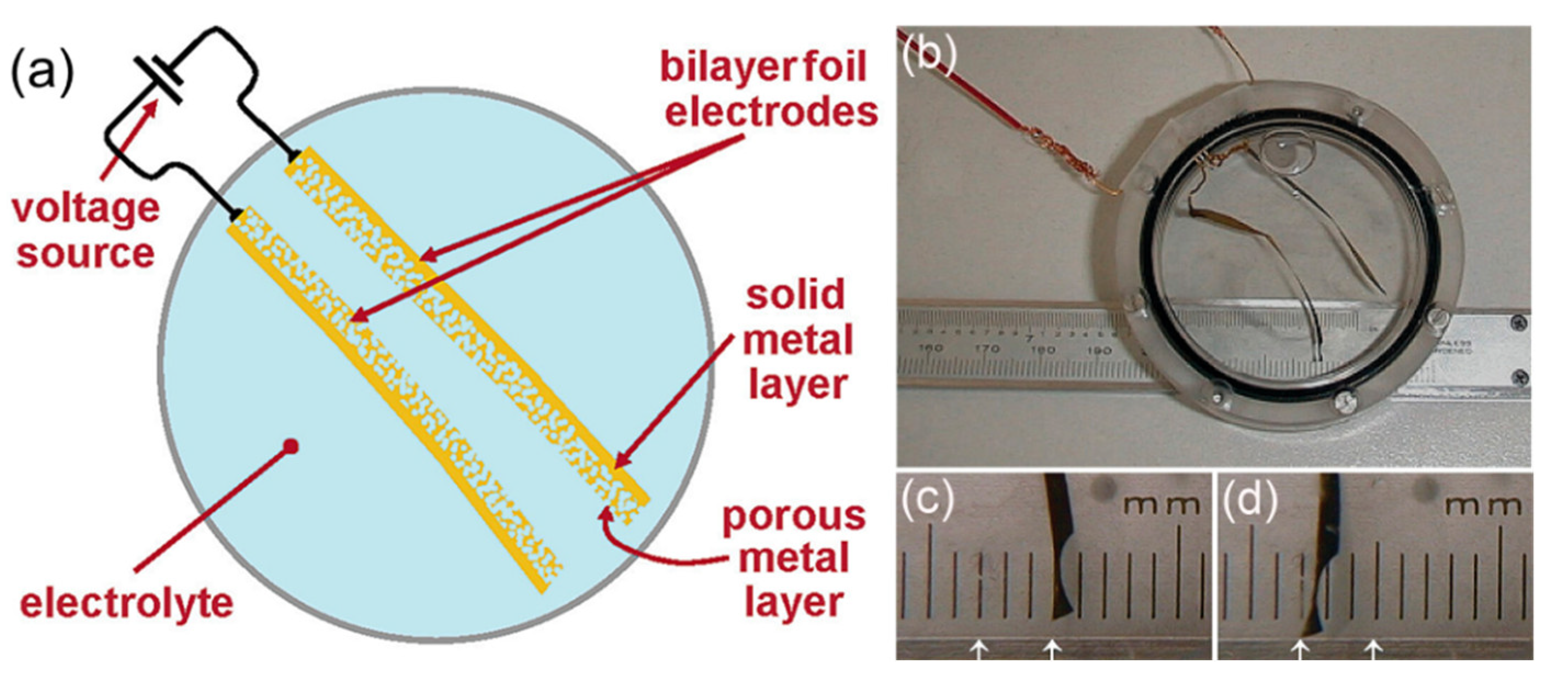

4.2. Contact Method: Mechanical Strain Gauge

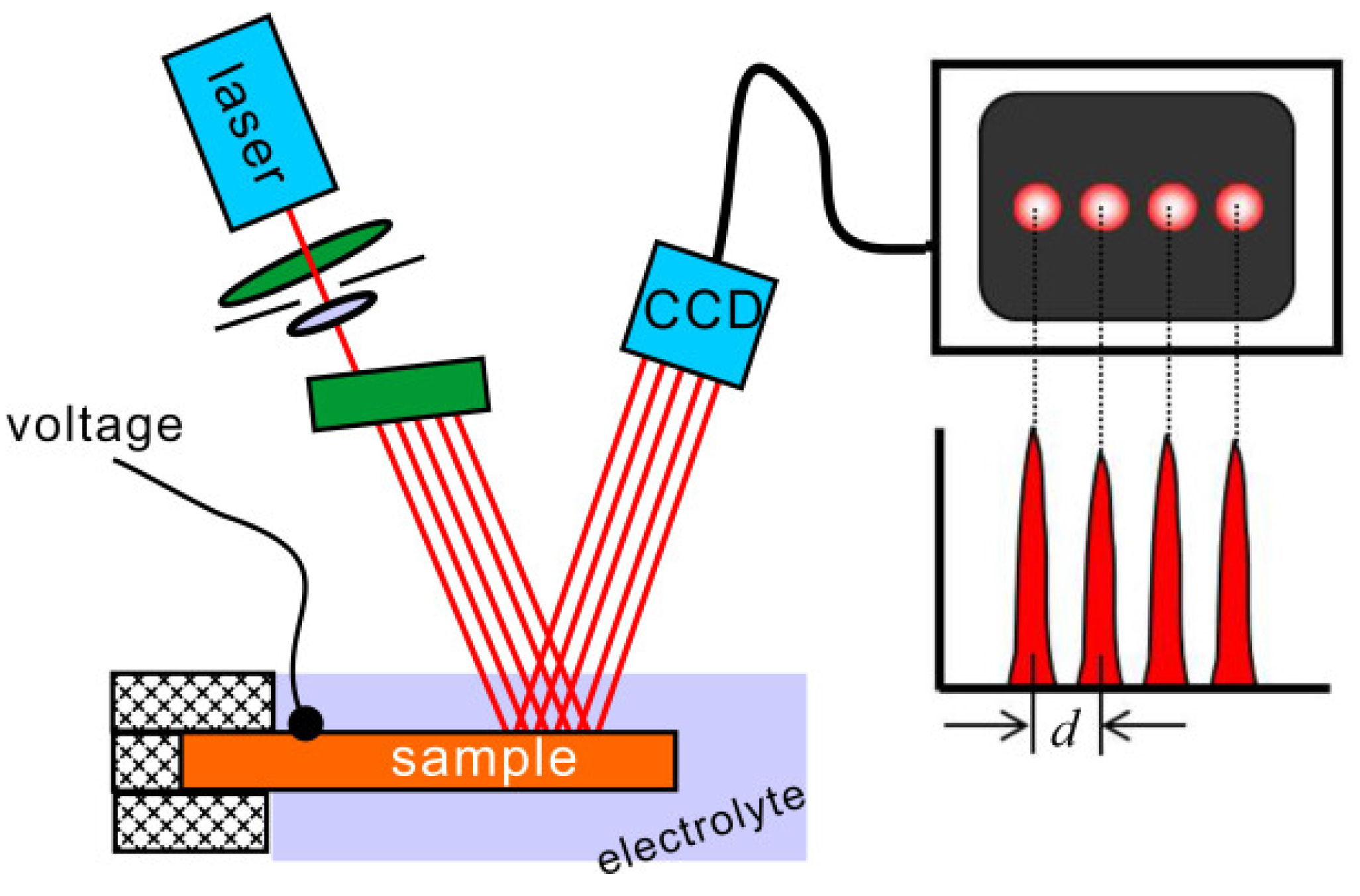

4.3. Non-Contact Method: Wafer Bending Monitored by Laser Deflection
5. Actuation Properties of Nanoporous Metals

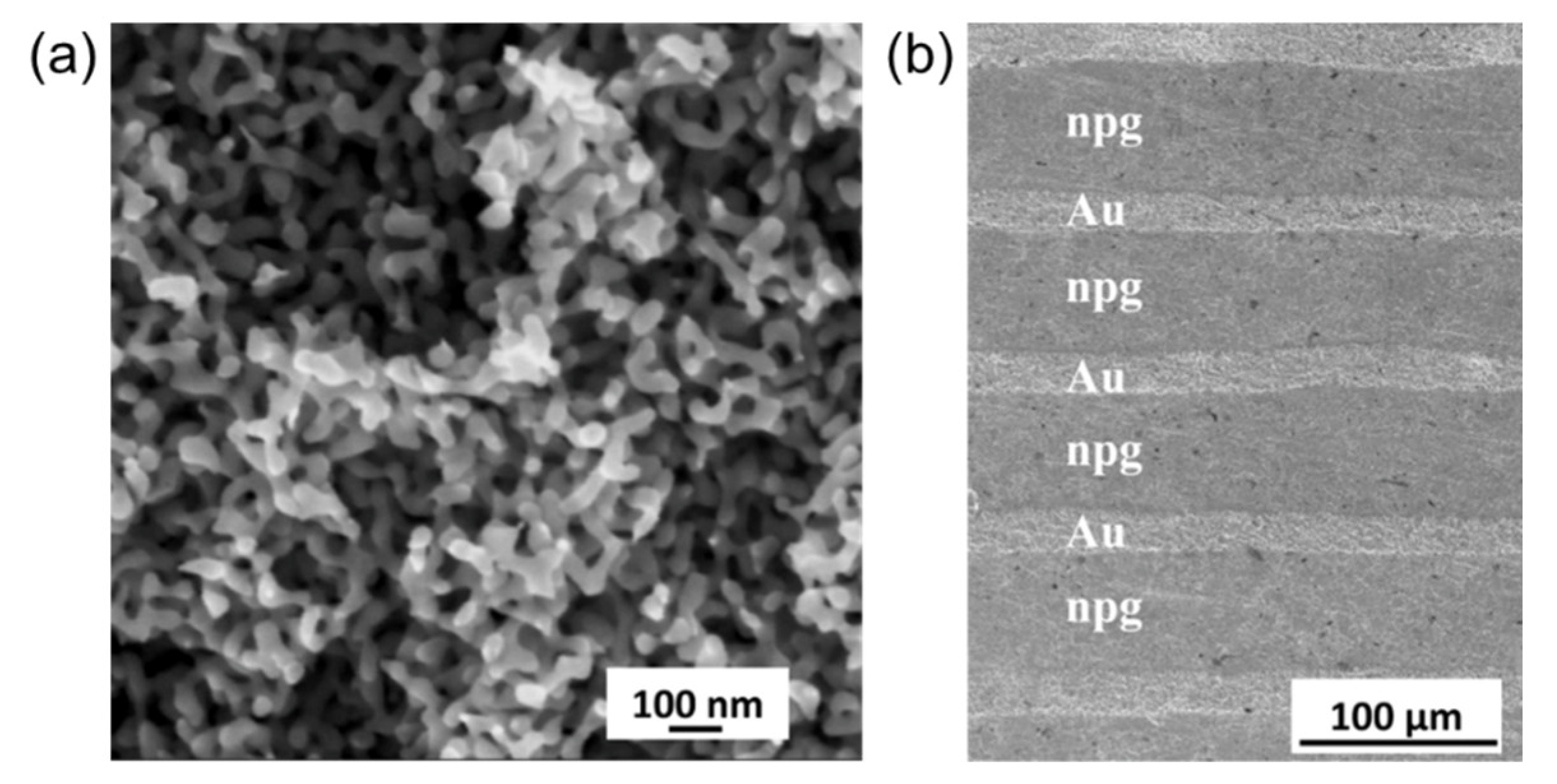

5.1. Electrochemical Actuation with Noble Metals

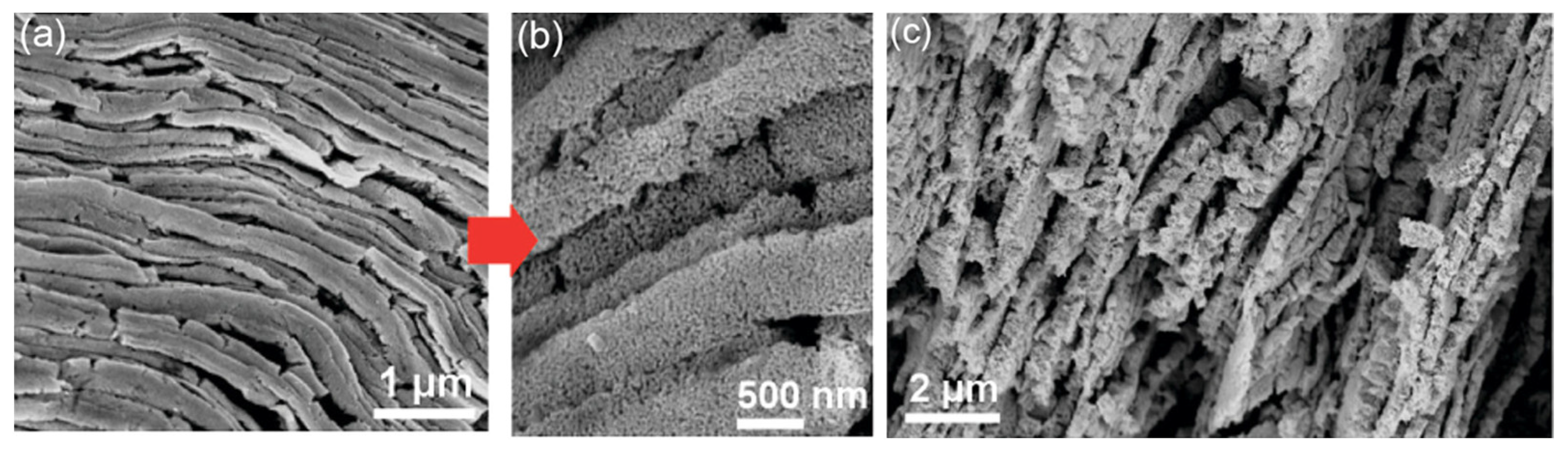

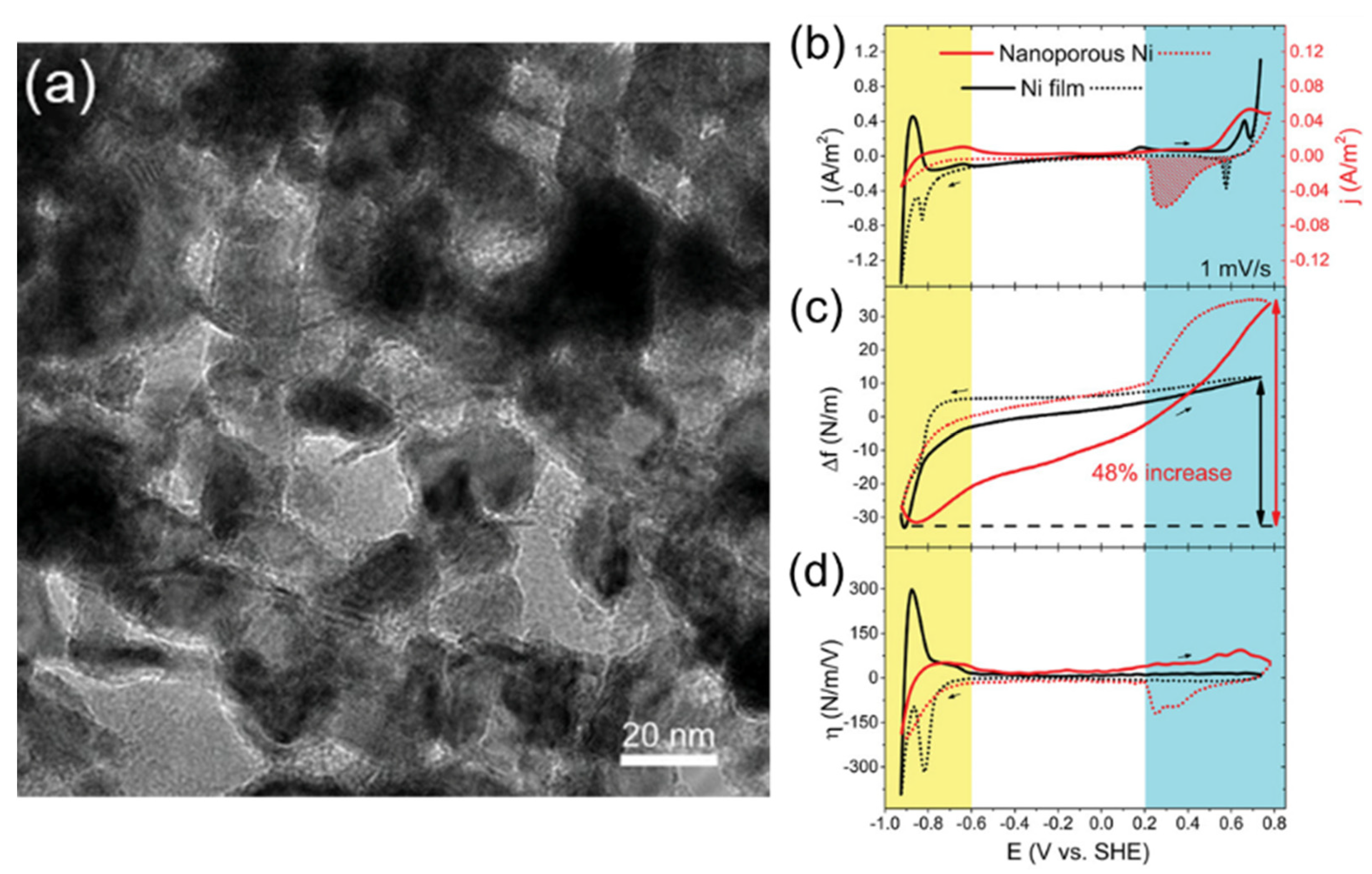

5.2. Electrochemical Actuation of Non-Noble Metals
5.3. Chemical Actuation
5.4. Physical Adsorption-Induced Actuation
5.5. Electrolyte-Free Actuation
6. Conclusions and Outlook
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
