# Numerical and Experimental Investigation of Cumulative Fatigue Damage under Random Dynamic Cyclic Loads of Lattice Structures Manufactured by Laser Powder Bed Fusion

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Data and Experimental Methods

#### 2.1. Material, Cell Topology and Specimen Shape and Dimension

#### 2.2. Experimental Tests and Setup

#### 2.2.1. Sweep Frequency Test

#### 2.2.2. Endurance Test

#### 2.2.3. Random Test

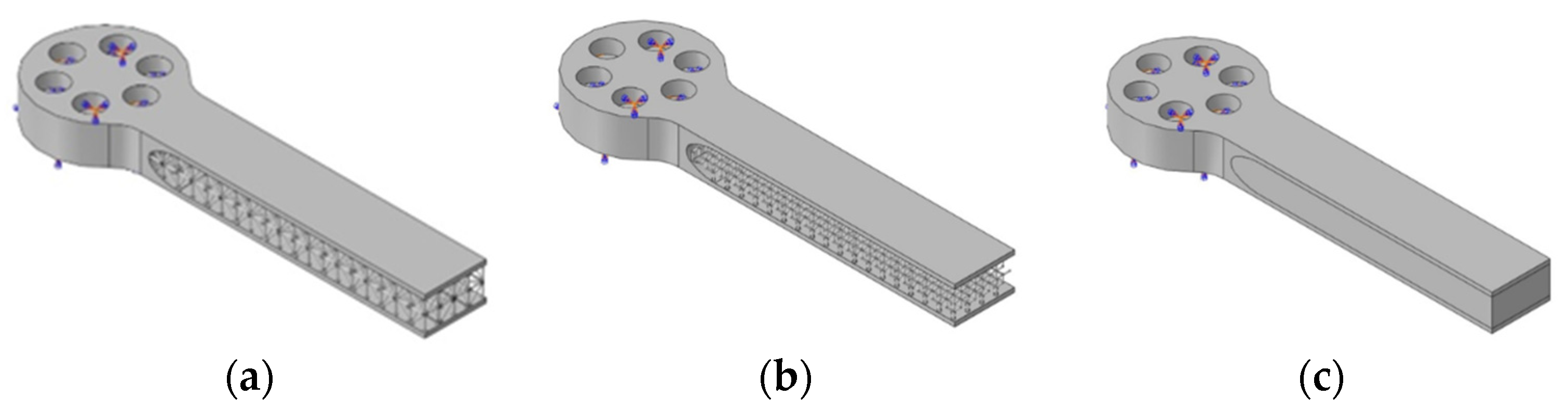

## 3. Numerical Models

#### Numerical Analyses for Failure Identification

## 4. Experimental Results

#### 4.1. Endurance Test

#### 4.2. Random Tests

## 5. Fatigue Life Analysis

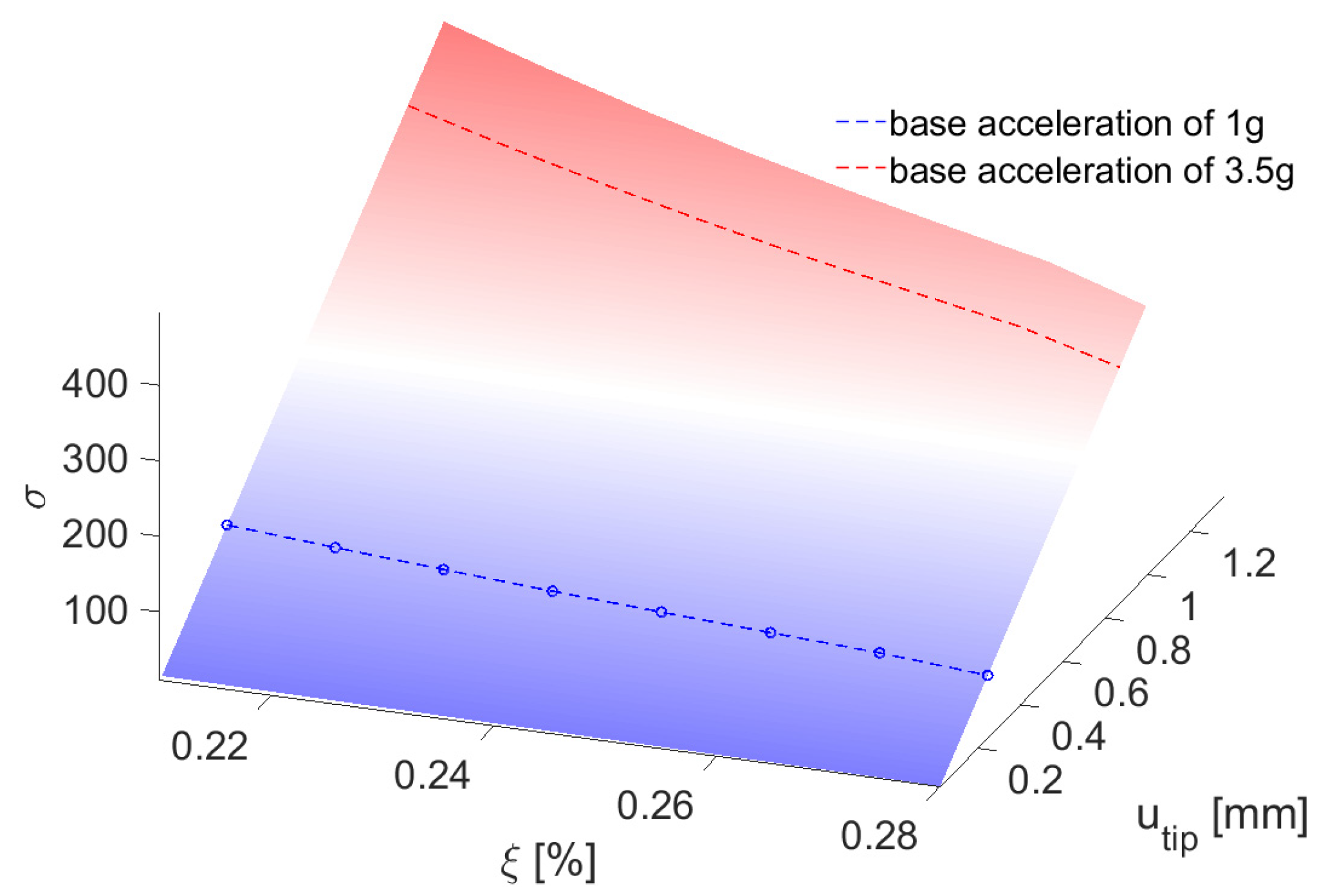

#### 5.1. Fatigue Life Evaluation under Resonant Conditions

#### 5.2. Damage Evaluation under Random Fatigue Loads

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Tancogne-Dejean, T.; Diamantopoulou, M.; Gorji, M.B.; Bonatti, C.; Mohr, D. 3D Plate-Lattices: An Emerging Class of Low-Density Metamaterial Exhibiting Optimal Isotropic Stiffness. Adv. Mater.
**2018**, 30, 1–6. [Google Scholar] [CrossRef] - Kolken, H.M.A.; Zadpoor, A.A. Auxetic mechanical metamaterials. RSC Adv.
**2017**, 7, 5111–5129. [Google Scholar] [CrossRef] [Green Version] - Scalzo, F.; Totis, G.; Vaglio, E.; Sortino, M. Experimental study on the high-damping properties of metallic lattice structures obtained from SLM. Precis. Eng.
**2021**, 71, 63–77. [Google Scholar] [CrossRef] - Tancogne-Dejean, T.; Spierings, A.B.; Mohr, D. Additively-manufactured metallic micro-lattice materials for high specific energy absorption under static and dynamic loading. Acta Mater.
**2016**, 116, 14–28. [Google Scholar] [CrossRef] - Maconachie, T.; Leary, M.; Lozanovski, B.; Zhang, X.; Qian, M.; Faruque, O.; Brandt, M. SLM lattice structures: Properties, performance, applications and challenges. Mater. Des.
**2019**, 183, 108137. [Google Scholar] [CrossRef] - Lira, C.; Scarpa, F.; Rajasekaran, R. A gradient cellular core for aeroengine fan blades based on auxetic configurations. J. Intell. Mater. Syst. Struct.
**2011**, 22, 907–917. [Google Scholar] [CrossRef] - Spadoni, A.; Ruzzene, M.; Scarpa, F. Dynamic response of chiral truss-core assemblies. J. Intell. Mater. Syst. Struct.
**2006**, 17, 941–952. [Google Scholar] [CrossRef] [Green Version] - Colombo, C.; Biffi, C.; Fiocchi, J.; Scaccabarozzi, D.; Saggin, B.; Tuissi, A.; Vergani, L. Modulating the damping capacity of SLMed AlSi10Mg trough stress-relieving thermal treatments. Theor. Appl. Fract. Mech.
**2020**, 107, 1–6. [Google Scholar] [CrossRef] - Fiocchi, J.; Biffi, C.A.; Scaccabarozzi, D.; Saggin, B.; Tuissi, A. Enhancement of the Damping Behavior of Ti6Al4V Alloy through the Use of Trabecular Structure Produced by Selective Laser Melting. Adv. Eng. Mater.
**2020**, 22, 1–6. [Google Scholar] [CrossRef] - Liu, J.; Guo, K.; Sun, J.; Sun, Q.; Wang, L.; Li, H. Compressive behavior and vibration-damping properties of porous Ti-6Al-4V alloy manufactured by laser powder bed fusion. J. Manuf. Process.
**2021**, 66, 1–10. [Google Scholar] [CrossRef] - Zadeh, M.N.; Alijani, F.; Chen, X.; Dayyani, I.; Yasaee, M.; Mirzaali, M.J.; Zadpoor, A.A. Dynamic characterization of 3D printed mechanical metamaterials with tunable elastic properties. Appl. Phys. Lett.
**2021**, 118, 211901. [Google Scholar] [CrossRef] - Benedetti, M.; du Plessis, A.; Ritchie, R.; Dallago, M.; Razavi, S.; Berto, F. Architected cellular materials: A review on their mechanical properties towards fatigue-tolerant design and fabrication. Mater. Sci. Eng. R Rep.
**2021**, 144, 100606. [Google Scholar] [CrossRef] - Yavari, S.A.; Ahmadi, S.; Wauthle, R.; Pouran, B.; Schrooten, J.; Weinans, H.; Zadpoor, A.A. Relationship between unit cell type and porosity and the fatigue behavior of selective laser melted meta-biomaterials. J. Mech. Behav. Biomed. Mater.
**2015**, 43, 91–100. [Google Scholar] [CrossRef] - Van Hooreweder, B.; Apers, Y.; Lietaert, K.; Kruth, J.-P. Improving the fatigue performance of porous metallic biomaterials produced by Selective Laser Melting. Acta Biomater.
**2017**, 47, 193–202. [Google Scholar] [CrossRef] [PubMed] - Ahmadi, S.; Hedayati, R.; Li, Y.; Lietaert, K.; Tümer, N.; Fatemi, A.; Rans, C.; Pouran, B.; Weinans, H.; Zadpoor, A.; et al. Fatigue performance of additively manufactured meta-biomaterials: The effects of topology and material type. Acta Biomater.
**2018**, 65, 292–304. [Google Scholar] [CrossRef] [Green Version] - Zhao, S.; Li, S.; Wang, S.; Hou, W.; Li, Y.; Zhang, L.; Hao, Y.; Yang, R.; Misra, R.; Murr, L. Compressive and fatigue behavior of functionally graded Ti-6Al-4V meshes fabricated by electron beam melting. Acta Mater.
**2018**, 150, 1–15. [Google Scholar] [CrossRef] - Yavari, S.A.; Wauthle, R.; van der Stok, J.; Riemslag, A.; Janssen, M.; Mulier, M.; Kruth, J.; Schrooten, J.; Weinans, H.; Zadpoor, A.A. Fatigue behavior of porous biomaterials manufactured using selective laser melting. Mater. Sci. Eng. C
**2013**, 33, 4849–4858. [Google Scholar] [CrossRef] [PubMed] - Abad, E.M.K.; Khanoki, S.A.; Pasini, D. Fatigue design of lattice materials via computational mechanics: Application to lattices with smooth transitions in cell geometry. Int. J. Fatigue
**2013**, 47, 126–136. [Google Scholar] [CrossRef] [Green Version] - Dobson, S.D.; Starr, T.L. Powder characterization and part density for powder bed fusion of 17-4 PH stainless steel. Rapid Prototyp. J.
**2020**, 27, 53–58. [Google Scholar] [CrossRef] - Donik, Č.; Kraner, J.; Paulin, I.; Godec, M. Influence of the Energy Density for Selective Laser Melting on the Microstructure and Mechanical Properties of Stainless Steel. Metals
**2020**, 10, 919. [Google Scholar] [CrossRef] - Ullah, A.; Wu, H.; Rehman, A.U.; Zhu, Y.; Liu, T.; Zhang, K. Influence of laser parameters and Ti content on the surface morphology of L-PBF fabricated Titania. Rapid Prototyp. J.
**2020**, 27, 71–80. [Google Scholar] [CrossRef] - Pal, S.; Lojen, G.; Gubeljak, N.; Kokol, V.; Drstvensek, I. Melting, fusion and solidification behaviors of Ti-6Al-4V alloy in selective laser melting at different scanning speeds. Rapid Prototyp. J.
**2020**, 26, 1209–1215. [Google Scholar] [CrossRef] - Pawlak, A.; Szymczyk-Ziółkowska, P.; Kurzynowski, T.; Chlebus, E. Selective laser melting of magnesium AZ31B alloy powder. Rapid Prototyp. J.
**2019**, 26, 249–258. [Google Scholar] [CrossRef] - Liang, C.; Hu, Y.; Liu, N.; Zou, X.; Wang, H.; Zhang, X.; Fu, Y.; Hu, J. Laser Polishing of Ti6Al4V Fabricated by Selective Laser Melting. Metals
**2020**, 10, 191. [Google Scholar] [CrossRef] [Green Version] - Dallago, M.; Raghavendra, S.; Luchin, V.; Zappini, G.; Pasini, D.; Benedetti, M. The role of node fillet, unit-cell size and strut orientation on the fatigue strength of Ti-6Al-4V lattice materials additively manufactured via laser powder bed fusion. Int. J. Fatigue
**2020**, 142, 105946. [Google Scholar] [CrossRef] - Boniotti, L.; Beretta, S.; Patriarca, L.; Rigoni, L.; Foletti, S. Experimental and numerical investigation on compressive fatigue strength of lattice structures of AlSi7Mg manufactured by SLM. Int. J. Fatigue
**2019**, 128, 105181. [Google Scholar] [CrossRef] - Yang, L.; Yan, C.; Cao, W.; Liu, Z.; Song, B.; Wen, S.; Zhang, C.; Shi, Y.; Yang, S. Compression–compression fatigue behaviour of gyroid-type triply periodic minimal surface porous structures fabricated by selective laser melting. Acta Mater.
**2019**, 181, 49–66. [Google Scholar] [CrossRef] - Kelly, C.N.; Francovich, J.; Julmi, S.; Safranski, D.; Guldberg, R.E.; Maier, H.J.; Gall, K. Fatigue behavior of As-built selective laser melted titanium scaffolds with sheet-based gyroid microarchitecture for bone tissue engineering. Acta Biomater.
**2019**, 94, 610–626. [Google Scholar] [CrossRef] - Bobbert, F.; Lietaert, K.; Eftekhari, A.A.; Pouran, B.; Ahmadi, S.; Weinans, H.; Zadpoor, A.A. Additively manufactured metallic porous biomaterials based on minimal surfaces: A unique combination of topological, mechanical, and mass transport properties. Acta Biomater.
**2017**, 53, 572–584. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Richard, B.; Pellicone, D.; Anderson, W.G. Progress on the Development of a 3D Printed Loop Heat Pipe. In Proceedings of the 2019 35th Semiconductor Thermal Measurement, Modeling and Management Symposium (SEMI-THERM), San Jose, CA, USA, 18–22 March 2019; pp. 1–11. [Google Scholar]
- Schmitz, A.; Horst, P. A finite element unit-cell method for homogenised mechanical properties of heterogeneous plates. Compos. Part A Appl. Sci. Manuf.
**2014**, 61, 23–32. [Google Scholar] [CrossRef] - Tancogne-Dejean, T.; Mohr, D. Elastically-isotropic truss lattice materials of reduced plastic anisotropy. Int. J. Solids Struct.
**2018**, 138, 24–39. [Google Scholar] [CrossRef] - Sausto, F.; Carrion, P.; Shamsaei, N.; Beretta, S. Fatigue failure mechanisms for AlSi10Mg manufactured by L-PBF under axial and torsional loads: The role of defects and residual stresses. Int. J. Fatigue
**2021**, submit. [Google Scholar] - Lee, Y.L.; Tjhung, T. Rainflow Cycle Counting Techniques; Elsevier Inc.: Amsterdam, The Netherlands, 2012. [Google Scholar] [CrossRef]
- Nourian-Avval, A.; Fatemi, A. Variable amplitude fatigue behavior and modeling of cast aluminum. Fatigue Fract. Eng. Mater. Struct.
**2021**, 44, 1611–1621. [Google Scholar] [CrossRef]

**Figure 1.**(

**a**,

**b**) FCC and Diamond specimen modelled with nTopology. (

**c**,

**d**) FCC and Diamond lattice specimens made by L-PBF.

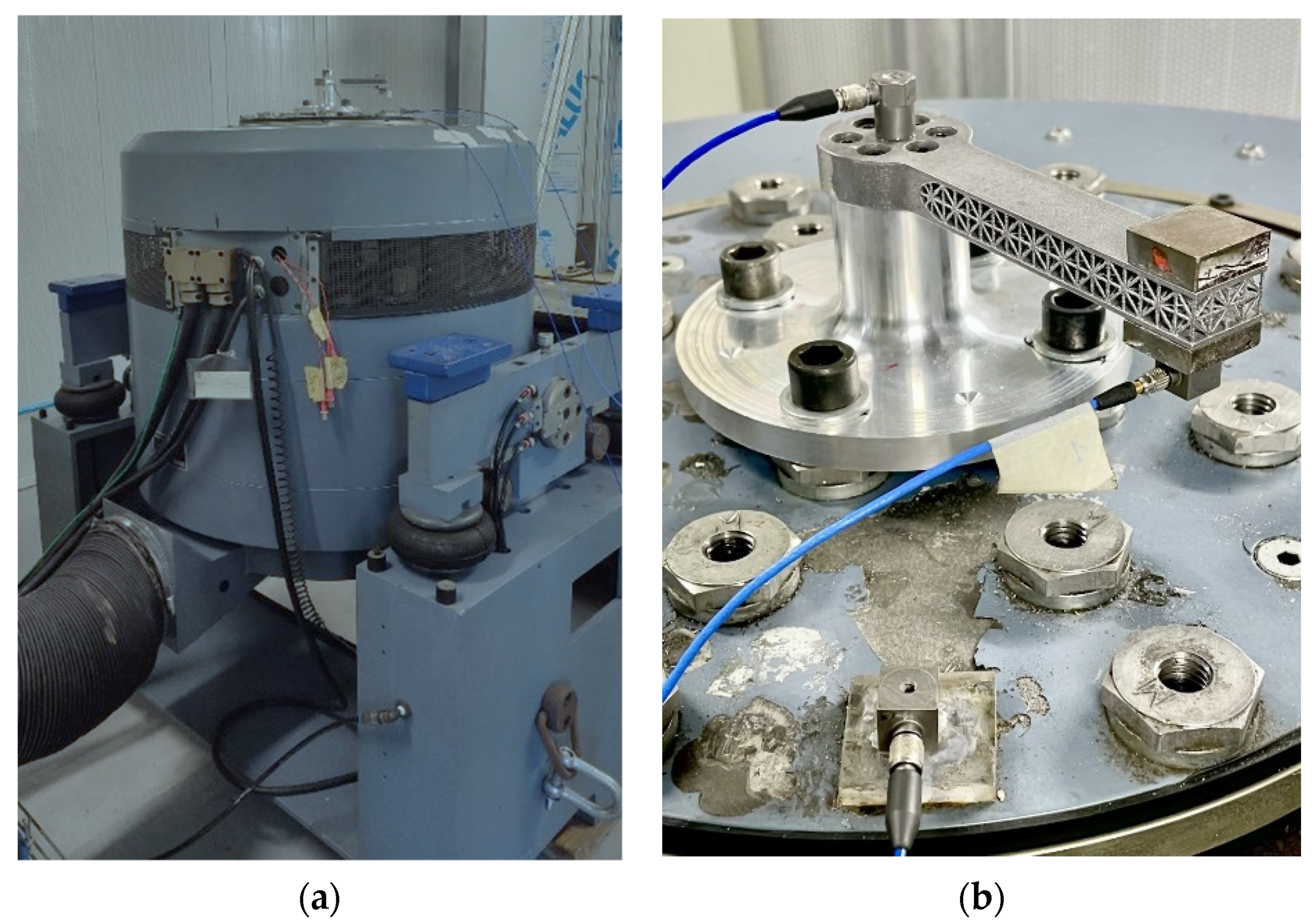

**Figure 2.**(

**a**) Lateral view of the electrodynamic shaker with mounted FCC specimen. (

**b**) Axonometric view of the structure. A set of accelerometers is bonded on the tip, base and shaker piston, while a pair of masses have been rigidly connected on the tip to tailor the desired dynamic behavior.

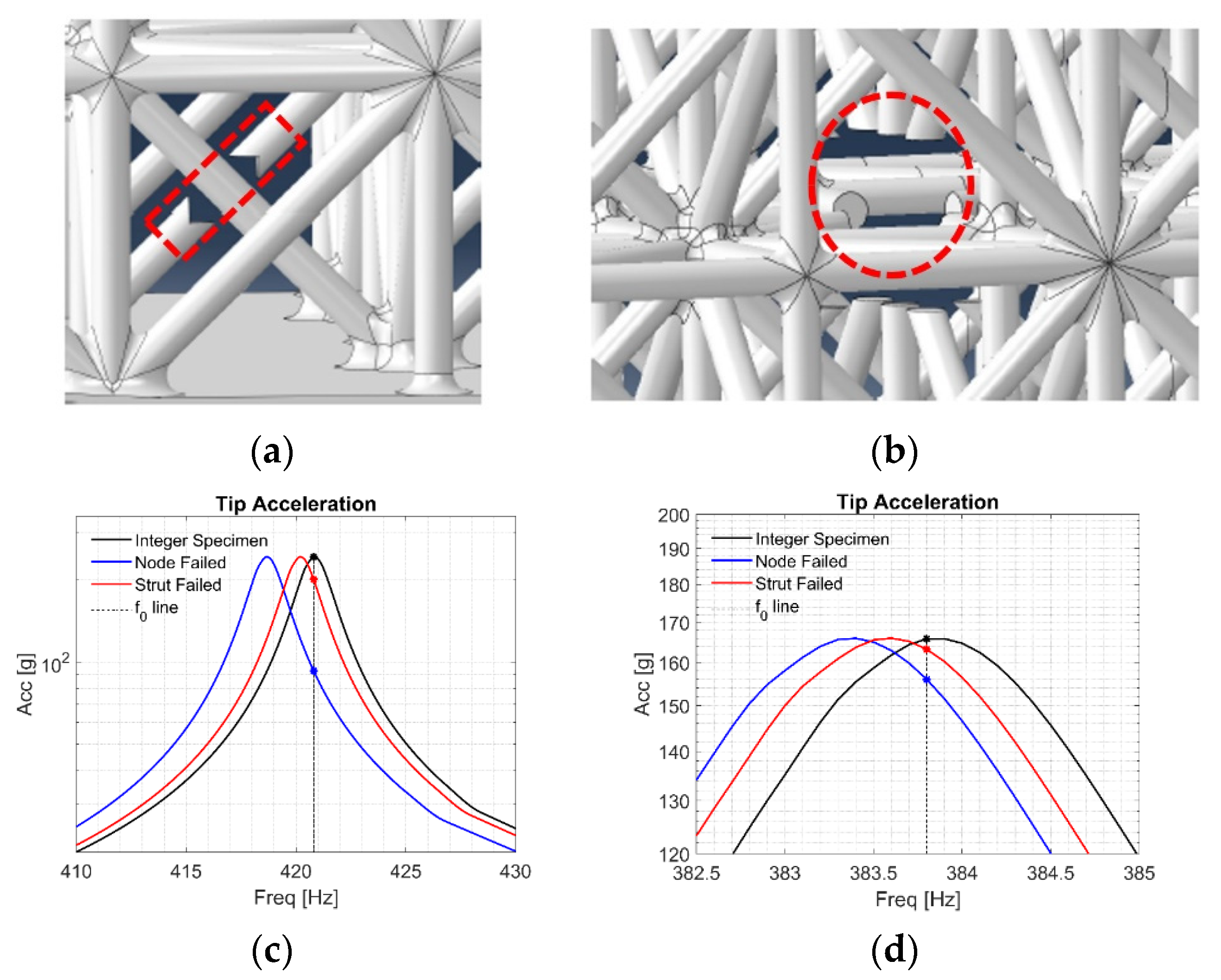

**Figure 5.**Detailed view of the damage families considered in this work for the FCC lattice configuration. (

**a**) Broken strut and (

**b**) missing node. (

**c**,

**d**) FRF of the as-designed (black line) and induced-damage geometry (red and blue lines) for FCC and diamond cell respectively.

**Figure 6.**Accelerations measured in correspondence of the base and tip during the endurance tests. (

**a**) FCC specimen number 7 and (

**b**) Diamond specimen 4.

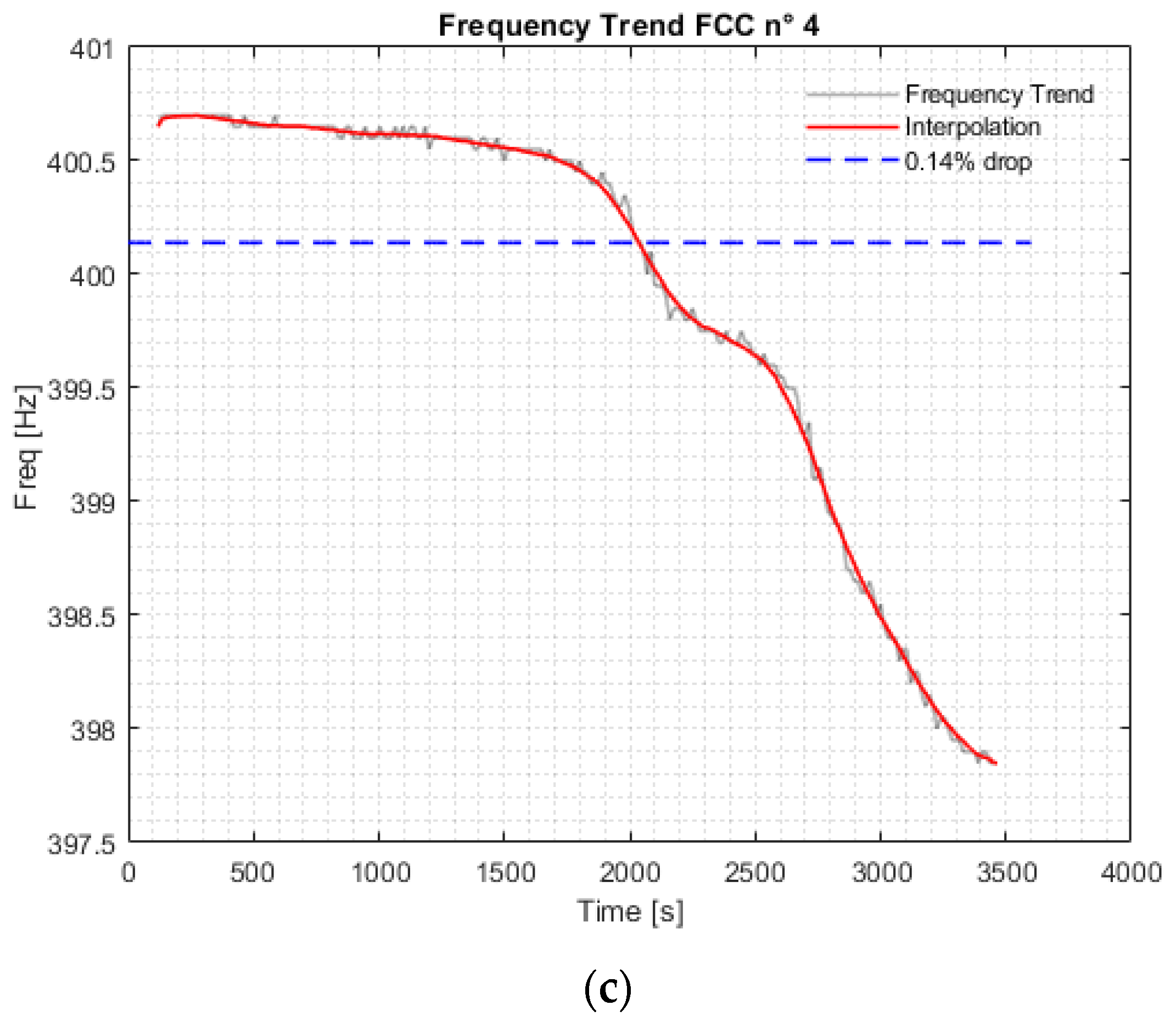

**Figure 7.**Spectrogram relative to the FCC specimen number 4 tested under random vibration. (

**a**) Axonometric and (

**b**) top view. The frequency trend is tracked and displayed in (

**c**) for a better visualization of the failure time.

**Figure 8.**Spectrogram relative to the Diamond specimen number 7 tested under random vibration. (

**a**) Axonometric view and (

**b**) top view. (

**c**) Peak amplitude tracked in time to show the frequency drop.

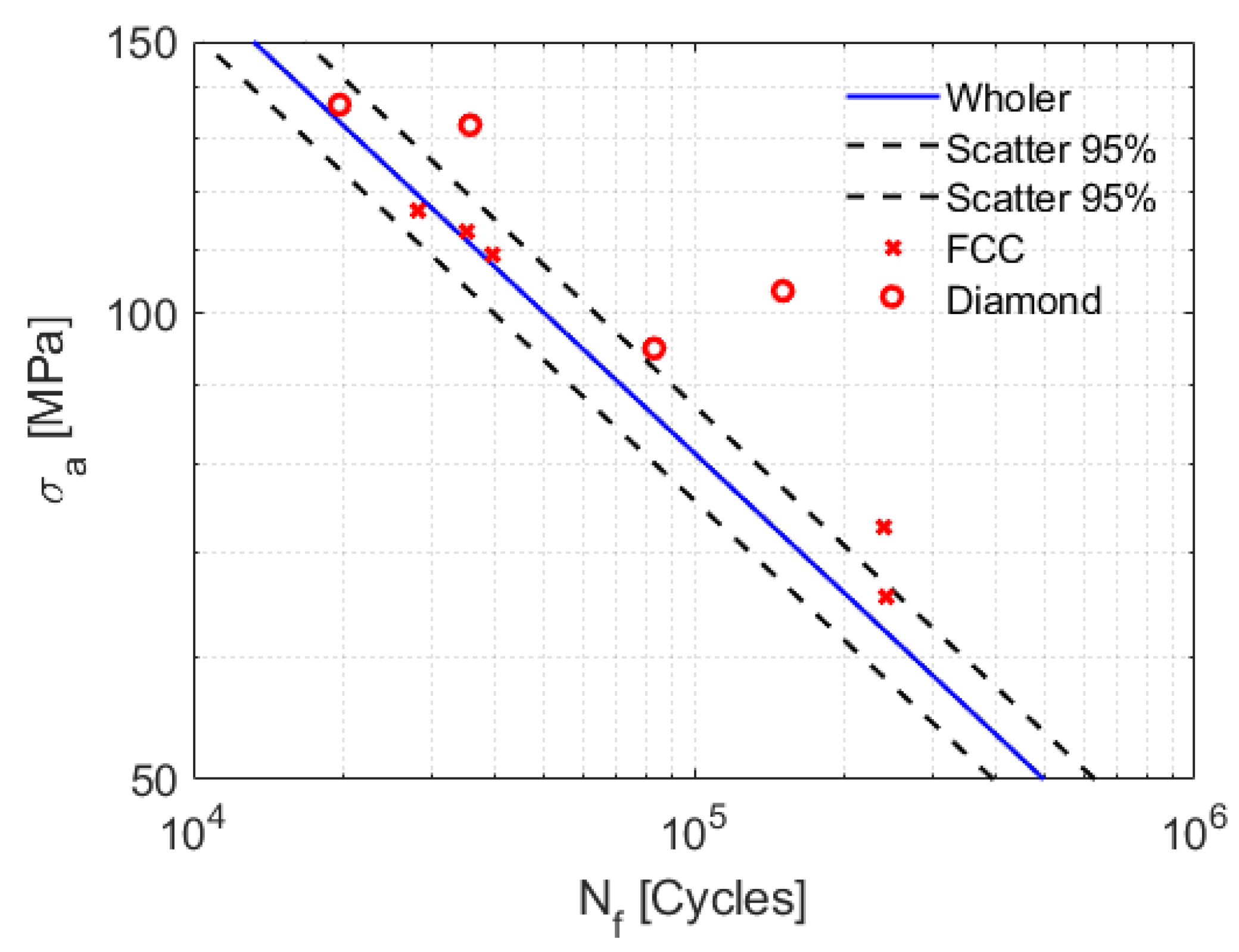

**Figure 10.**SN curve of the AlSi10Mg bulk material with superimposed SN data points associated to the FCC and Diamond configuration for resonant condition tests.

Material | Elastic Modulus [MPa] | Shear Modulus [MPa] | Poisson’s Ratio | Yield Stress [MPa] |
---|---|---|---|---|

AlSi10Mg | 68,000 | 26,154 | 0.3 | 240 |

Frequency [Hz] | Amplitude [g^{2}/Hz] |
---|---|

15 | 0.04 |

100 | 0.04 |

300 | 0.17 |

1000 | 0.17 |

2000 | 0.05 |

**Table 3.**Homogenized mechanical elastic properties and yield strength of the FCC and Diamond unit cells.

Cell Type | ρ [%] | Elastic Modulus [MPa] | Shear Modulus [MPa] | Poisson’s Ratio | Yield Stress [MPa] |
---|---|---|---|---|---|

FCC | 7.3 | 1371.4 | 314.4 | 0.19 | 5.74 |

Diamond | 7.0 | 174.1 | 178.8 | 0.46 | 1.65 |

**Table 4.**First natural frequency and FRF of the numerical models and the results of the sweep tests.

Damping Ratio [%] | ${\mathit{f}}_{\mathbf{0}}\mathbf{\left[}\mathbf{Hz}\mathbf{\right]}$ | $\mathbf{\left|}\mathit{A}\mathbf{\left(}{\mathit{\omega}}_{\mathbf{0}}\mathbf{\right)}\mathbf{\right|}$ | ||
---|---|---|---|---|

FCC | Numerical (Homogenized) | 0.21 | 410.7 | 244.5 |

Numerical (Discrete) | 0.21 | 420.8 | 243.9 | |

Experimental * | 0.21 (0.03) | 399.2 (2.7) | 256.2 (31.7) | |

Diamond | Numerical (Homogenized) | 0.31 | 368.7 | 166.2 |

Numerical (Discrete) | 0.31 | 383.8 | 166.0 | |

Experimental * | 0.31 (0.08) | 353.8 (3.8) | 176.0 (25.5) |

**Table 5.**Reduction of frequency and tip acceleration under resonant conditions through numerical models.

As-Designed | Missing Strut | Missing Node | ||
---|---|---|---|---|

FCC | ${f}_{0}$ [Hz] | 420.8 | 420.2 | 418.7 |

Tip acceleration [g] | 243.7 | 201.4 | 92.9 | |

Diamond | ${f}_{0}$ [Hz] | 420.8 | 420.2 | 418.7 |

Tip acceleration [g] | 243.7 | 201.4 | 92.9 |

Specimen No. | Tip Displacement [mm] | Excitation Frequency [Hz] | Failure Time [s] | Cycle to Failure |
---|---|---|---|---|

7 | 0.31 | 398 | 88.2 | 35104 |

8 | 0.3 | 400 | 99.2 | 39680 |

9 | 0.32 | 392.5 | 71.4 | 28024 |

10 | 0.2 | 400.4 | 598.1 | 239480 |

11 | 0.18 | 396.3 | 610.9 | 242100 |

Specimen No. | Tip Displacement [mm] | Excitation Frequency [Hz] | Failure Time [s] | Cycle to Failure |
---|---|---|---|---|

1 | 0.23 | 352.6 | 236.1 | 83249 |

2 | 0.25 | 357.3 | 421.1 | 150460 |

3 | 0.33 | 353.9 | 55.4 | 19606 |

4 | 0.32 | 349.6 | 102.2 | 35729 |

Specimen No. | PSD Type | Test Duration [h] | Initial Sweep Freq. [Hz] | Mid-Sweep Freq. [Hz] | Final Sweep Freq. [Hz] | Initial FRF | Time to Failure [s] |
---|---|---|---|---|---|---|---|

2 | /15 | 2 | 398.9 | 398.1 | 397.5 | 273.5 | 2400 |

3 | /10 | 1 | 399.9 | / | 398.5 | 198.2 | 2060 |

4 | /10 | 1 | 400.8 | / | 397 | 259.2 | 2035 |

5 | /15 | 2 | 401.4 | 401.4 | 400.5 | 273.8 | 4355 |

Specimen No. | PSD Type | Test Duration [h] | Initial Sweep Freq. [Hz] | Mid-Sweep Freq. [Hz] | Final Sweep Freq. [Hz] | Initial FRF | Time to Failure [s] |
---|---|---|---|---|---|---|---|

6 | /10 | 1 | 358.9 | / | 357.8 | 122.6 | 1620 |

7 | /10 | 1 | 351.9 | / | 350.2 | 169.3 | 855 |

8 | /15 | 2 | 353.7 | 352.9 | 352.6 | 172.8 | Undamaged |

9 | /15 | 2 | 357.1 | 356.3 | 355.9 | 151.8 | 2430 |

Specimen No. | 2 | 3 | 4 | 5 |
---|---|---|---|---|

Time to failure [s] | 2400 | 2060 | 2035 | 4355 |

Damage to failure | 0.9 | 0.94 | 1.55 | 1.31 |

Specimen No. | 6 | 7 | 8 | 9 |
---|---|---|---|---|

Time to failure [s] | 1620 | 855 | / | 2430 |

Damage to failure | 1.37 | 0.93 | / | 1.18 |
