Effect of Sample-Size on the Compression Deformation Behavior of A CuZr-Based Bulk Metallic Glass Composite
Previous Article in Journal
Assessment of the Seismic Behavior of Selective Storage Racks Subjected to Chilean Earthquakes
Open AccessArticle

Comparative Study on the Cavitation Erosion and Sliding Wear of Cold-Sprayed Al/Al2O3 and Cu/Al2O3 Coatings, and Stainless Steel, Aluminium Alloy, Copper and Brass

1
Department of Materials Engineering, Faculty of Mechanical Engineering, Lublin University of Technology, Nadbystrzycka 36D, Lublin 20-618, Poland
2
Faculty of Mechanical Engineering, Wrocław University of Science and Technology, 5 Łukasiewicza Street, Wrocław 50371, Poland
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(7), 856; https://doi.org/10.3390/met10070856
Received: 30 May 2020 / Revised: 18 June 2020 / Accepted: 22 June 2020 / Published: 28 June 2020

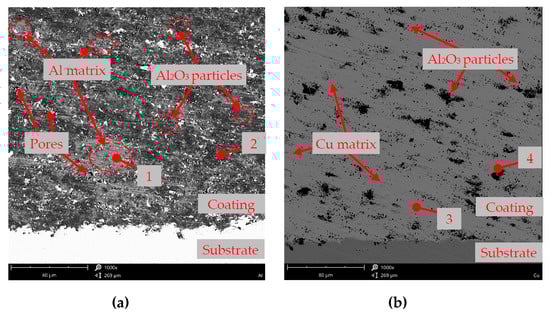

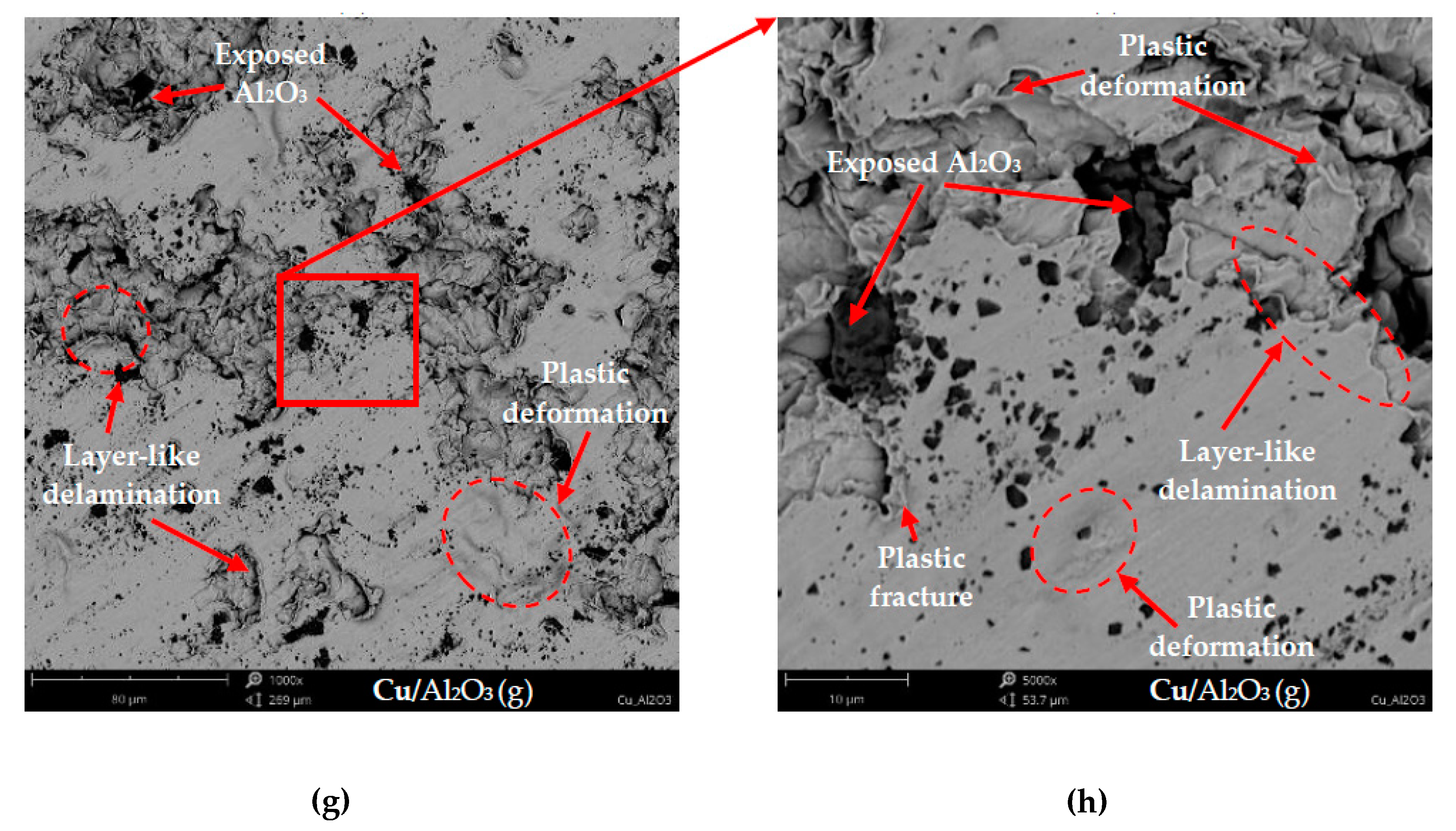

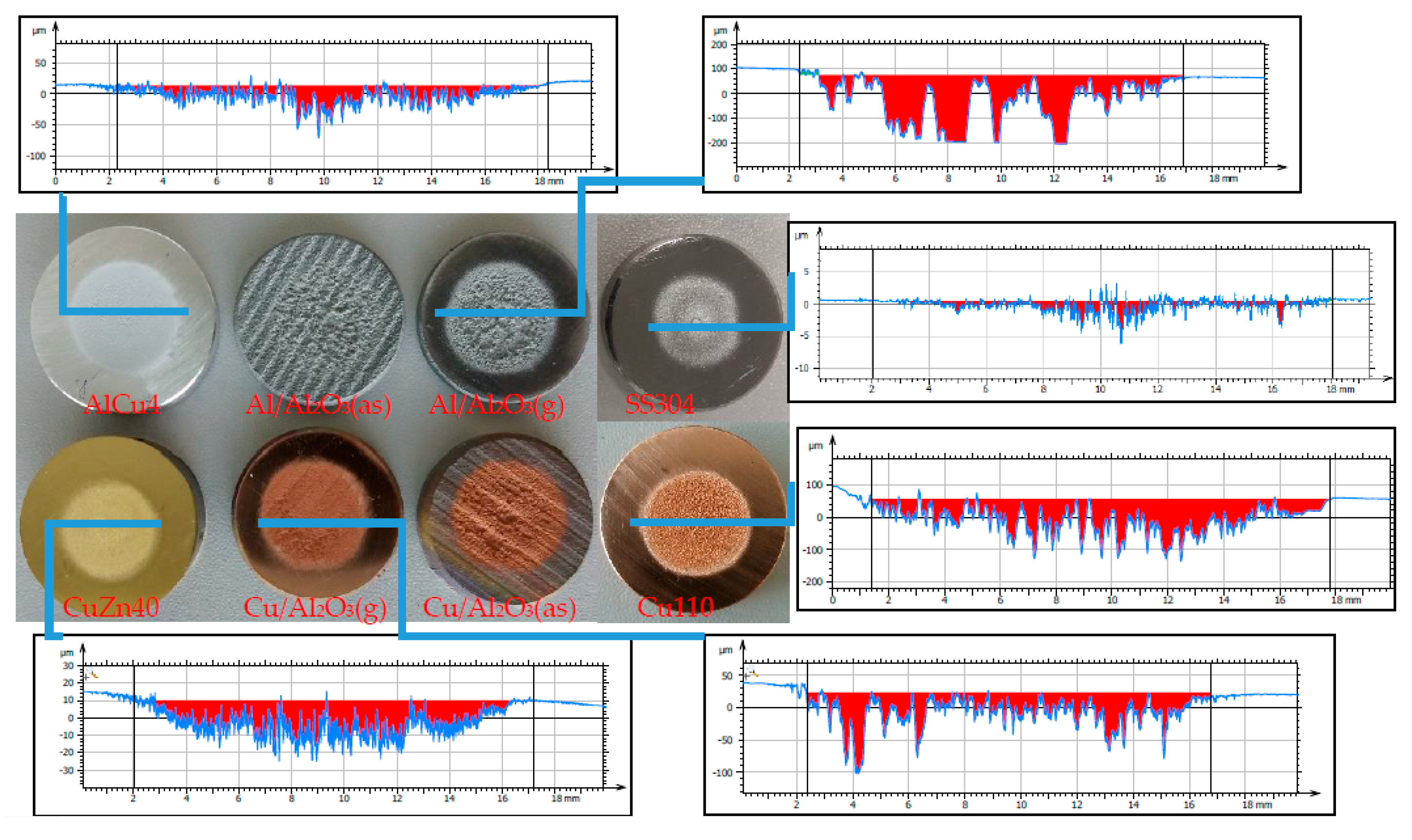

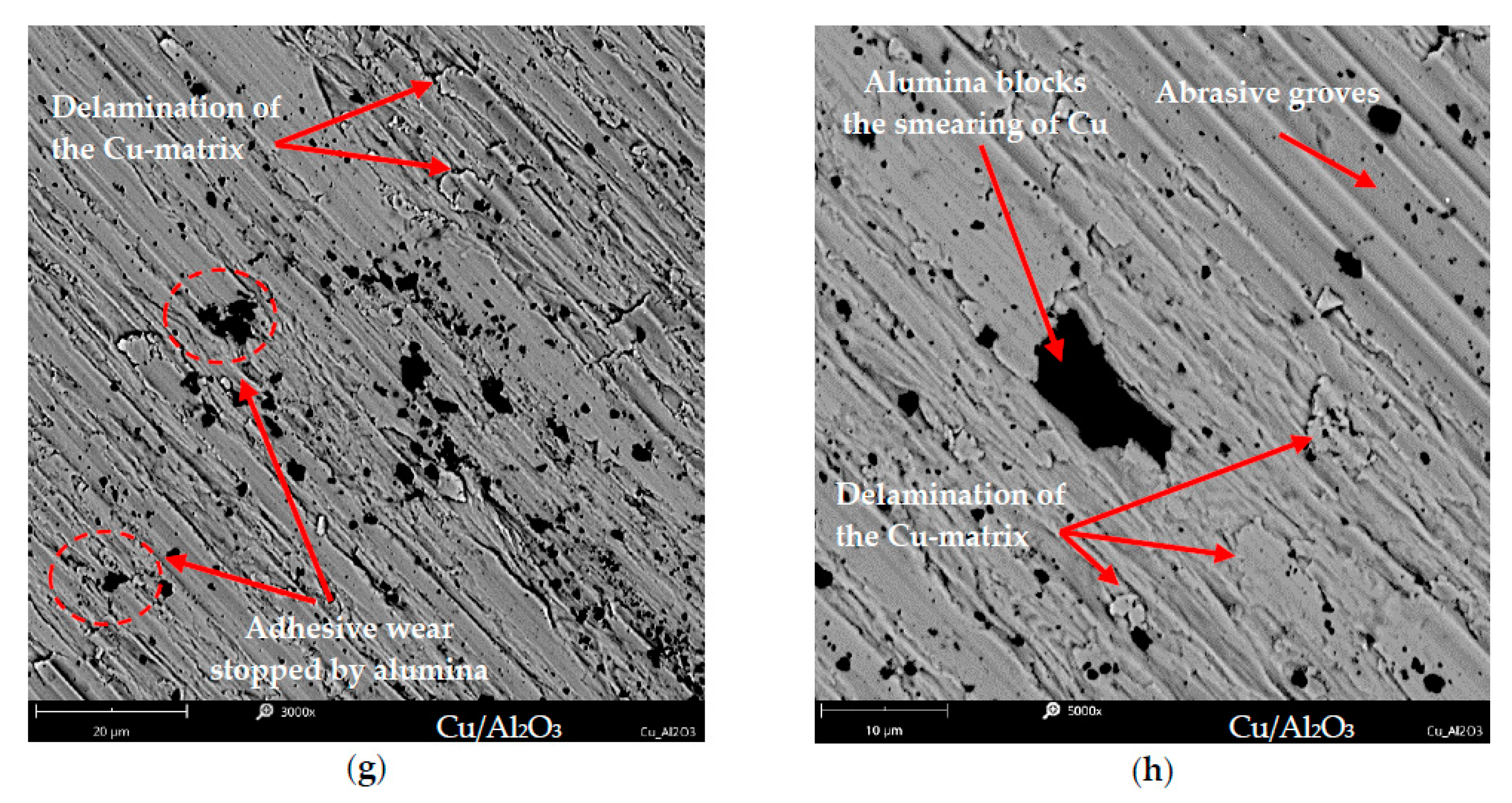

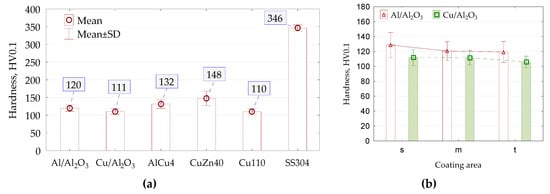

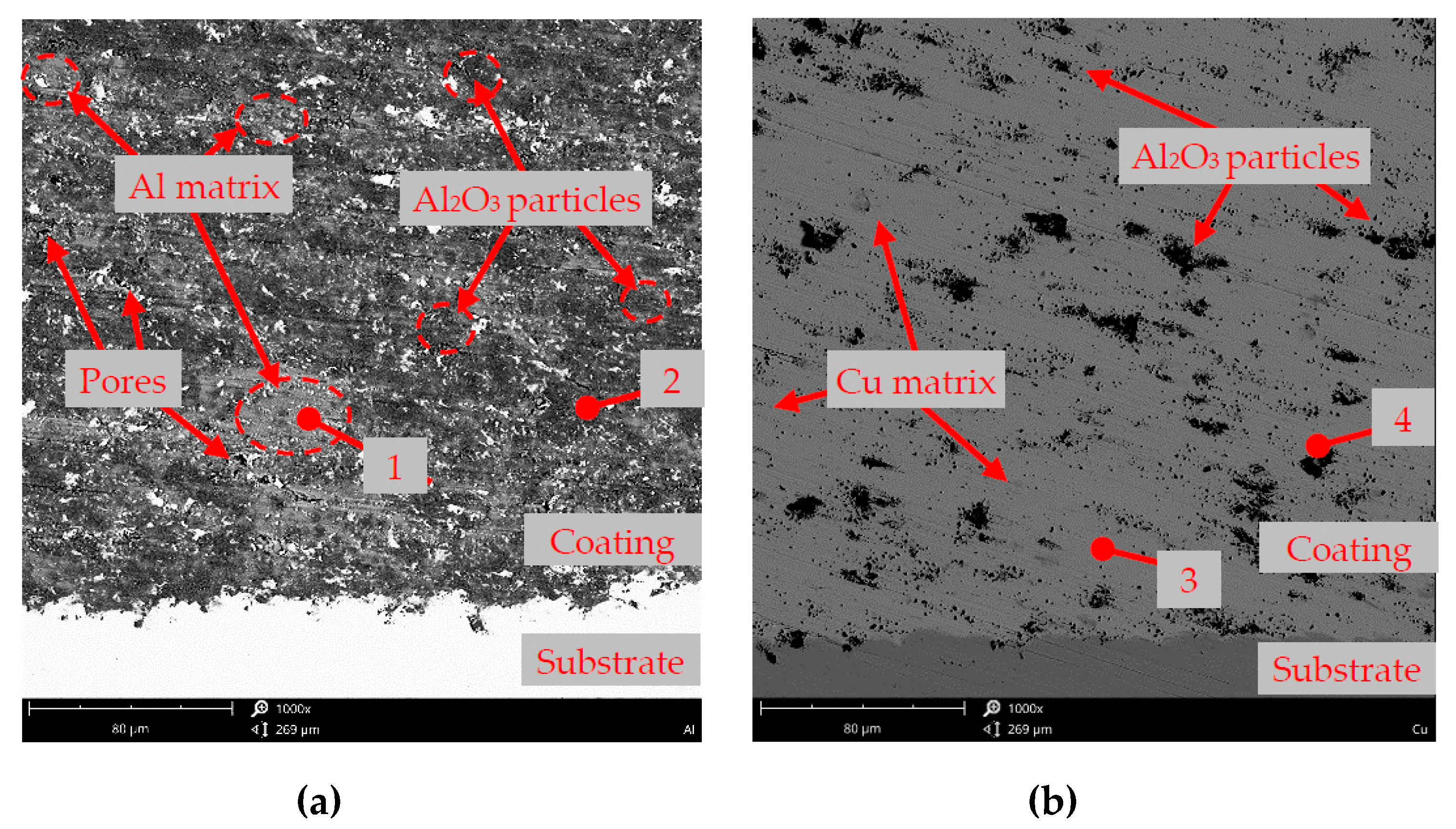

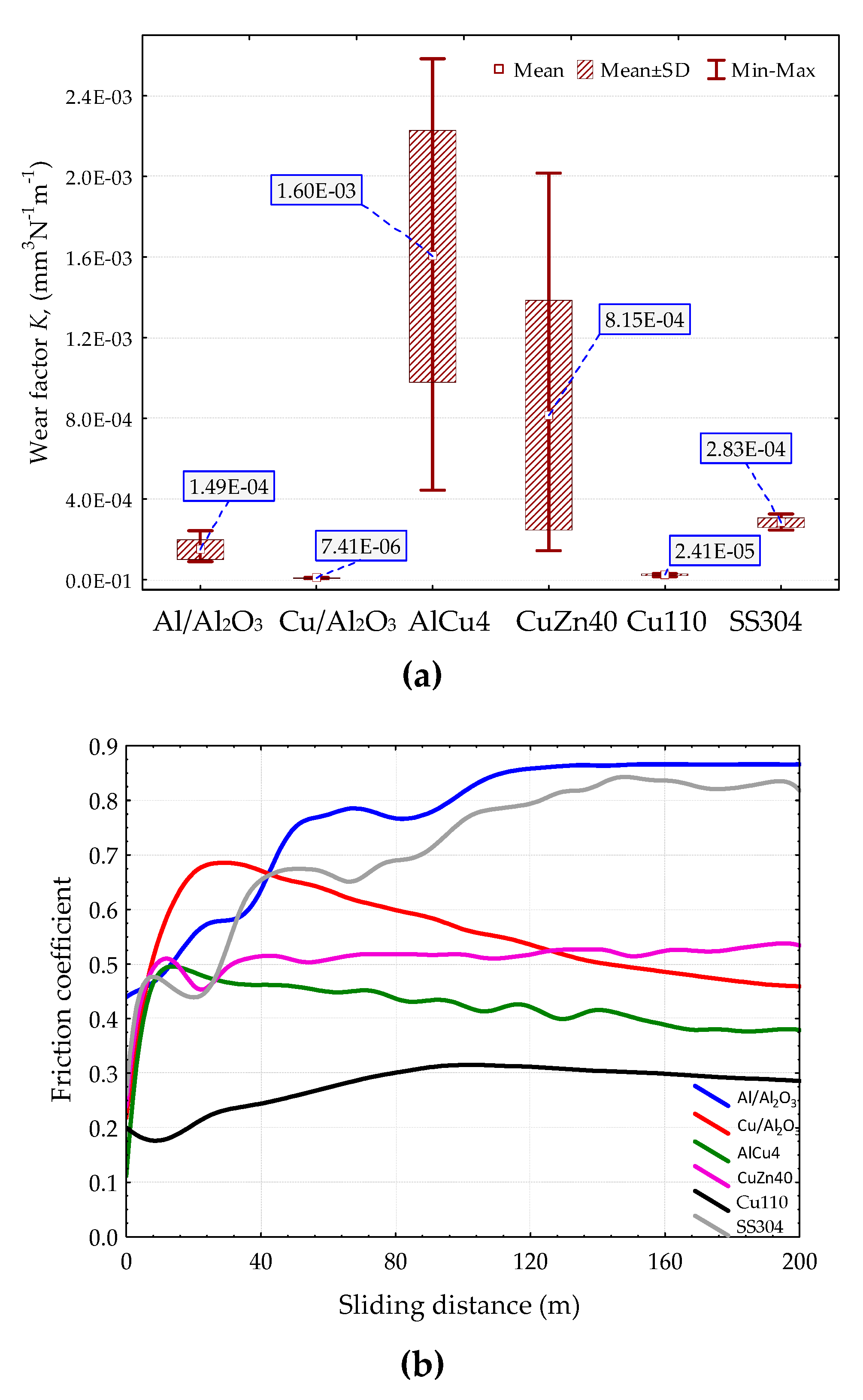

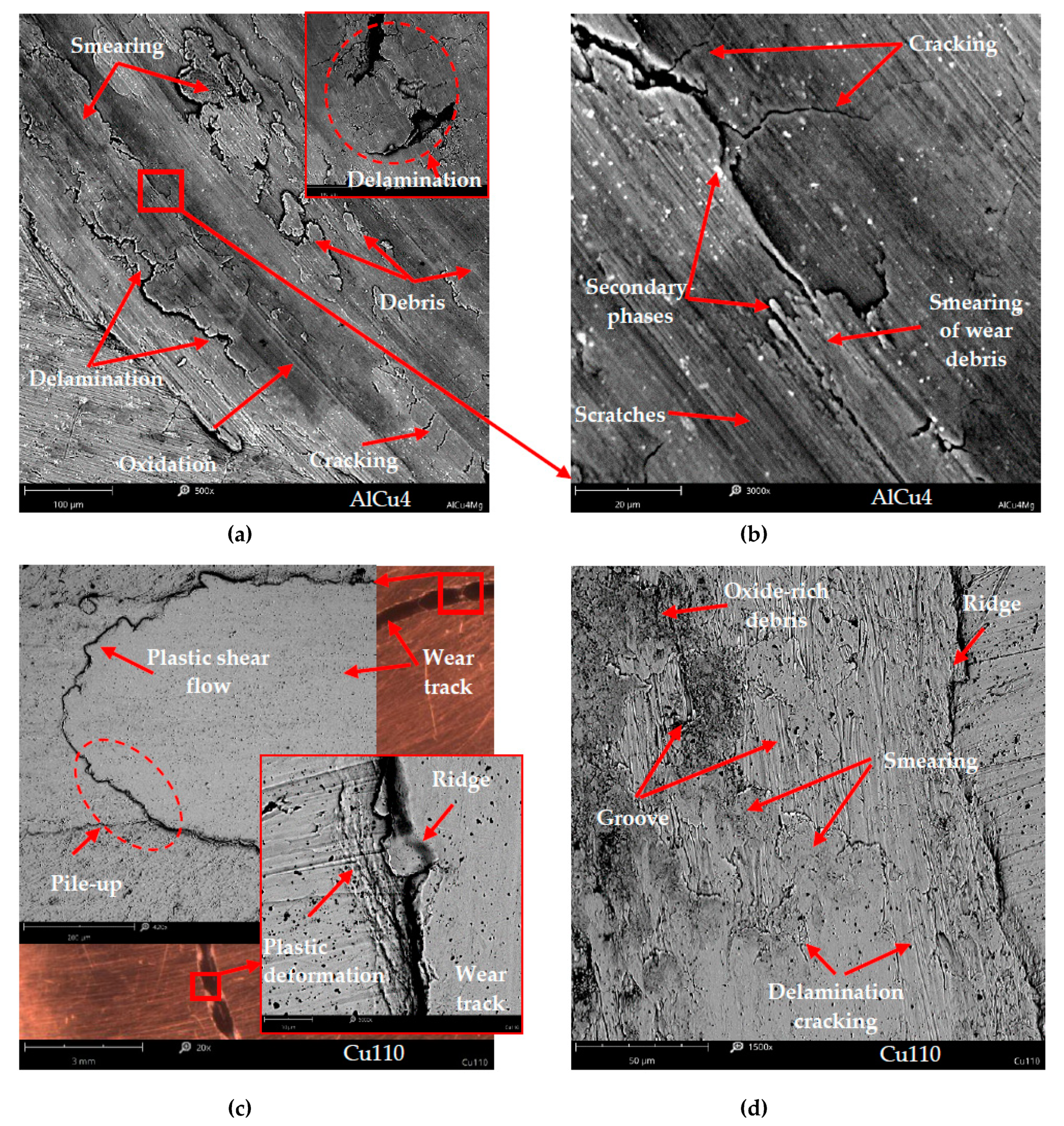

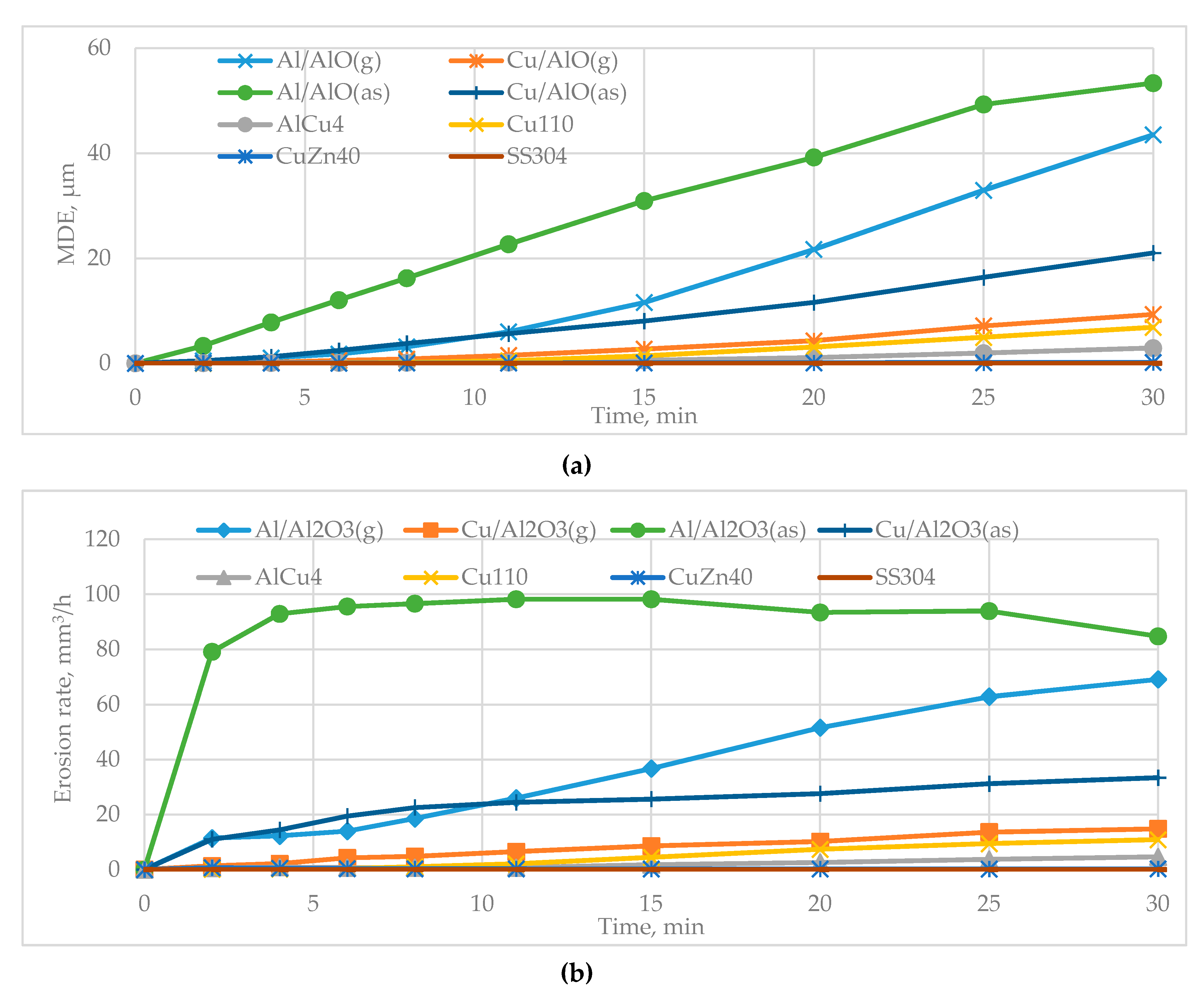

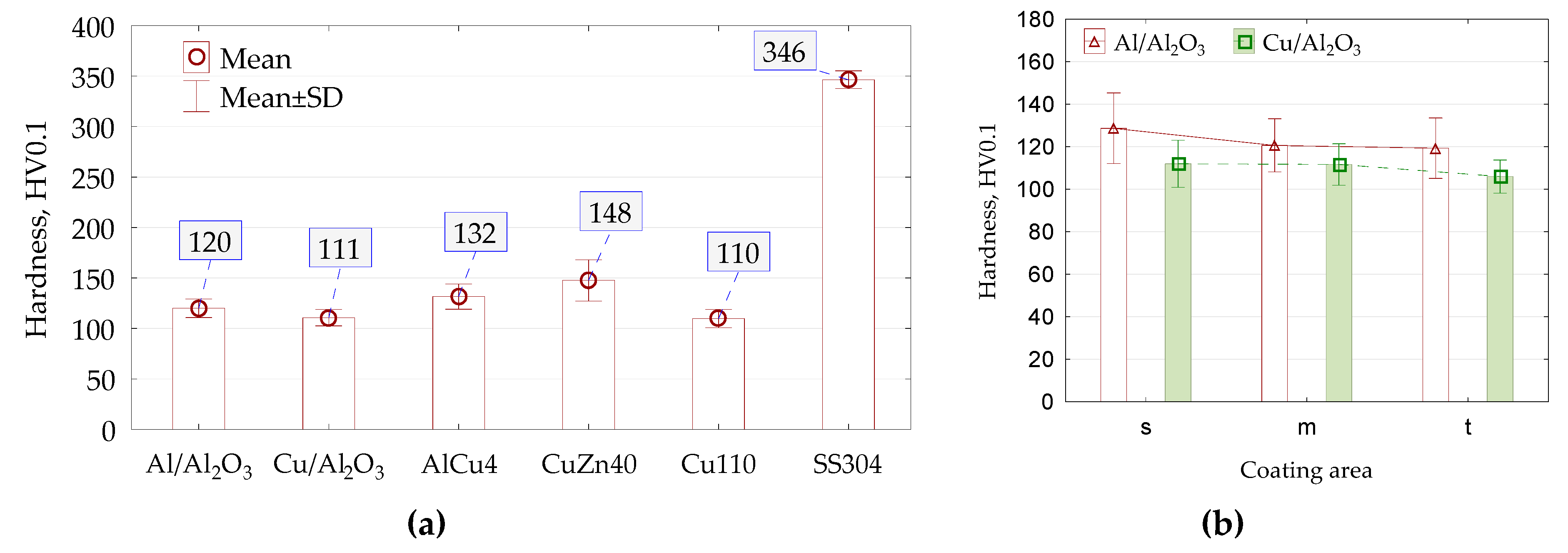

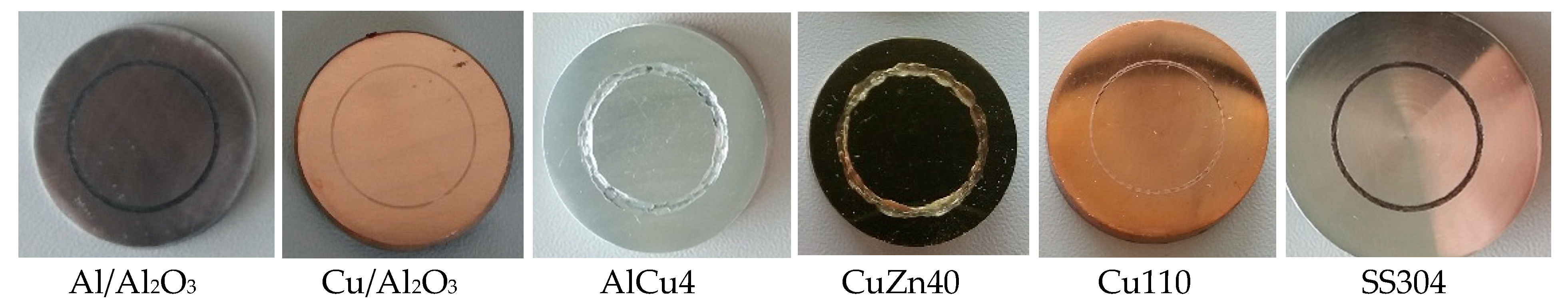

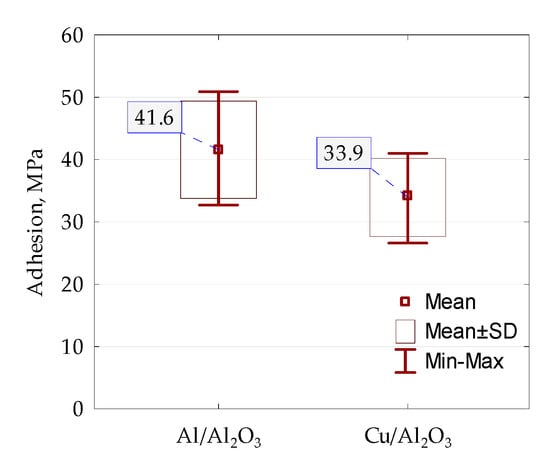

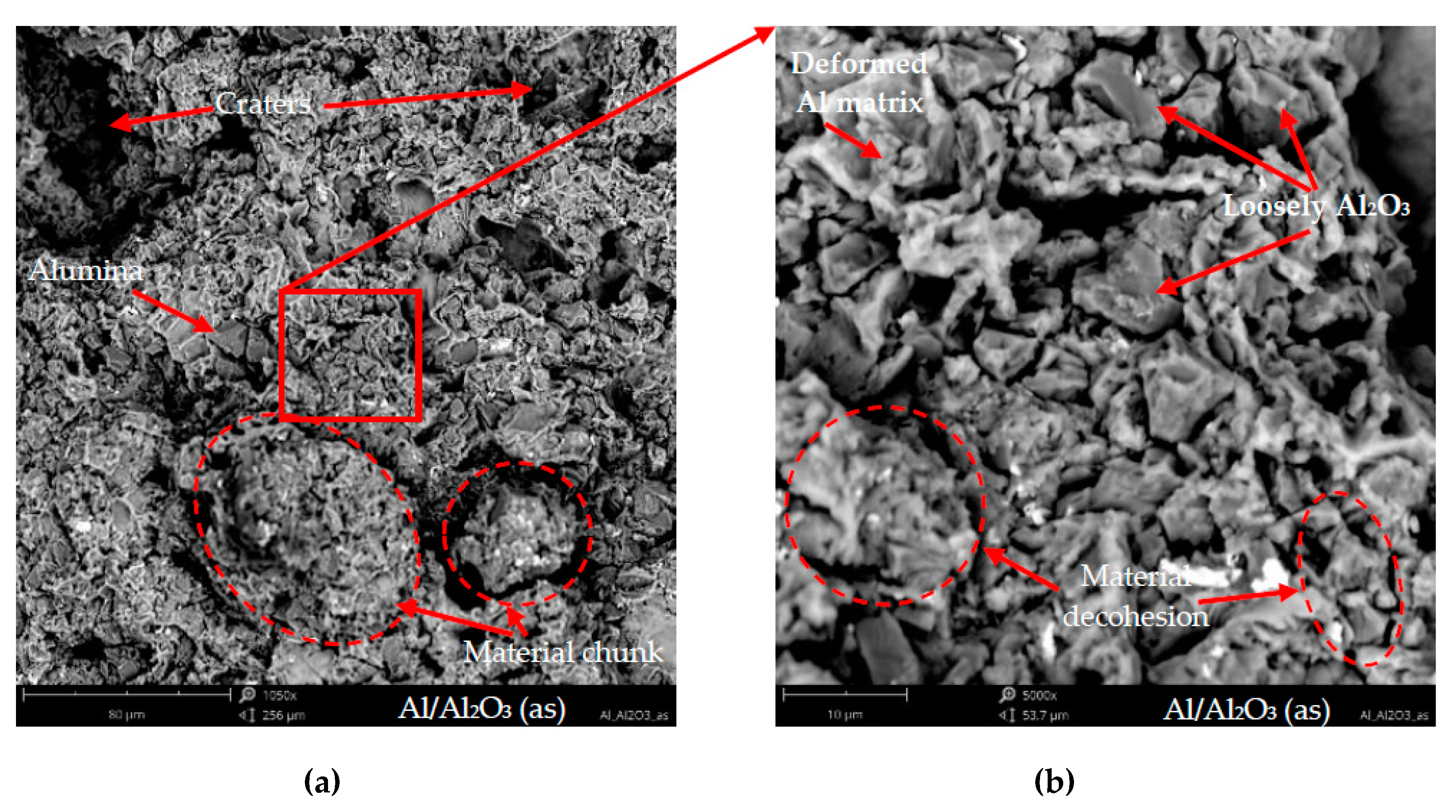

The paper investigates the cavitation erosion (CE) and sliding wear (SW) resistance of cold-sprayed Al/Al2O3 and Cu/Al2O3 composites and studies them in relation to a set of metallic materials such as aluminium alloy (AlCu4Mg1), pure copper (Cu110), brass (CuZn40Pb2) and stainless steel (AISI 304). The coatings were deposited on stainless steel by low-pressure cold spray (LPCS) using Al (40 wt.%) and Cu (50 wt.%) blended with Al2O3 (60 and 50 wt.%, respectively) feedstocks. CE resistance was estimated by the stationary sample method according to the ASTM G32 standard. The SW test was conducted using a ball-on-disc tester with compliance to the ASTM G99 standard. Results obtained for the LPCS coatings show that the Cu/Al2O3 coating exhibits a denser structure but lower adhesion and microhardness than Al/Al2O3. The Al/Al2O3 and Cu/Al2O3 resistance to cavitation is lower than for bulk alloys; however, composites present higher sliding wear resistance to that of AlCu4Mg1, CuZn40Pb2 and stainless steel. The CE wear mechanisms of LPCS composites start at the structural discontinuities and non-uniformities. The cavitation erosion degradation mechanism of Al/Al2O3 relies on chunk material detachment while that of Cu/Al2O3 initiates by alumina removal and continues as layer-like Cu-metallic material removal. CE damage of metal alloys relies on the fatigue-induced removal of deformed material. The SW mechanism of bulk alloys has a dominant adhesive mode. The addition of Al2O3 successfully reduces the material loss of LPCS composites but increases the friction coefficient. Coatings’ wear mechanism has an adhesive-abrasive mode. In both CE and SW environment, the behaviour of the cold-sprayed Cu/Al2O3 composite is much more promising than that of the Al/Al2O3. View Full-Text
Keywords: cavitation erosion; sliding; wear; friction coefficient; failure mechanism; cold spray; composite; copper; aluminium; alumina; MMC cavitation erosion; sliding; wear; friction coefficient; failure mechanism; cold spray; composite; copper; aluminium; alumina; MMC
Show Figures

Graphical abstract

MDPI and ACS Style

Szala, M.; Łatka, L.; Walczak, M.; Winnicki, M. Comparative Study on the Cavitation Erosion and Sliding Wear of Cold-Sprayed Al/Al2O3 and Cu/Al2O3 Coatings, and Stainless Steel, Aluminium Alloy, Copper and Brass. Metals 2020, 10, 856.
