Effect of Basicity on Sintering Behavior and Metallurgical Properties of High-Chromium Vanadium-Titanium Magnetite

Abstract

Basicity has an important effect on the behavior of high-chromium vanadium-titanium magnetite (HCVTM) sinter. The effect of basicity on sintering, reduction, and softening-melting properties was investigated in an experiment-scale sinter pot. The results showed that with the basicity increasing from 1.7 to 2.5, the vertical sinter speed, the productivity, the particle size, the reduction disintegration index (RDI), and the reducibility index (RI) increased. The yield increased first and then decreased, while the tumble index (TI) had the opposite trend. The perovskite content increased first and then stabilized, and the silico-ferrite of calcium and aluminum (SFCA) increased from the basicity of 2.3. The HCVTM sinter had a better tendency of the softening behavior with the basicity increase. In addition, the melt droplet comprehensive index S increased, which indicated that the increase in basicity negatively affected the droplet performance. As the basicity increased, the comprehensive index value increased. Considering the adverse effect of basicity on softening-melting properties, the best recommended value is 2.3.

1. Introduction

In recent years, a kind of high-chromium vanadium-titanium magnetite (HCVTM) was discovered in Hongge Town, Sichuan Province, China, and the reserves exceed 3.6 billion tons. The similar ores were mainly distributed in Canada, Russia, Australia, and other places [1,2]. High-chromium vanadium-titanium magnetite (HCVTM) containing various kinds of valuable elements (Fe, Ti, Cr, and V) can satisfy the need for Ti, Cr, and V metals, as well as their alloys [3,4]. HCVTM has a high valuable element content, which shows a comprehensive utilization value. Iron ore concentrates cannot be charged into the blast furnace (BF) directly because of the detriment to the permeability of the furnace. Therefore, iron ore fines need to be agglomerated into larger pieces. Sintering is one of the most economical and widely used method for preparing iron ore fines for the BF. Many physical and chemical reactions of the mixture may occur during the sintering process.

Basicity (CaO/SiO₂) is one of the most important control parameters in the sintering process and has been studied by domestic and foreign researchers [5,6,7]. It affects both the sintering process and the yield and quality of sinter, as well as the reduction process and the BF charge structure in BF smelting [8,9,10,11]. Wang [8] studied the effect and function mechanism of sinter basicity on softening-melting behaviors of mixed burden made from chromium-bearing vanadium-titanium magnetite, which confirmed that the proper sinter basicity value is not lower than 2.13 for smelting mixed burden in the BF. Yu [9] studied the effect of basicity on the titanomagnetite concentrate sinter and concluded that adjusting sinter basicity can restrain the adverse effect of TiO₂ on sintering of titanomagnetite concentrates. Umadevi [10] studied the influence of sinter basicity on low- and high-alumina iron ore sinter quality. Studies have been carried out on low- and high-alumina iron ore fines to find out the influence of sinter basicity increase on sinter mineralogy, properties, and productivity. Zhou [11] studied the influence of basicity on Russian chromium-bearing vanadium-titanium magnetite sinter properties, which confirmed that the optimal basicity value for industrial application was 2.55. Furthermore, the abovementioned studies on sinter properties affected by basicity concentrated on ordinary iron ore sinter and some titaniferous magnetite sinter.

In this work, the aim is to reveal the effect of basicity on the HCVTM sinter in Hongge Town via the sinter pot test. The sinter properties were then tested and calculated. The effects of basicity on reduction, mineralogy, and softening-melting properties were analyzed. The study on sinter basicity of the HCVTM sinter provides a theoretical basis and technical support for BF smelting HCVTM and promotes smelting and energy saving in the pre-alloying process.

2. Materials and Methods

2.1. Materials

The HCVTM iron ore was from Hongge Town (Panzhihua City, China). It has a high Cr₂O₃ (0.55 wt%) and TiO₂ (11.01 wt%) content. Ordinary magnetite (OM), gas-ash (GA), magnetic powder (MP), lime, return mine (RM), and coke were supplied by the Chengde Jianlong Iron and Steel Group Company (Hebei, China). The chemical composition was shown in

Table 1. The chemical compositions of raw materials (wt%).

Raw Materials	TFe	FeO	TiO2	V2O5	Cr2O3	CaO	SiO2	MgO	Al2O3	P	S
HCVTM	56.45	28.05	11.01	0.37	0.55	0.63	2.66	2.54	2.42	0.003	0.34
GA	32.39	-	1.79	0.25	0.16	5.16	5.95	1.79	2.69	0.070	0.17
MP	0.14	-	0.03	-	-	29.4	2.58	20.65	0.90	-	-
OM	63.79	28.35	0.89	0.06	0.02	0.38	7.15	0.38	1.25	0.020	0.05
Quicklime	-	-	-	-	-	60.80	3.42	2.87	1.11	-	-

. In addition, the XRD of the raw materials was reported previously [12].

2.2. Apparatus and Procedure

According to the actual situation of the raw materials, the experimental schedule was designed, as shown in

Table 2. Experimental scheme and ingredients of sinter materials (wt%).

Basicity	Mixed Sinter Raw Materials
	HCVTM	OM	RM	GA	MP	Quicklime
1.7	39.8	30.0	20.0	1.0	1.0	8.2
1.9	38.2	30.0	20.0	1.0	1.0	9.8
2.1	36.3	30.0	20.0	1.0	1.0	11.7
2.3	35.4	30.0	20.0	1.0	1.0	12.6
2.5	33.8	30.0	20.0	1.0	1.0	14.2

. The basicity was adjusted from 1.7% to 2.5% with adding different contents of quicklime. The MgO content was adjusted to 2.0% by magnesite, the SiO₂ content was about 4.8%, and the coke content was fixed at 4.5%. The sintering test involves blending, mixing, granulating, igniting, sintering, cooling, pulverizing, and treatment of the cooled sinter. First, 100 kg raw materials are granulated in a drum with a diameter of 1 m for 10 min. After mixing, the sinter mixture was placed in the sinter pot and ignited at 1000 °C for 2 min, then it was sintered until the temperature of the flue gas reached the end of the peak; after that the agglomerate was cooled for 20 min and discharged. The sintering test parameters remained fixed throughout the experiment as listed in

Table 3. Parameters of the high-chromium vanadium-titanium magnetite (HCVTM) sinter pot test.

Item	Parameter	Item	Parameter
Sinter pot height	700 mm	Sinter pot inner diameter	320 mm
Sinter weight	100 kg	Pelletizing time	10 min
Ignition temperature	1000 °C	Ignition time	2 min
Height of grate layer	20 mm	Moisture	10.0 ± 0.5%
Ignition pressure	8.00 kPa	Exhausting pressure	12.0 kPa

. The analysis methods were described previously [13].

2.3. Definition of Parameters

2.3.1. Vertical Sinter Speed

The vertical sinter speed (VSS) is an index to indicate the sintering rate. The calculation equation of VSS is given in Equation (1):

$$VSS=\frac{L}{T}$$

(1)

where L is the thickness of the raw material (mm), T is the sintering time (min).

2.3.2. Tumbler Index

The tumbler index (TI) is an important index for evaluating the impact resistance of the sinter. According to the international standard ISO 3217-2007, the equation of TI is given in Equation (2):

$$TI=\frac{m_1}{m_0}\times 100\%$$

(2)

where m₀ is the sample weight in the drum (g), m₁ is the sinter weight on the 6.3 mm sieve (g).

2.3.3. Productivity

The productivity was calculated using Equation (3):

$$P=M_S\times y/(A\times t)$$

(3)

where P is the unit productivity (t·m⁻²·h⁻²), M_S is the mass of sinter cake (t), y is the yield of product sinter (%), A is the cross-section area of sinter pot (m²), and t is the sintering time (h).

2.3.4. Reduction Disintegration Index

The reduction disintegration index (RDI) is a measure of the disintegration property of sinter on the exposure to CO at 500 °C. The equations of RDI are given in Equations (4)–(6):

$$RD{I}_{+6.3}=\frac{m_{D1}}{m_{D0}}\times 100$$

(4)

$$RD{I}_{+3.15}=\frac{m_{D1}+m_{D2}}{m_{D0}}\times 100$$

(5)

$$RD{I}_{-0.5}=\frac{m_{D0}-(m_{D1}+m_{D2}+m_{D3})}{m_{D0}}\times 100$$

(6)

where m_D0 is the sinter weight after the reduction (g), m_D1 is the sinter weight on the 6.3 mm sieve (g), m_D2 is the sinter weight on the 3.15 mm sieve (g), and m_D3 is the sinter weight on the 0.5 mm sieve (g).

2.3.5. Reducibility Index

The reducibility index (RI) is determined by the ISO-7215 test performed at 900 °C. The equations of RDI are given in Equation (7):

$$X_{\mathrm{t}}=\left[\frac{0.11\omega (\mathrm{FeO})}{0.43\omega (\mathrm{TFe})}+\frac{m_1-m_2}{m_1\times 0.43\omega (\mathrm{TFe})}\right]\times 100\%$$

(7)

where X_t is the RI of HCVTM sinter at time t (%), ω (FeO) and ω (TFe) are the mass of FeO and total ferrous of HCVTM sinter before reduction (%); m₁ and m₂ are the mass of HCVTM sinter before reduction (g).

2.3.6. Softening-Melting Properties

The softening-melting properties of the sinter have a significant effect on the reduction process and the permeability of the load. In this work, the softening start temperature (T_10%) and softening end temperature (T_40%) are the burden temperature when the shrinkage degree reaches 10% and 40%, respectively. The melting start temperature (T_s) is the temperature that the gas pressure drop begins to increase rapidly. The melting end temperature (T_d) is the dripping temperature of iron. The softening zone of sinter is the softening temperature interval (ΔT₁ = T_40% – T_10%). The melting zone of sinter is the melting temperature interval (ΔT₂ = T_d – T_s).

A characteristic value S is introduced to evaluate the dripping performance of the sinter. The smaller the S, the better the droplet performance. The equation of S is given in Equation (8):

$$\mathrm{S}={\displaystyle {\int }_{{\mathrm{T}}_{\mathrm{s}}}^{{\mathrm{T}}_{\mathrm{d}}}(\mathsf{\Delta }{P}_m-\mathsf{\Delta }{P}_s)\cdot }dt$$

(8)

where ΔPs is the starting melting pressure difference, in which the value is 50 × 9.8 Pa; ΔP_m is the maximum pressure difference, Pa.

3. Results and Discussion

3.1. Effect of Basicity on Sinter Properties

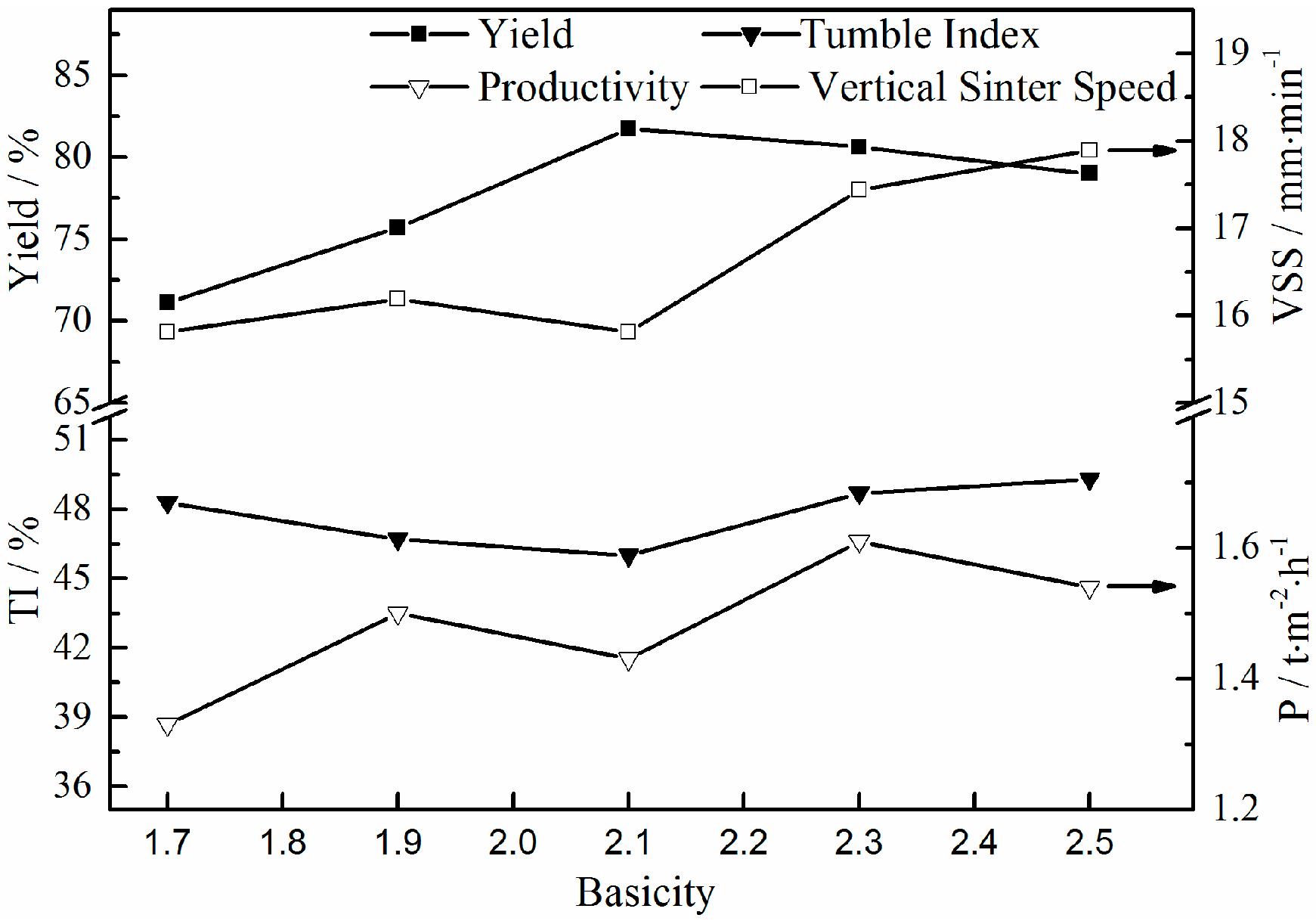

Figure 1 shows the sinter properties for different basicity. With the basicity increasing from 1.7 to 2.5, the VSS increased from 15.81 to 17.89 mm·min⁻¹. On the one hand, HCVTM has a small specific surface area and poor hydrophilicity, which can be compensated to some extent, improving the granulation conditions and the sphericity of the mixture. The gas permeability of the sinter improves. On the other hand, quicklime is slaked into hydrated lime Ca(OH)₂ upon contact with water in the sinter during the mixing and granulation stages. The exothermic hydration reactions increase the sinter mixture temperature, and the granulation is improved by the Ca(OH)₂ bonding, which can assist condensation in the bottom layer of the sinter bed and improve the granule strength [14,15]. These changes decrease the sintering resistance and increase the sintering rate [11]. Based on the abovementioned factors, as the basicity increased, the VSS increased.

The yield and the TI had the opposite trend. When the basicity increased from 1.7 to 2.1, the yield increased from 71.14% to 81.74% and the TI decreased from 48.3% to 46.0%. However, as the basicity value increased from 2.1 to 2.5, the yield decreased from 81.74% to 79.00% and the TI increased from 46.0% to 49.3%. Under the premise that the solid fuel dosage remained unchanged, as the basicity increased, the melting dose increased gradually, and the formation of low-melting minerals increased in the sinter. Therefore, the amount of liquid phase formation increased. As a result, the yield increased. This is because when more lime in the iron ore fines was added, the contact between CaO and the other main mineral components such as Fe₂O₃, SiO₂, TiO₂, and others increased, and the kinetic conditions were improved during the heating process. At the same time, with the further increase of quicklime, the sinter grade was reduced and the loss on ignition became greater. What is more, the sinter speed was increased, which led to a shorter crystallization time, which affected the yield of sinter ore and caused a decrease in the yield. As the basicity increased, the sinter TI decreased first and then increased. During the sintering process, basicity had a great influence on the sintering process and the composition of the sintered binder phase. The binding ability of TiO₂ and CaO was stronger than that of Fe₂O₃ and CaO. When the basicity was low, CaO formed perovskite with TiO₂. With the increase of basicity, the perovskite increased gradually and the strength of sinter gradually deteriorated. After all the TiO₂ formed perovskite, as the basicity increased, both the calcium ferrite and the strength of the sinter increased as well. Productivity which was determined by the sinter speed and the sinter yield increased from 1.33 to 1.54 t·m⁻²·h⁻¹.

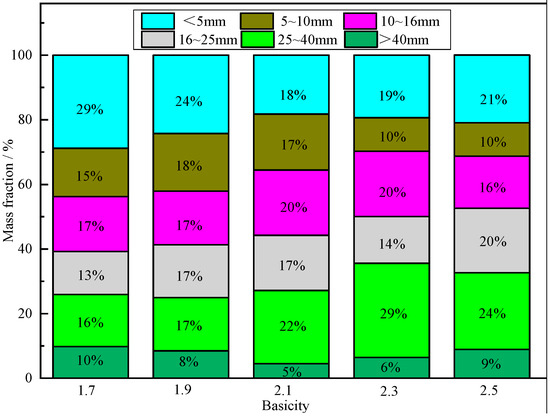

The size distribution of HCVTM sinter with different basicity is shown in Figure 2. The proportion of particles with a size bigger than 16 mm increased from 39% to 53% with the basicity increasing from 1.7 to 2.5, which indicated that the particles of HCVTM sinter were mostly large particles. The increase of the liquid phase and the sinter strength were the reason for the larger particle formation.

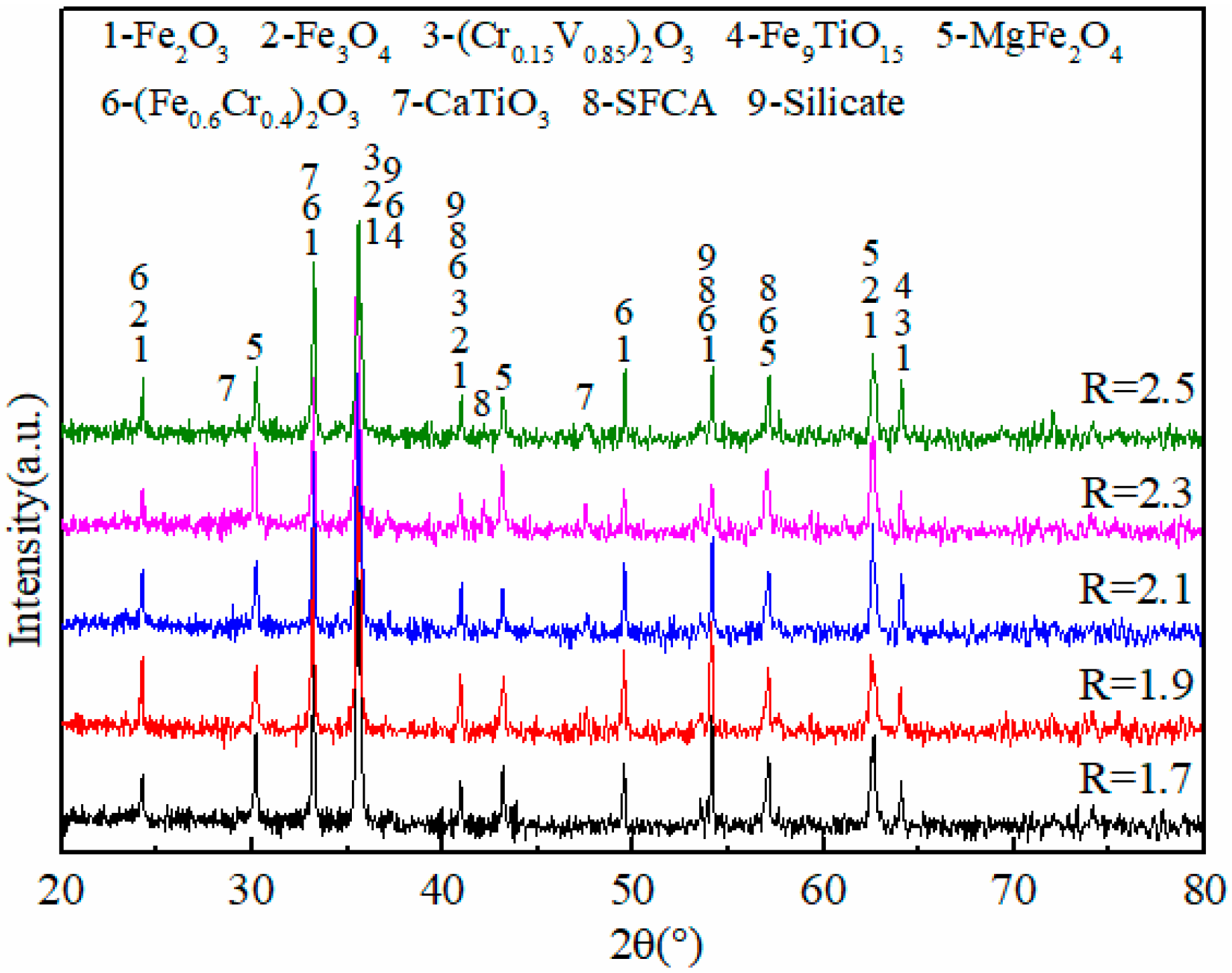

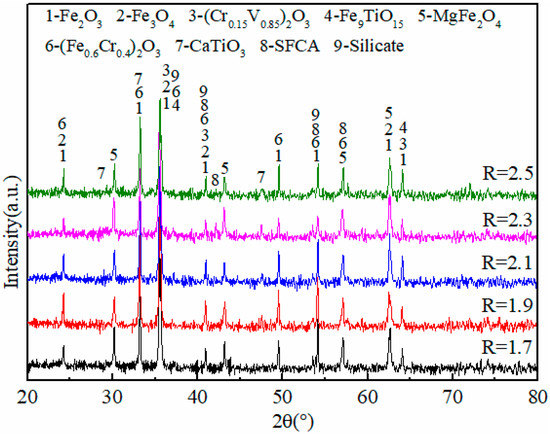

According to the analysis of the XRD pattern of the HCVTM sinters (Figure 3), the main mineral phases of the HCVTM sinter were magnetite (Fe₃O₄), hematite (Fe₂O₃), perovskite (CaTiO₃), etc. The peak intensity of perovskite became stronger with the basicity increase, and the silico-ferrite of calcium and aluminum (SFCA) was generated as the basicity reached 2.3. Meanwhile, the magnesium ferrite (MgFe₂O₄) was generated because of the similar ionic radii of Mg²⁺ (0.78 Å) and the Fe²⁺ (0.83 Å). Several low-intensity peaks appeared, which can be attributed to the solid solutions of (Fe_0.6Cr_0.4)₂O₃ and (Cr_0.15V_0.85)₂O₃.

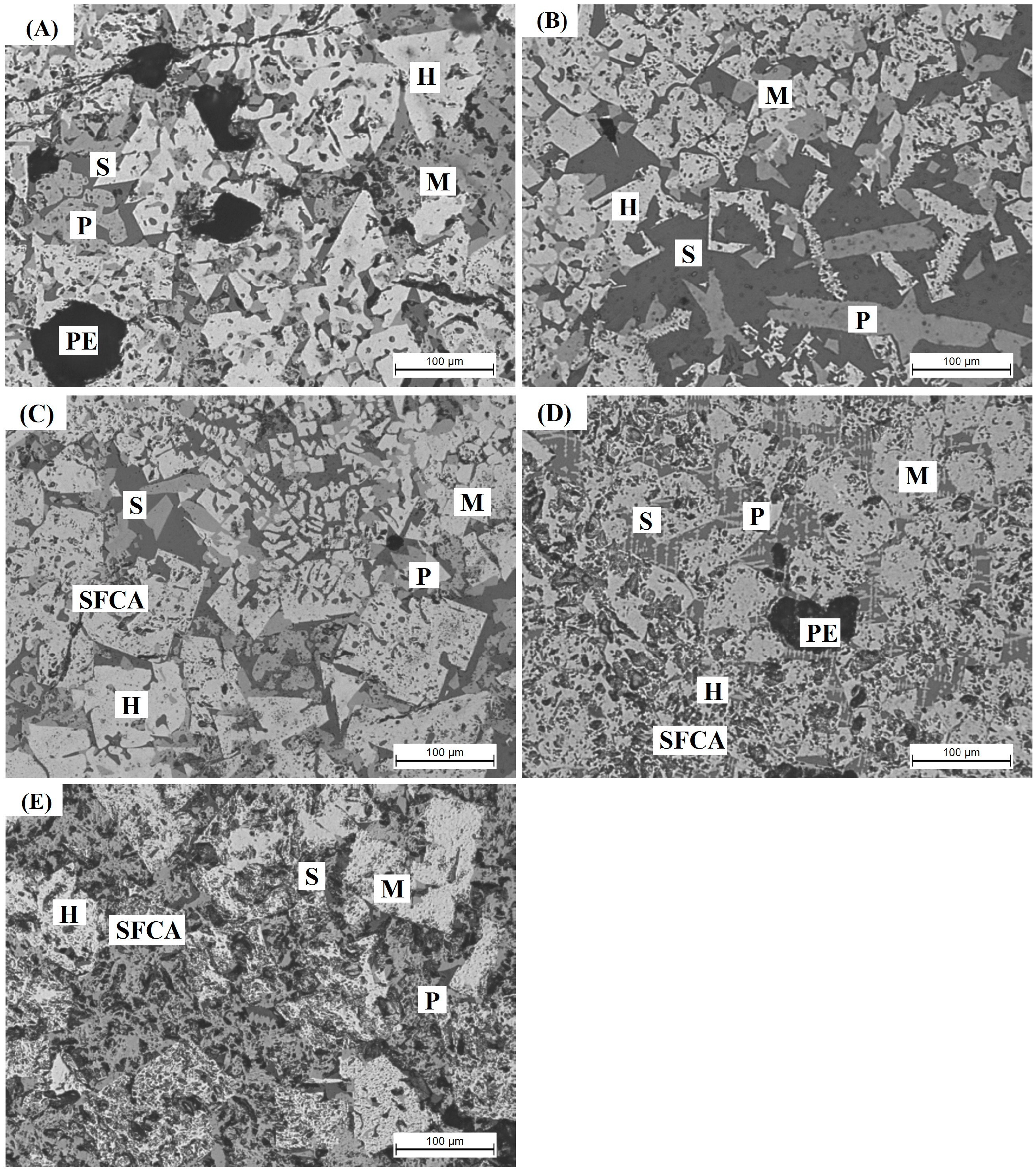

Figure 4 shows the microstructure of the HCVTM sinter with different basicity. The mineral structure changed significantly with the increasing basicity. The main mineral phases were titanomagnetite, titanohematite, perovskite, and silicate. Figure 4A shows that the mineral phases were mainly symbiotic structures and partially eutectic structures. The magnetite in the sinter was irregularly distributed in other crystals, and some magnetite and hematite were paragenetic minerals, and the bonding phase was mostly vitreous and silicate minerals. With the basicity increased to 1.9 (Figure 4B), the liquid phase increased, and the crystallization of the perovskite phases mainly existed in the silicate phases in the form of a solid solution, and the perovskite had little effect on the bonding phase of the silicate phases and the crystal strength between hematite and magnetite [16,17]. The grains of hematite and magnetite were refined, as shown in Figure 4C. The SFCA appeared near the hematite phase and mixed with other liquid phases. Figure 4D shows that the dendritic perovskite was distributed in the silicates uniformly. Figure 4E shows that the mineralogical structure was not uniform, with interwoven dissolution structures as the main structures, and some being skeleton crystal structures.

The morphology of the perovskite depended mainly on the thermal level and the element content of the sinter. Four different types of perovskite were observed, namely granular structure, columnar structure, dendritic structure, and corrosion lamellar structure, as shown in Figure 4. Granular structures were found in the sinter with a low lime content in Figure 4A. Granular and columnar structures were the main structures for higher basicity, as shown in Figure 4B,C. With the increase of basicity, the type of dendritic structure that predominated in Figure 4D appeared. Corrosion lamellar structures were found in Figure 4E. The perovskite content was the reason for the sinter cold strength and the RI.

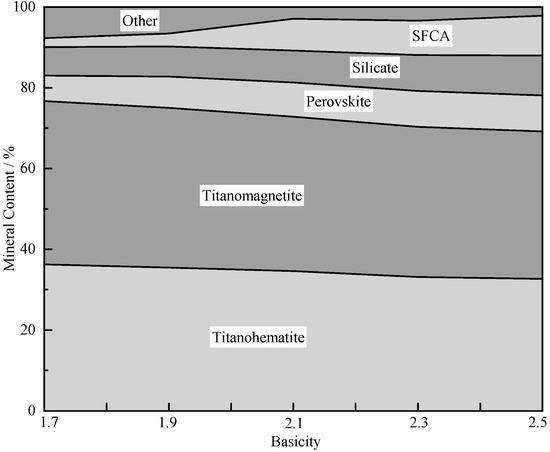

On the one hand, adding more limestone to the sinter brought about an increase in the extent of perovskite formation [18], as can be seen from the results of the quantitative analysis shown in Figure 5. The main minerals were titanomagnetite and titanohematite, which decreased with the increase of basicity. The perovskite content first increased, but when the basicity was 2.1, it began to stabilize, while the SFCA increased rapidly. On the other hand, more limestone meant more endothermic CaCO₃ decomposition reactions. The low sinter temperature benefited the generation of SFCA but was unfavorable for the formation of perovskite.

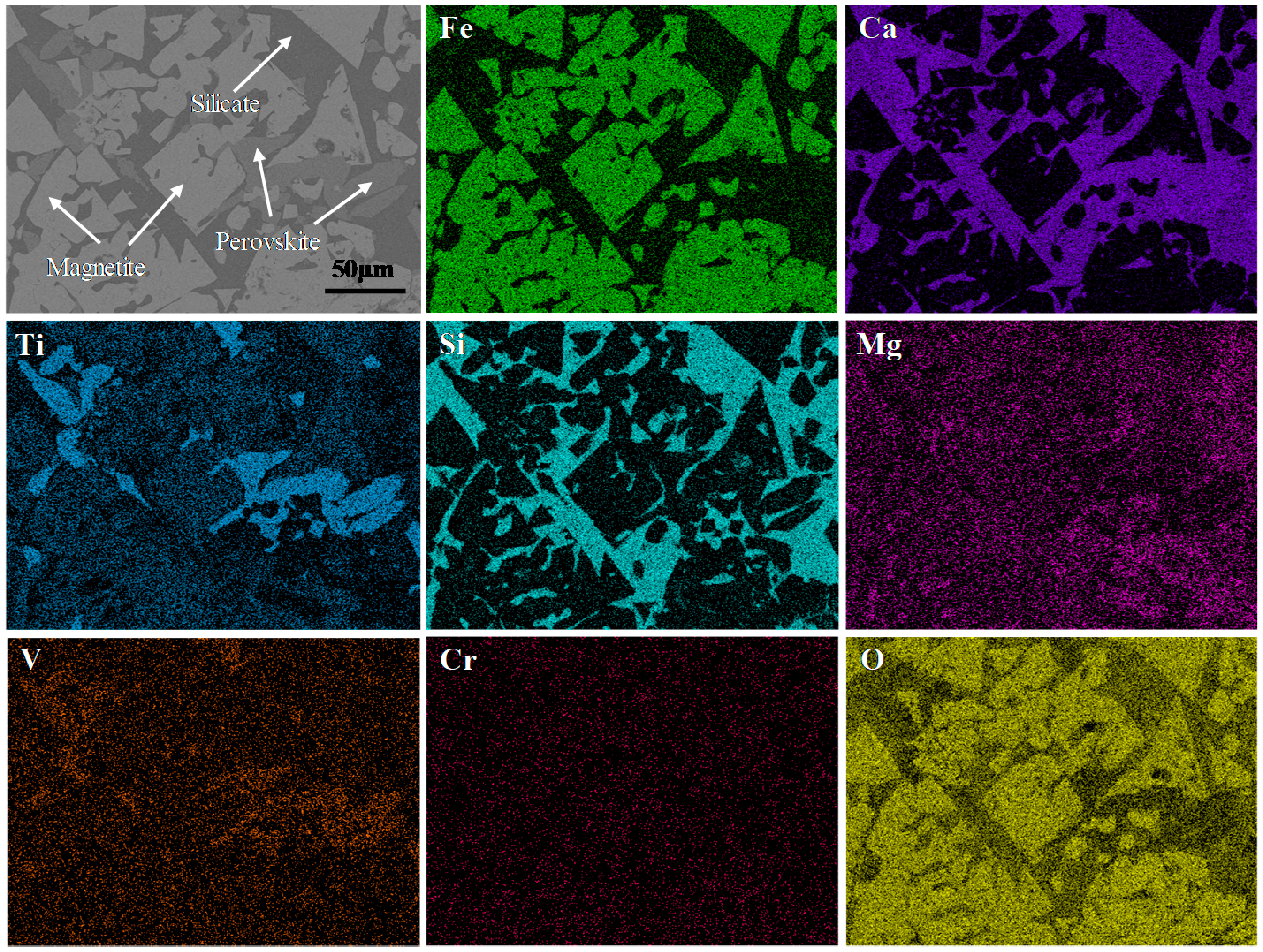

In addition to characterization of the sinter using conventional microscopy, the microanalysis of different phases was carried out using the SEM image and EDS mapping to determine the chemical composition distribution of the various mineralogical constituents of the sinter. The results are summarized as follows and can be seen from Figure 6. It can be seen that the sinter was mainly composed of magnetite, calcium silicate, and perovskite. The magnetite was idiomorphic and hypidiomorpic crystals, which was unevenly distributed. As a result of the high calcium content in the sinter, the perovskite content was high. It was distributed between iron oxides and was the main bonding phase. The silicate content was very low. The distribution of Mg²⁺ and Fe³⁺ was consistent. Mg²⁺ was rarely distributed in the perovskite and the calcium silicate. The Ca²⁺, Ti⁴⁺, and Si⁴⁺ were mainly distributed and dissolved in the slag and the liquid phases. The distribution of V⁴⁺ was consistent with that of Ti⁴⁺, while the distribution of Cr³⁺ was disordered and in each phase. Mg²⁺ was mainly distributed in the magnetite and hematite phases, and it was negligible in the perovskite and silicate phases. Perovskite was observed in the gaps between joined crystals of titanomagnetite or titanohematite.

3.2. Effect of Basicity on Reduction Properties

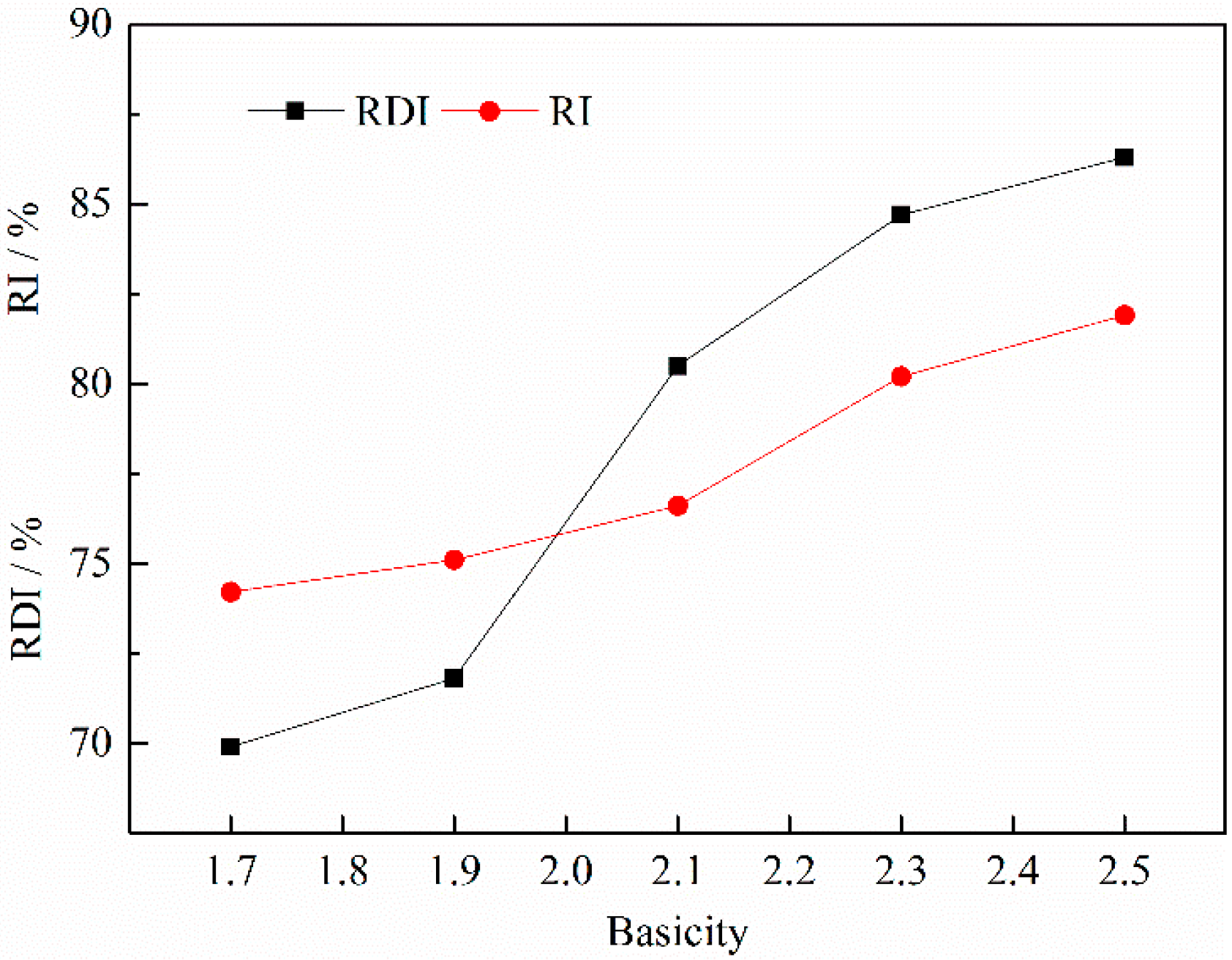

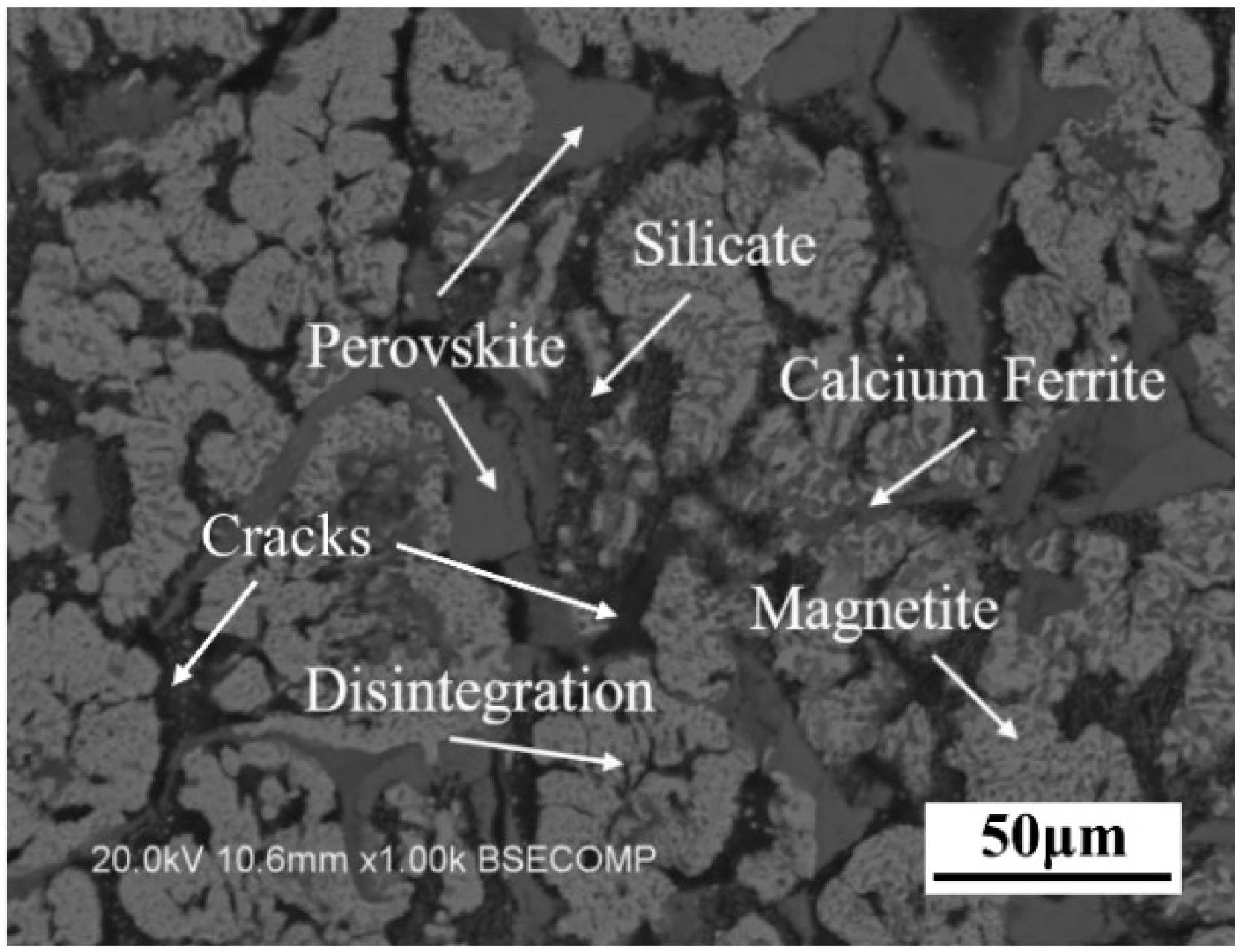

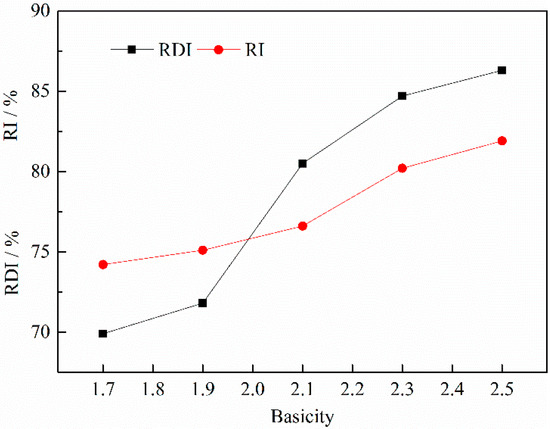

Figure 7 shows the RDI and the RI of the HCVTM sinter with different basicity. With the increase of sinter basicity, the RDI of the sinter increased greatly, that is, the reduction pulverization performance of the sinter was improved. The main reason was that the calcium ferrite content in the sinter increased significantly, and the titanium hematite content was reduced, which reduced the volume expansion of hematite reduction to magnetite. The calcium ferrite in the sinter increased, that is, the binder phase increased. The reduction process was inhibited by the decrease of hematite and the regenerated hematite content. At the same time, the high-basicity sinter promoted the formation of 3CaO·SiO₂, which reduced the calcium orthosilicate, and promoted the dispersion of calcium orthosilicate in the binder phase of calcium ferrite, inhibiting volume expansion. Figure 8 shows the sinter SEM image following reduction at 500 °C for 60 min. The disintegration and cracks occurred during the crystalline transformation. The mineralogical structures of the sinter were mainly titanomagnetite, calcium ferrite, perovskite, and silicate.

The RI, as the principal indicator for evaluating the metallurgical property of the sinter, is used to simulate the condition for feeding the load from the top of the BF to a high-temperature zone. What is more, it could show the difficulty level of the gas reductant capturing the combination of oxygen and iron in the sinter. The sinter had a good reducing property, which was beneficial to strengthening smelting, and therefore, decreased reductant consumption and the coke ratio. As shown in Figure 7, when the basicity increased from 1.7 to 2.5, the RI increased from 74.2% to 81.9%. According to the mineral phase analysis of the HCVTM sinter, the calcium ferrite, which was easy to be reduced increased while 2FeO·SiO₂ decreased with the increasing basicity. In the sinter process, the permeability, the flow rate, and the cooling rate decreased with the increasing basicity, and so did the FeO content. The RI of the sinter increased with the decreasing FeO [19].

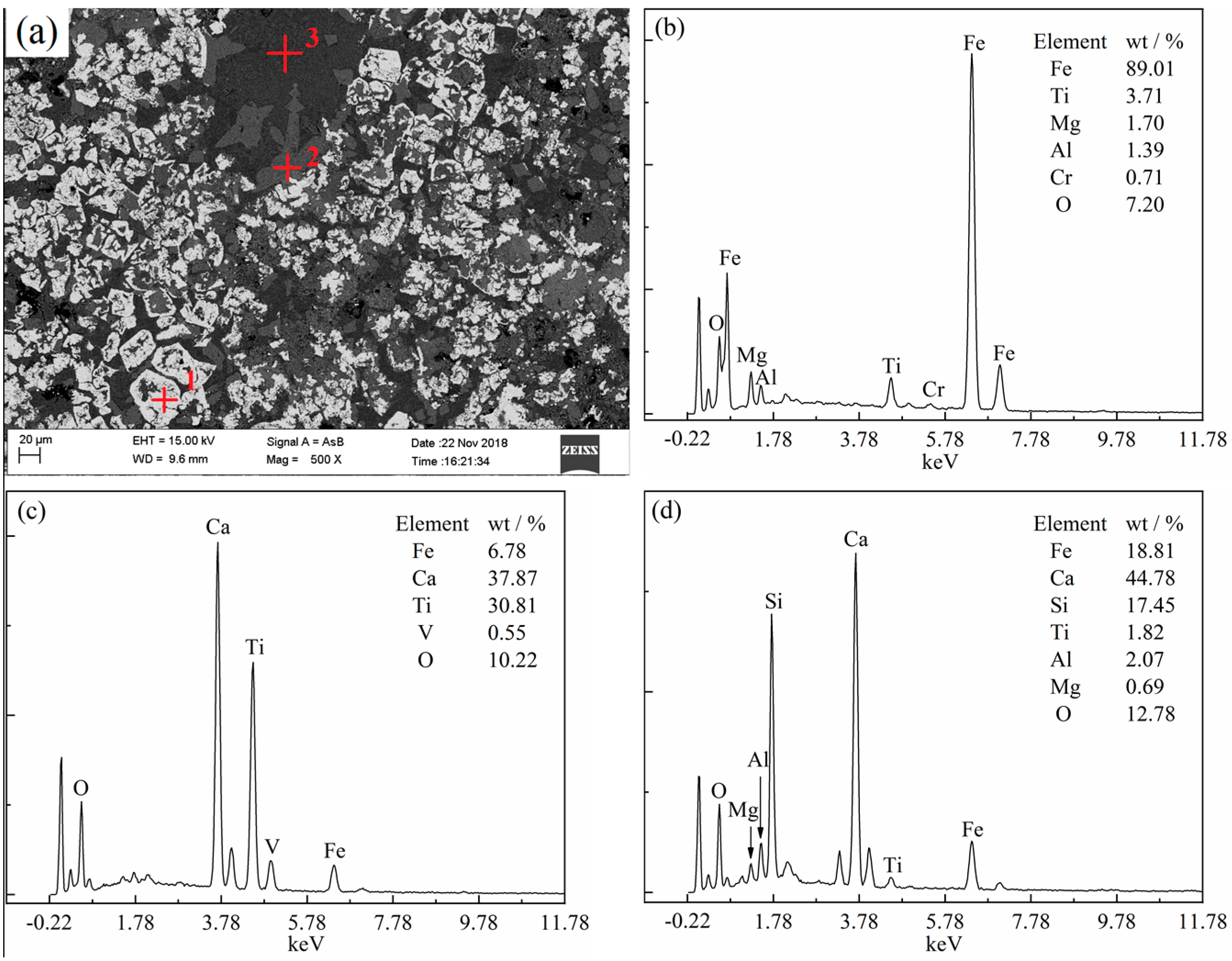

Figure 9 shows the SEM image and EDS analysis of the HCVTM sinter with basicity = 2.3 reduced at 900 °C for 3 h. It can be observed that the iron oxide was reduced to metallic iron (area 1). The gangue phases (areas 2 and 3), which were hard to be reduced still existed in the reduced HCVTM sinter.

3.3. Effect of Basicity on Softening-Melting Properties

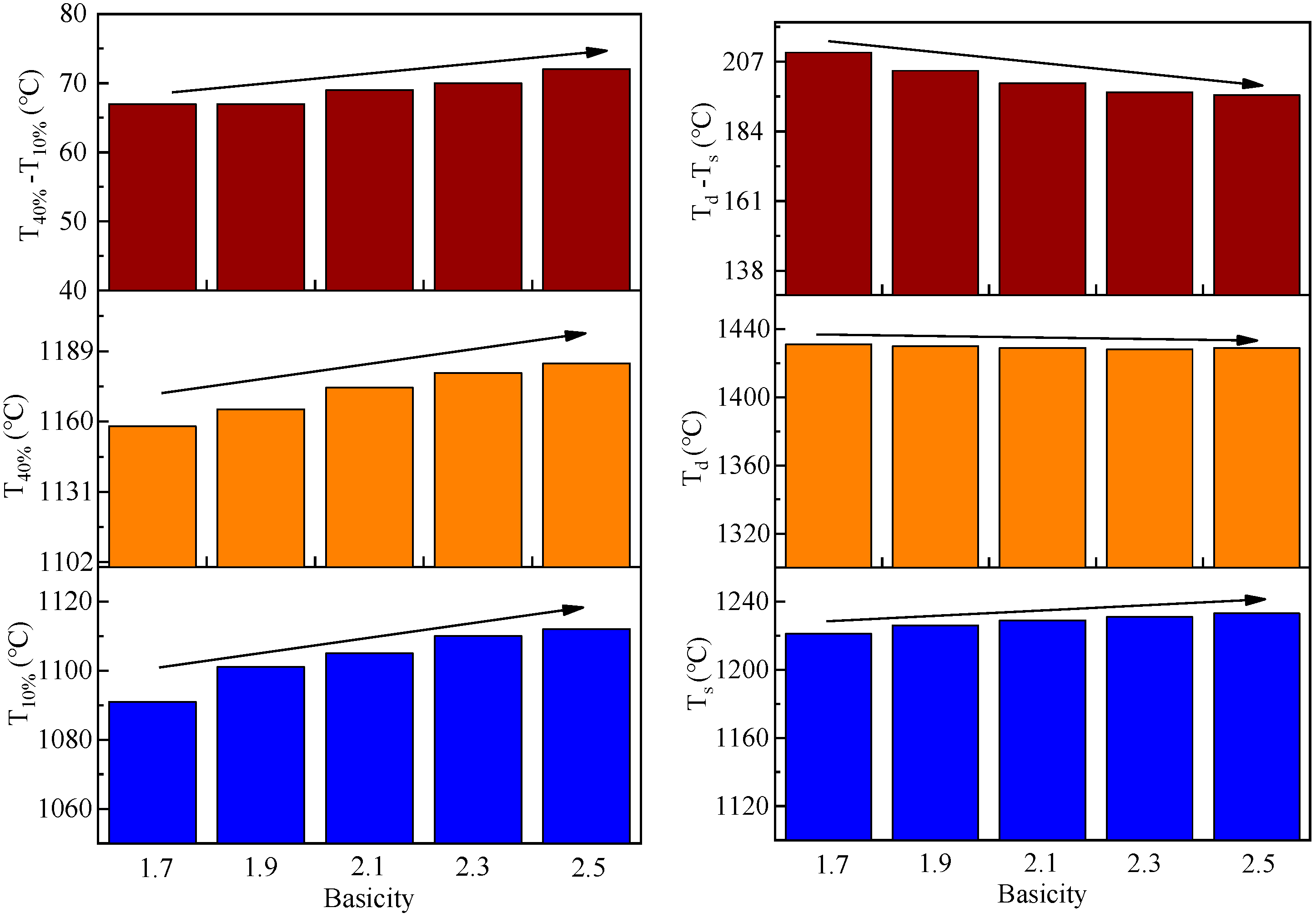

Figure 10 shows the softening-melting properties of the HCVTM sinter with different basicity. The T_10% increased from 1091 to 1112 °C and the T_40% increased from 1158 to 1184 °C with the basicity increase. The ΔT₁ increased from 67 to 72 °C. The T_s decreased from 1241 to 1233 °C and T_d decreased from 1431 to 1429 °C with the basicity increase. The ΔT₂ decreased from 210 to 196 °C. The ΔP_m increased from 10.6 to 14.5 kPa.

A high T_10% and an applicable scale of ΔT₁ are favorable to the reduction reactions of iron ore for sinter softening in the BF [20]. The HCVTM sinter has a better tendency of the softening behavior with the basicity increase, since T_10% mainly depends on the melting point of the low-melting slag phase. After the basicity increased, the amounts of minerals with good reducing properties, such as calcium ferrite, increased, and the titanohematite and titanomagnetite content decreased. What is more, some magnetite was oxidized to hematite to form calcium ferrite, and the reducing property was significantly improved. Under the same reducing conditions, more FeO will be reduced to metallic iron, and FeO entering the slag will be correspondingly reduced, thus causing the melting point of the slag phase and T_10% to rise. As the basicity increased, the softening interval shortened, which helped improve the gas permeability of the softening-melting zone of the BF.

The T_S increased with the increase of the perovskite phases. The T_D depended on the melting point of the slag phase and the metal carburizing reaction. With the FeO decrease and the RI increase, the T_D decreased slightly. Therefore, the droplet interval became shorter, that is, the droplet belt thickness reduced, thus reducing the loss of permeability resistance, which was conducive to the stable operation and strengthening of the BF. The smaller thickness of the melting zone and the narrower droplet temperature range were beneficial to the BF operation. However, as the basicity increased, the column pressure difference increased, and the melt droplet comprehensive index value deteriorated. This was because the SiO₂ content did not change during the sinter process. As the basicity further increased, the amount of quicklime increased. During the sinter process, the CaO was more easily combined with TiO₂ to form perovskite. Perovskite was difficult to be reduced during the soft-melt dripping process because of its high melting point and stability. Therefore, the soft-melt dripping belt had a great influence on the dripping performance of the charge, which eventually led to an increase in the column pressure difference.

Figure 11 shows the indexes including the ΔP_m and S. The ΔP_m increased from 10.6 to 14.5 kPa. According to Equation (8), the S value increased from 2123 to 2746 kPa·°C. In general, the S value of the softening-melting properties of the sinter is mainly used to evaluate the gas permeability index of the sinter. The smaller the S value becomes, the better the gas permeability index of the sinter will be [21]. As a result, the permeability deteriorated with the increase of basicity.

3.4. Comprehensive Index

The best outcomes for the key parameters were achieved at different basicity values, making it necessary to devise a composite index [22].

The first set of composite indices are used for reference and quantified to 100 for comparison and analysis. Based on years of experience in the production of vanadium-titanium magnetite, Jianlong Steel has determined the selected indicators (sinter rate, yield, strength, RDI, and RI) and the significance coefficient. The total significance coefficient was 100, and the sinter rate, yield, productivity, TI, RDI, and RI significance coefficients were 5, 25, 10, 20, 20, and 20, respectively.

Define

$$R_j=(z_{ij}{)}_{max}-(z_{ij}{)}_{min}$$

(9)

where R_j is the range, z_i1 is the VSS, z_i2 is the productivity, z_i3 is the yield, z_i4 is the TI, z_i4 is the RDI, and z_i5 is the RI.

$$w_j=W_j/R_j$$

(10)

where w_j is the unit range coefficient, and W_j is the significance coefficient.

$$f_i={\displaystyle \sum {}_{j=1}^m}{w}_j{z}_{ij}(i=1,2,\cdots ,m)$$

(11)

$$F_i=f_i-f_1+100$$

(12)

where F_i is the comprehensive index, and f_i is the composite index.

Table 4. Calculation process of the comprehensive index.

Basicity / %	zi1	zi2	zi3	zi4	zi5	zi6	fi	Fi = fi − f1 + 100
1.7	15.81	1.33	71.17	47.3	69.9	74.2	789.15	100
1.9	16.19	1.50	75.70	46.7	71.8	75.1	810.56	121.42
2.1	15.81	1.43	81.74	46.0	80.5	76.6	819.41	130.26
2.3	17.44	1.61	80.63	48.7	84.7	80.2	869.19	180.04
2.5	17.89	1.54	79.00	49.3	86.3	81.9	872.48	183.33
Rj	2.08	0.28	10.57	3.3	16.4	7.7	-	-
Wj	5	25	10	20	20	20	-	-
ωj	2.40	89.29	0.95	6.06	1.22	2.60	-	-

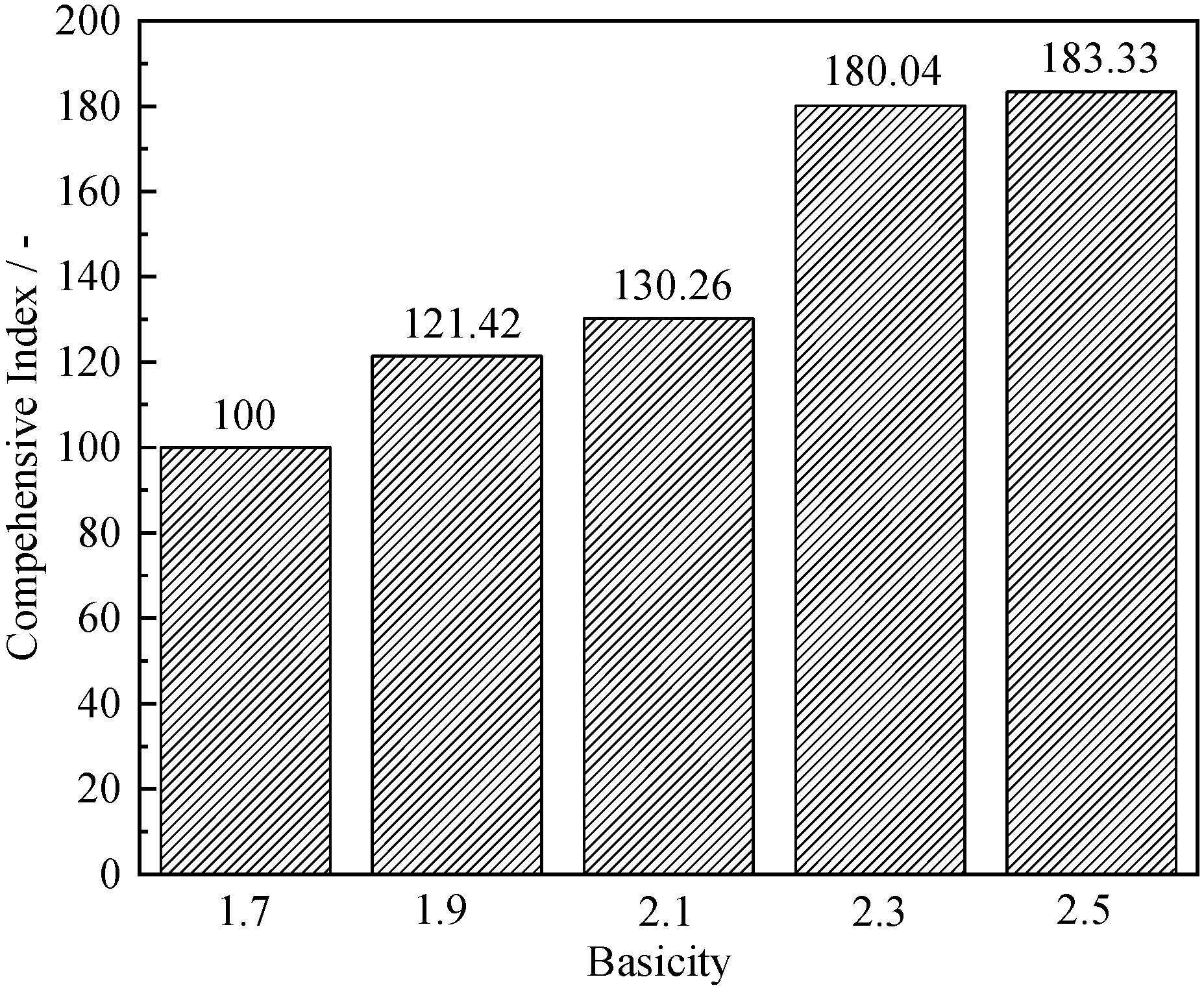

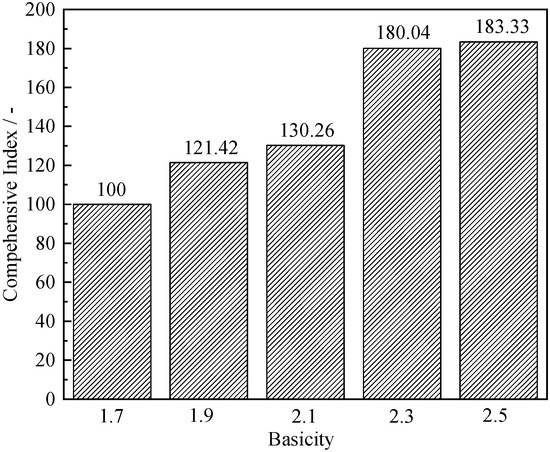

shows the calculation process of the comprehensive index value. Figure 12 shows the comprehensive index. As the basicity increased from 1.7 to 2.5, the comprehensive index value increased from 100 to 183.33. There was a large increase from 1.7 to 2.3 and only a very small increase from 2.3 to 2.5. Considering the adverse effect of basicity on softening-melting properties, the best recommended value is 2.3.

4. Conclusions

(1) When the basicity increased from 1.7 to 2.5, the vertical sinter speed, the productivity, the particle size, the RDI, and the RI increased. The yield increased first and then decreased, while the TI had the opposite trend.

(2) Titanomagnetite and titanohematite were the main minerals in the sinter. As the basicity increased, the perovskite content level stabilized, while the SFCA increased from the basicity of 2.3.

(3) The HCVTM sinter had a better tendency of the softening behavior with the basicity increase. In addition, the melt droplet comprehensive index S increased, which indicated that the increase in basicity negatively affected the droplet performance.

(4) As the basicity increased, the comprehensive index value increased. Considering the adverse effect of basicity on softening-melting properties, the best recommended value is 2.3.
