Constitutive Model and Flow Behavior of B1500HS High-Strength Steel During the Hot Deformation Process

1
Key Laboratory of Advanced Forging & Stamping Technology and Science, Yanshan University, Ministry of Education of China, Qinhuangdao 066000, China
2
School of Mechanical Engineering, Yanshan University, Qinhuangdao, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 64; https://doi.org/10.3390/met10010064
Submission received: 20 November 2019 / Revised: 21 December 2019 / Accepted: 24 December 2019 / Published: 31 December 2019

Abstract

:
Hot compression tests were carried out on a Gleeble-3800 thermal mechanical simulator in the temperature range from 700 to 900 °C and strain rate range from 0.005 to 10 s−1 to investigate the hot deformation behavior of B1500HS high-strength steel. Softening mechanisms of B1500HS high-strength steel under different deformation conditions were analyzed according to the characteristics of flow stress–strain curves. By analyzing and processing the experimental data, the values of steady flow stress, saturated stress, dynamic recovery (DRV) softening coefficient, and other factors were solved and these parameters were expressed as functions of Zener–Hollomon factors. Based on the dislocation density theory and the kinetic model of dynamic recrystallization (DRX), constitutive models corresponding to different softening mechanisms were established. The flow stress–strain curves of B1500HS predicted by a constitutive model are in good agreement with the experimental results and the correlation coefficient is R = 0.998 . The comparison results indicate that the constitutive models can accurately reflect the deformation behavior of B1500HS high-strength steel under different conditions.

1. Introduction

With the development of the automobile industry and the increase in environmental protection consciousness, high-strength steel is becoming widely used in the production of automobile parts, such as A-pillar, B-pillar, and roof frame structure [1,2]. B1500HS is a high-strength steel widely used in the hot stamping process. The microstructure of the test material without heat treatment is composed of ferrite and pearlite with low strength. After the hot stamping process, the microstructure of the material is transformed into martensite which can greatly improve the strength of the steel. The improvement in material strength reduces the use of reinforcing plates in the car body, thus effectively producing lightweight automobiles.
The relationship between flow stress and strain under hot deformation conditions is the basic material property of metal, which plays an important role in the research of forming theory, the establishment of finite element simulation, and the formulation of the hot stamping process. Therefore, the discussion of deformation behavior under different deformation conditions and the establishment of the corresponding constitutive model are of great significance to the application of hot stamping forming technology.
Bobbili and Madhu [3] established the constitutive model of high-strength armor steel under hot deformation conditions using the strain-compensated Arrhenius model, and the high-temperature performance of material was analyzed using the hot processing map. Salari and Naderi [4] revised Johnson–Cook and Nemat-Nasser phenomenological models and applied them to the prediction of flow stress–strain curves of a nickel–chromium alloy during non-isothermal compression testing. Mirzadeh and Parsa [5] explored the effect of initial grain size on the high-temperature mechanical properties of 304L stainless steel and found that the nucleation point density increased with the reduction of initial grain size, meaning that dynamic recrystallization is more obvious when the grain size is small. Li and He [6] systematically studied the hot deformation behavior of high-strength boron steel in different microstructures and established the corresponding constitutive model based on the Arrhenius and Johnson–Cook equations.
Dynamic recovery (DRV) and dynamic recrystallization (DRX) softening mechanisms occur in high-strength steel at high temperature and low strain rate [7,8,9]. The commonly used constitutive models, such as the Arrhenius model and the Johnson–Cook model, are phenomenological models that can neither describe the complex changes of flow stress–strain curves nor reflect the influence of microstructure evolution on macromechanical behavior. Based on this situation, researchers [10,11] solved the constitutive model under the different softening mechanisms. The constitutive model is solved using the dislocation density theory when the softening mechanism is DRV. When the softening mechanism is the combination of DRV and DRX, the kinetic model of dynamic recrystallization should be introduced into the constitutive model of the DRV softening mechanism. The constitutive model established by this method can accurately reflect the influence of the softening mechanism on macroscopic mechanical behavior.
In this study, the flow stress–strain curves of B1500HS high-strength steel at different temperatures and strain rates were obtained by isothermal compression testing. The constitutive models under different softening mechanisms were constructed based on the dislocation density theory and kinetic model dynamic recrystallization. The softening mechanism of the test material under different deformation conditions was analyzed, and the characteristic parameters of flow stress–strain curves, such as steady flow stress, saturated stress, and dynamic recovery softening coefficient, were expressed as functions of Zener–Hollomon factors. Comparisons between the experimental and predicted results were carried out, and the reliability of the constitutive models was evaluated using a correlation coefficient.

2. Materials and Methods

The material used in the investigation was B1500HS cold-rolled high-strength steel produced by the Baowu Iron and Steel Group (shanghai, China), and the thickness of the test material was 1.2 mm. Its chemical composition is shown in Table 1. In previous research studies, the flow stress–strain curves of sheet metals were measured by high-temperature tensile testing with the help of a Gleeble thermal mechanical simulator (Morrisville, NC, USA). Because of the heat conduction between specimen and fixture, there is an obvious temperature gradient between the center and the end of the specimen, which reduces the reliability of experimental results. In addition, the fracture of specimens under high-temperature tensile tests does not automatically mean the end of DRX, meaning that the experimental data may not be suitable for kinetic analysis of DRX. Compared with the hot tensile tests of sheet metal, hot compression tests can heat the specimens more uniformly and produce enough deformation to ensure the occurrence of full dynamic recrystallization. Therefore, a hot compression test was used to measure the flow stress–strain curves of B1500HS high-strength steel.
Following the technology and features of diffusion welding, sheets were welded together. The diffusion of atoms is improved under the combined action of high temperature and pressure and diffusion layers are formed on the contact surfaces, which can connect the sheets together. The preparation process of specimens used in hot compression tests was as follows. The steel was cut into 50 × 50 mm square plates using wire-cutting equipment, and the surfaces of the sheets were rubbed with sandpaper. Then, the sheets were washed using an ultrasonic cleaner (Jingfeng ultrasonic equipment limited company, Yongkang, Zhejiang Province, China) for 1 h to remove the stains on the surface and dried immediately with a blower (Tianrui heavy industry limited company, Weifang, Shandong Province, China). Afterward, the sheets were stacked together in the fixture and tightened with high-strength bolts; the pre-tightening force provided by the bolts could supply the pressure required for diffusion. The schematic diagram is shown in Figure 1. Finally, the fixture was put into a vacuum heating furnace (Shenyang vacuum technology institute limited company, Shenyang, Liaoning Province, China) for 2 h at 900 °C, then cooled down to room temperature in the furnace. Cylindrical specimens that were 12 mm in length and 8 mm in diameter were machined from the billet, as is shown in Figure 2.
The heat treatment process during the preparation of cylindrical specimens can lead to grain growth, influencing the deformation behavior of the material. Tensile specimens were cut from the cold-rolled B1500HS steel sheet by wire electrical discharge machining and the dimensions of the specimens are shown in Figure 3. In order to explore the influence of the heating process on the deformation behavior of B1500HS, the specimens were divided into two groups. One group of specimens was heated to 900 °C and held there for 2 h, whereas the specimens in the other group were not heat treated. The flow stress–strain curves of the two groups of specimens were measured using an electronic universal material testing machine and electric heating furnace (Chanxin testing machine manufacturing limited company, Jinan, Shandong Province, China). The specimens were heated to 900 °C and held there for 5 min to ensure they were completely austenitized. Afterward, hot tensile tests were carried out with strain rates of 0.01 and 0.1 s−1. In addition, the flow stress–strain curves of the cylindrical specimens under the same deformation conditions were also measured by hot compression tests on a Gleeble-3800 thermal mechanical simulator. The flow stress–strain curves obtained from the above tests are shown in Figure 4.
By analyzing the flow stress–strain curves measured by hot tensile tests, it was confirmed that the specimens without heat treatment had a higher strength under the same deformation condition. However, the effect was not sufficiently distinctive. Under the same strain and deformation condition, the difference of flow stress measured by different specimens was only a few megapascals. Figure 5a,b shows the morphology of the austenite grain of B1500HS corroded by saturated picric acid solution. It is observed that the grain size of austenite has limited growth with the increase in holding time. The average grain dimensions shown in Figure 5a,b are 9.39 μm and 10.53 μm, respectively. Based on the analysis above, it is confirmed that heating for 2 h at 900 °C has little effect on the deformation behavior of B1500HS.
By comparing the flow stress–strain curves obtained by different experimental methods, the reliability of the data obtained from the hot compression test was analyzed. Before necking occurred in the hot tensile tests, the difference between the flow stress–strain curves measured by hot tensile tests and hot compression tests was not significant, especially for the data before peak stress. However, when the strain rate was 0.01 s−1, the softening effect caused by dynamic recrystallization in the hot compression test was slightly smaller than that in the hot tensile test. When the strain rate was 0.1 s−1, the characteristics of dynamic recrystallization could not be observed in the flow stress–strain curves obtained by the hot tensile tests, but they were obvious in the curve measured by the hot compression test. Compared with the flow stress–strain curves measured by the hot tensile test, the curve measured by hot compression tests provided more information, which was of great significance for analyzing the deformation behavior of the test material. According to the above-mentioned analytical results, it was confirmed that the heat treatment process during the preparation of the cylindrical specimens had little effect on the deformation behavior of B1500HS, and the data measured by the hot compression test were feasible.
Hot compression tests were performed on a Gleeble-3800 thermal mechanical simulator. A K-type thermocouple was welded in the center of the specimen to monitor the change of temperature during the tests. A tantalum piece and a graphite lubricant were used between the specimen and pressure head to reduce the influence of temperature gradient and friction. Figure 6 is the schematic diagram of the hot compression test. The specimens were heated to 900 °C at a heating rate of 10 °C/s and held there for 5 min to ensure the specimens were completely austenitized. Then, the specimens were cooled to deformation temperature (700 °C, 750 °C, 800 °C, 850 °C, 900 °C) at a rate of 20 °C/s and held there for 15 s to reduce the temperature gradient. Subsequently, the specimens were compressed at different strain rates (0.005 s−1, 0.01 s−1, 0.1 s−1, 1 s−1, 10 s−1). The amount of compression was 50% of the length of the specimen, which is equivalent to the true strain of 0.69 . After the compression process, the specimens were quenched in water immediately to retain the microstructure of the material.

3. Results and Discussion

3.1. Discussion on Softening Mechanism and Construction Method of the Constitutive Model

Creep behavior at high temperature can affect the mechanical properties of a material. However, for the typical hot deformation process, deformation is finished in a short time and the deformation rate is much higher than being relevant for creep deformation. Therefore, the influence of creep behavior is neglected in the subsequent analysis. There are two softening mechanisms associated with high-temperature deformation, namely dynamic recovery and dynamic recrystallization. The schematic diagram is shown in Figure 7. Curve a is the flow stress–strain curve with the dynamic recovery softening mechanism. In the initial stage of deformation, the effect of work hardening (WH) is more obvious than the softening effect induced by dynamic recovery. The softening effect increases gradually with the rise of deformation, which can obstruct the increasing trend of stress with the rise of deformation. When the softening effect caused by dynamic recovery reaches dynamic equilibrium with work hardening, the value of flow stress remains generally stable. The asymptotic value is defined as saturated stress and is represented as σ s a t .
Curve b is the flow stress–strain curve with the dynamic recrystallization softening mechanism. The softening mechanism in this situation is the combination of DRV and DRX. Dynamic recrystallization occurs when the strain reaches critical condition ε c . The softening effect of DRX reduces the deformation resistance of material significantly, which is more obvious than that of DRV. When the flow stress reaches the peak value σ p , the softening effect caused by dynamic recrystallization begins to play a major role and the flow stress decreases with the increase of deformation. The flow stress becomes steady when the softening mechanism and the work hardening effect are in equilibrium state. The value of steady stress is denoted by σ s s .
The flow stress–strain curves of B1500HS high-strength steel under different deformation conditions are shown in Figure 8. It was observed that the temperature and strain rate had significant effects on the mechanical properties of B1500HS. The increase of temperature and the decrease of strain rate reduced the deformation resistance of the metal. According to the analysis of the flow stress–strain curves, both dynamic recovery and dynamic recrystallization characteristics were found under hot deformation conditions. The flow stress–strain curves conformed to the typical dynamic recovery characteristics at low temperatures and high strain rates. On the other hand, the flow stress–strain curves had obvious dynamic recrystallization characteristics when the deformation condition was high temperature and low strain rate. The softening mechanisms of B1500HS high-strength steel under different deformation conditions are shown in Table 2.
The density of dislocation has significant influence on the mechanical properties of metals. Dislocation multiplication and annihilation caused by work hardening and dynamic recovery can be represented by the model proposed by Estrin and Mecking [12]:
d ρ d ε = h r ρ ,
where ρ is the density of dislocation, ε represents the plastic strain, and h is the work hardening rate that reflects the increment of dislocation density caused by work hardening. r ρ is used to reflect the effect of dynamic recovery on the reduction of dislocation density and r is the dynamic recovery coefficient. By integrating both sides of Equation (1), the following form can be obtained:
ρ = h r ( h r ρ 0 ) exp ( r ε ) .
In the equation, ρ 0 is the initial dislocation density when the plastic strain is 0. The change of dislocation density is directly reflected in the change of flow stress. Under the condition of high-temperature plastic deformation, the relationship between flow stress and dislocation density is usually expressed as the following [13,14,15]:
σ = α μ b ρ ,
where α is the material constant, μ is the shear modulus, and b is the Burgers vector. By introducing Equation (2) into Equation (3) and replacing ρ 0 with σ 0 = α μ b ρ 0 , the following equation can be obtained:
σ = σ 0 2 exp ( r ε ) + ( α μ b ) 2 h r [ ( 1 exp ( r ε ) ) ]
For the flow stress–strain curves with dynamic recovery characteristics, the flow stress tends to be stable when the effect of work hardening and dynamic recovery reach equilibrium, and the asymptotic value is σ s a t . With the increase of strain, the value of exp ( r ε ) is near zero. The value of σ s a t is expressed as σ s a t = α μ b h / r . Hence, Equation (4) can be written in the following form:
σ = σ s a t 2 + ( σ s a t 2 σ 0 2 ) exp ( r ε )
Dynamic recrystallization occurs when deformation reaches the critical value. The kinetics model of dynamic recrystallization can be expressed by Johnson-Mehl-Avrami-Kolmogorov (JMAK) kinetic equation, as shown in Equation (6) [16,17,18]:
{ X D R X = 0   ( 0 ε ε c ) X D R X = 1 exp [ k ( ε ε c ε 0.5 ) n ]   ( ε > ε c ) ε 0.5 = a 2 ε ˙ m 2 exp [ Q 2 / ( R T ) ] ,
where X D R X is the volume fraction of dynamic recrystallization, a 2 , m 2 , k , and n are material constants, ε 0.5 denotes the value of strain when the volume fraction of dynamic recrystallization reaches 50%, ε c is the critical strain of dynamic recrystallization, Q 2 is the activation energy of dynamic recrystallization, T is the deformation temperature, and R is the molar gas constant. As is shown in Figure 7, the volume fraction of dynamic recrystallization can also be described as the following:
X D R X = σ D R V σ D R X σ s a t σ s s ,
where σ D R V indicates the flow stress with dynamic recovery softening mechanism alone. Substituting Equation (7) into Equation (6), the flow stress with dynamic recrystallization characteristics can be expressed as follows:
σ D R X = σ D R V ( σ s a t σ s s ) { 1 exp [ k ( ε ε c ε 0.5 ) n ] }

3.2. Zener–Hollomon Factor

In order to obtain the constitutive models corresponding to different softening mechanisms, the values of σ s a t , σ s s , σ 0 , ε 0.5 , ε p , and r under different deformation conditions are required. The Zener–Hollomon factor can be used to represent the combination effects of temperature and strain rate on deformation behavior at high temperature. Therefore, the characteristic parameters shown above can be expressed as functions of Zener–Hollomon factors. The mathematical expression of Zener–Hollomon is described as follows:
Z = ε ˙ exp ( Q / R T ) ,
where Q is the activation energy of hot deformation, ε ˙ is the strain rate, R is the universal gas constant, and T is the absolute temperature. The correlation between flow stress, temperature, and strain rate can be expressed by the Arrhenius equation, shown as the following:
ε ˙ = A F ( σ ) exp ( Q / R T )
Depending on the stress states of material, Equation (10) can be expressed as follows:
ε ˙ = A 1 σ p n 1 exp ( Q / R T ) α σ p < 0.8 ,
ε ˙ = A 2 exp ( β σ p ) exp ( Q / R T ) α σ p > 1.2 ,
ε ˙ = A [ sinh ( α σ p ) ] n 2 exp ( Q / R T )   for   all   stress   levels ,
where σ p is the peak stress and A , A 1 , A 2 , n 1 , n 2 , and α are the material constants. The value of α and β satisfy the following relationship: α = β / n 1 . By taking the logarithms on both sides of Equations (11) and (12), the relational expression of ln σ p and ln ε ˙ as well as σ p and ln ε ˙ can be obtained, shown as Equations (14) and (15):
ln ε ˙ = ln A 1 + n 1 ln σ p Q / R T ,
ln ε ˙ = ln A 2 + β σ p Q / R T .
The relationships between σ p and ε ˙ are shown in Figure 9a,b. It was concluded from the plots that a linear relation could be found between ln σ p and ln ε ˙ as well as between σ p and ln ε ˙ . Based on the linear regression results, the values of n 1 and β were obtained from the slopes of the lines in Figure 9a,b and their average values were 8.44 and 4.56 × 10 2 , respectively. Relative standard deviation (RSD) was used to measure the deviation of data from the average value. The RSDs of n 1 and β were 6.76 % and 8.97 % , respectively, which means that the deviation between the values of slopes obtained under different deformation temperatures and the average value was small, so the average values were used as the calculation results of n 1 and β . Thus, the value of α was calculated as 5.41 × 10 3 .
For all stress levels, Equation (13) can be represented as the following form by taking the logarithm on both sides of the equation:
ln ε ˙ = ln A + n 2 ln [ sinh ( α σ p ) ] ( Q / R T ) .
The value of activation energy is constant when temperature is a fixed value. By substituting σ p and ε ˙ into the equation, the relationship between ln ε ˙ and ln [ sinh ( α σ p ) ] is shown in Figure 10. The slope of the lines was determined as the value of the material constant n 2 at different temperatures. The RSD of n 2 was 3.86 % , which shows that the temperature had little influence on the value of n 2 . Therefore, the average value 6.294 was determined as the calculation result of n 2 .
For the constant strain rate conditions, by differentiating Equation (16), the value of Q can be expressed as follows:
Q = R n [ ln [ sinh ( α σ p ) ] 1 / T ] ε ˙ .
The linear relationship between ln [ sinh ( α σ p ) ] and 1 / T at different strain rates can be achieved by linear regression analysis, as is shown in Figure 11. The RSD of the slopes under different strain rates was 4.91 % . Therefore, the average value of linear slopes was regarded as the value of ln [ sinh ( α σ p ) ] / 1 / T , which was 4.69 × 10 3 . Afterward, the value of Q was calculated as 245.43 KJ / mol .
By substituting deformation activation energy, deformation temperatures, and strain rates into Equation (9), Zener–Hollomon factors under different deformation conditions were solved. By taking the logarithm on the calculated results, the values of ln Z were obtained.

3.3. Constitutive Model of Dynamic Recovery

The work hardening rate ( θ = d σ / d ε ) reflects the trend of change of flow stress during the hot deformation process. The values of characteristic parameters such as σ s a t , σ s s , and dynamic recovery coefficient r were determined by analyzing and processing the θ σ curves. These parameters were used to establish a constitutive model with a dynamic recovery softening mechanism. By fitting the flow stress–strain curves after plastic deformation with a nine-order polynomial, the work hardening rate curves under different deformation conditions were obtained by calculating the first derivative of the polynomial. Figure 12 shows the work hardening rate curves with various strain rates at 800 °C.
According to the previous analysis, it was concluded that the flow stress–strain curves had obvious DRV characteristics when the deformation temperature was 800 °C and the strain rates were 1–10 s−1. With the increment of deformation, the softening effect caused by DRV became gradually obvious, which was reflected in the decrease of the work hardening rate, as is shown in Figure 12. When the softening effect of dynamic recovery is balanced with work hardening, the flow stress approaches a constant value and the amount of θ is equal to zero.
When the strain rate was 0.005–0.1 s−1, the softening effect of material was considered to be the combined result of DRV and DRX. In this situation, the value of σ s a t could not be directly obtained from flow stress–strain curves. To overcome this problem, the critical stress of DRX must be solved first. The value of σ c can be obtained by the stress corresponding to the peak value of the d θ / d σ σ curves, as is shown by the arrows in Figure 13.
After a tangent line is drawn at the position corresponding to the critical stress on the θ σ curve, the intersection of the tangent line and θ = 0 is the amount of σ s a t , indicated in Figure 12 by a dotted line.
The method proposed by Jonas, Quelennec and Jiang [19] was used in this research to obtain the dynamic recovery coefficient r . By taking derivatives on both sides of Equation (5), it can be written as follows:
d σ d ε = 1 2 r ( σ s a t 2 σ 0 2 ) exp ( r ε ) σ s 2 + ( σ 0 2 σ s a t 2 ) exp ( r ε ) = 1 2 r ( σ s a t 2 σ 0 2 ) exp ( r ε ) σ .
Equation (5) can be transformed into the following form by shifting terms:
( σ s a t 2 σ 0 2 ) exp ( r ε ) = σ s a t 2 σ 2 .
By substituting ( σ s a t 2 σ 0 2 ) exp ( r ε ) with σ s a t 2 σ 2 , Equation (18) can be represented as the following form:
σ θ = 0.5 r σ s a t 2 0.5 r σ 2 .
According to the equation, the dynamic recovery coefficient r is represented as an equation related to the slope of the θ σ σ 2 curve, with a slope of 0.5 r . Figure 14 provides an example of the solution of r . The value of the slope was obtained by linear regression of the data before dynamic recrystallization occurred, shown as a dotted line in the figure.
The yield stress σ 0 was obtained from the flow stress–strain curves. Since the yield point in flow stress–strain curve was not obvious, the flow stress corresponding to the strain of 0.02 was defined as the value of yield stress [19].
The values of σ s a t , σ 0 , and r change with deformation conditions. The Zener–Hollomon factor reflects the combination effect of temperature and strain rate. Therefore, these parameters were expressed as a function of the Zener–Hollomon factor. By taking the natural logarithms on both sides of Equations (11) and (12), the equations were converted into the following form:
ln A + n ln σ = ln Z ,
ln A + n ln [ sinh ( α σ ) ] = ln Z
The relationships between ln σ 0 ln Z and ln [ sinh ( α σ s a t ) ] ln Z are shown in Figure 15a,b, respectively. Linear regression was used in the analysis of the data, and the expressions of σ s a t and σ 0 can be written as follows:
σ 0 = 12.003 Z 0.077 ,
σ s a t = 184.973 sinh 1 ( 0.027 Z 0.077 )
Figure 16 shows the relationship between the dynamic recovery coefficient and the Zener–Hollomon parameter. It was concluded that the dynamic recovery coefficient increased with the increase of the Zener–Hollomon parameter, and the relationship between them was approximately linear. The values of r can be represented as a function of the Zener–Hollomon parameter, which can be expressed as follows:
r = 14.318 Z 0.022
According to the analysis above, the constitutive model of B1500HS with dynamic recovery characteristics can be written as the following equations:
{ σ = σ s a t 2 + ( σ s a t 2 σ 0 2 ) exp ( r ε ) σ s a t = 184.973 sinh 1 ( 0.027 Z 0.077 ) σ 0 = 12.003 Z 0.077 r = 14.318 Z 0.022 Z = ε ˙ exp ( 245.427 × 10 3 R T )
Figure 17 shows the comparisons between the experimental data obtained from the hot compression tests and the results predicted by the constitutive model under different strain rates at 800 °C. The constitutive model (Equation (26)) shows a high reliability in the prediction of flow stress–strain curves with dynamic recovery characteristics. However, under the condition of low strain rate, the predicted results could not reflect the softening effect caused by dynamic recrystallization.

3.4. Constitutive Model of Dynamic Recrystallization

Dynamic recrystallization occurs when strain reaches a critical value. In order to solve the kinetic model of DRX, the values of ε c and ε 0.5 must be obtained. There is a linear relationship between critical strain and peak strain, as is shown in Equation (27):
ε c = α 1 ε p
In previous studies [20,21], the value of α 1 was defined as 0.47–0.83, and it was defined as 0.83 in this research. The values of peak strain were obtained from flow stress–strain curves and the relationship between ln ε p and ln Z was analyzed using the linear regression method, as is shown in Figure 18. The mathematical expression of peak stress under different deformation conditions can be represented as follows:

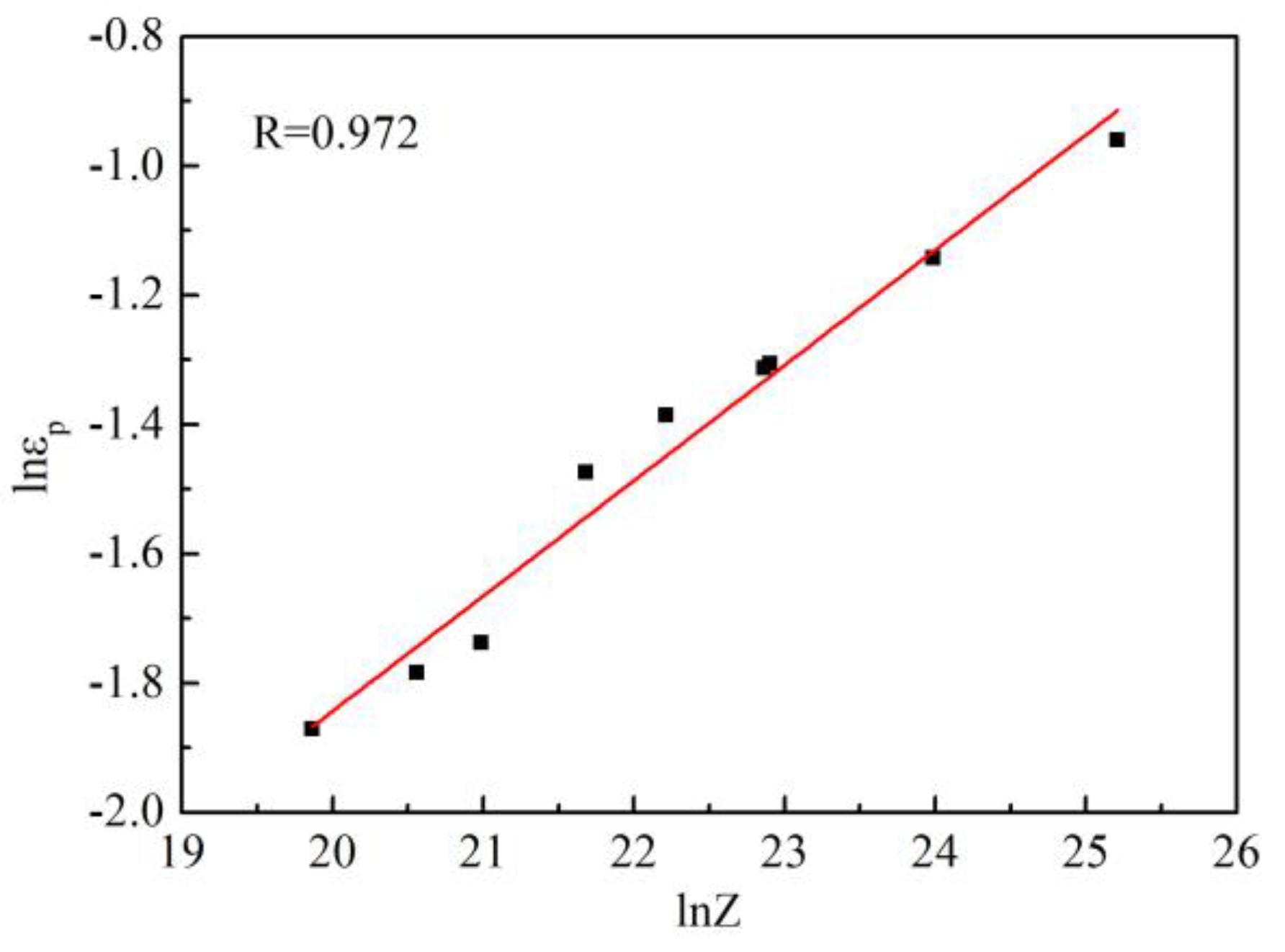

ε p = 4.517 × 10 3 Z 0.178
At the end of DRX, the flow stress tends to be constant and the work hardening rate is equal to zero. As is shown in Figure 12, the flow stress corresponding to the second intersection of the work hardening rate curve and the θ = 0 curve is the value of steady state stress. Figure 19 shows the relationship between ln σ s s and ln Z . By analyzing these data with the linear regression method, the mathematical expression of σ s s can be represented as the following equation:
σ s s = 5.007 Z 0.138 .
The values of ε 0.5 were solved by Equation (7). The values of σ D R V were calculated using the established constitutive model of dynamic recovery, shown in Equation (26). By substituting the relevant parameters into Equation (7), the amount of strain corresponding to 50% recrystallization was obtained. By taking the natural logarithm of the expression of ε 0.5 in Equation (7), the follow equation was obtained:
ln ε 0.5 = ln a 2 + m 2 ln ε ˙ + Q 2 / ( R T )

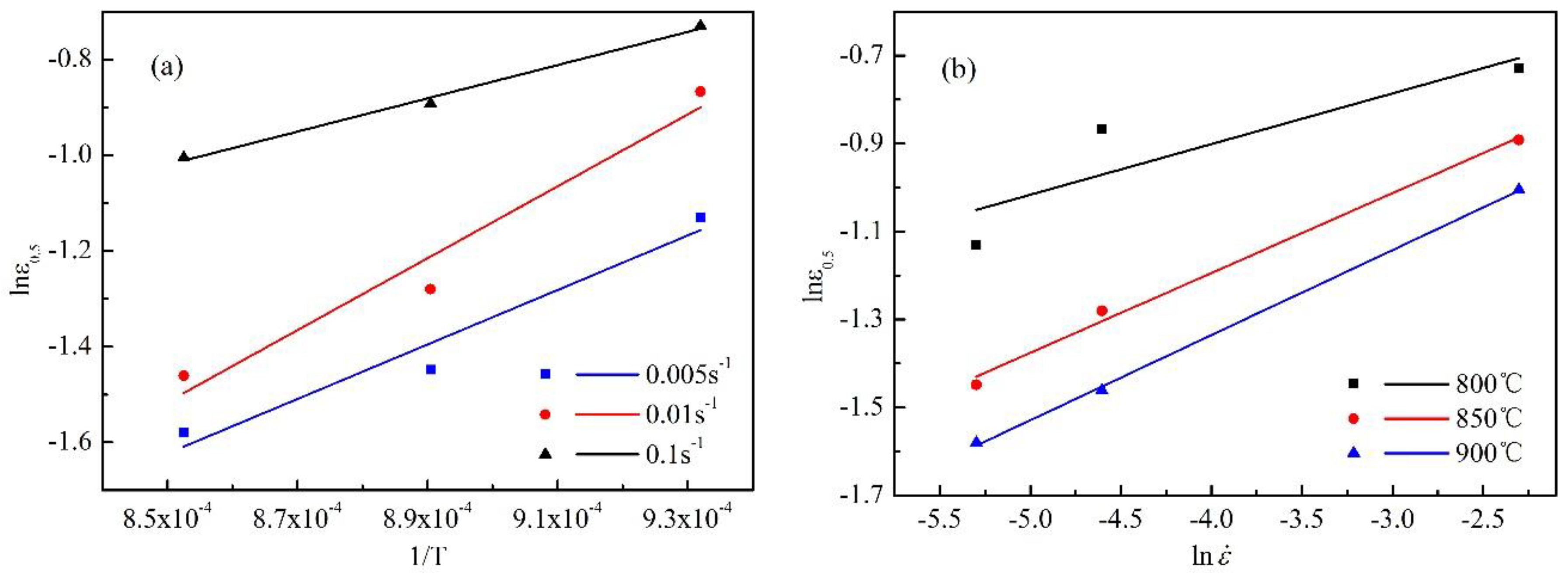

The relationships between ln ε 0.5 and 1 / T at different strain rates were fitted as shown in Figure 20a and the value of the activation energy of dynamic recrystallization was calculated as 4.62 × 10 4 J / mol . Similarly, the relationship between ln ε 0.5 and ln ε ˙ under various deformation temperatures was analyzed. As shown in Figure 20b, the average values of the slopes and the intercepts were the amounts of m 2 and ln a 2 + Q 2 / ( R T ) , and the values of m 2 and a 2 were 0.163 and 4.195 × 10 3 , respectively.
Therefore, the expression of ε 0.5 can be written as Equation (31):
ε 0.5 = 4.195 × 10 3 ε ˙ 0.163 exp [ 4.62 × 10 4 / ( R T ) ]
By taking the logarithm on both sides of the kinetic equation of dynamic recrystallization, the relationship between ln [ ln ( 1 ln X D R X ) ] and ln [ ( ε ε c ) / ε 0.5 ] can be given as Equation (32):
ln [ ln ( 1 ln X D R X ) ] = ln k + n ln ( ε ε c ε 0.5 ) .

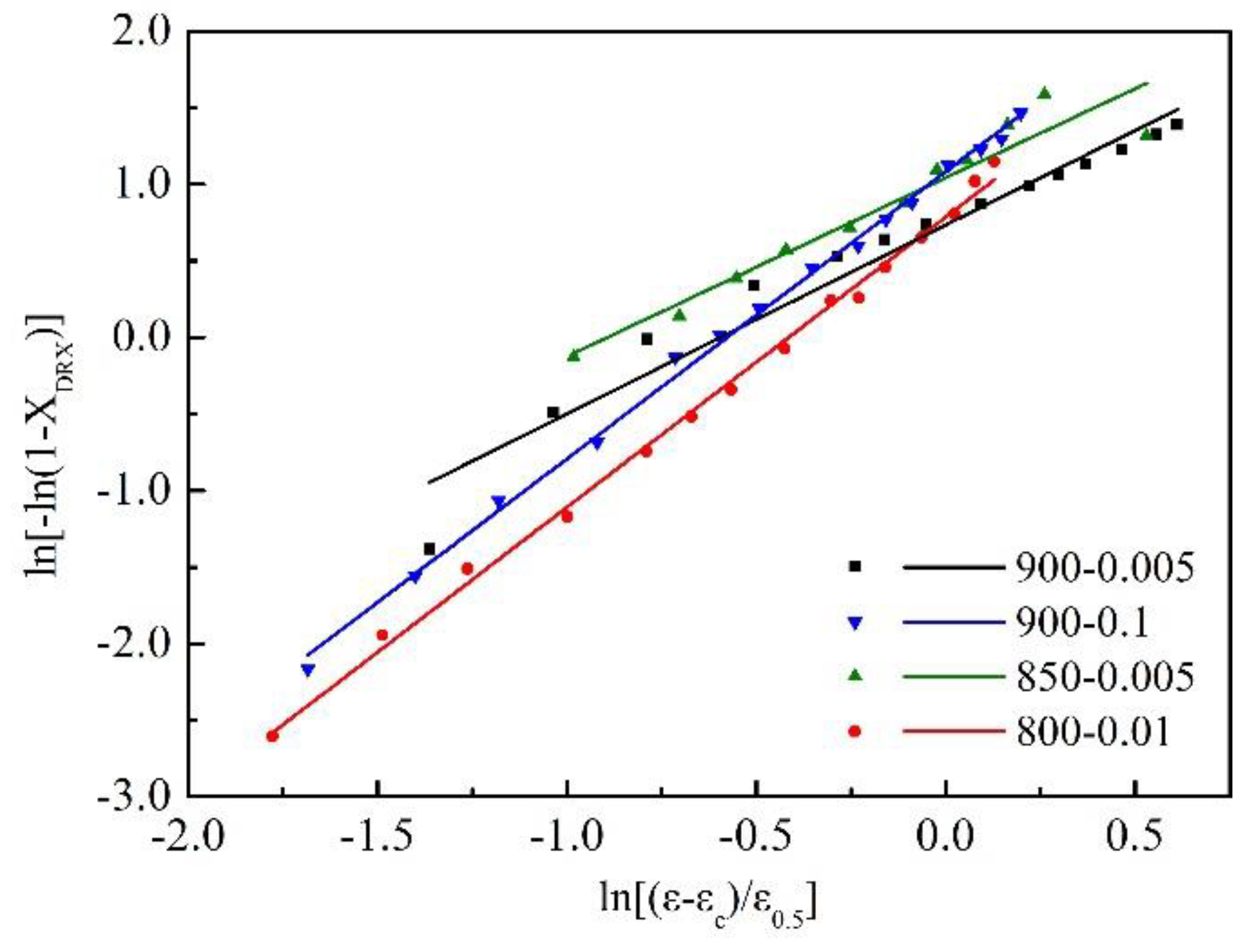

The relationship between ln [ ln ( 1 ln X D R X ) ] and ln [ ( ε ε c ) / ε 0.5 ] at different deformation conditions is shown in Figure 21. The slopes and intercepts obtained from the linear regression results represent the values of n and ln k under different deformation conditions, respectively. Here, the average values of 1.432 and 0.855 were calculated to be the values of n and ln k , respectively.
Based on the derived kinetic equation of DRX, the volume fractions of DRX under different deformation conditions are shown in Figure 22a,b. It is obvious that the DRX process is promoted with decreasing strain rate and increasing temperature. In order to verify the accuracy of the dynamic equation, the comparisons between predicted and experimental results are presented. A good correlation is observed between the predicted and the experimental values, which indicates that the kinetic equation can describe the DRX process accurately.
According to the analysis and method above, the constitutive model for flow stress–strain curves with DRX can be written as the following equations:
{ σ D R X = σ D R V ( σ s a t σ s s ) { 1 exp [ 2.351 ( ε 0.83 ε p ε 0.5 ) 1.432 ] } ε 0.5 = 0.004195 ε ˙ 0.1633 exp [ 46204.8745 / ( R T ) ] ε p = 4.517 × 10 3 Z 0.178 σ s s = 5.007 Z 0.138 .

3.5. Verification of the Constitutive Model

According to the constitutive model of B1500HS under different softening mechanisms, the flow stress–strain curves of the material under different deformation conditions were predicted and compared with the experimental data, as is shown in Figure 23.

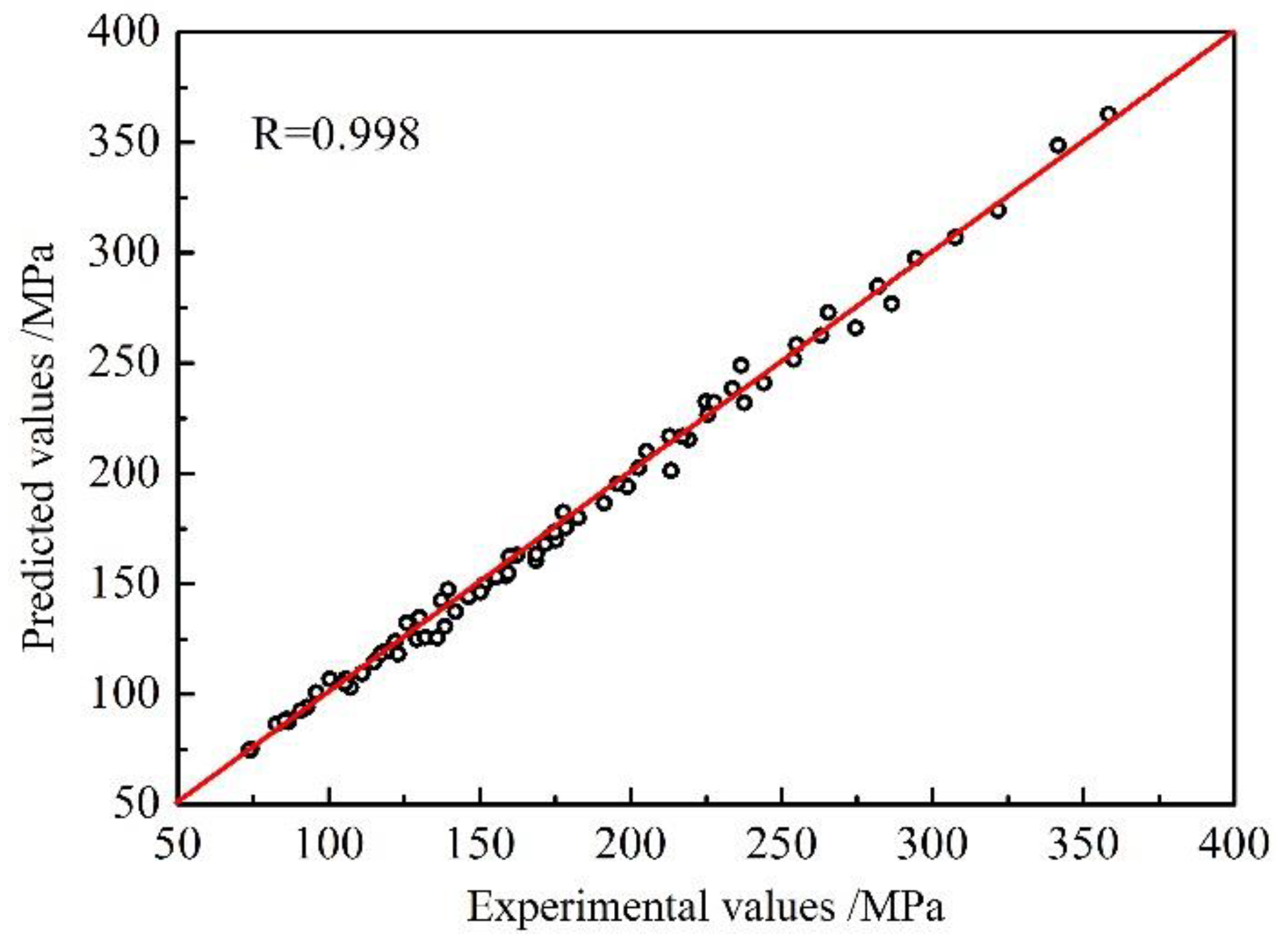

It can be seen from the diagram that the flow stress–strain curves predicted by the constitutive model are in good agreement with the experimental ones. In addition, the accuracy of the constitutive model was further verified by calculating the correlation coefficient between the predicted values and the experimental values. The expression of correlation coefficient is shown in Equation (34):
R = i = 1 N ( E i E ¯ ) ( P i P ¯ ) i = 1 N ( E i E ¯ ) 2 i = 1 N ( P i P ¯ ) 2 .
In the equation, P i and E i are values predicted by the constitutive model and obtained through experiments carried out at different strains (0.1, 0.3, and 0.5), P ¯ and E ¯ are the average values of P i and E i , and N is the number of data. The relationship between predicted values and experimental values is shown in Figure 24, and the value of the correlation coefficient was calculated as 0.998, which means that the constitutive model could accurately predict the flow stress–strain curves of B1500HS high-strength steel under different deformation conditions.

4. Conclusions

(1)
The flow stress–strain curves of B1500HS high-strength steel under a temperature range of 700–900 °C and a strain rate range of 0.005–10 s−1 were measured using hot compression tests. According to the flow stress–strain curves, the softening mechanisms of material under different deformation conditions were analyzed.
(2)
By analyzing the curves of θ σ and σ θ σ 2 , parameters used in the solving of the constitutive model such as σ s a t , σ s s , r , ε c and ε 0.5 were obtained, and the mathematical expressions between these parameters and the Zener–Hollomon factor were also established. Based on dislocation density theory and the dynamic recrystallization kinetics equation, constitutive models corresponding to different softening mechanisms were constructed.
(3)
The flow stress–strain curves of B1500HS high-strength steel predicted by the established constitutive models were compared with the experimental results. In addition, the correlation coefficient between the predicted value and the experimental value was solved. It can be concluded that the constitutive models are reliable to reflect the hot deformation process of B1500HS high-strength steel.

Author Contributions

Conceptualization, M.L. and D.Y.; Data curation, M.L. and Y.D.; Formal analysis, M.L. and D.Y.; Funding acquisition, Y.G.; Investigation, M.L. and Y.G.; Methodology, M.L. and Y.D.; Project administration, Y.G.; Software, L.Y.; Writing—original draft, D.Y. and L.Y.; Writing—review and editing, M.L. and Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Hebei Province of China, grant numbers E2018203254 and E2018203100, the Scientific Research Program of the Hebei Province Education Department, grant number ZD2019013, and the National Natural Science Foundation of China, grant number 51705448.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Bok, H.H.; Lee, M.G.; Pavlina, E.J.; Barlat, F.; Kim, H.D. Comparative study of the prediction of microstructure and mechanical properties for a hot-stamped b-pillar reinforcing part. Int. J. Mech. Sci. 2011, 53, 744–752. [Google Scholar] [CrossRef]
  2. Kim, H.Y.; Park, J.K.; Lee, M.G. Phase transformation-based finite element modeling to predict strength and deformation of press-hardened tubular automotive part. Int. J. Adv. Manuf. Technol. 2014, 70, 1787–1801. [Google Scholar] [CrossRef]
  3. Bobbili, R.; Madhu, V. An Investigation into hot deformation characteristics and processing maps of high-strength armor steel. J. Mater. Eng. Perform. 2015, 24, 4728–4735. [Google Scholar] [CrossRef]
  4. Salari, S.; Naderi, M.; Bleck, W. Constitutive modeling during simultaneous forming and quenching of a boron bearing steel at high temperatures. J. Mater. Eng. Perform. 2015, 24, 808–815. [Google Scholar] [CrossRef]
  5. Mirzadeh, H.; Parsa, M.H.; Ohadi, D. Hot deformation behavior of austenitic stainless steel for a wide range of initial grain size. Mater. Sci. Eng. A 2013, 569, 54–60. [Google Scholar] [CrossRef]
  6. Li, H.; He, L.; Zhao, G.Q.; Zhang, L. Constitutive relationships of hot stamping boron steel B1500HS. Mater. Sci. Eng. A 2013, 580, 330–348. [Google Scholar] [CrossRef]
  7. Güler, H.; Ertan, R.; Özcan, R. Investigation of the hot ductility of a high-strength boron steel. Mater. Sci. Eng. A 2014, 608, 90–94. [Google Scholar] [CrossRef]
  8. Güler, H.; Ertan, R.; Özcan, R. Characteristics of 30MnB5 boron steel at elevated temperatures. Mater. Sci. Eng. A 2013, 578, 417–421. [Google Scholar] [CrossRef]
  9. Mejía, I.; Altamirano, G.; Bedolla-Jacuinde, A.; Cabrera, J.M. Modeling of the hot flow behavior of advanced ultra-high strength steels (A-UHSS) microalloyed with boron. Mater. Sci. Eng. A 2014, 610, 116–125. [Google Scholar] [CrossRef]
  10. Montazeri-Pour, M.; Parsa, M.H. Constitutive analysis of tensile deformation behavior for AA1100 aluminum subjected to multi-axial incremental forging and shearing. Mech. Mater. 2016, 94, 117–131. [Google Scholar] [CrossRef]
  11. Rakhshkhorshid, M.; Hashemi, S.H. Experimental study of hot deformation behavior in API X65 steel. Mater. Sci. Eng. A 2013, 573, 37–44. [Google Scholar] [CrossRef]
  12. Estrin, Y.; Mecking, H. A unified phenomenological description of work hardening and creep based on one-parameter models. Acta Metall. 1984, 32, 57–70. [Google Scholar] [CrossRef]
  13. Lin, Y.C.; Chen, X.M. A critical review of experimental results and constitutive descriptions for metals and alloys in hot working. Mater. Des. 2011, 32, 1733–1759. [Google Scholar] [CrossRef]
  14. Xu, M.; Mi, Z.L.; Li, H.; Tang, D.; Jiang, H.T. Constitutive model based on dislocation density theory for hot deformation behavior of ultra-high strength dual phase steel DP1000. Chin. J. Mater. Res. 2017, 31, 576–584. [Google Scholar]
  15. Anjabin, N.; Taheri, A.K.; Kim, H.S. Constitutive modeling of hot deformation behavior of the AA6063 alloy with different precipitates. Metall. Mater. Trans. A 2013, 44, 5853–5860. [Google Scholar] [CrossRef] [Green Version]
  16. Feng, D.; Zhang, X.M.; Liu, S.D.; Deng, Y.L. Constitutive equation and hot deformation behavior of homogenized Al–7.68Zn–2.12Mg–1.98Cu–0.12Zr alloy during compression at elevated temperature. Mater. Sci. Eng. A 2014, 608, 63–72. [Google Scholar] [CrossRef]
  17. Schikorra, M.; Donati, L.; Tomesani, L.; Tekkaya, A.E. Microstructure analysis of aluminum extrusion: Prediction of microstructure on AA6060 alloy. J. Mater. Process. Technol. 2008, 201, 156–162. [Google Scholar] [CrossRef]
  18. Wen, D.X.; Lin, Y.C.; Zhou, Y. A new dynamic recrystallization kinetics model for a Nb containing Ni-Fe-Cr-base superalloy considering influences of initial δ phase. Vacuum 2017, 141, 316–327. [Google Scholar] [CrossRef]
  19. Jonas, J.J.; Quelennec, X.; Jiang, L.; Martin, E. The avrami kinetics of dynamic recrystallization. Acta Mater. 2009, 57, 2748–2756. [Google Scholar] [CrossRef]
  20. Lin, Y.C.; Chen, M.S.; Zhong, J. Prediction of 42CrMo steel flow stress at high temperature and strain rate. Mech. Res. Commun. 2008, 35, 142–150. [Google Scholar] [CrossRef]
  21. Mirzadeh, H.; Najafizadeh, A. Prediction of the critical conditions for initiation of dynamic recrystallization. Mater. Des. 2010, 31, 1174–1179. [Google Scholar] [CrossRef]

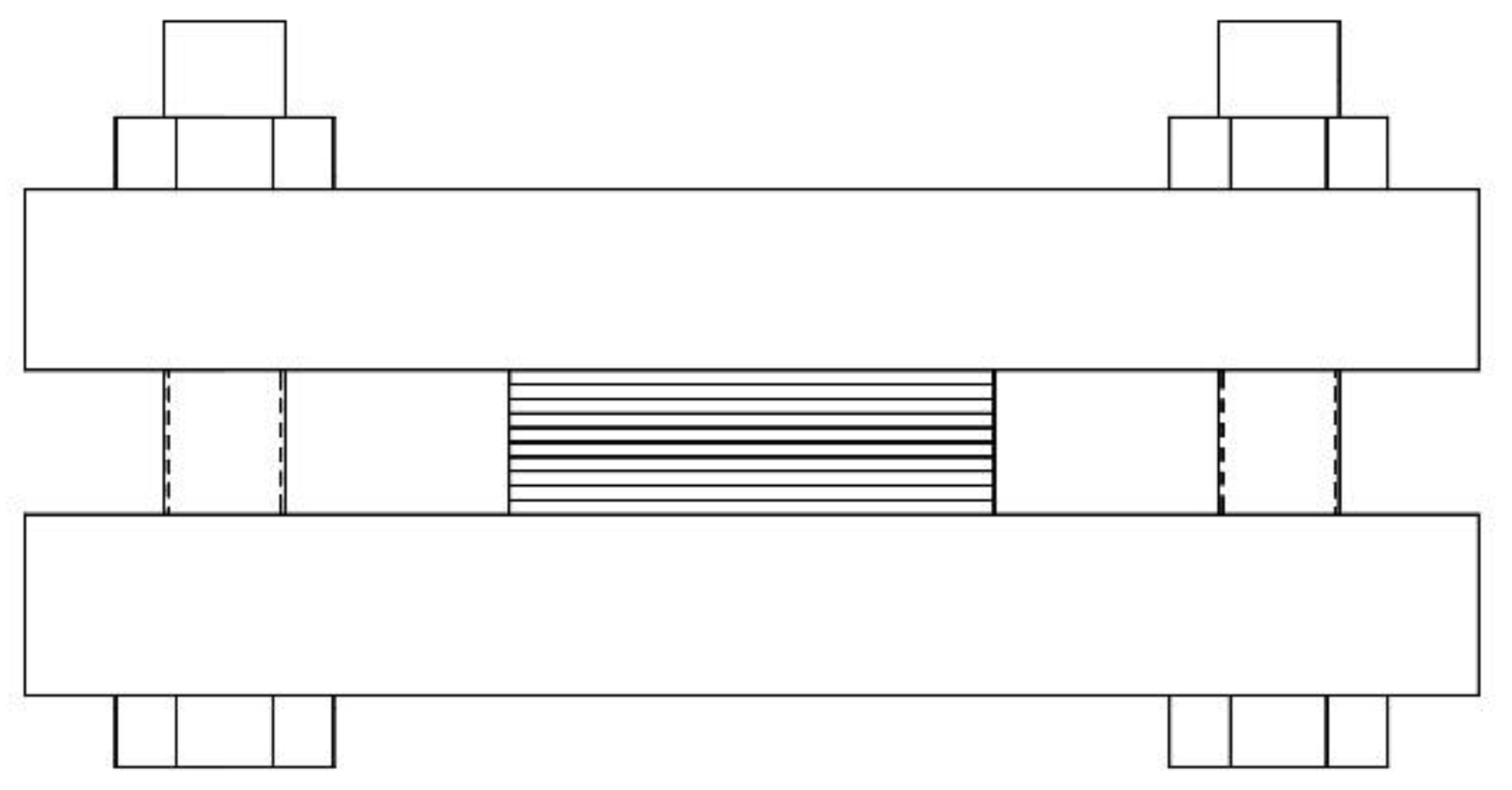

Figure 1. Schematic diagram of the fixture after assembly.
Figure 1. Schematic diagram of the fixture after assembly.
Metals 10 00064 g001
Figure 2. Appearance of billet and specimen used for the hot compression test.
Figure 2. Appearance of billet and specimen used for the hot compression test.
Metals 10 00064 g002

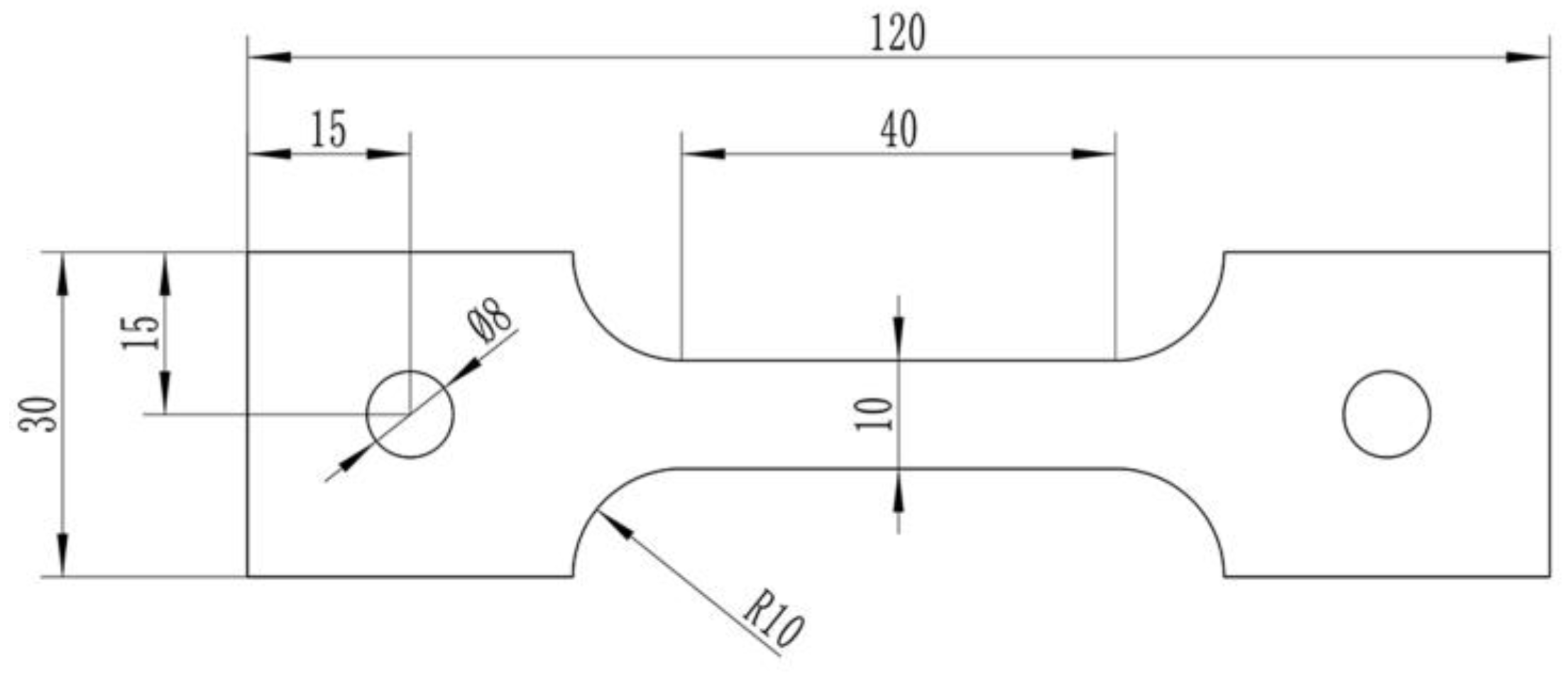

Figure 3. Dimensions of the specimens used for the hot tensile test.
Figure 3. Dimensions of the specimens used for the hot tensile test.
Metals 10 00064 g003

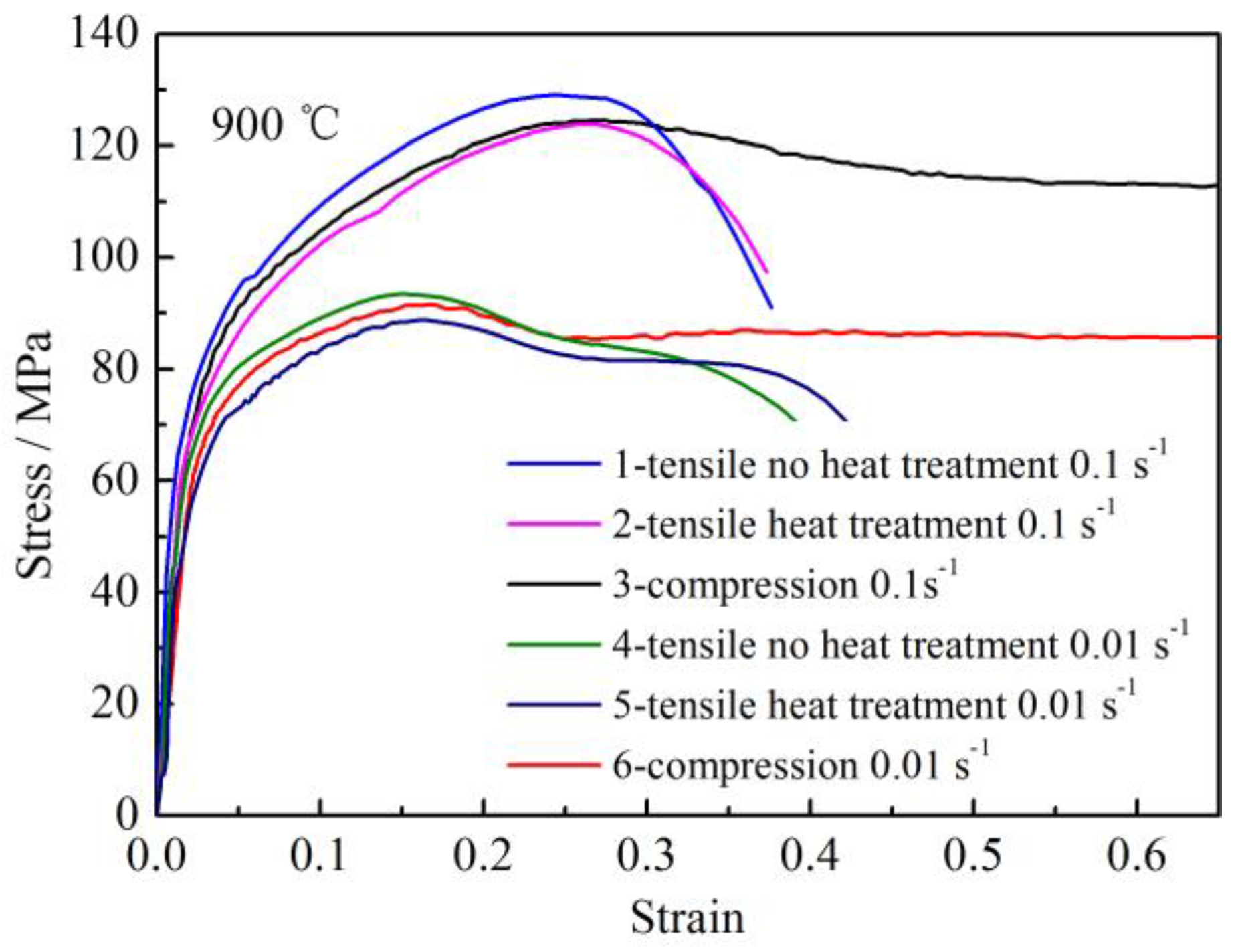

Figure 4. Flow stress–strain curves measured by different experiment methods at 900 °C.
Figure 4. Flow stress–strain curves measured by different experiment methods at 900 °C.
Metals 10 00064 g004
Figure 5. Comparison of grain size with different holding times processed at 900 °C: (a) 5 min and (b) 120 min.
Figure 5. Comparison of grain size with different holding times processed at 900 °C: (a) 5 min and (b) 120 min.
Metals 10 00064 g005

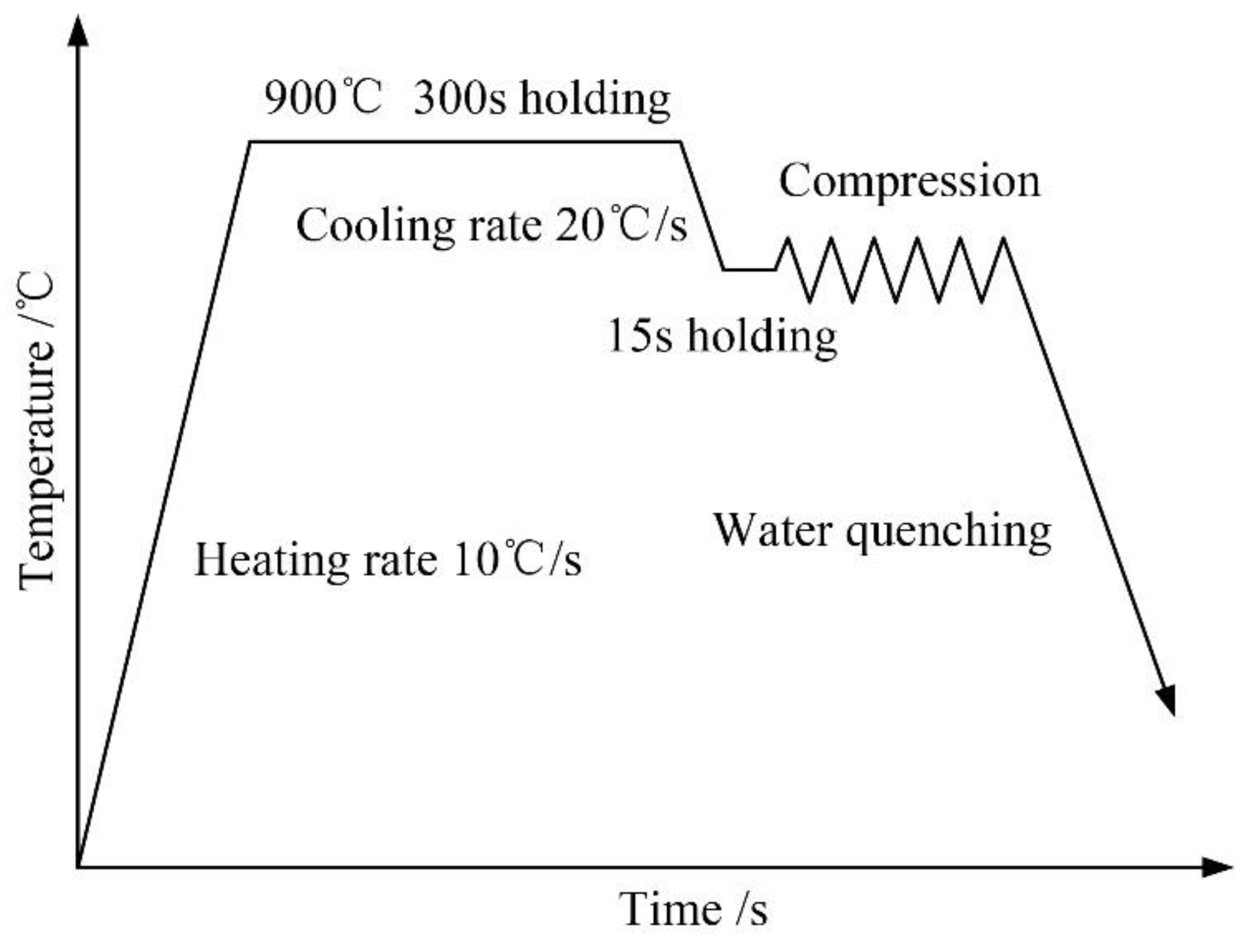

Figure 6. Schematic diagram of the hot compression test.
Figure 6. Schematic diagram of the hot compression test.
Metals 10 00064 g006
Figure 7. Flow stress–strain curves with different softening mechanisms.
Figure 7. Flow stress–strain curves with different softening mechanisms.
Metals 10 00064 g007
Figure 8. Flow stress–strain curves of B1500HS at different temperatures and strain rates.
Figure 8. Flow stress–strain curves of B1500HS at different temperatures and strain rates.
Metals 10 00064 g008
Figure 9. Relationships between peak stress and strain rate at different temperatures: (a) ln ε ˙ ln σ p and (b) ln ε ˙ σ p .
Figure 9. Relationships between peak stress and strain rate at different temperatures: (a) ln ε ˙ ln σ p and (b) ln ε ˙ σ p .
Metals 10 00064 g009

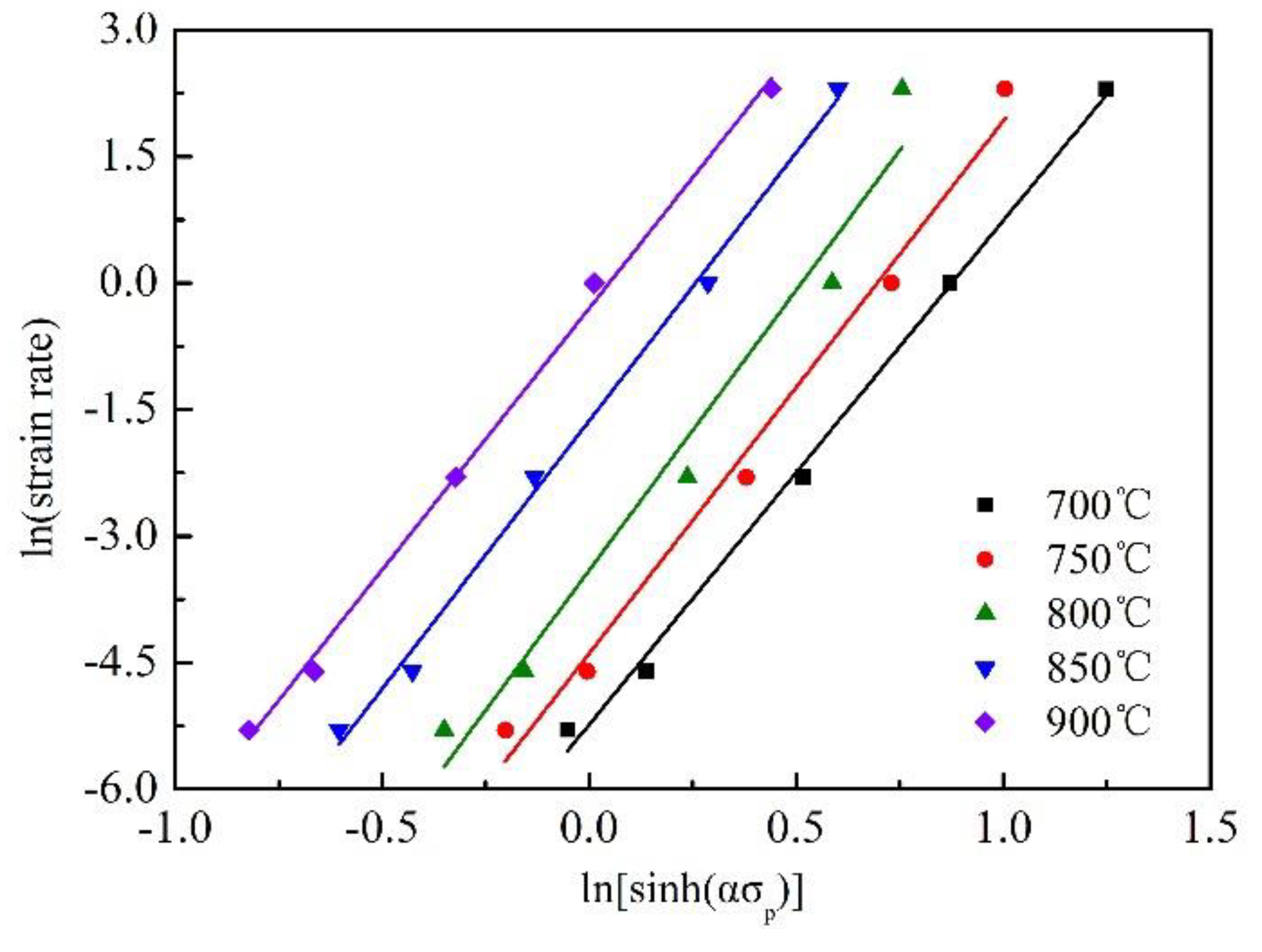

Figure 10. Relationship between ln ε ˙ and ln [ sinh ( α σ p ) ] at different temperatures.
Figure 10. Relationship between ln ε ˙ and ln [ sinh ( α σ p ) ] at different temperatures.
Metals 10 00064 g010

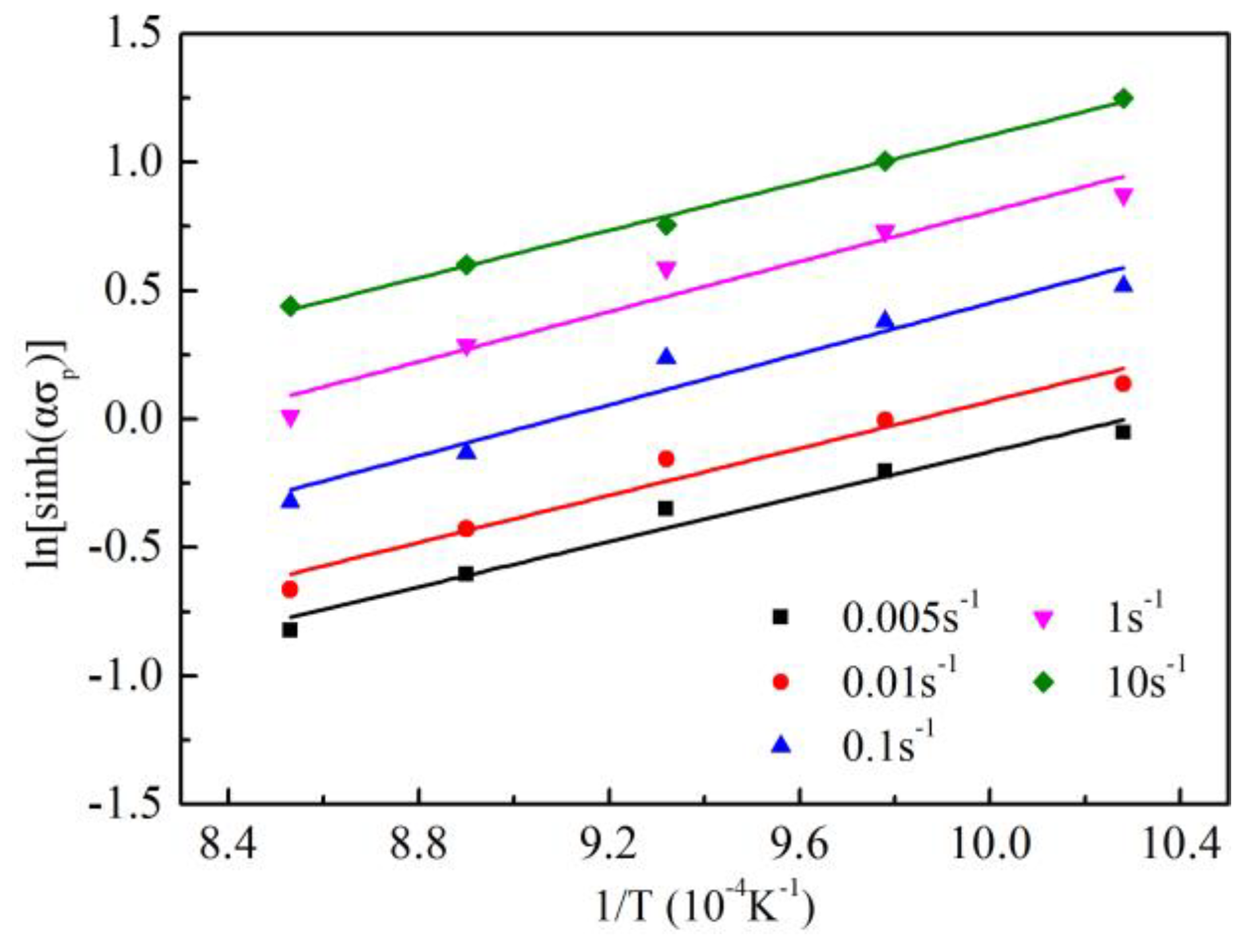

Figure 11. Relationship between ln [ sinh ( α σ p ) ] and 1 / T .
Figure 11. Relationship between ln [ sinh ( α σ p ) ] and 1 / T .
Metals 10 00064 g011

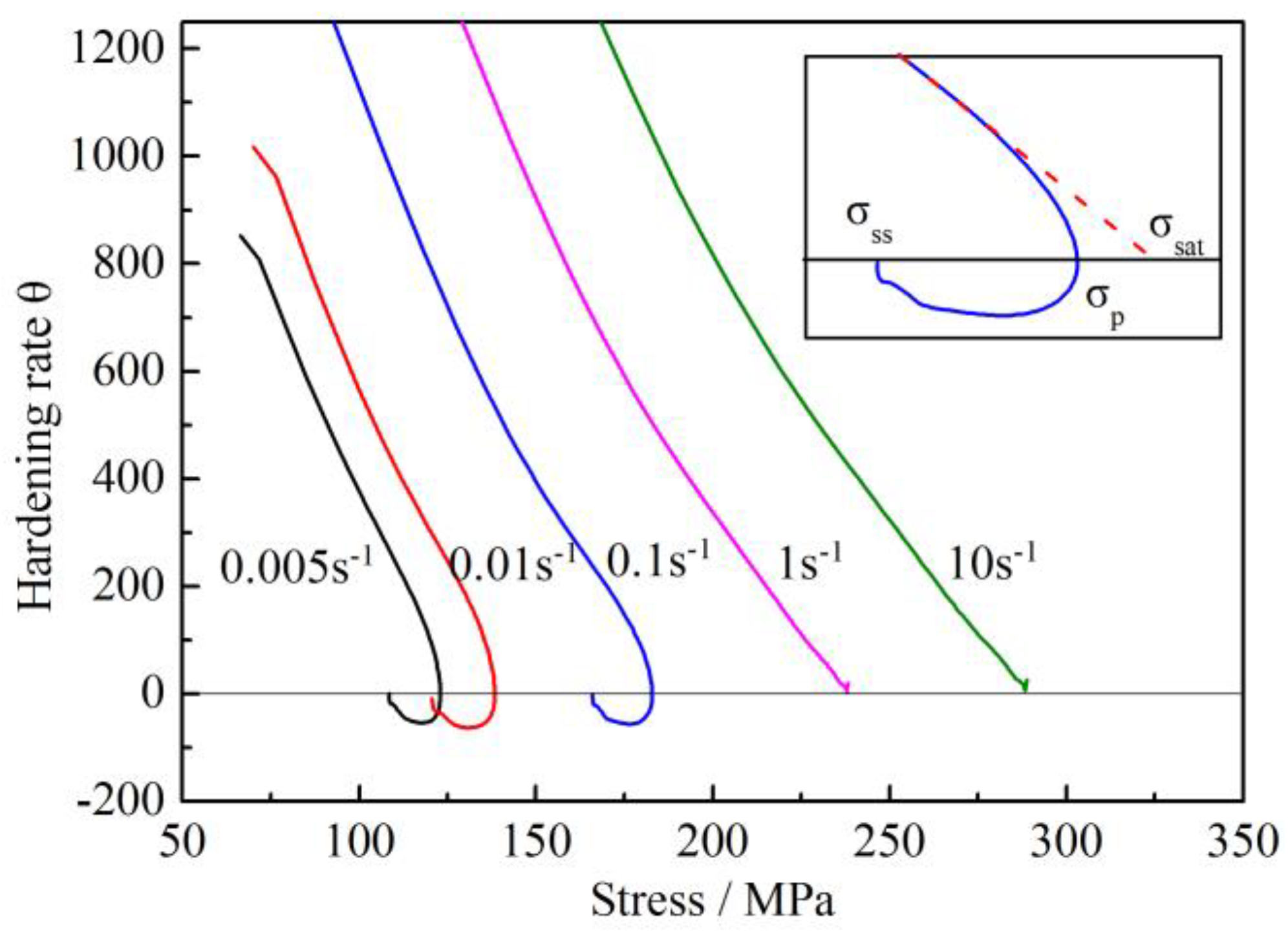

Figure 12. Work hardening rate curves of different strain rates at 800 °C.
Figure 12. Work hardening rate curves of different strain rates at 800 °C.
Metals 10 00064 g012
Figure 13. Curves of d θ / d σ σ under different deformation conditions.
Figure 13. Curves of d θ / d σ σ under different deformation conditions.
Metals 10 00064 g013

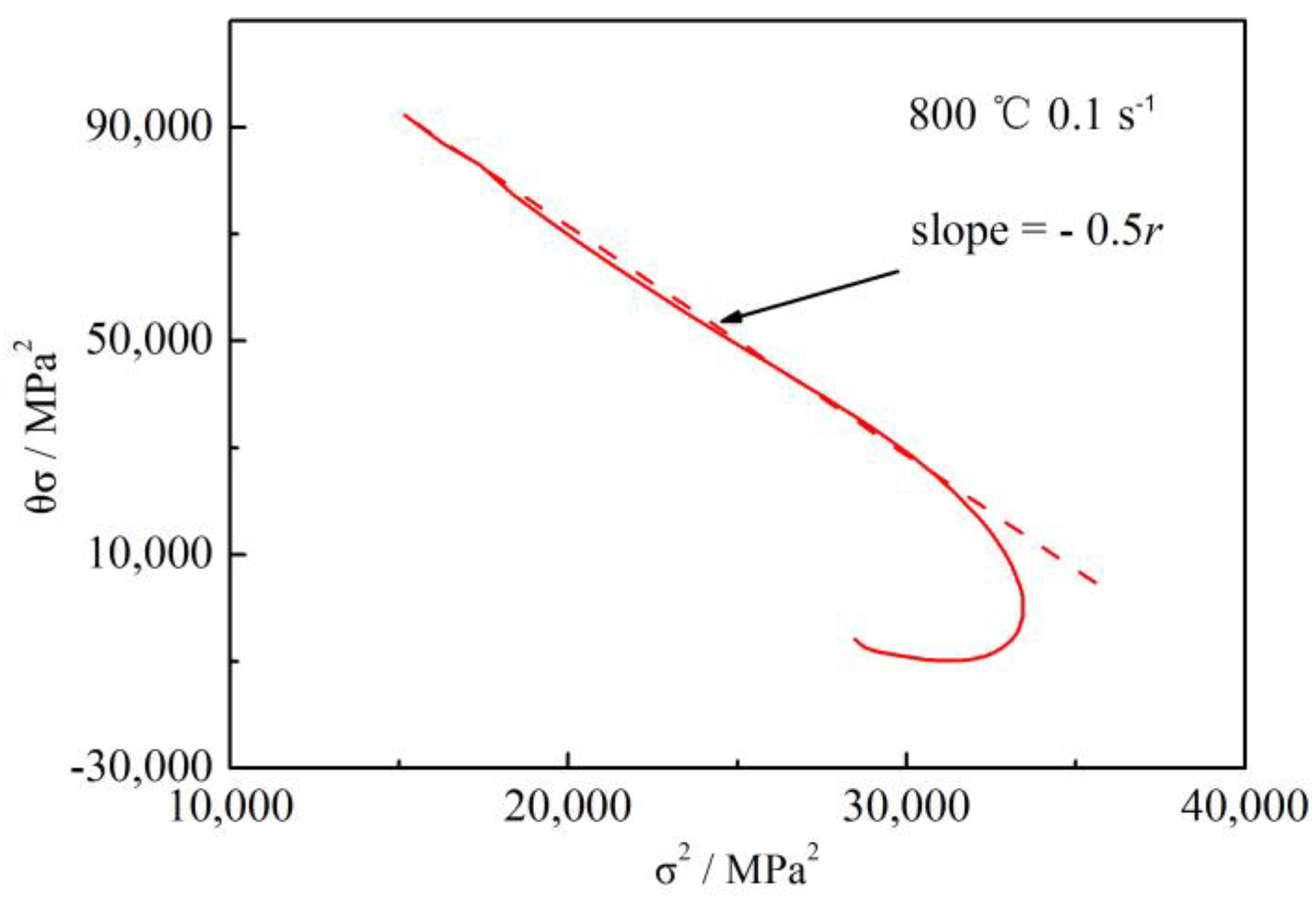

Figure 14. Relationship between θ σ and σ 2 .
Figure 14. Relationship between θ σ and σ 2 .
Metals 10 00064 g014
Figure 15. Relationships between (a) ln σ 0 ln Z and (b) ln [ sinh ( α σ s a t ) ] ln Z .
Figure 15. Relationships between (a) ln σ 0 ln Z and (b) ln [ sinh ( α σ s a t ) ] ln Z .
Metals 10 00064 g015
Figure 16. Relationship between ln r and ln Z .
Figure 16. Relationship between ln r and ln Z .
Metals 10 00064 g016
Figure 17. Comparison between experimental data and predicted results under different strain rates at 800 °C.
Figure 17. Comparison between experimental data and predicted results under different strain rates at 800 °C.
Metals 10 00064 g017
Figure 18. Relationship between ln ε p and ln Z .
Figure 18. Relationship between ln ε p and ln Z .
Metals 10 00064 g018
Figure 19. Relationship between ln σ s s and ln Z .
Figure 19. Relationship between ln σ s s and ln Z .
Metals 10 00064 g019
Figure 20. Relationships between ln ε 0.5 and (a) 1 / T , (b) ln ε ˙ .
Figure 20. Relationships between ln ε 0.5 and (a) 1 / T , (b) ln ε ˙ .
Metals 10 00064 g020
Figure 21. Relationship between ln [ ln ( 1 ln X D R X ) ] and ln [ ( ε ε c ) / ε 0.5 ] .
Figure 21. Relationship between ln [ ln ( 1 ln X D R X ) ] and ln [ ( ε ε c ) / ε 0.5 ] .
Metals 10 00064 g021
Figure 22. Predicted and experimental results of the volume fraction of DRX: (a) at the deformation temperature of 900 °C and (b) at the strain rate of 0.01 s−1.
Figure 22. Predicted and experimental results of the volume fraction of DRX: (a) at the deformation temperature of 900 °C and (b) at the strain rate of 0.01 s−1.
Metals 10 00064 g022
Figure 23. Comparisons between experimental data and predicted results under different deformation conditions.
Figure 23. Comparisons between experimental data and predicted results under different deformation conditions.
Metals 10 00064 g023
Figure 24. Correlation between predicted values and experimental values.
Figure 24. Correlation between predicted values and experimental values.
Metals 10 00064 g024
Table 1. Chemical composition of B1500HS steel (wt %).
Table 1. Chemical composition of B1500HS steel (wt %).
CSiMnCrNiMoBAlTiCuVSP
0.230.251.350.190.0280.040.0030.040.030.0160.0040.0060.015
Table 2. Softening mechanism of the material under different deformation conditions.
Table 2. Softening mechanism of the material under different deformation conditions.
Temperature/°CStrain Rate/s−1Softening Mechanism
7500.005–0.01DRV + DRX
800–8500.005–0.1
9000.005–1
7000.005–10DRV
7500.1–10
800–8501–10
90010

Share and Cite

MDPI and ACS Style

Li, M.; Duan, Y.; Yao, D.; Guan, Y.; Yang, L. Constitutive Model and Flow Behavior of B1500HS High-Strength Steel During the Hot Deformation Process. Metals 2020, 10, 64. https://doi.org/10.3390/met10010064

AMA Style

Li M, Duan Y, Yao D, Guan Y, Yang L. Constitutive Model and Flow Behavior of B1500HS High-Strength Steel During the Hot Deformation Process. Metals. 2020; 10(1):64. https://doi.org/10.3390/met10010064

Chicago/Turabian Style

Li, Muyu, Yongchuan Duan, Dan Yao, Yingping Guan, and Liu Yang. 2020. "Constitutive Model and Flow Behavior of B1500HS High-Strength Steel During the Hot Deformation Process" Metals 10, no. 1: 64. https://doi.org/10.3390/met10010064

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
