1. Introduction
The development of entomopathogenic fungi as mycopesticides against soft bodied insects and mites has a long history [
1]. Mycopesticides have arguably seen a renaissance in recent years in some parts of the world, due to the limited effectiveness of insecticide programs against pests including thrips, whiteflies and mosquitoes, and issues of insecticide tolerant populations [
2,
3,
4,
5]. However, since entomopathogenic fungi often do not provide adequate control by themselves or against an entire pest complex, including diseases and weeds [
6,
7], in many cases they will need to be used in conjunction with other pesticides. Also, since entomopathogenic fungi require direct contact with the host, they may be mixed with a variety of adjuvants to enhance coverage and residual activity at the target site.
A case in point, the Asian citrus psyllid,
Diaphorina citri Kuwayama (Hemiptera: Liviidae), is a major pest in cultivated citrus due to its role in transmission of the ‘
Candidatus Liberibacter’ species that cause citrus greening disease (huanglongbing, HLB) [
8,
9]. Since there is no cure for HLB, current control recommendations in Florida and other regions of the world include the frequent use of insecticides to control the vector [
10,
11]. Although insecticides from several chemical classes are considered effective at reducing psyllid populations [
12], research indicates that even intensive insecticide programs are ineffective at preventing the spread of HLB [
9,
13]. An excessive reliance on a limited number of plant protection products has also resulted in reduced susceptibility of
D. citri to insecticides including neonicotinoids, pyrethroids, organophosphates and carbamates [
14,
15]. Moreover, the current insecticide strategy is disruptive to the various beneficial species that are known to control pest outbreaks in the citrus groves, including exotic parasitoids released for classical biocontrol of
D. citri in Florida and other regions [
16,
17].
A number of entomopathogenic fungi are known to naturally infect
D. citri worldwide [
18,
19,
20,
21,
22,
23,
24,
25,
26]. Amongst them,
Isaria fumosorosea Wize (=
Paecilomyces fumosoroseus) (Hypocreales: Cordycipitaceae) has received interest for use against
D. citri in Florida [
27,
28,
29,
30]. Commercial blastospore formulations of
I. fumosorosea are now registered in North America for use against pests of food crops [
31]. However, a wide range of agrochemicals that are routinely applied in Florida citrus groves may impact the use of this fungus to target the psyllid. In this paper, we evaluated the compatibility of
I. fumosorosea blastospores with a range of spray oils and copper-based and other fungicides registered for use in citrus groves.
2. Experimental Section
Source of fungus, oils and insects: A blastospore formulation of
I. fumosorosea Apopka 97 strain (PFR-97 20% WDG, Certis USA, Columbia, MD) was used in our studies. Tested products included emulsified petroleum-based oils, citrus-derived alcohol ethoxylates, a silicone surfactant, and fungicides based on borax (sodium tetraborohydrate decahydrate) and copper (
Table 1).
Table 1.
List of products, types, pesticide rates and categories used in bioassays.
Table 1.
List of products, types, pesticide rates and categories used in bioassays.
| Product/Manufacturer | Type1 | Rate (% v/v) / acre | Use2 |
|---|
| SuffOil-X™, BioWorks Inc. Victor, NY | P | 1–2 | I,M,F |
| Citrus Wrap™, Loveland Products, Inc., Greeley, CO | P | 1–5 quarts | A |
| Griffin 435 Oil™, Ben Hill Griffin, Inc., Frostproof, FL | P | 5–10 gals | I,M,F |
| PureSpray Green™, Whitmire Research Inc., St Louis, MO | P | 0.75–2 | I,M,F |
| Year-Round™, Summit, Baltimore, MD | P | 1–2.9 | I,M |
| Sylgard® 309, Wilbur-Ellis, Fresno, CA | S | 0.03–0.4 | A |
| Neem Oil, Dyna-Gro, Richmond, CA | B | 0.1 | I,M,F |
| OrocitTM (= Vintre™), Oro Agri Inc. Trophy Club, TX | B | 0.1–0.8 | A |
| OroboostTM, Oro Agri Inc. Trophy Club, TX | B | 0.2–0.8 | A |
| Prev-AmTM, Oro Agri Inc. Trophy Club, TX | R | 0.4–0.8 | I,M,F |
| Neemix® 4.5, Certis USA, Columbia, MD | B | 0.2 | I |
| Kocide® 3000, DuPontTM, Wilmington, DE | C | 3.2 lbs | F |
| Cuprofix® Ultra 40, United Phosphorus., King of Prussia, PA | C | 3.2 lbs | F |
| Copper-Count®-N, Mineral R&D, Charlotte, NC | C | 2 quarts | F |
| Champ® DP, NuFarm Americas Inc., Burr Ridge, IL | C | 4.0 lbs | F |
Diaphorina citri used in these experiments were obtained from the USDA-ARS laboratory colony established during early 2000 at the U.S. Horticultural Research Laboratory, Fort Pierce, FL. Originally collected from citrus, the psyllids have been continuously reared on orange jasmine,
Murraya paniculata (L.), housed in Plexiglas (0.6 x 0.6 x 0.6 m) or BugDorm-2
® cages (MegaView Science Education Services Co., Ltd, Taichung, Taiwan) under the following environmental conditions: 20–28 °C, 40–80% RH and a 14 h light (L):10 h dark (D) photoperiod [
32,
33]. The original colony has not had field collected psyllids added since establishment.
Compatibility of I. fumosorosea
with spray oils and adjuvants in vitro
: The compatibility of a blastospore formulation on
I. fumosorosea Apopka 97 strain with different spray oils or adjuvants was evaluated under sterile conditions in the laboratory. A germination test was conducted by mixing test products at two rates (final concentration 0.5% and 2% v/v) with a suspension of
I. fumosorosea (final concentration 10
6 blastospores/mL). Each replicate consisted of 8 mL of test suspension prepared in a sterile 15 mL polypropylene centrifuge vial (Falcon, Colorado Springs, CO). Vials (held horizontally) were maintained on a bench top shaker for 1 hour to simulate mixing in a spray tank. Afterwards, 100 μL of each test suspension was inoculated onto water agar (1.5% w/v, Difco Laboratories, Detroit, MI) in a 9 cm diameter Petri dish and spread over the plate with a glass rod. All plates were sealed with Parafilm
® and incubated at 25 °C, 80% RH, 12 h L:12 h D photoperiod. Germination (visible hyphal growth) was assessed after 20 hours from a minimum of 200 blastospores per sample (
Figure 1A). Cases of excessive hyphal growth or clumping were not counted. A similar procedure with a lower fungal concentration (10
3 blastospores/mL) was used to compare the impact of test products (0.5% and 2% v/v) on the number of colony forming units (CFU) produced on potato dextrose agar (PDA) (3.9% w/v, Difco Laboratories) after 4 days (
Figure 1B). Tetracycline (0.5% v/v) was added as a bactericide to all plates.

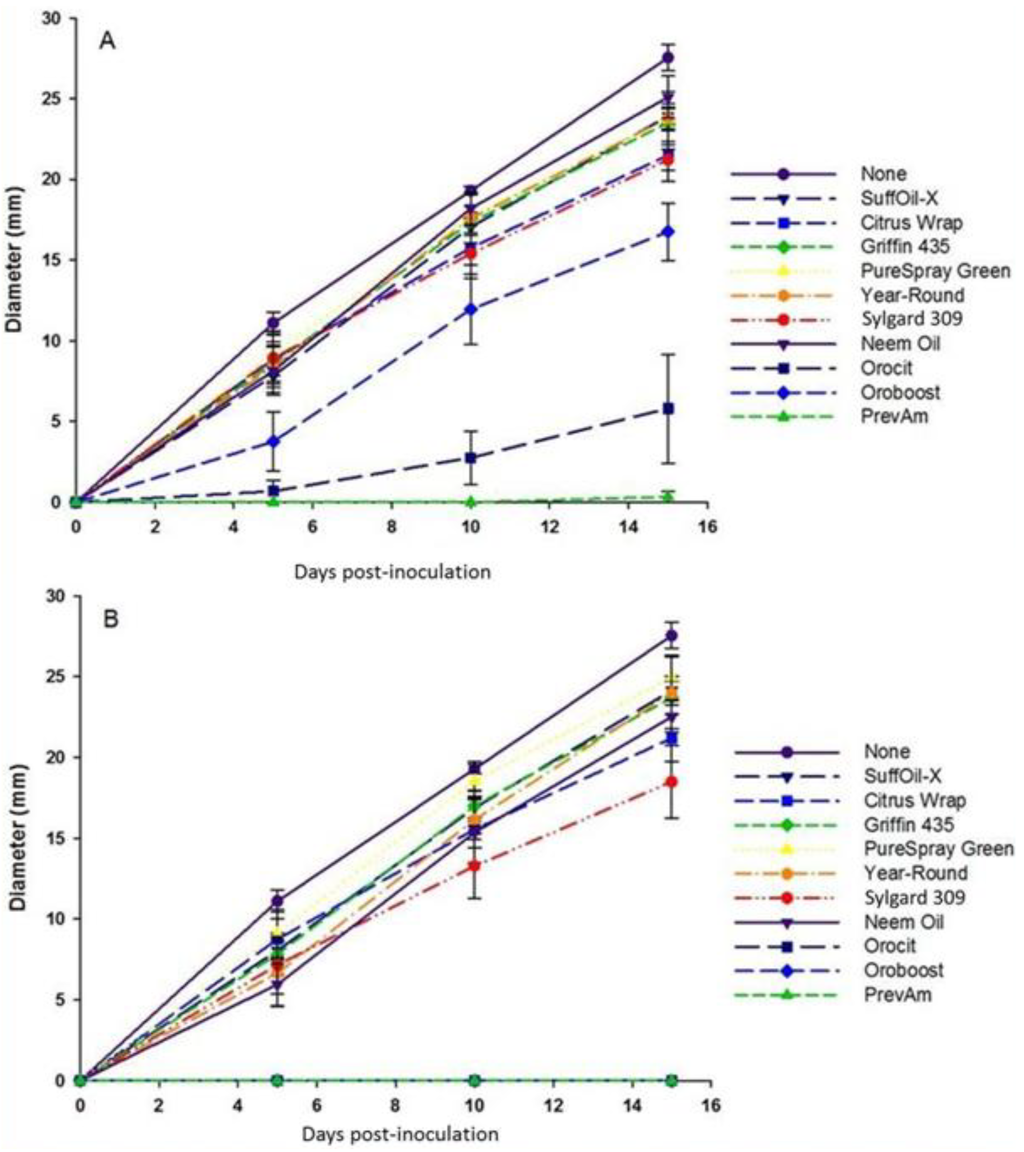

Two additional experiments estimated the effects of test products on
in vitro radial growth rates of
I. fumosorosea. In the first experiment, products were incorporated at two rates (0.5% and 2% v/v) into liquid PDA (3.9% w/v, Difco Laboratories, Detroit, MI) immediately prior to plating in 6 cm diam Petri dishes (10 mL per dish). A 10 μL droplet of a pure
I. fumosorosea suspension (10
6 blastospores/mL) was placed in the center of the dish and the resulting colony diameter (mm) was measured at 5, 10 and 15 days post-inoculation. There were three replications per treatment and the study was repeated on five separate occasions. The second study used a slightly lower rate (0.2% v/v) of test materials that were mixed with the fungal suspensions prior to plating, but not incorporated into the PDA media. Replicates consisted of 8 mL of a test suspension prepared in sterile 15 mL centrifuge vials (Falcon, Colorado Springs, CO). Controls for oil treatments were
I. fumosorosea mixed with sterile water. Vials were vortexed for 60 seconds and a 4 µL droplet of each treatment suspension inoculated on PDA plates (10 cm diam.) with streptomycin (0.5%) added. Plates were sealed with Parafilm
® and colony diameter measured at 8, 16, 23 and 30 days post-inoculation (
Figure 1C). The test was conducted twice with10 replicates/treatment. Both studies were conducted at 25 °C, 16 h L:16 h D photoperiod.
Compatibility of I. fumosorosea
with copper-based fungicides in vitro

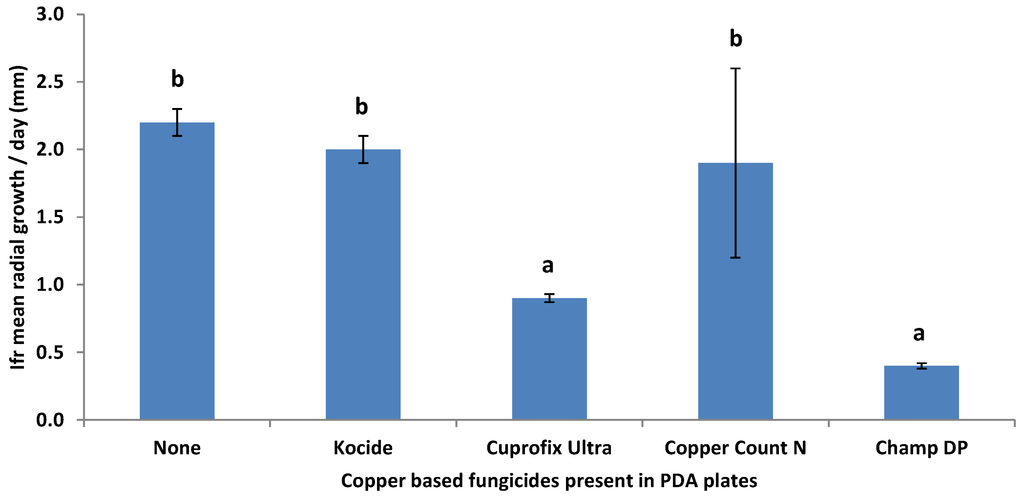

: The compatibility of a blastospore formulation of
I. fumosorosea with different copper-based fungicides was evaluated under sterile conditions in the laboratory. Each fungicide was mixed (w/v or v/v) at label rates (
Table 1) and incorporated into liquid PDA immediately prior to plating in Petri dishes (15 mm × 100 mm; 10 mL per dish). Four μL of a pure
I. fumosorosea suspension (10
6 blastospores/mL) droplet was placed in the center of the dish. Colony diameter (mm) was measured at 20 days post-inoculation. There were 10 replications per treatment and each study was repeated on three separate occasions.
Compatibility of I. fumosorosea
with spray oils in vivo
: To further investigate compatibility of
I. fumosorosea and spray oil products, a leaf bioassay was conducted on adult psyllids exposed to afungal suspension with and without test materials. Products were applied to citrus leaves at (10
6 blastospores/mL) with a Nalgene
® aerosol sprayer (Nalge Nunc International, Rochester, NY) as described previously [
27]. Controls were leaves sprayed only with water + fungus, and water + oils. Psyllid mortality was assessed daily for 7 days. To investigate whether oils impacted fungal development post-mortem, psyllid cadavers were examined daily at 40X. Individuals were scored according to the fungal development index (FDI) proposed in an earlier publication [
27];
i.e., 1.0 (no symptoms); 1.5 = appearance of fungal hyphae through the exoskeleton of the psyllid body; 2.0 = hyphae protruded through head, thorax, wings of host; 2.5 = initial conidia formed on host; 3.0 = fungus has colonized and formed conidia on all sections of the psyllid body (
Figure 1D). There were 10 replications per treatment and the study was conducted on two separate occasions.
Figure 1.
Viability parameters of Isaria fumosorosea amended with oil treatments: (A) Blastospore germination on potato dextrose agar (PDA), (B) Impacts of toxic oils on colony forming units (CFU) (left) compared with controls (right), (C) Comparison of radial growth and (D) Colonization of adult D. citri by fungus and production of conidia.
Figure 1.
Viability parameters of Isaria fumosorosea amended with oil treatments: (A) Blastospore germination on potato dextrose agar (PDA), (B) Impacts of toxic oils on colony forming units (CFU) (left) compared with controls (right), (C) Comparison of radial growth and (D) Colonization of adult D. citri by fungus and production of conidia.

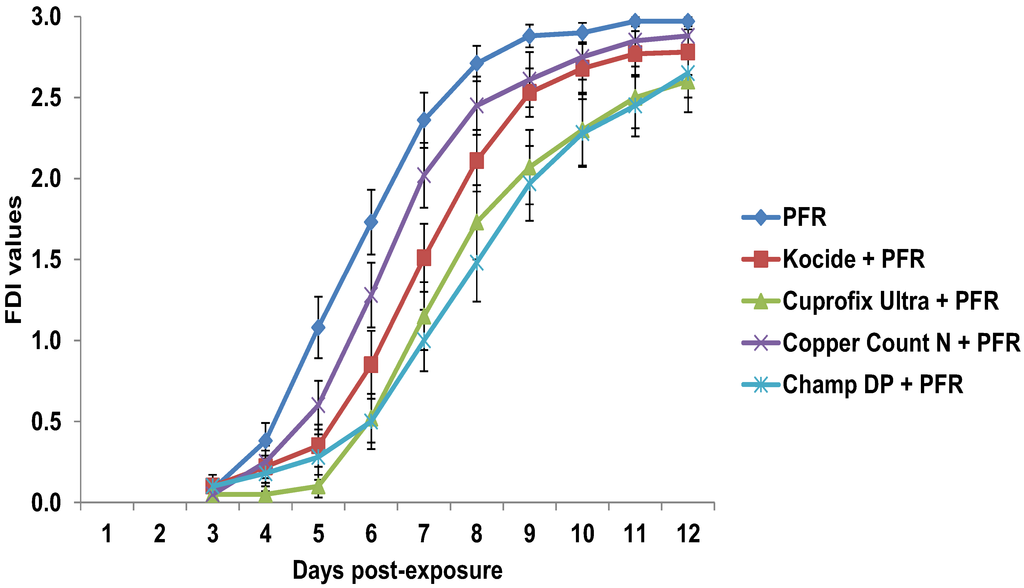

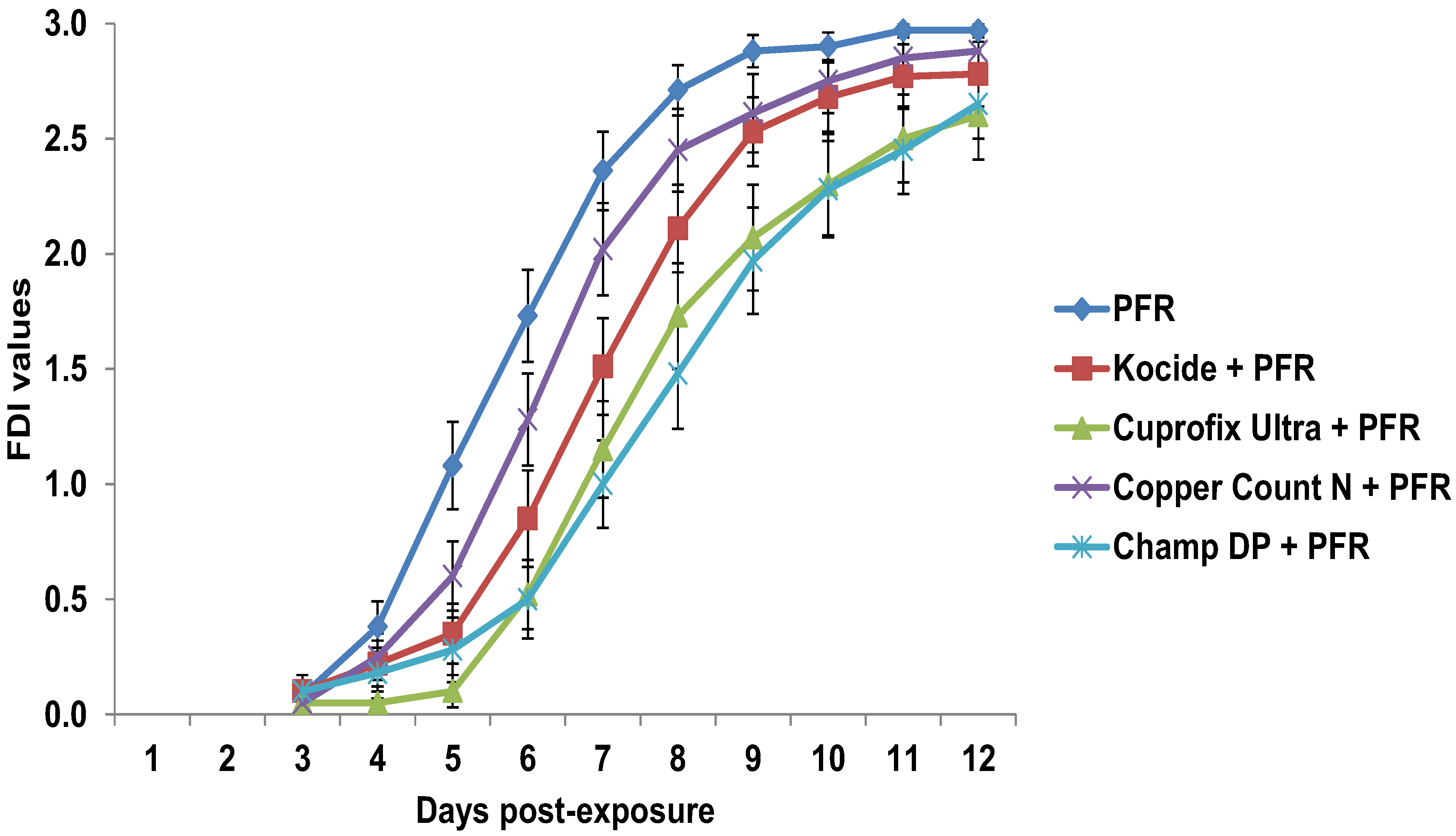

Compatibility of I. fumosorosea with copper-based fungicide in vivo: The compatibility of I. fumosorosea and copper-based fungicides was assessed using a leaf bioassay similar to that described above. Test materials were applied at label rate to citrus leaves, and allowed to air dry under a fume hood (~2–4 h) prior to the application of the fungus. Adult psyllids were exposed to fungal suspensions with and without fungicides. Psyllid mortality was assessed daily for 12 days and FDI (described above) was used to determine whether fungicides impacted fungal development on the psyllids. There were 10 replications per treatment and both studies were conducted 2–3 times.
Data analysis: Treatments from laboratory tests were compared through one and two-way analysis of variance conducted on the data and post-hoc means separated where appropriate through Duncan’s multiple range tests at P < 0.05. All statistical analyses were conducted using SAS Proc GLM procedures and executed on a WIN_PRO platform (SAS 1999-2001). Insect bioassays were also compared through Kaplan-Meier survival analysis followed by a log rank test (SPSS for Windows v.21 and SAS JMP 8 for Windows 2013).
4. Discussion
Our studies provide information on the compatibility of I. fumosorosea with various insecticidal oils adjuvants, and fungicides registered for use in citrus. Germination of blastospores was reduced (or at least delayed) by all tested materials, especially at the higher (2% v/v) application rate for oil when exposed in PDA medium. However, other growth measurements (CFU and radial diameter estimates) were only significantly affected by some of these materials, which may suggest some variation in individual blastospores tolerance to tested products. Overall, I. fumosorosea growth in vitro were reduced least by petroleum-based materials and most by botanical oils, borax, and some of the copper-based fungicides, suggesting that tank mixing of I. fumosorosea with these latter products should be avoided.
However, when psyllids were exposed to fungus/oil residues on leaves
in vivo, we also observed statistically similar mortality (average survival) compared with the fungus treatment alone. The reasons are unclear, although we hypothesize that some oils may enhance adherence of blastospores to the insect cuticle, overcoming negative impacts on germination. Statistically similar psyllid control was observed in greenhouse tests with
I. fumosorosea mixed with vegetable-based oil (Addit
®), compared with either agent sprayed alone [
34]. Our findings with
I. fumosorosea blastospores contrast with previous studies reporting enhanced germination and pathogenicity of conidial formulations of entomopathogenic fungi mixed with many oils and oil-emulsions [
35,
36,
37]. Mechanisms proposed for synergistic activity of oils with entomopathogenic fungi include enhanced adhesiveness of conidia to the lipophilic insect cuticle, disruption (solubilization) of cuticular waxes leading to improved deposition (e.g., by carrying conidia to thin intersegmental membranes) and improved secondary acquisition of fungal inoculum from vegetation or other sprayed surfaces [
37,
38,
39]. A possible explanation for apparent differences in compatibility between blastospore versus aerial conidia relates to their different physiochemical properties. The surfaces of
I. fumosorosea blastospores are hydrophilic and negatively charged [
40]. Thus blastospores are expected to disperse well in water but bind poorly to hydrophobic surfaces. This is in contrast to the typical hydrophobic cell walls of aerial conidia, which adhere rapidly to both hydrophobic and hydrophilic surfaces but may form aggregation in aqueous suspensions [
41]. We hypothesize that the thinner and more permeable cell wall of the blastospore may be more readily disrupted by solvent properties of some oils, compared with aerial conidia.
Although petroleum-based (e.g., horticultural mineral) oils are most commonly used in North America, botanical oils (such as neem) are more commonly used in Africa and South America [
37]. Several recent studies have investigated the compatibility of entomopathogenic fungi with neem, with variable results. Some studies report that
in vitro growth of
Beauveria bassiana (germination, colony formation and sporulation) are negatively affected by emulsifiable neem oils at concentrations as low as 0.5% v/v [
42,
43,
44]. However, other authors report that neem and other plant oils were not toxic to either
I. fumosorosea or
I. farinosa [
45,
46]. There may be variability in susceptibility to oils between fungal strains. Mohan
et al. [
47] tested 30 isolates of
B. bassiana with a commercial neem formulation (0.3% v/v) and although conidial germination was delayed in all isolates, it was generally not significantly decreased and 23 of the isolates were considered to be compatible. Positive results of neem-based oils combined with various entomopathogenic fungi,
i.e., ‘synergism or ‘compatibility’, have also been reported in insect bioassays with caterpillars (
Spodoptera litura), locusts (
Anacridium melanorhodon) and mealybugs (
Phenacoccus solenopsis) [
47,
48,
49]. From these studies, a trend for the improved compatibility of fungi and neem oils in terms of pathogenicity against insects,
versus direct growth characteristics in media were observed. We report a similar trend in the current study. We also hypothesize that at non-lethal doses, oils might induce physiological stresses to insects that predispose them to infection.
Inhibitory effects of other agrochemicals on the growth and pathogenicity of
I. fumosorosea and other entomopathogenic fungi has been reported which include several classes of chemical insecticides [
50,
51,
52,
53,
54,
55,
56] and systemic fungicides [
57]. In the UK,
Lecanicillium muscarium and
B. bassiana conidia were found to be compatible with many, but not all, active ingredients (including petroleum oils) used for control of
Bemisia tabaci [
58,
59]. Avoiding tank-mixing (
i.e., applying materials separately) is a method to reduce incompatibility issues of entomopathogenic fungi and insecticides [
51]. Negative impacts of chemical pesticides on entomopathogenic fungi might also be remediated through the combined use of emulsifiable oils. Lopes
et al. [
60] reported that germination rates for unformulated and oil-formulated
Metarhizium anisopliae conidia exposed to the fungicide carbendazim were reduced by differing amounts (
i.e., 77.3 and 12.1%, respectively), compared with fungicide-free controls. It has also been proposed that sub-lethal doses of neonicotinoid insecticides (especially imidacloprid) may suppress insect immunity and enhance the efficiency of entomopathogenic fungi against insect pests [
61,
62,
63,
64].
Emulsified petroleum oils are recommended for management of psyllids and leafminers in citrus [
65]. Commercial formulations of
I. fumosorosea, such as PFR-97, are currently registered for application in citrus groves. Our data indicate that
I. fumosorosea has an advantage over oils,
e.g. psyllids are readily infected by spray residues, whereas oils need to be directly sprayed on the insect to be effective. This aspect may be beneficial in situations where coverage is limited, such as in dense foliage or against psyllids that migrate into the grove shortly after spraying. Dry formulations of
I. fumosorosea might also be dispersed through autodisseminators for control of psyllids in dooryard citrus trees or plants which are often not sprayed [
66,
67]. Laboratory insect bioassays also suggest that
I. fumosorosea might provide control of several additional citrus pests including the
Diaprepes root weevil adult [
30].
A potential limitation for using mycoinsecticides and insecticidal oils together in citrus relates to their lower efficacy compared with some chemical insecticides. In greenhouse tests,
I. fumosorosea reduced
D. citri by about 50%, compared with approximately 100% from imidacloprid drenches [
34]. This need for more frequent spraying may be perceived negatively by growers. In addition, even under ideal conditions,
I. fumosorosea takes at least two days to kill
D. citri [
28], and transmission of the citrus greening disease may occur in
D. citri salivary secretions in as little as 30 minutes of feeding [
68]. However, whether the pre-lethal period of infection allows psyllids to spread the HLB pathogen is unclear, since the fungal pathogen dramatically reduces feeding behavior well before killing the host [
28]. Further research is needed to assess the ability of fungus-infected psyllids to acquire/transmit the HLB pathogen and disperse it to other plants.
Copper-based fungicides are commonly used to control diseases caused by plant pathogenic bacteria and fungi in citrus production [
31]. We determined that some of these fungicides may also impact the growth of
I. fumosorosea and hence should be avoided in direct contact (
i.e., tank mixing). In addition,
I. fumosorosea should not be applied on the same day as with copper-based fungicides. Kouassi
et al. [
69] evaluated the compatibility of copper oxide with
B. bassiana, and suggested that application timing is important for insecticidal activity of the entomopathogenic fungus applied. Copper-based fungicides vary in compatibility, depending on the entomopathogenic fungi being tested, timing of application, and the concentration of the fungicide applied. Demirci
et al. [
57] found that copper oxychloride was compatible and did not inhibit the fungus,
I. farinosa used against the citrus mealybug. In contrast, D’Alessandro
et al. [
70] discovered that copper oxychloride was incompatible with conidial suspensions of
I. fumosorosea and significantly reduced mortality of the greenhouse whitefly in comparison to the fungal suspension alone. In our study, we noticed the greatest negative impact on the fungus were from products containing a higher (≥ 40) percent of equivalent metallic copper. In support of this idea, Ali
et al. [
71] reported that increasing concentrations of metallic copper correlated with decreased
in vitro growth and virulence of
L. muscarium. On the other hand, it is also possible that fungicides might help
I. fumosorosea infect and colonize the insects on the phylloplane by eliminating competition with naturally occurring fungi present on the leaves [
72].
In cases where elimination of greening is no longer paramount, or in organic production where growers accept higher pest levels, the door opens for using more benign materials in an attempt to restore integrated pest management approaches in citrus production. Applying mycoinsecticides and insecticidal oils alone or in combination at critical flushing periods or during dormant periods could help reduce psyllid and other pest populations while having a low impact on beneficial species [
73,
74,
75,
76,
77]. The effectiveness of the fungus will also depend on distribution of hosts and environmental conditions in the groves. At the time of this writing, the effectiveness of using
I. fumosorosea in citrus groves largely remains to be established.
