Assessment of Compaction, Temperature, and Duration Factors for Packaging and Transporting of Sterile Male Aedes aegypti (Diptera: Culicidae) under Laboratory Conditions

by
Beni Ernawan
1,2,*,
Tjandra Anggraeni
1,
Sri Yusmalinar
1,
Hadian Iman Sasmita
2,
Nur Fitrianto
2 and
Intan Ahmad
1,*
1
Institut Teknologi Bandung (ITB), School of Life Sciences and Technology, Jalan Ganesha No. 10, Bandung 40132, Indonesia
2
Research Center for Radiation Process Technology, Research Organization for Nuclear Energy, National Research and Innovation Agency of Indonesia (BRIN), Jalan Lebak Bulus Raya No. 49, Jakarta 12440, Indonesia
*
Authors to whom correspondence should be addressed.
Insects 2022, 13(9), 847; https://doi.org/10.3390/insects13090847
Submission received: 25 July 2022 / Revised: 1 September 2022 / Accepted: 14 September 2022 / Published: 17 September 2022
(This article belongs to the Special Issue Mosquito Handling, Transport, Release and Male Trapping Methods)
Browse Figure
Review Reports Versions Notes

Abstract

:

Simple Summary

The sterile insect technique (SIT) is a proven method to control some insect pests and is currently being tested to control some mosquito species, including Aedes aegypti. It is challenging to maintain the quality of sterile male mosquitoes in operational SIT during the packaging and transportation processes. The experiment presented in this manuscript was undertaken to investigate compaction, temperature, and duration factors during the packaging and transportation of gamma-sterilized male Ae. aegypti. The effects of packaging and transportation factors on the quality parameters of gamma-sterilized male Ae. aegypti—mortality, flight ability, induced sterility, and longevity—were assessed. The results of this experiment demonstrate appropriate packaging and transportation conditions for maintaining the quality of gamma-sterilized male Ae. aegypti.

Abstract

Optimized conditions for the packaging and transportation of sterile males are crucial factors in successful SIT programs against mosquito vector-borne diseases. The factors influencing the quality of sterile males in packages during transportation need to be assessed to develop standard protocols. This study was aimed to investigate the impact of compaction, temperature, and duration factors during packaging and transportation on the quality of gamma-sterilized male Ae. aegypti. Aedes aegypti males were sterilized at a dose of 70 Gy, compacted into Falcon tubes with densities of 40, 80, and 120 males/2 mL; and then exposed to temperatures of 7, 14, 21, and 28 °C. Each temperature setup was held for a duration of 3, 6, 12, 24, and 48 h at a 60 rpm constant vibration to simulate transportation. The parameters of mortality, flight ability, induced sterility, and longevity were investigated. Results showed that increases in density, temperature, and duration significantly increased mortality and reduced flight ability and longevity, but none of the factors significantly affected induced sterility. With a mortality rate of less than 20%, an escaping rate of more than 70%, considerable longevity, and the most negligible effect on induced sterility (approximately 98%), a temperature of 7 °C and a compaction density of 80 males/2 mL were shown to be optimized conditions for short-term transportation (no more than 24 h) with the minimum adverse effects compared with other condition setups.

1. Introduction

Aedes aegypti (Linnaeus) is considered one of the most dangerous animals on the planet due to its vectorial capacity for major human diseases, including dengue, chikungunya, yellow fever, and Zika [1,2]. Historically, this species originated from Africa (Aedes aegypti formosus) and then distributed worldwide (Aedes aegypti aegypti), especially in tropical areas [3,4,5]. Nevertheless, the authors of a recent study found that the ancestor of Ae. aegypti in the African continent originates from the Aegypti Group from islands in the southwestern Indian Ocean [6]. The spread of Ae. aegypti, as well as the vectorial diseases, are rapidly causing a global health burden [7]. Since effective vaccines and preventive drugs are lacking, vector population control plays an essential role against the diseases transmitted by Ae. aegypti [8]. Conventional control methods, such as reducing breeding site density and applying insecticide have been used to reduce dengue cases. However, no satisfactory trend has resulted [9]. Approximately 3.83 billion people (around 53% of the global population) live in suitable dengue risk areas, including Asia, Central America, and Central Africa [7,10]. Thus, efficient, sustainable, and environmentally friendly control methods are urgently needed [11]. One such method is the radiation-based sterile insect technique (SIT). This method is environmentally friendly, target-specific, and can be combined with other vector control methods in area-wide integrated pest management (AW-IPM) [12,13].
For several decades, the SIT has been successfully applied to eradicate some major insect pests, including the New World screwworm Cochliomyia hominivorax (Coquerel) and the Mediterranean fruit fly Ceratitis capitata (Wiedemann) in America, the melon fly Bactrocera cucurbitae (Coquillett) in Japan, and the tsetse fly Glossina austeni in Tanzania [14,15,16]. In the past, SIT trials were implemented to control several mosquito species, including Aedes sp., Anopheles sp., and Culex sp. However, no satisfying result was reported [17,18]. In the last ten years, improvements, including in equipment and procedures, have been made in SIT programs for mosquitoes toward operational levels [19]. Several pilot SIT implementations have been reported to reduce Ae. aegypti and Ae. albopictus populations in various parts of the world, with promised outcomes of between 70 and 90% population suppression [20,21,22,23,24,25,26].
An inevitable limitation of SIT is that it causes a reduction in sterilized male competitiveness, potentially due to colonization, sex separation, sterilization, packaging, transporting, and release methods [27]. The authors of several studies reported overcoming this limitation through the development and standardization of colonization methods, including protocols regarding equipment, artificial larval diet, and the rapid quality control of flight ability [28,29,30,31,32,33,34]. Previous studies have shown the critical factors that influence mosquito sterilization when using gamma irradiation, including irradiation dose, pupal age, and oxygen level, which have been used to develop a standard sterilization protocol [35,36,37,38,39,40]. Despite several studies reporting optimized conditions for packing and transporting sterile male mosquitoes, no standard protocol is available for handling, packaging, transporting, and releasing sterile male mosquitoes, especially Ae. aegypti.
Previous studies have developed the informative baseline in mosquito packaging and transporting, showing that temperature and compaction factors significantly impact the survival of several male mosquito species, including Ae. aegypti, Ae. albopictus, and An. arabiensis [41,42,43]. For example, Chung et al. [41] reported the best conditions for packaging and transporting Ae. aegypti, i.e., at 7 °C and at a density of 40 male mosquitoes/cm3. Results indicated that low temperature and compaction with a specific density reduced the mortality of the sterile male mosquito. However, a comprehensive investigation of the effects of temperature, compaction, duration, and gamma irradiation treatments on the quality of sterile male Ae. aegypti during handling, packaging, and transporting is not yet available.
In this study, we investigated the combined effects of handling, packaging, and transporting gamma-sterilized male Ae. aegypti, including temperature, compaction, and duration. We assessed the following sterile male Ae. aegypti quality parameters: mortality, longevity, flight ability, and induced sterility. This study provides additional comprehensive information that can be used to develop a standard protocol for handling, packaging, and transporting sterile male mosquitoes in SIT programs.

2. Materials and Methods

2.1. Mosquito Strain

The Ae. aegypti strain used for our experiments originated from field collection in South Tangerang City, Banten Province, Indonesia, and has been maintained at the Research Center for Radiation Process Technology-National Research and Innovation Agency of Indonesia (BRIN), Jakarta, since 2017. The colony was maintained at a climate-controlled insectary at a temperature of 26 ± 2 °C, relative humidity (RH) of 70 ± 10%, and photoperiod of 12:12 h. The mosquito strain maintenance procedure was described in detail by Ernawan et al. [40].

2.2. Gamma Irradiation Procedure

The gamma irradiator used in the experiments was a Gammacell model 220 (originally manufactured by Atomic Energy of Canada Ltd., Ottawa, Canada, in 1968, upgraded by Institute of Isotopes, Co., Ltd., Budapest, Hungary, in 2015) with a cobalt-60 (Co-60) source (current activity of 4870 Curie and dose rate of 3514 Gy/h on 14 July 2021) located in the Research Center for Radiation Process Technology-BRIN, Jakarta. Routine dosimetry calibration was conducted and resulted in approximately 3% uncertainty of the absorbed dose (certificate no. 19C-109B, accredited by DTU Nutech, Denmark, 2019; certificate no. N° ID C/ET 23-11/1075, accredited by Aerial, France, 2021). Male Ae. aegypti pupae were placed into a transparent plastic tube (14 cm in diameter and 3 cm high), excess water was removed (pupae remained damp), and they were irradiated at a dose of 70 Gy [40].

2.3. Temperature Regime in Packed Conditions

Irradiated male Ae. aegypti pupae were placed into the adult cage and supplied with a 10% (v/v) sucrose solution. One day post-emergence, Ae. aegypti males were anesthetized at a temperature of 4 °C for approximately 5 min [44], and then 40, 80, and 120 males were counted and transferred into 15 mL Falcon tubes (Biologix Plastic Changzhou Co., Ltd., Jinan, Shandong, China) and compacted by pressing a 1.5 cm × 1.5 cm × 1.5 cm sponge down to 2 mL to achieve individual densities of 40, 80, and 120 males/2 mL, respectively. The cap and the bottom end of the tube were drilled to create holes using a 1.5 mm spiral drill needle (Model DIN 338 R-N, Guhring, Germany) to allow for airflow [41]. Tubes were transferred into a 1 L beaker glass and then placed into a water bath shaker (Model OLS26, Grant Instruments, Ltd., Cambridge, UK) set to temperatures of 7, 14, 21, and 28 °C. Each temperature setup was performed for 3, 6, 12, 24, and 48 h at a constant vibration of 60 rpm to simulate transportation. Both unirradiated–unpacked and irradiated–unpacked specimens maintained under laboratory conditions were used as the control. Three replicates were carried out for each combination of factors. The studied parameters were mortality, flight ability, induced sterility, and longevity.

2.4. Data Collection

2.4.1. Mortality Rate

To examine the effects of packaging and simulated transportation on mortality, irradiated male Ae. aegypti inside the Falcon tubes in each treatment were transferred into a cage (17.5 cm × 17.5 cm × 17.5 cm, Bugdorm-4M1515, MegaView Science Co., Ltd., Taichung, Taiwan) and provided with a 10% (v/v) sucrose solution. At 24 h post-treatment, the mortality rate was determined by dividing the dead specimens by the initial numbers of each treatment.

2.4.2. Flight Ability

Male Ae. aegypti in each treatment were tested for their flight ability according to the method of Bond et al. [37] with a slight modification. Briefly, all Ae. aegypti males inside each Falcon tube at each density and treatment were poured into a Petri dish (9 cm in diameter) equipped with a transparent plastic tube (8 cm in diameter and 25 cm high). This equipment was placed inside a 160 cm × 160 cm × 180 cm insect tent (Bugdorm-2960 insect rearing tent, MegaView Science Co., Ltd., Taichung, Taiwan). Flight ability was determined according to the proportion of escapes over a 24 h period.

2.4.3. Induced Sterility

For each treatment, 20 treated sterile Ae. aegypti males were randomly selected and allowed to mate with 20 unmated females (1:1 ratio) in a cage (30 cm × 30 cm × 30 cm) with continuous access to a 10% (v/v) sucrose solution. Meanwhile, for the control, 20 unirradiated males were allowed to mate with 20 unmated females (1:1 ratio). After a 3-day mating period, females were provided a sheep’s blood meal. Three days post-blood feeding, females were allowed to oviposit in a filter-paper-lined plastic cup. Egg paper was collected and slow-dried over four days under laboratory conditions for maturation before hatching. The egg hatching rate was determined by observing the detached operculum under a stereomicroscope (Model SMZ 745, Nikon Corp., Minato-ku, Tokyo, Japan). Residual fertility was determined as the percentage of control fertility, and induced sterility was determined by subtracting 100% from residual fertility [39].

2.4.4. Longevity under Laboratory Conditions

To investigate the effects of packaging and simulated transportation on longevity, 75 Ae. aegypti males were randomly selected from each treatment and evenly distributed into three cages (17.5 cm × 17.5 cm × 17.5 cm, Bugdorm-4M1515, MegaView Science Co., Ltd., Taichung, Taiwan). Each cage was continuously supplied with a 10% (v/v) sucrose solution. Control unirradiated–unpacked and irradiated–unpacked specimens were maintained under laboratory conditions. Longevity was determined by recording the survival (interval of 24 h) until all males succumbed to natural mortality.

2.5. Statistical Analysis

Prior to the statistical analysis, data were transformed using arcsine square root (sqrt) and tested for normality and homogeneity. General linear model (GLM) full univariate factorial followed by post hoc Tukey test was used to analyze the influence of the treatments on the parameters of mortality, flight ability, and induced sterility. A Kaplan–Meier survival analysis followed by Mantel–Cox log-rank test was used to analyze longevity in different treatments. Statistical analysis was performed using the Statistical Package for the Social Sciences (SPSS) version 22 for Windows (International Business Machine Corp., Armonk, NY, USA).

3. Results

3.1. Mortality Rate

The statistical analysis showed that mortality of gamma-sterilized male Ae. aegypti was significantly affected by density, temperature, and duration as a single factor. In the two-way interaction, there was no interaction effect on the mortality rate between duration and density, while the effects of duration and temperature differed depending on the level of temperature and density, respectively. Furthermore, in the three-way interaction, the effects density, temperature, and duration differed from the simple sum of their effects (Table 1). The range of mortality percentages, across the different levels of duration and density, varied among the four temperature levels: 5.0 ± 2.6% to 32.5 ± 6.29%, 13.33 ± 3.63% to 38.89 ± 2.82%, 7.5 ± 1.44% to 87.5 ± 6.29%, and 4.58 ± 0.83% to 86.94 ± 3.38% for the temperature levels of 7, 14, 21, and 28 °C, respectively (Table 2). Interactions between the three factors could be seen at lower temperatures (7 and 14 °C), at which mortality showed no difference among all densities at durations from 3 to 24 h then significantly increased at a duration of 48 h. However, at higher temperatures (21 and 28 °C, mortality showed no difference among all densities at durations from 3 to 12 h and from 3 to 6 h at temperatures of 21 and 28 °C, respectively, then significantly increased with increasing duration. In general, mortality significantly increased with increasing density, temperature, and duration of the packaging and simulated transportation treatment. Additionally, the effect of duration on the mortality rate did not differ across the levels of density (df = 8, F = 1.799, p = 0.082) (Table 1); this phenomenon was mainly seen at lower temperatures (7 and 14 °C) (Table 2); however, at higher temperatures (21 and 28 °C) and longer durations (12 to 48 h), mortality significantly increased at the highest density (120 males/2 mL).

3.2. Flight Ability

The flight ability of gamma-sterilized male Ae. aegypti showed a significant reduction compared with both unirradiated–unpacked and irradiated–unpacked controls, except for the duration of 3 h at lower temperatures (7 and 14 °C) (Table 3). The flight ability parameter was significantly affected by a three-way interaction between density, temperature, and duration (df = 24, F = 2.239, p = 0.001) (Table 1). Mean flight ability ranged from 23.44 ± 3.8% to 100.0 ± 0.0%, 34.06 ± 3.76% to 93.13 ± 3.59%, 23.13 ± 4.75% to 82.5 ± 5.1%, and 28.54 ± 0.02% to 80.31 ± 0.04% at temperatures of 7, 14, 21, and 28 °C, respectively (Table 3). Lower temperatures (7 and 14 °C) could maintain the flight ability of more than 70% in all durations except for 48 h. However, keeping the males at 21 °C for, at most, 12 h, and at 28 °C for 3 h resulted in escape rates of more than 70% (Table 3). Generally, flight ability was significantly reduced with increasing density, temperature, and duration.

3.3. Induced Sterility

The density, temperature, duration, and their interaction were negligible factors affecting induced sterility (df = 20, F = 0.474, p = 0.972) (Table 1). The mean induced sterility in all treatments ranged from 95.34 ± 2.27% to 99.52 ± 0.24% and indicated no significant differences (Table 4).

3.4. Longevity under Laboratory Conditions

The survival probability of gamma-sterilized male Ae. aegypti was reduced by all factors of the treatments, i.e., density, temperature, and duration (Figure 1). The mean longevity of the treatment groups was significantly reduced compared with both unirradiated–unpacked and irradiated–unpacked controls. Among the packaging and simulated transportation treatments, the mean longevity ranged from 3.05 ± 0.3 to 6.87 ± 0.43 days, 3.23 ± 0.39 to 6.72 ± 0.49 days, 1.48 ± 0.14 to 7.77 ± 0.49 days, and 1.43 ± 0.14 to 8.04 ± 0.73 days at temperatures of 7, 14, 21, and 28 °C respectively (Table S1). In general, longevity was significantly reduced with increasing density, temperature, and duration of the treatment (log-rank test, p < 0.05) (Table S1). In addition, longevity at densities of between 40 and 80 males/2 mL with lower temperatures (7 and 14 °C) and the same duration showed no significant difference, except for durations of 12 h and 48 h at temperatures of 7 and 14 °C, respectively.

4. Discussion

Handling, packaging, and transporting male insects are critical steps in SIT programs. Considering the fragility of mosquitoes, it is challenging to maintain the quality of the sterile male specimens during handling, packaging, and transport. The main objective of packaging and transportation development is to construct appropriate methods associated with easy handling, space efficiency, and suitable conditions that can maintain the quality of the sterile male mosquitoes in long-term transportation. The authors of the present study investigated key factors that potentially influence the packaging and transporting of gamma-sterilized male Ae. aegypti, i.e., compaction, temperature, and duration, at the laboratory scale. In addition, we simulated packaging and transportation; subsequently, we observed the sensitivity of sterile male Ae. aegypti to the packaging and transportation factors of treatments i.e., mortality, flight ability, longevity, and induced sterility.
In the present study, the mortality rate of gamma-sterilized male Ae. aegypti in all treatments ranged from 5.0 ± 2.6% to 87.5 ± 6.29% and showed a tendency to significantly increase with increases in density, temperature, and duration of the packaging and simulated transportation. However, no difference was found between the densities of 40 and 80 males/2 mL (Table 2), so the density of 80 males/2 mL is better from a performance point of view. We found that a temperature of 7 °C and a density of 80 males/2 mL comprised the optimal setup with the smallest effect on the mortality of the gamma-sterilized male Ae. aegypti, which was less than 20% at all durations (Table 2). These findings are close to those of previous studies, which showed that temperatures ranging from 7 to 10 °C during transportation resulted in maintaining the survival of Ae. aegypti [41,43]. Regarding species, previous studies showed that Ae. albopictus also have a similar tolerance to temperatures from 7 to 10 °C for packing and transportation [43,45]. In addition, An. arabiensis could be immobilized at a temperature ranging from 4 to 10 °C for durations of up to 24 h without any significant adverse impacts [42]. Our findings are also close to those resulting from the temperature treatments used to maintain Mediterranean fruit flies [46] and tsetse fly Glossina palpalis gambiensis [47] for long-distance transportation (around 10 °C).
Flight ability is one of the essential quality attributes of sterile male insects in SIT programs. This parameter is associated with the ability of sterile males to disperse, survive, find food, and seek and mate wild-type females in the field, which determines the success of SIT implementation [48]. In this study, the flight ability of gamma-sterilized male Ae. aegypti was significantly affected by all treatment factors, i.e., density, temperature, and duration. In general, flight ability was considerably reduced with increases in density, temperature, and duration. However, no difference was found between densities of 40 and 80 males/2 mL. We found that a temperature of 7 °C and a density of 80 males/2 mL with a duration of no more than 24 h comprised the optimal setup which could maintain the flight ability from 78.13 ± 1.49% to 100.00 ± 0.0% (Table 3). A similar result was reported by Mastronikolos et al. [45], who transported irradiated male Ae. albopictus from Italy to Greece by compacting them at temperatures of 8 to 14 °C. They found that this temperature treatment during transportation could maintain the flight ability by more than 60%. In addition, the chilled temperature treatment during packaging and transportation was expected to lead to an immobilization state, reducing interaction and friction among individual gamma-sterilized male mosquitoes inside the compaction packing device. Such friction may lead the physical damage, including missing scales, head damage, abdomen damage, wing damage, antenna damage, and leg damage that potentially reduce flight ability [41].
Regarding induced sterility, we found that the factors during packaging and simulated transportation treatments, i.e., density, temperature, and duration, did not affect male Ae. aegypti’s sterility. Induced sterility ranged from 95.34 ± 2.27% to 99.52 ± 0.24%; however, there was no statistical difference (Table 4). In the present study, based on our previous study, the gonad cells of male Ae. aegypti were exposed to gamma irradiation at a dose of 70 Gy (Cobalt-60), therefore causing dominant lethal mutation, to induce sterility [40]. In the SIT, sterility can be defined as any complete or partial structural or functional failure to produce gametes or viable zygotes that can be induced by ionizing energy such as gamma irradiation [49,50]. Based on the data presented here, density, temperature, and duration probably only affect somatic cells, thus affecting the physical and fitness of gamma-sterilized male Ae. aegypti, but not affecting gonad cells to induce sterility. Our findings are similar to those of a previous study conducted by Sasmita et al. [51], who reported that packing and transportation treatment did not affect the induced sterility of gamma-sterilized male Ae. aegypti.
The longevity of sterile male mosquitoes post-packaging and simulated transportation treatments is correlated to survivability and mating performance and is important for the success of SIT programs [52]. In the present study, the longevity of gamma-sterilized male Ae. aegypti was affected by packaging and transportation treatments and showed a significant reduction with increasing density, temperature, and duration; however, there was no difference between the densities of 40 and 80 males/2 mL. Based on our results, temperatures of 7 and 14 °C and a density of 80 males/2 mL may comprise the optimal conditions for transporting gamma-sterilized male Ae. aegypti, as these conditions maintained a mean longevity ranging from 4.24 ± 0.29 to 5.89 ± 0.42 days (Table S1). Lower temperatures immobilized male Ae. aegypti and minimized physical damage, resulting in the maintenance of longevity post-transportation. Our findings are consistent with those of previous studies showing that lower temperatures during transportation could maintain the survival and longevity of mosquitoes, including Ae. aegypti at temperatures ranging from 7 to 14 °C [41,43], Ae. albopictus at temperatures ranging from 8 to 14 °C [45], and An. arabiensis at temperatures ranging from 4 to 10 °C [42]. Regarding a nonchilled temperature setup, a previous study by Sasmita et al. [51] found that an eight hours of land transportation (temperatures ranging from 22 to 26 °C) could maintain the longevity of gamma-sterilized male Ae. aegypti from 5.4 to 9.1 days on average. However, longer durations must be investigated for practical purposes.
We were able to measure the fitness and quality of the males using induced sterility and other factors reflecting physical ability and survival, i.e., flight ability, longevity, and mortality, despite the mating competitiveness index not being present in our data set due to the number of dependent variables and their combinations. Our experimental data revealed that lower temperature setups (7 and 14 °C) during packaging and simulated transportation could maintain the quality of gamma-sterilized male Ae. aegypti, as assessed through mortality, flight ability, induced sterility, and longevity. We advise that a temperature of 7 °C be used to immobilize and maintain sterile male Ae. aegypti for short-term transportation periods (up to 24 h). As a rule, insects are poikilothermic. Hence, their body temperature is influenced by environmental temperature. A chilling temperature treatment during packaging and transportation causes a quiescence condition and a reduced metabolism rate, consequently reducing the growth and developmental rate of gamma-sterilized male Ae. aegypti [53]. In addition, this chilling temperature was shown to cause immobilization and to prevent lost energy reserve due to movement inside the packaging device. Moreover, it was shown to prevent friction, which potentially causes physical damage [51]. The knock-out time related to the temperature changes can be immediate. A study on An. arabiensis showed that an immediate change of temperature from room temperature to between 2 and 11 °C only took from 12 ± 3.6 to 25 ± 2.5 s for complete immobilization [42].
Compaction treatment could be a breakthrough, considering the space efficiency issue in developing packaging and transportation methods for mosquitoes in SIT programs. From a compaction perspective, the key point is finding an optimal density for packaging and transportation that can maintain the quality of sterile male mosquitoes. In the present study, gamma-sterilized male Ae. aegypti were compacted into Falcon tubes with densities of 40, 80, and 120 males/2 mL. The densities in our recent study were not realistic for operational SIT programs. Nevertheless, the results were adequate to prove that the increasing density during transportation was detrimental to the quality of gamma-sterilized male Ae. aegypti, except for the induced sterility parameter. Increasing density resulted in higher mortality and reduced flight ability and longevity. However, no differences were found between the densities of 40 and 80 males/2 mL. In combination with temperature and duration factors, we recommend that 80 males/2 mL be selected as the optimal density for compaction treatment during the short-term transportation of sterile male Ae. aegypti. Higher densities cause sterile male mosquitoes to the crowd, potentially causing physical damage and consequently reducing quality parameters [41] and mating competitiveness [54]. Meanwhile, lower densities are postulated to create space inside the packaging device, potentially causing physical interactions and friction due to vibration during transportation and consequently inducing physical damage and reducing the quality of gamma-sterilized male Ae. aegypti. Our findings are similar to those reported by Chung et al. [41], in that a density of 40 males/cm3 maintained the survival of more than 80% packed male Ae. aegypti using Falcon tubes at a temperature of 7 °C.
In this study, compaction, temperature, and duration factors were combined in the assessment of the packaging and transportation treatment of gamma-sterilized male Ae. aegypti. Based on the data presented here, we found that compaction with a density of 80 males/2 mL, a temperature of 7 °C, and short-term transportation (no longer than 24 h), comprising an appropriate setup for packaging, could maintain the quality of gamma-sterilized male Ae. aegypti. Immobilization at chilling temperatures and compaction treatments are beneficial in maintaining the quality and space efficiency of sterile male Ae. aegypti in packaging and transportation methods in operational SIT programs.

5. Conclusions

The results of experiments of the present study revealed that compaction density, temperature, and duration factors in packaging and simulated transportation treatments significantly affected the quality of gamma-sterilized male Ae. aegypti regarding mortality, flight ability, and longevity. We found that a temperature of 7 °C and a compaction density of 80 males/2 mL could maintain the longevity and quality of gamma-sterilized male Ae. aegypti, with a mortality rate of less than 20%, a flight ability of at least 70%, and an induced sterility of around 98%. Consequently, based on our results, we recommend a temperature of 7 °C, a compaction density of 80 males/2 mL, and short-term transportation (no more than 24 h) as an appropriate treatment for the packaging of sterile male Ae. aegypti in SIT programs. However, this study has not been able to answer whether the vibration factor during transportation affects the quality of mosquitoes. Therefore, further study on the effect of vibration during transportation is needed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects13090847/s1, Table S1: Mean longevity of gamma-sterilized male Ae. aegypti post-treatment.

Author Contributions

Conceptualization, B.E., T.A, H.I.S. and I.A.; methodology, B.E., T.A., H.I.S. and I.A.; software, B.E.; validation, B.E., T.A., H.I.S. and I.A.; formal analysis, B.E. and H.I.S.; investigation, B.E., T.A., S.Y., H.I.S., N.F. and I.A.; resources, B.E. and I.A.; data curation, B.E., S.Y. and N.F.; writing—original draft preparation, B.E.; writing—review and editing, B.E., H.I.S., T.A. and I.A.; visualization, B.E. and H.I.S.; supervision, T.A. and I.A.; project administration, S.Y. and N.F.; funding acquisition, B.E. and H.I.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Research Center for Radiation Process Technology, Research Organization for Nuclear Energy, National Research and Innovation Agency of Indonesia (BRIN). The Article Processing Charge was funded by International Atomic Energy Agency (IAEA) through Coordinated Research Project (CRP) D44002 “Mosquito handling, transport, release and male trapping methods”.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Material.

Acknowledgments

The authors would like to thank the National Research and Innovation Agency of Indonesia (BRIN) for the Saintek doctoral scholarship program given to B.E. We also would like to thank the International Atomic Energy Agency (IAEA) through the Coordinated Research Project (CRP) D44002 “Mosquito handling, transport, release and male trapping methods” for additional funding (Contract No. 19098). We also would like to thank the reviewers for their thoughtful comments and suggestion, which helped improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Powell, J. Mosquitoes: New contender for most lethal animal. Nature 2016, 540, 525. [Google Scholar] [CrossRef] [PubMed]
  2. Mayer, S.V.; Tesh, R.B.; Vasilakis, N. The emergence of arthropod-borne viral diseases: A global prospective on dengue, chikungunya and zika fevers. Acta Trop. 2017, 166, 155–163. [Google Scholar] [CrossRef] [PubMed]
  3. Harrington, L.C.; Scott, T.W.; Lerdthusnee, K.; Coleman, R.C.; Costero, A.; Clark, G.G.; Jones, J.J.; Kitthawee, S.; Kittayapong, P.; Sithiprasasna, R.; et al. Dispersal of the dengue vector Aedes aegypti within and between rural communities. Am. J. Trop. Med. Hyg. 2005, 72, 209–220. [Google Scholar] [CrossRef] [PubMed]
  4. Jansen, C.C.; Beebe, N.W. The dengue vector Aedes aegypti: What comes next. Microbes Infect. 2010, 12, 272–279. [Google Scholar] [CrossRef]
  5. Powell, J.R.; Gloria-Soria, A.; Kotsakiozi, P. Recent history of Aedes aegypti: Vector genomics and epidemiology records. Bioscience 2018, 68, 854–860. [Google Scholar] [CrossRef] [PubMed]
  6. Soghigian, J.; Gloria-Soria, A.; Robert, V.; Le Goff, G.; Failloux, A.B.; Powell, J.R. Genetic evidence for the origin of Aedes aegypti, the yellow fever mosquito, in the southwestern Indian Ocean. Mol. Ecol. 2020, 29, 3593–3606. [Google Scholar] [CrossRef] [PubMed]
  7. Bhatt, S.; Gething, P.W.; Brady, O.J.; Messina, J.P.; Farlow, A.W.; Moyes, C.L.; Drake, J.M.; Brownstein, J.S.; Hoen, A.G.; Sankoh, O.; et al. The global distribution and burden of dengue. Nature 2013, 496, 504–507. [Google Scholar] [CrossRef]
  8. Wilder-Smith, A.; Ooi, E.E.; Vasudevan, S.G.; Gubler, D.J. Update on dengue: Epidemiology, virus evolution, antiviral drugs, and vaccine development. Curr. Infect. Dis. Rep. 2010, 12, 157–164. [Google Scholar] [CrossRef]
  9. Morrison, A.C.; Zielinski-Gutierrez, E.; Scott, T.W.; Rosenberg, R. Defining challenges and proposing solutions for control of the virus vector Aedes aegypti. PLoS Med. 2008, 5, e68. [Google Scholar] [CrossRef]
  10. Messina, J.P.; Brady, O.J.; Golding, N.; Kraemer, M.U.; Wint, G.R.; Ray, S.E.; Pigott, D.M.; Shearer, F.M.; Johnson, K.; Earl, L.; et al. The current and future global distribution and population at risk of dengue. Nat. Microbiol. 2019, 4, 1508–1515. [Google Scholar] [CrossRef] [Green Version]
  11. Deming, R.; Manrique-Saide, P.; Barreiro, A.M.; Cardeña, E.U.K.; Che-Mendoza, A.; Jones, B.; Liebman, K.; Vizcaino, L.; Vazquez-Prokopec, G.; Lenhart, A. Spatial variation of insecticide resistance in the dengue vector Aedes aegypti presents unique vector control challenges. Parasit. Vectors 2016, 9, 67–77. [Google Scholar] [CrossRef] [PubMed]
  12. Klassen, W.; Vreysen, M.J.B. Area-wide integrated pest management and the sterile insect technique. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 75–112. [Google Scholar]
  13. Nelson, C.; Esch, E.; Kimmie, S.; Tesche, M.; Philip, H.; Arthur, S. Putting the sterile insect technique into the modern integrated pest management toolbox to control the codling moth in Canada. In Area-Wide Integrated Pest Management; Hendrich, J., Pereira, R., Vreysen, M.J.B., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 111–127. [Google Scholar]
  14. Klassen, W.; Curtis, C.F.; Hendrichs, J. History of the sterile insect technique. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 1–44. [Google Scholar]
  15. Enkerlin, W.R. Impact of Fruit Fly Control Programmes Using the Sterile Insect Technique. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 979–1006. [Google Scholar]
  16. Vargas-Terán, M.; Spradbery, J.P.; Hofmann, H.C.; Tweddle, N.E. Impact of Screwworm Eradication Programmes Using the Sterile Insect Technique. In Area-Wide Integrated Pest Management; Hendrich, J., Pereira, R., Vreysen, M.J.B., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 949–978. [Google Scholar]
  17. Benedict, M.Q.; Robinson, A.S. The first releases of transgenic mosquitoes: An argument for the sterile insect technique. Trends Parasitol. 2003, 19, 349–355. [Google Scholar] [CrossRef]
  18. Bouyer, J.; Lefrançois, T. Boosting the sterile insect technique to control mosquitoes. Trends Parasitol. 2014, 30, 271–273. [Google Scholar] [CrossRef]
  19. Lees, R.S.; Gilles, J.R.L.; Hendrichs, J.; Vreysen, M.J.B.; Bourtzis, K. Back to the future: The sterile insect technique against mosquito disease vectors. Curr. Opin. Insect Sci. 2015, 10, 156–162. [Google Scholar] [CrossRef]
  20. Bellini, R.; Medici, A.; Puggioli, A.; Balestrino, F.; Carrieri, M. Pilot field trials with Aedes albopictus irradiated sterile males in Italian urban areas. J. Med. Entomol. 2013, 50, 317–325. [Google Scholar] [CrossRef]
  21. Kittayapong, P.; Ninphanomchai, S.; Limohpasmanee, W.; Chansang, C.; Chansang, U.; Mongkalangoon., P. Combined sterile insect technique and incompatible insect technique: The first proof of concept to suppress Aedes aegypti vector populations in semi-rural settings in Thailand. PLoS Negl. Trop. Dis. 2019, 13, e0007771. [Google Scholar] [CrossRef] [PubMed]
  22. Zheng, X.; Zhang, D.; Li, Y.; Yang, C.; Wu, Y.; Liang, X.; Liang, Y.; Pan, X.; Hu, L.; Sun, Q.; et al. Incompatible and sterile insect techniques combined eliminate mosquitoes. Nature 2019, 572, 56–61. [Google Scholar] [CrossRef]
  23. Balatsos, G.; Puggioli, A.; Karras, V.; Lytra, I.; Mastronikolos, G.; Carrieri, M.; Papachristos, D.P.; Malfacini, M.; Stefopoulou, A.; Ioannou, C.S.; et al. Reduction in egg fertility of Aedes albopictus mosquitoes in Greece following releases of imported sterile males. Insects 2021, 12, 110. [Google Scholar] [CrossRef]
  24. Gato, R.; Menéndez, Z.; Prieto, E.; Argilés, R.; Rodríguez, M.; Baldoquín, W.; Hernández, Y.; Pérez, D.; Anaya, J.; Fuentes, I.; et al. Sterile insect technique: Successful suppression of an Aedes aegypti field population in Cuba. Insects 2021, 12, 469. [Google Scholar] [CrossRef]
  25. Bourtzis, K.; Vreysen, M.J.B. Sterile insect technique (SIT) and its applications. Insects 2021, 12, 638. [Google Scholar] [CrossRef]
  26. Becker, N.; Langentepe-Kong, S.M.; Tokatlian Rodriguez, A.; Oo, T.T.; Reichle, D.; Lühken, R.; Schmidt-Chanasit, J.; Lüthy, P.; Puggioli, A.; Bellini, R. Integrated control of Aedes albopictus in Southwest Germany supported by the Sterile Insect Technique. Parasit. Vectors 2022, 15, 9. [Google Scholar] [CrossRef] [PubMed]
  27. Benedict, M.Q. Sterile insect technique: Lessons from the past. J. Med. Entomol. 2021, 58, 1974–1979. [Google Scholar] [CrossRef] [PubMed]
  28. Balestrino, F.; Benedict, M.Q.; Gilles, J.R.L. A new larval tray and rack system for improved mosquito mass rearing. J. Med. Entomol. 2012, 49, 595–605. [Google Scholar] [CrossRef]
  29. Balestrino, F.; Puggioli, A.; Bellini, R.; Petric, D.; Gilles, J.R.L. Mass production cage for Aedes albopictus (Diptera: Culicidae). J. Med. Entomol. 2014, 51, 155–163. [Google Scholar] [CrossRef] [PubMed]
  30. Damiens, D.; Benedict, M.Q.; Wille, M.; Gilles, J.R.L. An inexpensive and effective larval diet for Anopheles arabiensis Diptera: Eat like a horse, a bird or a fish? J. Med. Entomol. 2012, 49, 1001–1011. [Google Scholar] [CrossRef]
  31. Zheng, M.L.; Zhang, D.J.; Damiens, D.D.; Lees, R.S.; Gilles, J.R.L. Standard operating procedures for standardized mass rearing of the dengue and chikungunya vectors Aedes aegypti and Aedes albopictus (Diptera: Culicidae)-II-Egg storage and hatching. Parasit. Vectors 2015, 8, 348. [Google Scholar] [CrossRef]
  32. Culbert, N.; Balestrino, F.; Dor, A.; Herranz, G.S.; Yamada, H.; Wallner, T.; Bouyer, J. A rapid quality control test to foster the development of genetic control in mosquitoes. Sci. Rep. 2018, 8, 16179. [Google Scholar] [CrossRef]
  33. Sasmita, H.I.; Tu, W.C.; Bong, L.J.; Neoh, K.B. Effects of larval diets and temperature regimes on life history traits, energy reserves and temperature tolerance of male Aedes aegypti (Diptera: Culicidae): Optimizing rearing techniques for the sterile insect programmes. Parasit. Vectors 2019, 12, 578. [Google Scholar] [CrossRef]
  34. Tur, C.; Almenar, D.; Benlloch-Navarro, S.; Argilés-Herrero, R.; Zacarés, M.; Dalmau, V.; Pla, I. Sterile insect technique in an integrated vector management program against tiger mosquito Aedes albopictus in the valencia region (Spain): Operating procedures and quality control parameters. Insects 2021, 12, 272. [Google Scholar] [CrossRef]
  35. Bellini, R.; Balestrino, F.; Medici, A.; Gentile, G.; Veronesi, R.; Carrieri., M. Mating competitiveness of Aedes albopictus radio-sterilized males in large enclosures exposed to natural conditions. J. Med. Entomol. 2013, 50, 94–102. [Google Scholar] [CrossRef] [Green Version]
  36. Maïga, H.; Damiens, D.; Niang, A.; Sawadogo, S.P.; Fatherhaman, O.; Lees, R.S.; Roux, O.; Dabiré, R.K.; Ouédraogo, G.A.; Tripet, F.; et al. Mating competitiveness of sterile male Anopheles coluzzii in large cages. Malar. J. 2014, 13, 460–465. [Google Scholar] [CrossRef] [PubMed]
  37. Bond, J.G.; Osorio, A.R.; Avila, N.; Gómez-Simuta, Y.; Marina, C.F.; Fernández-Salas, I.; Liedo, P.; Dor, A.; Carvalho, D.O.; Bourtzis, K.; et al. Optimization of irradiation dose to Aedes aegypti and Ae. albopictus in a sterile insect technique program. PLoS ONE 2019, 14, e0212520. [Google Scholar]
  38. Yamada, H.; Maiga, H.; Juarez, J.; Carvalho, D.O.; Mamai, W.; Ali, A.; Bimbile-Somda, N.S.; Parker, A.G.; Zhang, D.; Bouyer, J. Identification of critical factors that significantly affect the dose-response in mosquitoes irradiated as pupae. Parasit. Vectors 2019, 12, 435. [Google Scholar] [CrossRef] [PubMed]
  39. Yamada, H.; Maiga, H.; Bimbile-Somda, N.S.; Carvalho, D.O.; Mamai, W.; Kraupa, C.; Parker, A.G.; Abrahim, A.; Weltin, G.; Wallner, T.; et al. The role of oxygen depletion and subsequent radioprotective effects during irradiation of mosquito pupae in water. Parasit. Vectors 2020, 13, 198. [Google Scholar] [CrossRef] [PubMed]
  40. Ernawan, B.; Anggraeni, T.; Yusmalinar, S.; Ahmad, I. Investigation of developmental stage/age, gamma irradiation dose, and temperature in sterilization of male Aedes aegypti (Diptera: Culicidae) in a sterile insect technique program. J. Med. Entomol. 2022, 59, 320–327. [Google Scholar] [CrossRef]
  41. Chung, H.N.; Rodriguez, S.D.; Gonzales, K.K.; Vulcan, J.; Cordova, J.J.; Mitra, S.; Adams, C.G.; Moses-Gonzales, N.; Tam, N.; Cluck, J.W.; et al. Toward implementation of mosquito sterile insect technique: The effect of storage conditions on survival of male Aedes aegypti mosquitoes (Diptera: Culicidae) during transport. J. Insect Sci. 2018, 18, 2. [Google Scholar] [CrossRef]
  42. Culbert, N.J.; Lees, R.S.; Vreysen, M.J.B.; Darby, A.C.; Gilles, J.R.L. Optimised conditions for handling and transport of male Anopheles arabiensis: Effects of low temperature, compaction, and ventilation on male quality. Entomol. Exp. Appl. 2017, 164, 276–283. [Google Scholar] [CrossRef]
  43. Culbert, N.J.; Gilles, J.R.L.; Bouyer, J. Investigating the impact of chilling temperature on male Aedes aegypti and Aedes albopictus survival. PLoS ONE 2019, 14, e0221822. [Google Scholar] [CrossRef]
  44. FAO/IAEA. Guidelines for Mark-Release-Recapture Procedures of Aedes Mosquitoes; Bouyer, J., Balestrino, F., Culbert, N., Yamada, H., Argilés, R., Eds.; Food and Agriculture Organization of the United Nations/International Atomic Energy Agency: Vienna, Austria, 2020; Available online: https://www.iaea.org/sites/default/files/guidelines-for-mrr-aedes_v1.0.pdf (accessed on 28 May 2022).
  45. Mastronikolos, G.D.; Kapranas, A.; Balatsos, G.K.; Ioannou, C.; Papachristos, D.P.; Milonas, P.G.; Puggioli, A.; Pajović, I.; Petrić, D.; Bellini, R.; et al. Quality control methods for Aedes albopictus sterile male transportation. Insects 2022, 13, 179. [Google Scholar] [CrossRef]
  46. Zavala-Lopez, J.L.; Enkerlin, W.R. Guidance for Packing, Shipping, Holding and Release of Sterile Flies in Area-Wide Fruit Fly Control Programmes, 2nd ed.; Food and Agriculture Organization; International Atomic Energy Agency: Vienna, Austria, 2017; Available online: https://www.iaea.org/sites/default/files/guideline-for-packing-sept2017.pdf (accessed on 28 May 2022).
  47. Pagabeleguem, S.; Seck, M.T.; Sall, B.; Vreysen, M.J.B.; Gimonneau, G.; Fall, A.G.; Bassene, M.; Sidibé, I.; Rayaissé, J.B.; Belem, A.M.; et al. Long distance transport of irradiated male Glossina palpalis gambiensis pupae and its impact on sterile male yield. Parasit. Vectors 2015, 8, 259. [Google Scholar] [CrossRef]
  48. Parker, A.G.; Vreysen, M.J.B.; Bouyer, J.; Calkins, C.O. Sterile insect quality control/assurance. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 399–440. [Google Scholar]
  49. Bakri, A.; Mehta, K.; Lance, D.R. Sterilizing insects with ionizing radiation. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 355–398. [Google Scholar]
  50. Robinson, A.S. Genetic basis of the sterile insect technique. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 143–162. [Google Scholar]
  51. Sasmita, H.I.; Ernawan, B.; Sadar, M.; Nasution, I.A.; Indarwatmi, M.; Tu, W.C.; Neoh, K.B. Assessment of packing density and transportation effect on sterilized pupae and adult Aedes aegypti (Diptera: Culicidae) in nonchilled conditions. Acta Trop. 2022, 226, 106243. [Google Scholar] [CrossRef] [PubMed]
  52. Lance, D.R.; McInnis, D.O. Biological basis of the sterile insect technique. In Sterile Insect Technique, 2nd ed.; Dyck, V.A., Hendrichs, J., Robinson, A.S., Eds.; CRC Press: Boca Raton, FL, USA, 2021; pp. 113–142. [Google Scholar]
  53. Gullan, P.J.; Cranston, P.S. The Insects an Outline of Entomology; John Wiley and Sons, Ltd.: West Sussex, UK, 2014. [Google Scholar]
  54. Iyaloo, D.P.; Facknath, S.; Bheecarry, A. Investigating the effects of low temperature and compaction on the quality of adult radio-sterilised Aedes albopictus (Diptera: Culicidae) males in view of their optimal transport to the pilot sterile release site in Mauritius. Int. J. Trop. Insect Sci. 2020, 40, 53–62. [Google Scholar] [CrossRef]
Insects 13 00847 g001 550

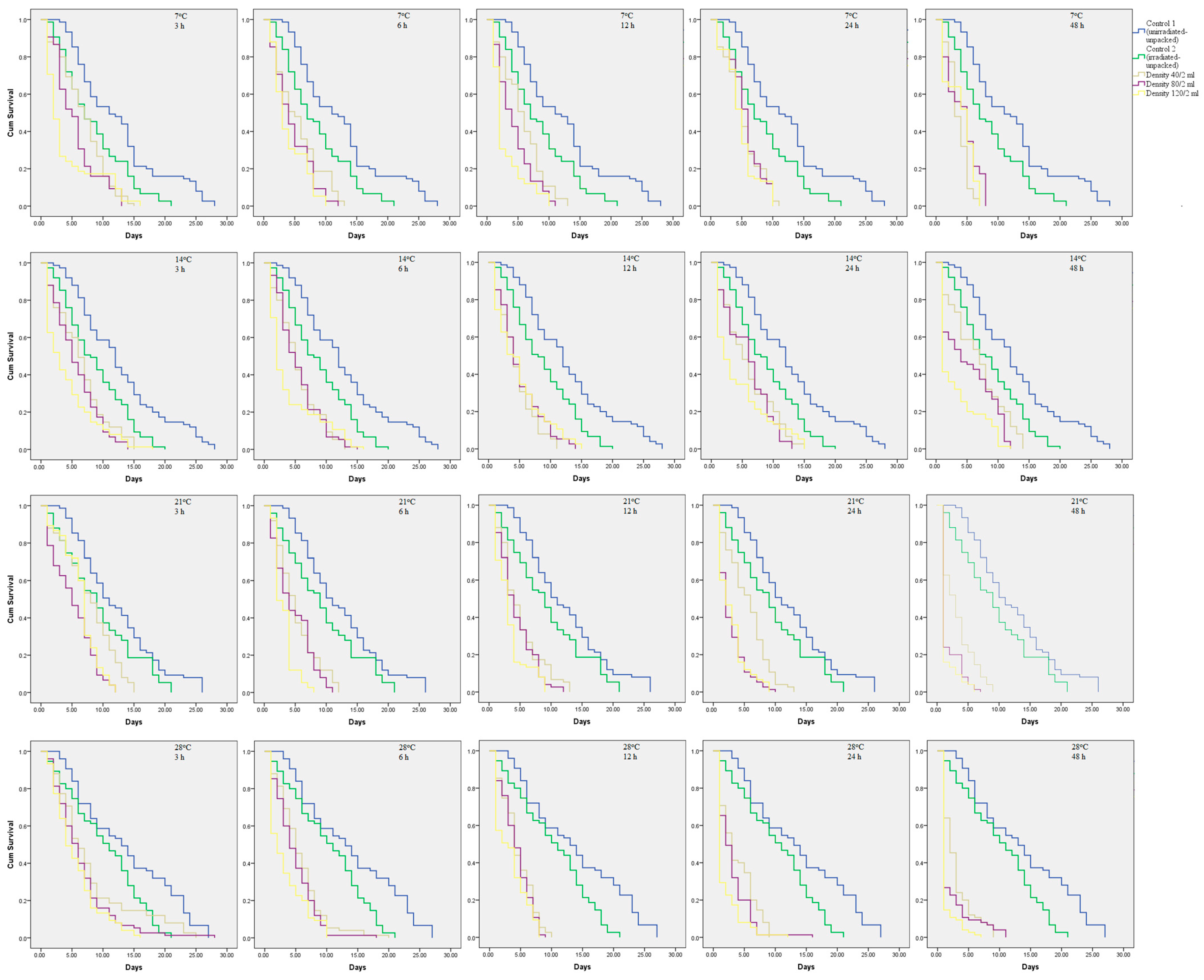

Figure 1. Kaplan–Meier survival curve of gamma-sterilized male Ae. aegypti post-treatment. X- and Y-axes represent days and cumulative survival, respectively. Blue, green, grey, purple, and yellow lines represent control 1 (unirradiated–unpacked), control 2 (irradiated–unpacked), and densities of 40, 80, and 120 males/2 mL, respectively.
Figure 1. Kaplan–Meier survival curve of gamma-sterilized male Ae. aegypti post-treatment. X- and Y-axes represent days and cumulative survival, respectively. Blue, green, grey, purple, and yellow lines represent control 1 (unirradiated–unpacked), control 2 (irradiated–unpacked), and densities of 40, 80, and 120 males/2 mL, respectively.
Insects 13 00847 g001
Table
Table 1. The GLM analysis results regarding the effects of density, temperature, and duration factors on mortality, flight ability, and induced sterility of gamma-sterilized male Ae. aegypti.
Table 1. The GLM analysis results regarding the effects of density, temperature, and duration factors on mortality, flight ability, and induced sterility of gamma-sterilized male Ae. aegypti.
ParameterFactordfMean SquareFp-Value
MortalityDensity3447.63312.123<0.0001
Temperature32024.21754.822<0.0001
Duration411,239.344304.398<0.0001
Duration–Density866.4291.7990.082
Duration–Temperature122014.88454.57<0.0001
Temperature–Density6362.589.82<0.0001
Duration–Temperature–Density24108.8062.9470.001
Flight abilityDensity3296.2454.5780.004
Temperature37582.074117.178<0.0001
Duration419,054.591294.482<0.0001
Duration–Density8413.7966.395<0.0001
Duration–Temperature12664.05610.263<0.0001
Temperature–Density6392.486.066<0.0001
Duration–Temperature–Density24144.8912.2390.001
IS #Density20.9740.6210.539
Temperature32.8361.8080.149
Duration41.1250.7170.582
Duration–Density80.7030.4480.89
Duration–Temperature101.9731.2580.262
Temperature–Density60.9440.6020.728
Duration–Temperature–Density200.7440.4740.972
Notes: # Abbreviation: IS, induced sterility. p < 0.05 indicates significance.
Table
Table 2. Mean mortality of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Table 2. Mean mortality of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Treatments (Density and Duration)Mean Mortality ± SE (%)
7 °C14 °C21 °C28 °C
* Control 1 (unirradiated–unpacked)0.00 ± 0.00 aA0.42 ± 0.42 aA0.00 ± 0.00 aA0.42 ± 0.42 aA
* Control 2 (irradiated–unpacked)0.83 ± 0.83 aA1.67 ± 0.42 abA1.25 ± 0.72 aA1.67 ± 0.83 aA
Density 40 males/2 mL3 h20.0 ± 5.2 abAα16.67 ± 3.63 abcAα9.17 ± 3.63 aAα7.5 ± 1.44 aAα
6 h20.83 ± 8.33 abAα13.33 ± 3.63 abcAα7.5 ± 2.89 aAα7.5 ± 1.44 aAα
12 h25.83 ± 5.83 bBα20.83 ± 4.41 bcABα7.5 ± 1.44 aAα17.5 ± 2.89 bABα
24 h17.5 ± 3.82 abAα20.83 ± 7.26 bcABα10.0 ± 2.89 aAα40.83 ± 2.2 cBα
48 h32.5 ± 6.29 bAα22.5 ± 3.82 cAα84.17 ± 5.07 bBα68.33 ± 2.2 dBα
* Control 1 (unirradiated–unpacked)0.00 ± 0.00 aA0.42 ± 0.42 aA0.00 ± 0.00 aA0.42 ± 0.42 aA
* Control 2 (irradiated–unpacked)0.83 ± 0.83 abA1.67 ± 0.42 aA1.25 ± 0.72 aA1.67 ± 0.83 abA
Density 80 males/2 mL3 h5.0 ± 2.6 abAα17.92 ± 3.97 bBα10.42 ± 1.1 abABα4.58 ± 0.83 abAα
6 h14.58 ± 1.1 cdAα15.42 ± 4.23 bAα17.5 ± 0.72 bAα13.75 ± 0.72 bcAβ
12 h9.17 ± 3.41 bAα17.5 ± 1.91 bAα8.75 ± 2.6 abAα17.5 ± 0.72 cAα
24 h16.67 ± 0.83 cdAα16.67 ± 1.1 bAα36.67 ± 1.82 cBβ35.42 ± 1.1 dBα
48 h18.33 ± 1.8 dAα38.75 ± 1.25 cAβ87.5 ± 6.29 dBα80.83 ± 6.47 eBα
* Control 1 (unirradiated–unpacked)0.00 ± 0.00 aA0.42 ± 0.42 aA0.00 ± 0.00 aA0.42 ± 0.42 aA
* Control 2 (irradiated–unpacked)0.83 ± 0.83 aA1.67 ± 0.42 aA1.25 ± 0.72 aA1.67 ± 0.83 aA
Density 120 males/2 mL3 h25.0 ± 10.49 bAα24.44 ± 0.73 bAα8.33 ± 1.27 abAα6.11 ± 1.0 aAα
6 h13.06 ± 2.42 abABα22.78 ± 2.37 bBCα9.72 ± 2.82 abAα32.78 ± 1.47 bCɣ
12 h16.94 ± 5.05 abAα21.94 ± 2.27 bABα22.5 ± 1.44 bABβ31.11 ± 0.73 bBβ
24 h9.44 ± 1.94 abAα27.78 ± 0.73 bABα28.89 ± 9.69 bABαβ50.0 ± 0.96 cBβ
48 h29.72 ± 4.34 bAα38.89 ± 2.82 cAβ85.56 ± 5.3 cBα86.94 ± 3.38 dBα
* Control 1 and control 2 were not packed and exposed to temperature treatment. The same lowercase, uppercase, and symbol indicate no significant difference within the same density and temperature, the same duration and density, and the same duration and temperature, respectively (one-way ANOVA post hoc Tukey, p = 0.05).
Table
Table 3. Mean flight ability of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Table 3. Mean flight ability of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Treatments (Density and Duration)Mean Flight Ability ± SE (%)
7 °C14 °C21 °C28 °C
* Control 1 (unirradiated–unpacked)100.00 ± 0.00 cA99.38 ± 0.36 dA99.69 ± 0.31 bA98.75 ± 0.88 dA
* Control 2 (irradiated–unpacked)99.06 ± 0.31 cA99.06 ± 0.6 dA99.06 ± 0.6 bA98.44 ± 0.31 dA
Density 40 males/2 mL3 h99.38 ± 0.63 cBα93.13 ± 3.59 cdABα82.5 ± 5.1 bAα77.5 ± 4.79 cAα
6 h96.25 ± 1.61 cBβ86.25 ± 1.61 cdBαβ82.5 ± 5.1 bBα54.38 ± 0.05 bAα
12 h85.63 ± 3.13 bcBα82.5 ± 4.89 bcBα77.5 ± 4.89 bBα39.38 ± 0.07 abAα
24 h73.75 ± 5.05 abBα70.63 ± 3.44 abBα38.75 ± 9.71 aAα38.13 ± 0.03 abAα
48 h59.38 ± 6.16 aBβ57.5 ± 4.56 aBβ28.13 ± 6.07 aAα31.25 ± 0.04 aAα
* Control 1 (unirradiated–unpacked)100.00 ± 0.00 dA99.38 ± 0.36 cA99.69 ± 0.31 cA98.75 ± 0.88 eA
* Control 2 (irradiated–unpacked)99.06 ± 0.31 dA99.06 ± 0.6 cA99.06 ± 0.6 cA98.44 ± 0.31 eA
Density 80 males/2 mL3 h100.0 ± 0.0 dBα92.5 ± 0.72 cBα78.13 ± 3.63 bcAα80.31 ± 0.04 dAα
6 h89.69 ± 1.87 cBCα90.94 ± 3.73 cCβ78.44 ± 3.08 bcBα66.56 ± 0.02 cdAα
12 h78.13 ± 1.49 bBα65.0 ± 8.37 bABα81.25 ± 5.54 bcBα48.44 ± 0.03 abAα
24 h79.06 ± 2.25 bAα72.81 ± 1.93 bAα62.19 ± 9.46 bAα57.19 ± 0.05 bcAβ
48 h23.44 ± 3.83 aAα34.06 ± 3.76 aAα23.13 ± 4.75 aAα34.69 ± 0.06 aAα
* Control 1 (unirradiated–unpacked)100.00 ± 0.00 dA99.38 ± 0.36 cA99.69 ± 0.31 cA98.75 ± 0.88 dA
* Control 2 (irradiated–unpacked)99.06 ± 0.31 dA99.06 ± 0.6 cA99.06 ± 0.6 cA98.44 ± 0.31 dA
Density 120 males/2 mL3 h99.79 ± 0.21 dBα90.63 ± 1.97 cBα70.83 ± 3.45 bAα70.0 ± 0.02 cAα
6 h88.75 ± 1.3 cAα69.58 ± 7.05 bAα80.0 ± 4.99 bcAα69.38 ± 0.05 cAα
12 h78.13 ± 2.49 bBα76.04 ± 1.29 bBα75.0 ± 5.35 bBα44.38 ± 0.03 bAα
24 h76.04 ± 1.38 bBα65.21 ± 1.57 bBα39.38 ± 6.98 aAα40.83 ± 0.02 abAα
48 h34.38 ± 1.2 aAα35.63 ± 1.91 aAα32.71 ± 4.2 aAα28.54 ± 0.02 aAα
* Control 1 and control 2 were not packed and exposed to temperature treatment. The same lowercase, uppercase, and symbol indicate no significant difference within the same density and temperature, the same duration and density, and the same duration and temperature, respectively (one-way ANOVA post hoc Tukey, p = 0.05).
Table
Table 4. Mean induced sterility of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Table 4. Mean induced sterility of gamma-sterilized male Ae. aegypti post-treatment by density, temperature, and duration factors.
Treatments (Density and Duration)Mean Induced Sterility ± SE (%)
7 °C14 °C21 °C28 °C
* Control 1 (unirradiated–unpacked)----
* Control 2 (irradiated–unpacked)97.55 ± 2.18 aA98.5 ± 0.64 aA97.4 ± 0.33 aA98.51 ± 0.66 aA
Density 40 males/2 mL3 h98.41 ± 0.49 aAα98.0 ± 0.75 aAα98.86 ± 0.61 aAα98.88 ± 0.35 aAα
6 h98.17 ± 0.72 aAα98.3 ± 0.59 aAα99.17 ± 0.47 aAα99.37 ± 0.26 aAα
12 h98.68 ± 0.45 aAα98.13 ± 0.78 aAα98.27 ± 0.81 aAα98.63 ± 0.55 aAα
24 h98.79 ± 0.26 aAα98.159 ± 0.92 aAα99.52 ± 0.24 aAα96.7 ± 1.85 aAα
48 h98.92 ± 0.57 aAα95.34 ± 2.27aAαn/an/a
* Control 1 (unirradiated–unpacked)----
* Control 2 (irradiated–unpacked)97.55 ± 2.18 aA98.5 ± 0.64 aA97.4 ± 0.33 aA98.51 ± 0.66 aA
Density 80 males/2 mL3 h98.04 ± 0.31 aAα98.34 ± 0.28 aAα98.77 ± 0.43 aAα98.87 ± 0.42 aAα
6 h98.16 ± 0.6 aAα98.42 ± 0.73 aAα98.99 ± 0.42 aAα98.2 ± 0.47 aAα
12 h98.29 ± 0.09 aAα98.56 ± 0.59 aAα98.28 ± 0.67 aAα98.08 ± 0.67 aAα
24 h98.7 ± 0.6 aAα98.69 ± 0.27 aAα98.61 ± 0.58 aAα98.99 ± 0.53 aAα
48 h98.44 ± 0.29 aAα98.15 ± 1.52 aAαn/an/a
* Control 1 (unirradiated–unpacked)----
* Control 2 (irradiated–unpacked)97.55 ± 2.18 aA98.5 ± 0.64 aA97.4 ± 0.33 aA98.51 ± 0.66 aA
Density 120 males/2 mL3 h98.29 ± 0.4 aAα98.65 ± 0.31 aAα98.81 ± 0.31 aAα99.02 ± 0.5 aAα
6 h98.46 ± 0.35 aAα98.31 ± 0.3 aAα99.02 ± 0.48 aAα98.81 ± 0.64 aAα
12 h98.39 ± 0.56 aAα98.36 ± 0.35 aAα98.44 ± 0.74 aAα98.59 ± 0.54 aAα
24 h98.43 ± 0.56 aAα98.41 ± 0.46 aAα99.23 ± 0.24 aAα98.33 ± 0.62 aAα
48 h99.08 ± 0.6 aAα97.41 ± 0.57 aAαn/an/a
* Control 1 and control 2 were not packed and exposed to temperature treatment. The same lowercase, uppercase, and symbol indicate no significant difference within the same density and temperature, the same duration and density, and the same duration and temperature, respectively (one-way ANOVA post hoc Tukey, p = 0.05). No data were applicable for the duration of 48 h and temperatures of 21 and 28 °C in all densities due to the high mortality rate (>80%).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ernawan, B.; Anggraeni, T.; Yusmalinar, S.; Sasmita, H.I.; Fitrianto, N.; Ahmad, I. Assessment of Compaction, Temperature, and Duration Factors for Packaging and Transporting of Sterile Male Aedes aegypti (Diptera: Culicidae) under Laboratory Conditions. Insects 2022, 13, 847. https://doi.org/10.3390/insects13090847

AMA Style

Ernawan B, Anggraeni T, Yusmalinar S, Sasmita HI, Fitrianto N, Ahmad I. Assessment of Compaction, Temperature, and Duration Factors for Packaging and Transporting of Sterile Male Aedes aegypti (Diptera: Culicidae) under Laboratory Conditions. Insects. 2022; 13(9):847. https://doi.org/10.3390/insects13090847

Chicago/Turabian Style

Ernawan, Beni, Tjandra Anggraeni, Sri Yusmalinar, Hadian Iman Sasmita, Nur Fitrianto, and Intan Ahmad. 2022. "Assessment of Compaction, Temperature, and Duration Factors for Packaging and Transporting of Sterile Male Aedes aegypti (Diptera: Culicidae) under Laboratory Conditions" Insects 13, no. 9: 847. https://doi.org/10.3390/insects13090847

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
