Article

Corrections and Additions to Descriptions of Some Species of the Subgenus Orthocladius s. str. (Diptera, Chironomidae, Orthocladiinae)

1
Dipartimento di Scienze Agrarie ed Ambientali, Università degli Studi di Milano, Via Celoria 2, 20133 Milano, Italy
2
CNR-IRSA Water Research Institute, National Research Council, Via del Mulino 19, 20861 Brugherio, Italy
3
CNR-IRSA Water Research Institute, National Research Council, Corso Tonolli 50, 28922 Verbania Pallanza, Italy
*
Author to whom correspondence should be addressed.
Insects 2022, 13(1), 51; https://doi.org/10.3390/insects13010051
Submission received: 7 December 2021 / Revised: 21 December 2021 / Accepted: 30 December 2021 / Published: 2 January 2022
(This article belongs to the Section Insect Systematics, Phylogeny and Evolution)

Abstract

:

Simple Summary

The biodiversity study and conservation are primary objectives in preventing loss of species consequent to global climatic change. The present contribution adds information to a key taxon, a holometabolous insect belonging to Order Diptera, family Chironomidae, whose larvae are members of freshwater macroinvertebrate fauna and are considered good indicators of water quality.

Abstract

The larvae of some species of the subgenus Orthocladius s. str. (Diptera, Chironomidae) are here described for the first time with corrections and additions to the descriptions of adult males and pupal exuviae. The identification of larvae is generally not possible without association with pupal exuviae and/or adult males, so the descriptions here are based only on reared material or on pupae with the associated larval exuviae. Usually, Chironomidae larvae can be separated on the basis of morphometric characters, the most discriminant ones are: (1) the ratio between the width of median tooth of mentum (Dm) and the width of the first lateral tooth (Dl) = mental ratio (DmDl), (2) the ratio between the length of the first antennal segment (A1) and the combined length of segments 2–5 (A2–5) = antennal ratio (AR). The shape of mandible, maxilla, and other body parts are almost identical in all the species considered in this study. The larva of Orthocladius (Symposiocladius) lignicola is very characteristic and can be separated by the shape of mentum and the larvae of all the known species of Symposiocladius are characterized by the presence of large Lauterborn organs on antennae and of tufts of setae on abdominal segments. The larvae of Orthocladius (Orthocladius) oblidens and Orthocladius (Orthocladius) rhyacobius can be distinguished from other species basing on their large Dm and to each other by AR. A principal component analysis was carried out using 5 characters: (1) Dm, (2) Dl, (3) length of A1, (4) width of A1 (A1W), (5) combined length of segments 2–5 (A2–5). The most discriminant characters were Dm and A1, confirming that DmDl and AR can be used to separate species at larval stage, but the large superposition of morphometric characters in different species confirms that association with pupal exuviae is in any case needed to identify larvae. In future perspective, the development of reference DNA barcodes from specimens identified by specialists is recommended since possibly the best tool for larvae identification, but association of barcodes with morphotypes is in any case fundamental.

1. Introduction

The genus Orthocladius Wulp, 1874 is one of the richest in species within the Chironomidae subfamily Orthocladiinae [1]. It is among the most difficult genera to morphologically identify, as larvae of many species are quite similar and almost impossible to be separated basing purely on morphological criteria. Pupal exuviae can be better separated, but some species pose problems also at the pupal stage. Adult males are well separated in many cases, notably relying on features of the hypopygium, yet some can be confounded also in the adult stage.
Within Orthocladius, taxonomic changes were repeatedly proposed for the generic/subgeneric division. For instance, the new genus Symposiocladius [2] was erected, but subsequently it was reduced to subgenus rank [3]. Symposiocladius was then revised with the description of new species [4], and more recently a new subgenus, Mesorthocladius [5], was erected.
At present, the genus Orthocladius includes 142 species [1], with the subgenus Orthocladius s. str. including at least 62 species. Most species are Palaearctic (104), many are Nearctic (54) with a few in the Afrotropical or Oriental regions [1]. Some species such as Orthocladius (Orthocladius) decoratus, Orthocladius (Orthocladius) dentifer, Orthocladius (Orthocladius) oblidens, Orthocladius (Orthocladius) rubicundus, Orthocladius (Symposiocladius) holsatus and Orthocladius (Symposiocladius) lignicola are Holarctic; other species are cited from both the Palaearctic and Nearctic regions, but they need to be checked for taxonomic identity. For example, Orthocladius (Orthocladius) obumbratus, originally described from the Nearctic and Orthocladius (Orthocladius) excavatus, originally described from the Palaearctic, were probably confused; in particular, the presence of O. obumbratus in the Palaearctic is questionable [6]. A list of species belonging to the subgenera Mesorthocladius, Orthocladius, Pogonocladius and Symposiocladius is given in Supplementary material (Tables S1–S4), with some nomenclature, taxonomic and distribution notes.
Until now, many contributions were published allowing the identification of some Orthocladius species at the different metamorphic stages (larvae, pupae, adults). In particular, the Nearctic species of the subgenus Orthocladius were revised including all stages for many species [7]; the West Palaearctic species were revised, including adult males and pupal exuviae [6]; pupal exuviae of many species of the West Palaearctic Region were described in detail and a key to species was given [8]. Moreover, adult males from England and Ireland were in depth investigated, figures and a key to species published [9].
In general, pupal exuviae can be considered the most useful stage for separating species, indeed some species have pupal exuviae as type material, such as Orthocladius (Orthocladius) pedestris and Orthocladius (Orthocladius) rivinus [10]. Most species can be identified also from adult males, although sometimes with more difficulties (see Keys). Larvae generally are not separable on the basis of morphological characters, but some morphometric details can be useful in some cases (see Results).
The aim of the present paper is to describe the larvae of some species of the subgenus Orthocladius s. str., for which larval, pupal exuviae and adult males are available from reared material. Corrections and additions to the already available descriptions of adult males and of pupal exuviae are also provided. Some species of the subgenera Symposiocladius, Mesorthocladius and Pogonocladius are also considered in the study because of their similarity with certain species of the subgenus Orthocladius s. str. In light of the last observation, the validity of the separation of some subgenera is discussed.
Keys to adult males and pupal exuviae are proposed, excluding the subgenera Euorthocladius and Eudactylocladius; characters useful to separate larvae are given, but dichotomous key to identify larvae cannot yet be proposed.

2. Materials and Methods

All the individuals sampled for this study were collected between 1974 and 2016. Larvae were collected with a Surber net, pupal exuviae and pupae with a Brundin net [11], adults with a hand net [9]. Larvae and mature pupae were transported alive to the laboratory using a portable refrigerator. Individuals were singularly reared to adults within Petri dishes or within glass tubes in a controlled-temperature chamber at a temperature ranging from 6 to 15 °C. Moreover, egg mass rearing was carried out within small tanks at the same temperature range mentioned before, in which dissolved oxygen saturation was guaranteed with aeration. A photoperiod of 14 h of light and 10 h of dark was maintained using a fluorescent lamp OSRAM LUMILUX COMBI-N/P, 18W.
Specimens from the collection of the Institut royal des Sciences naturelles de Belgique (IRSNB) and from the Swedish Museum of Natural History (NHM) were examined, including type material. These specimens, previously mounted on slides, dry pinned, or stored between two celluloid layers in isinglass, were mounted on permanent slides. Pinned specimens were prepared by boiling in KOH 10%, except the wings, transferred in acetic acid, butanol and in a phenol: xylene mixture 3:1, then mounted in balsam on a microscope slide. Specimens in isinglass were also gently boiled in KOH to dissolve gelatin, and thereafter treated as described above.
Sampled and reared individuals were fixed in 75% ethanol for preparation and mounted on microscopic slides according to Sæther [12] and Wirth & Marston [13], using balsam or Faure as mounting medium. In the case of successful rearing, adult, larval and pupal exuviae were mounted on the same slide. The adult abdomen (including genitalia) was mounted in a dorso-ventral position. To examine the virga at high magnification (1000–1250×), it was sometimes necessary to dissect the IX tergite and to mount it as a separate part.
Descriptions provided in this study are based only on reared adult males with associated pupal exuviae and larvae, when available. Body parts measurements were made at different magnifications (10–1000×) using a LEICA DM LS B2 optic microscope connected to a LEICA DFC320 camera and analysed with LEICA LAS software V4.8. Measurements were given in μm unless otherwise stated. Photos of characters of taxonomic interest were taken with the LEICA DFC320 camera.
Adopted terminology follows Soponis [7], Sæther [14] and Langton [15].

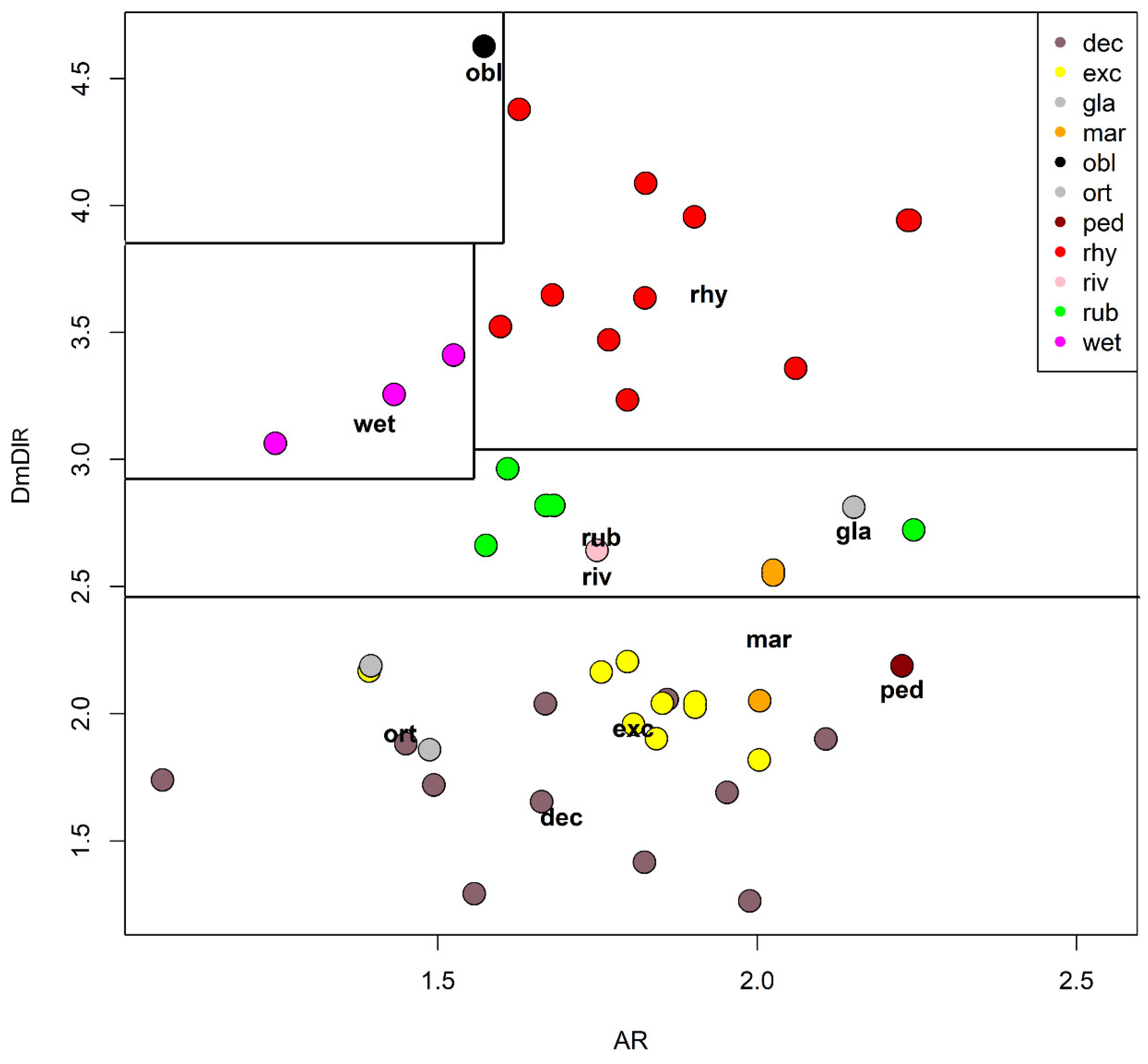

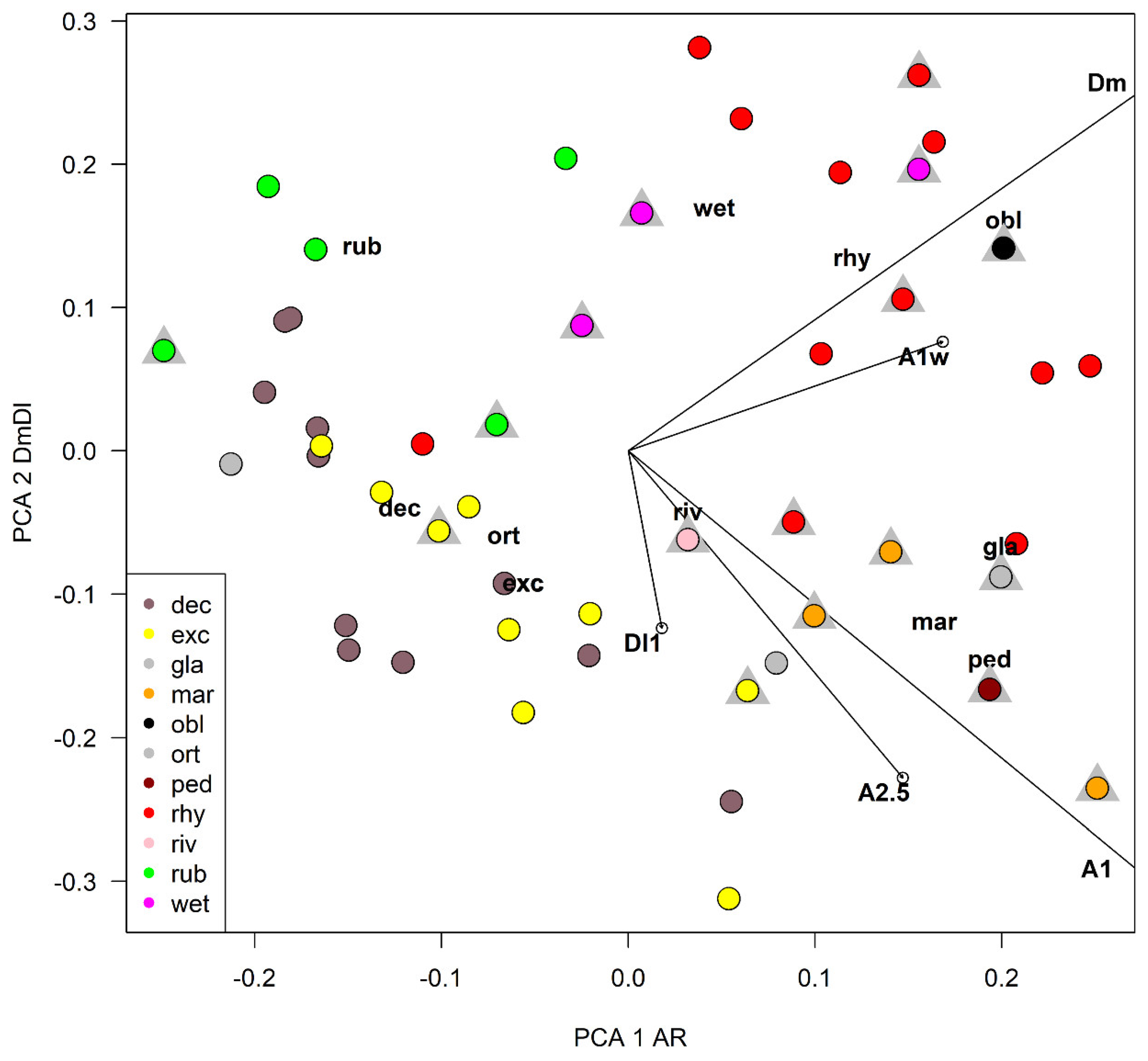

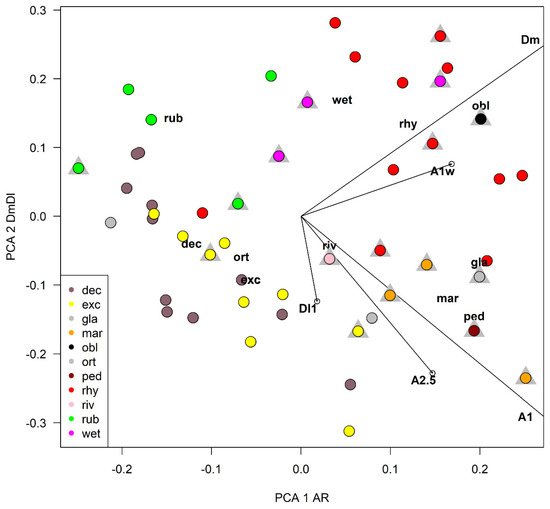

Morphometric data were analysed using R software version 4.1.2 [16]. Principal component analysis (PCA) was carried out using the R package vegan [17].

3. Results

3.1. Selected Species

A key for the identification of adult males and pupae of Orthocladius s. str. species and closest species is provided. The key does not include the subgenera Euorthocladius and Eudactylocladius since they can be easily separated from Orthocladius s. str. both as larvae, pupae and adults [8,9], whereas the species of the subgenera Mesorthocladius, Pogonocladius and Symposiocladius are included in the key, because their separation from Orthocladius s. str. species often is not straightforward. The list of the species included in the key is reported in Table 1, where asterisks (*) indicates that all the three life stages (male adults, pupal exuviae, larvae) belonging to the same specimen were examined, to guarantee membership to the same species.

3.2. Subgeneric Characters of Adult Male of Orthocladius s. str.

Body color. Head dark-yellow brown, antennal setae gold-dark brown, scapus black. Thorax: background thoracic color yellow-brown; mesonotal stripes, humeral region, metanotum and mesosternum darker than the background color. Abdomen, femur and tibiae dark, tarsomeres lighter, halteres from transparent to white (character not usable for mounted material, being observable only in pinned specimens). Body color is attenuated in specimens mounted in Canada balsam after 10% KOH clearing, but live or pinned specimens are generally not available for study, so only the color observable in slide-mounted specimens is considered and is of low utility.
Antenna. With 13 flagellomeres, plume well developed; 13° flagellomere not thickened to club, groove beginning at flagellomere 3–4, long sensilla chaetica present on flagellomeres 2–5 and 13; subapical seta absent at apex. Antennal ratio 1.1–2.6.
Head. Eyes bare, with a median projection. Temporals can be divided in 4–6 inner verticals, 4–6 outer verticals and 2–4 postorbitals. Palps with 5 segments (pm1–5), pm3 longer or subequal to pm4.
Thorax. Antepronotal lobes well developed, but narrowed medially, with a shallow median notch and a group of well developed lateral setae. Acrostichals begin near antepronotum. Dorsocentrals generally stout and long (ranging between 75–125 µm), in few cases (O. rubicundus) slender and shorter (less than 40 µm long), in one row, some setae not well lined up in some cases. Scutellars usually uniserial, not lined up or multiserial in Orthocladius (Orthocladius) wetterensis.
Wing. Wing membrane without setae, with fine punctation, microtrichia visible at 400×. Costa at most moderately extended beyond R4+5. R2+3 ending from 1/3 of distance from R1 to R4+5. R4+5 generally ending distal to end of M3+4, FCu little distal to RM or at the same level (VR 1–1.2). Cu1 slightly bent, squama with setae. R1 and R4+5 generally without setae. Anal lobe rounded to strongly produced.
Legs. Pseudospurs generally present on tarsomeres 1 and 2 of mid leg and tarsomere 1 of hind leg, sensilla chaetica sometime present on Ta1 of P3. Pulvilli absent, claw with 4 teeth apically.
Hypopygium. Anal point with lateral setae, usually triangular with pointed apex, with rounded apex only in subgenera Euorthocladius and Mesorthocladius. Virga present and well developed or very reduced to absent in subgenus Symposiocladius and in Orthocladius (Orthocladius) rhyacobius. Superior volsella hook-like, triangular or collar- like. Inferior volsella divided into a dorsal and a ventral lobe, dorsal lobe long and narrow, noselike, pinched, short and squared, short and rounded [7], differences have taxonomic value; IVr is here introduced as the ratio between the length of dorsal lobe and its width. Ventral lobe covered by dorsal lobe, well extended beyond dorsal lobe in some species. Gonostylus simple tapered to end or forming a right angle at outer margin, with a well developed megaseta, crista dorsalis present, but generally not developed, very developed only in a few species.

3.3. Subgeneric Characters of Pupal Exuvia of Orthocladius s. str.

Color in species mounted on slides variable from yellow-gold to brown-black. Pigmentation with different distribution on abdominal segments, posterior margin of abdominal segments much darker in some species. Frontal setae on small cephalic tubercles, frontal warts [14,15] present and more (O. pedestris) or less (O. rubicundus) developed. Thoracic horn usually with small spines, elongated (200–500 µm long), very long, slender and unarmed in Orthocladius (Mesorthocladius) frigidus and in Orthocladius (Mesorthocladius) vaillanti [18,19], enlarged in the middle in O. wetterensis and more or less rounded or pointed to apex in other species. The thoracic horn is sometimes bent at apex, but its shape is influenced by mounting position. Rows of hooks always present on posterior margin of tergite II (TII), width of hooks area variable in different species and of some taxonomic value: e.g., it is narrower in O. oblidens than in O. rhyacobius. Adhesion muscle-marks present on tergites: two oblique marks in the postero-median area, 2–5 less visible marks in the antero-lateral area on each side. Five dorsal setae (DI–V) are present on tergites, three ventral setae (SI–III) on sternites. Few setae on sternites may be branched as in Orthocladius (Orthocladius) rivinus. TII-V with very small points forming an area (= point patch), which may be divided into an anterior, median, posterior and apical field, continuous (O. rhyacobius) or well separated from each other (O. rubicundus). TVI with only an anterior, median and posterior field, TVII–VIII without point fields. The fields of points are more or less developed and extended laterally, often very small points may be observed extending to the antero-lateral corner of abdominal tergites, beyond the adhesion marks. Point patches are present also on sternites (especially SII–III) with points often joined into groups of 2–3 (“Gruppen-shagreen”). The small points on the antero-lateral corner of tergites are variable in extension, similar points are present on sternites and in specimens mounted in dorso-ventral position dorsal and ventral points may be confounded. The number of antero-lateral adhesion marks and the position of seta DI are variable and have no taxonomic value. The different size of anterior, median, posterior and apical field of points on tergites is emphasised as an easily observable character without substantial variation within species, and thus a good candidate to be used in taxonomic keys for separating species.
Usually, very small blotches are present at the base of apical points on tergites, but in one species (O. pedestris) there are large brown blotches extending laterally to the apical point area of tergites and postero-medially on sternites. Pedes spurii B are present but reduced on segment II in O. frigidus and absent in Orthocladius (Symposiocladius) ruffoi. Pedes spurii A are present on SIV–VII, reduced on SVII in some species. Five, or more rarely four, lateral setae are present on abdominal segment VIII, with variation within species, very well developed in some species (e.g., O. ruffoi), sometime the anterior and/or the posterior one are bifid, with variation within species. Anal lobes with 3 anal macrosetae, usually strongly hooked at tip, but straight in O. ruffoi, straight or gently curved in O. dentifer. Tips of anal lobes with or without taeniate extensions of the cuticle. When present, they have different consistency and a taxonomic value, varying from very small, colourless light extensions (O. excavatus) to ‘broken’ setae (O. rubicundus), teeth [10], well sclerotized chitinous spurs (O. rhyacobius, O. pedestris) [6] or spiniferous processes (subgenus Symposiocladius) [4,20]. Additional small taeniate extensions, sometime appearing as a weak fringe of short setae, may be present (O. excavatus, O. pedestris). A well developed fringe of setae or hair-like teeth [10] is present only in O. vaillanti [6,19], a less developed one in O. ruffoi [6]. The ratio between the lengths of anal macrosetae and anal lobes varies around 1 and has taxonomic value.

3.4. Subgeneric Characters of Larva of Orthocladius s. str.

This description is based only on species reared to adults and included in the Keys to adult males and pupal exuviae. Medium sized larvae, up to 10 mm long.
Antenna with 5 segments, decreasing in size from 1 to 3, 4th segment equal or longer than 3rd, 5th segment small. Ring organ near the basis of 1st segment, blade shorter than flagellum, style long as 3rd segment. AR or the ratio between the length of the first segment and the other 2–5 has taxonomic value. Lauterborn organ developed only in larvae of the subgenus Symposiocladius (Figures 66–70 in [4]).
Labrum. SI bifid, SII–SIII simple. Labral lamellae absent. Pecten epipharyngis with 3 narrow spines. Premandible simple, without brush.
Mandible with a long apical tooth and 3 inner teeth increasing in size, the distal one (3rd) is the largest, a distal sclerotization of mola may be mistaken as a 4th inner tooth; seta subdentalis apically pointed, seta interna consisting of about 5–8 branches, some branch bifid, outer margin smooth, mola without spines.
Maxilla: chaetulae of palpiger triangular or leaflike, galea with simple lamellae anteriorly and several rows of pectinate lamellae dorsally, pecten galearis absent, seta maxillaris simple.
Mentum. With a single median tooth and 6 lateral teeth. Ventromental plates reduced. Setae submenti well developed, inserted just a little more distal to the end of ventromental plates, about 50–70 µm long. Median tooth (Dm) of variable extension, from 1 to 4 times larger than the first lateral tooth (Dl1); the ratio between the width of median tooth and the 1st lateral one (DmDl) has taxonomic values.
Abdominal segments without robust setae, a tuft of setae present only in larvae of Symposiocladius (Figure 5l in [20]. Procerci only a little longer than wide, with 5–7 apical setae 350–400 µm long

3.5. Description of Species

The species considered in the keys to adult males and pupal exuviae are in Table 1. In Supplementary material there is a legend of additional information given (Table S1). Hereafter are reported additional notes for some species. References to contributions to description of life stages present in previous publications and species distribution are given in Supplementary material (Tables S2 and S3), with additional taxonomic notes. Morphometric measures of adult males of some species are summarized in Table 2. Morphometric measures of larvae are in Table 3. A detailed list of all larval measures is in Supplementary material (Table S4). Measures from larval exuviae reared to adults were preferred, when available (see * in Table 1), otherwise measures are from larvae only tentatively assigned to a species. Ranges of measures are given when available. When a value is given before range, it is the value considered more accurate, because it comes from the best mounted specimen, because some measures are affected by error bound to the different position of the mounted parts [21].
  • Orthocladius (Mesorthocladius) frigidus (Zetterstedt, 1838)
The species was well described in all three stages [6,8,9,22].
  • Orthocladius (Mesorthocladius) vaillanti Langton & Cranston, 1991
The species was well described in all three stages [6,8,10,18,19].
  • Orthocladius(Orthocladius) decoratus (Holmgren, 1869)
The species is described as adult male and pupal exuviae [6,8,23]. The larva is still undescribed, probably cannot be separated from the larva of O. excavatus. The measures here given are from larvae collected in Svalbard at 3 August 2003, gently furnished from Museo delle Scienze (TN, Italy).
AR = 1.45–2.11, DmDl = 1.27–2.06, A1 = 50 (43–62) long, 15.5 (13–17) wide, A2–5 = 30 (21–39), Dm = 19 (16–21), Dl = 11 (10–12).
  • Orthocladius (Orthocladius) dentifer Brundin, 1947
Only the adult male [6,22] and pupal exuviae [6,8] are described, the larva is unknown.
  • Orthocladius (Orthocladius) excavatus Brundin, 1947
The species is described in several papers [6,24,25]. The adult male of O. excavatus is separated from other species by the presence of a developed virga (Figure 1), the triangular superior volsella and the digitiform dorsal lobe of inferior volsella. The adult male may be confounded with O. marchettii, but this species has a larger dorsal lobe of inferior volsella.
The pupal exuviae are characterized by reduced taeniate extensions and extensive cover of points on abdominal tergites III to VI.
The larva has a low mentum ratio DmDl, and an AR between 1.8–1.9 (Figure 1i–l).
Description from reared larvae, 15 January 1981, Ticino River, Boffalora Ticino, Metropolitan City of Milan, Italy.
AR = 1.81–1.90, DmDl = 1.96–3.32, A1 = 52 (50–60) long, 17 (14–17) wide, A2–5 = 27 (27–33), Dm = 19 (19–21), Dl = 9.6 (9–12).
  • Orthocladius (Orthocladius) glabripennis (Goetghebuer, 1921)
The species was described in [26] and redescribed in [27], the larva is still not described.
The measures are from a larva collected in Curone stream (LC, Italy) at 15 March 2017 reared to adult tentatively assigned to O. glabripennis. AR = 2.15, DmDl = 2.81, A1 = 63 long, 18 wide, A2–5 = 29, Dm = 30, Dl = 10.
  • Orthocladius (Orthocladius) marchettii Rossaro & Prato, 1991
O. marchettii was described in [28] and redescribed in [6] as adult male and pupal exuviae.
The species can be separated from O. excavatus by the larger dorsal lobe of the inferior volsella (Figure 2c), and the more prominent superior volsella (Figure 2b).
The pupa is characterized by the absence of taeniate extensions (Figure 2h), but can be confounded with the pupa of O. glabripennis. Only the darker color of abdominal segments (Figure 2e) can separate these species.
The larva has a variable width of median tooth of mentum (Figure 2j).
Description from reared larva, 3 January 1990, Aterno River, L’Aquila, Italy.
AR = 1.95–2.03, DmDl = 2.05–2.56, A1 = 68.18 (60.37–68.18) long, 19.03 (15.31–19.03) wide, A2–5 = 34.02, mentum median tooth 28.63, Dl = 13.96 (13.79–14.13).
  • Orthocladius (Orthocladius) majus Goetghebuer, 1942
The adult male was described in Langton & Pinder [9] briefly, and redescribed in [6] as adult and pupal exuviae. The pupal exuviae were also described in [8]. The larva is undescribed.
  • Orthocladius (Orthocladius) nitidoscutellatus Lundström, 1915
The species is a senior synonym of Orthocladius trigonolabis Edwards, 1924 and was recently redescribed [23]. The larva is unknown.
  • Orthocladius (Orthocladius) oblidens (Walker, 1856)
The adult male was described in [9,24,25], the pupal exuviae in [8,15]; the species was redescribed in [6] as adult male and pupal exuviae.
The adult male is separated by the large dorsal lobe of the inferior volsella (Figure 3d), the pupal exuviae are characterized by short anal macrosetae (Figure 3h). The larva by a large median mental tooth (Figure 3j).
Description from reared larva, 28 February 2004, Serio River, Ghisalba, Bergamo, Italy.
AR = 1.57 (1.57–2.54), DmDl = 4.63 (3.75–4.63), A1 = 54.63 (48–62) long, 23.42 (15–24) wide, A2–5 = 34.75 (21–35), Dm = 36.18 (32–37), Dl = 7.82 (7.64–8.00).
  • Orthocladius(Orthocladius) obumbratus (Johannsen, 1905)
This species was firstly described from Nearctic, its presence in the Palaearctic region was recently questioned [6]; the reason is that the lectotype of O. obumbratus differs from the specimens collected in other Nearctic stations and identified as O. obumbratus [7]. An accurate examination of dorsal and ventral lobe of inferior volsella from type material of O. obumbratus shows that the dorsal lobe is short and squared, near to the one of O. oblidens, with a length/width ratio (IVr) below 2 (Figure 4d). Other North American specimens, gently furnished from Dr. Caldwell and identified as O. obumbratus, have a digitiform inferior volsella (Figure 4h) with an IVr near to 3, a value observable in O. excavatus, which has always an IVr well above 2 (4 in the lectotype of O. excavatus). The examination of the lectotype and of the 2 paratypes of O. obumbratus should suggest that O. obumbratus is a junior synonym of O. oblidens and that the most of the material reported as O. obumbratus from Nearctic region may be a misidentification of O. excavatus [29]. An alternative hypothesis, here proposed, is that O. obumbratus could be a valid species somewhat intermediate between O. oblidens and O. excavatus, and the type material is somewhat atypical (!). If we accept this hypothesis the Palaearctic specimens identified as O. obumbratus can be considered as a misidentification of O. excavatus, while the specimens from Nearctic can still be assigned to O. obumbratus.
  • Orthocladius (Orthocladius) pedestris Kieffer, 1909
The adult male of the species was described in [6,9], type material are pupal exuviae [10]. The adult is characterized by the hooked superior volsella (Figure 5b), and can be confounded with O. decoratus. The pupa is characterized by brown blotches in the intersegmental area of abdominal segments. The larva is very similar to those of O. excavatus and O. marchettii and is characterized by a low mental ratio DmDl and high AR (Figure 5i–l).
Description from reared larva, 23 April 2002, Taro River, Compiano, Parma, Italy.
AR = 2.23, DmDl = 2.19, A1 = 65.40 long, 16.94 wide, A2–5 = 29.37, Dm = 28.4, Dl = 12.98 (11.7–13).
  • Orthocladius (Orthocladius) rhyacobius Kieffer, 1911
The species was described in [6,27] as adult male and its pupal exuviae in [6]. The adult is characterized by the absence or the strong reduction of virga (Figure 6). The lectotype was established based on a pupal exuvia [10]. O. rhyacobius and O. excavatus were considered junior synonyms of O. obumbratus in [10], but the pupal exuvia of O. rhyacobius has very strong taeniate extensions (Figure 6g), whereas O. excavatus has small taeniate extensions (Figure 1g). The associations of reared pupal exuviae with adult males support the evidence that O. rhyacobius and O. excavatus are different species, the former lacking virga (Figure 6b), the latter with a well developed virga (Figure 1b). The larva of O. rhyacobius is characterized by a large median mental tooth and a high AR (Figure 6i–l).
Description from reared larva, 18 December 1980, Po River, Caorso, Piacenza, Italy.
AR = 1.85–1.92, DmDl = 3.74–3.94, A1 = 54.42 (51.24–58.75) long, 16.84 (13.84–16.84) wide, A2–5 = 28.86 (25–32), Dm = 33.16 (26.32–34), Dl = 8.86 (7.96–9.53).
  • Orthocladius (Orthocladius) rivinus Potthast, 1914
The lectotype was established on pupal exuviae [10]. The species was described in [6,9] as adult male. The adult is characterized by a triangular superior volsella (Figure 7c) and a squared dorsal lobe of inferior volsella (Figure 7d). Pupal exuviae are characterized by the splitting of some setae on sternites III (Figure 7g).
The larva has a median mental tooth and an AR with intermediate values within the subgenus so it is difficult to identify this species at the larval stage (Figure 7i–l).
Description from reared larva, 26 February 1990, Aterno River, L’Aquila, Italy.
AR = 1.75, DmDl = 2.64, A1 = 55.82 long, 15.98 wide, A2–5 = 31.91, Dm 25.07, Dl 9.49.
  • Orthocladius (Orthocladius) rubicundus (Meigen, 1818)
The species was described as adult male [9,25] and as pupal exuviae [8,15] and redescribed in [6] from adult male and pupal exuviae.
The adult male (Figure 8) is characterized by the small and thin dorsocentral setae (see Section 3.6 Key to adult males).
The pupal exuviae are characterized by the presence of a postero-lateral patch of granules (chitinized rings) on apical bands of Tergites II–V extending ventrally, the patch of granules may be complete ventrally across the sternites or medially broken (Figure 8f,g).
The larva has a variable AR and a median mental tooth with intermediate values (Figure 8i–l).
Description from reared larva, 15 November 1978, Oglio River, Palazzolo, Brescia, Italy.
AR = 1.58–1.76, DmDl = 2.66–2.80, A1 = 45.39–52.13 long, 13.58–14.23 wide, A2–5 = 23.22–26.06, Dm = 23.56 (22.86–23.44), Dl = 8.39 (7.94–9.24).
  • Orthocladius (Orthocladius) wetterensis Brundin, 1956
The adult male was described in [9,24], the pupal exuviae in [8] and redescribed in [6] from adult male and pupal exuviae. Inferior volsella is very characteristic (Figure 9d), scutellar setae are arranged in multiple rows (Figure 10d), this character separates O. wetterensis from other species. The pupal exuviae are characterized by an enlargement in the middle of the thoracic horn (Figure 9e). The larva is reported has having a high AR [30], but the AR is low in reared larvae, lower in comparison with other species, so this character cannot be used to identify the species. More useful is the width of median tooth of mentum (Figure 9j).
Description from reared larva, 21 January 2000, 9 December 2001, Elvo Stream, tributary of Cervo, Tributary of Sesia River, Biella, Italy.
AR = 1.34–1.40, DmDl = 3.16–3.24, A1 = 48.75 (46.18–51.55) long, 16.58 (16.47–16.75) wide, A2–5 = 34.93 (33.81–37.08), Dm = 31.71 (26.97–37.38), Dl = 9.77 (7.94–9.77).
  • Orthocladius (Pogonocladius) consobrinus (Holmgren, 1869)
The adult male is described in [9,26], the pupal exuviae in [8]. Absence of sensilla chaetica in flagellomeres 2–5 cannot be used as a character separating the subgenus [3], because they are always observed in the specimens examined, including type material deposited at NHM. The larva is briefly described (Figure 9.53G in [22]).
  • Orthocladius (Symposiocladius) holsatus Goetghebuer, 1937
The species was well described in all three stages (Figures 1, 2, 4 and 5 in [20]). Some morphometric measurements of adult males taken from samples belonging to Brundin’s collection (NHM) are: IV = 15–16 × 12–14, pm3 = 254–272, pm4 = 210–212, anal point = 33–52 × 9–17.
  • Orthocladius (Symposiocladius) lignicola Kieffer, 1914
The adult male is well known for a long time (Figure 5 in [4]), some morphometric measurements taken from samples deposited in IRSNB are: IV = 36–37 × 23–25, pm3 = 81–116, pm4 = 70–77, anal point = 55 × 17. Descriptions of pupal exuviae are in [4,8]. The larva was also described [2,4]; some pictures of larva are here added (Figure 11e–h).
  • Orthocladius (Symposiocladius) ruffoi Rossaro & Prato, 1991
The pupal exuviae was described a long time ago sub Rheorthocladius sp. A [31], while the adult male was only recently described [6,9,27], (Figure 10e–h). Morphometric measures taken from samples deposited in IRSNB are: IV = 25–50 × 17–22, pm3 = 139–151, pm4 = 116–140, anal point = 38–43 × 13–12. Description of the type is in [28]. The larva is still undescribed.

3.6. Key to Adult Males of Orthocladius s. str.

1Anal lobe of wing strongly produced (Figure 9.50C in [3]), fore tarsus with a beard of long setae, AR > 2, inferior volsella finger like (Figure 22 in [6], Figure 170A in [9], Figure 37 in [24])consobrinus
- with other combination of characters2
2Anal point very broad with rounded apex3
- anal point pointed at apex4
3virga present even if reduced, inferior volsella slender, crista dorsalis well developed (Figure 8, Figure 174C in [9], Figure 39 in [24])frigidus
- virga absent, inferior volsella wider, crista dorsalis evident but not large (Figure 34 in [6,19])vaillanti
4virga absent or very reduced, SV collarlike (Figure 6b,c and Figure 10f,g)5
- virga present (Figure 2b, Figure 3b, Figure 4b, Figure 5b and Figure 10a), not reduced, SV variable8
5IV digitiform, slender, IVr 2–3, AR 1.6–1.8, virga absent or very reduced (Figure 6d, Figure 23 in [6], Figure 41 in [24,27])rhyacobius
- IV squared (Figure 10h), IVr < 1–26
63rd/4th palpomere 1.10–1.16, AR 1.43–1.69, IVr low (Figures 1 and 2 in [20], Figure 172C in [9])holsatus
- 3rd/4th palpomere, AR and IVr higher (Figure 10h)7
73rd/4th palpomere 1.20, AR 2.9 (Figure 30 in [6], Figure 171D in [9,28]) ruffoi
- 3rd/4th palpomere 1.50, AR 1.73 (Figures 1–4 in [2,4], Figure 43 in [7], Figure 172A in [9], Figure 71 in [25])lignicola
8dorsocentrals reduced (Figure 10c), 20–40 µm long (Figure 10c), superior volsella triangular (Figure 8, Figure 28 in [6], Figure 171B in [9], Figure 70 in [25])rubicundus
- dorsocentrals strong > 100 µm long, superior volsella collarlike, triangular or hooked9
9gonostylus triangular, with a very developed projection (Figure 32 in [6], Figure 49 in [7], Figure 72a in [25], Figure 51 in [23])nitidoscutellatus
- gonostylus without a developed external spur, at most with rounded or toothed crista dorsalis10
10gonostylus with a rounded very developed crista dorsalis (Figure 3 in [6], Figure 42 in [24], Figure 172D in [9])dentifer
- gonostylus with a tooth shaped crista dorsalis, not appearing as an external spur (Figure 2d and Figure 5d)11
11scutellars multirowed (Figure 10d, Figure 37 in [6], Figure 172B in [9], Figure 69 in [25,28])wetterensis
- scutellars unirowed12
12superior volsella collarlike (Figure 10 in [6])13
- superior volsella triangular or hooked14
13gonostylus with a well developed angle on the dorsal side (Figure 10 in [6], Figure 173B in [9,25,26])glabripennis
- gonostylus slender at apex without an evident crista dorsalis (Figure 12 in [6], Figure 171C in [9])maius
14superior volsella hooked (Figure 5b)15
- superior volsella triangular (Figure 1c)16
15IVr about 1.5 (Figure 1 in [6,23], Figure 68 in [25])decoratus
- IVr > 3 (Figure 5c, Figure 20 in [6], Figure 173A in [9])pedestris
16dorsal lobe of inferior volsella squared, IVr < 2.5 (Figure 3d and Figure 7d)17
- dorsal lobe dorsal lobe of inferior volsella elongated, IVr > 2.5 (Figure 1d and Figure 2c)18
17IVr about 2 (Figure 3d and Figure 4d, Figure 17 in [6], Figure 173C,D in [9], Figure 40 in [24], Figure 66 in [25])oblidens
- IVr about 1 (Figure 7d, Figure 26 in [6], Figure 174A in [9,28])rivinus
18AR < 2, superior volsella more rounded, IVr about 3 (Figure 1c,d, Figures 5 and 6 in [6], Figure 38 in [24], Figure 67 in [25])excavatus
- AR > 2, superior volsella more prominent, IVr about 2.5 (Figure 2b,c, Figure 14 in [6,28])marchettii

3.7. Key to Pupal Exuviae of Orthocladius s. str.

1tergite II without posterior hook row, tergites II–VII with a pair of circular point patches, taeniate extensions absent (Figure 9.41G in [8,18])consobrinus
- hook row present on tergite II, median point patches continuous on an extended area, taeniate extensions present or absent2
2thoracic horn thin walled, fragile, sinuous, long and narrow (Figures 6 and 7 in [19])3
- thoracic horn shorter, straight, less than 300 µm long and more than 20 µm wide4
3anal lobes without lateral setae, thoracic horn long, smooth and narrow, brown at base, colourless thereafter (Figure 9 in [6,8], Figure 7 in [19])frigidus
- anal lobes with a fringe of setae (Figures 35 and 36 in [6], Figure 6 in [19])vaillanti
4anal lobes with a spur, pedes spurii B developed on tergite II, absent on TIII, anal lobes without fringe; anal macrosetae long, flexible and tapering to their tips (Figures 10–12 in [2], Figures 36, 42, 48 and 49 in [4])lignicola
- anal lobes without a spur, taeniate extensions present or absent5
5median and posterior band of tergites II–VI transverse, that is well separated by an area free of points6
- median point patches continuous with posterior ones, even if circular area devoid of points may be present9
6granulations (rows of chitin rings) are present on the tergites laterally on the apical band (Figure 8f), a posterior band of granulations (still more conspicuous) is present on sternites too, often in a dark field (Figure 8g, Figure 29 in [6,8])rubicundus
- chitin rings absent on posterior margin of abdominal segments7
7pedes spurii B present on TII and TIII. tergites II–V with median point patch transverse, separate from the posterior band of narrow, sharp points, differing markedly from the short, sturdy points of the posterior band, anal macrosetae straight or somewhat curved (Figure 56 in [4], Figure 4 in [20])holsatus
- pedes spurii B absent or present only on segment II8
8pedes spurii B absent, anal macrosetae longer, 300–350 µm long, TVII with 5 robust lateral setae (Figure 11a–d), Figure 31 in [6])ruffoi
- pedes spurii B present on segment II (Figure 4 in [6,8])dentifer
9thoracic horn with a characteristic bulge in its middle (Figure 9e), points of posterior transverse band smaller than points of anterior and apical band (Figure 9f), anal lobes without taeniate extensions (Figure 38 in [6,8])wetterensis
- thoracic horn without median bulge, points of posterior transverse band similar or larger than points of anterior bands, taeniate extensions often present10
10taeniate extensions absent (Figure 2)11
- taeniate extensions present (Figure 1)13
11abdomen segments dark brown (Figure 2, Figures 15 and 16 in [6,28])marchettii
- abdomen segments colourless12
12thoracic horn about 400 µm long, (Figure 11 in [6,8])glabripennis
- thoracic horn smaller, at most 200 µm long, genital sacs very long (Figure 33 in [6,8,23])nitidoscutellatus
13anal macrosetae short about 100–150 µm, at most curved, but not hooked at tips (Figure 3h); posterior band of TIII extending lateral to apical band (Figure 3f), anal lobes with strong taeniate extensions (Figure 3g, Figure 18 in [6,8])oblidens
- anal macrosetae hooked at tips14
14sternites II with branched setae (Figure 7g), posterior band of TIII extending lateral to apical band (Figure 3f and Figure 7f), Figure 27 in [6,8])rivinus
- setae of sternite II simple, posterior band of tergite II not extended lateral to apical band15
15large brown blotches extending laterally to the apical point area of tergites and postero- medially on sternites (Figure 5g, Figure 21 in [6,8])pedestris
- brown blotches absent16
16taeniate extensions well developed, with 3–4 spines 30–45 µm long, occupying an area of about 400 µm2 (Figure 6g, Figures 24 and 25 in [6])17
- taeniate extensions present but reduced, at most 30 µm long. Anal lobes may be weakly fringed with hair-like teeth in addition to the apical teeth (Figure 1g, Figure 7 in [6,8])excavatus
17points on tergites and spines on thoracic horn strong (Figure 6e,f, Figures 24 and 25 in [6,8])rhyacobius
- points on tergites and spines on thoracic horn less strong (Figure 3 in [6,23])decoratus

3.8. Morphometric Measures of Larvae of Orthocladius s. str.

The characters used to identify the larvae of Orthocladius are generally able to separate subgenera [21,30,31,32]. Attempts to separate species within the subgenera are scanty [29,31]. The reason is that most species have very similar larvae. Here an attempt is made to separate species according to 7 morphometric characters (Table 3): only values measured on reared larvae are given.
Other characters as the length of each of the antennal segments 2–5, mandible teeth length, distance between setae submenti, size of head capsule [30] were no more considered because their measures are subjected to large errors.
A principal component analysis (PCA) was carried out using 5 selected characters to find the ones responsible of the largest variance (Table 4 and Table 5, Figure 12). The width of the median tooth of mentum (Dm) and the length of the first antennal segment (A1) were the most discriminating characters, while the width of the first antennal segment (A1w) was a little more discriminating than the length of antennal segments 2–5 combined (A2–5). In PCA, the width of the first antennal segment (A1W) was a little more discriminating than the length of A2–5 combined in the first axis, but the reverse was true in the second axis (Table 4). As a practical measure to separate species, the ratio DmDl (ratio between the width of the median and first lateral mental tooth) and the antennal ratio AR (ratio between the length of the first and the 2–5 length of antennal segments) were selected (Table 3, Figure 13). In the impossibility to give a dichotomous key rough outlines to separate species are given (Table 6).

4. Discussion

Species identification within the subgenus Orthocladius takes advantage from characters expressed in pupal exuviae. Most species can be distinguished also on the basis of differences in adult male genitalia or some other character as dorsocentral and scutellar setae, while others require the association of pupal exuviae with adult males for achieving identification (see Key). Absence of virga, collar-like superior volsella, ventral part of inferior volsella not extending below dorsal part were considered as characters supporting the separation of subgenus Symposiocladius from Orthocladius s. str. [4], but O. rhyacobius (Figure 6b) and O. dentifer (Figure 3 in [6]), not included in Symposiocladius, have characters compatible with this definition of the subgenus. The subgenus Symposiocladius include pupal exuviae with quite different morphological characters, i.e., both species with a large spur on anal lobes, such as O. (S). lignicola (Figures 10 and 12 in [2]), and species without spur, such as O. (S). holsatus (Figure 4 in [20]). The larva of O. (S). lignicola is quite different from the others of this subgenus, because of the peculiar mentum (Figure 19 in [2], Figure 76 in [4]), but the presence of large Lauterbon’s organs on antennae and of setal tufts on the abdominal segments of larvae of all the known species of Symposiocladius (Figures 13–19 in [2], Figures 60–70 in [4], Figure 5 in [20]) supports the separation of the subgenus. Contrasting evidence about the subgeneric limits of Orthocladius s. str. and Symposiocladius should be clarified.
After an accurate morphometric analysis of reared material, it is possible to conclude that in principle larvae cannot be identified without association with pupal exuviae. In some situation the larvae can be also confounded with species belonging to other related genera, as is the case of Symposiocladius larvae, which can be assigned to some species of Cricotopus (see point 104/103 at page 197 in [22]). Similarly, the subgenus Cricotopus (Paratrichocladius) has larvae which cannot be easily separated from species of Orthocladius s. str. (see point 112/113 at page 198 [22]). The morphometric characters suggested to separate larvae (AR and DmDl) are only indicative. Antennal ratio (AR) is useful to separate species, but the ratio between the width of median tooth and the 1st lateral tooth of mentum (DmDl) is probably the most useful character for separating larvae. In particular, O. oblidens and O. rhyacobius are separated from other species thanks to wider Dm (Figure 3j, Figure 6j, Figure 12 and Figure 13). Unfortunately, morphometric measures of larvae have large superposition in different species, e.g., in O. rubicundus and O. excavatus, and for some species (O. marchettii, O. pedestris, O. glabripennis) the data available are very limited. The criteria given in previous papers [30,32] are not supported by the present evidence.
DNA-based taxonomy could be very useful to identify species at each life stage, overcoming difficulties related to morphological identification. However, the development of reference DNA sequences allowing the identification of the species of Orthocladius is still in an embryonic phase. In fact, DNA barcodes are available for a few species (see Supplementary Material, [23,33]). Future needs include collaboration between morphological and molecular taxonomists for the development of barcode libraries for the molecular identification including species not barcoded yet [34].
Orthocladius taxonomy would benefit from bringing to light the specialized literature about the species described in local or less known journals. Very similar species, and possibly some of them conspecific, were described from Nearctic [7]. In the present paper one of these cases is discussed, i.e., the problem of the relation between O. obumbratus with O. excavatus, but further cases of similarity between Nearctic and Palaearctic species are known. Just to give another example, the similarity of O. carlatus (Roback, 1957) and O. curtiseta Sæther, 1969 with O. rubicundus would deserve further study.
Some Orthocladius s. str. species are known from the East Palaearctic [35,36,37], many of them described in all three stages (larva, pupa, adult male) with possible affinities with O. excavatus and O. rubicundus. Other Orthocladius species for which all the life stages have been described are known for Japan [38,39,40]; some are very similar to West Palaearctic ones. Here again, the problem of possible synonymy could be solved with the support of molecular taxonomy, even if finding specimens could be not easy due to very large number of species described and the distances among collection localities.

Supplementary Materials

The following supporting informations are available online at: https://www.mdpi.com/article/10.3390/insects13010051/s1. Table S1: Legend of abbreviations used in the paper and in the tables. Table S2: Geographical distribution of Orthocladius species, with related bibliographic references. Table S3: References cited in Table S2. Table S4: Detailed measures of different morphological parameters cited in the paper.

Author Contributions

Conceptualization, B.R., M.M. and A.B.; methodology, A.B.; software, G.M.; resources, L.M.; writing—review and editing, B.R. and L.M.; supervision, B.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All specimens analyzed and the related data are deposited at University of Milan, if not specified otherwise, and can be requested to the corresponding author.

Acknowledgments

The authors are grate to P. Cranston, Australian National University, Canberra, Australia, for having read and corrected part of the manuscript, to B. Caldwell, Hall County, Georgia, U.S.A. for having furnished specimens of Nearctic Orthocladius species and to V. Lencioni, Museo delle Scienze, Trento, Italy, for having allowed the examination of some specimens of O. decoratus.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ashe, P.; O’Connor, J.P. A World Catalogue of Chironomidae (Diptera). Part 2. Orthocladiinae. Two Vols (Sections A, B); Irish Biogeographical Society: Dublin, Ireland, 2012; p. 968. Available online: https://www.nhbs.com/a-world-catalogue-of-chironomidae-diptera-part-2-2-volume-set-book (accessed on 10 November 2021).
  2. Cranston, P.S. The metamorphosis of Symposiocladius lignicola (Kieffer) n. gen., n. comb., a wood mining Chironomidae (Diptera). Ent. Scand. 1982, 13, 419–429. [Google Scholar] [CrossRef] [Green Version]
  3. Cranston, P.S.; Oliver, D.R.; Sæther, O.A. The adult males of Orthocladiinae (Diptera, Chironomidae) of the Holarctic region—Keys and diagnoses. In Chironomidae of the Holarctic Region. Keys and diagnoses. Part 3. Adult Males; Wiederholm, T., Ed.; Entomologica Scandinavica Supplement: Lund, Sweden, 1989; Volume 34, pp. 165–352. Available online: https://www.nhbs.com/chironomidae-of-the-holarctic-region-part-3-adult-males-book (accessed on 10 November 2021).
  4. Sæther, O.A. A review of Orthocladius subgenus Symposiocladius Cranston (Diptera, Chironomidae). Aquat. Insects 2003, 25, 281–317. Available online: https://www.tandfonline.com/doi/abs/10.1076/aqin.25.4.281.26221 (accessed on 10 November 2021). [CrossRef]
  5. Sæther, O.A. A new subgenus and new species of Orthocladius van der Wulp, with a phylogenetic evaluation of the validity of the subgenera of the genus (Diptera, Chironomidae). Zootaxa 2005, 974, 1–56. Available online: https://www.biotaxa.org/Zootaxa/article/view/zootaxa.974.1.1 (accessed on 10 November 2021). [CrossRef] [Green Version]
  6. Rossaro, B.; Lencioni, V.; Casalegno, C. Revision of West Palaearctic species of Orthocladius s. str. van der Wulp, 1874 (Diptera, Chironomidae, Orthocladiinae), with a new key to species. Stud. Trent. Sci. Nat. Acta Biol. 2002, 79, 213–241. [Google Scholar]
  7. Soponis, A.R. A revision of the Nearctic species of Orthocladius (Orthocladius) van der Wulp (Diptera, Chironomidae). Mem. Ent. Soc. Can. 1977, 102, 1–187. [Google Scholar] [CrossRef]
  8. Langton, P.H.; Visser, H. Chironomidae exuviae. In A Key to Pupal Exuviae of the West Palaearctic Region; World Biodiversity Database; ETI: Amsterdam, The Netherlands, 2003. [Google Scholar]
  9. Langton, P.H.; Pinder, L.C.V. Keys to the Adult Male Chironomidae of Britain and Ireland; Freshwater Biological Association: Ambleside, UK, 2007; Volumes 1 and 2, p. 239+168. [Google Scholar]
  10. Langton, P.H.; Cranston, P.S. Pupae in nomenclature and identification, West Palaearctic Orthocladius s. str. (Diptera, Chironomidae) revised. Syst. Ent. 1991, 16, 239–252. [Google Scholar] [CrossRef]
  11. Brundin, L. Transantarctic relationships and their significance, as evidenced by chironomid midges. With a monograph of the subfamilies Podonominae and Aphroteniinae and the austral Heptagyiae. Kungl. Svenska Vetenskapsakad. Handl. Fjärde Ser. 1966, 11, 1–472. [Google Scholar]
  12. Sæther, O.A. Some nearctic Podonominae, Diamesinae, and Orthocladiinae (Diptera, Chironomidae). Bull. Fish Res. Bd. Can. 1969, 170, 1–154. [Google Scholar]
  13. Wirth, W.W.; Marston, N. A method for mounting small insects on microscope slides in Canada balsam. Ann. Ent. Soc. Am. 1968, 61, 783–784. [Google Scholar] [CrossRef]
  14. Sæther, O.A. Glossary of chironomid morphology terminology (Diptera, Chironomidae). Ent. Scand. Suppl. 1980, 14, 51. [Google Scholar]
  15. Langton, P.H. A Key to Pupal Exuviae of West Palaearctic Chironomidae; P. Langton: Huntingdon, UK, 1991; 386p. [Google Scholar]
  16. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing; R Core Team: Vienna, Austria, 2021; Available online: http://www.R-project.org/ (accessed on 10 November 2021).
  17. Dixon, P. VEGAN, a package of R functions for community ecology. J. Veg. Sci. 2003, 6, 927–930. [Google Scholar] [CrossRef]
  18. Coffman, W.P.; Cranston, P.S.; Oliver, D.R.; Sæther, O.A. The pupae of Orthocladiinae (Diptera, Chironomidae) of the Holarctic region—Keys and diagnoses In Chironomidae of the Holarctic Region. Keys and Diagnoses. Part 2—Pupae; Wiederholm, T., Ed.; Entomologica Scandinavica Supplement: Lund, Sweden, 1986; Volume 28, pp. 147–296. [Google Scholar]
  19. Caldwell, B.A. Description of the adult male and larva of Orthocladius (Orthocladius) vaillanti (Diptera, Chironomidae). J. Kans. Entomol. Soc. 1999, 71, 234–240. [Google Scholar]
  20. Dettinger-Klemm, P.M.A. The metamorphosis of Orthocladius (Symposiocladius) holsatus Goetghebuer, 1937, with the description of Orthocladius (Symposiocladius) lunzensis sp. n. (Diptera, Chironomidae). Aquat. Insects 2001, 23, 45–62. [Google Scholar] [CrossRef]
  21. Cranston, P.S. Morphological terminology and key to subfamilies. In Chironomidae (Diptera) of the Holarctic Region-Keys and Diagnoses—Larvae; Andersen, T., Cranston, P.S., Epler, J., Eds.; Insect Systematics and Evolution Supplement: Lund, Sweden, 2013; Volume 66, pp. 13–23. Available online: https://www.nhbs.com/chironomidae-of-the-holarctic-region-keys-and-diagnoses-part-1-larvae-book (accessed on 10 November 2021).
  22. Andersen, T.; Sæther, O.A.; Cranston, P.S.; Epler, J. The larvae of Orthocladiinae (Diptera, Chironomidae) of the Holarctic Region—Keys and diagnoses. In Chironomidae (Diptera) of the Holarctic Region-Keys and Diagnoses—Larvae; Andersen, T., Cranston, P.S., Epler, J., Eds.; Insect Systematics and Evolution Supplement: Lund, Sweden, 2013; Volume 66, pp. 189–385. Available online: https://www.researchgate.net/publication/281003382 (accessed on 10 November 2021).
  23. Stur, E.; Ekrem, T. The Chironomidae (Diptera) of Svalbard and Jan Mayen. Insects 2020, 11, 183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Brundin, L. Zur Kenntnis der schwedischen Chironomiden. Ark. Zool. 1947, 39, 1–95. [Google Scholar]
  25. Brundin, L. Zur Systematik der Orthocladiinae (Dipt. Chironomidae). Inst. Freshw. Res. Drottn. Rept. 1956, 37, 5–185. [Google Scholar]
  26. Pinder, L.C.V.; Cranston, P.S. Morphology of the male imagines of Orthocladius (Pogonocladius) consobrinus and O. glabripennis with observations on the taxonomic status of O. glabripennis (Diptera, Chironomidae). Ent. Scand. 1976, 7, 19–23. [Google Scholar] [CrossRef]
  27. Magoga, G.; Montagna, M.; Marziali, L.; Rossaro, B. Revision of type and non-type material assigned to the genus Orthocladius by Goetghebuer (1940–1950), deposited in the Royal Belgian Institute of Natural Sciences (Diptera, Chironomidae). Acta Entomol. Musei Natl. Pragae 2017, 57, 723–749. [Google Scholar] [CrossRef] [Green Version]
  28. Rossaro, B.; Prato, S. Description of six new species of the genus Orthocladius (Diptera, Chironomidae). Fragm. Ent. 1991, 23, 59–68. [Google Scholar]
  29. Formenti, M.; Rossaro, B. Autoecologia e valore indicatore di diverse specie del genere Orthocladius van der Wulp (Diptera, Chironomidae). Studi Trent. Sci. Nat. Acta Biol. 2009, 84, 5–10. [Google Scholar]
  30. Schmid, P.E. A key to the larval Chironomidae and their instars from Austrian Danube region streams and rivers with particular reference to a numerical taxonomic approach. Part I. Diamesinae, Prodiamesinae and Orthocladiinae. Wass. Abwass. Suppl. 1993, 3/93, 514. [Google Scholar]
  31. Thienemann, A. Bestimmungstabellen für die bis jetzt bekannten Larven und Puppen der Orthocladiinen (Diptera Chironomidae). Arch. Hydrobiol. 1944, 39, 551–664. [Google Scholar]
  32. Rossaro, B. Chironomidi, 2 (Diptera, Chironomidae, Orthocladiinae). In Guide Per il Riconoscimento Delle Specie Animali Delle Acque Interne Italiane; Ruffo, S., Ed.; Cons. Naz. Ric. AQ/1/171; Consiglio Nazionale delle Ricerche: Verona, Italy, 1982; Volume 16, 80p. [Google Scholar]
  33. National Center for Biotechnology Information (NCBI). Bethesda (MD): National Library of Medicine (US), National Center for Biotechnology Information. 1988. Available online: http://www.ncbi.nlm.nih.gov/genbank/ (accessed on 10 November 2021).
  34. Gadawski, P.; Montagna, M.; Rossaro, B.; Giłka, W.; Pešić, V.; Grabowski, M.; Magoga, G. DNA barcoding reveals an unknown Chironomidae diversity from the freshwater biodiversity hot-spot of Lake Skadar basin: Comparison between local and the European datasets. Divers. Distrib. 2021; submitted. [Google Scholar]
  35. Makarchenko, E.A.; Makarchenko, M.A. Novye vidy khironomid roda Orthocladius van der Wulp, 1874 (Diptera, Chironomidae) s rossiiskogo Dal’nego Vostoka. (A new species of Orthocladius van der Wulp, 1874 (Diptera, Chironomidae) of the Russian Far East). Evraziat. Entomol. Zh. (Euroas. Entomol. J.) 2006, 5, 57–67. [Google Scholar]
  36. Mакарченкo, E.A.; Mакарченкo, M.A. Нoвые нахoдки хирoнoмид (Diptera, Chironomidae, Orthocladiinae) на Дальнем Вoстoке и сoпредельных территoриях. III. Orthocladius van der Wulp Евразиат. энтoмoл. журн. Т. 7, вып. 2. В печати (New findings of chironomids (Diptera, Chironomidae, Orthocladiinae) in Far East and bordering territories III. Evraziat. Entomol. Zh. (Euroas. Entomol. J.) 2008, 7, 243–262. [Google Scholar]
  37. Makarchenko, E.A.; Makarchenko, M.A. Preliminary data on the chironomid fauna (Diptera, Chironomidae) of South Yakutia. Evraziat. Entomol. Zh. (Euroas. Entomol. J.) 2012, 11 (Suppl. 2), 67–84. [Google Scholar]
  38. Sasa, M. A morphological study of adults and immature stages of 20 Japanese species of the family Chironomidae (Diptera). Res. Rep. Natl. Inst. Envir. Stud. 1979, 7, 1–149. [Google Scholar]
  39. Sasa, M. Studies on chironomid midges of the Tama River. Part 3. Species of the subfamily Orthocladiinae recorded at the summer survey and their distribution in relation to the pollution with sewage waters. Res. Rep. Natl. Inst. Environ. Stud. Jpn. 1981, 29, 1–77. [Google Scholar]
  40. Sasa, M. Studies on chironomid midges in lakes of the Nikko National Park. Part II. Taxonomical and morphological studies on the chironomid species collected from lakes in the Nikko National Park. Res. Rep. Natl. Inst. Environ. Stud. Jpn. 1984, 70, 19–215. [Google Scholar]
Figure 1. Morphological characters of O. (O.) excavatus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuviae: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) tergite VIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 1. Morphological characters of O. (O.) excavatus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuviae: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) tergite VIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g001
Figure 2. Morphological characters of O. (O.) marchettii adult male: (a) anal point; (b) virga and superior volsella; (c) inferior volsella; (d) gonostylus; pupal exuvia: (e) abdomen; (f) thoracic horn, (g) tergite II; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 2. Morphological characters of O. (O.) marchettii adult male: (a) anal point; (b) virga and superior volsella; (c) inferior volsella; (d) gonostylus; pupal exuvia: (e) abdomen; (f) thoracic horn, (g) tergite II; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g002
Figure 3. Morphological characters of O. oblidens adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) anal macrosetae; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 3. Morphological characters of O. oblidens adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) anal macrosetae; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g003
Figure 4. Morphological characters of O. obumbratus adult male lectotype: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; adult male Holly Ck USA-GA: (e) anal point; (f) virga; (g) superior volsella; (h) inferior volsella.
Figure 4. Morphological characters of O. obumbratus adult male lectotype: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; adult male Holly Ck USA-GA: (e) anal point; (f) virga; (g) superior volsella; (h) inferior volsella.
Insects 13 00051 g004
Figure 5. Morphological characters of O. pedestris adult male: (a) anal point; (b) virga and superior volsella; (c) inferior volsella; (d) gonostylus; pupal exuvia: (e) thoracic horn, (f) tergite IV; (g) sternite IV; (h) anal macrosetae; larva: (i) head; (j) antenna; (k) mentum; (l) labrum.
Figure 5. Morphological characters of O. pedestris adult male: (a) anal point; (b) virga and superior volsella; (c) inferior volsella; (d) gonostylus; pupal exuvia: (e) thoracic horn, (f) tergite IV; (g) sternite IV; (h) anal macrosetae; larva: (i) head; (j) antenna; (k) mentum; (l) labrum.
Insects 13 00051 g005
Figure 6. Morphological characters of O. rhyacobius adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) tergite VIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 6. Morphological characters of O. rhyacobius adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite III; (g) taeniate extensions; (h) tergite VIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g006
Figure 7. Morphological characters of O. rivinus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite II; (g) sternite III; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 7. Morphological characters of O. rivinus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite II; (g) sternite III; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g007
Figure 8. Morphological characters of O. rubicundus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite IV; (g) sternite-IV; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 8. Morphological characters of O. rubicundus adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuvia: (e) thoracic horn, (f) tergite IV; (g) sternite-IV; (h) taeniate extensions; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g008
Figure 9. Morphological characters of O. wetterensis adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuviae: (e) thoracic horn, (f) tergite IV; (g) taeniate extensions; (h) TVIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Figure 9. Morphological characters of O. wetterensis adult male: (a) anal point; (b) virga; (c) superior volsella; (d) inferior volsella; pupal exuviae: (e) thoracic horn, (f) tergite IV; (g) taeniate extensions; (h) TVIII; larva: (i) antenna; (j) mentum; (k) mandible; (l) labrum.
Insects 13 00051 g009
Figure 10. Morphological characters of adult males: (a) O. excavatus virga, (b) O. excavatus dorsocentral setae, (c) O. rubicundus dorsocentral setae, (d) O.O. wetterensis scutellum, (e) O.S. ruffoi anal point, (f) O.S. ruffoi virga, (g) O.S. ruffoi superior volsella, (h) O.S. ruffoi inferior volsella.
Figure 10. Morphological characters of adult males: (a) O. excavatus virga, (b) O. excavatus dorsocentral setae, (c) O. rubicundus dorsocentral setae, (d) O.O. wetterensis scutellum, (e) O.S. ruffoi anal point, (f) O.S. ruffoi virga, (g) O.S. ruffoi superior volsella, (h) O.S. ruffoi inferior volsella.
Insects 13 00051 g010
Figure 11. Morphological characters of O.S. ruffoi pupal exuviae: (a) thoracic horn, (b) tergite IV; (c) taeniate extensions; (d) tergite VIII. Morphological characters of O.S. lignicola larva: (e) antenna; (f) mentum; (g) mandible; (h) setal tufts.
Figure 11. Morphological characters of O.S. ruffoi pupal exuviae: (a) thoracic horn, (b) tergite IV; (c) taeniate extensions; (d) tergite VIII. Morphological characters of O.S. lignicola larva: (e) antenna; (f) mentum; (g) mandible; (h) setal tufts.
Insects 13 00051 g011
Figure 12. Plot of species scores and character loadings in principal component analysis in the first two axes, grey triangles refer to samples of larvae belonging to reared specimens, see Table 3 for abbreviations.
Figure 12. Plot of species scores and character loadings in principal component analysis in the first two axes, grey triangles refer to samples of larvae belonging to reared specimens, see Table 3 for abbreviations.
Insects 13 00051 g012
Figure 13. Plot of the ratio DmDl against the antennal ratio (AR). Dashed lines separates species with different morphometry, see Table 3 for abbreviations.
Figure 13. Plot of the ratio DmDl against the antennal ratio (AR). Dashed lines separates species with different morphometry, see Table 3 for abbreviations.
Insects 13 00051 g013
Table 1. List of the species considered in the key.
Table 1. List of the species considered in the key.
(*) Orthocladius (Mesorthocladius) frigidus (Zetterstedt, 1838)
Orthocladius (Mesorthocladius) vaillanti Langton & Cranston, 1991
Orthocladius (Orthocladius) decoratus (Holmgren, 1869)
Orthocladius (Orthocladius) dentifer Brundin, 1947
(*) Orthocladius (Orthocladius) excavatus Brundin, 1947
Orthocladius (Orthocladius) glabripennis (Goetghebuer, 1921)
Orthocladius (Orthocladius) maius Goetghebuer, 1942
(*) Orthocladius (Orthocladius) marchettii Rossaro & Prato, 1991
(*) Orthocladius (Orthocladius) oblidens (Walker, 1856)
(*) Orthocladius (Orthocladius) pedestris Kieffer, 1909
(*) Orthocladius (Orthocladius) rhyacobius Kieffer, 1911
(*) Orthocladius (Orthocladius) rivinus Potthast, 1914
(*) Orthocladius (Orthocladius) rubicundus (Meigen, 1818)
Orthocladius (Orthocladius) nitidoscutellatus Lundström, 1915
(*) Orthocladius (Orthocladius) wetterensis Brundin, 1956
Orthocladius (Pogonocladius) consobrinus (Holmgren, 1869)
Orthocladius (Symposiocladius) holsatus Goetghebuer, 1937
Orthocladius (Symposiocladius) lignicola Kieffer, 1914
Orthocladius (Symposiocladius) ruffoi Rossaro & Prato, 1991
Asterisks (*) indicates that all the three life stages (male adults, pupal exuviae, larvae) belonging to the same specimen were examined, to guarantee membership to the same species.
Table 2. Morphometric measures of adult males belonging to different species: wingL: wing length, AR: antennal ratio of adult male, IVr: ratio between length and width of dorsal lobe of inferior volsella.
Table 2. Morphometric measures of adult males belonging to different species: wingL: wing length, AR: antennal ratio of adult male, IVr: ratio between length and width of dorsal lobe of inferior volsella.
SpeciesAbbreviationwingLARIVr
O. decoratusdec2.91.901.66
O. dentiferden3.2–3.51.851.46
O. excavatusexc2.7–3.01.933.01
O. glabripennisgla3.5–3.62.301.64
O. marchettiimar3.502.232.66
O. oblidensobl2.5–3.32.021.73
O. obumbratusobu2.701.772.19
O. pedestrisped2.231.603.55
O. rhyacobiusrhy2.71.752.94
O. rivinusriv2.82.161.10
O. rubicundusrub2.1–2.31.452.00
O. wetterensiswet2.51.091.92
Table 3. Morphometric measures of larval characters: A1 = length of first antennal flagellomere, A2–5 = combined length of flagellomeres 2–5, A1W = width of the first antennal segment, Dm = width of median tooth of mentum, Dl = wide of first lateral tooth, AR = antennal ratio A1/A2–5, DmDl = ratio of Dm to Dl.
Table 3. Morphometric measures of larval characters: A1 = length of first antennal flagellomere, A2–5 = combined length of flagellomeres 2–5, A1W = width of the first antennal segment, Dm = width of median tooth of mentum, Dl = wide of first lateral tooth, AR = antennal ratio A1/A2–5, DmDl = ratio of Dm to Dl.
A1A2–5A1WDmDlARDmDl
dec50.2730.2815.5019.2411.471.691.70
exc54.6230.3314.8320.3110.031.812.04
gla63.2729.4118.7230.3910.812.152.81
mar62.9731.2118.8227.6411.742.022.39
obl54.6334.7523.4236.187.821.574.63
ort51.5535.9414.4521.2710.431.442.02
ped65.4029.3716.9428.4012.982.232.19
rhy54.4228.8616.8433.168.861.923.74
riv55.8231.9115.9825.079.491.752.64
rub45.3926.0613.5823.568.391.762.80
wet48.7534.9316.5831.719.771.403.24
Table 4. PCA analysis results, eigenvalues of the five axes and proportion of variance explained.
Table 4. PCA analysis results, eigenvalues of the five axes and proportion of variance explained.
Eigenvalues PC1PC2PC3PC4PC5
Eigenvalue 57.766934.819716.45813.45361.86469
ProportionExplained0.50510.30450.14390.03020.01631
CumulativeProportion0.50510.80960.95350.98371
Table 5. Factor loadings of the variables included in PCA.
Table 5. Factor loadings of the variables included in PCA.
CharacterPC1PC2PC3PC4PC5
A13.9935−3.3193−0.8665−0.172520.04569
A2–50.8999−1.08263.11980.079010.11392
A1w1.03030.3614−0.33451.317360.46594
Dm4.42643.14530.2221−0.18348−0.14844
Dl10.1106−0.58720.130.65751−0.97665
Table 6. DmDl and AR values useful to separate larvae.
Table 6. DmDl and AR values useful to separate larvae.
DmDl and AR ValuesSpecies Epithet
DmDl > 3.5 and AR < 1.6 (Figure 3)oblidens
DmDl > 3 and AR > 1.6 (Figure 6)rhyacobius
DmDl 3–3.5 and AR < 1.6 (Figure 9)wetterensis
DmDl 2.5–3 (Figure 8)rubicundus
DmDl 2.5–3 and AR 1.7–1.9 (Figure 7)rivinus
DmDl 2.5–3 and AR > 2.1glabripennis
DmDl 2–3 and AR 1.9–2.1 (Figure 2)marchettii
DmDl < 2.5 and AR < 2.1 (Figure 1)excavatus
DmDl < 2.5 and AR > 2.1 (Figure 5)pedestris
DmDl < 2.5decoratus
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rossaro, B.; Marziali, L.; Magoga, G.; Montagna, M.; Boggero, A. Corrections and Additions to Descriptions of Some Species of the Subgenus Orthocladius s. str. (Diptera, Chironomidae, Orthocladiinae). Insects 2022, 13, 51. https://doi.org/10.3390/insects13010051

AMA Style

Rossaro B, Marziali L, Magoga G, Montagna M, Boggero A. Corrections and Additions to Descriptions of Some Species of the Subgenus Orthocladius s. str. (Diptera, Chironomidae, Orthocladiinae). Insects. 2022; 13(1):51. https://doi.org/10.3390/insects13010051

Chicago/Turabian Style

Rossaro, Bruno, Laura Marziali, Giulia Magoga, Matteo Montagna, and Angela Boggero. 2022. "Corrections and Additions to Descriptions of Some Species of the Subgenus Orthocladius s. str. (Diptera, Chironomidae, Orthocladiinae)" Insects 13, no. 1: 51. https://doi.org/10.3390/insects13010051

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
