Assessing the Distribution of Exotic Egg Parasitoids of Halyomorpha halys in Europe with a Large-Scale Monitoring Program

Livia Zapponi
Francesco Tortorici
Gianfranco Anfora
Simone Bardella
Massimo Bariselli
Luca Benvenuto
Iris Bernardinelli
Alda Butturini
Stefano Caruso
Ruggero Colla
Elena Costi
Paolo Culatti
Emanuele Di Bella
Martina Falagiarda
Lucrezia Giovannini
Tim Haye
Lara Maistrello
Giorgio Malossini
Cristina Marazzi
Leonardo Marianelli
Alberto Mele
Lorenza Michelon
Silvia Teresa Moraglio
Alberto Pozzebon
Michele Preti
Martino Salvetti
Davide Scaccini
Silvia Schmidt
David Szalatnay
Pio Federico Roversi
Luciana Tavella
Maria Grazia Tommasini
Giacomo Vaccari
Pietro Zandigiacomo
21 and
Giuseppino Sabbatini-Peverieri
add Show full author list remove Hide full author list
Centro Ricerca e Innovazione, Fondazione Edmund Mach (FEM), via Mach 1, 38098 S. Michele all’Adige, TN, Italy
Dipartimento di Scienze Agrarie, Forestali e Alimentari, University di Torino (UniTO), Largo Paolo Braccini 2, 10095 Grugliasco, TO, Italy
Centro Agricoltura Alimenti Ambiente (C3A), Università di Trento, Via Mach 1, 38098 S. Michele all’Adige, TN, Italy
Fondazione per la Ricerca l’Innovazione e lo Sviluppo Tecnologico dell’Agricoltura Piemontese (AGRION), Via Falicetto 24, 12100 Manta, CN, Italy
Servizio Fitosanitario Emilia-Romagna, via Andrea da Formigine 3, 40128 Bologna, Italy
Servizio Fitosanitario Friuli Venezia Giulia (ERSA), via Sabbatini 5, 33050 Pozzuolo del Friuli, UD, Italy
Consorzio Fitosanitario di Modena, via Santi 14, Direzionale Cialdini 1, 41123 Modena, Italy
Consorzio Fitosanitario di Piacenza, via Cristoforo Colombo 35, 29122 Piacenza, Italy
Dipartimento di Scienze della Vita, Università di Modena e Reggio Emilia (UniMORE), Via G. Amendola 2, 42122 Reggio Emilia, Italy
Servizio Fitosanitario Lombardia (ERSAF), via Pola 12, 20124 Milano, Italy
Centro di Sperimentazione Laimburg, Laimburg 6, 39051 Pfatten/Vadena, BZ, Italy
CREA, Research Centre for Plant Protection and Certification, via di Lanciola 12a, 50125 Firenze, Italy
CABI, Rue des Grillons 1, 2800 Delemont, Switzerland
Dipartimento delle Finanze e dell’Economia, Servizio Fitosanitario Cantonale, Sezione dell’Agricoltura, Viale S. Franscini 17, 6500 Bellinzona, Switzerland
Department of Agronomy Food Natural Resources Animals and Environment, Università degli Studi di Padova (UniPD), Viale dell’Università 16, 35020 Legnaro, PD, Italy
Condifesa Lombardia Nord-Est, Servizio Tecnico, via Malta 12, 25124 Brescia, BS, Italy
ASTRA, Astra Innovazione e Sviluppo srl, via Tebano 45, 48018 Faenza, RA, Italy
Fondazione Fojanini, via Valeriana 32, 23100 Sondrio, SO, Italy
Strickhof, Fachstelle Obst, Riedhofstrasse 62, 8408 Winterthur, Switzerland
CRPV, Centro Ricerche Produzioni Vegetali, via dell’Arrigoni 120, 47522 Cesena, FC, Italy
Department of Agricultural, Food, Environmental and Animal Sciences, Università di Udine (UniUD), Via delle Scienze 206, 33100 Udine, UD, Italy
Author to whom correspondence should be addressed.
Insects 2021, 12(4), 316;
Submission received: 19 February 2021 / Revised: 24 March 2021 / Accepted: 27 March 2021 / Published: 1 April 2021
(This article belongs to the Collection Biocontrol and Behavioral Approaches to Manage Invasive Insects)



Simple Summary

The management of invasive alien species is a very challenging task. For the brown marmorated stink bug (Halyomorpha halys), classical biological control has been identified as the most suitable method to sustainably reduce its populations in the long-term. Among its natural enemies, two species were identified as the most promising candidates for biocontrol, Trissolcus japonicus and Trissolcus mitsukurii. Populations of these two species have recently been detected in Europe and to assess their distribution, a large-scale study was performed. Combining several monitoring methods, in four months (May–September 2019), a wide area covering northern Italy and parts of Switzerland was surveyed. The results showed that both species have spread into all types of habitats where H. halys is present and the parasitization of native species was rarely observed. Among native species, Anastatus bifasciatus was the predominant parasitoid of H. halys. This study supported the development of the first release program of Tr. japonicus in Europe.


The brown marmorated stink bug Halyomorpha halys is an invasive agricultural pest with a worldwide distribution. Classical biological control has been identified as the most promising method to reduce the populations of H. halys. Adventive populations of two candidates for releases, Trissolcus japonicus and Trissolcus mitsukurii, have recently been detected in Europe. To assess their distribution and abundance, a large-scale survey was performed. From May to September 2019, a wide area covering northern Italy and parts of Switzerland was surveyed, highlighting the expanding distribution of both Tr. japonicus and Tr. mitsukurii. Within four years after their first detection in Europe, both species have rapidly spread into all types of habitats where H. halys is present, showing a wide distribution and continuous expansion. Both exotic Trissolcus showed high levels of parasitism rate towards H. halys, while parasitization of non-target species was a rare event. The generalist Anastatus bifasciatus was the predominant native parasitoid of H. halys, while the emergence of native scelionids from H. halys eggs was rarely observed. The presence of the hyperparasitoid Acroclisoides sinicus was also recorded. This study provided fundamental data that supported the development of the first inoculative release program of Tr. japonicus in Europe.

1. Introduction

The brown marmorated stink bug Halyomorpha halys (Stål) (Hemiptera: Pentatomidae) is an invasive species from Central Asia that nowadays is present in North and South America [1,2], Europe [3] and the Caucasus [4], causing severe damage on many agricultural crops [5]. Due to the negative effects of frequent use of broad-spectrum insecticides (e.g., disruption of Integrated Pest Management, pesticide resistance), biological control has been identified as the most promising mid- and long-term solution [5]. Both the use of native natural enemies (inoculation and inundation biological control) and the more promising introduction of exotic H. halys egg parasitoids from Asia (classical biological control) are among the key management strategies for sustainable control of the invasive pest [6,7,8].
Support for biological control has regained momentum [9], however the debate on its environmental safety continues. Strict regulations are in place to limit the potential impact on biodiversity, and several international organizations have contributed to the development of step-by-step procedures for risk analysis, import and release of exotic agents [10,11]. However, the increased focus on unpredicted negative effects has contributed to the observed decline of classical biological control application and not without consequences: inaction or delay in the control of an invasive pest are in fact associated with increased pesticide use, impacting society and ecosystem dynamics [12]. Non-target effects, a critical aspect in classical biological control, can be predicted using host specificity testing, supporting decision making and reducing potential risks using cost/benefit analysis [13]. In North America and Europe, natural enemies that attack Halyomorpha halys include egg parasitoids that belong primarily to three Hymenopteran families: Scelionidae (Telenomus spp., Trissolcus spp., Gryon spp.), Eupelmidae (Anastatus spp.) and Encyrtidae (Ooencyrtus spp.), and generalist predators that feed on eggs and young nymphs [6]. In Europe, the egg parasitoid Anastatus bifasciatus (Geoffroy) (Hymenoptera: Eupelmidae) has been identified as the only native egg parasitoid capable of successfully developing in H. halys, thus it has been considered as a candidate for augmentative biological control releases [14,15]. However, experimental field trials involving sentinel egg masses showed a limited impact of the augmentative releases of An. bifasciatus [16], slightly higher in field studies with eggs laid in exclusion cages [17].
Recently, adventive populations of the main candidate for classical biological control, the Asian egg parasitoid Trissolcus japonicus (Ashmead) (Hymenoptera: Scelionidae), were detected both in North America [18] and in Europe, including Italy [19,20] and Switzerland [21]. In addition, adventive populations of another Asian egg parasitoid, Trissolcus mitsukurii (Ashmead), were detected on H. halys egg masses in Italy [19,20,22,23]. The scattered distribution of the two exotic Trissolcus species in Italy and Switzerland might have been caused by multiple introductions on the same pathways of entry of H. halys, as parasitized egg masses on plants or diapausing adults [21]. Furthermore, their post-introduction dispersal ability may have further contributed, as was proposed for Tr. japonicus in North America [24]. The presence of the two exotic egg parasitoids in Europe suggests that there is the hope for a future biological control solution for the management of H. halys. However, to date, the current distribution of both exotic Trissolcus species and their impact on H. halys populations in Italy and Switzerland are poorly understood. Considering the high expectations on their potential for controlling the pest, field investigations on the status of the adventive populations have been considered mandatory. In addition, knowledge of the current incidence and distribution will provide a baseline for future studies, investigating movement, spread, and impact of these parasitoids on H. halys and non-target species.
The objective of this study was to evaluate the distribution of the adventive populations of Tr. japonicus and Tr. mitsukurii in North Italy and Switzerland in a large-scale monitoring program. In addition, their parasitism rate, impact on non-target species, phenology and habitat were evaluated. Lastly, the collected data were used to support the petition for the final approval of H. halys biological control program and the release in the field of laboratory reared Tr. japonicus.

2. Materials and Methods

2.1. Field Surveys

With the aim to cover a wide geographical area, a network of 21 partners from northern Italy and Switzerland was developed, including research institutes, universities and local phytosanitary services. The members of the consortium jointly developed the workplan and survey protocol, in order to standardize all the key steps (e.g., data recording, sample storing, and taxonomic identification).
Field surveys were performed from late May to mid-September 2019 and took place in agricultural, urban and semi-natural habitats. To increase the sampling coverage, several types of surveys were combined: (a) visual inspection in fixed locations, repeated at least three times during the season; (b) visual inspections in non-fixed locations where H. halys adults and nymphs were observed; (c) deployment of sentinel egg masses (see Table S1 for further details). For the first two survey methods, the underside of leaves of trees, shrubs and herbaceous plants were inspected, searching for egg masses of H. halys and other pentatomids, for at least 30 min. For sentinel egg masses, both fresh (24 h) and frozen (stored at −80 °C for maximum a month) egg masses were used and deployed for 3 to 5 days; for further details, see Stahl et al. [21] and Zapponi et al. [23].
After collection, each egg mass was labeled, stored separately, and transported back to the laboratories for successive rearing of nymphs and/or parasitoids. For each sample, date, surveyor code, GPS coordinates and habitat (type of crop and host plant) were recorded.

2.2. Laboratory Handling of Collected Egg Masses

Egg masses were stored in 90 mm plastic Petri dishes or 50 mL plastic vials and kept at a temperature of 24–26 °C and L16:D8 photoperiod. Samples were checked daily, until nymph or parasitoid emergence was completed. For the identification of native pentatomid egg masses, field-collected adults were reared by several co-authors, in order to have fresh laid egg masses that were then compared with the field-collected ones, to ensure their correct identification [25]. When a species could not be assigned, genus level was used.
Parasitoids were promptly transferred into ethanol and preserved for subsequent identification. For each egg mass, the total number of eggs, hatched nymphs and emerged parasitoids were recorded. All emerged parasitoids were counted and sexed.
To compare the parasitism rate of the most common parasitoid species, the number of parasitized eggs in an egg mass over the total number of intact eggs was calculated, excluding eggs that did not hatch and those that showed signs of predation [26]. The parasitism rate was calculated only on field-collected egg masses (data from sentinel egg masses were not included in this analysis). Furthermore, only egg masses from which a single parasitoid species had emerged were considered, to avoid underestimation/overestimation of parasitism rates.

2.3. Taxonomic Identification

Parasitoids were first separated and identified at family and genus levels. Then, for Anastatus the keys proposed by Askew and Nieves-Aldrey [27] were used, while for Acroclisoides the method of Sabbatini Peverieri et al. [28] was followed. Among Scelionidae, Trissolcus species were identified using Talamas et al. [29] and Tortorici et al. [30]. Telenomus species were identified, whenever possible, using Kozlov and Kononova [31] and comparing the specimens with the images of the primary types (kindly provided by Elijah Talamas).

2.4. Data Analysis

The occurrence of stink bug and exotic parasitoids was analyzed using QGIS 3.14 (Development Team 2018, QGIS Geographic Information System), mapping the presence of Tr. japonicus and Tr. mitsukurii on a heatmap obtained from H. halys occurrence data. Descriptive analyses were performed with R Statistical Software (v.3.5.2) [32].

3. Results

3.1. Field Survey

In four months, a total of 4348 and 285 egg masses of H. halys and of other pentatomids, respectively, were collected in an area of approximately 140,000 km2, covering northern Italy and parts of Switzerland (survey methods a and b). Most egg masses were found in cultivated areas (51.58%) or urban environments (44.81%), while fewer egg masses (5.21%) were collected in semi-natural habitats (Figure S1, content). About 93.85% of the collected egg masses belonged to H. halys, while the rest belonged to several other Pentatomidae species, including Palomena prasina (L.), Rhaphigaster nebulosa (Poda), Piezodorus lituratus (F.), Dolycoris baccarum (L.) and Nezara viridula (L.) (see Table 1).

3.2. Parasitoid Species Composition

From the collected pentatomid egg masses, the eupelmid An. bifasciatus emerged as well as numerous Scelionidae belonging to the genera Trissolcus and Telenomus, specifically: Tr. basalis (Wollaston), Tr. belenus (Walker), Tr. cultratus (Mayr), Tr. japonicus, Tr. mitsukurii, Tr. semistriatus (Nees von Esenbeck), Tr. viktorovi Kozlov, Te. turesis Walker, and Telenomus sp. (see Table 1 for hosts and number of parasitized egg masses). The hyperparasitoid Acroclisoides sinicus (Huang and Liao) (Hymenoptera: Pteromalidae) was also recorded, emerging from parasitized egg masses of H. halys and N. viridula (Table 1).
Considering only parasitized H. halys egg masses (974, representing 22.40% of total number of collected egg masses), the most common species that emerged were An. bifasciatus, Tr. mitsukurii and Tr. japonicus. Unhatched and predated eggs represented the 25.26% of the total number of eggs (21.51% for non-parasitized egg masses, 27.20% for parasitized egg masses). See paragraph 3.3 for results on the number of parasitized eggs per egg mass.
Concerning native pentatomid egg masses (88 parasitized egg masses in total), Tr. japonicus and Tr. mitsukurii emerged in low numbers. The only native species parasitized by Tr. japonicus was Pa. prasina (five egg masses, representing 13% of the parasitized Pa. prasina egg masses collected), while Tr. mitsukurii emerged from egg masses of D. baccarum (2; 28% of parasitized D. baccarum egg masses), N. viridula (3; 10% of parasitized N. viridula egg masses), Pa. prasina (2; 5% of parasitized Pa. prasina egg masses), and from an egg mass ascribed to a pentatomid of the subfamily Asopinae.

3.3. Parasitism Rate and Phenology

Comparing the number of collected H. halys egg masses parasitized by the three most common species (Figure 1), parasitism by Tr. mitsukurii was higher in June, with two slightly lower peaks in August. Parasitism by Tr. japonicus showed a similar pattern, but it reached its maximum in August. These patterns were consistent across the study area.
Across the surveyed regions, the percentage of parasitized egg masses was very variable for the three most common parasitoids: 0.45–53.85% for Tr. japonicus, 0.17–20.20% for Tr. mitsukurii and 0.85–19.55% for An. bifasciatus (Table 2). The parasitism rate varied as well for Tr. japonicus (71.43–100%), Tr. mitsukurii (88.59–97.40%) and An. bifasciatus (3.57–76.09%). The emergence of more than one species from the same H. halys egg mass was observed multiple times (Figure 2), from 96 egg masses in total (n = 2539 total number of eggs), and in the 83.33% it involved combinations of An. bifasciatus and 1–2 species. Anastatus bifasciatus emerged often together with Tr. japonicus (n = 55) and Tr. mitsukurii (n = 28), while Ac. sinicus was less frequent (n = 12 on Tr. mitsukurii and n = 1 on Tr. japonicus). Two other associations were observed once: Tr. cultratus and Tr. japonicus; Tr. basalis and Tr. mitsukurii. The emergence of two species generally coincided with the lack of emergence if H. halys nymphs (only 1.5% of eggs) and the presence of unhatched eggs (25% of eggs).

3.4. Habitat, Host Species and Distribution

Both exotic parasitoids were found in agricultural and urban areas. In agricultural systems, parasitized egg masses were found in conventional, integrated pest management (IPM) and organic orchards and fields, both on the edge (e.g., perimetral shrubs, hedgerows) and in the inner part of the cultivated area. In urban areas, parasitized egg masses were located in gardens, parks, parking lots and street trees. Concerning host plants, Tr. japonicus was recorded on both cultivated plants (i.e., Corylus avellana L., Prunus persica (L.) Batsch, Olea europaea L.) and trees planted in hedgerows or along streets (i.e., Acer spp., Acer campestre L., Catalpa bignonioides Walter., Fraxinus spp., Tilia platyphyllos Scop.). See Table S2 for the complete list of H. halys plant host species.
Trissolcus mitsukurii was also recorded on cropland (on Acer spp., Actinidia deliciosa (A. Chev.) C.F. Liang and A.R. Ferguson, Ailanthus altissima (Miller) Swingle, Corylus avellana L., Glycine max (L.) Merr., Malus domestica (Suckow) Borkh., Vitis vinifera L., Ziziphus jujuba Mill.) and in urban areas (on Acer spp., A. altissima, Fraxinus spp., Prunus spinosa L., Ziziphus jujuba Mill.).
The surveys (methods a, b and c) proved that both species are widely distributed in northern Italy while in Switzerland only Tr. japonicus is currently present (Figure 3). Anastatus bifasciatus and Tr. mitsukurii were recorded in all surveyed regions. The survey highlighted also that the distribution ranges of both exotic egg parasitoids are expanding southwards from the first Italian records (e.g., recording the first observation in Emilia-Romagna region).

4. Discussion

Overall, the results of the large-scale monitoring demonstrated a wide distribution and continuous expansion of Tr. japonicus and Tr. mitsukurii, compared to previous studies [19,20,22,23]. Four years following their first detection in Europe, both species have rapidly spread into all types of habitats where H. halys has been surveyed. Host plants included a wide range of crop and non-crop species. The patterns of occurrence suggest that Tr. mitsukurii is currently more widespread than Tr. japonicus and more abundant in the eastern part of northern Italy, while in Switzerland Tr. mitsukurii appears to be still absent. This different expansion could be explained by the timing of arrival of the two species and first locality of accidental introduction, since the earliest official record of Tr. mitsukurii for northern Italy was traced back to 2016 [22], two years before the earliest detection of Tr. japonicus [19]. Furthermore, the different abundance may be responsible also for the dissimilar observed habitat prevalence (agricultural/urban) observed for Tr. japonicus and Tr. mitsukurii. Whether other factors (e.g., host plant availability, sensitivity to chemicals) are responsible for the observed pattern merits further investigation.
As previously observed [13,14,20], our study confirmed that among native species, the generalist An. bifasciatus was the predominant parasitoid of H. halys in Italy, with a wide distribution and abundance. Conversely, the emergence of native scelionids was rarely observed. In the present study, An. bifasciatus emerged often from egg masses parasitized for other species as well. As previously pointed out [33,34] the role of An. bifasciatus (as competitor or hyperparasitoid) should be further investigated.
Yet, the lack of detected emergence is no evidence that an attempt of parasitization has not taken place. Molecular methods proved that native scelionids may frequently parasitize H. halys eggs but fail to develop, resulting in an evolutionary trap [35]. Similarly, laboratory trials showed that native Trissolcus species are able to induce egg abortion (non-reproductive effects) in H. halys [25]. Studies carried out on North American native parasitoids suggest that there is currently no evidence of intraspecific variation in traits that allow native parasitoids to successfully develop in H. halys eggs [36]. However, the successful adaptation of native parasitoids to a new host may occur over larger timescales (i.e., decades) [37] and should be further studied in Europe.
Field data from the native range of both Trissolcus species indicate that their host ranges are restricted to a few pentatomid species [7,38]. Both parasitoid species showed a favorable degree of specificity towards H. halys in the present study, even though they developed on other hosts (for example, D. baccarum, N. viridula and Pa. prasina for Tr. mitsukurii; Pa. prasina for Tr. japonicus), it was a relatively occasional event in this survey. Nevertheless, the data on native stink bugs were limited since the focus of the present study was on H. halys, and host plants of native pentatomids were only marginally sampled, resulting in a smaller number of collected egg masses. The use of sentinel egg masses produced in rearing facilities could overcome the potential for a relatively low number of collected samples, but unfortunately such egg masses are less reliable since they tend to underestimate parasitoid impact [39].
The actual impact on native stink bugs should be evaluated with specifically designed field experiments, which should take into account hidden trophic interactions [40] as well. Further investigations are needed to assess whether behavioral barriers (such as phenology, habitat preference and interspecific competition) exist and could prevent non-target parasitism in the field [41].
Both Tr. japonicus and Tr. mitsukurii showed notable levels of parasitism rate, which is helpful to build up populations. However, this first large-scale monitoring also showed a widespread presence of the hyperparasitoid Ac. sinicus, the expansion of which could cause possible problems in the future, limiting the impact of H. halys natural enemies. Acroclisoides sinicus was recently detected in many countries worldwide, but it is suspected to be an Asian species and its influence on the host–parasitoid trophic chain should be further investigated [28,42]. The generalist parasitoid An. bifasciatus was frequently found throughout the survey region, but its impact on H. halys is considered low [15] and inundative releases of this species did not result in sufficient pest control [16]. Accordingly, future efforts should focus on the two coevolved biological control agents originating from the pest’s area of origin.
Studies assessing the long-term trend of host–parasitoid interactions between Pentatomidae and Scelionidae are scarce [19,43] and several important issues remain unexplored (such as the variation of parasitism rate with time, for adventive populations). Further investigations on population and community ecology are needed to provide a strong basis for biological control prediction and management [44]. The present large-scale study (with shared survey protocols and analysis approaches) provides a baseline on parasitoid species composition and parasitism rate that may be used in the future to assess the impact of both adventive and released Trissolcus populations, and thus evaluate the output of classical biological control programs. In particular, data collected with the presented approach could also be used to understand whether laboratory predictions on non-target exploitation are consistent with what is observed in the field, in the area of introduction.
In Europe, the application of classical biological control is regulated by stringent risk assessments. Bureaucratic barriers, general criticisms due to poor public awareness, together with limited funding, may block the release of biological control agents [45,46]. As recently stated [47,48], more coordinated efforts are needed, with taxonomists and researchers working together, to create the grounds for effective biological area-wide control programs. The cooperative character of the present study was fundamental to cope with the difficult task of performing a large-scale survey in a limited amount of time, and provide data for Tr. japonicus risk assessment, essential for the ongoing release of the tested strain in Italy. The present approach could be applied to post-release studies as well, coping with logistically and economically challenging tasks. Biocontrol long-term development requires coordinated efforts, involving local and central governments, the engagement of the scientific community and public support [49]. Thus, creating the means for large scale international collaborations represents a further step towards the implementation of sustainable agriculture.

5. Conclusions

Small founder populations of Tr. japonicus and Tr. mitsukurii initially recorded in Switzerland [21] and in northern Italy [19,20,22,23] are currently expanding their range, following the path of their host H. halys. Bioclimatic models suggest that at least Tr. japonicus will be able to thrive and expand in all areas where H. halys already occurs, but also in nearly all areas where H. halys has been predicted to expand [50]. Considering that H. halys control still largely relies on the use of broad-spectrum insecticides, the reduced risk of potential non-target effects on a limited number of native stink bug species should not hamper future releases of Tr. japonicus [41], but should however be carefully evaluated with the support of a cost/benefit analysis [13]. The negative perceptions associated with classical biological control should not result in lost opportunities of increasing the sustainability of invasive pest management [12].

Supplementary Materials

The following are available online at, Figure S1: Distribution of the collected Halyomorpha halys egg masses in Italy (IT) and Switzerland (CH), according to the different surveyed contexts: cropland, semi-natural habitats and urban areas, Table S1: Survey methods applied in the different areas: (a) visual inspection in fixed locations (FV), repeated at least three times during the sampling season; (b) visual inspection in non-fixed locations (V) and (c) deployment of sentinel egg masses (S). Table S2: Host plant for the collected Halyomorpha halys egg masses.

Author Contributions

L.Z., G.S.-P. Conceptualization; L.Z., F.T., L.B., I.B., E.C., P.C., E.D.B., M.F., L.G., T.H., G.M., L.M. (Leonardo Marianelli), A.M., S.T.M., A.P., D.S. (Davide Scaccini), L.T., G.V. and G.S.-P., data curation; F.T., support on species identification; L.Z., formal analysis; G.A., M.B., A.B., T.H., L.M. (Lara Maistrello), A.P., P.F.R., L.T. and M.G.T., funding acquisition, resources and supervision; L.Z., F.T., S.B., L.B., I.B., S.C., R.C., E.C., P.C., E.D.B., M.F., L.G., T.H., G.M., C.M., A.M., L.M. (Lorenza Michelon), S.T.M., M.P., M.S., D.S. (Davide Scaccini), S.S., D.S. (David Szalatnay), G.V., P.Z., investigation; L.M. (Leonardo Marianelli) and G.S.-P., methodology and software; G.S.-P., project administration; L.Z., T.H., L.T. and G.S.-P., writing—original draft; L.Z., F.T., G.A., L.B., I.B., S.C., R.C., E.C., E.D.B., M.F., T.H., L.M. (Lara Maistrello), G.M., S.T.M., A.P., M.P., M.S., D.S. (Davide Scaccini), S.S., L.T., G.V., P.Z. and G.S.-P., writing—review and editing. All authors have read and agreed to the published version of the manuscript.


This work was supported by the project “Salvaolivi” grant number DM 0033437 21/12/2017 for CREA; the Swiss Federal Office for the Environment (contract no. 00. 5005. PZ/S084-0191) and with core financial support from CABI’s member countries; the Regione Veneto U.O. Fitosanitario for UniPD; Fondazione Cassa di Risparmio di Cuneo (project HALY-END) and Regione Piemonte (project BIOHALY) for UniTO.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author, upon request and agreement of the authors.


The authors would like to thank Elijah Talamas (FDACS, Florida, USA) and Kim A. Hoelmer (USDA, Delaware, USA), who organized a specialized training workshop on H. halys parasitoids, hosted by the Centre for Population Biology and Management of the French National Institute for Agriculture, Food and Environment in Montferrier-sur-Lez, which provided several authors fundamental skill to perform this survey. The authors are grateful for field work assistance to Berti Michele (FEM), Biondi Stefania (SFR Emilia-Romagna), Boncompagni Luca (CREA), Cazzuoli Adriano (Cooperativa ARVAIA), Chiesa Serena (FEM), Delvago Chiara (Cons. Fito. Parma), Fornasiero Diego (UniPD), Frosinini Riccardo (CREA), Gabrielli Enrico (Cooperativa ARVAIA), Ghilardi Matteo (AIPOL Lombardia), Landi Matteo (ASTRA), Madonni Luca (CREA), Mari Laura (Cooperativa ARVAIA), Mazza Giuseppe (CREA), Migliorini Federica (SFR Emilia-Romagna), Panizza Claudio (FEM), Pansa Marco (UniTO), Paoli Francesco (CREA), Raso Rosario (ERSA FVG), Rocchini Andrea (CREA), Scovero Sara (UniTO), Toccafondi Paolo (CREA), Tirello Paola (UniPD), Unterthurner Michael (Centro Consulenza Fruttiviticoltura Alto Adige), Visentin Sara (UniTO), Zampa Chiara (SISSAR FVG), Zanolli Penelope (UniPD), Zecchin Gabriele (U.O. Fitosanitario Reg. Veneto) and the several other people that helped with the egg mass collection.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Faúndez, E.I.; Rider, D.A. The Brown Marmorated Stink Bug Halyomorpha halys (Stål, 1855) (Heteroptera: Pentatomidae) in Chile. Arq. Entomolóxicos 2017, 17, 305–307. [Google Scholar]
  2. Xu, J.; Fonseca, D.M.; Hamilton, G.C.; Hoelmer, K.A.; Nielsen, A.L. Tracing the Origin of US Brown Marmorated Stink Bugs, Halyomorpha halys. Biol. Invasions 2014, 16, 153–166. [Google Scholar] [CrossRef]
  3. Maistrello, L.; Dioli, P.; Dutto, M.; Volani, S.; Pasquali, S.; Gilioli, G. Tracking the Spread of Sneaking Aliens by Integrating Crowdsourcing and Spatial Modeling: The Italian Invasion of Halyomorpha halys. BioScience 2018, 68, 979–989. [Google Scholar] [CrossRef] [Green Version]
  4. Musolin, D.L.; Konjević, A.; Karpun, N.N.; Protsenko, V.Y.; Ayba, L.Y.; Saulich, A.K. Invasive Brown Marmorated Stink Bug Halyomorpha halys (Stål) (Heteroptera: Pentatomidae) in Russia, Abkhazia, and Serbia: History of Invasion, Range Expansion, Early Stages of Establishment, and First Records of Damage to Local Crops. Arthropod-Plant Interact. 2018, 12, 517–529. [Google Scholar] [CrossRef]
  5. Leskey, T.C.; Nielsen, A.L. Impact of the Invasive Brown Marmorated Stink Bug in North America and Europe: History, Biology, Ecology, and Management. Annu. Rev. Entomol. 2018, 63, 599–618. [Google Scholar] [CrossRef] [Green Version]
  6. Abram, P.K.; Hoelmer, K.A.; Acebes-Doria, A.; Andrews, H.; Beers, E.H.; Bergh, J.C.; Bessin, R.; Biddinger, D.; Botch, P.; Buffington, M.L.; et al. Indigenous Arthropod Natural Enemies of the Invasive Brown Marmorated Stink Bug in North America and Europe. J. Pest Sci. 2017, 90, 1009–1020. [Google Scholar] [CrossRef]
  7. Zhang, J.; Zhang, F.; Gariepy, T.; Mason, P.; Gillespie, D.; Talamas, E.; Haye, T. Seasonal Parasitism and Host Specificity of Trissolcus japonicus in Northern China. J. Pest Sci. 2017, 90, 1127–1141. [Google Scholar] [CrossRef] [Green Version]
  8. Conti, E.; Avila, G.; Barratt, B.; Cingolani, F.; Colazza, S.; Guarino, S.; Hoelmer, K.; Laumann, R.A.; Maistrello, L.; Martel, G.; et al. Biological Control of Invasive Stink Bugs: Review of Global State and Future Prospects. Entomol. Exp. Et Appl. 2020, eea.12967. [Google Scholar] [CrossRef]
  9. van Lenteren, J.C.; Bolckmans, K.; Köhl, J.; Ravensberg, W.J.; Urbaneja, A. Biological Control Using Invertebrates and Microorganisms: Plenty of New Opportunities. BioControl 2018, 63, 39–59. [Google Scholar] [CrossRef] [Green Version]
  10. EPPO. PM 6/2 (3) Import and Release of Non-Indigenous Biological Control Agents. EPPO Bull. 2014, 44, 320–329. [Google Scholar] [CrossRef]
  11. Food Agriculture Organization of the United Nations (FAO); International Plant Protection Convention (I.P.P.C.) (Eds.) Pest Risk Analysis for Quarantine Pests; International Standard for Phytosanitary Measures 11. Available online: (accessed on 26 June 2019).
  12. Hajek, A.E.; Hurley, B.P.; Kenis, M.; Garnas, J.R.; Bush, S.J.; Wingfield, M.J.; van Lenteren, J.C.; Cock, M.J.W. Exotic Biological Control Agents: A Solution or Contribution to Arthropod Invasions? Biol. Invasions 2016, 18, 953–969. [Google Scholar] [CrossRef] [Green Version]
  13. Van Lenteren, J.C.; Bale, J.; Bigler, F.; Hokkanen, H.M.T.; Loomans, A.J.M. Assessing risks of releasing exotic biological control agents of arthropod pests. Annu. Rev. Entomol. 2006, 51, 609–634. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Haye, T.; Fischer, S.; Zhang, J.; Gariepy, T. Can Native Egg Parasitoids Adopt the Invasive Brown Marmorated Stink Bug, Halyomorpha halys (Heteroptera: Pentatomidae), in Europe? J. Pest Sci. 2015, 88, 693–705. [Google Scholar] [CrossRef]
  15. Costi, E.; Haye, T.; Maistrello, L. Surveying Native Egg Parasitoids and Predators of the Invasive Halyomorpha halys in Northern Italy. J. Appl. Entomol. 2019, 143, 299–307. [Google Scholar] [CrossRef]
  16. Stahl, J.; Babendreier, D.; Marazzi, C.; Caruso, S.; Costi, E.; Maistrello, L.; Haye, T. Can Anastatus bifasciatus Be Used for Augmentative Biological Control of the Brown Marmorated Stink Bug in Fruit Orchards? Insects 2019, 10, 108. [Google Scholar] [CrossRef] [Green Version]
  17. Maistrello, L.; Costi, E.; Di Bella, E.; Vaccari, G.; Caruso, S.; Casoli, L.; Preti, M.; Landi, M.; Bombardini, E.; Moretti, C.; et al. Inundative releases of the native parasitoid Anastatus bifasciatus for the control of Halyomorpha halys in Italy. In Proceedings of the Atti Giornate Fitopatologiche 2020, Bologna, Italy, 3 November 2020; pp. 167–176. [Google Scholar]
  18. Talamas, E.J.; Herlihy, M.; Dieckhoff, C.; Hoelmer, K.A.; Buffington, M.; Bon, M.-C.; Weber, D.C. Trissolcus japonicus (Ashmead) (Hymenoptera, Scelionidae) Emerges in North America. J. Hymenopt. Res. 2015, 43, 119–128. [Google Scholar] [CrossRef] [Green Version]
  19. Sabbatini Peverieri, G.; Talamas, E.; Bon, M.C.; Marianelli, L.; Bernardinelli, I.; Malossini, G.; Benvenuto, L.; Roversi, P.F.; Hoelmer, K. Two Asian Egg Parasitoids of Halyomorpha halys (Stål) (Hemiptera, Pentatomidae) Emerge in Northern Italy: Trissolcus mitsukurii (Ashmead) and Trissolcus japonicus (Ashmead) (Hymenoptera, Scelionidae). J. Hymenopt. Res. 2018, 67, 37–53. [Google Scholar] [CrossRef]
  20. Moraglio, S.T.; Tortorici, F.; Pansa, M.G.; Castelli, G.; Pontini, M.; Scovero, S.; Visentin, S.; Tavella, L. A 3-Year Survey on Parasitism of Halyomorpha halys by Egg Parasitoids in Northern Italy. J. Pest Sci. 2020, 93, 183–194. [Google Scholar] [CrossRef]
  21. Stahl, J.; Tortorici, F.; Pontini, M.; Bon, M.C.; Hoelmer, K.; Marazzi, C.; Tavella, L.; Haye, T. First Discovery of Adventive Populations of Trissolcus japonicus in Europe. J. Pest Sci. 2019, 92, 371–379. [Google Scholar] [CrossRef] [Green Version]
  22. Scaccini, D.; Falagiarda, M.; Tortorici, F.; Martinez-Sañudo, I.; Tirello, P.; Reyes-Domínguez, Y.; Gallmetzer, A.; Tavella, L.; Zandigiacomo, P.; Duso, C.; et al. An Insight into the Role of Trissolcus mitsukurii as Biological Control Agent of Halyomorpha Halys in Northeastern Italy. Insects 2020, 11, 306. [Google Scholar] [CrossRef]
  23. Zapponi, L.; Bon, M.C.; Fouani, J.M.; Anfora, G.; Schmidt, S.; Falagiarda, M. Assemblage of the Egg Parasitoids of the Invasive Stink Bug Halyomorpha halys: Insights on Plant Host Associations. Insects 2020, 11, 588. [Google Scholar] [CrossRef]
  24. Milnes, J.M.; Wiman, N.G.; Talamas, E.J.; Brunner, J.F.; Hoelmer, K.A.; Buffington, M.L.; Beers, E.H. Discovery of an Exotic Egg Parasitoid of the Brown Marmorated Stink Ug, Halyomorpha halys (Stål) in the Pacific Northwest. Proc. Entomol. Soc. Wash. 2016, 118, 466–470. [Google Scholar] [CrossRef]
  25. Moraglio, S.T.; Tortorici, F.; Giromini, D.; Pansa, M.G.; Visentin, S.; Tavella, L. Field collection of egg parasitoids of Pentatomidae and Scutelleridae in Northwest Italy and their efficacy in parasitizing Halyomorpha halys under laboratory conditions. Entomol. Exp. Et Appl. 2021, 169, 52–63. [Google Scholar] [CrossRef]
  26. Bin, F.; Vinson, S.B. Efficacy Assesment in Egg Parasitoids (Hymenoptera): Proposal for a Unified Terminology. In Proceedings of the Trichogramma and Other Egg Parasitoids 3rd International Symposium on Le Colloques de l’INRA, San Antonio, TX, USA, 23–27 September 1990; Wajnberg, E., Vinson, S.B., Eds.; Institut National de la Recherche Agronomique: Paris, France, 1991; Volume 56, p. 246. [Google Scholar]
  27. Askew, R.R.; Nieves-Aldrey, J.L. Further Observations on Eupelminae (Hymenoptera, Chalcidoidea, Eupelmidae) in the Iberian Peninsula and Canary Islands, Including Descriptions of New Species. Graellsia 2004, 60, 27–39. [Google Scholar]
  28. Sabbatini Peverieri, G.; Mitroiu, M.-D.; Bon, M.-C.; Balusu, R.; Benvenuto, L.; Bernardinelli, I.; Fadamiro, H.; Falagiarda, M.; Fusu, L.; Grove, E.; et al. Surveys of Stink Bug Egg Parasitism in Asia, Europe and North America, Morphological Taxonomy, and Molecular Analysis Reveal the Holarctic Distribution of Acroclisoides sinicus (Huang & Liao) (Hymenoptera, Pteromalidae). J. Hymenopt. Res. 2019, 74, 123–151. [Google Scholar] [CrossRef] [Green Version]
  29. Talamas, E.J.; Buffington, M.L.; Hoelmer, K. Revision of Palearctic Trissolcus Ashmead (Hymenoptera, Scelionidae). J. Hymenopt. Res. 2017, 56, 79–261. [Google Scholar] [CrossRef] [Green Version]
  30. Tortorici, F.; Talamas, E.J.; Moraglio, S.T.; Pansa, M.G.; Asadi-Farfar, M.; Tavella, L.; Caleca, V. A Morphological, Biological and Molecular Approach Reveals Four Cryptic Species of Trissolcus Ashmead (Hymenoptera, Scelionidae), Egg Parasitoids of Pentatomidae (Hemiptera). J. Hymenopt. Res. 2019, 73, 153–200. [Google Scholar] [CrossRef] [Green Version]
  31. Kozlov, M.A.; Kononova, S.V. Telenominae of the Fauna of the USSR (Hymenoptera, Scelionidae, Telenominae); “Nauka”, Leningradskoe Otdelenie: Leningrad, Russia, 1983. [Google Scholar]
  32. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018; Available online: (accessed on 1 February 2021).
  33. Viggiani, G. Lotta Biologica e Integrata Nella Difesa Fitosanitaria; Liguori Editore: Napoli, Italy, 1994; pp. 1–517. [Google Scholar]
  34. Konopka, J.K.; Haye, T.; Gariepy, T.D.; McNeil, J.N. Possible coexistence of native and exotic parasitoids and their impact on control of Halyomorpha halys. J. Pest Sci. 2017, 90, 1119–1125. [Google Scholar] [CrossRef]
  35. Konopka, J.K.; Gariepy, T.D.; Haye, T.; Zhang, J.; Rubin, B.D.; McNeil, J.N. Exploitation of Pentatomids by Native Egg Parasitoids in the Native and Introduced Ranges of Halyomorpha halys: A Molecular Approach Using Sentinel Egg Masses. J. Pest Sci. 2019, 92, 609–619. [Google Scholar] [CrossRef]
  36. Costi, E.; Wong, W.H.L.; Cossentine, J.; Acheampong, S.; Maistrello, L.; Haye, T.; Talamas, E.J.; Abram, P.K. Variation in Levels of Acceptance, Developmental Success, and Abortion of Halyomorpha halys Eggs by Native North American Parasitoids. Biol. Control 2020, 151, 104396. [Google Scholar] [CrossRef]
  37. Cornell, H.V.; Hawkins, B.A. Accumulation of Native Parasitoid Species on Introduced Herbivores: A Comparison of Hosts as Natives and Hosts as Invaders. Am. Nat. 1993, 141, 847–865. [Google Scholar] [CrossRef] [PubMed]
  38. Arakawa, R.; Namura, Y. Effects of Temperature on Development of Three Trissolcus Spp. (Hymenoptera: Scelionidae), Egg Parasitoids of the Brown Marmorated Stink Bug, Halyomorpha halys (Hemiptera: Pentatomidae). Entomol. Sci. 2002, 5, 215–218. [Google Scholar]
  39. Jones, A.L.; Jennings, D.E.; Hooks, C.R.R.; Shrewsbury, P.M. Sentinel eggs underestimate rates of parasitism of the exotic brown marmorated stink bug, Halyomorpha halys. Biol. Control 2014, 78, 61–66. [Google Scholar] [CrossRef]
  40. Hepler, J.R.; Athey, K.; Enicks, D.; Abram, P.K.; Gariepy, T.D.; Talamas, E.J.; Beers, E. Hidden Host Mortality from an Introduced Parasitoid: Conventional and Molecular Evaluation of Non-Target Risk. Insects 2020, 11, 822. [Google Scholar] [CrossRef] [PubMed]
  41. Haye, T.; Moraglio, S.T.; Stahl, J.; Visentin, S.; Gregorio, T.; Tavella, L. Fundamental Host Range of Trissolcus japonicus in Europe. J. Pest Sci. 2020, 93, 171–182. [Google Scholar] [CrossRef] [Green Version]
  42. Sabbatini Peverieri, G.; Giovannini, L.; Benvenuti, C.; Madonni, L.; Hoelmer, K.; Roversi, P.F. Characteristics of the Meconia of European Egg Parasitoids of Halyomorpha halys. J. Hymenopt. Res. 2020, 77, 187–201. [Google Scholar] [CrossRef]
  43. Colazza, S.; Bin, F. Efficiency of Trissolcus basalis (Hymenoptera: Scelionidae) as an Egg Parasitoid of Nezara viridula (Heteroptera: Pentatomidae) in Central Italy. Environ. Entomol. 1995, 24, 1703–1707. [Google Scholar] [CrossRef]
  44. McEvoy, P.B. Theoretical Contributions to Biological Control Success. BioControl 2018, 63, 87–103. [Google Scholar] [CrossRef]
  45. Barratt, B.I.P.; Moran, V.C.; Bigler, F.; van Lenteren, J.C. The Status of Biological Control and Recommendations for Improving Uptake for the Future. BioControl 2018, 63, 155–167. [Google Scholar] [CrossRef] [Green Version]
  46. Sheppard, A.W.; Shaw, R.H.; Sforza, R. Top 20 Environmental Weeds for Classical Biological Control in Europe: A Review of Opportunities, Regulations and Other Barriers to Adoption. Weed Res. 2006, 46, 93–117. [Google Scholar] [CrossRef]
  47. Buffington, M.L.; Talamas, E.J.; Hoelmer, K.A. Team Trissolcus: Integrating Taxonomy and Biological Control to Combat the Brown Marmorated Stink Bug. Am. Entomol. 2018, 64, 224–232. [Google Scholar] [CrossRef]
  48. Peixoto, L.; Allen, G.R.; Ridenbaugh, R.D.; Quarrell, S.R.; Withers, T.M.; Sharanowski, B.J. When Taxonomy and Biological Control Researchers Unite: Species Delimitation of Eadya Parasitoids (Braconidae) and Consequences for Classical Biological Control of Invasive Paropsine Pests of Eucalyptus. PLoS ONE 2018, 13, e0201276. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Wang, Z.; Liu, Y.; Shi, M.; Huang, J.; Chen, X. Parasitoid Wasps as Effective Biological Control Agents. J. Integr. Agric. 2019, 18, 705–715. [Google Scholar] [CrossRef] [Green Version]
  50. Avila, G.A.; Charles, J.G. Modelling the Potential Geographic Distribution of Trissolcus japonicus: A Biological Control Agent of the Brown Marmorated Stink Bug, Halyomorpha Halys. BioControl 2018, 63, 505–518. [Google Scholar] [CrossRef] [Green Version]

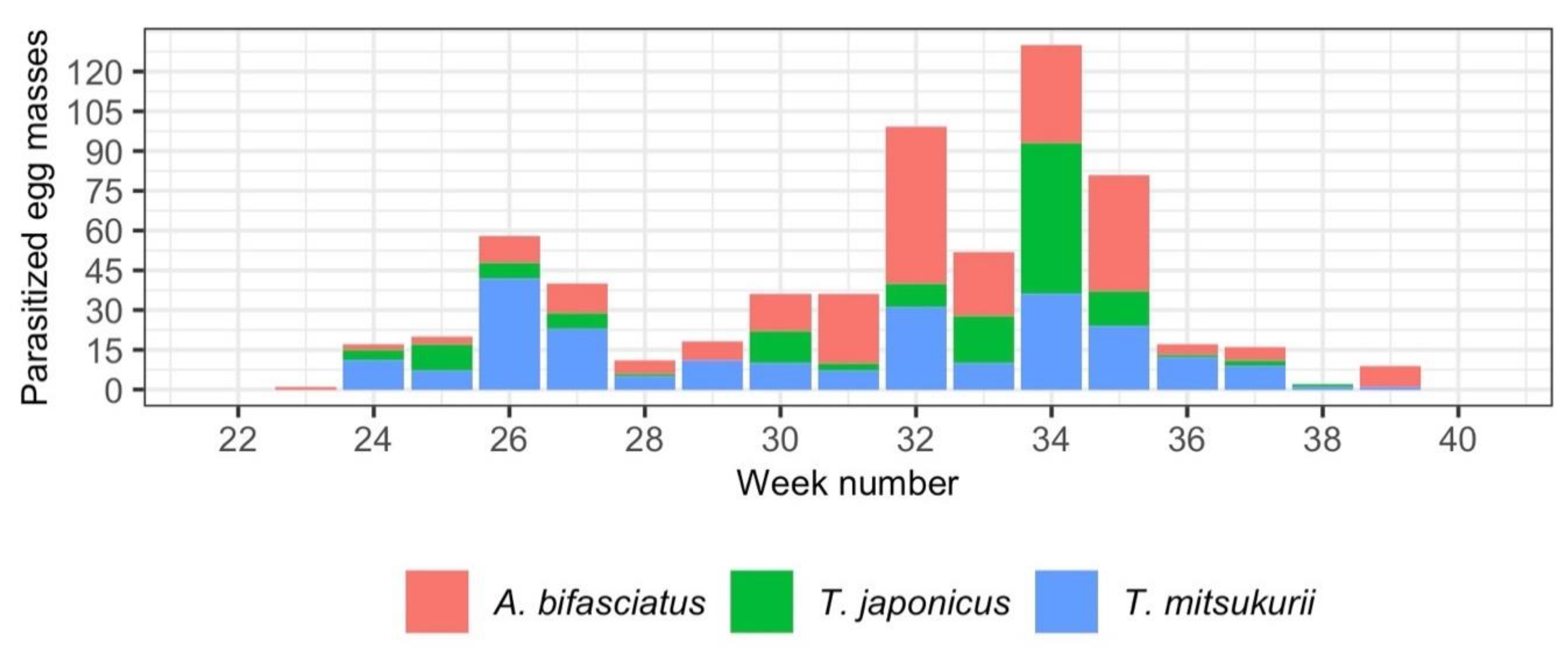

Figure 1. Number of parasitized egg masses collected throughout the sampling period (May–September 2019) for Anastatus bifasciatus, Trissolcus japonicus and Trissolcus mitsukurii.
Figure 1. Number of parasitized egg masses collected throughout the sampling period (May–September 2019) for Anastatus bifasciatus, Trissolcus japonicus and Trissolcus mitsukurii.
Insects 12 00316 g001

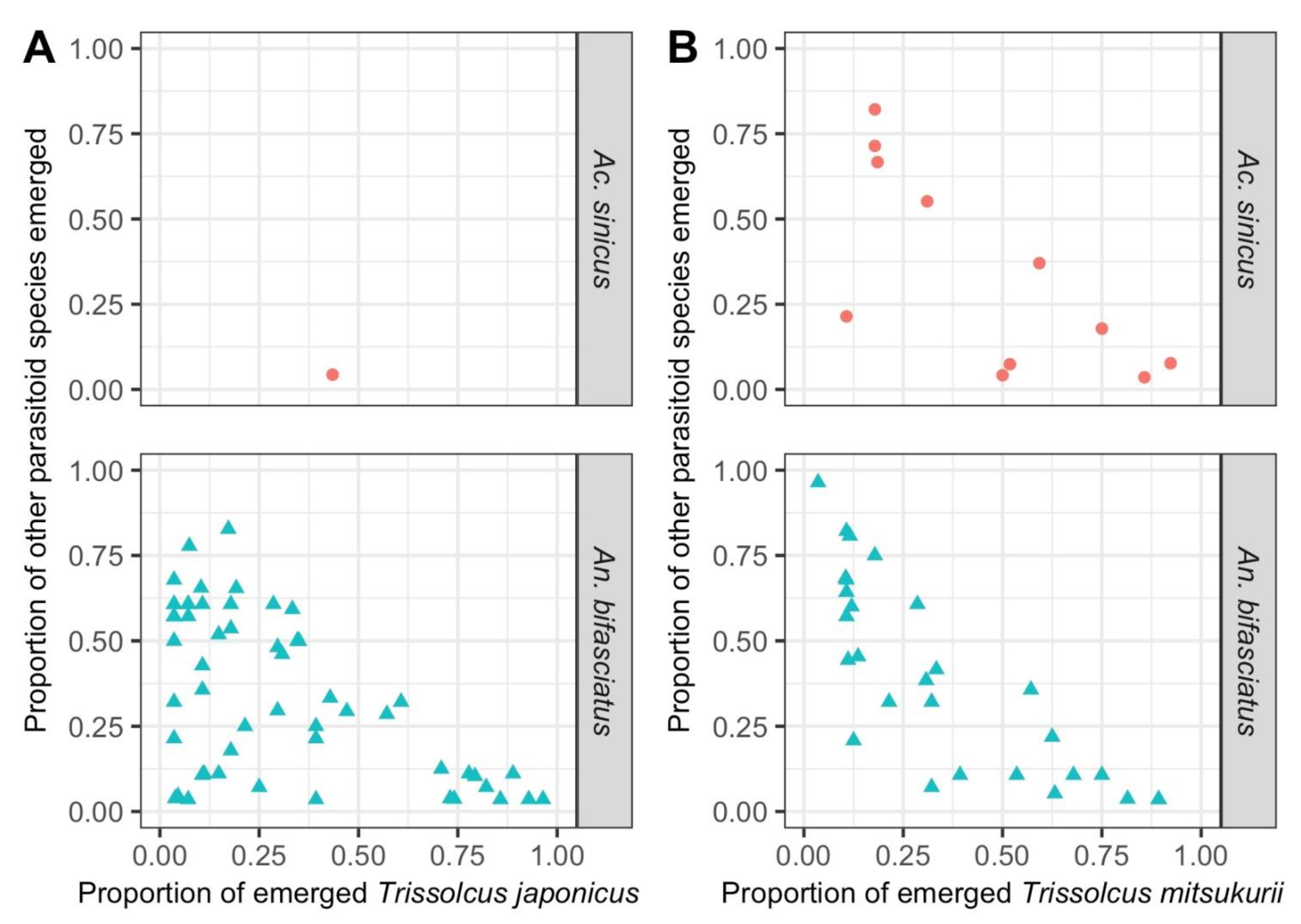

Figure 2. Multiparasitism of egg masses of Halyomorpha halys where the emergence of two species was observed (survey methods a and b): (A) proportion of emerged individuals for Trissolcus japonicus and other species (Acroclisoides sinicus and Anastatus bifasciatus) (N. of considered egg masses = 56); (B) proportion of emerged individuals for Trissolcus mitsukurii and other species (Ac. sinicus and An. bifasciatus) (N. of considered egg masses = 39).
Figure 2. Multiparasitism of egg masses of Halyomorpha halys where the emergence of two species was observed (survey methods a and b): (A) proportion of emerged individuals for Trissolcus japonicus and other species (Acroclisoides sinicus and Anastatus bifasciatus) (N. of considered egg masses = 56); (B) proportion of emerged individuals for Trissolcus mitsukurii and other species (Ac. sinicus and An. bifasciatus) (N. of considered egg masses = 39).
Insects 12 00316 g002

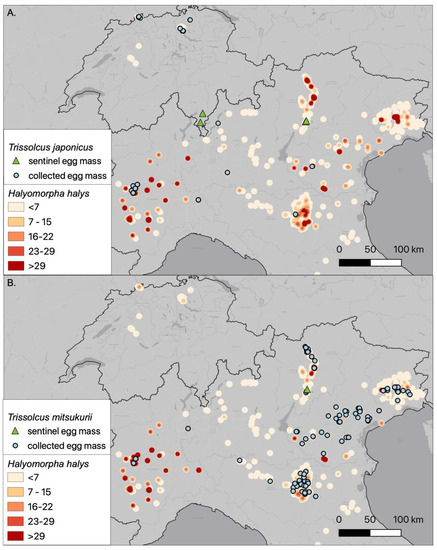

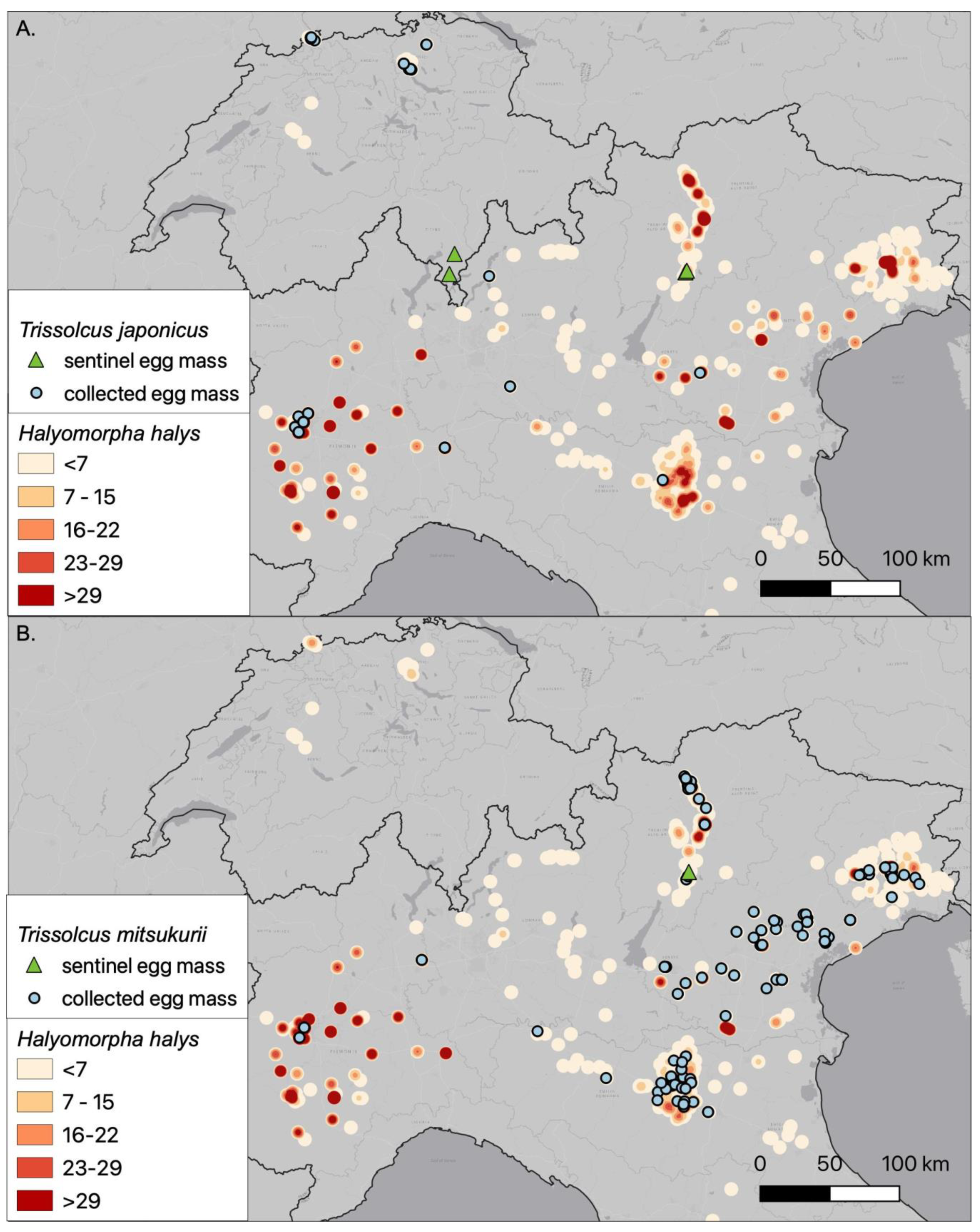

Figure 3. Distribution map of the collected egg masses for Halyomorpha halys, showing the emergence of the two exotic parasitoids in northern Italy and Switzerland (survey methods a, b and c): (A) Trissolcus japonicus and (B) Trissolcus mitsukurii. The heatmap is based on the abundance of collected egg masses of H. halys where orange reflect a low number and red a high number of egg masses. Sentinel egg mass records are derived from Stahl et al. [21] and Zapponi et al. [23].
Figure 3. Distribution map of the collected egg masses for Halyomorpha halys, showing the emergence of the two exotic parasitoids in northern Italy and Switzerland (survey methods a, b and c): (A) Trissolcus japonicus and (B) Trissolcus mitsukurii. The heatmap is based on the abundance of collected egg masses of H. halys where orange reflect a low number and red a high number of egg masses. Sentinel egg mass records are derived from Stahl et al. [21] and Zapponi et al. [23].
Insects 12 00316 g003
Table 1. Number of egg masses collected (N. EM) for each stink bug species and number of parasitized egg masses (N. PEM), in total and in brackets for each emerged parasitoid and hyperparasitoid species (survey methods a and b).
Table 1. Number of egg masses collected (N. EM) for each stink bug species and number of parasitized egg masses (N. PEM), in total and in brackets for each emerged parasitoid and hyperparasitoid species (survey methods a and b).
SpeciesN. EMN. PEMSpecies of ParasitoidsSpecies of Hyperparasitoids
Carpocoris spp.84Telenomus sp. (4)
Dolycoris baccarum227Anastatus bifasciatus (1), Telenomus sp. (3), Trissolcus belenus (1), Trissolcus mitsukurii (2)
Eurydema spp.42Trissolcus viktorovi (2)
Halyomorpha halys4348974Anastatus bifasciatus (624), Telenomus sp. (25), Trissolcus basalis (20), Trissolcus belenus (4), Trissolcus cultratus (14), Trissolcus japonicus (152), Trissolcus mitsukurii (325), Trissolcus semistriatus (4), Undet. (20)Acroclisoides sinicus (69)
Nezara viridula15331Anastatus bifasciatus (17), Trissolcus basalis (11), Trissolcus mitsukurii (3)Acroclisoides sinicus (1)
Palomena prasina7438Anastatus bifasciatus (11), Telenomus sp. (7), Telenomus turesis (2), Trissolcus cultratus (11), Trissolcus japonicus (5), Trissolcus mitsukurii (2)
Pentatoma rufipes62Trissolcus cultratus (2)
Piezodorus lituratus71Trissolcus semistriatus (1)
Rhaphigaster nebulosa112Anastatus bifasciatus (1), Telenomus sp. (1)
Table 2. Number of egg masses (N. EM) and eggs (N. E) for Halyomorpha halys collected in the different survey areas (methods a and b), showing percentage of parasitized egg masses (PEM) and parasitized eggs (PE), and resulting parasitism rate (PR) for Trissolcus japonicus (A), Trissolcus mitsukurii (B) and Anastatus bifasciatus (C), calculated on egg masses from which only one parasitoid species had emerged.
Table 2. Number of egg masses (N. EM) and eggs (N. E) for Halyomorpha halys collected in the different survey areas (methods a and b), showing percentage of parasitized egg masses (PEM) and parasitized eggs (PE), and resulting parasitism rate (PR) for Trissolcus japonicus (A), Trissolcus mitsukurii (B) and Anastatus bifasciatus (C), calculated on egg masses from which only one parasitoid species had emerged.
A. Trissolcus japonicus
CountryRegion/CantonN. EMN. EPEM (%)PE (%)PR (Mean ± SE)
ItalyPiedmont178846,8244.032.9889.43 ± 2.97
Veneto66916,9660.450.29100.00 ± 0.00
SwitzerlandBasel2662553.8550.8880.25 ± 6.95
Zürich2567332.0025.4171.43 ± 10.19
B. Trissolcus mitsukurii
CountryRegion/CantonN. EMN. EPEM (%)PE (%)PR (Mean ± SE)
ItalyEmilia Romagna62916,7073.662.7597.40 ± 1.68
Friuli-Venezia Giulia58913,87420.2014.4996.21 ± 1.38
Piedmont178846,8240.170.0991.23 ± 8.77
Trentino-Alto Adige58515,5065.984.1596.70 ± 2.92
Veneto66916,9666.884.6688.59 ± 3.27
C. Anastatus bifasciatus
CountryRegion/CantonN. EMN. EPEM (%)PE (%)PR (Mean ± SE)
ItalyEmilia Romagna62916,70719.552.3666.06 ± 2.78
Friuli-Venezia Giulia58913,8740.850.3544.89 ± 19.54
Piedmont178846,82415.727.7973.97 ± 1.92
Trentino-Alto Adige58515,50611.975.6276.09 ± 3.69
Veneto66916,9661.050.6268.32 ± 15.15
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zapponi, L.; Tortorici, F.; Anfora, G.; Bardella, S.; Bariselli, M.; Benvenuto, L.; Bernardinelli, I.; Butturini, A.; Caruso, S.; Colla, R.; et al. Assessing the Distribution of Exotic Egg Parasitoids of Halyomorpha halys in Europe with a Large-Scale Monitoring Program. Insects 2021, 12, 316.

AMA Style

Zapponi L, Tortorici F, Anfora G, Bardella S, Bariselli M, Benvenuto L, Bernardinelli I, Butturini A, Caruso S, Colla R, et al. Assessing the Distribution of Exotic Egg Parasitoids of Halyomorpha halys in Europe with a Large-Scale Monitoring Program. Insects. 2021; 12(4):316.

Chicago/Turabian Style

Zapponi, Livia, Francesco Tortorici, Gianfranco Anfora, Simone Bardella, Massimo Bariselli, Luca Benvenuto, Iris Bernardinelli, Alda Butturini, Stefano Caruso, Ruggero Colla, and et al. 2021. "Assessing the Distribution of Exotic Egg Parasitoids of Halyomorpha halys in Europe with a Large-Scale Monitoring Program" Insects 12, no. 4: 316.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
