Article

Assessment of Lethal, Sublethal, and Transgenerational Effects of Beauveria bassiana on the Demography of Aedes albopictus (Culicidae: Diptera)

1
Key Laboratory of Bio-Pesticide Innovation and Application of Guangdong Province, College of Agriculture, South China Agricultural University, Guangzhou 510642, China
2
Laboratory of Insect Microbiology and Biotechnology, Department of Entomology, Faculty of Agricultural Sciences and Technology, Bahauddin Zakariya University, Multan 66000, Pakistan
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Insects 2020, 11(3), 178; https://doi.org/10.3390/insects11030178
Submission received: 17 January 2020 / Revised: 22 February 2020 / Accepted: 4 March 2020 / Published: 11 March 2020
(This article belongs to the Special Issue Control of Mosquitoes, Biting Midges, Horse Flies and Deer Flies)

Abstract

:
Dengue fever is one of the most rapidly spreading arthropod-borne diseases. Diurnal vectorial properties of Aedes albopictus contribute to the dispersion of the dengue viruses. Frequent and injudicious use of synthetic insecticides led to the evolution of resistant phenotypes in Ae. albopictus which necessitates the search for an alternative of current control strategies. Developing a long-lasting and environmentally safe tactic based on knowledge of ecology and population dynamics of Ae. albopictus is critical. Therefore, with a view towards biological control and ecology, the effect of entomopathogenic fungi (EPF) Beauveria bassiana on filial and first filial generations of Ae. albopictus were studied. Investigations showed 87.5% adulticidal activity leading to altered fecundity and adult longevity in a filial generation. The lethal (LC50) and sublethal (LC20) concentrations of B. bassiana were applied to filial generation (F0) to study demographic parameters in the first filial generation (F1). Results showed reduced net reproductive rates (Ro) intrinsic rate of increase (r), and mean generation time (T) compared to uninfected controls. Prolonged larval and pupal duration were observed followed by reduced longevity of male and female adults. Fecundity in the first filial generation was significantly changed with the lethal and sublethal concentrations of B. bassiana. Thus, it is concluded that B. bassiana has the potential to play a vital role in integrated mosquito management strategies.

1. Introduction

Mosquito-borne diseases have been a primary concern for the human population for a long time. Due to Aedes albopictus, more than 100 nations in tropical and subtropical regions around the world are confronting the dangers of dengue fever, yellow fever, and chikungunya [1]. Diurnal and repeated blood-feeding behavior of Ae. albopictus makes it more dangerous than other mosquito species, it also facilitate the rapid transmission of diseases [2]. Moreover, past injudicious use of synthetic insecticides against larvae and adults of mosquito led to the evolution of resistant phenotypes [3], environmental contamination, and human health risks. Specifically, indoor use of synthetic insecticides against medically-important pests like mosquito negatively impact human health [4,5]. Non-target and broad spectrum insecticides negatively impact biodiversity [6,7,8] and life cycles of non-target insects [9,10,11]. All these issues contribute for the need of research for alternative control methods which would be long-lasting and safe for the environment and humans. As biological control agents, entomopathogenic fungi (EPF) are cosmopolitan and can be used safely against insect pests [12,13,14,15,16,17,18,19,20,21]. In recent studies, EPF have also shown promising adverse effects on different mosquito species [22,23,24].
EPF can be used more efficiently if the impacts of the life cycle of Ae. albopictus are better known. Population dynamics and population ecology of insects play a vital role in the development of long-lasting control with EPF [22,25,26]. Life table analysis of Ae. albopictus can help to determine the best time and stage upon which EPF should be applied for management [27,28].
Life table studies for Ae. albopictus have been conducted with a focus on immature stages but the adult populations (male especially) are overlooked [29]. Life table analysis without the inclusion of the male population cannot predict valid demographic parameters; hence age stage two-sex life tables are used [30,31,32]. The age stage two-sex life table, developed by Chi [33] subsequently and mathematically proven [34], can differentiate the stage and male populations.
The current study was planned with Ae. albopictus, and assessments of Beauveria bassiana isolated from two different sources were done. The best isolate was used to examine transgenerational effects on demographic parameters of filial offspring and first generations offspring by utilizing the age stage two-sex life table, which will guide us towards the effective use of B. bassiana at the most impactful time and stage of Ae. albopictus. This will contribute to development of a useful, and eco-friendly tool for integrated pest management of this urban pest.

2. Material and Method

2.1. Rearing of Ae. albopictus

Ae. albopictus (Foshan strain) eggs were collected from Guangdong Center for Disease Control and Prevention Guangzhou, China (2017). Eggs were brought on disinfected media (jars cleaned with ethanol 90%, air dried 30 mints) to the Laboratory of Bio-Pesticide Innovation and Application of Guangdong Province, College of Agriculture, South China Agricultural University, Guangzhou, China. Filter papers containing the eggs were placed in glass beakers (200 mL) containing water for hatching under controlled (Temperature: 28 ± 2 °C, Relative Humidity:64 ± 5% and photoperiod 11:13 h light:dark) laboratory conditions (pathogen-free environment) [35]. Two-day old post-hatching larvae were transferred in 1000 mL glass jars (15 × 10 cm). Well-ground fish food (Godzilla, CST945) was provided to larvae as food [36]. Pupae were collected and placed in a separate glass beaker (200 mL) which was placed in white cloth cage (30 × 30 cm) for adult emergence [22]. Male and female adults were provided a 10% sugar solution (w/v) while egg-laying female adults were blood-fed on mice with ethical approval (SCAU-AEC-2010-04-16) by the Guangdong Province Administration Office of Laboratory Animals. Conical shaped wet filter paper fitted in a 200 mL glass beaker (filled with distilled water) was used as an oviposition site.

2.2. Fungi Culture

Two soil extracted isolates of B. bassiana (Bb-01 and Bb-10), were obtained from the Laboratory of Insect Microbiology and Biotechnology, Bahauddin Zakariya University, Multan, Pakistan [24,37]. Bb-01 was isolated from multan Punjab Pakistan (30°05′11.65″N 71°39′15.65″E) while Bb-10 was isolated from soil of Mansehra, Khyber Pakhtunkhwa, Pakistan (34°20′2″N 73°12′5″E).
Isolates were passaged multiple times to prevent aging [38]. A two-week-old potato dextrose agar grown monoconidial culture maintained at 25 °C was used in suspension formation. For stock solutions, disinfected spatulas were used to harvest the conidia in 0.05% Tween-80 (Sigma-P1754) diluted in distilled water [39]. Stock solutions were stored at 4 °C for further use [40,41]. Serial dilutions were made to provide the desired concentrations from the stock solution.

2.3. Bioassay

2.3.1. Screening of Beauveria bassiana Isolates

Two isolates of B. bassiana (Bb-01 and Bb-10) were screened out against the adult (2 days old males and females) of Ae. albopictus. Five concentration (3 × 10⁸, 3 × 107, 3 × 106,3 × 105, 3 × 104 spores/mL) were prepared for both isolates, whereas 0.05% Tween-80 (Sigma-P1754) diluted in distilled water was taken as tween control and distilled water was a general control [39]. Plastic jars (10 × 10 × 10 cm) were sprayed with fungal concentrations (10 mL) and air-dried for two hours. Ten adults were added to the jar of each concentration of every isolate. The whole experiment was repeated four times. Sugar solution (10%) was provided to male and female while the additional blood meal was provided to females for egg-laying. All experiments were conducted under controlled laboratory conditions as described above. Data regarding adult mortality for 7 days (24 h interval) [12,13,22]. Adults showing no movement were considered dead.

2.3.2. Selection of Beauveria bassiana Isolate

The LC50 was calculated for both isolates of B. bassiana (POLO-PC software). The fungal isolate with the lowest LC50 was chosen for further experimentation with the age stage two-sex life table.

2.3.3. Assay of Blood-Fed Females

A selected isolate of B. bassiana was again tested on blood-fed and non-blood-fed females, five concentrations (3 × 10⁸, 3 × 107, 3 × 106, 3 × 105, 3 × 104 spores/mL) were prepared and applied with the same methodology as described above. Females used in experimentation were 2 days old (24 h starved) and concentrations were applied 8 h post blood-feeding.

2.3.4. Validation of Lethal (LC50) and Sublethal (LC20) Concentrations

Lethal and sublethal concentrations (LC50, LC20) for the life table studies were practically evaluated against adults of Ae. albopictus. For experimentation jars (10 adult/replication) sprayed with desired concentrations were used with the same procedure as described above.

2.3.5. Influence of Beauveria bassiana on Longevity and Fecundity of Filial Generation (F0)

A total of 1000 newly emerged adults (1:1) were selected for bioassays. Males and females (250 each) were separated with an electric aspirator and subjected to Lethal (LC50) and sublethal (LC20) concentrations separately, in treated jar assays (500 adults, 1:1) water diluted 0.05% Tween-80 (Sigma-P1754) was used as control. Mortality was observed every 24 h for 7 days, after the seven days of treatment the remaining adults of filial generation (F0) were copulated (1pair/cage) in plastic cages covered with a white cloth. Blood meals were provided every four days until the death of females (Scholte et al. 2006). Glass beakers with wet filter paper were used as ovipositional sites. Fecundity and longevity were observed until the death of every individual of the filial generation [42].

2.3.6. Transgenerational Effect of Beauveria bassiana on First Filial Generation (F1)

Eggs laid by filial generations, 100 eggs were collected from each group (LC50, LC20, and control). Eggs were placed individually on disinfected plastic trays (150 mL distilled water) without fungal exposure in pathogen-free environment. Powered fish food (Godzilla, CST945) was individually given to larvae as food. The transgenerational effects were studied from larva to adult stage. Data were recorded every 12 h until the death of all individuals. On the emergence of adults, individuals of the first filial generation were paired and shifted in cages for seeking the data regarding longevity and fecundity.

2.4. Statistical Analysis

The calculation of lethal and sublethal concentrations was conducted by using POLO-PC software [43]. Mortality data were analyzed by one-way ANOVA. Means were separated by using Tukey’s HSD test in Minitab 16 software at a 5% level of significance. Life table parameters like development, fecundity and, longevity were obtained by using the age-stage two-sex life table [33,44,45,46]. The bootstrap technique (n = 100,000) was used for the calculation of standard errors for life table parameters [47]. The program (TWO SEX-MS Chart) for age-stage two-sex life table analysis was designed in visual basics for the window operating system and can be obtained from the following link [33,46] (http://140.120.197.173/Ecology/prod02.html) (Chung Hsing University).
In age stage two-sex life table net reproductive rate (R0), which shows a total number of offspring by an individual throughout its life was calculated via the equation
R 0 = x = 0 l x m x
while lx, the probability of a newly laid egg surviving to age x can be calculated as
l x = j = 1 k s x j
mx is mean fecundity of individuals at age x can be obtained from the following equation
m x = j = 1 k s x j f x j j = 1 k s x j
The intrinsic rate of increase (r) was evaluated utilizing the iterative bisection strategy and adjusted with the Euler–Lotka condition with the age-indexed (Goodman 1982).
x = 0 e r ( x + 1 ) l x m x = 1
The finite rate was calculated as
λ = e r
Length of time that a population needs to increase to R0-fold of its population size at the stable age-stage distribution is called as mean generational time, and is calculated as
T = 1 n R 0 | r
exj, the length of time that an individual of age x and stage j is expected to live could be obtained from the equation below [44]
e x j = i = x y = j β S i y
The reproductive value (vxj) was calculated according to [48,49] and was calculated as
V x j = e r ( x + 1 ) s x j i = x e r ( i + 1 ) y = j β S i y f i y

3. Results

3.1. Screening of Beauveria bassiana Isolate

Both isolates of B. bassiana (Bb-01, Bb-10) revealed a direct relationship between concentration and mortality (Figure 1). At the maximum concentration of 3 × 10⁸ (spores/mL), Bb-01 exhibited the highest adulticidal activity (87.5 ± 0.47) followed by Bb-10 (65 ± 0.5). Mortality in both control treatments was low and lowered then all concentrations of both isolates (p < 0.05, DF = 4) dead specimens were put in humid chamber for conidal growth (supplementary material)

3.2. Selection of Beauveria bassiana Isolate

Lethal (LC50) and sublethal (LC20) doses for both isolates (Bb-01, Bb-10) of B. bassiana were calculated from pre-experimentation data (Table 1). The isolate with the lowest LC50 was selected for further studies; hence B. bassiana isolate Bb-01 met the desired criteria.

3.3. Assay of Blood-Fed Females

Blood-fed and non-blood fed females of Ae. albopictus were exposed to five concentrations of B. bassiana (Bb-01) by contact assay in the jar. Non-significant results were seen (Figure 2) between blood-fed and non-blood fed females. Blood meal did not affect the adulticidal activity of B. bassiana (Bb-01).

3.4. Validation of Lethal (LC50) and Sublethal (LC20) Concentrations

Calculated lethal (LC50) and sublethal (LC20) concentrations of B. bassiana (Bb-01) were experimentally validated, lethal concentration LC50 showed 51.54 ± 0.98% adult mortality followed by sub-lethal concentration LC20 (23.11 ± 1.11).

3.5. Influence of Beauveria bassiana on Longevity and Fecundity of Filial Generation (F0)

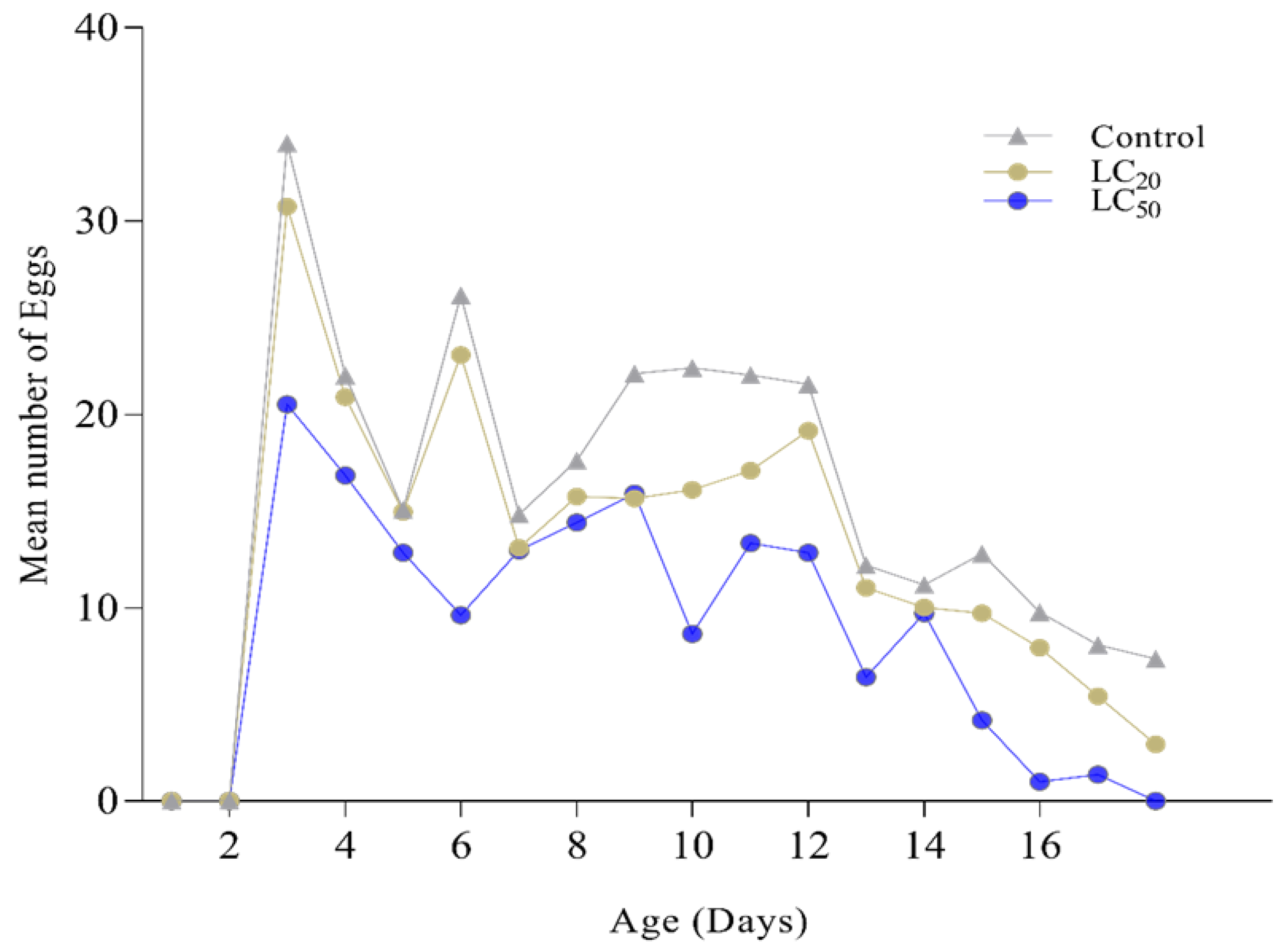

After the treatment of Lethal (LC50) and sublethal (LC20) concentrations of B. bassiana (Bb-01), the effect of longevity and fecundity of Ae. albopictus (filial generation, F0) were seen (Table 2). For the filial generation exposed to LC50 and LC20 of Bb-01, male longevity was reduced to 21.33 and 26.09 days respectively, while maximum male longevity was seen in controls (29.91 ± 1.20). Female longevity also showed a similar tread to male longevity (days), where LC50 of Bb-01 presented the lowest longevity (22.22 ± 1.21) followed by LC20 of Bb-01 (27.65 ± 1.77) as compared to the control (30.07 ± 0.41). A significant reduction in fecundity (eggs/female) was also observed. Exposure to LC50 of Bb-01 results in the fewest number of eggs (189.31 ± 8.11) followed by the LC20 exposure (230.47 ± 9.32) and controls (357.33 ± 9.30).

3.6. Effect of Beauveria bassiana on First Filial Generation (F1)

For evaluation of transgenerational changes in the first filial generation of Ae. albopictus, an age stage two-sex life table was used. Basic parameters of life table such as developmental time, longevity, and fecundity are presented in Table 3. Egg hatching of 100% was observed with both control and sub-lethal (LC20) concentration of B. bassiana, while 95% of egg hatching was observed after treatment of lethal (LC50) concentration of Bb-01. An opposite trend was observed in egg duration, where control (2.00 ± 0.01 days) and sublethal concentration (LC20) of B. bassiana (2.00 ± 0.01) showed prolongs the egg hatching duration, while early egg hatching (days) was seen in lethal (LC50) concentration (1.95 ± 0.54) of B. bassiana. Significantly different total larval duration was reported, LC50 of B. bassiana showed maximum (8.38 ± 0.16) development time (days) follow by LC20 (7.97 ± 0.01), while minimum developmental time (7.89 ± 0.03) was seen in the control group. In pupal duration (days), LC50 of B. bassiana showed minimum pupal duration (2.55 ± 0.59) then LC20 (3.00 ± 0.59) and control (3.00 ± 0.11). A significant reduction was seen in the life span of male Ae. albopictus, an increase in the concentration of B. bassiana had an inverse effect on the reduction of the male life span. Male adults of Ae. albopictus showed minimum life span (27 days) on LC50 of B. bassiana then LC20 (30.10 days) and control (30.00 days). A similar trend was observed in the female life span. Fecundity had an inverse relation with lethal and sublethal concentrations of Bb-01, females treated with LC50 of B. bassiana laid a minimum mean number of eggs (320/female), while females from LC20 of B. bassiana laid more eggs (349/female) then LC50. The maximum mean number of eggs was observed in control (380/female).
Population parameters calculated with the help of the age stage two-sex life table are shown in Table 4. The intrinsic rate of increase (r) was inversely related to concentration, which varied from 0.27 to 0.25 and 0.23 in the control, LC20, and LC50 respectively. Mean finite rate of increase (λ) had a significant difference (per day) between control (1.32 ± 0.01), LC20 (1.29 ± 0.02) and LC50 (1.26 ± 0.06). The net reproduction rate (R0) (offspring/individual) was high in control (133.0 ± 16.21) and then gradually decrease significantly in LC20 (89.16 ± 9.31) and LC50 (50.62 ± 8.31). Significant differences were also observed between mean generation times (T), 17.83 days for control and 17.80 and 17.09 days in LC20 and LC50 respectively (p < 0.05).
The age stage survival rate (Sxj) signifies that in the first filial generation overall life span of Ae. albopictus in the control group was longer and was reduced after treatment of LC20 and LC50 of B. bassiana (Figure 3A–C, respectively). A similar trend was also observed in age-stage life expectancy (Exj) where treated group individuals had a lower life expectancy and overall life span (Figure 4A–C).

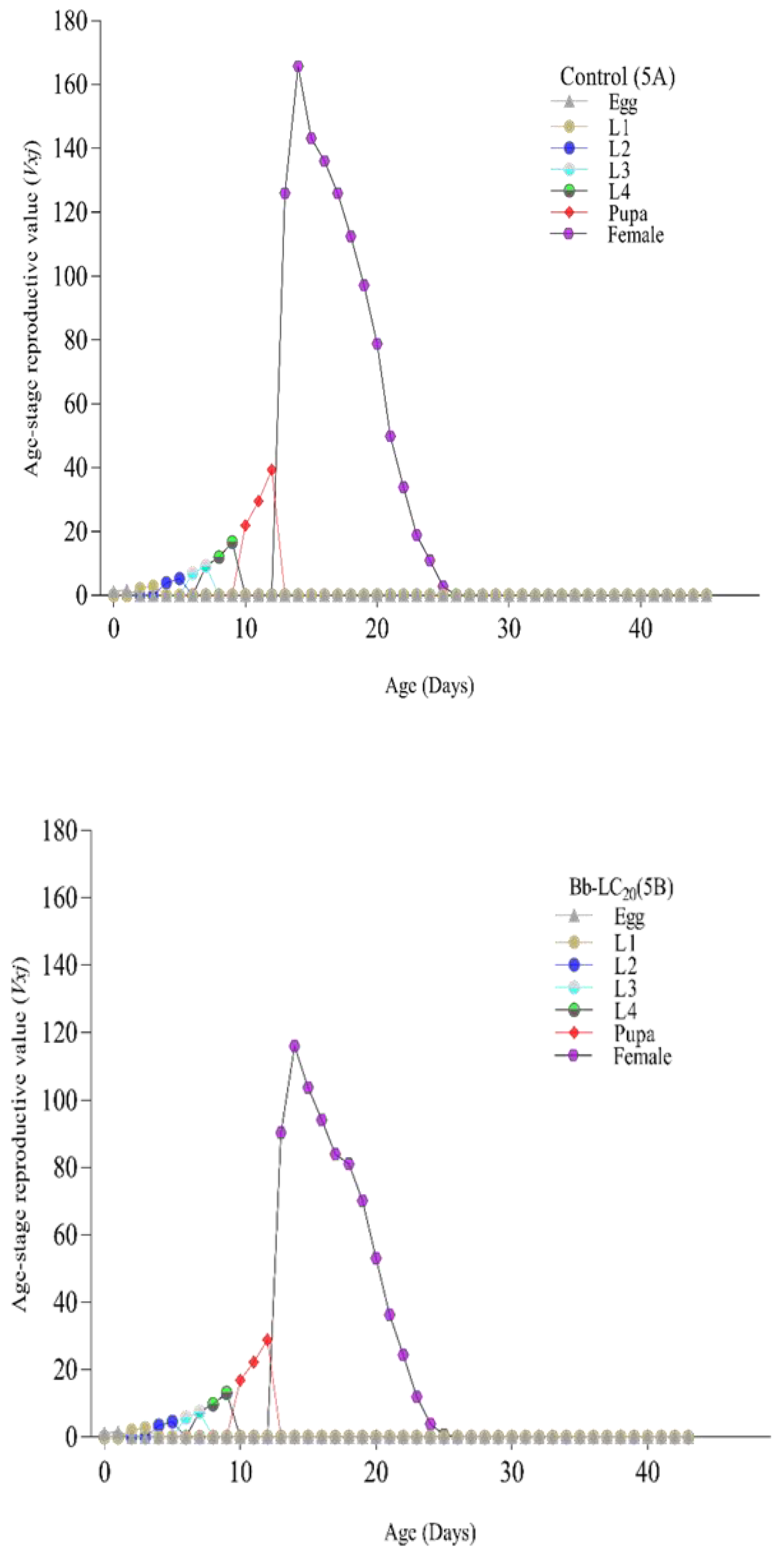

Age stage reproductive value (Vxj) shows the maximum reproductive value of a stage in life span, adult females from the control group showed the highest peak of reproductive value as compared to lethal and sublethal concentrations of B. bassiana (Figure 5). Daily reproduction (Figure 6) also showed a significant difference in the mean number of eggs (p < 0.05). Egg-laying started 2 days post blood meal; in the beginning, controlled females showed a maximum number of eggs followed by females of LC20 and LC50. With time reduction in a mean number of eggs was seen in treated females.

4. Discussion

The life table of tracheal arthropods (insects) is directly related to the control of insects. Increased knowledge of insect stages, survival, and reproduction, can lead us towards promising and long-lasting control of insect pests [36,50,51,52,53,54,55]. Two virulent isolates of B. bassiana (extracted from different soils) were screened against Ae. albopictus with both isolates showing noteworthy adulticidal activity. The isolate extracted from soil of (Bb-01) in Pakistan showed more virulence than the isolate from the soil of cold area (Bb-10) soil. Bb-01 provided 87.5% adult mortality which also goes in favor of previous studies where Ae. albopictus and Culex spp. showed 80–90% adult mortality after treatment of EPF [23,40,56,57]. Due to the least LC50 and high adulticidal activity, Bb-01 was selected for further studies to assess its transgenerational effects on the filial and first filial generation of Ae. albopictus.
Insect chitin made cuticle is the main line of defense against EPF. In the case of medical insects like mosquito, complete control (Mortality) via EPF is not so easy. While EPF causes mortality in two weeks, an essential aspect is the effect of EPF on life parameters of mosquito. B. bassiana produces secondary products like beauvericin, bassianin, bassianolide, beauverolides, beauveriolides, tenellin, oosporein, and oxalic acid which evade the humoral and immune system of the insect [58,59]. Hyphae of B. bassiana absorbs the sugar contents from the hemolymph of insect which contributes towards insect weakness and disrupts various biological parameters of insect pests [60,61]. The current study strengthens this argument because egg hatching, larval duration, pupal duration, adult longevity, and fecundity in a filial and first filial generation were affected significantly. Lower egg hatching was observed due to the treatment of lethal concentration (LC50) from Bb-01 which goes in favor of previous studies in Aedes spp and S. litura (Fabricius 1775) where EPF causes a reduction in egg hatching [62,63,64].
EPF penetrates the cuticle and affects the fat body of the insect depleting energy resource which directly affects the insect stadium [65,66,67], which resulted in prolonged larval and pupal duration. A similar trend was observed in the current study, where the lethal and sublethal concentration of Bb-01 showed long larval and pupal duration. Prolonged larval and pupal duration has also been reported in past studies of Musca domestica (Linnaeus 1758) and Culex spp. [22,23,68].
In epidemiological models for diseases of Ae. albopictus, adult control is the most important thing [69,70,71]. Short longevity of Ae. albopictus adults will help in the control of vector-borne diseases [72]. Our findings showed reduced male and female longevity in filial and first filial generation due to the treatment of lethal and sublethal concentrations of Bb-01, previously Ae. albopictus and Ae. aegypti had also shown a significantly short life span after infection of EPF [40,41,69]. Anopheles spp. also showed low adult survival after the treatment of EPF [69,73,74,75,76]. A similar trend was observed in Rhynchophorus ferrugineus (Olivier) and Trogoderma granarium, where 20-30% reduced longevity was observed after treatment of EPF [77,78].
The infection of EPF fluctuates the body temperature of females, resulting in the loss of appetite, which led to reduced fecundity [79]. In current studies, the concentration of Bb-01 was inversely proportional to the mean number of eggs from females of Ae. albopictus. In past studies reduction in blood-feeding [80], retardation in fecundity has been significantly reported due to infection of EPF [41]. Musca domestica and S. litura showed less mean number of eggs after the treatment of EPF [18,68]. B. bassiana showed a significant effect on all demographic parameters of Ae. albopictus in a filial and first filial generation.

5. Conclusions

This study is first of his kind and provides basic yet important time-specific and age-specific information for a better understanding of Ae. albopictus population dynamics under the influence of B. bassiana. From our investigation, the conclusion can be drawn that B. bassiana has lasting effects on the developmental parameters of Ae. albopictus. Mainly the impact of the Bb-01 on adult longevity and female fecundity was significantly affected. Considering the impact of B. bassiana on transgenerational parameters of filial and first filial generation, it can be integrated with effective dengue vector control strategies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4450/11/3/178/s1, Figure S1. Fungal growth of Beauveria bassiana isolate Bb-01 on adult Aedes albopictus (Culicidae: Diptera); Figure S2. Fungal growth of Beauveria bassiana isolate Bb-10 on adult Aedes albopictus (Culicidae: Diptera).

Author Contributions

Conceptualization, R.F.S., and M.S.; Data curation, R.F.S., and J.Z.; Formal analysis, R.F.S. and J.Z.; Funding acquisition, X.X. and F.J.; Investigation, R.F.S. and Y.Z.; Methodology, R.F.S. and M.S.; Project administration, S.F. and F.J.; Resources, X.X. and F.J.; Supervision, F.J.; Writing—original draft, R.F.S. and J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the Key Realm R&D Program of Guangdong Province (2018B020205003), Natural Science Foundation of Guangdong, China (2018A030313402, 2019A1515011221), and Guangzhou Science and Technology Program, China (201803020011). We also thank editors and anonymous referees for their valuable comments and suggestion.

Acknowledgments

We are particularly grateful to Dr. Dingxing Jiang, South China Agricultural University, Guangzhou, China) for generously providing the eggs of Ae. albopictus.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tauil, P.L. Critical aspects of dengue control in Brazil. Cad. Saúde Pública 2002, 18, 867–871. [Google Scholar] [CrossRef] [Green Version]
  2. Gratz, N. Critical review of the vector status of Aedes albopictus. Med. Vet. Entomol. 2004, 18, 215–227. [Google Scholar] [CrossRef] [PubMed]
  3. Rose, R.I. Pesticides and public health: Integrated methods of mosquito management. Emerg. Infect. Dis. 2001, 7, 17–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Relyea, R.; Hoverman, J. Assessing the ecology in ecotoxicology: A review and synthesis in freshwater systems. Ecol. Lett. 2006, 9, 1157–1171. [Google Scholar] [CrossRef]
  5. Fleeger, J.W.; Carman, K.R.; Nisbet, R.M. Indirect effects of contaminants in aquatic ecosystems. Sci. Total Environ. 2003, 317, 207–233. [Google Scholar] [CrossRef]
  6. Forson, D.D.; Storfer, A. Atrazine increases ranavirus susceptibility in the tiger salamander, Ambystoma tigrinum. Ecol. Appl. 2006, 16, 2325–2332. [Google Scholar] [CrossRef] [Green Version]
  7. Forson, D.; Storfer, A. Effects of atrazine and iridovirus infection on survival and life-history traits of the long-toed salamander (Ambystoma macrodactylum). Environ. Toxicol. Chem. 2006, 25, 168–173. [Google Scholar] [CrossRef] [Green Version]
  8. Muturi, E.J.; Kim, C.H.; Alto, B.W.; Berenbaum, M.R.; Schuler, M.A. Larval environmental stress alters Aedes aegypti competence for Sindbis virus. Trop. Med. Int. Health 2011, 16, 955–964. [Google Scholar] [CrossRef]
  9. Blaustein, A.R.; Romansic, J.M.; Kiesecker, J.M.; Hatch, A.C. Ultraviolet radiation, toxic chemicals and amphibian population declines. Divers. Distrib. 2003, 9, 123–140. [Google Scholar] [CrossRef] [Green Version]
  10. Ahmed, K.; Freed, S.; Shoukat, R.F.; Ahmad, K.W. Efficacy of Entomopathogenic Fungi with Insecticides Mixtures against Oxycarenus hyalinipennis (Costa)(Lygaeidae: Hemiptera). Pak. J. Zool. 2020, 52, 573–583. [Google Scholar] [CrossRef]
  11. Ahmed, S.M.; Saeed, M.; Nawaz, A.; Usman, M.; Shoukat, R.F.; Li, S.; Zhang, Y.; Zeng, L.; Zafar, J.; Akash, A. Monitoring of quantitative and qualitative losses by lepidopteran, and homopteran pests in different crop production systems of Brassica oleracea L. J. Entomol. Zool. Stud. 2018, 6, 6–12. [Google Scholar]
  12. Khan, B.A.; Freed, S.; Zafar, J.; Farooq, M.; Shoukat, R.F.; Ahmad, K.W.; Li, S.; Zhang, Y.; Hua, Y.; Shoukat, R.F. Efficacy of different entomopathogenic fungi on biological parameters of pulse beetle Callosobruchus chinensis L. (Coleoptera: Bruchidae). J. Entomol. Zool. Stud. 2018, 6, 1972–1976. [Google Scholar]
  13. Zafar, J.; Freed, S.; Khan, B.A.; Farooq, M. Effectiveness of Beauveria bassiana Against Cotton Whitefly, Bemisia tabaci (Gennadius)(Aleyrodidae: Homoptera) on Different Host Plants. Pak. J. Zool. 2016, 48, 91–99. [Google Scholar]
  14. Rizvi, S.A.H.; Ling, S.; Tian, F.; Liu, J.; Zeng, X. Interference mechanism of Sophora alopecuroides L. alkaloids extract on host finding and selection of the Asian citrus psyllid Diaphorina citri Kuwayama (Hemiptera: Psyllidae). Environ. Sci. Pollut. Res. 2018. [Google Scholar] [CrossRef]
  15. Shakeel, M.; Farooq, M.; Nasim, W.; Akram, W.; Khan, F.Z.A.; Jaleel, W.; Zhu, X.; Yin, H.; Li, S.; Fahad, S. Environment polluting conventional chemical control compared to an environmentally friendly IPM approach for control of diamondback moth, Plutella xylostella (L.), in China: A review. Environ. Sci. Pollut. Res. 2017, 24, 14537–14550. [Google Scholar] [CrossRef]
  16. Ahmad, K.W.; Freed, S.; Shoukat, R.F. Efficacy of entomopathogenic fungi and botanicals on development of Musca domestica. J. Entomol. Zool. Stud. 2017, 5, 593–599. [Google Scholar]
  17. Akmal, M.; Freed, S.; Naeem, M.; Tahira, H. Efficacy of Beauveria bassiana (Deuteromycotina: Hypomycetes) Against Different Aphid Species under Laboratory Conditions. Pak. J. Zool. 2013, 45, 71–78. [Google Scholar]
  18. Farooq, M.; Steenberg, T.; Castberg, D.; Freed, S.; Kristensen, M. Impact of sequential exposure of Beauveria bassiana and imidacloprid against susceptible and resistant strains of Musca domestica. BioControl 2018, 63, 707–718. [Google Scholar] [CrossRef]
  19. Farooq, M.; Freed, S. Insecticidal activity of toxic crude proteins secreted by entomopathogenic fungi against Musca domestica L. (Diptera: Muscidae). KUWAIT J. SCI. 2018, 45, 64–74. [Google Scholar]
  20. Farooq, M.; Freed, S. Mortality, Biological, and Biochemical Response of Musca domestica (Diptera: Muscidae) to Selected Insecticides 1. J. Entomol. Sci. 2018, 53, 27–45. [Google Scholar]
  21. Freed, S.; Saleem, M.A.; Khan, M.; Naeem, M. Prevalence and effectiveness of Metarhizium anisopliae against Spodoptera exigua (Lepidoptera: Noctuidae) in southern Punjab, Pakistan. Pak. J. Zool. 2012, 44, 753. [Google Scholar]
  22. Shoukat, R.F.; Freed, S.; Ahmad, K.W.; Rehman, A.-U. Assessment of Binary Mixtures of Entomopathogenic Fungi and Chemical Insecticides on Biological Parameters of Culex pipiens (Diptera: Culicidae) under Laboratory and Field Conditions. Pak. J. Zool. 2018, 50, 299. [Google Scholar] [CrossRef]
  23. Shoukat, R.F.; Freed, S.; Ahmad, K.W. Evaluation of binary mixtures of entomogenous fungi and botanicals on biological parameters of Culex pipiens (Diptera: Culicidae) under laboratory and field conditions. Int. J. Mosq. Res. 2016, 3, 17–24. [Google Scholar]
  24. Freed, S.; Feng Liang, J.; Shun Xiang, R. Intraspecific Variability among the Isolates of Metarhizium anisopliae var. anisopliae by RAPD Markers. Int. J. Agric. Biol. 2014, 16, 899–904. [Google Scholar]
  25. Huang, Y.-B.; Chi, H. Age-stage, two-sex life tables of Bactrocera cucurbitae (Coquillett) (Diptera: Tephritidae) with a discussion on the problem of applying female age-specific life tables to insect populations. Insect Sci. 2012, 19, 263–273. [Google Scholar] [CrossRef]
  26. Saeed, M.; Shoukat, R.F.; Zafar, J. Population dynamics of natural enemies and insect pest in different Brassica oleracea (cabbage) growing seasons with different production systems. J. Entomol. Zool. Stud. 2017, 5, 1669–1674. [Google Scholar]
  27. Breeland, S.G.; Jeffery, G.M.; Lofgren, C.S.; Weidhaas, D.E. Release of Chemosterilized Males for the Control of Anopheles Albimanus in El Salvador. Am. J. Trop. Med. Hyg. 1974, 23, 274–281. [Google Scholar] [CrossRef]
  28. Malik, S.U.; Zia, K.; Ajmal, M.; Shoukat, R.F.; Li, S.; Saeed, M.; Zafar, J.; Shoukat, R.F. Comparative efficacy of different insecticides and estimation of yield losses on BT and non-BT cotton for thrips, red cotton bug, and dusky cotton bug. J. Entomol. Zool. Stud. 2018, 6, 505–512. [Google Scholar]
  29. Leslie, P.H. On the use of matrices in certain population mathematics. Biometrika 1945, 33, 183–212. [Google Scholar] [CrossRef]
  30. Rueda, L.; Patel, K.; Axtell, R.; Stinner, R. Temperature-dependent development and survival rates of Culex quinquefasciatus and Aedes aegypti (Diptera: Culicidae). J. Med. Entomol. 1990, 27, 892–898. [Google Scholar] [CrossRef]
  31. Edman, J.; Scott, T.; Costero, A.; Morrison, A.; Harrington, L.; Clark, G. Aedes aegypti (Diptera: Culicidae) movement influenced by availability of oviposition sites. J. Med. Entomol. 1998, 35, 578–583. [Google Scholar] [CrossRef]
  32. Tejerina, E.F.; Almeida, F.F.L.; Almirón, W.R. Bionomics of Aedes aegypti subpopulations (Diptera: Culicidae) from Misiones province, northeastern Argentina. Acta Trop. 2009, 109, 45–49. [Google Scholar] [CrossRef]
  33. Chi, H. Timing of control based on the stage structure of pest populations: A simulation approach. J. Econ. Entomol. 1990, 83, 1143–1150. [Google Scholar] [CrossRef]
  34. Yu, J.-Z.; Chi, H.; Chen, B.-H. Life Table and Predation of Lemnia biplagiata (Coleoptera: Coccinellidae) Fed on Aphis gossypii (Homoptera: Aphididae) with a Proof on Relationship Among Gross Reproduction Rate, Net Reproduction Rate, and Preadult Survivorship. Ann. Entomol. Soc. Am. 2005, 98, 475–482. [Google Scholar] [CrossRef] [Green Version]
  35. Chan, K.-L. Life table studies of Aedes albopictus (Skuse). In Sterility Principle for Insect Control or Eradication. Proceedings of the Symposium on the Sterility Principle for Insect Control or Eradication Jointly Organized by the IAEA and FAO, Athens, Greece, 14–18 September 1970; International Atomic Energy Agency: Vienna, Austria, 1971; pp. 131–143. [Google Scholar]
  36. Rozilawati, H.; Masri, M.; Tanaselvi, K.; TH, M.Z.; Zairi, J.; Nazni, W.; Lee, H. Life table characteristics of Malaysian strain Aedes albopictus (Skuse). Serangga 2018, 5, 1–22. [Google Scholar]
  37. Freed, S.; Jin, F.-L.; Ren, S.-X. Determination of genetic variability among the isolates of Metarhizium anisopliae var. anisopliae from different geographical origins. World J. Microbiol. Biotechnol. 2011, 27, 359–370. [Google Scholar] [CrossRef]
  38. Butt, T.; Ibrahim, L.; Ball, B.; Clark, S. Pathogenicity of the entomogenous fungi Metarhizium anisopliae and Beauveria bassiana against crucifer pests and the honey bee. Biocontrol Sci. Technol. 1994, 4, 207–214. [Google Scholar] [CrossRef]
  39. Darbro, J.M.; Thomas, M.B. Spore persistence and likelihood of aeroallergenicity of entomopathogenic fungi used for mosquito control. Am. J. Trop. Med. Hyg. 2009, 80, 992–997. [Google Scholar] [CrossRef]
  40. Scholte, E.-J.; Takken, W.; Knols, B.G. Infection of adult Aedes aegypti and Ae. albopictus mosquitoes with the entomopathogenic fungus Metarhizium anisopliae. Acta Trop. 2007, 102, 151–158. [Google Scholar] [CrossRef]
  41. Scholte, E.-J.; Knols, B.G.; Takken, W. Infection of the malaria mosquito Anopheles gambiae with the entomopathogenic fungus Metarhizium anisopliae reduces blood feeding and fecundity. J. Invertebr. Pathol. 2006, 91, 43–49. [Google Scholar] [CrossRef]
  42. Jiang, J.; Zhang, Z.; Yu, X.; Yu, C.; Liu, F.; Mu, W. Sublethal and transgenerational effects of thiamethoxam on the demographic fitness and predation performance of the seven-spot ladybeetle Coccinella septempunctata L.(Coleoptera: Coccinellidae). Chemosphere 2019, 216, 168–178. [Google Scholar] [CrossRef] [PubMed]
  43. LeOra, S. Poloplus, a User’s Guide to Probit or Logit Analysis; LeOra Software: Berkeley, CA, USA, 2003. [Google Scholar]
  44. Chi, H.; Su, H.-Y. Age-stage, two-sex life tables of Aphidius gifuensis (Ashmead)(Hymenoptera: Braconidae) and its host Myzus persicae (Sulzer)(Homoptera: Aphididae) with mathematical proof of the relationship between female fecundity and the net reproductive rate. Environ. Entomol. 2006, 35, 10–21. [Google Scholar] [CrossRef]
  45. Chi, H. Life-Table Analysis Incorporating Both Sexes and Variable Development Rates Among Individuals. Environ. Entomol. 1988, 17, 26–34. [Google Scholar] [CrossRef]
  46. Chi, H. TWOSEX-MSChart: A Computer Program for the Age-Stage, Two-Sex Life Table Analysis. 2015, Volume 197. Available online: http://140.120.197.173/ecology/Download/00-How%20to%20use%20TWOSEX.pdf (accessed on 4 March 2020).
  47. Meyer, J.S.; Ingersoll, C.G.; McDonald, L.L.; Boyce, M.S. Estimating uncertainty in population growth rates: Jackknife vs. bootstrap techniques. Ecology 1986, 67, 1156–1166. [Google Scholar] [CrossRef] [Green Version]
  48. Tuan, S.-J.; Li, N.-J.; Yeh, C.-C.; Tang, L.-C.; Chi, H. Effects of green manure cover crops on Spodoptera litura (Lepidoptera: Noctuidae) populations. J. Econ. Entomol. 2014, 107, 897–905. [Google Scholar] [CrossRef] [Green Version]
  49. Tuan, S.J.; Lee, C.C.; Chi, H. Population and damage projection of Spodoptera litura (F.) on peanuts (Arachis hypogaea L.) under different conditions using the age-stage, two-sex life table. Pest Manag. Sci. 2014, 70, 805–813. [Google Scholar] [CrossRef] [PubMed]
  50. Christophers, S.R. Aedes Aegypti: The Yellow Fever Mosquito; CUP Archive: Cambridge, UK, 1960. [Google Scholar]
  51. Crovello, T.J.; Hacker, C.S. Evolutionary strategies in life table characteristics among feral and urban strains of Aedes aegypti (L.). Evolution 1972, 2, 185–196. [Google Scholar] [CrossRef] [PubMed]
  52. Southwood, T.; Murdie, G.; Yasuno, M.; Tonn, R.J.; Reader, P. Studies on the life budget of Aedes aegypti in Wat Samphaya, Bangkok, Thailand. Bull. World Health Organ. 1972, 46, 211. [Google Scholar]
  53. Lansdowne, C.; Hacker, C.S. The effect of fluctuating temperature and humidity on the adult life table characteristics of five strains of Aedes aegypti. J. Med. Entomol. 1975, 11, 723–733. [Google Scholar] [CrossRef]
  54. Harcourt, D. The development and use of life tables in the study of natural insect populations. Annu. Rev. Entomol. 1969, 14, 175–196. [Google Scholar] [CrossRef]
  55. Kakde, V.; Dipke Vaishali, G. Status of Vector Borne Disease, Dengue in Buldana Town-A study report. Int. J. Life Sci. 2014, 2, 410–412. [Google Scholar]
  56. Lee, S.J.; Kim, S.; Yu, J.S.; Kim, J.C.; Nai, Y.-S.; Kim, J.S. Biological control of Asian tiger mosquito, Aedes albopictus (Diptera: Culicidae) using Metarhizium anisopliae JEF-003 millet grain. J. Asia-Pac. Entomol. 2015, 18, 217–221. [Google Scholar] [CrossRef]
  57. Shoukat, R.F.; Hassan, B.; Shakeel, M.; Zafar, J.; Li, S.; Freed, S.; Xu, X.; Jin, F. Pathogenicity and Transgenerational Effects of Metarhizium anisopliae on the Demographic Parameters of Aedes albopictus (Culicidae: Diptera). J. Med Entomol. 2019. [Google Scholar] [CrossRef] [PubMed]
  58. Boldo, J.T.; Junges, A.; Do Amaral, K.B.; Staats, C.C.; Vainstein, M.H.; Schrank, A. Endochitinase CHI2 of the biocontrol fungus Metarhizium anisopliae affects its virulence toward the cotton stainer bug Dysdercus peruvianus. Curr. Genet. 2009, 55, 551–560. [Google Scholar] [CrossRef]
  59. Zimmermann, G. Review on safety of the entomopathogenic fungi Beauveria bassiana and Beauveria brongniartii. Biocontrol Sci. Technol. 2007, 17, 553–596. [Google Scholar] [CrossRef]
  60. Jin, K.; Peng, G.; Liu, Y.; Xia, Y. The acid trehalase, ATM1, contributes to the in vivo growth and virulence of the entomopathogenic fungus, Metarhizium acridum. Fungal Genet. Biol. 2015, 77, 61–67. [Google Scholar] [CrossRef]
  61. Peng, G.; Jin, K.; Liu, Y.; Xia, Y. Enhancing the utilization of host trehalose by fungal trehalase improves the virulence of fungal insecticide. Appl. Microbiol. Biotechnol. 2015, 99, 8611–8618. [Google Scholar] [CrossRef]
  62. Leles, R.N.; D’Alessandro, W.B.; Luz, C. Effects of Metarhizium anisopliae conidia mixed with soil against the eggs of Aedes aegypti. Parasitol. Res. 2012, 110, 1579–1582. [Google Scholar] [CrossRef]
  63. Luz, C.; Tai, M.; Santos, A.; Rocha, L.; Albernaz, D.; Silva, H. Ovicidal activity of entomopathogenic hyphomycetes on Aedes aegypti (Diptera: Culicidae) under laboratory conditions. J. Med. Entomol. 2007, 44, 799–804. [Google Scholar] [CrossRef]
  64. Alves, S.; Alves, L.; Lopes, R.; Pereira, R.; Vieira, S. Potential of some Metarhizium anisopliae isolates for control of Culex quinquefasciatus (Dipt., Culicidae). J. Appl. Entomol. 2002, 126, 504–509. [Google Scholar] [CrossRef]
  65. Mitchell, M.J.; Cali, A. Vairimorpha necatrix (Microsporida: Burenellidae) affects growth and development of Heliothis zea (Lepidoptera: Noctuidae) raised at various temperatures. J. Econ. Entomol. 1994, 87, 933–940. [Google Scholar] [CrossRef]
  66. Henn, M.W.; Solter, L.F. Food utilization values of gypsy moth Lymantria dispar (Lepidoptera: Lymantriidae) larvae infected with the microsporidium Vairimorpha sp. (Microsporidia: Burenellidae). J. Invertebr. Pathol. 2000, 76, 263–269. [Google Scholar] [CrossRef] [PubMed]
  67. Hussain, A.; Tian, M.Y.; He, Y.R.; Ahmed, S. Entomopathogenic fungi disturbed the larval growth and feeding performance of Ocinara varians (Lepidoptera: Bombycidae) larvae. Insect Sci. 2009, 16, 511–517. [Google Scholar] [CrossRef]
  68. Lecuona, R.E.; Turica, M.; Tarocco, F.; Crespo, D.C. Microbial control of Musca domestica (Diptera: Muscidae) with selected strains of Beauveria bassiana. J. Med Entomol. 2005, 42, 332–336. [Google Scholar] [CrossRef]
  69. Scholte, E.-J.; Ng’Habi, K.; Kihonda, J.; Takken, W.; Paaijmans, K.; Abdulla, S.; Killeen, G.F.; Knols, B.G. An entomopathogenic fungus for control of adult African malaria mosquitoes. Science 2005, 308, 1641–1642. [Google Scholar] [CrossRef] [Green Version]
  70. Thomas, M.B.; Read, A.F. Can fungal biopesticides control malaria? Nat. Rev. Microbiol. 2007, 5, 377. [Google Scholar] [CrossRef]
  71. Thomas, A.; Mazigo, H.D.; Manjurano, A.; Morona, D.; Kweka, E.J. Evaluation of active ingredients and larvicidal activity of clove and cinnamon essential oils against Anopheles gambiae (sensu lato). Parasite Vectors 2017, 10, 411. [Google Scholar] [CrossRef] [Green Version]
  72. Aw, K.M.S.; Hue, S.M. Mode of infection of Metarhizium spp. fungus and their potential as biological control agents. J. Fungi 2017, 3, 30. [Google Scholar] [CrossRef] [Green Version]
  73. Enserink, M. A Mosquito Goes Global; American Association for the Advancement of Science: Washington, DC, USA, 2008. [Google Scholar] [CrossRef]
  74. Enserink, M. Source of New Hope against Malaria is in Short Supply; American Association for the Advancement of Science: Washington, DC, USA, 2005. [Google Scholar] [CrossRef]
  75. Hanley, K.A.; Goddard, L.B.; Gilmore, L.E.; Scott, T.W.; Speicher, J.; Murphy, B.R.; Pletnev, A.G. Infectivity of West Nile/dengue chimeric viruses for West Nile and dengue mosquito vectors. Vector-Borne Zoonotic Dis. 2005, 5, 1–10. [Google Scholar] [CrossRef]
  76. Michalakis, Y.; Renaud, F. Malaria: Fungal allies enlisted. Nature 2005, 435, 891. [Google Scholar] [CrossRef]
  77. Sagheer, M.; Sahi, S.T. Bio-efficacy of entomopathogenic fungus Beauveria bassiana (BALS.) against Trogoderma granarium (EVERTS) AND Tribolium castaneum (HERBST). Pak. J. Agric. Sci. 2019, 56, 429–434. [Google Scholar]
  78. Yasin, M.; Wakil, W.; Ghazanfar, M.U.; Qayyum, M.A.; Tahir, M.; Bedford, G.O. Virulence of entomopathogenic fungi Beauveria bassiana and Metarhizium anisopliae against red palm weevil, Rhynchophorus ferrugineus (Olivier). Entomol. Res. 2019, 49, 3–12. [Google Scholar] [CrossRef] [Green Version]
  79. Ocampo, C.B.; Salazar-Terreros, M.J.; Mina, N.J.; McAllister, J.; Brogdon, W. Insecticide resistance status of Aedes aegypti in 10 localities in Colombia. Acta Trop. 2011, 118, 37–44. [Google Scholar] [CrossRef] [PubMed]
  80. Blanford, S.; Chan, B.H.; Jenkins, N.; Sim, D.; Turner, R.J.; Read, A.F.; Thomas, M.B. Fungal pathogen reduces potential for malaria transmission. Science 2005, 308, 1638–1641. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Adulticidal activity of B. bassiana (isolates). Green bars represent the mortality of adult Ae. albopictus, after exposure to different concentrations of B. bassiana first isolate (Bb-01). Red bars represent the mortality of adult Ae. albopictus to different concentrations of the second isolate (Bb-10) from B. bassiana. Error bars show 95% confidence intervals (CI). Different letters indicate significant differences at p < 0.05.
Figure 1. Adulticidal activity of B. bassiana (isolates). Green bars represent the mortality of adult Ae. albopictus, after exposure to different concentrations of B. bassiana first isolate (Bb-01). Red bars represent the mortality of adult Ae. albopictus to different concentrations of the second isolate (Bb-10) from B. bassiana. Error bars show 95% confidence intervals (CI). Different letters indicate significant differences at p < 0.05.
Insects 11 00178 g001
Figure 2. Feeding assay of B. bassiana (isolates) against Ae. albopictus (females). Black bars represent the mortality of non-blood-fed females on different concentrations of selected B. bassiana isolate (Bb-01), while grey bars represent the mortality of blood-fed females. Error bars show 95% confidence intervals (CI). Different letters indicate significant differences at p < 0.05.
Figure 2. Feeding assay of B. bassiana (isolates) against Ae. albopictus (females). Black bars represent the mortality of non-blood-fed females on different concentrations of selected B. bassiana isolate (Bb-01), while grey bars represent the mortality of blood-fed females. Error bars show 95% confidence intervals (CI). Different letters indicate significant differences at p < 0.05.
Insects 11 00178 g002

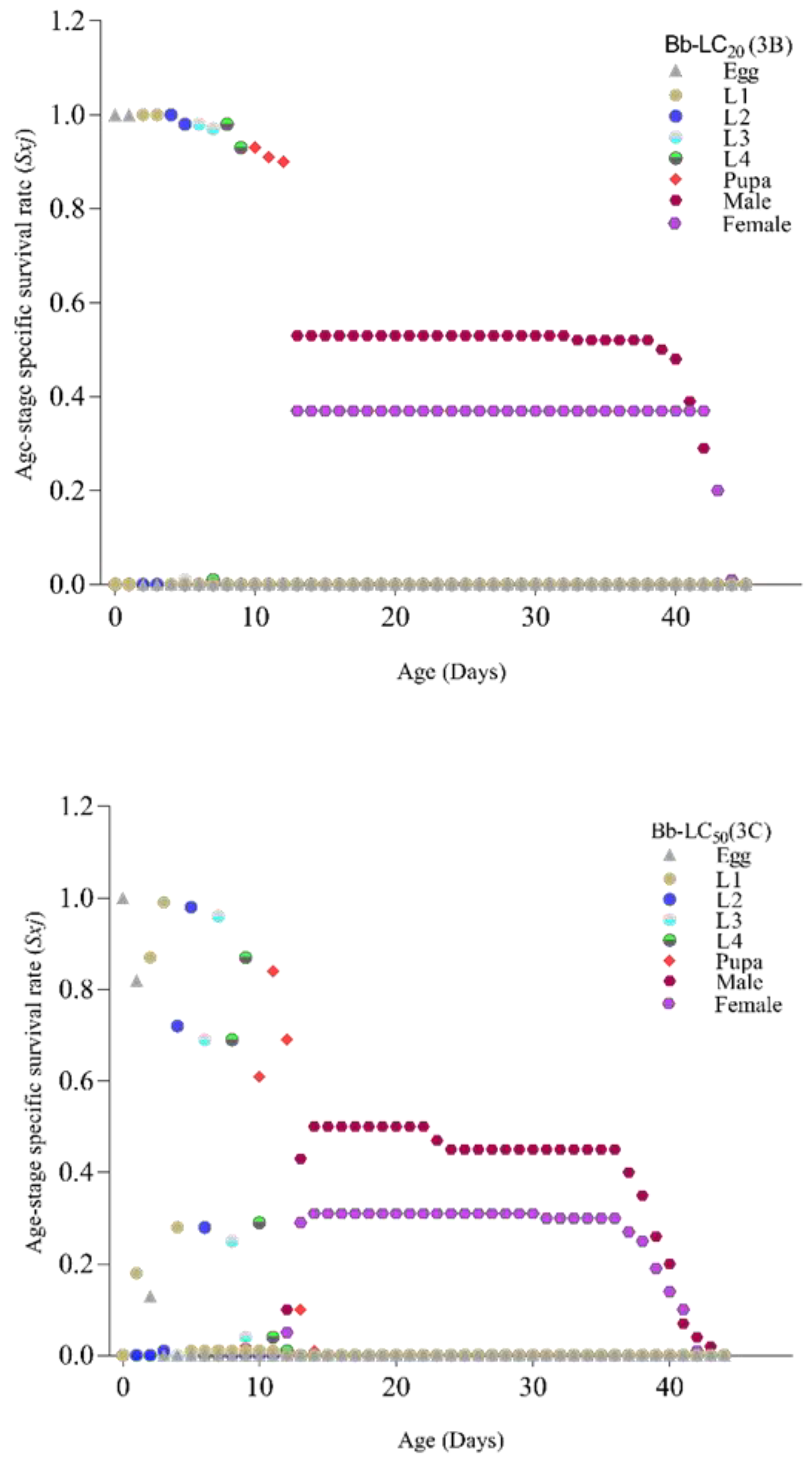

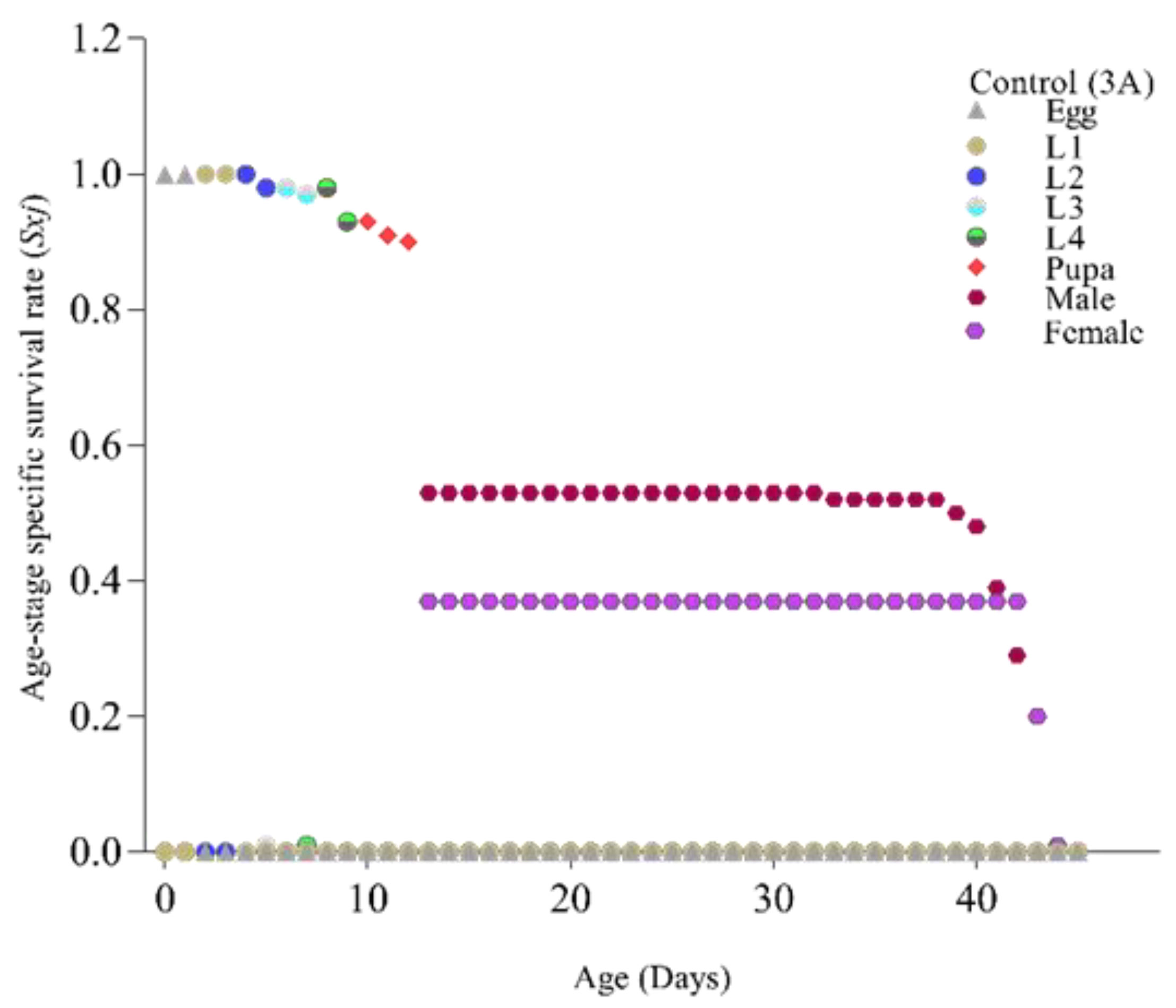

Figure 3. Age-stage specific survival rate (Sxj) of Ae. albopictus after treatment with Beauveria bassiana: 3A (control), 3B (LC20), 3C (LC50). Ae. albopictus age-stage specific survival rate (Sxj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age-stage specific survival rate (Sxj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Figure 3. Age-stage specific survival rate (Sxj) of Ae. albopictus after treatment with Beauveria bassiana: 3A (control), 3B (LC20), 3C (LC50). Ae. albopictus age-stage specific survival rate (Sxj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age-stage specific survival rate (Sxj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Insects 11 00178 g003aInsects 11 00178 g003b

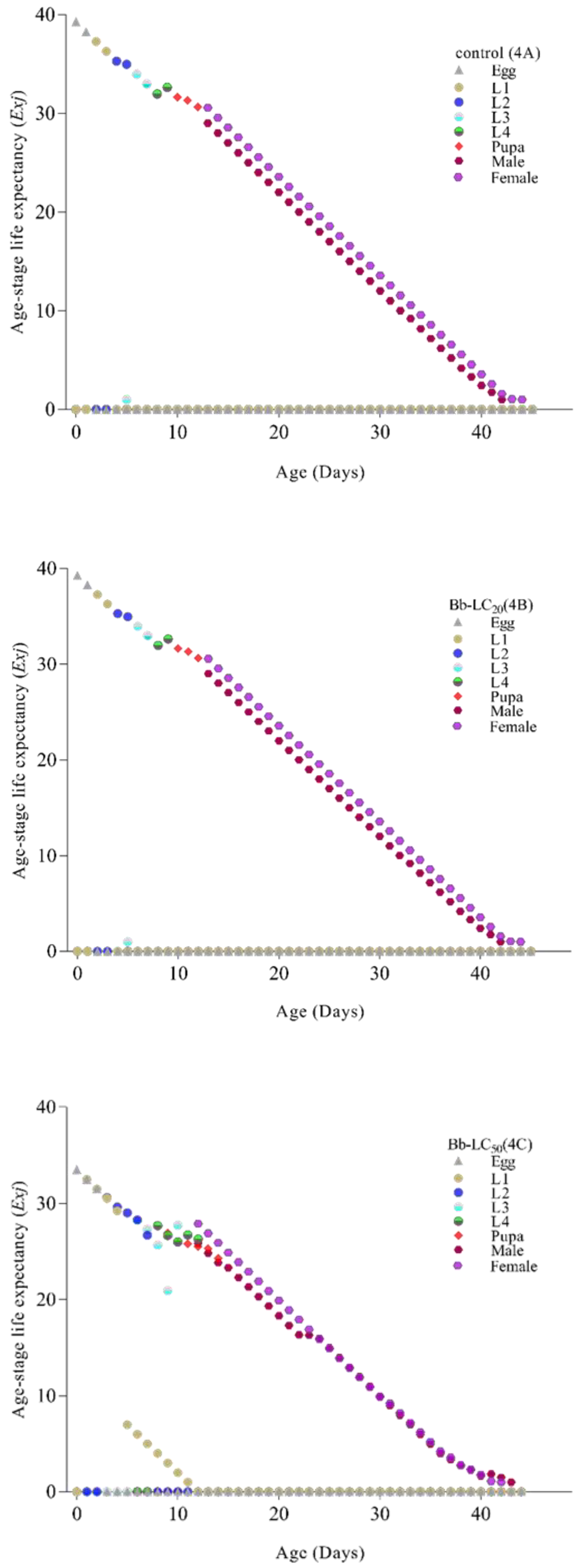

Figure 4. Age-stage life expectancy (Exj) of Ae. albopictus after treatment with Beauveria bassiana: 4A (control), 4B (LC20), 4C (LC50). Ae. albopictus age-stage life expectancy (Exj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age-stage life expectancy (Exj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Figure 4. Age-stage life expectancy (Exj) of Ae. albopictus after treatment with Beauveria bassiana: 4A (control), 4B (LC20), 4C (LC50). Ae. albopictus age-stage life expectancy (Exj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age-stage life expectancy (Exj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Insects 11 00178 g004
Figure 5. Age stage reproductive value (Vxj) of Ae. albopictus after treatment with Beauveria bassiana: 5A (control), 5B (LC20), and 5C (LC50). Ae. albopictus age stage reproductive value (Vxj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age stage reproductive value (Vxj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Figure 5. Age stage reproductive value (Vxj) of Ae. albopictus after treatment with Beauveria bassiana: 5A (control), 5B (LC20), and 5C (LC50). Ae. albopictus age stage reproductive value (Vxj) of the control group is shown as Figure 3A, while Figure 3B,C showed the age stage reproductive value (Vxj) after exposure to sub-lethal (LC20) and lethal (LC50) concentrations of a selected isolate of B. bassiana (Bb-01) respectively. Life stages are shown in distinctive colors.
Insects 11 00178 g005aInsects 11 00178 g005b
Figure 6. Daily mean number of eggs from Ae. albopictus after treatment with Beauveria bassiana at LC20 and LC50 doses. The figure is showing the daily reproduction rate of females, where the control group is represented with the gray color line while sub-lethal (LC20) and lethal (LC50) concentrations of B. bassiana selected isolate (Bb-01) are presented with yellow and blue colors lines respectively.
Figure 6. Daily mean number of eggs from Ae. albopictus after treatment with Beauveria bassiana at LC20 and LC50 doses. The figure is showing the daily reproduction rate of females, where the control group is represented with the gray color line while sub-lethal (LC20) and lethal (LC50) concentrations of B. bassiana selected isolate (Bb-01) are presented with yellow and blue colors lines respectively.
Insects 11 00178 g006
Table 1. Lethal and sublethal doses of Beauveria bassiana isolates (spores/mL).
Table 1. Lethal and sublethal doses of Beauveria bassiana isolates (spores/mL).
IsolatesLC50LC20Slop ± SEχ2p-Valuedf
Bb-013.0 × 1062.1 × 1030.296 + 0.0421.0230.7964
Bb-101.4 × 1073.2 × 1040.515 + 0.04816.4770.0014
Table 2. Influence of Beauveria bassiana on adult longevity and fecundity of filial generation (F0).
Table 2. Influence of Beauveria bassiana on adult longevity and fecundity of filial generation (F0).
ParametersMeans ± SE
ControlB. Bassiana (LC20)B. Bassiana (LC50)
Adult mortality (days)1.9 ± 0.17 c23.11 ± 1.11 b51.54 ± 0.98 a
Male longevity (n = 50)29.91 ± 1.20 a26.09 ± 2.01 b21.33 ± 3.21 c
Female longevity (n = 50)30.07 ± 0.41 a27.65 ± 1.77b22.22 ± 1.21c
Fecundity (1/50)357.33 ± 9.30a230.47 ± 9.32b189.31 ± 8.11c
Male longevity, Female longevity = Days. Means in the same row followed by the same letter are not significantly different (p > 0.05).
Table 3. Effect of Beauveria bassiana on first filial generation (F1).
Table 3. Effect of Beauveria bassiana on first filial generation (F1).
ParametersControlLC20 TreatedLC50 Treated
Means ± SEMeans ± SEMeans ± SE
Percent hatching100 ± 0.00 a100 ± 0.00 a95 ± 2.11 b
Egg duration2.00 ± 0.01 a2.00 ± 0.00 a1.95 ± 0.54 b
L12.00 ± 0.02 b1.99 ± 0.00 b2.31 ± 0.71 a
L21.99 ± 0.11 b1.99 ± 0.10 b2.02 ± 0.61 a
L31.99 ± 0.10 a1.99 ± 0.10 a1.99 ± 0.54 a
L42.00 ± 0.02 b2.00 ± 0.00 b2.06 ± 0.59 a
Total Larval duration7.89 ± 0.03 c7.97 ± 0.01 b8.38 ± 0.16 a
Pupal duration3.00 ± 0.11 a3.00 ± 0.59 a2.55 ± 0.59 b
Pre-oviposition period13.00 ± 0.00 a13.01 ± 0.00 a12.95 ± 0.59 b
Female longevity32.95 ± 0.53 a32.00 ± 2.79 a29.00 ± 2.81 b
Male longevity30.00 ± 1.67 a30.10 ± 1.53 a27.00 ± 3.45 b
Fecundity380.27 ± 11.12 a349.87 ± 7.31 b320.00 ± 5.42 c
L1 = 1st instar larva; L2 = 2nd instar larva; L3 = 3rd instar larva; L4 = 4th instar larva: Except for fecundity (eggs/female), units are days. Means in the same row followed by the same letter are not significantly different (p > 0.05).
Table 4. Population parameters of Ae. albopictus after treatment with Beauveria bassiana.
Table 4. Population parameters of Ae. albopictus after treatment with Beauveria bassiana.
ParametersControlLC20 TreatedLC50 Treated
Means ± SEMeans ± SEMeans ± SE
Intrinsic rate of increase (r)0.2744 ± 0.007 a0.2506 ± 0.002 b0.2295 ± 0.005 c
Net reproduction rate (Ro)133.0 ± 16.21 a89.16 ± 9.31 b50.62 ± 8.31 c
Mean length of a generation (T)17.83 ± 0.12 a17.80 ± 0.16 a17.09 ± 0.09 c
Finite rate of increase (λ)1.316 ± 0.01 a1.285 ± 0.02 b1.258 ± 0.06 c
Birth rate (at SASD)0.319 ± 0.12 a0.2883 ± 0.21 b0.264 ± 0.21 c
Survival rate (at SASD)0.997 ± 0.02 a0.997 ± 0.03 a0.995 ± 0.01 b
Death rate (at SASD)3.206 ± 1.03 c3.491 ± 1.04 b5.499 ± 1.07 a
r = Intrinsic rate of increase (per days); Ro = Net reproduction rate (offspring/individual); T = Mean length of a generation (days); λ= Finite rate of increase (per days); SASD = Stable age-stage distribution. Means in the same row, followed by the same letter are not significantly different (p > 0.05).

Share and Cite

MDPI and ACS Style

Shoukat, R.F.; Zafar, J.; Shakeel, M.; Zhang, Y.; Freed, S.; Xu, X.; Jin, F. Assessment of Lethal, Sublethal, and Transgenerational Effects of Beauveria bassiana on the Demography of Aedes albopictus (Culicidae: Diptera). Insects 2020, 11, 178. https://doi.org/10.3390/insects11030178

AMA Style

Shoukat RF, Zafar J, Shakeel M, Zhang Y, Freed S, Xu X, Jin F. Assessment of Lethal, Sublethal, and Transgenerational Effects of Beauveria bassiana on the Demography of Aedes albopictus (Culicidae: Diptera). Insects. 2020; 11(3):178. https://doi.org/10.3390/insects11030178

Chicago/Turabian Style

Shoukat, Rana Fartab, Junaid Zafar, Muhammad Shakeel, Yuxin Zhang, Shoaib Freed, Xiaoxia Xu, and Fengliang Jin. 2020. "Assessment of Lethal, Sublethal, and Transgenerational Effects of Beauveria bassiana on the Demography of Aedes albopictus (Culicidae: Diptera)" Insects 11, no. 3: 178. https://doi.org/10.3390/insects11030178

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
