Article

Propolis Consumption Reduces Nosema ceranae Infection of European Honey Bees (Apis mellifera)

1
Department of Agricultural Sciences, University of Sassari, 07100 Sassari, Italy
2
General Zoology, Institute of Biology, Martin Luther University Halle-Wittenberg, Hoher Weg 8, 06120 Halle (Saale), Germany
3
Department of Life and Environmental Sciences, University of Cagliari, 09124 Cagliari, Italy
*
Author to whom correspondence should be addressed.
Insects 2020, 11(2), 124; https://doi.org/10.3390/insects11020124
Received: 22 January 2020 / Revised: 4 February 2020 / Accepted: 13 February 2020 / Published: 15 February 2020

Abstract

:
Nosema ceranae is a widespread obligate intracellular parasite of the ventriculus of many species of honey bee (Apis), including the Western honey bee Apis mellifera, in which it may lead to colony death. It can be controlled in A. mellifera by feeding the antibiotic fumagillin to a colony, though this product is toxic to humans and its use has now been banned in many countries, so in beekeeping, there exists a need for alternative and safe products effective against N. ceranae. Honeybees produce propolis from resinous substances collected from plants and use it to protect their nest from parasites and pathogens; propolis is thought to decrease the microbial load of the hive. We hypothesized that propolis might also reduce N. ceranae infection of individual bees and that they might consume propolis as a form of self-medication. To test these hypotheses, we evaluated the effects of an ethanolic extract of propolis administered orally on the longevity and spore load of experimentally N. ceranae-infected worker bees and also tested whether infected bees were more attracted to, and consumed a greater proportion of, a diet containing propolis in comparison to uninfected bees. Propolis extracts and ethanol (solvent control) increased the lifespan of N. ceranae-infected bees, but only propolis extract significantly reduced spore load. Our propolis extract primarily contained derivatives of caffeic acid, ferulic acid, ellagic acid and quercetin. Choice, scan sampling and food consumption tests did not reveal any preference of N. ceranae-infected bees for commercial candy containing propolis. Our research supports the hypothesis that propolis represents an effective and safe product to control N. ceranae but worker bees seem not to use it to self-medicate when infected with this pathogen.

1. Introduction

The microsporidian Nosema ceranae, first isolated in Apis cerana [1], is an obligate gut parasite of several Apis (true honey bee) species [2]. It was first identified as an infective agent of Apis mellifera in Spain [3], but the analysis of preserved specimens of A. mellifera suggest its presence in Europe as early as 1993 [4]. It nowadays has a worldwide distribution [5,6]. In Italy, this parasite seems to have completely replaced the congeneric parasite Nosema apis, which had historically been the only Nosema species present [7], possibly through its competitive superiority in warmer climates [8].
N. ceranae infection can cause many physiological and behavioural changes at the individual honey bee level [9,10,11,12]. It can also cause pathology at the colony level [13] and it has been associated with colony collapse [14,15,16]. N. ceranae, as other microsporidia, is transmitted horizontally via the faecal-oral route, and an infection can occur by the ingestion of spores in food reserves and via trophallaxis between nestmates within the colony [17]. In addition, Sulborska et al. [18] have recently demonstrated that the spores of this pathogen can be carried in the air and deposited on various surfaces in the natural environment, including flowers, thereby further increasing the risk of infection for individual bees and colonies. For beekeeping, effective control treatments against Nosema infections are needed. In the last decades, fumagillin has been used to treat colonies infected by N. apis [19]. However, several studies have suggested that this antibiotic may be ineffective against N. ceranae [20,21,22]. In addition, the toxicity of fumagillin to humans represents another restriction in its application in beekeeping [19]. These concerns led the European Union to ban the use of fumagillin in agriculture in 2010 [23]. This heightens demand for new and safe products that are effective against N. ceranae. Though many substances have been assayed in laboratory or field conditions for their efficacy in reducing N. ceranae infections, with encouraging results [24,25,26], further studies are needed to develop alternatives to combat N. ceranae infections [27].
Among the various promising substances to control N. ceranae infection, orally administered organic extracts and natural supplements deserve particular attention due to their putative low toxicity and beneficial effects in increasing bee longevity and in decreasing Nosema spore loads [24,26,28,29,30]. Honey bees also forage on many compounds that can have a positive impact on colony health [31]. Among them, propolis is a resinous mixture of substances with antimicrobial properties that is collected from plants by several Hymenoptera species and used by them to protect their nests from parasites and pathogens [32,33,34,35]. As recently suggested [36], honey bees may also obtain propolis directly during digestion of pollen [37].
In feral honey bee colonies, a thin layer of propolis covers the entire nest’s internal walls, whereas in commercial hives a more irregular distribution of propolis is observed. This is possibly because the smoothness of the inner walls of commercial hives does not elicit propolis deposition behaviour. In both feral and managed colonies, propolis is also used for covering holes and crevices in the nest and to limit access to the hive [32,35,38]. In commercial hives enriched with propolis, their microbial load was reduced, resulting in a significant down-regulation of immune function [39]. This decreased energetic investment in the bee immune system can positively influence colony health and productivity [40,41,42,43]. Moreover, propolis can have a direct effect against some hive pathogens, such as Paenibacillus larvae, the causative agent of the American foulbrood [44,45], and Ascosphaera apis, the causative agent of chalkbrood infection [46].
Interestingly, an increase in resin collection was observed in honey bees after infection with the fungus Ascosphaera apis [46] and after an increase in colony infestation by Varroa destructor [47]. Natural propolis also reduced DWV viral loads associated with V. destructor infestations at the colony level [48]. However, increased resin collection does not appear to be associated with infection by the American foulbrood agent Paenibacillus larvae [46]. Honeybee nurse bees infected with the microsporidian gut parasite N. ceranae preferred honeys with a higher antibiotic activity, which reduced microsporidian infection after consumption of the honey [49]. Although it is not known whether honey bees consume propolis, Turcatto et al. [50] demonstrated that adding propolis to the diet of bees injected with Escherichia coli caused significant up-regulation in antimicrobial gene expression (defensin-1, abaecin, hymenoptaecin, and apidaecin) compared to that observed in infected bees fed a similar diet without propolis. This increase did not occur in uninfected bees fed propolis, suggesting that propolis may enhance a bee’s response when challenged by pathogens. These findings suggest that therapeutic use of propolis in the hive may control N. ceranae. On the other hand, propolis can have negative effects on honeybees; when orally administered in sucrose syrup at a concentration of 20%, it caused 25% bee mortality after 72 h [51] and at a concentration of 10% it caused sub-lethal effects, such as alteration of protein dynamics in the fat bodies and depletion of the hypopharyngeal glands [52]. In addition, bees fed propolis in sucrose syrup showed elevated expression of three CYP6AS cytochrome P450 genes involved in pesticide detoxification [53], suggesting that propolis may have a mildly toxic effect on individual bees. We, therefore, hypothesize that bees should consume moderate amounts of propolis only when stressed, such as when challenged by a pathogen.
Recently, the therapeutic properties of propolis extracts against N. ceranae were assayed in the Asiatic honey bee species Apis florea [54,55], Apis cerana [56] and the Western Apis mellifera [57]. In the Asiatic Apis species, propolis used in the bioassays was obtained from the stingless bee Trigona apicalis, whereas in A. mellifera the propolis tested was produced by honey bees themselves. In all these studies, an improvement in bee survival and a decrease in the N. ceranae spore load were observed in experimentally infected bees [54,55,56,57]. For the Asiatic Apis species, these results leave open the question of whether the honey bee’s own propolis has a similar beneficial effect in reducing Nosema pathogenesis. For A. mellifera, an open question remains as to whether propolis per se or the solvent used to dissolve and administer the propolis, or both, caused an improvement in bee health.
To resolve these open questions, we here tested the effects of propolis produced by honey bees (A. mellifera) in Sardinia (Italy), an island with a typical Mediterranean climate, on the longevity of A. mellifera experimentally infected with N. ceranae and on their microsporidian spore load. Secondly, we ascertained whether infected bees were more attracted to a diet containing propolis and consumed a greater proportion of this diet in comparison to uninfected bees. Considering that the biological properties of propolis have mainly been associated with its phenolic components [43,58,59,60], we also quantified the polyphenol content together with the main phenolic compounds of the propolis used in our bioassays.

2. Materials and Methods

2.1. Sources of Honey Bees and Propolis

Honey bees and propolis used in this study were collected from the hives of the experimental apiary of the Dipartimento di Agraria of the University of Sassari, located in Ottava, Sardinia, Italy (latitude 40°46′23″ N, longitude 8°29′34″ E). The flora of the area, described in detail by Bagella and Urbani [61] and Biondi et al. [62], is mainly composed of species typical of the thermophilic Mediterranean maquis at various stages of succession (Pistacio-Querceto ilicis plant community characterized by the presence of Chamaerops humilis) in a patchwork pattern with traditional agricultural land uses (olive groves, vineyards and cereal crops). The apiary consisted of 15 colonies of Apis mellifera ligustica Spinola maintained in Dadant hives each containing 10 combs. During the experimental period (from May to November 2018), colonies were checked regularly to verify the presence of the queen and supplies of pollen and nectar, and to check the health of the bees and that they were devoid of Nosema following methods in Fries et al. [63]. Propolis samples used in the bioassays were collected from twelve hives from May to July 2018 by using fine nylon mesh placed above the combs. After scraping propolis from the mesh, each sample was cleaned of impurities, weighed and stored in a freezer at −18 °C. Before starting bioassays, all frozen samples of propolis were homogenized using a coffee mill (GS Arendo, Hannover, Germany).

2.2. Propolis Extract Preparation

To obtain the propolis extract, 2.4 g of crude propolis were dissolved in 4 mL of 70% ethanol and the solution maintained in a chamber at 31 °C in the dark for 24 h [54]. Then, the propolis extract was filtered by suction to clean it from wax and other impurities [64]. Based on previous studies [54,56], a concentration of 50% of this extract in distilled water (v/v) was prepared for the experiments.

2.3. Pathogen Preparation

Nosema ceranae spores used in bioassays were first propagated in the laboratory through mass feeding of caged honey bees with N. ceranae spores originating from infected bees provided by the Institute CREA—Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia agraria—Unità di Ricerca in Apicoltura e Bachicoltura (Bologna, Italy). Inocula were prepared freshly on the day of experimental bee infection by crushing the ventriculus of infected honey bees in distilled water and purifying using Percoll® following standard procedures [63]. Spore numbers were counted with a Neubauer haemocytometer (Brand®, Werthein, Germany) under a light microscope (×400) and diluted to obtain the required concentration (105 per µL) in 50% (w/v) sucrose solution. For the control treatment, an extract from the ventriculus of uninfected caged honey bees was obtained as above. Before starting the propagation, the identification N. ceranae in the inoculum was confirmed by PCR [63] and the absence of spores in control bees was checked by inspection of their ventriculi under a light microscope (×400).

2.4. Survival Bioassay Set-Up

To obtain adult workers and perform the laboratory bioassays, frames of honey bee brood ready to emerge were collected from three N. ceranae-free colonies and kept for 14 h in an incubator at 35 °C and 70% relative humidity (RH). Each freshly emerged bee was individually fed with 2 µl of one of the following six treatments obtained by mixing at a 1:1 ratio a 50% (w/v) sucrose solution with: (1) aqueous homogenate of healthy bee gut homogenate (Control); (2) 35% ethanol solvent (Control + Ethanol); (3) 50% propolis extract in ethanol (Control + Propolis); (4) gut homogenate with 105 N. ceranae spores per bee (Nosema), (5) 35% ethanol solution with 105 N. ceranae spores per bee (Nosema + Ethanol), and (6) 50% propolis extract with 105 N. ceranae spores per bee (Nosema + Propolis). Once the spores were purified, the time required for the preparation of the treatments and their administration to the bees was approximately 4 h.
After feeding, each bee was placed inside a perforated microfuge tube for 30 min to check if the inoculum had been eaten. Bees that did not eat all the food supplied, had regurgitated inoculum or did not appear healthy were eliminated from the bioassay. The number of spores used to infect bees (105 per bee) was chosen to ensure infection of every individual [65,66]. We performed the bioassay using three replicates of 21 bees each (seven bees from three colonies, equally mixed in a cage to eliminate colony effects) per treatment. Each group was placed in a metal cage (10 cm × 10 cm × 5 cm) with perforated walls. Bees were kept in an incubator at 31 °C and fed ad libitum with 50% (w/v) sucrose solution administered using a syringe (Sterile Siring PIC, 5 mL, Pic Solution, Como, Italy) [67]. Dead bees were counted daily and removed from cages. All experimental treatments were performed at the same time. The bioassay ended on the 30th day of observation.

2.5. Food Choice Test

Adult bees used in the choice test were obtained as described in the survival experiment. Freshly emerged bees were split into two groups of 60 individuals each. One group (infected group) was mass fed with 2 mL of a 50% (w/v) sucrose solution containing 105 N. ceranae spores per bee, sufficient to guarantee 100% infection. When the food containing the spores was completely consumed, the bees were fed with sucrose solution (50% w/v) administered ad libitum until the start of observations, which was chosen to be 4 days after spore administration in order to be sure that the infection of the epithelial cells had already started [68]. The control group received only sucrose solution (50% w/v) administered ad libitum until the beginning of observations.
The attractiveness of a commercial protein candy (Chemicals LAIF s.p.a, Vigonza (PD), Italy) and to which we had added coffee-milled crude propolis was compared with that of the same candy without propolis in infected and healthy bees. The candy was placed on squares (4 × 4 cm) of filter paper of 67 g/m2 (APTACA SRL, Canelli, Italy) in a Y-shaped olfactometer with a transparent plexiglass cover (main arm: 25 cm length, 20 cm width, 10 cm height; each side-arm: 20 cm length, 20 cm width, 10 cm height). Two separate experiments were conducted under artificial light at 27 ± 1 °C to compare the candy with crude propolis at two different concentrations (2% in one experiment and 5% in the other) versus the candy without propolis. The two concentrations chosen were below those known to cause lethal and sublethal effects on adult bees [51,52]. In each test, candy devoid of propolis was given in one arm and candy with propolis (at 2% or 5%) was offered in the other arm. Starting from the fourth day after infection, bees from the Nosema-infected or control groups were tested across the subsequent three days. Each bee was placed carefully inside the main arm through a circular hole (1.5 cm diameter) using soft tweezers and then allowed to walk freely in all three arms. Every trial was terminated when a bee arrived at one of the two arm ends, containing either control or propolis-laced candy, and extended its proboscis. A total of 60 control bees and 60 infected bees were tested for each experiment (2% or 5% propolis concentration). Each bee was tested only once and those that did not choose either of the two candies within 10 min (“no choice” subjects) were excluded from statistical analysis. Infected and control bees were tested alternately and, for each bee belonging to the same treatment group, we exchanged the position of the two types of candy.

2.6. Scan Bees Sampling and Food Consumption Test

Nosema infected and control bees were obtained following the same procedure described in the Food Choice Test (see above). Four days after spore administration, we placed 10 to 15 bees belonging to the Nosema-infected or control groups in a metal cage containing 1 g of two different candies (one with and one without propolis). After each hour for 8 consecutive hours, the number of bees eating the two types of candy (control and either 2% propolis or 5% propolis candy) was recorded. To estimate the total food consumed, each candy was weighed at the beginning and the end of the bioassay. The proportion of bees feeding on the two types of candy and the relative amount of propolis consumed (calculated as the propolis-candy consumed/total candy consumed) were compared between the infected and the control groups. The bioassays were conducted from the 4th day post infection (dpi) and finished after three consecutive days (i.e., 7 dpi). We carried out bioassays to test candy at two crude propolis concentrations (2% and 5%) and each treatment was replicated using 3 independent cages.

2.7. Quantifying N. ceranae Infection: DNA Extraction and qPCR

In the survival bioassay, we sampled one bee per treatment from each cage after 7 and 14 days post infection (36 bees in total) to quantify the intensity of N. ceranae infection (as genome equivalents). The intensity of infection was determined using whole bee DNA extracts. Bees were individually crushed in 500 µL DEPC-H2O, and then 100 µL were used for genomic DNA extraction using a DNeasy® Plant Mini Kit (Qiagen) according to the manufacturer’s instructions. To quantify N. ceranae infection, we used the following qPCR primers, previously described by vanEngelsdorp et al. [69] and with a modification to the reverse primer by [8]: Forward (5’-3’): CAATATTTTATTATTTTGAGAGA; Reverse (5’-3’): TATATCTATTGTATTGCGCGTGCA giving an amplicon length of 232 bp for Nosema ceranae. PCR reactions were performed in a Bio-Rad C1000 Thermal Cycler (Bio-Rad, Hercules, CA, USA) using 2× SensiMixTM SYBR and Fluorescein (Bioline, Memphis, TN, USA), 0.2 µM of each primer and 1 µL of template in a final volume of 10 µL. A negative control without template was included in each run. Each reaction was performed in duplicate and the average quantification cycle (Cq) value was taken (accepting a maximum Cq difference of 1 between duplicates). Amplification was performed using the thermal profile described in van Engelsdorp et al. [69] with an optimal annealing temperature of 54 °C. Post amplification melt curve analysis was used to check for non-specific amplification (50 °C to 95 °C with an increase of 0.5 °C per second). Standard curves were included in each run for absolute quantification of DNA copy number (genome equivalents) of N. ceranae using the methods and DNA dilution series described previously [8]; we accepted PCR efficiencies between 90% and 100%.
In the choice and scan sampling bioassays of food consumption, we ascertained the presence of N. ceranae in infected groups and its absence in control groups by sampling one bee per cage for the control groups on days 4 and 7 post treatment and two bees per cage on days 4 and 7 from each propolis treatment (2% and 5%). DNA was extracted from individual bees and a standard PCR for presence/absence was performed using the same protocol as described above for qPCR [63]. PCR products were visualised on 1.5% agarose gels after staining with EZ-Vision two® (Amresco, Radnor, PA, USA).

2.8. Chemical Analyses of Propolis

To determine the chemical composition of our propolis, an HPLC 1100 system equipped with a DAD detector G1315A, an autosampler G1313A, a pump G1311A, and a column oven G1316 (Agilent Technologies, Milan, Italy) were used. The system was controlled by the HP CHEMSTATION for LC software. The wavelengths monitored were 280, 360, and 520 nm. The column was a Varian Polaris C18 (5 µm, 300 A, 250 mm × 4.6 mm). The solvents used were 0.22 M phosphoric acid (A) and acetonitrile/methanol (1/1, v/v) (B). The gradient used for separation and analysis was the following: T = 0 A 96% A; T = 40 50% A; T = 45 40% A; T = 60 0% A, hold for 10 min; at the end of the analysis the column was reconditioned at the initial conditions for 15 min. The flow was 1 mL/min. Identification of the compounds was made using certified analytical standards supplied by Sigma Aldrich (St. Louis, MO, USA). Quantification was made by plotting area versus concentration of compounds in the sample versus five-point calibration curves made with authentic standards.
The total polyphenol content of propolis was determined by the Folin-Ciocalteu method [70]. In brief, solutions for analysis were prepared by reacting 100 μL of the propolis solution or standard with 500 μL of Folin-Ciocalteau reagent for 5 min and then adding 3 mL of 10% (w/v) sodium carbonate solution and ultrapure water up to a final volume of 10 mL. After 90 min incubation at room temperature, the samples were read at λ = 725 nm against a blank using 1 cm quartz cuvettes. The quantitative analysis was carried out using the external standard method (gallic acid) correlating absorbance (Abs) with concentration (400–8000 mg/kg). The results were expressed in mg/kg of gallic acid.

2.9. Statistical Methods

We analysed survival using a Cox proportional hazard mixed model, with experimental group (i.e., Control, Control + Propolis, Control + Ethanol, Nosema, Nosema + Propolis, Nosema + Ethanol) as a fixed factor and cage as a random factor. The analysis was performed using the R package coxme [71]. We used the R packages survival [72] and survminer [73] to plot survival curves and the function termplot from the stats R package to plot hazard ratios. Statistical significance of differences in hazard ratios were evaluated using post-hoc pairwise contrasts adjusted for multiple comparisons with the Benjamini-Hochberg method to control the false discovery rate (FDR) using the R package multcomp [74]. We used a linear mixed model (LMM) to test for differences among treatments in log-transformed Nosema genome equivalents per bee and post-hoc comparison of means were again adjusted for multiple comparisons using the FDR method.
We used a generalised linear mixed effect model (GLMM) with binomial error structure to examine the effect of treatment (control vs. Nosema-infected) on choice of food (candy with or without propolis) in our Y maze experiment. Treatment (control vs. Nosema-infected), candy type (2% propolis or 5% propolis) and their interaction were used as fixed factors and the colony of origin of tested bees was used as a random factor. We also used a GLMM with binomial error structure to investigate the effects of treatment (control vs. Nosema-infected) on the proportion of bees feeding on the candy with or without propolis. Treatment (control vs. Nosema-infected), candy type (2% propolis or 5% propolis) and their interaction were used as fixed factors and cage was used as a random factor. We furthermore used a generalised linear model (GLM) to investigate the effects of treatment (control vs. Nosema-infected) on the proportion of propolis-candy bees consumed in their diet. All mixed effect models were performed using the lme4 package in R [75].
All model assumptions were checked visually and were found to conform to expectations (residuals normally distributed, homogeneity of variance, linearity). All statistical analyses were conducted using R version 3.5.2 [76].

3. Results

3.1. Survival Bioassay

We found a strong effect of the experimental treatment on bee survival (coxme; χ2 = 58.094, p < 0.001; Figure 1). The Nosema treatment caused the fastest mortality, faster than any control treatment and with 50% of bees dead within 13 days post infection (Figure 1 and Figure 2). Survival was significantly lengthened in the Nosema + Propolis and Nosema + Ethanol treatments compared to Nosema alone (post-hoc test adjusted for multiple comparisons with the FDR method; Z = −3.825, p = 0.001; Z = −3.644, p = 0.004; respectively Figure 1 and Figure 2, Supplementary Material Table S1), with 50% of dead individuals recorded within 17 days and 18 days post infection, respectively. The Nosema + Propolis and Nosema + Ethanol treatments were not significantly different from Control + Propolis (post-hoc test adjusted for multiple comparisons with the FDR method; p > 0.05; Figure 1 and Figure 2; Supplementary Material Table S1). Though ethanol seemed to extend logevity and propolis seemed to reduce longevity relative to Control, differences were not significant between Control and Control + Ethanol or between Control and Control + Propolis treatments (post-hoc test adjusted for multiple comparisons with the FDR method; p > 0.05; Figure 1 and Figure 2, Supplementary Material Table S1).

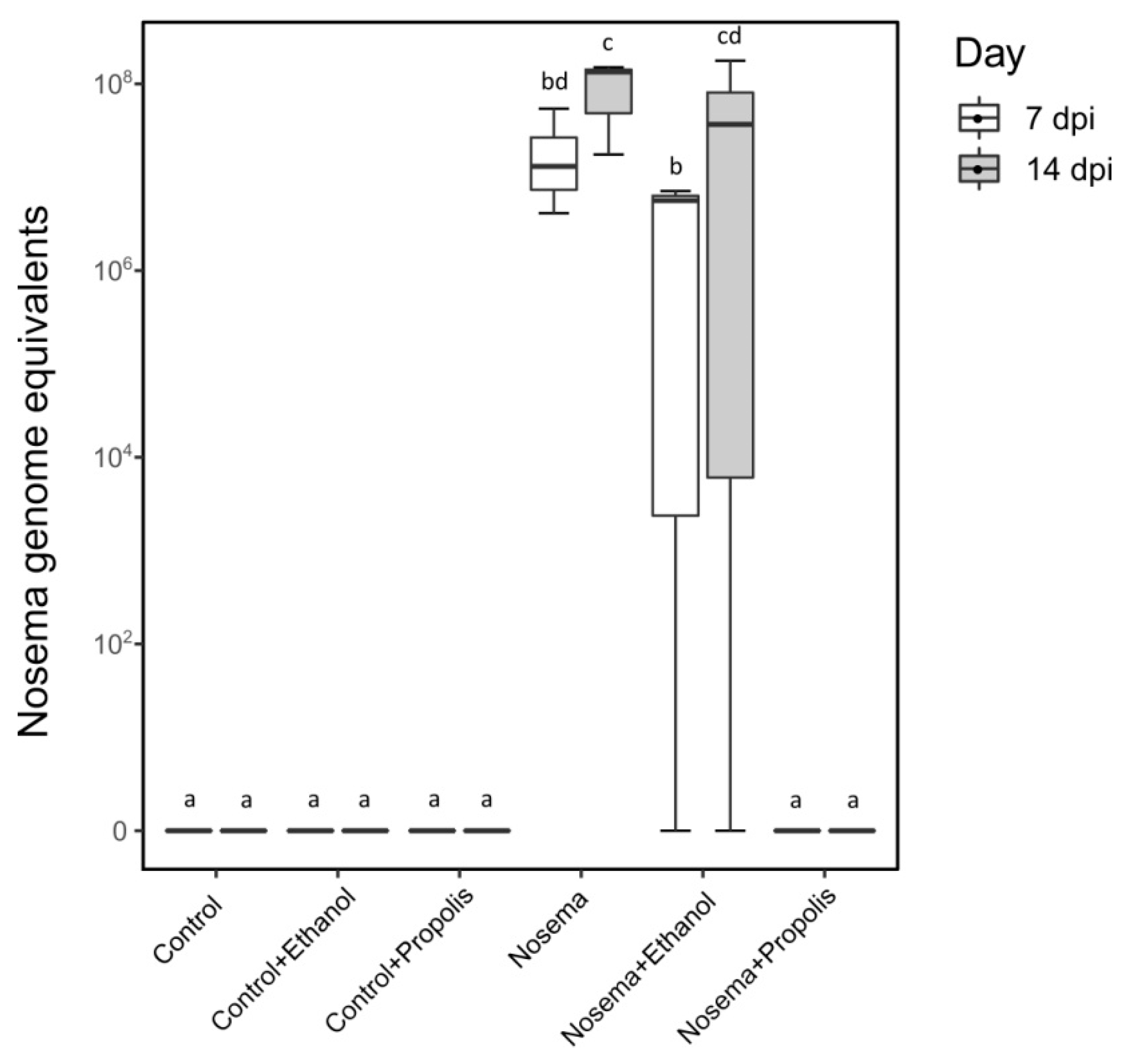

A post-hoc qRT-PCR screening of a subsample of bees collected on the 7th and 14th days post infection showed that Nosema infection levels differed between the treatments tested (LMM; χ2 = 67.997, p < 0.001; Figure 3). The Nosema and Nosema + Ethanol experimental groups had higher Nosema spore loads compared to all other experimental groups (post-hoc test adjusted for multiple comparisons with the FDR method; p < 0.05; Figure 3). The Nosema + Propolis group did not differ from the three control treatments (Control, Control + Ethanol and Control + Propolis) (post-hoc test adjusted for multiple comparisons with the FDR method; p > 0.05; Figure 3), indicating that this treatment group harboured little or no N. ceranae.

3.2. Food Choice Test

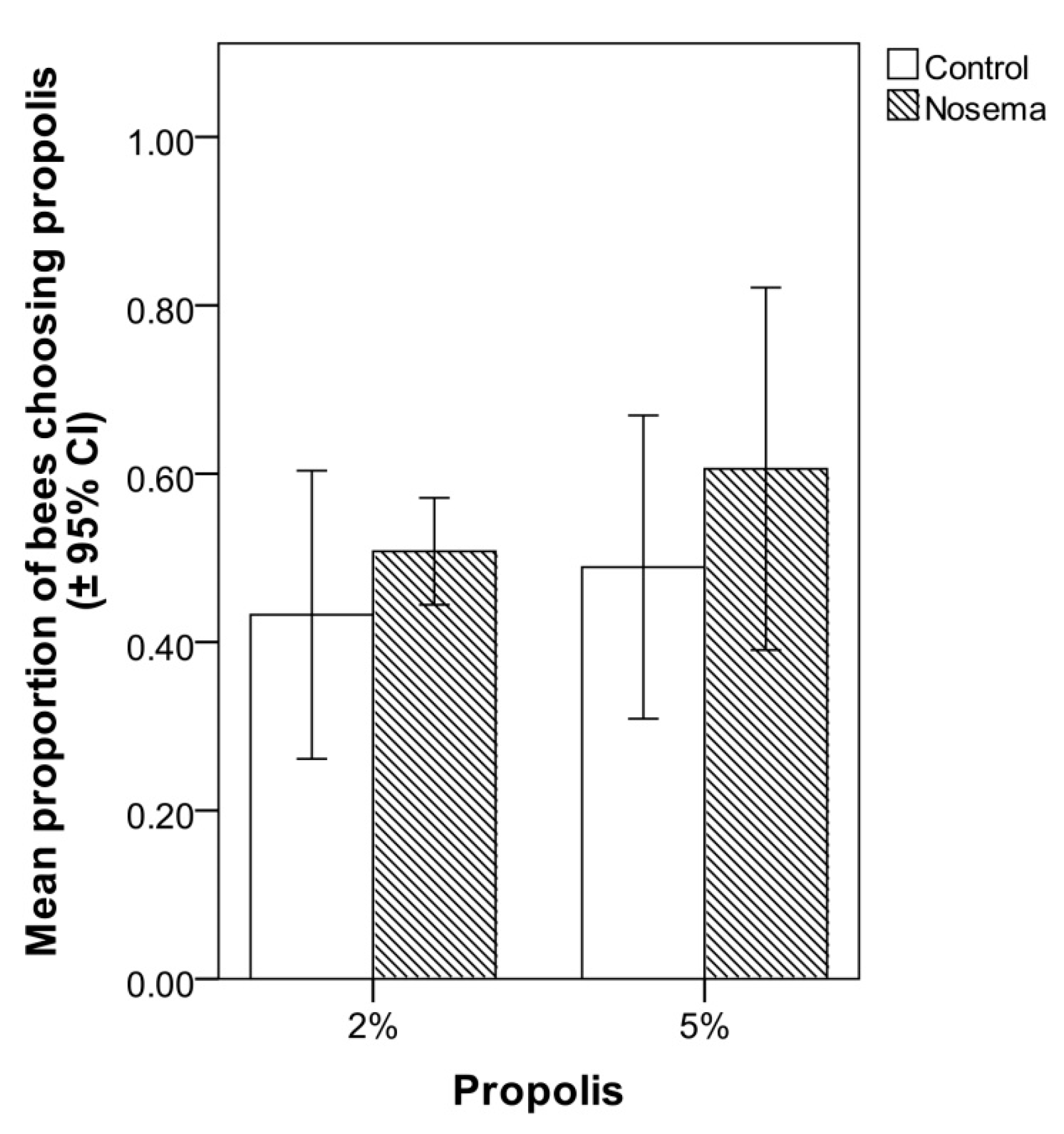

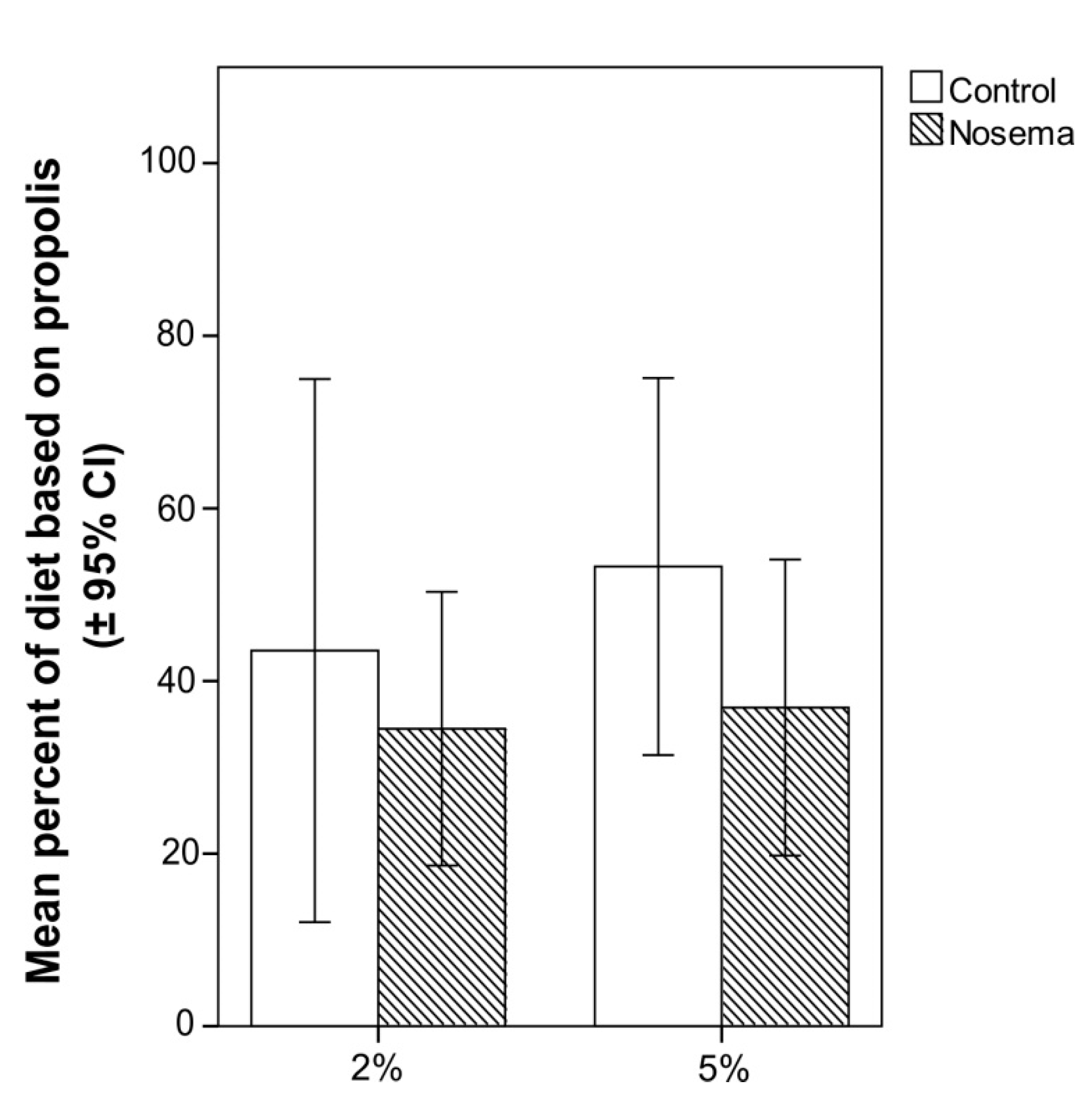

In the food choice test, the addition of propolis to candy at 2% or 5% did not significantly increase its attractiveness to Nosema-infected or control workers (Figure 4). In fact, the proportion of bees choosing the propolis-candy rather than the candy devoid of propolis did not differ between Nosema-infected and control bees (GLMM; χ2 = 1.915, p = 0.166, Figure 4), candy type (with 2% or 5% propolis; GLMM; χ2 = 1.187, p = 0.275, Figure 4) or their interaction (GLMM; χ2 = 0.136, p = 0.711; Figure 4). In each bioassay, a PCR confirmed the presence of N. ceranae in the infected group and its absence in the control group, on both 4 and 7 days post-infection.

3.3. Scan Sampling and Food Consumption

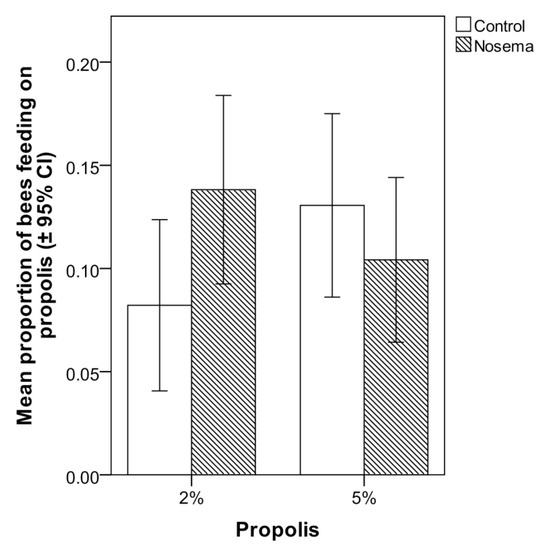

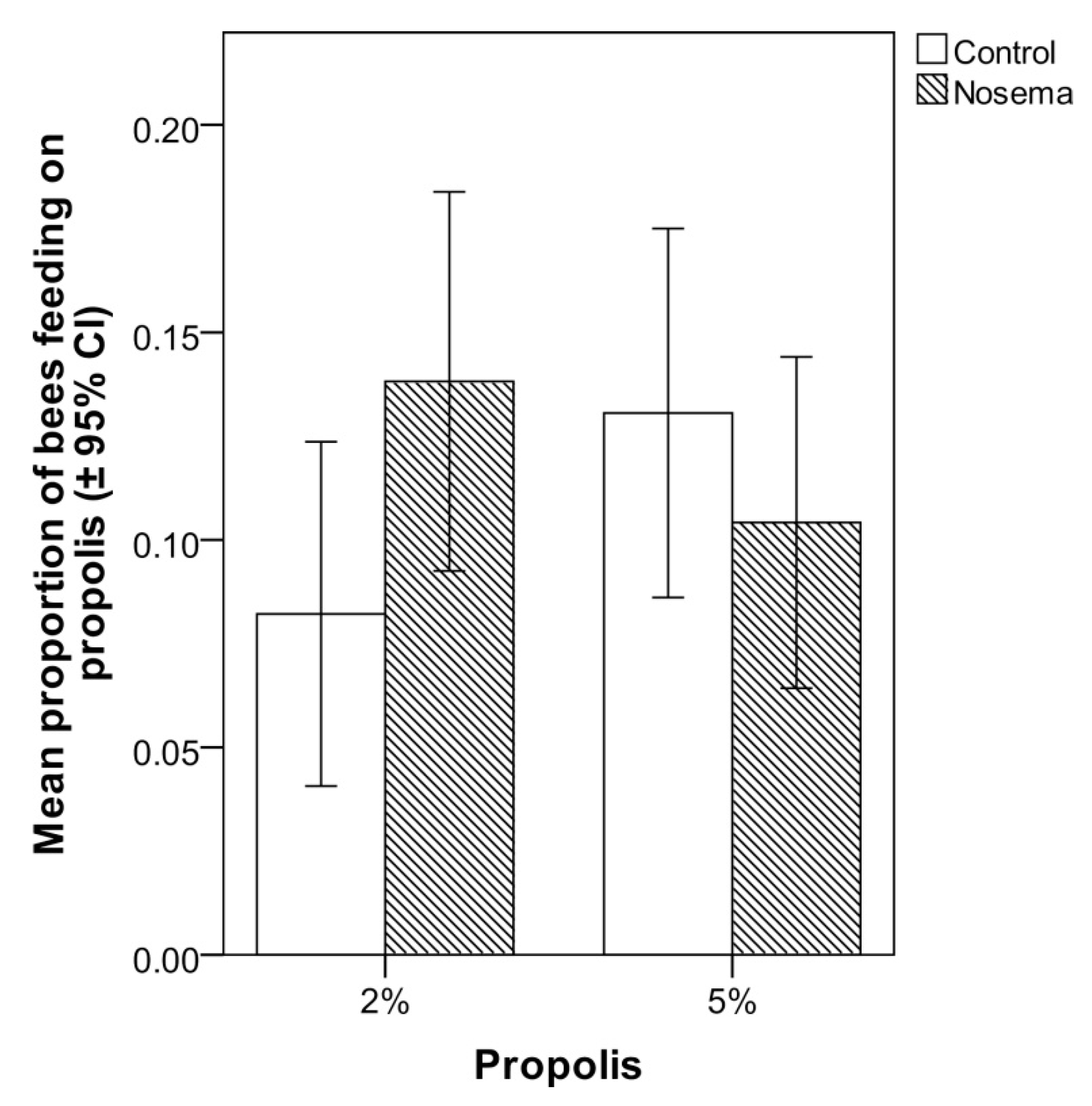

In the scan and food consumption tests, the addition of propolis to candy at 2% or 5% did not significantly increase the number of Nosema-infected or control workers that fed on it (Figure 5). In fact, the proportion of bees feeding on the propolis-candy did not differ between Nosema-infected and control bees (GLMM; χ2 = 1.188, p = 0.664; Figure 5), candy type (with 2% or 5% propolis; GLMM; χ2 = 0.070, p = 0.791; Figure 5) or their interaction (GLMM; χ2 = 0.141, p = 0.706; Figure 5). No significant differences were found in the proportion of propolis-candy consumed by Nosema-treated bees and control bees (GLM; p > 0.05), regardless of the concentration of propolis (2% or 5%) of the treated candy (Figure 6). In each bioassay, a PCR confirmed the presence of N. ceranae in the infected group and its absence in the control group, on both 4 and 7 days post infection.

3.4. Chemical Analysis of Propolis

HPLC analysis (Table 1) revealed the presence of almost 50 compounds belonging to the family of phenols, in particular flavones, flavonols, and simple phenols, like caffeic and ferulic acid, in the propolis extract.
The most abundant were derivatives of quercetin, caffeic acid, ferulic acid and ellagic acid, while only small amounts of kaempherol and derivatives of cinnamic acid, rosmarinic acid and narigin were detected. The degradation pathway of larger phenols usually leads to smaller phenols [77]; in fact, it was possible to detect high levels of caffeic, ellagic and ferulic acid derivatives. However, most phenol compounds were present in low amounts. Therefore, it was very difficult to identify them unambiguously, especially because standards are not available for many of them. Nevertheless, the compounds reported here represent almost 95% of those present in the propolis extract.
Total phenols in the propolis extract amounted to almost 120 mg/g. Differences with the total amounts obtained by HPLC analysis (Table 1) has two possible explanations, the first related to the fact that, in spectrophotometry, phenols are expressed as gallic acid whereas in HPLC they are expressed using authentic standards, and the second that phenols react differently across wavelengths. Therefore, comparison cannot be made between the two datasets.

4. Discussion

In this study, we evaluated the effects of propolis extracts on the lifespan and intensity of infection of Apis mellifera workers experimentally inoculated with Nosema ceranae. Our results showed that both propolis extracts and ethanol (solvent control) have a positive effect on the lifespan of N. ceranae infected bees. However, only propolis caused a significant reduction in Nosema spore load.
Experiments similar to ours have been conducted on the red dwarf honey bee, A. florea [54,78], and on the Asian hive honey bee, A. cerana [56], using propolis produced by the stingless bee Trigona apicalis. In these studies, only the propolis extract and not ethanol showed positive effects on Nosema-infected bees, causing an increase in survival and a decrease in spore load. Similar effects of propolis on workers of A. mellifera infected by Nosema have also been reported by Arismendi et al. [57], but a different solvent was used to extract the active ingredients from propolis (methanol instead of ethanol) and the study lacked a positive control (infected bees treated with the solvent alone). In our experiments, a single administration of 2 µL of a sugar solution containing 17.5% ethanol did not cause any increase in mortality of uninfected bees nor did it change Nosema load in experimentally infected bees.
Ptaszynska et al. [79] studied the impact of the prolonged administration (10 consecutive days) of ethanol on Nosema-infected bees, based on the fact that some beekeepers add ethanol to sucrose solution (fed in autumn to honey bees) to prevent Nosema infection and to cure already infested colonies. Under these conditions, they observed that the administration of sucrose syrup with 5% ethanol promoted the development of nosemosis, whereas ethanol at 10% concentration exerted severe toxic effects on uninfected bees. However, no side effects using ethanol at 2.5% concentration were observed. The acute toxicity of ethanol on honeybees was also studied by Maze et al. [80], who administered 9 μL of a 1.0 M sucrose solution containing 0, 5, 10, 25, 50, or 75% ethanol in a single dose. Maze et al. [80] observed time and dose-dependent effects of ethanol on locomotor and other behaviour (walking, stopping or walking upside down, grooming and flight behaviour), but only honey bees given the highest doses (50% and 75%) showed a significant increase in mortality. Moreover, behavioural recovery occurred between 12 and 24 h post-ingestion for low doses and at 24 to 48 h for higher doses. The total amount of ethanol supplied to each honeybee in our study (equivalent to 0.35 µL of 100% ethanol) was lower than that supplied by Maze et al. [80] at their lowest dose (equivalent to 0.45 μL of 100% ethanol). Therefore, no sub-lethal side-effects were expected in our experimental paradigm. The positive effect of ethanol on the survival of Nosema-infected bees observed in our study could be due to the broad-spectrum antimicrobial activity of ethanol, which includes impacts on bacteria, viruses and fungi [81]. The antifungal properties of ethanol have been recently highlighted although, at low ethanol concentrations (30%), spore germination was only partially reduced [82]. In our study, the slight, although not significant, reduction in spore loads (genome equivalents) in the Nosema-infected bees treated with ethanol (Nosema + Ethanol treatment) compared to the Nosema treatment might have also led to their greater survival. Because low concentrations of ethanol can enhance the activity of other biocides [81], we also hypothesize that ethanol strengthened our observed, very marked effect of propolis against Nosema in the Nosema + Propolis treatment.
The propolis used in our bioassays effectively halted the proliferation of N. ceranae spores in the bee gut, as previously reported by [54,55,56,57]. This is an important finding because resin chemical composition can vary with geographical area of origin and, consequently, so can its antimicrobial activity [83,84]. In general, the antimicrobial property of propolis derives from its high resin content, which is essentially associated with the content of phenolic compounds, mostly flavonoids and organic acid esters [85]. Some components isolated from Bulgarian propolis, including pinocembrin, pinobanksin-3-acetate and caffeic acid ester mixtures, are well known to be effective against the honeybee pathogens P. larvae and A. apis [86,87]. Wilson et al. [88] isolated eleven dihydro-flavonols from propolis collected in Fallon (Nevada, USA) and found that those with longer acyl groups had increased activity against P. larvae, whereas shorter acyl groups had increased activity against A. apis. To our knowledge, similar studies on N. ceranae are lacking. Nevertheless, several ethanolic plant extracts have shown significant anti-Nosema activity [57,89], probably due to their polyphenolic compound content [57,90]. Arismendi et al. [57], who chemically characterised two types of propolis that enhanced the survival of N. ceranae-infected bees, found many flavonol compounds (rutin, myricetin, querecetin, kaempferol and galangin) as well as phenolic acids, such as apigenin, pinocembrin and caffeic acid phenethyl ester in their propolis. Many of these compounds show broad-spectrum antimicrobial activity [91]. In contrast, chemical analysis of the propolis extract used in our study revealed the presence of mainly quercetin derivatives as well as ellagic acid, ferulic acid and caffeic acid derivatives. These differences can be explained by the environmental conditions affecting plants from which honey bees collect resins. Yet in spite of the great differences in chemical composition, propolis from different geographic locations can exhibit similar antibacterial, antifungal and antiviral activity [92]. This is to be expected, considering that honey bees are thought to use propolis to improve defense against infections. Our study demonstrates that propolis produced by honey bees in Sardinia (Italy), like that produced by honey bees from Chilean native plants [57], shows clear activity against Nosema spores. This suggests that the anti-Nosema properties of propolis in all these studies are probably due to a synergistic action of various components rather than the action of a single component.
In relation to the mechanism of action of propolis, Turcatto et al. [50] reported that propolis consumption may enhance the immune response of bees when infected with E. coli. Moreover, porphyrins were found to inactivate Microsporidia, preventing spore development [93]. Morphological changes in the exospore layers of treated spores indicate the direct impact of porphyrin on Microsporidia [93]. Our results, namely lack of detection of spores in infected bees treated simultaneously with propolis and Nosema spores, suggest a possible direct action of propolis on Microsporidia similar to that previously observed for porphyrins; propolis may have directly inhibited spore germination as opposed to reducing N. ceranae proliferation in host ventricular epithelial cells. However, we cannot exclude a third hypothesis, that propolis produces a thin coating on the host ventricular wall and protects bees against infection by preventing penetration of the intestinal wall by N. ceranae’s polar filament. Differentiating among these mechanisms of action of propolis on N. ceranae will require additional experimentation.
We evaluated for the first time if Nosema-infected bees are more attracted to a diet containing propolis, and if they consumed more of this diet in comparison to uninfected bees. We do not think that honey bees normally ingest propolis because its toxicity to them has been demonstrated [51,52], but we hypothesized that they can ingest it in moderate amounts when they are challenged by a pathogen as a form of self-medication. The lack of significant differences observed between infected and uninfected honey bees in our choice, scan and food consumption tests did not support the hypothesis that bees therapeutically use propolis in self-medication. In contrast to our findings, Simone-Finstrom and Spivak [46] and Pusceddu et al. [47] suggest propolis may be used by honey bees in self-mediation. However, these two latter studies addressed the role of propolis not against N. ceranae but against two other hive enemies (A. apis and V. destructor) and were conducted in an apiary rather than in the laboratory. As a consequence, both studies dealt with cases of social medication, in which the benefits and the costs derived from the use of a therapeutic substance are evaluated at the colony level rather than at the individual level [94]. In contrast, our study dealt with self-medication by bees for the benefit of the individual bee, and it is very likely that the mechanisms that regulate the response of an infected individual are different from those that regulate the response of uninfected individuals (resin foragers) to the infection of their nestmates. Propolis may therefore be used in colony-level self-medication against some pathogens and pests [46,47] but not in individual-level self-medication against Nosema. We note, though, that Gherman et al. [49] did observe individual self-medication by N. ceranae-infected honey bees, though different honeys as opposed to propolis were preferred by bees in those experiments. However, although our results did not support the idea that Nosema-infected honey bees consume propolis as a form of self-medication, in tests similar to those we carried out with Nosema in the present study, we observed that honey bee workers parasitized by Varroa consumed more food enriched with propolis in comparison with non-infested bees (Pusceddu et al., personal communication). Based on these findings, we think that propolis self-medication deserves further investigation. For instance, it would now be important to test diets containing propolis at different concentrations from those used in our study in protecting worker honey bees from N. ceranae infection.

5. Conclusions

The reduced proliferation of Nosema spores in the honey bees treated with propolis that we observed strengthens the view that it would be preferable and feasible to use natural compounds as an alternative to synthetic chemicals in the management of diseases of the honey bee and the hive, especially considering that consumers demand high-quality food products. In this context, active ingredients obtained from natural substances such as propolis seem to have the potential to control many important parasites of the hive in a safety manner. It is now necessary to conduct field studies to confirm the results observed under controlled experimental settings in order to develop a new method for the control of Nosema infection which would avoid the use of synthetic antibiotics in bee hives.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4450/11/2/124/s1, Table S1: Results of post-hoc tests adjusted for multiple comparisons with the FDR method, of differences in the hazard ratio of each treatment in the survival bioassay.

Author Contributions

Conceptualization, A.M., M.P., P.T., A.A., I.F., R.J.P., and A.S.; Data curation, P.T.; Funding acquisition, A.S.; Investigation, A.M., M.P. and A.A.; Supervision, I.F., R.J.P.; Writing—original draft, A.M., P.T. and A.S.; Writing—review & editing, M.P., A.A., I.F. and R.J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fondazione di Sardegna—year 2016 and by Regione Autonoma della Sardegna, L.R. 7/2007—year 2016, project: Self-medication in the hive: propolis and venom against the honey bee ectoparasite Varroa destructor and by P.O.R. Sardegna F.S.E. 2014/2020 Asse III—Istruzione e formazione—Obiettivo tematico 10 “Investire nell’istruzione e nella formazione professionale per le competenze e l’apprendimento permanente”. This study was also supported by Università degli Studi di Sassari “Fondo di Ateneo per la ricerca”

Acknowledgments

The authors are grateful to Antonio Nanetti (CREA-Bologna) for providing honey bees infected with Nosema ceranae and Ana Helena Dias Francesconi for help in revising the manuscript as well as the anonymous referees for providing helpful comments on former versions of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fries, I.; Feng, F.; da Silva, A.; Slemenda, S.B.; Pieniazek, N.J. Nosema ceranae n. sp. (Microspora, Nosematidae), morphological and molecular characterization of a microsporidian parasite of the Asian honey bees Apis cerana (Hymenoptera, Apidae). Eur. J. Protistol. 1996, 32, 356–365. [Google Scholar] [CrossRef]
  2. Goblirsch, M. Nosema ceranae disease of the honey bee (Apis mellifera). Apidologie 2018, 49, 131–150. [Google Scholar] [CrossRef][Green Version]
  3. Higes, M.; Martín, R.; Meana, A. Nosema ceranae, a new microsporidian parasite in honeybees in Europe. J. Invertebr. Pathol. 2006, 92, 93–95. [Google Scholar] [CrossRef] [PubMed]
  4. Ferroglio, E.; Zanet, S.; Peraldo, N.; Tachis, E.; Trisciuoglio, A.; Laurino, D.; Porporato, M. Nosema ceranae has been infecting honey bees Apis mellifera in Italy since at least 1993. J. Apic. Res. 2013, 52, 60–61. [Google Scholar] [CrossRef]
  5. Klee, J.; Besana, A.M.; Genersch, E.; Gisder, S.; Nanetti, A.; Tam, D.Q.; Chinh, T.X.; Puerta, F.; Ruz, J.M.; Kryger, P.; et al. Widespread dispersal of the microsporidian Nosema ceranae, an emergent pathogen of the western honey bee, Apis mellifera. J. Invertebr. Pathol. 2007, 96, 1–10. [Google Scholar] [CrossRef]
  6. Chen, Y.; Evans, J.D.; Smith, I.B.; Petti, J.S. Nosema ceranae is a long-present and wide-spread microsporidian infection of the European honey bee (Apis mellifera) in the United States. J. Invertebr. Pathol. 2008, 97, 186–188. [Google Scholar] [CrossRef]
  7. Porrini, C.; Mutinelli, F.; Bortolotti, L.; Granato, A.; Laurenson, L.; Roberts, K.; Gallina, A.; Silvester, N.; Medrzycki, P.; Renzi, T.; et al. The status of honey bee health in Italy: results from the Nationwide Bee Monitoring Network. PLoS ONE 2016, 1, e0155411. [Google Scholar] [CrossRef]
  8. Natsopoulou, M.E.; McMahon, D.P.; Doublet, W.; Bryden, J.; Paxton, R.J. Interspecific competition in honeybee intracellular gut parasites is asymmetric and favours the spread of an emerging infectious disease. Proc. R. Soc. B 2015, 282, 20141896. [Google Scholar] [CrossRef][Green Version]
  9. Kralj, J.; Fuchs, S. Nosema sp. influences flight behavior of infected honey bee (Apis mellifera) foragers. Apidologie 2010, 41, 21–28. [Google Scholar] [CrossRef][Green Version]
  10. Goblirsch, M.; Huang, Z.Y.; Spivak, M. Physiological and behavioral changes in honey bees (Apis mellifera) induced by Nosema ceranae infection. PLoS ONE 2013, 8, e58165. [Google Scholar] [CrossRef]
  11. Mayack, C.; Natsopoulou, M.E.; McMahon, D.P. Nosema ceranae alters a highly conserved hormonal stress pathway in honeybees. Insect. Mol. Biol. 2015, 24, 662–670. [Google Scholar] [CrossRef] [PubMed]
  12. Li, W.; Chen, Y.; Cook, S.C. Chronic Nosema ceranae infection inflicts comprehensive and persistent immune suppression and accelerated lipid loss in host Apis mellifera honey bees. Int. J. Parasitol. 2018, 48, 433–444. [Google Scholar] [CrossRef] [PubMed]
  13. Botías, C.; Martín-Hernández, R.; Barrios, L.; Meana, A.; Higes, M. Nosema spp. infection and its negative effects on honey bees (Apis mellifera iberiensis) at the colony level. Vet. Res. 2013, 44, 25. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Higes, M.; Martín-Hernández, R.; Botías, C.; Bailón, E.G.; González-Porto, A.V.; Barrios, L.; del Nozal, M.J.; Bernal, J.L.; Jiménez, J.J. How natural infection by Nosema ceranae causes honeybee colony collapse. Environ. Microbiol. 2008, 10, 2659–2669. [Google Scholar] [CrossRef] [PubMed]
  15. Higes, M.; Martín-Hernández, R.; Garrido-Bailón, E.; González-Porto, A.V.; García-Palencia, P.; Meana, A.; Del Nozal, M.J.; Mayo, R.; Bernal, J.L. Honeybee colony collapse due to Nosema ceranae in professional apiaries. Environ. Microbiol. Rep. 2009, 1, 110–113. [Google Scholar] [CrossRef]
  16. Bromenshenk, J.J.; Henderson, C.B.; Wick, C.H.; Stanford, M.F.; Zulich, A.W.; Jabbour, R.E.; Deshpande, S.V.; Mc Cubbin, P.E.; Seccomb, R.A.; Welch, P.M.; et al. Iridovirus and microsporidian linked to honey bee colony decline. PLoS ONE 2010, 5, e13181. [Google Scholar] [CrossRef]
  17. Fries, I. Nosema ceranae in European honey bees (Apis mellifera). J. Invertebr. Pathol. 2010, 103, 73–79. [Google Scholar] [CrossRef]
  18. Sulborska, A.; Horecka, B.; Cebrat, M.; Kowalczyk, M.; Skrzypek, T.H.; Kazimierczak, W.; Trytek, M.; Borsuk, G. Microsporidia Nosema spp.—Obligate bee parasites are transmitted by air. Sci. Rep. 2019, 9, 14376. [Google Scholar] [CrossRef]
  19. van den Heever, J.P.; Thompson, T.S.; Curtis, J.M.; Ibrahim, A.; Pernal, S. Fumagillin: an overview of recent scientific advances and their significance for apiculture. J. Agric. Food. Chem. 2014, 62, 2728–2737. [Google Scholar] [CrossRef]
  20. Huang, W.F.; Solter, L.F.; Yau, P.M.; Imai, B.S. Nosema ceranae escapes fumagillin control in honey bees. PLoS Pathog. 2013, 9, e1003185. [Google Scholar] [CrossRef][Green Version]
  21. Giacobino, A.; Rivero, R.; Molineri, A.I.; Bulacio Cagnolo, N.; Merke, J.; Orellano, E.; Salto, C.; Signorini, M. Fumagillin control of Nosema ceranae (Microsporidia: Nosematidae) infection in honey bee (Hymenoptera: Apidae) colonies in Argentina. Vet. Ital. 2016, 52, 145–151. [Google Scholar] [CrossRef] [PubMed]
  22. Mendoza, Y.; Diaz-Cetti, S.; Ramallo, G.; Santos, E.; Porrini, M.; Invernizzi, C. Nosema ceranae winter control: study of the effectiveness of different fumagillin treatments and consequences on the strength of honey bee (Hymenoptera: Apidae) colonies. J. Econ. Entomol. 2017, 110, 1–5. [Google Scholar] [CrossRef] [PubMed]
  23. MRL, Commission regulation EU 2010 n. 37/2010 of 22 December 2009. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32010R0037 (accessed on 10 December 2019).
  24. Maistrello, L.; Lodesani, M.; Costa, C.; Leonardi, F.; Marani, G.; Caldon, M.; Mutinelli, F.; Granato, A. Screening of natural compounds for the control of nosema disease in honeybees (Apis mellifera). Apidologie 2008, 39, 436–445. [Google Scholar] [CrossRef][Green Version]
  25. Porrini, M.P.; Fernández, N.J.; Garrido, P.M.; Gende, L.B.; Medici, S.K.; Eguaras, M.J. In vivo evaluation of antiparasitic activity of plant extracts on Nosema ceranae (Microsporidia). Apidologie 2011, 42, 700–707. [Google Scholar] [CrossRef][Green Version]
  26. Porrini, M.P.; Garrido, P.M.; Gende, L.B.; Rossini, C.; Hermidac, L.; Marcángelia, J.A.; Eguaras, M.J. Oral administration of essential oils and main components: study on honey bee survival and Nosema ceranae development. J. Apic. Res. 2017, 56, 616–624. [Google Scholar] [CrossRef]
  27. Burnham, A.J. Scientific advances in controlling Nosema ceranae (Microsporidia) infections in honey bees (Apis mellifera). Front. Vet. Sci. 2019, 6, 79. [Google Scholar] [CrossRef][Green Version]
  28. Costa, C.; Lodesani, M.; Maistrello, L. Effect of thymol and resveratrol administered with candy or syrup on the development of Nosema ceranae and on the longevity of honeybees (Apis mellifera L.) in laboratory conditions. Apidologie 2010, 41, 141–150. [Google Scholar] [CrossRef][Green Version]
  29. Damiani, N.; Fernández, N.J.; Porrini, M.P.; Gende, L.B.; Álvarez, E.; Buffa, F.; Brasesco, C.; Maggi, M.D.; Marcangeli, J.A.; Eguaras, M.J. Laurel leaf extracts for honeybee pest and disease management: antimicrobial, microsporicidal, and acaricidal activity. Parasitol. Res. 2014, 113, 701–709. [Google Scholar] [CrossRef]
  30. Bravo, J.; Carbonell, V.; Sepúlveda, B.; Delporte, C.; Valdovinos, C.E.; Martín-Hernández, R.; Higes, M. Antifungal activity of the essential oil obtained from Cryptocarya alba against infection in honey bees by Nosema ceranae. J. Invertebr. Pathol. 2017, 149, 141–147. [Google Scholar] [CrossRef]
  31. Erler, S.; Moritz, R.F. Pharmacophagy and pharmacophory: mechanisms of self-medication and disease prevention in the honeybee colony (Apis mellifera). Apidologie 2016, 47, 389–411. [Google Scholar] [CrossRef][Green Version]
  32. Seeley, T.D.; Morse, R.A. The nest of the honey bee (Apis mellifera L.). Insectes Soc. 1976, 23, 495–512. [Google Scholar] [CrossRef]
  33. Castella, G.; Chapuisat, M.; Christe, P. Prophylaxis with resin in wood ants. Anim. Behav. 2008, 75, 1591–1596. [Google Scholar] [CrossRef][Green Version]
  34. Leonhardt, S.D.; Bluthgen, N. A sticky affair: resin collection by Bornean stingless bees. Biotropica 2009, 41, 730–736. [Google Scholar] [CrossRef]
  35. Simone-Finstrom, M.; Spivak, M. Propolis and bee health: the natural history and significance of resin use by honey bees. Apidologie 2010, 41, 295–311. [Google Scholar] [CrossRef][Green Version]
  36. Kadhim, M.J.; Los, A.; Olszewski, K.; Borsuk, G. Propolis in livestock nutrition. Entomol. Ornithol. Herpetol. 2018, 7, 207. [Google Scholar] [CrossRef]
  37. Küstenmacher, M. Propolis. Ber. Deutshen Pharmacol. Ges. 1911, 21, 65–92. [Google Scholar] [CrossRef]
  38. Ghisalberti, E.L. Propolis: a review. Bee World 1979, 60, 59–84. [Google Scholar] [CrossRef]
  39. Simone, M.; Evans, J.D.; Spivak, M. Resin collection and social immunity in honey bees. Evolution 2009, 63, 3016–3022. [Google Scholar] [CrossRef]
  40. Cotter, S.C.; Kruuk, L.E.; Wilson, K. Costs of resistance: genetic correlations and potential trade-offs in an insect immune system. J. Evol. Biol. 2004, 17, 421–429. [Google Scholar] [CrossRef][Green Version]
  41. Nicodemo, D.; Malheiros, E.B.; De Jong, D.; Couto, R.H.N. Honey bee lines selected for high propolis production also have superior hygienic behavior and increased honey and pollen stores. Genet. Mol. Res. 2013, 12, 6931–6938. [Google Scholar] [CrossRef]
  42. Borba, R.S.; Klyczck, K.K.; Mogen, K.L.; Spivak, M. Seasonal benefits of a natural propolis envelope to honey bee immunity and colony health. J. Exp. Biol. 2015, 218, 3689–3699. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Pusceddu, M.; Floris, I.; Mura, A.; Theodorou, P.; Cirotto, G.; Piluzza, S.; Bullitta, S.; Angioni, A.; Satta, A. The effects of raw propolis on Varroa-infested honey bee (Apis mellifera) workers. Parasitol. Res. 2018, 117, 3527–3535. [Google Scholar] [CrossRef] [PubMed]
  44. Antúnez, K.; Harriet, J.; Gende, L.; Maggi, M.; Eguaras, M.; Zunino, P. Efficacy of natural propolis extract in the control of American Foulbrood. Vet. Microbiol. 2008, 131, 324–331. [Google Scholar] [CrossRef] [PubMed]
  45. Borba, R.S.; Spivak, M. Propolis envelope in Apis mellifera colonies supports honey bees against the pathogen, Paenibacillus larvae. Sci. Rep. 2017, 7, 11429. [Google Scholar] [CrossRef][Green Version]
  46. Simone-Finstrom, M.D.; Spivak, M. Increased resin collection after parasite challenge: A case of self-medication in honey bees? PLoS ONE 2012, 7, e34601. [Google Scholar] [CrossRef][Green Version]
  47. Pusceddu, M.; Piluzza, S.; Theodorou, P.; Buffa, F.; Ruiu, L.; Bullitta, S.; Floris, I.; Satta, A. Resin foraging dynamics in Varroa destructor-infested hives: A case of medication of kin? Insect Sci. 2019, 26, 297–310. [Google Scholar] [CrossRef]
  48. Drescher, N.; Klein, A.M.; Neumann, P.; Yañez, O.; Leonhardt, S. Inside honeybee hives: impact of natural propolis on the ectoparasitic mite Varroa destructor and viruses. Insects 2017, 8, 15. [Google Scholar] [CrossRef][Green Version]
  49. Gherman, B.I.; Denner, A.; Bobiş, O.; Dezmirean, D.S.; Mărghitaş, L.A.; Schluens, H.; Moritz, R.F.; Erler, S. Pathogen-associated self-medication behavior in the honeybee Apis mellifera. Behav. Ecol. Sociobiol. 2014, 68, 1777–1784. [Google Scholar] [CrossRef][Green Version]
  50. Turcatto, A.P.; Lourenço, A.P.; De Jong, D. Propolis consumption ramps up the immune response in honey bees infected with bacteria. Apidologie 2018, 49, 287–296. [Google Scholar] [CrossRef][Green Version]
  51. Damiani, N.; Maggi, M.D.; Gende, L.B.; Faverin, C.; Eguaras, M.J.; Marcangeli, J.A. Evaluation of the toxicity of a propolis extract on Varroa destructor (Acari: Varroidae) and Apis mellifera (Hymenoptera: Apidae). J. Apic. Res. 2010, 49, 257–264. [Google Scholar] [CrossRef]
  52. Damiani, N.; Porrini, M.P.; Lancia, J.P.; Álvarez, E.; Garrido, P.M.; Domínguez, E.; Gende, L.B.; Eguaras, M.J. Effect of propolis oral intake on physiological condition of young worker honey bees, Apis mellifera L. J. Apic. Sci. 2017, 61, 193–202. [Google Scholar] [CrossRef][Green Version]
  53. Johnson, R.; Mao, W.; Pollock, H.; Niu, G.; Schuler, M.; Berenbaum, M. Ecologically appropriate xenobiotics induce cytochrome P450s in Apis mellifera. PLoS ONE 2012, 7, e31051. [Google Scholar] [CrossRef] [PubMed]
  54. Suwannapong, G.; Maksong, S.; Benbow, M.E. Stingless bee propolis effects on experimental infection of Apis florea with Nosema ceranae. J. Agr. Sci. Technol. A 2011, 1, 818–825. [Google Scholar]
  55. Suwannapong, G.; Maksong, S.; Phainchajoen, M.; Benbow, M.E.; Mayack, C. Survival and health improvement of Nosema infected Apis florea (Hymenoptera: Apidae) bees after treatment with propolis extract. J. Asia Pac. Entomol. 2018, 21, 437–444. [Google Scholar] [CrossRef]
  56. Yemor, T.; Phiancharoen, M.; Benbow, M.E.; Suwannapomg, G. Effects of stingless bee propolis on Nosema ceranae infected Asian honey bees, Apis cerana. J. Apic. Res. 2015, 54, 468–473. [Google Scholar] [CrossRef]
  57. Arismendi, N.; Vargas, M.; López, M.D.; Barría, Y.; Zapata, N. Promising antimicrobial activity against the honey bee parasite Nosema ceranae by methanolic extracts from Chilean native plants and propolis. J. Apic. Res. 2018, 57, 522–535. [Google Scholar] [CrossRef]
  58. da Silva, J.F.M.; de Souza, M.C.; Matta, S.R.; de Andrade, M.R.; Vidal, F.V.N. Correlation analysis between phenolic levels of Brazilian propolis extracts and their antimicrobial and antioxidant activities. Food. Chem. 2006, 99, 431–435. [Google Scholar] [CrossRef]
  59. Mihai, C.; Mărghitaş, L.; Dezmirean, D.; Chirilă, F.; Moritz, R.; Schlüns, H. Interactions among flavonoide of propolis affect antibacterial activity against the honeybee pathogen Paenibacillus larvae. J. Invertebr. Pathol. 2012, 110, 68–72. [Google Scholar] [CrossRef]
  60. Siripatrawan, U.; Vitchayakitti, W.; Sanguandeekul, R. Antioxidant and antimicrobial properties of Thai propolis extracted using ethanol aqueous solution. Int. J. Food. Sci. Technol. 2013, 48, 22–27. [Google Scholar] [CrossRef]
  61. Bagella, S.; Urbani, M. La flora degli affioramenti calcarei miocenici della Sardegna settentrionale. Giornale Botanico Italiano 1994, 128, 1–370. [Google Scholar] [CrossRef][Green Version]
  62. Biondi, E.; Filigheddu, R.S.; Farris, E. II Paesaggio vegetale della Nurra (Sardegna nord-occidentale). Pavia Società Italiana di Fitosociologia 2001, 38, 3–105. Available online: http://eprints.uniss.it/3178/ (accessed on 10 December 2019).
  63. Fries, I.; Chauzat, M.P.; Chen, Y.P.; Doublet, V.; Genersch, E.; Gisder, S.; Higes, M.; McMahon, D.P.; Martín-Hernández, R.; Natsopoulou, M.E.; et al. Standard methods for Nosema research. J. Apic. Res. 2013, 52, 1–28. [Google Scholar] [CrossRef][Green Version]
  64. Damiani, N.; Fernández, N.J.; Maldonado, L.M.; Álvarez, A.R.; Eguaras, M.J.; Marcangeli, J.A. Bioactivity of propolis from different geographical origins on Varroa destructor (Acari: Varroidae). Parasitol. Res. 2010, 107, 31–37. [Google Scholar] [CrossRef] [PubMed]
  65. Malone, L.A.; Stefanovic, D. Comparison of the responses of two races of honeybees to infection with Nosema apis Zander. Apidologie 1999, 30, 375–382. [Google Scholar] [CrossRef][Green Version]
  66. Forsgren, E.; Fries, I. Comparative virulence of Nosema ceranae and Nosema apis in individual European honey bees. Vet. Parasitol. 2010, 170, 212–217. [Google Scholar] [CrossRef]
  67. Williams, G.R.; Alaux, C.; Costa, C.; Csáki, T.; Doublet, V.; Eisenhardt, D.; Fries, I.; Kuhn, R.; McMahon, D.P.; Medrzycki, P.; et al. Standard methods for maintaining adult Apis mellifera in cages under in vitro laboratory conditions. J. Apic. Res. 2013, 52, 1–36. [Google Scholar] [CrossRef][Green Version]
  68. Higes, M.; García-Palencia, P.; Martín-Hernández, R.; Meana, A. Experimental infection of Apis mellifera honeybees with Nosema ceranae (microsporidia). J. Invertebr. Pathol. 2007, 94, 211–217. [Google Scholar] [CrossRef]
  69. van Engelsdorp, D.; Evans, J.D.; Saegerman, C.; Mullin, C.; Haubruge, E.; Nguyen, B.K.; Frazier, M.; Frazier, J.; Cox-Foster, D.; Chen, Y.; et al. Colony Collapse Disorder: a descriptive study. PLoS ONE 2009, 4, e6481. [Google Scholar] [CrossRef]
  70. Singleton, V.L.; Rossi, J.A. Colorimetry of total phenolics with phosphor-molybdic-phosphotungstic acid reagents. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
  71. Therneau, T.M. Coxme: Mixed Effects Cox Models. R Package Version 2.2-10. 2018. Available online: https://CRAN.R-project.org/package=coxme (accessed on 10 December 2019).
  72. Therneau, T.M.; Grambsch, P.M. Modeling Survival Data: Extending the Cox Model; Springer: New York, NY, USA, 2000; ISBN 0-387-98784-3. [Google Scholar]
  73. Kassambara, A.; Kosinski, M. Survminer: Drawing survival curves using ‘ggplot2’. R package version 0.4.3. 2018. Available online: https://CRAN.R-project.org/package=survminer (accessed on 10 December 2019).
  74. Hothorn, T.; Bretz, F.; Westfall, P. Simultaneous inference in general parametric models. Biom. J. 2008, 50, 346–363. [Google Scholar] [CrossRef][Green Version]
  75. Bates, D.; Maechler, M.; Bolker, B.; Walker, S. Fitting linear mixed-effects models using lme4. J. Stat. Softw. 2015, 67, 1–48. [Google Scholar] [CrossRef]
  76. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018; Available online: https://www.R-project.org/ (accessed on 10 December 2019).
  77. Sridevi, V.; Chandana Lakshmi, M.V.V.; Manasa, M.; Sravani, M. Metabolic pathways for the biodegradation of phenol. Int. J. Eng. Sci. Adv. Technol. 2012, 2, 695–705. Available online: www.ijesat.org (accessed on 10 December 2019).
  78. Suwannapong, G.; Maksong, S.; Seanbualuang, P.; Benbow, M.E. Experimental infection of red dwarf honeybee, Apis florea, with Nosema ceranae. J. Asia Pac. Entom. 2010, 13, 361–364. [Google Scholar] [CrossRef]
  79. Ptaszynska, A.A.; Borsuk, G.; Mulenko, W.; Olszewski, K. Impact of ethanol on Nosema spp. infected bees. Med. Veter. 2013, 69, 736–740. [Google Scholar]
  80. Maze, I.S.; Wright, G.A.; Mustard, J.A. Acute ethanol ingestion produces dose-dependent effects on motor behavior in the honey bee (Apis mellifera). J. Insect. Physiol. 2006, 52, 1243–1253. [Google Scholar] [CrossRef] [PubMed][Green Version]
  81. McDonnell, G.; Russell, A.D. Antiseptics and disinfectants: activity, action, and resistance. Clin. Microbiol. Rev. 1999, 12, 147–179. [Google Scholar] [CrossRef][Green Version]
  82. Sequeira, S.O.; Phillips, A.J.; Cabrita, E.J.; Macedo, M.F. Ethanol as an antifungal treatment for paper: short-term and long-term effects. Stud. Conserv. 2017, 62, 33–42. [Google Scholar] [CrossRef]
  83. Lindenfelser, L. Antimicrobial activity of propolis. Am. Bee. J. 1967, 90–131. [Google Scholar]
  84. Wilson, M.B.; Brinkman, D.; Spivak, M.; Gardner, G.; Cohen, J.D. Regional variation in composition and antimicrobial activity of U.S. propolis against Paenibacillus larvae and Ascosphaera apis. J. Invertebr. Pathol. 2015, 124, 44e50. [Google Scholar] [CrossRef]
  85. Bankova, V.S.; Popov, S.S.; Marekov, N.L. A study on flavonoids of propolis. J. Nat. Prods. 1983, 46, 71–474. [Google Scholar] [CrossRef]
  86. Bilikova, K.; Popova, M.; Trusheva, B.; Bankova, V. New anti-Paenibacillus larvae substances purified from propolis. Apidologie 2012, 44, 278–285. [Google Scholar] [CrossRef][Green Version]
  87. Voight, K.; Rademacher, E. Effect of the propolis components, cinnamic acid and pinocembrin, on Apis mellifera and Ascophaera apis. J. Apic. Sci. 2015, 59, 89–95. [Google Scholar] [CrossRef][Green Version]
  88. Wilson, M.B.; Pawlus, A.D.; Brinkman, D.; Gardner, G.; Hegeman, A.D.; Spivak, M.; Cohen, J.D. 3-Acyl dihydroflavonols from poplar resins collected by honey bees are active against the bee pathogens Paenibacillus larvae and Ascosphaera apis. Phytochemistry 2017, 138, 83–92. [Google Scholar] [CrossRef] [PubMed][Green Version]
  89. Kim, J.H.; Park, J.K.; Lee, J.K. Evaluation of antimicrosporidian activity of plant extracts on Nosema ceranae. J. Apic. Sci. 2016, 60, 167–178. [Google Scholar] [CrossRef][Green Version]
  90. Mocan, A.; Crisan, G.; Vlase, L.; Crisan, O.; Vodnar, D.C.; Raita, O.; Gheldiu, A.M.; Toiu, A.; Oprean, R.; Tilea, I. Comparative studies on polyphenolic composition, antioxidant and antimicrobial activities of Schisandra chinensis leaves and fruits. Molecules 2014, 19, 15162–15179. [Google Scholar] [CrossRef][Green Version]
  91. Cushnie, T.P.T.; Lamb, A.J. Antimicrobial activity of flavonoids. Int. J. Antimicrob. Agents 2005, 26, 343–356. [Google Scholar] [CrossRef]
  92. Kujumgiev, A.; Tsvetkova, I.; Serkedjieva, Y.; Bankova, V.; Christov, R.; Popov, S. Antibacterial, antifungal and antiviral activity of propolis of different geographic origin. J. Ethnopharmacol. 1999, 64, 235–240. [Google Scholar] [CrossRef]
  93. Ptaszyńska, A.A.; Trytek, M.; Borsuk, G.; Buczek, K.; Rybicka-Jasińska, K.; Gryko, D. Porphyrins inactivate Nosema spp. microsporidia. Sci. Rep. 2018, 8, 5523. [Google Scholar] [CrossRef]
  94. Spivak, M.; Goblirsch, M.; Simone-Finstrom, M. Social-medication in bees: the line between individual and social regulation. Curr. Opin. Insect Sci. 2019, 33, 49–55. [Google Scholar] [CrossRef]

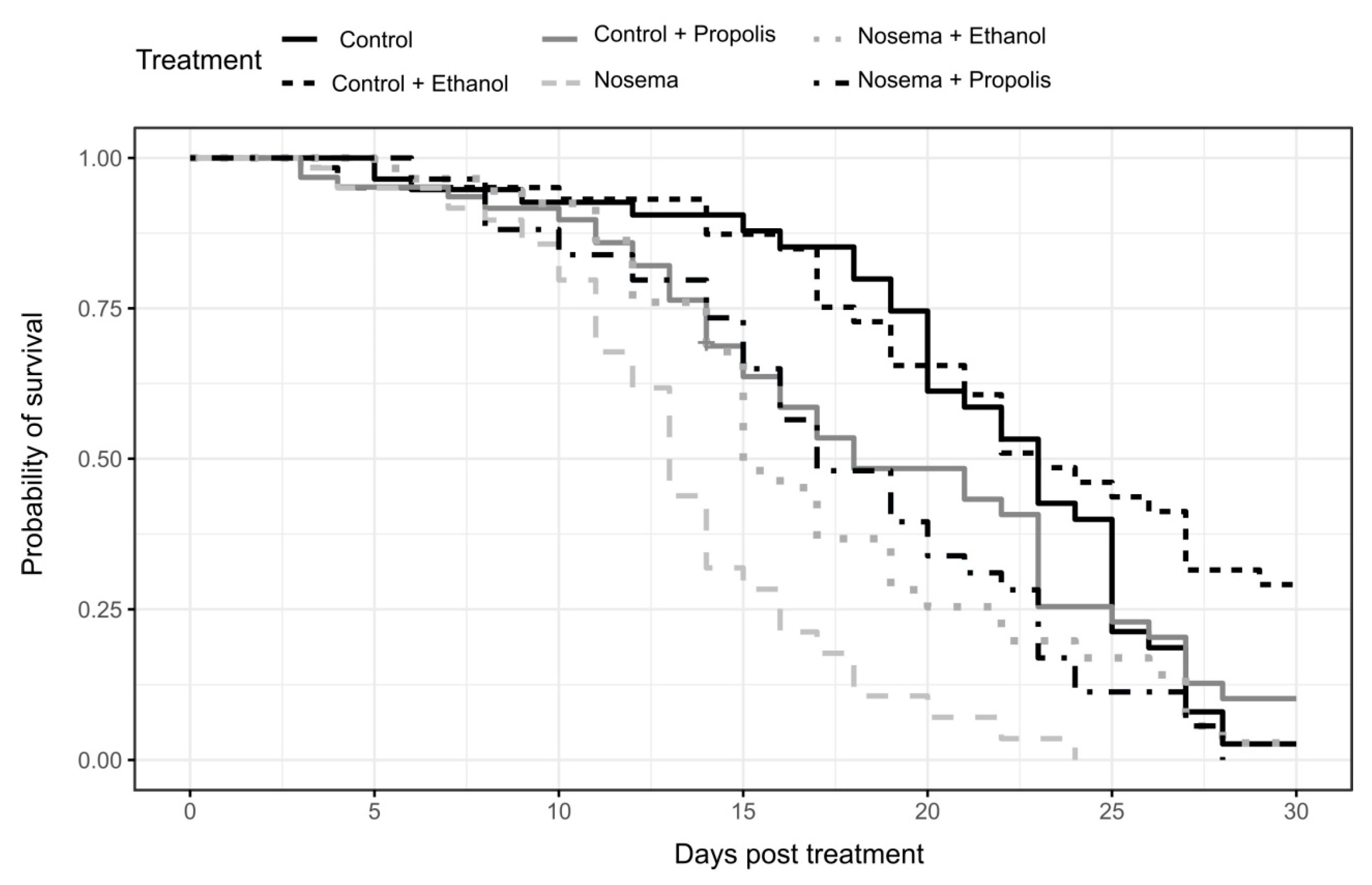

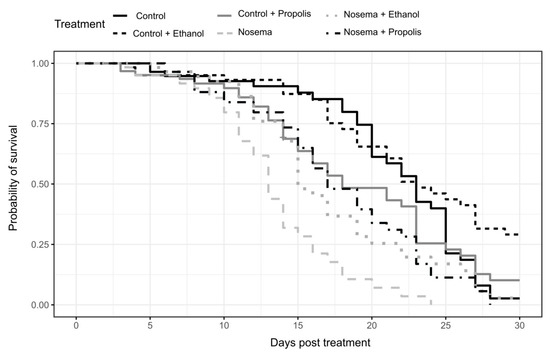

Figure 1. Survival of caged and experimentally treated honey bees (Apis mellifera): Control, Control + Ethanol, Control + Propolis, Nosema, Nosema + Ethanol and Nosema + Propolis.
Figure 1. Survival of caged and experimentally treated honey bees (Apis mellifera): Control, Control + Ethanol, Control + Propolis, Nosema, Nosema + Ethanol and Nosema + Propolis.
Insects 11 00124 g001

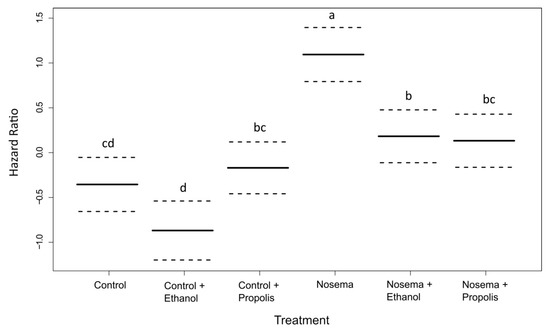

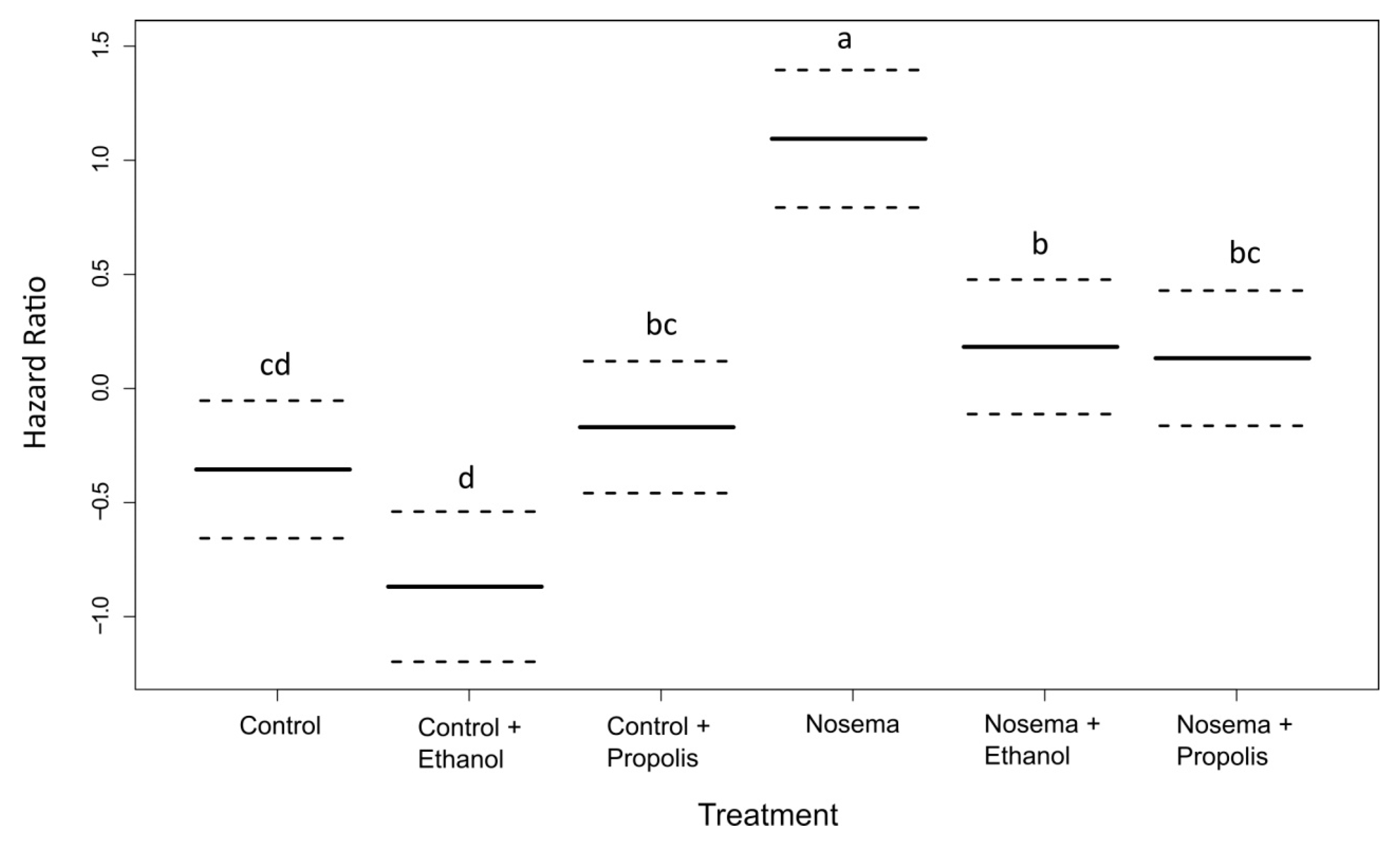

Figure 2. Instantaneous risk of death (hazard ratio, ± 95% CI) for adult honey bees (Apis mellifera) in each experimental treatment compared with the model average of 0. Different letters correspond to significant differences between treatments at p < 0.05 (coxme and post-hoc pairwise contrasts adjusted for multiple comparisons with the Benjamini-Hochberg method to control the false discovery rate).
Figure 2. Instantaneous risk of death (hazard ratio, ± 95% CI) for adult honey bees (Apis mellifera) in each experimental treatment compared with the model average of 0. Different letters correspond to significant differences between treatments at p < 0.05 (coxme and post-hoc pairwise contrasts adjusted for multiple comparisons with the Benjamini-Hochberg method to control the false discovery rate).
Insects 11 00124 g002
Figure 3. Nosema ceranae genome equivalents per honey bee (Apis mellifera) in treatments: Control, Control + Ethanol, Control + Propolis, Nosema, Nosema + Ethanol, and Nosema + Propolis at 7 and 14 days post experimental infection (dpi). Different letters correspond to significant differences between treatments at p < 0.05 (LMM and post-hoc pairwise contrasts adjusted for multiple comparisons with the Benjamini-Hochberg method to control the false discovery rate).
Figure 3. Nosema ceranae genome equivalents per honey bee (Apis mellifera) in treatments: Control, Control + Ethanol, Control + Propolis, Nosema, Nosema + Ethanol, and Nosema + Propolis at 7 and 14 days post experimental infection (dpi). Different letters correspond to significant differences between treatments at p < 0.05 (LMM and post-hoc pairwise contrasts adjusted for multiple comparisons with the Benjamini-Hochberg method to control the false discovery rate).
Insects 11 00124 g003
Figure 4. Mean proportion (± 95% CI) of honey bees (Apis mellifera) in Nosema ceranae-infected and control groups that chose candy with 2% or 5% propolis in comparison with candy without propolis in the choice test; differences between treatments were not significant (GLMM, p > 0.05).
Figure 4. Mean proportion (± 95% CI) of honey bees (Apis mellifera) in Nosema ceranae-infected and control groups that chose candy with 2% or 5% propolis in comparison with candy without propolis in the choice test; differences between treatments were not significant (GLMM, p > 0.05).
Insects 11 00124 g004
Figure 5. Mean proportion (± 95% CI) of honey bees (Apis mellifera) in Nosema ceranae-infected and control groups that chose to feed on the candy with 2% or 5% propolis in comparison with candy without propolis in the scan test; differences between treatments were not significant (GLMM, p > 0.05).
Figure 5. Mean proportion (± 95% CI) of honey bees (Apis mellifera) in Nosema ceranae-infected and control groups that chose to feed on the candy with 2% or 5% propolis in comparison with candy without propolis in the scan test; differences between treatments were not significant (GLMM, p > 0.05).
Insects 11 00124 g005
Figure 6. Percentage (± 95% CI) of candy with 2% or 5% propolis in the total diet consumed in Nosema ceranae-infected and control honey bees (Apis mellifera); differences between treatments were not significant (GLM, p > 0.05).
Figure 6. Percentage (± 95% CI) of candy with 2% or 5% propolis in the total diet consumed in Nosema ceranae-infected and control honey bees (Apis mellifera); differences between treatments were not significant (GLM, p > 0.05).
Insects 11 00124 g006
Table 1. Total phenols (spectrophotometric) and main phenolic compounds (HPLC-DAD) in the propolis used in the bioassay.
Table 1. Total phenols (spectrophotometric) and main phenolic compounds (HPLC-DAD) in the propolis used in the bioassay.
Compoundmg/g ± RSD% x
Caffeic acid y31.04 ± 5.01
Caffeic acid derivatives z113.17 ± 12.35
Paracumaric acid y7.12 ± 3.68
Ferulic acid y7.62 ± 5.25
Ferulic acid derivatives z122.70 ± 14.68
Narirutin y1.37 ± 6.51
Cinnamic acid derivatives z82.04 ± 10.78
Quercetin y10.83 ± 3.45
Quercetin derivatives z238.75 ± 6.59
Luteolin y3.00 ± 5.68
Naringin y59.01 ± 10.45
Naringin derivatives z21.99 ± 1.56
Kaempherol y34.01 ± 5.78
OH-Flavone derivatives z17.21 ± 2.56
Galangina y15.05 ± 2.48
Rosmarinic acid derivatives z44.84 ± 13.98
Ellagic acid derivatives z125.44 ± 4.65
Quinic acid y1.39 ± 8.95
Quinic acid derivatives z4.01 ± 6.01
Total Phenols *119.77 ± 16.05
x Relative Standard Deviation; y identification and quantification has been made using authentic analytical standards; z tentative identification has been made using DAD spectra similarities and quantifications were expressed as the parent compound; * expressed as gallic acid.

Share and Cite

MDPI and ACS Style

Mura, A.; Pusceddu, M.; Theodorou, P.; Angioni, A.; Floris, I.; Paxton, R.J.; Satta, A. Propolis Consumption Reduces Nosema ceranae Infection of European Honey Bees (Apis mellifera). Insects 2020, 11, 124. https://doi.org/10.3390/insects11020124

AMA Style

Mura A, Pusceddu M, Theodorou P, Angioni A, Floris I, Paxton RJ, Satta A. Propolis Consumption Reduces Nosema ceranae Infection of European Honey Bees (Apis mellifera). Insects. 2020; 11(2):124. https://doi.org/10.3390/insects11020124

Chicago/Turabian Style

Mura, Alessandra, Michelina Pusceddu, Panagiotis Theodorou, Alberto Angioni, Ignazio Floris, Robert J. Paxton, and Alberto Satta. 2020. "Propolis Consumption Reduces Nosema ceranae Infection of European Honey Bees (Apis mellifera)" Insects 11, no. 2: 124. https://doi.org/10.3390/insects11020124

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
