Identification and Expression Profiling of Peripheral Olfactory Genes in the Parasitoid Wasp Aphidius ervi (Hymenoptera: Braconidae) Reared on Different Aphid Hosts

by
Gabriel I. Ballesteros
1,2,
Daniela A. Sepúlveda
2,3 and
Christian C. Figueroa
1,2,*
1
Instituto de Ciencias Biológicas, Universidad de Talca, campus Talca 3460000, Chile
2
Centre for Molecular and Functional Ecology in Agroecosystems, Universidad de Talca, campus Talca 3460000, Chile
3
Facultad de Ciencias Agrarias, Universidad de Talca, campus Talca 3460000, Chile
*
Author to whom correspondence should be addressed.
Insects 2019, 10(11), 397; https://doi.org/10.3390/insects10110397
Submission received: 16 September 2019 / Revised: 1 November 2019 / Accepted: 2 November 2019 / Published: 8 November 2019
(This article belongs to the Special Issue Insect Parasites: A Focus on Wasps and Nematodes)
Browse Figures
Versions Notes

Abstract

:
Generalist parasitoids of aphids, such as the wasp Aphidius ervi, display significant differences in terms of host preference and host acceptance, depending on the host on which they developed (natal host), which is preferred over a non-natal host, a trait known as host fidelity. This trait allows females to quickly find hosts in heterogeneous environments, a process mediated by chemosensory/olfactory mechanisms, as parasitoids rely on olfaction and chemical cues during host selection. Thus, it is expected that proteins participating in chemosensory recognition, such as odorant-binding proteins (OBPs) and odorant receptors (ORs) would play a key role in host preference. In this study, we addressed the effect of parasitoid reciprocal host switching between two aphid hosts (Sitobion avenae and Acyrthosiphon pisum) on the expression patterns of chemosensory genes in the wasp A. ervi. First, by using a transcriptomic approach based on RNAseq of A. ervi females reared on S. avenae and A. pisum, we were able to annotate a total of 91 transcripts related to chemoperception. We also performed an in-silico expression analysis and found three OBPs and five ORs displaying different expression levels. Then, by using qRT-PCR amplification, we found significant differences in the expression levels of these eight genes when the parasitoids were reciprocally transplanted from S. avenae onto A. pisum and vice versa. This suggests that the expression levels of genes coding for odorant receptors and odorant-binding proteins would be regulated by the specific plant–aphid host complex where the parasitoids develop (maternal previous experience) and that chemosensory genes coding for olfactory mechanisms would play a crucial role on host preference and host acceptance, ultimately leading to the establishment of host fidelity in A. ervi parasitoids.

1. Introduction

Parasitoid wasps are a diverse group of hymenopterans that are natural enemies of a broad range of arthropods, including those of agronomic significance [1]. Adult parasitoids are free-living insects that can lay their eggs onto (exoparasitoids) or into (endoparasitoids) a host, which is subsequently killed during the larval development of the parasitoids [1]. Thus, parasitoids have an important role in the regulation of arthropod population sizes in natural environments [1] and have been used as biocontrol agents to reduce the population densities of target pest species [2,3]. This is the case of the endoparasitoid wasp Aphidius ervi Haliday (Hymenoptera: Braconidae), a worldwide distributed koinobiont parasitoid of several aphid species [4]. Extensively used in biological control programs, A. ervi mainly parasitizes the pea aphid Acyrthosiphon pisum Harris (Hemiptera: Aphididae) [5,6], although it has become an important biocontrol agent of the grain aphid Sitobion avenae Fabricius (Hemiptera: Aphididae) [7,8]. However, the successful use of A. ervi in biological control programs depends on the specificity of host selection and host acceptance behaviors and on host suitability, as not all host species are suitable for parasitoids [9]. Thus, the reproductive success of A. ervi is intimately related to behavioral and foraging strategies used during the selection and parasitization of a suitable host [10].
Interestingly, maternal previous experience plays a key role in determining the host choice in the offspring, causing transgenerational phenotypic plasticity or maternal effect [11]. The oviposition preference in the offspring may follow the same host–plant system from which the parasitoid emerged (natal host), which has important ecological and evolutionary implications [5,12]. This phenomenon is known as host fidelity and is considered an important trait for the successful reproduction and progeny survival of parasitoid wasps [13]. Host fidelity should improve and maximize the reproductive performance of parasitoids on a target host [11,14], even in the case of naïve females without any previous experience [15]. Thus, parasitoid females must quickly locate and recognize a suitable host or habitat for oviposition, usually in chemically complex environments [16].
Host finding relies on the olfaction of environmental signals, such as specific chemicals and volatiles, emitted either from plants or from a host–plant complex, which are used by female wasps to carefully choose an appropriate host for oviposition [1,17,18]. However, neither background odors nor specific host-finding cues are fixed in nature [19]. Thus, the parasitoids would presumably modulate their olfactory system to encompass the composition of novel odorants and kairomones in response to variations in biotic (e.g., plant or host phenotype and genotype) and abiotic factors (e.g., wind speed, temperature, humidity) that would modify environmental odor profiles (i.e., scent environment; [20,21].
In adult parasitoids, it has been proposed that host preference would be a consequence of exposure, during larval stages, to both host- and host–plant-related chemical volatiles and cues (volatile organic compounds, VOCs) which are emitted by the plant–host complex upon aphid infestation [17] and which trigger behavioral responses upon recognition [22]. Hence, detection and processing of chemical signals play a crucial role during host searching and the selection process in adult parasitoids [23,24] and may be modulated by maternal experience and/or previous oviposition experience.
Given that olfactory behavioral responses depend on specific sets of proteins for odorant recognition and signal propagation and processing, it has been proposed that there is a molecular base underpinning the phenotypic plasticity of behavioral responses displayed by insects towards olfactory signals and cues [25]. Thus, variations in the ability to perceive and respond to chemosensory cues from the host or host–plant complex would also provide a target for adaptive evolution [26]. Indeed, phenotypic plasticity in the expression levels of chemosensory genes has been documented in response to different developmental, physiological, and social conditions [27] or even between individuals of the same species but exhibiting differences in their ecological preferences [28]. Thus, variation in the detection and processing of chemical signals is thought to be one of the main mechanisms driving the rapid responses of insects to varying environments and would be under transcriptional control rather than depending on sequence changes in coding sequences and proteins [29]. Hence, if the perception of chemical cues is modulated by the maternal previous experience, then it is crucial to disentangle its molecular base. This should be considered in attempts aiming to improve parasitoids’ efficacy as biological controller agents, as many parasitoid wasps are reared under laboratory conditions before they are released in the field [5,30].
However, as the aphid species parasitized by A. ervi differ in several biological aspects (e.g., host plant, host range, body size and color, composition of cuticular semiochemicals, cornicular secretions, defensive behaviors, etc.) [7], it is not clear if, in this species, the exposure to a novel aphid host (i.e., a non-natal plant–host complex) has an impact in terms of phenotypic plasticity on the expression levels of chemosensory genes. One way to test this is by comparing the expression levels of chemosensory genes of different A. ervi lineages reared on natal and non-natal hosts. If A. ervi uses the same strategy (in terms of olfactory/chemical recognition) for parasitizing both hosts, then the expression of chemosensory genes should be very similar. Alternatively, if A. ervi is able to modulate its olfactory system to encompass the composition of novel odorants and kairomones, then differences in terms of expression of chemosensory genes should be detected.
In this study, we addressed the effect of reciprocal host switching between aphid host species on the expression patterns of chemosensory genes on two A. ervi populations that naturally parasitize different aphid species (A. pisum and S. avenae). First, we used a transcriptomic approach based on RNAseq, to identify putative transcripts related to chemoperception in A. ervi. This approach allowed us to annotate chemosensory genes and characterize their expression levels when the parasitoids were reared on two different aphid hosts. Then, we studied if the exposure to a non-natal plant–host complex (regardless of the parasitoid lineage) had an impact on the expression of genes coding for odorant receptors (ORs) and odorant-binding proteins (OPBs, chemosensory genes). Thus, we compared the effects of host change from the natal aphid host to an alternative non-natal host on specific chemosensory genes, in order to outline the molecular mechanism underlying host fidelity establishment. Finally, as parasitoid wasps are usually reared in caged conditions before being released for biological control programs, which has been shown to increase inbreeding and reduce host fidelity [31], we compared the chemosensory gene expression profiles of A. ervi parasitoids sampled from field (exogamic) and laboratory (endogamic) populations.

2. Materials and Methods

2.1. Parasitoid Collection and Rearing

Parasitized individuals of A. pisum and S. avenae were collected as aphid mummies from fields of alfalfa (Medicago sativa L.) and wheat (Triticum aestivum L.), respectively, in Region del Maule, Chile (S 35°24′, W 71°40′). Aphid mummies were individually isolated in Petri dishes until adult parasitoid emergence. The emerged naïve parasitoids were then identified as A. ervi and sexed following standard taxonomic keys [32] under an Optika ST-155 (10×) binocular microscope. Stock laboratory lines of A. ervi parasitoids were founded from five naïve A. ervi virgin females and one naïve virgin male selected at random and obtained from the same aphid host population from which they were collected (A. pisum or S. avenae). Female and male individuals were left to mate in a Petri dish for 24 h with diluted honey and water for sustenance. Mated females were then transferred to a cage containing aphids ad libitum from the same species from which they emerged, with diluted honey and water for sustenance. The establishment of A. ervi parasitoids on their natal host for one single generation has been shown to erase any previous field experience (see [13]). Thus, two different stock lines of A. ervi populations were established in the laboratory (20 °C, D16/N8 photoperiod): (i) one A. ervi (Ae) population from A. pisum (AP, alfalfa race) maintained on broad bean (Vicia faba L.) (Ae–AP; natal host AP) and (ii) one A. ervi population from S. avenae (SA) maintained on barley (Hordeum vulgare L.) (Ae–SA; natal host SA). These aphids and their host plants have been used successfully for A. ervi rearing in previous studies [30,31,33]. All aphids used in this study were free of facultative endosymbiont bacteria, well-known to naturally occur in aphid populations [34,35], including the defensive endosymbiont Hamiltonella defensa, which confers protection against parasitoids [36,37].

2.2. Aphidius ervi RNASeq, Transcriptome Assembly, and Annotation

In this study, we used the A. ervi reference transcriptome (available at 10.6084/m9.figshare.4816939). Briefly, RNA was extracted from dissected heads and bodies of 60 female A. ervi parasitoids, which were collected alive from three caged parasitoid populations (A. pisum–Pea; A. pisum–Alfalfa and S. avenae–Barley; N = 20 per cage). For further details of the experiment, see reference [33]. After collection, total RNA was extracted using the RNEasy Plant Mini Kit (QIAGEN), and ribosomal RNA was depleted from total RNA using the Ribo-Zero rRNA Removal Kit for enrichment of both insect mRNA and non-poly-adenylated mRNA that might be present in A. ervi sequenced samples. The remaining RNA was used for library construction using the TruSeq Stranded Total RNA Sample Preparation Kit (Illumina) and sequenced using an Illumina HiSeq 2000 (2 × 100 bp, Paired End libraries; Macrogen, Korea). The raw RNA-seq libraries used in this study are available in NCBI (SRA database, accession PRJNA377544). Raw reads were assembled into a reference A. ervi transcriptome using Trinity 2.0.6 and annotated with BLASTx using the NR database (April 2016). Further details on both assembly and annotation are published elsewhere [33].

2.3. Annotation of Chemosensory Genes and Differential Expression Analysis

On the basis of the published A. ervi transcriptomic annotation table (available at https://doi.org/10.6084/m9.figshare.4822069.v1; [33]), we performed a search for putative chemosensory genes using keywords such as odorant receptor, odorant-binding protein, chemosensory protein, among others. Then, we analyzed the gene expression results for all putative chemosensory genes annotated in this transcriptome (Table 1) [33]. Briefly, gene expression was estimated by mapping RNA-seq libraries using Bowtie2 (ver. 2.2.4; [38]) and counting the mapped reads with the RSEM package [39]. Then, a count matrix was used as input for differential expression (DE) analysis, which was performed with the edgeR Bioconductor package. To allow inference when many tests are being conducted, the false discovery rate (FDR) was computed, which is the proportion of discoveries that are false among all discoveries [40]. Hence, genes that had at least 4-fold-changed values with an FDR-corrected p value of 0.01 or lower were considered as significantly differentially expressed between libraries/tissues (Table 1). All chemosensory genes displaying significant differences in their expression levels in the heads of A. ervi parasitoids reared on different aphid host–plant complexes (S. avenae and A. pisum; [33]) were considered as candidate genes and selected for further expression analysis using qRT-PCR (Table 2). Gene annotation was manually verified using BLASTx ver 2.7.0 against NCBI NR database (September 2017) for homology analysis with genes from other insect species such as Drosophila melanogaster M. (Diptera: Drosophilidae), which have been functionally characterized and for which odor response data are available (Table 3).

2.4. Reciprocal Transplant Experiments

To determine the effects of the rearing host on the expression of selected chemosensory genes in A. ervi, a reciprocal transplant experiment was conducted (Supplementary Figure S1), where the natal host corresponded to the control condition, and the non-natal host (i.e., the aphid host on which the parasitoids were transplanted) corresponded to the treatment. Aphid mummies from the first generation of each condition were isolated in Petri dishes until parasitoid emergence, and female parasitoids were mated with males (N = 30). Then, the mated females were randomly transplanted to rearing cages containing aphids ad libitum of the natal or non-natal hosts (reciprocal transplant) for two generations.
Aphid mummies from the third generation of each condition (natal and non-natal hosts) were isolated in Petri dishes until parasitoid emergence. Since mated females display a higher attraction to oviposition-site cues, virgin adult female parasitoids were left to mate with a male from the same condition for 24 h [46]. Each mated female was then transferred to an experimental arena (a modified 2 cm-diameter Petri dish) containing one single wingless aphid and a small piece of leaf from the plant where the aphid was feeding (i.e., broad bean for A. pisum and barley for S. avenae) [31]. After successful oviposition, each female was immediately stored in separate 1.5 mL microcentrifuge tubes containing RNALater (QIAGEN, Hilden, Germany) at −20 °C until dissection and RNA extraction. Previous studies have shown this procedure as suitable for addressing the formation of host fidelity in A. ervi wasps [30,31].
To determine the effects of long-time caged rearing (i.e., inbreeding) on the expression of chemosensory genes, we compared field populations of A. ervi parasitoids acclimated on natal or non-natal hosts for two generations (exogamic population) with A. ervi parasitoids from inbred populations that had been maintained in the laboratory on the same natal plant–host complex for more than 75 generations (endogamic population) (Supplementary Figure S1). The experimental individuals sampled from the inbred population corresponded to the same parasitoids studied in reference [31], which were preserved appropriately as described above.

2.5. RNA Extraction and cDNA Synthesis

We decided to study heads, as they contain most of the organs involved in chemosensory function and feeding, as well as most of the olfactory-associated proteins [47,48]. Female heads were dissected on ice using a sterile scalpel and pooled in a 1.5 mL microcentrifuge tube (N = 5 per pool). Total RNA was extracted using the RNEasy Plant Mini Kit (QIAGEN, Hilden, Germany) and eluted in 50 μL of RNAse-free water. The integrity of the RNA samples was assessed using a 1.1% gel by denaturing formaldehyde agarose gel electrophoresis, and the concentrations were estimated by spectrophotometry at 260 nm (Epoch Microplate Spectrophotometer, Biotek), resulting in the range of 4.26–8.17 ng/μL of total RNA for all samples. DNA traces were removed from the samples by DNase treatment using Turbo DNase (Ambion). Single-stranded cDNAs were synthesized using the SuperScript III Reverse Transcriptase System (Invitrogen). All procedures were conducted following the manufacturer’s instructions.

2.6. qRT-PCR Expression Analysis of OBPs and ORs

Determinations of the relative transcript abundance of eight chemosensation-related genes (five coding for ORs and three coding for OBPs, Table 3) were carried out by real-time PCR (qPCR) using cDNAs obtained from heads of A. ervi females transplanted to their natal or non-natal hosts (Supplementary Figure S1). For each selected target gene, specific primer pairs (listed in Table 2) were designed with Beacon Designer 8 software (Premier Biosoft) using the recently published A. ervi transcriptome to retrieve template sequences [33]. Each PCR reaction contained 2 μL of diluted cDNA (2 ng; 1 ng/μL), 10 μL Maxima SYBR Green PCR Master Mix (ThermoFisher Scientific), 6.4 μL of nuclease-free water, and 0.8 μL of each specific primer (1.6 μL for both forward and reverse primers; 10 mM concentration). Negative controls (nuclease-free water) were included for detecting any cross-contamination; positive controls for qPCR reactions were also included (A. ervi genomic DNA). All PCR reactions were carried out in triplicate (three technical replicates) using the Mx3000 P qPCR system (Stratagene, La Jolla, CA, USA) under the following cycling conditions: 95 °C for 10 min, 40 cycles of 95 °C for 30 s, 56 °C for 45 s, and 72 °C for 40 s. A dissociation curve was included immediately after each qPCR, using a ramp of 55–95 °C to confirm the absence of non-specific amplifications. All amplicons were sequenced to confirm the specific amplification of the target genes.
Expression data for each target gene were normalized using published primers which amplify Ribosomal Protein L19 of A. ervi [49] (primers listed in Table 2). Data from all A. ervi populations and rearing conditions were analyzed manually, and the relative transcript levels for each target gene were calculated using the comparative 2−ΔΔCT method [50]. Each PCR reaction was performed in triplicate, and the mean of three biological replicates was calculated. Data were analyzed statistically by two-way ANOVA using GraphPad Prism version 6.01 (p value < 0.05). The expression of a given gene was compared between parasitoids reared on natal and non-natal hosts, considering the natal condition as the control. In the case of gene expression comparison between outbred and inbred A. ervi populations, the outbred condition was considered as the control.

3. Results

3.1. Identification of Putative Chemosensory Genes in the Reference A. ervi Transcriptome and in Silico Analysis of Expression Levels

We performed a thorough annotation for genes encoding OBPs, chemosensory proteins (CSPs), and ORs found within the A. ervi transcriptome [33]. We annotated 91 contigs belonging to gene families involved in insect chemoperception, including odorant binding proteins (OBPs; 10 transcripts), chemosensory proteins (CSPs; 2 transcripts), sensory neuron membrane proteins (SNMPs; 1 transcript), odorant receptors (ORs; 76 transcripts, including the conserved odorant co-receptor, ORco), and ionotropic receptors (IRs; 2 transcripts) [33]. Furthermore, using the same RNA-seq libraries, we detected several genes involved in chemical perception which displayed differential expression between A. ervi populations parasitizing different aphid hosts (Table 1).

3.2. qPCR Expression Levels of OBPs and ORs Genes in Parasitoids Reared on Natal and Non-Natal Hosts

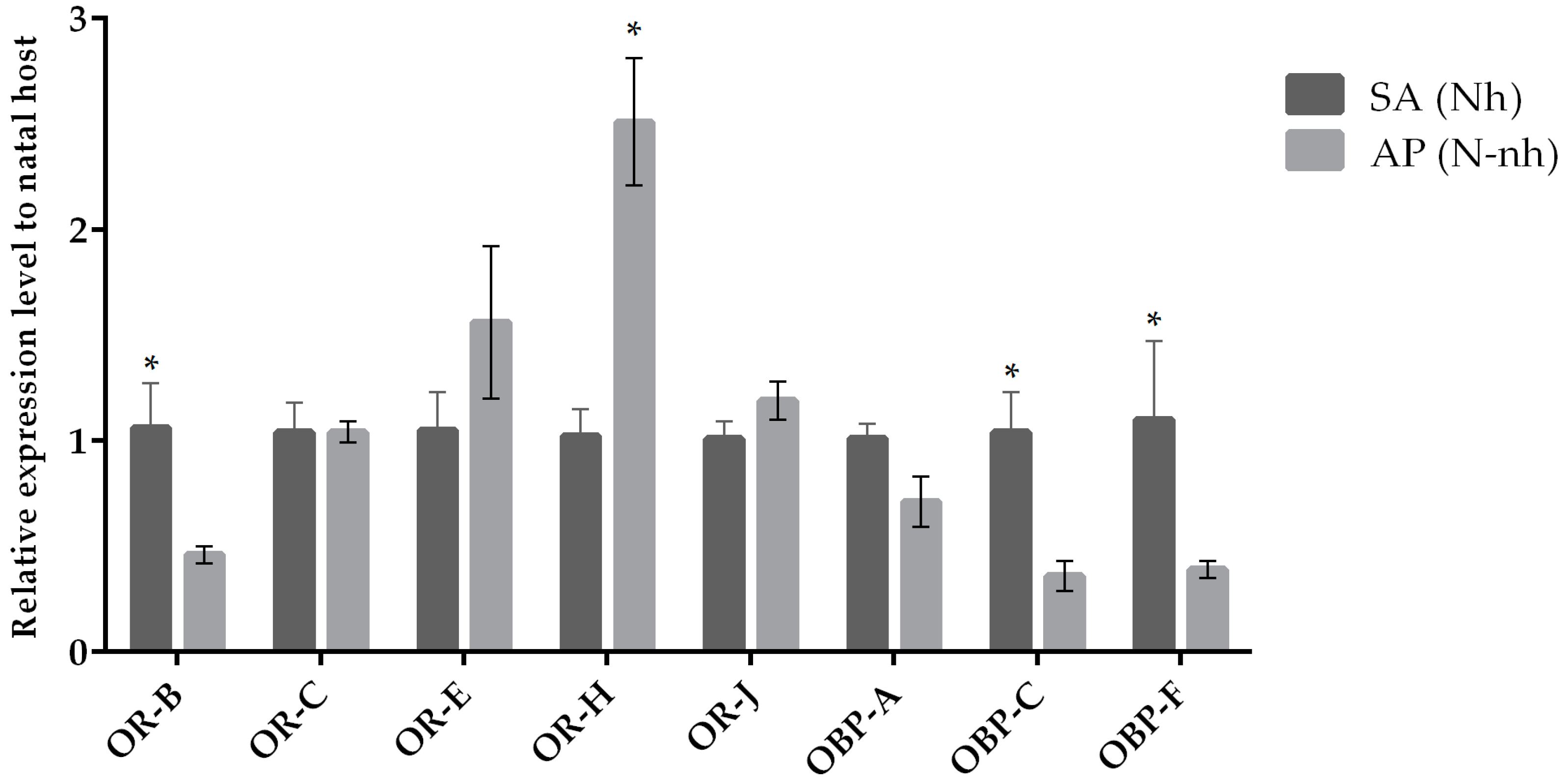

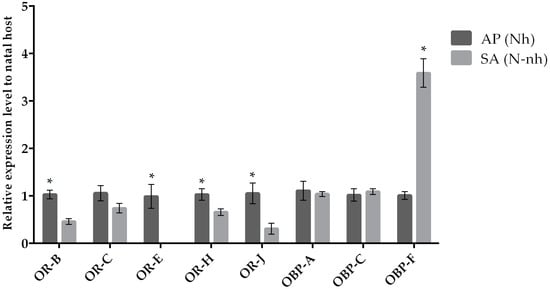

The expression of target chemosensation-related genes was assessed by qRT-PCR when parasitoid females from the same natal host were reared on their natal (control condition) and non-natal (experimental condition) hosts. We observed a variation in the expression levels when comparing chemosensory genes of parasitoids originated from A. pisum and S. avenae that were reared on their natal host or transplanted to non-natal hosts (Figure 1 and Figure 2). Our results indicate that the OR-H and OBP-F genes were up-regulated when A. ervi was reared on AP compared to SA (Figure 1 and Figure 2), regardless the natal host. Hence, rearing on AP increased the abundance of transcripts for both OR-H and OBP-F genes compared to rearing on SA. In contrast, the OR-B gene showed a reduced expression when the parasitoids were switched from their natal to non-natal hosts. A downregulation was detected for OR-J and OR-E when A. ervi was switched from AP (natal host) to SA (non-natal host), although no differences were observed for the reciprocal switch (SA to AP). Finally, OBP-C was downregulated when A. ervi was switched from SA to AP but not when the parasitoids were transplanted from AP to SA.

3.3. qPCR Expression Levels of OBPs and ORs in Parasitoids Reared on Different Natal Hosts but Transplanted on the Same Aphid Host

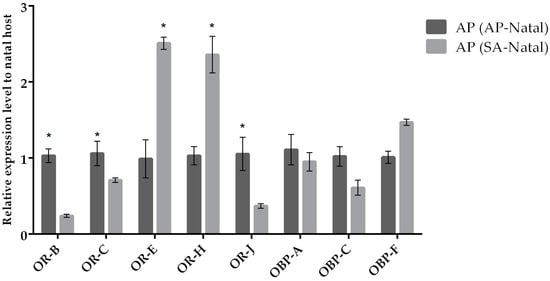

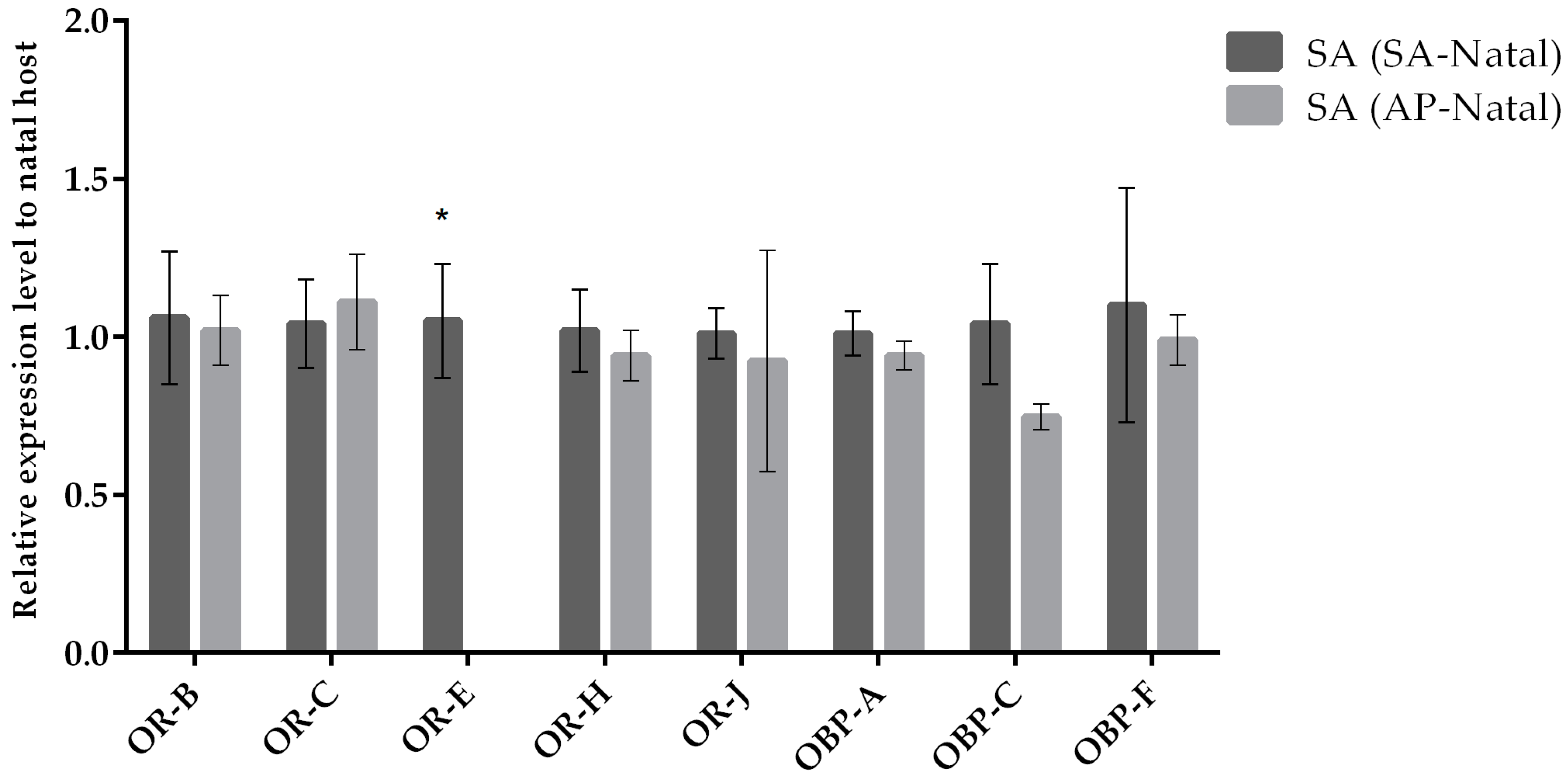

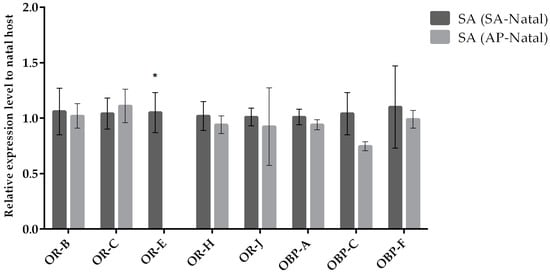

The expression of target chemosensation-related genes was assessed by qRT-PCR when parasitoid females from different natal hosts (AP and SA) were reared on non-natal aphid host species (Supplementary Figure S1). These comparisons aimed to determine whether rearing on the same aphid host species may alter the expression of chemosensory genes.
Our results indicate that most odorant receptor genes (except for OR-E) displayed similar expression levels in parasitoids reared on SA (SA-natal) compared to parasitoids transplanted to SA (originated from AP; Figure 3). In the case of females of A. ervi transplanted on AP (originated from SA; Figure 4) compared to females maintained on AP (AP-natal), two ORs showed upregulation (OR-E and OR-J), while three ORs were downregulated (OR-B, OR-C, and OR-J). Hence, switching parasitoids from SA to AP had a greater effect on the expression of OR genes, while the expression of OBP genes remained similar in the two conditions (Figure 5).

3.4. OBPs and ORs Expression Changes between Field and Caged Parasitoids Reared on Natal and Non-Natal Hosts

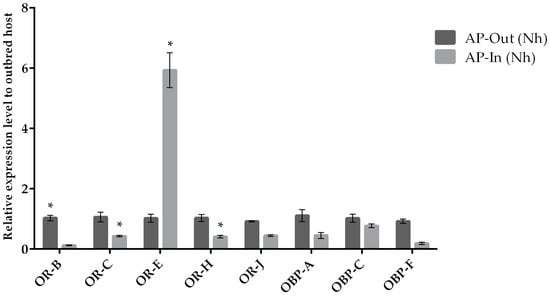

We compared gene expression between outbred field (exogamic) and inbred laboratory caged (endogamic) populations of the parasitoid wasp A. ervi using the same set of target chemosensation-related genes as above. When gene expression was compared between parasitoids from field and caged populations reared on AP, a slightly but not statistically significant lower expression was observed for OBPs (Figure 5). In the case of ORs, a lower expression was observed for four out of five odorant receptors (for three of them being statistically significant), while only OR-E in the inbred population showed a significant higher expression compared to its expression in the field population (Figure 5).

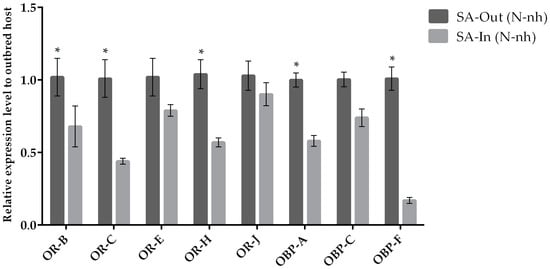

Comparisons between outbred (individuals from the field) and inbred (individuals from laboratory cages) parasitoid populations switched to non-natal host SA displayed lower expression levels for both ORs and OBPs (Figure 6).

4. Discussion

A. ervi has been successfully used for biocontrol of economically relevant aphid species [1], as it has the ability to discriminate between host species (A. pisum and S. avenae) [30]. In this context, the integration of multiple chemical cues elicits several behaviors that ultimately conduct to the selection and oviposition into a specific aphid host [51,52]. Hence, perception of chemical cues that occur during foraging is crucial for host finding and host recognition, while proteins involved in peripheral olfactory mechanisms (OBPs and ORs) are the first point of neural contact with odorant molecules and chemical cues [47]. Interestingly, it has been proposed that any changes in the expression levels of these families of olfactory genes would have direct effects on downstream odor processing and signal propagation [20,53] and may also play a key role in the case of host fidelity in A. ervi [13,30]. Although we know from many examples that insect exposure to novel environments can lead to substantial differences in the transcriptomes of adult individuals [54,55], it is still unclear how much phenotypic plasticity, in terms of expression levels of genes involved in chemical perception mechanisms, is displayed when parasitoids are exploiting different hosts.
In this study, by using RNAseq transcriptomic information, we were able to annotate several chemosensory genes in A. ervi and identify genes displaying differential expression levels between parasitoids reared on different hosts. By conducting reciprocal transplant experiments and using quantitative PCR, we found that switching A. ervi females to a novel plant–host complex (non-natal host) had significant effects on the transcript abundances of chemosensation-related genes in the offspring of those females, regardless of the natal host (A. pisum and S. avenae). Surprisingly, we also observed differences in the expression profiles of ORs and OBPs when comparing field and caged parasitoids reared on the same aphid host species. The significantly lower abundance of transcripts measured for these genes might be caused by long-time inbreeding under laboratory conditions (i.e., absence of environmental signals). Thus, it is possible that A. ervi inbreeding might disrupt the balance of the highly sensitive and coordinated mechanisms of olfaction, which may explain the loss of host fidelity observed previously [31].

4.1. Annotation and in Silico Expression Analysis of Chemosensory Genes in A. ervi

Olfaction and chemosensory perception are key functions for host finding and host recognition. Thus, based on the A. ervi transcriptome assembly as a reference [33], we identified a total of 91 unigenes possessing high-sequence identities with chemosensation-related genes, including IRs, ORs, OBPs, CSPs, SNMPs, and Orco. As changes in olfactory sensitivity could be driven by variation in gene expression [28], we also performed in silico gene expression analysis. We found five ORs and three OBPs displaying differential expression levels between A. ervi reared on S. avenae and reared on A. pisum [33]. A possible explanation for this phenomenon is that the expression of these genes is regulated by scent exposure or conditioning, as odorants are handled in a combinatorial fashion [56,57]. Therefore, the exposure to a novel chemical environment during parasitoids’ juvenile development (for example, volatiles from a plant–aphid host complex and host cuticular hydrocarbons) [58] would lead to substantial differences in transcriptional expression levels in adults [54,55] and might be an explanation to the observed changes in gene expression levels [56].

4.2. Putative Role of Odorant-Binding Proteins in Parasitoid Wasps

In insects, olfaction is triggered when odorants and other semiochemicals reach the sensillar lymph through pore tubules located in the antenna and bind to OBPs. Then, the odorant–OBP complex is transported through the sensillum lymph to their receptors on olfactory neurons [47]. OBPs are a large family of small, soluble, and highly abundant proteins secreted into the sensory lymph and are thought to provide the first filtering mechanism for semiochemicals, as they are the main proteins involved in the interaction between odorants and membrane-bound ORs [59]. OBPs have been shown to be differentially expressed in subsets of olfactory sensilla in D. melanogaster [60], and may contribute to the sensitivity or selectivity of different sensilla types [59]. This has been explained in terms of variable affinities to odorants displayed by OBPs, so that distinct expression patterns for OBP genes suggest odorant selection and triggering of specific olfactory and behavioral responses in insects that impact on host preference [28,41].
The odorant-binding properties of OBPs have been determined for different insect species [41], including the solitary endoparasitoid wasp Microplitis mediator [61]. Interestingly, homology searches based on sequences from the endoparasitoid wasp M. mediator showed that two of the OBPs analyzed in our study (OBP-A and OBP-F) had high identity values (>40%) with OBP8 and OBP10 from M. mediator, while the top blast hit for OBP-C was pheromone-binding protein 1 from M. mediator. Functional analysis of OBP8 and OBP10 in M. mediator has shown that these genes are expressed mainly in the antennae of adult wasps and can bind a broad range of odorant molecules, including nonane, farnesol, nerolidol, nonanal, β-ionone, acetic ether, and farnesene, with different binding affinities [61]. Additionally, adult parasitoids showed behavioral responses (either attraction or repellence) to these volatiles [61]. The higher expression differences found for OBP-F in parasitoids maintained on S. avenae compared to parasitoids maintained on A. pisum (regardless of the natal host) may be related to the developmental exposure of A. ervi larva to the plant–aphid host complex, as aphid mummies were taken straight from their rearing cages and isolated in Petri dishes. Moreover, exposure to host plant volatiles from infested plants during larval stages of A. ervi would induce olfactory responses in the adults [51,62].

4.3. Putative Role of Odorant Receptors in Parasitoid Wasps during the Recognition of Their Aphid Hosts

Parasitoid females are attracted to volatiles emitted by aphids and may use them as a host-species recognition mechanism [63]. For instance, E-β-farnesene (EBF) is the alarm pheromone released when aphids are attacked or irritated; EBF is known to attract natural enemies, including the parasitoid wasp A. ervi [64]. However, it is unlikely that EBF participates during host acceptance in A. ervi due to its lack of specificity, as EBF has been reported in both S. avenae and A. pisum among other aphid species [65]. Conversely, parasitoids rely on cuticular hydrocarbons (CHCs) present in the aphid exoskeleton. These non-polar lipids serve as species-specific communication cues, among other functions [66], and are composed of a mixture of a few to more than hundreds components of 21–50+ carbon alkanes, alkenes, and branches derivatives [67]. These variations in the CHC profiles appears to be species-specific and a characteristic of an insect species [67,68,69]. Hence, qualitative CHC differences between aphid species would confer parasitoids a barcode to discriminate between hosts at the species level, adjusting their parasitism behavior accordingly (e.g., by triggering specific attack responses) [70,71]. In the case of aphids, n-alkanes are the predominant component of CHCs and may include alkenes and their methyl branches derivatives [69,72] but differ among species: in S. avenae, n-alkanes range from C23 to C33, with three predominant compounds being n-Heptacosane (n-C27, 29%), n-Nonacosane (n-C29, 27%), and n-Hentriacontane (n-C31, 10%) [64]. Contrastingly, these three n-alkanes are present in different proportions in A. pisum (n-C27, 14%, n-C29, 48%, n-C31, 21%) [67].
As host recognition in parasitoid wasps is achieved after antennal contact with kairomones and chemical cues located on the cuticle of insects [73], it is expected that ORs contribute to the detection and discrimination of different CHCs. This is the case for the Indian jumping ant Harpegnathos saltator (Hymenoptera: Formicidae), where several ORs are narrowly tuned to specific CHCs [74]. As current evidence suggests that OR expression is amenable to modulation by scent conditioning [56], A. ervi parasitoids reared on their natal host are not expected to respond to volatiles which they have not been previously exposed to or experienced (i.e., volatiles derived from the non-natal plant–host complex). This is because OR-coding genes might change their regulation and expression as a response to long exposures to specific environments, for example, during the developmental time into the body of the aphid host, which should modify the offspring oviposition behavior [75].
In our study, a significant downregulation was observed for four out of five odorant receptors (OR-B, OR-E, OR-H, and OR-J) in parasitoids transplanted onto S. avenae compared with parasitoids reared on the natal host A. pisum. Furthermore, homology searches using these four ORs as queries in BLASTx alignments against Drosophila spp. found their corresponding homolog sequences (OR9a, OR43a, OR13a, and OR85d, respectively; Table 3) and their odorant-response profiles [45] (Table 3). These odorant receptors show high responsivity to several volatiles emitted from the A. pisum–Vicia faba host plant complex [71,73,76], which are known to attract aphid natural enemies, including the parasitoid wasp A. ervi [77,78]. These volatiles include 3-hydroxy-2-butanone, a volatile present in the excreted honeydew of A. pisum when feeding on Vicia faba, (Z)-3-hexen-1-ol, which is one of the most abundant compounds found in the volatile blends emitted by V. faba plants when infested with A. pisum, and 1-Octen-3-ol, a volatile emitted by V. faba plants in response to herbivore walking activity [71,79]. Interestingly, OR85d shows response to 6-methyl-5-hepten-2-one [45], which is one of the most attractive volatiles for A. ervi females and is found in the headspace of V. faba plants infested with A. pisum. However, the release of this compound is not induced by other aphids like the black bean aphid Aphis fabae (Hemiptera: Aphididae), a non-suitable aphid host for A. ervi [77]. Hence, our results suggest that A. ervi reared on A. pisum are able to display plasticity for the expression of ORs when transplanted to a new aphid–plant complex (e.g., S. avenae–barley). This downregulation observed in A. ervi transplanted from A. pisum to S. avenae could be a consequence of a reduced exposure to volatiles from the interaction between A. pisum and broad bean and suggests that the expression of chemosensory genes is indeed affected by the exposure to plant volatiles, as reported for other insect species [80]. In the case of A. ervi transplanted from S. avenae onto A. pisum, only OR-H showed a significant upregulation, while the other ORs showed no variation. This imply that OR-H display changes in gene expression in response to new chemical cues, thus suggesting that A. ervi originated from a cereal aphid display a narrow plasticity in terms of ORs gene expression compared to parasitoids originated from a legume aphid.

4.4. Expression Changes in OBPs and ORs between Field and Caged A. ervi Populations: Implications for Loss of Host Fidelity

Chemosensory mechanisms play a key role in insect host location and host discrimination [18]. However, under laboratory rearing conditions, a loss of sensitivity and reduced variation in olfactory responses toward host volatiles may be observed [81]. This may have a significant impact on host fidelity, as a poor discrimination of specific cues from a blend of volatiles can restrict or even impair olfaction in insects [82]. Previous reports indicate that inbred A. ervi parasitoids rapidly accept aphids with no true selection of hosts, regardless of the natal host from which the parasitoids originated [31]. Hence, it is likely that the inbreeding caused by several generations of confined rearing conditions negatively impact on the regulation of chemosensory genes, with respect to the parasitoids’ “wild” counterparts sampled from the field, even if the parasitoids are kept on the same natal aphid–plant host complex (A. pisum) or are transplanted onto a novel aphid–plant host complex (S. avenae).
While field populations of A. ervi were collected from alfalfa crops and maintained in an A. pisum–Vicia faba system for two generations, caged populations also sampled from alfalfa were maintained for over 2 years (>75 generations) in that same aphid–plant system [31]. As the highly inbred laboratory populations had not been exposed to the variety of volatiles emitted from other plants and animals in nature, this may have led to an inaccurate sensory processing due to the lack of modulation by scent conditioning [56]. Furthermore, exposure to V. faba for several generations might explain the higher OR-E expression and the reduced expression of other chemosensory genes observed when field and caged populations were compared.
The reduced expression of ORs and OBPs observed in inbred A. ervi populations would explain their changes in host preference behavior [31], where a rapid host aphid acceptance and poor discrimination (loss of host fidelity) were observed, compared to their wild counterparts [30,31,83]. Interestingly, behavioral changes (e.g., weaker attraction to host plant volatiles) have also been reported for other predatory insects reared under confined laboratory conditions [84]. It is also noteworthy that the synthesis of extremely high quantities of OBPs and ORs requires large amounts of energy, which cannot be obtained without a fitness cost. This is particularly true in insects, which often have critical energy budgets [85,86]. However, rearing under highly homogenous and stable laboratory conditions for several generations with plentiful resources (food and hosts readily available) may relax the mechanisms in charge of keeping an optimal, “ready-to-use” olfaction system. Hence, under these homogenous conditions, parasitoids may shut down the expression of certain OBPs and ORs, losing the fine-tuning ability to discriminate among potential aphid hosts.

4.5. Implications for Biological Control and Final Remarks

The loss of sensitivity and discrimination ability of the olfaction system in a laboratory-reared parasitoid wasp can have undesirable effects on the efficiency of biological control, preventing the identification of a specific target pest in agroecosystems [87]. Hence, the downregulation of ORs and OBPs observed in inbred populations may explain their changes in host preference behavior related to a more rapid aphid acceptance and poor host discrimination compared to wasps from the field [30,31,83]. Moreover, the efficiency of biological control can also be threatened by a loss of fitness related to a biased production of males in the offspring of inbred parasitoids [31]. Therefore, the mass-reared production of parasitoid wasps for biological control programs should be carefully managed before their release at the farm scale, as the founder effect, genetic drift, and inbreeding depression can provoke profound and unpredictable changes in behavioral, physiological, and olfactory traits of relatively small caged populations reared on the same aphid–plant complex. Further studies on the molecular basis of host fidelity can shed light on how changes in olfaction sensitivity underpin changes in host preference and host fidelity. These may involve the study of the electrophysiological responses to specific volatiles when parasitoid wasps face natal and non-natal hosts and the study of the behavioral responses when specific OR genes are silenced, in order to verify whether host selection in A. ervi is actually based on changes in gene expression rather than on genetic differences.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4450/10/11/397/s1, Figure S1: Reciprocal transplant experiment of exogamic populations of Aphidius ervi (panels a, b, c, d) and comparison with endogamic populations on the same hosts (Sepúlveda et al. 2017a; panels e, f).

Author Contributions

Conceptualization, C.C.F.; Funding acquisition, C.C.F.; Investigation, G.I.B. and D.A.S.; Methodology, G.I.B.; Project administration, C.C.F.; Resources, G.I.B., D.A.S., and C.C.F.; Supervision, C.C.F.; Writing—original draft, G.I.B. and C.C.F.; Writing—review & editing, G.I.B., D.A.S., and C.C.F.

Funding

This research was funded by FONDECYT grants 1130483 and 1170943 to CC Figueroa and Iniciativa Científica Milenio (ICM) NC120027. GI Ballesteros was funded by CONICYT PhD fellowship 21120371. The funding agencies had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Acknowledgments

We thank Jürgen Gadau for help in the experimental design, Cinthya Villegas for help in fieldwork and morph identification, Lucía Briones for help in laboratory RNA extractions, Karen Balboa and Samuel Morales for help in qPCR and data analysis.

Conflicts of Interest

Authors declare no conflict of interest

Ethical Approval

All applicable international, national, and/or institutional guidelines for the care and use of animals were followed.
